IS397 ECN3694
1
User, Installation and Servicing Instructions
Opus 700 Electric Oven Ranges
OE7008 and OE7010
IS397 ECN 3694
2
Dear Customer,
Thank you for purchasing this Lincat product.
This is just one of over 450 different items of catering equipment available
which is constantly being extended and improved. Details are available from
your local distributor or direct from us.
Used for the purposes for which it is intended, and with careful maintenance
as outlined in this User Guide, your Lincat product will give you years of
trouble free service.
For use in GB & IE
IMPORTANT INFORMATION
Please read all of the safety and operating instructions carefully before using this
product. Please pay particular attention to all sections of this User Guide that carry
warning symbols and notices.
WARNING!
This is a Warning symbol. This symbol is used throughout the user guide
whenever there is a risk of personal injury. Ensure that these warnings are
read and understood at all times.
CAUTION!
This is a Caution symbol. This symbol is used throughout the user guide whenever
there is a risk damaging your Lincat product. Ensure that these warnings are read
and understood at all times.
NOTE:
This is a Note symbol. This symbol is used throughout the user guide to provide additional
information, hints and tips.
IS397 ECN 3694
3
CONTENTS
Contents Page
Customer Information………………………………………………………. 2
Warnings and Precautions………………………………………………… 4
Technical Data……………………………………………………………….. 5
Commissioning………………………………………………………………. 6
Check List of Enclosures…………………………………………………... 6
Installation…………………………………………………….……………… 7
User…………………………………………………………………………….. 8 - 10
Component Replacement ………………………………………….……… 10 - 12
Spare Parts List……………………………………………………………… 12

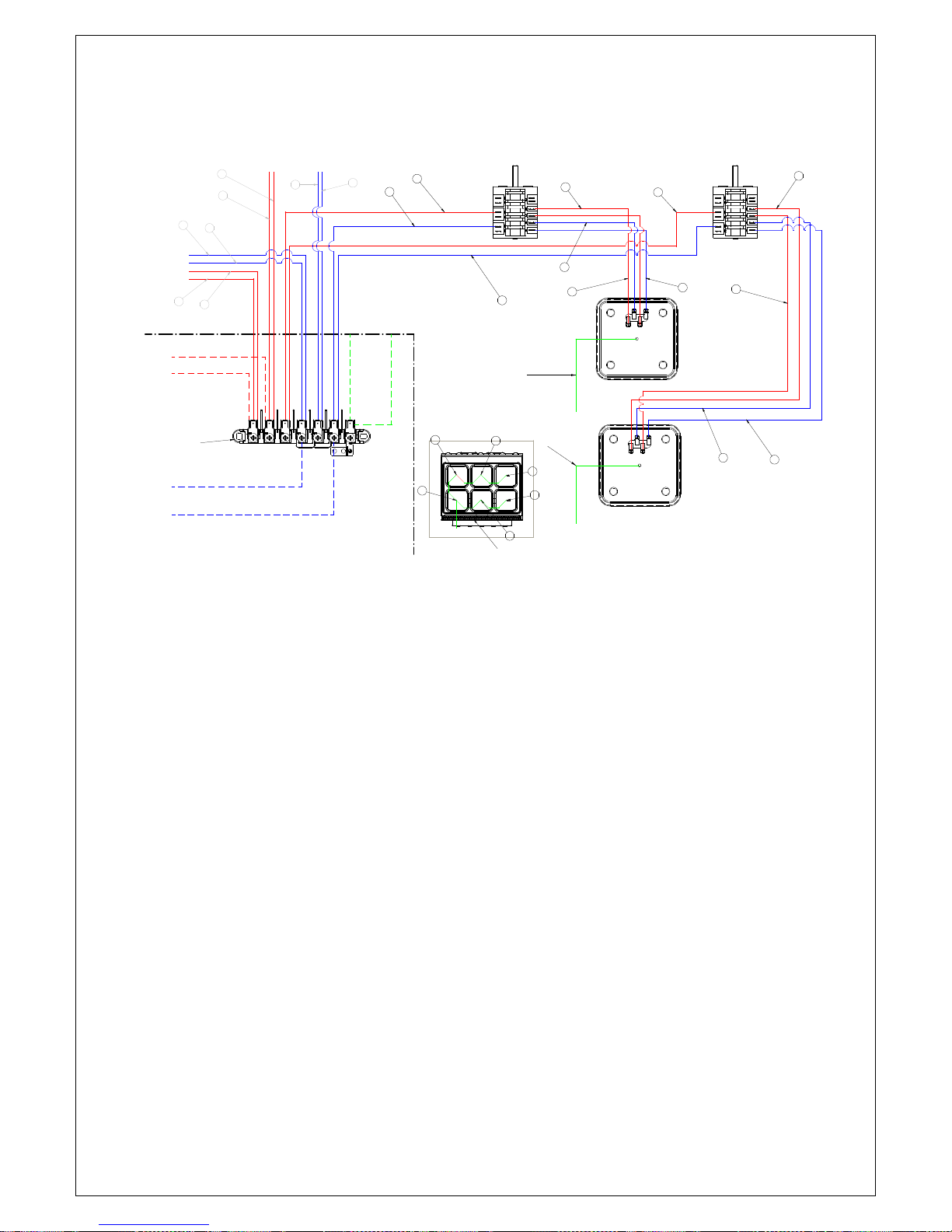

Wiring Diagrams………………………………………………………………. 13 - 14
Service information………………………………………………………….. 15
Guarantee………………………………………………………….………….. 15
IS397 ECN 3694
4

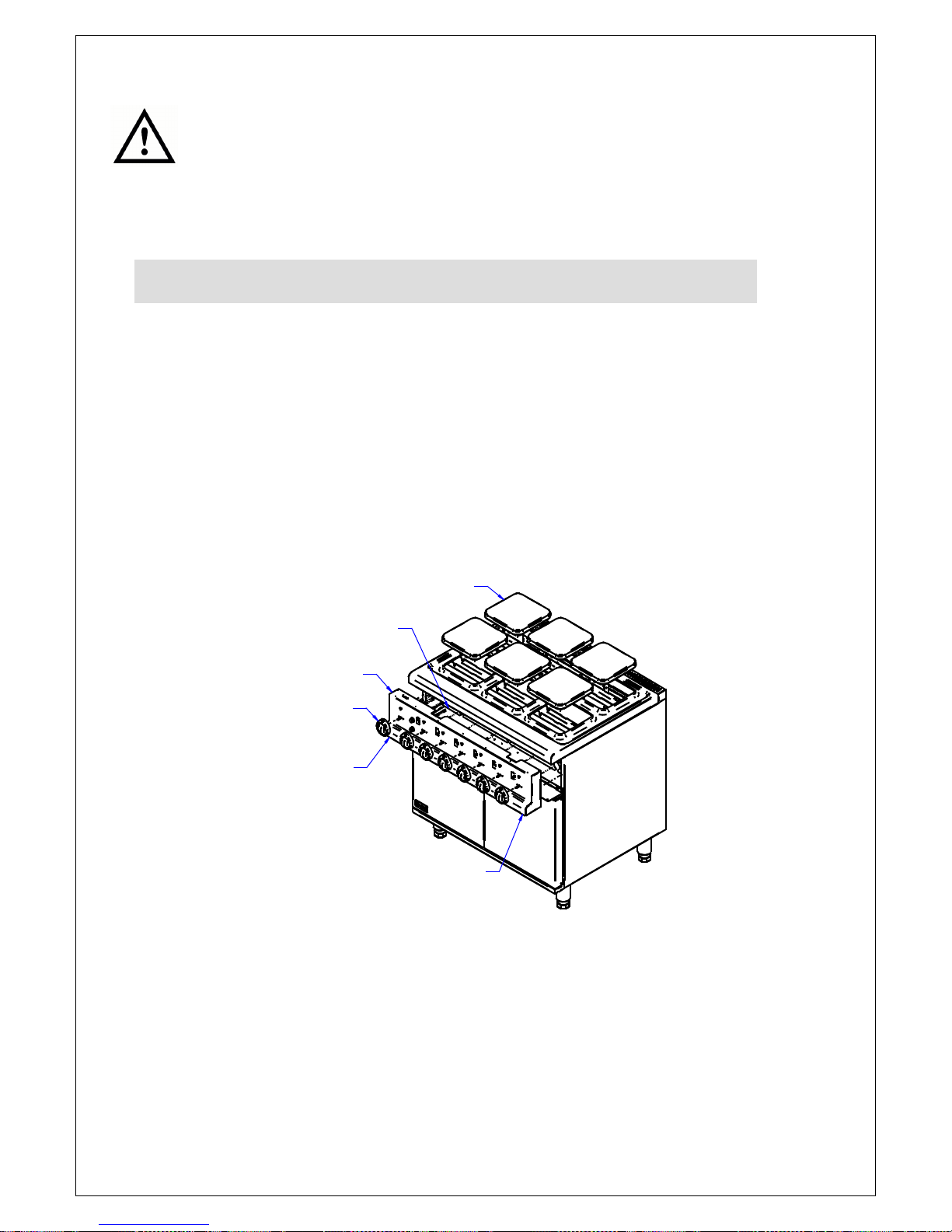

WARNINGS AND PRECAUTIONS
It is mandatory that all appliances are installed, commissioned and serviced by a qualified and
competent person as defined by the regulations in force in the country of installation.
Failure to comply will invalidate the warranty.
WARNING!
This appliance must be installed by a competent installation engineer in accordance with
the installation instructions, and should conform to the following requirements:
Local and National Building Regulations
Fire Precautions Act
Health & Safety At Work etc Act
BS EN60335-1 Safety of Household and Similar Electrical Appliances
BS EN 60335-2-42 Particular Requirements for Commercial Electric Forced
Convection Ovens, Steam Cookers and Steam-Convection Ovens
Do not obstruct or block the appliance flue.
After operation, some parts of the appliance will remain hot for a period of time. Please
take care to avoid accidental burns.
CAUTION!
All equipment must be earthed to prevent shock.
A means of disconnection must be incorporated in the fixed wiring having a contact
separation of at least 3.0mm in all poles.
Supply cords shall be oil-resistant, sheathed flexible cable not lighter than ordinary
polychloroprene or equivalent synthetic elastomer-sheathed cord (code designation 30245
IEC 57)
Connection of the electrical supply cable is made at the rear of the unit. Remove the
protective cover and fit a suitable cable into the strain relief and then to the inlet terminal
block. The unit is supplied for connection to a three-phase supply. Connections are
provided to allow termination of all three-phase cables, although only two are used to
power the unit. If the unit is to be fed from a single-phase then the two supply terminals
will need to be connected together using a wire link.
IS397 ECN 3694
5
TECHNICAL DATA
Model
OE7008
OE7010
Dimensions
Overall Height (mm)
950
950
Width (mm)
900
600
Depth (mm)
803
803
Weight (kg)
Hob Cooking Surface w x d (mm)
900 x 600
600 x 600
Usable Oven Capacity w x d x h (mm)
715 x 540 x 400
500 x 540 x 400
Oven Shelf Size (mm) w x d
770 x 530
440 x 530
Electrical
Fan Assisted Oven Rating
6.0 kW
4.0 kW
Hob Rating – per hob element
2.6 kW
2.6 kW
Total Power Rating @ 400V three phase
Phase
1
7.2 kW
Phase
1
4.0 kW
Phase
2
7.2 kW
Phase
2
5.2 kW
Phase
3
7.2 kW
Phase
3
5.2 kW
Fan Rating
2 x 32 W
32 W
Voltage 3N~
Phase
1
31A
Phase
1
17.4A
Phase
2
31A
Phase
2
22.6A
Amps 3N~
Phase
3
31A
Phase
3
22.6A
Total Power Rating
21.6 kW
14.4 kW
IS397 ECN 3694

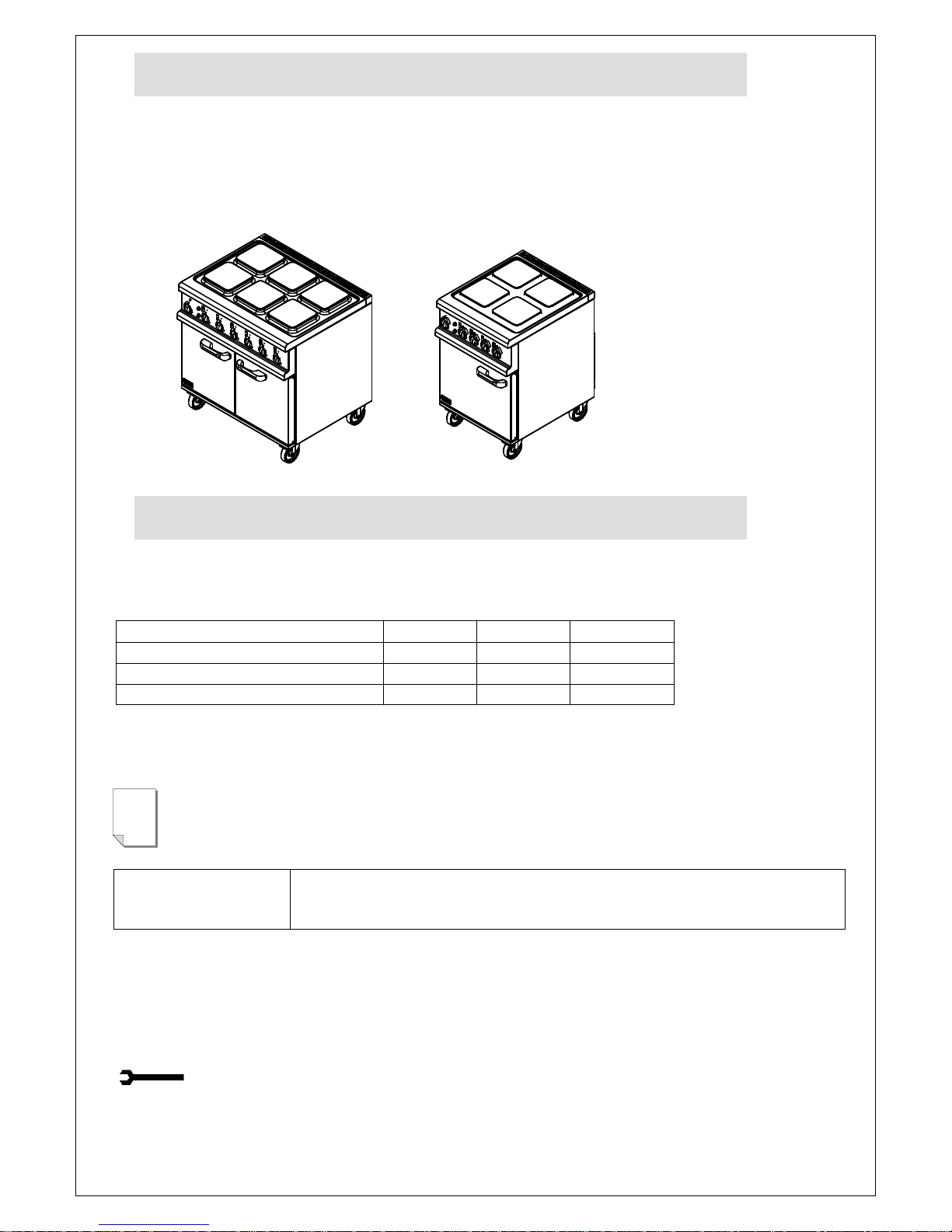

6
NOTE
COMMISSIONING
PREPARATION
Remove all packaging and protective coatings prior to installation.
The appliance is supplied as standard with swivel castors. Adjustable feet are available, if required,
for these appliances.
OE7008 OE7010
CHECK LIST OF ENCLOSURES
Please ensure the following items are included with this piece of equipment:
Model
OE7008
OE7010
Tick
Wire Shelf
3 3
Warranty Card
1 1
User Instructions
1 1
SERIAL NUMBER
Each appliance manufactured at Lincat has a unique identifying number found in the top
right hand corner of the data plate attached at the rear of the appliance. Please record that
number in the space provided should it be required for future reference.
Serial Number
MARK OF CONFIDENCE
Every singe product that leaves our factory bears a serial plate showing the assembler’s
initials. It’s a mark of confidence we have in our people and our manufacturing process.
IS397 ECN 3694
7
INSTALLATION
SITING
The appliance must be installed in accordance with the appropriate regulations listed prior.
The appliance should be installed on a level surface ensuring the unit is stable, firmly located and
positioned to minimise the possibility of accidental touching.
A clear space of at least 100mm must be left to the rear of the appliance to allow for servicing with a
clear space of 600mm to the front to allow for safe operation. A minimum space of 100mm must be
left between any side of the unit and any combustible surface or walls.
Any partitions, walls or kitchen furniture in close proximity must be of non-combustible
materials and not be closer than 100mm from the sides and rear of the flue.
ELECTRICAL SUPPLY AND CONNECTION
Connection of the electrical supply cable is made at the rear of the unit. Remove the protective cover
and fit a suitable cable into the strain relief and then to the inlet terminal block. The unit is supplied
for connection to a three-phase supply. Refer to schematics on pages 9 and 10.
LOCKING OF WHEELS
When the appliance has been installed in its intended position the front castors should be locked by
depressing the locking tabs on the castors.
Locks should only be released for the intention of moving the appliance for cleaning
purposes and or routine servicing of the appliance.
HOTPLATES
Hotplates are controlled by six position rotary switches, ‘6’ is the hottest. Off is indicated by a filled
circle as shown in the control panel illustration on page 8.
IS397 ECN 3694
8
USER INSTRUCTION
APPLIANCE USE
This appliance is only for professional use and should only be used by qualified personnel.
Ensure that the person responsible understands how to safely operate, clean and shut down the
appliance and is made aware of the position and operation of the isolating switch in the event of an
emergency.

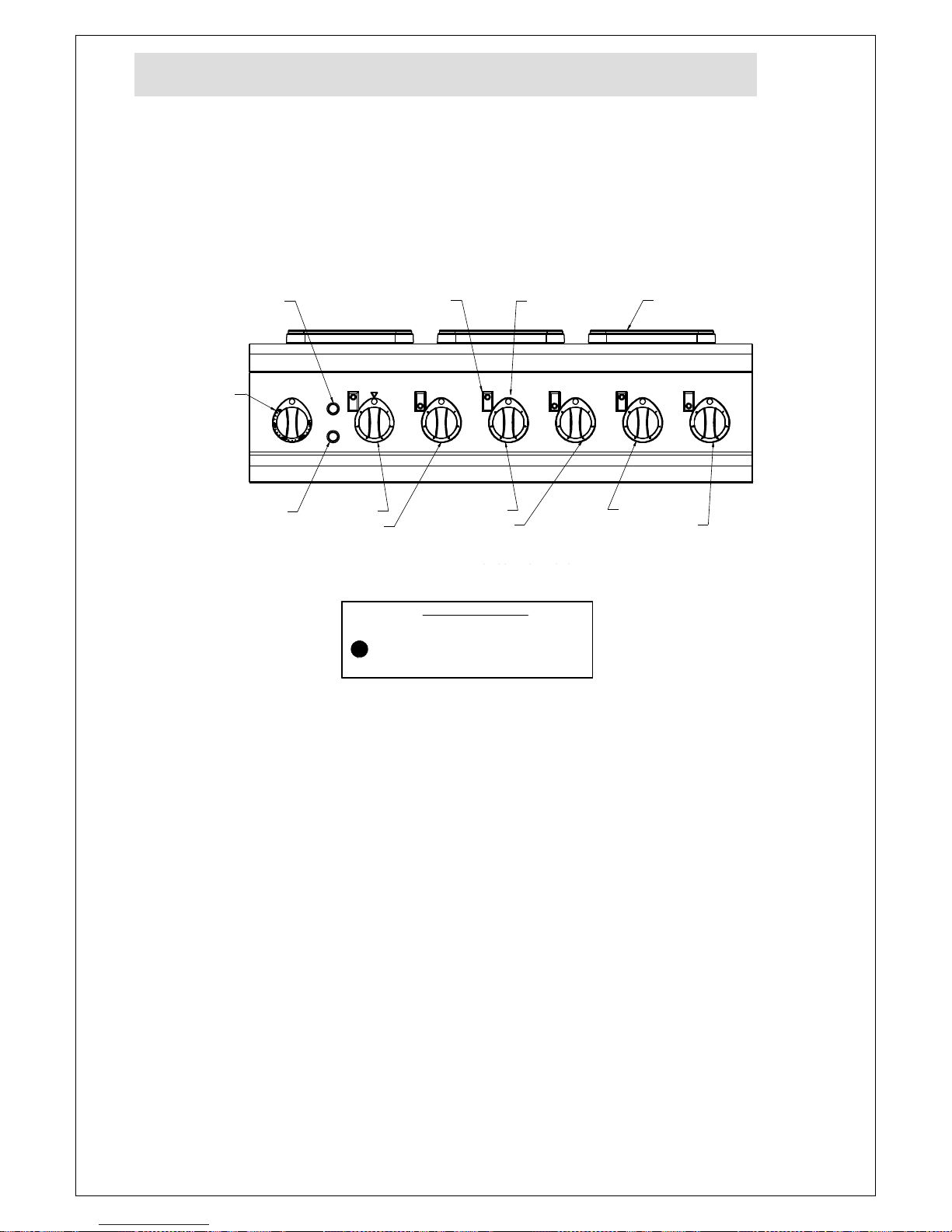

CONTROL PANEL
HOB ELEMENTS
ON / OFF INDICATOR
HOB INDICATOR
MAINS POWER ON
OVEN THERMOSTAT
CONTROL KNOB
OVEN ELEMENT
POWER ON
LH REAR HOB
LH FRONT HOB
MIDDLE REAR HOB
MIDDLE FRONT HOB
RH REAR HOB
RH FRONT HOB
HOB INDICATORS
OFF
HIGH
LOW
HOB CONTROL KNOBS
LH FRONT HOB
MIDDLE REAR HOB
MIDDLE FRONT HOB
RH REAR HOB
RH FRONT HOB
PAN SUPPORTS
LH REAR HOB
ON / OFF INDICATOR
HOB INDICATOR
1 2 3 4 5 6
HOTPLATE CARE
Before using the appliance for the first time;
Without pans, turn to the maximum setting for approximately four minutes before turning off or
adding pans. This allows the plates to cure and harden to obtain maximum durability.
HOTPLATE OPERATION
Hotplates are controlled by six position rotary switches, 6 is the hottest. ‘Off’ is indicated by a filled
circle, as shown in the control panel illustrations above.
NB: It is important that good quality pans are used to ensure maximum efficiency. Wherever possible
always use lids.
OVEN SETTING
Check the green ‘power on’ neon on the control panel is illuminated.
Set the control knob to the desired temperature in degrees Celsius. The orange light will
illuminate indicating that power is being supplied to the elements.
The orange light will go out when the oven has achieved the set temperature. Periodically the
orange light will illuminate to indicate that the oven temperature has fallen and the elements
are turned on to top up the temperature.
IS397 ECN 3694
9
SHUT DOWN
To shut down the appliance rotate all control knobs clockwise to the OFF position.
After operation, some parts of the appliance will remain hot for a period of time; care
should be taken to avoid risk of burns.
CLEANING
Ensure the Electricity supply is isolated before commencing cleaning.
All removable parts can be cleaned in a commercial dishwasher.
Hotplates
Ensure hotplates are cool before cleaning.
Hotplates can be wiped down with a moist cloth. For more stubborn dirt commercial cleaners
and scourers may be used.
After cleaning apply a thin film of vegetable oil to the plates.
Oven
The unit features removable liners for the sides, base and top of the oven to allow easy cleaning away
from the unit.
After allowing the unit to cool, slide out the top liner from the oven.
Slide out the base tray.
Remove the shelves from the oven, See below.
To remove the shelf supports, lift up and out to disengage.
Lift off each of the side liners from the unit.
External surfaces can be cleaned using a cloth moistened with a warm detergent solution.
For heavy, stubborn deposits a de-greasing agent ‘CARBON-OFF’ is available from Lincat
upon request.
When replacing parts that have been removed for cleaning, ensure correct relocation so as not
to affect oven performance.

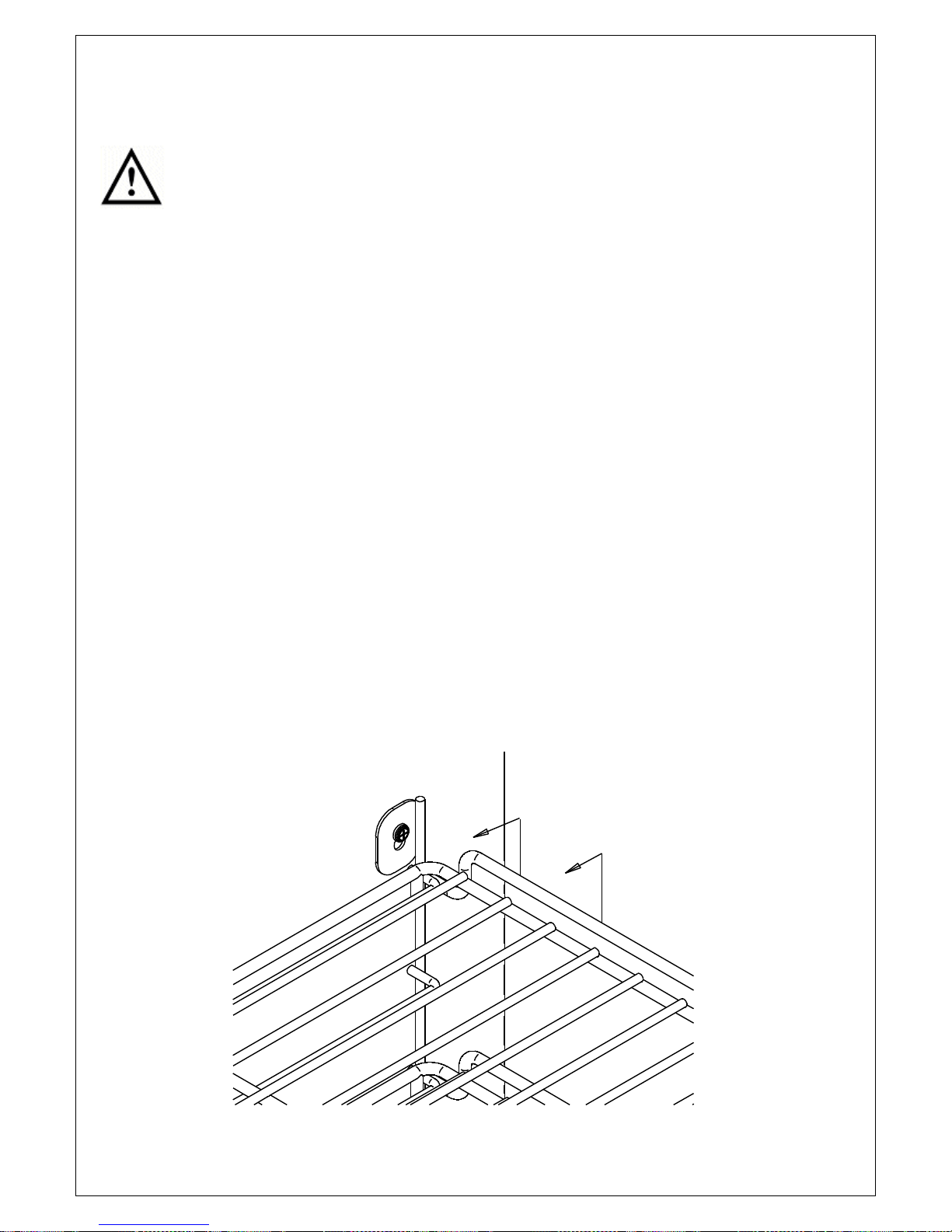

Tilt shelf up at rear and pull to disengage
IS397 ECN 3694
10
External Cleaning
Do not use abrasives on stainless steel or enamelled parts.
Do not use any products containing chlorine or hydrochloric acid to clean stainless steel
surfaces.
Do not clean the appliance using a water jet.
COMPONENT REPLACEMENT
Hotplate Switch
1. Remove the control knobs and fascia panel, by firstly removing fixing screws .
2. Protect the surrounding area panel work with soft material and support the fascia panel
against it. Access to the hotplate switches is now possible. Remove completely the
component screws from the fascia.
3. Remove and replace wires correctly, ideally transferring wires across, from the old switch to
the new, one at a time. Numbering each wire with an indelible pen may also help.
4. Replacement is a reversal of the removal sequence. Be careful not to trap the wiring harness
whilst replacing the fascia and check the wiring is still protected where it passes through the
heat deflector.
CONTROL
KNOB
FASCIA
HOTPLATE
ELEMENT
FASCIA
FIXING
SCREW
FASCIA
FIXING
SCREW
HEAT
DEFLECTOR
Thermostat
1. Follow the procedure as for replacing Hotplate Switches above.
2. Unscrew the heat deflector.
3. Unclip the thermostat phial and remove the thermostat completely, keep the insulating sleeve
to use on the new thermostat.
4. When replacing the new thermostat ensure that the insulation is secured in place and that the
routing is secure to prevent shorting internally with any switch gear.
5. Replacement is a reversal of the removal sequence. Be careful not to trap the wiring harness
whilst replacing fascia.
IS397 ECN 3694
11
Hotplate
1. Remove the control knobs and fascia panel, by firstly removing fixing screws.
2. Protect the surrounding area panel work with soft material and support the fascia panel
against it. Access to the hotplate switches is now possible. Remove completely the
component screws from the fascia.
3. Unscrew the heat deflector. Access to the hotplate restraining nuts is now possible through the
fascia.
4. Remove the hotplate restraining nut and press the underside of the hotplate up to facilitate
easy removal from above. Protect the surrounding panel work with soft material. Support the
hotplate and access to the hotplate connection block is now possible. Number the wires with
an indelible pen to facilitate replacement.
5. Replacement is a reversal of the removal procedure, taking care not to trap the wiring harness.
6. Check the unit for electrical safety.
Oven Fans
1. Ensure that the electrical supply is disconnected.
2. Remove the oven shelves.
3. Loosen the fan guard screws and lift off the keyhole slots.
4. Remove the hex head nut from the centre of the fan, this is a left-hand thread, and remove the
fan blade.
5. Working from the back of the unit, remove the rear cover panel.
6. Remove the electrical connections from the relevant motor.
7. Remove the three securing screws and extract the motor unit.
8. Refitting is the reversal of removal.
9. Check the unit for electrical safety.
Contactor
1. Ensure that the electrical supply is disconnected.
2. Working from the back of the unit, remove the rear cover.
3. Remove the electrical connections from the contactor.
4. Release the clip from the base of the contactor.
5. Refitting is the reversal of removal.
6. Check the unit for electrical safety.
Over Temperature Cut-Out Thermostat
1. Ensure that the electrical supply is disconnected.
2. Remove the thermostat bulb from the top of the oven.
3. Working from the back of the unit, remove the rear cover panel.
4. Remove the electrical connections from the thermostat housing.
5. Remove the front control panel A.
6. Pull the thermostat bulb through the oven back.
7. Remove the two securing screws and remove the thermostat unit.
8. Refitting is the reversal of removal.
9. Check the unit for electrical safety.
IS397 ECN 3694
12
Control Thermostat
1. Ensure that the electrical supply is disconnected.
2. Remove the thermostat bulb from the top of the oven.
3. Remove the control knobs B from the front of the unit.
4. Remove the two screws holding the control thermostat to the control panel.
5. Remove the control panel A as detailed previously.
6. Remove the electrical connections from the thermostat housing.
7. Remove the thermostat and capillary from the unit.
8. Refitting is the reversal of removal.
9. Check the unit for electrical safety.
Part Number
Part Description
Used On
BU55
Door Bushes
All models
BU72
Door Bushes
All models
CA143
125mm Braked Swivel Castors
All models
CA145
125mm Un-Braked Swivel Castors
All models
CO215
Contactor
All models
DO211
Door Catch Assembly
All models
EL188
Hotplate Element
All models
EL149
Element – 4kW
OE7010
EL248
Element – 3kW
OE7008
FA12
LHS Fan/Motor Assembly
OE7008
FA102
RHS Fan/Motor Assembly
All models
GL77
Cable Restraint
All models
HA77
Door Handle
All models
KN227
Control Knob – Hob
All models
KN228
Control Knob – Oven
All models
LE37
Adjustable Leg - 150mm
All models
NE39
Green Neon
All models
NE40
Amber Neon
All models
SE25
Door Seal
All models
SH112
Oven Shelf
OE7010
SH81
Oven Shelf
OE7008
SP56
Leg Spanner
All models
SR07
Side Rack
All models
SW14
Six Position Switch
All models
SW58
Fan Switch
All models
TC46
Thermostat
All models
TH111
Safety Cut-Out Thermostat
All models
SPARE PARTS LIST
IS397 ECN 3694
13
OE7010 Range Wiring (E357)
SW14
SW14
EL188
EL188
TE47
CO214
TH63
EL149
FA12
NE39
NE40
SW58
TH46
FRONT
REAR
FRONT
REAR
L1 - OVEN
L2 -
LHS HOBS
L3 -
RHS HOBS
LEFT HAND SIDE
RIGHT HAND SIDE
(IDENTICAL TO
LEFT HAND SIDE)
1
2
3
5
7
8
9
11
13
14
10
6
12
15
17
16
18
19
20
21
22
23
24
25
27
28
29
30
31
32
33
34
35
36
FACIA TO CHASSIS
BONDING
CONNECT INCOMING
NEUTRAL TO CENTRE
TERMINAL
2 B
1 B
3 B
4 B
2 B
1 B
3 B
4 B
B
B
B
B
2 3 1 4
2 3 1 4
4
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B B
B
B
B
B
TE55
A1
A2
NOL3NO
L2
L1
NO
T3 T2 T1
26
OE7008 Range Wiring (E330)
L1 L2 L3
TE55
EARTH TAG
TE47
TERMINAL BLOCK
TH63
SAFETY THERMOSTAT
CO214
CONTACTOR
NE39
GREEN
NEON
NE40
AMBER
NEON
SW58
FAN
SWITCH
TH46
OVEN
THERMOSTAT
EL248
ELEMENT
EL248
ELEMENT
FA12 FAN
FA12 FAN
29
28
26
27
B B
Connect to
inner
bulkhead
via
heat
deflector
screw
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
N
20
21
22
23
24
25
30
31
32
Connect
to fascia
IS397 ECN 3694
14
OE7008 Hob Wiring (E329)
SEE Drg: E329 FOR OVEN WIRING
(wiring from E329 shown dashed)
L1 L2 L3
2 3 1 4
2 3 1 4
TO CENTRE FRONT &
REAR HOBS
TO LEFT SIDE
FRONT &
REAR HOBS
RIGHT SIDE FRONT & REAR HOBS
1
1
1
2
2
2
3
4
5
6
7
7
8
8
8
7
9
11
12
NOTE: There are three identical L & N
cable sets for each OE7008 range,
one set of which is illustrated. Each
live input cable pair (cables 1 & 2) are
to be connected to a separate input
phase (L1, L2 or L3) on the TE47
terminal block.
TE47
(see drg: E329)
13
13
13
13
13
14
See hob diagram
(below)
See hob diagram
(left)
Terminate on TE47
2
1 B
3
4
4
3
1 B
2
10
IS397 ECN 3694
15
Catering equipment should be routinely serviced to ensure a long trouble free life. It is recommended
that this appliance is serviced every 6 months by a competent engineer.
For help regarding the installation, maintenance and use of your LINCAT equipment, please call:-
LINCAT SERVICE HELP DESK
+44 (0) 1522 875520
AUTHORISED SERVICE AGENTS
We recommend that all servicing other than routine cleaning should be carried out by our authorised
service agents. We cannot accept responsibility for work carried out by other persons.
Please quote both the model and serial numbers from the data plate attached to the unit. Give brief
details of the service requirement.
If possible please quote the product code of the part number you require.
Work carried out under warranty will normally be undertaken only during normal working hours, i.e.
Monday to Friday, 8.30 a.m. - 5.00 p.m.
CONDITIONS OF GUARANTEE
The guarantee does not cover:-
1) Accidental breakage or damage
2) Operational misuse, wear and tear from normal usage, incorrect adjustment, or neglect.
3) Incorrect installation, maintenance, modification or unauthorised service work.
SERVICE INFORMATION
Loading...
