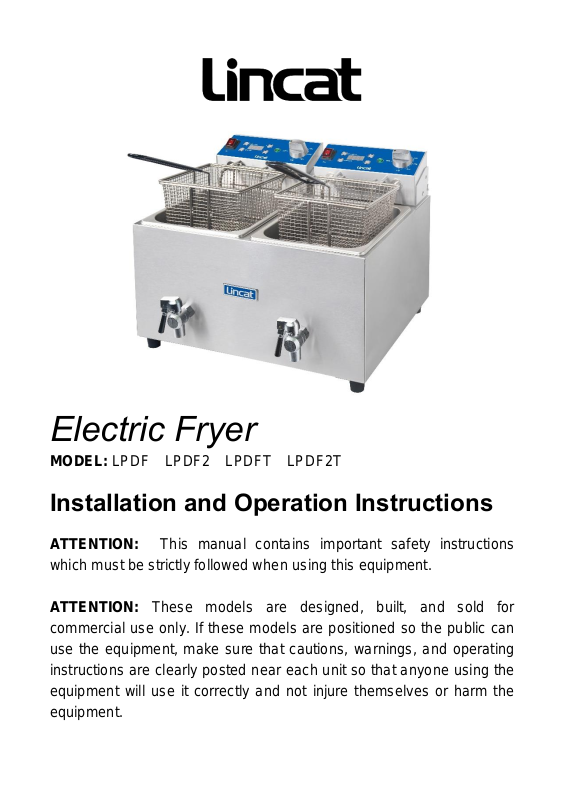

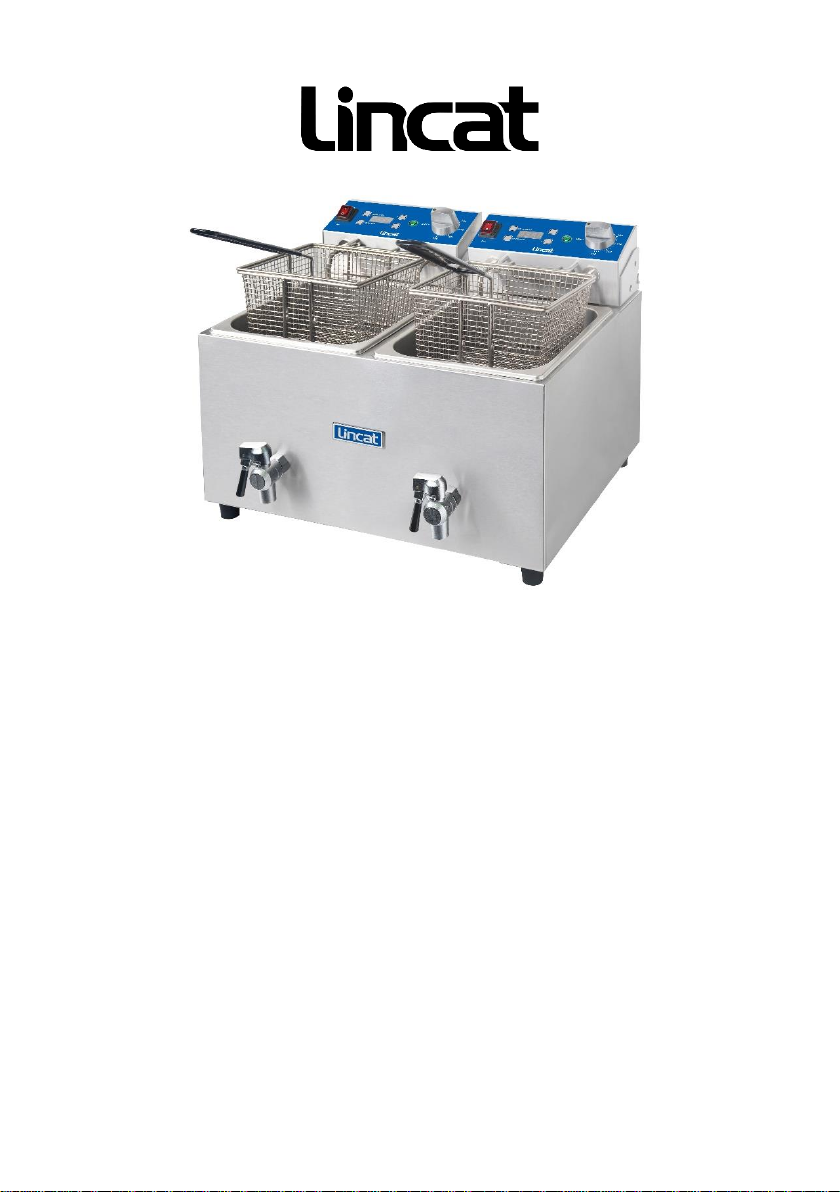

Lincat LPDF2, LPDFT, LPDF2T, LPDF User Manual

Electric Fryer

MODEL: LPDF LPDF2 LPDFT LPDF2T

Installation and Operation Instructions

ATTENTION: This manual contains important safety instructions

which must be strictly followed when using this equipment.

ATTENTION: These models are designed, built, and sold for
commercial use only. If these models are positioned so the public can
use the equipment, make sure that cautions, warnings, and operating
instructions are clearly posted near each unit so that anyone using the
equipment will use it correctly and not injure themselves or harm the
equipment.

Installation and Operation Instructions

2

Catalogue

Foreword………………………………………………………… 3

Safety tips ………………………………………………………4-7

Introduction ………………………………………………………8

Specifications………………………………………………………9

Operation………………………………………………………10-11

Cleaning and maintenance …………………………………… 12

Troubleshooting ………………………………………………13-14

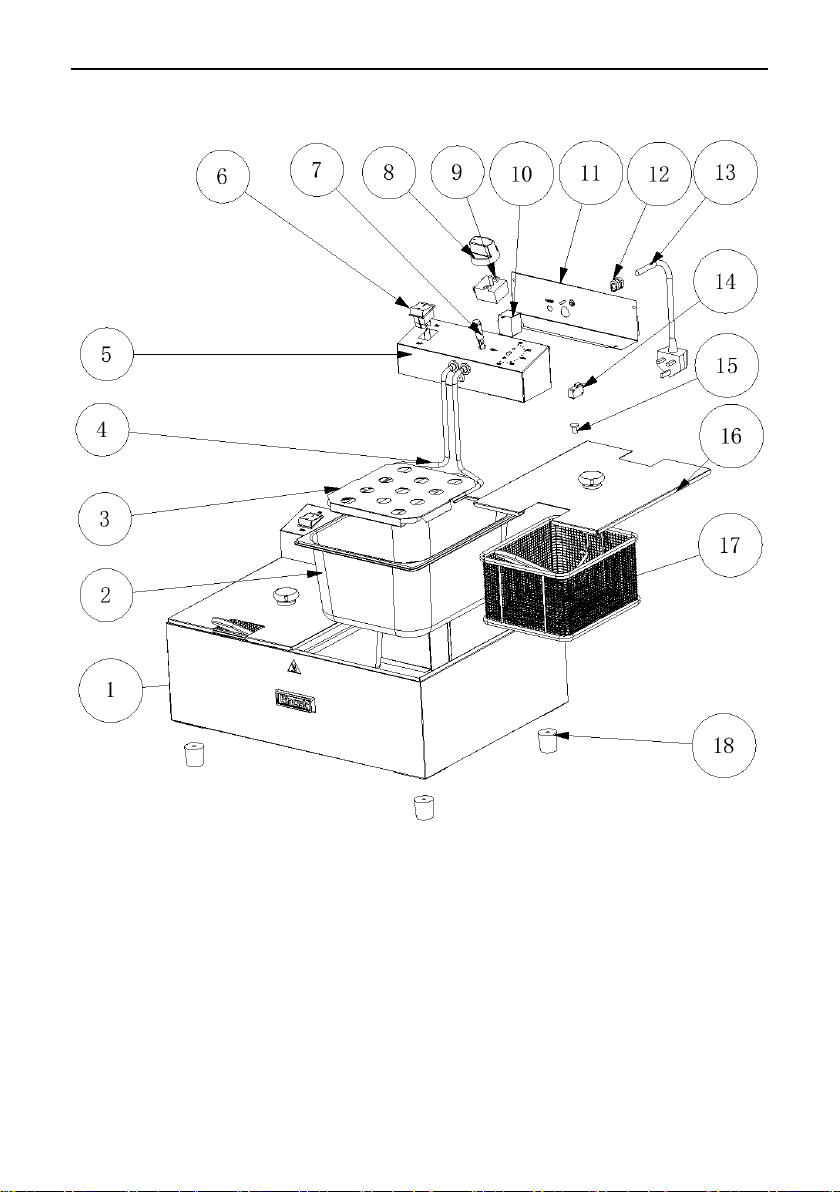

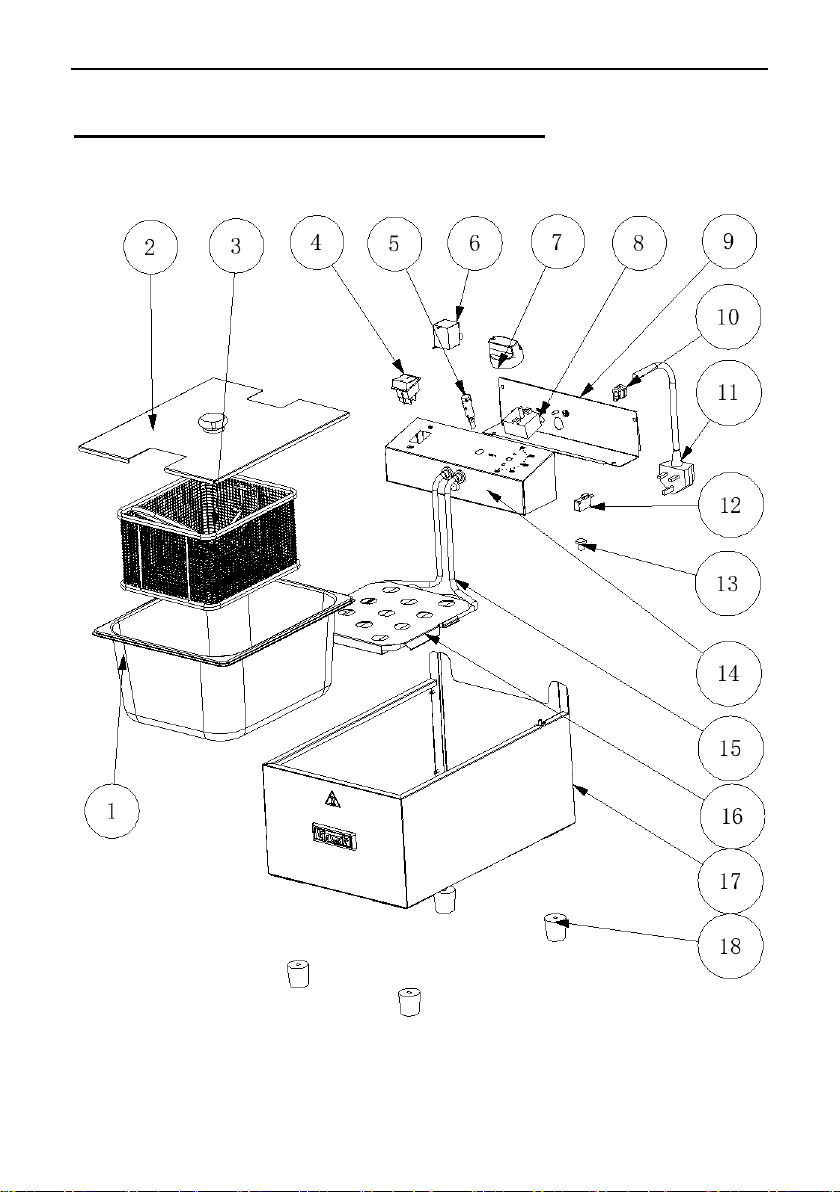

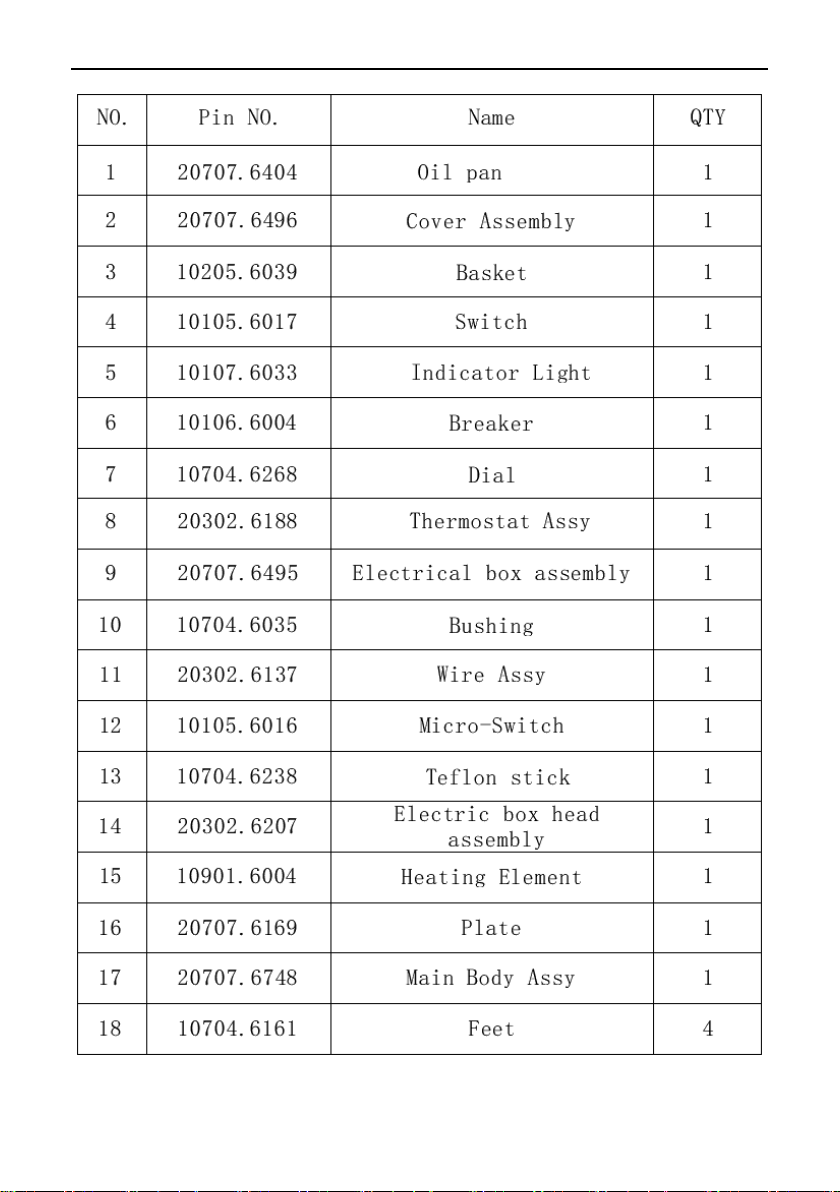

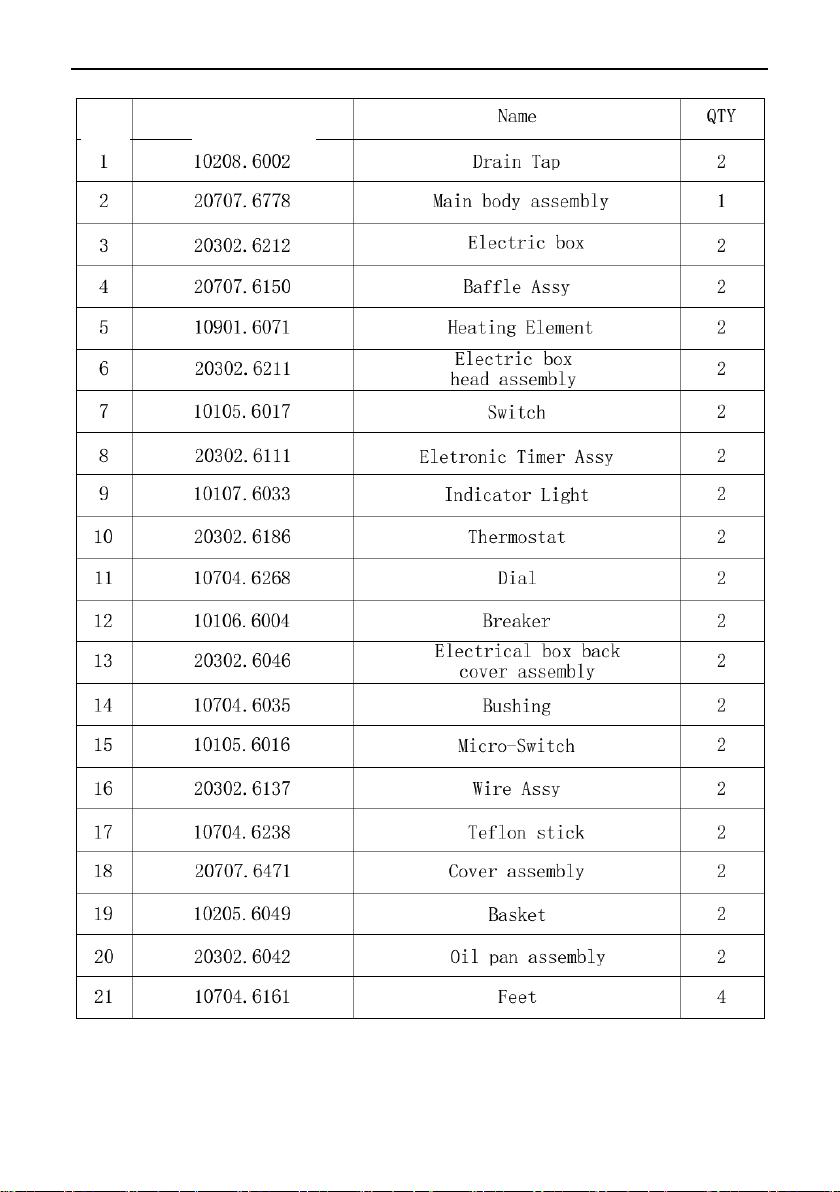

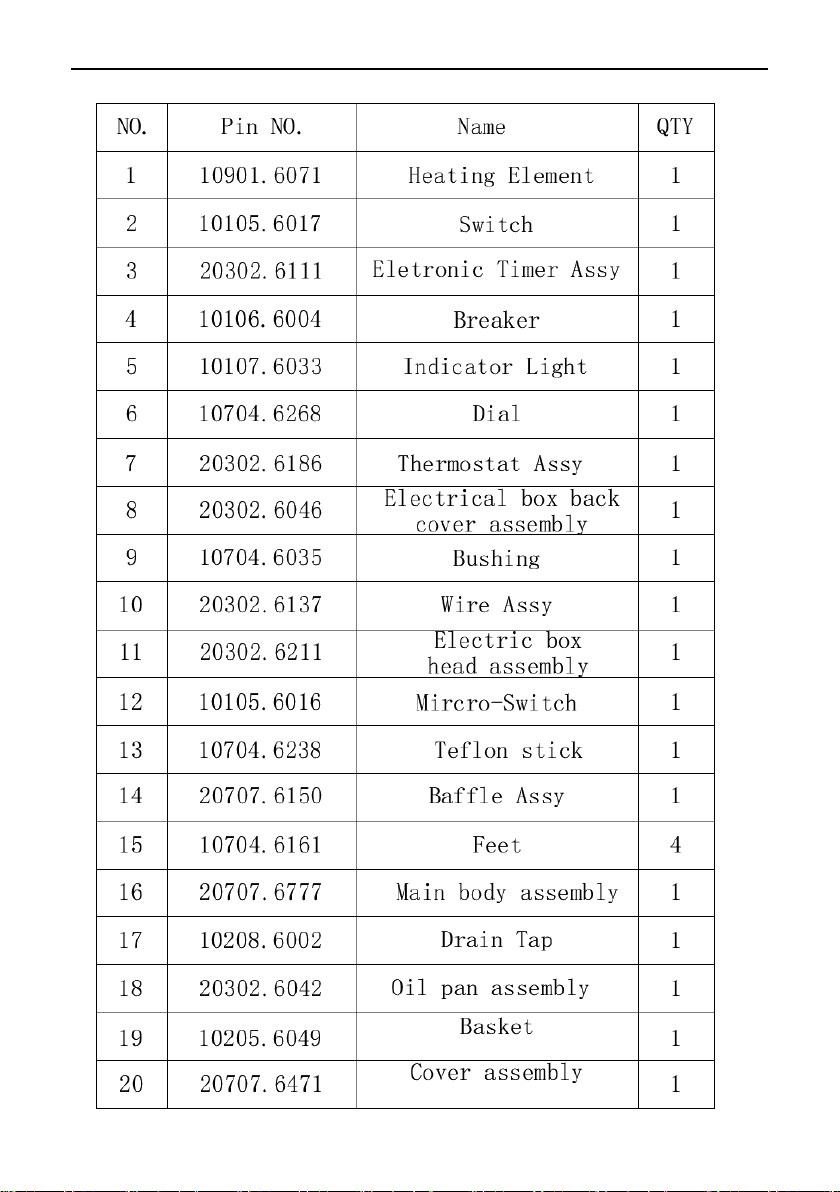

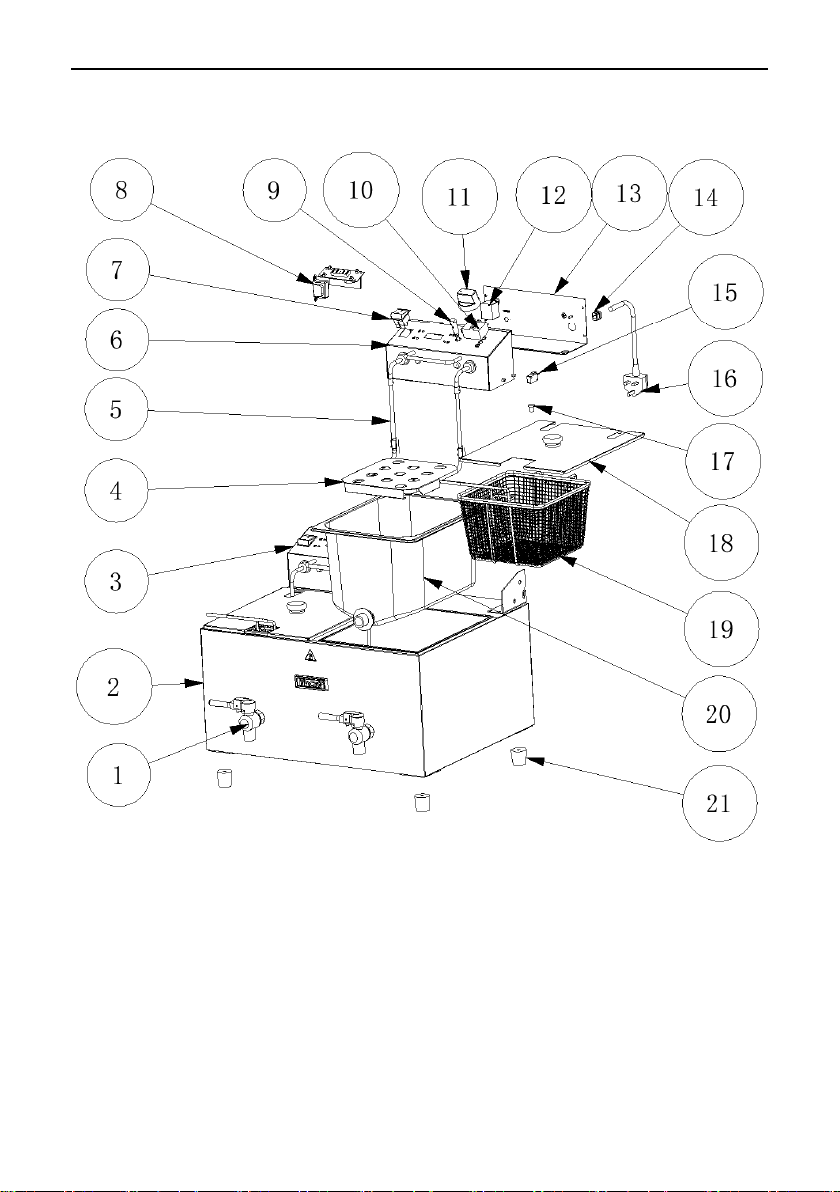

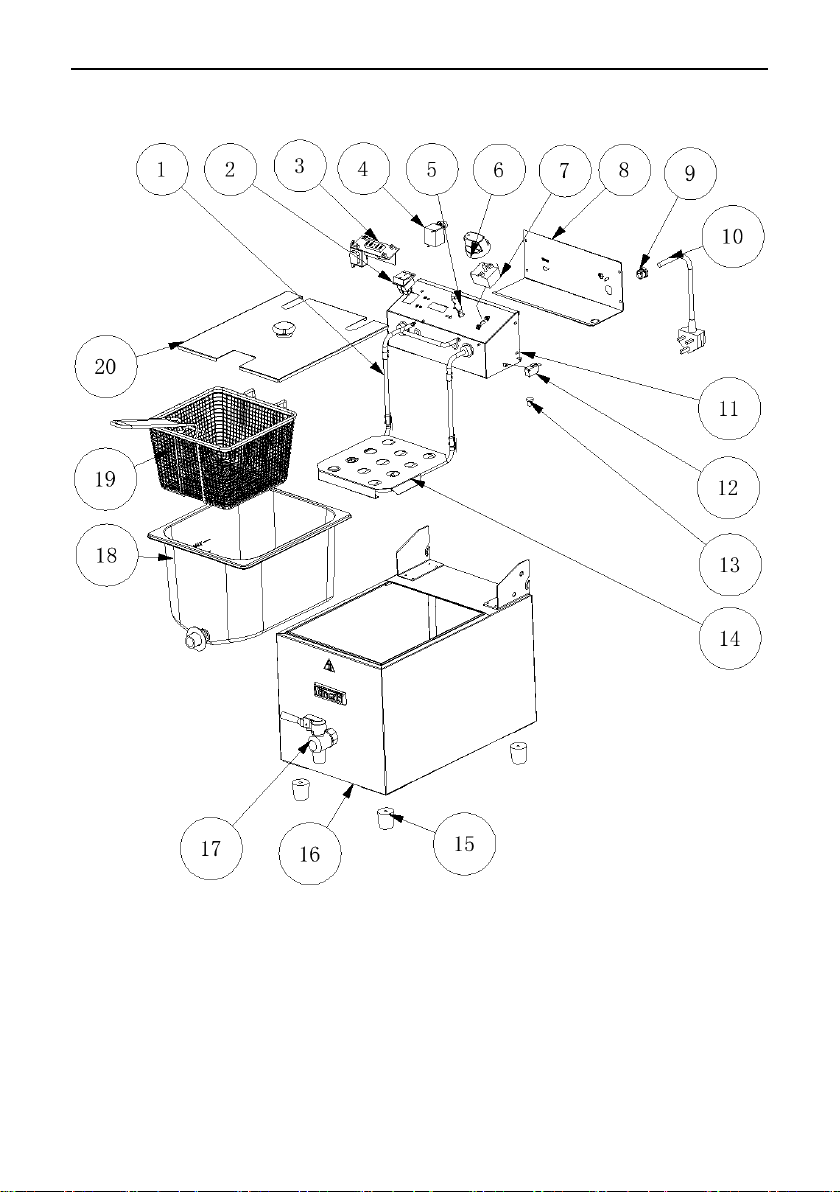

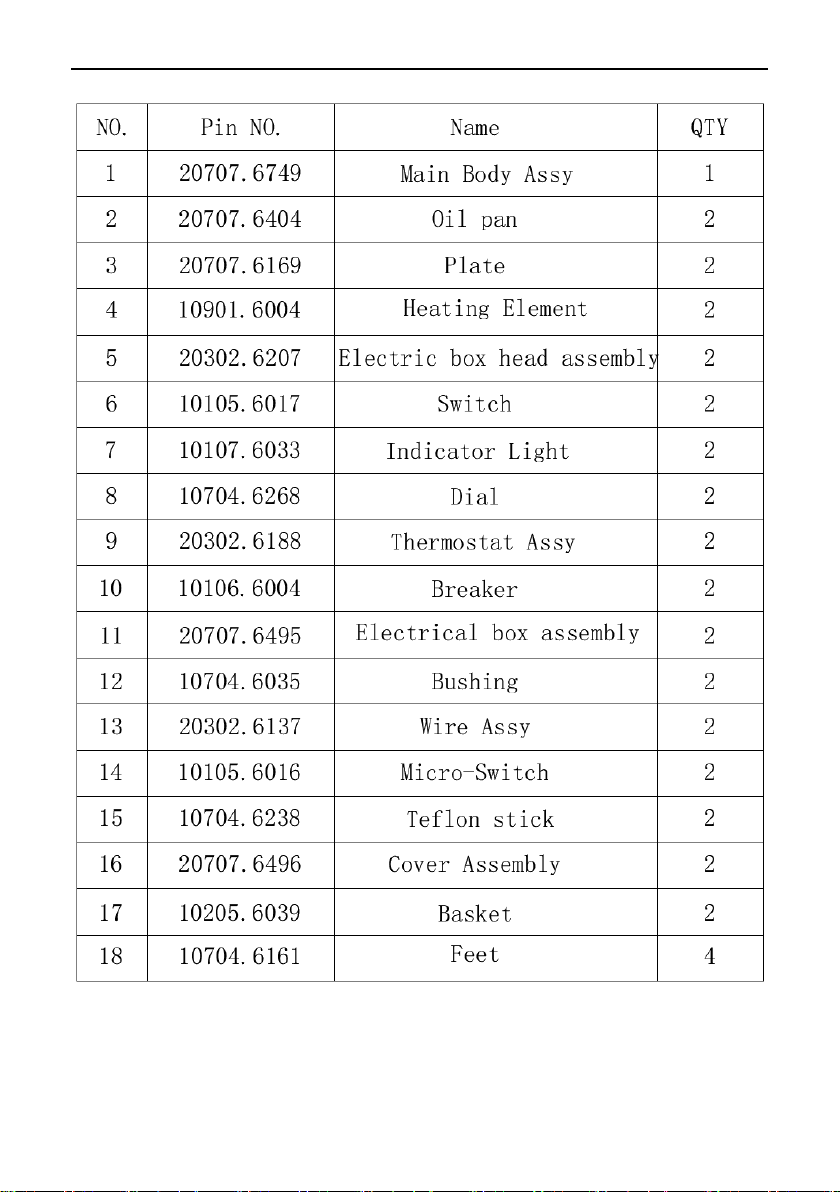

Explosion view and spare part list ………………………… 15-22
Compliance…………………………………………………… 23-24

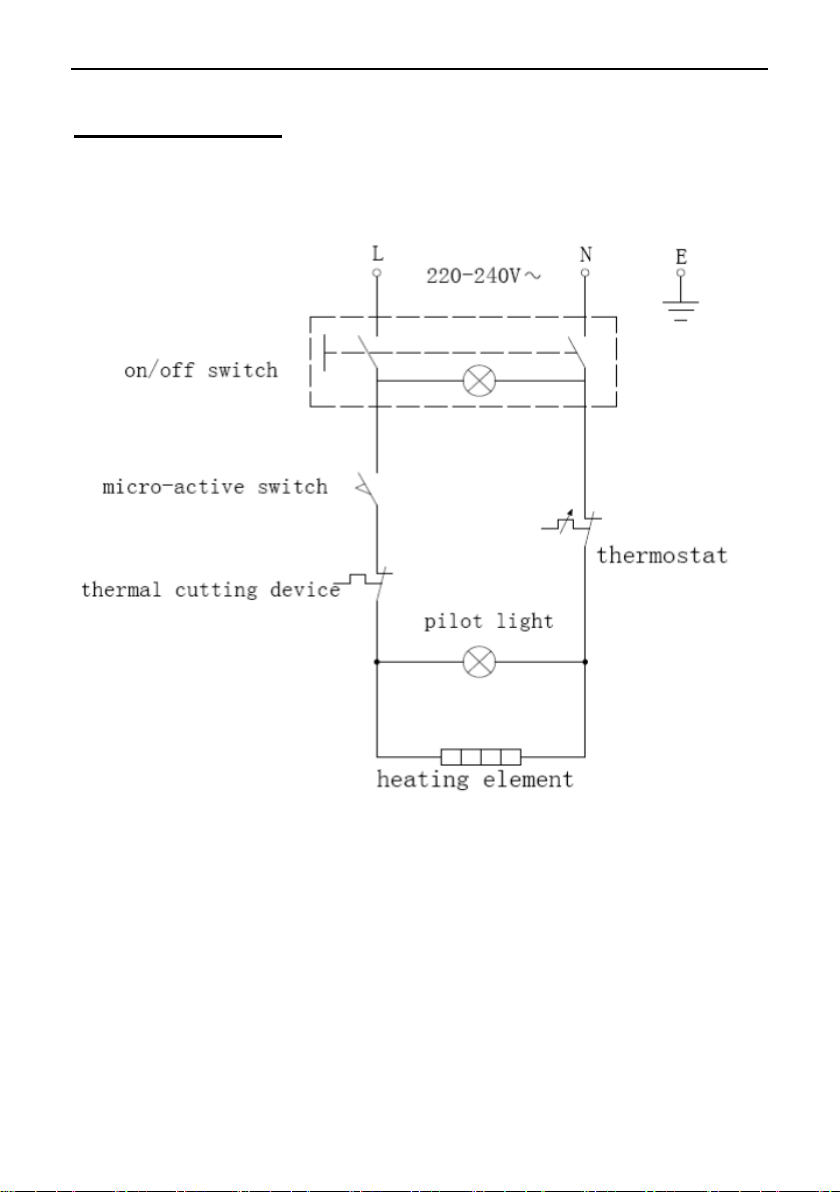

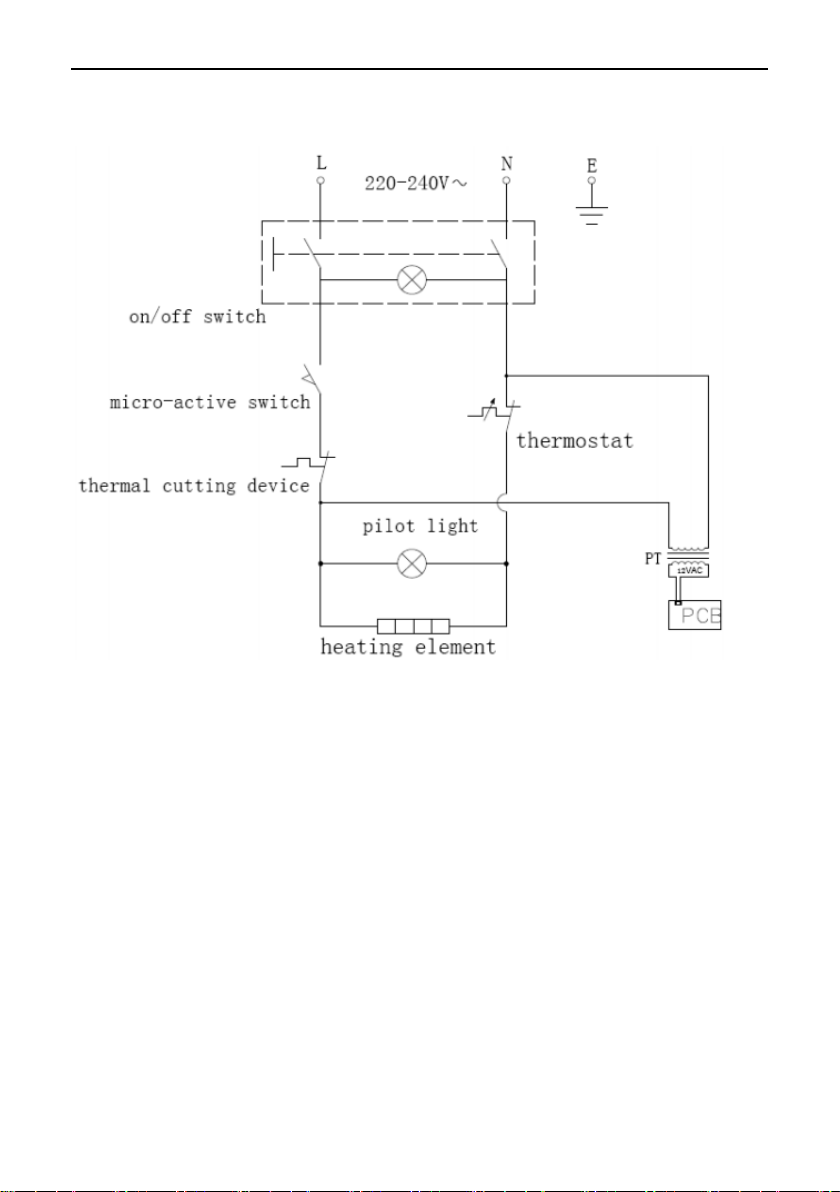

Circuit diagram ……………………………………………… 25-26

Installation and Operation Instructions

3

Foreword

Congratulations on your purchase of LINCAT commercial cooking
equipment. LINCAT takes pride in the design and quality of our
products. When used as intended and with proper care and
maintenance, you will experience years of reliable operation from this
equipment. To ensure the best results, it is important that you read
and follow the instructions in this manual carefully.

You must pay attention to the tips before use, it would not be under
warranty if it happened as follow:

*The instructions in this manual have not been followed correctly.
*Non- authorised personnel have tampered with the machine.
*Non-original spare parts are used.
*The appliance has not been handled and cleaned correctly
* The appliance has been used for a purpose for which it was not

intended.

*The appliance is used for commercial only.
* Acts of God, fire, water damage, burglary, accident, theft.

Installation and Operation Instructions

4

Safety Tips

WARNING: Improper installation, adjustment, alteration, service, or
maintenance can cause property damage, injury, or death. Read the
installation operating and maintenance instructions thoroughly before
installing or servicing this equipment.

CAUTION: These models are designed, built, and sold for commercial
use only. If these models are positioned so the public can use the
equipment, make sure that cautions, warnings, and operating
instructions are clearly posted near each unit so that anyone using the
equipment will use it correctly and not injure themselves or harm the
equipment.

WARNING: A factory authorised agent should handle all maintenance
and repair. Before doing any maintenance or repair, contact LINCAT.

CAUTION: In the installation or cleaning or in use process, prevent
water from splashing into the oil to avoid accidental burns or injury.

Appliances placed on the table when use, it is forbidden to put to the
floor.

If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent, or similarly qualified people to avoid a hazard.

Installation and Operation Instructions

5

Ensure oil levels are maintained above the minimum indicated level in
the Fryer. Failing to maintain the required level may result in element
failure.

Change the oil regularly. Used oil breaks down after use, it can catch
fire, as its flash point is reduced, and it is more prone to surge boiling.
Be careful when frying the surge boiling of over-wet food and do not fry
too much food at one time, MAX BATCH LOAD refers to specification
for detail.

The Oil Pan should not be covered during frying.

Avoid skin contact with hot oil; hot oil can cause serious damage to the
skin.

The appliance shall not clean with a water jet and steam cleaner, the
appliance or part must not be immersed.

The LINCAT Fryer does not contain any user-serviceable parts. LINCAT
dealers, service agents, or qualified electricians should carry out any
necessary repairs.

Do not remove any components or service panels on this product.

The manufacturers of LINCAT products take every care to ensure that
all products are safe. Steel cutting procedures used to manufacture
these items result in sharp edges. These sharp edges are removed to
the best of our ability; however，we still insist the operator takes care

Installation and Operation Instructions

6

when in contact with this piece of equipment.
Switch off the Fryer and remove the plug from the power socket before
cleaning, draining oil, or filling with oil.

Before filling new oil or cleaning every time, please cool oil to room
temperature for hot oil can cause serious damage to the skin.

Children should be supervised to ensure they do not play with the
appliance。

The appliance is not intended for use by persons (including children) with
reduced physical, sensory, or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.

LOCATION OF DATA PLATE
The data plate is located on the side panel.
IMMEDIATELY INSPECT FOR SHIPPING DAMAGE

All containers should be examined for damage before and during
unloading. The freight carrier has assumed responsibility for its safe
transit and delivery. If equipment is received damaged, either apparent
or concealed, a claim must be made with the delivering carrier.

A) Apparent damage or loss must be noted on the freight bill at the time
of delivery. It must then be signed by the carrier representative (Driver).
If this is not done, the carrier may refuse the claim. The carrier can
supply the necessary forms.

Installation and Operation Instructions

7

B) Concealed damage or loss if not apparent until after equipment is
uncrated, a request for inspection must be made to the carrier within 15
days. The carrier should arrange an inspection. Be certain to hold all
contents and packaging material.

Installation and maintenance should be performed by a qualified installer
who thoroughly read, understand, and follow the instructions.

If you have questions concerning the installation, operation,
maintenance, or service of this product, contact LINCAT.

All the product of Lincat has been checked and test strictly before
Delivery.

Installation and Operation Instructions

8

Introduction

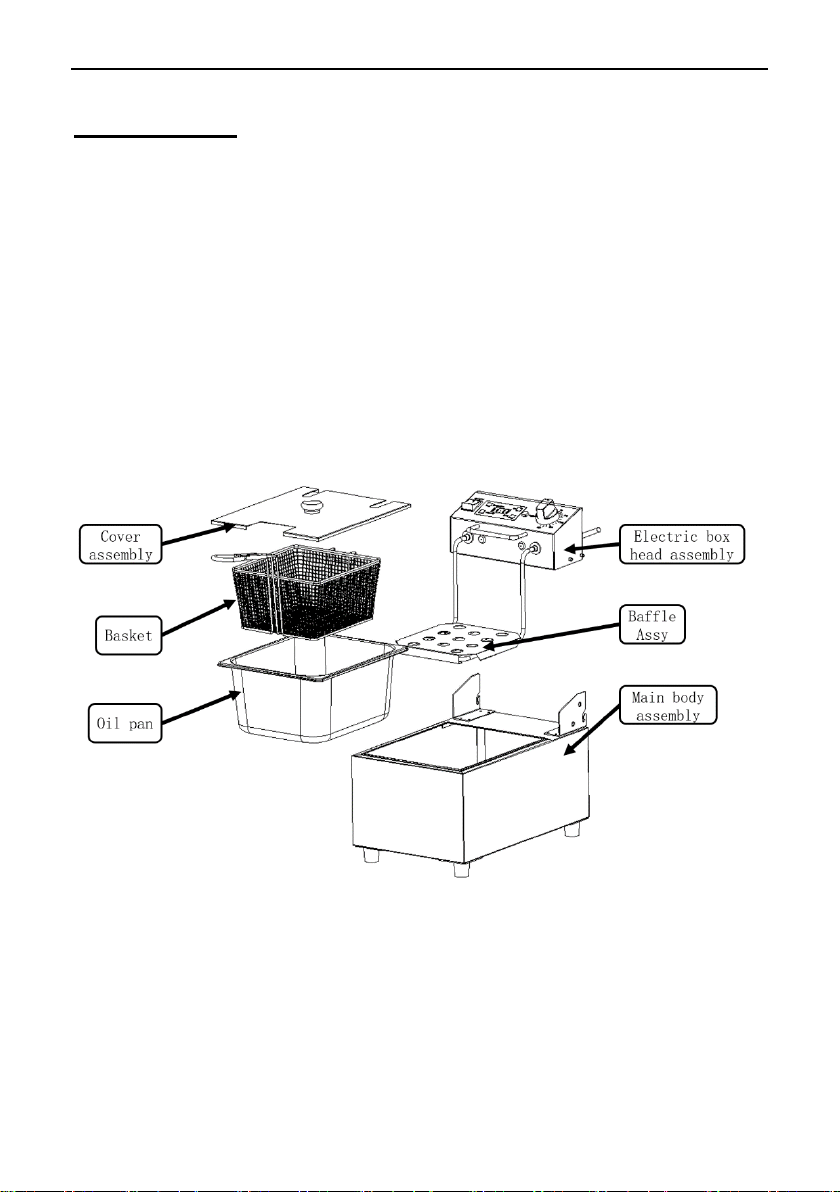

Lincat fryer mainly consists of the following seven components：
*Cover assembly
*Basket
*Oil pan
*Electric box head assembly
*Baffle Assy
*Main body assembly
*Manual

If you found missing or damaged any of parts upon receipt of the
appliance, please contact your supplier immediately.

Installation and Operation Instructions

9

Specifications

Model

Voltage

(V)

Power

(W)

Capacity

（KG）

Oil Pan

(L)

Dimensions (mm)

Wide

Deep

Hight

LPDFT

220-

240V

50HZ

2900 1 8L

280

510

440

LPDF2T

2×2900

2×1

2×8L

560

510

440

LPDF

2800

0.7

5L

270

410

320

LPDF2

2×2800

2×0.7

2×5L

545

410

320

Installation and Operation Instructions

10

Operation

It is the user's responsibility to ensure compliance with the codes of
use and safety regulations relating to product placement, installation,
electrical safety, and fire prevention.

Place the appliance on a flat workbench which size is more than 20cm
larger than the maximum projection of the appliance. Do not place the
appliance on the ground.

Ensure that the amount of oil is between the highest and lowest oil
levels. Please refer to page 9 to determine the amount of the oil.

Please Refer to page 9 of this manual to choose the correct power
supply.

1. Connect the appliance to the mains power supply.

2. Set the thermostat to the desired temperature. The amber power
indicator light turns On.

3. The appliance begins to heat the oil.

4. Once the oil is at the set temperature lower the food into the oil using
the basket supplied.

5. Remove the basket from the oil once the food is cooked. Shake
gently above the oil pan to remove any excess oil.

A temperature setting of between 170 and 180 degrees centigrade will
be sufficient for most cooking. However, this may vary for special food
types or according to individual requirements.

WARNING: The food and oil are very hot! Take care when removing
the basket as oil may drip.

Installation and Operation Instructions

11

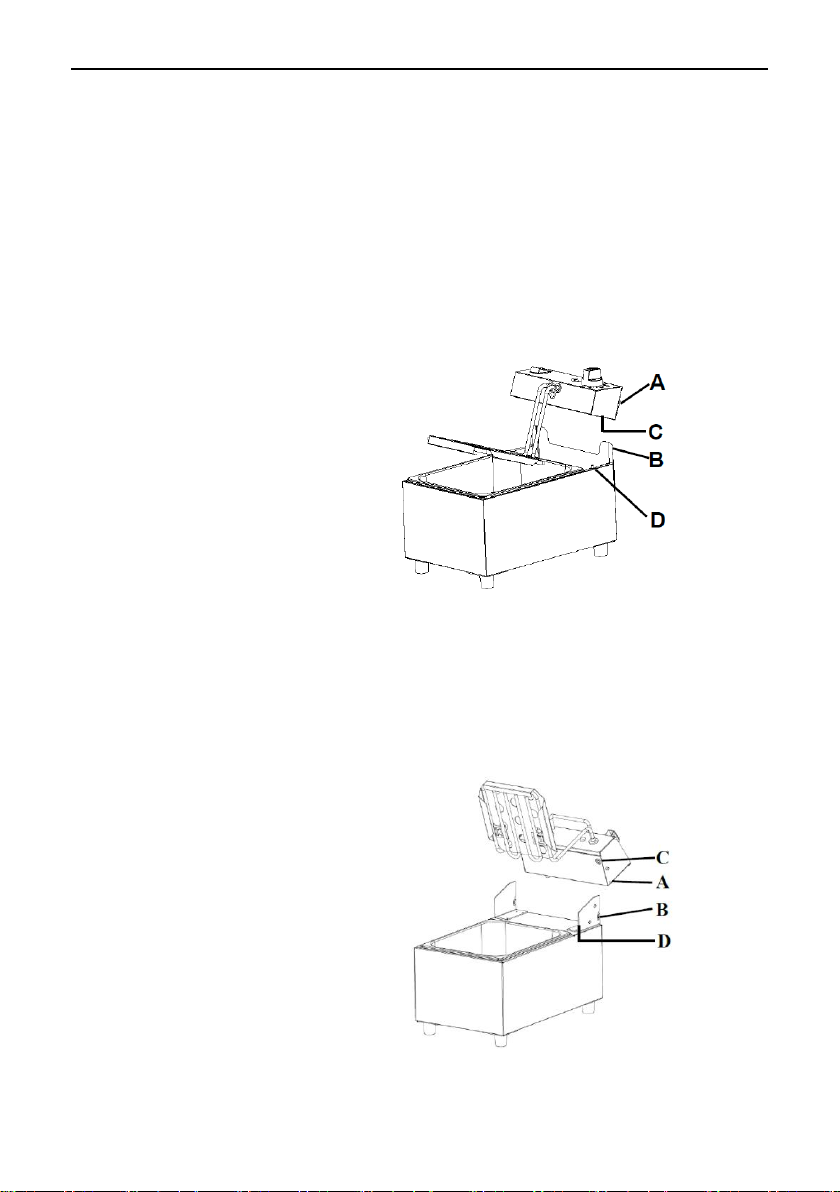

Fitting head unit to the Fryer body.

1. MODEL: LPDF / LPDF2
*Put the head unit onto the main body of the appliance, using the tabs(A)
on the rear of head unit and the lugs(B) on the rear of the main body.
*Lower the unit onto the main body, until the bottom of head unit is flat
with the surface of the body, and the safety switch(C) can touch with the
pin(D) on the main body.

Refer to the diagram below:

2. MODEL: LPDFT / LPDF2T
*Put the head unit onto the main body of the appliance, using the pin(A)
on the side of head unit and the slot(B) on the side of the main body.
*Rotate the head unit until the safety switch(C) on the bottom touches
the pin(D) on the main body.

Refer to the diagram below:

Installation and Operation Instructions

12

Cleaning And Maintenance

The appliance should be cleaned after each day’s operation; however,
it may require cleaning more often, depending on the volume of frying
carried out.

• Always turn Off the appliance and disconnect from the power supply
before cleaning.

• Always allow the oil to cool before cleaning, ideally for at least 6 hours.

• Check the temperature with a suitable probe thermometer; 40ºC is the

MAXIMUM temperature at which oil should be removed.

• For best performance, Lincat recommend that the appliance is
cleaned after each day of operation.

• Remove the head unit for ease of cleaning.

• Empty the oil to clean the appliance thoroughly.

• If the oil is to be reused then filtering it before refilling the pan will

extend the oils cooking life.

• Use a suitable detergent to clean the interior of the appliance.

• Use warm, soapy water and a damp cloth to clean the exterior of the

appliance.

• Dry thoroughly after cleaning, ensure there is no water left in the fryer.

• Qualified technician should carry out repairs if required.

Note: Failure to clean the appliance regularly may result in premature
activation of the thermal cut-out switch.

Note: The control box cannot be immersed in water but can be wiped
down with a damp cloth.

WARNING: DO NOT remove the oil pan until AFTER it has been
emptied.

Installation and Operation Instructions

13

Troubleshooting

Problem

Cause

Remedy

The appliance is not
working

The appliance is not switched
on

Check the appliance is plugged
in correctly and switched on

Plug and lead are damaged

Call agent or qualified technician

Fuse in the plug has blown

Replace the plug fuse

Power supply

Check power supply

Internal wiring fault

Call agent or qualified technician

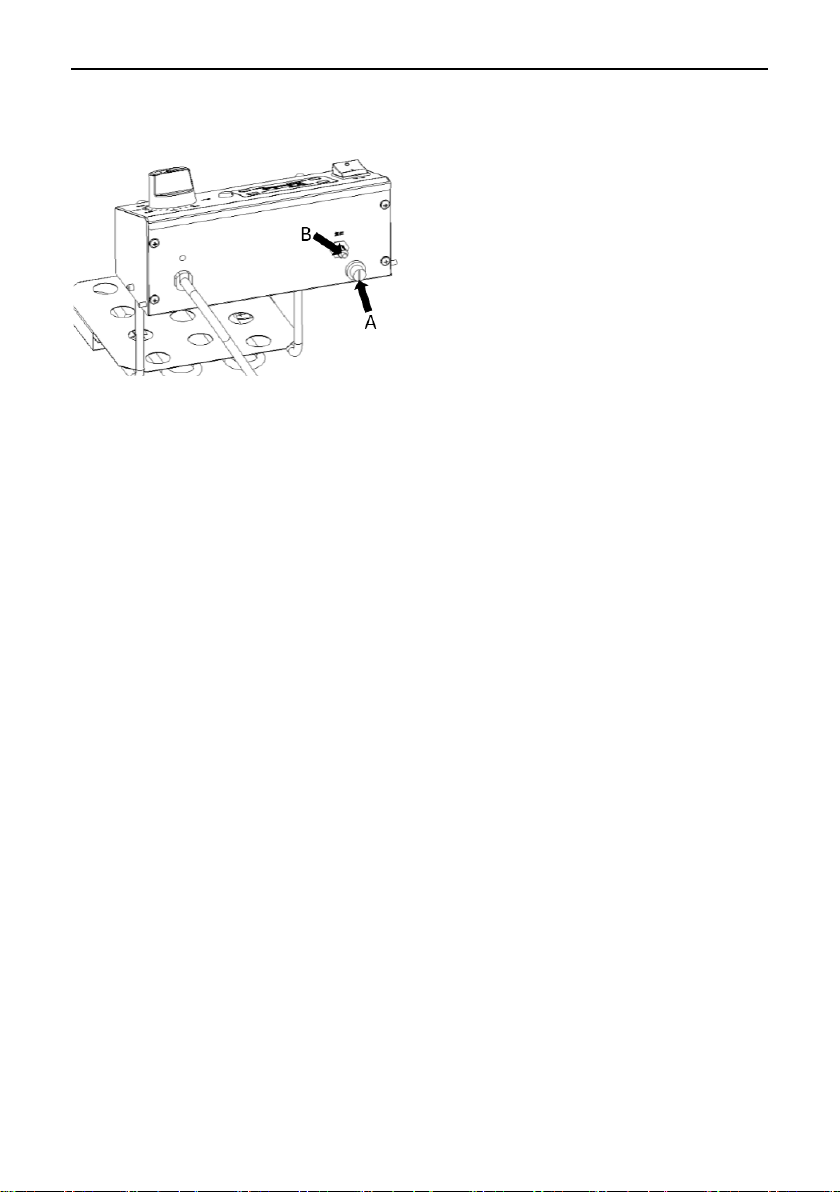

Thermal cut-out activated

Reset thermal cut-out

Safety switch not located
properly

Refit head unit

Appliance does not
reach set temperature

Faulty thermostat

Call agent or qualified technician

Faulty element

Call agent or qualified technician

Build-up of fat on the element

Clean the appliance

Appliance heats up
but indicator light does
not come on

Indicator light has expired

Call agent or qualified technician

Power indicator light
comes on, but
appliance does not
heat up

Faulty element

Call agent or qualified technician

Faulty thermostat

Call agent or qualified technician

Thermostat set incorrectly

Check thermostat

Appliance slow to heat
up

Faulty element

Call agent or qualified technician

Build-up of fat on the element

Clean the appliance

Installation and Operation Instructions

14

Thermal Cut-Out Reset

Lincat Fryers are fitted with a Thermal Cut-Out safety feature. Should
the temperature exceed safe levels the appliance will automatically
cut power.
To reset the appliance after a sufficient cool-down period:

1. Unscrew the cover of the Safety Cut-Out reset switch.

2. Press the small reset switch down until it clicks, using a blunt
pointed instrument.

3. The appliance is now reset and can be used as normal.

If the Lincat Fryer does not operate, please check the following before
placing a service call.

• It is connected to the correct power supply.

• The machine is plugged in correctly and power is switched on.

• The thermostat dial has been set to the required temperature.

Installation and Operation Instructions

15

Explosion View And Spare Part List

MODEL: LPDF

Installation and Operation Instructions

16

Installation and Operation Instructions

17

MODEL: LPDF2

Installation and Operation Instructions

18

Installation and Operation Instructions

19

MODEL: LPDFT

Installation and Operation Instructions

20

Installation and Operation Instructions

21

MODEL: LPDF2T

Installation and Operation Instructions

22

Pin NO.
NO.

Installation and Operation Instructions

23

Compliance

The WEEE logo on this product or its documentation indicates that
the product must not be disposed of as household waste. To help
prevent possible harm to human health and/or the environment, the
product must be disposed of in an approved and environmentally
safe recycling process. For further information on how to dispose of
this product correctly, contact the product supplier, or the local
authority responsible for waste disposal in your area.

Lincat parts have undergone strict product testing to comply with
regulatory standards and specifications set by international,
independent, and federal authorities.

Lincat products have been approved to carry the following symbol:

Installation and Operation Instructions

24

All rights reserved. No part of these instructions may be produced or
transmitted in any form or by any means, electronic, mechanical,
photocopying, recording or otherwise, without the prior written
permission of Lincat. Every effort is made to ensure all details are
correct at the time of going to press, however, Lincat reserve the
right to change specifications without notice.

Installation and Operation Instructions

25

Circuit Diagram

Model: LPDF/LPDF2

Installation and Operation Instructions

26

Model: LPDFT/LPDF2T

This circuit diagram has been provided to assist qualified electricians,
only Lincat service agents or qualified electricians should carry out
repairs if required.

Do not remove any components or service panels on this product.

PLEASE RETAIN THE MANUAL CAREFULLY FOR

REFERENCE

WARNING

Improper installation, adjustment, alteration, service or maintenance
can cause property damage, injury, or death. Read the installation
operating and maintenance instructions thoroughly before installing or
servicing this equipment.

ATTENTION

Under the warranty period of the appliance, all the parts must be
replaced by an authorised service provider which is approved by

Lincat, if not, the warranty may be void.

ATTENTION

Any parts that aren’t made by Lincat may void warranty.

ATTENTION

Lincat and manufacturer of Lincat keep the right to modify the product.

Lincat Limited

Whisby Road Lincoln LN6 3QZ United Kingdom

Version A
