Installation, Operating and Servicing
Instructions
Lynx 400 Electric Infra-Red Grill
LSC, LPC
IS 311 ECN 4597 Page 1 of 9
Page 2
CONTENTS
Important Information
2
Warnings and Precautions
3
Technical Data
3
Checklist of Enclosures
3
Installation and Commissioning
3-4
Operating Instructions
5-6
Cleaning
6
Servicing, Maintenance and Component Replacement
6-7
Fault Finding
7
Spare Parts List
7
Accessories
7
Service Information and Guarantee
8
IMPORTANT INFORMATION
Read these instructions carefully before using this product, paying particular
attention to all sections that carry warning symbols, caution symbols and notices.
Ensure that these are understood at all times.
WARNING!
This symbol is used whenever there is a risk of personal injury.
CAUTION!
This symbol is used whenever there is a risk of damaging your Lincat product.
NOTE:
This symbol is used to provide additional information, hints and tips.
KEEP THIS MANUAL FOR FUTURE REFERENCE
IS 311 ECN 4597 Page 2 of 9
Page 3
WARNINGS AND PRECAUTIONS
TECHNICAL DATA
Model
Height (mm)
Width (mm)
Depth (mm)
Weight (kg)
LSC
328
551
302
12.5
LPC
12.0
CHECK LIST OF ENCLOSURES
Warranty card
Instructions manual
Toast rack
Removable reflector
Feet
Grill pan (LSC only)
INSTALLATION AND COMMISSIONING
This appliance must be installed, commissioned and serviced by a qualified person
in accordance with national and local regulations in force in the country of
installation.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified person.
Ensure that the plug/socket is accessible at all times.
Strip plastic coating, fit the feet and clean the appliance before use.
During operation parts may become hot - avoid accidental contact.
Disconnect this appliance before servicing, maintenance or cleaning.
This appliance must be earthed.
If replacing the plug connect the terminals as follows:
Green and Yellow wire Earth E
Blue wire Neutral N
Brown wire Live L
IS 311 ECN 4597 Page 3 of 9
Page 4
Supply cords shall be oil resistant, sheathed flexible cable not lighter than ordinary
polychloroprene or equivalent elastomer sheathed cord (code 60245 IEC 57)
The rubber feet must be fitted into the base holes provided. This is to provide
ventilation to components.
Install this appliance on a level surface ensuring all vents are unobstructed. Any
partitions, walls or furniture must be of non-combustible material. Minimum
distances A 100mm B 1000mm – see Fig 1.

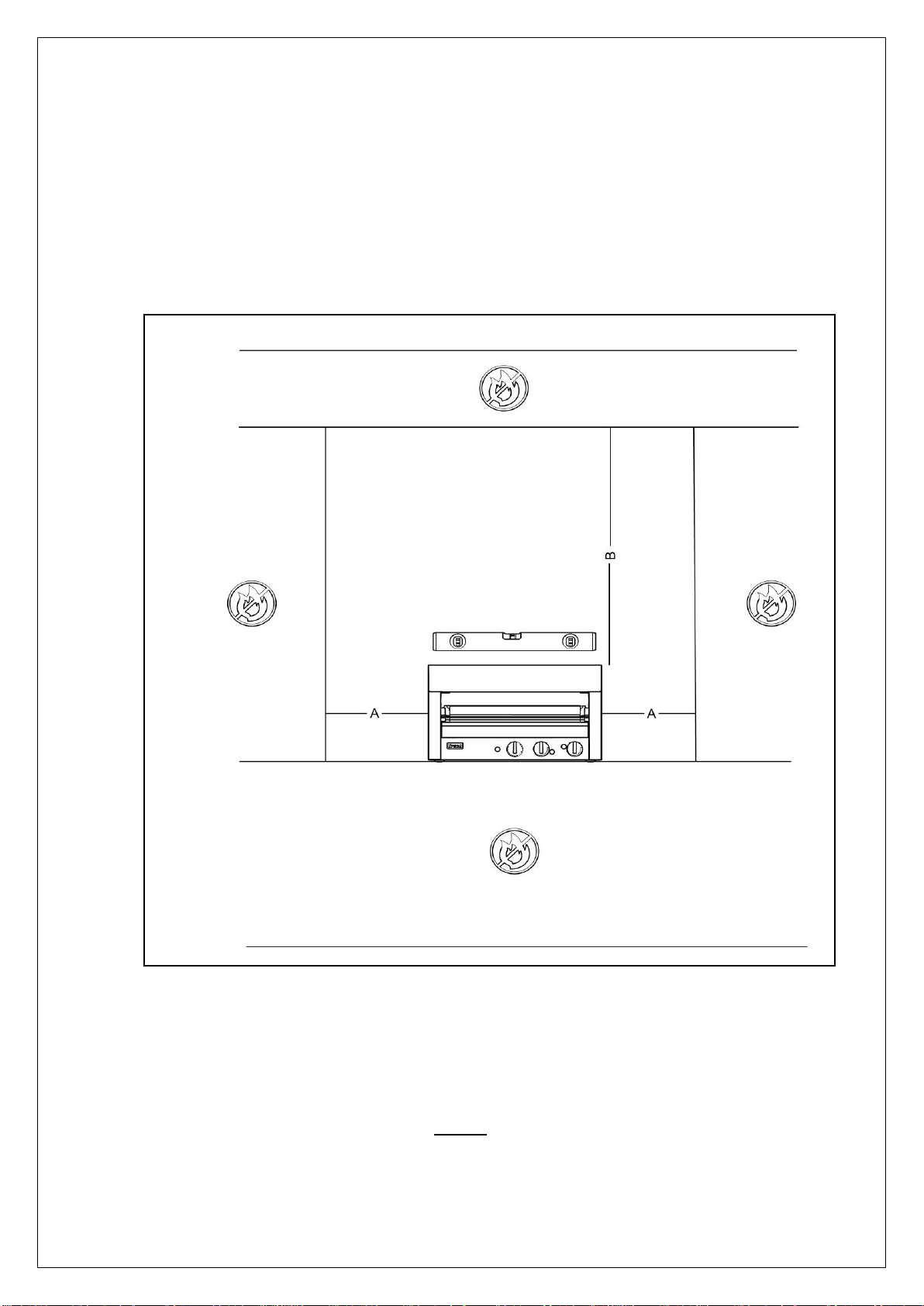

Fig 1
Instructions for fixing to wall brackets are provided with the brackets.
Dirty extraction filters and drip trays may become a fire hazard due to a build-up of
grease/fat and also drip down onto equipment below. Regular cleaning of
extraction filters and drip trays MUST be carried out and it’s the installer’s
responsibility to make the operator aware of this.
IS 311 ECN 4597 Page 4 of 9
Page 5
If the unit is installed above or adjacent to a heat source, the maximum temperature
Model
kW
Amps
LSC
3.0
13.0
LPC
OPERATING INSTRUCTIONS
surrounding the unit must be no greater than 50ºC. The installer will need to use an
insulated shelf and install heat shields to protect the unit as required.
Power Ratings
Only qualified or trained personnel should use this appliance.
Do not place objects on top of this appliance.
Fig 2
IS 311 ECN 4597 Page 5 of 9
Page 6
LPC
A
Timer
B
Green power neon
C
Lower element control
LSC
D
Timer
E
Green power neon
F
Lower element control
G
Upper element amber neon
H
Lower element amber neon
I
Upper element control
LPC/LSC
J
Reflector
CLEANING
SERVICING, MAINTENANCE AND
COMPONENT REPLACEMENT

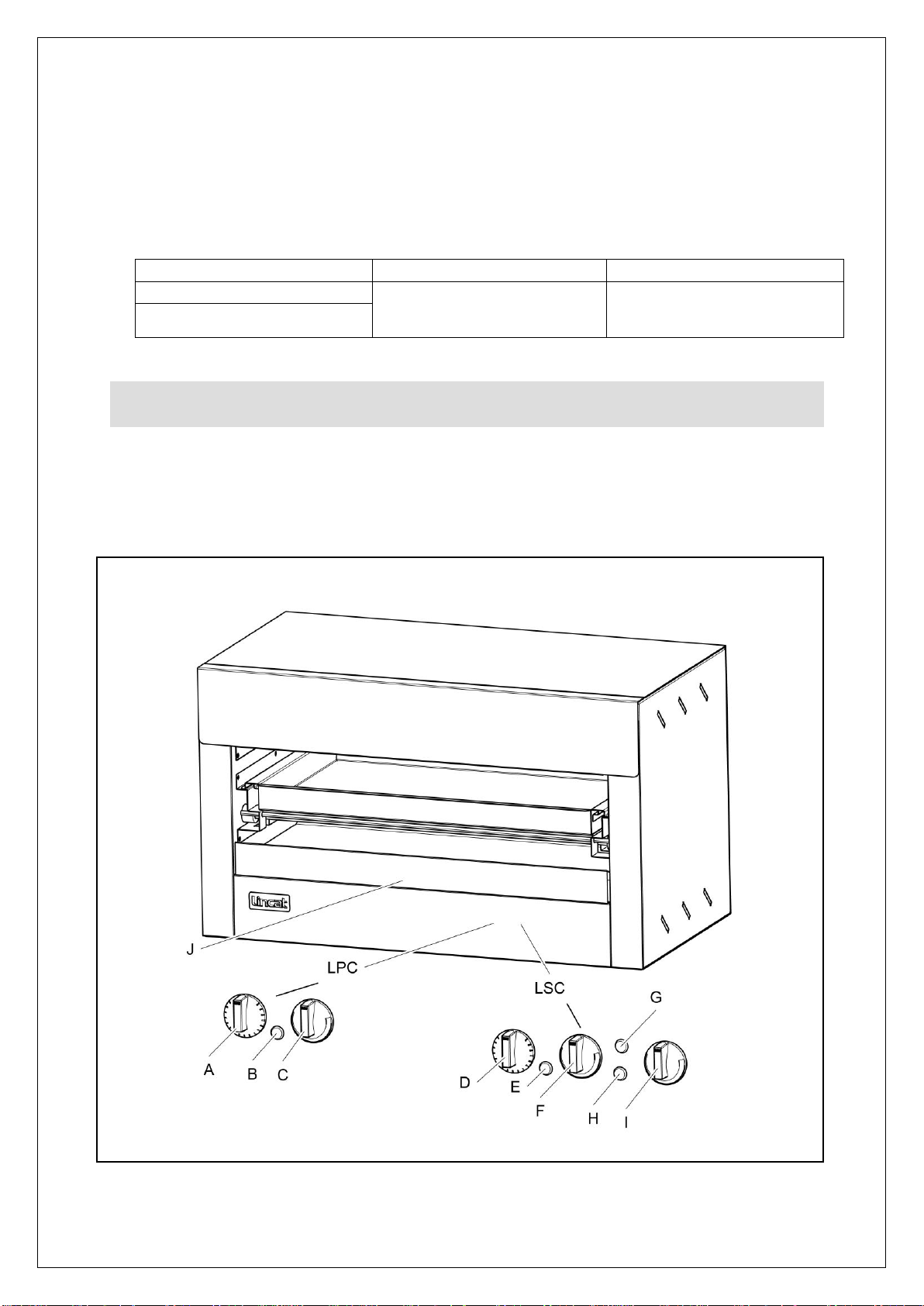

Consulting Fig 2, connect the appliance to an electrical supply – the green neon
illuminates to indicate power to the appliance.
The timer must first be set for either appliance to heat up. Set the timer (A or D) for
a required time, the elements will switch off when the time expires. For constant
heat turn the timer knob fully clockwise to the ‘H’ (Hold) position.
LPC – the upper elements are on constantly, the lower elements are controlled
by C.
LSC – control of the upper and lower elements is independent by F and I.
The amber neons indicate the cycling of the elements.
Do not use a water jet or steam cleaner, and do not immerse this appliance.
Clean all panels with warm water and mild detergent, do not use abrasive
materials. Dry with a soft cloth.
IS 311 ECN 4597 Page 6 of 9
Page 7
Part Number
Description
Used on
EL26
Element
LSC/LPC
EN10
Energy regulator
FE11
Ceramic ferrule
GP04
Grill pan
KN237
Control knob
FAULT FINDING
SPARE PARTS LIST
Fig 3

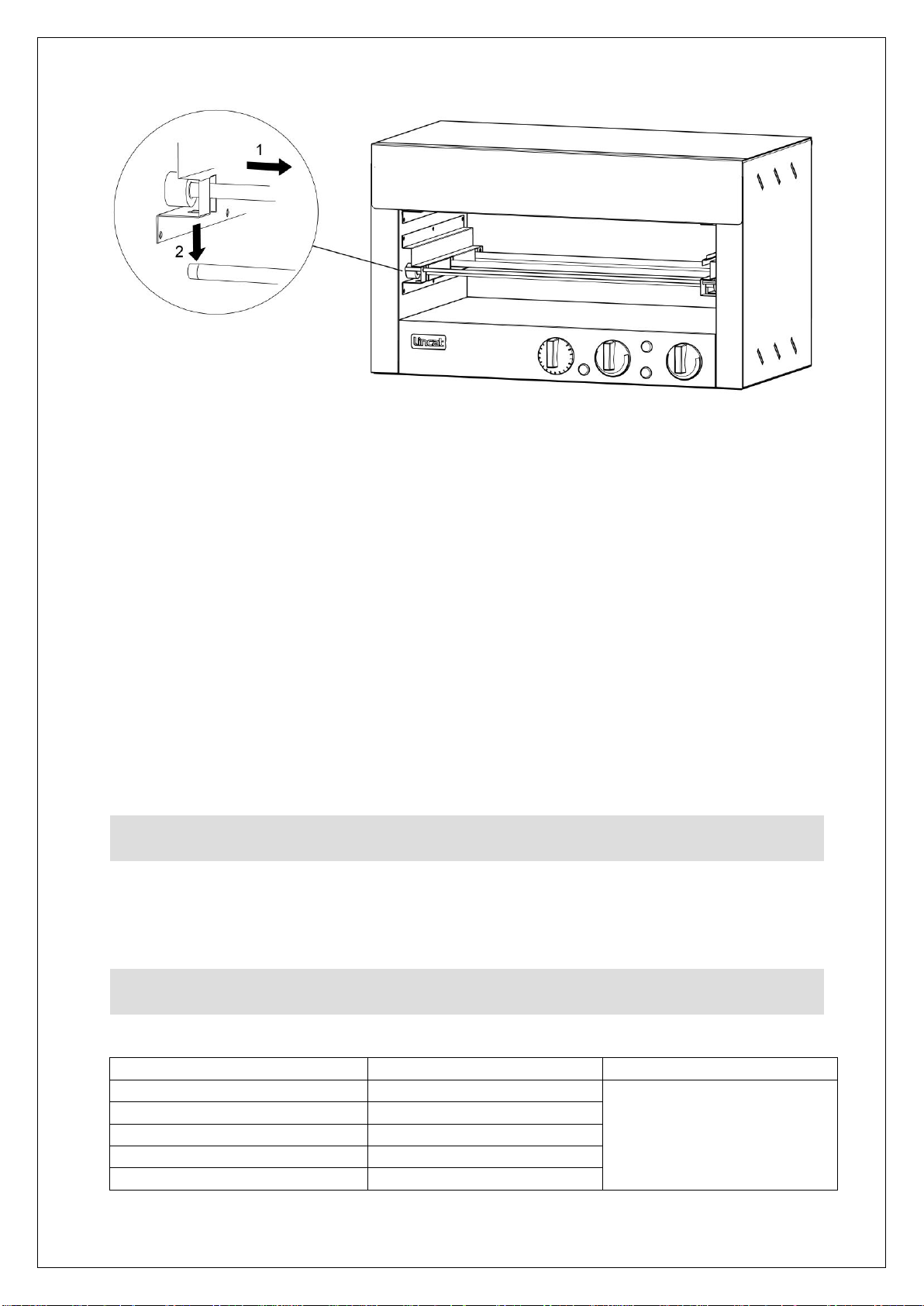

To replace a glass element (Fig 3) remove toast rack, grill pan and reflector.
The elements are sprung loaded. Carefully push the element sideways (1) until the
end is clear of the ceramic ferrule.
Ease the element down through the cut out in the side bracket (2) and remove.
Reverse the procedure to replace the element. Be aware that the elements are
fragile and damage easily.
All other servicing, maintenance and component replacement on this appliance
should be carried out by one of our recommended service engineers.
Please refer to the Service Help Desk number on the final page of this manual.
IS 311 ECN 4597 Page 7 of 9
Page 8
KN243
Timer knob
NE42
Amber neon
LSC
NE43
Green neon
LSC/LPC
PL202
Mains cable
TI14
Timer
TR10
Toast rack
Part Number
Description
Used on
BR15
Wall brackets
LSC/LPC
TO10
Toasting bagsx100
Product code
All available on serial plate
Type number
Serial number
ACCESSORIES
SERVICE INFORMATION
For help with the installation, maintenance and use of your Lincat equipment,
please contact our service department:
UK: 01522 875520
For non-UK customers, please contact your local Lincat dealer
All service work, other than routine cleaning should be carried out by one of our
authorised service agents. We cannot accept responsibility for work carried out by
other persons.
To ensure your service enquiry is handled as efficiently as possible, please tell us:
Brief details of the problem
Lincat reserve the right to carry out any work under warranty, given reasonable
access to the appliance, during normal working hours, Monday to Friday, 08:30 to
17:00.
IS 311 ECN 4597 Page 8 of 9
Page 9
GUARANTEE
This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is
in addition to, and does not diminish your statutory or legal rights.
The guarantee does not cover:
Accidental damage, misuse or use not in accordance with the manufacturer’s
instructions
Consumable items (such as filters, glass, bulbs, slot toaster elements and door
seals.)
Damage due to incorrect installation, modification, unauthorised service work or
damage due to scale, food debris build-up, etc.
The manufacturer disclaims any liability for incidental, or consequential damages.
Attendance is based on reasonable access to the appliance to allow the authorised
technician to carry out the warranty work.
Service calls to equipment under warranty will be carried out in accordance with the
conditions of sale. Unless otherwise specified, a maximum of 15 minutes of
administrative time, not spent directly carrying out servicing work, is provided for
within the warranty. Any requirement for staff attending the call to spend greater time
than 15 minutes due to administrative requirements, such as on health and safety risk
assessments, will be chargeable at the prevailing rate.
IS 311 ECN 4597 Page 9 of 9
