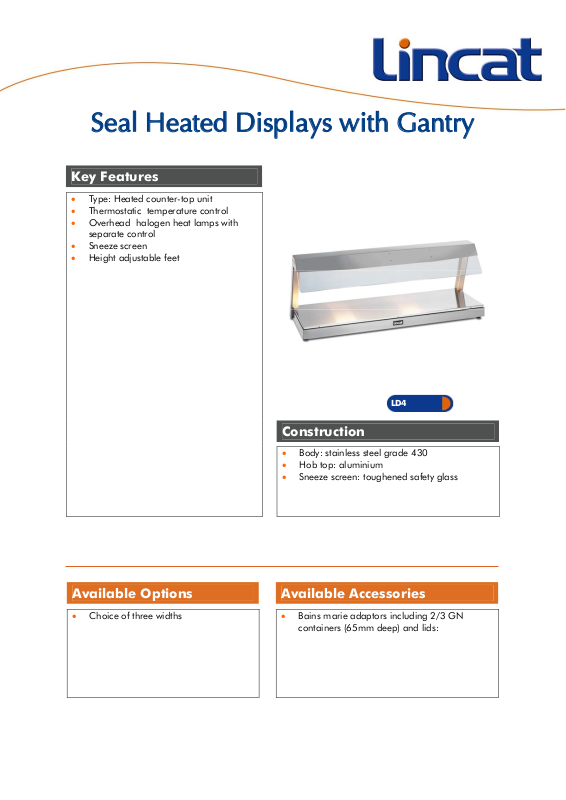

Lincat LD2, LD3, LD4 Datasheet

Seal Heated Displays with Gantry

Key Features

• Type: Heated counter-top unit

• Thermostatic temperature control

• Overhead halogen heat lamps with

separate control

• Sneeze screen

• Height adjustable feet

Construction

• Body: stainless steel grade 430

• Hob top: aluminium

• Sneeze screen: toughened safety glass

Available Options Available Accessories

• Choice of three widths

• Bains marie adaptors including 2/3 GN

containers (65mm deep) and lids:

LD4

Specifications

Model LD2 LD3 LD4

External height (mm) 562 562 562
External width (mm) 790 1130 1470
External depth (mm) 538 538 538
Usable heated surface w x d (mm) 748 x 500 1088 x 500 1428 x 500
Net weight unpacked (kg) 18 24 30
Gross weight packed (kg) 23 30 36
Shipping volume (m3) 0.465 0.632 0.632
Number of heat lamps 1 2 2
Total electrical power rating (kW) 1.5 2.4 2.75
Electrical supply 1N~+E
230V 50-60Hz
Current Rating (A)

6.5

10.4

12.0

LD2 LD3 LD4

E

E E E

Lincat Limited, Whisby Road,
Lincoln LN6 3QZ,
United Kingdom

EE

E

14701130790

UK Sales Tel: [phone] UK Spares Tel: [phone] UK General Tel: [phone]
UK Fax: [phone] International Sales Tel: [phone] International Fax: [phone]
Website: www.lincat.co.uk UK Sales e-mail: [email protected] International Sales e-mail: [email protected]

538

562

Document ref: SEAL-LD
Issue date: Dec-09
