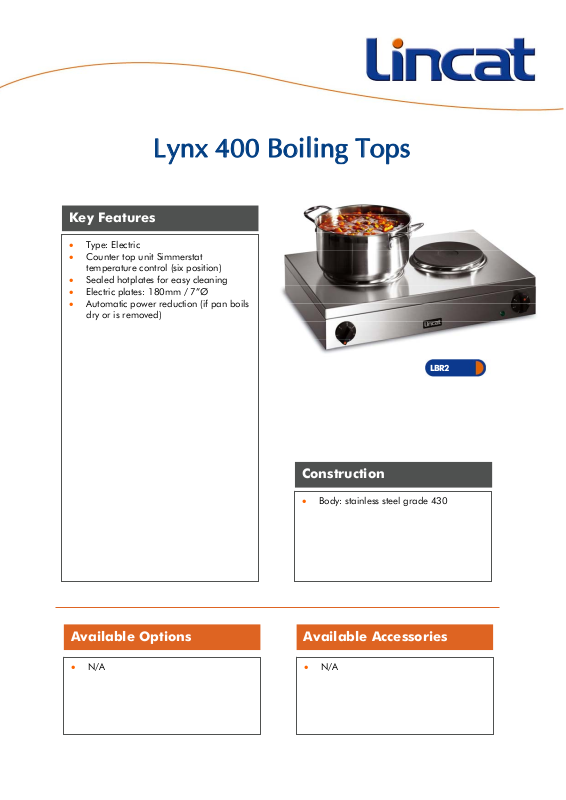

Lynx 400 Boiling Tops
•
•
Key Features
• Type: Electric
• Counter top unit Simmerstat
temperature control (six position)
• Sealed hotplates for easy cleaning
• Electric plates: 180mm / 7”Ø
• Automatic power reduction (if pan boils
dry or is removed)
LBR2
Available Options
• N/A
Construction
Body: stainless steel grade 430
Available Accessories
N/A
Page 2
Specifications
Model LBR LBR2
External height (mm) 119 119
External width (mm) 285 565
External depth (mm) 400 400
No. of hotplates 1 2
Net weight unpacked (kg) 6 10
Gross weight packed (kg) 9 13
Shipping volume (m3) 0.090 0.145
Total power rating (kW) 2 2 X 1.5
Electrical supply 1N~+E
230V 50-60Hz
Current Rating (A)
LBR
E
8.4 13
LBR2
E
46
238
400
E
102
285
12
565
121
428
16
Lincat Limited, Whisby Road,
Lincoln LN6 3QZ,
United Kingdom
UK Sales Tel: 01522 875500 UK Spares Tel: 01522 875510 UK General Tel: 01522 875555
UK Fax: 01522 875530 International Sales Tel: +44 1522 503250 International Fax: +44 1522 875530
Website: www.lincat.co.uk UK Sales e-mail: sales@lincat.co.uk International Sales e-mail: export@lincat.co.uk
Document ref:
LYNXBOILING
Issue date: Oct-09
