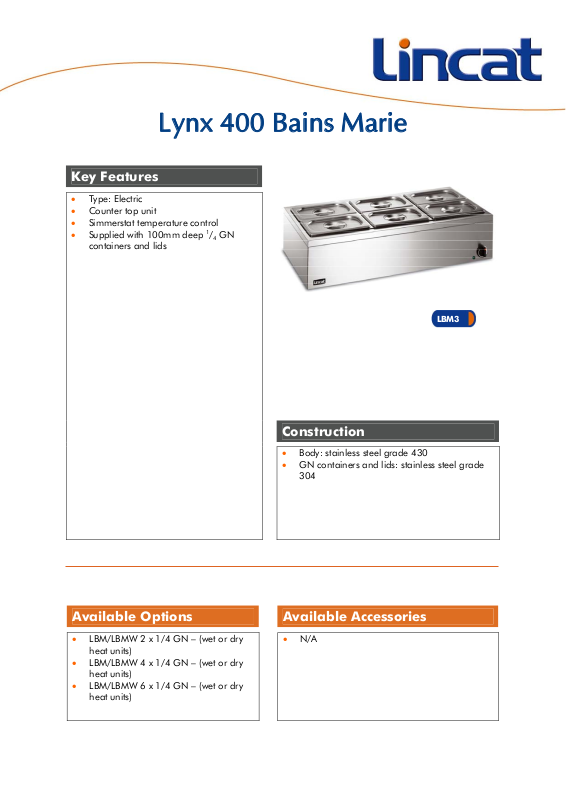

Lynx 400 Bains Marie
Key Features
• Type: Electric
• Counter top unit
• Simmerstat temperature control
• Supplied with 100mm deep
containers and lids
1
/4 GN
Construction
• Body: stainless steel grade 430
• GN containers and lids: stainless steel grade
304
Available Options Available Accessories
• LBM/LBMW 2 x 1/4 GN – (wet or dry
heat units)
• LBM/LBMW 4 x 1/4 GN – (wet or dry
heat units)
• LBM/LBMW 6 x 1/4 GN – (wet or dry
heat units)
• N/A
LBM3
Page 2
Specifications
Model LBM / LBMW LBM2 / LBM2W LBM3 / LBM3W
External height (mm) 196 196 196
External width (mm) 285 285 285
External depth (mm) 400 400 400
GN container capacity (litres) 2 x 2.75 4 x 2.75 6 x 2.75
Net weight unpacked (kg) 7.5 12.5 17.5
Gross weight packed (kg) 10 15 20
Shipping volume (m3) 0.090 0.145 0.291
Total power rating (kW) 0.25 0.5 0.75
Electrical supply 1N~+E
230V 50-60Hz
Current Rating (A)
1.1 2.2 3.3
LBM
LBMW
LBM2
E
LBM2W
E
LBM3
LBM3W
850565285
E
46
430
E
196
400
16
Lincat Limited, Whisby Road,
Lincoln LN6 3QZ,
United Kingdom
UK Sales Tel: 01522 875500 UK Spares Tel: 01522 875510 UK General Tel: 01522 875555
UK Fax: 01522 875530 International Sales Tel: +44 1522 503250 International Fax: +44 1522 875530
Website: www.lincat.co.uk UK Sales e-mail: [email protected] International Sales e-mail: [email protected]
Document ref:
LYNXBAINSGAST
Issue date: Oct-09
