Lincat HT3, HT6, HT9 Datasheet

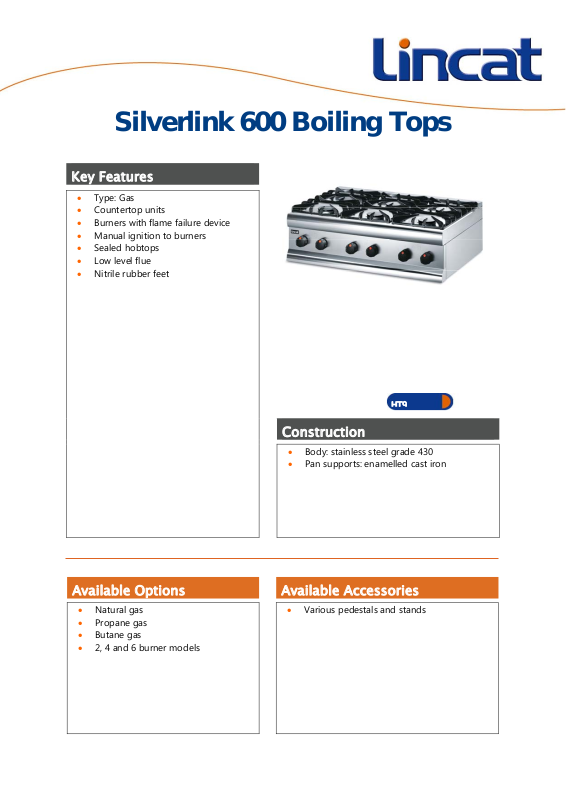

Silverlink 600 Boiling Tops

Key Features

• Type: Gas

• Countertop units

• Burners with flame failure device

• Manual ignition to burners

• Sealed hobtops

• Low level flue

• Nitrile rubber feet

Available Options

• Natural gas

• Propane gas

• Butane gas

• 2, 4 and 6 burner models

Construction

• Body: stainless steel grade 430

• Pan supports: enamelled cast iron

Available Accessories

• Various pedestals and stands

p

:

:

g

-

Specifications

Model HT3 HT6 HT9

External height (mm) 305 305 305
External width (mm) 300 600 900
External depth (mm) 600 600 600
Net weight unpacked (kg) 12 22 32
Gross weight packed (kg) 16 28 40
Shipping volume (m3) 0.145 0.255 0.286
Heat input per burner Natural (kW) 4.5 4.5 4.5
Heat input per burner Propane (kW) 4.5 4.5 4.5
Heat input per burner Butane (kW) 3.7 3.7 3.7
Total heat input Natural (kW) 9.0 18.0 27.0
Total heat input Propane (kW) 9.0 18.0 27.0
Total heat input Butane (kW) 7.4 14.8 22.2
Gas consumption at full rate Natural (m3 h-1) 0.86 1.72 2.57
Gas consumption at full rate Propane (kg h-1) 0.64 1.29 1.93
Gas consumption at full rate Butane (kg h-1) 0.54 1.08 1.62
Gas inlet Rp ½ (½" BSP)
Btu/h conversion kW x 3412

Lincat Limited, Whisby Road,
Lincoln LN6 3QZ,

United Kingdom

HT3

HT6

G

600

HT9

900600300

305

G
