Page 1
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
Dealer:_________________________________
_______________________________________
Installation, Operating and Servicing
Instructions
Silverlink 600 Electric Chip Scuttles
CS4, CS4/G, CS6
IS 304 ECN 4348 Page 1 of 7
Page 2
CONTENTS
Important Information
2
Warnings and Precautions
3
Technical Data
3
Checklist of Enclosures
3
Installation and Commissioning
3-4
Operating Instructions
5
Cleaning
5
Servicing, Maintenance and Component Replacement
5
Fault Finding
5
Spare Parts List
6
Service Information and Guarantee
7
IMPORTANT INFORMATION
Read these instructions carefully before using this product, paying particular
attention to all sections that carry warning symbols, caution symbols and notices.
Ensure that these are understood at all times.
WARNING!
This symbol is used whenever there is a risk of personal injury.
CAUTION!
This symbol is used whenever there is a risk of damaging your Lincat product.
NOTE:
This symbol is used to provide additional information, hints and tips.
KEEP THIS MANUAL FOR FUTURE REFERENCE
IS 304 ECN 4348 Page 2 of 7
Page 3
WARNINGS AND PRECAUTIONS
TECHNICAL DATA
Model
Height (mm)
Width (mm)
Depth (mm)
Weight (kg)
CS4
265 HOB 290 O/A
450
600
17
CS4/G
265 HOB 645 O/A
450
600
17
CS6
265 HOB 290 O/A
600
600
20
CHECK LIST OF ENCLOSURES
Warranty Card
Instructions Manual
Lid knob kit (CS4, CS6)
INSTALLATION AND COMMISSIONING
This appliance must be installed, commissioned and serviced by a qualified person
in accordance with national and local regulations in force in the country of
installation.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified person.
Ensure that the plug/socket is accessible at all times.
Strip plastic coating and clean the appliance before use.
During operation parts may become hot - avoid accidental contact.
Disconnect this appliance before servicing, maintenance or cleaning.
This appliance must be earthed.
An equipotential bonding terminal is provided to allow cross bonding with other
equipment.
IS 304 ECN 4348 Page 3 of 7
Page 4
If replacing the plug connect the terminals as follows:
Model
Power Rating (kW)
CS4
0.5
CS4/G
1.0
CS6
0.75
Green and Yellow wire Earth E
Blue wire Neutral N
Brown wire Live L
This appliance is fitted with a moulded plug and lead ready to be connected to an
earthed socket.
Install this appliance on a level surface ensuring all vents are unobstructed.

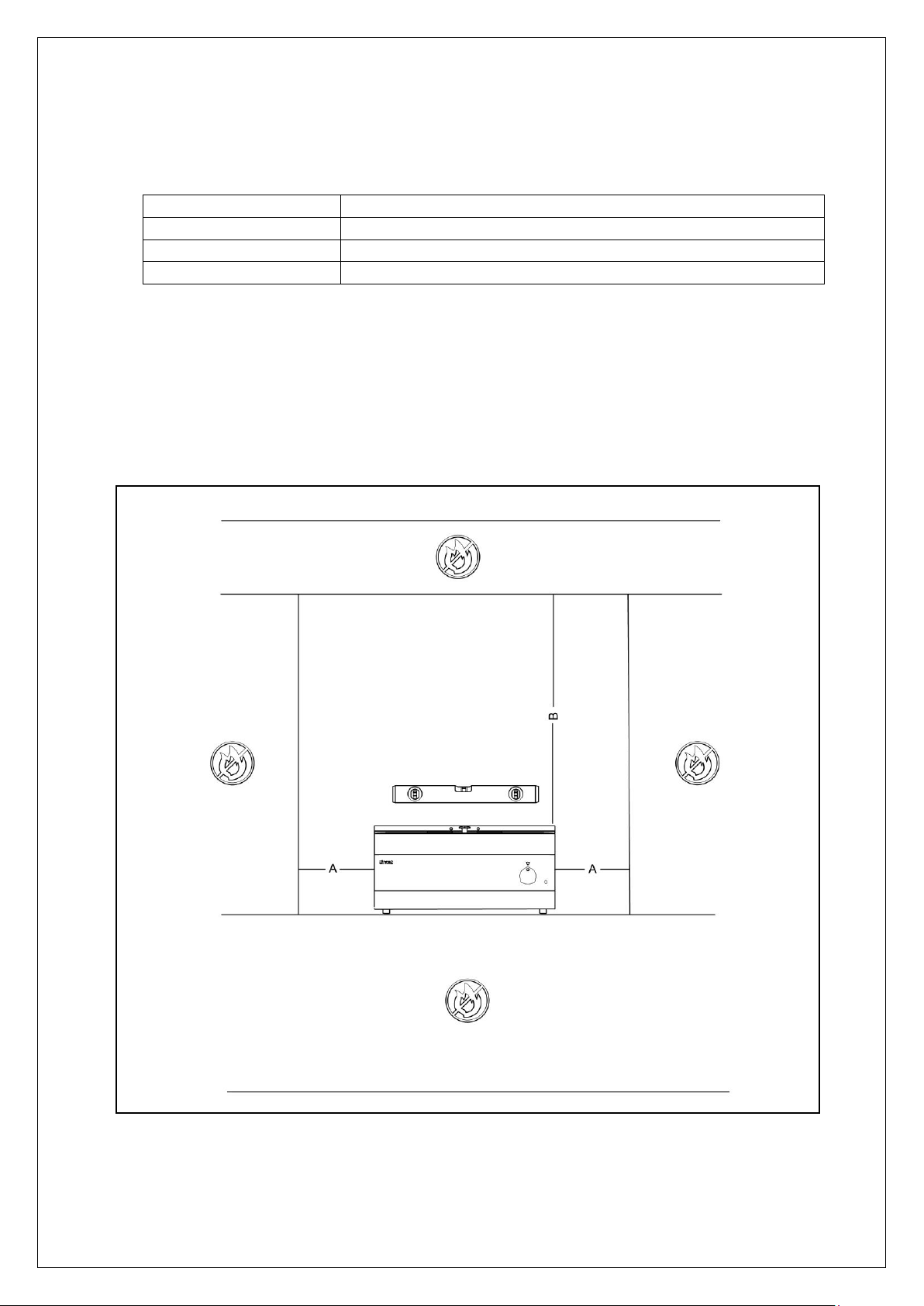

Install this appliance on a level surface ensuring all vents are unobstructed. Any
partitions, walls or furniture must be of non-combustible material. Minimum
distances a 100mm B 500mm – see Fig 1.
Fig 1
Fit lid knob to lid (CS4, CS6).
IS 304 ECN 4348 Page 4 of 7
Page 5
OPERATING INSTRUCTIONS
CLEANING
SERVICING, MAINTENANCE AND
COMPONENT REPLACEMENT
FAULT FINDING
Only qualified or trained personnel should use this appliance.
Connect to the power supply and switch on – the green neon illuminates.
Select the desired setting on the control knob and allow the appliance to heat up.
The overhead gantry lamp on the CS4/G will operate in conjunction with the control
knob.
Do not use a water jet or steam cleaner, and do not immerse this appliance.
Clean all panels with warm water and mild detergent do not use abrasive
materials. Dry with a soft cloth.
Overhead lamp replacement
Turn power off and allow appliance to cool.
The bulb holders are sprung loaded - carefully push old lamp against either end
terminal until opposite end is free.
Remove lamp and reverse procedure to insert replacement. Handle the
replacement lamp by the ceramic end caps and avoid touching the glass.
Please refer to the Service Help Desk number on the final page of this manual.
IS 304 ECN 4348 Page 5 of 7
Page 6
Part Number
Description
Used on
EL216
Element
CS4, CS4/G
EL219
Element
CS6
EN10
Energy regulator
All
FE37
Adjustable foot
All
KN10
Lid knob
CS4, CS6
KN263
Control knob
All
LA210
Clip in lamp assembly
CS4/G
NE43
Neon
All
PL201
Plug & lead
All
TA09
Gastronorm tank
CS4/G
SPARE PARTS LIST
IS 304 ECN 4348 Page 6 of 7
Page 7
Product code
All available on serial plate
Type number
Serial number
SERVICE INFORMATION
For help with the installation, maintenance and use of your Lincat equipment,
please contact our service department:
UK: 01522 875520
For non-UK customers, please contact your local Lincat dealer
All service work, other than routine cleaning should be carried out by one of our
authorised service agents. We cannot accept responsibility for work carried out by
other persons.
To ensure your service enquiry is handled as efficiently as possible, please tell us:
Brief details of the problem
Lincat reserve the right to carry out any work under warranty, given reasonable
access to the appliance, during normal working hours, Monday to Friday, 08:30 to
17:00.
GUARANTEE
This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is
in addition to, and does not diminish your statutory or legal rights.
The guarantee does not cover:
Accidental damage, misuse or use not in accordance with the manufacturer’s
instructions
Consumable items (such as filters, glass, bulbs, slot toaster elements and door
seals.)
Damage due to incorrect installation, modification, unauthorised service work or
damage due to scale, food debris build-up, etc.
The manufacturer disclaims any liability for incidental, or consequential damages.
Attendance is based on reasonable access to the appliance to allow the authorised
technician to carry out the warranty work.
Service calls to equipment under warranty will be carried out in accordance with the
conditions of sale. Unless otherwise specified, a maximum of 15 minutes of
administrative time, not spent directly carrying out servicing work, is provided for
within the warranty. Any requirement for staff attending the call to spend greater time
than 15 minutes due to administrative requirements, such as on health and safety risk
assessments, will be chargeable at the prevailing rate.
IS 304 ECN 4348 Page 7 of 7
