Lincat C6R/75U, C6R/100U, C6R/125U, C6R/105, C6R/130 User And Installation Instructions Manual

IS517 ECN4508

Page 1

User and Installation Instructions

C6R/75U, C6R/100U, C6R/125U,
C6R/105, C6R/130,
D6R/75, D6R/100, D6R/125,
D5R/100, D5R/125
D3R/100

Seal Refrigerated Merchandisers

IS517 ECN4508

Page 2

Dear Customer,
Thank you for purchasing this Lincat product.

This is just one of over 300 different items of catering equipment available which is
constantly being extended and improved. Details are available from your local
distributor or direct from us.
Used for the purposes for which it is intended, and with careful maintenance as
outlined in this User Guide, your Lincat product will give years of trouble free use.

IMPORTANT INFORMATION

Please read all of the safety and operating instructions carefully before using this
product. Please pay particular attention to all sections of this User Guide that carry
warning symbols and notices.

This is a Warning symbol. This symbol is used throughout the user guide whenever
there is a risk of personal injury. Ensure that these warnings are read and
understood at all times.

This is a Caution symbol. This symbol is used throughout the User Guide whenever
there is a risk damaging your Lincat product. Ensure that these warnings are read
and understood at all times.

Make sure the power supply is turned off before making any electrical repairs.

To minimise shock and fire hazards, please do not plug or unplug the unit with wet
hands.

During maintenance and cleaning, please unplug the unit where required.

Care must be taken when handling or working on the unit as sharp edges may cause
personal injury, we recommend the wearing of suitable PPE.

Ensure the correct moving and lifting procedures are used when relocating a unit.

Do NOT use abrasive cleaning products, only those that are recommended. Never
scour any parts of the refrigerator. Scouring pads or chemicals may cause damage
by scratching or dulling polished surface finishes.

Failure to keep the condenser clean may cause premature failure of the
motor/compressor, which will NOT be covered under warranty policy.

Please ensure the appropriate use of safety aids or Personnel Protective Equipment
(PPE) are used for you own safety.

This is a Note symbol. This symbol is used throughout the User Guide to provide
additional information, hints and tips.

DISPOSAL REQUIRMENT

If not disposed of properly all refrigerators have components that can be harmful to
the environment. All old refrigerators must be disposed of by appropriately registered
and licensed waste contractors, and in accordance with national laws and
regulations.

IS517 ECN4508

Page 3

CONTENTS

Contents Page

Safety instructions………………………………………………………4
Product specification………………………………………………….. 5
Features………………………………………………………………….. 5
Technical specification…………………………………………………5
Pack contents…………………………………………………….………6
Spare parts list………………………………………………………….. 6
Installation……………………………………………………………….. 7

Note to installer...............................……………………………. 7

Inspection.............................…………………………….……... 7

Handling.................................................................................. 7

General........................................................……………………7

Connecting to the electricity ...........................……………….7-8

Warning .......................................................……………………8

User Maintenance .......................................……………………8

Defrosting.....................................................……………………8

Warning........................................................……………………8

Loading.........................................................……………………8

Installation Instruction for C6R-U...…………………..……………….9

Details of C6R-U cabinets..................…………………..…………….10

Details of cut-out for refrigeration module ..………........…………11

Ventilation requirement for counter top models………......…...…12

Wiring Diagrams..…….................……………..……………….13-14-15

Troubleshooting...............…………………..……....………….16-17-18

Operating instructions………………………………………………...19

Cabinet Controls..................................………………………..19

Loading................................................………………………..19

Cleaning and maintenance…………………………...../…………….20

Cleaning the condenser………………………………………..20

Replacing the light .....…………………………………………..20

Service information…………………………………………………….21
Conditions of guarantee…..…………………………………….……21

USE OF THE REFRIGERATED MERCHANDISERS

The Refrigerated Merchandisers are intended to be used on counter tops to
display pre-chilled food product.

IS517 ECN4508

Page 4

SAFETY INSTRUCTIONS

WARNING!

Basic safety precautions, including the following, should be
followed to reduce the risk of personal injury and/or damage to
the cabinet. Make sure you have fully read these instructions
before installing and switching on. Keep this User Guide in a safe
place for future reference for you and your staff.

Do not clean the unit with a water jet.

REMOVAL OF PACKAGING

Remove any external packaging. If using a sharp instrument take
care to avoid contact with the product inside.
In the interest of hygiene, you should clean the product after
unpacking and ensure all plastic coatings are removed before use.

This unit is heavy. Be aware of the risks when lifting or
moving it. Always lift the cabinet using the base or lower frame, do
not lift with any other part. Do not pull the unit across your work
surface as it may make a mark.

The cabinet relies on the circulation of cold air, which must pass through
and around the shelves. Ensure circulation is not obstructed by food
product blocking the internal vents.

GENERAL

Do not try to modify this product.
Ensure that the electrical supply cable is not damaged.

If the supply cable is damaged, it should be replaced by Lincat Ltd or suitably
qualified persons, in order to avoid a hazard.

IS517 ECN4508

Page 5

FEATURES

PRODUCT SPECIFICATION

TECHNICAL SPECIFICATION

650 Range Refrigerated Merchandiser – C6R/75, C6R/100, C6R/105,
C6R/125, C6R/130

D6R/100, D6R/125
500 Range Refrigerated Merchandiser – D5R/100, D5R/125
350 Range Refrigerated Merchandiser – D3R/100

Fan-assisted refrigeration
Double glazed glass (flat panels)
Electronic control
Hot gas automatic defrost
Sliding rear doors (double glazed)

Independently switchable light
Adjustable shelf positions (back
service models only)
230 Volt, 50 Hz, single phase

Model C6R/75

C6R/100

C6R/105

C6R/125

C6R/130

Max. Operating
Temperature

O

C

25

Internal volume

litres

245.0

332.0

242.0

368.0

322.0

Internal dims

cm

710x570x560

960x570x560

710x570x560

1210x570x560

960x570x560

Width

mm

750

1000

1050

1250

1300

Depth

mm

650

650

650

650

650

Height

mm

755

755

755

755

755

Power Rating

watt

602

717

604

729

717

Weight

kg

89.5

117

105

137.5

112.2

Refrigerant

R452a

Model D3R/100

D5R/100

D5R/125

D6R/75

D6R/100

D6R/125

Max. Operating
Temperature

O

C

25

Internal volume

litres

85.8

129.0

176.0

227.0

307.0

386.0

Internal dims

cm

710x310x390

710x460x390

960x460x390

710x570x560

960x570x560

1210x570x560

Width

mm

1000

1000

1250

750

1000

1250

Depth

mm

350

500

500

650

650

650

Height

mm

575

575

575

965

965

965

Power Rating

watt

393

602

621

602

717

729

Weight

kg

68

84

100

95

123

149.5

Refrigerant

R452a

IS517 ECN4508

Page 6

PACK CONTENTS

SPARE PARTS LIST

C6R/105, C6R/130, D6R/100, D6R/125 Models

Refrigerated Merchandiser (with
cable and 13amp plug)
2 x chrome-plated shelves
2 x removable base panels
2 x sliding doors

3mm Allen key (for shelf height
adjustment)
User Guide
Guarantee card

C6R/75U, C6R/100U, C6R/125U Drop-in Models

As above, plus drop-in refrigeration module

D5R/100, D5R/125, D3R/100 Models

As above, except 1 x chrome plated shelf and removable base plate.

Model

Components

Compressor

Light

Controller

Evaporator

fan

Condenser

Fan Motor

Shelf

D3R/100

CR08

LA01

EC15

S/R0181

FA109

SH93

D5R/100

CR08

LA01

All Models All Models

FA109

SH91

D5R/125

CR08

LA01

FA109

SH92

D6R/75

CR08

LA01

FA109

SH97

D6R/100

CR07

LA05

FA109

SH98

D6R/125

CR07

LA05

FA109

SH99

C6R/75

CR08

LA01

FA109

SH97

C6R/100

CR07

LA05

FA109

SH98

C6R/105

CR08

LA01

FA109

SH97

C6R/125

CR07

LA05

FA109

SH99

C6R/130

CR07

LA05

FA109

SH98

IS517 ECN4508

Page 7

INSTALLATION

All models (For C6R/75U,C6R/100U,C6R/125U Models see additional instructions)

Note to installer

Please follow this instruction carefully. Only if the cabinet is correctly installed
will it give the best possible performance and reliability. Please pay particular

attention to the User maintenance section of this guide that the controller must
be left on the factory setting. There are also clear guidelines stating that the grill
on cabinet must not be blocked at any time and condenser must be cleaned
every 3 months. There are no user serviceable parts inside the refrigerated
compartment.

Inspection

On receipt, unpack the carefully and inspect for any superficial damage that
may have been sustained in transit. Record the nature of any damage on the
Carrier’s Delivery Note and at the same time inform your supplier.

Handling

Important: Keep the cabinet vertical and on its base, if the cabinet is tipped onto
its back, front or sides allow it to stand back on its base for at least 2 hours
before switching ON.
Ensure the cabinet is installed on a sound, level work surface, observing
requirements for ventilation as detailed on pages 10,11 & 12.Do not install this
cabinet close to any source of heat which may result in operating conditions
exceeding its design limits. Locations close to sources of moisture or steam will
cause excessive condensation on the outer surfaces of the cabinet and must be
avoided.
Ambient temperature range; minimum 18oC, maximum 25oCMaximum relative
humidity 60%.

General

Installation must only be carried out by a suitable trained person and comply
with national and local codes for connection to electrical supply. The cabinet

must be earthed... the earthing of the installation a safety standard,
which is enforced by law. Do not switch on the unit the installation has
been completed.
Connecting to the electricity supply

The cabinet is completely factory wired and only needs to be connected to a
suitable power point (socket).It are recommended that the mains electricity
supply is protected by an RCCB (Residual current circuit breaker). Cabinets are
supplied with 2 metres of cable and should be connected to an earthed,
switched, 13 amp 230Volts socket which should be easily accessible for
isolation of the cabinet.
The socket should be installed in accordance with current I.E.E regulations. If in
doubt consult a qualified electrician. The 1989 Electricity at work Regulation
requires periodic testing of electrical equipment and should be carried out by a
competent person.
The cabinet are designed for indoor use only in ambient temperature between
minimum 18oC, maximum 32oC.The cabinet must be positioned on a flat level
surface. To reduce energy consumption position the cabinet in a well ventilated
location, away from sources of heat. It should not be exposed to water spillage.
Spray steam or high humidity. Failure to do so may reduce the efficiency of the
cabinet and increase the frequency of maintenance required. Particular
attention should be paid to airflow restriction into and out of the refrigeration
system, this is very important for the cabinet to operate efficiently.

IS517 ECN4508

Page 8

Ensure that the voltage of your electricity supply corresponds to the serial plate
details. The product is supplied with a 13 Amp plug. To replace the plug, follow
these instructions:

 green and yellow wire to 'E' or (Earth)
 blue wire to 'N' (Neutral)
 brown wire to 'L' (Live)

For safety regulations, the plug must always be accessible.

THIS APPLIANCE MUST BE EARTHED

Warning

Under no circumstances must the power supply be switched ON and OFF in
quick succession over a short period. To do this could result in serious damage
to the compressor, causing failure of refrigeration system. Having completed the
electrical connection, the cabinet can be switched 'On' at the mains. When the
unit is first switched ‘ON ‘you will hear condenser fan motors running and the
compressor, evaporator fan will come ‘On’ when the evaporator is cooled to
correct temperature. The temperature inside the cabinet is controlled by mean
of electronic controller, which is factory set and should not need any
adjustment. The cabinets are designed to be left ON at all times, like a domestic
refrigerator Ensure the door of the cabinet remain closed when not being used.
Failure to do so will reduce the efficiency of the refrigeration system and may
cause excess condensation or ice build up on the evaporator.

User Maintenance
Due to electrical regulation only a very limited amount of user maintenance
work can be carried out. There are no user serviceable parts inside the
refrigeration compartment.

Please note- No cleaning or maintenance work should be attempted until
the cabinet is switched off and the plug removed from the socket.

Only use genuine Lincat spares. All parts numbers are listed on the Spares list
on page 6 for easy ordering when required.

Defrosting
The Seal Refrigerated Merchandises are fitted with an automatic defrost
function ensuring the cooling heat exchanger remains free from ice. The
condensate water is automatically dispersed using the heat from the
refrigeration unit.

Loading
When loaded ensure that air can circulate around / through store products.
Cover all foods and separate raw and cooked food. Do not allow items to
overhang the edges of the shelves.

IS517 ECN4508

Page 9

TERMINAL
LID

TERMINAL
BRACKET

EARTH
TERMINALS

FRAME HEATERS
TERMINAL BLOCK

LIGHT TERMINAL
BLOCK

INSTALLATION INSTRUCTIONS FOR C6R/75U, C6R/100U,
C6R/125U DROP-IN MODELS

Refer to the information on page 4 before proceeding.
The cabinet is not connected to the refrigeration module during transit. Remove

the doors, shelves and base panels from the cabinet and lift this from the pallet
first to separate the two parts of the appliance.
Prepare the counter taking note of the ventilation requirements on page 11.
Cut a hole in the counter top according to the diagram (2) on page 10. Lift the
refrigeration module onto the counter top so that the electrical supply cable is
on the customer’s side. Lower through the hole and ensure that the cable is not
trapped.
Carefully lower the cabinet over the refrigeration module and onto the counter
top ensuring the cables are not trapped. The plinth around the base of the
cabinet must be fully supported by the counter top beneath; no part of this plinth
should be allowed to overhang the counter top.
Open the evaporator box back lid, connect cables to terminal blocks (see
diagram below)

BROWN FROM

TERMINAL

BLUE FROM

TERMINAL

CH 1

CH 2

EARTH

WIRES

CABINET

EARTH

BROWN TO

LIGHT

BLUE TO

LIGHT

BROWN FROM

LIGHT SWITCH

BLUE FROM

LIGHT SWITCH

Using the screw supplied secure
the terminal lid and hinged lid.
Replace base panels, shelves
and doors.

The cabinet is now ready for use
Refer to operating instruction on
page 19.

IS517 ECN4508

Page 10

279

279

C/L

47
75

390

152

196

558

390

750
1000
1250

65

420

565

50

25

750 Models
1000 Models
1250 Models

210

FRONT OF COUNTER / CUSTOMER SIDE

750 Models

BACK OF COUNTER / FOOD SERVICE SIDE

Details of the base section and cabinet (1)

Details of cut-out for refrigeration module (2)

IS517 ECN4508

Page 11

WARM AIR EXITS

A

M

B

I

E

N

T

A

I

R

I

N

XX

Y

Fig 2

C

O

L

D

A

I

R

E

N

T

E

R

S

C

O

L

D

A

I

R

E

N

T

E

R

S

W

A

R

M

A

I

R

E

X

I

T

S

W

A

R

M

A

I

R

E

X

I

T

S

Fig 1

Fig 3

Ventilation requirements for drop in models

It is crucial for the operation of the
refrigeration system that a free flow of
air is maintained around condensing
unit.
The ideal method is to site the cabinet
within a counter where the back is
completely open as Fig 1.

These cabinets are designed to
eliminate the need for an unsightly vent
on the front of the counter providing
that the critical dimensions in Fig 2 are
observed and no there are no
obstructions in front of the air exhaust
that may be deflected into the path of
the incoming cold air.

The dimension X from the front grille of
the condenser to the inner face of the
counter front must not be less than
200mm.

If a shelf is required in the counter it
must allow adequate air flow beneath
the unit, dimension Y must be no less
than 200mm.

Fig 2 demonstrates how the air must
flow through the condenser to extract
the heat.

To guarantee a flow of cool air
particularly where the back counter is
warm, then adequate vents can be
provided in the front of counter (see
Fig3) to ensure the refrigeration system
will only work satisfactorily.
The air inlet vents should be aligned
with condenser aperture and have total
free area greater than 900cm

2.

The air outlet also should be aligned
with power pack condenser air outlet
grill and have total free area greater
than 1000cm2.

IS517 ECN4508

Page 12

Ventilation requirements for counter top models

Minimum distance of vents from any adjacent wall or surface

D6R/75B & S
D6R/100B & S
D6R/125B & S

500mm

200mm

C6R/105BL & BR

C6R/105SL & SR

C6R/130BL & BR

C6R/130SL & SR

200mm

500mm

D5R/100B & S
D5R/125B & S

D3R/100

500mm

200mm

IS517 ECN4508

Page 13

S R
1 2

C

FRAME HEATER

FRAME HEATER

GR

GR

BR

BR

GR

BR

BR

BR

BL

BL

G

G

BL

BR

BL

BL

BR

BR

BL

OR

GR

WIRING DIAGRAM C6R75-100-125-U

12 11 10 9

8 7 465 3

2 1

BR

BL

GR

BL

BR

BL

LIGHT

EVAPORATO R

FAN

EVAPORAT OR

FAN

CONDENSER

HOT GAS

SOLONO ID

BL

BL

OR

BK

BK

MAIN

SWIT CH

LIGHT

SWIT CH

COMPRESSOR

CONTROLLER

GRGRGR

IS517 ECN4508

Page 14

11 10

9 8 7 465 3 2

112

S

R

1 2

C

CONDENSER

COMPRESSOR

FRAME HEATER

FRAME HEATER

BR

BR

BR

BR

BR

BR

BR

BL

BK

GR

BL

OR

BL

BL

BLBL

BR

BL

BL

BL

BK

BK

BK

GR

GR

GR

OR

BL

EVAPORA TOR

FAN

EVAPORAT OR

FAN

CONDENSER

HOT GAS

SOLONO ID

LIGHT

LIGHT

SWIT CH

MAIN

SWIT CH

GR

WIRING DIAGRAM C6R105-130-D5R & D3R

CONTROLLER

PL05

PL05

NOTE:
ONE CONDENSER FITTED
ON C6R105,D3 &D5 MODELS

TWO CONDENSER FITTED
ON C6R130 MODELS

LIGHT CORD

CONNECTOR

NOTE:
ONE CH11 FRAME HEATER
FITTED ON D3R & D5R MODELS

IS517 ECN4508

Page 15

12

111098 7 46 5 3 2 1

SUCTIO N PROB ECABINE T PROB E

1 FAN

CONDENSER

FOR D6R75

2 FAN CONDENSER

FOR D6R100 &

D6R125

LIGHT

S

R

1 2

C

LIGHT CORD

DEFROST
SOLONOID

GR

BR

OR

BL

GR

BR

OR

BL

BR

BL

BL

BR

BR

GR

GR

BL

BL

BR

BR

BL

BL

BR

BR

GR

BK

BK

BK

BK

BR

BL

BR

BR

BK

GY

BK

GY

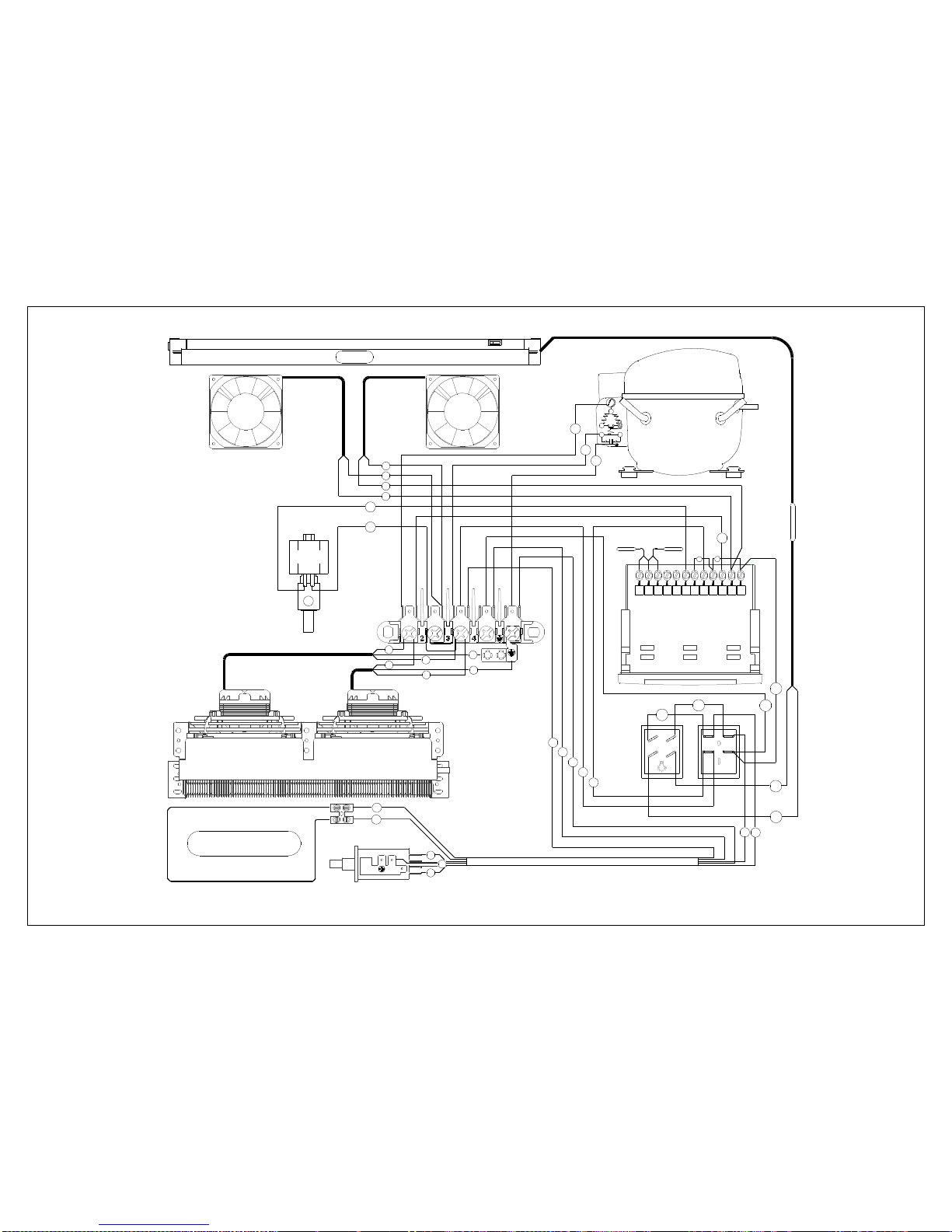

WIRING DIAGRAM D6R75-100-125

COMPRESSOR

FRAME HEATER

EVAPORAT OR

FAN

EVAPORATO R

FAN

CONTROLLER

IS517 ECN4508

Page 16

Troubleshooting

Problem

Possible Cause

Solution

Compressor will not start

No voltage in socket

Use voltmeter to check

Electrical conductor or wires may be
cut

Use ohmmeter to check for continuity

Defective electrical component:
controller, relay, thermal protector etc

Replace defective component

Compressor motor has a winding
open or shorted

Measure ohmic resistance of main
and auxiliary winding using
ohmmeter. Compare with correct
values
Change compressor

Compressor stuck

Change compressor
Temperature control contacts are

open

Replace the controller
Incorrect wiring

Check wiring diagram and correct

Fuse blown or circuit breaker tripped.

Replace fuse or reset circuit breaker

Mains Power cable unplugged

Plug in main power cable

Controller set too high

Set controller to lower temperature.

Cabinet in defrost cycle

Wait for defrost cycle to finish

The temperature is too cold

Controller is set at a very cold
position

Set to factory parameter and check if
the compressor stops according to
controllers operating range.

Controller does not disconnect the
condensing unit

Check the insulation of the controller
and probe(s). If problem persists,
change the controller and probe

Control contacts are stuck closed

Change the control. Check amperage
load

Defective or incorrect temperature
controller

Determine correct controller and
replace.

The temperature is not cold
enough

Controller is set at a very warm
position

Set to factory parameter and check if
the compressor stops according to
controllers operating range

Condenser is dirty

Clean condenser

The refrigerator has been placed at
an inadequate location

The unit must not be near stoves,
walls that are exposed to the sun, or
places that lack sufficient air flow.

Compressor is inefficient or there is a
high pressure due to the air in the
system

If there is air in the system, purge and
recharge

Iced up evaporator coil

Check temperature control,
refrigerant charge, and defrost
mechanism. Remove all ice manually
and start over.

Too many door openings

Advise user to decrease if possible

Excessive heat load placed in cabinet

Advise user not to put in products that
are too hot.

Excessive heat load placed in cabinet

Advise user not to put in products that
are too hot.

The refrigerator has been
overcharged with the refrigerant gas

Check to see if condensation or ice
crystals have formed on the suction
line. If so, charge with the correct
amount of gas.

IS517 ECN4508

Page 17

The refrigerant gas is leaking

Find the location of gas leak in order
to seal and replace the defective
component. Change the drier.
Perform a good vacuum and
recharge unit.

The refrigerant gas is leaking

Find the location of gas leak in order
to seal and replace the defective
component. Change the drier.
Perform a good vacuum and
recharge unit.

Blocking air flow

Re-arrange product to allow for
proper airflow. Make sure there is
ample of clearance around the
product

Fuse blown or circuit breaker tripped

Replace fuse or reset circuit breaker.

Electrical Shocks
Wires or electrical components are in
direct contact with metallic parts.

Check for appropriate insulation on
the connections of each component.

Noise
The refrigerator is not properly levelled

Check if the noise goes away after
you level the refrigerator

The condenser is not fastened
correctly. Copper tubing is in contact
with metal

While the compressor is working,
check to see if metal parts are in
contact with one another and/or if the
screws that fasten the condenser are
tightened.

The evaporator and/or condenser fan
motors are loose

Check if the fan motors are securely
fastened

Compressor has an internal noise

If the noise persists after all other
measures have been taken, it may be
originating from the compressor.

Loose component(s)

Locate and tighten loose
component(s)
Extreme condensation inside the
refrigerator

The outside environment’s relative

humidity is very high (over 60%)

This type of occurrence is caused by
local climatic conditions and not by
the refrigeration unit.

The refrigerator door won’t shut
completely

Check the door and/or the magnetic
gasket. Adjust the door hinges if
needed; replace the gasket if broken.

The refrigerator had been placed at an
inadequate location

The unit must not be near sources
that produce too much heat.

Door seals(s) not sealing properly

Ensure gaskets are snapped in
completely. Remove gasket and
wash with soap and water. Check
condition of gasket & replace if
necessary

Dirty condenser coil

Clean condenser coil

Evaporator coil iced over

Unplug unit and allow coil to defrost.
Make sure controller is not set too
cold. Ensure that door gasket(s) are
sealing properly. Select manual
defrost and ensure system works.

No illumination

The light switch is ‘off’ position

Press the light witch to ‘ON’ position

False contact on the light switch or
fluorescent tube

Inspect all connections

Light assembly ,light switch and/or
fluorescent tube are damaged

Replace the damaged components

IS517 ECN4508

Page 18

OPERATING INSTRUCTIONS

2

3 1

1. On/Off Switch

2. Light Switch

3. Temperature Control

The control panel layout may vary.

Ensure shelves are secure. Close the doors. To check operation of the unit,
connect it to the electricity supply, switch on the light (2) and the light will
illuminate, and then switch on the refrigeration using the On/Off switch (1), the

temperature controller will illuminate and the cabinet will begin to cool.

The temperature controller is factory set to maintain the temperature
inside at 3 to 5oC. The temperature displayed is the air inside the
cabinet and not the temperature of the food product.

The displayed temperature will fluctuate as the refrigeration system
cycles. At 2 hour intervals the system will automatically defrost. You will hear a
hissing sound for a few seconds and the display will indicate that it is in defrost
mode, refer to page 13.

LOADING

Load the cabinet with pre refrigerated products only, taking care to allow
room for the air to flow. Do not allow items to overhang the edges of the

shelves.

Do not obstruct any of the ventilation grilles.

IS517 ECN4508

Page 19

CLEANING AND MAINTENANCE

CLEANING

Disconnect the unit from the electricity supply. Use a mild detergent in
hot water and a soft cloth. Do not use abrasive creams or scourers.
Remove the rear doors, shelves and base panels. Shelves (including

supports) and base-panels may be washed in a dishwasher.

MAINTENANCE

Regular cleaning of the unit is recommended. No other regular maintenance is
required, but it may be necessary to clean the condenser or replace a light tube.

CLEANING THE CONDENSER

Disconnect the unit from the electricity supply.

For counter top models the condenser is located behind a grille on the operator
side of the appliance. Access the condenser by removing the screw holding the
grille in place using the Allen key provided. Use a vacuum cleaner to suck any
debris from the face of the condenser and replace the grille.
For drop in models the condenser is located at the front of the drop in module
and can be brushed down using a stiff bristled brush.

REPLACING THE LIGHT

Disconnect the unit from the electricity supply.

Remove doors. Unclip the end caps from the light unit. Remove the diffuser
from its clips. To remove the tube, carefully rotate it 90o and slowly pull down
until it is released. It is recommended that the starter (a round cylinder located
at one end of the tube) is also replaced at the same time. To remove the starter,
rotate it anticlockwise. Fitting the new tube is the reverse of the above
sequence.

IS517 ECN4508

Page 20

SERVICE INFORMATION

For help with the installation, maintenance and use of your Lincat equipment,
please contact our service department:

 UK: 01522 875520

All service work, other than routine cleaning should be carried out by one of our
authorised service agents. We cannot accept responsibility for work carried out
by other persons.

To ensure your service enquiry is handled as efficiently as possible, please tell
us:

 Brief details of the problem

 Product code

All available on serial plate

 Type number

 Serial number

Lincat reserve the right to carry out any work under warranty, given reasonable
access to the appliance, during normal working hours, Monday to Friday, 08:30
to 17:00.

GUARANTEE

This unit carries a comprehensive UK mainland twelve month / 2 year warranty.
The guarantee is in addition to, and does not diminish your statutory or legal
rights.

The guarantee does not cover:

 Accidental damage, misuse or use not in accordance with the

manufacturer’s instructions

 Consumable items
 Damage due to incorrect installation, modification, unauthorised service

work or damage due to scale, food debris build-up, etc.

The manufacturer disclaims any liability for incidental, or consequential
damages.
Attendance is based on reasonable access to the appliance to allow the
authorised technician to carry out the warranty work.
Service calls to equipment under warranty will be carried out in accordance with
the conditions of sale. Unless otherwise specified, a maximum of 15 minutes of
administrative time, not spent directly carrying out servicing work, is provided for
within the warranty. Any requirement for staff attending the call to spend greater
time than 15 minutes due to administrative requirements, such as on health and
safety risk assessments, will be chargeable at the prevailing rate.
