Linak TECHLINE LA35 User Manual

LA35 ACTUATOR

To learn more about LINAK, please visit:

WWW.LINAK.COM

USER MANUAL

2

3

Contents

Preface ................................................................................................................................................................. 4

Safety instructions .............................................................................................................................................. 5

Important information ....................................................................................................................................... 5

Declarations of conformity ................................................................................................................................ 6

Misc. on the TECHLINE

®

actuator system

Warranty ........................................................................................................................................................ 7

Maintenance .................................................................................................................................................. 7

Maintenance of spherical eyes ........................................................................................................................ 7

Specifi cations ...................................................................................................................................................... 8

Mounting guidelines .......................................................................................................................................... 9

Applications hints ............................................................................................................................................... 9

Electrical installation

Motor connection ............................................................................................................................................. 10

Connection diagrams ........................................................................................................................................10

I/O Specifi cations: Motor .................................................................................................................................. 12

I/O Specifi cations: Potential free signal switches ........................................................................................... 12

I/O Specifi cations: Relative positioning .......................................................................................................... 13

I/O Specifi cations: Absolute positioning ......................................................................................................... 13

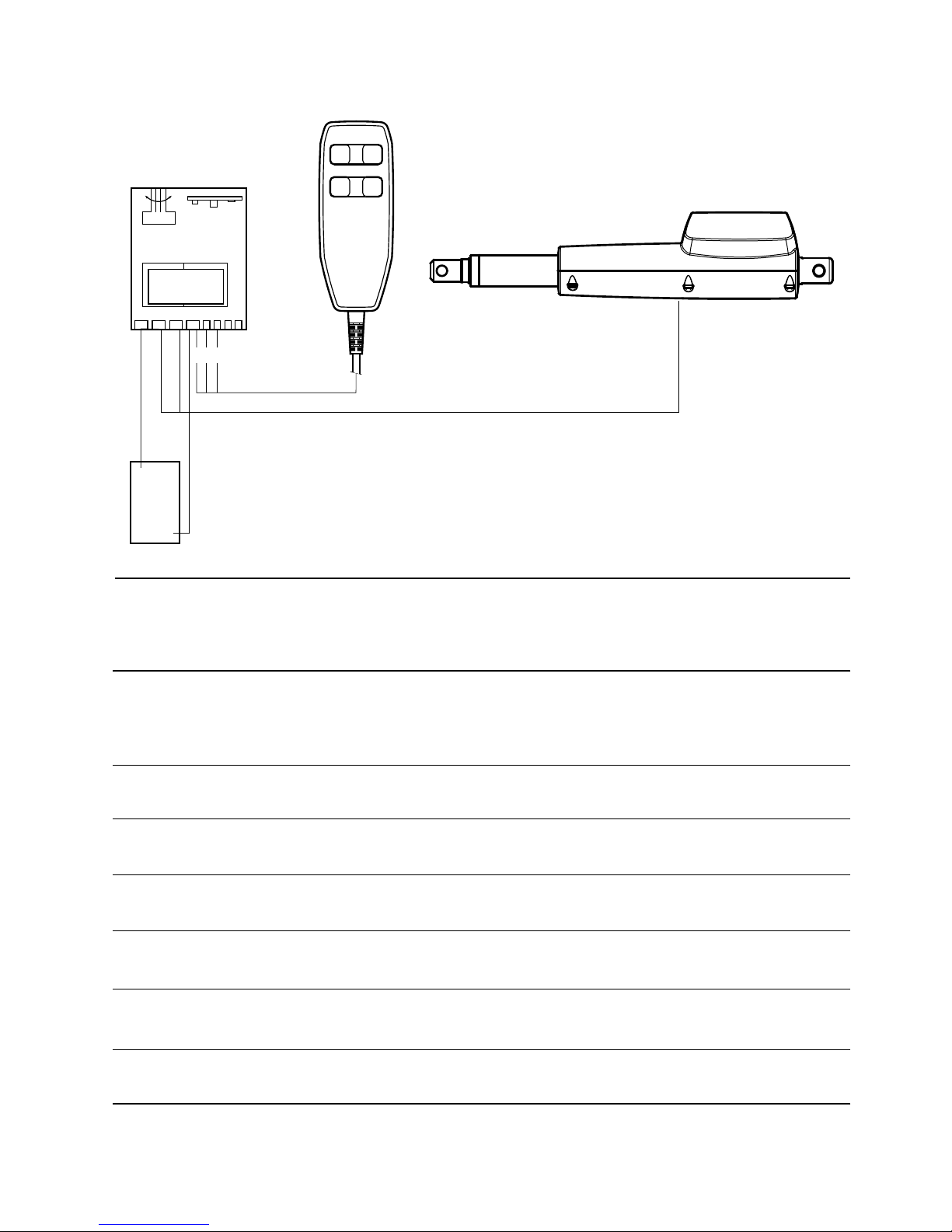

Connection of the LA35 with the CS16 ........................................................................................................... 15

Troubleshooting ................................................................................................................................................ 15

Mounting of cables ........................................................................................................................................... 16

Accessories .........................................................................................................................................................16

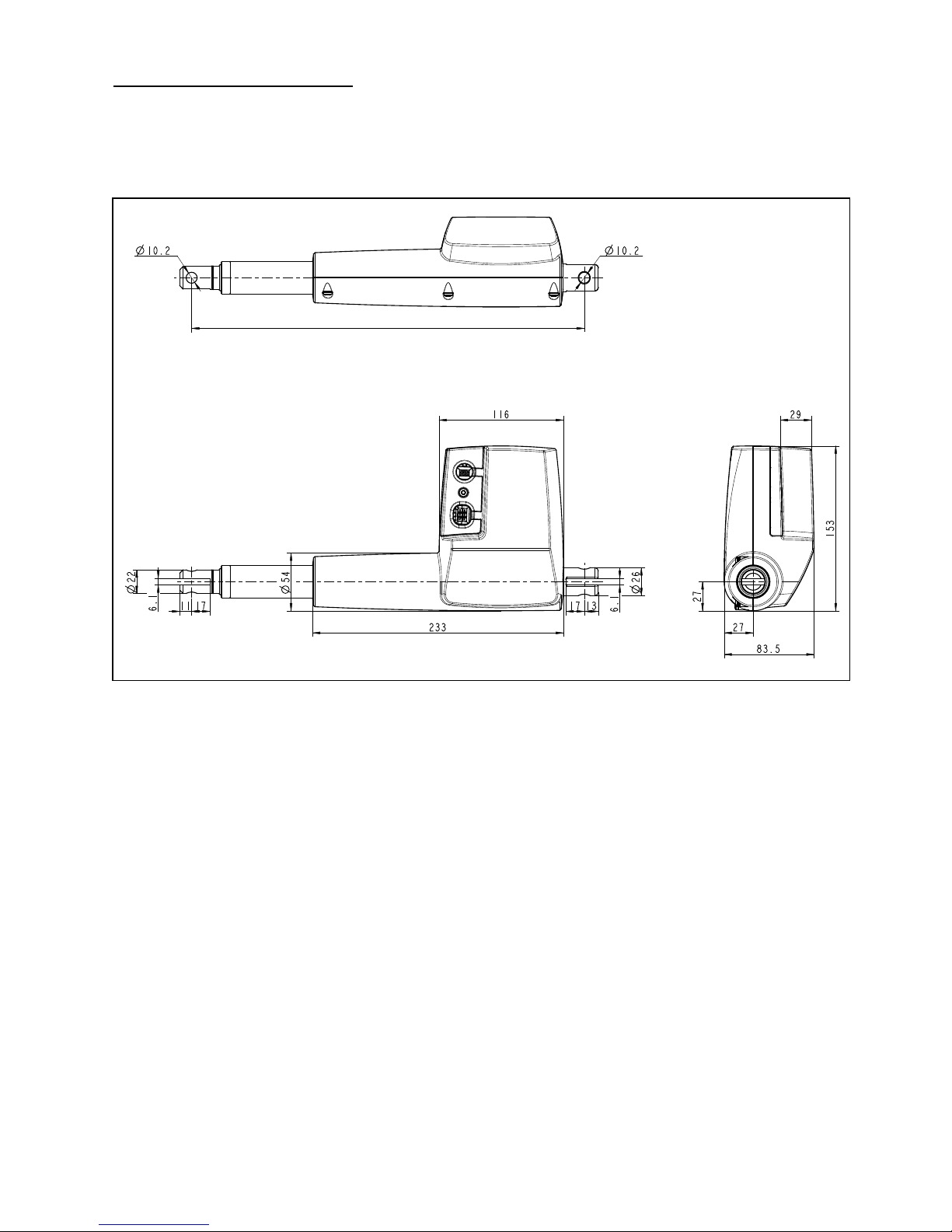

Drawings (dimensions) ..................................................................................................................................... 17

Main groups of disposal .................................................................................................................................. 18

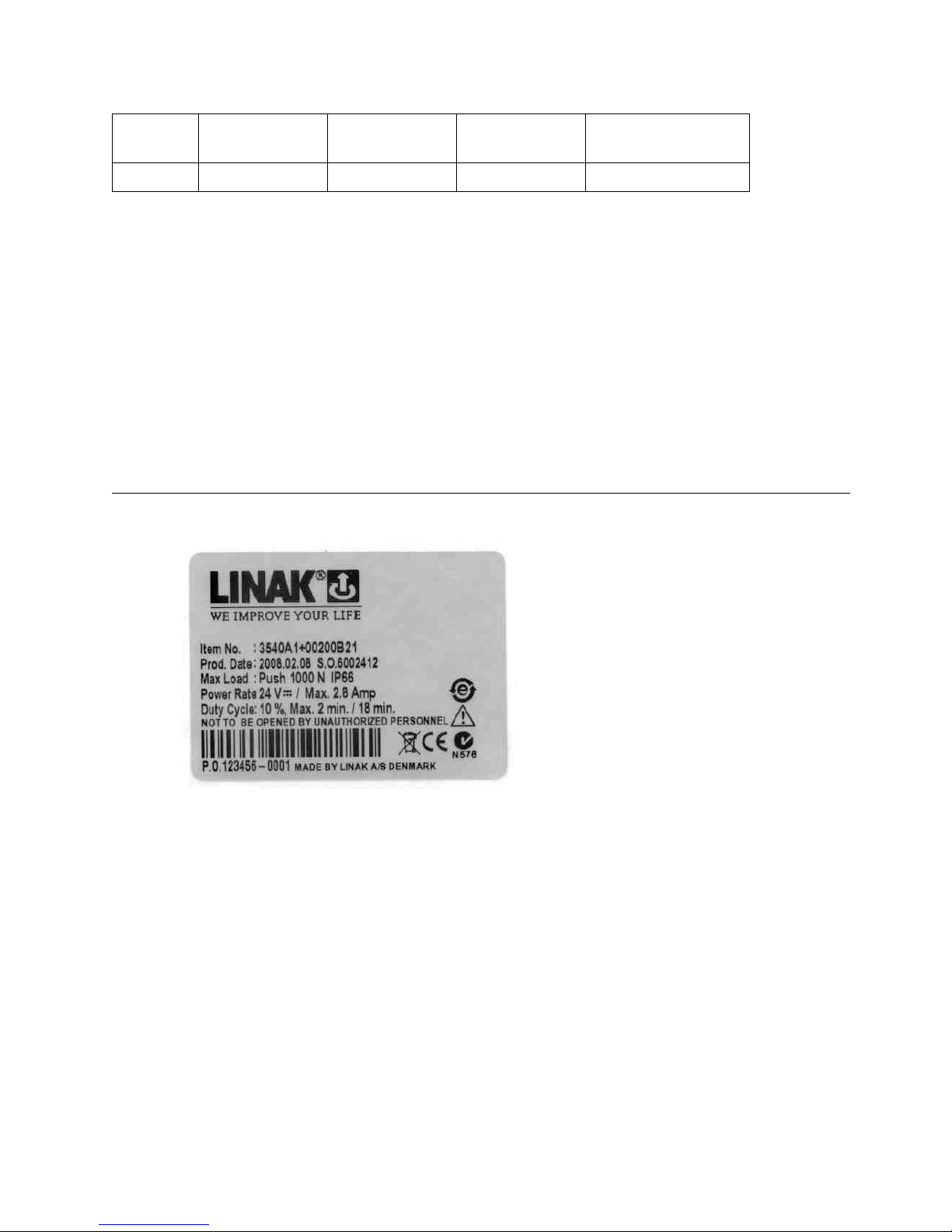

Label for LA35 ................................................................................................................................................... 18

Addresses .......................................................................................................................................................... 20

4

Preface

We are delighted that you have chosen a product from LINAK. LINAK systems are high-tech products based
on many years of experience in the manufacture and development of actuators, electronic control boxes,
controls, and chargers. We are also constantly improving our products to meet customer requirements.

This user manual will tell you how to install, use, and maintain your LINAK LA35 actuator.

We are sure that the LA35 actuator will give you a problemfree operation. Before our products leave the
factory they undergo full function and quality testing. Should you nevertheless experience problems with
your LINAK products, you are always welcome to contact our service departments or service centres.

Most LINAK subsidiaries have authorised service centres, which are always ready to help you.

LINAK provides a warranty on all its products. This warranty, however, is subject to correct use in accordance
with the specifi cations, maintenance being done correctly and any repairs being carried out at a service
centre, which is authorised to repair LINAK products.

LINAK A/S

5

Safety instructions

Please read the following safety information carefully.

Ensure that all staff who are to connect, mount, or use the actuator are in possession of the necessary
information and that they have access to this user manual.

Persons who do not have the necessary experience or knowledge of the product/products must not use
the product/products. Besides, persons with reduced physical or mental abilities must not use the product/
products, unless they are under surveillance or they have been thoroughly instructed in the use of the
apparatus by a person who is responsible for the safety of these persons.

Moreover, children must be under surveillance to ensure that they do not play with the product.

Before you start mounting/dismounting, ensure that the following points are observed:

• The actuator is not in operation.

• The mains current supply is switched off and the plug has been pulled out.

• The actuator is free from loads that could be released during this work.

Before you put the actuator into operation, check the following:

• The actuator is correctly mounted as indicated in the relevant user instructions.

• The equipment can be freely moved over the actuator’s whole working area.

• The actuator is connected to a mains electricity supply/transformer with the correct voltage and which is
dimensioned and adapted to the actuator in question.

• Ensure that the voltage applied matches to the voltage specified on the actuator label.

• Ensure that the connection bolts can withstand the wear.

• Ensure that the connection bolts are secured safely.

During operation

• Listen for unusual sounds and watch out for uneven running. Stop the actuator immediately if anything
unusual is observed.

• Do not sideload the actuator.

• Use only the actuator within the specified working limits.

• Do not step or kick on the actuator.

When the equipment is not in use

• Switch off the mains supply or pull out the plug in order to prevent unintentional operation.

• Check regularly the actuator and joints for extraordinary wear.

• Reinstall always the cabellock and a tight screw with 1,5 Nm +/- 20%

Classification

The equipment is not suitable for use in the presence of a flammable anaesthetic mixture with air or with
oxygen or nitrous oxide.

Important information

Information about the actuators is described under the following two headings:

Warning!

Failing to follow these instructions can cause accidents resulting in serious personal injury.

Failing to follow these instructions can result in the actuator suffering damage or being ruined.

6

DECLARATION OF CONFORMITY

LINAK A/S

Smedevænget 8

DK - 6430 Nordborg

hereby declares that LINAK Actuator 35xxxxxxxxxxx2x
complies with the EMC Directive: 2004/108/EC according to following harmonized standards:

EN 61000-4-2:1995+A1+A2, EN 61000-4-3:2006, EN 61000-4-4:2004,
EN 61000-4-5:1995+A1, EN 61000-4-6:1996+A1, EN 50121-3-2, EN 60204-31:1999

Additional information:
The actuator does also comply with EMC parts of:
The Machinery Directive 2006/42/EC
The Recreational Craft Directive 94/25/EC
The Vehicle EMC Directive 2004/104/EC

and complies with the following standards:
DS/EN 13309:2001 (Construction machinery - Electromagnetic compatibility of machines with
internal electrical power supply), DS/EN ISO 14982:1998 (Agricultural and forestry machines ­Electromagnetic compatibility - Test methods and acceptance criteria) and EN/ISO

13766:2006 (Earth-moving machinery - Electromagnetic compatibility)

Date: 2009-04-16

Signature:

( John Kling )

7

Misc. on the TECHLINE® actuator system

Warranty

There is a 12 months’ warranty on the TECHLINE products against manufacturing faults calculated from
the production date of the individual products (see label). LINAK’s warranty is only valid in so far as the
equipment has been used and maintained correctly and has not been tampered with. Furthermore, the
actuator must not be exposed to violent treatment. In the event of this, the warranty will be ineffective/
invalid. For further details, please see LINAK A/S ordinary conditions of sale.

Maintenance

• The actuator must be cleaned at regular intervals to remove dust and dirt and inspected for mechanical
damages or wear.

• Inspect attachment points, wires, piston rod, cabinet, and plug, as well as check that the actuator
functions correctly.

•

The actuator is a closed unit and requires no internal maintenance.

•

To ensure that the pregreased inner tube remains lubricated, the actuator

must only be washed down when

the piston rod is fully retracted.

Maintenance of spherical eyes

In order to maintain a prober performance of the spherical eyes and to increase the resistances against
hard environmental wear, we strongly recommend that the spherical (ball bearings) eyes mounted on
actuators from LINAK are greased with anticorrosive grease or similar.

Warning!

If irregularities are observed, the actuator must be replaced.

8

Specifications

Motor: Permanent magnet motor 12, or 24 *

Cable: Motor: 2 x 14 AWG PVC cable
Control: 6 x 20 AWG PVC cable **

Housing: The housing is made of casted aluminium, coated for
outdoor out and in harsh conditions

Spindle part: Outer tube: Powder coated steel
Inner tube: Stainless steel AISi304/SS2333
Acme spindle: Trapezoidal spindle with high effi ciency

Temperature range: - 10

o

C to +50o C

Full performance +5o C to +40o C

End play: 2 mm maximum

Weather protection: Rated IP66 for outdoor use. Furthermore, the actuator can be washed down
with a high-pressure washer.

* BUS actuators only 24V - please see the installation guide.
** Special control cabels for BUS actuator - please see the installation guide.

9

Mounting guidelines

LINAK® linear actuators are quickly and easily mounted by slipping pins through the holes on each end of
the units and into brackets on the machine frame and the load.

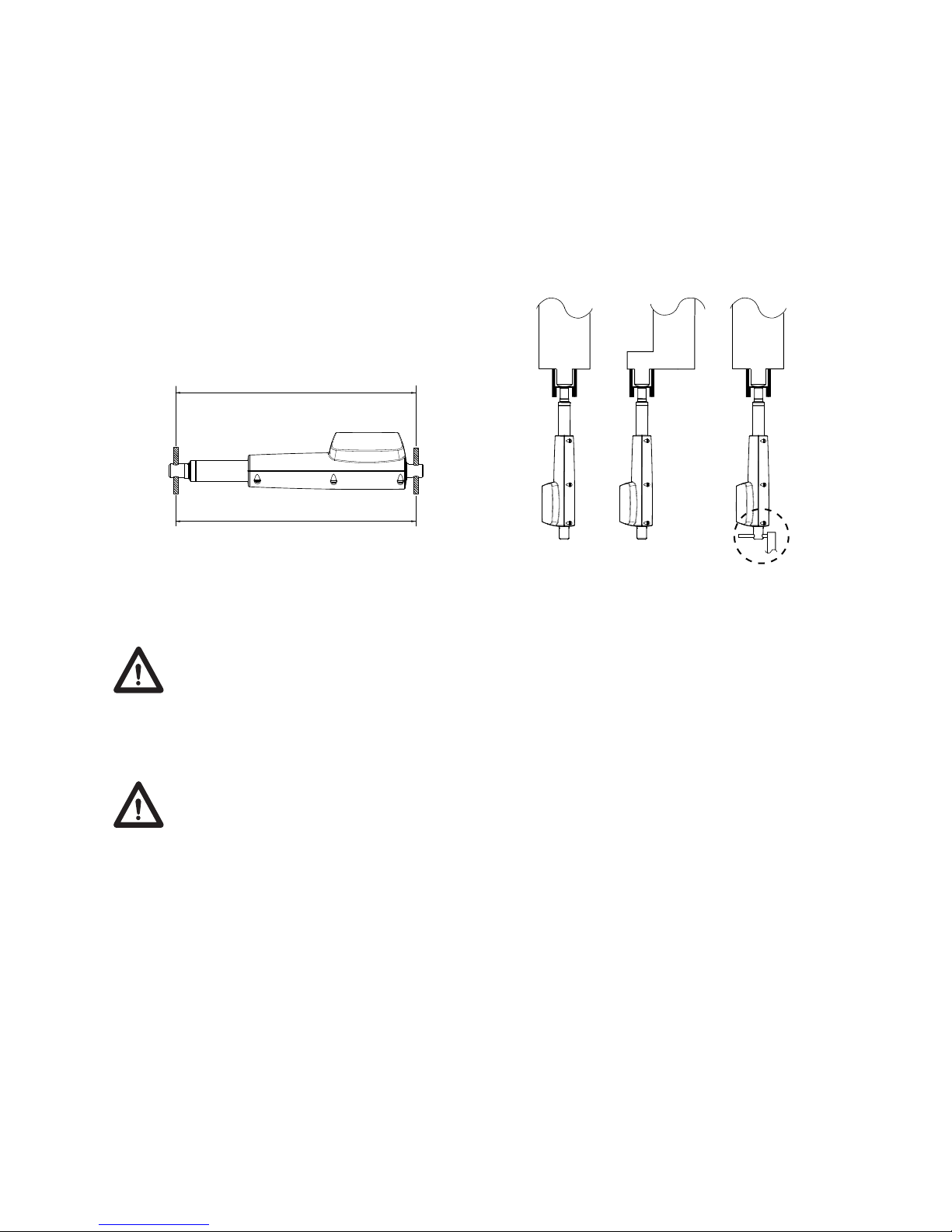

The mounting pins must be parallel to each other as shown in Figure 1. Pins, which are not parallel to each
other, may cause the actuator to bend and be damaged.

The load should act along the stroke axis of the actuator since off centre loads may cause bending and
lead to premature failure. See Figure 2.

Make sure the mounting pins are supported in both ends. Failure to do so could shorten the life of the
actuator. Cantilever mounts are unacceptable.

Figure 1

X

X

Figure 2

RIGHT WRONG

WRONG

Warning!
If the actuator is used for pull in an application where personal injury can occur, the
following is valid:

It is the application manufacturer’s responsibility to incorporate a suitable safety arrangement,
which will prevent personal injury from occurring, if the actuator should fail.

Warning!
LINAK’s actuators are not constructed for use within the following fields:

• Offshore installations

• Aeroplanes and other aircraft

• Explosive environments

• Nuclear power generation

Application hints

The actuator is weatherproof for use in outdoor applications. The actuator can be washed down with a
high pressure washer, but it should not be used under water.

The duty cycle at max. load is 10% on time. This means if the actuator runs continuously for 2 minutes it
must remain off for 18 minutes before operating again.

10

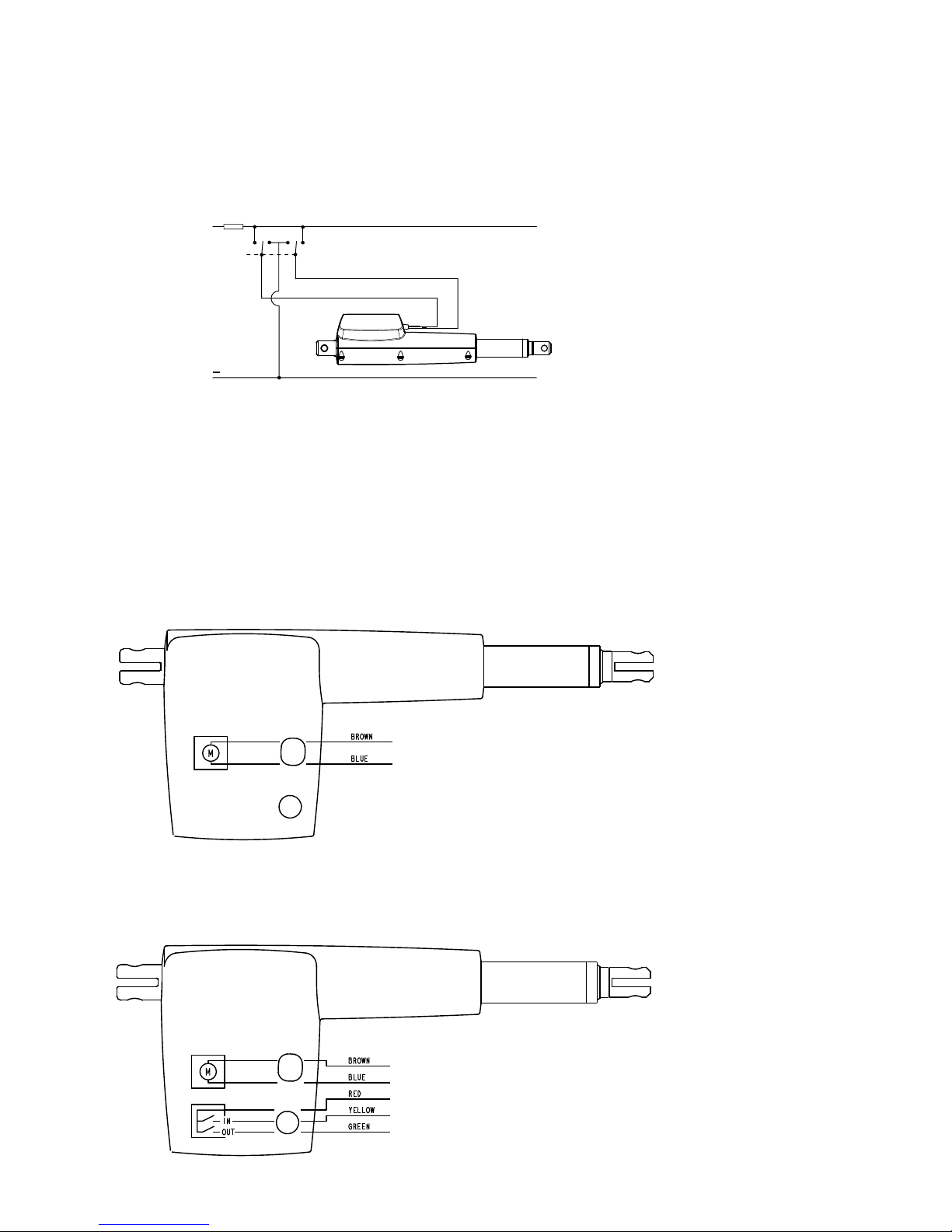

Connection diagrams:

BROWN

BLUE

M

Basic actuator -

Fig.1 : 35xxxxx00xxxxx

M

OUT

IN

BROWN

BLUE

RED

YELLOW

GREEN

Actuator with potential free switches ­Fig.2 : 35xxxxx10xxxxx

Electrical installation

Be aware of BUS actuator - please see the installation guide.

Motor connection

Wiring: The actuator direction (forward, reverse) is controlled with a doublethrow switch with the
centre postion “off”.

Motor

+

Actuation

To extend the actuator, connect brown to positive and blue to negative.
To retract the actuator, connect blue to positive and brown to negative.

11

M

OUT

IN

SIGNAL

BLACK

VIOLET

WHITE

GREEN

YELLOW

RED

BLUE

BROWN

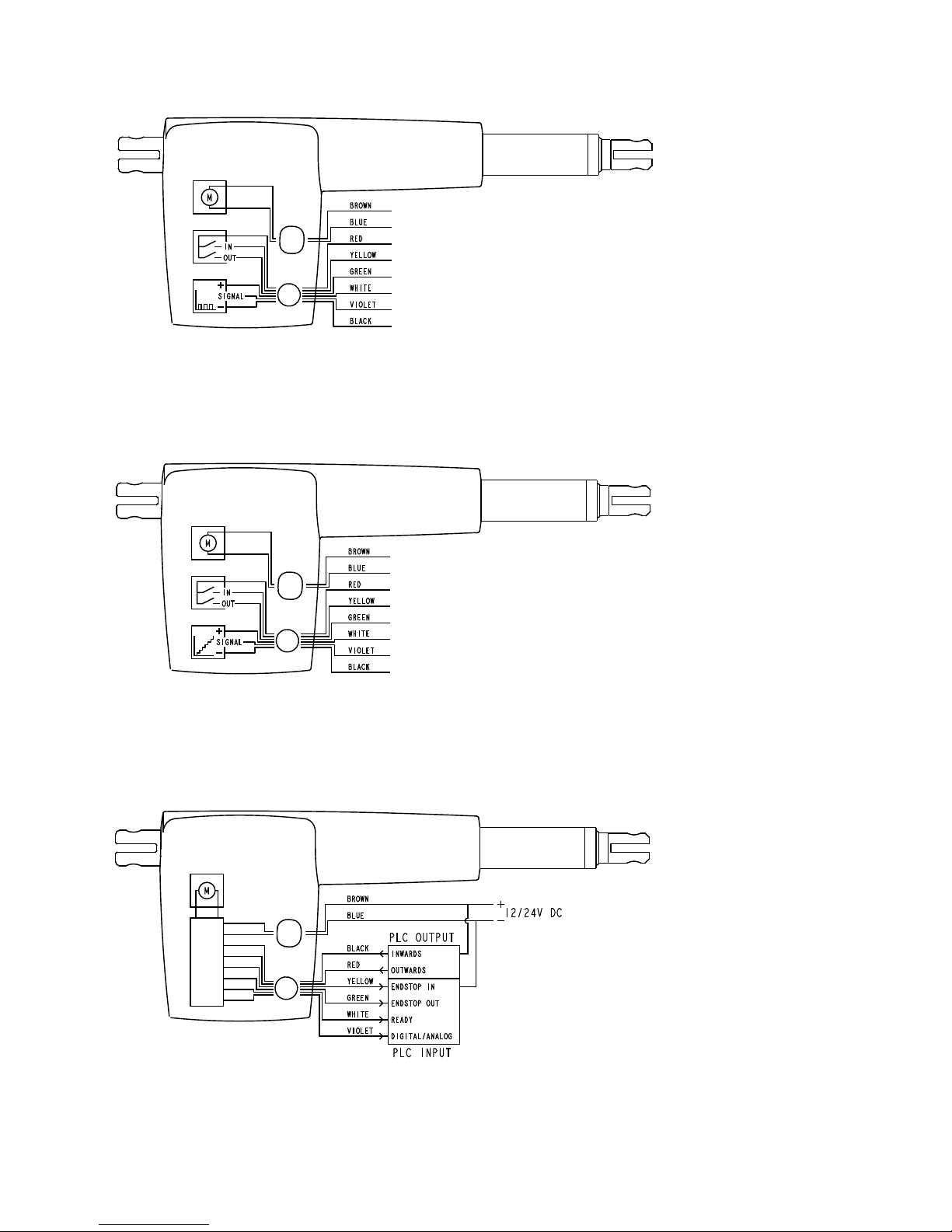

Actuator with potential free switches and absolute positioning -

Fig.4 : 35xxxxx0Axxxxx & 35xxxxx1Axxxxx

M

OUT

IN

SIGNAL

BLACK

VIOLET

WHITE

GREEN

YELLOW

RED

BLUE

BROWN

Actuator with potential free switches and relative positioning -

Fig.3 : 35xxxxx0Hxxxxx & 35xxxxx1Hxxxxx

BLACK

RED

YELLOW

GREEN

WHITE

VIOLET

INWARDS

OUTWARDS

ENDSTOP IN

ENDSTOP OUT

READY

DIGITAL/ANALOG

PLC OUTPUT

BROWN

BLUE

12/24V DC

M

Actuator with PLC-option -

Fig.5 : 35xxxxx20xxxxx & 35xxxxx2Hxxxxx & 35xxxxx2Axxxxx

12

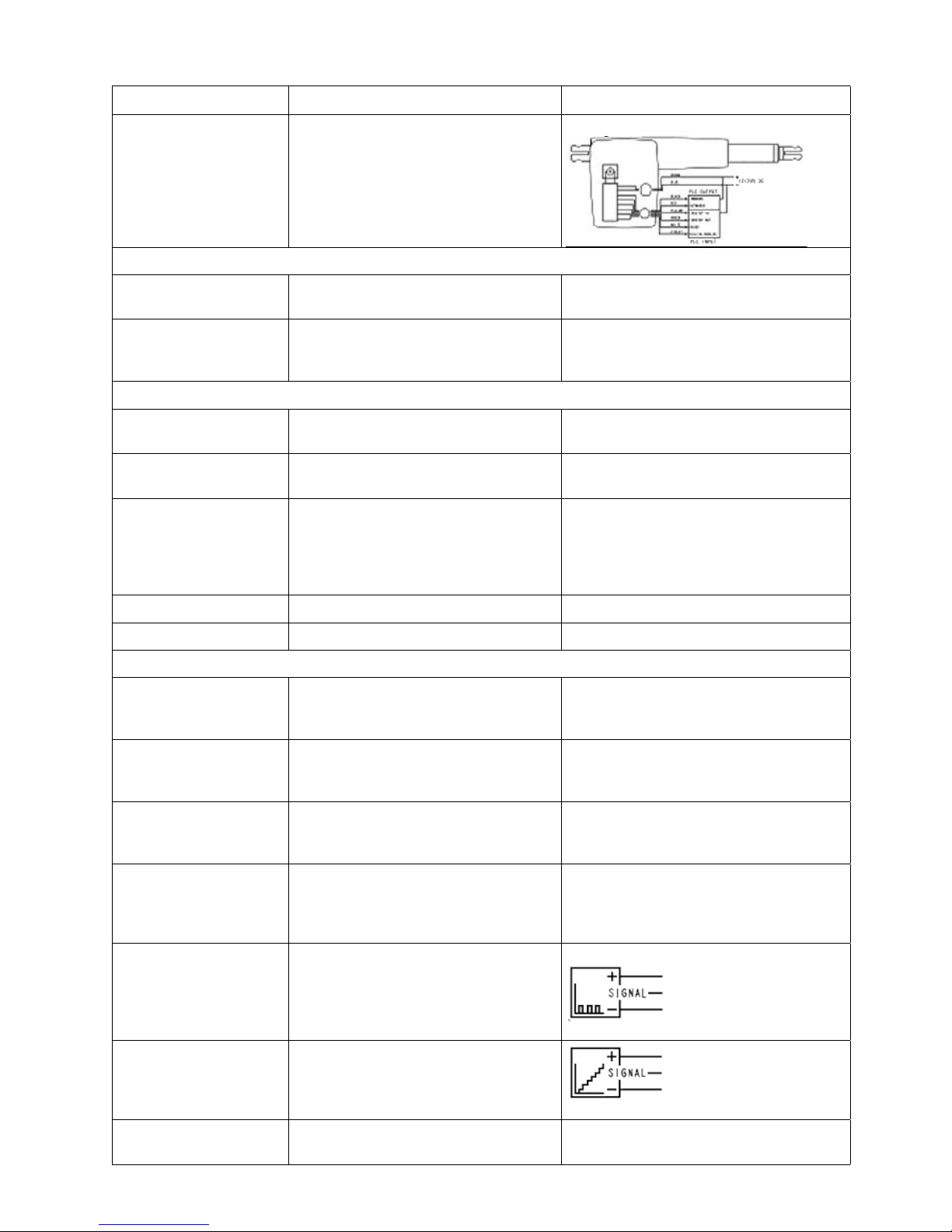

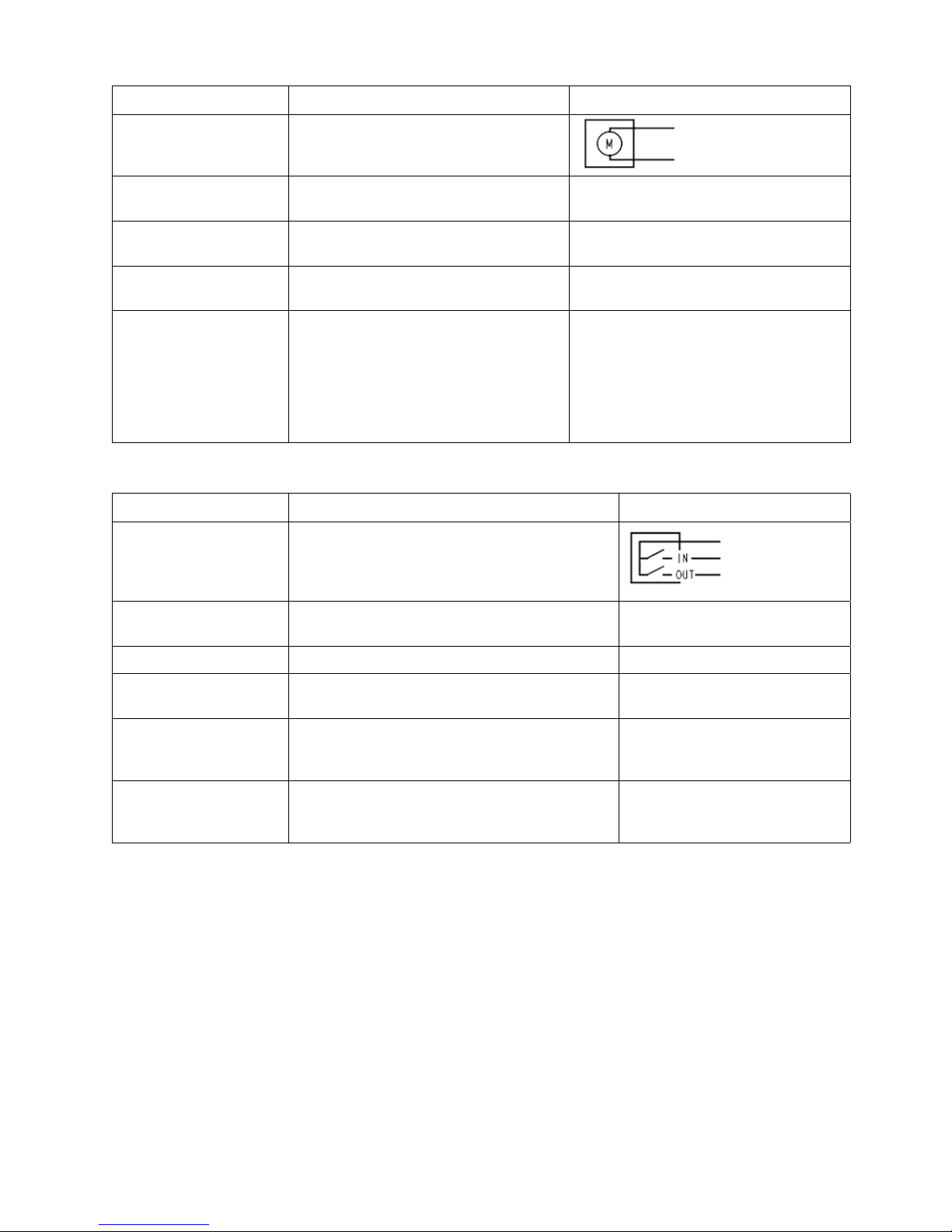

I/O Specifi cations: Motor

I/O Specifi cations: Potential free signal switches

Item Specifi cation Comment

Description Permanent magnet DC motor, available in

12V or 24V

Input Voltage 12VDC, +/- 20%

24VDC, +/- 10%

Cable dimension 2 x 2,5 mm

2

(2 x AWG14)

Current consumption 12V, 2-10A depending on load

24V, 1-5A depending on load

See curves for typical values

Speed regulations The motor can run with PWM regulation.

This could be used for soft start/stop etc.

The version with “PLC option” cannot be
operated with PWN

Connection To extend actuator:

Connect Brown to positive
Connect Blue to negative

To retract actuator:
Connect Brown to negative
Connect Blue to positive

See fi gure 1 + 2 + 3 + 4
Use cable 0367002-XXXX

Actuator direction can be operated with
double-throw switch with middle position
“off”
LINAK Code: TR-1939.3314-00

Item Specifi cation Comment

Description The actuator can be equipped with two separate

micro switches that that are activated when the
actuator is fully retracted (IN) or fully extended
(OUT). The micro switches are Normally Open

Input Voltage 10-28VDC Cable dimension 6 x 0,5mm

2

(6 x AWG20)

Output voltage Same as input voltage

Switching capacity Minimum 10 mA

Maximum 1 A

Connection Supply: Red (Pin 2)

Actuator retracted: Yellow (Pin 5)
Actuator extended: Green (Pin 6)

See fi gure 2 + 3 + 4
Use cable 0367003-XXXX

Combinations The potential free switches can be combined

with relative or absolute feedback. But cannot be
combined with “PLC/option”

35xxxxx1xxxxxx

13

I/O Specifi cations: Relative positioning

I/O Specifi cations: Absolute positioning

Item Specifi cation Comment

Description The actuator can be equipped with a hall

sensor and a spindle magnet. In this way
you can have pulses from the actuator
when it moves. The output signal is a PNP
signal.

Input Voltage 10-28 V DC Feedback circuit to be powered 1second

before motor runs, and until 1 second
after the motor has stopped.
Cable dimension 6 x 0.5 mm

2

(6 x AWG20)

Output voltage Same as input voltage Typical Output voltage:

HIGH: Output = Input -1V (+/- 0.5V)
LOW: Output = 0-0.5V

Current consumption Current consumption is max. 40 mA Also when actuator is not running

Switching capacity 100 mA, max.

Resolution The feedback system gives 8 pulses per

spindle turn:
3 mm pitch = 0.38 mm per pulse
5 mm pitch = 0.63 mm per pulse
9 mm pitch = 1.13 mm per pulse
12 mm pitch = 1.5 mm per pulse

Pulse/pause minimum 10 Milliseconds.
On 100 mm stroke you will have the fol­lowing number of pulses:
3 mm pitch = 266 pulses
5 mm pitch = 160 pulses
9 mm pitch = 88 pulses
12 mm pitch = 66 pulses

Connection Supply: White (Pin 3)

Ground: Black (Pin 1)
Signal: Violet (Pin 4)

See fi gure 3
Use cable 0367003-XXXX

Combinations The Relative positioning can be combined

with potential free
Switches. But cannot be combined with
absolute positioning

35xxxxxxHxxxxx

Item Specifi cation Comment

Description The actuator can be equipped with

electronic circuit that gives an analog
feedback signal when the actuator moves.

Input Voltage 11-28 V DC Feedback circuit to be powered 1 second

before motor runs, and until 1 second
after the motor has stopped.
Cable dimension 6 x 0,5 mm

2

(6 x AWG20)

Output voltage 0 -10V

0V = Fully retracted
10V = Fully extended

+/- 0.5V

Current consumption Current consumption is max. 40 mA Also when actuator is not running

Connection Supply: White (Pin 3)

Ground: Black (Pin 1)
Signal: Violet (Pin 4)

See fi gure 4
Use cable 0367003-XXXX

Combinations The Absolute positioning can be combined

with potential free Switches. But cannot
be combined with relative positioning

35xxxxxxAxxxxx

14

I/O Specifi cations: PLC-option

Item Specifi cation Comment

Description Easy to use interface, with

integrated power electronics (Hbridge)
for direct PLC connection.
Soft start of the actuator.

See fi gure 5

Power supply

Input Voltage 12 V DC, +/- 20 %

24 V DC, +/- 10 %

Cable dimension 2 x 2,5 mm

2

(2 x AWG14)

Current consumption 12 V, 2-10 A depending on load

24 V, 1-5 A depending on load

Recommended fuse:
12V version = 20A fuse
24V version = 10A fuse

Inputs: Signals to the Actuator

Outwards direction Extends the Actuator

FW – Red (Pin 2)

PNP

Inwards direction Retracts the Actuator

BW – Black (Pin 1)

PNP

On/Off voltages On voltage (High):

> 67 % of the power supply

Off voltage (Low):
< 33 % of the power supply

Examples on 24 V version:
On if the voltage is higher than 16 V

Off if the voltage is lower than 8 V

Input Impedance 10 K ohm

Input current < 10 mA

Outputs: Signals from Actuator

Actuator fully
retracted (IN)

Signal when end stop switch in retracted
position is activated
IN = Yellow (Pin 5)

Max. 50 mA switching capacity

Actuator fully
extended (OUT)

Signal when end stop switch in extended
position is activated
OUT = Green (Pin 6)

Max. 50 mA switching capacity

Actuator ready When the Actuator is ready the signal

is High
Ready = White (Pin 3)

Max. 10 mA switching capacity
Current cut-off 12 V version: 17 - 21 A
Current cut-off 24 V version: 8.5 - 10.5 A

Output voltage Typical: Input voltage -1 V Example on 24 V version:

Output voltage on IN = 23 V (+/-0.5V)
Output voltage on OUT = 23 V (+/-0.5V)
Output voltage on READY = 23 V (+/-0.5V)

Relative
positioning

For functional description see I/O
Specifi cations for Relative
positioning.

Max. 12mm switching capacity

35xxxxx2Hxxxxx

Absolute
positioning

For functional description see I/O
Specifi cations for Absolute
positioning.

35xxxxx2Axxxxx

Connection See fi gure 5

Use cables 0367002-XXXX and 0367003-XXXX

See fi

gur

g

e 5

15

Troubleshooting

Action

• Connect the actuator to the
power supply

• Change cable

• Send actuator for repair

• Align or reduce load

• Send actuator for repair

• Send actuator for repair

• Send actuator for repair

• Change cable

• Send actuator for repair

• Increase power supply

• Thicker cable

• Reduce load

Possible cause

• The actuator is not connected to
the power supply

• Cable damaged

• Misalignment or overload in
application

• Gearwheel or spindle

damaged

• Clutch is worn

• Motor is damaged

• Cable damaged

• Potentiometer damaged

• Insufficient power supply

• Voltage drop in cable

• Load is higher than specified

Symptom

No motor sound or
movement of piston rod

Excessive electricity
consumption

Motor runs but spindle does
not move

Actuator cannot lift full load

No signal from potentiometer
or hall effect sensor

Motor runs too slowly or
does not give full force

Actuator cannot hold the
chosen load

1 2 3 4 5 6 7 8 9 10 11 12

CS16-4-24

MAX MIN

P

HB40 serie

-

+

R = RED . O = ORANGE . GR = GREEN

R GR O

Connection of the LA35 with the CS16

Be aware of BUS actuator - please see the installation guide.

16

Accessories

Cables:

Power cables (Ordered separately) Order no.

1.5 m cable 0367002-1500
5 m 0367002-5000

0.2 m cable (AMP connectors) 0367006

Signal cable (Ordered separately) Order no.

1.5 m cable 0367003-1500
5 m 0367003-5000

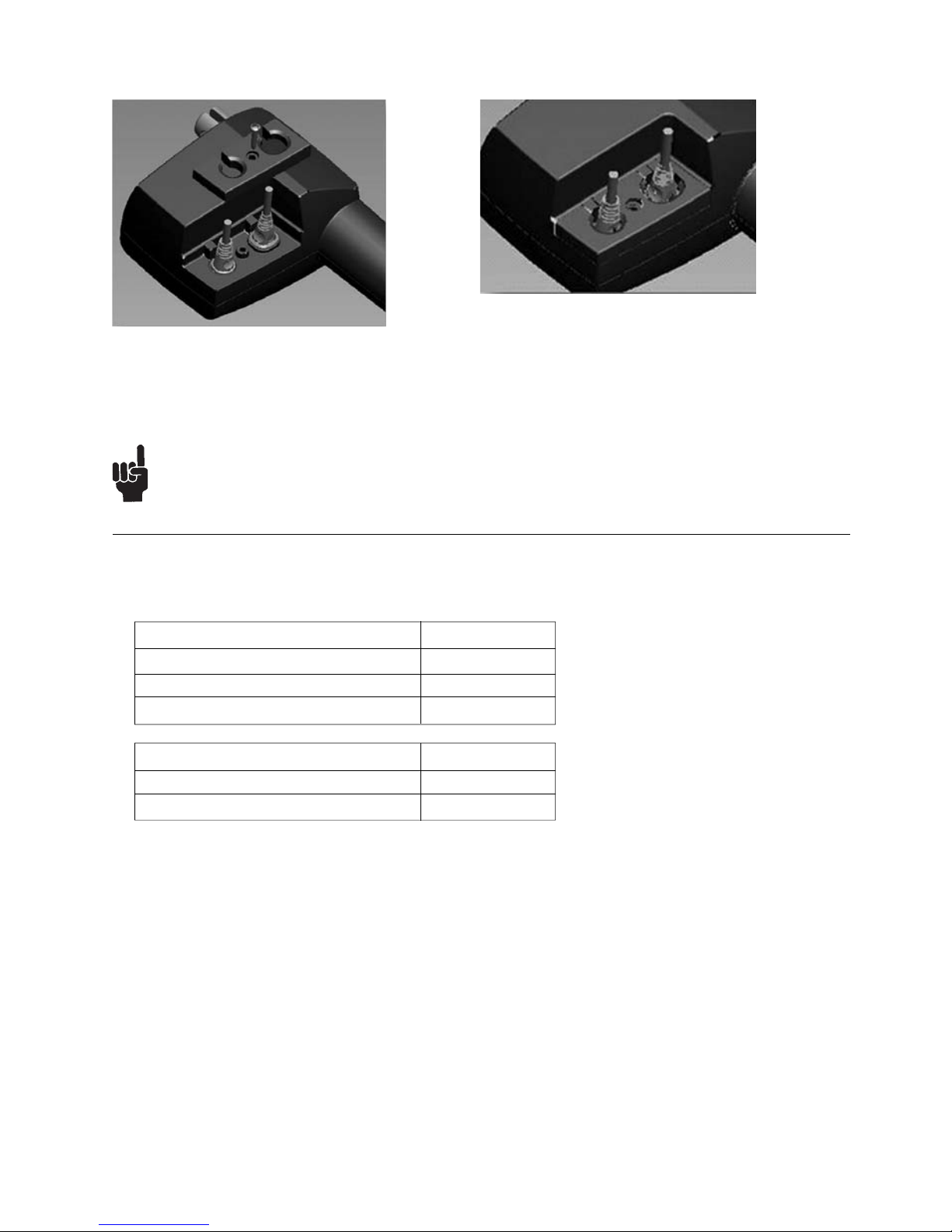

Mounting of cables

• Unscrew the cover and remove the two blind plugs

• Plug in the power cable and/or the signal cable

• Slide the cover onto the actuator
The torque of the cover screw is app. 4 Nm

Note: When changing the cables on a LINAK actuator, it is important that this is done carefully, in
order to protect the plugs and pins. Please be sure that the plug is in the right location and fully
pressed in before the cable lid is mounted.

Be aware for BUS actuator - please see the installation guide.

17

LA35

TECHLINE® LA35:

DRAWING APPENDIX

83.5

27

27

233

29116

54

10.210.2

Installation dimension

6.1

17 17

6.1

22

26

11 13

153

STROKE =<300 = 200 + STROKE
STROKE >300 = 250 + STROKE

Minimum Installation dimension = 300 mm

Installation dimension

18

Product Metal scrap Cable scrap Electronic scrap Plastic recycling or

combustion

LA35 X X X X

Main groups of disposal

Label for LA35

LINAK’s products may be disposed of, possibly by dividing them into different waste groups for recycling
or combustion.

We recommend that our product is disassembled as much as possible at the disposal and that you try to
recycle it. As examples of main groups within sorting of waste we can mention the following:

Metal scrap
Plastic scrap
Cable scrap
Combustible material and collection for recoverable resources.

Some of these main groups can be sub-divided into groups e.g. metal can be divided into steel and
aluminium or plastic can be divided into ABS and PP.

19

LINAK APPLICATION POLICY

The purpose of the application policy is to defi ne areas of responsibilities in relation to applying a LINAK
product defi ned as hardware, software, technical advice, etc. related to an existing or new customer ap­plication.

LINAK products as defi ned above are applicable for a wide range of applications within the Medical, Fur­niture, Desk, and Industry areas. Yet, LINAK cannot know all the conditions under which LINAK products
will be installed, used, and operated, as each individual application is unique.

The suitability and functionality of the LINAK product and its performance under varying conditions (ap­plication, vibration, load, humidity, temperature, frequency, etc.) can only be verifi ed by testing, and shall
ultimately be the responsibility of the LINAK customer using any LINAK product.

LINAK shall be responsible solely that the LINAK products comply with the specifi cations set out by LINAK
and it shall be the responsibility of the LINAK customer to ensure that the specifi c LINAK product can be
used for the application in question.

Copyright

©

LINAK

.

2012.04

.

MA-M9-02-246-D

.

LINAK A/S reserves the right to make technical alterations

Terms of use

The user is responsible for determining the suitability of
LINAK products for specifi c application. LINAK takes great
care in providing accurate and up-to-date information on
its products.
However, due to continuous development in order to
improve its products, LINAK products are subject to frequent
modifi cations and changes without prior notice. Therefore,
LINAK cannot guarantee the correct and actual status of said
information on its products.
While LINAK uses its best efforts to fulfi l orders, LINAK
cannot, for the same reasons as mentioned above, guarantee
the availability of any particular product. Therefore, LINAK
reserves the right to discontinue the sale of any product
displayed on its website or listed in its catalogues or other
written material drawn up by LINAK.
All sales are subject to the Standard Terms of Sale and
Delivery for LINAK. For a copy hereof, please contact LINAK.

FACTORIES

CHINA

LINAK (Shenzhen) Actuator Systems, Ltd.
Phone: [phone] . Fax: [phone]
E-mail: [email protected] . www.linak.cn

DENMARK

LINAK A/S . Group Headquarters Guderup
Phone: [phone] . Fax: [phone]
Fax (Sales): [phone]
E-mail: [email protected] . www.linak.com

SLOVAKIA

LINAK Slovakia s.r.o.
Phone: [phone] . Fax: [phone]
E-mail: [email protected] . www.linak.com

USA

LINAK U.S. Inc.
North and South American Headquarters
Phone: [phone] . Fax: [phone]
E-mail: [email protected] . www.linak-us.com

SUBSIDIARIES

AUSTRALIA

LINAK Australia Pty. Ltd
Phone: [phone] . Fax: [phone]
E-mail: [email protected] . www.linak.com.au

AUSTRIA

LINAK GmbH - Austria
Phone: [phone] . Fax: [phone]
E-mail: [email protected] . www.linak.at

BELGIUM & LUXEMBOURG

LINAK Actuator-Systems NV/SA
Phone: [phone] . Fax: [phone]
E-mail: [email protected] . www.linak.be

BRAZIL

LINAK Do Brasil Comércio De Atuadores Ltda.
Phone: [phone] . Fax: [phone]
E-mail: [email protected] . www.linak.com.br

CANADA

LINAK Canada Inc.
Phone: [phone] . Fax: [phone]
E-mail: [email protected] . www.linak.ca

CZECH REPUBLIC

LINAK C&S S.R.O.
Phone: [phone] . Fax: [phone]
E-mail: [email protected] . www.linak.cz

DENMARK

LINAK Danmark A/S
Phone: [phone] . Fax: [phone]
E-mail: [email protected] . www.linak.dk

FINLAND

LINAK OY
Phone: [phone] . Fax: [phone]
E-mail: [email protected] . www.linak.fi

FRANCE

LINAK France E.U.R.L
Phone: [phone] . Fax: [phone]
E-mail: [email protected] . www.linak.fr

GERMANY

LINAK GmbH
Phone: [phone] . Fax: [phone]
E-mail: [email protected] . www.linak.de

INDIA

LINAK A/S India Liaison Office
Phone: [phone] . Fax: [phone]
E-mail: [email protected] . www.linak.in

IRELAND

LINAK UK Limited
Phone: [phone] . Fax: [phone]
E-mail: [email protected] . www.linak.co.uk

ITALY

LINAK Italia S.r.l.
Phone: [phone] . Fax: [phone]
E-mail: [email protected] . www.linak.it

JAPAN

LINAK K.K.
Phone: [phone] . Fax: [phone]
E-mail: [email protected] . www.linak.jp

MALAYSIA

LINAK Actuators Sdn. Bhd.
Phone: [phone]

.

Fax: [phone]

E-mail: [email protected] . www.linak.my

NETHERLANDS

LINAK Actuator-Systems B.V.
Phone: [phone] . Fax: [phone]
E-mail: [email protected] . www.linak.nl

NEW ZEALAND

LINAK New Zealand Ltd.
Phone: [phone] . Fax: [phone]
E-mail: [email protected] . www.linak.co.nz

NORWAY

LINAK Norge AS
Phone: [phone] . Fax: [phone]
E-mail: [email protected] . www.linak.no

POLAND

LINAK Polska
Phone: [phone] . Fax: [phone]
E-mail: [email protected] . www.linak.pl

SPAIN

LINAK Actuadores, S.L.u
Phone: [phone] . Fax: [phone]
E-mail: [email protected] . www.linak.es

SWEDEN

LINAK Scandinavia AB
Phone: [phone] . Fax: [phone]
E-mail: [email protected] . www.linak.se

SWITZERLAND

LINAK AG
Phone: [phone] . Fax: [phone]
E-mail: [email protected] . www.linak.ch

TAIWAN

LINAK A/S Taiwan Representative Office
Phone: [phone] . Fax: [phone]
E-mail: [email protected] . www.linak.com.tw

TURKEY

LINAK Turkey Representative Office
Phone: + 90 312 4726338 . Fax: + 90 312 4726635
E-mail: [email protected] . www.linak.com.tr

UNITED KINGDOM

LINAK UK Limited
Phone: [phone] . Fax: [phone]
E-mail: [email protected] . www.linak.co.uk

DISTRIBUTORS

ARGENTINA

Novotec Argentina SRL
Phone: +[54] (11) 4303-8900/89

.

Fax: +[54] (11) 4032-0184
E-mail: [email protected]
www.novotecargentina.com

AUSTRALIA

Ballarat Industrial Supplies
www.ballind.com.au

BL Shipways & Co
www.blshipway.com.au

Gas Strut Marine and Industrial
www.gasstrutmarine.com.au

Prime Motion & Control
www.primemotion.com.au

West Vic Industrial Supplies
www.westvic.com.au

COLOMBIA

MEM Ltda
Phone: +[57] (1) 334-7666

.

Fax: +[57] (1) 282-1684
E-mail: [email protected]
www.memltda.com.co

INDONESIA

Pt. Himalaya Everest Jaya
Phone: [phone]

.

Fax: [phone]

E-mail: [email protected] . www.hej.co.id

IRAN

Bod Inc.
Phone: [phone] - 6

.

Fax: [phone]

E-mail: [email protected]

.

www.bod.ir

MEXICO

ILSA S.A. de C.V.
Phone: +[52] (55) 5388-3960

.

Fax: +[52] (55) 5388-3966

E-mail: [email protected]

.

www.ilsamexico.com

PERU

Percy Martin Del Aguila Ubillus
Phone: [phone]

RUSSIAN FEDERATION

000 FAM
Phone: [phone]

.

Fax: [phone]

E-mail: [email protected]

.

www.fam-drive.ru

SINGAPORE

Servo Dynamics Pte. Ltd.
Phone: [phone]

.

Fax: [phone]

E-mail: [email protected]

.

www.servo.com.sg

SOUTH AFRICA

Industrial Specialised Applications CC
Phone: [phone] or [phone]
Fax: [phone]
E-mail: [email protected]

.

www.isaza.co.za

SOUTH KOREA

Unitek Eng.
Phone: [phone]

.

Fax: [phone]

E-mail: [email protected]

.

www.unitekeng.co.kr

UNITED ARAB EMIRATES

Mechatronics
Phone.: [phone]

.

Fax: [phone]
E-mail: [email protected]
www.mechatronics.ae

For contact details on other countries please visit
www.linak.com or contact:

LINAK INTERNATIONAL

Phone: [phone] . Fax: [phone]
E-mail: [email protected]

.

www.linak.com
