Actuator LA12

User manual

Page 2 of 36

Contents

Preface ................................................................................................................................................. 4

LINAK application policy ........................................................................................................................ 5

Chapter 1

Safety instructions .............................................................................................................................. 6-7

Chapter 2

Mounting guidelines........................................................................................................................... 8-9

Electrical installation: ........................................................................................................................... 10

Recommended fuse ................................................................................................................... 10

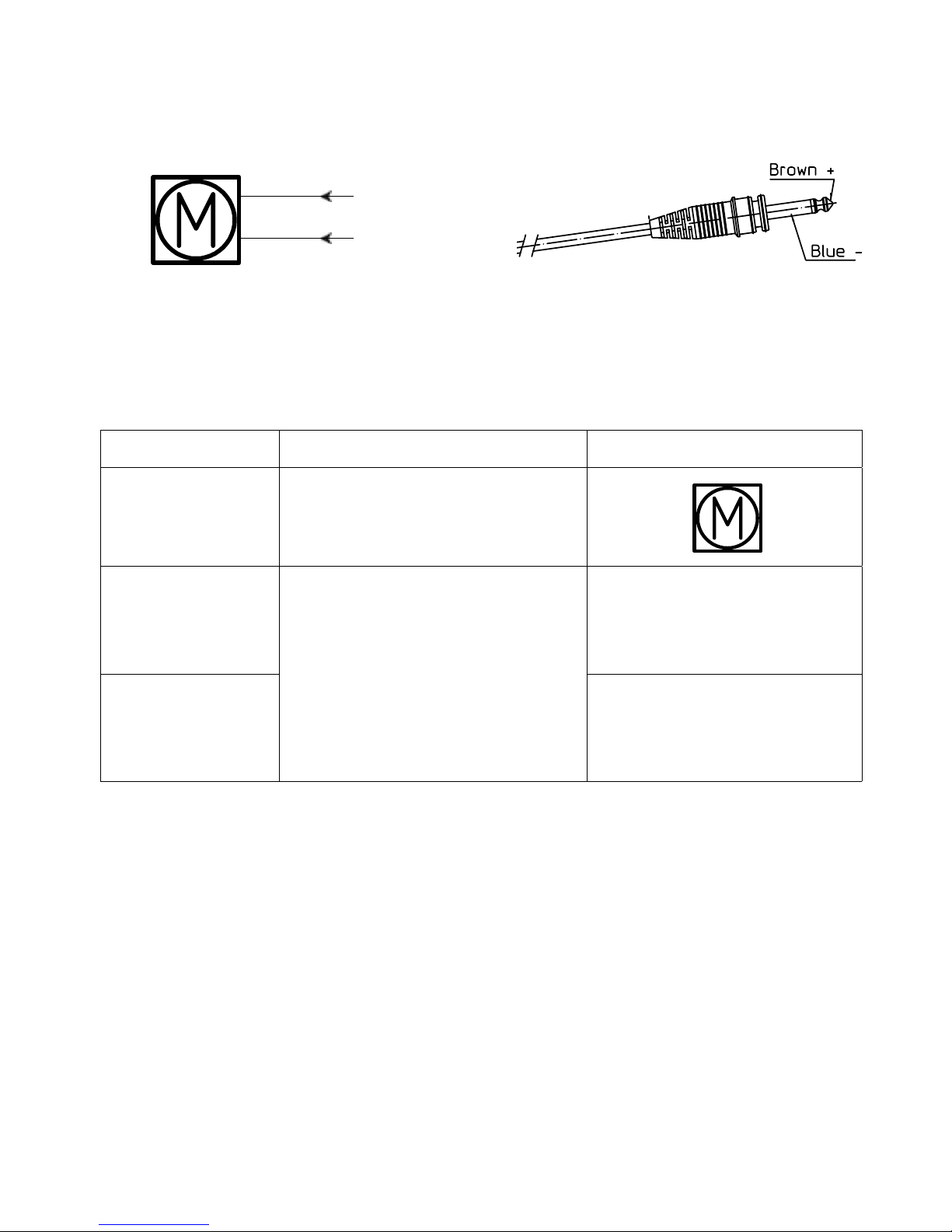

Actuator without feedback ........................................................................................................ 11

Actuator with:

Absolute positioning - Mechanical potentiometer feedback ............................................. 12

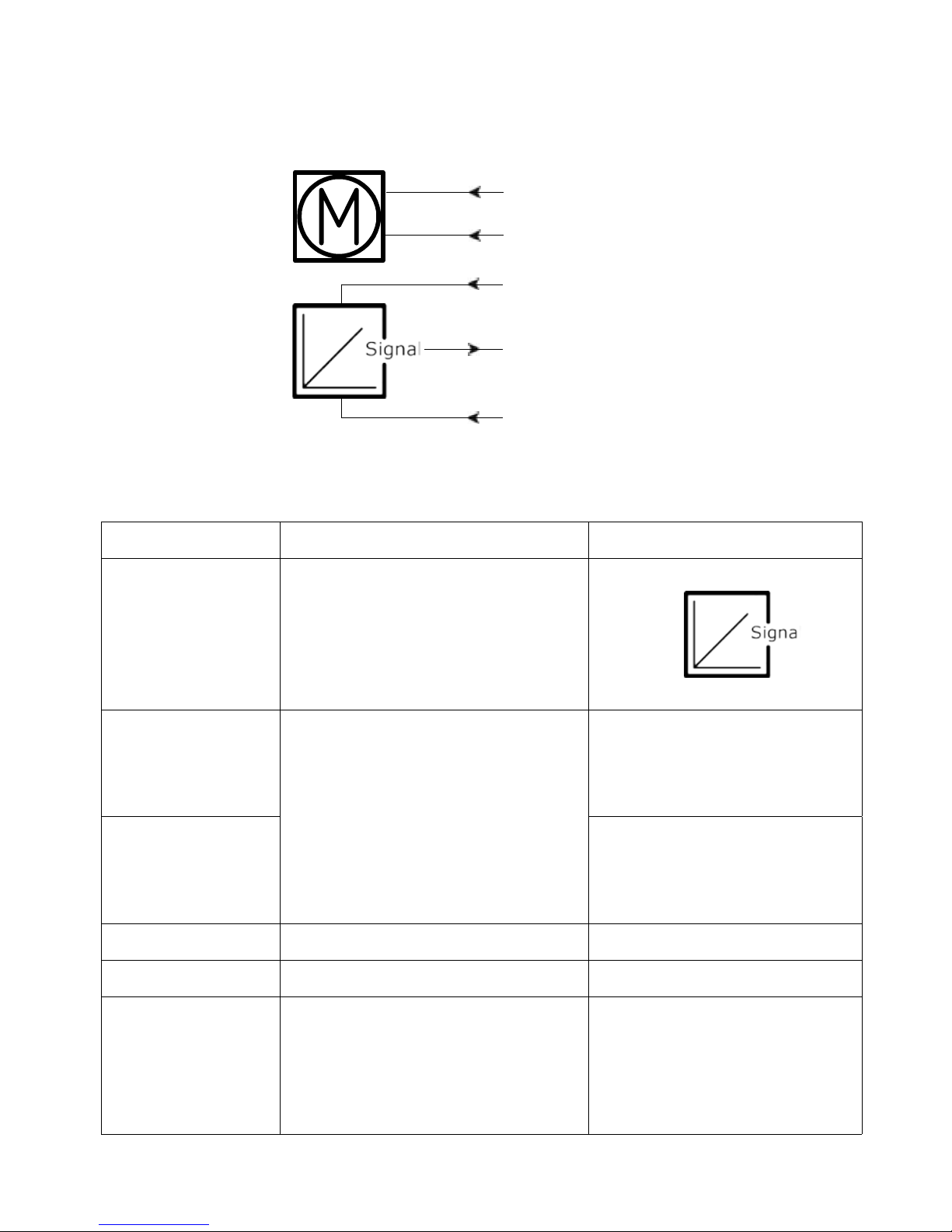

Absolute positioinng - Analogue feedback ....................................................................... 13

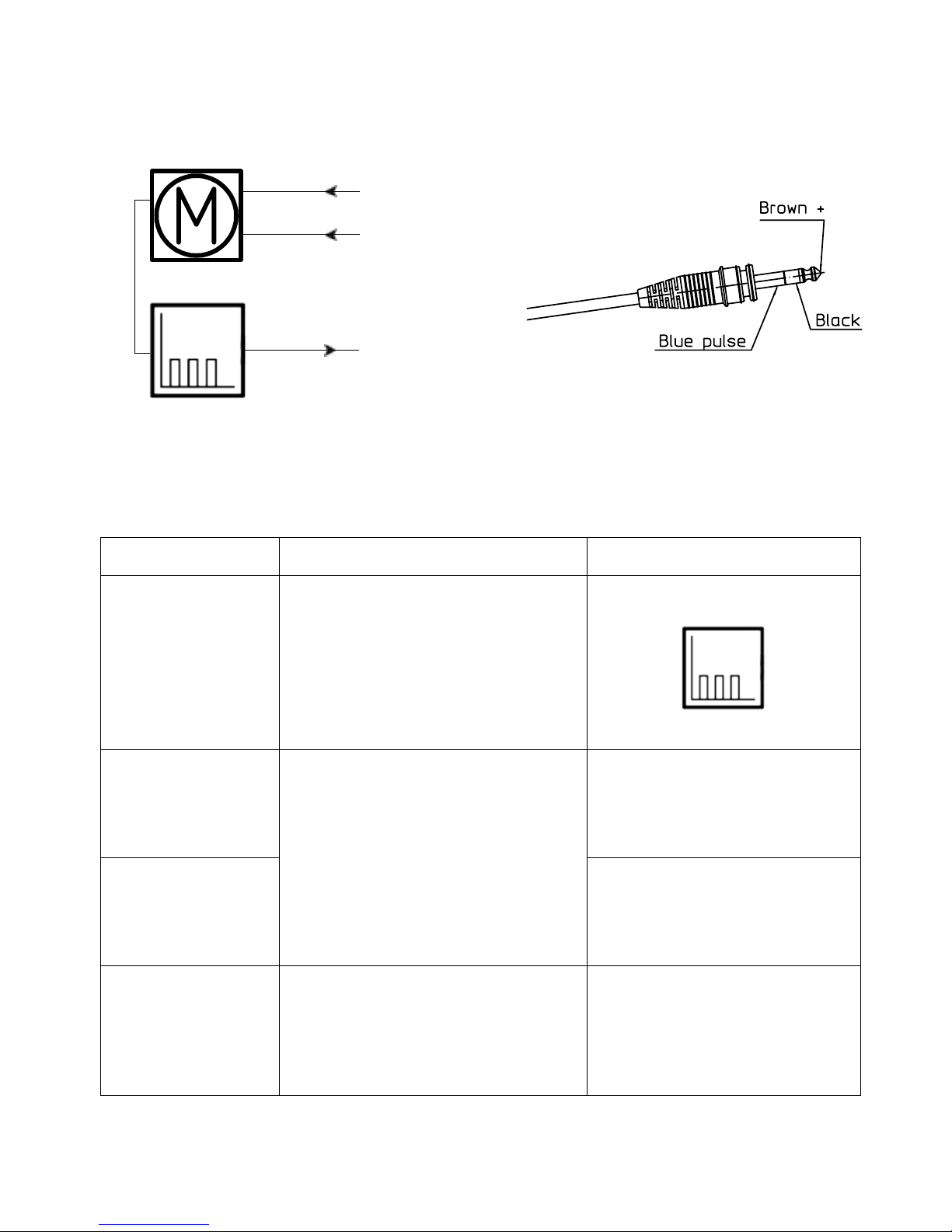

Reed - Relative positioning 4 wires ................................................................................. 14

Reed - Relative positioning 3 wires ................................................................................. 15

IC (no EOS out) .......................................................................................................... 16-17

IC and endstop signals............................................................................................... 18-20

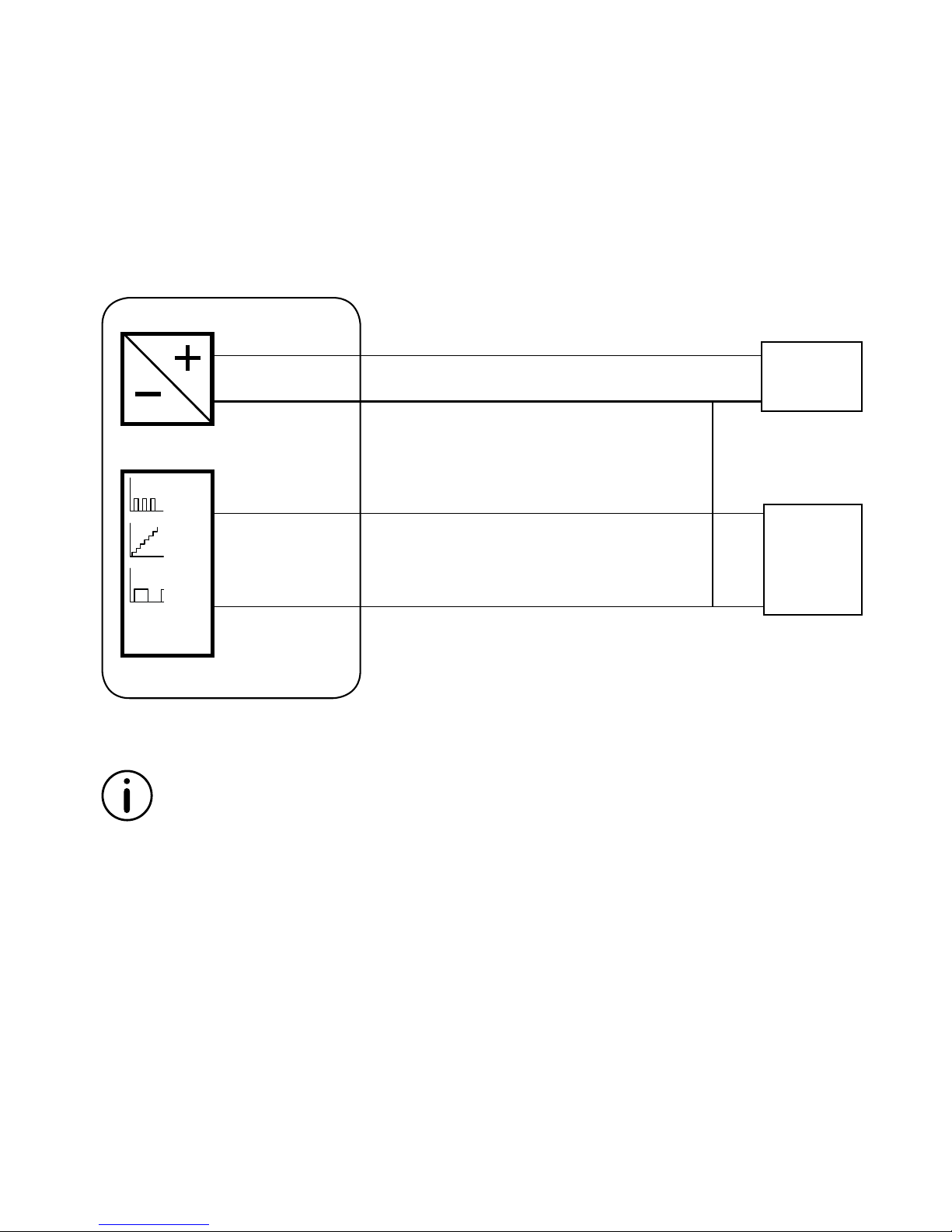

Correct wiring of Power GND and Signal GND ........................................................................... 21

Page 3 of 36

Contents

Chapter 3

Troubleshooting ............................................................................................................................. 22-23

Chapter 4

Specifications ...................................................................................................................................... 24

Usage ................................................................................................................................................. 24

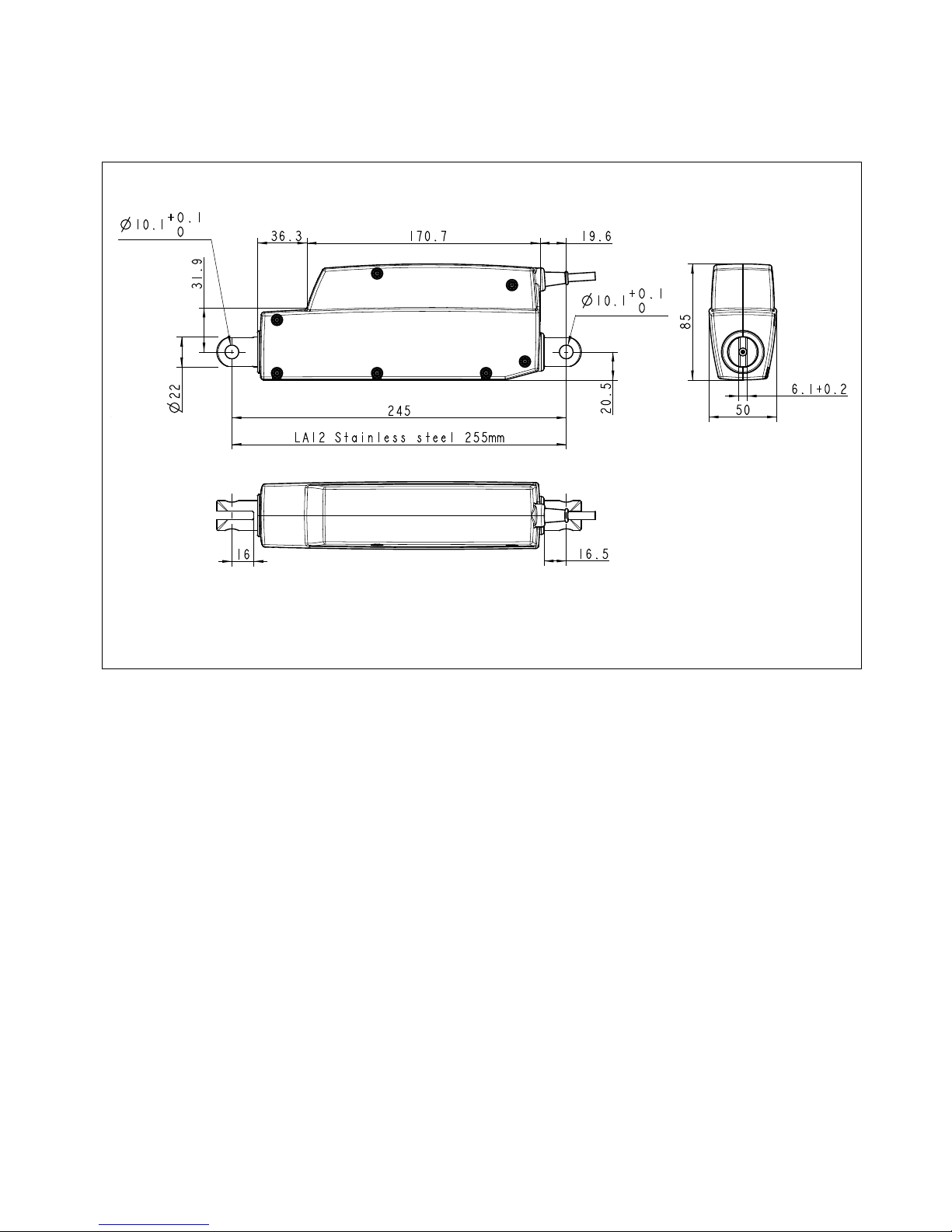

Actuator dimensions............................................................................................................................ 25

Speed and current curves: ...............................................................................................................26-27

12V motor ................................................................................................................................... 26

24V motor ................................................................................................................................... 27

Test of conducted and radiated emission (EMC) ................................................................................... 28

Label for LA12 .................................................................................................................................... 29

Key to symbols .................................................................................................................................... 29

LA12 Ordering example ....................................................................................................................... 30

Chapter 5

Maintenance ....................................................................................................................................... 31

Repair ................................................................................................................................................. 31

Main groups of disposal ...................................................................................................................... 31

Warranty ............................................................................................................................................ 32

Declaration of conformity .................................................................................................................... 33

Declaration of incorporation of partly completed machinery .................................................................. 34

Addresses ........................................................................................................................................... 36

Page 4 of 36

Preface

Dear User,

We are delighted that you have chosen a product from LINAK®.
LINAK systems are high-tech products based on many years of experience in the manufacture and development
of actuators, electric control boxes, controls, and chargers.

This user manual does not address the end-user, but is intended as a source of information for the manufacturer
of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It
is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety
information from this manual is passed on to the end-user.

We are sure that your LINAK product/system will give you many years of problem-free operation. Before our
products leave the factory they undergo full function and quality testing. Should you nevertheless experience
problems with your LINAK product/system, you are always welcome to contact your local dealer. LINAK
subsidiaries and some distributors situated all over the world have authorised service centres, which are always
ready to help you.

LINAK provides a warranty on all its products. This warranty, however, is subject to correct use in accordance with
the specifications, maintenance being done correctly and any repairs being carried out at a service centre, which
is authorised to repair LINAK products.
Changes in installation and use of LINAK products/systems can affect their operation and durability. The products
are not to be opened by unauthorised personnel.

The User Manual has been written based on our present technical knowledge. We are constantly working on
updating the information and we therefore reserve the right to carry out technical modifications.

LINAK A/S

Page 5 of 36

LINAK application policy

The purpose of the application policy is to define areas of responsibilities in relation to applying a LINAK product
defined as hardware, software, technical advice, etc. related to an existing or a new customer application.

LINAK products as defined above are applicable for a wide range of applications within Medical, Furniture, Desk,
and Industry areas. Yet, LINAK cannot know all the conditions under which LINAK products will be installed, used,
and operated, as each individual application is unique.

The suitability and functionality of the LINAK product and its performance under varying conditions (application,
vibration, load, humidity, temperature, frequency, etc.) can only be verified by testing, and shall ultimately be the
responsibility of the LINAK customer using any LINAK product.

LINAK shall be responsible solely that LINAK products comply with the specifications set out by LINAK and it
shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the
application in question.

Page 6 of 36

Chapter 1

Safety instructions

Please read this safety information carefully:

Be aware of the following three symbols throughout the user manual:

Warning!

Failing to follow these instructions can cause accidents resulting in serious personal injury.

Recommendations

Failing to follow these instructions can result in the actuator suffering damage or being ruined.

Additional information

Usage tips or additional information that is important in connection with the use of the actuator.

Furthermore, ensure that all staff who are to connect, mount, or use the actuator are in possession of the necessary
information and that they have access to this user manual.

Persons who do not have the necessary experience or knowledge of the product/products must not use the
product/products. Besides, persons with reduced physical or mental abilities must not use the product/products,
unless they are under surveillance or they have been thoroughly instructed in the use of the apparatus by a person
who is responsible for the safety of these persons.

Moreover, children must be under surveillance to ensure that they do not play with the product.

Before you start mounting/dismounting, ensure that the following points are observed:

• The actuator is not in operation.

• The actuator is free from loads that could be released during this work.

Before you put the actuator into operation, check the following:

• The actuator is correctly mounted as indicated in the relevant user instructions.

• The equipment can be freely moved over the actuator’s whole working area.

• The actuator is connected to a mains electricity supply/transformer with the correct voltage and

which is

dimensioned and adapted to the actuator in question.

• Ensure that the voltage applied matches to the voltage specified on the actuator label.

• Ensure that the connection bolts can withstand the wear.

• Ensure that the connection bolts are secured safely.

Page 7 of 36

During operation, please be aware of the following:

• Listen for unusual sounds and watch out for uneven running. Stop the actuator immediately if anything
unusual is observed.

• Do not sideload the actuator.

• Only use the actuator within the specified working limits.

• Do not step or kick on the actuator.

When the equipment is not in use:

• Switch off the mains supply in order to prevent unintentional operation.

• Check regularly for extraordinary wear.

Classification

The equipment is not suitable for use in the presence of a flammable anaesthetic mixture with air or with oxygen
or nitrous oxide.

Warnings

• Do not sideload the actuator.

• When mounting the actuator in the application ensure that the bolts can withstand the wear and that they
are secured safely.

• If irregularities are observed, the actuator must be replaced.

• For actuators with a stroke length below 130mm, the extended position of the mechanical endstop will
always be at 130mm. That means, if an actuator has a stroke of 80mm and the endstop switch in outwards
direction fails, the actuator will travel additional 50mm before reaching mechanical endstop.

Recommendations

• Do not place load on the actuator housing and do prevent impact or blows, or any other form of stress to
the housing.

• Ensure that the cable cover is mounted correctly. Use 1.5Nm torque.

• Ensure that the duty cycle and the usage temperatures for LA12 actuators are respected.

• Ensure that the cable cannot be squeezed, pulled or subjected to any other stress.

• Furthermore, it will be good practice to ensure that the actuator is fully retracted in the ”normal” position.
The reason is that there will be a vacuum inside the actuator if it is extended which over time can lead to
water entering the actuator.

• If the actuator (without integrated controller) is mounted in an application where a mechanical stop prevents
the endstop switches in the actuator from being activated, the actuator must be equipped with an electrical
safety device (current monitoring) or external limit switch.

• The cable should not be used for carrying the actuator.

• We recommend to take some precaution and design the wire connection in a way, where the cable end is kept
inside a closed, protected area to guarantee the high IP protection.

Page 8 of 36

Chapter 2

Mounting guidelines

LINAK® linear actuators are quickly and easily mounted by slipping pins through the holes on each end of the units
and into brackets on the machine frame and the load.

Figure 2

Right WrongWrong

Wrong

Figure 1

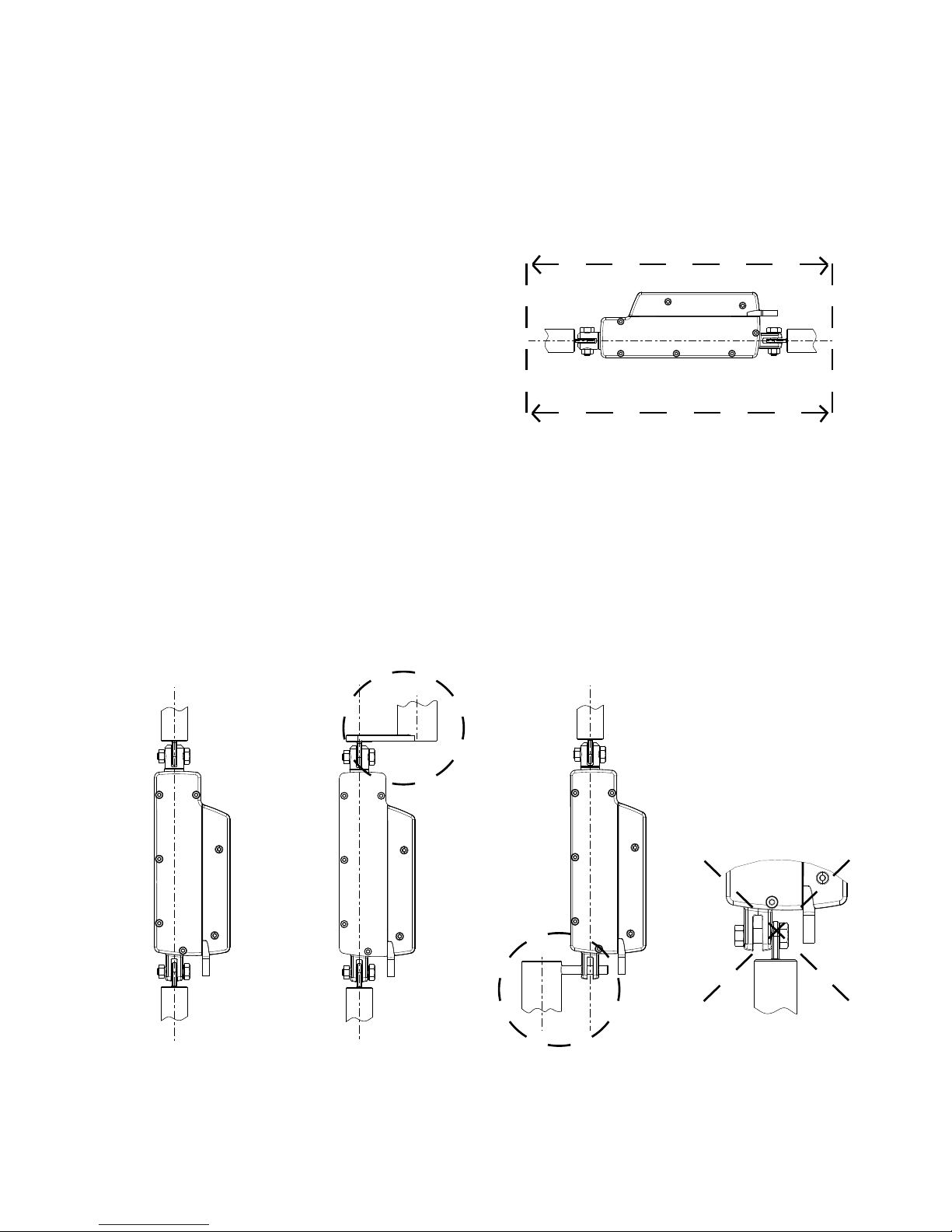

The mounting pins must be parallel to each other as
shown in Figure 1. Pins, which are not parallel to each
other, may cause the actuator to bend and be damaged.

The load should act along the stroke axis of the actuator
as off-centre loads may cause bending and lead to
premature failure. See Figure 2.

Make sure the mounting pins are supported in both ends.
Failure to do so could shorten the life of the actuator. Also,
avoid applying a skew load on the actuator.

The actuator can rotate around the pivot point in the front and rear end. If this is the case it is of high importance
that the actuator is able to move freely over the full stroke length, both during the development and daily operation.
Please pay special attention to the area around the housing where parts can be trapped and cause damage to the
application and actuator.

In applications with high dynamic forces LINAK recommends not to use the fully extended or retracted position
over longer time, as this can damage the endstop system permanently.

Page 9 of 36

Mounting guidelines

• The mounting pins must have the correct dimension.

• The bolts and nuts must be made of a high quality steel grade (e.g. 10.8).
No thread on the bolt inside the back fixture or the piston rod eye.

• Bolts and nuts must be protected so there is no risk for them to fall out.

• Do not use a torque that is too high when mounting the bolts for the back fixture or he piston rod
eye. This will stress the fixtures.

Please note:
The piston rod eye is only allowed to turn 0-90 degrees.

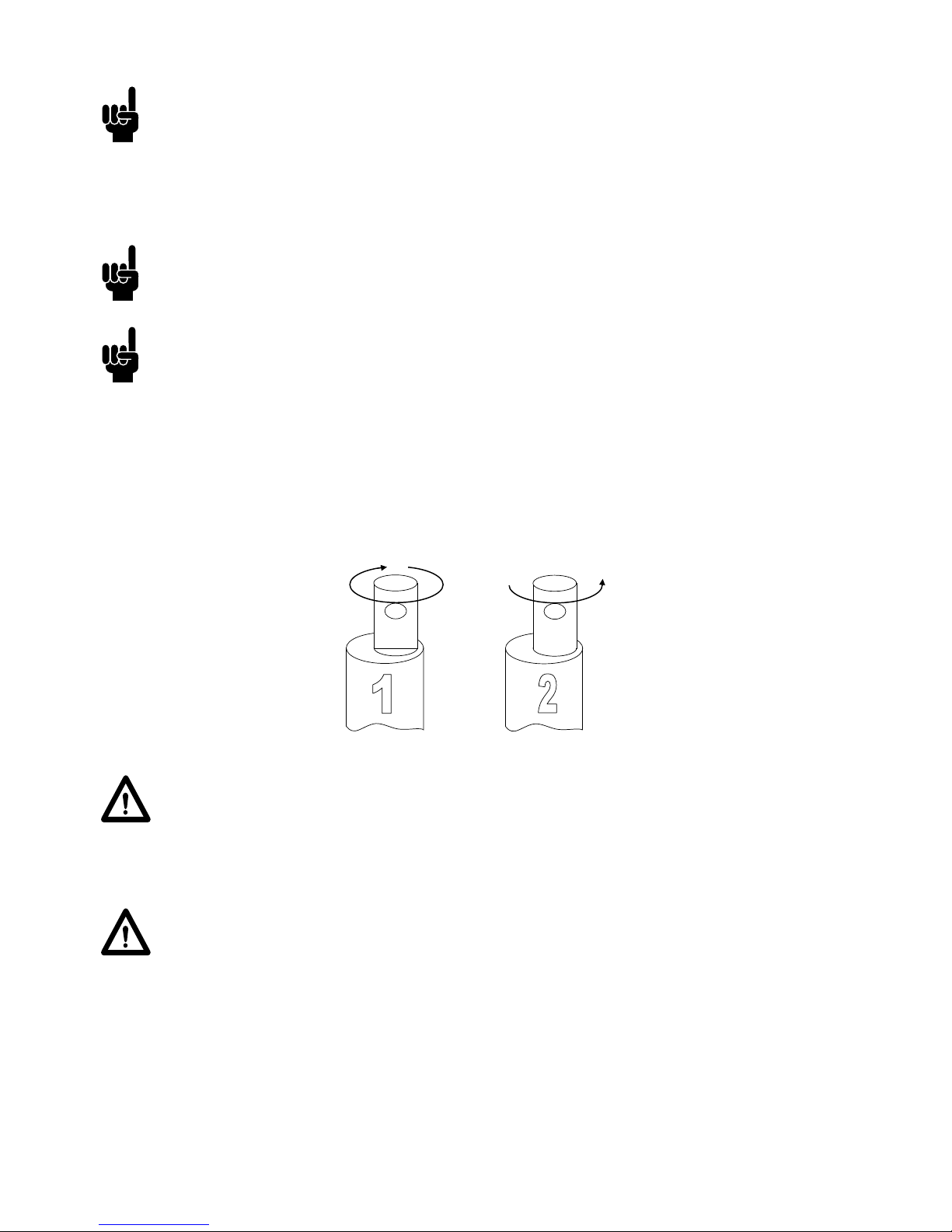

Instruction concerning the turning of the piston rod eye and inner tube:

• When mounting and taking into use, it is not permitted to make excessive turns of the piston rod
eye. In cases where the eye is not positioned correctly, it is permitted to first screw the eye down to
its bottom position, at a maximum torque of 2Nm (1), and thereafter a maximum 90 degrees turn
outwards again (2).

• As the piston rod eye can turn freely, it is important to ensure that the eye cannot rotate if the
actuator is used in a pull application. If this happens, the actuator will be pulled apart and destroyed.

030618/DS

Instruktion vedr. uddrejning af inderrør – LA27 + LA27C

Til salesbackup, brugsanvisning og datablad.

Ved montage og ibrugtagning, er det ikke tilladt at dreje unødvendigt mange gange på
stempelstangsrøret. Hvis øjet ikke er positioneret korrekt, er det tilladt først at skrue
røret i bund (1), og derefter skrue det maksimalt ½ omgang ud igen (2).

Warning!
If the actuator is used for pull in an application where personal injury can occur, the
following is valid:

It is the application manufacturer’s responsibility to incorporate a suitable safety arrangement, which
will prevent personal injury from occurring, if the actuator should fail.

Warning!
LINAK’s actuators are not designed for use within the following fields:

• Offshore installations • Explosive environments

• Aeroplanes and other aircraft • Nuclear power generation

Page 10 of 36

Electrical installation

Recommended fuse for actuators without integrated controller

• To ensure maximum self-locking ability, please be sure that the motor is shorted when stopped.
Actuators with integrated controller provide this feature, as long as the actuator is powered.

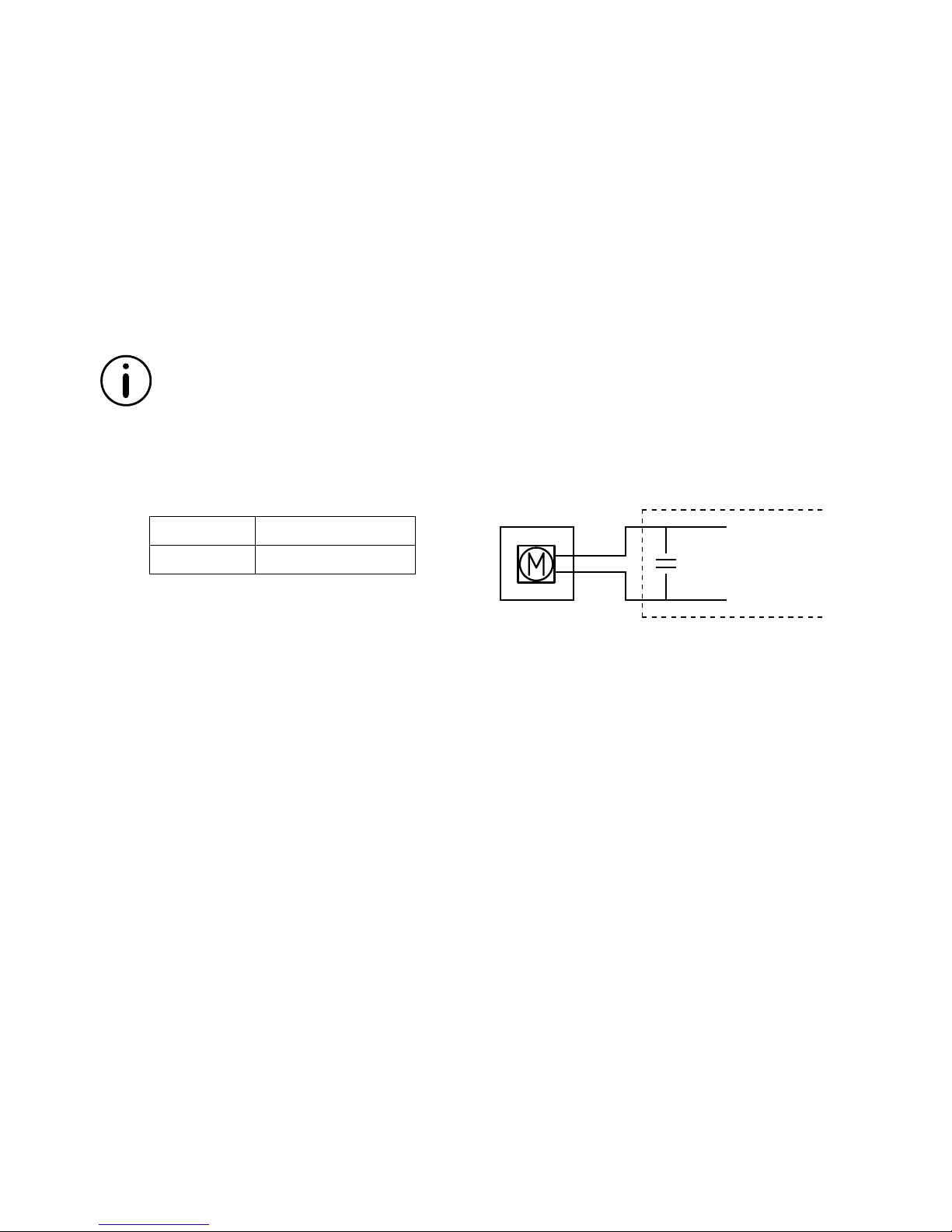

• When using soft stop on a DC-motor, a short peak of higher voltage will be sent back towards the
power supply. It is important when selecting the power supply that it does not turn off the output,
when this backwards load dump occurs.

The power supply for actuators without integrated controller must be monitored externally and cut off
in case of current overload.

Type Spindle Pitch

(mm)

Thrust max.

Push/Pull

(N)

Typical Amp.

at full load

(A)

24V - 12V

Recommended

fuse

24V - 12V

12xx00-1xxx12xx 2 750 - 4.6 - 9.2

12xx00-1xxx24xx 2 750 2.2 - 4.4 -

12xx00-2xxx12xx 4 300 - 2.5 - 5.0

12xx00-2xxx24xx 4 300 1.5 - 3.0 -

12xx00-3xxx12xx 6 200 - 2.2 - 4.4

12xx00-3xxx24xx 6 200 1.0 - 2.0 -

Page 11 of 36

BROWN

BLUE

Actuator without feedback

Connection diagram:

Fig. 1 : 12xxxx-xxxxxxx0/1

I/O specifications:

Input/Output Specification Comments

Description Permanent magnetic DC motor.

See connection diagram,
fig. 1 above

Brown

12-24VDC (+/-)
12V ± 20%

24V ± 10%
Under normal conditions:

12V, max. 5A depending on load
24V, max. 2.5A depending on load

To extend actuator:
Connect Brown to positive

To retract actuator:
Connect Brown to negative

Blue To extend actuator:

Connect Blue to negative
To retract actuator:

Connect Blue to positive

Mono Jack plug

Page 12 of 36

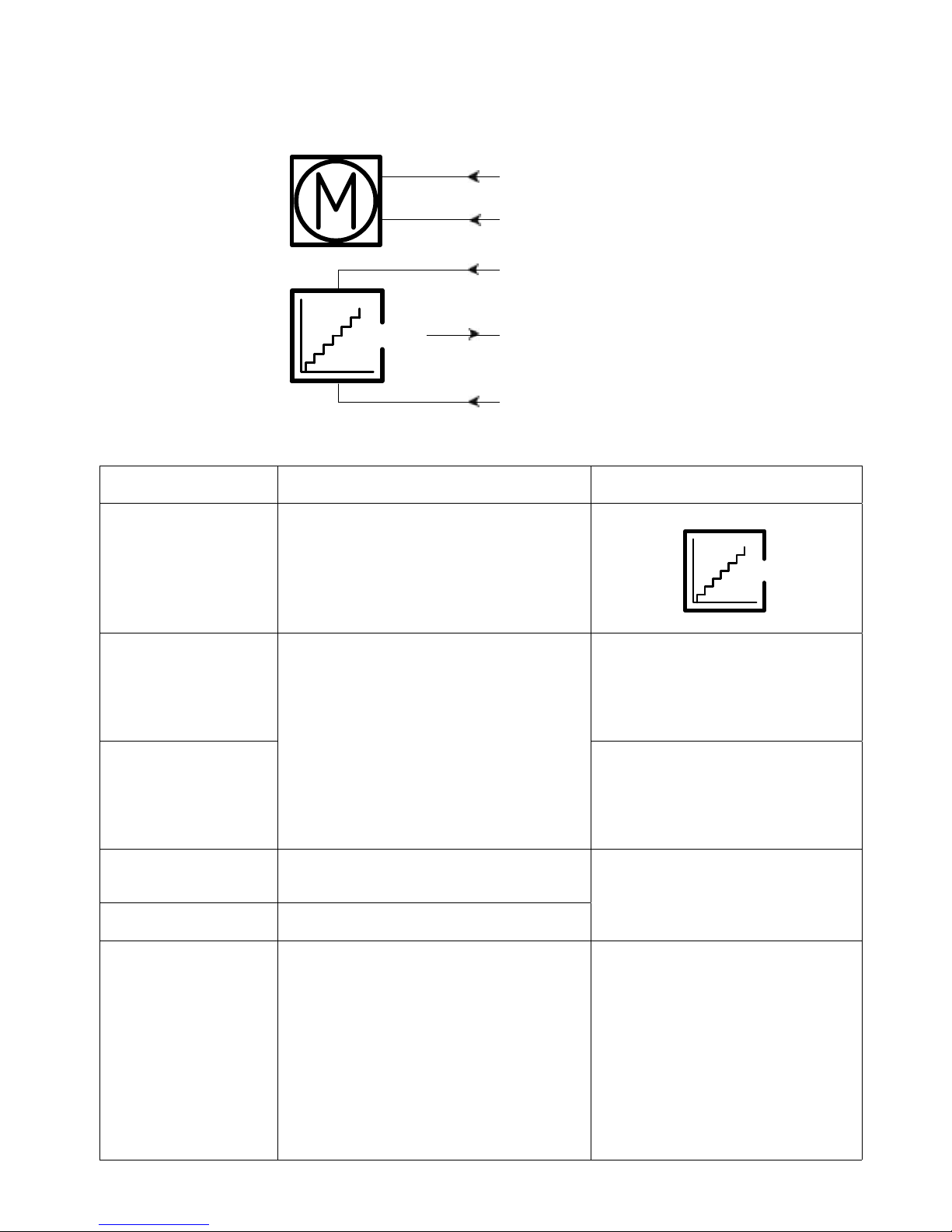

Actuator with absolute positioning - Mechanical potentiometer feedback

Connection diagram:

Fig. 2 : 12xPxx-xxxxxxx0

YELLOW

RED

BLUE

GREEN

BLACK

+

-

I/O specifications:

Input/Output Specification Comments

Description The actuator can be equipped with a

mechanical potentiometer that gives
an analogue feedback signal when the
actuator moves.

See connection diagram,
fig. 2 above

Red

12-24VDC (+/-)

12V ± 20%
24V ± 10%

Under normal conditions:
12V, max. 5A depending on load
24V, max. 2.5A depending on load

To extend actuator:
Connect Red to positive

To retract actuator:
Connect Red to negative

Blue To extend actuator:

Connect Blue to negative
To retract actuator:

Connect Blue to positive

Green Signal power supply (+) +10V or other value

Black Signal power supply GND (-)

Yellow Potentiometer feedback

Slide potentiometer, 10 kohm
1 kohm = 0 mm stroke
11 kohm = 100 mm stroke

The maximum effect: 0.1W

Linearity: ± 20%
Minimum lifetime: 15,000 cycles

Average lifetime: 40,000 cycles
Max. current output: 1mA

Page 13 of 36

Actuator with absolute positioning - Analogue feedback
Connection diagram:

Fig. 3 : 12xxxx-xxxxxxx0

I/O specifications:

RED

BLUE

GREEN

YELLOW

+

BLACK

-

Signal

Input/Output Specification Comments

Description The actuator can be equipped with elec-

tronic circuit that gives an analogue feed­back signal when the actuator moves.

See connection diagram,
fig. 3 above

Red

12-24VDC (+/-)
12V ± 20%

24V ± 10%
Under normal conditions:

12V, max. 5A depending on load
24V, max. 2.5A depending on load

To extend actuator:
Connect Red to negative

To retract actuator:
Connect Red to positive

Blue To extend actuator:

Connect Blue to positive
To retract actuator:

Connect Blue to negative

Green Signal power supply (+)

12-24VDC

Current consumption:
Max. 60mA, also when the actuator
is not running

Black Signal power supply GND (-)

Yellow Analogue feedback

0-10V (Option B)

0.5-4.5V (Option C)

Tolerances +/- 0.2V
Max. current output: 1mA
Ripple max. 200mV
Transaction delay 100ms
Linear feedback 0.5%

It is recommendable to have the
actuator to activate its limit switches
on a regular basis, to ensure more
precise positioning

Signal

Page 14 of 36

Actuator with Reed - Relative positioning 4 wires
Connection diagram:

Fig. 4 : 12xxxx-xxxxxxx4

I/O specifications:

WHITE

BLACK

RED

BLUE

+

Input/Output Specification Comments

Description The actuator can be equipped with a Reed

sensor and a spindle magnet that give a
relative positioning feedback signal when
the actuator moves. The output signal is a
PNP signal.

See connection diagram,
fig. 4 above

Red

12-24VDC (+/-)
12V ± 20%

24V ± 10%

To extend actuator:
Connect Red to positive

To retract actuator:
Connect Red to negative

Blue To extend actuator:

Connect Blue to negative
To retract actuator:

Connect Blue to positive

Black Reed output: same as input voltage

4 pole magnet (Option M)
2mm pitch = 0.5mm per pulse
4mm pitch = 1.0mm per pulse
6mm pitch = 1.5mm per pulse

10 pole magnet (Option E)
2mm pitch = 0.2mm per pulse
4mm pitch = 0.4mm per pulse
6mm pitch = 0.6mm per pulse

Max. switching capacity 750mA

White Signal power supply (+)

REED OUTPUT

Page 15 of 36

Actuator with Reed - Relative positioning 3 wires

Connection diagram:

Fig. 5 : 12xRxx-xxxxxxx2/3

I/O specifications:

Stereo Jack plug

Input/Output Specification Comments

Description The actuator can be equipped with a Reed

sensor and a spindle magnet that give a
relative positioning feedback signal when
the actuator moves. The output signal is a
PNP signal.

See connection diagram,
fig. 5 above

Brown

12-24VDC (+/-)
12V ± 20%

24V ± 10%

To extend actuator:
Connect Brown to positive

To retract actuator:
Connect Brown to negative

Black To extend actuator:

Connect Black to negative
To retract actuator:

Connect Black to positive

Blue Reed output: same as input voltage -1V

4 pole magnet (Option R)
2mm pitch - 0.5mm per pulse
4mm pitch = 1.0mm per pulse
6mm pitch = 1.5mm per pulse

Max. switching capacity 750mA

BLUE

BROWN

BLACK

REED OUTPUT

Page 16 of 36

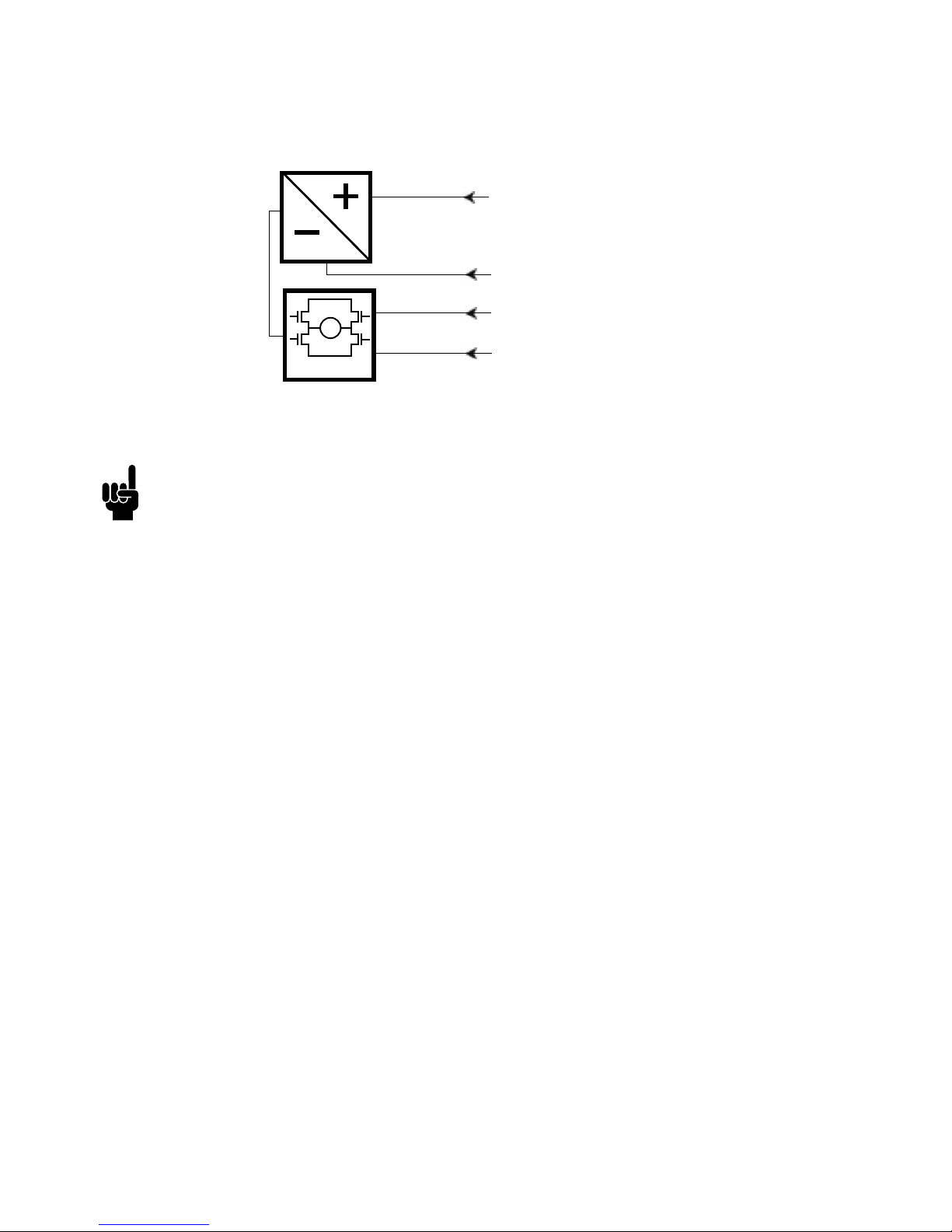

Actuator with IC (no EOS out)

Connection diagram:

Fig. 6 : 12xDxx-xxxxxxx8

BROWN

BLUE

BLACK

12/24V DC

RED

INWARDS

OUTWARDS

M

H-Bridge

Please be aware that if the power supply is not properly connected, you might damage the actuator!

Page 17 of 36

Actuator with IC (no EOS out)

I/O specifications:

Input/Output Specification Comments

Description Easy to use interface with integrated

power electronics (H-bridge).
The actuator can also be equipped with
electronic circuit that gives an absolute or
relative feedback signal.

The version with “IC option” cannot be
operated with PWM (power supply).

See connection diagram,
fig. 6, page 17

Brown 12-24VDC

Connect Brown to positive (VDC)
12V ± 20%

24V ± 10%
Under normal conditions:

12V, max. 5A depending on load
24V, max. 2.5A depending on load

Note: Do not change the power
supply polarity on the brown and
blue wires!

Power supply GND (-) is electrically
connected to the housing

If the temperature drops below 0°C,
all current limits will automatically
increase to 11A

Blue 12-24VDC

Connect Blue to negative (GND)
12V ± 20%

24V ± 10%
Under normal conditions:

12V, max. 5A depending on load
24V, max. 2.5A depending on load

Red Extends the actuator On/off voltages:

> 67% of V

IN

= ON

< 33% of V

IN

= OFF

Input current: 10mA

Black Retracts the actuator

Green Not to be connected

Yellow Not to be connected

Violet Not to be connected

White Not to be connected

M

H-Bridge

Page 18 of 36

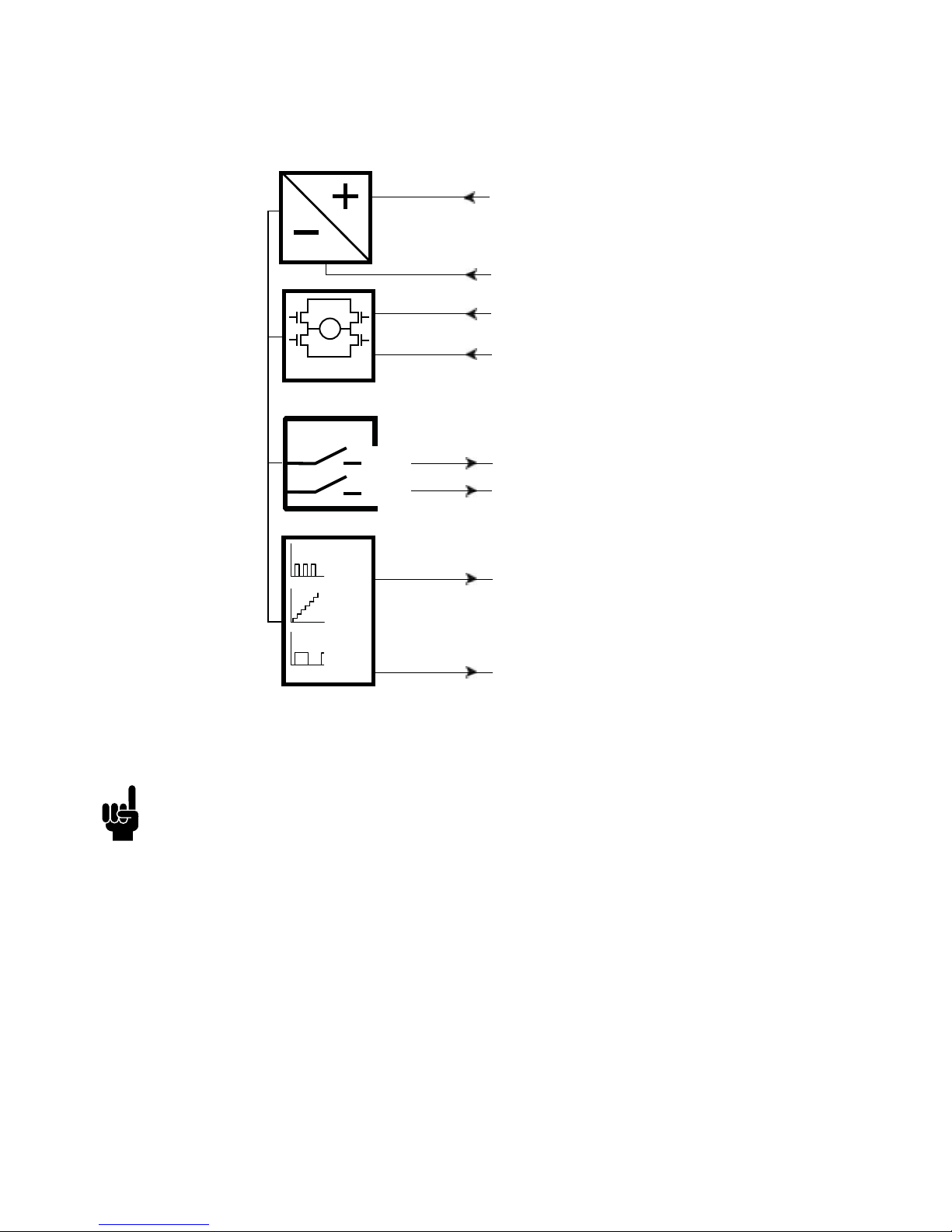

Actuator with IC and endstop signals

Connection diagram:

Fig. 7 : 12xxxx-xxxxxxx8

BROWN

BLUE

YELLOW
GREEN

WHITE

VIOLET

BLACK

12/24V DC

RED

INWARDS

OUTWARDS

FEEDBACK

SIGNAL GND/READY

M

H-Bridge

IN

OUT

Hall

0-10V

PWM

50%50%

Please be aware that if the power supply is not properly connected, you might damage the actuator!

Page 19 of 36

Actuator with IC and endstop signals

I/O specifications:

Input/Output Specification Comments

Description Easy to use interface with integrated

power electronics (H-bridge).
The actuator can also be equipped with
electronic circuit that gives an absolute or
relative feedback signal.

The version with “IC option” cannot be
operated with PWM (power supply).

See connection diagram,
fig. 7, page 19

Brown 12-24VDC

Connect Brown to positive (VDC)
12V ± 20%

24V ± 10%
Under normal conditions:

12V, max. 5A depending on load
24V, max. 2.5A depending on load

Note: Do not change the power
supply polarity on the brown and
blue wires!

Power supply GND (-) is electrically
connected to the housing

If the temperature drops below 0°C,
all current limits will automatically
increase to 11A

Blue 12 or 24VDC

Connect Blue to negative (GND)
12V ± 20%

24V ± 10%
Under normal conditions:

12V, max. 5A depending on load
24V, max. 2.5A depending on load

Red Extends the actuator On/off voltages:

> 67% of V

IN

= ON

< 33% of V

IN

= OFF

Input current: 10mA

Black Retracts the actuator

Green Endstop signal out Output voltage min. V

IN

- 1V

Source current max. 100mA
Endstop signals are NOT potential free

Yellow Endstop signal in

M

H-Bridge

Page 20 of 36

Actuator with IC and endstop signals

I/O specifications:

Input/Output Specification Comments

Violet Mechanical slide potentiometer

0-10V (Option T)
Slide potentiometer, 10 kohm

1 kohm = 0 mm stroke
11 kohm = 100 mm stroke

The maximum effect: 0.1W

Max. 100mm stroke
Linearity: ± 20%

Minimum lifetime: 15,000 cycles
Average lifetime: 40,000 cycles

Max. current output: 1mA

Analogue feedback
0-10V (Option F)

0.5-4.5V (Option K)

Tolerances +/- 0.2V
Max. current output 1mA
Ripple max. 200mV
Transaction delay 100ms
Linear feedback 0.5%

Hall sensor
2 pulses (Option L)
4 pulses (Option N)

Max. current output 12mA
Output = input -1V

Single Hall (Option S) Max. current output 12mA

Output = input -1V
Min. on time 3ms

None (Option D) Not available with feedback or end-

stop out

White Signal GND Only for mechanical slide

potentiometer and analogue
feedback
Max. 1mA
For correct wiring of power GND and
Signal GND see page 22

Ready signal Only for single hall and PWM

Max. 10mA

Page 21 of 36

Please note that this section only applies for the following feedback options:
0-10V, Hall and PWM.

Correct wiring of Power GND and Signal GND for IC

When using the feedback output, it is important to use the right connection setup. Attention should be paid to
the two ground connections. Power GND in the Power connector and Signal GND in the Control connector. When
using either 0-10V, Hall or PWM feedback, the Signal GND must be used. For optimal accuracy, the Signal GND is
connected to the Power GND as close as possible to the feedback input equipment.

FEEDBACK

SIGNAL GND

50%50%

Hall

0-10V

PWM

4-20mA

Power
supply

Feedback

input

Power connector

Control connector

POWER

POWER GND

LA12 IC actuator

WHITE

VIOLET

BROWN

BLUE

50%50%

Page 22 of 36

Troubleshooting

Chapter 3

Symptom Possible cause Action

Motor runs but
spindle does not
move

Gearing system or spindle damaged Please contact LINAK

No motor sound or
movement of piston
rod

The actuator is not properly connected to
the power supply

Check the connection to the power
supply or the external control unit (if any)

Customer fuse burned Check the fuse

Cable damaged Please contact your local LINAK supplier

For IC only:
Wrongly connected

For IC only:

Please make sure that the power
supply polarity is properly
connected, otherwise you might
damage the actuator

Check the wire connection on the
internal control unit

Excessive power
consumption

Misalignment or overload in the
application

Align or reduce the load

Try to run the actuator without load

Actuator cannot lift
full load or motor
runs too slowly

Misalignment or overload in the
application

Align or reduce the load

Try to run the actuator without load

Insufficient power supply Check the power supply

Page 23 of 36

Troubleshooting

Symptom Possible cause Action

No signal or
incorrect feedback
output

Cable damaged Please contact your local LINAK supplier

Wrongly connected Check the wiring

Signal is constantly high/low Run the actuator to fully extended and

retracted positions

Feedback output overloaded Reduce the load according to your

chosen feedback type

Actuator runs in
smaller steps

Insufficient power supply Check the power supply

Load is higher than specified Reduce the load

Actuator cannot
hold the chosen load

Load is higher than specified Reduce the load

For further assistance, please contact your local LINAK supplier.

Page 24 of 36

Specifications

Motor: Permanent magnet motor 12 or 24V

Housing: High strength-plastic housing

Spindle part: Acme spindle: Trapezoidal spindle with high efficiency

Temperature range: - 20

o

C to +60o C

- 4o F to +140o F
Full performance +5o C to +40o C

End play: 2 mm maximum

Weather protection: Rated IPX1, or if chosen as option IP66

Endstop switches: Built-in endstop switches

Piston rod and High-strength plastic as standard
back fixture:

Compatibility: The LA12 IC is compatible with SMPS-T160 (For combination possibilities, please
see the User Manual for SMPS-T160)

Usage:

• Duty cycle at 750N and 2mm pitch is max. 10%
Duty cycle at 300N and 4mm pitch is max. 40%
Duty cycle at 200N and 6mm pitch is max. 60%

The duty cycles are valid for operation within an ambient temperature of +5°C to +40°C

• Storage temperature: -40°C to + 105°C

• Noise level: With standard motor: 55-57dB (A)
Measuring method DS/EN ISO 3743-1, actuator not loaded

Chapter 4

Page 25 of 36

Actuator dimensions

TECHLINE

®

LA12:

245

LA12 Stainless steel 255mm

22

31.9

19.6

50

85

6.1+0.2

170.7

36.3

20.5

10.1

+0.1
0

10.1

+0.1
0

16

16.5

Page 26 of 36

0

5

10

15

20

25

30

35

40

45

0 200 400 600 800

Speed (mm/s)

Thrust (N)

LA12 - 12V Speed v's Thrust

6mm pitch

4mm

p

itch

2mm pitch

0

0,5

1

1,5

2

2,5

3

3,5

4

4,5

5

0 200 400 600 800

Current (Amps)

Thrust (N)

LA12 - 12V Current v's Thrust

6mm pitch

4mm pitch

2mm pitch

The values below are typical values and made with a stable power supply and an ambient temperature of 20˚C.

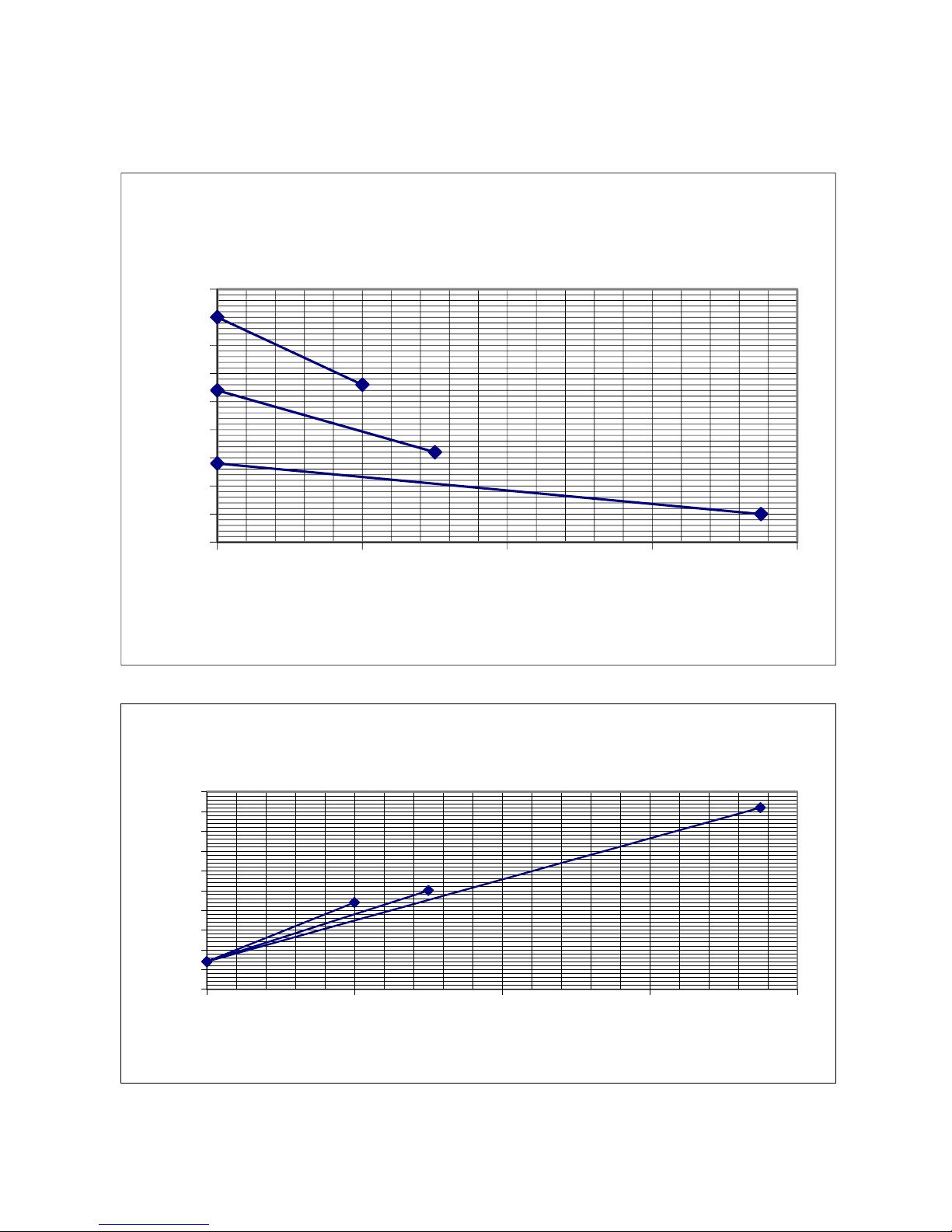

Speed and current curves - 12V motor

Page 27 of 36

0

0,5

1

1,5

2

2,5

0 200 400 600 800

Current ( Amps)

Thrust (N)

LA12 - 24V Current v's Thrust

6mm pitch

4mm pitch

2mm pitch

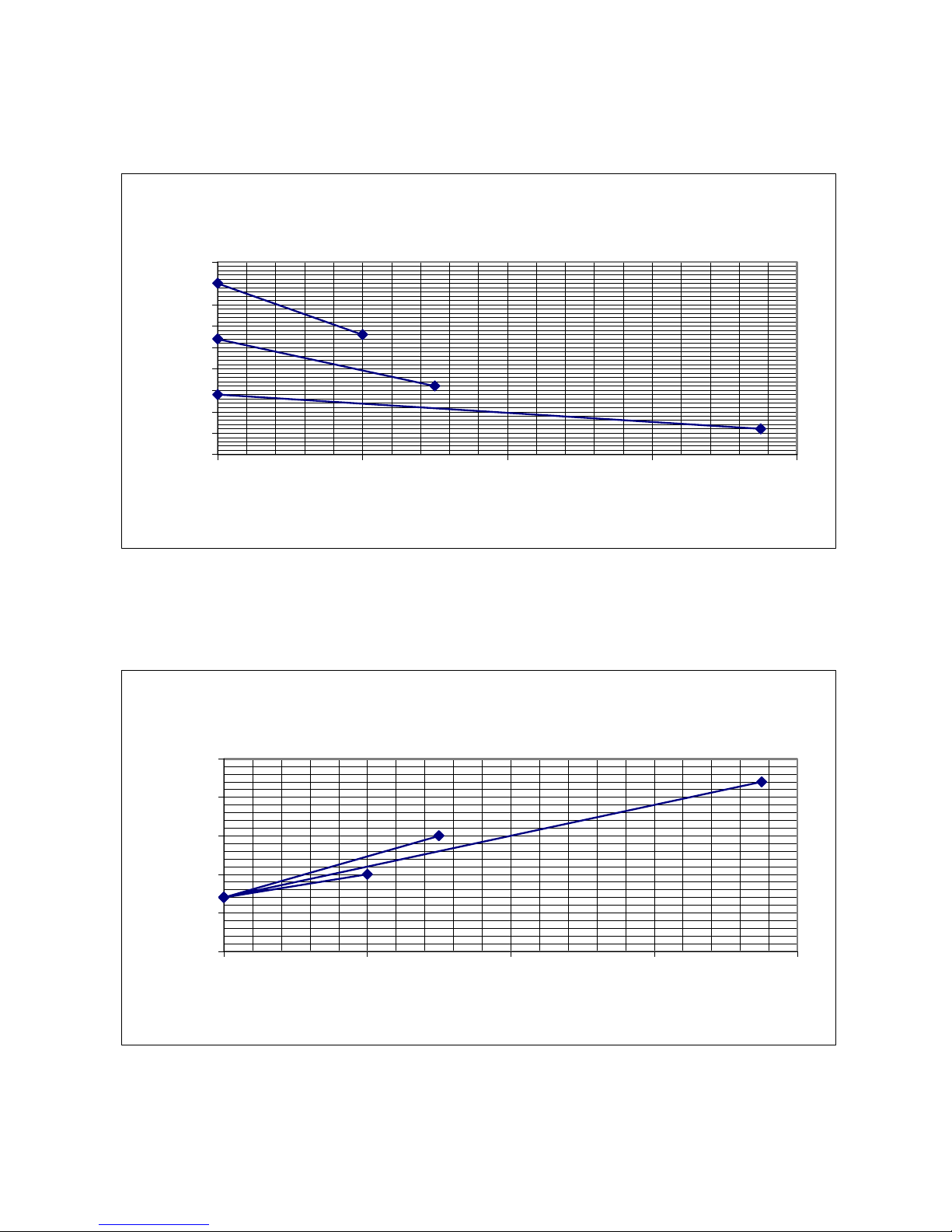

Speed and current curves - 24V motor

The values below are typical values and made with a stable power supply and an ambient temperature of 20˚C.

0

5

10

15

20

25

30

35

40

45

0 200 400 600 800

Speed (mm/s)

Thrust (N)

LA12 - 24V Speed v's Thrust

6mm pitch

4mm pitch

2mm pitch

Page 28 of 36

Product Capacitor value

LA12 1 μF

Test of conducted and radiated emission (EMC)

All TECHLINE actuators have been tested in accordance with EN55011 class B (2007) (CISPR 11).
A 1m cable has been used in the test set-up.

Actuator without H-bridge

1) For normal operation the following is valid:

• Radiated emission requirements are met.

• Conducted emission requirements are met. However, to meet with these requirements a capacitor has been

mounted across the motor wires outside the actuator, and tests have then been made with this capacitor.
Capacitor values for some of the TECHLINE actuators can be found in the scheme below.

To comply with EN55011 class B (2007) a capacitor must be added across the motor wires, or the
connected control box must have similar/better filtering. The actuator is not delivered with a built in
capacitor, because then it would not be possible to PWM the motor for those who would want to do
that.

Please view the scheme below for the correct choice of capacitor for the actuator in question.

2) For systems/operations that use PWM-control it is up to the customer to test and meet the requirements.

Actuator with H-bridge

1) For normal operation with soft start/stop the following is valid:

• The actuator has been tested when operating with constant 80%-PWM.

• Radiated emission requirements are met.

• Conducted emission requirements are met.

2) For systems with LINAK PWM regulation (among other things parallel operation and speed regulation)
the following is valid:

• Radiated emission requirements are met.

• Conducted emission requirements are met.

3) Speed regulation:

• If the speed is regulated below a nominal speed of 80% (80%-PWM), it is necessary to mount a filter in order
to comply with the conducted emission requirements. For systems/operations that are speed regulated, it is up
to the customer to test and meet the requirements.

Actuator

Motor +/-

Motor -/+

Customer
control

XX µF

Page 29 of 36

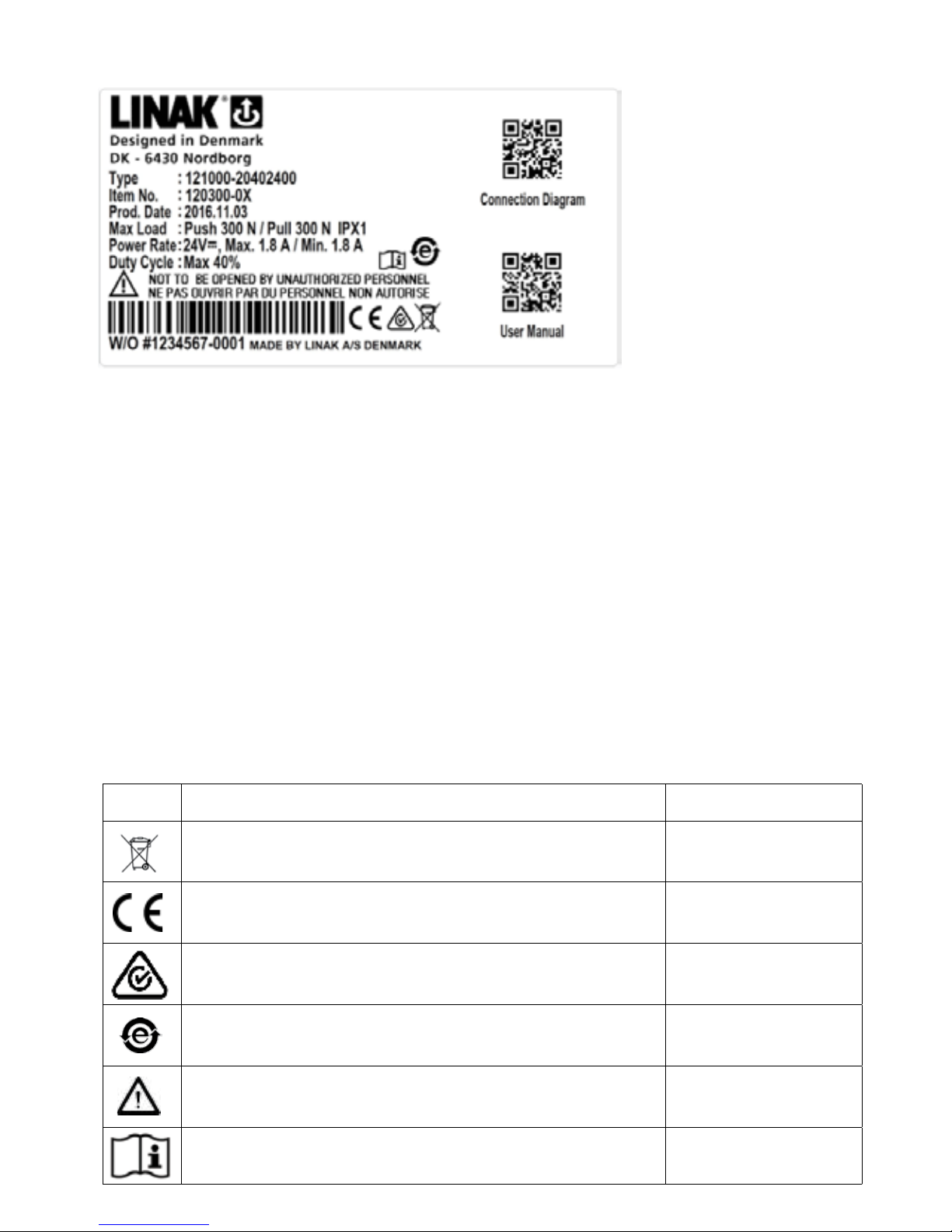

Label for LA12

1. Type.: 121000-20402400

Describes the basic functio­nality of the product

2. Item no.: 120300-0X
Sales and ordering code

3. Prod. Date.: YYYY.MM.DD
Production date describes
when the product has been
produced. This date is the
reference for warranty claims

4. Max Load.: Push 300N / Pull 300N IPX1
Describes the maximum load that the product can be exposed to in compression and tension. This line also
contains a reference to the product’s IP protection degree

5. Power Rate.: 24VDC / Max. 2.5 Amp

Input voltage for the product and maximum current consumption

6. Duty Cycle.: Max 40%
The duty cycle defines the maximum period during operation without interruption. After operation, a pause
must be observed. It is important that the operator follows the instructions of the duty cycle; otherwise, a
possible overload may result in reduced product life/errors

7. W/O #1234567-0001

The LINAK work order followed by a unique sequential identification number

Symbol Norms Approvals

WEEE Directive 2002/96/EC Wheelie bin

Compliance to all relevant EC directives CE

Regulatory Compliance Mark:
The Australian safety/EMC regulations

RCM

China Pollution control mark (also indicates recyclability) China RoHS legislation

ISO 7000- 0434A: Caution

Operating instructions

Key to symbols

The following symbols are used on the LA12 label:

Page 30 of 36

12 x x xx - x xxx xx x x

No positioning

Cable 0 = Black straight 0.75m

1 = Black straight 2.3m Jack

J = Black straight 0.75m Deutsch

K = Black straight 0.75m

With reed

2 = 3 core stereo Jack black straight 2.3m

3 = 3 core black straight 0.75m

4 = 4 core black straight 0.75m

J = 3 or 4 core black straight 0.75m Deutsch

K = 3 or 4 core black straight 0.75m AMP

With potentiometer

0 = 5-core black straight 0.93m

J = 5-core black straight 0.93m Deutsch

K = 5-core black straight 0.93m AMP

With analogue feedback

0 = 5-core black straight 0.93m

J = 5-core black straight 0.93m Deutsch

K = 5-core black straight 0.93m AMP

With IC

J = 8-core black straight 2.3m Deutsch

K = 8-core black straight 2.3m AMP

S = 8-core black straight 1.5m SMPS

X = Special cable

IP version:

0 = IPX1

2 = IP66

Motor: 12 = 12VDC Motor

24 = 24VDC Motor

Stroke

Recommended versions : 040, 070, 100 and 130

Spindle type 1 = 2 mm

2 = 4 mm

3 = 6 mm

Material

00 = Plastic inner tube

02 = Stainless steel inner tube and Stainless steel eye (AISI 303)/ 0321118 w. bushes

03 = Stainless steel inner tube and Stainless steel eye (AISI 304) / 0301244 w. bushes

0X = Special

Memory positioning: Necessary cable type

0 = None 0 or 1

B = Analogue feedback 0 - 10V

0 (5 Core)

C = Analogue feedback 0.5 - 4.5V 0 (5 Core)

E = Reed switch 5 pulses/spindle revolution, 10 pole magnet 4 (4 Core)

M = Reed switch 2 pulses/spindle revolution, 4 pole magnet 4 (4 Core)

P = Potentiometer max. 100 mm stroke 0 (5 Core)

R = Reed switch 2 pulses/spindle revolution, 4 pole magnet 2 or 3 (3 Core)

*IC options for LA12:

T = Potentiometer 0-10 V/max. 100mm stroke 8 for IC (8 Core)

D = None (No EOS out)

8 for IC (8 Core)

F = Analogue feedback 0 - 10V

8 for IC (8 Core)

S = Single hall feedback 8 for IC (8 Core)

K = Analogue feedback 0.5 - 4.5V

8 for IC (8 Core)

L = Hall sensor 2 pulses/spindle revolution - 4 pole magnet 8 for IC (8 Core)

N = Hall sensor 4 pulses/spindle revolution - 8 pole magnet 8 for IC (8 Core)

Back fixture type and position

1=Plastic, Position 01

2=Plastic, Position 02

3

=

Aluminium / 012095 Position 01

4

=

Aluminium / 012095 Position 02

5=Stainless steel (AISI 304) / 012114 Position 01

6=Stainless steel (AISI 304) / 012114 Position 02

X = Special

Actuatortype LA12

XXX = mm min. 019, max. 130 mm in steps of 1 mm

8 = Black straight 2300mm (8-core)

*

IC options: Basic IC
LA12 actuator:

�

LA12 ordering example

Page 31 of 36

Maintenance

• The actuator must be cleaned at regular intervals to remove dust and dirt and inspected for mechanical

damages or wear.

• Inspect attachment points, wires, piston rod, cabinet, and plug, as well as check that the actuator functions

correctly.

• To ensure that the pregreased inner tube remains lubricated, the actuator

must only be washed down when the

piston rod is fully retracted.

• The actuator is a closed unit and therefore requires no internal maintenance.

• In order to maintain a proper performance of the spherical eyes and to increase the resistance against

environmental wear, we strongly recommend that the spherical eyes (ball bearings) mounted on actuators
from LINAK are greased with anticorrosive grease or similar.

Repair

Only an authorised LINAK® service centre should repair LINAK actuator systems. Systems to be repaired under
warranty must be sent to an authorised LINAK service centre.
In order to avoid the risk of malfunction, all actuator repairs must only be carried out by an authorised LINAK
Service shop or repairer, as special tools and parts must be used.
If a system is opened by unauthorised personel there is a risk that it may malfunction at a later date.

Main groups of disposal

LINAK’s products may be disposed of, possibly by dividing them into different waste groups for recycling or combustion.

We recommend that our product is disassembled as much as possible at the disposal and that you try to recycle it.

Chapter 5

Product Metal scrap Cable scrap Electronic scrap Plastic recycling or

combustion

LA12 X X X X

Page 32 of 36

Warranty

There is an 18 months’ warranty on TECHLINE products against manufacturing faults calculated from the
production date of the individual products (see label). LINAK’s warranty is only valid in so far as the equipment
has been used and maintained correctly and has not been tampered with. Furthermore, the actuator must not be
exposed to violent treatment. In the event of this, the warranty will be ineffective/invalid. For further details, please
see standard terms of sale and delivery for LINAK A/S.

Note:

Only an authorised LINAK

®

service centre should repair LINAK actuator systems. Systems to be repaired under
warranty must be sent to an authorised LINAK service centre.
In order to avoid the risk of malfunction, all actuator repairs must only be carried out by an authorised LINAK
Service shop or repairer, as special tools and parts must be used.
If a system is opened by unauthorised personel there is a risk that it may malfunction at a later date.

The actuator is

not to be opened by unauthorised personnel. In case the actuator is opened, the warranty will not be

invalid.

Page 33 of 36

DECLARATION OF CONFORMITY

LINAK A/S

Smedevænget 8

DK - 6430 Nordborg

Hereby declares that

Actuator 12xxxx-xxxxxxxx

complies with the EMC Directive 2014/30/EU according to following harmonized standards:

EN 61000-4-2:2009, EN 61000-4-3:2006+A1+A2, EN 61000-4-4:2012, EN 61000-4-5:2014, EN 61000-4-6:2014, EN
61000-4-8:2010,

EN55016-1-2:2014, EN 55016-2-1:2014, EN 55016-2-3:2010+A1, EN 55025:2008

complies with RoHS2 Directive 2011/65/EU according to the standard:
EN 50581:2012

Additional information:

The device does comply with the standards:
EN 61000-6-1:2007, Electromagnetic compatibility (EMC) - Part 6-1: Generic standards - Immunity for residential,
commercial and light-industrial environments
EN 61000-6-3:2007, Electromagnetic compatibility (EMC) - Part 6-3: Generic standards - Emission standard for
residential, commercial and light-industrial environments
EN 61000-6-2:2005, Electromagnetic compatibility (EMC) - Part 6-2: Generic standards - Immunity for industrial
environments
EN 61000-6-4:2007, Electromagnetic compatibility (EMC) - Part 6-4: Generic standards - Emission standard for
industrial environments

The device does also comply with the standards:
ISO 10605:2008, Road vehicles -- Test methods for electrical disturbances from electrostatic discharge
ISO 7637-2:2004, Road vehicles -- Electrical disturbances from conduction and coupling -- Part 2: Electrical
transient conduction along supply lines only

Nordborg, 2016-08-15

LINAK A/S

John Kling, B.Sc.E.E.
Certification and Regulatory Affairs
Authorized to compile the relevant technical documentation

Original declaration

Page 34 of 36

DECLARATION OF INCORPORATION OF PARTLY COMPLETED MACHINERY

LINAK A/S

Smedevænget 8

DK - 6430 Nordborg

Herewith declares that LINAK TECHLINE ® products
as characterized by the following models and types:

Linear Actuators LA12, LA14, LA22, LA23, LA25, LA30, LA35, LA36, LA37

comply with the following parts of the Machinery Directive 2006/42/EC, ANNEX I, Essential health and
safety requirements relating to the design and construction of machinery:

1.5.1 Electricity supply

The relevant technical documentation is compiled in accordance with part B of Annex VII and that this
documentation or part hereof will be transmitted by post or electronically to a reasoned request by the
national authorities.

This partly completed machinery must not be put into service until the final machinery into
which it is to be incorporated has been declared in conformity with the provisions of the
Machinery Directive 2006/42/EC where appropriate.

Nordborg, 2014-10-20

LINAK A/S
John Kling, B.Sc.E.E.
Certification and Regulatory Affairs
Authorized to compile the relevant technical documentation

Original Declaration

Page 35 of 36

Copyright

©

LINAK 2017.08 MA-M9-02-610-E LINAK A/S reserve the right to make technical alterations

FACTORIES

• China

LINAK (Shenzhen) Actuator Systems, Ltd.
Tel: [phone]
Tel: [phone]
E-mail: [email protected]
www.linak.cn

• Denmark - Headquarters

LINAK A/S

Group Headquarters
Tel: [phone]
Fax: [phone]
Fax (Sales): [phone]
E-mail: [email protected]
www.linak.com

• USA

LINAK U.S. Inc.

North and South American Headquarters
User support: [phone]
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak-us.com

SUBSIDIARIES

• Australia

LINAK Australia Pty. Ltd
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.com.au

• Austria

LINAK Repräsentanz
Österreich (Wien)
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.at

• Belgium

LINAK Actuator-Systems NV/SA
(Belgium & Luxembourg)
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.be

• Brazil

LINAK DO BRASIL COMÉRCIO DE
ATUADORES LTDA.
Tel: [phone] – 7070
Fax: [phone] – 7060
E-mail: [email protected]
www.linak.com.br

• Canada

LINAK Canada Inc.
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak-us.com

• Czech Republic

LINAK C&S S.R.O.
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.cz

Terms of use

The user is responsible for determining the suitability of LINAK products for specific application. LINAK takes great care in providing accurate and
up-to-date information on its products.
However, due to continuous development in order to improve its products, LINAK products are subject to frequent modifications and changes without
prior notice. Therefore, LINAK cannot guarantee the correct and actual status of said information on its products.
While LINAK uses its best efforts to fulfil orders, LINAK cannot, for the same reasons as mentioned above, guarantee the availability of any particular
product. Therefore, LINAK reserves the right to discontinue the sale of any product displayed on its website or listed in its catalogues or other written
material drawn up by LINAK.
All sales are subject to the Standard Terms of Sale and Delivery for LINAK. For a copy hereof, please contact LINAK.

• LINAK International

Group Headquarters
Tel: [phone]
Fax: [phone]
Fax (Sales): [phone]
E-mail: [email protected]
www.linak.com

• Denmark - Sales

LINAK DANMARK A/S
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.dk

• Finland

LINAK OY
Tel: [phone]
E-mail: linak@linak.fi
www.linak.fi

• France

LINAK FRANCE E.U.R.L
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.fr

• Germany

LINAK GmbH
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.de

• India

LINAK A/S India Liaison Office
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.in

• Ireland

LINAK UK Limited (Ireland)
Tel: [phone]
Fax: [phone]
[phone] (UK Mobile)
[phone] (Republic Of Ireland
Mobile)
E-mail: [email protected]
www.linak.co.uk

• Italy

LINAK ITALIA S.r.l.
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.it

• Japan

LINAK K.K.
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.jp

• Malaysia

LINAK Actuators Sdn. Bhd.
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.my

• Netherlands

LINAK Actuator-Systems B.V.
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.nl

• New Zealand

LINAK New Zealand Ltd
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.com.au

• Norway

LINAK Norge AS
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.no

• Poland

LINAK Polska
Tel: [phone]
E-mail: [email protected]
www.linak.pl

• Republic of Korea

LINAK Korea Ltd.
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.kr

• Russian Federation

OOO LINAK
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.ru

• Spain

LINAK Actuadores, S.L.u
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.es

• Sweden

LINAK Scandinavia AB
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.se

• Switzerland

LINAK AG
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.ch

• Taiwan

LINAK (Shenzhen) Actuator systems Ltd.
Taiwan Representative office
Tel: [phone]
Fax: [phone]
Mobile: [phone]
E-mail: [email protected]
www.linak.com.tw

• Turkey

LINAK Ith. Ihr. San. ve Tic. A.S.
Tel: + 90 312 4726338
Fax: + 90 312 4726635
E-mail: [email protected]
www.linak.com.tr

• United Kingdom

LINAK UK Limited
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.co.uk

DISTRIBUTORS

• Argentina

NOVOTEC ARGENTINA SRL
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.novotecargentina.com

• Colombia

MEM Ltda
Tel: +[57] (1) 334-7666
Fax: +[57] (1) 282-1684
E-mail: [email protected]
www.mem.net.co

• India

Mechatronics Control Equipments
Tel: [phone], 85
E-mail: [email protected]
www.mechatronicscontrol.com

• Indonesia

PT. HIMALAYA EVEREST JAYA
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.hej.co.id

• Iran

Bod Inc.
Tel: [phone] - 6
Fax: [phone]
E-mail: [email protected]
www.bod.ir

• Russian Federation

OOO FAM
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.fam-drive.ru

• Singapore

SERVO DYNAMICS PTE.Ltd.
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.servo.com.sg

• South Africa

Industrial Specialised Applications CC
Tel: [phone]
or [phone] (Switch Board)
Fax: [phone]
E-mail: [email protected]
www.isaza.co.za

• United Arab Emirates

Mechatronics
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
