Kick & ClickTM

User manual

Page 2 of 32

Contents

Preface .......................................................................................................................................... 3

Important information ................................................................................................................. 4

Safety instructions ........................................................................................................................ 4

Before installation, re-installation or troubleshooting .................................................................. 5

Before start-up .......................................................................................................................... 5

During operation ....................................................................................................................... 5

Misc. ......................................................................................................................................... 5

Only for EU markets ..................................................................................................................... 6

Only for Non EU markets ............................................................................................................. 6

Misuse .......................................................................................................................................... 6

Repairs .......................................................................................................................................... 7

Manufacturer’s declaration.......................................................................................................... 7

Misc. on the DESKLINE

®

system .................................................................................................. 8

Warranty ................................................................................................................................... 8

Maintenance ............................................................................................................................. 8

Description of the DESKLINE

®

Kick & ClickTM system ............................................................... 9

Kick & ClickTM Adjustable ............................................................................................................ 10

Kick & ClickTM Fixed .................................................................................................................... 10

Kick & ClickTM Base .................................................................................................................... 11

Kick & ClickTM 3rd leg kit ............................................................................................................. 12

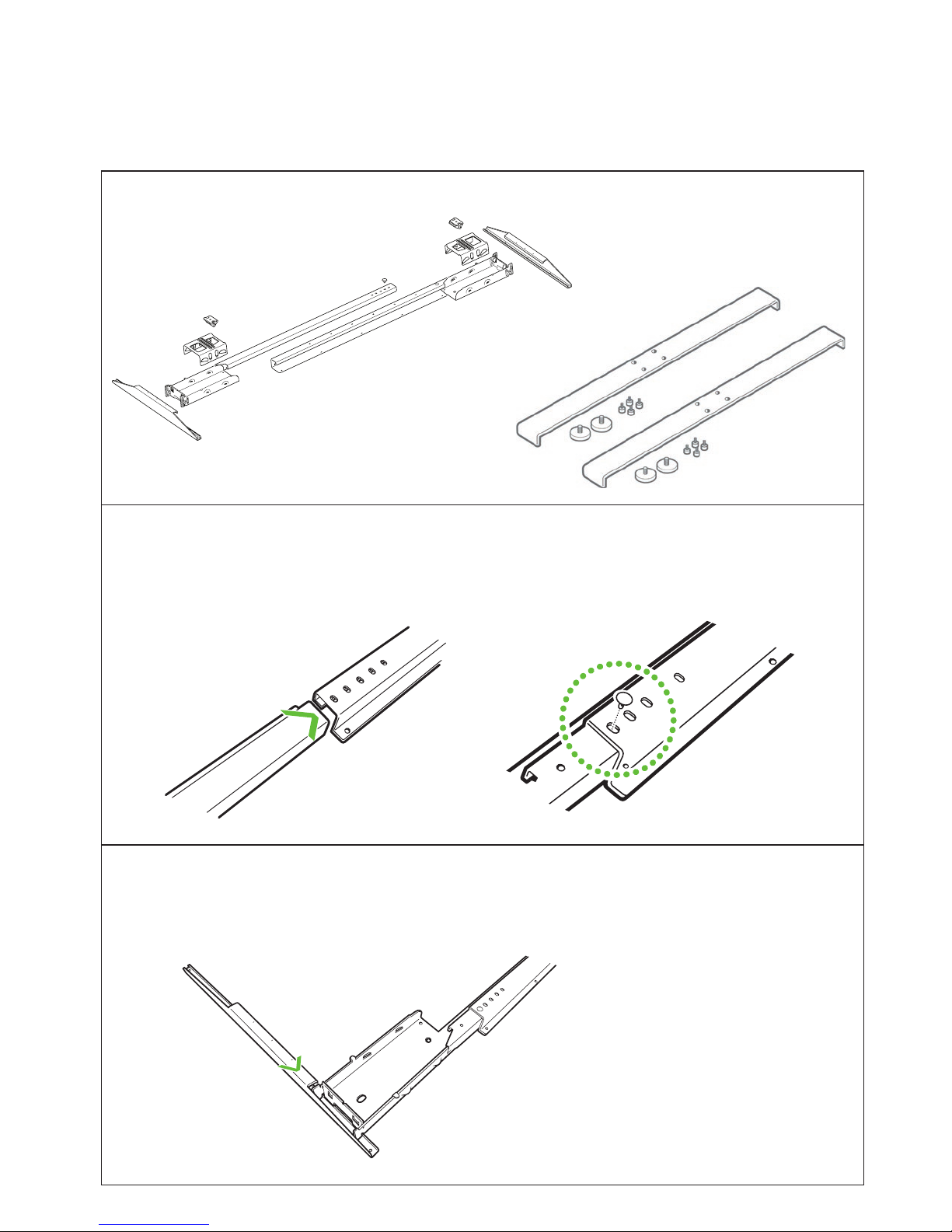

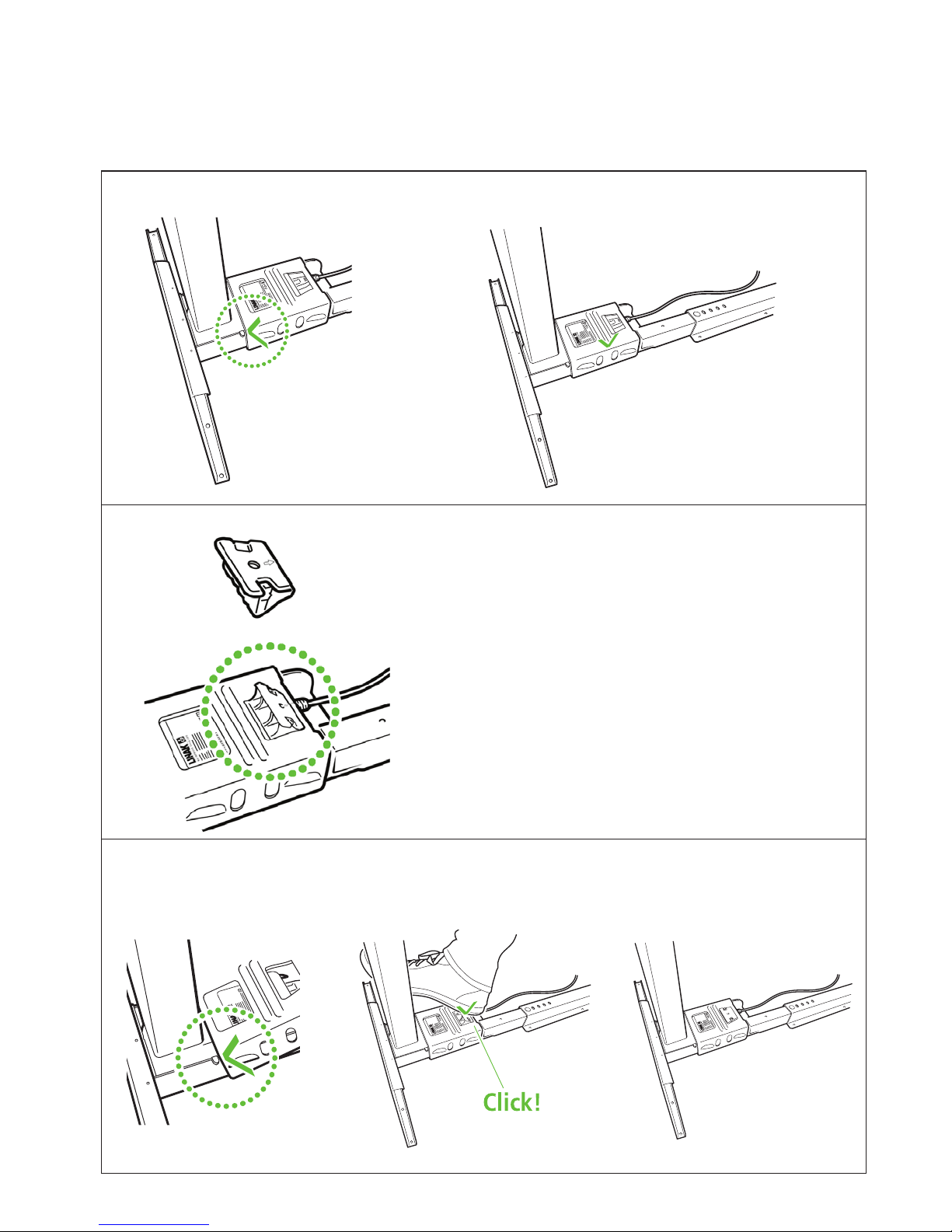

Mounting guidelines for the Kick & Click

TM

system .................................................................. 13

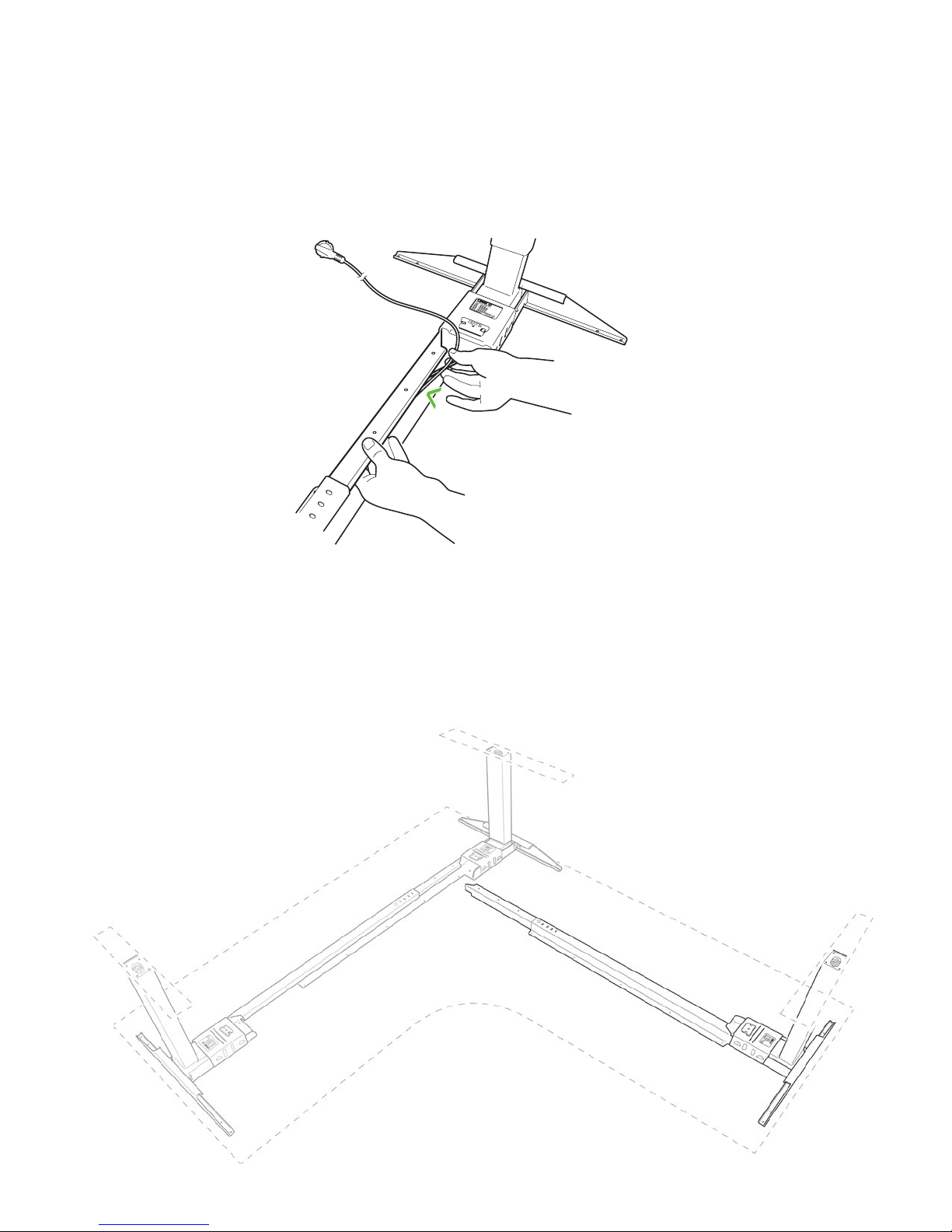

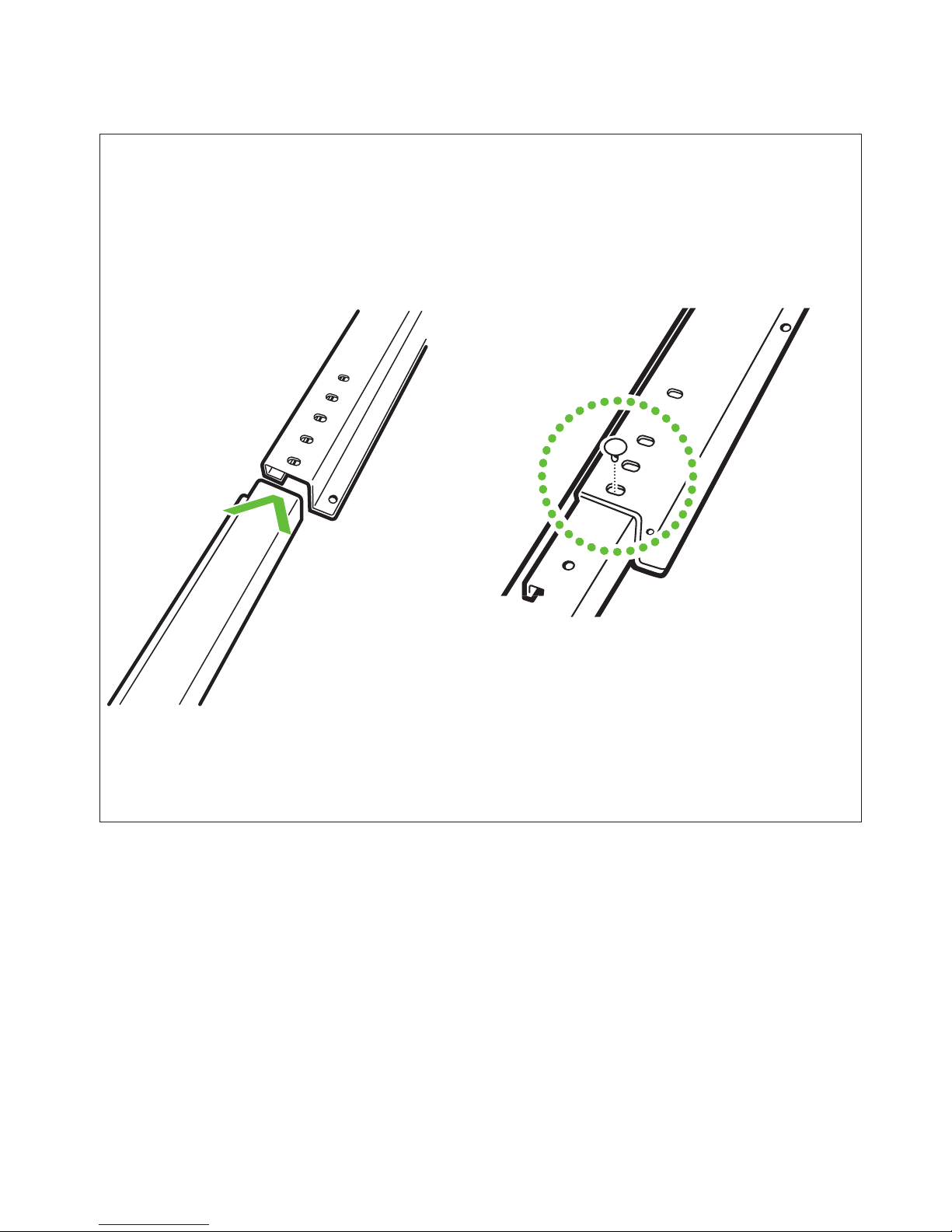

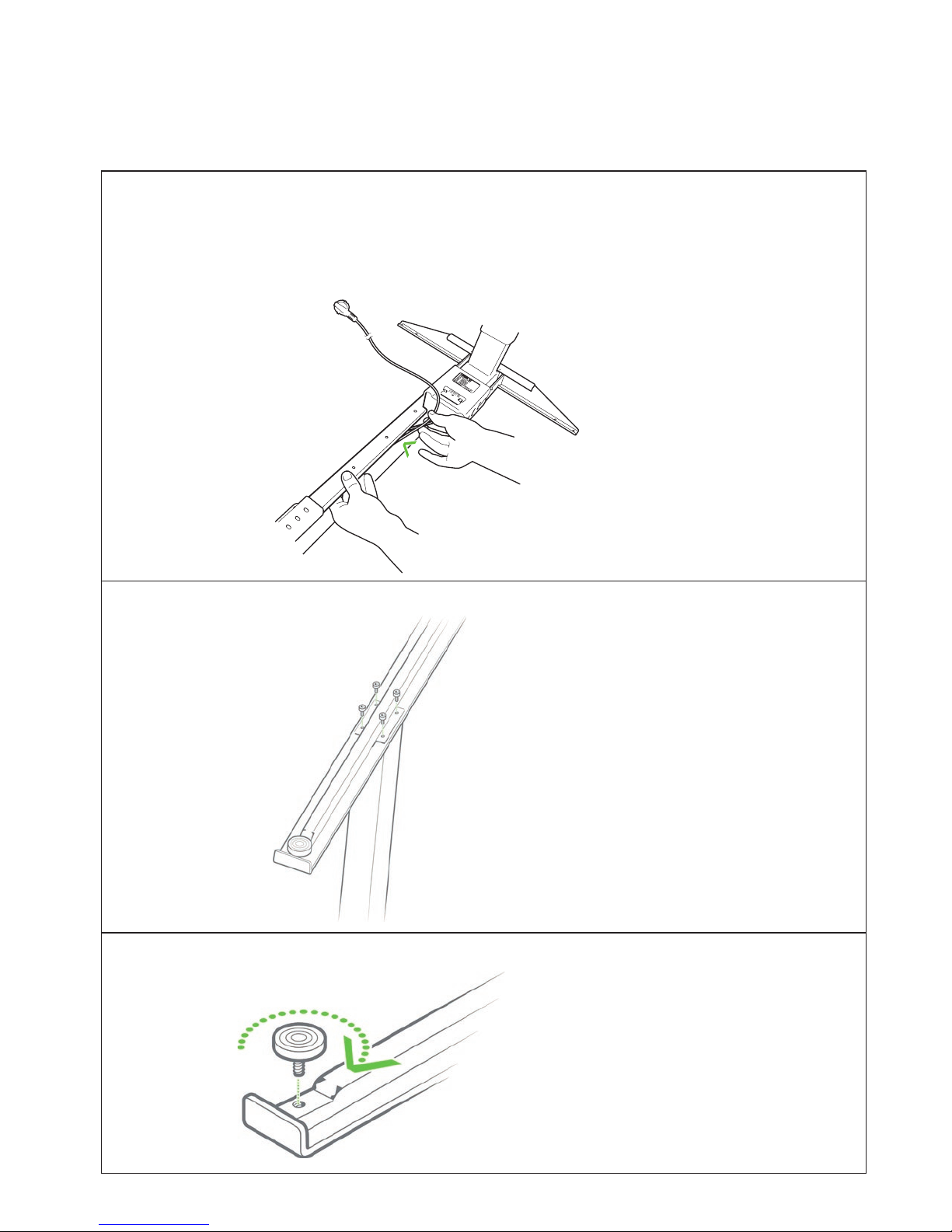

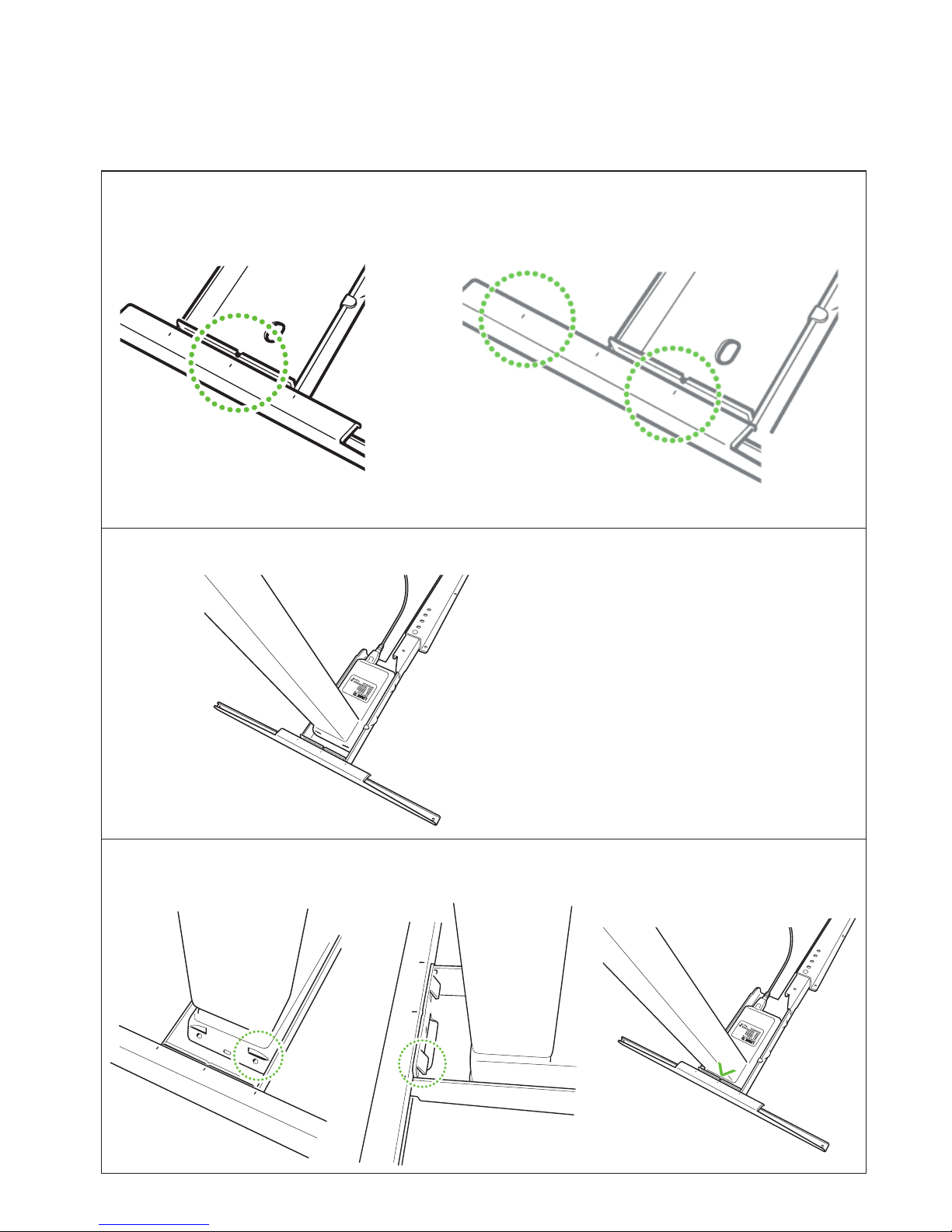

Assembling a three-legged desk ............................................................................................... 17

Mounting tabletop ....................................................................................................................... 18

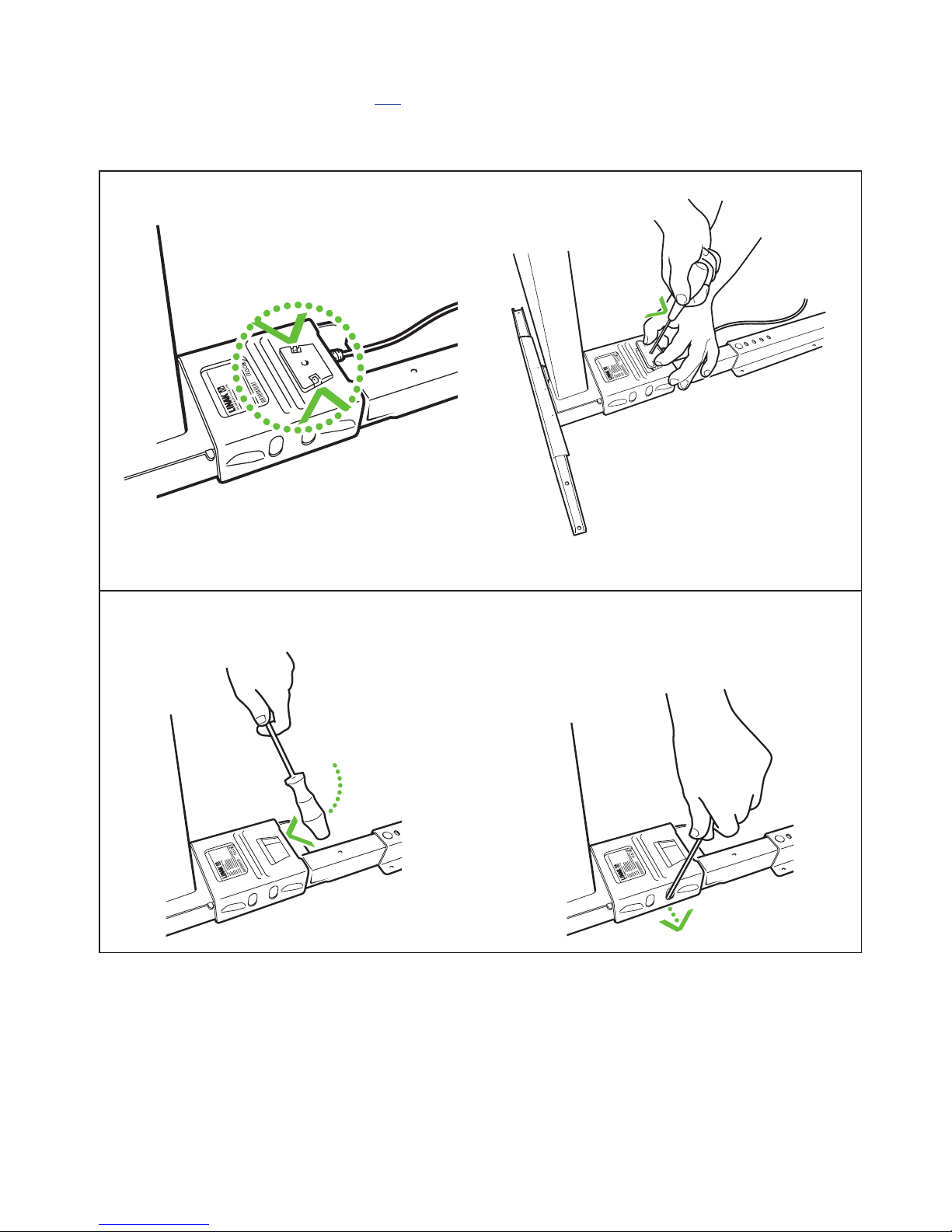

Disassembly .................................................................................................................................. 20

Accessories and repair ................................................................................................................. 21

Disposal of LINAK’s products ..................................................................................................... 22

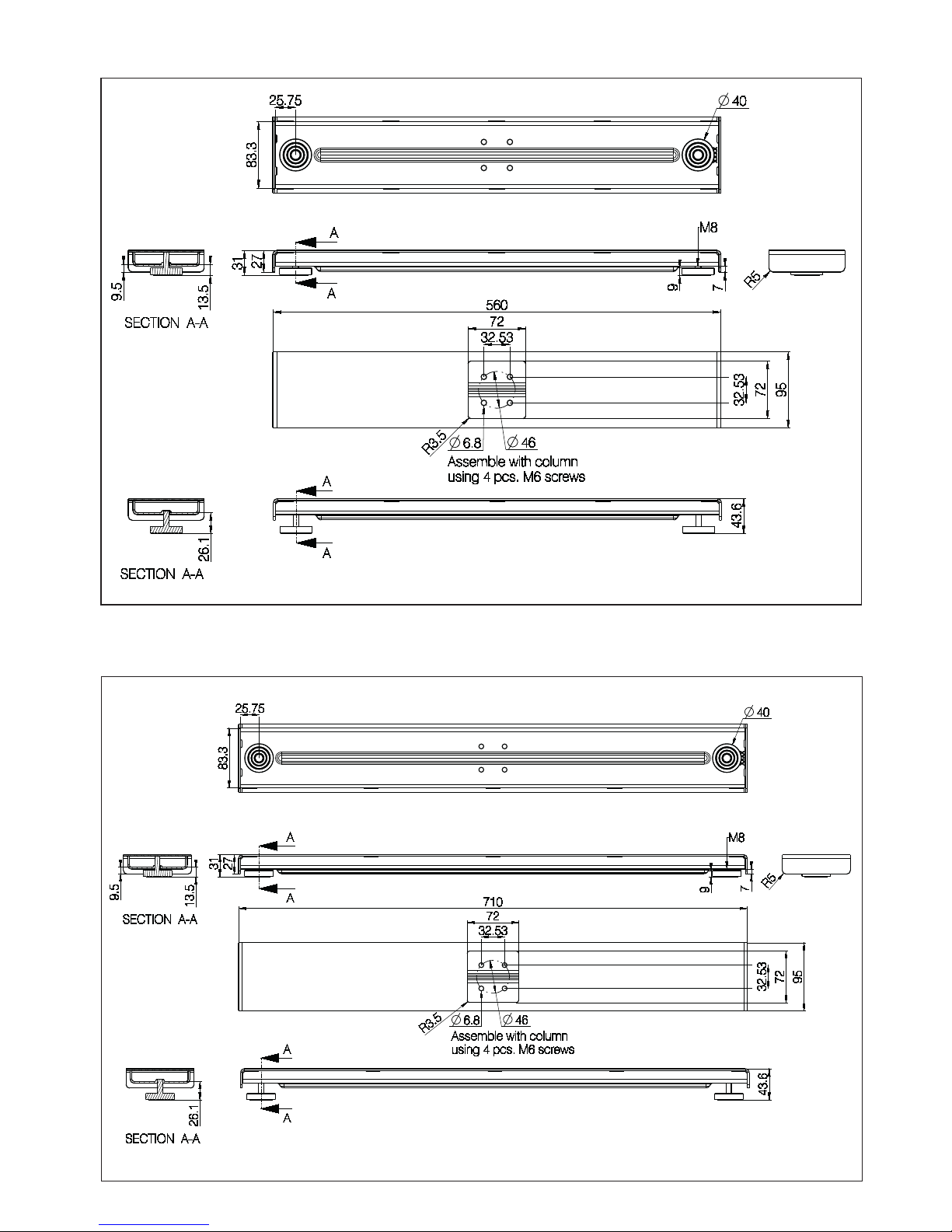

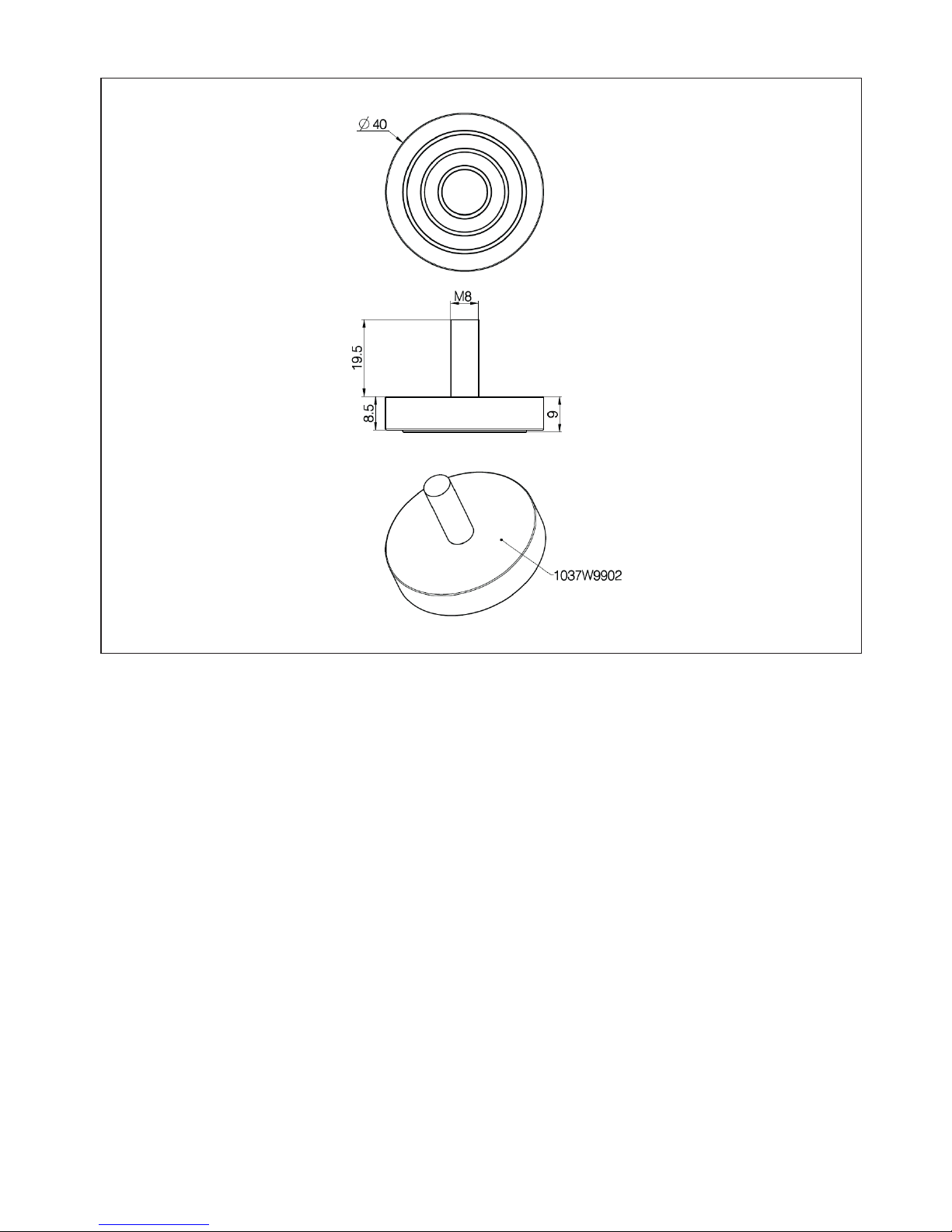

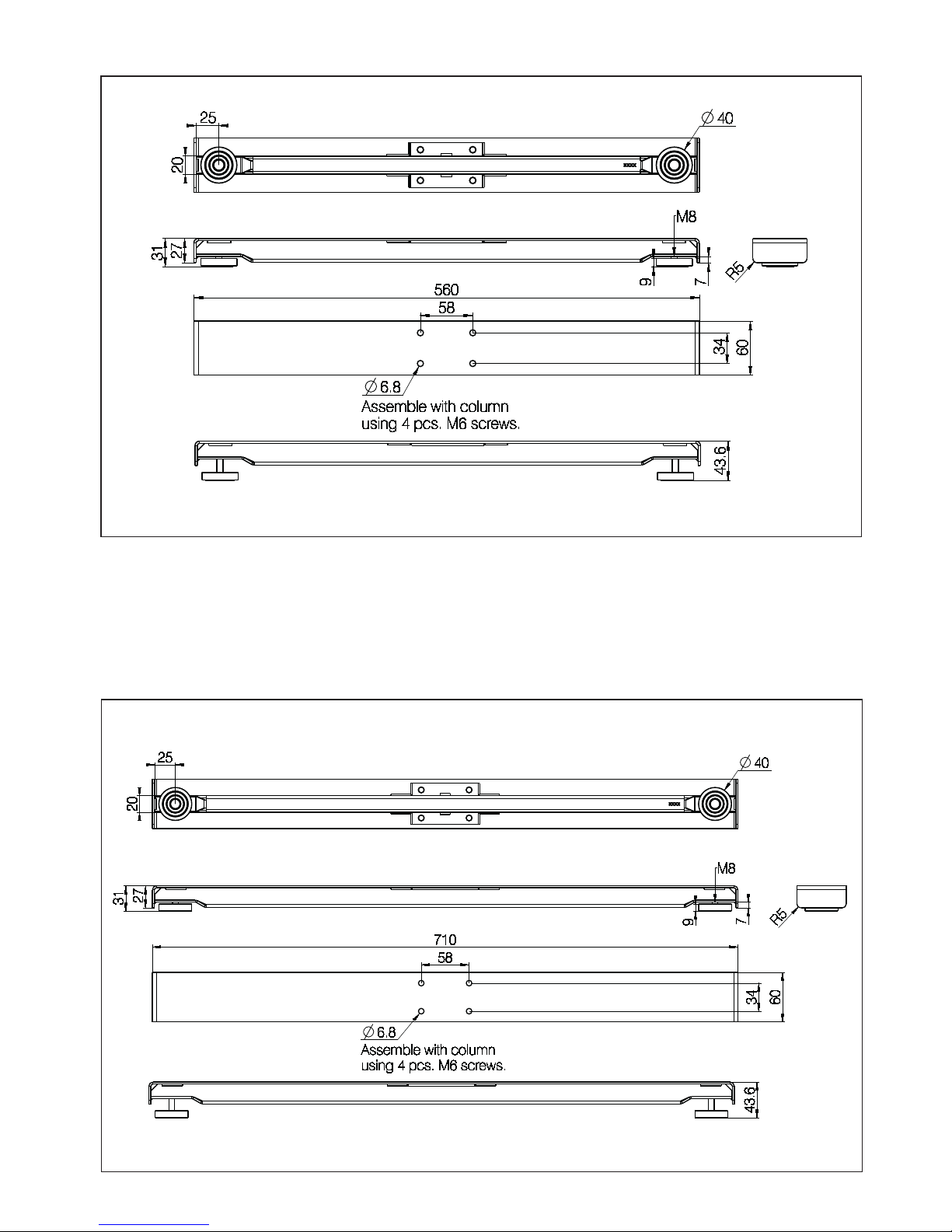

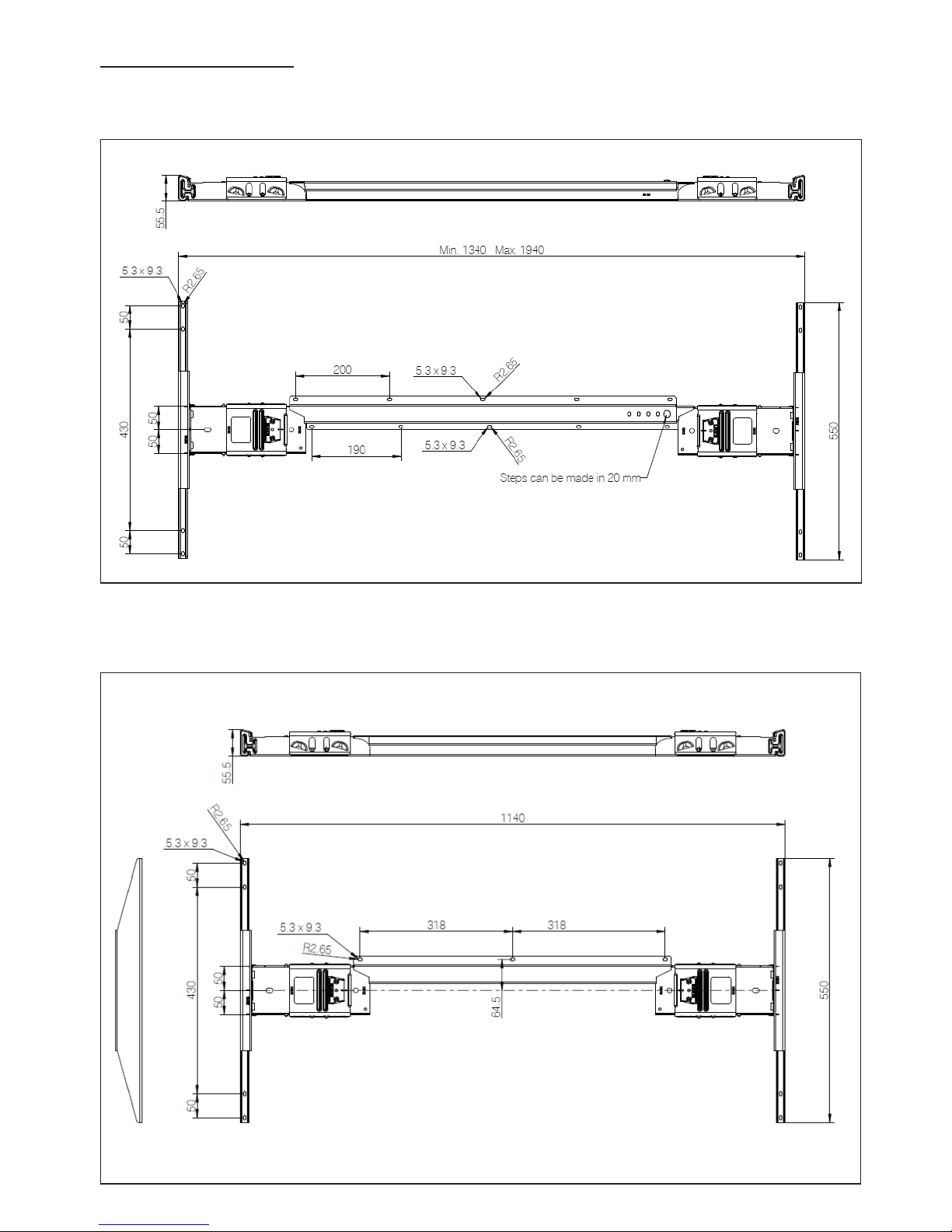

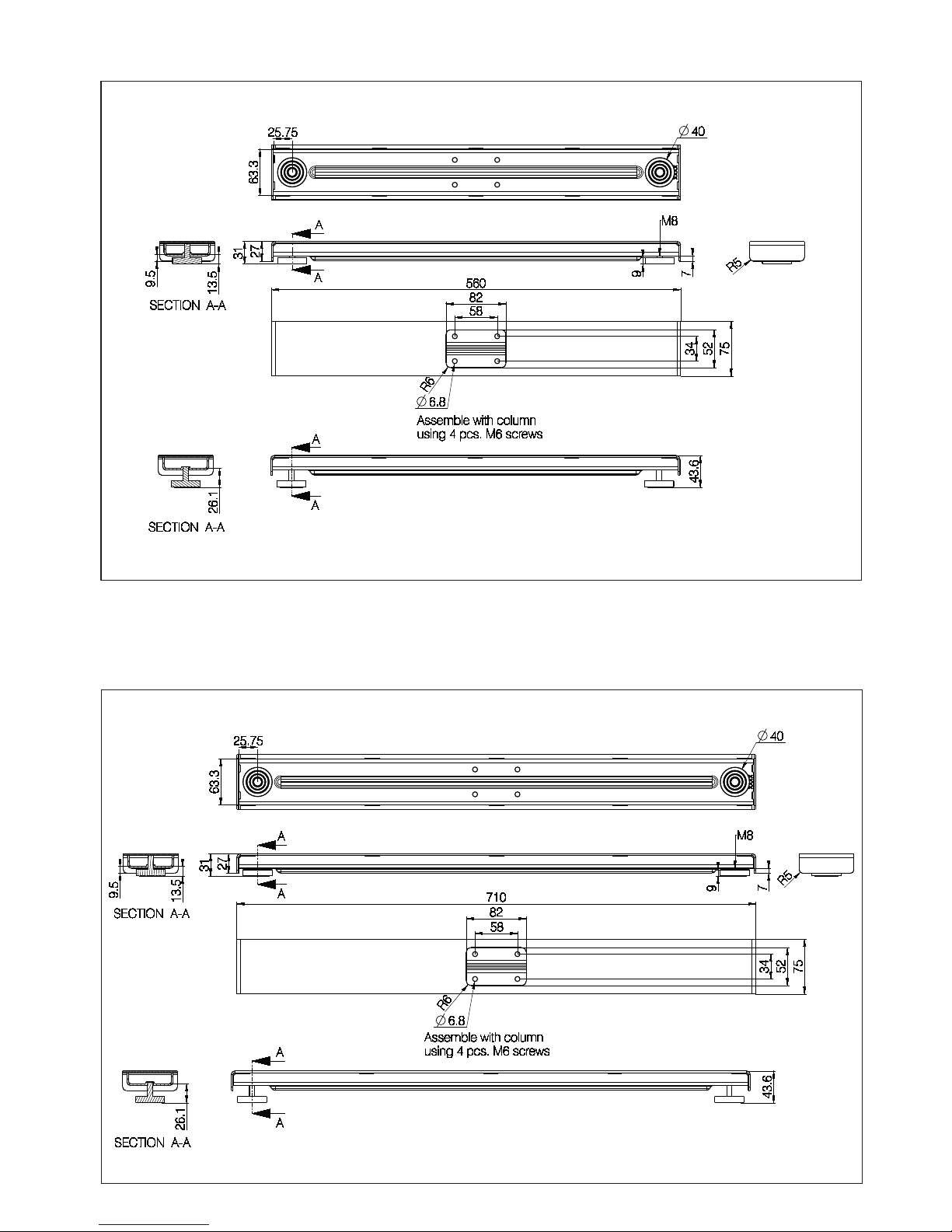

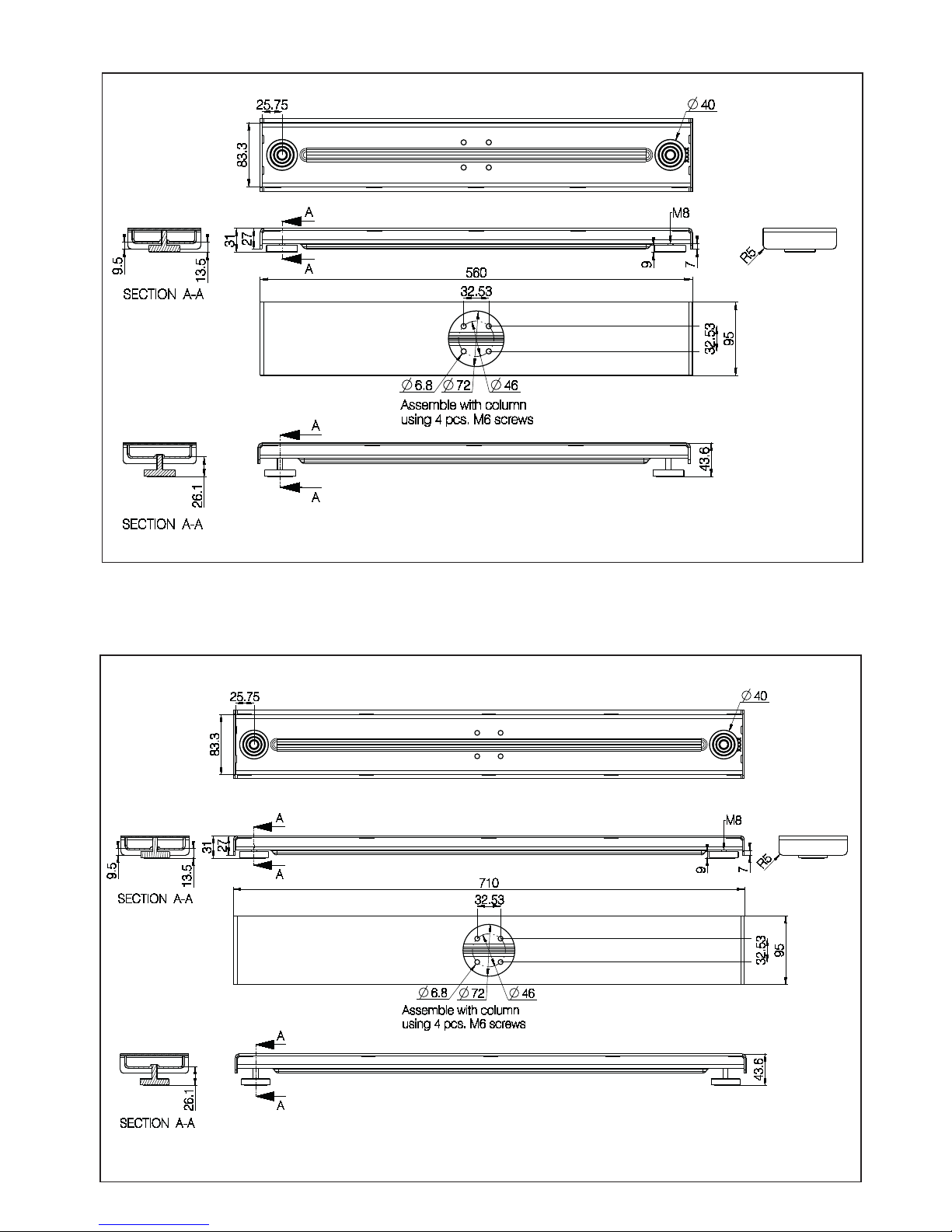

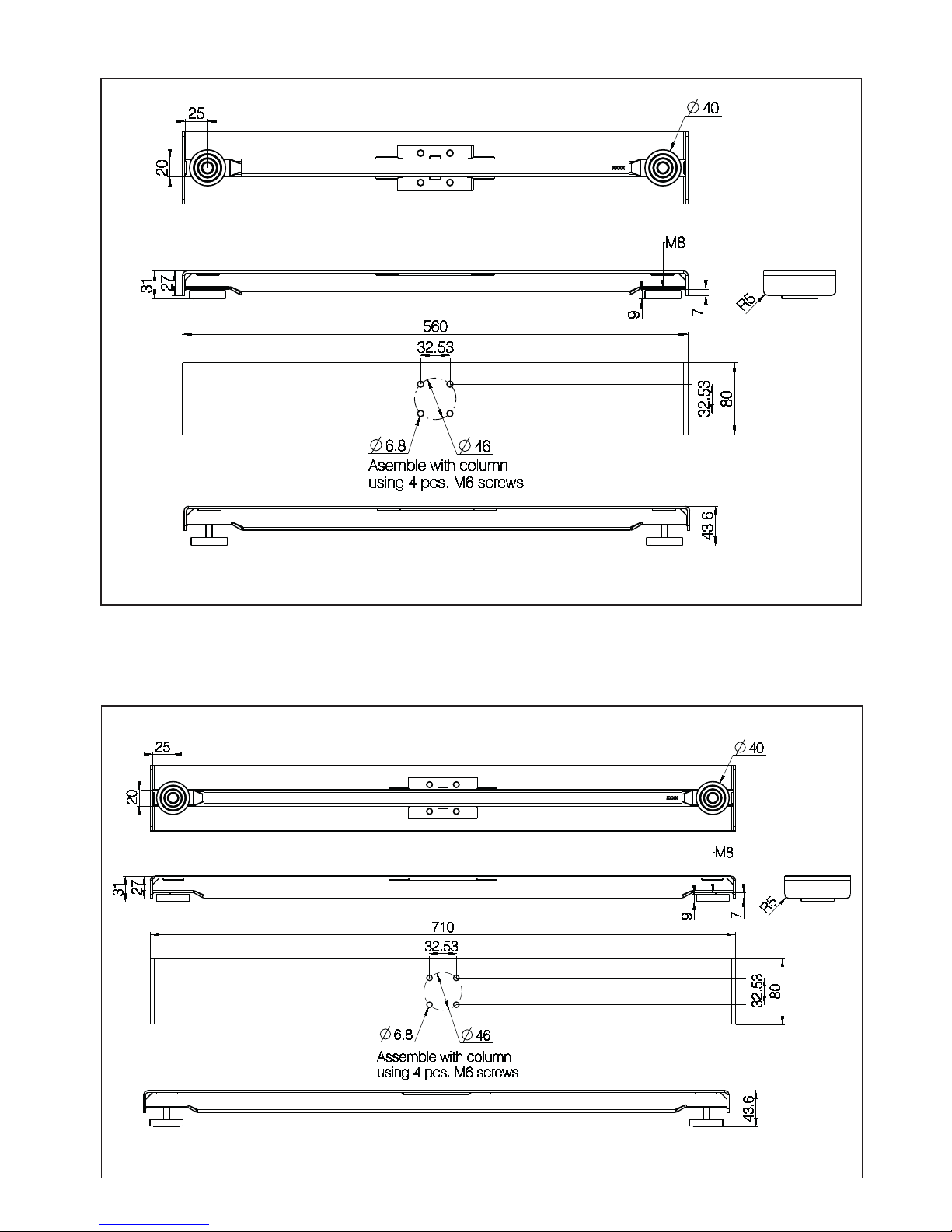

Drawing appendix ........................................................................................................................ 23

Declaration of confirmity ............................................................................................................ 31

Addresses ...................................................................................................................................... 32

Page 3 of 32

Preface

Dear User,

We are delighted that you have chosen a product from LINAK®.
LINAK systems are high-tech products based on many years of experience in the manufacture and development
of actuators, electric control boxes, controls and chargers.

This User Manual does not address the end-user. It is intended as a source of information for the manufacturer
of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics.
It is the responsibility of the manufacturer of the end-user product to provide a User Manual where relevant
safety information from this manual is passed on to the end-user.

We are sure that your LINAK product/system will give you many years of problem-free operation.
Before our products leave the factory, they undergo full function and quality testing. Should you nevertheless
experience problems with your LINAK product/system, you are always welcome to contact your local contact.
LINAK subsidiaries and some distributors situated all over the world have authorised service centres, which are
always ready to help you.

LINAK provides a warranty on all its products. This warranty, however, is subject to correct use in accordance
with the specifications, maintenance being done correctly and any repairs being carried out at a service centre,
which is authorised to repair LINAK products.
Changes in installation and use of LINAK products/systems can affect the operation and durability of the
products/systems. The products are not to be opened by unauthorised personnel.

The User Manual has been written based on our present technical knowledge. We are constantly working on
updating the information and we therefore reserve the right to carry out technical modifications.

LINAK A/S

Page 4 of 32

Safety instruction

General

Important information

Important information on LINAK

®

products can be found under the following

headings:

Warning!

Failure to comply with these instructions may result in accidents involving
serious personal injury.

Failing to follow these instructions can result in the product being damaged
or being destroyed.

Safe use of the system is possible only when the operating instructions are read
completely and the instructions contained are strictly observed.

Failure to comply with instructions marked with the ”NOTE” symbol may result in
serious damage to the system or one of its components.

It is important for everyone who is to connect, install, or use the systems to
have the necessary information and access to this User Manual. Follow the
instructions for mounting – there is a risk of injury if these instructions are not
followed.

The appliance is not intended for use by young children or infirm persons
without supervision.

If there is visible damage to the product, do not install it.

Please note that during construction of applications in which the actuator
is to be fitted, there must be no possibility of personal injury, for example
squeezing of fingers or arms.

Assure free space for movement of the application in both directions to avoid
blockades.

Page 5 of 32

Before installation, re-installation, or troubleshooting:

• Stop the columns.

• Switch off the power supply and pull out the mains plug.

• Relieve the columns of any loads, which may be released during the work.

Before start-up:

• Make sure that the system has been installed as instructed in this User Manual.
Describing the motor system.

• Make sure that the voltage of the control box is correct before connecting the
system to the mains.

• System connection. The individual parts must be connected before connecting the
control box to the mains. See the User Manual for LINAK actuators, if necessary.

During operation

• If the control box makes unusual noise or smells, switch off the mains voltage
immediately.

• Duty Cycle: 10%, Max. 2 min./18 min. pause

• Take care that the cables are not damaged.

• Unplug the mains cable on mobile equipment before moving it.

• The products must only be used in an environment, that corresponds to their IP
protection.

Misc.

For further information, installation guidelines etc. for the motor system, please see
the relevant user manual: www.linak.com/deskline.

Updated manuals and declarations can always be found here:
www.linak.com/deskline.

Page 6 of 32

Only for EU markets

This appliance can be used by children aged from aged 8 years and above
and persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved.

Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.

Only for Non EU markets

Persons who do not have the necessary experience or knowledge of the
product/products must not use the product/products. Besides, persons with
reduced physical, sensory or mental abilities must not use the product/
products, unless they are under surveillance or they have been thoroughly
instructed in the use of the apparatus by a person who is responsible for the
safety of these persons.

Moreover, children must be under surveillance to ensure that they do not
play with the product.

It is the operator’s responsibility to ensure that there is free space for the
application to move without risk for the operator or bystanders before
operating the application.

Misuse

Do not overload the actuators – this can cause danger of personal injury and
damage to the system.

Do not use the actuator system for lifting persons. Do not sit or stand on a
table while operating – risk of personal injury.

Do not use the system in environments other than the intended indoor use

Page 7 of 32

Repairs

In order to avoid the risk of malfunction, all DESKLINE® repairs must only be carried out by authorised LINAK workshops or
repairers, as special tools must be used and special gaskets must be fitted. Lifting units under warranty must also be returned
to authorised LINAK workshops.

Warning!

If any of the DESKLINE

®

products are opened, there will be a risk of subsequent malfunction.

Warning!

The DESKLINE

®

systems do not withstand cutting oil.

DECLARATION OF INCORPORATION OF PARTLY COMPLETED MACHINERY

LINAK A/S

Smedevænget 8

DK - 6430 Nordborg

Herewith declares that LINAK DESKLINE

®

products as characterized by the following models and types:

Control Boxes CBD6S

Linear Actuators DB5, DB6, DB7, DB9, DB12, DB14, DB16, LA23, LA31

Lifting Columns DL1A, DL2, DL4S, DL5, DL6, DL7, DL8, DL9, DL10, DL11, DL12, DL14, DL15,

DL16, DL17, DL19, BASE1

Desk Panels DPA, DPB, DPH, DPF, DPG1K, DPG1M, DPG1B, DPG1C, DPT, DP1, DP1CS,

DP1K, DP1V, DP1U

RF Controls HB10RF, HB20RF, RFT, RFRL

Accessories BA001, SLS, Kick & Click

comply with the following parts of the Machinery Directive 2006/42/EC, ANNEX I, Essential health and
safety requirements relating to the design and construction of machinery:

1.5.1 Electricity supply

The relevant technical documentation is compiled in accordance with part B of Annex VII and that this
documentation or part hereof will be transmitted by post or electronically to a reasoned request by the
national authorities.

This partly completed machinery must not be put into service until the final machinery into
which it is to be incorporated has been declared in conformity with the provisions of the
Machinery Directive 2006/42/EC where appropriate.

Nordborg, 2017-12-08

LINAK A/S

John Kling, B.Sc.E.E.
Certification and Regulatory Affairs
Authorized to compile the relevant technical documentation

Page 8 of 32

Misc. on the DESKLINE® system

This system is a DESKLINE system developed for desks and for indoor use in offices. Do not use it in industrial kitchens or in
other environments that have to be cleaned with aggressive detergents.

Warranty - 60 months on DESKLINE

®

There is a 60 month warranty on Kick & Click

TM

systems.

Read more about the warranty period of the motorsystems in the standard user manuals found on
www.linak.com/deskline.

Maintenance

Clean dust and dirt off the outside of the system at appropriate intervals and inspect them for damage and breaks.
Inspect the connections, cables, and plugs and check for correct functioning as well as fixing points.

Page 9 of 32

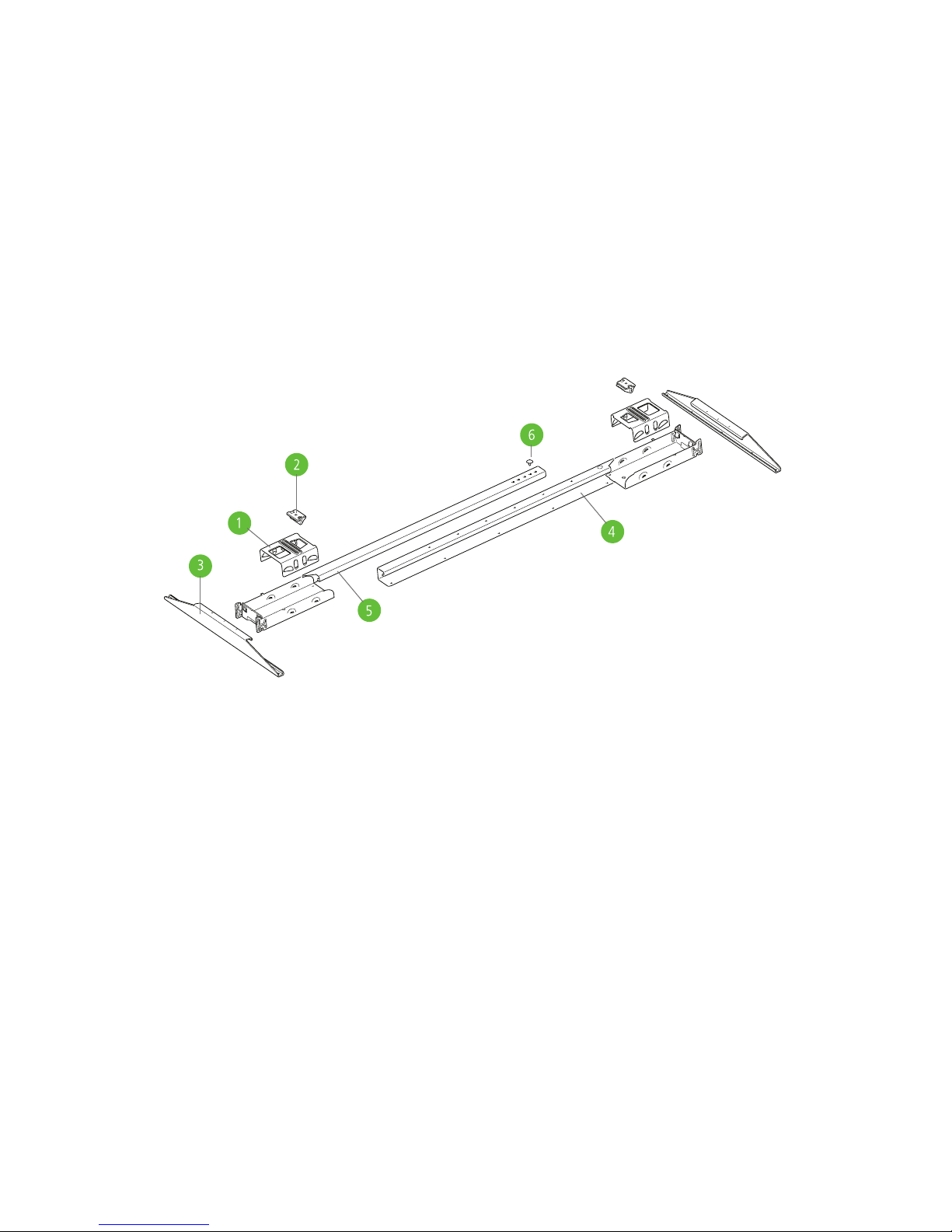

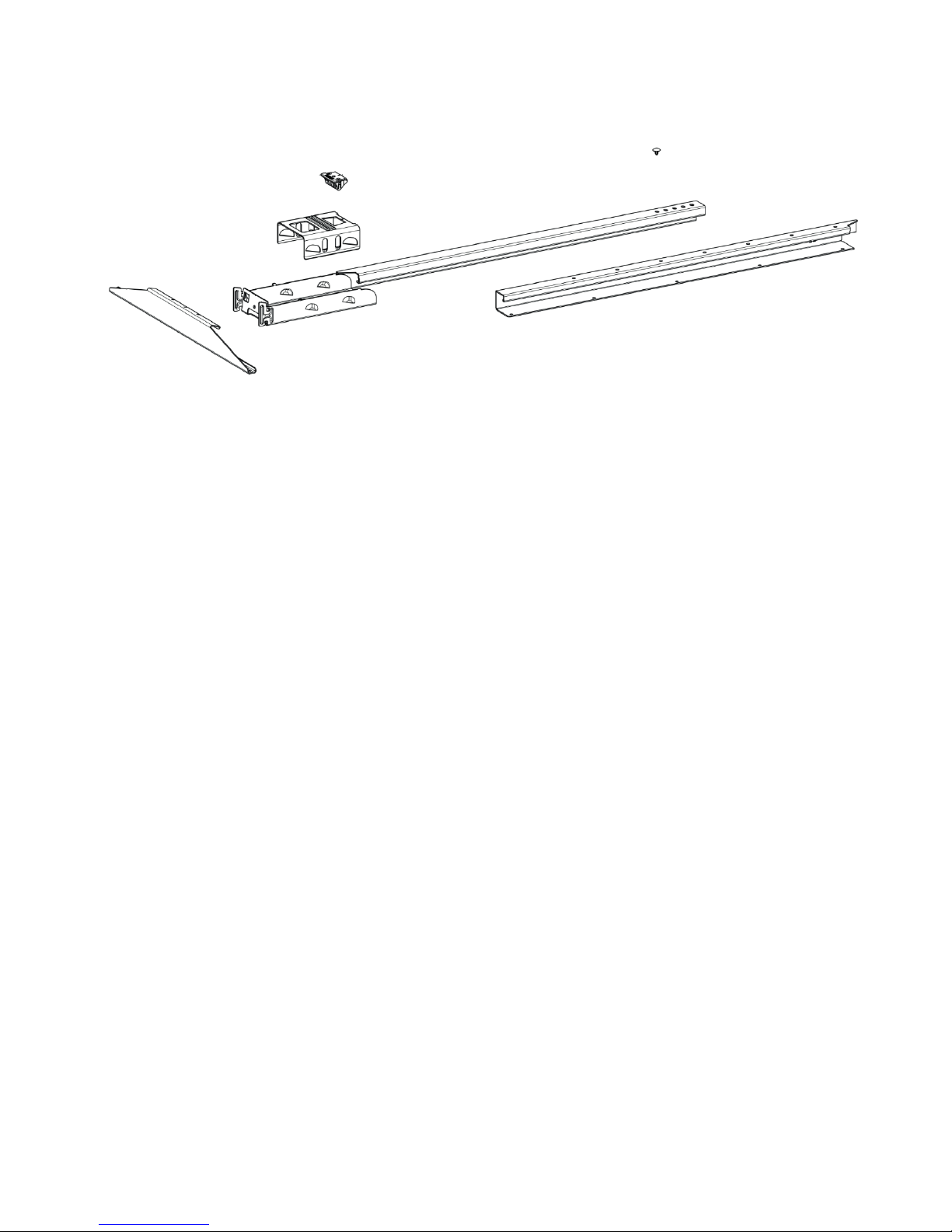

1: Clamp
2: Kick lock
3: Cantilever
4: Inner rail
5: Outer rail
6: Clips

Description of the DESKLINE® Kick & ClickTM system

The Kick & ClickTM system is the smart and intuitive solution for mounting DESKLIFT™ columns to the tabletop. The solution is
perfect for various office desks. The unique feature of Kick & Click is the way of mounting. Click the system together without
using tools and screws, simply clever. Kick & Click is a modular concept compatible with all DESKLINE

®

columns with motor
housing leaving the design to the desk manufacturer. Kick & Click comes standard in 3 versions: Kick & Click Adjustable,
Kick & Click Fixed and Kick & Click Base. Additionally, Kick & Click can be used for creating large three-legged office
desks by joining a Kick & Click 3rd leg kit with a Kick & Click system.

Kick & Click

TM

: names of the different parts

Features for all versions:

• Colours (all metal parts): Black (RAL 9005), grey (RAL 9006) or white (RAL 9016)

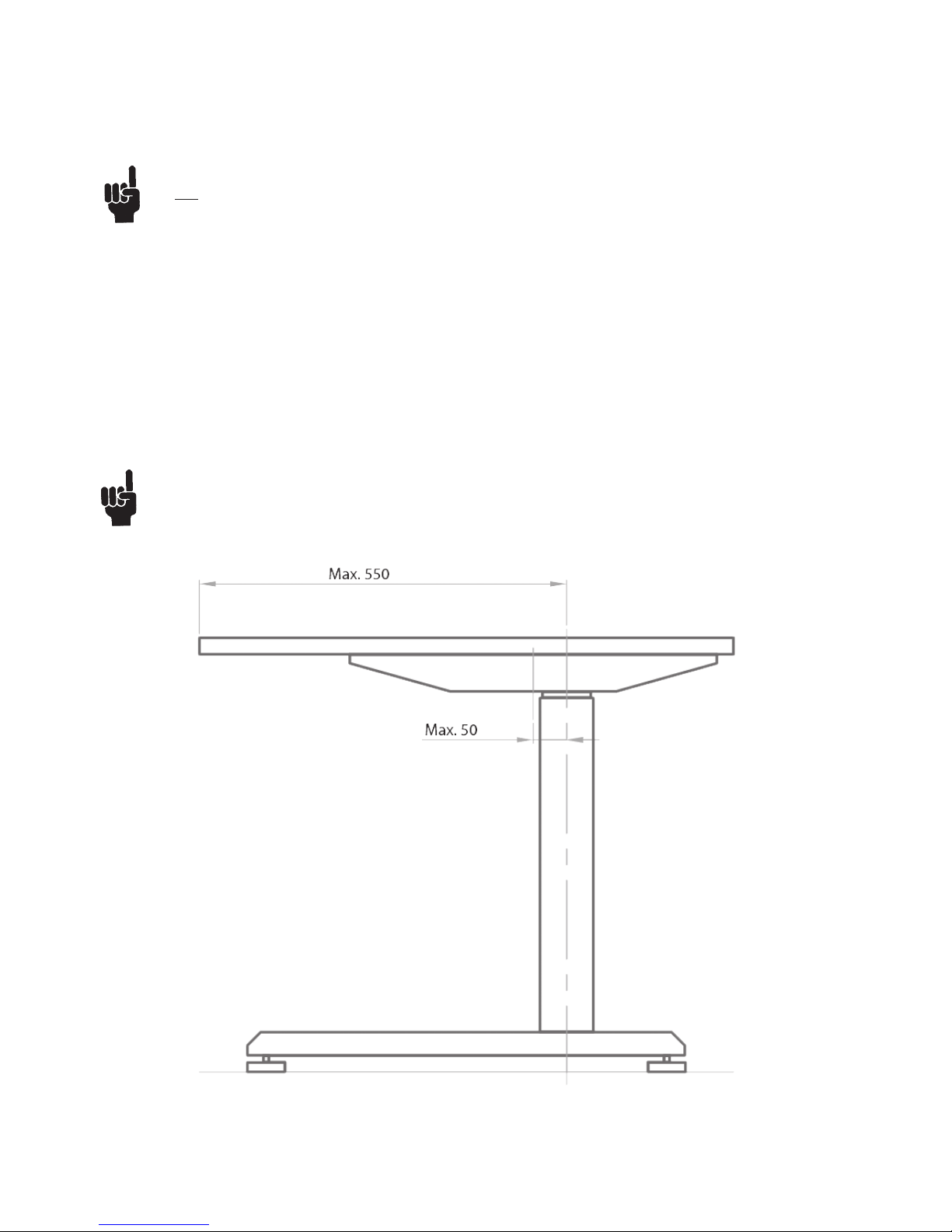

• Cantilever length: 550 mm

• Oval holes ensure flexibility as regards predrilling holes in tabletop

• Central or off-centre placement of columns (T-desk and C-desk)

Kick & Click

TM

Adjustable:

• Fits desks from 1400 to 2000 mm (frame width 1340 to 1940 mm)

• Set-packed or bulk deliveries

• Optional to order screws for mounting the tabletop

Kick & Click

TM

fixed:

• Fits desks of 1200 mm (frame width 1140 mm)

• Set-packed or bulk deliveries

• Optional to order screws for mounting the tabletop

Kick & Click

TM

Base:

• Base consists of Cantilever (x2), Base (x2), Clamp (x2) and Kick Lock (x2) for a two-legged desk

• Bulk deliveries only

Page 10 of 32

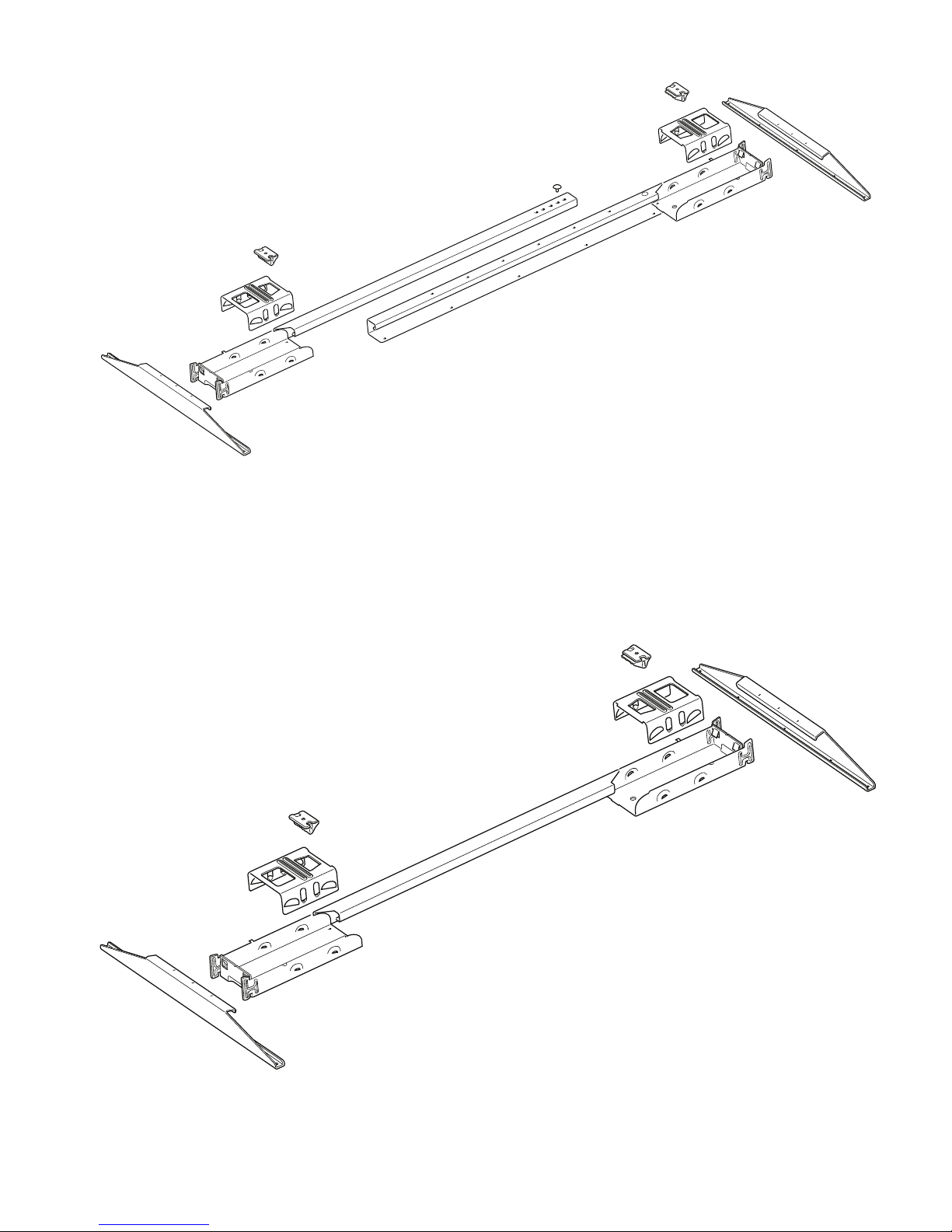

Kick & ClickTM Adjustable

Kick & Click

TM

Fixed

The Adjustable system includes a telescopic inner and outer rail onto which the base is welded.

Compared to the Adjustable system the Fixed system only consists of one rail which is welded onto the base in both ends.

Page 11 of 32

Kick & ClickTM Base

The Base system is without the inner and the outer rail. The system is preferred if the OEM want to weld his own rail onto the
Base, or if the desk design does not need a rail e.g. due to tabletop thickness. The Base system could also be used for a 3 leg
desk.

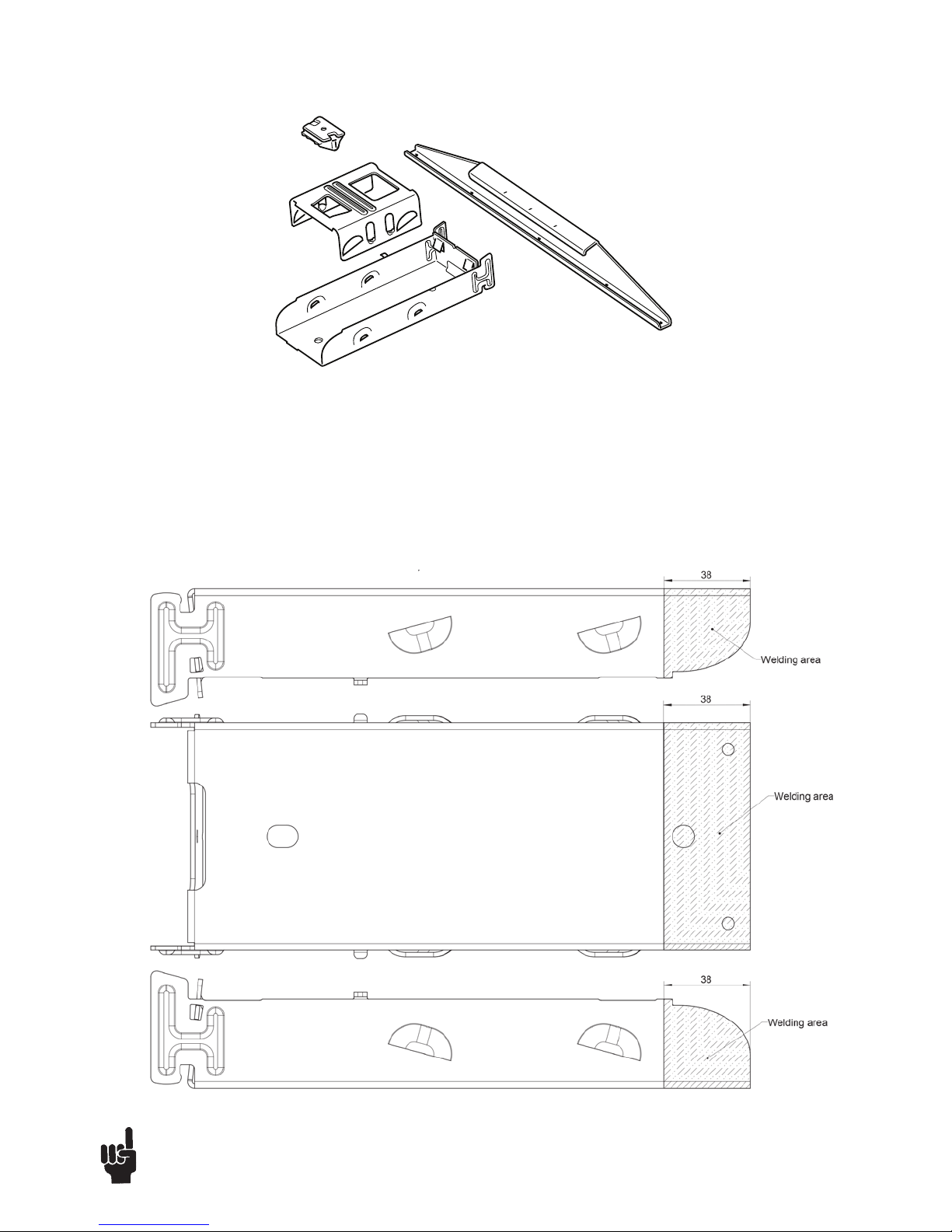

The allowed welding area on the base is shown here:

The Kick & Click base must only be used in connection with a Kick & Click cantilever.
Do not develop your own cantilever!

Page 12 of 32

The 3rd leg kit system includes a telescopic inner and outer rail with a base welded onto the outer rail.

Kick & Click

TM 3rd

leg kit

Page 13 of 32

Mounting guidelines for the Kick & ClickTM system

Kick & Click Adjustable

1. Gather all parts for desk

2. Fix inner rail with outer rail (only Kick & Click Adjustable).

2.1. Extend rails to required length
(frame width from 1140 to 1940 mm)
using holes on rails as a length indicator.

2.2. Fix length with clip.

3. Slide cantilevers onto base of inner and outer rails.

Page 14 of 32

4. Align cantilever

5. Mount column by placing it in base.

Column is prepared for Kick & Click™ with slots on backside of housing (see drawings)

Align middle marker on cantilever with
centre on inner rail/outer rail

Outer markers on cantilever indicate 50 mm
maximum displacement from centre on inner rail/outer rail

T-desk

C-desk

Page 15 of 32

6. Place clamp on column housing, press it down gently. It will still be possible to move clamp a little when placed.

7. Place Kick Lock in clamp. Arrow on Kick Lock must face arrow on clamp.

8. Fix Kick Lock in clamp with your foot. When you hear a “click”, Kick Lock is mounted and column is fixed together with
Kick & Click parts.
Repeat mounting in the other end.

Page 16 of 32

9. Turn tabletop upside down.

10. Place assembled Kick & Click in preferred position.

11. Mark and predrill holes in tabletop, if not done yet.

12. Fasten Kick & Click to tabletop with screws (in inner/outer rails and cantilevers).

13. Mount and connect electronics.

14. Hide cables. Rails are designed so cables from columns and control box can be hidden inside rail.

15. Mount feet on columns using supplied screws. Max. torque:10 Nm.

16. Mount adjustment screws.

Page 17 of 32

Mount Kick & Click Adjustable system as described above.

1. Gather all 3

rd

leg kit system parts.

2. Fix inner rail with outer rail.

Assembling a three-legged desk

The 3rd leg kit has only one base which is welded onto the outer rail.

2.1. Extend rails to required length (frame width from
1100 to 1700 mm) using holes on rails as a
length indicator.

2.2. Fix length with clip.

3. Finish mounting Kick & Click 3

rd

leg kit following the same procedure as in Assembling Kick & Click system, steps 4 to 8.

Page 18 of 32

Mounting tabletop

Old Kick & Click versions with circular holes

Do not predrill holes for all the parts.
The combination of hole tolerances on each part, e.g. cantilever and rail, will cause uncertainty about the overall
tolerances on the assembled Kick Click system. Therefore, we recommend drilling the holes when the assembled frame
is mounted to the tabletop.

Exceptions:

- Fixing the Kick & Click Adjustable to a tabletop
With a Kick & Click Adjustable system, a customer can predrill the holes for the cantilevers to fix the system to
the tabletop. This can be done because the rails are adjustable. The hole size is 5.3 ± 0,2 mm and the tolerances
on the distance between the holes are ± 0.2 mm.

- Fixing the Kick & Click Fixed to a tabletop
With a Kick & Click Fixed system, a customer can predrill the holes for the rail to fix the system to the tabletop.
The hole size is 5.3 ± 0.2 mm and the tolerances on the distance between the holes are ± 0.5 mm.

Max. distance from centre of base to edge of tabletop: 550 mm
Max. distance from centre of base to centre of cantilever: 50 mm

The oval holes in the inner and outer rails and in the cantilevers of the Kick & Click system facilitate mounting of tabletops with
predrilled holes.

Figure 9 Kick & Click tabletop alignment measurements in mm

Page 19 of 32

3rd leg kit

1. Turn tabletop upside down.

2. Place assembled Kick & Click in preferred position.

3. Mark and predrill holes in tabletop, if not done yet.

4. Fasten Kick & Click to tabletop with screws (in inner/outer rails and cantilevers).

5. Mount and connect electronics.

6. Hide cables. Rails are designed so cables from columns and control box can be hidden inside rail.

Example of Kick & Click three-legged desk

Page 20 of 32

Disassembly

A disassembling instruction video is available here.

Disassembling Kick & Click.

1. Remove Kick Lock.

Gently press two pins on side of Kick Lock

Keep pressing while removing Kick Lock using a screwdriver

2. Gently hit end of clamp to loosen it, e.g. using
screwdriver handle

3. Place screwdriver in one of holes on clamp and twist
it a bit until clamp is released from base part.

4. Remove clamp.

5. Disassemble rest of system.

Page 21 of 32

Accessories and repair

Ordering accessories

Order from your nearest LINAK® contact, distributor or subsidiary.

Accessories

Please contact your nearest LINAK

®

contact, distributor or subsidiary.

Repairs

Systems should only be repaired by an authorised LINAK service centre or engineer. Systems to be repaired under warranty
must be sent to an authorised LINAK service centre.

Warning!

By unauthorised opening of the system there is a risk that it may malfunction at a later date.

Spare parts

Please contact your nearest LINAK contact for information on spare parts.

Page 22 of 32

Main groups of disposal

Product main groups Metal scrap Cable scrap Electronics

scrap

Plastic recycling

or combustion

Comments

Kick & Click

TM

cantilever X

Kick & Click

TM

inner + outer rail X

Kick & Click

TM

clamp X

Kick & Click

TM

kick lock X

Kick & Click

TM

clips X

DESKLIFT

TM

Feet X X

Disposal of LINAK product

As LINAK’s customers often ask us how our products can be disposed or scrapped we have prepared this guide that enables a
classification to different waste fractions for recycling or combustion.

Guide

We recommend our products to be disassembled as much as possible and divided into different waste groups for recycling or
combustion.

For example, waste can be sorted into metals, plastics, cable scrap, combustible material, and recoverable resources.
Some of these main groups can be further divided into subgroups; e.g. metal can be divided into steel/aluminium/copper and

plastic can be divided into ABS/PA/PE/PP.
As an example, the table below breaks down the different components in LINAK products to various recycling groups:

Product Components Recycling group

Columns/ Actuator : Spindle and motor

Plastic housing
Cable
PCB boards

Scrap
Plastic recycling or combustion
Cable scrap or combustion
Electronics scrap

Control Box : PCB boards

Plastic housing
Cable
Transformer

Electronics scrap
Plastic recycling or combustion
Cable scrap or combustion
Metal scrap

Handset/Control : Plastic housing

Cable
PCB board

Plastic recycling or combustion
Cable scrap or combustion
Electronics scrap

Kick & Click Metal parts Scrap

By now almost all our casted plastic parts are supplied with an interior code for plastic type and fibre content, if any.

Page 23 of 32

Kick & Click Adjustable

DRAWING APPENDIX

Kick & Click Fixed

Page 24 of 32

Kick & Click Base

Kick & Click 3rd leg kit

50

50

78

10

9.3

430

50

50

55.5

550

271

5.3*

5.3*

* The holes on the unpainted base are Ø5.5 mm.

Page 25 of 32

DL5/DL6 on top mounted column, 560 mm

DL5/DL6 on top mounted column, 710 mm

Page 26 of 32

DL10/DL11/DL14/DL17/DL19 on top mounted column, 560 mm

DL10/DL11/DL14/DL17/DL19 on top mounted column, 710 mm

Page 27 of 32

DL5/DL6 recessed mounted column, 560 mm

DL5/DL6 recessed mounted column, 710 mm

Page 28 of 32

DL10/DL11/DL14 recessed mounted column, 560 mm

DL10/DL11/DL14 recessed mounted column, 710 mm

Page 29 of 32

DL17/DL19 recessed mounted column, 560 mm

DL17/DL19 recessed mounted column, 710 mm

Page 30 of 32

Adjustment screw

Page 31 of 32

DECLARATION OF CONFORMITY

LINAK A/S

Smedevænget 8

DK - 6430 Nordborg

hereby declares that LINAK Actuator System composed of:

Control Box(s) CBD6SP00020A-309

CBD6S*000*0A-709

(The ‘*’ in the product description can either be a character or a number, thereby defining the variation of the product)

And

Linear Actuator(s) 31, DB4, DB5, DB6, DB7, DB9, DB12, DB14, DB16, LA23 series and / or

Lifting Column(s) DL1A, DL2, DL4, DL5, DL6, DL7, DL8, DL9, DL10, DL11, DL12, DL14, DL15, DL16, DL17, DL19,

BASE1 series

And

Desk Panel(s) DP1C, DP1K, DP1L, DP1V, DP1U, DPA, DPB, DPF, DPG, DPH, DPT, WDPL1 series

complies with EMC Directive: 2014/30/EU according to following standards:
EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011+AC:2012

complies with Low Voltage Directive 2014/35/EU according to the standard:
EN 60335-1:2012+A11:2014

complies with RoHS2 Directive 2011/65/EU according to the standard:
EN 55581:2012

Additional information:
The system does also comply with the standard: EN 13849-1:2015 SRP/CS Cat. B, PL = b and SRESW PL = b
Note 1: Exempted CBD6S with SW03003007 printed on the label.

Nordborg, 2017-12-08

LIN AK A/S
John Kling, B.Sc.E.E.
Certification and Regulatory Affairs
Authorized to compile the relevant technical documentation

Original Declaration

LINAK APPLICATION POLICY

The purpose of the application policy is to define areas of responsibilities in relation to applying a LINAK product defined as
hardware, software, technical advice, etc. related to an existing or new customer application.

LINAK products, as defined above, are applicable for a wide range of applications within the Medical, Furniture, Desk and
Industry areas. Yet, LINAK cannot know all the conditions under which LINAK products will be installed, used, and operated, as
each individual application is unique.

The suitability and functionality of the LINAK product and its performance under varying conditions (application, vibration,
load, humidity, temperature, frequency, etc.) can only be verified by testing, and shall ultimately be the responsibility of the
LINAK customer using any LINAK product.

LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the
responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question.

Page 32 of 32

Copyright

©

LINAK 2019.02 MA-M9-02-616-G LINAK A/S reserve the right to make technical alterations

Terms of use

The user is responsible for determining the suitability of LINAK products for specific application. LINAK takes great care in providing accurate and
up-to-date information on its products.
However, due to continuous development in order to improve its products, LINAK products are subject to frequent modifications and changes
without prior notice. Therefore, LINAK cannot guarantee the correct and actual status of said information on its products.
While LINAK uses its best efforts to fulfil orders, LINAK cannot, for the same reasons as mentioned above, guarantee the availability of any
particular product. Therefore, LINAK reserves the right to discontinue the sale of any product displayed on its website or listed in its catalogues or
other written material drawn up by LINAK.
All sales are subject to the Standard Terms of Sale and Delivery for LINAK. For a copy hereof, please contact LINAK.

FACTORIES

China

LINAK (Shenzhen) Actuator Systems, Ltd.
Phone: [phone]
Phone: [phone]
E-mail: [email protected]
www.linak.cn

Denmark - Headquarters

LINAK A/S - Group Headquarters

Phone: [phone]
Fax: [phone]
Fax (Sales): [phone]
E-mail: [email protected]
www.linak.com

USA

LINAK U.S. Inc.

North and South American Headquarters
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak-us.com

SUBSIDIARIES

Australia

LINAK Australia Pty. Ltd
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.com.au

Austria

LINAK Repräsentanz - Österreich (Wien)
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.at

Belgium

LINAK Actuator-Systems NV/SA
(Belgium & Luxembourg)
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.be - www.fr.linak.be

Brazil

LINAK DO BRASIL COMÉRCIO DE
ATUADORES LTDA.
Phone: [phone] – 7070
Fax: [phone] – 7060
E-mail: [email protected]
www.linak.com.br

C

anada

LINAK Canada Inc.
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak-us.com

Czech Republic

LINAK C&S S.R.O.
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.cz

Denmark - International

LINAK International
Phone: [phone]
E-mail: [email protected]
www.linak.com

Denmark - Sales

LINAK DANMARK A/S
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.dk

Finland

LINAK OY
Phone: [phone]
E-mail: linak@linak.fi
www.linak.fi

France

LINAK FRANCE E.U.R.L
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.fr

Germany

LINAK GmbH
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.de

India

LINAK A/S India Liaison Office
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.in

Ireland

LINAK UK Limited (Ireland)
Phone: [phone]
Fax: [phone]
[phone] (UK Mobile)
[phone] (Republic Of
Ireland Mobile)
E-mail: [email protected]
www.linak.ie

Italy

LINAK ITALIA S.r.l.
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.it

Japan

LINAK K.K.
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.jp

Malaysia

LINAK Actuators Sdn. Bhd.
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.my - www.linak.co.id
www.linak.pk - www.linak.ph

Netherlands

LINAK Actuator-Systems B.V.
Phone: [phone] /
[phone]
E-mail: [email protected]
www.linak.nl

DISTRIBUTORS

Argentina

NOVOTEC ARGENTINA SRL
Phone: [phone] / 8900
Fax: [phone]
E-mail: [email protected]
www.novotecargentina.com

Colombia

MEM Ltda
Phone: +[57] (1) 334-7666
Fax: +[57] (1) 282-1684
E-mail: [email protected]
www.mem.net.co

India

Mechatronics Control Equipments India Pvt Ltd
Phone: [phone], 85
E-mail: [email protected]
www.mechatronicscontrol.com

Indonesia

PT. HIMALAYA EVEREST JAYA
Phone: [phone]
Fax: [phone]
Fax (Sales): [phone]
E-mail: [email protected]
www.hej.co.id

Israel

NetivTech LTD
Phone: [phone]
Fax: [phone]
Email: [email protected]
www.netivtech.com

Russia

OOO FAM
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
www.fam-drive.ru

Singapore

Servo Dynamics Pte Ltd
Phone: [phone]
Fax: [phone]
E-mail: [email protected]

South Africa

Industrial Specialised Applications CC
Phone: [phone]
E-mail: [email protected]
www.isaza.co.za

United Arab Emirates

Mechatronics
Phone: [phone]
Fax: [phone]
E-mail: [email protected]

New Zealand

LINAK New Zealand Ltd
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.com.au

Norway

LINAK Norge AS
Phone: [phone]
E-mail: [email protected]
www.linak.no

Poland

LINAK Polska
LINAK Danmark A/S (Spólka Akcyjna)
Phone: [phone] /
[phone]
E-mail: [email protected]
www.linak.pl

Republic of Korea

LINAK Korea Ltd.
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.kr

Russia

LINAK LLC
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.ru

Spain

LINAK Actuadores, S.L.u
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.es

Sweden

LINAK Scandinavia AB
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.se

Switzerland

LINAK AG
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.ch - www.fr.linak.ch
www.it.linak.ch

Taiwan

LINAK (Shenzhen) Actuator systems Ltd.
Taiwan Representative office
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.tw

Turkey

LINAK İth. İhr. San. ve Tic. A.Ş.
Phone: + 90 312 4726338
Fax: + 90 312 4726635
E-mail: [email protected]
www.linak.com.tr

United Kingdom

LINAK UK Limited
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
www.linak.co.uk
