Linak DESKLINE DL1A, DESKLINE CBD4, DESKLINE CBD6, DESKLINE CBD5 User Manual
Page 1 of 24
LINAK.COM/DESKLINE
DL1A and CBD4, CBD5, CBD6 system
User manual
Page 2 of 24
Contents
Preface ............................................................................................................................................. 3
Important information .................................................................................................................... 4
Safety instructions ........................................................................................................................... 4
Before installation, re-installation or troubleshooting ............................................................... 5
Before start-up ................................................................................................................................. 5
During operation .............................................................................................................................. 5
Repairs ............................................................................................................................................. 7
Manufacturer’s declaration............................................................................................................. 7
Misc. on the DESKLINE
®
DL1A system ........................................................................................... 8
Warranty ............................................................................................................................................ 8
Maintenance ..................................................................................................................................... 8
Description of the DESKLINE® DL1A system ................................................................................. 9

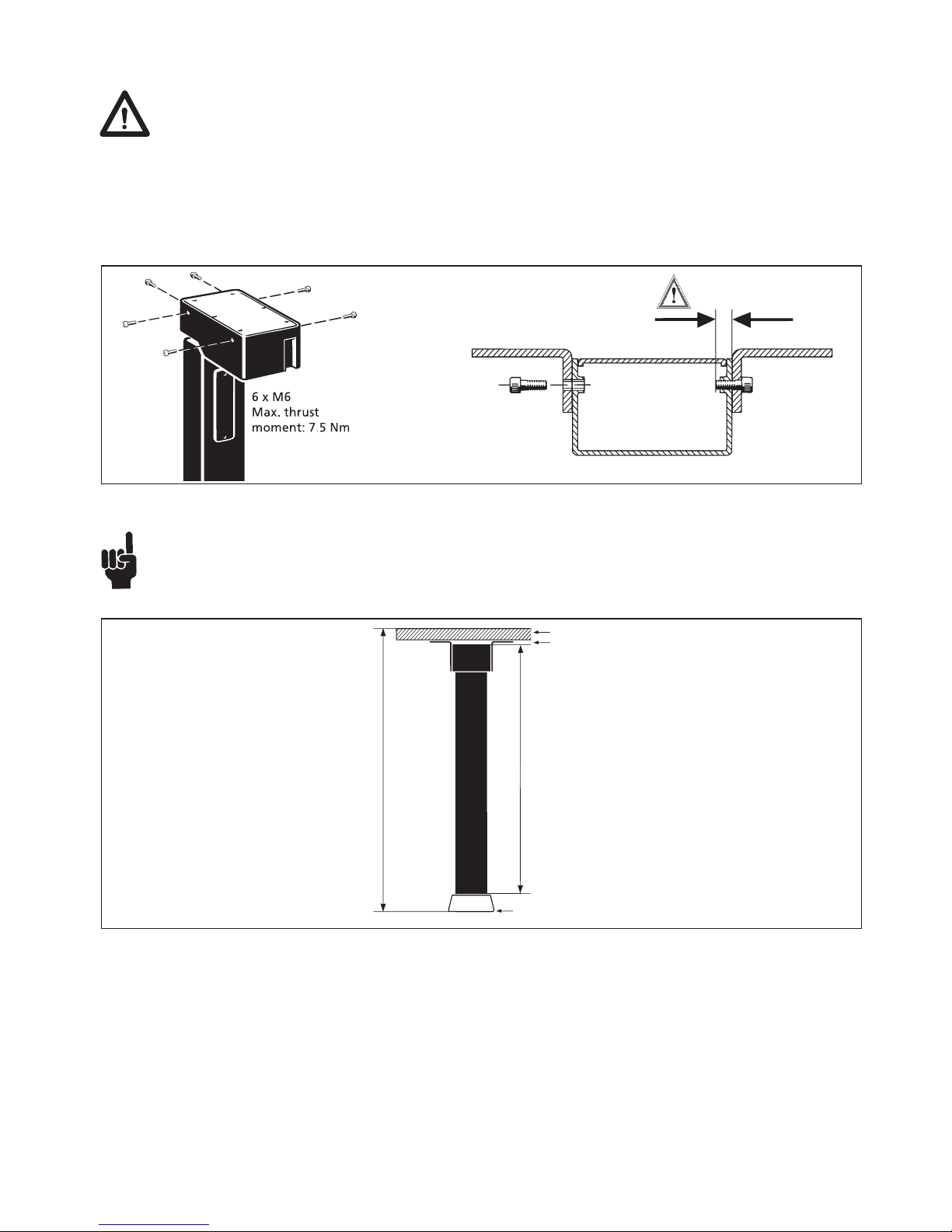

Mounting guidelines for the DESKLINE® DL1A .................................................................................... 10

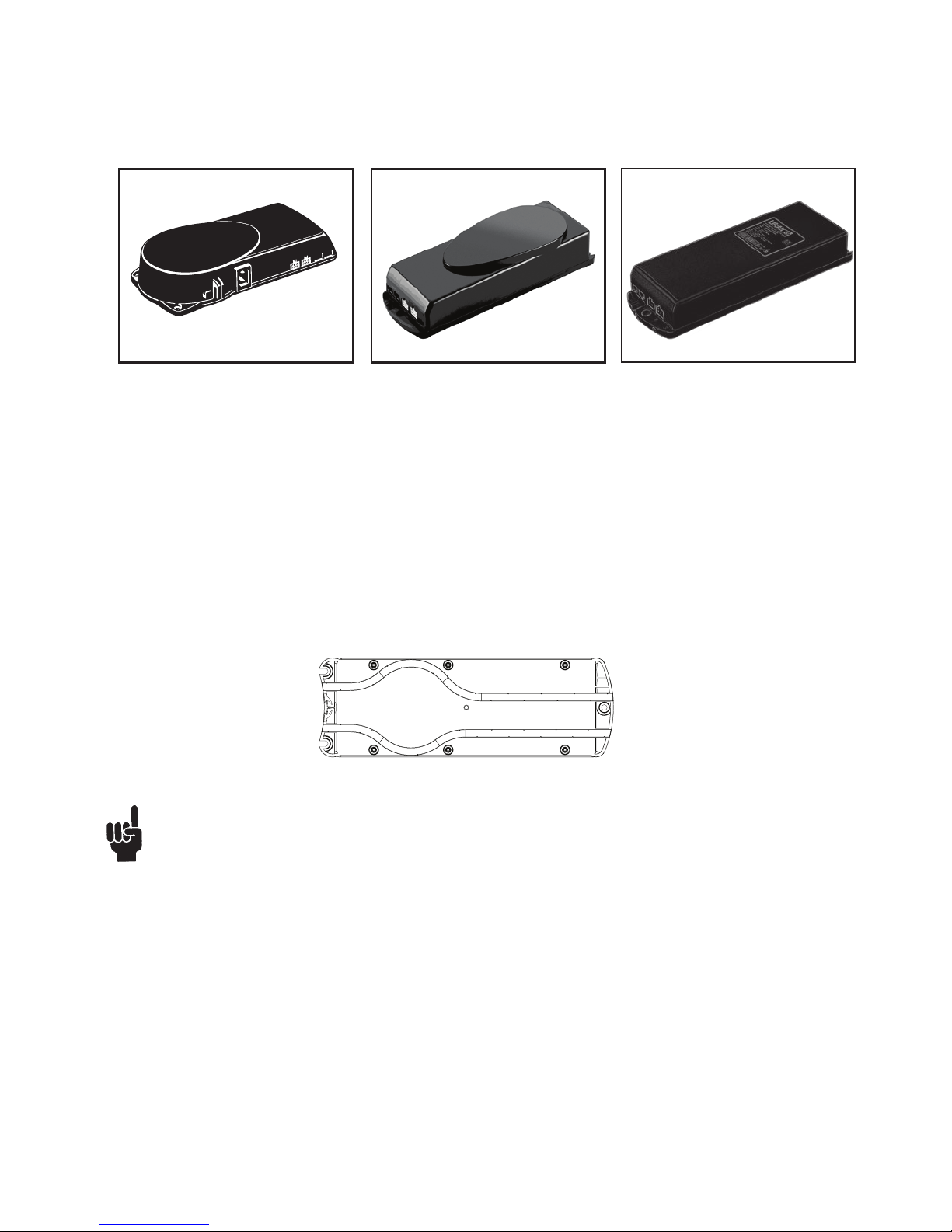

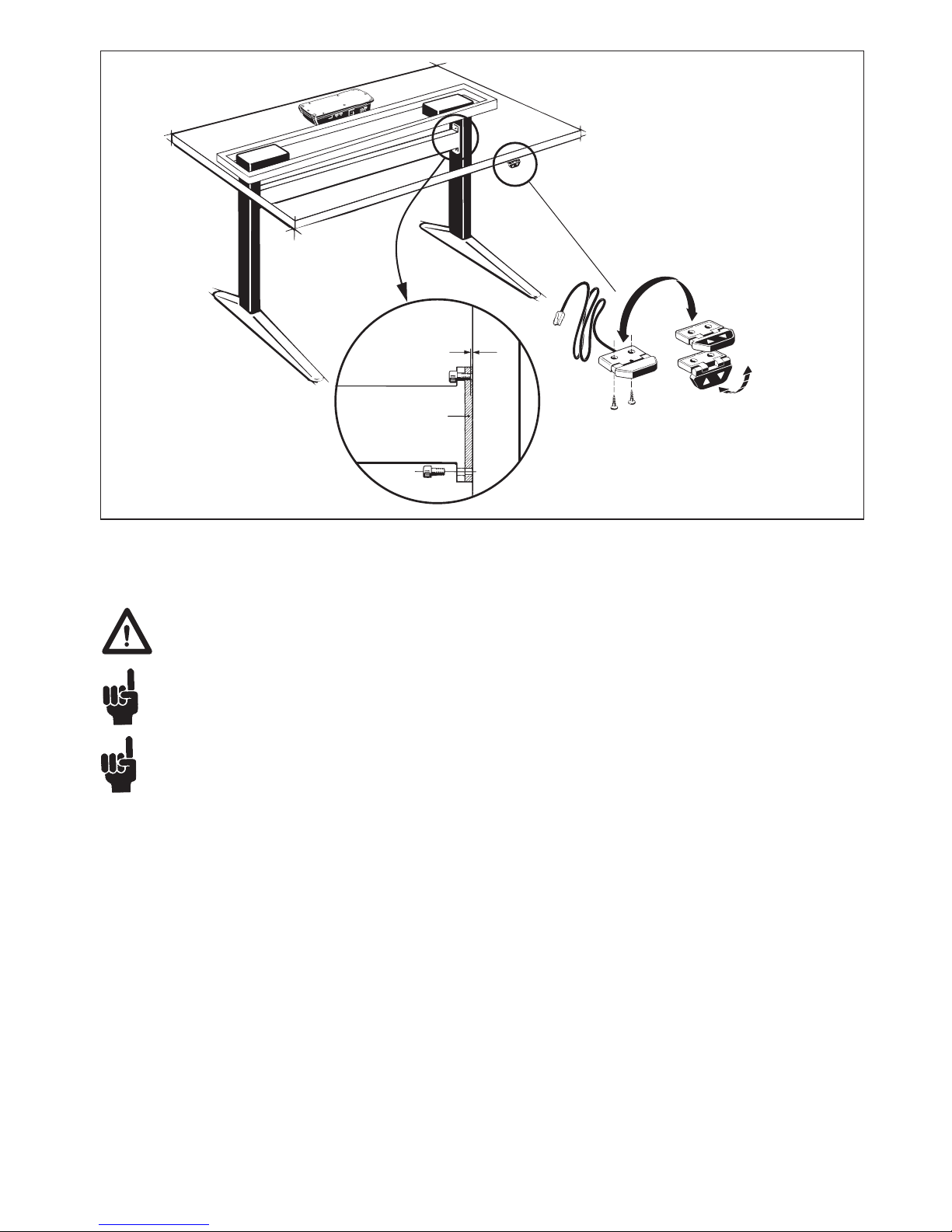

Mounting guidelines CBD4/CBD5/CBD6 ............................................................................................. 12

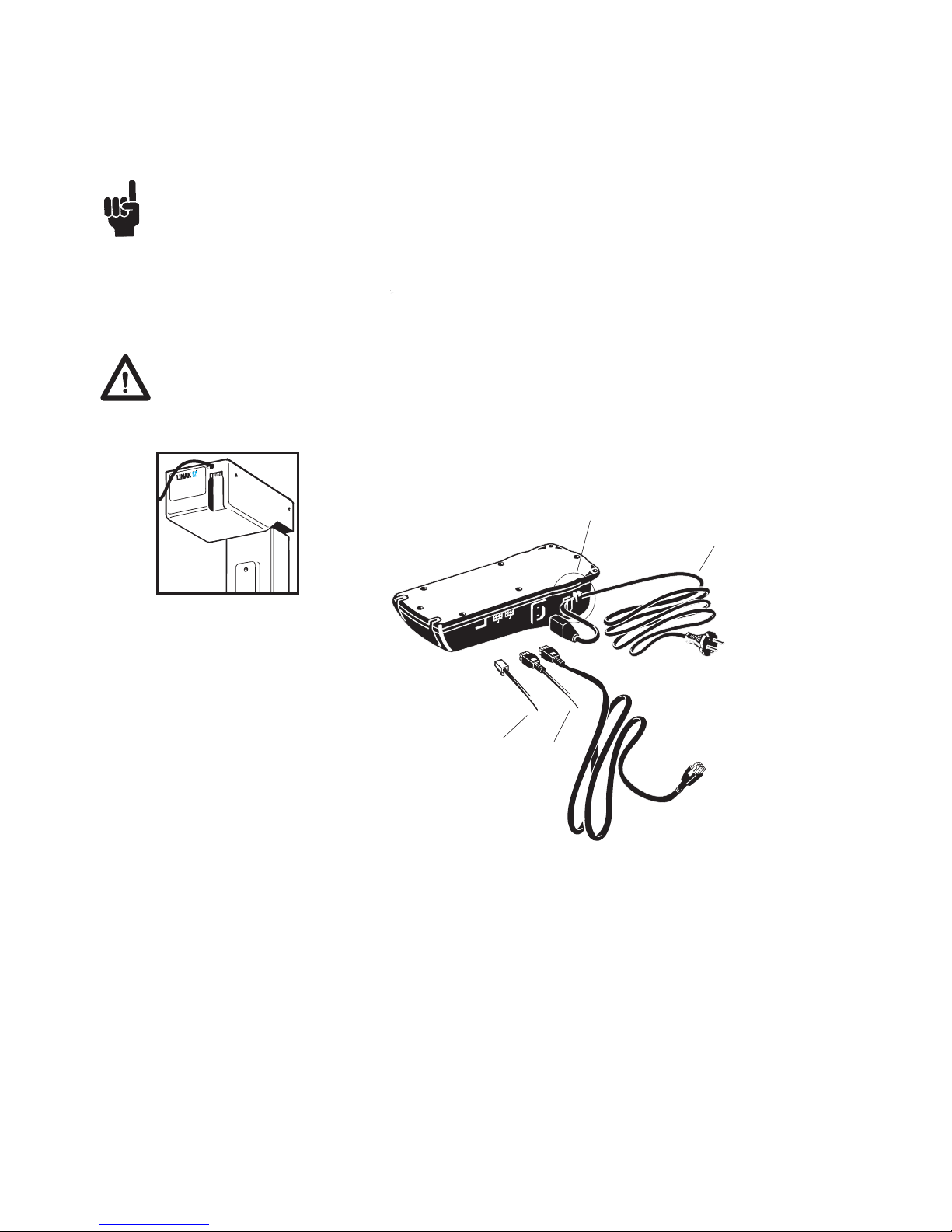

Electrical connection of the DL1A system ............................................................................................ 13
Initialisation of the DESKLINE® DL1A parallel systems ......................................................................... 14
Accessories and repair .................................................................................................................. 15
Disposal of LINAK’s products........................................................................................................ 16

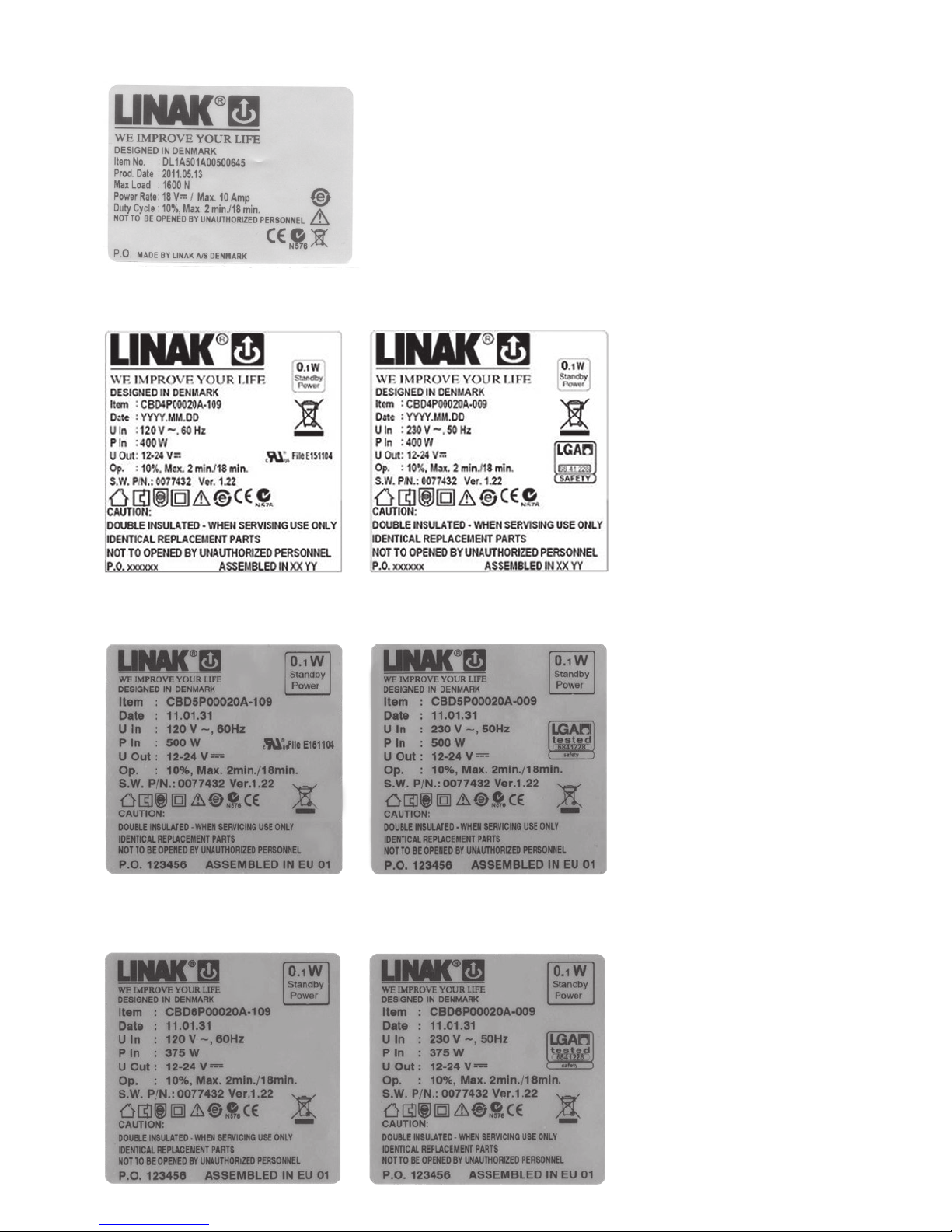

Labels ........................................................................................................................................... 17

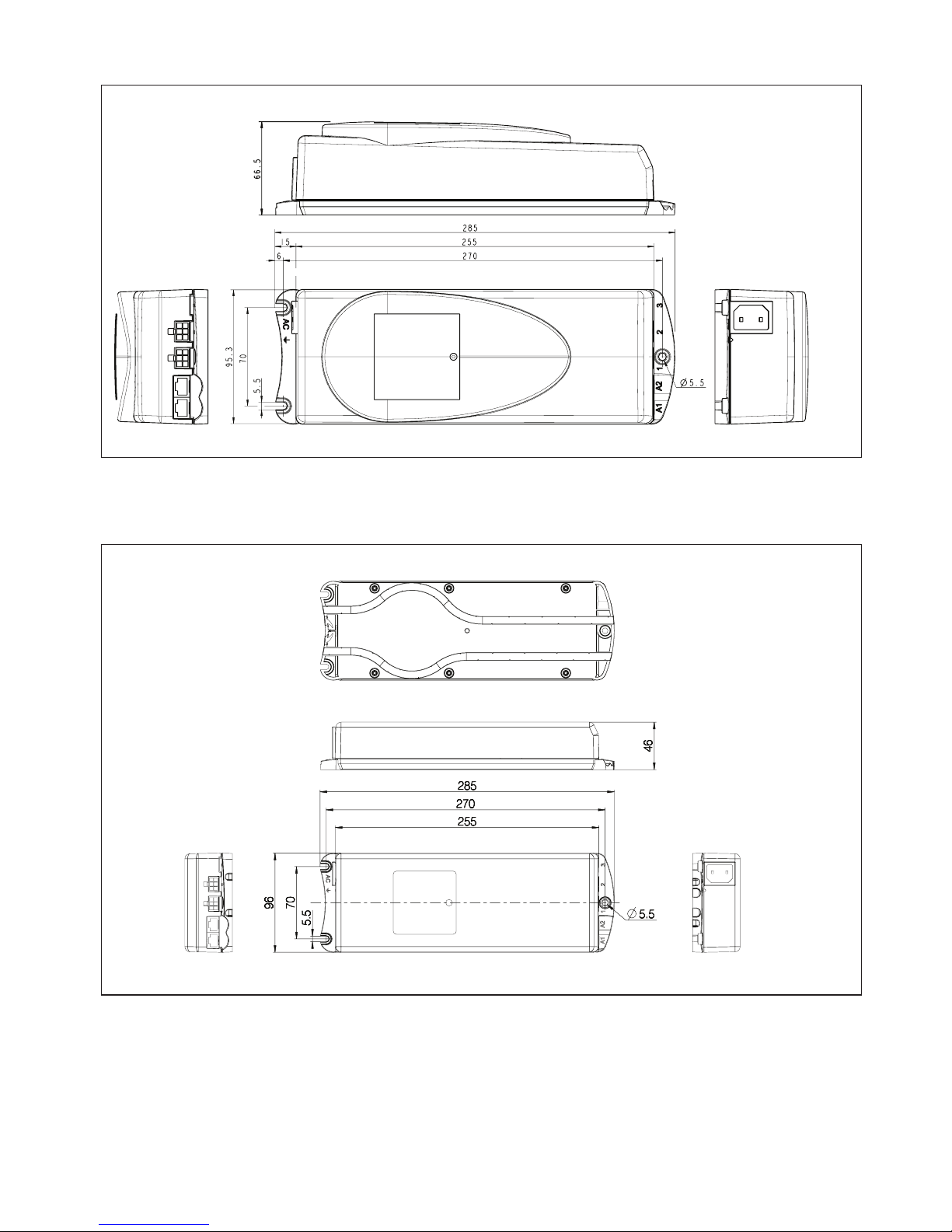

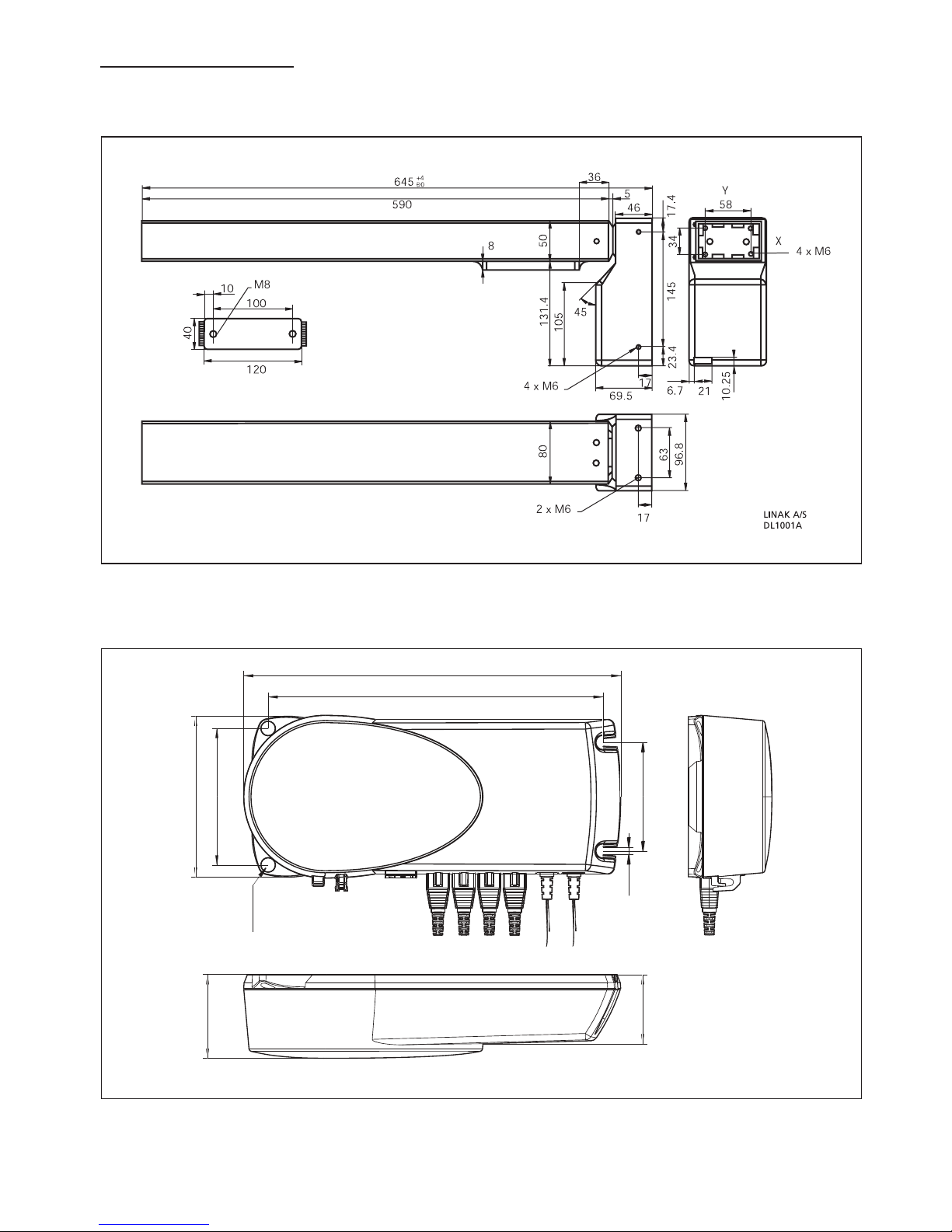

Drawing appendix .......................................................................................................................... 18
Declaration of Conformity ............................................................................................................ 20
Addresses ........................................................................................................................................ 24
Page 3 of 24
Preface
Dear User,
We are delighted that you have chosen a product from LINAK
®
.
LINAK systems are high-tech products based on many years of experience in the manufacture and development
of actuators, electric control boxes, controls and chargers.
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer
of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It
is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety
information from this manual is passed on to the end-user.
We are sure that your LINAK product will give you many years of problem-free operation.
Before our products leave the factory they undergo full function and quality testing. Should you nevertheless
experience problems with your systems, you are always welcome to contact your local dealer.
LINAK subsidiaries and some distributors situated all over the world have authorised service centres, which are
always ready to help you.
LINAK provides a warranty on all its products. This warranty, however, is subject to correct use in accordance
with the specifications, maintenance being done correctly and any repairs being carried out at a service centre,
which is authorised to repair LINAK products.
Changes in installation and use of LINAK systems can affect their operation and durability. The products are not
to be opened by unauthorised personnel.
The User Manual has been written based on of our present technical knowledge. We are constantly working on
updating the information and we therefore reserve the right to carry out technical modifications.
LINAK A/S
Page 4 of 24
Safety instruction
General
Important information
Important information on LINAK
®
products can be found under the following
headings:
Warning!
Failure to comply with these instructions may result in accidents involving
serious personal injury.
Failing to follow these instructions can result in the product being damaged
or being destroyed.
Safe use of the system is possible only when the operating instructions are read
completely and the instructions contained are strictly observed.
Failure to comply with instructions marked with the ”NOTE” symbol may result in
serious damage to the system or one of its components.
It is important for everyone who is to connect, install, or use the systems to
have the necessary information and access to this User Manual. Follow the
instructions for mounting – risk of injury if these instructions are not followed.
The appliance is not intended for use by young children or infirm persons
without supervision.
If there is visible damage on the product it must not be installed.
Note that during construction of applications, in which the actuator is to
be fitted, there must be no possibility of personal injury, for example the
squeezing of fingers or arms.
Assure free space for movement of application in both directions to avoid
blockade.
Page 5 of 24
Before installation, re-installation, or troubleshooting:
• Stop the DL1A
• Switch off the power supply and pull out the mains plug.
• Relieve the DL1A of any loads, which may be released during the work.
Before start-up:
• Make sure that the system has been installed as instructed in this User Manual.
• Make sure that the voltage of the control box is correct before the system is
connected to the mains.
• System connection. The individual parts must be connected before the control box
is connected to the mains. See the User Manual for LINAK actuators, if necessary.
During operation
• If the control box makes unusual noises or smells, switch off the mains voltage
immediately.
• Take care that the cables are not damaged.
• Unplug the mains cable on mobile equipment before it is moved.
• The products must only be used in an environment, that corresponds to their IP
protection.
Misc.
The actuator system has a sound level below 55dB(A) in typical applications.
Updated manuals and declarations can always be found here:
www.linak.com/deskline
Page 6 of 24
Only for EU markets
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved.
Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
Only for Non EU markets
Persons who do not have the necessary experience or knowledge of the
product/products must not use the product/products. Besides, persons with
reduced physical, sensory or mental abilities must not use the product/
products, unless they are under surveillance or they have been thoroughly
instructed in the use of the apparatus by a person who is responsible for the
safety of these persons.
Moreover, children must be under surveillance to ensure that they do not
play with the product.
It is the operator’s responsibility to ensure that there is free space for the
application to move without risk for the operator or bystanders before
operating the application.
Misuse
Do not overload the actuators – this can cause danger of personal injury and
damage to the system.
Do not use the actuator system for lifting persons. Do not sit or stand on a
table while operating – risk of personal injury.
Do not use the system in environments other than the intended indoor use
Page 7 of 24
Repairs
In order to avoid the risk of malfunction, all DESKLINE® repairs must only be carried out by authorised LINAK workshops or
repairers, as special tools must be used and special gaskets must be fitted. Lifting units under warranty must also be returned
to authorised LINAK workshops.
Warning!
If any of the DESKLINE
®
products are opened, there will be a risk of subsequent malfunction.
Warning!
The DESKLINE
®
systems do not withstand cutting oil.
DECLARATION OF INCORPORATION OF PARTLY COMPLETED MACHINERY
LINAK A/S
Smedevænget 8
DK - 6430 Nordborg
Herewith declares that LINAK DESKLINE
®
products as characterized by the following models and types:
Control Boxes CBD6S
Linear Actuators DB5, DB6, DB7, DB9, DB12, DB14, DB16, LA23, LA31
Lifting Columns DL1A, DL2, DL4S, DL5, DL6, DL7, DL8, DL9, DL10, DL11, DL12, DL14, DL15,
DL16, DL17, DL19, BASE1
Desk Panels DPA, DPB, DPH, DPF, DPG1K, DPG1M, DPG1B, DPG1C, DPT, DP1, DP1CS,
DP1K, DP1V, DP1U
RF Controls HB10RF, HB20RF, RFT, RFRL
Accessories BA001, SLS, Kick & Click
comply with the following parts of the Machinery Directive 2006/42/EC, ANNEX I, Essential health and
safety requirements relating to the design and construction of machinery:
1.5.1 Electricity supply
The relevant technical documentation is compiled in accordance with part B of Annex VII and that this
documentation or part hereof will be transmitted by post or electronically to a reasoned request by the
national authorities.
This partly completed machinery must not be put into service until the final machinery into
which it is to be incorporated has been declared in conformity with the provisions of the
Machinery Directive 2006/42/EC where appropriate.
Nordborg, 2017-12-08
LINAK A/S
John Kling, B.Sc.E.E.
Certification and Regulatory Affairs
Authorized to compile the relevant technical documentation
Page 8 of 24
Misc. on the DESKLINE® DL1A system
This system is a DESKLINE system developed for desks and for indoor use in offices. Do not use it in industrial kitchens or in
other enviroments that have to be cleaned with aggressive detergents.
Do not bolt the legs to the floor so that free movement is prevented. This could cause serious damage to the legs in fault
situations.
Warranty
There is a 36 months’ warranty on the DESKLINE products against manufacturing faults from the production date of the
individual products (see label).
LINAK A/S’ warranty is only valid in so far as the equipment has been used and maintained correctly and has not been
tampered with. Furthermore, the system must not be exposed to violent treatment. In the event of this, the warranty will be
ineffective/invalid. For further details, please see LINAK A/S ordinary conditions of sale.
Maintenance
Clean dust and dirt on the outside of the system at appropriate intervals and inspect them for damage and breaks.
Inspect the connections, cables, and plugs and check for correct functioning as well as fixing points.
Service of double-insulated products:
Class II
A Class II or double insulated electrical appliance is one which has been designed in such a way that it does not require a
safety connection to electrical earth (US: ground).
The basic requirement is that no single failure can result in dangerous voltage becoming exposed so that it might cause an
electric shock and that this is achieved without relying on an earthed metal casing. This is usually achieved at least in part by
having two layers of insulating material surrounding live parts or by using reinforced insulation.
There is no earthing/grounding means provided on the product, and no earthing/grounding means is to be added to the
product.
In Europe, a double insulated appliance must be labelled “Class II”, “double insulated” or bear the double insulation symbol
(a square inside another square).
Servicing a double-insulated product requires extreme care and knowledge of the system, and is to be done only by qualified
service personnel. Replacement parts for a double-insulated product must be identical to the parts they replace.
The cleaners and disinfectants must not be highly alkaline or acidic (pH value 6-8).
