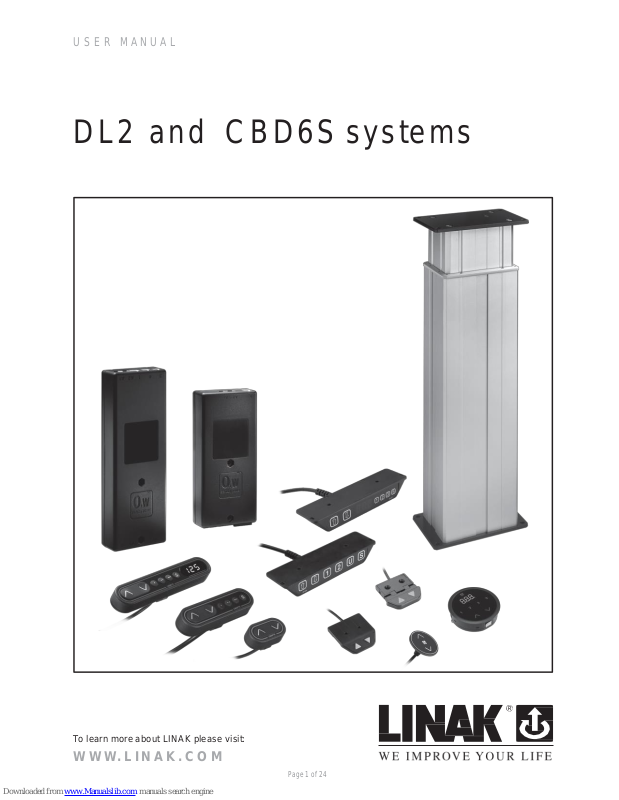

U S E R MA N U A L
DL2 and CBD6S systems
To learn more about LINAK please visit:
WWW . L I N AK . C O M
Page 2 of 24
Page 3 of 24
Contents
Preface
..............................................................................................................................................................4
Valid for ................................................................................................................................................. 5
Important information.......................................................................................................................... 6
Safety instructions ............................................................................................................................... 6
General ......................................................................................................................................................6
Before installation, reinstallation or troubleshooting ....................................................................... 7
Before start-up...........................................................................................................................................7
During operation ............................................................................................................................. 7
Misc................................................................................................................................................. 7
Only for EU markets ..................................................................................................................................8
Only for Non EU markets ..........................................................................................................................8
Misuse .......................................................................................................................................................8
Repairs
.............................................................................................................................................................9
Manufacturer’s declaration ................................................................................................................. 9
Misc. on the DESKLINE® system
....................................................................................................... 10
Warranty ...................................................................................................................................... 10
Maintenance ................................................................................................................................ 10
ETL-markering ................................................................................................................................... 11
Description of the DESKLINE
®
system
............................................................................................. 12
Mounting guidelines for DL2 ........................................................................................................... 13
Bending moment ............................................................................................................................... 14

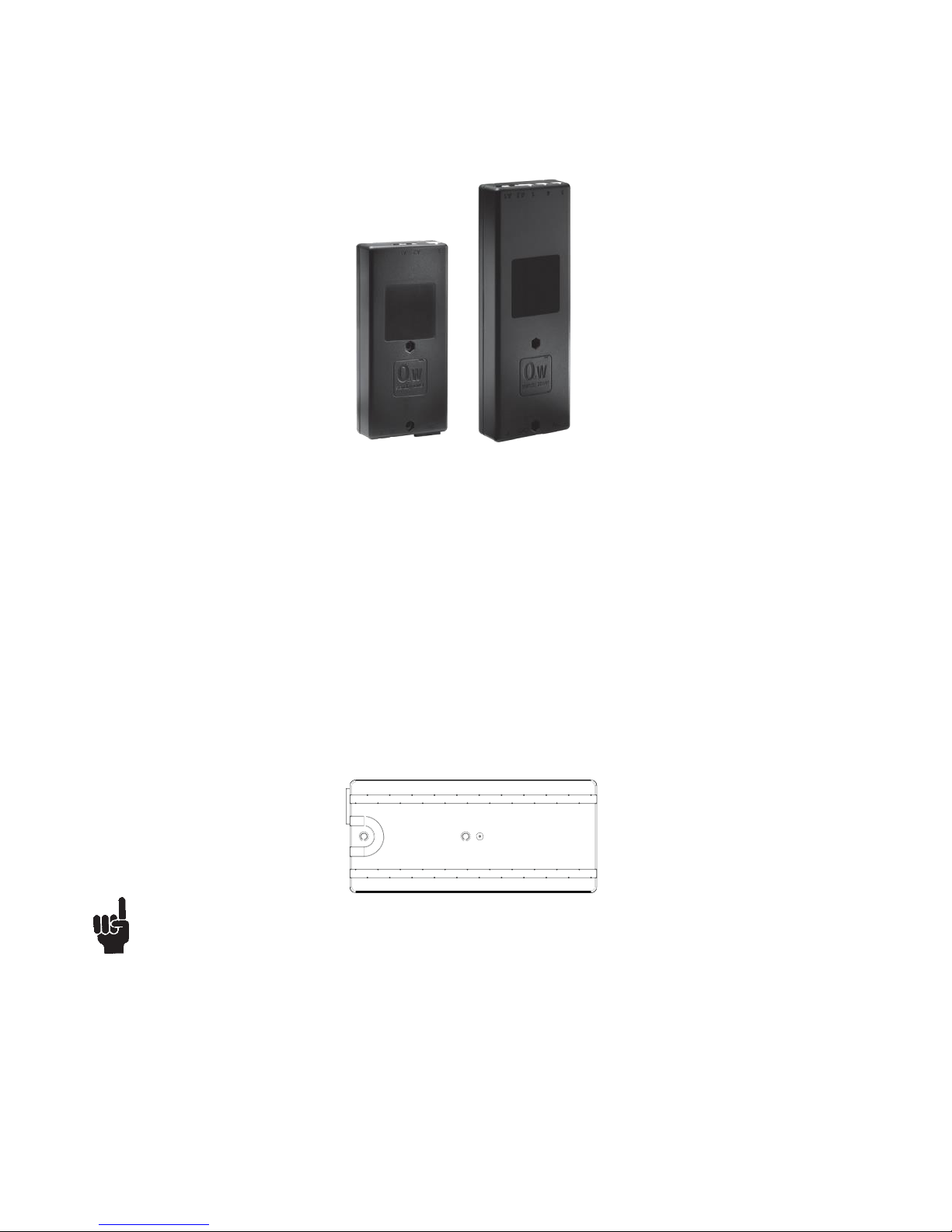

Mounting guidelines CBD6S (SMPS)
................................................................................................ 15

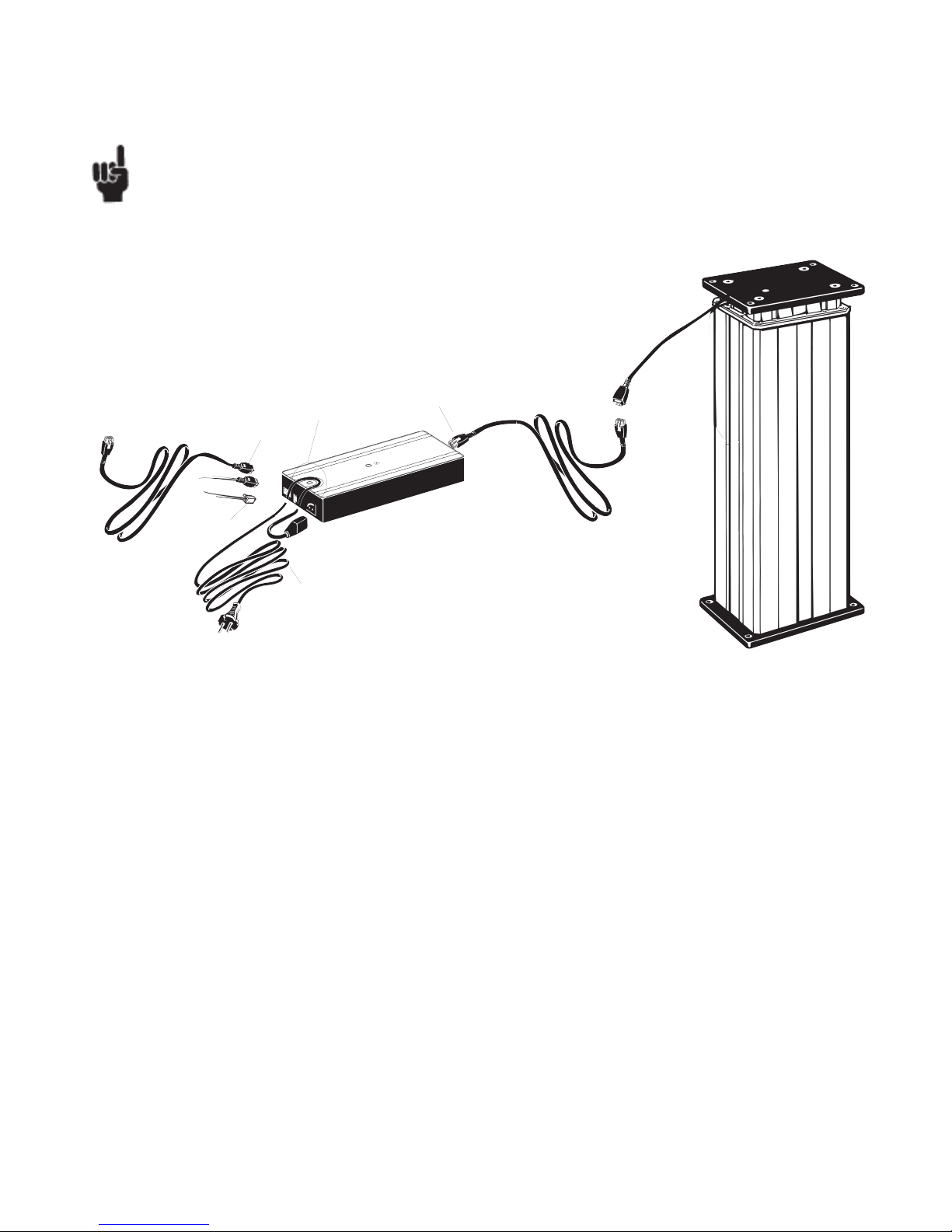

Electrical connection of the DL2 with control box
.......................................................................... 16
Initialisation of the DL2 with control box ....................................................................................... 17
Disposal of LINAK’s products
............................................................................................................ 18

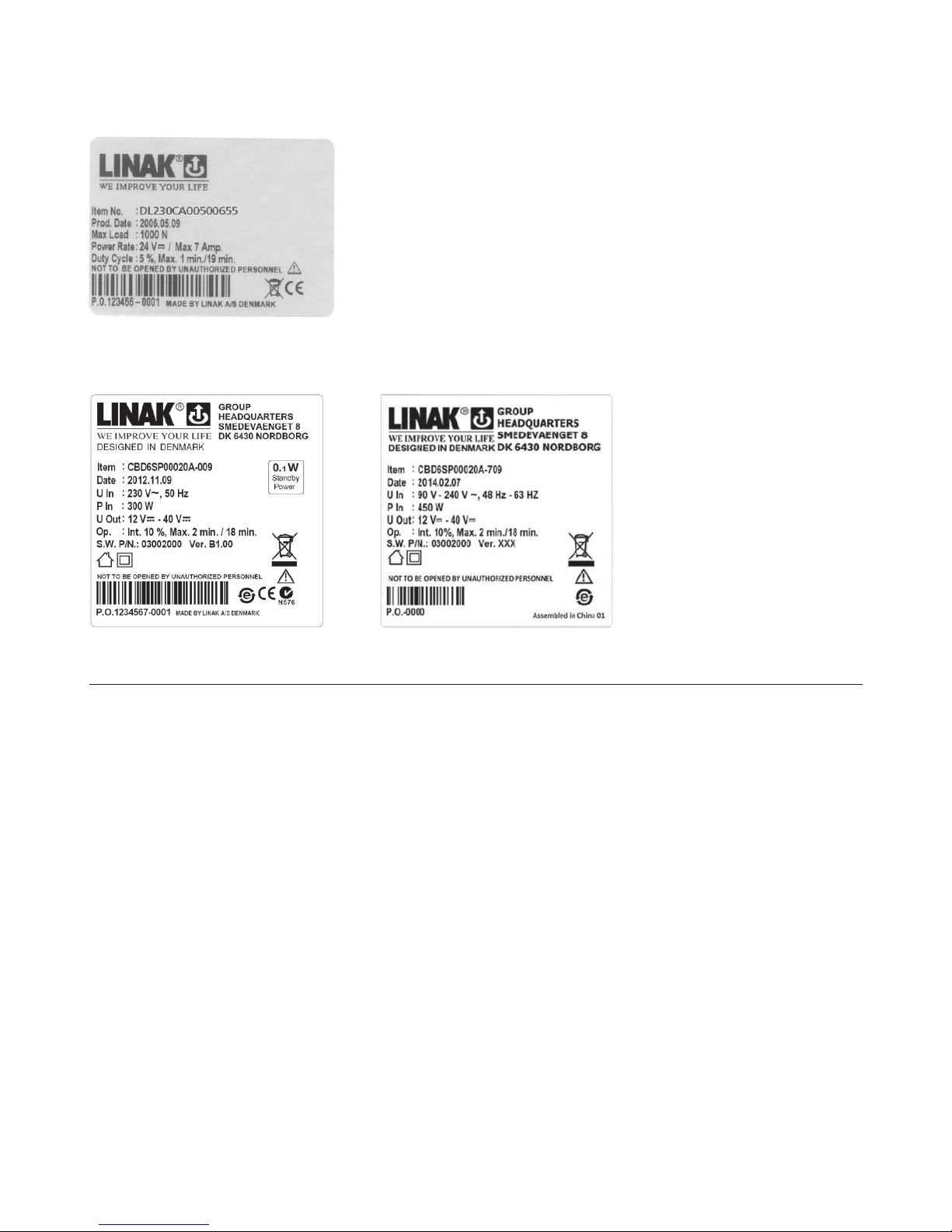

Labels
................................................................................................................................................. 19

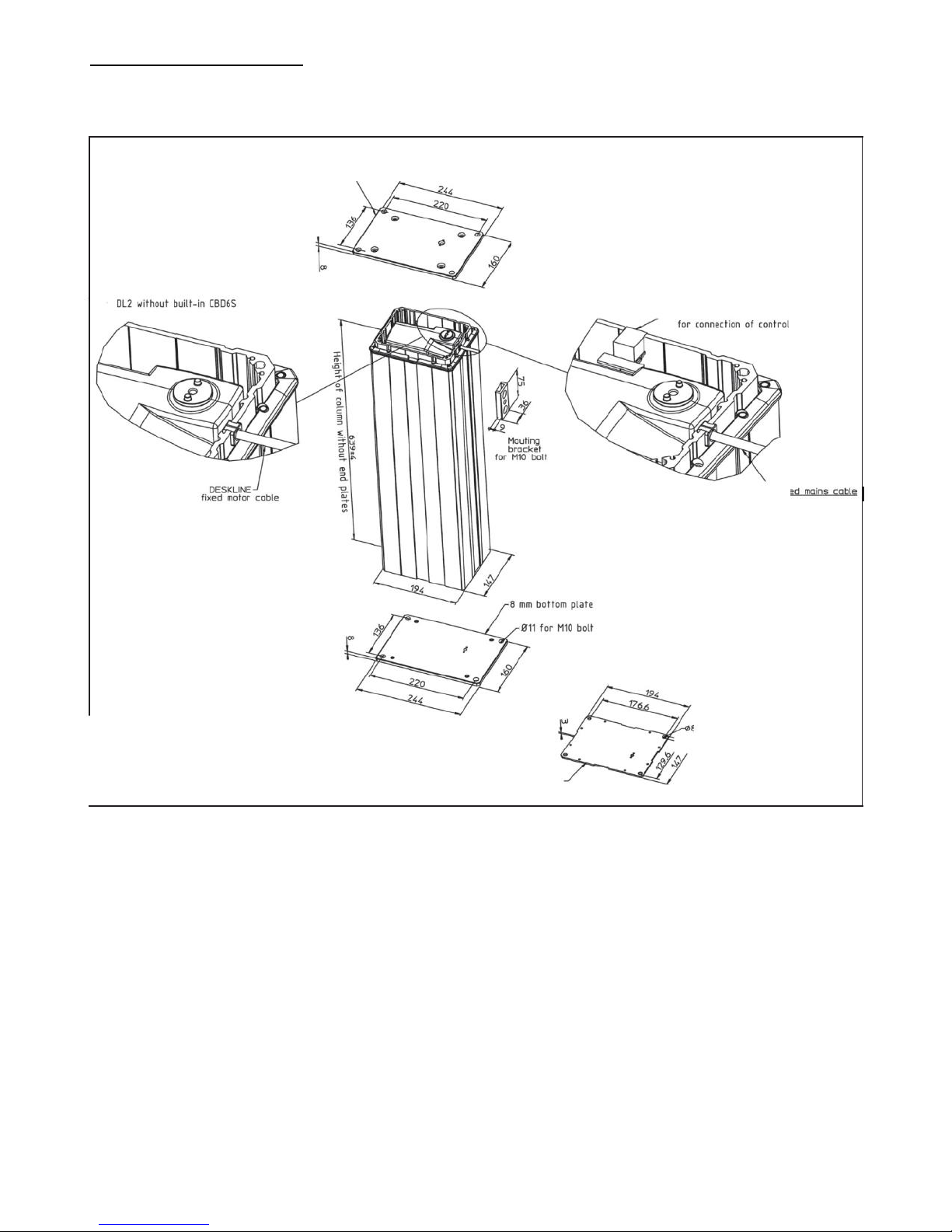

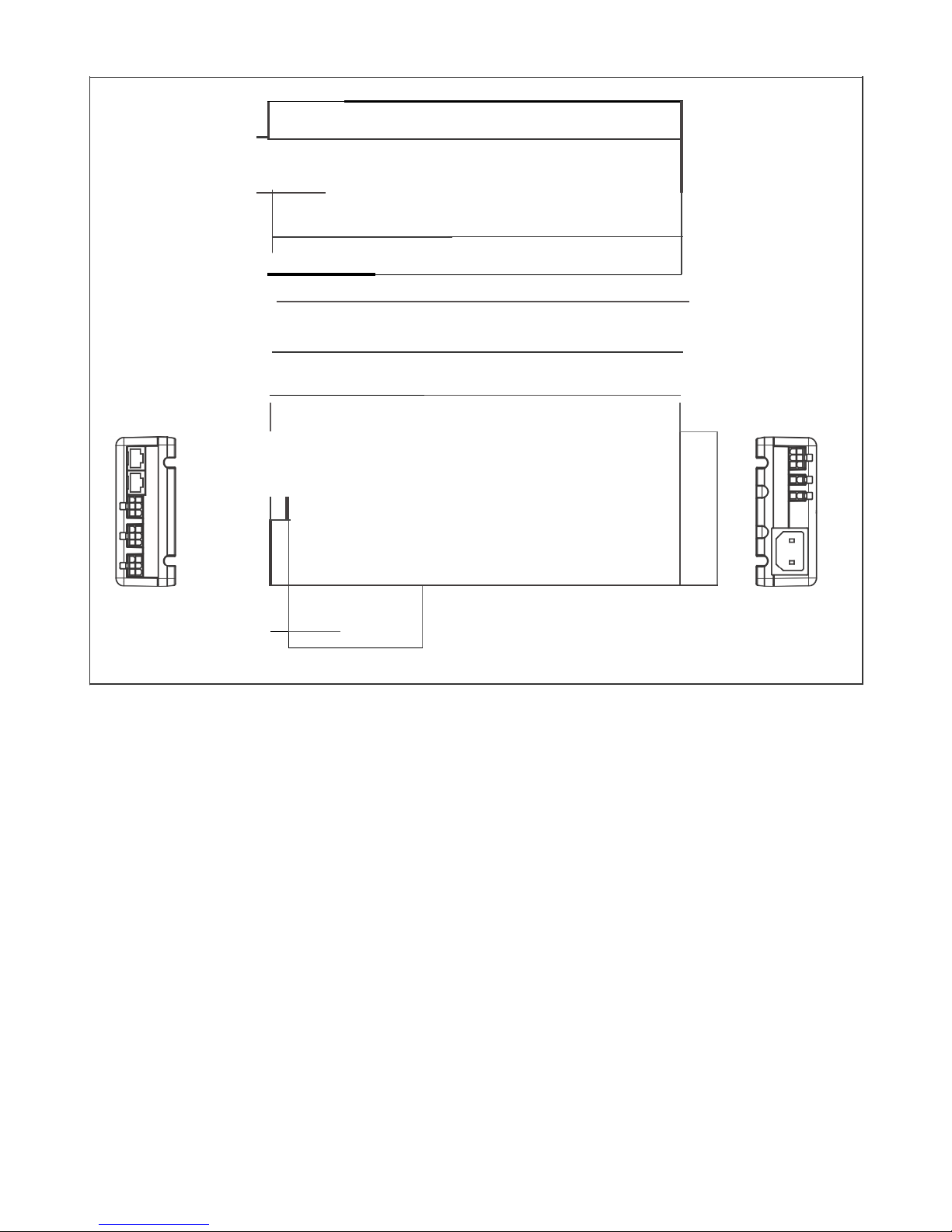

Drawing appendix ............................................................................................................................. 20
Declaration of conformity ................................................................................................................ 23
Addresses
........................................................................................................................................... 24
Page 4 of 24
Preface
We are delighted that you have chosen a product from LINAK A/S. LINAK systems are high-tech products
based on many years of experience in the manufacture and development of actuators, electric control boxes,
controls, and chargers.
We are also constantly improving our products to meet customer requirements.
This User Manual will tell you how to install, use and maintain your LINAK DESKLINE® products.
We are sure that the DESKLINE® products will give you many years of problem-free operation. Before our
products leave the factory they undergo full function and quality testing. Should you nevertheless experience
problems with your systems, you are always welcome to contact our service departments or service centres.
LINAK subsidiaries and distributors all over the world have authorised service centres, which are always ready
to help you.
LINAK provides a warranty on all its products. This warranty, however, is subject to correct use in accordance
with the specifications, maintenance being done correctly and any repairs being carried out at a service
centre, which is authorised to repair LINAK products.
Changes in installation and use of LINAK systems can affect their operation and durability. Changes must
therefore only be made by agreement with LINAK A/S and are made at your own risk.
LINAK A/S
Page 5 of 24
Valid for:
This User Manual is valid for the following products:
(See the first 3 - 5 characters on the label)
Lifting columns: DL2
Control boxes: CBD6S 200W, CBD6S 300W
Controls: DP1U/DPF1M (if memory function is required)
DP1C/DPT/DPF1C (if memory function and display is required) or
DPA/DPB/DPH/DP1K/DP1V/DPF1K (if only up/down is required.)
Page 6 of 24
Important information
Important information on LINAK® products can be found under the
following headings:
Warning!
Failure to comply with these instructions may result in accidents
involving serious personal injury.
Failing to follow these instructions can result in the product being
damaged or being destroyed.
Safety instruction
General
Safe use of the system is possible only when the operating instructions
are read completely and the instructions contained are strictly observed.
Failure to comply with instructions marked with the ”NOTE” symbol may
result in serious damage to the system or one of its components.
It is important for everyone who is to connect, install, or use the
systems to have the necessary information and access to this User
Manual. Follow the instructions for mounting – risk of injury if these
instructions are not followed.
The appliance is not intended for use by young children or infirm
persons without supervision.
If there is visible damage on the product it must not be installed.
Note that during construction of applications, in which the actuator
is to be fitted, there must be no possibility of personal injury, for
example the squeezing of fingers or arms.
Assure free space for movement of application in both directions to
avoid blockade.
Page 7 of 24
Before installation, re-installation, or troubleshooting
•
Stop the DL2
•
Switch off the power supply and pull out the mains plug.
•
Relieve the DL2 of any loads, which may be released during the work.
Before start-up:
•
Make sure that the system has been installed as instructed in this User
Manual.
•
Make sure that the voltage of the control box is correct before the
system is connected to the mains.
•
System connection. The individual parts must be connected before the
control box is connected to the mains. See the User Manual for LINAK
actuators, if necessary.
During operation:
•
If the control box makes unusual noises or smells, switch off the mains
voltage immediately.
•
Take care that the cables are not damaged.
•
Unplug the mains cable on mobile equipment before it is moved.
•
The products must only be used in an environment, that corresponds
to their IP protection.
Misc.
The actuator system has a sound level below 55dB(A) in typical
applications.
Updated manuals and declarations can always be found here:
www.linak.com/deskline
Page 8 of 24
Only for EU markets
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have given
supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
Only for Non EU markets
Persons who do not have the necessary experience or knowledge of
the product/products must not use the product/products. Besides,
persons with reduced physical, sensory or mental abilities must not
use the product/products, unless they are under surveillance or they
have been thoroughly instructed in the use of the apparatus by a
person who is responsible for the safety of these persons.
Moreover, children must be under surveillance to ensure that they
do not play with the product.
It is the operator’s responsibility to ensure that there is free space for
the application to move without risk for the operator or bystanders
before operating the application.
Misuse
Do not overload the actuators – this can cause danger of personal
injury and damage to the system.
Do not use the actuator system for lifting persons. Do not sit or
stand on a table while operating – risk of personal injury.
Do not use the system in environments other than the intended
indoor use
