LINAK.COM/DESKLINE
DL12, DL14, DB14 and DL17 system
with CBD6S
User manual
Page 2
Page 2 of 36
Contents
Preface ............................................................................................................................................ 3
Valid for ............................................................................................................................................ 4
Important information ................................................................................................................... 5
Safety instructions .......................................................................................................................... 5
General ....................................................................................................................................... 5
Before installation, reinstallation or troubleshooting ..................................................................... 6
Before start-up ............................................................................................................................ 6
During operation .......................................................................................................................... 6
Misc. ........................................................................................................................................... 6
Only for EU markets ....................................................................................................................... 7
Only for Non EU markets .............................................................................................................. 7
Misuse ........................................................................................................................................... 7
Repairs ........................................................................................................................................... 8
Manufacturer’s declaration........................................................................................................... 8
Misc. on the DESKLINE
®
system .....................................................................................................9
Warranty.......................................................................................................................................9
Maintenance.................................................................................................................................9
ETL-markering ................................................................................................................................10
Description of the DESKLINE
®
system ........................................................................................11
Mounting guidelines for the DL14 system ................................................................................. 12
Mounting top ........................................................................................................................... 12
Mounting foot .......................................................................................................................... 14
Mounting guidelines for the DL12 system ................................................................................ 15
Mounting top ........................................................................................................................... 15
Mounting foot .......................................................................................................................... 15
Mounting guidelines for the DL17 system ................................................................................ 16
Mounting top ........................................................................................................................... 16
Mounting foot .......................................................................................................................... 16
Mounting guidelines for the DB14 systems .............................................................................. 18
Mounting guidelines for the CBD6S (SMPS) ............................................................................. 20
Electrical connection of the DB/DL system ............................................................................... 21
Initialisation of the DESKLINE parallel system ......................................................................... 22
PIEZO
TM
: description of the feature .......................................................................................... 23
Accessories and repair ................................................................................................................. 24
Disposal of LINAK products ......................................................................................................... 25
Labels .......................................................................................................................................... 26
Drawing appendix ......................................................................................................................... 27
Declaration of conformity ............................................................................................................ 33
Addresses ....................................................................................................................................... 36
Page 3
Page 3 of 36
Preface
Dear User,
We are delighted that you have chosen a product from LINAK®.
LINAK systems are high-tech products based on many years of experience in the manufacture and development
of actuators, electric control boxes, controls and chargers.
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer
of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It
is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety
information from this manual is passed on to the end-user.
We are sure that your LINAK product/system will give you many years of problem-free operation.
Before our products leave the factory they undergo full function and quality testing. Should you nevertheless
experience problems with your LINAK product/system, you are always welcome to contact your local dealer.
LINAK subsidiaries and some distributors situated all over the world have authorised service centres, which are
always ready to help you.
LINAK provides a warranty on all its products. This warranty, however, is subject to correct use in accordance
with the specifications, maintenance being done correctly and any repairs being carried out at a service centre,
which is authorised to repair LINAK products.
Changes in installation and use of LINAK products/systems can affect their operation and durability. The
products are not to be opened by unauthorised personnel.
The User Manual has been written based on our present technical knowledge. We are constantly working on
updating the information and we therefore reserve the right to carry out technical modifications.
LINAK A/S
Page 4
Page 4 of 36
Valid for:
This User Manual is valid for the following products:
(See the first 3 - 5 characters on the label)
Columns: DL12, DL14, DL17
Built-in actuators: DB14
Control boxes: CBD6S 200W, CBD6S 300W
Controls: DP1U/DPF1M (if memory function is required),
DP1C//DPT/DPF1C (if memory function and display are required) or
DPA/DPB/DP1K/DP1V/DPFK (if only up/down is required)
DPF1D (if display is required)
Page 5
Page 5 of 36
Safety instructions
General
Important information
Important information on LINAK
®
products can be found under the following
headings:
Warning!
Failure to comply with these instructions may result in accidents involving
serious personal injury.
Failing to follow these instructions can result in the product being damaged
or being destroyed.
Safe use of the system is possible only when the operating instructions are read
completely and the instructions contained are strictly observed.
Failure to comply with instructions marked with the ”NOTE” symbol may result in
serious damage to the system or one of its components.
It is important for everyone who is to connect, install or use the systems to
have the necessary information and access to this User Manual. Follow the
instructions for mounting – risk of injury if these instructions are not followed.
The appliance is not intended for use by young children or infirm persons
without supervision.
If there is visible damage on the product it must not be installed.
Please note that during construction of applications, in which the actuator
is to be fitted, there must be no possibility of personal injury, for example
squeezing of fingers or arms.
Assure free space for movement of applications in both directions to avoid
blockade.
Page 6
Page 6 of 36
Before installation, reinstallation, or troubleshooting
• Stop the DB/DL
• Switch off the power supply and pull out the mains plug.
• Relieve the DB/DL of any loads, which may be released during the work.
Before start-up:
• Make sure that the system has been installed as instructed in this User Manual.
• Make sure that the voltage at the control box is correct before the system is
connected to the mains.
• System connection. The individual parts must be connected before the control box
is connected to the mains. See the User Manual for LINAK actuators, if necessary.
During operation:
• If the control box makes unusual noises or smells, switch off the mains voltage
immediately.
• Take care that the cables are not damaged.
• Unplug the mains cable on mobile equipment before it is moved.
Misc.
The actuator system has a sound level below 55dB(A) in typical applications.
Updated manuals and declarations can always be found here:
www.linak.com/deskline
Page 7
Page 7 of 36
Only for EU markets
This appliance can be used by children aged from 8 years and older and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they are under supervision or have been
instructed in the use of the appliance in a safe way and understand the
hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
Only for Non EU markets
Persons who do not have the necessary experience or knowledge of the
product/products must not use the product/products. Besides, persons with
reduced physical, sensory or mental abilities must not use the product/
products, unless they are under surveillance or they have been thoroughly
instructed in the use of the apparatus by a person who is responsible for the
safety of these persons.
Moreover, children must be under surveillance to ensure that they do not
play with the product.
It is the operator’s responsibility to ensure that there is free space for the
application to move without risk for the operator or bystanders before
operating the application.
Misuse
Do not overload the actuators – this can cause danger of personal injury and
damage to the system.
Do not use the actuator system for lifting persons. Do not sit or stand on a
table while operating – risk of personal injury.
Do not use the system in environments other than the intended indoor use
Page 8
Page 8 of 36
Repairs
In order to avoid the risk of malfunction, all DESKLINE® repairs must only be carried out by authorised LINAK workshops or
repairers, as special tools must be used and special gaskets must be fitted. Lifting units under warranty must also be returned
to authorised LINAK workshops.
Warning!
If any of the DESKLINE
®
products are opened, there will be a risk of subsequent malfunction.
Warning!
The DESKLINE
®
systems do not withstand cutting oil.
DECLARATION OF INCORPORATION OF PARTLY COMPLETED MACHINERY
LINAK A/S
Smedevænget 8
DK - 6430 Nordborg
Herewith declares that LINAK DESKLINE
®
products as characterized by the following models and types:
Control Boxes CBD6S
Linear Actuators DB5, DB6, DB7, DB9, DB12, DB14, DB16, LA23, LA31
Lifting Columns DL1A, DL2, DL4S, DL5, DL6, DL7, DL8, DL9, DL10, DL11, DL12, DL14, DL15,
DL16, DL17, DL19, BASE1
Desk Panels DPA, DPB, DPH, DPF, DPG1K, DPG1M, DPG1B, DPG1C, DPT, DP1, DP1CS,
DP1K, DP1V, DP1U
RF Controls HB10RF, HB20RF, RFT, RFRL
Accessories BA001, SLS, Kick & Click
comply with the following parts of the Machinery Directive 2006/42/EC, ANNEX I, Essential health and
safety requirements relating to the design and construction of machinery:
1.5.1 Electricity supply
The relevant technical documentation is compiled in accordance with part B of Annex VII and that this
documentation or part hereof will be transmitted by post or electronically to a reasoned request by the
national authorities.
This partly completed machinery must not be put into service until the final machinery into
which it is to be incorporated has been declared in conformity with the provisions of the
Machinery Directive 2006/42/EC where appropriate.
Nordborg, 2017-12-08
LINAK A/S
John Kling, B.Sc.E.E.
Certification and Regulatory Affairs
Authorized to compile the relevant technical documentation
Page 9
Page 9 of 36
Misc. on the DESKLINE® system
Warranty - 60 months on DESKLINE® (NEW)
This will be valid for all DESKLINE® products produced after the 1st of May 2015.
Products produced before 1
st
of May 2015 will still be covered by 36 months.
Products used in DESKLINE application: If these products are used in another application, they will be covered by 18 months
warranty.
If there is any doubt that returned products are within the warranty period it is to be treated as if they are covered by the
warranty. We recommend that you use the date of the Control box or actuator as reference if possible. We will have our
purchase no. printed on the label.
Maintenance
Clean dust and dirt on the outside of the system at appropriate intervals and inspect them for damage and breaks.
Inspect the connections, cables and plugs and check for correct functioning as well as fixing points.
Service of double insulated products:
Class II
A Class II or double insulated electrical appliance is one which has been designed in such a way that it does not require a
safety connection to electrical earth (US: ground).
The basic requirement is that no single failure can result in dangerous voltage becoming exposed so that it might cause an
electric shock and that this is achieved without relying on an earthed metal casing. This is usually achieved at least in part by
having two layers of insulating material surrounding live parts or by using reinforced insulation.
There is no earthing/grounding means provided on the product, and no earthing/grounding means is to be added to the
product.
In Europe, a double insulated appliance must be labelled “Class II”, “double insulated” or bear the double insulation symbol
(a square inside another square).
Servicing a double insulated product requires extreme care and knowledge of the system, and is to be done only by qualified
service personnel. Replacement parts for a double insulated product must be identical to the parts they replace.
The cleaners and disinfectants must not be highly alkaline or acidic (pH value 6-8).
Page 10
Page 10 of 36
C/N 4008003
Conforms to UL962
Cert. to CSA Std. C22.2 No. 68-09
ETL Recognized Component mark for Canada and United States
C/N 4008004
Conforms to UL962
Cert. to CSA Std. C22.2 No. 68-09
ETL Recognized Component mark for Canada and United States
C/N 4008005
Conforms to UL962
Cert. to CSA Std. C22.2 No. 68-09
ETL Recognized Component mark for Canada and United States
C/N 4008671
Conforms to UL962
Cert. to CSA Std. C22.2 No. 68-09
ETL Recognized Component mark for Canada and United States
C/N 4009507
Conforms to UL962
Cert. to CSA Std. C22.2 No. 68-09
ETL Recognized Component mark for Canada and United States
ETL-marking
Due to space limitations, the complete ETL-marking demands are not represented on the marking plates.
The full ETL Recognized Component markings are shown here.
C/N 120690
Conforms to UL962
Cert. to CSA Std. C22.2 No. 68-09
ETL Recognized Component mark for Canada and United
States
C/N 9901916
Conforms to UL962
Cert. to CSA Std. C22.2 No. 68-09
ETL Recognized Component mark for Canada and United
States
Page 11
Page 11 of 36
Description of the DESKLINE® system
Each DESKLINE® actuator/column is equipped with a motor and parallel/memory drive is ensured by means of software in the
CBD6S (SMPS) that also takes account of an oblique load on the desk. Soft start and stop are also part of this software, which
ensures a soft start and stop when adjusting the desk.
Application of the DESKLINE
®
system:
Irrespective of the load, the duty cycle 10% ~ 6 min./ hour or max. 2 min. at continuous use stated in the data sheets,
must NOT be exceeded as this will result in a superheating of the motor and the control box. Exceeding the duty cycle will
result in a dramatic reduction of the life of the system.
The DB/DL system range contains following products:
• 1 control box CBD6S 200W or CBD6S 300W (SMPS - Switch Mode Power Supply)
• DL12, DL14, DB14 or DL17 (1 - 4)
• 1 exchangeable mains cable
• Motor cables (1 - 4)
• 1 DP1U/DPF1M (if memory function is required) 1 DP1C//DPT/DPF1C (if memory function and display are required) or
1 DPA/DPB/DP1K/DP1V/DPFK (if only up/down is required) or DPF1D (if display is required)
Page 12
Page 12 of 36
Mounting guidelines for the DL14 system

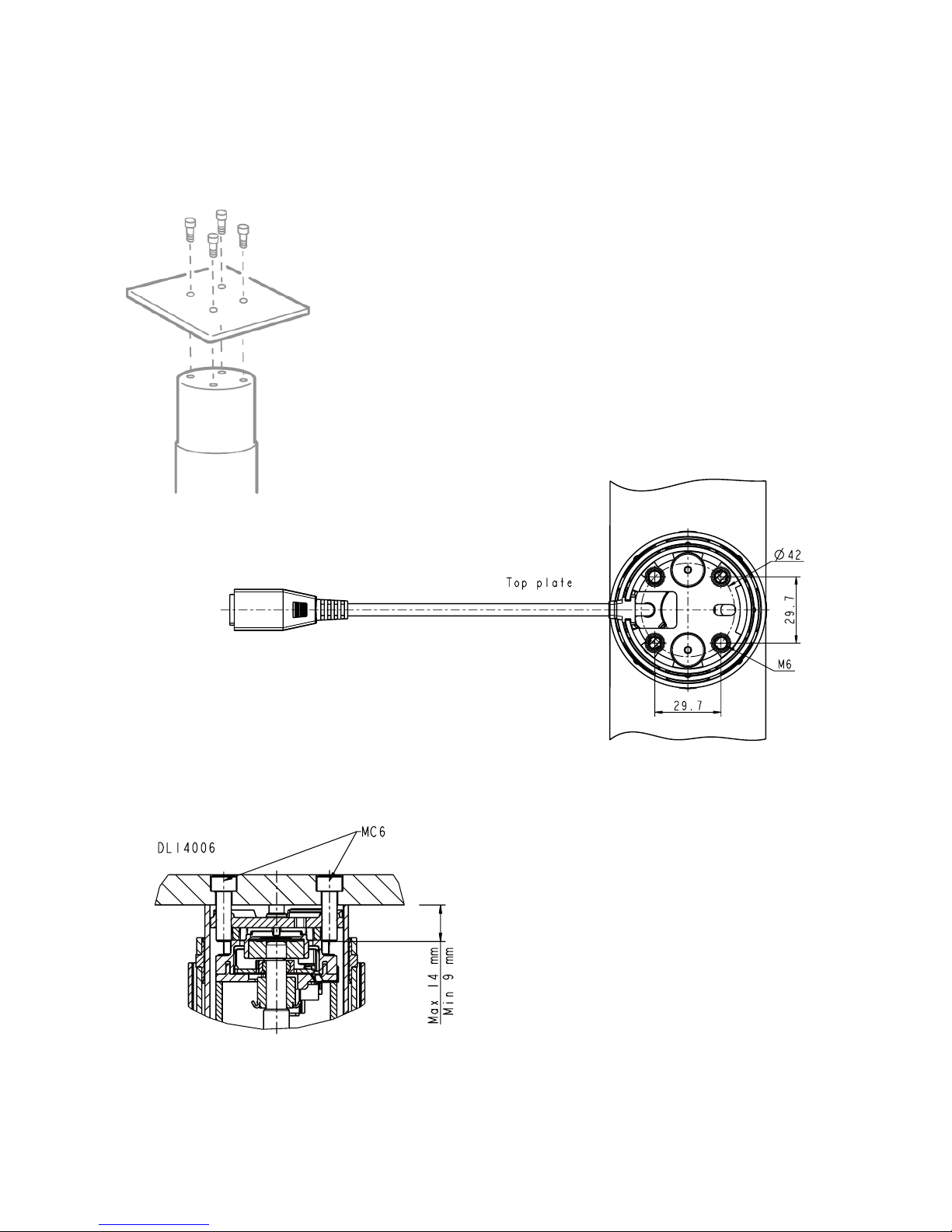

Mounting top
The top of the column is supplied with 4 M6 threaded holes meant for mounting onto the desk frame. We advise you to fasten
the desk frame by means of 4 pcs. M6 screws of a good quality (min. 8.8) and a suitable length, which must not go further
than max. 14 mm into the column. The thrust moment must not exceed 10 Nm.
Screw length
Min. B + 9 mm
Max. B + 14 mm
Page 13
Page 13 of 36

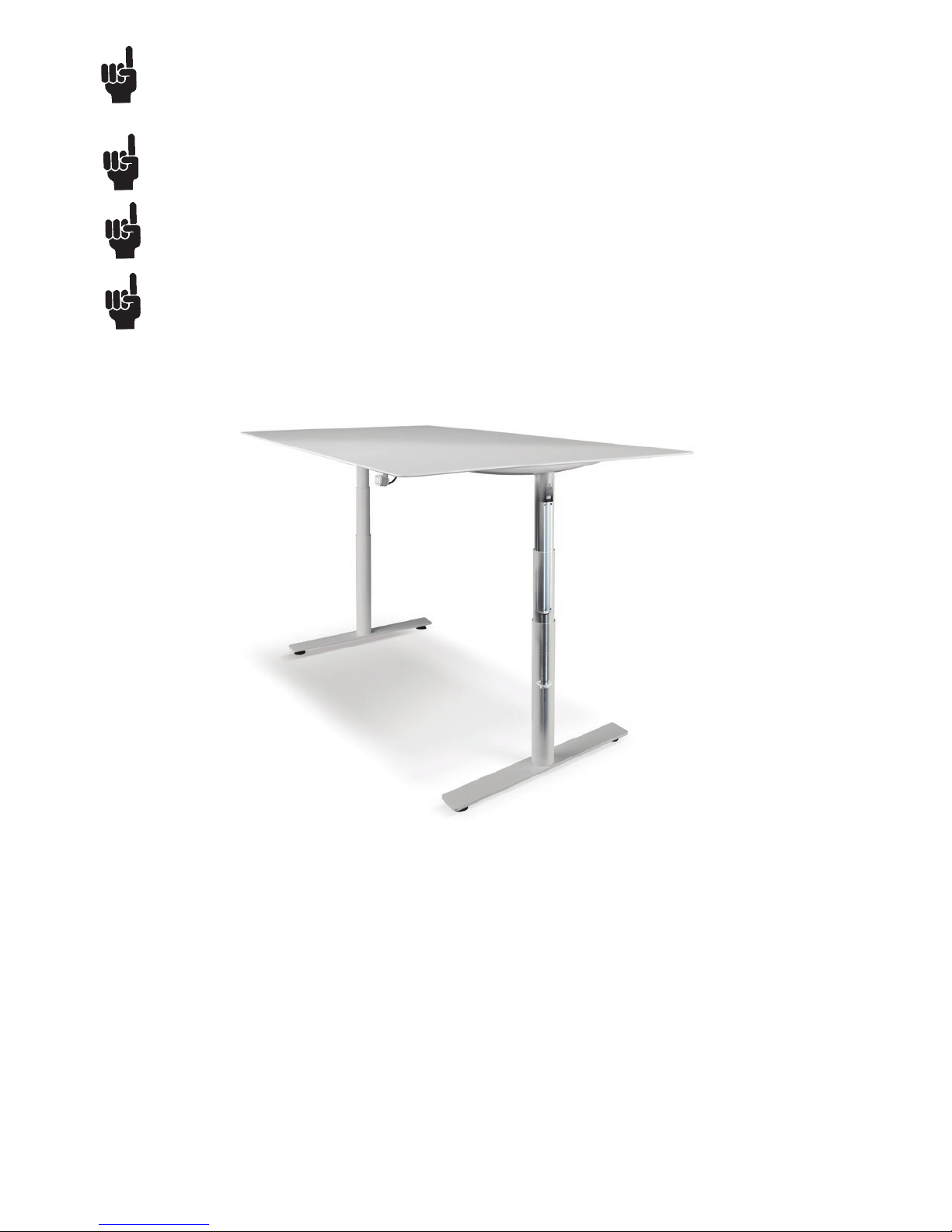

As the desktop amplifies the sound, we advise you to place a vibration/shock absorbing material between the desktop
and the desk frame.
Table top
Absorbing
material
Height of the DL in the lowest position
Min. desk height
Floor level

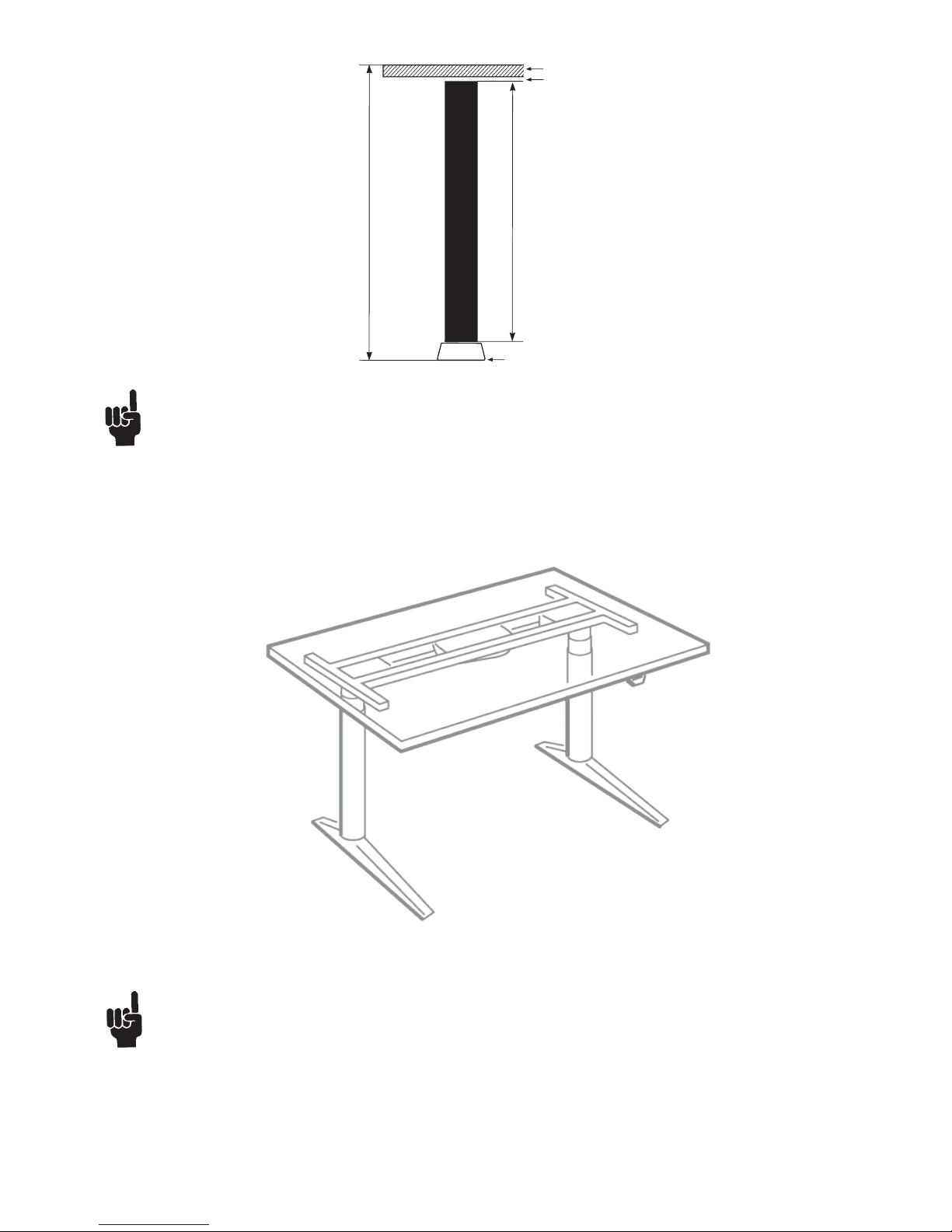

LINAK recommends that the DESKLINE® DL system should be used in push applications.
(Example of how to mount a 2-parallel DESKLINE
®
DL system)
Page 14
Page 14 of 36
Mounted with 2 x M8
Mounted with 4 x M6
Mounting guidelines for the column DL14
Mounting foot

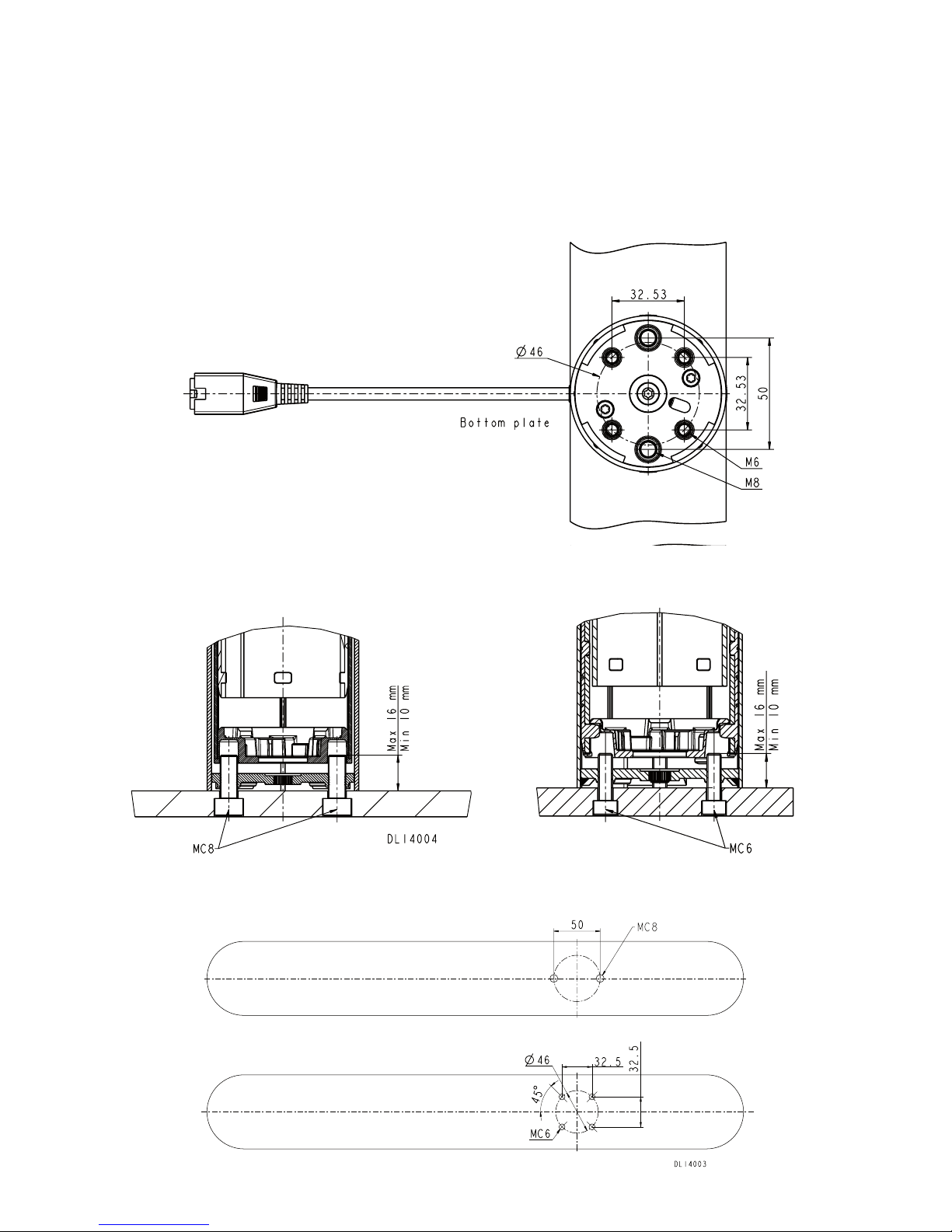

The DL14 is supplied with 4 M6 threaded holes and 2 M8 screws for mounting of the foot. You can either use 2 M8 screws or
4 M6 screws dependent on your foot design. We advise you to use screws of a good quality min. 8.8 and of a suitable length,
which must not go further than 16 mm into the DL14 column. The thrust moment must not exceed 10 Nm in the bottom plate
thread.
The holes in the foot ought to be sufficiently larger than ø6 so that it is possible to bring the foot to a level line at assembly/
mounting of the table.
Page 15
Page 15 of 36
Mounting guidelines for the column DL12
Mounting foot
The DL12 is supplied with 4 x M6 threaded holes. We advise you to use screws of a
good quality min. 8.8 and of a suitable length. The length needs to be minimum 9 mm.
The screw torque must not exceed 10 Nm in the bottom plate thread.
The holes in the foot ought to be sufficiently larger than ø6 so that it is possible to
bring the foot to a level line at assembly/mounting of the table.
Mounting top
The top of the column is supplied with 4 x M6 threaded holes meant for mounting
onto the desk frame. We advise you to fasten the desk frame by means of 4 x M6
screws of a good quality (min. 8.8) and of a suitable length, minimum 12 mm.
The screw torque must not exceed 10 Nm.
Use all 4 threaded mounting holes M6 for screws. Thrust moment is 10 Nm
Min. 12mm
Max. 16mm
M6
Page 16
Page 16 of 36
Mounting guidelines for the DL17 system
Mounting foot
The DL17 is supplied with 4 x M6 threaded holes and 2 x M8
screws for mounting of the foot. You can use either 2 x M8
screws or 4 x M6 screws dependent on your foot design. We
advise you to use screws of a good quality min. 8.8 and of
a suitable length, which must not go into the DL17 column
further than 16 mm. The screw torque must not exceed 10
Nm in the bottom plate thread.
The holes in the foot ought to be sufficiently larger than
(1) 6 so that it is possible to bring the foot to a level line at
assembly/mounting of the table.
Mounting top
The top of the column is supplied with 4 x M6 threaded
holes meant for mounting onto the desk frame . We advise
you to fasten the desk frame by means of 4 x M6 screws of
a good quality (min. 8.8) and a suitable length of minimum
10 mm and must not go into the column further than
maximum 14 mm. The screw torque must not exceed 10 Nm
Min. 10 mm
Max. 14 mm
MC 6
Top Plate
Min 10 mm
Max. 16 mm
Min. 10 mm
Max. 16 mm
Min. 10 mm
Max. 14 mm
MC 6
MC 8
Bottom Plate
MC 6
Top Plate
As the desktop amplifies the sound, we advise you to place a vibration/shock absorbing material between the desktop
and the desk frame.
(Example of how to mount the DESKLINE
®
system)
Page 17
Page 17 of 36

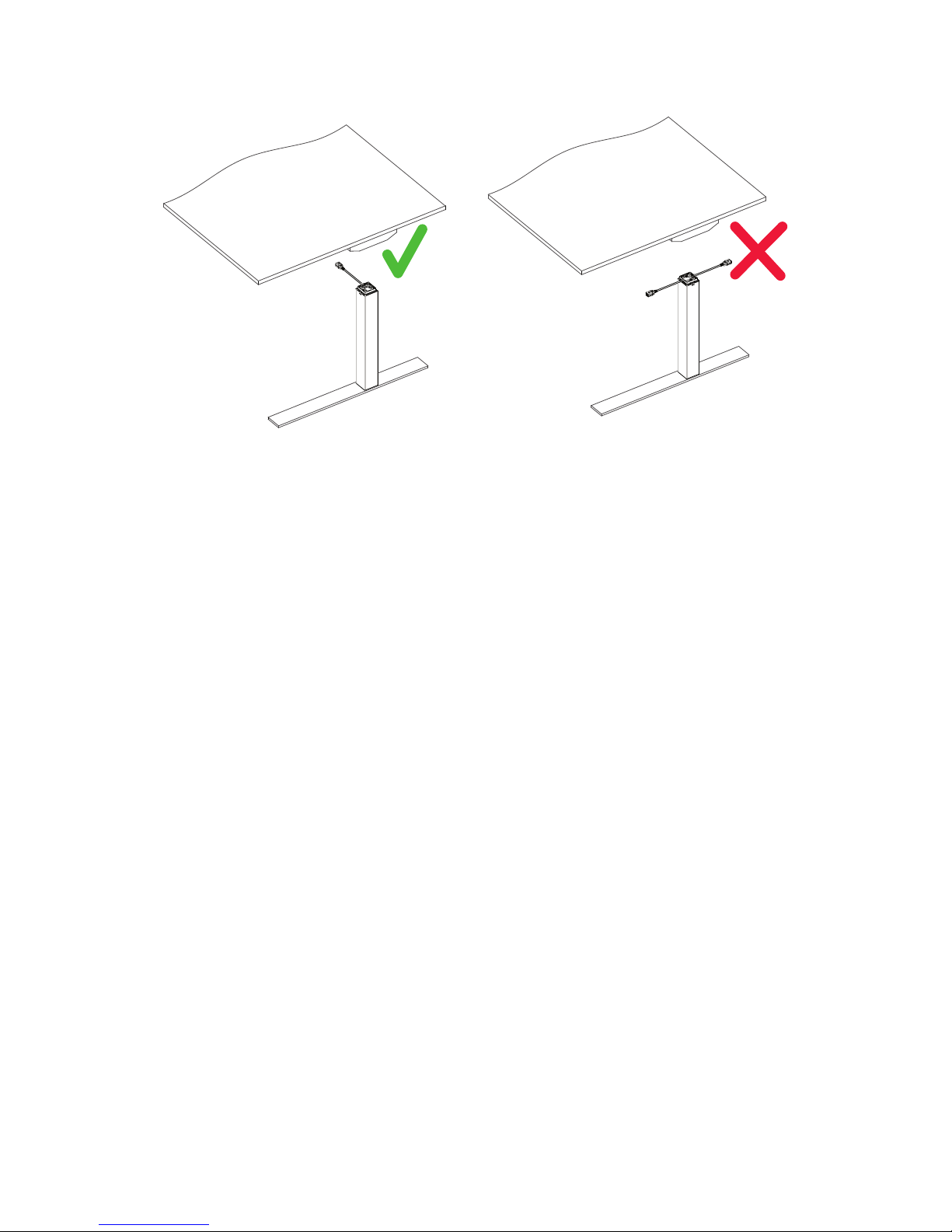

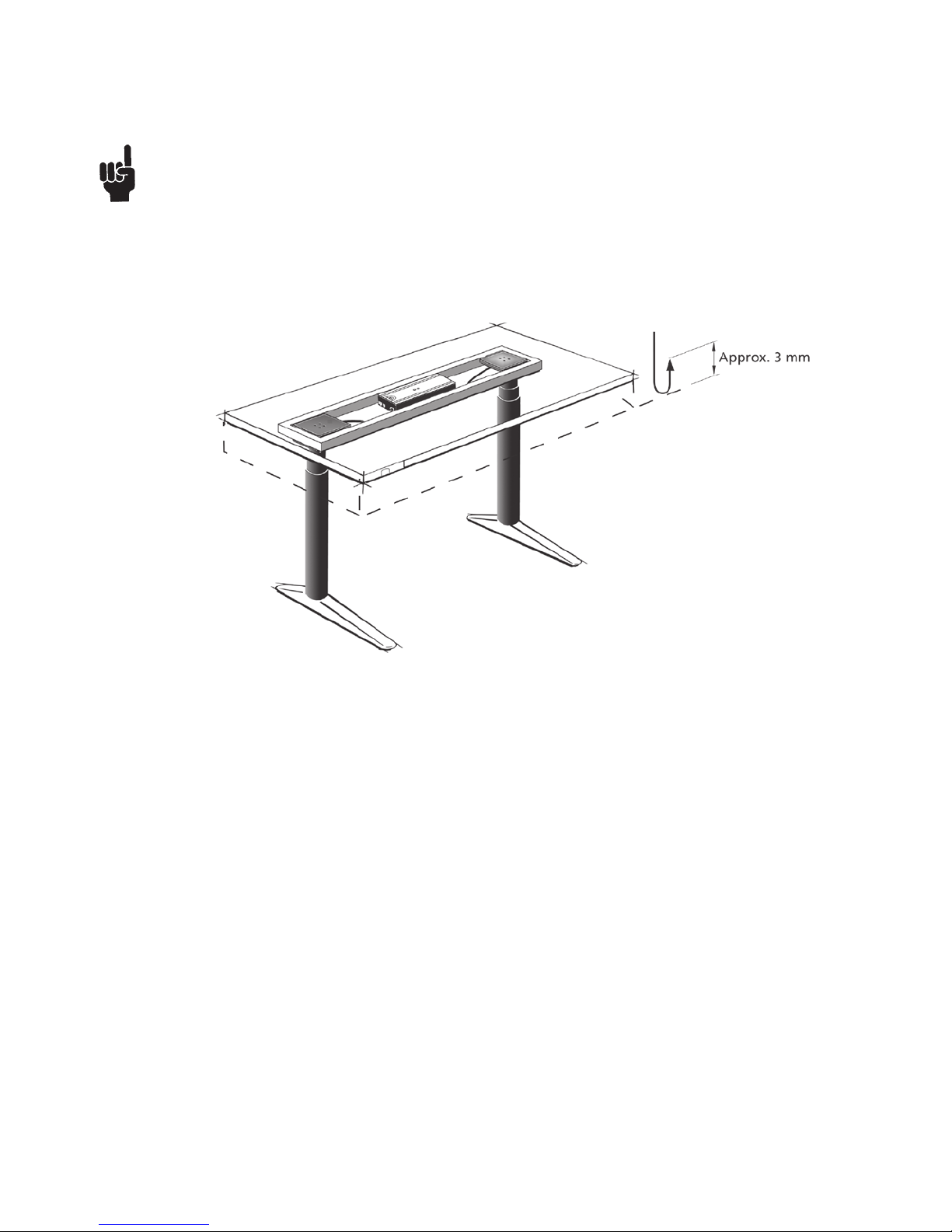

When mounting the DL17 to the tabletop and feet, we recommend orienting the column, so the cable is pointing in direction
of the centre of the desk.
Page 18
Page 18 of 36
Mounting guidelines for the DB14
For detailed information on how to mount the DB14, please contact LINAK A/S.

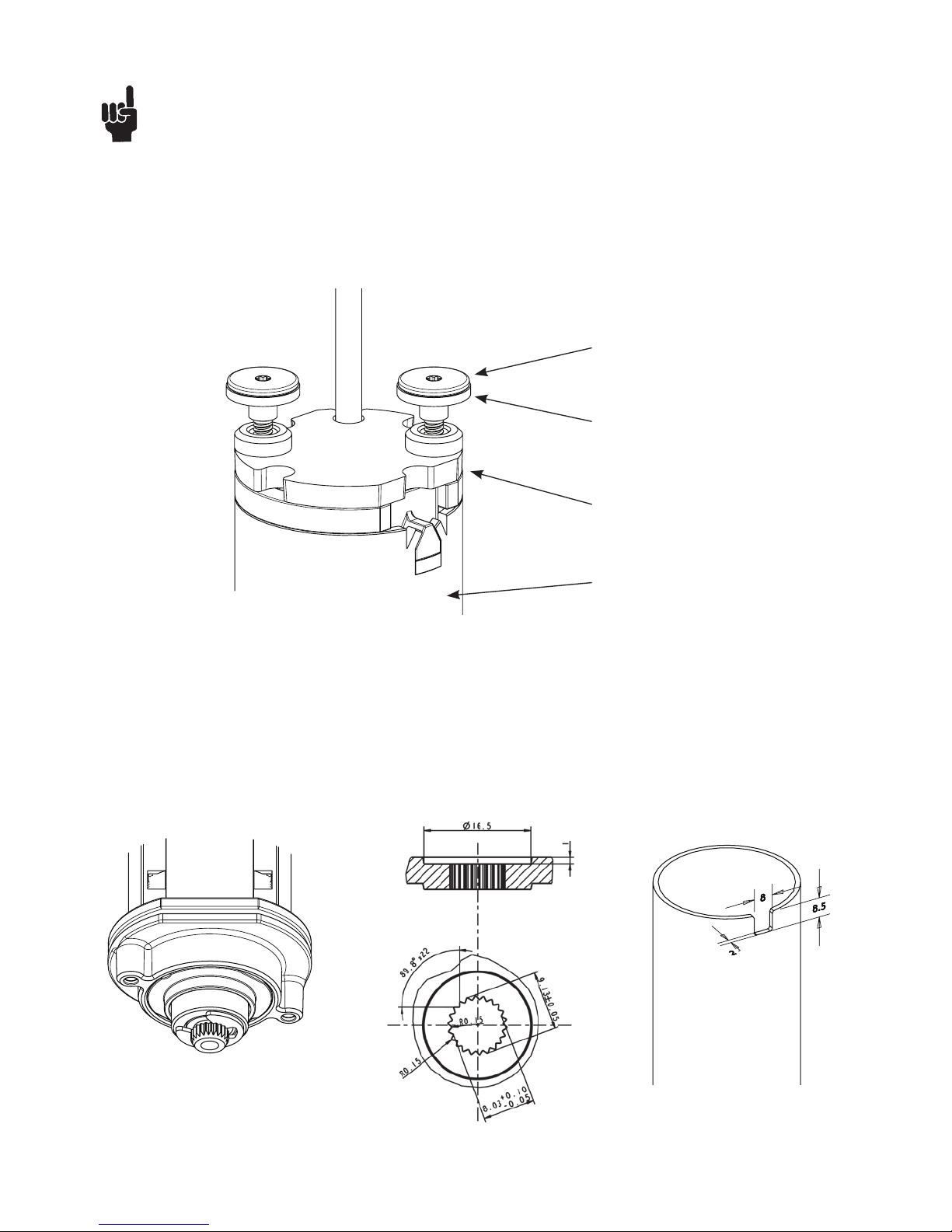

The top of the motor is supplied with holes for the self-tapping special screws. These screws together with the 2 rubber
washers are supplied with the DB14.
On the top of the motor there is the special rubber suspension, which should always be used when the DB14 is mounted in a
column. The top flange where the motor is mounted must be 4 mm thick ± 0.1 mm, and the 2 mounting holes should be ø12
mm with a centre distance of 36 mm. The screw torque must be 2 Nm ± 0.1 Nm.
Middle tube: For detailed information on how to mount the middle tube of your column, please contact LINAK A/S
Bottom: At the bottom of the DB14 the inner spindle should be mounted by means of a 22-teeth spline profile
and a M5 screw in the bottom of the spindle. The trust moment must not exceed 2.3 Nm.
Top:
Special screws
Rubber washer
Rubber suspension
Motor
Page 19
Page 19 of 36
The DB14 gives the possibility of synchronous drive of the middle profile - to make sure that the profiles are in the right
place you have to secure that both the hollow and the massive spindles are driven in the bottom position. For detailed
information on how to mount the DB14, please contact LINAK A/S.
From the factory, the DB14 is delivered with the hollow spindle driven into end position. Please observe that the solid
spindle may roll out during transportation/handling, but it must be rolled back to end position before mounting in the
profile.
As the desktop amplifies the sound,we advise you to place a vibration/shock absorbing material between the desktop
and the desk frame
Do not drive the DB14 to the outer end position before mounting. This will result in damaging the DB.

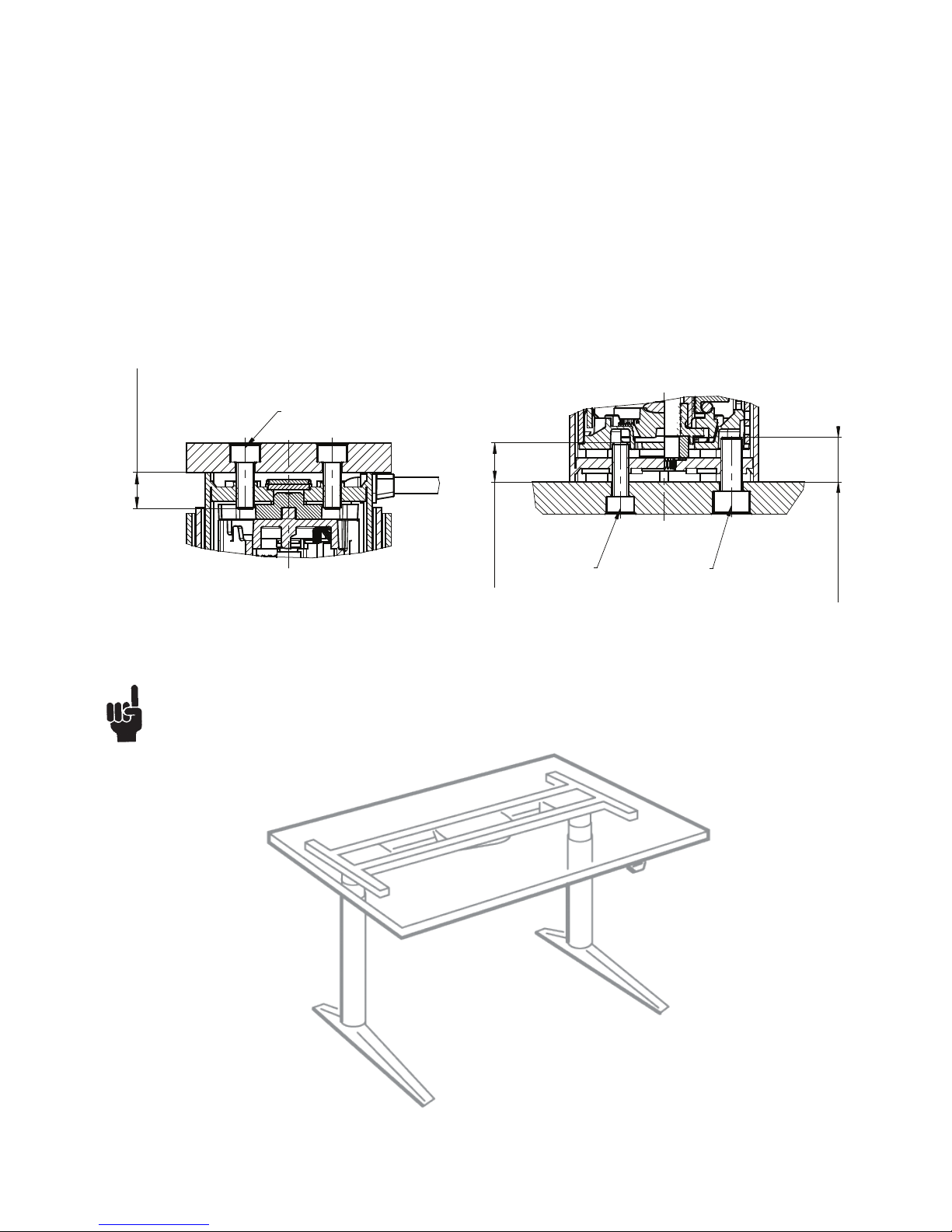

Example of how to mount the DESKLINE
®
system
Page 20
Page 20 of 36

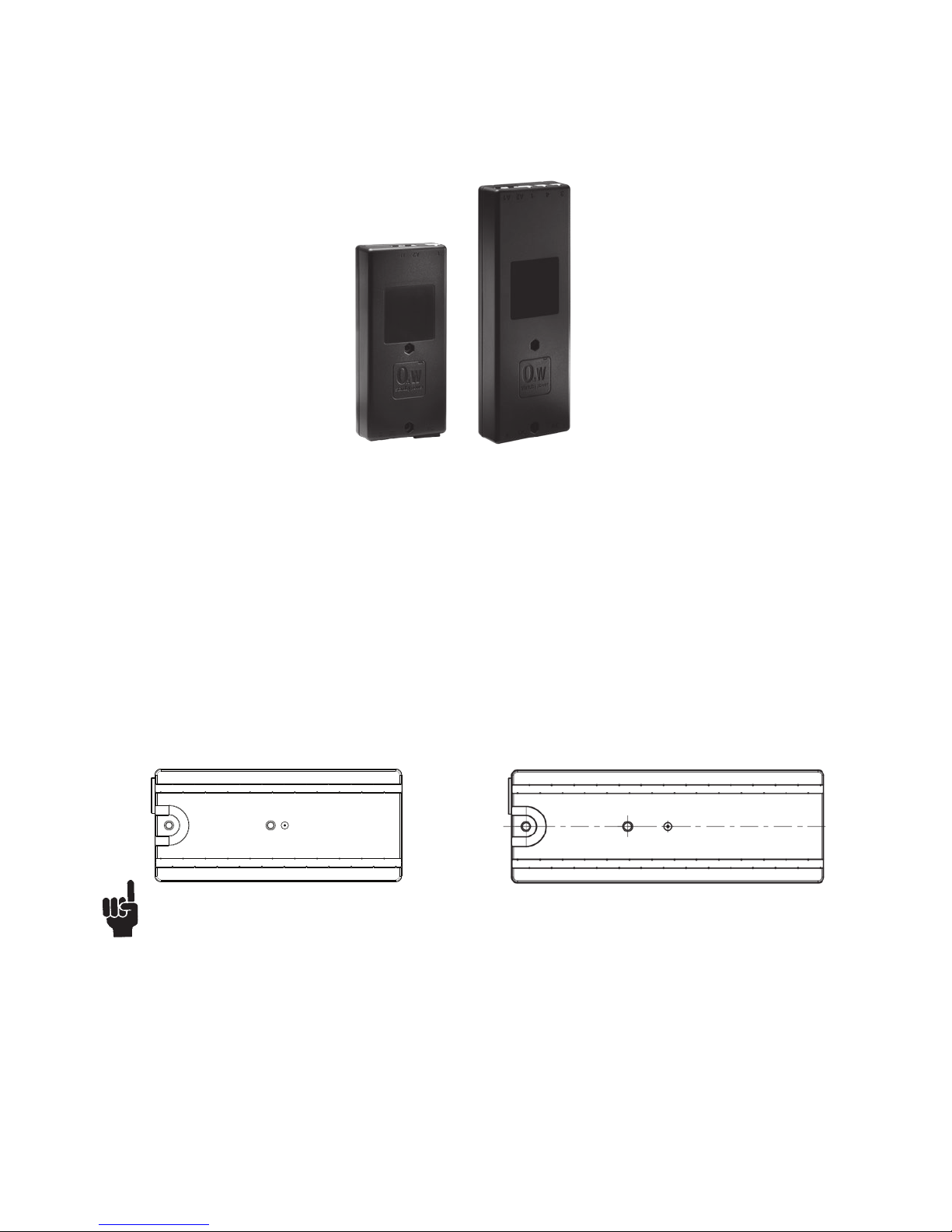

The CBD must not be packed in heat insulating material, but must be placed so that it can emit waste heat into the
surroundings. There are no ventilation holes to consider, the CBD emits heat through the surface.
The plug must be visible when the CBD is mounted so that the supply to the CBD can be disconnected at replacement, if any.
The mounting screws on the control box must be fastened with a max. torque of 1 Nm.
The mounting surface to which the control box is attached should have a surface evenness of better than ±0.5 mm.
Bottom with cable grooves
The bottom of the CBD6S (SMPS) is equipped with two cable grooves improving the cable management when mounting. The
grooves can be used to bypass the CBD for both motor cables and the mains cable (EU version only) from one side to the
other, giving a cleaner design.
Remember to lead the cables through the grooves before mounting the control box.

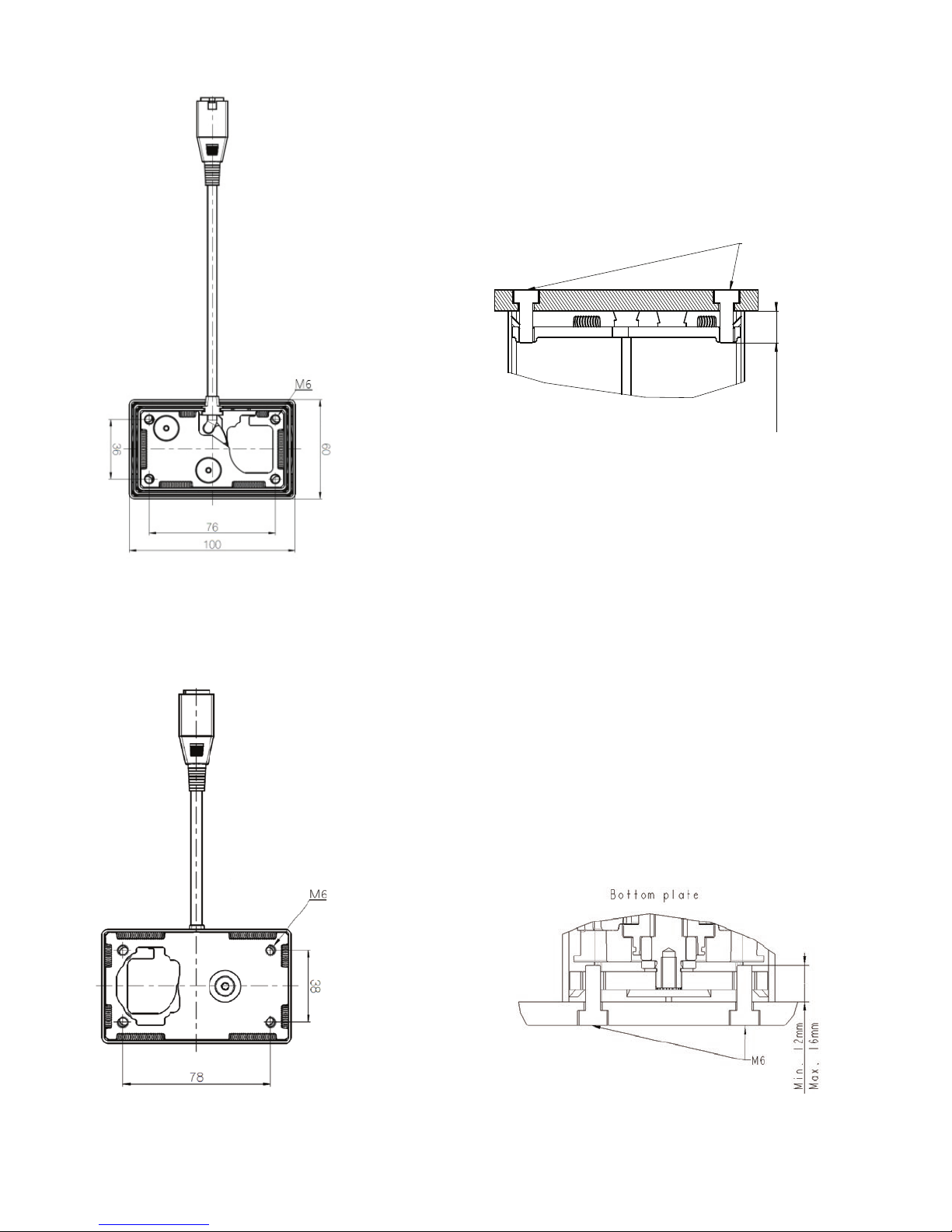

For mounting and operation of the desk panel, please see the separate user manual for desk panels.
Mounting guidelines CBD6S (SMPS)
The control box is to be fastened with 2 screws with a head diameter between Ø 8 and Ø 10 mm. Out of regard for the surface
tension ø 10 mm is preferable due to lower surface tension. See drawing appendix for placing of mounting holes and the
space the CBD takes up.

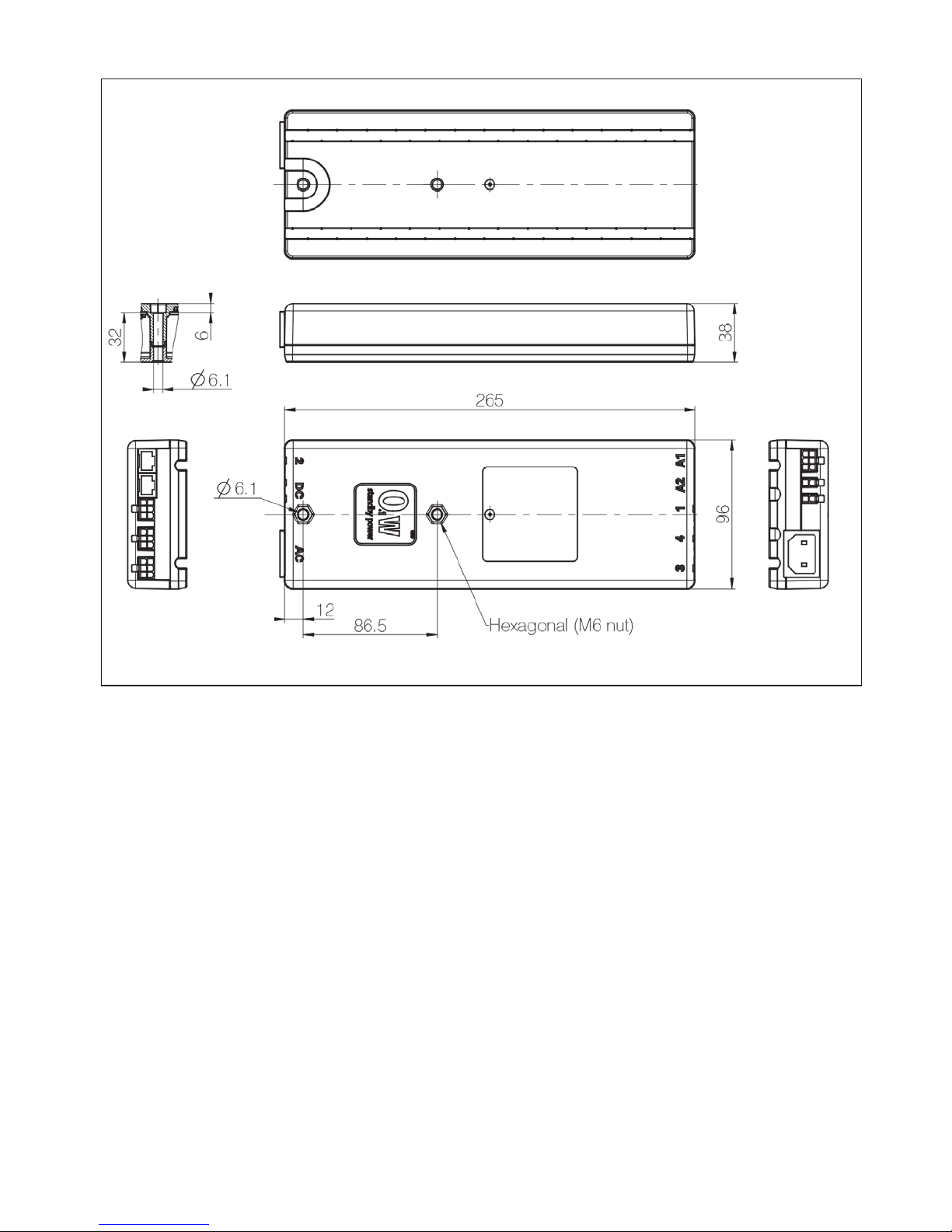

CBD6S 200W and CBD6S 300W
Page 21
Page 21 of 36
Figure 7

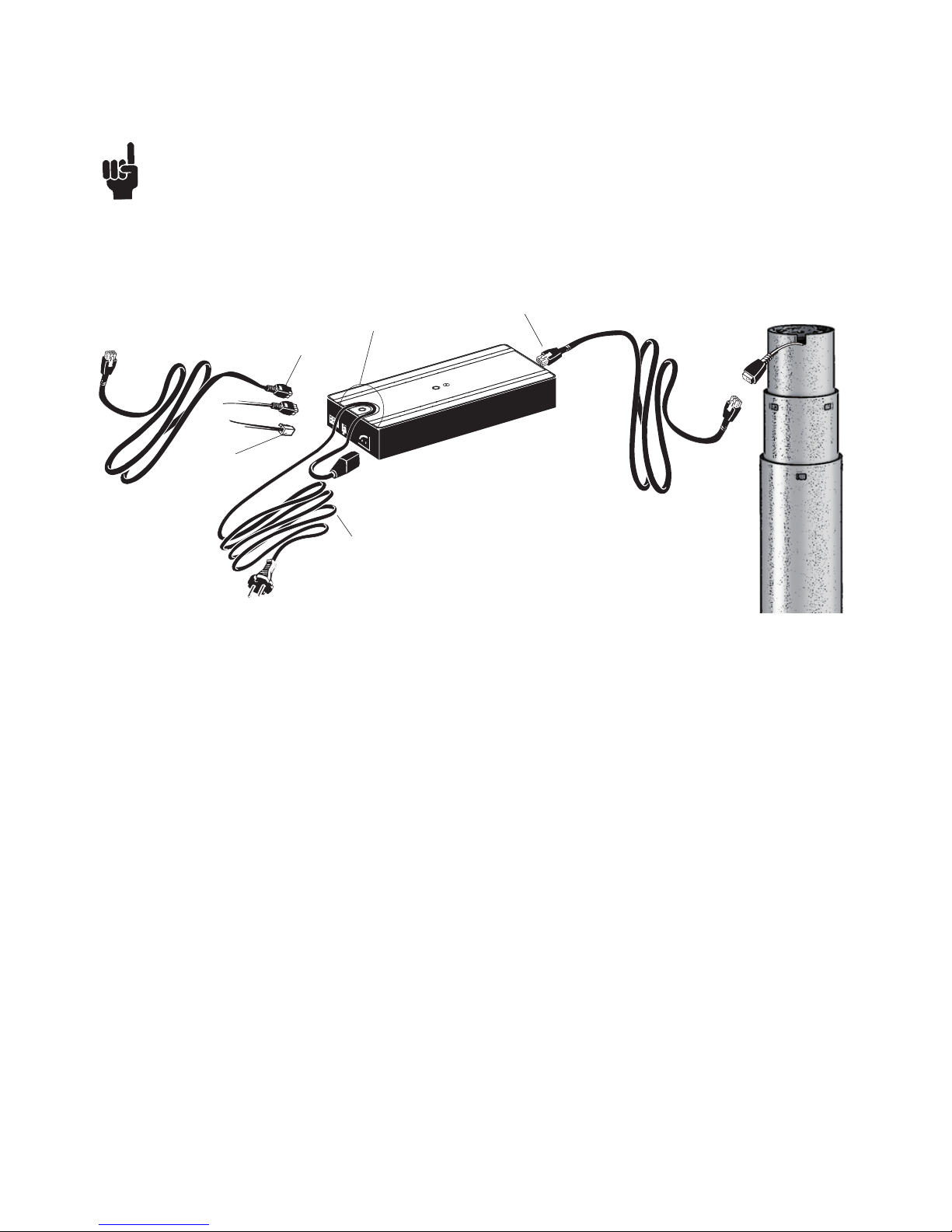

Electrical connection of the DB/DL system
The DB/DL system is to be connected as shown on figure 7. The DB/DL is to be connected to the sockets on the control box by
means of the motor cables, which have a 6-pin plug in each end.
Finally, the mains cable is to be mounted and power switched on. Please note that the control box must only be
connected to the voltage stated on the label.
DP
DL/DB
Cable relief
Mains cable
DL/DB
Page 22
Page 22 of 36
Initialisation of the DESKLINE® parallel system
The DESKLINE system is initialised by pressing the down button once or twice and holding it down until the DB/DL runs into
end stop. It will then automatically run approx. 3 mm out again and hereafter slowly run in again. Only release the down
button when the movement has stopped completely.
If the button is released before the sequence is completed, the initialisation is interuppted and must be started again
from the beginning.
The first two times the system runs into the outward end-stop, it will automatically run approx. 3 mm back in inward direction.
The CBD6S (SMPS) can control the DB/DL in 2-parallel, 3-parallel, 4-parallel or even multi-parallel.
Page 23
Page 23 of 36
PIEZO™: description of the feature
For optimised safety against squeezing and blocking on a desk, LINAK has developed the DESKLIFT columns with an
integrated sensor, called PIEZO. The option minimises the risk of damages on a desk caused by squeezing or blocking of
obstacles in up and down direction. Examples could be driving down into an office chair or into a container or up into a
windowsill. To a certain extent, the system also increases the personal safety, but it does not comply with legislation describing
personal safety.
PIEZO allows the DBs or columns to have the standard built-in dimension and the standard stroke length. There are no visible
changes to the column.

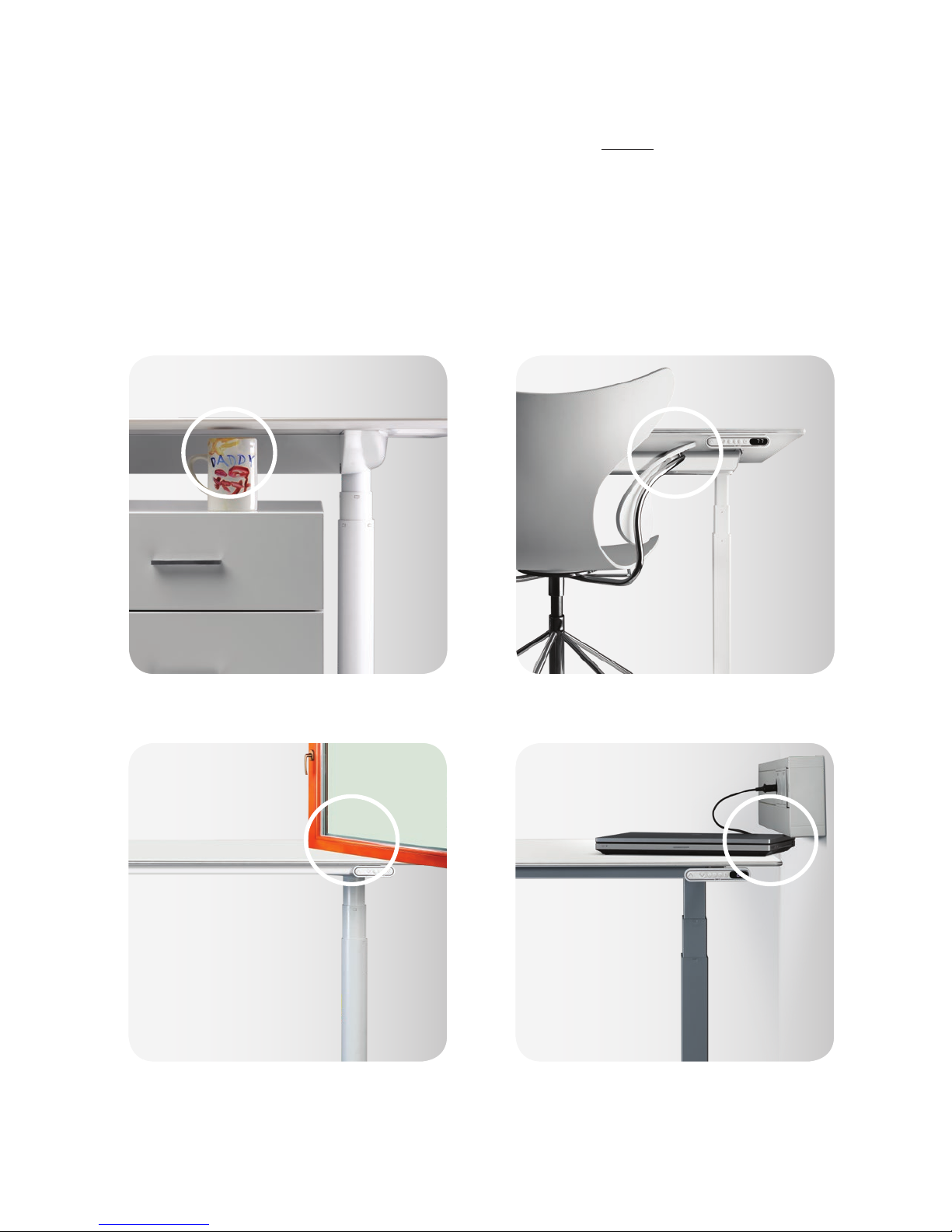

Examples where PIEZO avoids squeezing situations.
Page 24
Page 24 of 36
Accessories and repair
Ordering accessories
Order from your nearest LINAK® dealer or subsidiary.
Accessories
Please contact your nearest LINAK dealer for information.
Repairs
Systems should only be repaired by an authorised LINAK service centre or engineer. Systems to be repaired under warranty
must be sent to an authorised LINAK service centre.
Warning!
By unauthorised opening of the system there is a risk that it may malfunction at a later date.
Spare parts
Please contact your nearest LINAK dealer for information on spare parts.
Page 25
Page 25 of 36
Disposal of LINAK products
As LINAK customers often ask us how our products can be disposed of or scrapped, we have prepared this guidance that enables
a classification to different waste fractions for recycling or combustion.
Guidance
We recommend that our products be disassembled as much as possible and divided into different waste groups for recycling or
combustion.
For example, waste can be sorted into metals, plastics, cable scrap, combustible materials and recoverable resources.
Some of these main groups can be further divided into subgroups; e.g. metal can be divided into steel/aluminium/copper and
plastic can be divided into ABS/PA/PE/PP.
As an example, the table below breaks down the different components in LINAK products to various recycling groups:
Product Components Recycling group
Column/ Actuator : Spindle and motor
Plastic housing
Cable
PC boards
Metal scrap
Plastic recycling or combustion
Cable scrap or combustion
Electronic scrap
Control Box : PC boards
Plastic housing
Cable
Transformer
Electronic scrap
Plastic recycling or combustion
Cable scrap or combustion
Metal scrap
Handset/Control : Plastic housing
Cable
PC boards
Plastic recycling or combustion
Cable scrap or combustion
Electronics scrap
By now, almost all our casted plastic parts are supplied with an interior code for plastic types and fibre contents, if any.
Main groups of disposal
Product main groups Metal scrap Cable scrap Electronics scrap Plastic recycling or
combustin
Comments
DL12 X X X X
DL12XL X X X X
DL14 X X X X
DB14 X X X X
DL17 X X X X
CBD6S (SMPS) X X
DPXX X X X
Disposal of batteries
Details regarding safe disposal of used and leaking batteries:
Batteries should be disposed in accordance with appropriate federal, state and local regulations. LINAK recommends that
used or leaking batteries are disposed through local recycling system. Please do not throw used or leaking batteries in normal
household waste or in nature. This will cause damage to the enviroment.
How to deal with leaking batteries
Leaking batteries should be disposed as described above.
If leaking batteries are discovered in the product, the batteries must be removed at once to minimise damage to the product. If
leaking batteries are left in the product, it might become defective.
It is recommended to use plastic gloves when handling leaking batteries. The contents of leaking batteries can cause chemical
burns and respiratory irritation.
If exposed to the contents of a leaking battery, please wash with soap and water. If irritation persists, please seek medical
attention. In case of eye contact, please flush eyes thoroughly with water for 15 minutes and seek medical attention."
Page 26
Page 26 of 36
Label for DL14 Label for DB14 Label for DL17Label for DL12
Label for CBD6S 200W (SMPS)
Label for CBD6S 300W (SMPS)
up to 4 channels
Labels
Page 27
Page 27 of 36
DRAWING APPENDIX

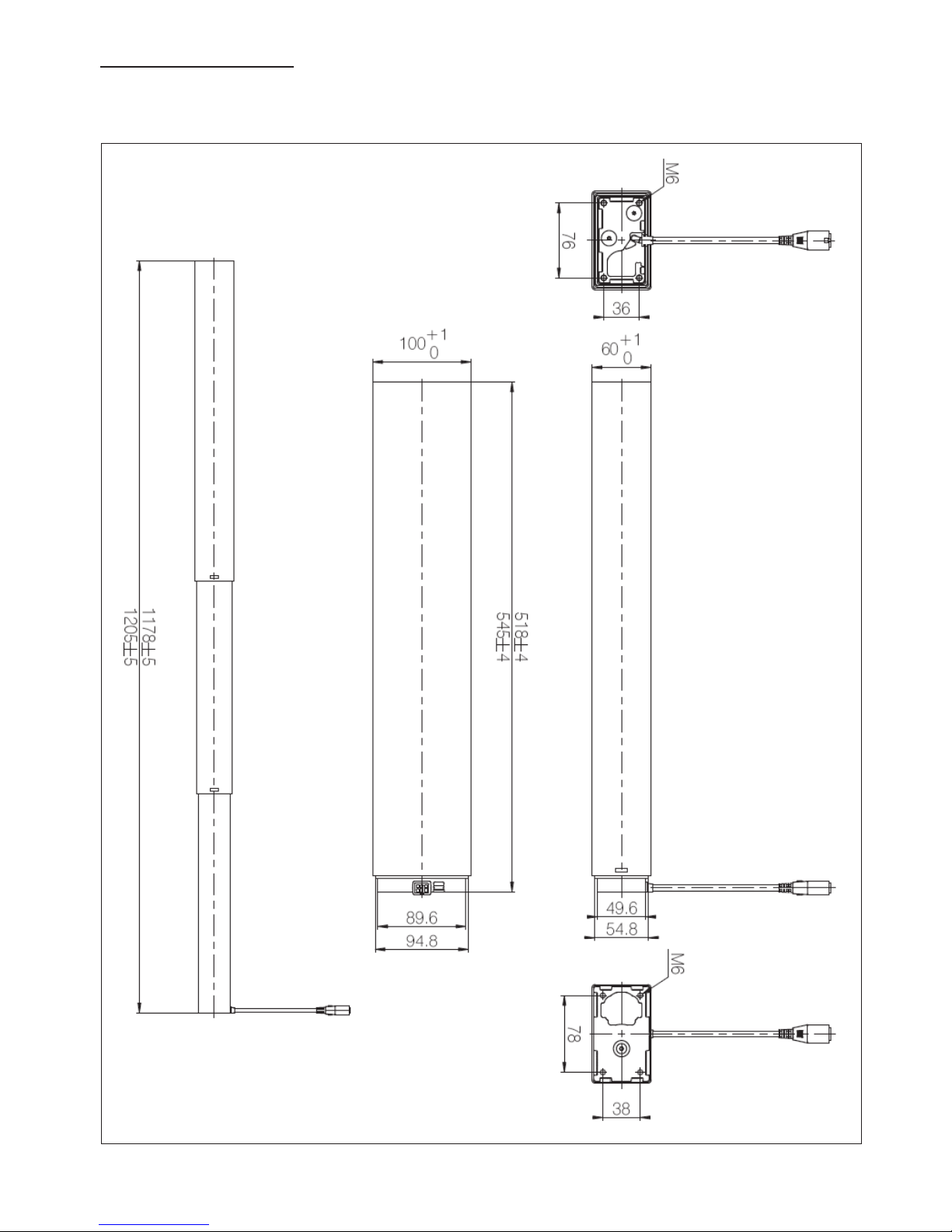

DL12 without bracket
Page 28
Page 28 of 36

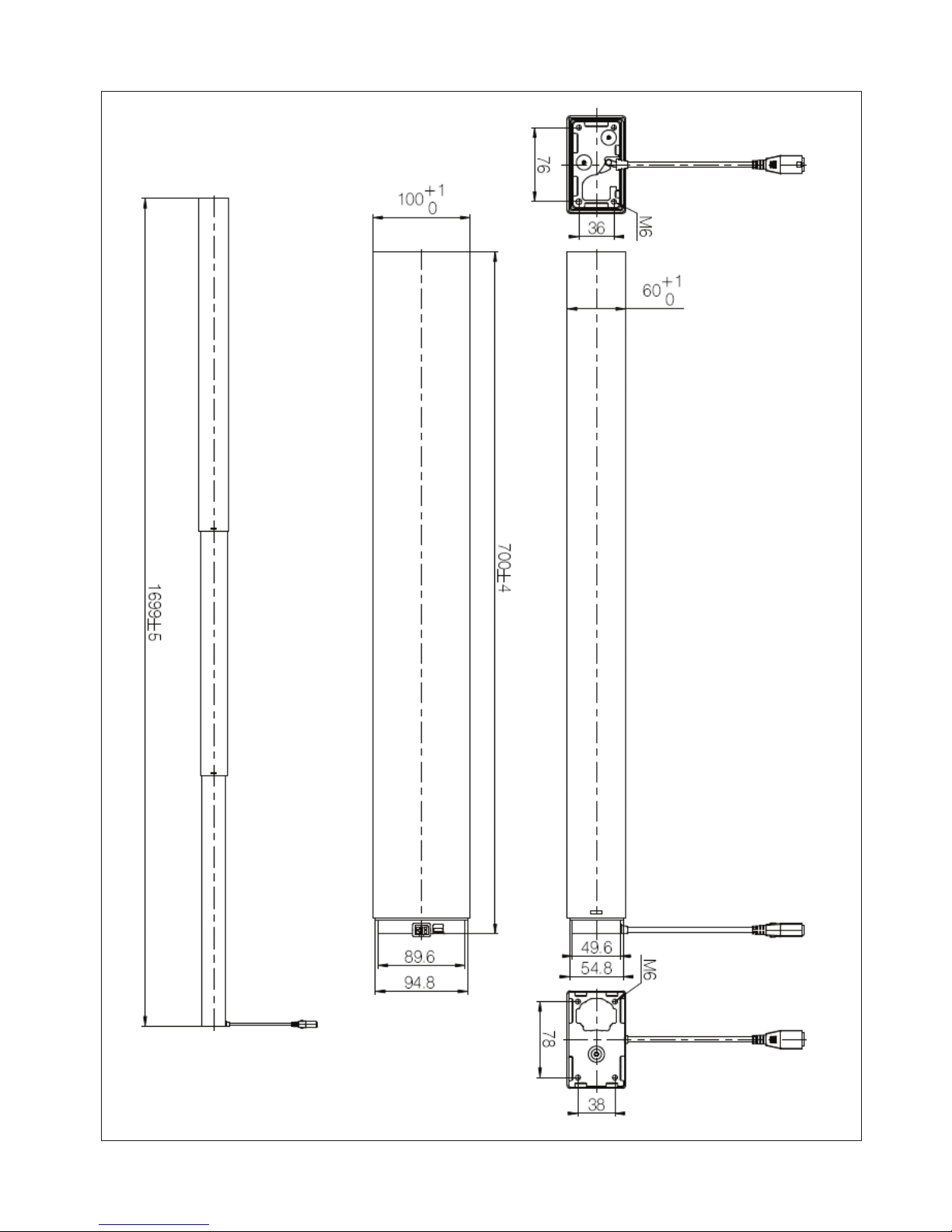

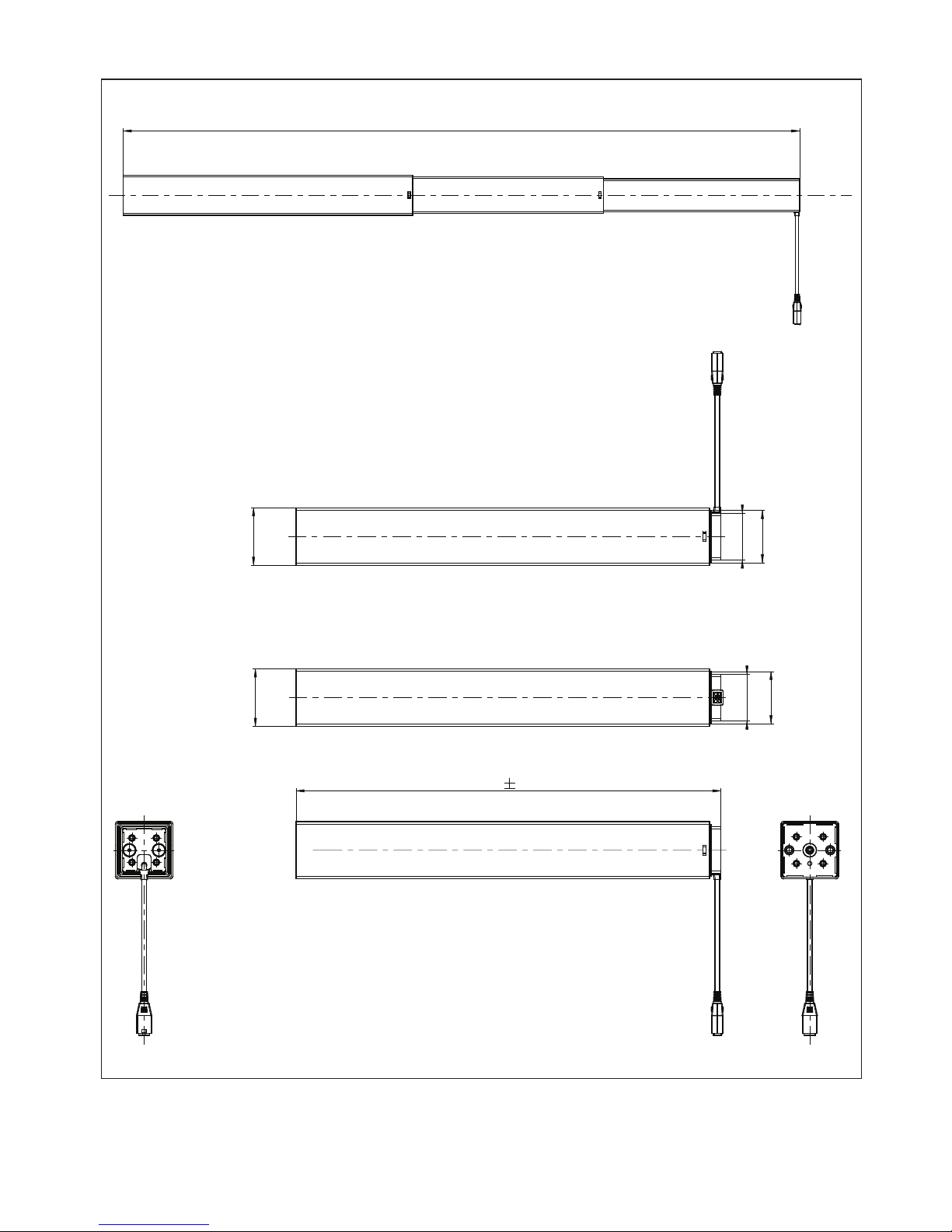

DL12XL extended version
Page 29
Page 29 of 36

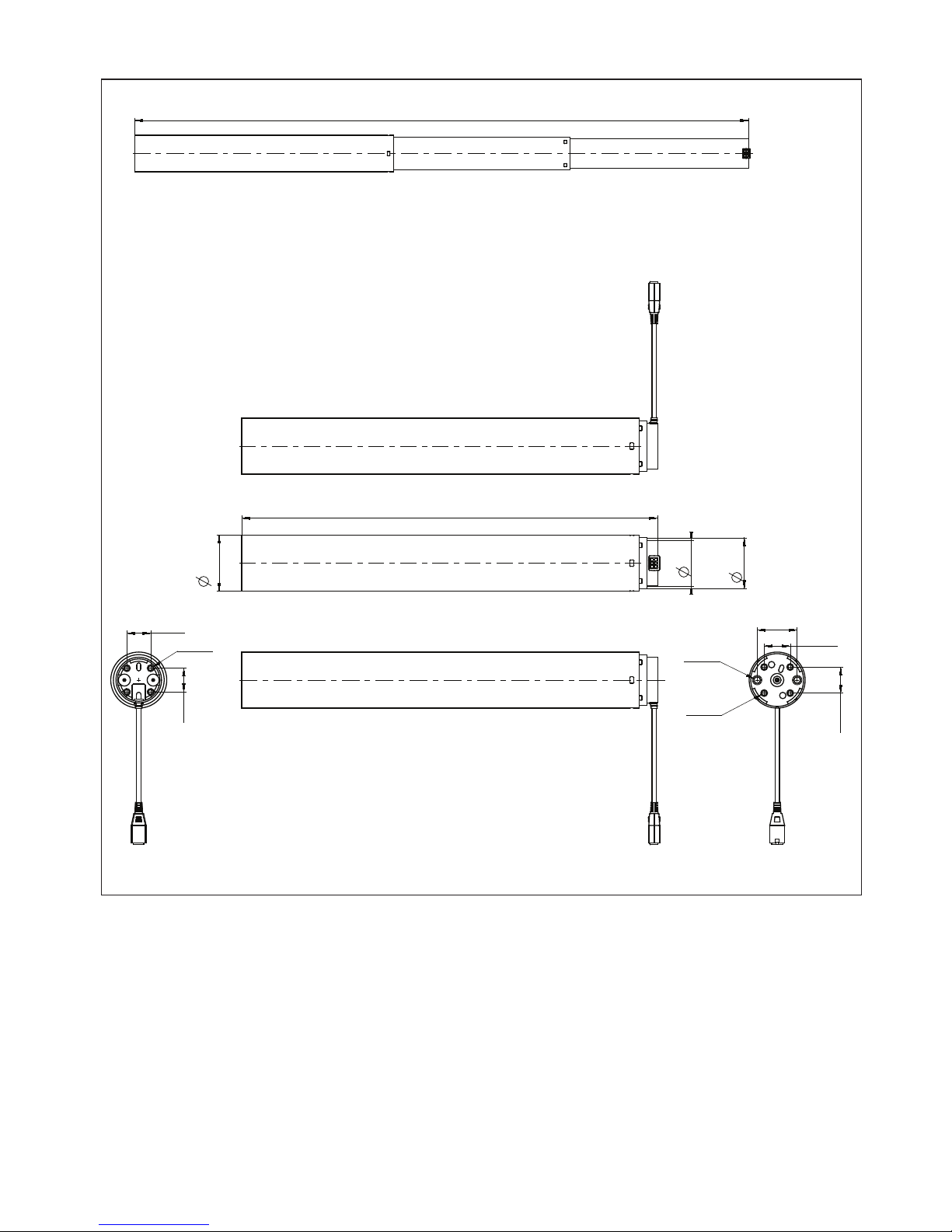

DL14
1185
+8
-3
70
+1
0
520
+5
-2
63.5
57
32.53
32.53
50
2xM8
4xM6
29.7
29.7
4xM6
Page 30
Page 30 of 36
DL17
57.2
63.6
70
+1
0
70
+1
0
518 3.5
57.2
63.6
1178
+6.5
-4.5
Page 31
Page 31 of 36

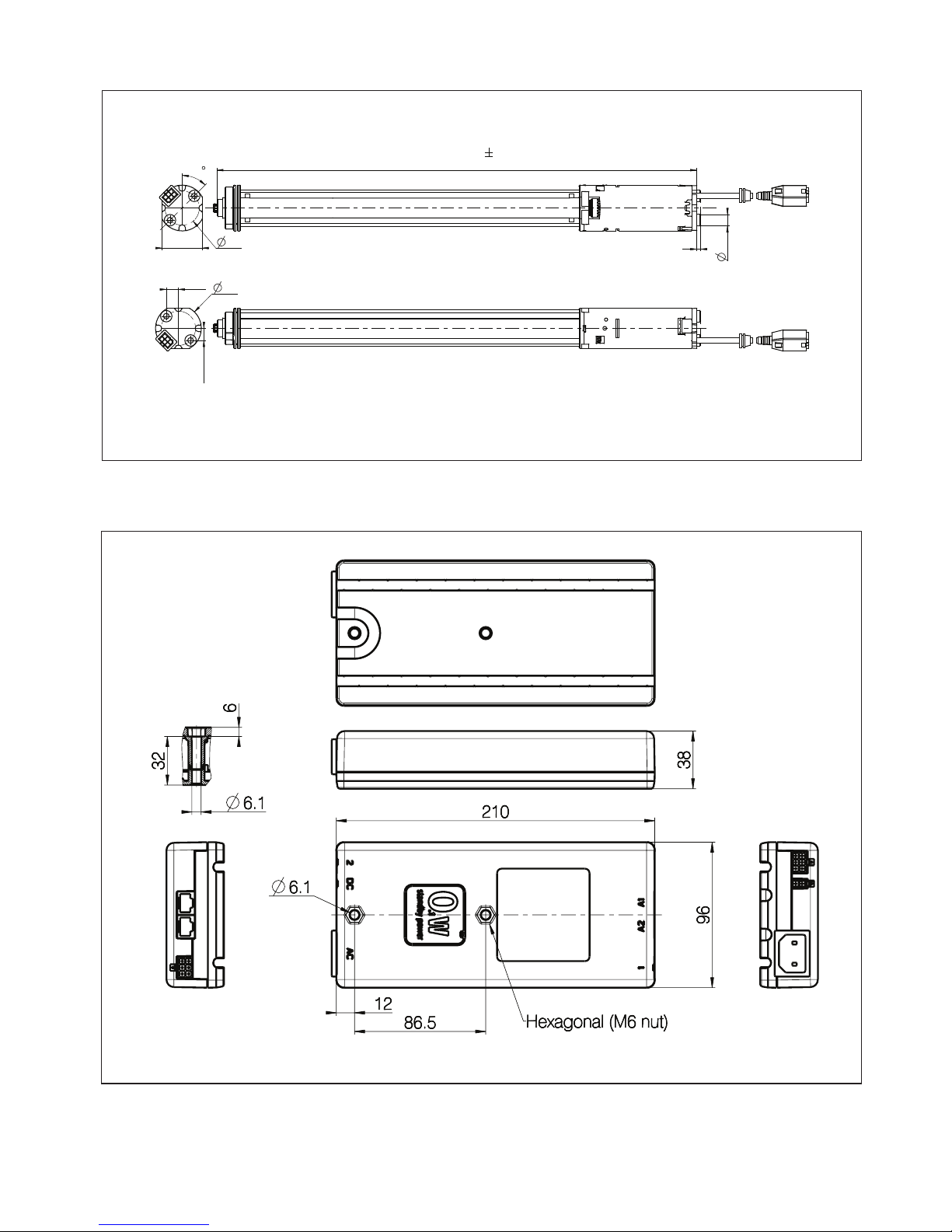

DB14
CBD6S 200W (SMPS)
45
12
4
48
12.73
12.73
Nominal length 508 3mm
Minimum length retracted at max. load 503
36
42
Page 32
Page 32 of 36
CBD6S 300W (SMPS) up to 4 channels
Page 33
Page 33 of 36
DECLARATION OF CONFORMITY
LINAK A/S
Smedevænget 8
DK - 6430 Nordborg
hereby declares that LINAK Actuator System composed of:
Control Box(s) CBD6SP00020A-309
CBD6S*000*0A-709
(The ‘*’ in the product description can either be a character or a number , thereby defining the variation of the product)
And
Linear Actuator(s) 31, DB4, DB5, DB6, DB7, DB9, DB12, DB14, DB 16, LA23 series and / or
Lifting Column(s) DL1A, DL2, DL4, DL5, DL6, DL7, DL8, DL9, DL10, DL11, DL12, DL14, DL15, DL16, DL17, DL19,
BASE1 series
And
Desk Panel(s) DP1C, DP1K, DP1L, DP1V, DP1U, DPA, DPB, DPF, DPG, DPH, DPT, WDPL1 series
complies with EMC Directive: 2014/30/EU according to following standards:
EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011+AC:2012
complies with Low Voltage Directive 2014/35/EU according to the standard:
EN 60335-1:2012+A11:2014
complies with RoHS2 Directive 2011/65/EU according to the standard:
EN 55581:2012
Additional information:
The system does also comply with the standard: EN 13849-1:2015 SRP/CS Cat. B, PL = b and SRESW PL = b
Note 1: Exempted CBD6S with SW03003007 printed on the label.
Nordborg, 2017-12-08
LIN AK A/S
John Kling, B.Sc.E.E.
Certification and Regulatory Affairs
Authorized to compile the relevant technical documentation
Original Declaration
Page 34
Page 34 of 36
LINAK APPLICATION POLICY
The purpose of the application policy is to define areas of responsibilities in relation to applying a LINAK product defined as
hardware, software, technical advice, etc. related to an existing or a new customer application.
LINAK products as defined above are applicable for a wide range of applications within the Medical, Furniture, Desk and
Industry areas. Yet, LINAK cannot know all the conditions under which LINAK products will be installed, used, and operated, as
each individual application is unique.
The suitability and functionality of the LINAK product and its performance under varying conditions (application, vibration,
load, humidity, temperature, frequency, etc.) can only be verified by testing, and shall ultimately be the responsibility of the
LINAK customer using any LINAK product.
LINAK shall be responsible solely that LINAK products comply with the specifications set out by LINAK and it shall be the
responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question.
Page 35
Page 35 of 36
Page 36
Page 36 of 36
Copyright
©
LINAK 2018.02 MA-M9-02-493-H LINAK A/S reserve the right to make technical alterations
Terms of use
The user is responsible for determining the suitability of LINAK products for specific application. LINAK takes great care in providing accurate and
up-to-date information on its products.
However, due to continuous development in order to improve its products, LINAK products are subject to frequent modifications and changes
without prior notice. Therefore, LINAK cannot guarantee the correct and actual status of said information on its products.
While LINAK uses its best efforts to fulfil orders, LINAK cannot, for the same reasons as mentioned above, guarantee the availability of any
particular product. Therefore, LINAK reserves the right to discontinue the sale of any product displayed on its website or listed in its catalogues or
other written material drawn up by LINAK.
All sales are subject to the Standard Terms of Sale and Delivery for LINAK. For a copy hereof, please contact LINAK.
FACTORIES
China
LINAK (Shenzhen) Actuator Systems, Ltd.
Tel: +86 755 8610 6656
Tel: +86 755 8610 6990
E-mail: [email protected]
www.linak.cn
Denmark - Headquarters
LINAK A/S - Group Headquarters
Tel: +45 73 15 15 15
Fax: +45 74 45 80 48
Fax (Sales): +45 73 15 16 13
E-mail: [email protected]
www.linak.com
USA
LINAK U.S. Inc.
North and South American Headquarters
User support: +1 800 392 7638
Tel: +1 502 253 5595
Fax: +1 502 253 5596
E-mail: [email protected]
www.linak-us.com
SUBSIDIARIES
Australia
LINAK Australia Pty. Ltd
Tel: +61 3 8796 9777
Fax: +61 3 8796 9778
E-mail: [email protected]
www.linak.com.au
Austria
LINAK Repräsentanz - Österreich (Wien)
Tel: +43 (1) 890 7446
Fax: +43 (1) 890 744615
E-mail: [email protected]
www.linak.at
Belgium
LINAK Actuator-Systems NV/SA
(Belgium & Luxembourg)
Tel: +32 (0)9 230 01 09
Fax: +32 (0)9 230 88 80
E-mail: [email protected]
www.linak.be - www.fr.linak.be
Brazil
LINAK DO BRASIL COMÉRCIO DE
ATUADORES LTDA.
Tel: +55 (11) 2832 – 7070
Fax: +55 (11) 2832 – 7060
E-mail: [email protected]
www.linak.com.br
C
anada
LINAK Canada Inc.
Tel: +1 502 253 5595
Fax: +1 416-255-7720
E-mail: [email protected]
www.linak-us.com
Czech Republic
Denmark - International
LINAK International
Tel: +45 73 15 15 15
Fax: +45 74 45 90 10
Fax (Sales): +45 73 15 16 13
E-mail: [email protected]
www.linak.com
Denmark - Sales
Finland
LINAK OY
Tel: +358 10 841 8700
E-mail: linak@linak.fi
www.linak.fi
France
LINAK FRANCE E.U.R.L
Tel: +33 (0) 2 41 36 34 34
Fax: +33 (0) 2 41 36 35 00
E-mail: [email protected]
www.linak.fr
Germany
India
LINAK A/S India Liaison Office
Tel: +91 120 4531797
Fax: +91 120 4786428
E-mail: [email protected]
www.linak.in
Italy
LINAK ITALIA S.r.l.
Tel: +39 02 48 46 33 66
Fax: +39 02 48 46 82 52
E-mail: [email protected]
www.linak.it
Japan
Malaysia
LINAK Actuators Sdn. Bhd.
Tel: +60 4 210 6500
Fax: +60 4 226 8901
E-mail: [email protected]
www.linak.my - www.linak.co.id
www.linak.pk - www.linak.ph
Netherlands
LINAK Actuator-Systems B.V.
Tel: +31 76 5 42 44 40
Fax: +31 76 5 42 61 10
E-mail: [email protected]
www.linak.nl
New Zealand
LINAK New Zealand Ltd
Tel: +64 9580 2071
Fax: +64 9580 2072
E-mail: [email protected]
www.linak.com.au
Norway
DISTRIBUTORS
Argentina
NOVOTEC ARGENTINA SRL
Tel: 011-4303-8989/8900
Fax: 011-4032-0184
E-mail: [email protected]
www.novotecargentina.com
Colombia
India
Mechatronics Control Equipments India Pvt Ltd
Tel: +91-44-28558484, 85
E-mail: [email protected]
www.mechatronicscontrol.com
Indonesia
PT. HIMALAYA EVEREST JAYA
Tel: +6 221 544 8956, +6 221 544 8965
Fax: +6 221 619 1925
Fax (Sales): +6 221 619 1925
E-mail: [email protected]
www.hej.co.id
Iran
Israel
Russia
Singapore
Servo Dynamics Pte Ltd
Tel: +65 6844 0288
Fax: +65 6844 0070
E-mail: [email protected]
www.servo.com.sg
South Africa
Industrial Specialised Applications CC
Tel: +27 011 466 0346
E-mail: [email protected]
www.isaza.co.za
United Arab Emirates
Poland
LINAK Polska
Tel: +48 22 295 09 70
E-mail: [email protected]
www.linak.pl
Republic of Korea
LINAK Korea Ltd.
Tel: +82-(0)2-6231-1515
Fax: +82-(0)2-6231-1516
E-mail: [email protected]
www.linak.kr
Russia
Spain
LINAK Actuadores, S.L.u
Tel: +34 93 588 27 77
Fax: +34 93 588 27 85
E-mail: [email protected]
www.linak.es
Sweden
LINAK Scandinavia AB
Tel: +46 8 732 20 00
Fax: +46 8 732 20 50
E-mail: [email protected]
www.linak.se
Switzerland
LINAK AG
Tel: +41 43 388 31 88
Fax: +41 43 388 31 87
E-mail: [email protected]
www.de.linak.ch - www.fr.linak.ch
www.it.linak.ch
Taiwan
LINAK (Shenzhen) Actuator systems Ltd.
Taiwan Representative office
Tel: +886 2 27290068
Fax: +886 2 27290096
E-mail: [email protected]
www.linak.tw
Turkey
LINAK İth. İhr. San. ve Tic. A.Ş.
Tel: + 90 312 4726338
Fax: + 90 312 4726635
E-mail: [email protected]
www.linak.com.tr
United Kingdom
LINAK UK Limited
Tel: +44 (0)121 544 2211
Fax: +44 (0)121 544 2552
E-mail: [email protected]
www.linak.co.uk
Loading...
