Page 1

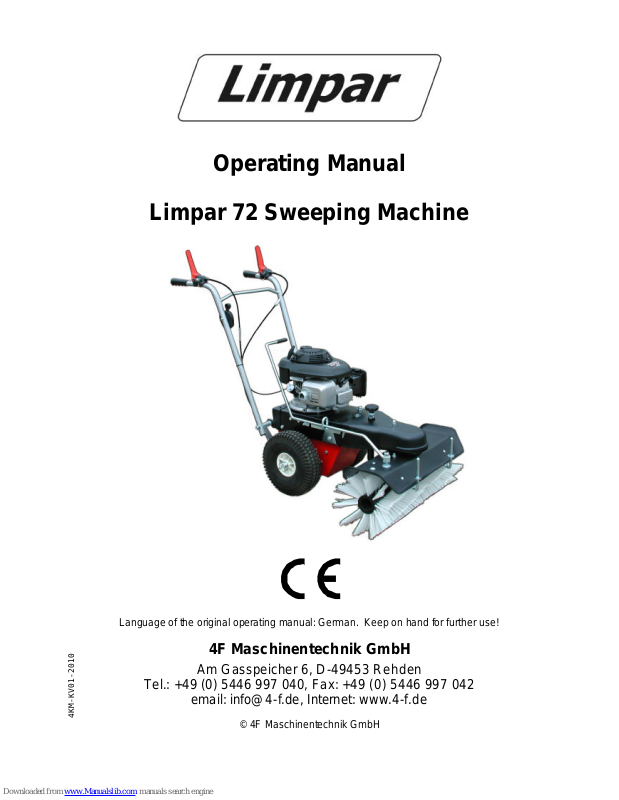

Operating Manual

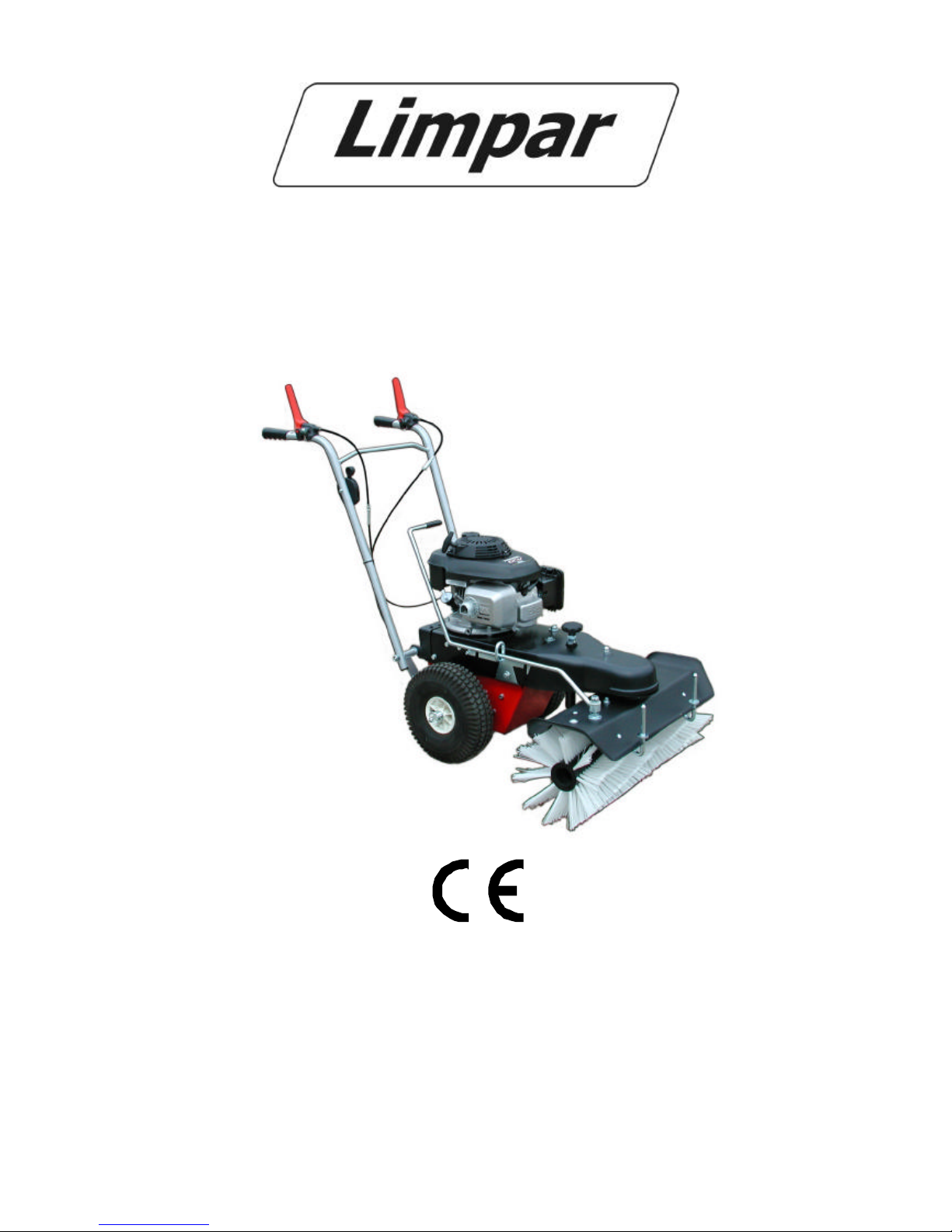

Limpar 72 Sweeping Machine
Language of the original operating manual: German. Keep on hand for further use!
4F Maschinentechnik GmbH
Am Gasspeicher 6, D-49453 Rehden
Tel.: +49 (0) 5446 997 040, Fax: +49 (0) 5446 997 042
email: [email protected], Internet: www.4-f.de
© 4F Maschinentechnik GmbH
4KM
-KV01-2010
Page 2
Page 2 of 39 05/19/2010 Limpar 72
Introduction
Dear reader,
This operating manual provides all information for safe
operation of the Limpar 72 sweeping machine.
The Limpar 72 sweeping machine has been designed and built
in accordance with the state of the art and recognised safety
rules and regulations. Nevertheless dangers for personnel or
objects can occur, because not all danger zones can be
avoided if the functionality is to remain intact. However you can
prevent accidents due to these dangers by complying with the
instructions in this operating manual. Moreover you will then be
able to use the sweeping machine to its full capacity and avoid
unnecessary disturbances.
CAUTION!
There is danger of injury and danger of material damage when
assembling, operating, and maintaining the sweeping machine.
Therefore:
• First read this operating manual carefully, prior to assembly
and operation of the sweeping machine. Always comply with
the instructions and information contained herein, particularly
the safety instructions.
• If the operating manual is lost or in poor condition, request a
new copy from the manufacturer (the same applies for parts of
the operating manual).
This operating manual only applies for the sweeping machine
specified on the cover sheet and at the end of every page.
Compare this information with the information on the type plate
of the sweeping machine.
After you have read the entire operating manual thoroughly for
the first time, take good care of the operating manual over the
entire service life of the sweeping machine, so that you can look
up something later.
If you sell the sweeping machine, give this operating manual to
the new owner.
All information, illustrations and dimensions in this operating
manual are non-binding. No claims whatsoever can be derived
from this information, illustrations or dimensions.
Introduction
Page 3
Limpar 72 19.5.2010 Page 3 of 39
Reprinting or duplication of any type, including excerpts,
requires the written permission of the manufacturer.
Conversion of, or changes to the sweeping machine are only
permitted with the manufacturer's written consent. Unauthorised
conversion voids any liability on the part of the manufacturer, as
well as the guarantee.
Only use original spare parts and accessories that are
approved by the manufacturer. Otherwise the design-specified
characteristics of the sweeping machine, the functionality or the
safety can be impaired. Consequently the use of other parts
voids the liability for the ensuing consequences.
Contact your specialist dealer to order spare parts or
accessories.
In addition comply with the instructions in the operating manual
of the motor manufacturer. This is included in the sub-package
for the sweeping machine.
4F Maschinentechnik GmbH assumes no liability for the content
of the operating manual provided by the motor manufacturer.
Explanation of symbols, signs and direction indications
For better understanding, the following conventions are used for
this operating manual:
1.
To emphasise important information, the following types of
special notices are used:
DANGER!
•
There is an imminent dangerous situation that results in death
or serious injury if it is not avoided.
WARNING!
•
There is a possible dangerous situation that can result in death
or serious injury if it is not avoided.
Introduction
Page 4
Page 4 of 39 05/19/2010 Limpar 72
CAUTION!
•
There is a possible dangerous situation that can result in minor
injury or material damage, if it is not avoided.
ATTENTION!
...indicates a possible dangerous situation that can result in
material damage, if it is not avoided.
NOTE
...indicates
useful tips and recommendations, as well as information for
efficient and trouble-free operation.
...refers to important information in other sections and documents.
2.
Many texts serve a particular purpose. These texts are marked
as follows:
• Listings.
ð Instructing text, e. g. a sequence of activities.
3.
In the text the sides of the sweeping machine are cited
(left, right, front, rear). Left or right refers to the side that the
operator of the machine sees viewed from the direction of
travel. The sweeping brush of the machine is mounted in front,
the steering arm is mounted in the rear.
Introduction
Page 5
Limpar 72 19.5.2010 Page 5 of 39
Table of contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Table of contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.1 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.2 Non-intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.3 Product observation . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.4 Requirement imposed on the operator or personnel . . 9
1.5 Danger zone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.6 Work clothing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.7 Safety devices and protective devices . . . . . . . . . . . 11
1.7.1 Safety switch . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.7.2 Sweeper brush deck . . . . . . . . . . . . . . . . . . . 11
1.7.3 Protective cover . . . . . . . . . . . . . . . . . . . . . 11
1.8 Safety regulations and accident prevention
regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.9 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

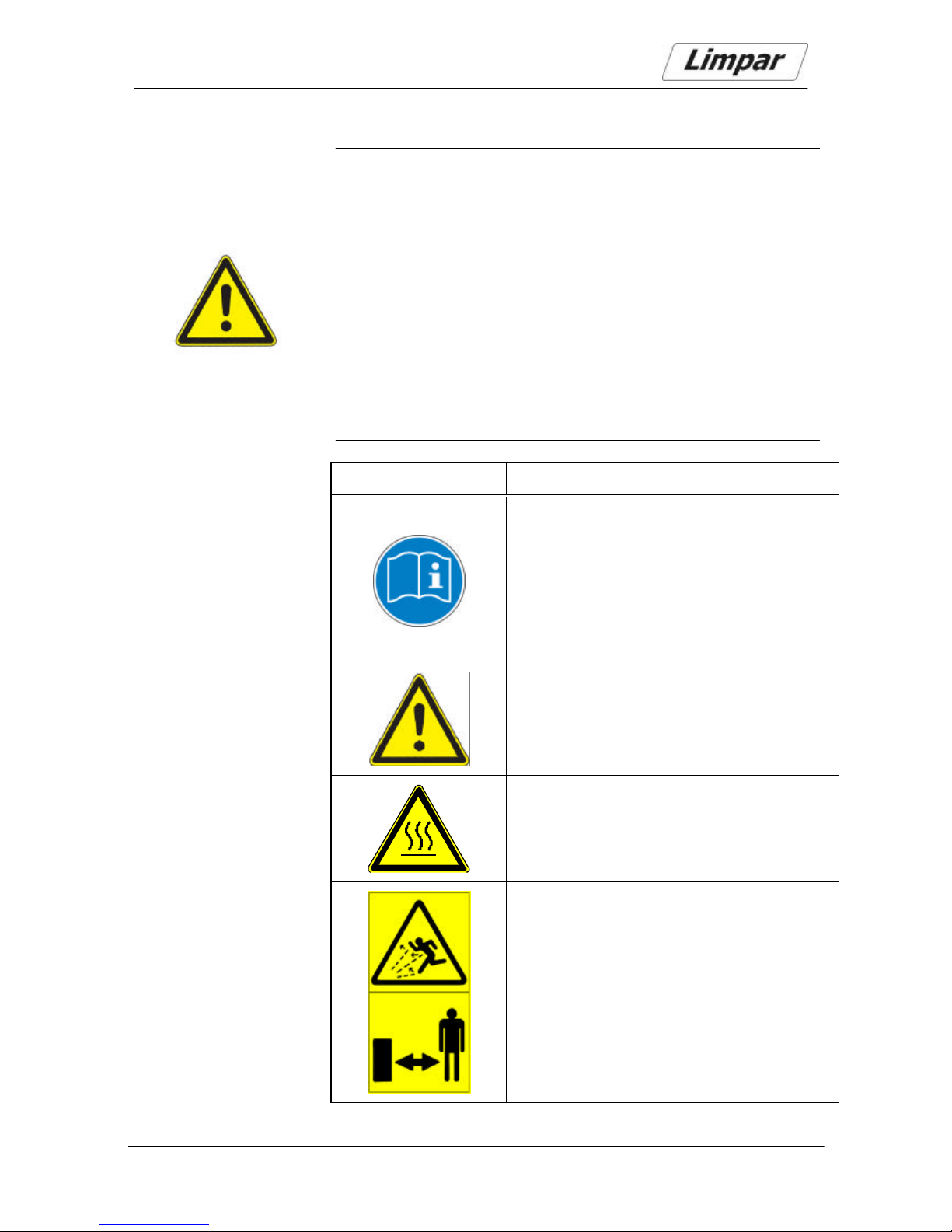

1.10 Safety signs on the sweeping machine . . . . . . . . . 14
2 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.1 Type plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.2 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.3 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3 Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.1 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.2 Adjusting the steering arm . . . . . . . . . . . . . . . . . . . . 19
3.3 Mounting the pivot support for side adjustment
of the sweeping brush . . . . . . . . . . . . . . . . . . . . . . . 21
4 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.1 Preparatory activities . . . . . . . . . . . . . . . . . . . . 26
4.1.1 Adjusting the steering arm . . . . . . . . . . . . . . . 26
4.1.2 Sweeping brush height adjustment . . . . . . . . . 26
4.1.3 Checking the motor oil level . . . . . . . . . . . . . . 27
4.1.4 Filling fuel . . . . . . . . . . . . . . . . . . . . . 27
Table of contents
Page 6
Page 6 of 39 05/19/2010 Limpar 72
4.2 Sweep operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
4.2.1 Starting the motor . . . . . . . . . . . . . . . . . . . . . . 28
4.2.2 Stopping the motor . . . . . . . . . . . . . . . . . . . . . 28
4.2.3 Switching the traction drive on and off . . . . . . 29
4.2.4 Switching the sweeping brush drive
on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4.2.5 Side adjustment of the sweeping brush . . . . . 30
5 Mainten ance and repair . . . . . . . . . . . . . . . . . . . . 31
5.1 Safety guidelines for maintenance
and repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
5.2 Regular maintenance tasks . . . . . . . . . . . . . . . . . . . 33
5.2.1 Maintenance schedule . . . . . . . . . . . . . . . . . . 33
5.2.2 Maintenance records . . . . . . . . . . . . . . . . . . . . 33
5.2.3 Checking the Bowden cables for ease
of movement . . . . . . . . . . . . . . . . . . . . . . . . . . 33
5.2.4 Checking the air pressure in the tyres . . . . . . 35
5.2.5 Cleaning the sweeping machine . . . . . . . . . . 35
5.2.6 Checking and cleaning the air filter . . . . . . . . 35
5.3 Maintenance and repair verifications . . . . . . . . . . . . 36
6 Dec ommissioning and preservation . . . . . . . . . . . . . . . 37
7 Faults and fault correction . . . . . . . . . . . . . . . . . . . . . . . 37
8 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
8.1 Sweepings collection bin . . . . . . . . . . . . . . . . . . . . . 38
8.2 Snow chains and clearing blade . . . . . . . . . . . . . . . . 38
8.3 Sweeping brushes for winter service . . . . . . . . . . . . 38
9 Specialist dealers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
10 Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . 39
Table of contents
Page 7
Limpar 72 19.5.2010 Page 7 of 39
1 Safety
The basic prerequisite for safe and trouble-free operation of the
sweeping machine is knowledge of the safety instructions and
safety regulations.
Consequently read this chapter carefully all the way through
and comply with the specified instructions and warnings. The
safety instructions and warnings that you find at the appropriate
point in the text of the following chapters must be complied with.
The manufacturer cannot be made liable if the instructions and
warnings are not complied with.
In addition to the instructions contained in this operating
manual, the statutory regulations, particularly the safety and
accident prevention regulations, must also be complied with.
1.1 Intended use
The Limpar 72 sweeping machine may only be used to clean
paths and surfaces that are paved with concrete, asphalt,
paving stones or slabs outside of closed rooms.
Intended use also includes compliance with all the instructions
in the operating manual.
DANGER!
If the sweeping machine is used for a use other than the use
described above, dangerous situations can occur for people or
material damage can occur.
Therefore:
• Only use the sweeping machine for its intended purpose.
• Always comply with all the instructions in this operating manual.
• Particularly refrain from the uses of the sweeping machine
listed in section 1.2. They are considered non-intended use.
Safety
Page 8
Page 8 of 39 05/19/2010 Limpar 72
1.2 Non-intended use
Any use that deviates from that described in section 1.1,
is considered non-intended use.
For example, non-intended use of the sweeping machine
occurs when
• it is used to clean unpaved surfaces e. g. gravel paths,
• it is used to clean roofs or flat roofs,
• it is used in encl osed spaces, e.g. halls, or barns,
• it is used to transport persons or objects,
• it is used to move or carry objects or vehicles,
• it is operated in faulty condition or with safety-relevant
faults,
• it is used without the safety cladding elements that are
installed as standard equipment,
• unsuitable personnel are assigned to operate the sweeping
machine.
1.3 Product observation
Notify us without delay if faults or problems occur when
operating your sweeping machine, or if accidents occur or
nearly occur.
Together with you we will find a solution to the problem and
allow the knowledge gained to flow into our subsequent work.
Safety
Page 9
Limpar 72 19.5.2010 Page 9 of 39
1.4 Requirements imposed on the operator
or personnel
Handling the sweeping machine is only permitted for persons,
• who are at least 16 years old,
• who are physically and mentally suited to do so,
• who have read and understood this operating manual, and
• from whom it is expected that they responsibly perform the
tasks assigned to them.
Commissioning, maintenance, repair and disposal of the
sweeping machine may only be executed by the specialist
dealer or by persons with appropriate technical training and
experience .
1.5 Danger zone
The danger zone is the area in which the safety or the health of
persons is jeopardised. Consequently no one should be in this
area when the sweeping machine is in operation.
WARNING!
For persons in the danger zone there is danger of injury due to
collision with the sweeping machine and due to thrown up
sweepings.
Therefore:
• Only operate the sweeping machine if no one is in the danger
zone.
• Carefully observe the danger zone and stop the sweeping
machine if persons enter the danger zone.

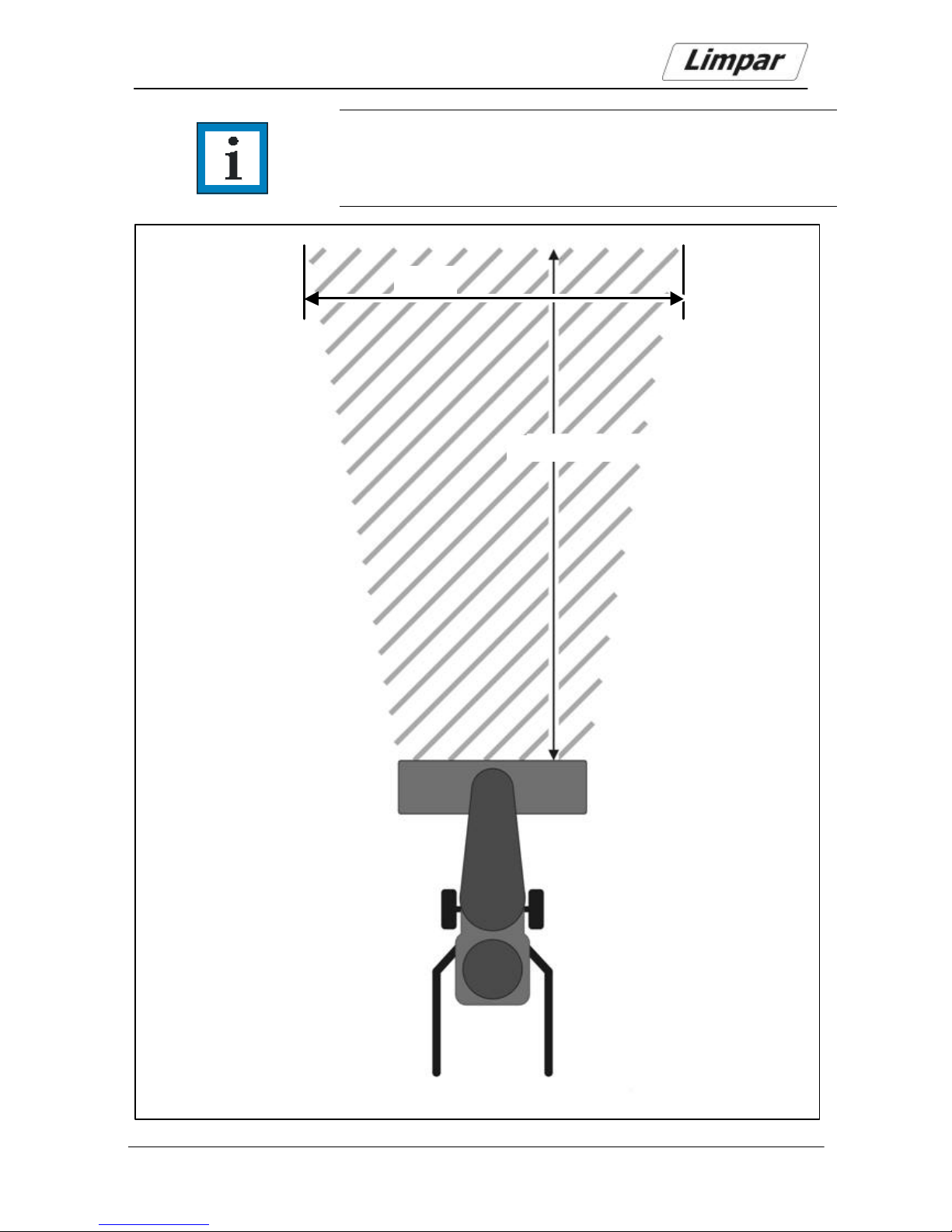

The danger zone is shown in the sketch (see Fig. 1, on the next
page):
A top view of the sweeping machine is shown. The shaded area
is the danger zone.
The danger zone on the right side and left side is determined
through the width of the sweeping brush. Toward the front side
of the sweeping machine the length of the danger zone is 5 m
in front of the sweeping brush.
Safety
Page 10
Page 10 of 39 05/19/2010 Limpar 72
NOTE
When swinging the sweeping brush to the right or left this change in
direction also applies for the danger zone.
Safety
Fig. 1:
Danger zone
2.5 m
5 m ahead of the sweeping brush
Page 11
Limpar 72 19.5.2010 Page 11 of 39
1.6 Work clothing
WARNING!
Unsuitable, loose work clothing, bandanas, ties, and scarves can
be caught by the sweeping brush and pulled in.
Severe injuries are the result.
Therefore:
•
When operating the sweeping machine, and for maintenance
and repair tasks, always wear suitable tight-
fitting work
clothing.
Special protective clothing is not necessary for work with the
sweeping machine. However always wear tight-fitting work
clothing that cannot get caught in the sweeping brush, and that
is appropriate for the respective weather, as well as sturdy
shoes.
For commercial use the owner must ensure that suitable work
clothing is selected and also worn.
1.7 Safety devices and protective devices
1.7.1 Safety switch
The switch levers for traction drive and rotation of the sweeping
brush are designed as safety switches. By pressing down the
switch levers on the steering arm handles, the traction drive and
the rotation of the sweeping broom will be switched on.
To bring the sweeping machine to a standstill, it suffices to
release the switch levers.
1.7.2 Sweeping brush deck
The sweeping brush deck is mounted like a protective sheet
metal element above the sweeping brushes and prevents
operating personnel from being hit by thrown up sweepings.
1.7.3 Protective cover
The belt drives in the interior of the sweeping machine are
considered danger zones and are protected against access by
the front protective cover and the housing.
Safety
Page 12
Page 12 of 39 05/19/2010 Limpar 72
1.8 Safety regulations and accident prevention
regulations
Comply with the following instructions to avoid injury and material
damage. In addition, for commercial use comply with the safety
and accident prevention regulations issued by the Employers
Liability Insurance Associations.
• Only operate the sweeping machine with properly mounted
safety devices and protective devices (see section 1.7).
These devices may only be dismounted for maintenance and
repair tasks. After concluding these tasks the safety devices
and protective devices must be immediately remounted.
Otherwise there is significant danger of injury.
• Only use the sweeping machine for its intended use,
otherwise dangerous situations can occur with serious or
fatal injuries as the result (intended use: see section 1.1).
• Due to poor lighting conditions during operation a number of
dangers can occur. Only operate the sweeping machine if
there is adequate lighting.
• For sweeping tasks along walls there is danger of hand
scrape injuries. Avoid touching the walls with your hands and
wear protective gloves.
• Maintenance and repair tasks may only be executed by the
specialist dealer or by specialised personnel.
• High voltage on the ignition cable and spark plug connector!
Always switch the sweeper off with the fuel control lever,
before performing tasks on the ignition cable or spark plug
connector.
• Comply with the instructions on the safety stickers that are
located on the sweeping machine. Safety stickers must not
be removed. If they have become illegible or have been lost,
they must be replaced (meaning of the stickers: see
section 1.10). Contact your specialist dealer to order new
stickers.
• Wear tight-fitting clothing. Long hair must be tied back.
Safety
Page 13
Limpar 72 19.5.2010 Page 13 of 39
• Do not operate the sweeping machine in faulty condition;
significant injury hazards can occur. If faults occur switch
off the sweeping machine and initiate the repair.
• Execution of the specified maintenance and repair tasks is
part of intended use of the sweeping machine; intended
use particularly includes compliance with the maintenance
intervals. If you do not execute these tasks, faultless
function cannot be ensured. Dangers for personnel and
objects can occur. We recommend that you keep
maintenance logs.
• Switch off the sweeping machine prior to performing repair
tasks, including cleaning tasks. Ensure that no other person
can restart the sweeping machine (e. g. pull off the spark
plug connector). Otherwise there is danger of injury.
• Only use original spare parts and accessories that are
approved by the manufacturer. The use of other parts voids
the liability for the ensuing consequences.
1.9 Disposal
After its service life, only have qualified specialists dispose of
the sweeping machine. The manufacturer assumes no liability
for damage that occurs due to improper disposal.
Safety
Page 14
Page 14 of 39 05/19/2010 Limpar 72
1.10 Safety signs on the sweeping machine
Warning!
Danger of injury due to ignorance of the danger zones.
The stickers attached on the sweeping machine contain warnings
of specific dangers as well as instructions for correct operation.
The stickers supplement the instructions specified in this manual.
Therefore:
• Always comply with the warnings affixed on the sweeping
machine.
• Do not remove any warning stick ers
• Replace warning stickers that come off of the machine or that
have already been lost.
Stickers Meaning
Before using the sweeping machine, the
operating manual must be read. All
information contained in the operating
manual must always be complied with.
Position: On the rear of the machine in the
operator’s field of vision.
Warning – general dangers.
Position: On the rear of the machine in the
operator’s field of vision.
Warning – hot surface.
Position: On the motor.
Warning – thrown up swe epings.
Maintain distance.
Position: On the rear of the brush deck.
Safety
Page 15
Limpar 72 19.5.2010 Page 15 of 39
2 Description
With the Limpar 72 sweeping machine, paved surfaces outside
of closed rooms are cleaned with motor power.
The sweeping machine consists of a sheet steel housing, on
which a petrol motor is mounted. A boom carries a pivoting
roller sweeping brush. The motor powers the sweeping brush
and / or the drive wheels, which can be individually switched.
The sweeper has a steering arm with which it is guided by a
pedestrian, and from which all operating elements can be
reached.
2.1 Type plate
A type plate is attached on the sweeper, it contains the basic
data for the sweeper (see Fig. 2). The type plate is on the left
side of the sweeping machine below the motor.
Description
Fig. 2: Type plate
Machine
designation
Type and
serial number
Year of
manufacture
Motor
type
Page 16
Page 16 of 39 05/19/2010 Limpar 72
2.2 Overview

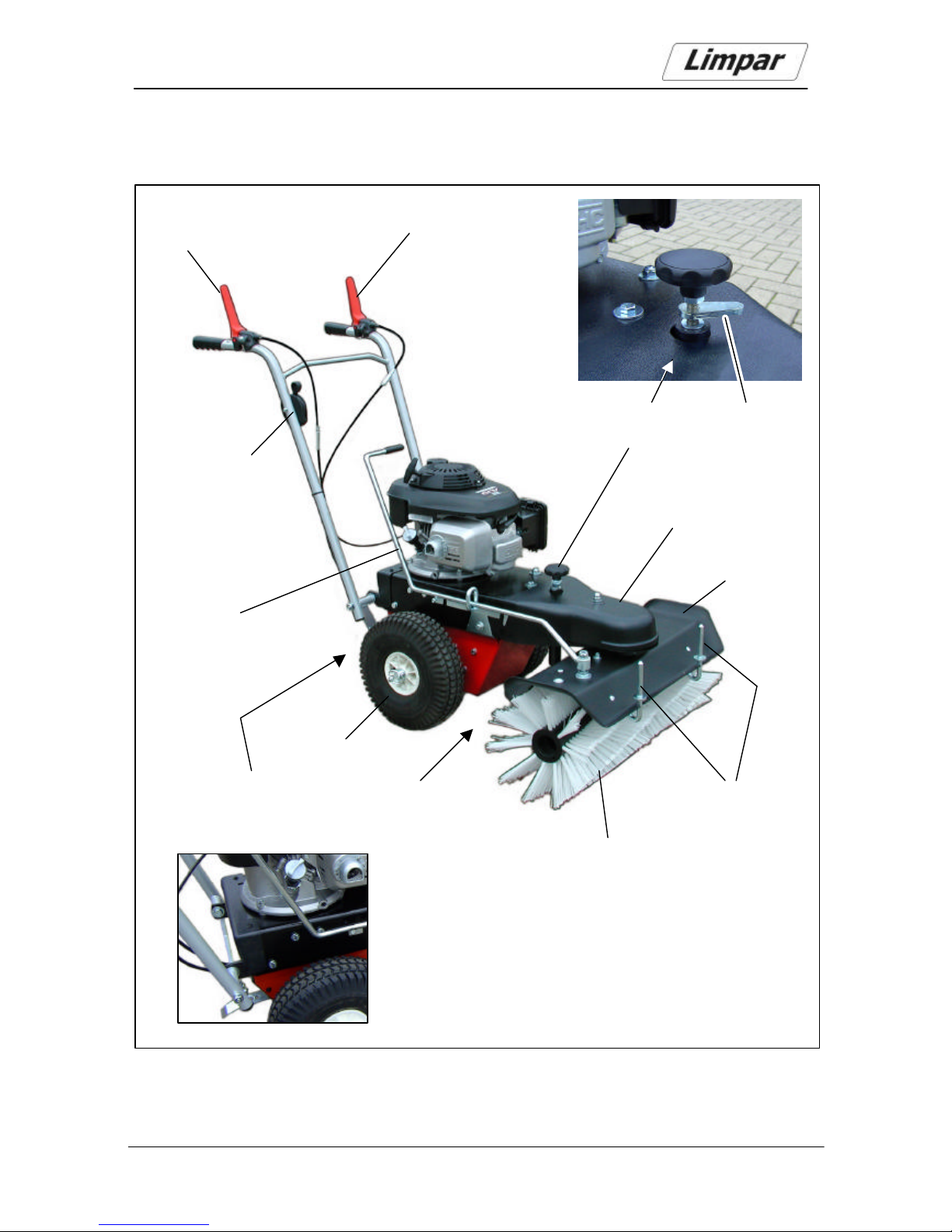

Fig. 3: Components and operating elements
Switch lever
–
traction drive
Switch lever – brush drive
Swivel support
(Side adjustment –
sweeping brush)
Handle bar height
adjustment element
(Leaf spring with 3 holes)
Height adjustment
–
sweeping brush
Protective cover
Access
ory
receptacles
Brush deck
Sweeper brush
Support wheel
Drive wheel
Fuel control lever
and motor stop
Description
Locking tab
Page 17
Limpar 72 19.5.2010 Page 17 of 39
2.3 Technical data
Dimensions, weight, travel speed, motors
Work width 70 cm
Brush diameter 25 cm
Weight 45 kg
Travel speed 3.3 km/h
Motor
Honda GCV 135 or
Briggs & Stratton DOV
Hand/arm vibrations on the sweeping machine
Vibration total value
(Honda motors)
a
hwd
= 3.5 m-2
Vibration total value
(Briggs & Stratton motor)
a
hwd
= 3.3 m-2
Noise emission value of the sweeping machine
Sound power level
(Honda motor)
L
WAd
= 95 dB(A)/1pW
Sound power level
(Briggs & Stratton motor)
L
WAd
= 94 dB(A)/1pW
Sound pressure level
on the operator’s ear
(Honda motor)
L
pAd
= 84.5 dB(A)/20µPa
Sound pressure level
at the operator’s ear
(Briggs & Stratton motor)
L
pAd
= 84 dB(A)/20µPa
Description
Page 18
Page 18 of 39 05/19/2010 Limpar 72
3 Commissioning
CAUTION!
Danger of injury and danger of material damage due to
improper assembly of the sweeping machine.
Therefore:
• The completion and all necessary adjustments, incl. trial
run are included in the scope of delivery and must be
executed by the specialist dealer prior to transfer to the
customer!
We recommend that two people assemble the sweeping
machine.
3.1 Unpacking
ð Place the packed sweeping machine on a level floor
ð Open the box on the top
ð Cut open the 4 corners of the box to the floor.
ð Mount the drive wheels (see the assembly instructions
for the drive wheels included as a separate sheet in the
box, or at the end of this page)
ð Set up the steering arm in accordance with section 3.2
and roll the sweeping ma chine out of the packaging.
ð Dispose of the packaging in accordance with the waste
disposal regulations issued by your municipal
administration.
Wheel
Here
hinged pin
Freewheel /
tappet
Washer
Commissioning

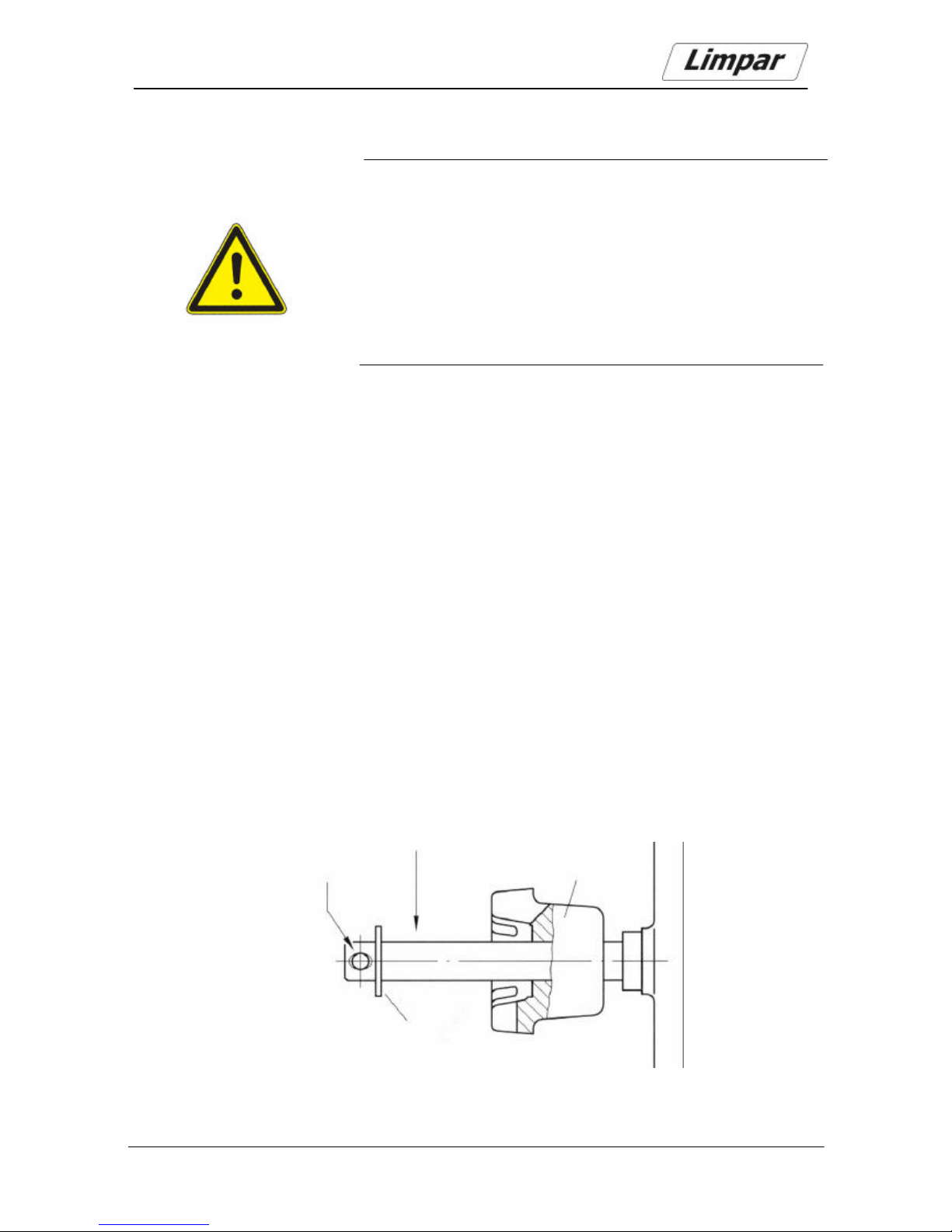

Fig. 4:
Assembly – drive wheels
Page 19
Limpar 72 19.5.2010 Page 19 of 39
3.2 Steering arm height adjustment
3.2.1 Making the steering arm
height adjustment element
operational

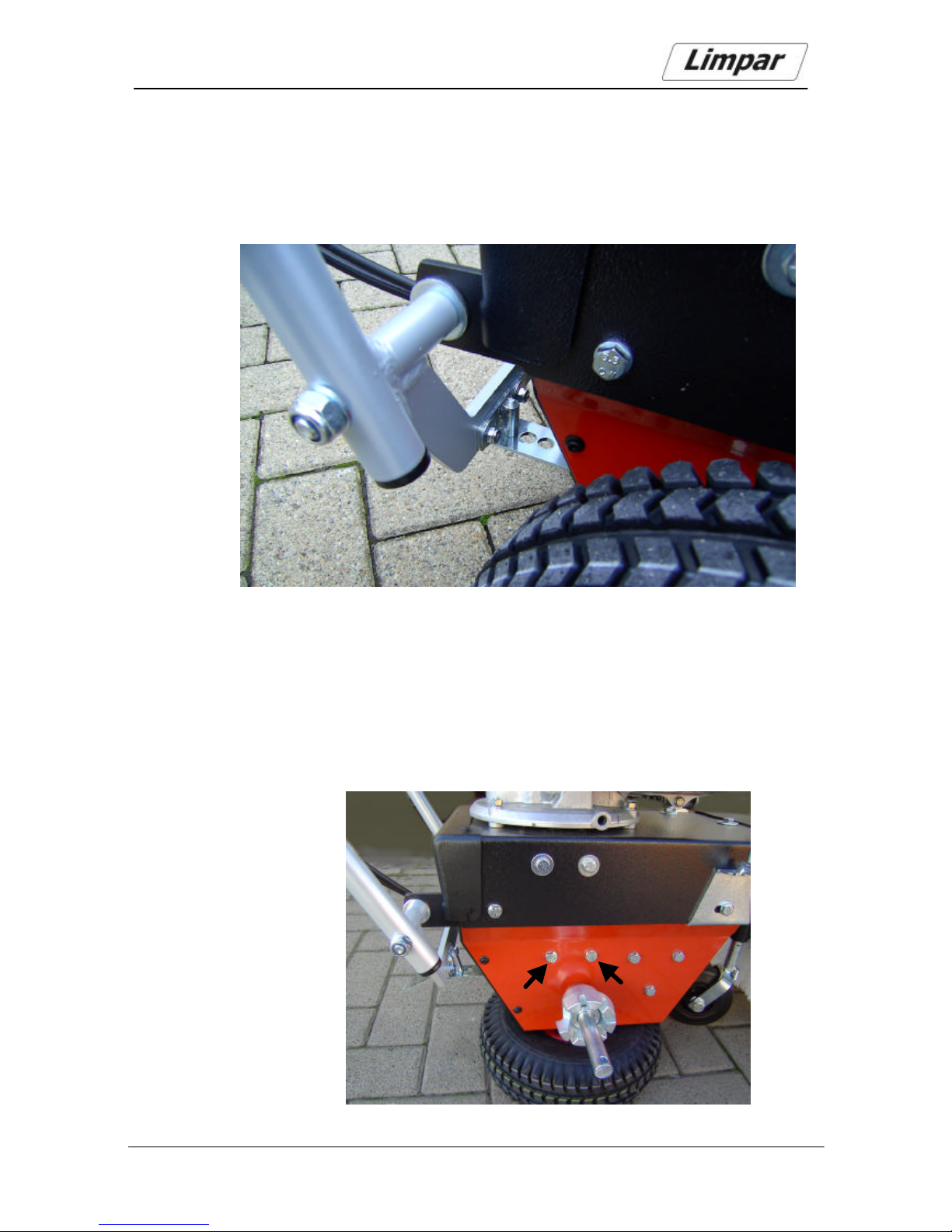

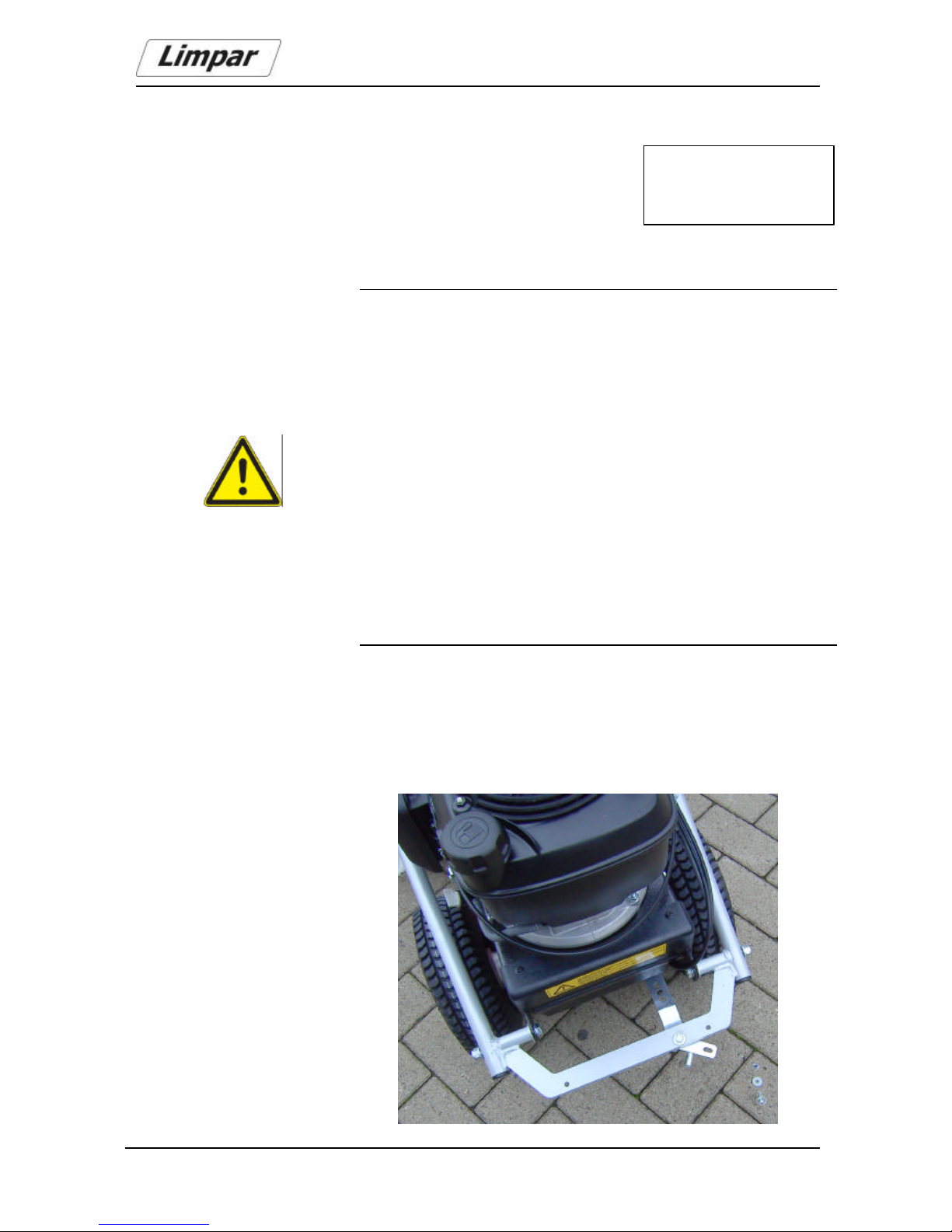

See Fig. 5 to 7 for installation of the lock finger of the steering
arm height adjustment element.
CAUTION!
Danger of injury and danger of material damage when raising the
steering arm.
When lifting up the steering arm there is a crush hazard between
steering arm and motor.
Bowden cables can be pinched and damaged when lifting up the
steering arm.
Burrs may be present on sheet metal parts, on which you can cut
yourself.
Therefore:
• Carefully lift up the steering arm.
• When lifting up the steering arm pay attention to the Bowden
cables.
• Wear work gloves.
At the lower end of the steering arm you will find a lock finger on
the right side that can engage in one of the underlying leaf
springs. To prevent the finger from piercing through the box, it
has been pre-mounted in a twisted position.
Bring the lock finger into the position as shown in Fig. 5.
Commissioning
Task to be performed
by the specialised
workshop!
Fig. 5:
Alignment of the lock finger
Page 20
Page 20 of 39 05/19/2010 Limpar 72
Mount the two screws and allow the still loose lock finger to
engage in the rear or middle bore of the leaf spring, wh
ile you
align the steering arm. The lock finger can centre itself
through the slotted holes. In this position the two M6 screws
are tightened. See Fig. 6:
Commissioning
Fig. 6: Correct installation of the lock finger
The leaf spring is fastened on a bracket that can be slid back
and forth slightl
y in slotted holes so that the lock finger can
cleanly engage in all 3 holes. In Fig. 7 the screws are marked
that must be unscrewed to adjust the leaf spring.
The housing does not need to be opened, because the
screws are fastened in a threaded plate.
Fig. 7: Leaf spring adjustment
Page 21
Limpar 72 19.5.2010 Page 21 of 39
3.3 Mounting the swivel support for side
adjustment of the sweeping brush
See Fig. 8, 9, and 10 for installation of the swivel support.
ð Unscrew and remove the self-locking nut and the white
plastic washer from the connection of the swivel support on
the brush deck.
ð Unscrew the self-locking nut from the securing screw and
remove both from the locking comb of the swivel support.
ð Guide the swivel support through the support eye from the
front with the operating handle in front.
ð Fit the joint of the swivel support onto the connection on the
brush deck.
ð Hook the locking comb of the swivel support into the
support eye.
ð Fit the white plastic washer onto the connection of the
swivel support and tighten the self-locking nut to the extent
that the plastic washer can still be turned by hand.
ð Re-insert the securing screw into the locking comb of the
swivel support (head to the outside), screw on the selflocking nut and tighten it.
The swivel support is now completely mounted.
Commissioning
Page 22
Page 22 of 39 05/19/2010 Limpar 72

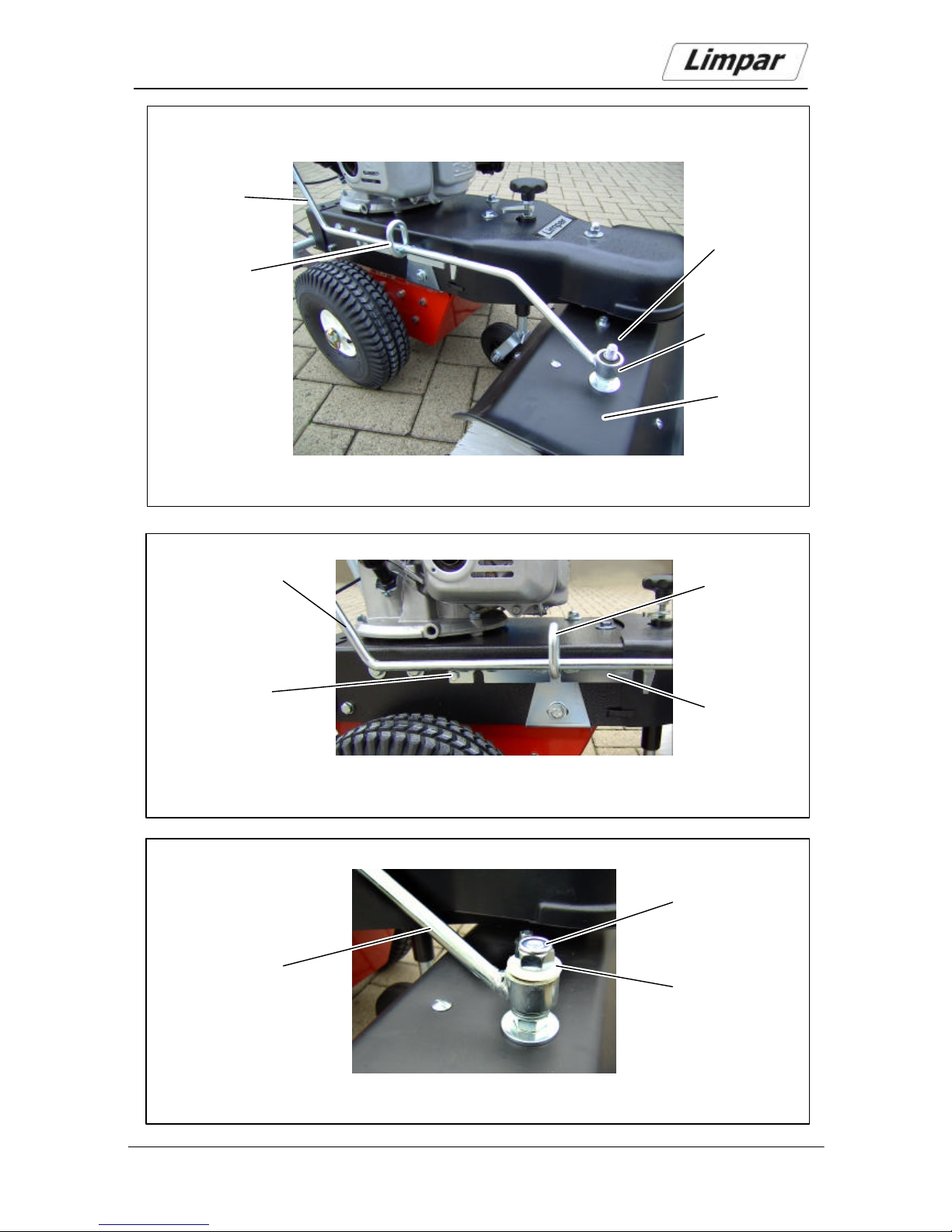

Fig. 8: Mounting the swivel support
Fig. 9: Locking comb
Fig. 10: Fastening of the swivel support
Self-locking nut
not tight!
Plastic washer
must be able
to turn!
Swivel
support
Swivel
support
Swivel
support
Support
Support
eye
Connection
Joint
Brush
deck
Locking
comb
Securing
screw
Commissioning
Page 23
Limpar 72 19.5.2010 Page 23 of 39
4 Operation
Prior to operation always read the instructions in the Safety
chapter (see chapter 1)!
WARNING!
Danger of injury when operating the sweeping machine.
Thrown up sweepings can hit and injure persons in the danger
zone.
Therefore:
• Ensure that no one is in the danger zone (see Fig. 1).
• Only switch on traction drive and brush rotation after this
has been done.
• Always observe the danger zone during operation.
• Stop the traction drive and brush rotation if people enter the
danger zone during operation.
WARNING!
Life-threatening danger due to harmful sweepings.
When dealing with harmful sweepings (e.g. due to radioactive
or biological contamination) there is danger of fatal illness due
to inhalation of dust.
Therefore:
• Do not use the sweeping machine for harmful sweepings.
Operation
Page 24
Page 24 of 39 05/19/2010 Limpar 72
DANGER!
Life-threatening danger due to movements of the sweeping
machine.
When operating the sweeping machine on slopes, the sweeping
machine can start moving without control, due to gravity.
Therefore:
• For sweeping tasks on sloping terrain always bear in mind that
there is a possibility of the machine rolling off.
• Switch on the brush drive and use it as a brake.
• If possible, guide the sweeping machine on slopes transverse
to the direction of the slope.
• Do not use the sweeping machine on terrain with a slope of
more than 37% (20 degrees).
WARNING!
Danger of injury due to dismounted or non-functioning protective
devices and safety devices.
If protection and safety devices are converted,
bypassed or dismounted’, they no longer fulfil their function.
Therefore:
• Do not convert or bypass protective devices and safety devices.
• Always remount protective devices and safety devices (if
removed, for example, for service and maintenance purposes).
CAUTION!
Danger of burn injuries on the motor at operating temperature.
Therefore:
• Do not touch the motor during operation.
Operation
Page 25
Limpar 72 19.5.2010 Page 25 of 39
CAUTION!
Danger of injury and danger of material damage if the sweeping
machine is operated in faulty condition.
Therefore:
•
Perform a visual inspection prior to each start of the sweeping
machine.
• Prior
to each start check the operating elements for firm seat and
function.
WARNING!
Danger of poisoning when operating the sweeping machine in
closed rooms.
When operating the sweeping machine in closed rooms there is
danger of poisoning due to exhaust gases and petrol fumes.
Therefore:
• Only operate the sweeping machine outside of closed rooms.
WARNING!
Danger of poisoning and danger of material damage when parking
the hot sweeping machine in closed rooms.
When parking the hot sweeping machine in clos
ed rooms there is
danger of explosion due to petrol fumes.
Therefore:
• After operation let the sweeping machine cool down.
• Only park it in a closed room after it has cooled down.
WARNING!
Danger of injury and danger of material damage if the sweeping
machine is operated by unauthorised persons.
Therefore:
• After operation store the sweeping machine in a closed room.
Operation
Page 26
Page 26 of 39 05/19/2010 Limpar 72
4.1 Preparatory activities
4.1.1 Adjusting the steering arm
The height of the steering arm handles is adjusted by swinging
the steering arm around its lower bearing.
On the rear of the sweeping machine, on the right, the end of a
leaf spring protrudes from the housing. On the lower end of the
steering arm there is a lock finger (pin diameter 10 mm). In the
leaf spring there are 3 holes into which the lock finger can be
snapped.
ð To change the lock position, press the leaf spring
downward with your foot until the pin is freed.
ð Swing the steering arm to the front or rear to change the
handle height.
ð In the desired position remove your foot from the leaf spring
and let the pin re-engage.
4.1.2 Adjusting the height of the sweeping brush
The sweeping brush should be pressed in approx. 1.5 cm in
operation.
ð Release the locking tab on the height adjustment element
for the sweeping brush (see Fig. 3)
ð Turn the knob clockwise to lift, or counter-clockwise to
lower, until you have found the right height adjustment for
the sweeping brush.
ð Fix the knob in place with the locking tab.
Operation

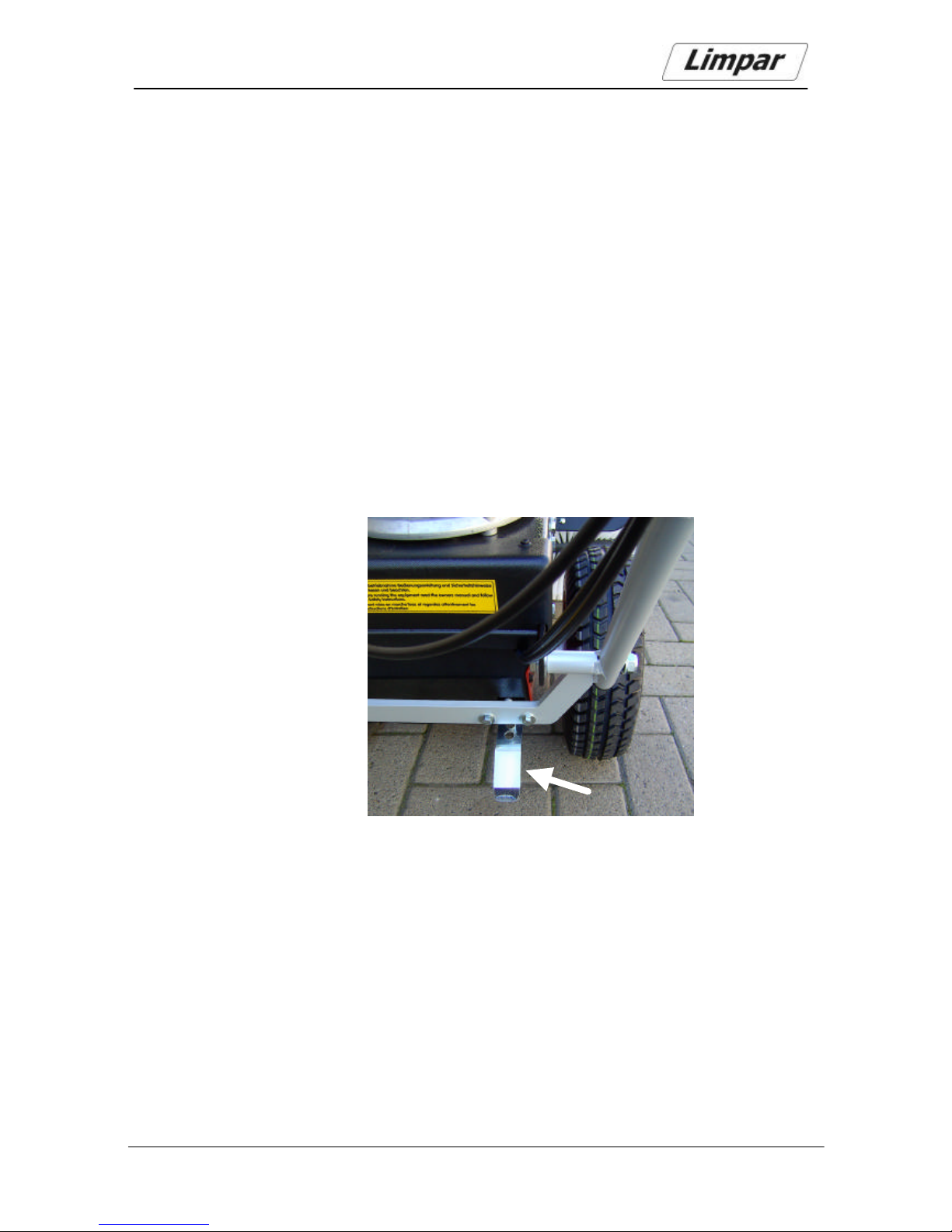

F
ig. 11:
Leaf spring
Page 27
Limpar 72 19.5.2010 Page 27 of 39
4.1.3 Checking the motor oil level
Prior to each start of the motor, check the oil level (see the
operating manual provided by the motor manufacturer in the
sub-package for the sweeping machine).
4.1.4 Filling fuel
Prior to the first start of the motor, fill at least half full with fuel
(see the operating manual provided by the motor manufacturer
in the sub-package for the sweeping machine).
WARNING!
Danger of injury and danger of material damage if fuel is filled
during operation.
When fuel runs over the hot motor and the exhaust, highly
flammable gases occur.
Therefore:
• Switch off the motor (see section 4.2.2).
• Let the motor cool.
• Only top up with fuel after the motor has cooled.
Operation
Page 28
Page 28 of 39 05/19/2010 Limpar 72
4.2 Sweep operation
NOTE
We recommend that you always sweep in the wind direction.
This prevents thrown up sweepings from hitting the operator or
fouling the motor. For winter service in particular, the motor
function can be impaired.
4.2.1 Starting the motor
ð Ensure that the spark plug connector has not been pulled
off.
ð Open the fuel cock (if present, see the operating manual
provided by the motor manufacturer in the sub-package for
the sweeping machine).
ð Place the fuel control lever on “Max” (choke position).
ð Start the motor with a forceful pull on the starting rope.
ð After a few seconds set the fuel control lever back far
enough that the motor no longer runs in choke, but in the
full load range.
4.2.2 Stopping the motor
ð Slide the fuel control lever in the “Stop” direction until the
motor switches off.
ð Close the fuel cock (if present).
Operation
Page 29
Limpar 72 19.5.2010 Page 29 of 39
4.2.3 Switching the traction drive on and off
CAUTION!
Danger of injury due to the machine falling when switching on
traction drive.
When switching on traction drive the machine starts to move
abruptly.
Therefore:
• Be aware of the abrupt start-up of the sweeping machine.
• Comply with the requirements imposed on operating
personnel (see section 1.4).
ð Press the red lever on the left steering arm handle
downward (see Fig. 3)
The sweeping machine starts up.
ð Release the red lever on the left steering arm handle.
The lever flips upward and the sweeping machine stops
moving.
4.2.4 Switching the sweeping brushes on and off
CAUTION!
Danger of injury due to the machine falling when switching on
the sweeping brush drive.
When switching on the sweeping brush drive the sweeping
machine moves toward the operator.
Therefore:
• Bear in mind that the sweeping machine moves toward you
when switching on the brush drive!
or:
• First switch on the traction drive of the sweeping machine,
and then switch on the sweeping brush drive.
Operation
Page 30
Page 30 of 39 05/19/2010 Limpar 72
• Comply with the requirements imposed on operating
personnel (see section 1.4).
ð Press the lever on the right steering arm handle downward
(see Fig. 3).
The sweeping brush starts to rotate.
ð Release the lever on the right steering arm handle.
The lever flips upward, the rotation of the sweeping brush stops.
4.2.5 Side adjustment of the sweeping brush
To brush the sweepings to one side, the sweeping brush can be
positioned diagonally.
ð Lift the handle of the swing support for the side adjustment,
so that the locking comb disengages from the support eye
(see Fig. 3, page 16 and Fig. 9, page 22).
ð Pull the handle of the swivel support to the rear to sweep to
the right, slide it to the front to sweep to the left.
ð Place the handle of the swivel support at the desired
position so that the locking comb re-engages in the support
eye.
Operation
Page 31
Limpar 72 19.5.2010 Page 31 of 39
5 Maintenance and repair
Execution of maintenance and repair tasks requires
specialised skills and an equipped workshop.
As the manufacturer we prescribe that these tasks must
be performed in a qualified workshop!
5.1 Safety guidelines for maintenance and
repair
Prior to maintenance always comply with the instructions in the
“Safety” chapter as well (see chapter 1).
WARNING!
If other persons unexpectedly start up the sweeping machine,
there are a number of injury hazards.
Therefore:
• Unplug the spark plug connector for maintenance tasks.
WARNING!
Danger of injury due to dismounted protective devices and
safety devices.
If protective devices and safety devices are dismounted they no
longer fulfil their function.
Therefore:
• Always remount protective devices and safety devices after
they have been dismounted (for example, for service and
maintenance purposes).
WARNING!
The sweeping machine poses significant hazards for nonspecialised persons.
Therefore:
•
Only have maintenance and repair tasks executed by the
specialist dealer. This particularly applies for maintenance and
repair tasks on the motor and V -belt drives.
Maintenance and repair
Page 32
Page 32 of 39 05/19/2010 Limpar 72
DANGER!
Use of inferior-quality spare part
s can result in injury and material
damage.
The use of spare parts other than original spare parts
or other than spare parts and accessories approved by the
manufacturer voids the liability for the ensuing consequences.
Therefore:
• Only use original spare
parts and accessories that are
approved by the manufacturer.
ATTENTION!
Improper maintenance can damage the sweeping machine.
Therefore:
•
Only have maintenance and repair tasks executed by the
specialist dealer.
• This also applies for replacement of the sweeping brush.
Maintenance and repair
Page 33
Limpar 72 19.5.2010 Page 33 of 39
5.2 Regular maintenance tasks
For maintenance tasks that affect the motor refer to the
documentation provided by the motor manufacturer.
Contact your specialist dealer for maintenance tasks that must
be executed by a specialist.
5.2.1 Maintenance schedule
Interval Activity see
Check the motor oil level
Operating manual
provided by the
motor manufacturer
Check the Bowden cables for ease of movement 5.2.3
Visual inspection of the sweeping machine for damage,
particularly ignition cable and spark plug connector
Before each
use
Check tyre pressure 5.2.4
Clean the sweeping machine 5.2.5
as needed
Check and clean the air filter 5.2.6
5.2.2 Maintenance records
Enter the executed maintenance tasks in the table provided for
this purpose. (See section 5.3, page 36). This makes the
maintenance history traceable.
For more extensive records concerning tasks performed on the
sweeping machine we recommend that you keep a separate
list.
5.2.3 Checking the Bowden cables for ease of
movement
WARNING!
Bowden cables that do not move easily can cause uncontrolled
movements of the sweeping machine, severe injury and
material damage.
Therefore:
• If the Bowden cables do not move easily, do not place the
sweeping machine in service.
• Contact your specialist dealer and have the sweeping
machine repaired.
Maintenance and repair
Page 34
Page 34 of 39 05/19/2010 Limpar 72
Bowden cables for traction drive and brush drive
ð Press down the switch lever for traction drive.
You must be able to push down the switch lever to the
steering arm handle with light resi stance.
ð Release the switch lever for the traction drive.
The switch lever must spring back into its original position.
ð Repeat the procedure with the switch lever for the brush
drive.
ð Have the repair performed by your specialist dealer if one
or both switch levers are hard to move or do not spring
back into their original position.
Bowden cable of the fuel control lever
ð Place the fuel control lever on “Max”.
ð Place the fuel control lever on “Min” and in this process
observe the counter lever on the carburettor (see the
operating manual provided by the motor manufacturer in
the sub-package of the sweeping machine).
You must be able to move the fuel control lever with light
resistance. The counter lever on the carburettor must follow the
executed movement.
ð Have the repair performed by your specialist dealer if the
Bowden cable does not function as described above.
Maintenance and repair
Page 35
Limpar 72 19.5.2010 Page 35 of 39
5.2.4 Checking the tyre pressure
The inflatable tyres of the sweeping machine have conventional
automobile valves.
ð Set the tyre presser of the drive wheels to 1.8 bar.
5.2.5 Clean the sweeping machine
ATTENTION!
Cleaning the sweeping machine with a high-pressure cleaner
can damage the seals, bearings, and joints of the sweeping
machine.
Therefore:
• Do not clean the sweeping machine with a high-pressure
cleaner
Clean the sweeping machine as needed with a soft water spray
and auto care agents.
After snow removal tasks the sweeping machine must be
cleaned of adhering snow and road salt.
5.2.6 Checking and cleaning the air filter
If you use the sweeping machine in a dusty environment, have
your specialist dealer show you how to check the air filter.
Maintenance and repair
Page 36
Page 36 of 39 05/19/2010 Limpar 72
5.3 Maintenance and repair verifications
Executed maintenance tasks
Date Signature Comments / executed tasks
Maintenance and repair
Page 37
Limpar 72 19.5.2010 Page 37 of 39
6 Decommissioning and preservation
Contact your dealer if you have questions concerning
decommissioning and preservation.
7 Faults and fault correction
WARNING!
Danger of severe injury due to improper execution of repair
tasks.
Therefore:
• Only have repair tasks performed by your specialist dealer.
If there are faults in the operation of the sweeping machine,
proceed on the basis as specified in the fault table below. If
there are faults that cannot be corrected based on the
instructions and measures cited for fault correction, contact your
specialist dealer.
Fault Possible cause Measures
Fuel control lever is not in “Max”
(choke) position.
Place the fuel control lever in the
“Max” position.
Spark plug connector is pulled off. Fit on the spark plug connector.
No fuel in the tank. Fill with fuel.
The sweeping machine
does not start up.
Gas cock is closed. Open gas cock.
Often the sweeping roller
sticks.
Bowden cable is not correctly
adjusted.
Contact the specialist dealer.
Air pressure varies in the tyres. Correct the air pressure in the
tyres.
The sweeping machine
does not move straight
ahead.
Freewheel units of the wheel drive
do not work synchronously.
Synchronise the wheel drive
through a short, forceful pull on
the steering arm.
The snow is too deep. Do preliminary work with the
clearing blade or sweep a
second time.
Snow has settled
between sweeping brush
and machine axle.
The snow is wet and has clogged
the brush .
Use 8x2 poly brushes.
Decommissioning and preservation
Page 38
Page 38 of 39 05/19/2010 Limpar 72
8. Accessories
8.1 Sweepings collection bin
An optionally available plastic sweepings collection bin is
mounted by fitting it on the pin on the sweeping brush deck (see
Fig. 3).
8.2 Snow chains and clearing blade
For winter service the sweeping machine can be equipped with
snow chains and clearing blade.
8.3 Sweeping brushes for winter service
Sweeping brushes with 8x2 poly bristles are particularly wellsuited for winter service, because they do not absorb water and
the bristles of the double brush rows support each other. Thus
additionally a good “throw effect” is produced.
9 Specialist dealer
Your specialist dealer is available for the ordering of spare
parts, for maintenance and repair tasks, as well as for problems
and questions.
Telephone:
Accessories
Page 39
Limpar 72 19.5.2010 Page 39 of 39
10 Declaration of Conformity
EC Declaration of Conformity
in accordance with Machinery Directive 2006/42/EC Annex II A
As the manufacturer, we hereby declare that the machine designated below, in its
concept and design, and in the version that we have placed on the market, complies
with the essential health and safety requirements of EC Directive 2006/42/EC. If the
machine is changed without our approval this declaration loses its validity.
Designation: Limpar 72 sweeping machine
Types: FKV-G3; FKV -G5 (different motors)
Manufacturer:
Company: 4F Maschinentechnik GmbH
Address: Am Gasspeicher 6
49453 Rehden
Agreement is declared with the following additional directives that apply for the
machine:
Electromagnetic Compatibility (2004/108/EC)
Harmonised standards applied:
DIN EN 12100-1, DIN EN 12100-2, DIN EN ISO 13849-1, DIN EN ISO 14121-1
Other national technical standards and specifications applied:
-
Person authorised to compile the technical documentation:
Wolfgang Freer (address: see the address of the manufacturer)
Wolfgang Freer, Managing Director
Declaration of Conformity
