ALPIN MASTER 128
User Manual
14 pgs1.27 Mb0

limex ALPIN MASTER 128 User Manual

Download
LIMEX
USER MANUAL
SOUND BOARD
ALPIN MASTER 128
TABLE OF CONTENTS
Page
ALPIN MASTER 128 sound list 6 - 11
ALPIN MASTER 128 drum kits 12
All about chord guitars; key assignments 12 - 14
Troubleshooting / MIDI IMPLEMENTATION 14
Page 2
LEGEND
MS This column denotes whether the program is mono (M) or stereo (S). P The number in this column represents the required number of voices (OSC) per note. HPF High Pass Filter: Use the cutoff parameter to set the low frequency limit. When you do this, the sound will natu-
rally be brighter and thinner. A cutoff value over 64 usually needs to be selected just so you can hear the change.
MOD A special parameter of the LIMEX MIDI systems MPR3 M/P (not model L). Push up the value on any instrument
and listen to what this does for your sound. Adz. Velocity zones: ranges in which various samples may be played. ghost note
A “ghost note” is created by muffling the bass strings as they are played so much that no clear tone is heard. Use
these samples to add a groove to your MIDI files. * Without velocity in the usual sense.
These programs will not be louder or softer when played on an instrument with velocity. The value of velocity,
represented as VEL in the LIMEX patch editor, is used to select a zone of the program. If the trumpet or baritone
should be played softly, choose a VEL value in that range. For example, in program 64, SEPP 1-73mp / 74-97mf /
98-127 forte, the VEL value of 70 will play the mezzopiano sample; at value 74 the mezzoforte; and at VEL 120
the forte sample. Remember, all sounds are at the same volume.
WELCOME
Thank you for choosing a LIMEX sound product. This user reference manual explains the features of the LIMEX sound board ALPINMASTER 128MB.
ALPINMASTER 128
The 128MB sound board of the ALPINE MASTER 128 de­livers general MIDI sounds and a selection of LIMEX Ger­man folk music sounds from the TRADITION series. Whe­ther it’s pop, swing, tango or German folk music you’re after, the ALPINE MASTER 128 gets your music hoppin’. The general MIDI sounds are specially set up with the best sounds for the German-speaking entertainer. Com­bined with the LIMEX MPR3/P MIDI system and styles, the ALPINE MASTER128 becomes a professional arranger.
INTEGRATION

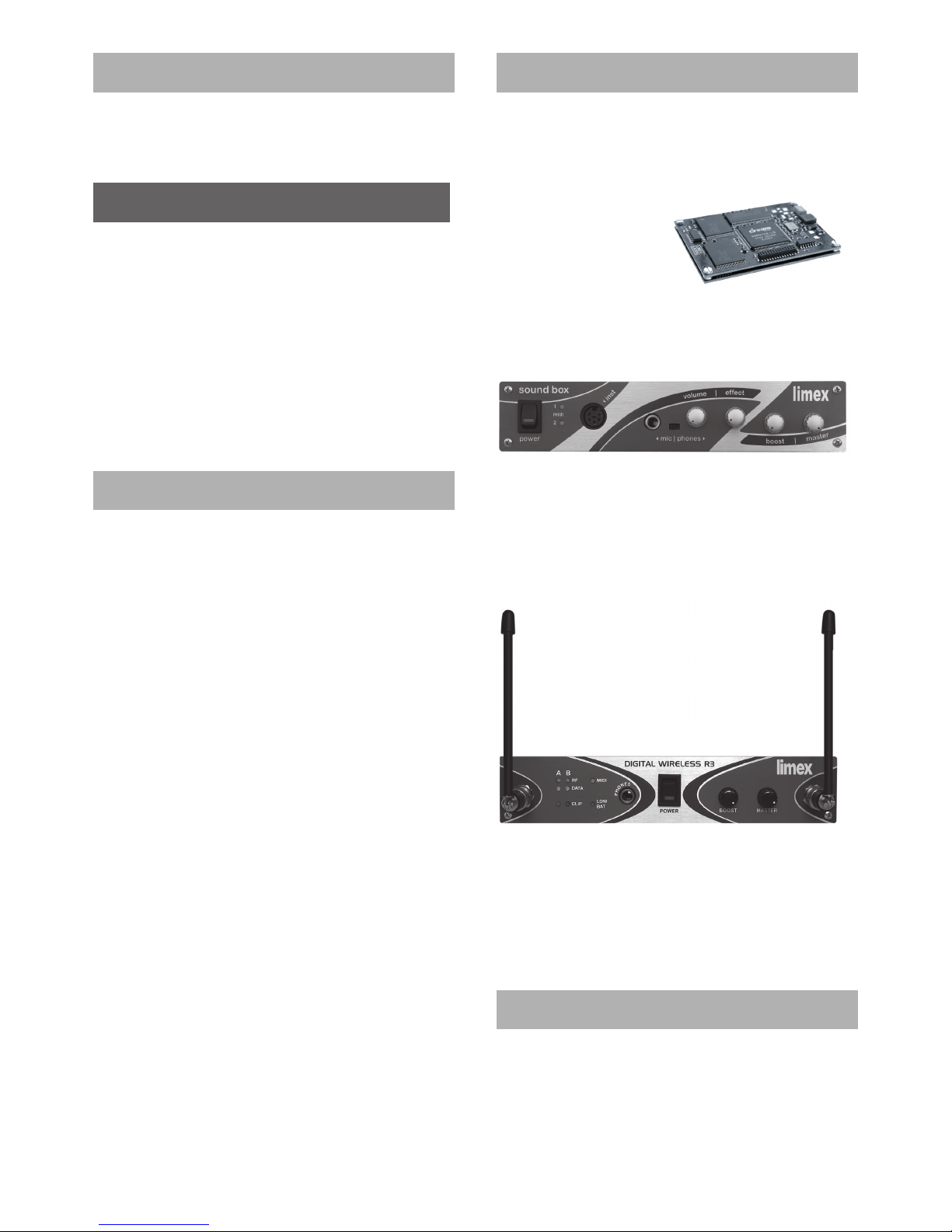

Here’s how the sound boards can be integrated into your system:
• Installation in the instrument (accordion or diatonic harmonica) that is equipped with a LIMEX MIDI system.
• Installation in a LIMEX rack unit, making four audio outputs available that can be sent separately to a mixer.
• Installation in a LIMEX W3 wireless receiver.
TECHNICAL DETAILS
Sound board memory: Flash RAM Polyphony: 116 voices Effects: digital reverb and chorus Output: 4 audio outputs 48kHz sampling
Page 3
POLYPHONY
The sound board has 116-voice polyphony. By layering sounds, even this huge polyphony can be exceeded, which is noticeable in a short clicking sound while playing.
When you mix more than one program (i.e. accordion, dul­cimer and zither in treble), you might exceed the limits.
SAFETY PRECAUTIONS
SAFETY INSTRUCTIONS
- Read the user manual before using the device
- Do not allow any liquid to come in contact with the device
- Do not place anything on top of the device
- Do not handle the power supply with wet hands
- Turn off all connected devices before you connect any new devices
Do not use or store the device where it is exposed to
- dampness or wetness
- extreme temperature changes (i.e. do not store in a vehicle in winter)
- strong vibrations or jolts
HANDLING
- Use only the original cables and power supply
- Remove the cable only by pulling on the plug, not on the cable
- Do not expose the power adapter to any mechanical stress
CUSTOMER SERVICE – TROUBLESHOOTING
Do not carry out any repairs at home, as this may result in permanent damage to the electronics. Any guarantee claims are no longer valid in this case.
INCLUDED WITH SOUND BOARD 128MB
User reference manual
POWER SUPPLY 9VDC / 600mA OPERATING TEMPERATURE 10 to 40 degrees Celsius HUMIDITY max. 80%, non-condensing
INSTALLATION
Only qualified professionals may install the 128MB sound board in an external LIMEX unit or a LIMEX MIDI-equip­ped instrument.
The CE certification is available at www.limexmusic.com
LIMEX MUSIC HANDELS GMBH A-6114 Kolsass Austria
COPYRIGHT
The recordings used in this device are protected by copyright. LIMEX Music Handels GmbH alone has been given the right by all musicians involved to use this material. Any duplication, editing or any other copy by or given to a third party in any form (audio sampling CD, data storage device, download of any file, etc.) is strictly forbidden.
Copyright © 2009 by limex music handels gmbh www.limexmusic.com
Four out-of-court decisions in our favor and a copyright case against pseudo sound designers who tried to use our recor­dings all speak to the originality of our sounds.
e fact that only we have exploitation rights to the recordings of these musicians is often overlooked. As unpleasant as the le­gal cases are for us, the compensation received for the decisions in our favor do in fact contribute to our future legal defense of any other unauthorized use of these recordings.
WATERMARK
Due to the value and demand for our samples, LIMEX pro­duct sounds are tagged with an invisible audio watermark. Even if the file has been edited or distorted, we will be able to determine if our recording has been used.
USER FORUM
Access our User Forum on our homepage at www.limexmusic.com
!
CC
Page 4
IMPORTANT!
MIDI SYSTEMS
LIMEX patches can be used with the following LIMEX MIDI systems:
Complete MIDI – MPR3/L Complete MIDI – MPR3/M Complete MIDI – MPR3/P Complete MIDI – MPR3/Plus Bass MIDI – L Bass MIDI – P
MIDI 2001
NEED TO UPGRADE YOUR LIMEX MIDI OPERATING SYSTEM 2.96 - FREE DOWNLOAD!
The parameter “AM” must be OFF in order to use the sound board with an MPR3 MIDI system.
AM is a special parameter for ALPINE MASTER 32 that led to complications with the new boards. The error occurs when a sound is heard only briefly and then gets stuck when a key is pressed shortly after the instrument is turned on.
There are two ways to set the parameter AM to OFF:
1. MC10 controller Press and hold down SELECT key + SAVE (purple) key + FILE (white) at the same time Release SELECT key Press SEL+ key more than once until [AM A ON] appears in the display Press “P” (gray) key one time Press SAVE (purple) key two times. Finished.
2. PC Editor

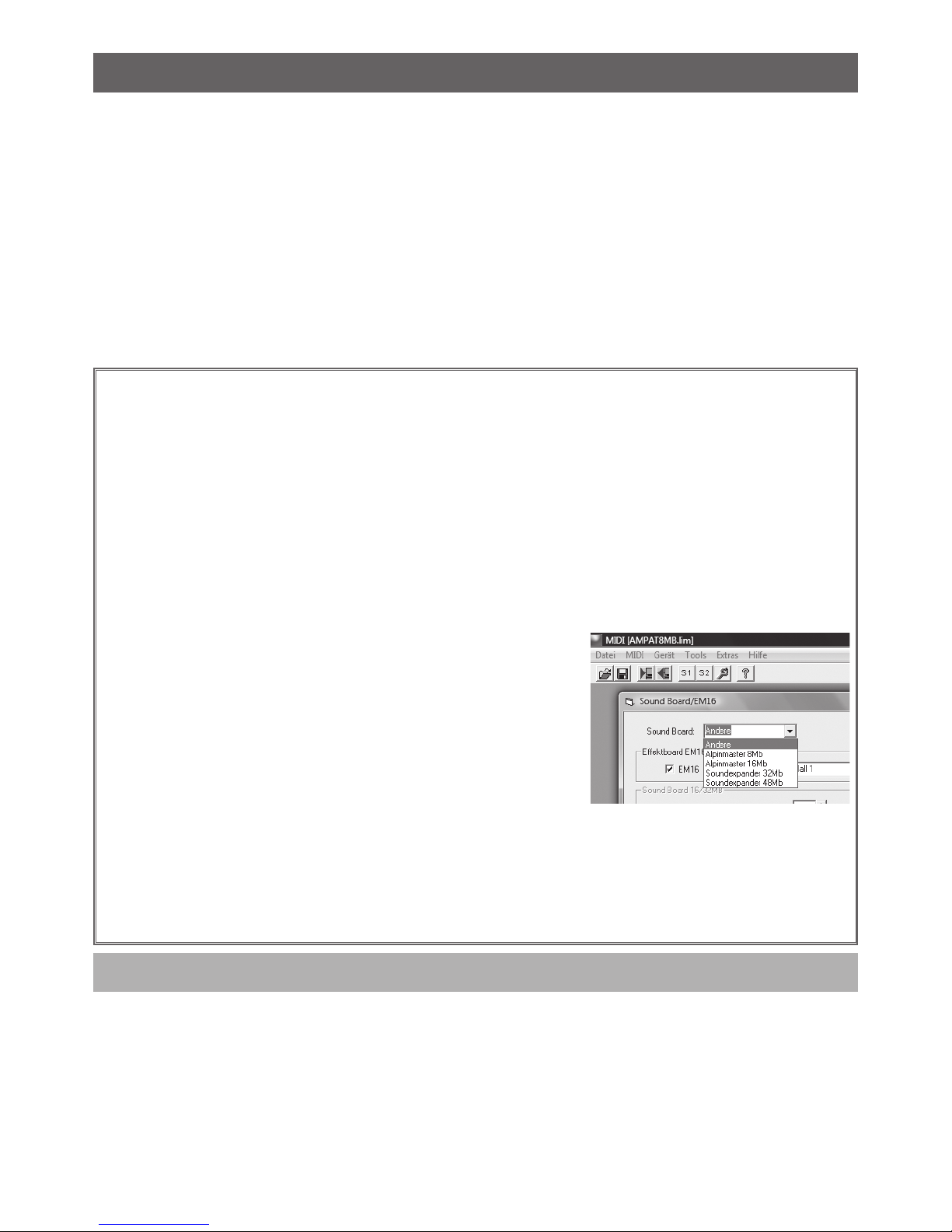

Save all of your data on your instrument is first, then: Under the MIDI menu, go to Load data. Select the following:
Set 0 Set 1 Patch 0 - 199 Under the File menu, select Save As, name the file and click OK.
Switch to a different sound board “Other” Under the Unit menu, select Sound Board At the top near Sound Board ALPINE MASTER 32 or AM16, etc., select “Other.” Under the MIDI menu, select Write File
Set 0 O K Save the data back to the instrument.
Page 5
!
COMPATIBILITY - ALPINMASTER 32 (2006-2008)
USING PATCHES FROM ALPINE MASTER 32
The ALPINE MASTER 128 was designed to be as compatible as possible with the previous version, but some sounds did have to be moved. BANK 27 (extra for bass on MIDI accordions) is no longer available. Instead, you have a selection of new bass sounds from the TRADITION Exclusive 200 series in BANK 32. The guitar patch on BANK 27 is also no longer available; a new patch must be selected. This means you must re-select the bank and program numbers for any of your own patches that you want to continue using.
There are over 100 new patches for all LIMEX sound products ready for you. Just plug in and play.
Page 6
Bank Prg. PIANO & E-PIANO
0 1 Grand Piano 1 GM stereo
3 1 Grand Piano 1 dynamic (Polyphony 4)
4 1 Grand Piano 1 with more volume 0 2 Bright Grand 1 0 3 Electric Grand 0 4 Honky Tonk 0 5 E-Piano Suitcase
3 5 E-Piano - hard 0 6 E-Piano FM
CHROMATIC INSTRUMENTS 0 7 Harpsichord 0 8 Clavinet 0 9 Celesta 0 10 Glockenspiel 0 11 Music Box 0 12 Vibraphone 0 13 Marimba 0 14 Xylophone 0 15 Tubular Bell 0 16 Dulcimer
ORGAN & ACCORDION
0 17 Drawbar Organ slow Rotary
3 17 Drawbar Organ 4 17 Ham Organ 3 5 17 Elec. Organ 6 17 Digi. Organ
0 18 Perc. Organ
3 18 Digi Organ 3 4 18 Digi Organ 4 5 18 Perc. Rotary Organ 6 18 Perc. Organ 2
0 19 Rock Organ Fast Rotary 1a
3 19 Rock Organ Fast Rotary 2 4 19 Jazz Organ 5 19 Jazz Organ Soft 6 19 Rock Organ 2 7 19 Rock Organ Fast Rotary 1b
0 20 Church Organ
3 20 Church Organ 3 4 20 Church Organ 4
0 21 Reed Organ
0 22 German Accordion 0 23 Harmonica 0 24 Diatonic accordion
Bank Prg. GUITAR 0 25 Nylon Guitar
3 25 Mandoline Tremolo
0 26 Steel Guitar
3 26 Steel Guitar Rhythm
0 27 Jazz Guitar
3 27 Jazz Guitar 3 0 28 Clean Guitar 0 29 Mute Guitar 0 30 Overdrive Guitar
3 30 Overdrive Guitar 3 stereo 0 31 Distortion Guitar
3 31 Distortion Guitar 3
4 31 Distortion Guitar 4
5 31 Distortion Guitar 5 0 32 Guitar Harmonics
3 32 Guitar Steel Country
BASS 0 33 Upright Bass 0 34 E-Bass Fingered 0 35 E-Bass Picked 0 36 Fretless Bass 0 37 Slap Bass 1 0 38 Slap Bass 2 0 39 Synth Bass 1 0 40 Synth Bass 2
STRINGS & ORCHESTRA
0
41 Violin Solo Vibrato 1
0
42 Viola
0
43 Cello
0
44 Contrabass
0
45 Tremolo Strings
4
45 Strings mono
0
46 Pizzicato Strings
0
47 Harp
0
48 Timpani (Pauken)
0
49 String Ensemble 1 stereo
3
49 String Ensemble 1 ENV fade
5
49 String Ensemble 1 String Ensemble mono
0
50 String Ensemble Slow
5
50 String Ensemble Slow mono
0
51 Synth Strings 1
3
51 Synth Strings 1 ENV Fade
4
51 Synth Strings 1 sweep
5
51 Synth Strings 1 soft
0
52 Synth Strings 2
ALPIN MASTER 128 BANK 0 - 7
