COLOR TFT LCD
MONITOR
Manual
Page 2
DEAR CUSTOMERS
Thank you for purchasing the liquid crystal display monitor. This product employs
new integrate circuits and high quality TFT LCD modules. It is putting out with its
low power consumption, emits no radiation, and other advantage characteristics. This
product is shaped with modern style and is easy to be carried with. The color TFT
LCD is the most suitable display for VGA,VCD, DVD and GPS system for motorcars
and ships .It also can be used in the office ,in flat ,at home also in other suitable
position. You will certainly benefit from this monitor in lots of ways, to name some of
them: convenience, safety, space-saving.
We hope that you will have the enjoyment of your new mini color TFT LCD.
To ensure the best use of the unit, please read this handbook carefully beforehand
.
CAUTION
1. Please use the adapter attached in the accessory.
2. Do not expose this product to direct sunlight, heat or humid conditions.
3. Keep away from strong light while using this product so as to obtain the
clearest and the most colorful picture.
4. Please avoid heavy impact or drop onto the ground.
5. Do not use chemical solutions to clean this unit. Please simply wipe with a
clean soft cloth to keep the brightness of the surface.
6. If the product does not operate normally when the instructions are followed.
Adjust only those controls that are covered by the instructions. Improper
adjustment of other controls may result in damage and will often require
extensive work of a qualified technician.
Please unplug the power if non-use for a long-term, or a thunder and happens.
Page 3
CONTENTS
1. PRODUCT DESCRIPTION --------------------
2. REMOTE CONTROL----------------------------
3. BATTERY INSTALLATION INSTRUCTION
4. MENU OPERATION ----------------------------
IN YPbPr MODE----------------------------------
IN HDMI MODE----------------------------------
IN AV MODE--------------------------------------
5. ACCESSORIES -----------------------------------
6. PARAMETER -------------------------------------
7. TROUBLESHOOTING --------------------------
8. REMARK-------------------------------------------
Page 4
1.
PRODUCT DESCRIPTION
1
Page 5

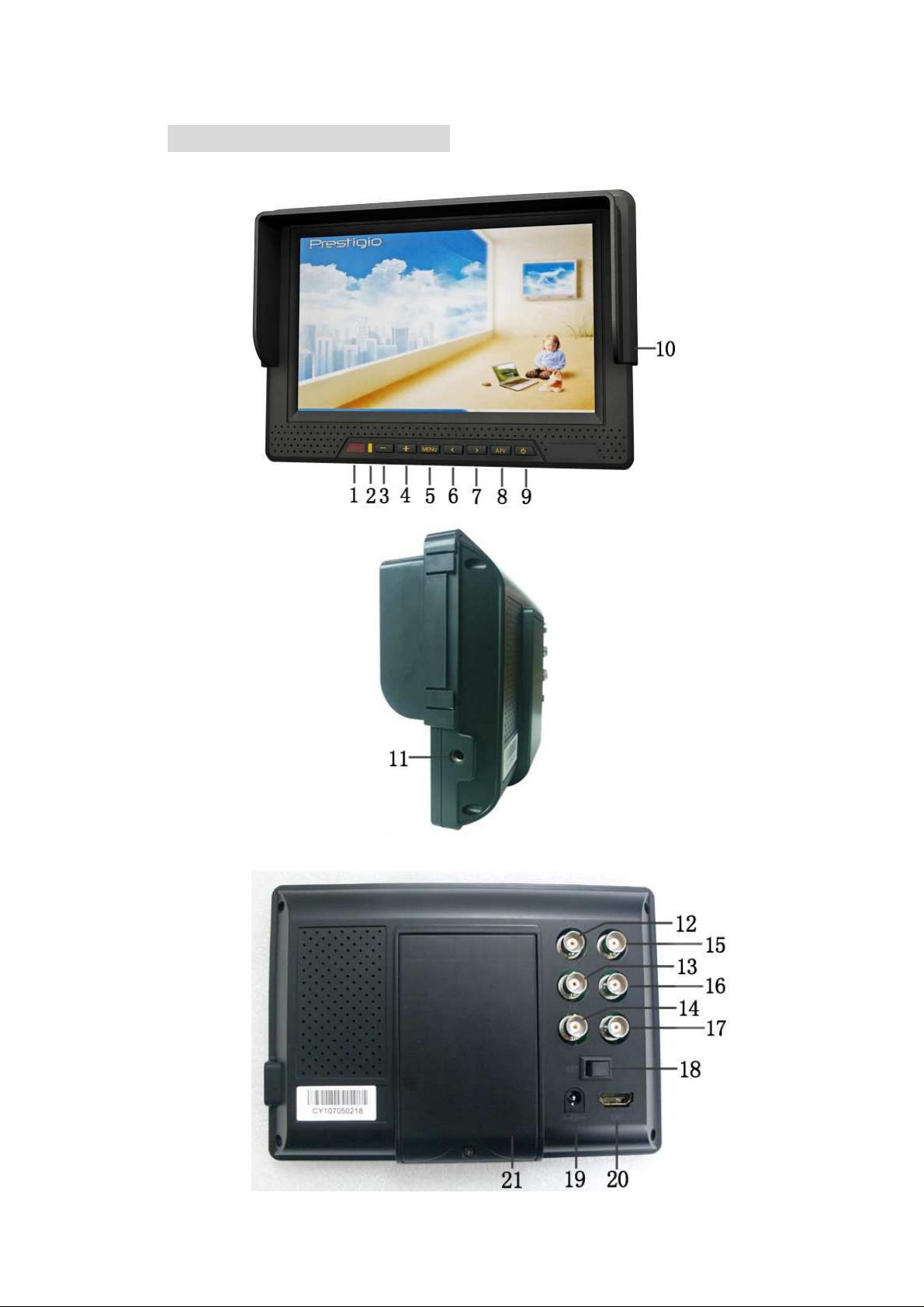

1．Infrared receiving window
2．Battery indicator light
3．-：Volume down or to adjust the value of menu setting function
4．+：Volume up or to adjust the value of menu setting function
5．MENU：To activate OSD menu
（
（PS: Long press "MENU" button to zoom in or out picture
（（
automatically when receiving HDMI signal.)
6．<：Selection key, to select item on the OSD or push the key in PC mode
directly to adjust phase automatically
7．>：To select function on OSD or to adjust the brightness directly under 6
classes
8． A/V：HDMI、YPbPr、VIDEO1 and VIDEO2 switch
9． POWER：Power on/off
10．Sun shade
11．Mounting socket (right side)
12．Y signal input
13．Pb signal input
14．Pr signal input
2
Page 6
15．AV1 signal input
16．AV2 signal input
17．AUDIO signal input
18．Battery control switch
19．DC input
20．HDMI signal input
21．Battery slot

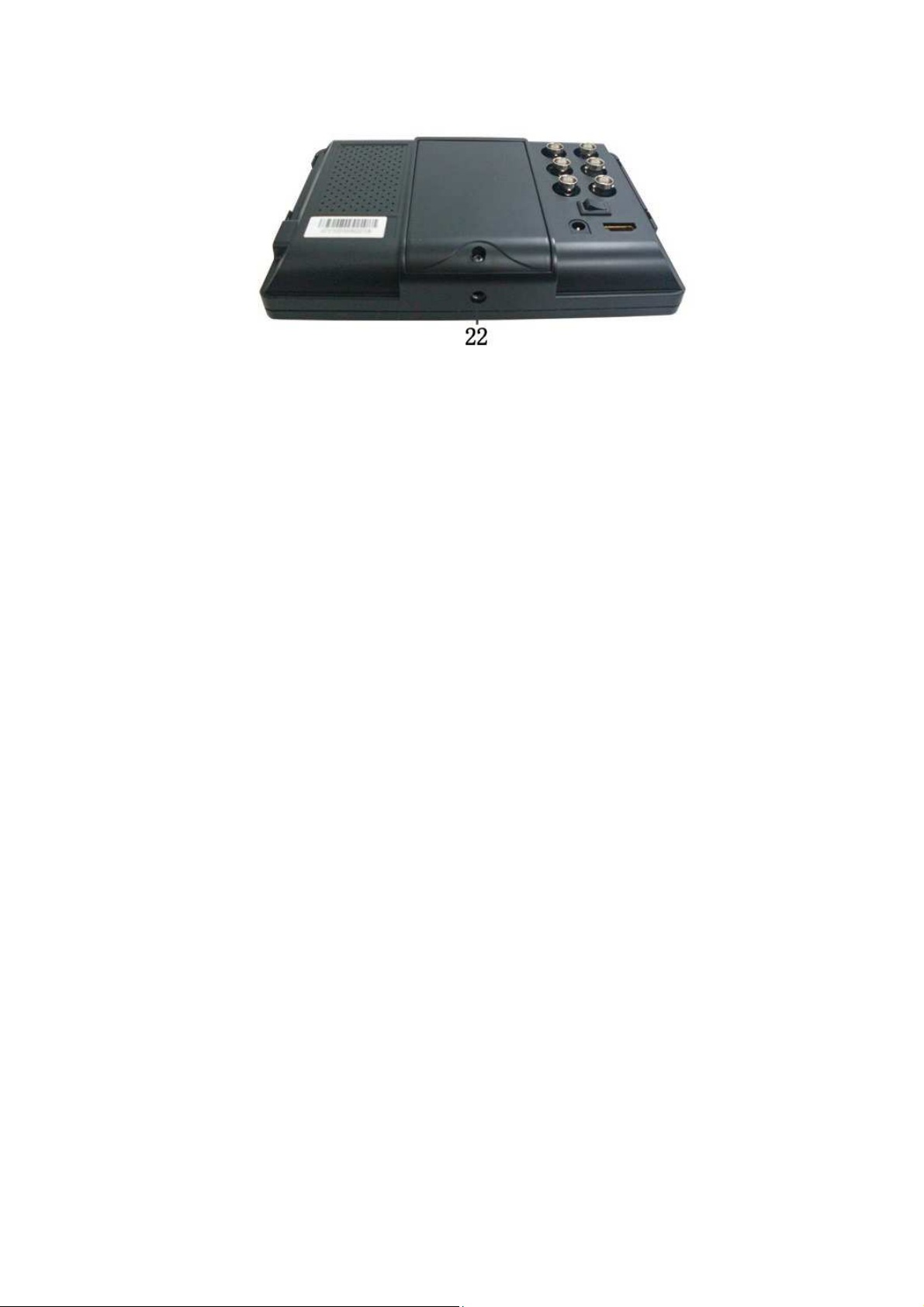

22．Mounting socket (bottom)
2.

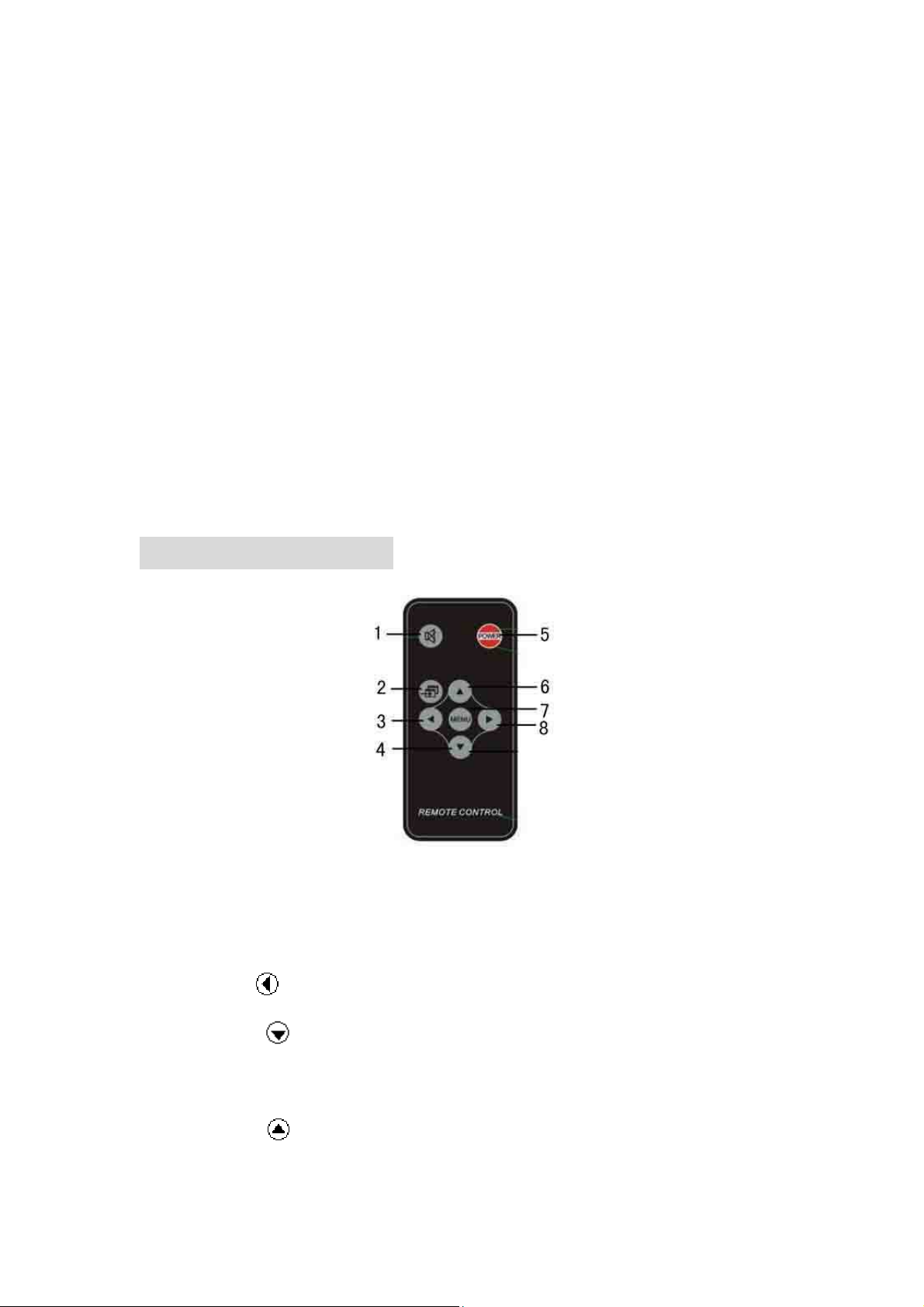

REMOTE CONTROL
1．MUTE
2．Display Mode：HDMI、YPbPr、VIDEO1、VIDEO2 switch
3． ：Left move，Volume down or to adjust the value of setting function
4． ：Down move, to adjust phase automatically under PC mode
5．POWER ON/OFF
6． ：UP move, to adjust the brightness directly under 6 classes
3
Page 7
7．MENU
P
ower line
8． ：Right move, Volume up or to adjust the value of setting function
3.

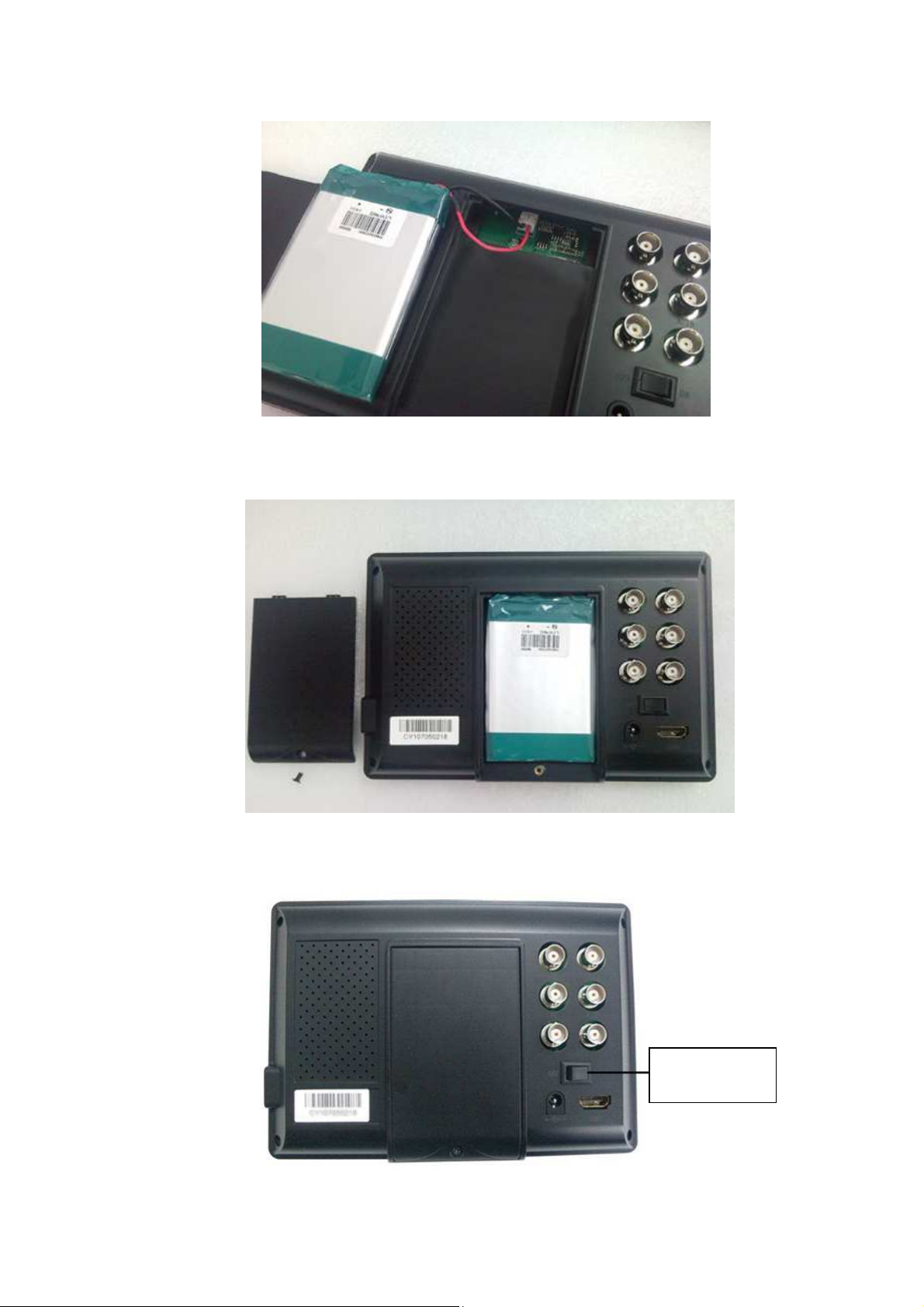

BATTERY INSTALLATION INSTRUCTION

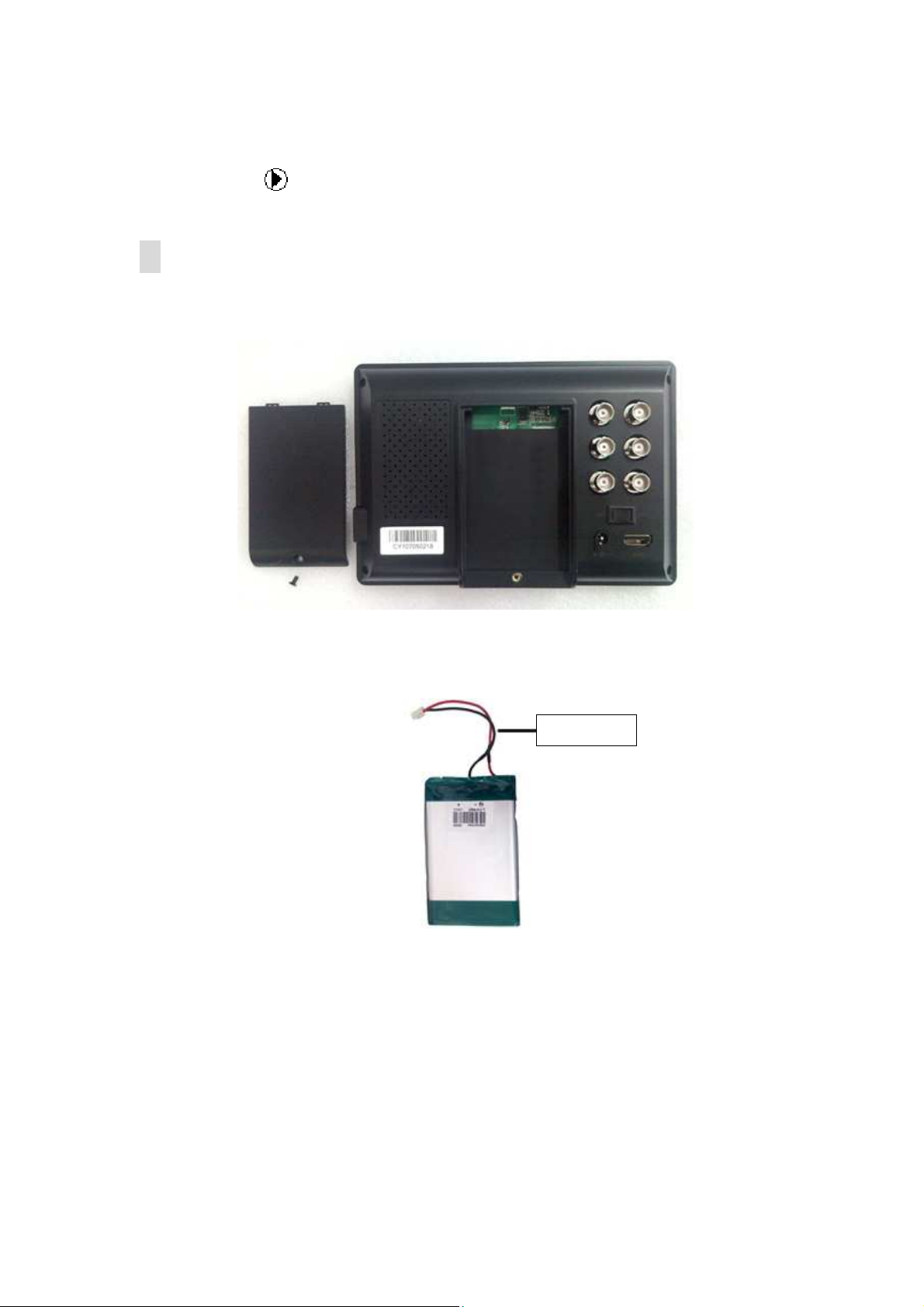

1．
Open battery cover
2．
Battery
3．
Please plug power line into main board’s battery socket.
4
Page 8
switch
4．
Put the battery into slot when check the electricity.
5．
Lock battery cover up to finish installation.
Battery control
5
Page 9
PS: please switch battery control off if non-use for a long-term.
4.
MENU OPERATION
After connected correctly and then Power on, Press “MENU” on the unit or by remote
control to show MENU.
IN YPbPr MODE

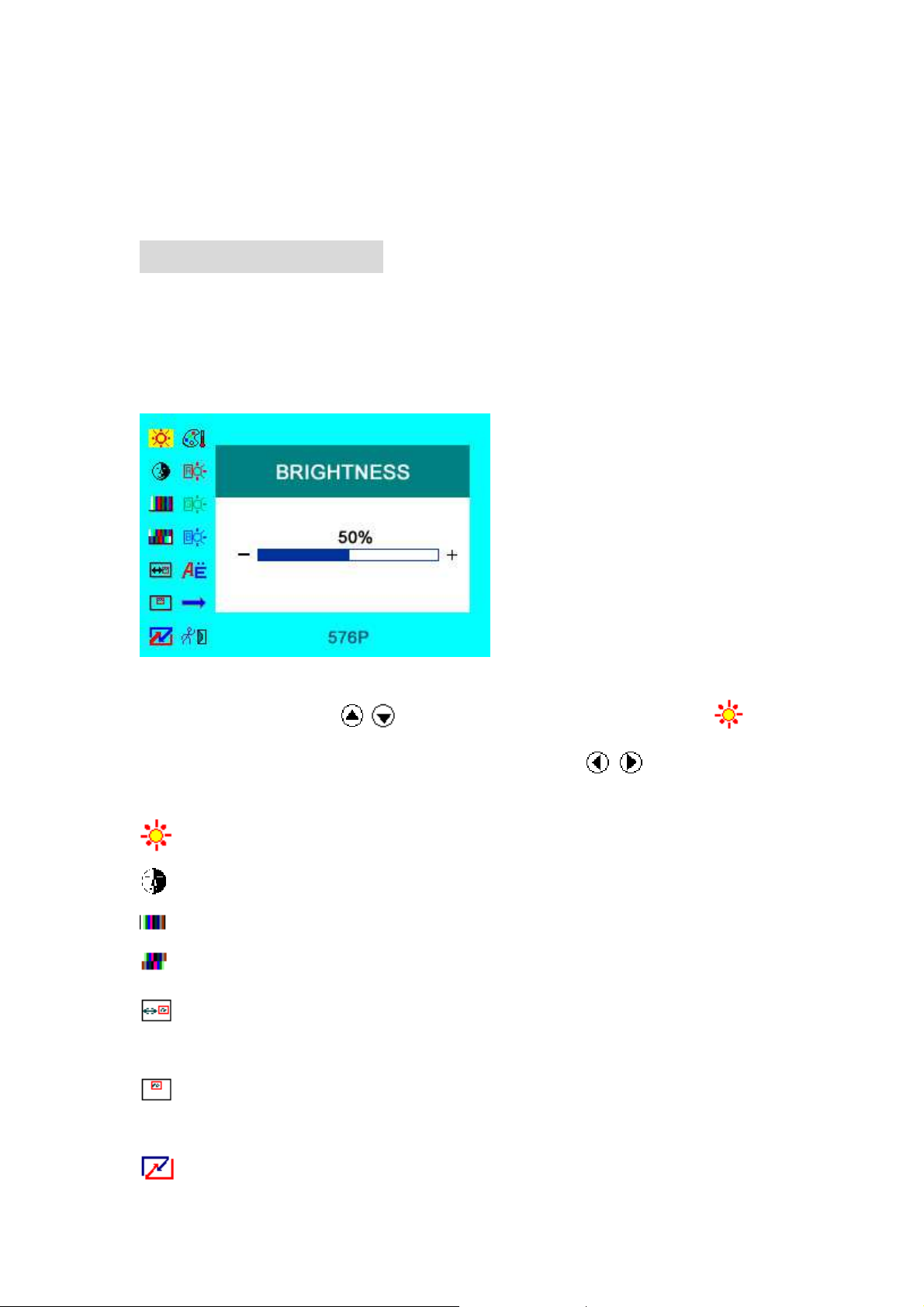

Press “</>”on the unit or “ / ” on the remote control to select item, eg. ,
and it will be highlighted; and then press +/ - of the unit or / to adjust the
favorite values.
BRIGHTNESS: to adjust the luminance of brightness
CONTRAST：to adjust the level of contrast
SATURATION: to adjust the level of saturation
TINT:
OSD H-POSITION ADJUSTMENT: to adjust the OSD move in horizontal
to adjust the hue of image
direction
OSD V-POSITION ADJUSTMENT: to adjust the OSD move in vertical
direction
RESET: you can reset adjustment of the unit when click “YES”
6
Page 10
COLOR TEMPERATURE：choose color and temperature at first, such as: 65000
K, 75000 K or 93000 K.
Only if under “USER” mode, can adjust RED, GREEN and
BLUE to meet the color value you need.
LANGUAGE：There are 2 languages provided for choice, English and Japanese
MISCELLANEOUS：to select to enter next page
As follows:

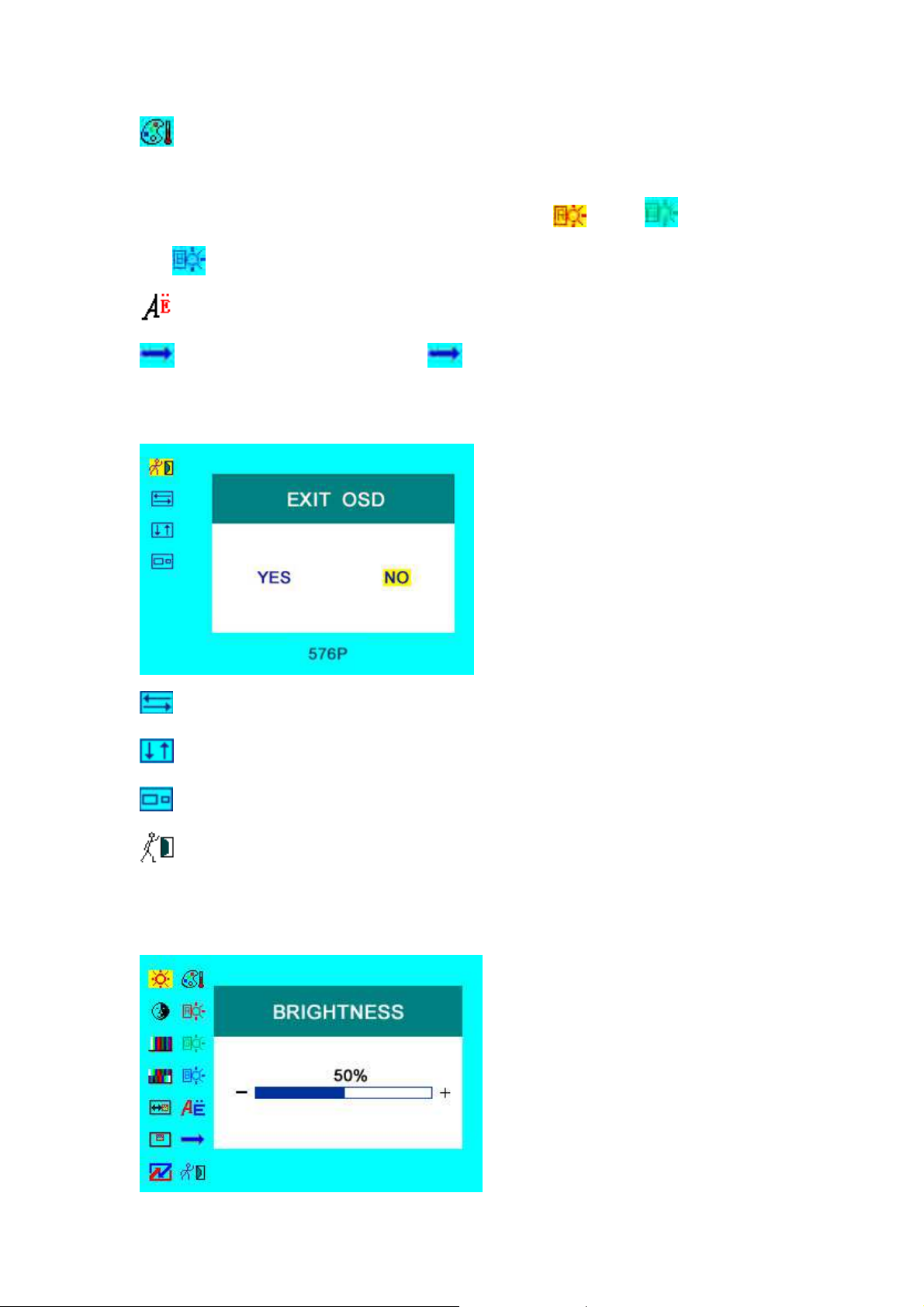

OSD MISCELLANEOUS OF YPBPR MODE
picture over-turn to left or right
picture over-turn to up or down
mode shift between 4:3 and 16:9

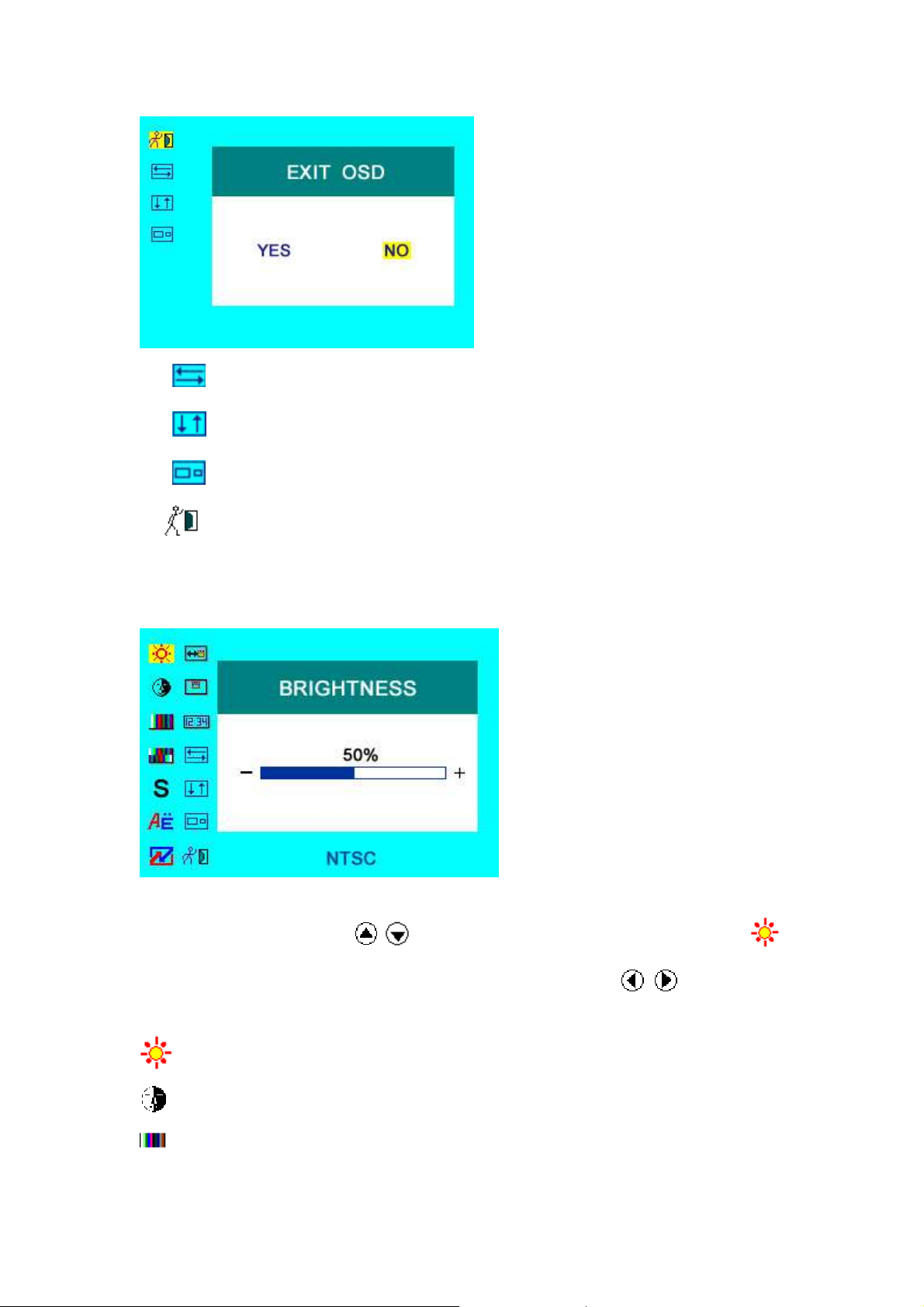

EXIT OSD: select “YES” to exit
IN HDMI MODE
7
Page 11
Press “</>”on the unit or “ / ” on the remote control to select item, eg. ,
and it will be highlighted; and then press +/ - of the unit or / to adjust the
favorite values.
BRIGHTNESS: to adjust the luminance of brightness
CONTRAST：to adjust the level of contrast
SATURATION: to adjust the level of saturation (this function doesn’t work
under DVI/HDMI mode)
TINT:
to adjust the hue of image (this function doesn’t work under DVI/HDMI
mode)
OSD H-POSITION ADJUSTMENT: to adjust the OSD move in horizontal
direction
OSD V-POSITION ADJUSTMENT: to adjust the OSD move in vertical
direction
RESET: you can reset adjustment of the unit when click “YES”
COLOR TEMPERATURE：choose color and temperature at first, such as: 65000
K, 75000 K or 93000 K.
Only if under “USER” mode, can adjust RED, GREEN and
BLUE to meet the color value you need.
LANGUAGE：There are 2 languages provided for choice, English and Japanese
MISCELLANEOUS：to select to enter next page.
As follows:
OSD MISCELLANEOUS OF HDMI MODE
8
Page 12
picture over-turn to left or right
picture over-turn to up or down
mode shift between 4:3 and 16:9
EXIT OSD: select “YES” to exit
IN AV MODE
Press “</>”on the unit or “ / ” on the remote control to select item, eg. ,
and it will be highlighted; and then press +/ - of the unit or / to adjust the
favorite values. It shows current picture format(NTSC&PAL) below the dialog box.
BRIGHTNESS: to adjust the luminance of brightness
CONTRAST：to adjust the level of contrast
SATURATION: to adjust the level of saturation
9
Page 13
TINT:
SHARPNESS: to adjust the level of sharpness
to adjust the hue of image
LANGUAGE：There are 2 languages provided for choice, English and Japanese
RESET: you can reset adjustment of the unit when click “YES”
OSD H-POSITION ADJUSTMENT: to adjust the OSD move in horizontal
direction
OSD V-POSITION ADJUSTMENT: to adjust the OSD move in vertical
direction
OSD DURATION: to adjust the duration of OSD from5-100seconds.
picture over-turn to left or right
picture over-turn to up or down
mode shift between 4:3 and 16:9
EXIT OSD: select “YES” to exit
5. Accessories
10
Page 14

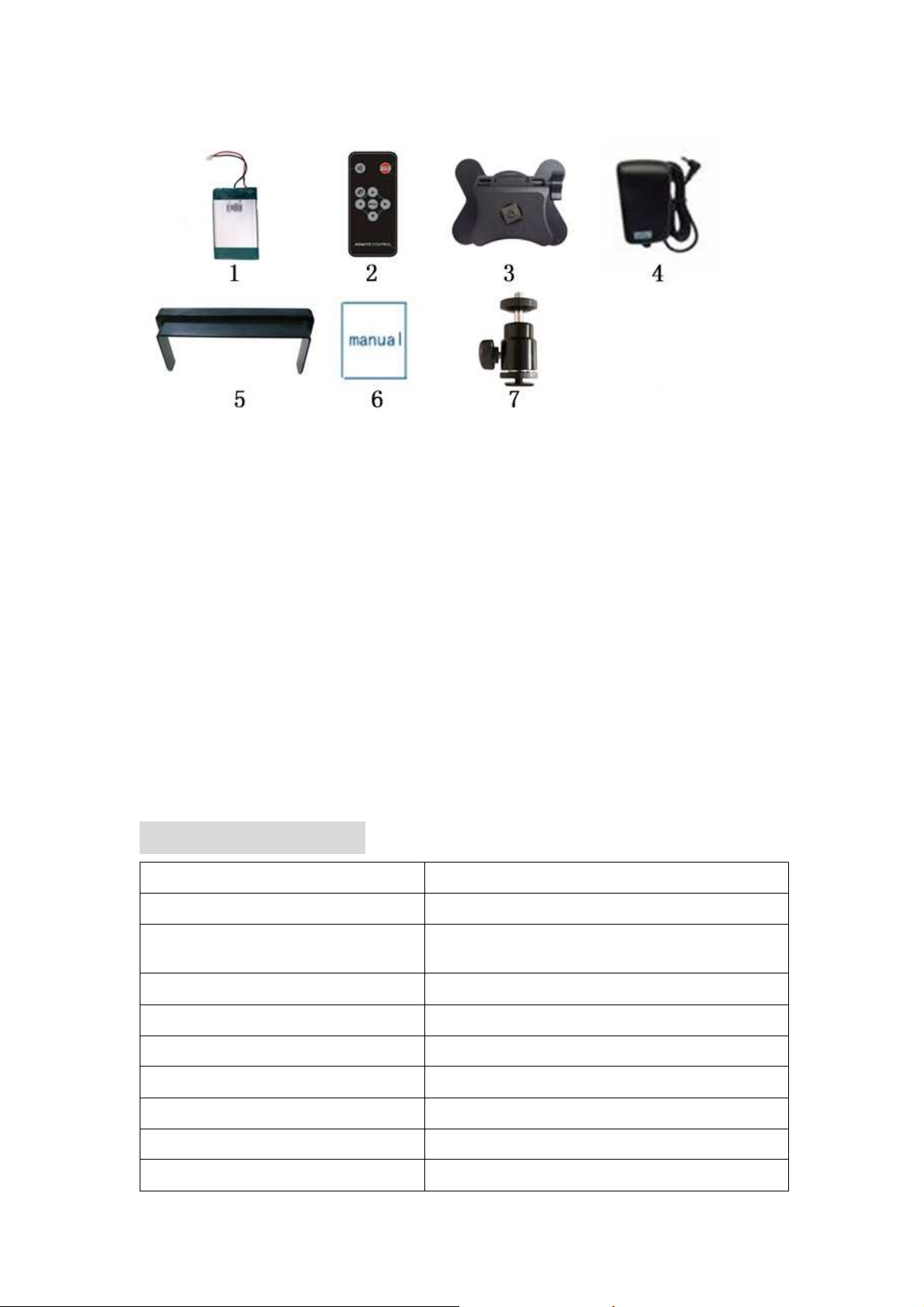

1．2200mAh/7.4V Li-ion battery 1piece
2．Remote control 1piece
3．Bracket 1piece
4．12V 1.5A DC adapter 1piece
5．Sun shade 1piece
6．Manual 1copy
7．Shoe mount (for camera only) (optional) 1piece
6. Main Parameter
Panel Size 7’’ TFT LED (16:9)
Resolution 800×480, up to 1920×1080
Brightness
Contrast 500:1
Viewing Angle 120°/ 140°(H/V)
Input Voltage DC 12V
Input Signal
Battery 2200mAh/7.4V (built-in)
Current 650mA (1.2A when charging)
Standby Current ≤50mA
450cd/㎡ (optional: 250cd/㎡)
HDMI,YPbPr, AV
11
Page 15
Power Consumption ≤8W
Input Resistance 75Ω
Input Frequency H/30-60KHz,V/60-75Hz
Audio Output ≥250mW
Speaker ×1(front)
Size:(LWD) 188×125×33mm
194.4×134.1×63.2mm（with sun shade）
Weight 542g / 582g (with sun shade)
7.
TROUBLE SHOOTING
1. Only black-and-white image
Check the level of color saturation and brightness is proper.
2.Power on but no picture
Make sure the PC、DVI、VIDEO、HDMI cable is tightly connected exactly correctly
Make sure you are using the standard power adapter coming with the monitor.
3. Wrong or abnormal colors
If any color is missing, check the cables to make sure it is securely connected. Broken
or loose pins in the cable connector can cause a bad connection.
4. Remote controller doesn't work
Check the battery to make sure the battery is installed properly and make sure it is not
a low battery. The signal is interfered by some obstructions.
5. If any abnormal matters happened, pls enter “MENU” choose to reset
8. REMARK
*It is a normal condition that some bright lines appear on the screen when you turn
the unit off.
