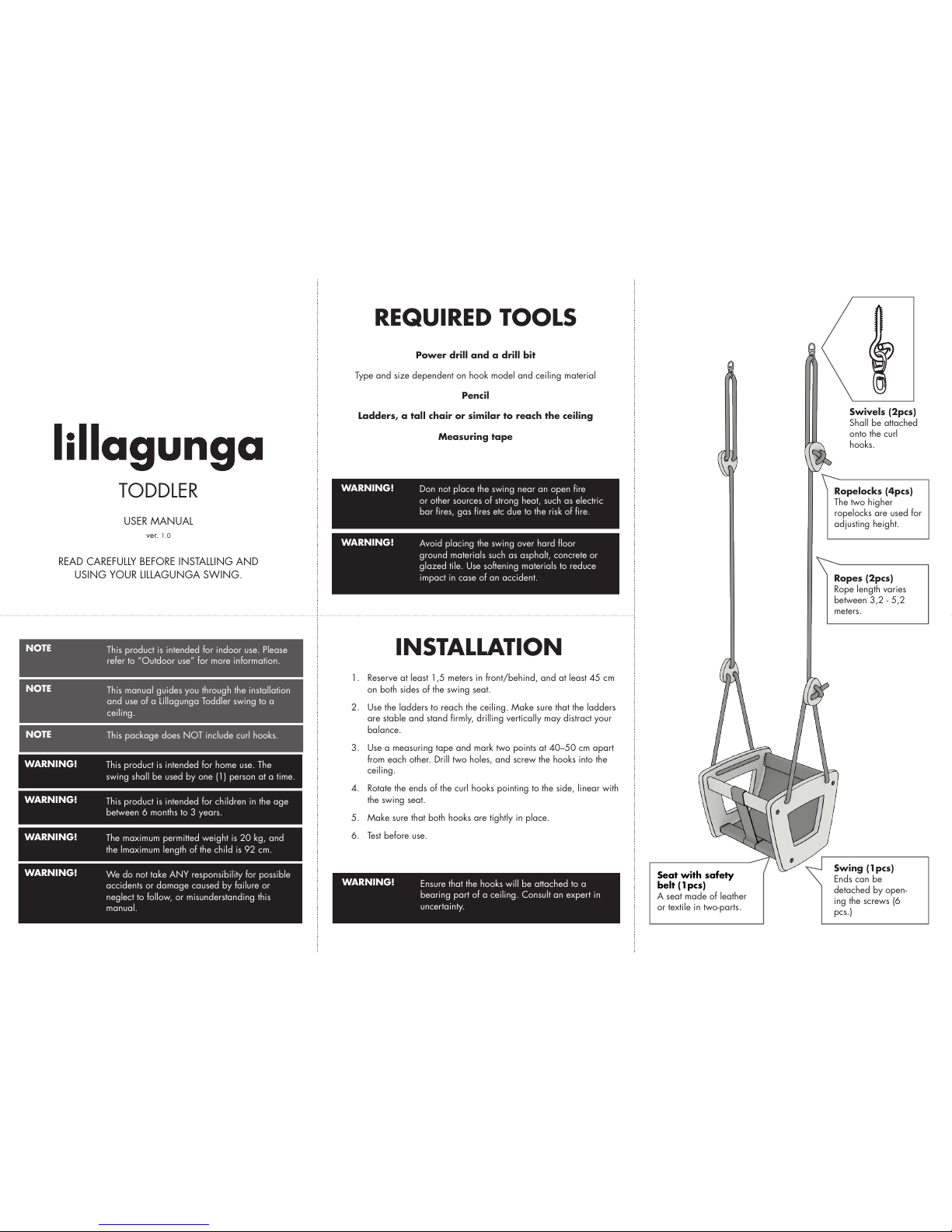

Page 1
INSTALLATION
1. Reserve at least 1,5 meters in front/behind, and at least 45 cm
on both sides of the swing seat.
2. Use the ladders to reach the ceiling. Make sure that the ladders
are stable and stand firmly, drilling vertically may distract your
balance.
3. Use a measuring tape and mark two points at 40–50 cm apart
from each other. Drill two holes, and screw the hooks into the
ceiling.
4. Rotate the ends of the curl hooks pointing to the side, linear with
the swing seat.
5. Make sure that both hooks are tightly in place.
6. Test before use.
TODDLER
USER MANUAL
ver. 1.0
READ CAREFULLY BEFORE INSTALLING AND
USING YOUR LILLAGUNGA SWING.
WARNING!
This product is intended for children in the age
between 6 months to 3 years.
WARNING!
We do not take ANY responsibility for possible
accidents or damage caused by failure or
neglect to follow, or misunderstanding this
manual.
WARNING!
The maximum permitted weight is 20 kg, and
the lmaximum length of the child is 92 cm.
WARNING!
This product is intended for home use. The
swing shall be used by one (1) person at a time.
REQUIRED TOOLS
WARNING!
Ensure that the hooks will be attached to a
bearing part of a ceiling. Consult an expert in
uncertainty.
WARNING!
Avoid placing the swing over hard floor
ground materials such as asphalt, concrete or
glazed tile. Use softening materials to reduce
impact in case of an accident.
WARNING!
Don not place the swing near an open fire
or other sources of strong heat, such as electric
bar fires, gas fires etc due to the risk of fire.
Ropelocks (4pcs)
The two higher
ropelocks are used for
adjusting height.
)
Ropes (2pcs)
Rope length varies
between 3,2 - 5,2
meters.
Swivels (2pcs)
Shall be attached
onto the curl
hooks.
)
Swing (1pcs)
Ends can be
detached by open-
ing the screws (6
pcs.)
Seat with safety
belt (1pcs)
A seat made of leather
or textile in two-parts.)
Power drill and a drill bit
Type and size dependent on hook model and ceiling material
Pencil
Ladders, a tall chair or similar to reach the ceiling
Measuring tape
NOTE
This product is intended for indoor use. Please
refer to “Outdoor use” for more information.
NOTE
This manual guides you through the installation
and use of a Lillagunga Toddler swing to a
ceiling.
NOTE
This package does NOT include curl hooks.
Page 2
fig. 8fig. 6 fig. 7
A
B
ADJUSTING HEIGHT
SAFETY IN MIND
MAINTENANCE
CONTACT US
1. Loosen the knot of the UPPER ROPE LOCK by pulling up the rope
(A) end (fig. 6). Do NOT use the lower rope locks for height
adjustment.
2. Slide the rope block up and down to adjust (fig. 7)
a. To raise the swing: move the rope lock down by sliding
the looped rope (B)
b. To lower the swing: move the rope lock up by sliding the
looped rope from
3. Once the height is adjusted pass the loose end (A) back under
the loop, and tighten the knot by pulling the rope (B) in opposite
directions (fig. 8).
Safety shall always be taken very seriously.
1. Do a routine check of the swing before use. See: “Maintenance”
2. Ensure that the swing height is adjusted right, and that the swing
is an symmetric balance.
3. Always use the safety belt when swinging. The safety belt must
be tighten properly around the waist to prevent the child from
standing/sitting up.
4. Avoid hard speeds and sideway swinging.
The swing must be inspected once a month.
• All parts shall be inspected on a regular basis as they may
become safety risks if damaged or worn out.
• Check the side screws, and tigthten if necessary.
• If a fracture (clearly visible to the eye) is identified in a rope
lock, remove and replace it.
• Inspect the ropes by sliding your palm gently over the ropes. If
the rope is damaged or torn, the braid may loosen up. Remove
and replace.
• The leather and textile seat is made of parts that are sewn
together. If a seam is starting to loosen up the seat must be
replaced.
We are happy to assist you in all matters related to Lillagunga.
We will respond to all incoming emails within 24 hours:
lillagunga.com
facebook.com/lillagunga
pinterest.com/lillagunga
instagram: lillagunga
WARRANTY
INDOOR USE: 3 years on all wooden and metal parts, 2 years on
textile and leather parts. All related to material or workmanship defects.
This warranty does not apply to defects from normal wear and tear,
product misuse, after market product alterations, or failure to follow
instructions supplied with the product.
OUTDOOR USE
This product is intended for indoor use. Outdoor use
is at own responsibility with the following guidance:
• The swing must always be placed under shelter, properly
protected from rain.
• Sun and moisture will eventually cause changes in materials.
These may appear as color changes, fractures or slight
change in shape (particularily the wooden parts).
• Outdoor use weakens all parts and thus shortens the lifetime
of the swing. As outdoor conditions are very varying our
warranty applies only for indoor use.
• If the swing is being used outdoors, always take the swing
indoors when not in use.
B
B
B
WARNING!
The lowest point of the swing shall not be
more than 60 cm from the ground.
WARNING!
NEVER leave a child unattended. A parent
should always have visibility to the swing, and
be within reachable distance from the swing.
