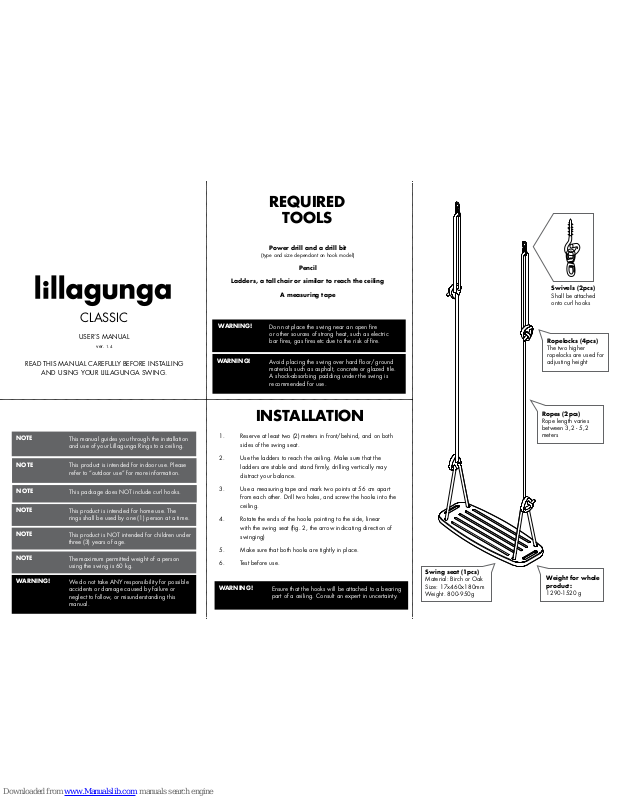

Lillagunga CLASSIC User Manual

WARNING!

Ensure that the hooks will be attached to a bearing

part of a ceiling. Consult an expert in uncertainty.

WARNING!

Avoid placing the swing over hard floor/ ground

materials such as asphalt, concrete or glazed tile.
A shock-absorbing padding under the swing is
recommended for use.

REQUIRED

TOOLS

Power drill and a drill bit

(type and size dependant on hook model)

Pencil

Ladders, a tall chair or similar to reach the ceiling

A measuring tape

INSTALLATION

1. Reserve at least two (2) meters in front/behind, and on both
sides of the swing seat.

2. Use the ladders to reach the ceiling. Make sure that the
ladders are stable and stand firmly, drilling vertically may
distract your balance.

3. Use a measuring tape and mark two points at 56 cm apart
from each other. Drill two holes, and screw the hooks into the
ceiling.

4. Rotate the ends of the hooks pointing to the side, linear
with the swing seat (fig. 2, the arrow indicating direction of
swinging)

5. Make sure that both hooks are tightly in place.

6. Test before use.

Swivels (2pcs)

Shall be attached
onto curl hooks

)

Ropelocks (4pcs)

The two higher
ropelocks are used for
adjusting height

)

Ropes (2pcs)

Rope length varies
between 3,2 - 5,2
meters

Swing seat (1pcs)

Material: Birch or Oak
Size: 17x460x180mm
Weight. 800-950g

NOTE

This product is NOT intended for children under

three (3) years of age.

WARNING!

We do not take ANY responsibility for possible
accidents or damage caused by failure or
neglect to follow, or misunderstanding this
manual.

NOTE

The maximum permitted weight of a person

using the swing is 60 kg.

NOTE

This product is intended for home use. The

rings shall be used by one (1) person at a time.

NOTE

This product is intended for indoor use. Please

refer to “outdoor use” for more information.

NOTE

This manual guides you through the installation

and use of your Lillagunga Rings to a ceiling.

NOTE

This package does NOT include curl hooks.

WARNING!

Don not place the swing near an open fire
or other sources of strong heat, such as electric
bar fires, gas fires etc due to the risk of fire.

Weight for whole
product:

1290-1520 g

CLASSIC

USER’S MANUAL

ver. 1.4

READ THIS MANUAL CAREFULLY BEFORE INSTALLING

AND USING YOUR LILLAGUNGA SWING.

fig. 3fig. 1 fig. 2

A

B

B

B

ADJUSTING HEIGHT

1. Loosen the knot of the UPPER Rope lock by pulling up the rope
(fig. 1). Do NOT adjust the lower rope lock.

2. Slide the rope block up and down to adjust (fig. 2)

a. To raise the swing: move the rope lock DOWN by

sliding the looped rope (B)

b. To lower the swing: move the rope lock UP by sliding

the looped rope (B)

3. Pass the loose end (A) back under the loop, and secure the
knot by pulling the rope (B) from opposite directions (fig. 3).

4. On our web page (www.lillagunga.com/pages/guides) you
can find a video that shows how to adjust the height of the
ropes.

The swing shall be inspected once a month.

• Frequently inspect all parts of the swing. In particular all rope
locks, the swivels and the hooks shall be held under inspection
as they may become safety risks if damaged or worn out.

• If a fracture (clearly visible to the eye) is identified in a rope
lock, remove and replace it.

• Inspect the ropes by sliding your palm gently over the ropes. If
the rope is damaged or torn, the braid may loosen up, and thus
it becomes a safety risk.

• If a part gets worn out or damaged stop using the product
immediately and replace it to a new original Lillagunga part.

MAINTENANCE AND

SAFETY

OUTDOOR USE

SAFETY IN MIND

Safety shall always be taken very seriously.

1. Do a routine check of the swing before use. See: “Maintenance”

2. Ensure that the swing height is adjusted right, and that the swing
is in symmetric balance.

3. Avoid hard speeds and sideway swinging.

4. Do not swing with a child in your arms.

WARNING!

NEVER leave a child unattended. A parent
should always have visibility to the swing, and
be within reachable distance from the swing.

CONTACT

We are happy to assist you in all matters related to Lillagunga.

We do our best to respond to all incoming emails within 24 hours at:

[e-mail]

WARRANTY

INDOOR USE: 3 years on all wooden and metal parts, 2 years on

ropes and leather parts. All related to material or workmanship defects.

This warranty does not apply to defects from normal wear and tear,
product misuse, after market product alterations, or failure to follow

instructions supplied with the product.

Uniq Works

lillagunga.com

This product is intended for indoor use. Outdoor use

is at own responsibility with the following guidance:

• The swing must always be placed under shelter, properly
protected from rain.

• Sun and moisture will eventually cause changes in materials.
These may appear as color changes, fractures or slight
change in shape (particularily the wooden parts).

• Outdoor use weakens all parts and thus shortens the lifetime
of the swing. As outdoor conditions are very varying our
warranty applies only for indoor use.

• Always take the swing indoors when not in use.

NOTE

This package does not include components
or parts that a enables the attachment of the
swing to a tree or to branches.

NOTE

A careful use and maintenance of the swing
according to this manual will extend the
lifetime of the Lillagunga swing, and prevent
possible accidents.
