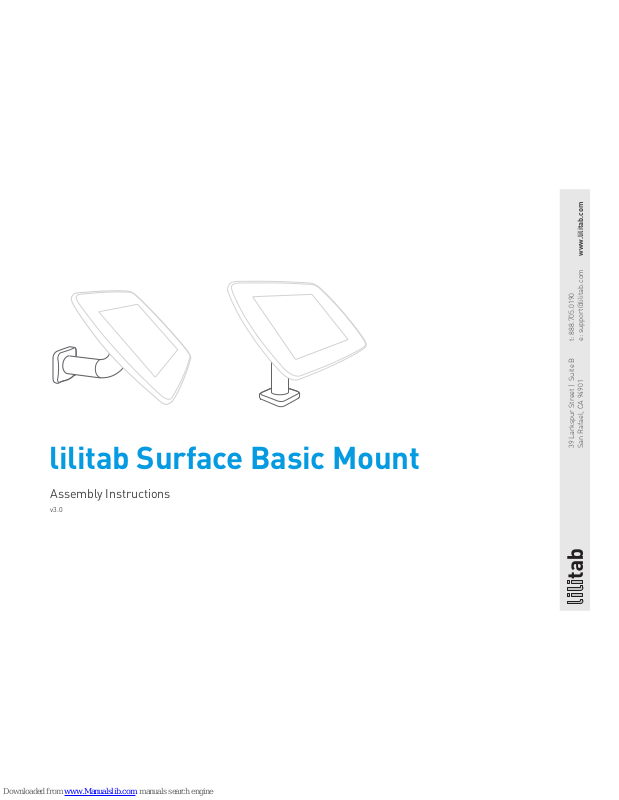

lilitab Surface Basic Mount Assembly Instructions Manual

lilitab Surface Basic Mount

Assembly Instructions

v3.0

39 Larkspur Street | Suite B t: 888.705.0190

San Rafael, CA 94901 e: [e-mail] www.lilitab.com

lilitab Surface Basic Mount Assembly Instructions v3.0

2

TABLE OF CONTENTS

Assembly Preparation and Packing List.............3

Assembly Instructions ...........................4

Bolt Down Installation ...........................5

GOT QUESTIONS? WE’RE HERE TO HELP!

EMAIL [e-mail] PHONE [phone]

lilitab Surface Basic Mount Assembly Instructions v3.0

3

MOUNT ASSEMBLY PREPARATION

FOR BASE PLATE INSTALLATION, YOU’LL NEED:

4 Phillips screwdriver

FOR BOLT DOWN INSTALLATION, YOU’LL NEED:

4 Powered drill/driver, preferably with impact action

4 4 x bolts or wood screws (m5, no.10, no.11, 3/16” or

13/64 diameter)

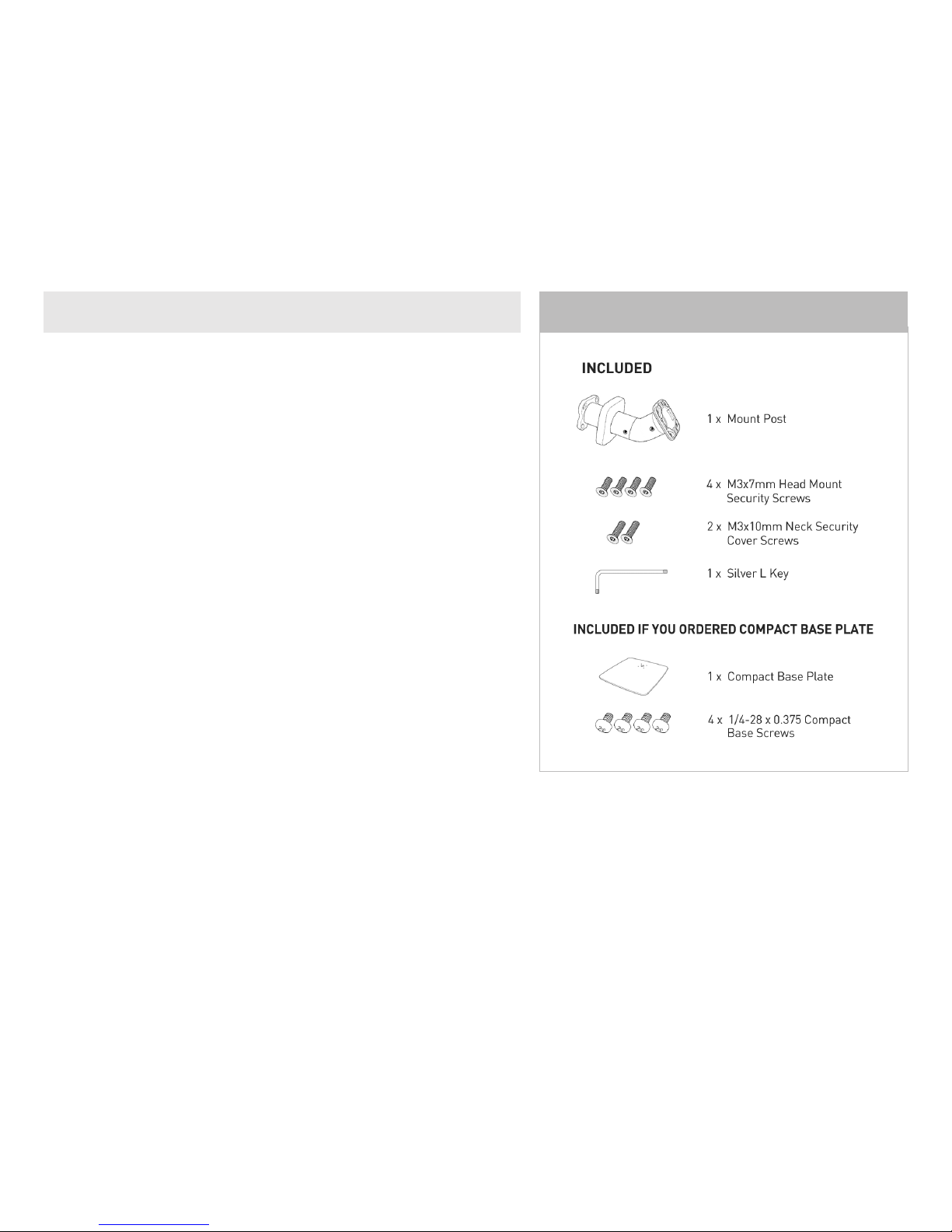

PACKING LIST

lilitab Surface Basic Mount Assembly Instructions v3.0

4

ASSEMBLY INSTRUCTIONS

1. Thread the charge and sync cable that

came with your kiosk through the top of the
lilitab mount. Line up the bottom of the lilitab
mount with the four screw holes in the base
plate. Secure together using the four (4)

1/4-28 x 0.375 Compact Base Screws.

NOTE: You will need to hold the foot cover up and

out of your way while securing.

2. Install the foot cover by sliding the it gently

down to pole to cover the screws (velcro will
hold it in place once positioned).

3. Attach the head unit using the four (4)

M3x7mm Head Mount Security Screws

and Silver L Key.

NOTE: Rotating the neck security cover 90° will make

access to the screw openings easier to access.

4. Install security cover. After you attached

your head unit, install the security cover
using the two (2) M3x10mm Security Cover

Screws and Silver L Key.

Refer to your lilitab Head owner’s manual

for tablet installation instructions.

lilitab Surface Basic Mount Assembly Instructions v3.0

5

Mounting pattern

The lilitab Surface Basic can be mounted
horizontally or vertically to any hard surface
using 2 x bolts, wood screws or other
fastener suitable for your surface’s
substrate (m6, no.14 or 1/4” diameter).
Use the mounting pattern to the right for
proper alignment.

BOLT DOWN INSTALLATION

1.50

38.10

1.50

38.10

4X M6 OR
1/4-20

1.63

41.44

.71

18

SLOT FOR
POWER CABLE:

USB TYPE A,
~12" PIGTAIL

Power supply cable
can run under or on
top of surface.
