COLOR TFT LCD MONITOR
User Manual
CAUTIONS
1. Please use the adapter attached in the accessories.
2. Please keep away from strong light while using this product in order to
obtain the clearest and the most colorful pictures.
3. Please avoid heavy impact or drop onto the ground.
4. Please do NOT use chemical solutions to clean this product. Please wipe
with a clean soft cloth to maintain the brightness of the surface.
5. Please follow the instructions and trouble-shootings to adjust the product.
Other improper adjustment may result in damage. Any further
adjustment must be performed or conducted by a qualified technician.
6. Please unplug the power and remove the battery if long-term no-use, or
thunder weather.
To ensure the best use of this product, please read this manual carefully
beforehand.
Table of Contents
1. PRODUCT DESCRIPTION -----------------------------------------
2. SETTING MENU -----------------------------------------------------
3. ACCESSORIES -------------------------------------------------------
4. PARAMETER ---------------------------------------------------------
5. TROUBLESHOOTING ----------------------------------------------
6. REMARK---------------------------------------------------------------
1
1. PRODUCT DESCRIPTION

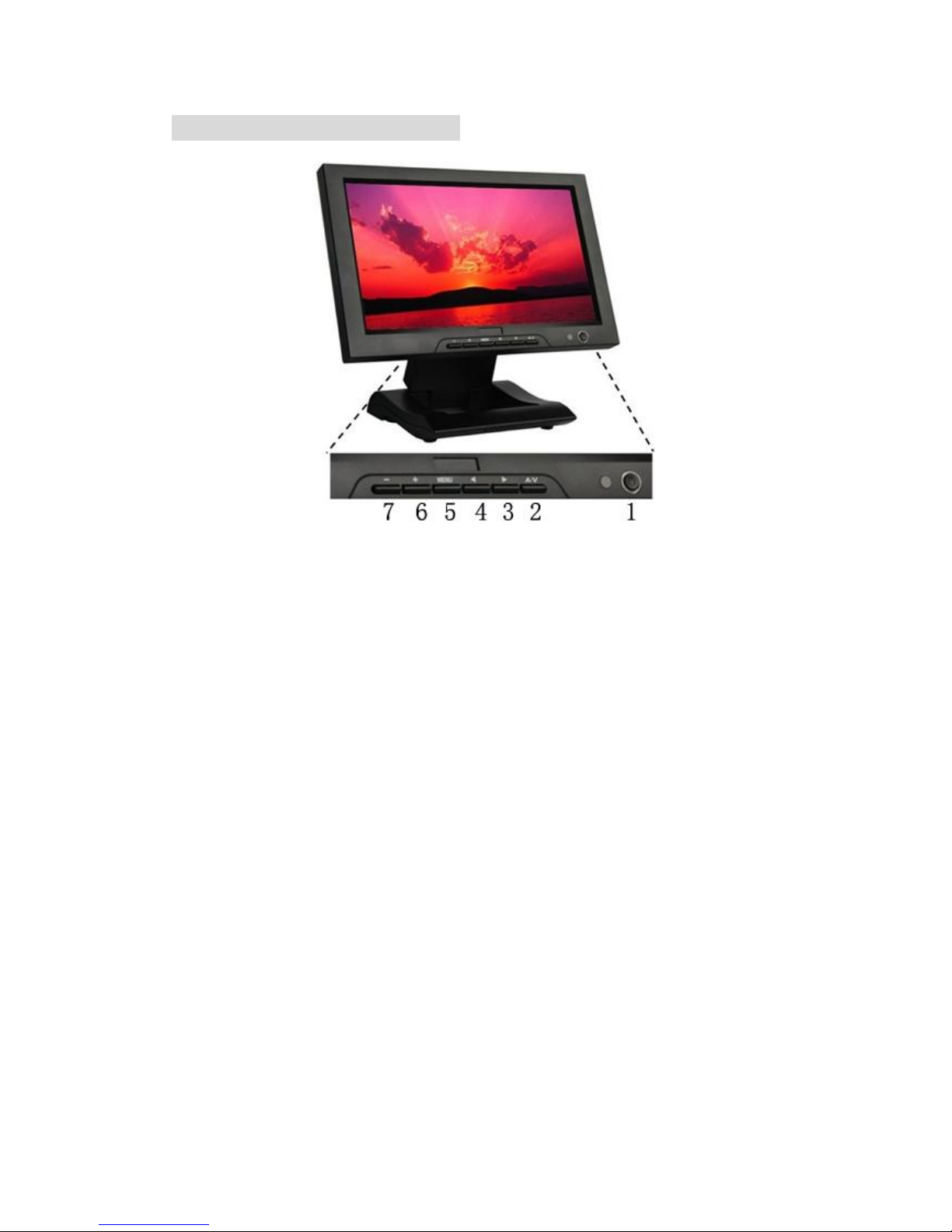

1．Power: ON/OFF ；switch concurrence battery indicator light (red while
standby; green while working)。
2．A/V: circularly switch among HDMI, YPbPr, Video 1, Video 2, and SDI
(Note: SDI optional).
3．►: Right selection key, to select items on OSD menu.
4．◄: Left selection key, to select items on OSD menu.
5．MENU：To activate OSD (on-screen display) menu. Select switch the
contrast, brightness, color, tone, volume, clarity, MENU and Exit.
6. +: Volume up, to select items on OSD menu; Click to adjust the contrast,
brightness, color, tone, volume and clarity value increase.
7. –: Volume down, to select items on OSD menu; Click to adjust the contrast,
brightness, color, tone, volume and clarity value decrease.
*the image menu
When power on, press “+/-” key on the device, Will appear at the bottom of
the screen display of the brightness, Then press the MENU button to select
contrast, brightness, color, tone, volume, clarity, MENU and Exit. Required
by the user according to personal to User can adjust the parameters of
the selected menu with “+/-” button, according to their requirements.
2

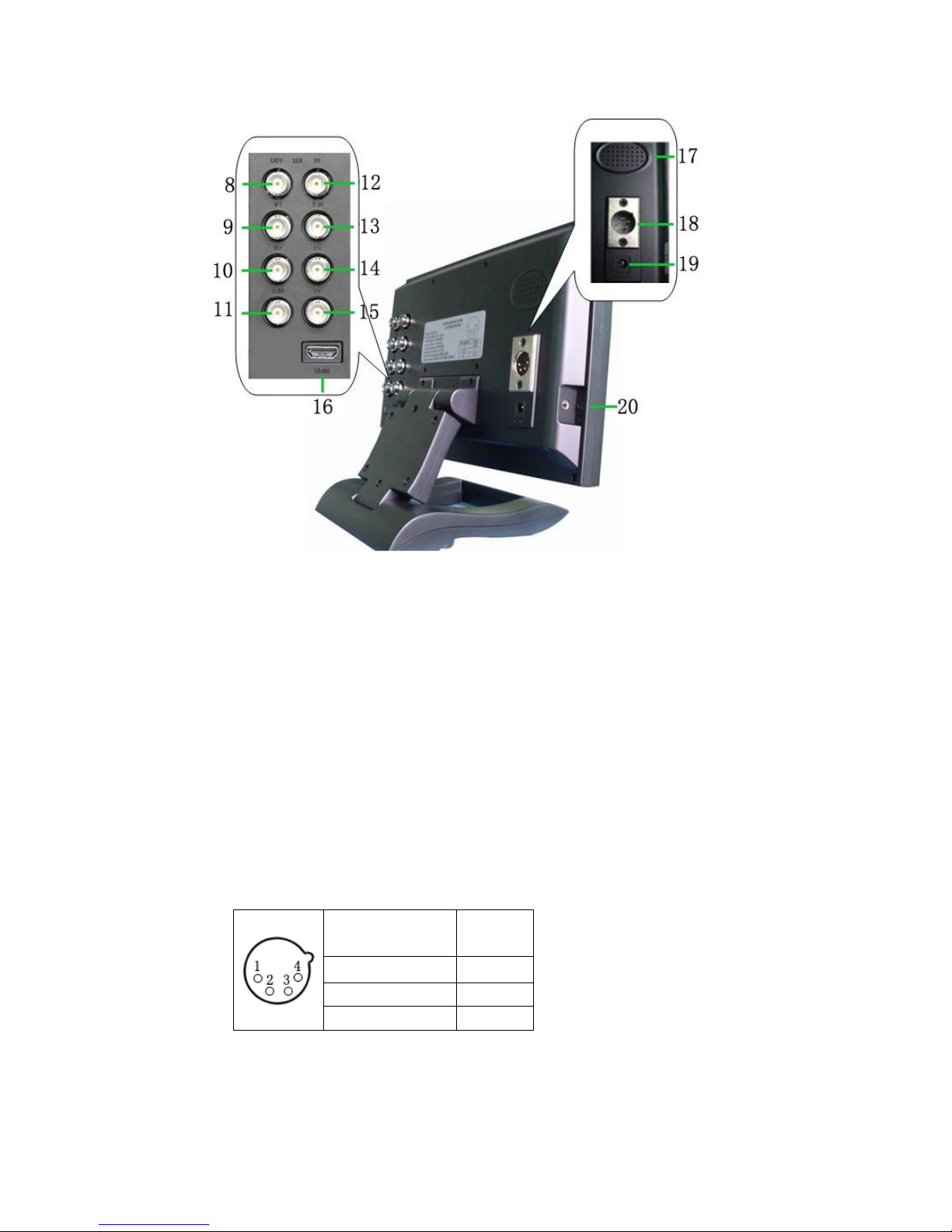

8．SDI signal output.（Optional）
9．Video 1 signal output.
10．Video 2 signal input.
11．Audio signal input.
12．SDI (Serial Digital Interface) signal input. （Optional）
13．Y signal input.
14．Pb signal input.
15．Pr signal input.
16．HDMI (High Definition Multimedia Interface) signal input.
17. Speakers
18．4-pin XLR DC power input.
XLR signal description:
Pin number
Signal
①
GND
②③
……...
④
+12V
19．12V DC power input.
20．EAR: Earphone jack
3
2. SETTING MENU
Before setting the menu functions, please make sure the device is connected
correctly.

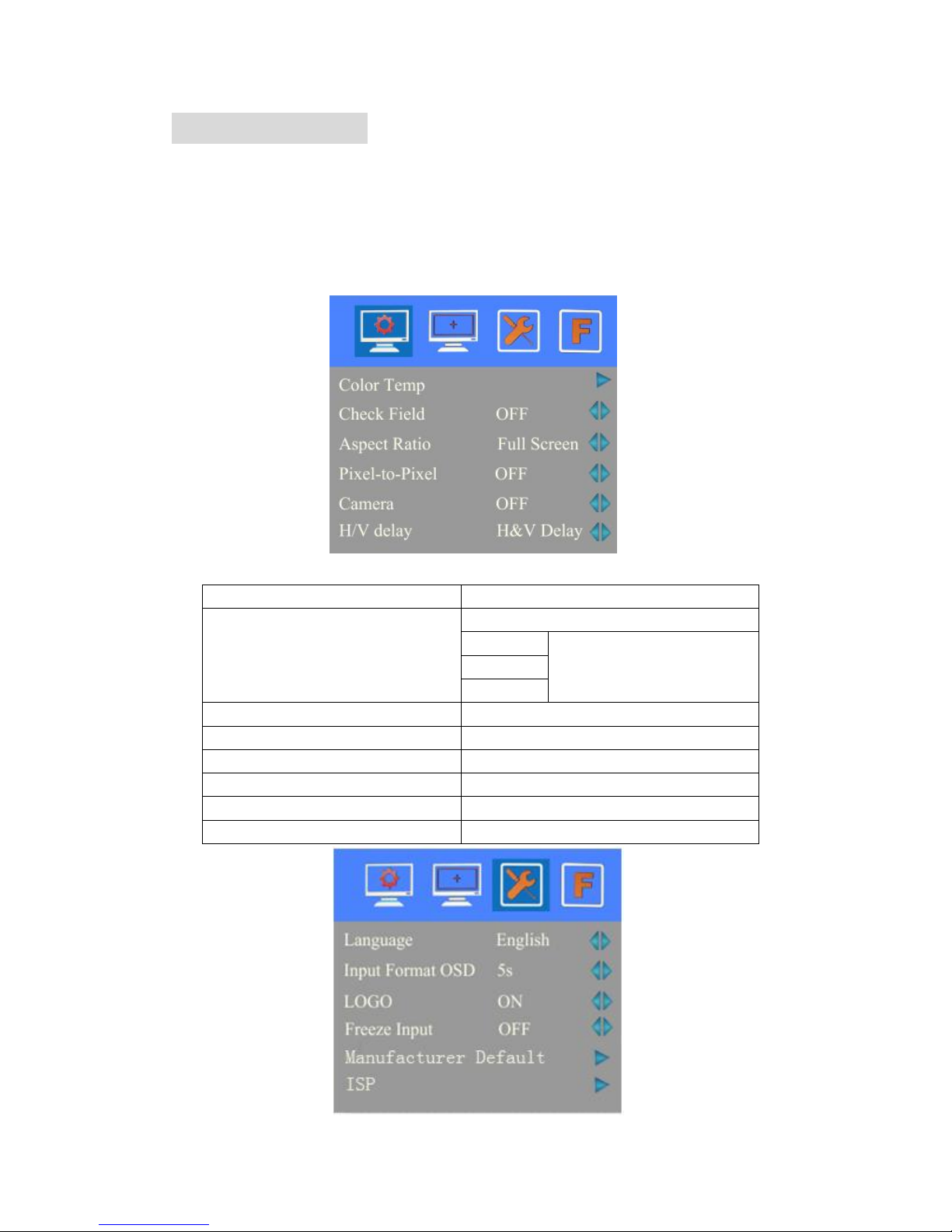

When power on, press “MENU” on the device. The menu of function
setting will display on the screen. Press ◄/► buttons on the device to select
items on the display menu. Then press + / – buttons on the device to change
the values and the main menu options
NAME
OPTIONS
Color Temp
6500ºK/7500 ºK/9300 ºK/User
Red
Note: Only can available
under “User” mode to meet
the color value you need.
Green
Blue
Check Field
OFF，MONO，Red, Green and Blue
Aspect Ratio
Full Screen,4:3 and 16:9
Pixel-to-Pixel
ON/OFF
Camera
ON/OFF
H/V delay
OFF,H&V Delay, V Delay and H Delay
Underscan
ON/OFF
4
ITEMS
OPTIONS
Language
English /Chinese
Input Format OSD
5s、10s、15s
LOGO
ON/ OFF
Freeze Input
ON/ OFF
Manufacturer Default
OK/Cancel
ISP
For program upgrades (such as accidentally
press to reboot your computer)
Ver
LLP Ver 1.1
and NO USE：

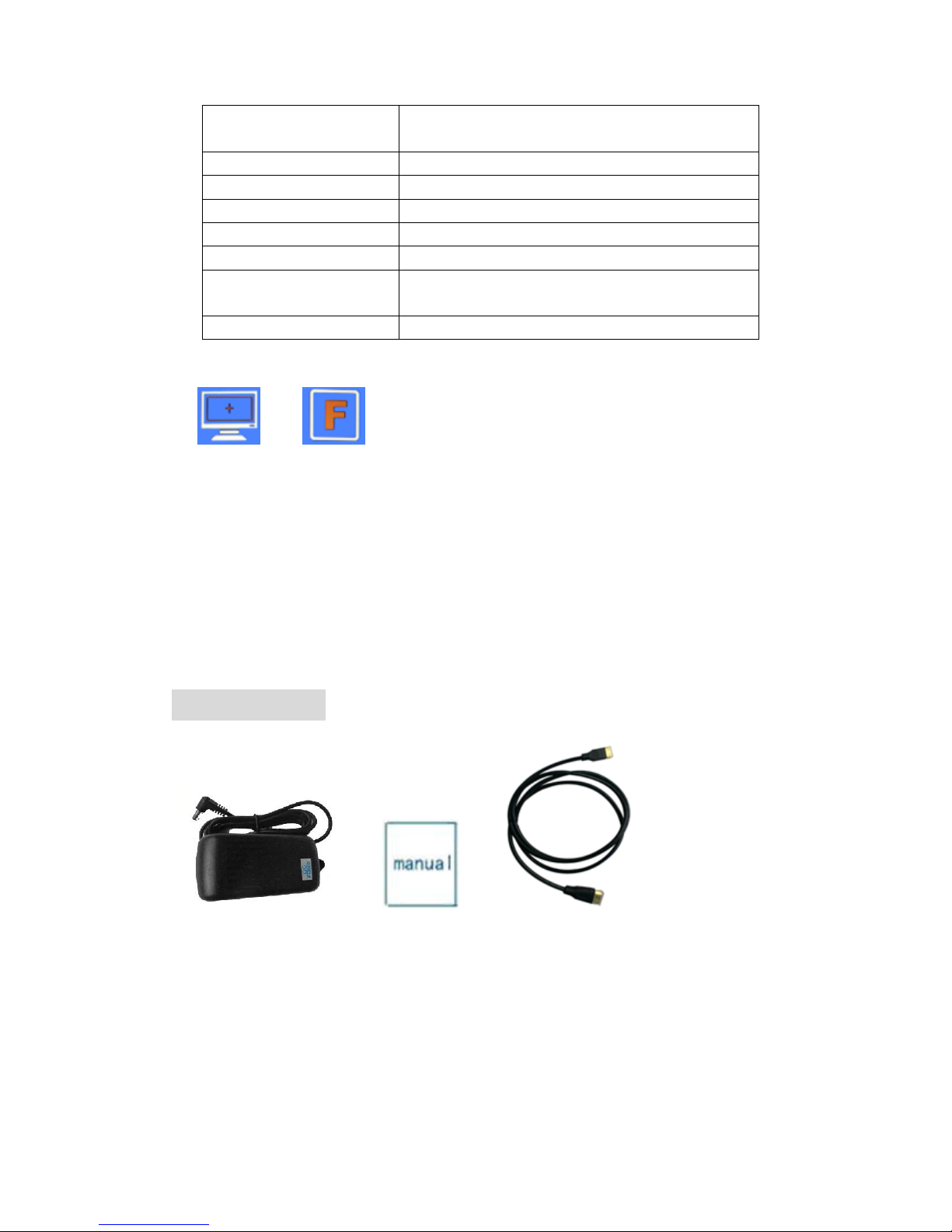

3. Accessories
1 2 3
1. 12V DC adapter 1 piece
2. User manual 1 piece
3. HDMI Type A-C（Optional） 1 piece
5
4. MAIN PARAMETERS
Panel Size
10.1’’ TFT LCD (16:9)
Screen Resolution
1024×600
Brightness
250cd/㎡
Contrast
500 : 1
Viewing Angle
140°/ 110°(H/V)
Input Voltage
DC 12V (XLR DC Connection)
Input Signal
HDMI,YPbPr,AV2,SDI(Note:SDI
optional)
SDI/HDMI/YPbPr Mode
480i/p、576i/p、720p、1080i(50/60)、
1080p(50/60)
Current
800mA
Power Consumption
≤10W
Size:(long × wide × high)
259mm×170mm×36.5mm
Weight
1144g
5. TROUBLE SHOOTING
1. Only black-and-white display:
Check whether the color saturation and brightness are properly setup.
2. Power on but no pictures:
Check whether the cables of Video, HDMI, YPbPr, and SDI (optional) are
correctly connected. Please use the standard power adapter coming with the
product package. Improper power input may cause the device.
3. Wrong or abnormal colors:
Check whether the cables are correctly and properly connected. Broken or
loose pins of the cables may cause a bad connection.
4. When on the picture shows size error:
press“MENU→ →Underscan” to zoom in/out pictures automatically
when receiving HDMI (High-Definition Multimedia Interface) signals.
5. Other problems:
Please press “MENU” button and choose “ →Manufacturer Default
→OK”
6
6. REMARK
It is normal to see some bright lines appear on the screen when turn off the
device.
Note: due to constant effort to improve products and product features,
specifications may change without notice.
