Chapter 1: Live Operation
In the live mode, user can monitor all channels of the DVR and change the division, user can access the
configuration panel by right-clicking the mouse, There is a shortcut toolbar on the top of the screen, and a
division control panel will appear when the mouse cursor moves to the bottom of the screen。
Note: The number of channels, split screen, and resolution in the following figures are for reference
only. The actual screen is subject to different models.

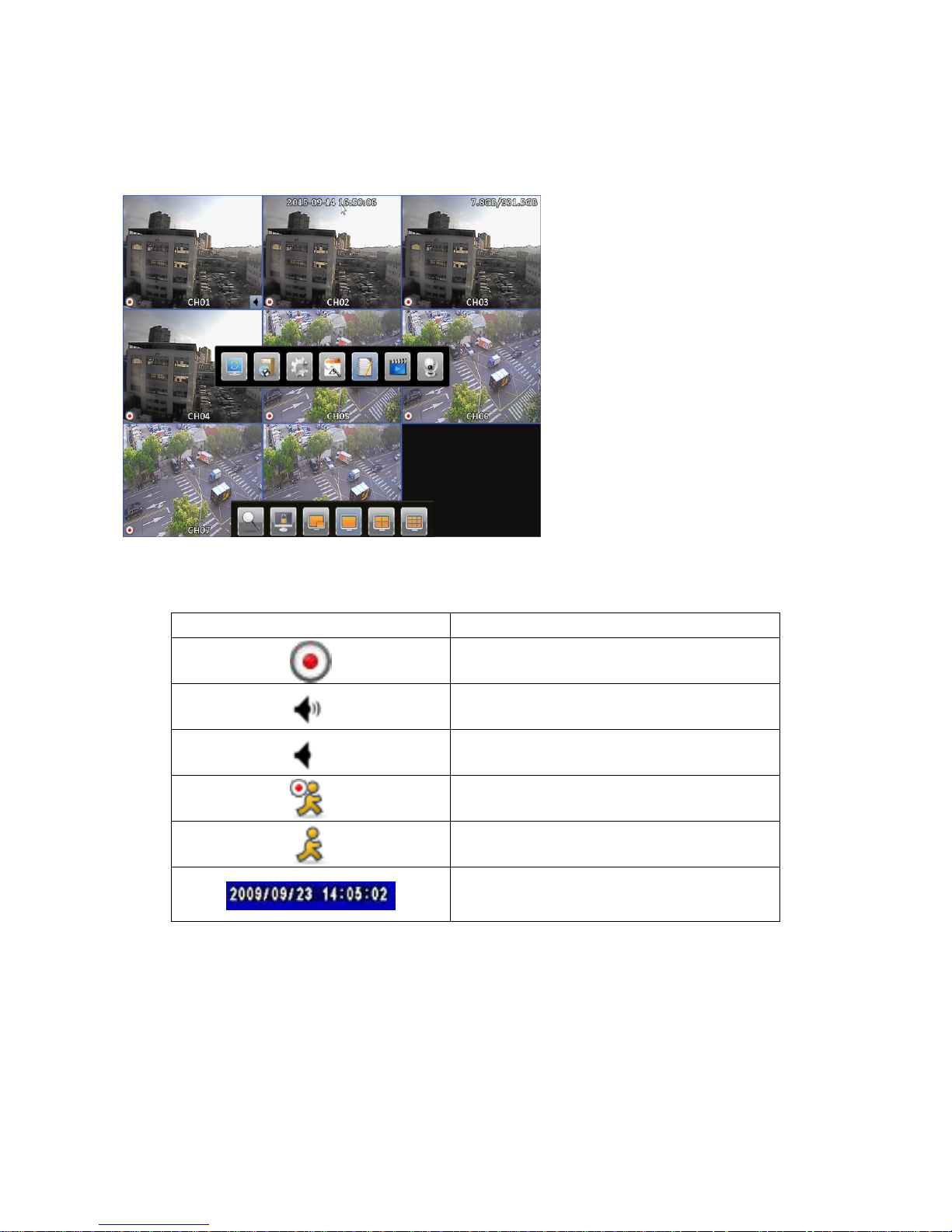

Table 1-1 Icon description in “Live Mode”
Icon
Description
Recording of channel is activated.
Live audio of channel is on.
Live audio of channel is off.
Event recording of channel is activated.
Motion detection of channel is triggered.
Time stamp for each channel, shows when local
playback, remote live, remote playback and
backup video.
Division control
Menu
Page 5
4
Chapter 2: Main Menu Setup
To enter the main menu and set up DVR, log-in account and user password are required.
The default password of the administrator is “1111”, please check the “Account Setup” for management other
users.

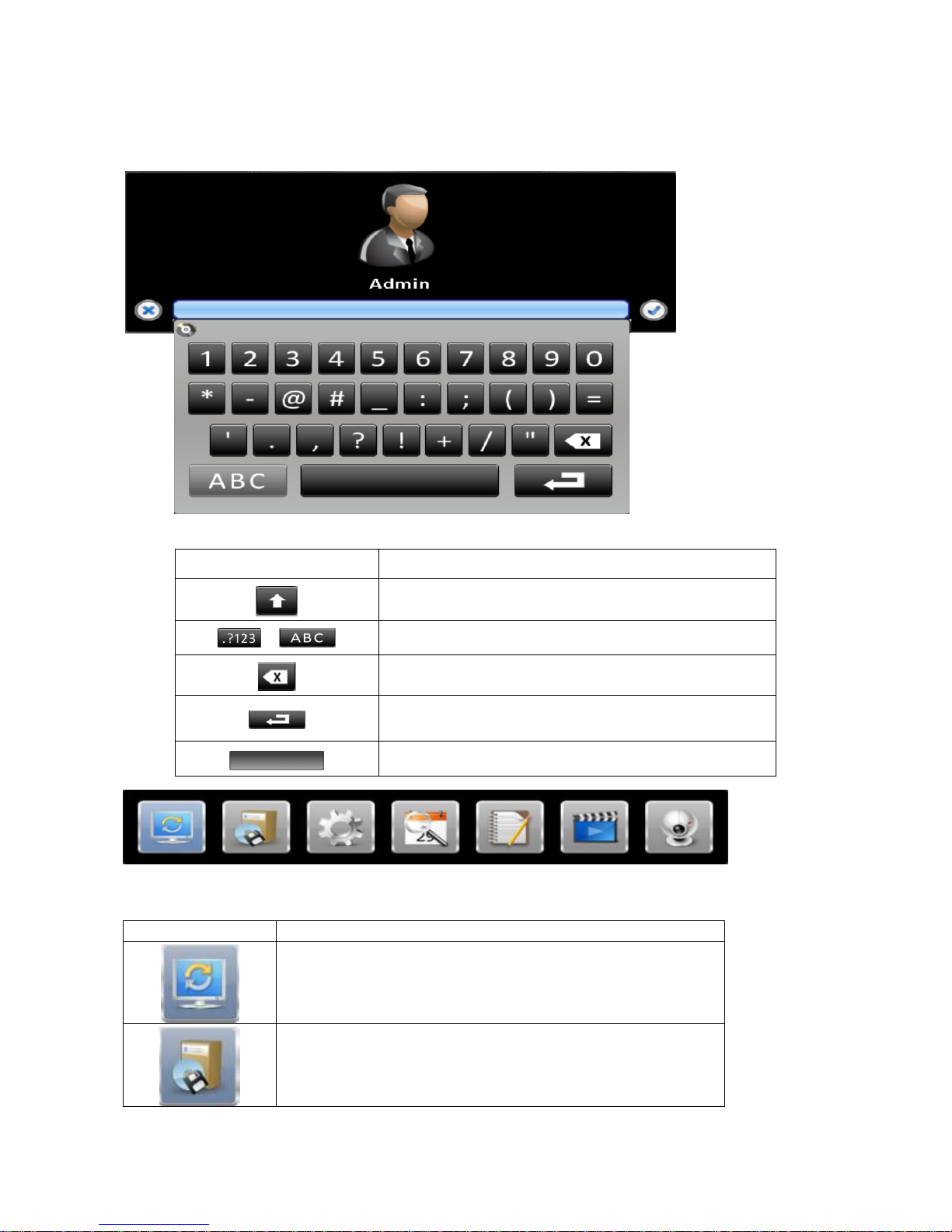

Table2-1 Definition of keys of virtual keyboard
Icon
Description
Switch between capital letters and lower-case letters.
/
Switch between numbers and letters
Delete the last character.
Enter to verify the password. The DVR shows the setup
menu, if the password is accepted.
Space key.
Right click on the screen to display the live menu.

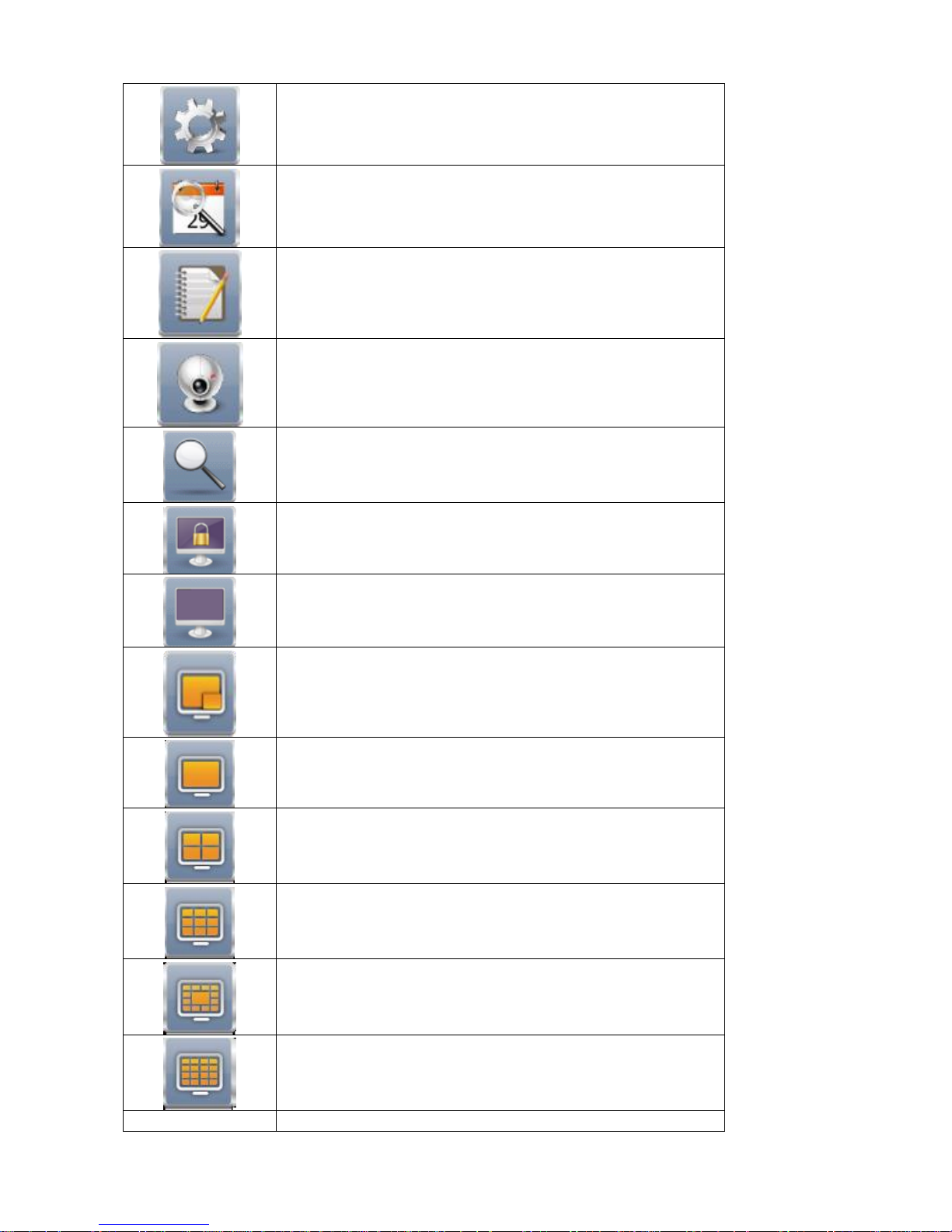

Table 2- 3 Description of icons
Icon
Description
Auto sequential menu.
Backup menu.
Page 6
5
Configurations menu.
Time search menu.
System logs.
PTZ menu.
Digital zoom.
Freeze.
Unfreeze.
PIP.
Single split.
4 division.
9 division.
13 division.
Hex division.
Page 7
6
Note: Division control may be different by model.

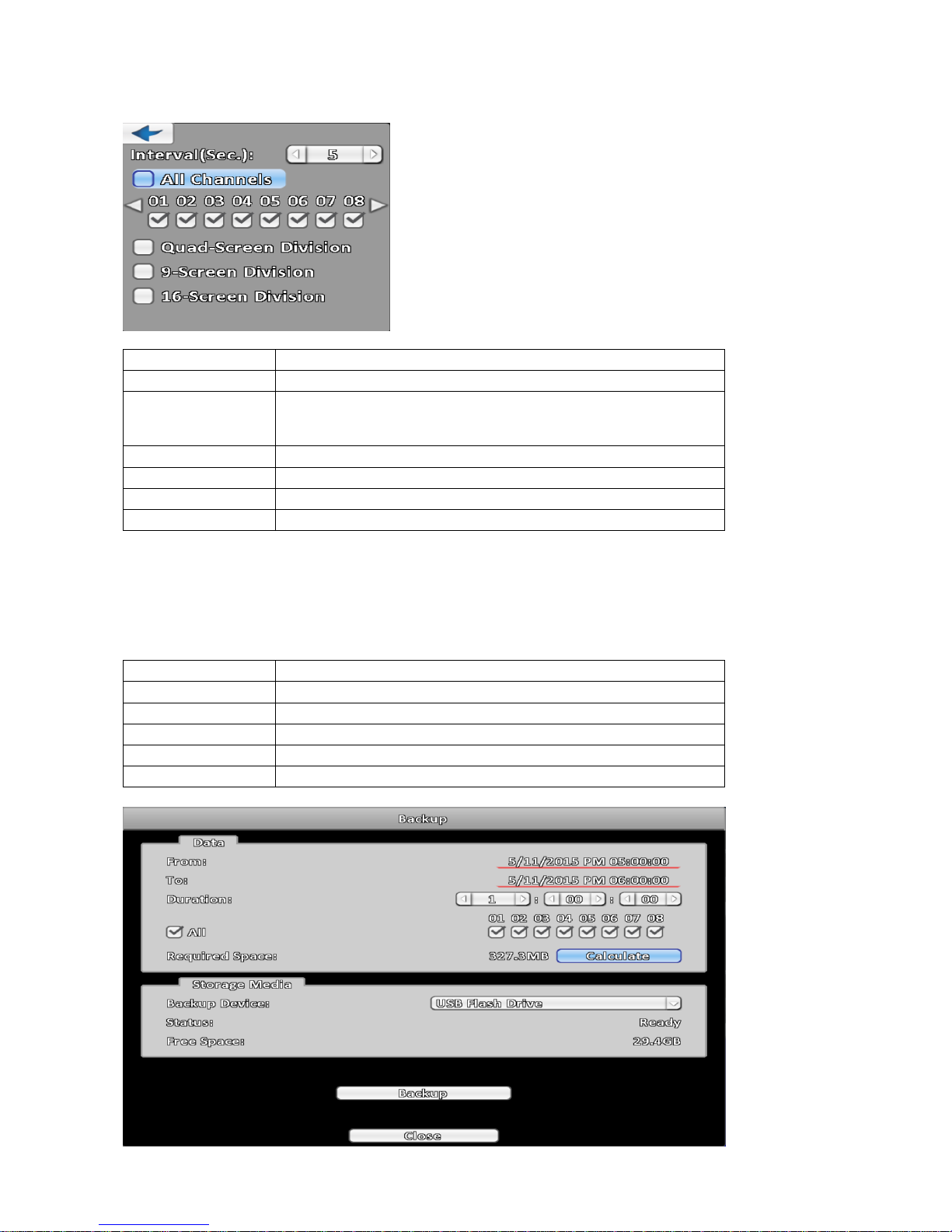

2-1 Auto Sequential
Item
Description
Interval
The time interval between each channel display
All Channels
The DVR automatically switches between channels with
designated interval. The DVR shows each channel in a single-split
mode.
Quad Division
The DVR automatically switches channels in 4-split mode.
8 Division
The DVR automatically switches channels in 8-split mode.
10 Division
The DVR automatically switches channels in 10-split mode.
16 Division
The DVR automatically switches channels in 16-split mode.
2-2 Backup

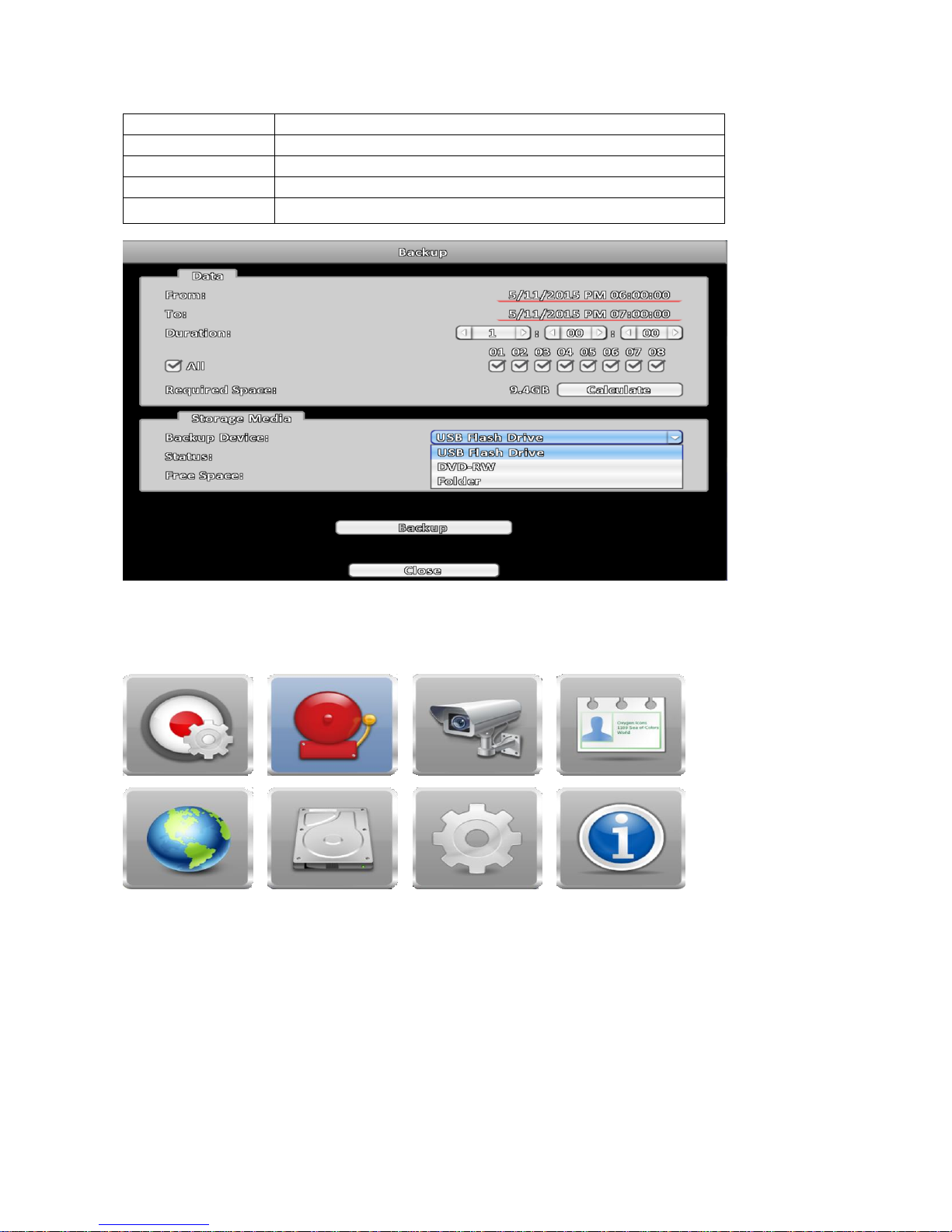

User can backup recorded video data of a specified time to either direct-attached storage, such as USB flash
drive, or remote folder of a PC.
2-2.1 Selection
Item
Description
From
The start time of data to backup.
To
The end time of data to backup.
Duration
The duration of backup data.
All
Select all channels or clear all selected channels to backup.
Required Space
Show the size of the backup file
Page 8
7
2-2.2 Select Backup Device
Item
Description
Backup Device
Select target device for backup.
Status
The status of target device
Free Space
The available space in the target device.
Backup
Start backup operation.
Note: Be sure to calculate the size of backup data before start backup operation.
Note: Do not remove the backup device or turn off DVR during the backup processing.
2-3 Configure Menu
DVR Setup Menu, please rafter the chapter 3 for detail.
2-4 Time Search

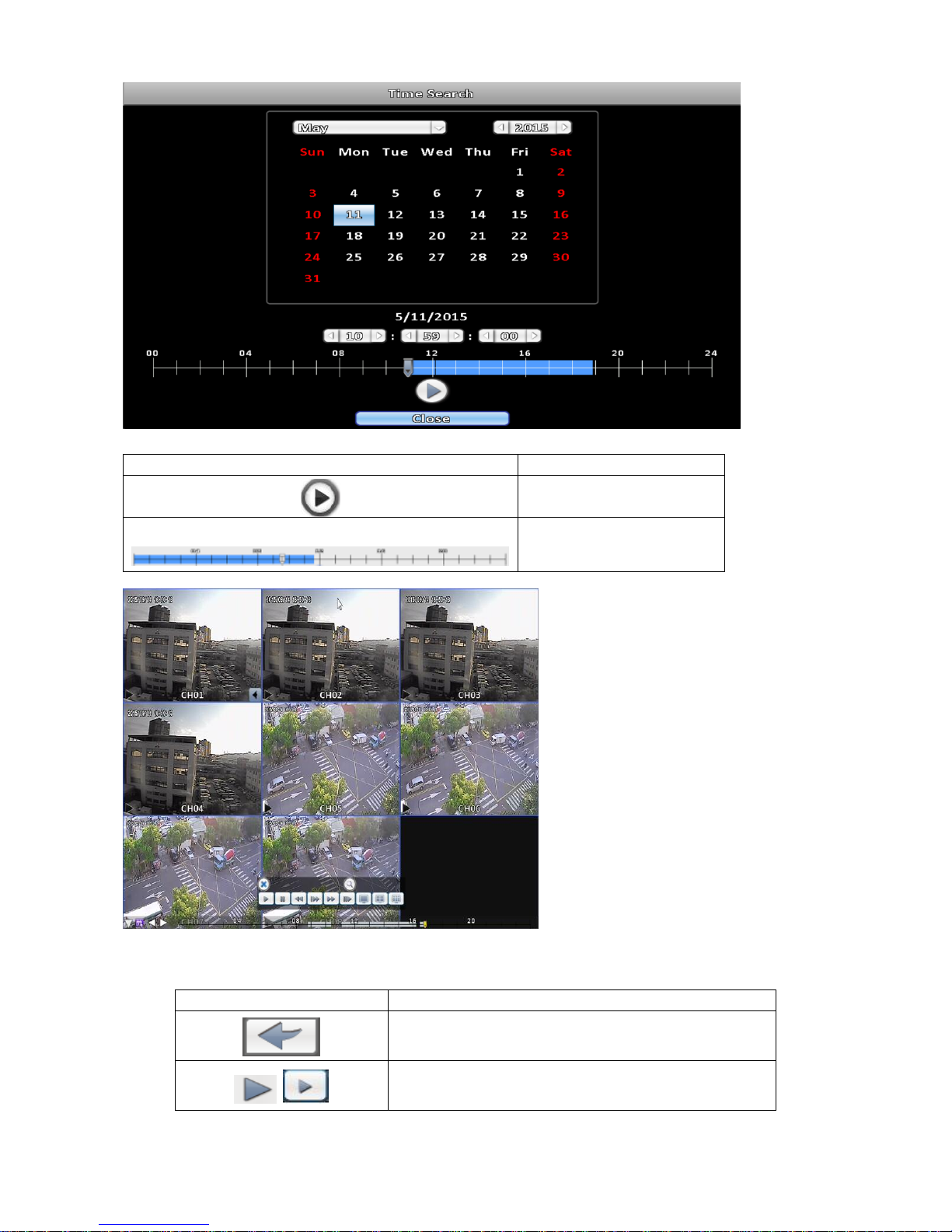

User can search the specific date and time of recorded data to playback, in calendar that dates have recorded
data marked with blue rectangle, click on marked “date” will display recorded time of that specific date with
time bar, user can change specific time (hour/minute/second) by mouse click on the time bar, then press “OK”.
DVR will playback the recorded data of the specific date and time.
Page 9
8
Icon
Description
Playback button.
Select playback time by
sliding the position of the
cursor on the time bar.
DVR Playback mode.
Table 2-4 Playback mode
Icon
Description
Stop playback, and go to previous page.
Play.
Page 10
9
Pause.
Fast rewind.
Fast forward.
Slow play.
Step play.
Digital zoom.
Full screen.
4 division.
9 division.
16 division.
Note: Double-click the preferred channel, will switch to full screen.
Page 11
10

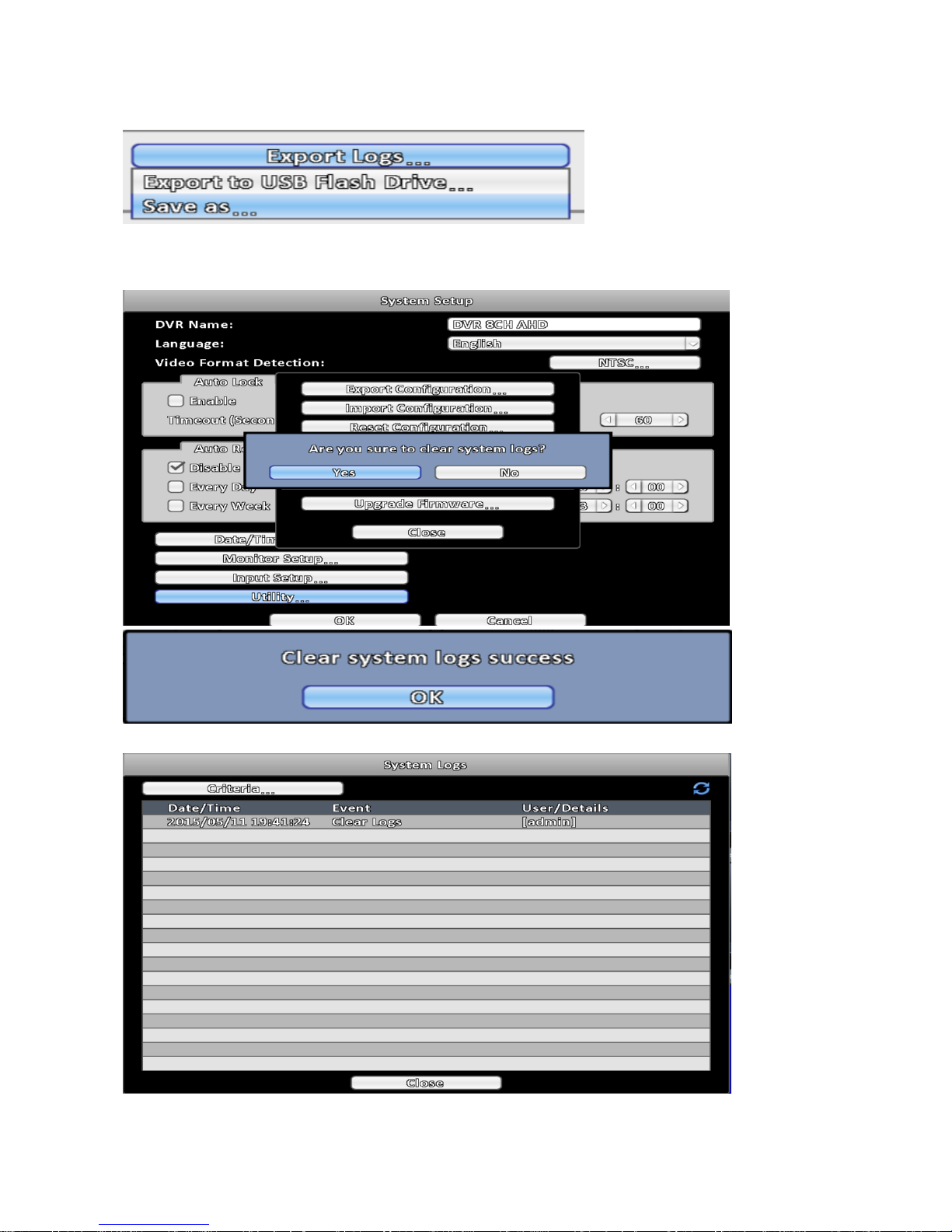

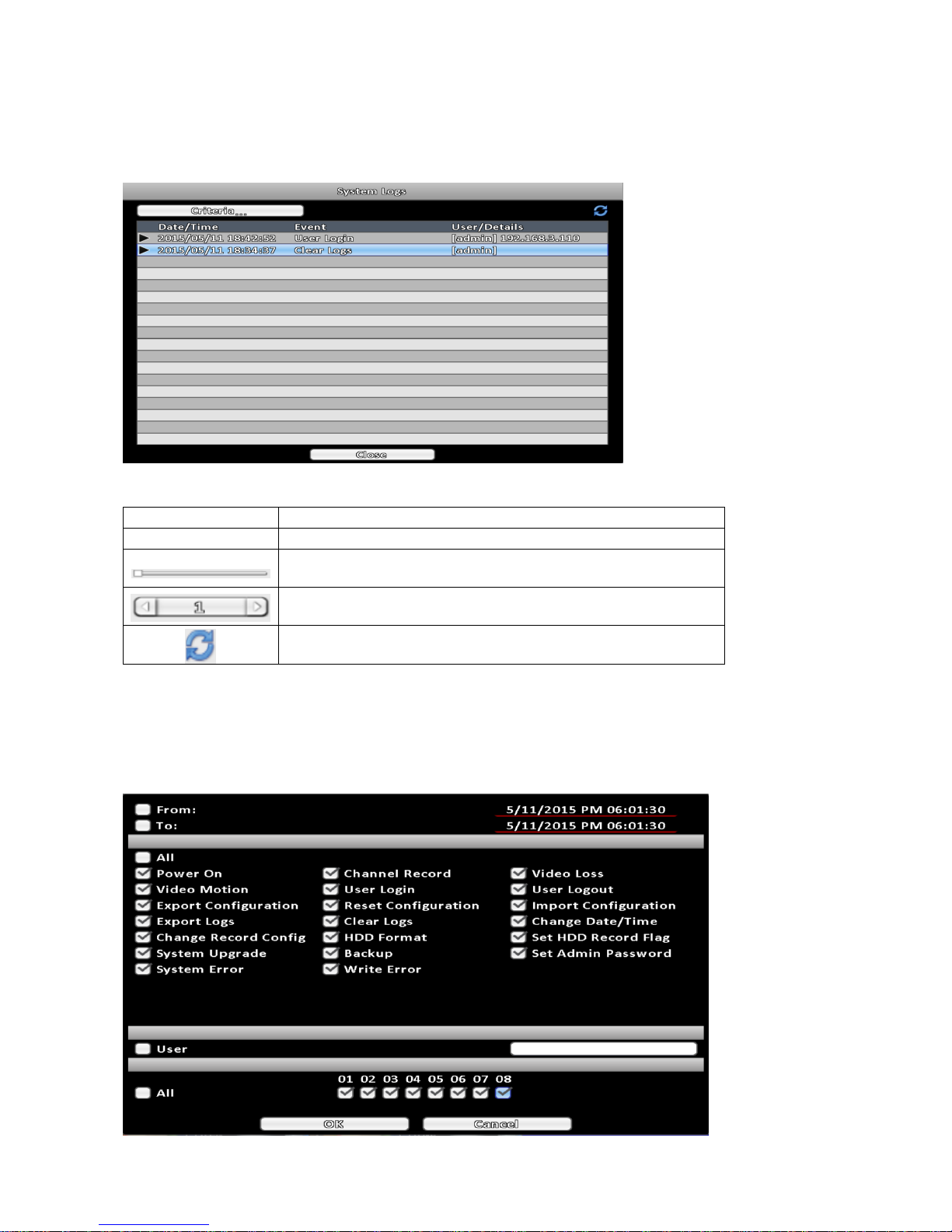

2-5 System Logs
The event list shows the logged events, event type, event detail, event filter (criteria), and page number of the
event list, there is a gray video symbol "►" on the left of the event. Move the cursor to event line and
double-click mouse button, DVR playback this record video related to the event.
Note: If there is no installed HDD, or there is no recorded data, DVR cannot playback video when
double click on the event.
Icon
Description
Criteria
Set the conditions for the event search
Slide to choose a page of the event list. The number shows on the
right side is currently page number
Press left and right arrow keys or enter the page number directly. It
will go to the select event page.
Refresh the system logs.
2-5.1 Search Criteria
Set "Criteria" to facilitate rapid classification of events. If the check box of start time and end time is checked,
the event list will only display the events within the specific time slot. If the user uncheck some events and
press the "OK ", the lists will only shows checked events. If you uncheck the channels, the event list will filter
out unchecked the channels.
Page 12
11

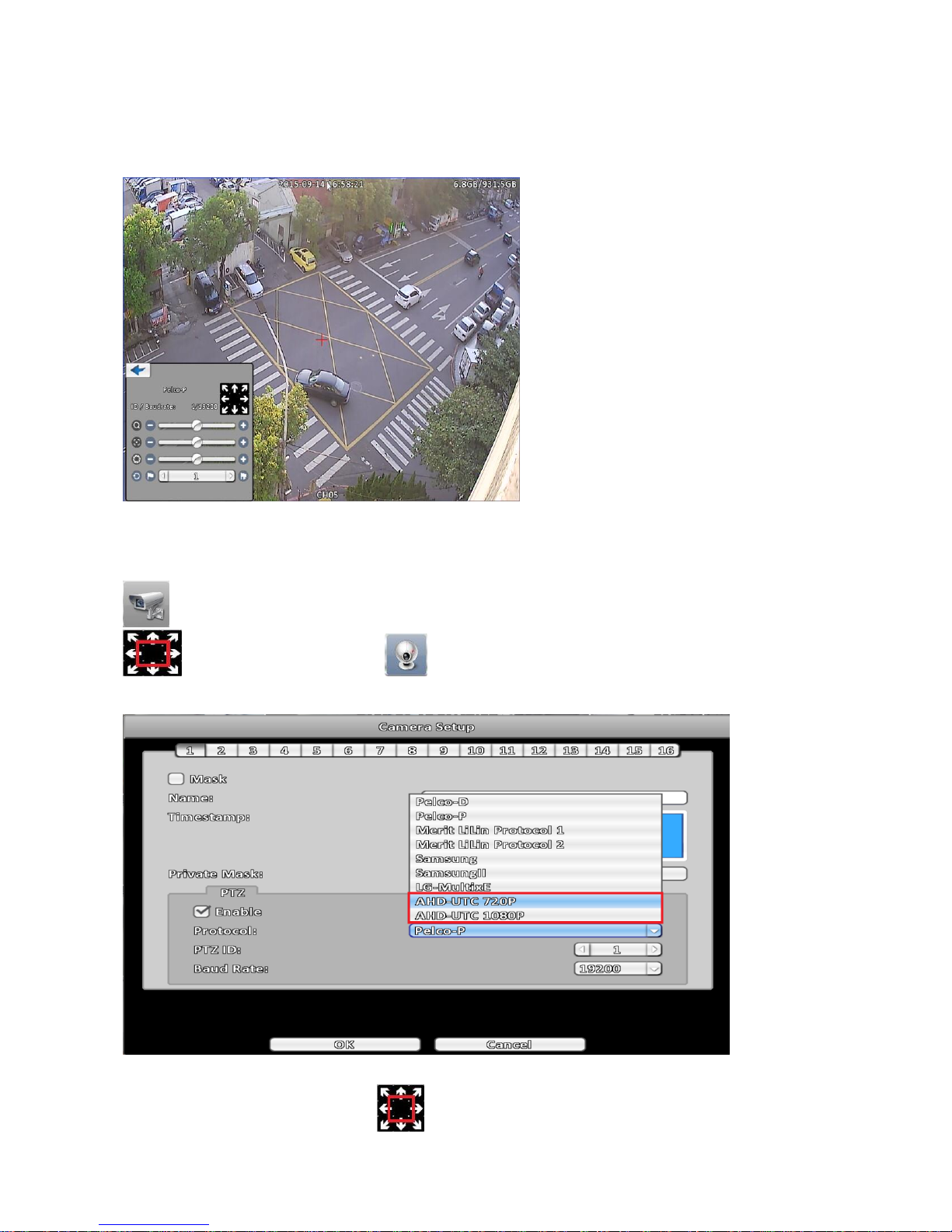

2-6 PTZ Operation

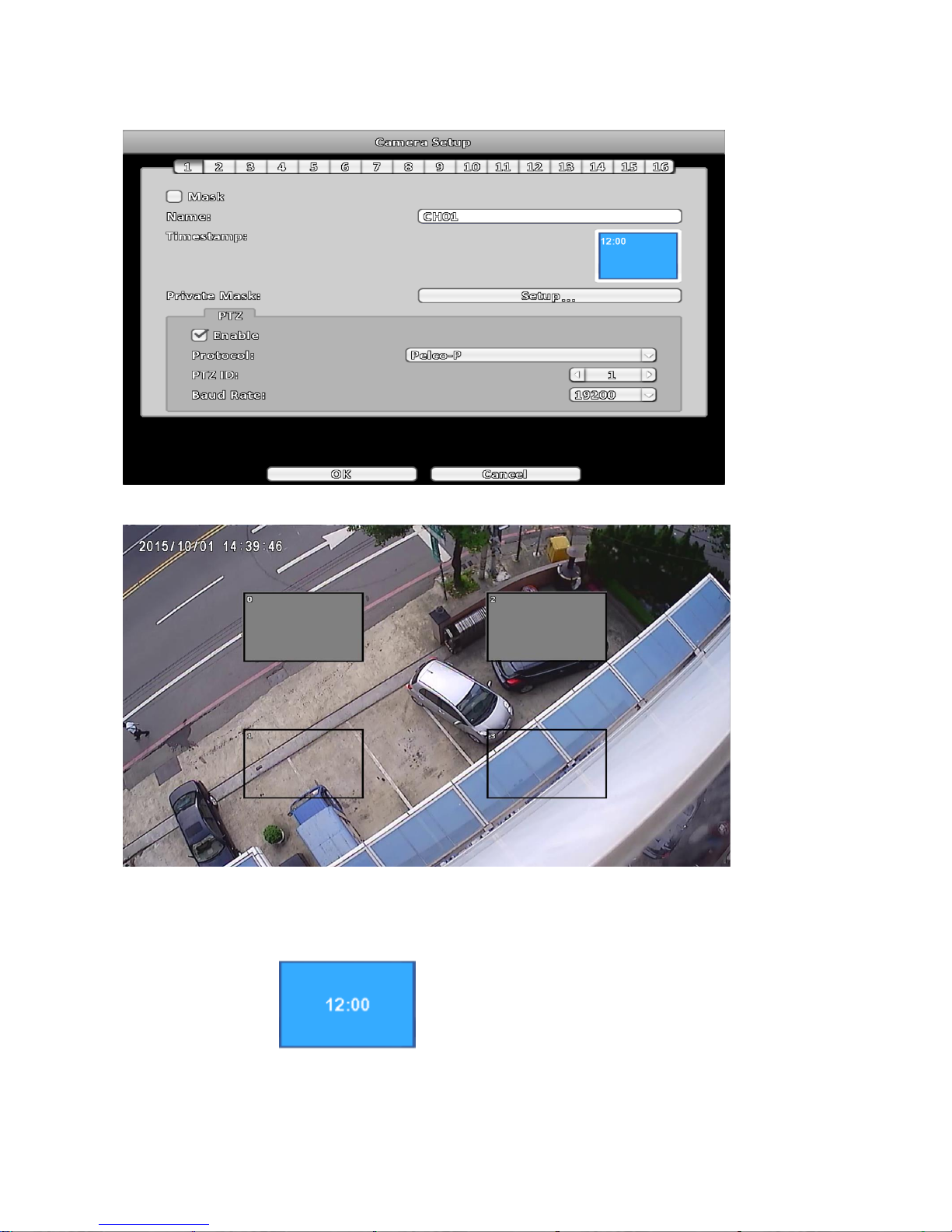

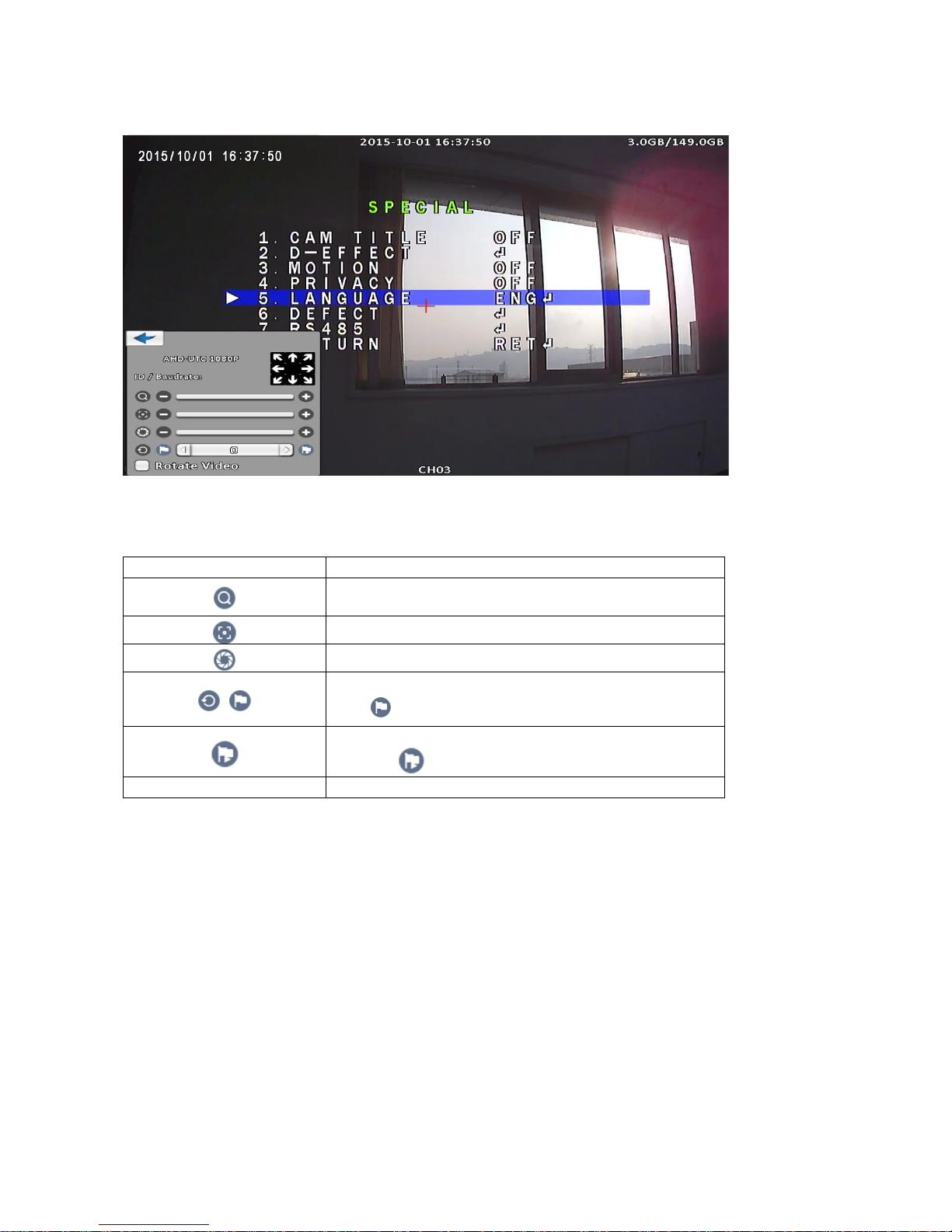

Set the PTZ settings in Camera Setup (refer to 3-3.1), in the PTZ operation mode, there is a “Red Cross” on
the center of the screen, move the mouse to the “Red Cross” and hold down the mouse left button to the
preferred location of the screen, DVR will move the PTZ camera to the preferred place.
PTZ Operation
2-6.1 UTC
This DVR supports UTC-enabled cameras through coaxial cable connection. Enter “Camera Setup”
, set the protocol to AHD-UTC 720p/1080p, and control the camera with the 8-direction key
in the PTZ Operation menu .
Click the center of the direction key to enable camera OSD. When the OSD is activated, use
Page 13
12
the center of the direction key as “OK.”
Table2-6 Function Description
Icon
Description
ZOOM. Press + / - or move the slider to adjust the zoom
level.
FOCUS. Press + / - or move the slider adjust the PTZ focus
IRIS. Press + / - or move the slider to adjust the PTZ iris
Press left and right arrow keys to move the camera, and
press set current position l to preset point.
Press left and right arrow keys to select the preset point,
and press move the camera to selected preset point.
Rotate Video
Make the video upside down.
2-7 Zoom
In the digital zoom mode, user can move the zoom area via mouse drag the red rectangle.
Page 14
13

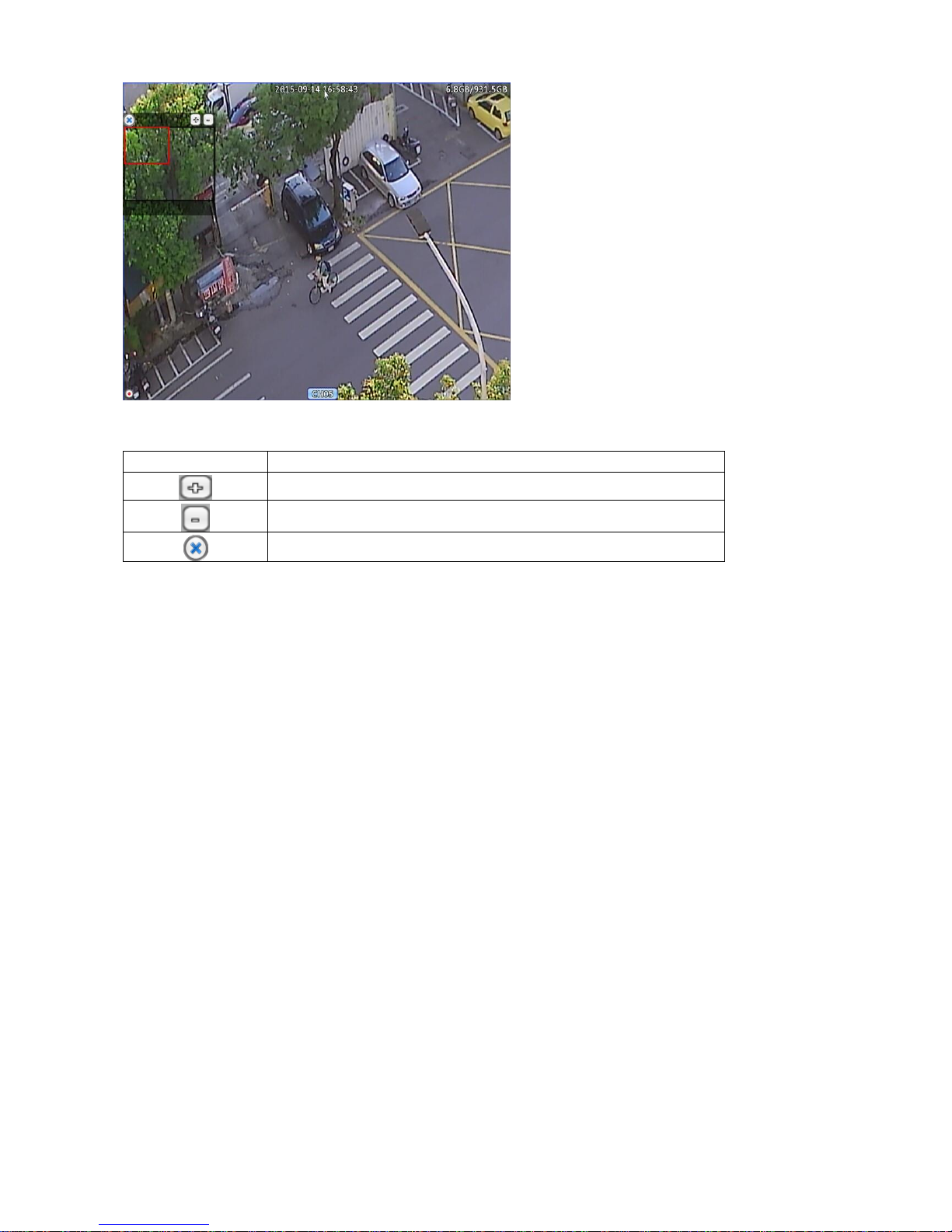

Digital zoom mode
Note: The small window can relocation via mouse drag drop.
Icon
Description
Zoom-in the area specified by the red rectangle.
Zoom-out the area specified by the red rectangle.
Exit digital zoom mode
Page 15
14
2-8 Toolbar
In the live operation mode, move cursor to the top of window, toolbar will appear.
Toolbar
Icon
Description
User login / logout: Auto lock is used.
Screen shot.
Turn on / off recording.
Full screen.
Options: Change the PC side screen shots, video storage path.

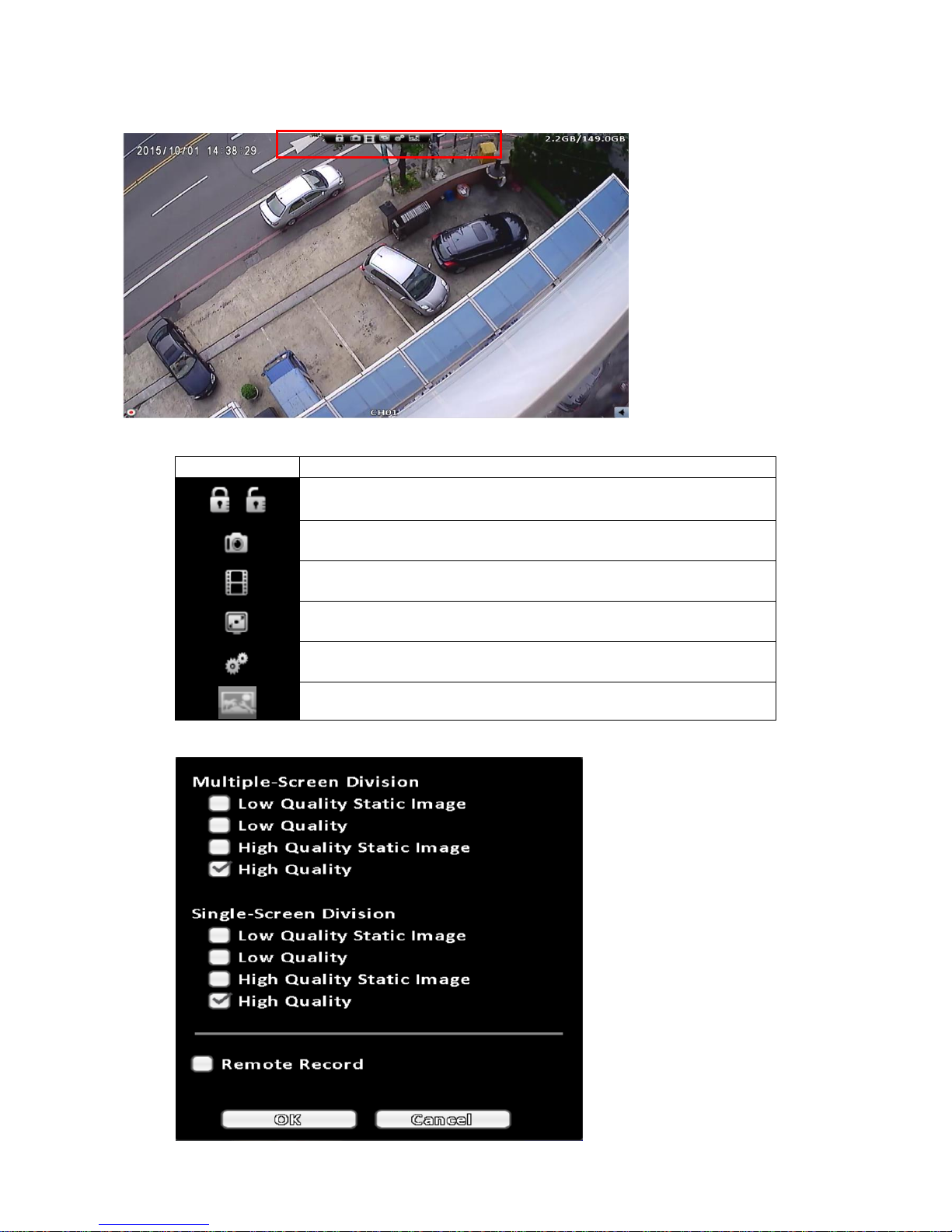

Network Video Quality: User can base on network bandwidth, adjust the
video quality.
Note: Screen shot, Turn on/off recording, these three function only available in “Netviewer”.
2-8.1 Network Video Quality
Page 16
15
Item
Description
Low Quality Static
Send the low quality image to remote with 1~2 frame per
second.
Low Quality
Send the low quality image to remote according to DVR
recording setting.
High Quality Statue
Send the high definition image to remote with 1~2 frame per
second.
High Quality
Send the high definition image to remote according to DVR
recording settings.
Note: Remote video stability is based on actual network bandwidth and PC capability.

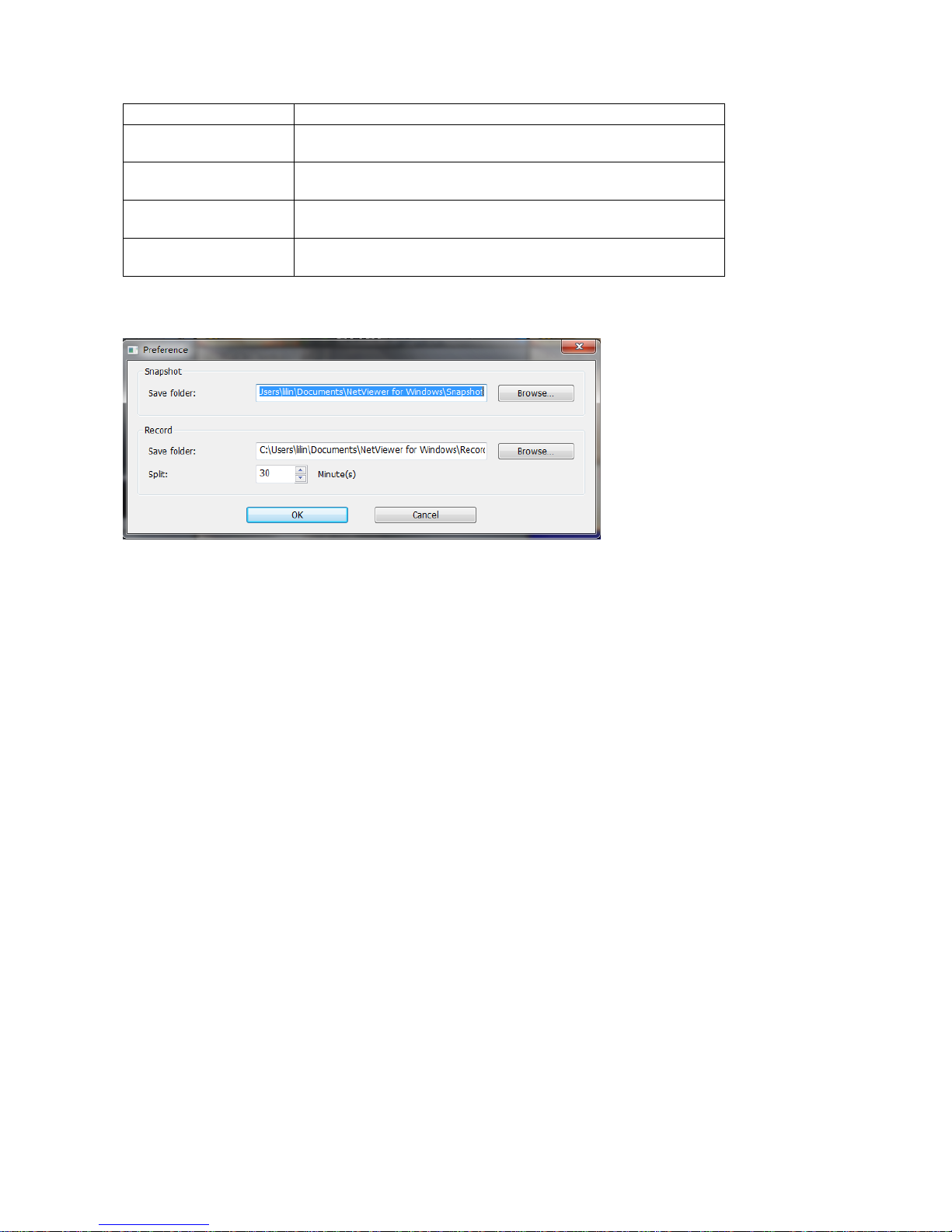

2-8.2 Preference
Page 17
16
Chapter 3: Configuration Menu
Note: The initialization of new-installed HDD is required before recording, please refer to “Utility
Setup” for details.
3-1 Record Setup
Note: 1. Supported resolution as below:
Analog D1/960H or AHD 720p/1080p camera.
2. When DVR connected AHD 720p/1080p/D1 camera, the cameras must in pair,
for example, if CH01 connected with AHD 720p camera, then CH02 must be
the same resolution AHD 720p camera, otherwise the both video won't be show.
3. In cases where long distance transmission is required (over 100 feet), please use a 5C-FB
coaxial cable or above.
Item
Description

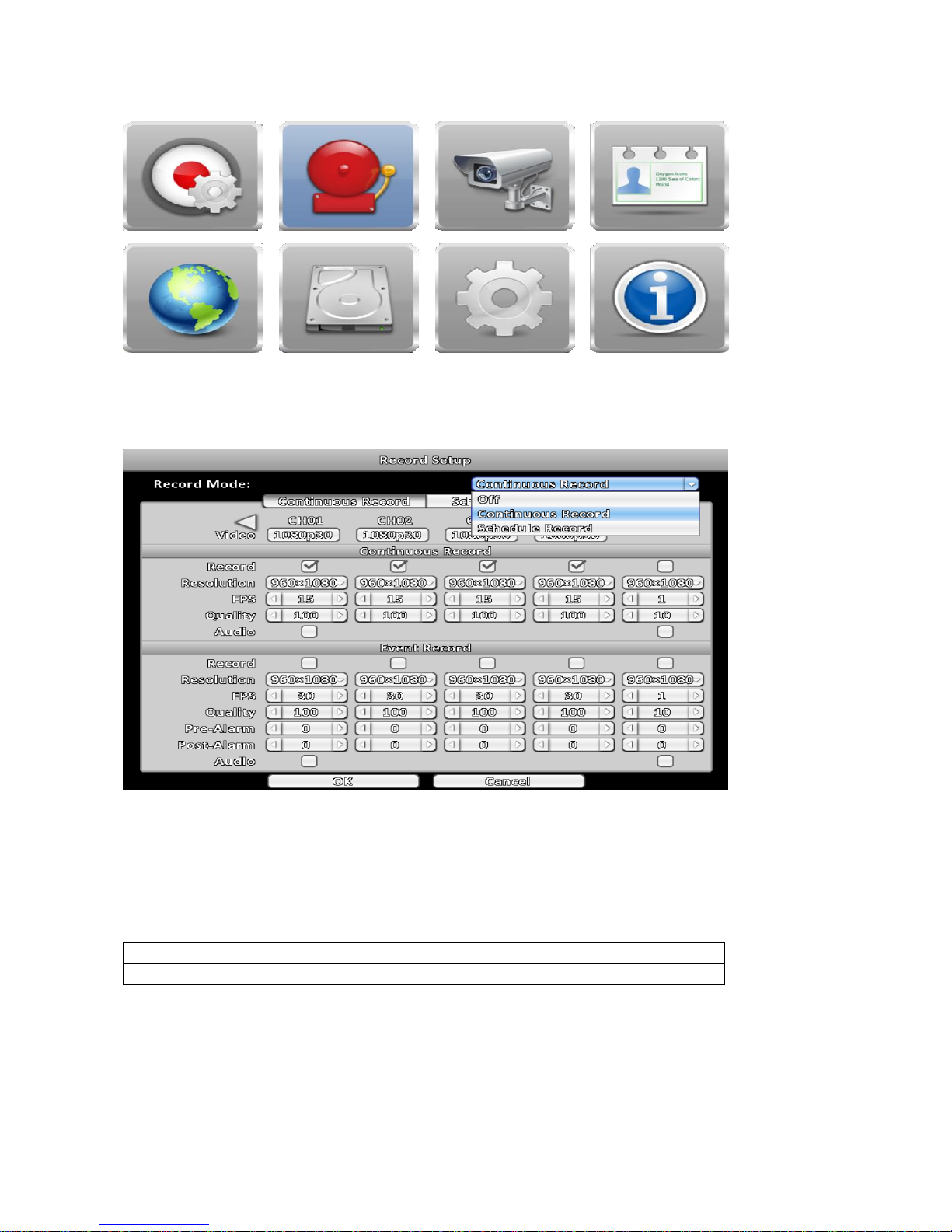

Record Mode
Continuous Record/Schedule Record/Stop Record
Page 18
17

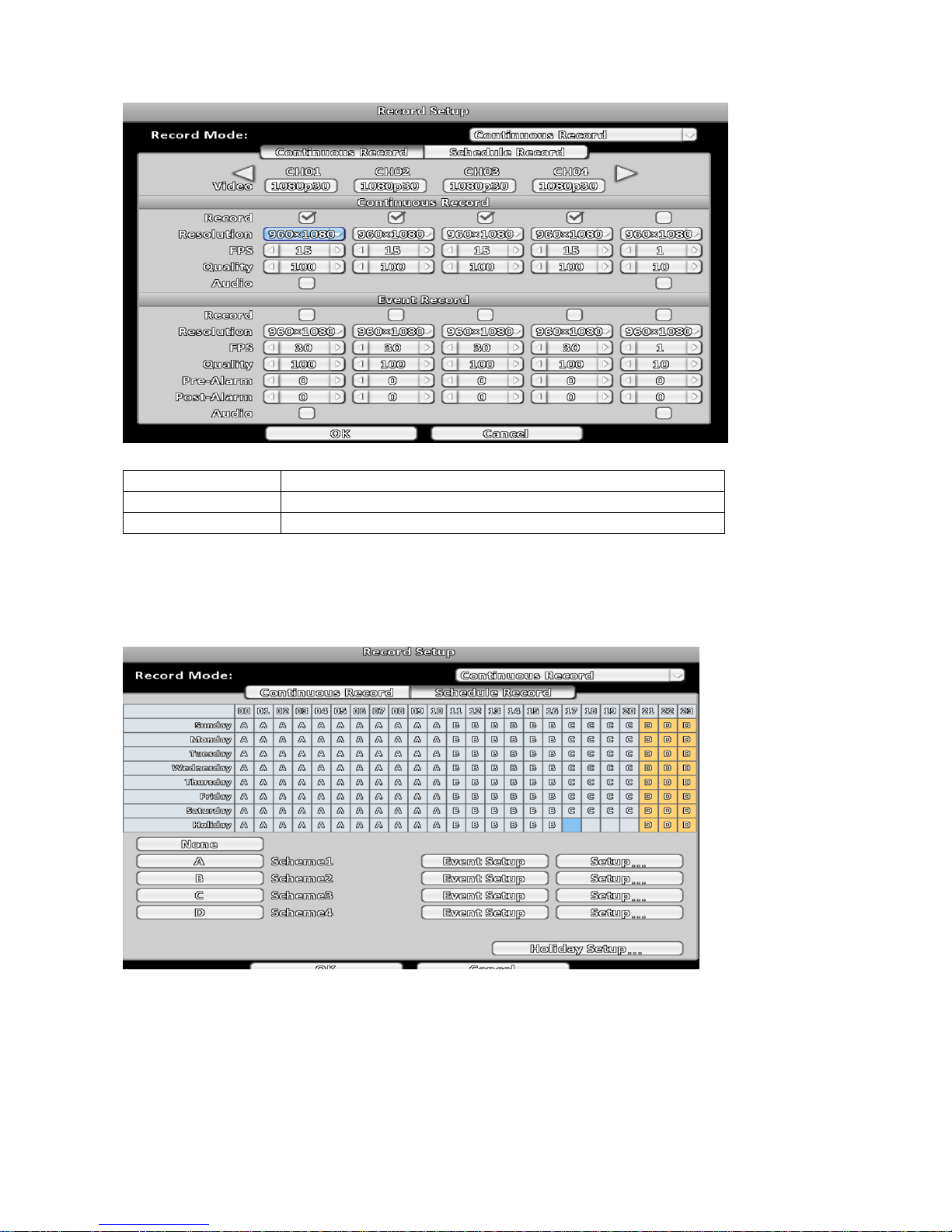

3-1.1 Continuous Record
Item
Description
Record
Enable / Disable recording for this channel
Audio
Enable / Disable recording audio
3-1.2 Schedule Record
Schedule recording can configure recording time by days of a week and hour. With the A, B, C, D four settings,
users can set different recording scheme according to different configuration needs. In the day and time grid
map, select the schedule table, then press A, B, C, D one of the buttons to specify the settings.
Page 19
18
3-1.2.1 Configuration
Item
Description
Name
Change the recording name of channel
Note: The rest please refer to 3-1.1.

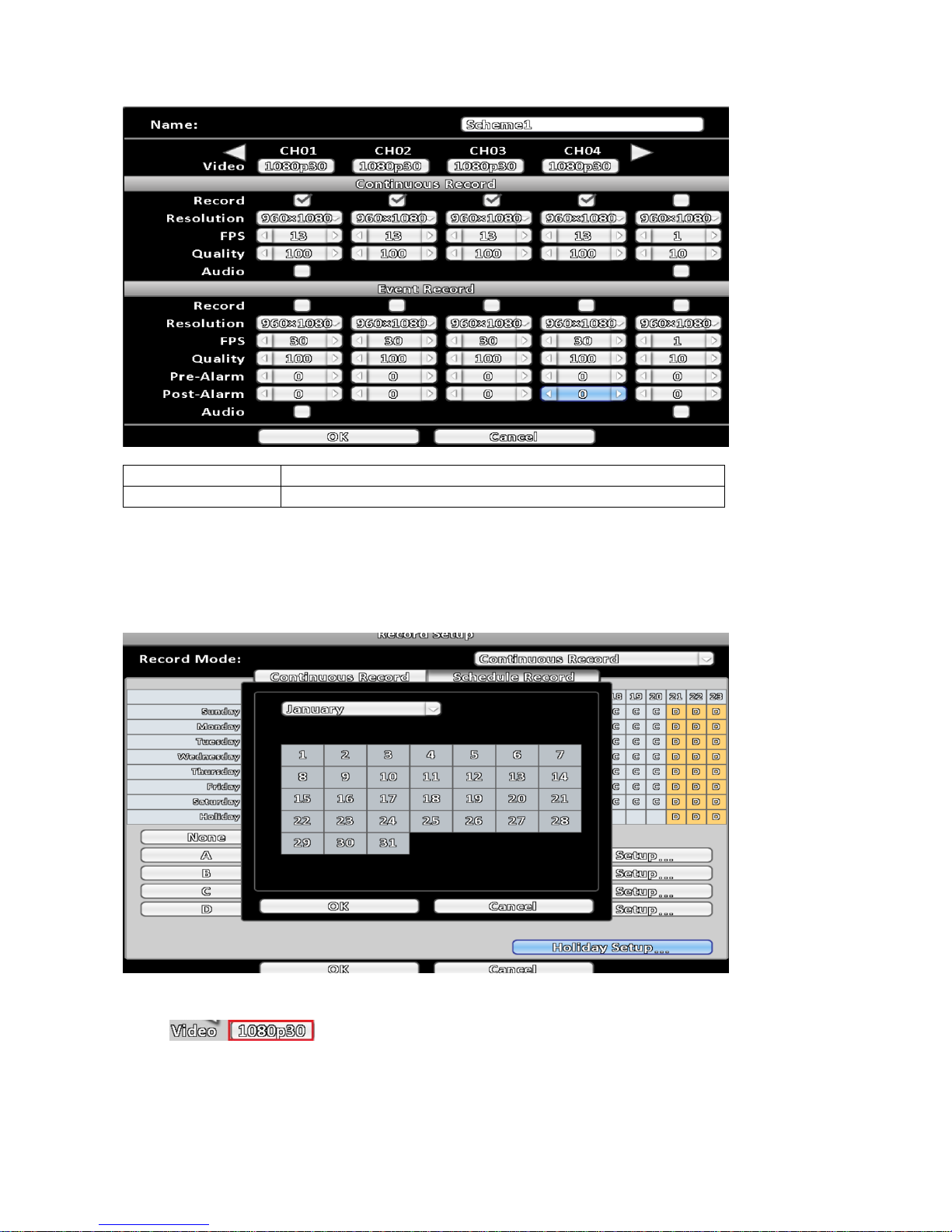

3-1.2.2 Holiday Configuration
The number of customize holiday configuration up to 50. When the time comes to the specified holidays, the
DVR will start recording according to holiday configuration.
Since holidays are different by country and region, users can setup holidays according to user needs.
3-1.3 Video
Click to open the video menu, where you can the image display and
volume of your DVR.
Page 20
19
Item
Description
Sharpness
Setting channel sharpness, from 0 to 255.
Brightness
Setting channel brightness, from 0 to 255.
Contrast
Setting channel contrast, from 0 to 255.
Saturation
Setting channel saturation, from 0 to 255.
Hue
Setting channel hue, from 0 to 255.
Volume
Setting audio volume, from 0 to 255.
NR
Turn ON/OFF noise reduction.
SF Stream
This value affects the strength of the spatial-domain filtering
strength. (When NR is ON).
TF Stream
This value affects the strength of the time-domain filtering
strength. (When NR is ON).
Volume out
Setting volume gain to provide a volume boost.
Page 21
20
3-2 Event Setup
3-2.1 Video Loss
3-2.1.1 Configuration
Item
Description
Enable
Enable/Disable video loss detection.
3-2.1.2 Event Handler
Item
Description
Logs
Write to event log when the video loss event happens.
Event Record
Select channel for event recording when event occurs. The
video setup corresponds to the "Configuration →
Recording Settings → Event Video Recording" (refer to
3-1-1-2 Event Record).
Popup
In the live mode, if video loss of a channel is detected, it
will pop up the channel full screen. You can specify a
warning window display, 1: the main screen.
Popup Channel
When an event occurs, pop up the specified channel.
Buzzer
Specify the DVR behavior of whether to activate the
buzzer when an event occurs.
Relay
When an event occurs, enable or disable Relay function.
(Depending on DVR’s model)
PTZ
When event occur, enable or disable PTZ function.
Go Preset
Moves the camera to the specified preset point when an
event occurs.
Resume Preset
Moves the camera back to the specified preset point when
an event is finished.
Page 22
21
3-2.1.3 Receiver Setup
Item
Description
Enable
Enable/Disable the DVR sends an e-mail notice to specified users
when an event occurs.
Admin / Users
Specify the users to receive e-mail notices.
3-2.1.4 Notification Setup
Item
Description
Enable
Enable/Disable the DVR push notifications to specified device(s)
when an event occurs.
Device(s)
List of the registered devices ( Enable the Notification function in
APP).
Page 23
22

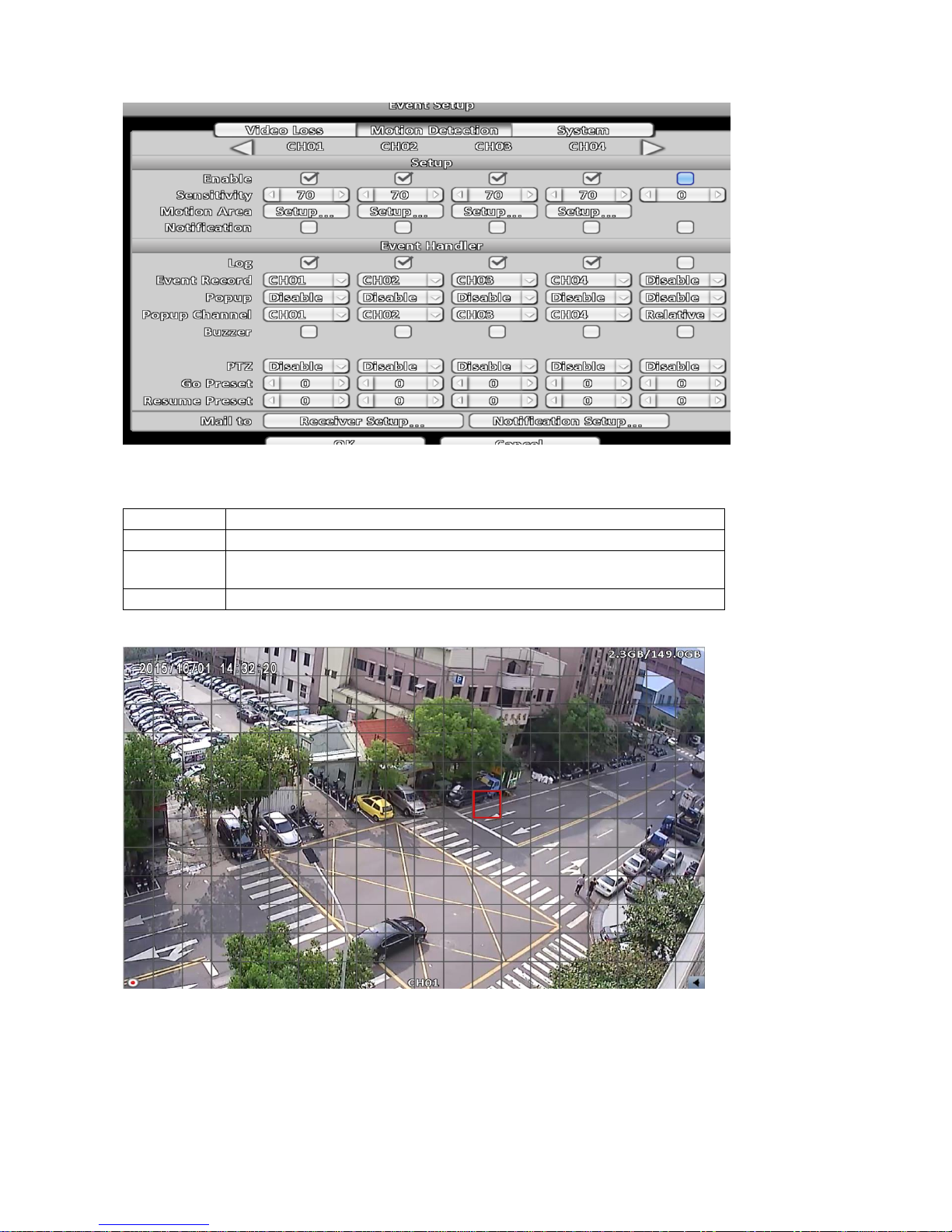

3-2.2 Motion Detection
3-2.2.1 Configuration
Item
Description
Enable
Enable / Disable the motion detection function of channel
Sensitivity
The sensitivity value is from 0 to 100. The higher value means higher
sensitivity.
Motion Area
Enter to setup motion detection area.
3-2.2.1.1 Motion Area Setup
Motion Area Configuration
Page 24
23
3-2.3 Sensor (Depending on DVR model)
Item
Description
Name
Set the name of sensor’s function.
Polarity
Specify the polarity to normal open(N.O.) or normal close(N.C.).
3-2.4 System
When a system event occurs, give a notice or warning according to the settings of buzzer, and receiver. If the
buzzer box is checked, the buzzer continually beeps for only errors related to the video (such as hard drives
can’t write or not install the hard drive). The buzzer does not beep when other system events, such as login,
log out or boot, etc., occurs.
Item
Description
Buzzer
Specify whether the buzzer beeps when a recording error
occurs.
Page 25
24
3-3 Camera Setup
3-3.1 Camera Setup
Private Mask
3-3.2 Time Stamp

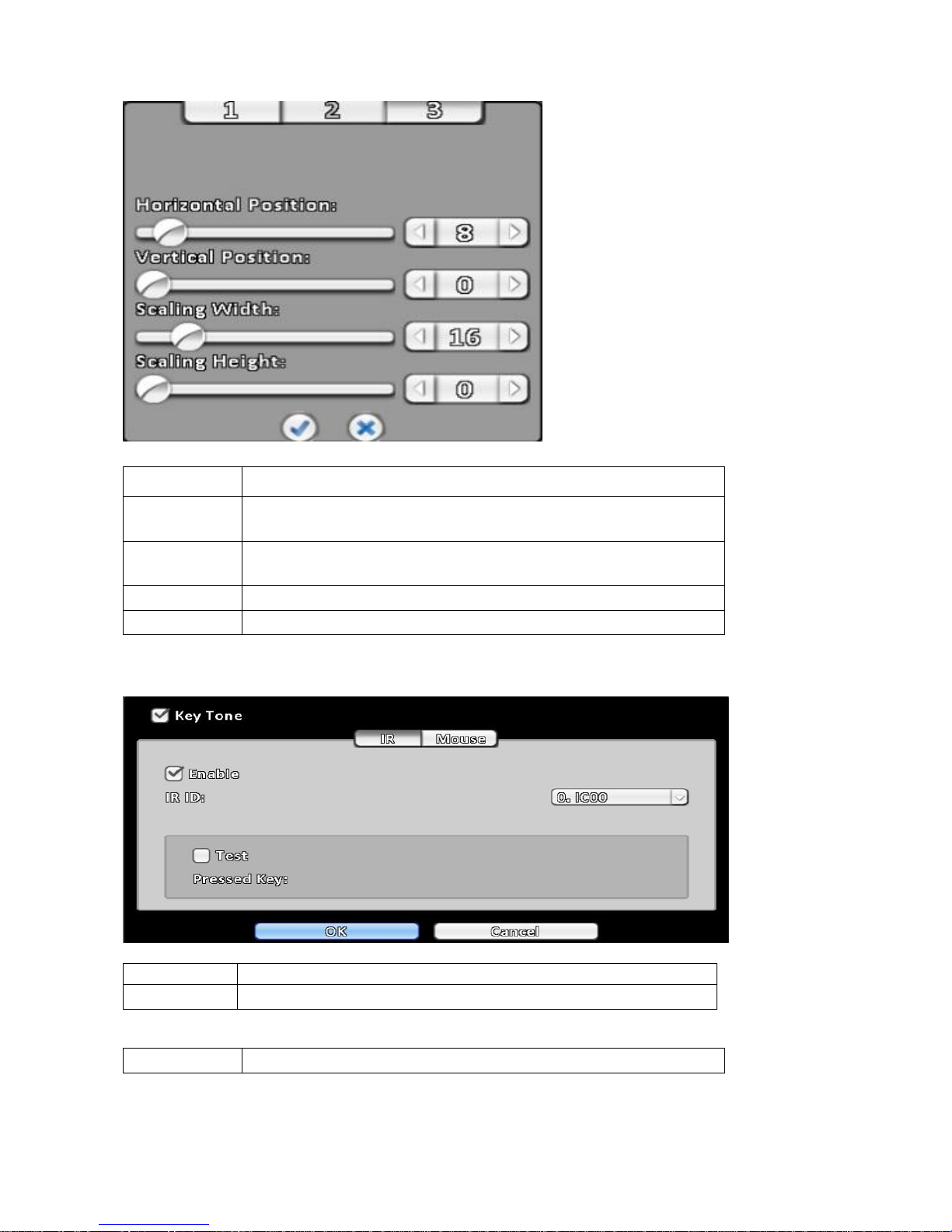

In time stamp setup , you can set the position of the time stamp shown in
different mode such as playback, remote live, and backup file.
3-4 Account Setup
Page 26
25
You can set the user password and permissions of 10 user accounts (1 admin + 10 users). These different
accounts give users different permissions of DVR features.
3-4.1 Administrator
The default admin account and password is “admin” and “1111”
Item
Description
Enable
Check to activate the user’s account.
Expire
Set the expire date of the user account
Name
Username.
Password
The password can be mixed of letters and numbers and is
case-sensitive.
e-Mail
User email.
3-4.2 Other Users
Item
Description
Enable
Check to activate the user’s account.
Page 27
26
Expire
Set the expire date of the user account
Name
Username.
Password
The password can be mixed of letters and numbers and is
case-sensitive.
e-Mail
User email.
3-4.2.1 Permission

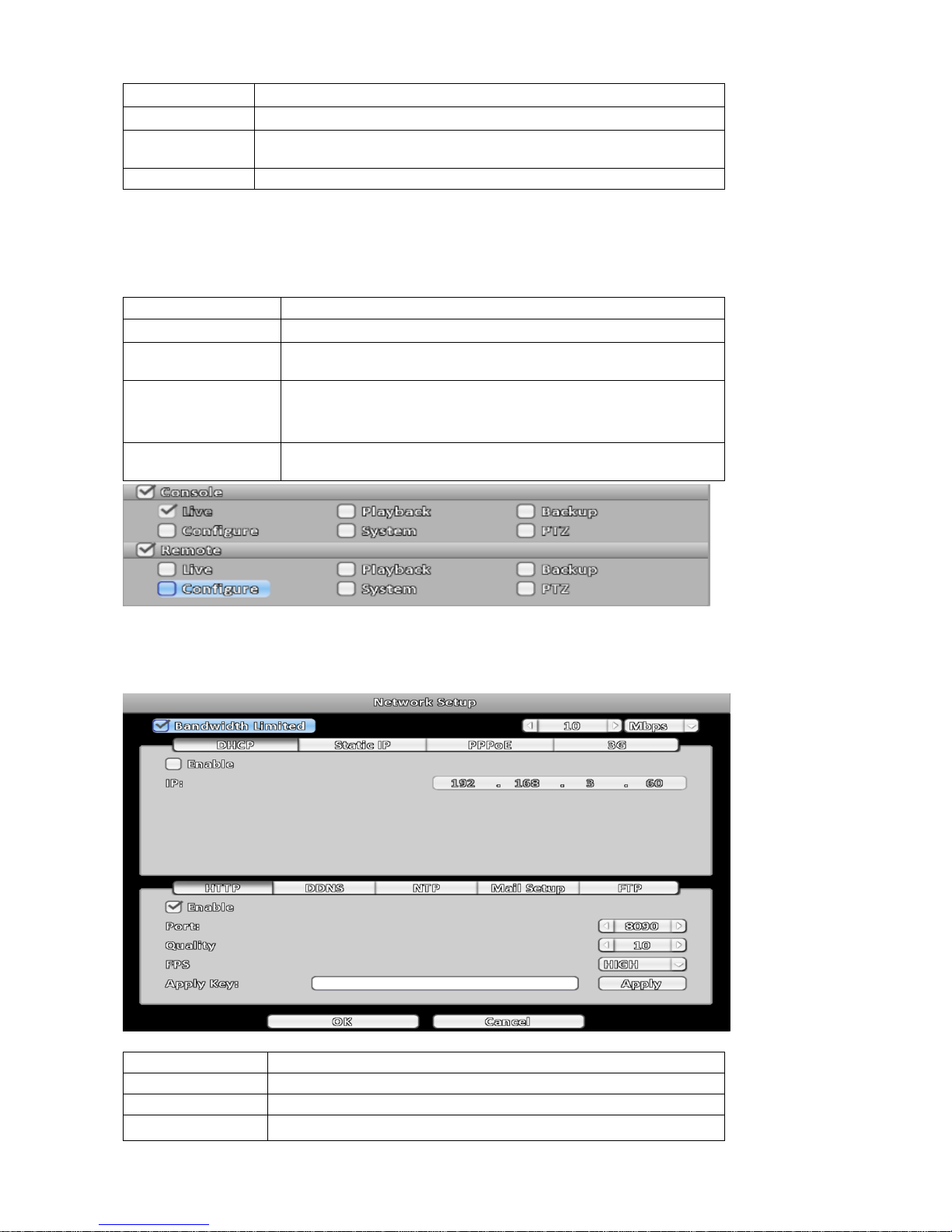

The Account Setup is set to provide individual user role-based permissions, including access to Setup menu,
Network operation, PTZ function, Playback, Utility, Backup, Password expiration date and Mask on specific
channels while playing back.
Item
Description
Console Playback
Allow the permissions to playback channel in local side
Remote Live and
Playback
Allow the permissions to live monitor/playback channel in remote
side
Console
Allows the permissions to operate in local side (Live, Playback,
Backup, Configure, System, PTZ)
Remote
Allow the permissions to operate in remote side (Live, Playback,
Backup, Configure, System, PTZ)
Note: use of local, remote permissions, respectively, the option must be checked, otherwise it will not
work
3-5 Network Setup
Item
Description
DHCP
The DVR retrieves IP from a DHCP server.
Static IP
Set up a Static IP address of the DVR.
PPPoE
Set up the username and password for PPPOE connection.
Page 28
27
HTTP
Set up the HTTP configuration for remote access.
DDNS
Set up the DDNS configuration.
NTP
Set up the NTP configuration.
Mail Setup
Set up the mail sending configuration.
FTP
Set up the FTP configuration.
3-5.1 WAN
There are three ways to connect to the network.
3-5.1.1 DHCP
When DHCP is selected, IP address will be assigned by DHCP server automatically.
3-5.1.2 Static IP
Setup Static IP for network connection, the following information is required.
Item
Description
Enable
Enable / Disable Static IP function。
IP
Enter the static IP address provided by ISP
Subnet Mask
Enter IP address of Subnet Mask provided by ISP
Gateway
Enter IP address of the Gateway provided by ISP
DNS
Enter the DNS address provided by ISP.

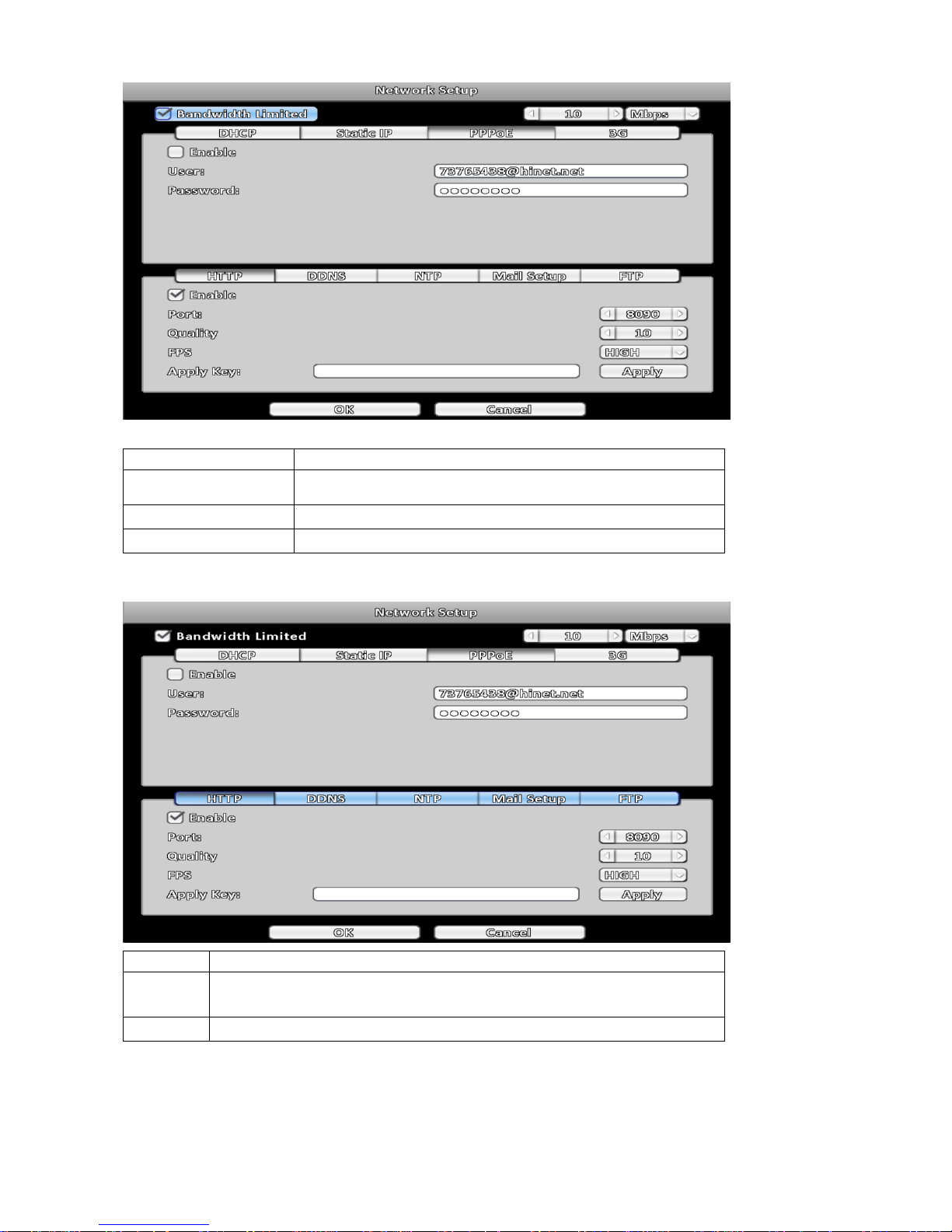

3-5.1.3 PPPoE
Select PPPOE for network connection, the following information is required.
Page 29
28
Item
Description
Enable
Enable / Disable PPPOE function。
User
Enter user name provided by ISP
Password
Enter password provided by ISP
3-5.2 HTTP
Item
Description
Enable
Check to enable HTTP server. Users can remotely access into the DVR over
the network if the HTTP function is activated.
Port
Enter a valid port value from 1 up to 65535. The default value is 80.

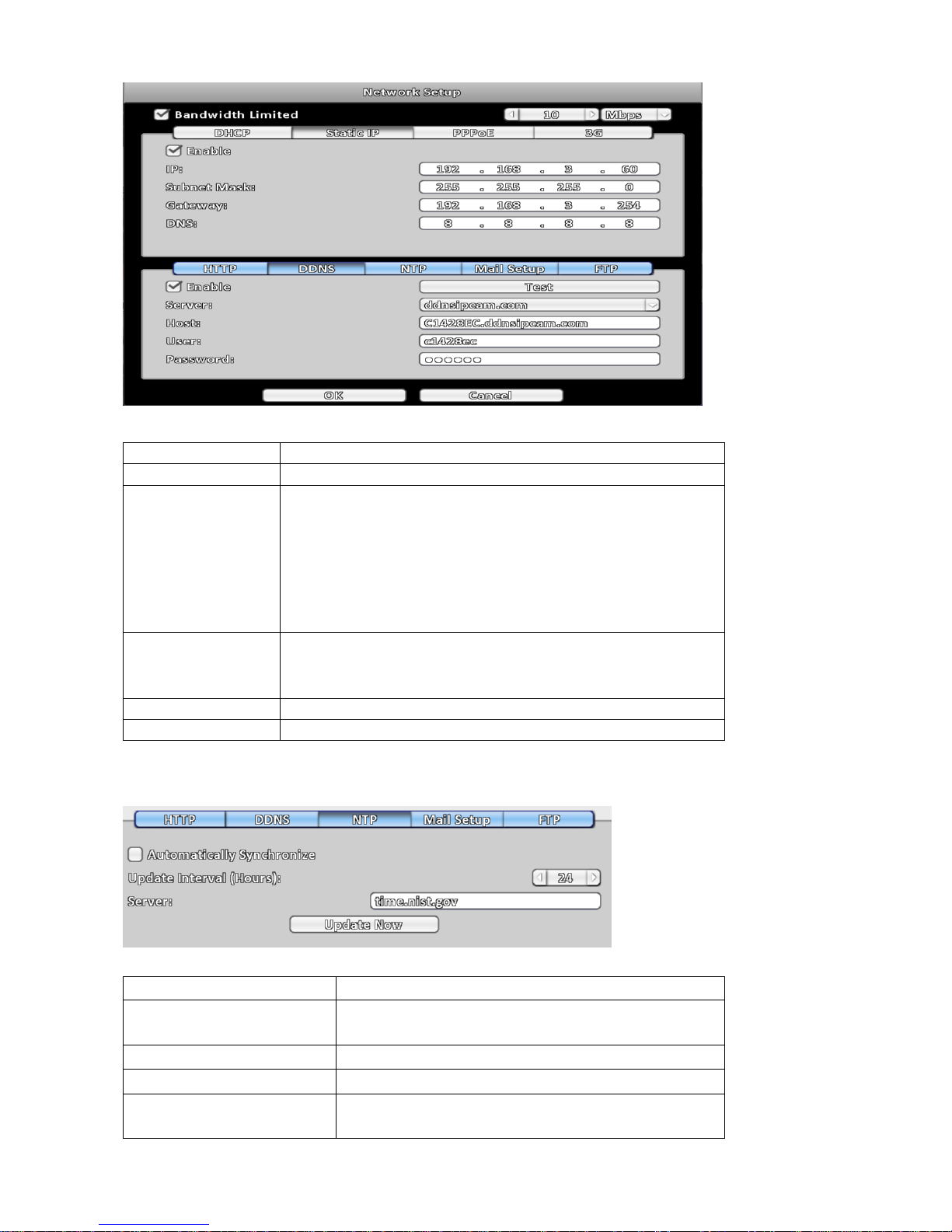

3-5.3 DDNS
Page 30
29
Item
Description
Enable
Enable / Disable DDNS function.
Server
Enter the registered DDNS Server:
ddnsipcam.com, noip.com, ez- dns.com, dyndns.org
When select ddnsipcam DDNS service,
The system will automatically bring up to C + DVR Mac Address
last six yards at the beginning of a host site,
Such as the Mac end of the six yards of 0FEEDD,
Then bring out the host site at C0FEEDD.ddnsipcam.com
Host
Enter the full DDNS address.
If the user name is h.264 and you choose ddnsipcam.com as your
server, you should enter: h.264.ddnsipcam.com
User
Enter user name.
Password
Enter password.
3-5.4 NTP
Setup the feature of network time synchronization.
Item
Description
Automatically Synchronize
Check to enable DVR automatic synchronization function
when rebooting
Update Interval
Setup interval for time synchronization
Server
Setup time server address
Update Now
Update the time information from the NTP server
immediately.
Page 31
30

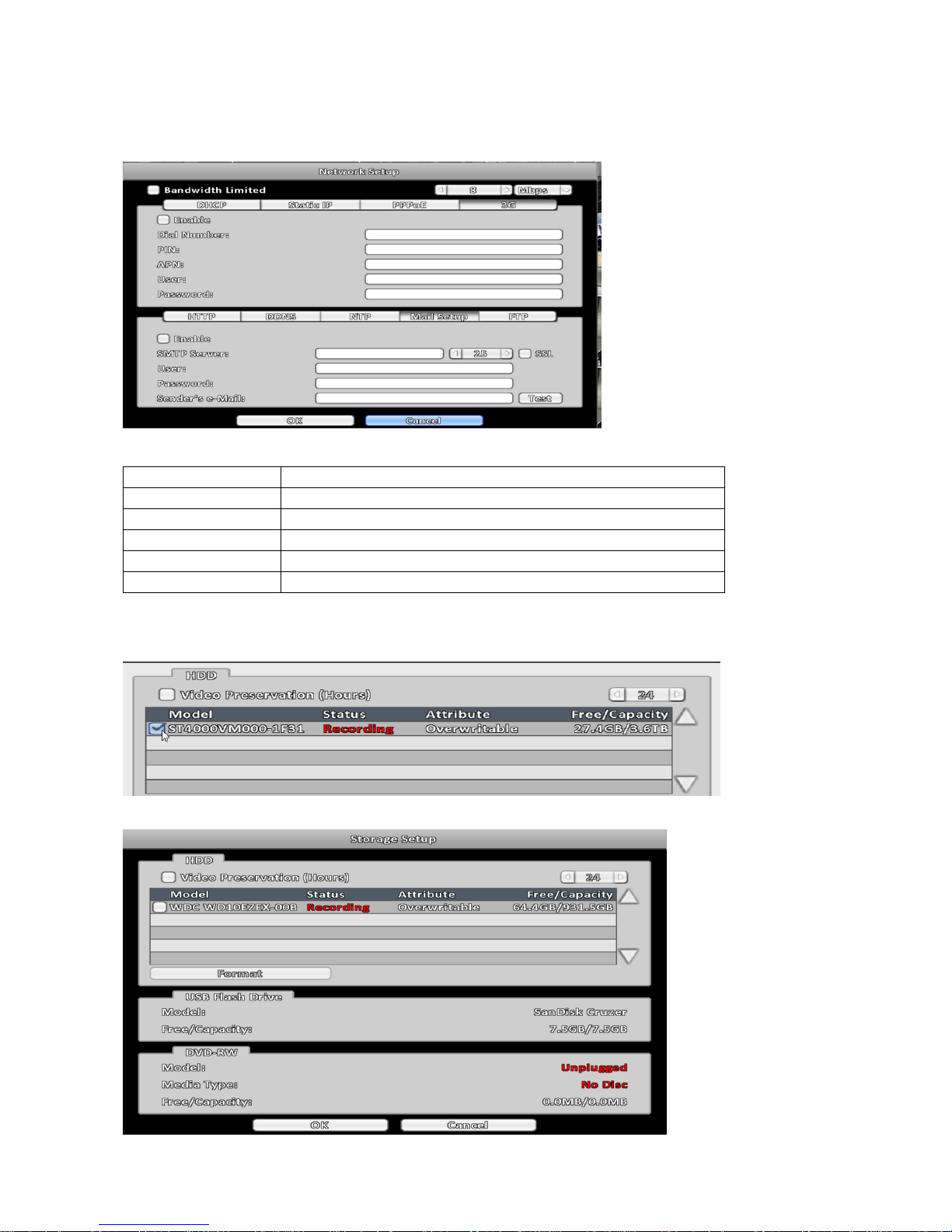

3-5.5 Mail Setup
The Mail Setup tab controls the email-sending configuration when the DVR needs to send e-mail to specified
users.
Item
Description
Enable
Enable/disable E-mail Notification function
SMTP Server
Set up SMTP Server name and port
User
Enter to set up the username.
Password
Enter to set up the password.
Sender’s e-Mail
Enter to set up e-mail address of the sender.
3-6 Storage Setup
3-6.1 HDD Setup
Note: Click the status bar to change the attributes of the hard disk
Page 32
31
Item
Description
Video Preservation
Setup the video preservation period. Recorded video will be
deleted automatically after expiry of preservation period.
Model
Display HDD model
Status
Display HDD status (Recording/Error)
Attribute
Display HDD Attribute ( Over writable/Writable/Read-Only)
Free/Capacity
Display HDD capacity (Free/Capacity )
Format
Check the hard disk drive and press "Format", there are four
options to set the HDD.
Start Format HDD DVR. Status bar "successful" HDD
initialization! Enter the menu, there will be all of the hard disk
information (model, capacity).
Over writable
Set the hard disk to be replicated state will start to overwrite
the hard disk is full.
Writable
Set the hard disk as writable state, after the hard disk is full
stop writing.
Read Only
Set the hard disk is read-only, read-only cannot be written to
the hard disk.
3-6.2 USB Flash Drive Setup
Item
Description
Model
Display USB flash drive model
Free/Capacity
Display USB flash drive capacity (Free/Capacity )

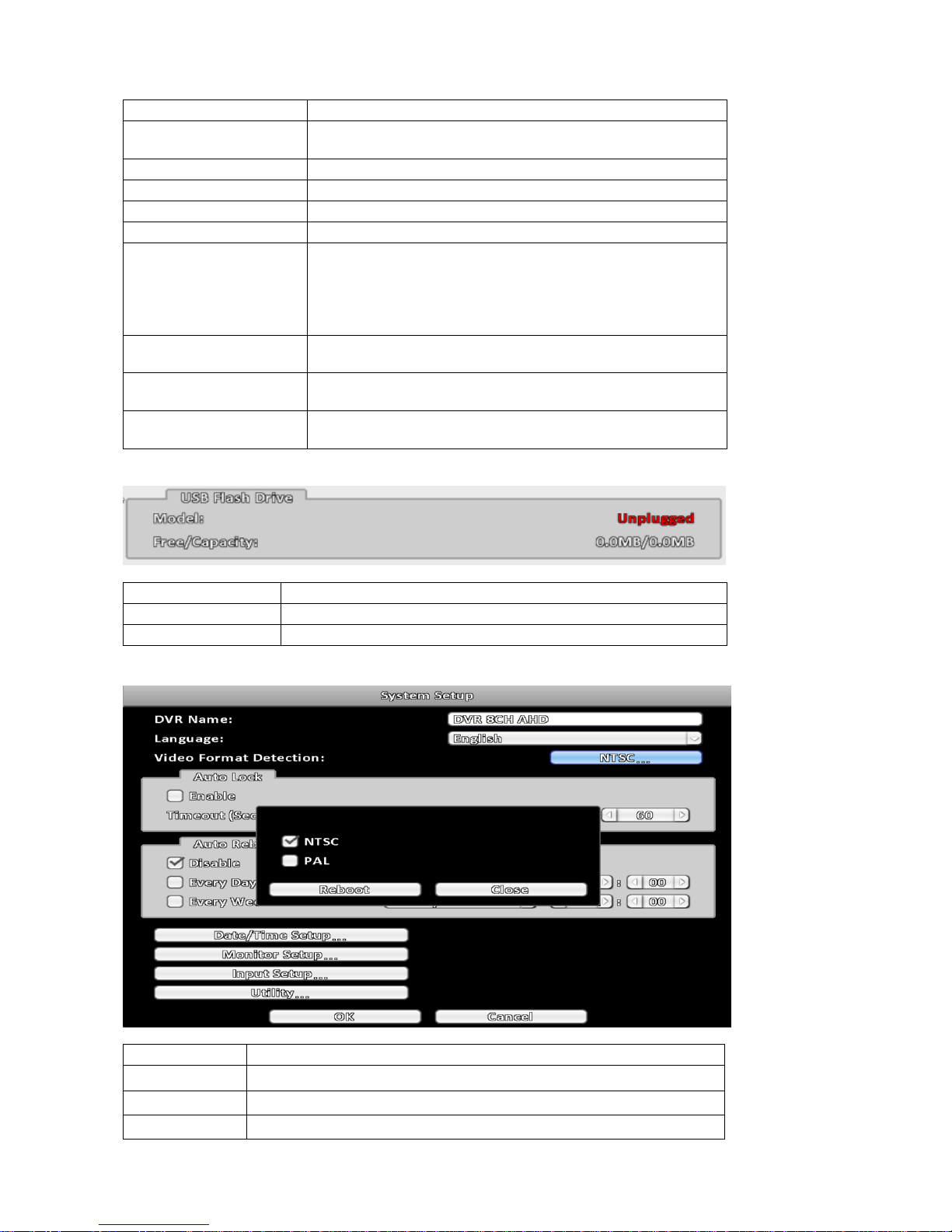

3-7 System Setup
Item
Description
DVR Name
The name of DVR to be shown while users login from remote site.
Language
Specify the OSD language.
Video Format
Specify the format of video signal (auto-detect, NTSC, PAL). The
Page 33
32
Detection
configuration requires DVR reboot to take effect
3-7.1 Auto Lock
Item
Description
Enable
Enable / Disable Auto Lock
Timeout（Seconds）
Set the number of seconds to wait. It there is no action, the panel
will be automatically locked
3-7.2 Auto Reboot
Item
Description
Disable
Enable / Disable Auto Reboot.
Every day
Setup the time of daily auto-reboot.
Every Week
Setup the time of weekly auto-reboot.
3-7.3 Date / Time Setup
Item
Description
Hour Format
12HOURS/ 24HOURS
Date Format
MM-DD-YY/DD-MM-YY/YY-MM-DD

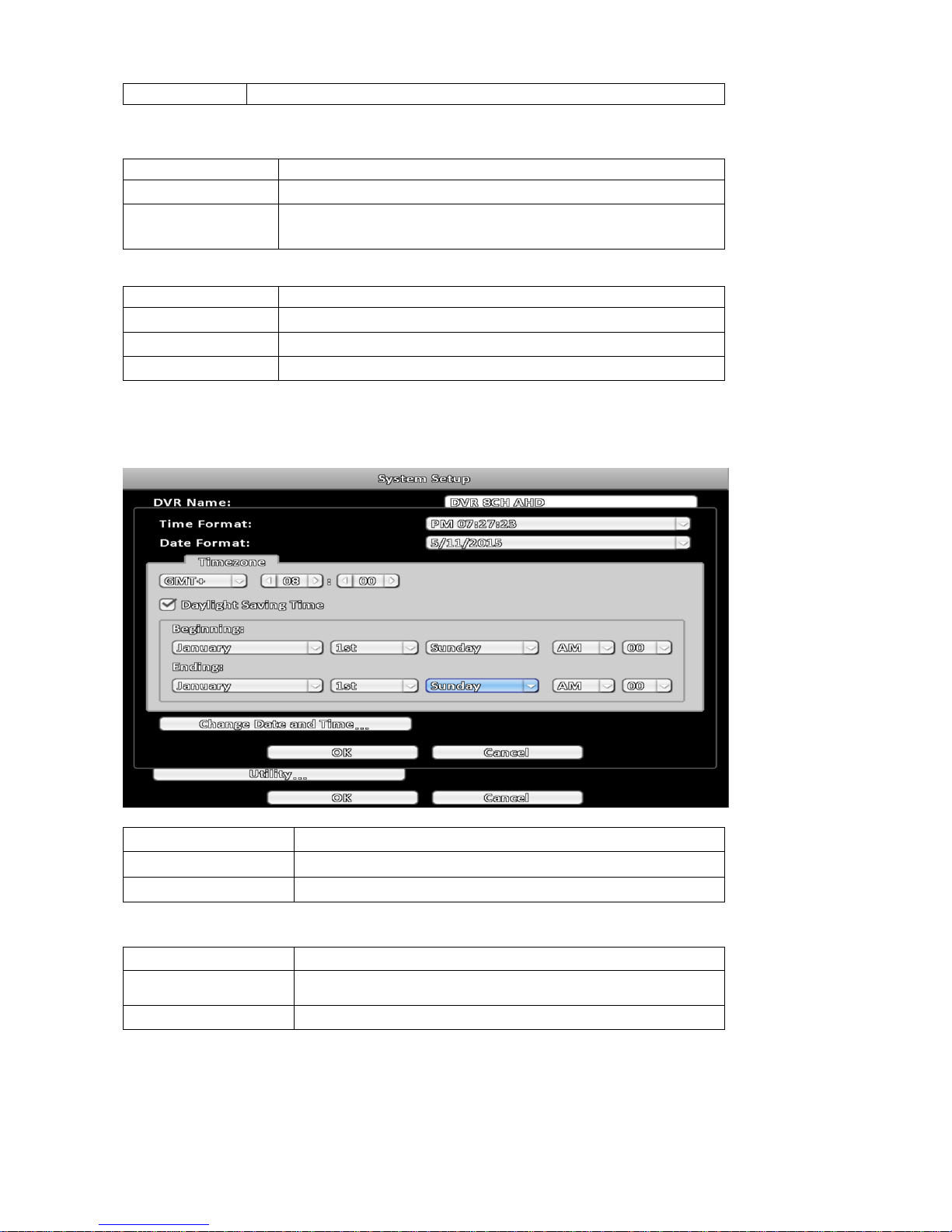

3-7.3.1 Time Zone
Item
Description
Time Zone Setup
Set up the time zone of the DVR, from GMT - 13 ～ GMT+ 13。
Daylight Saving Time
Enable / Disable Daylight Saving Time

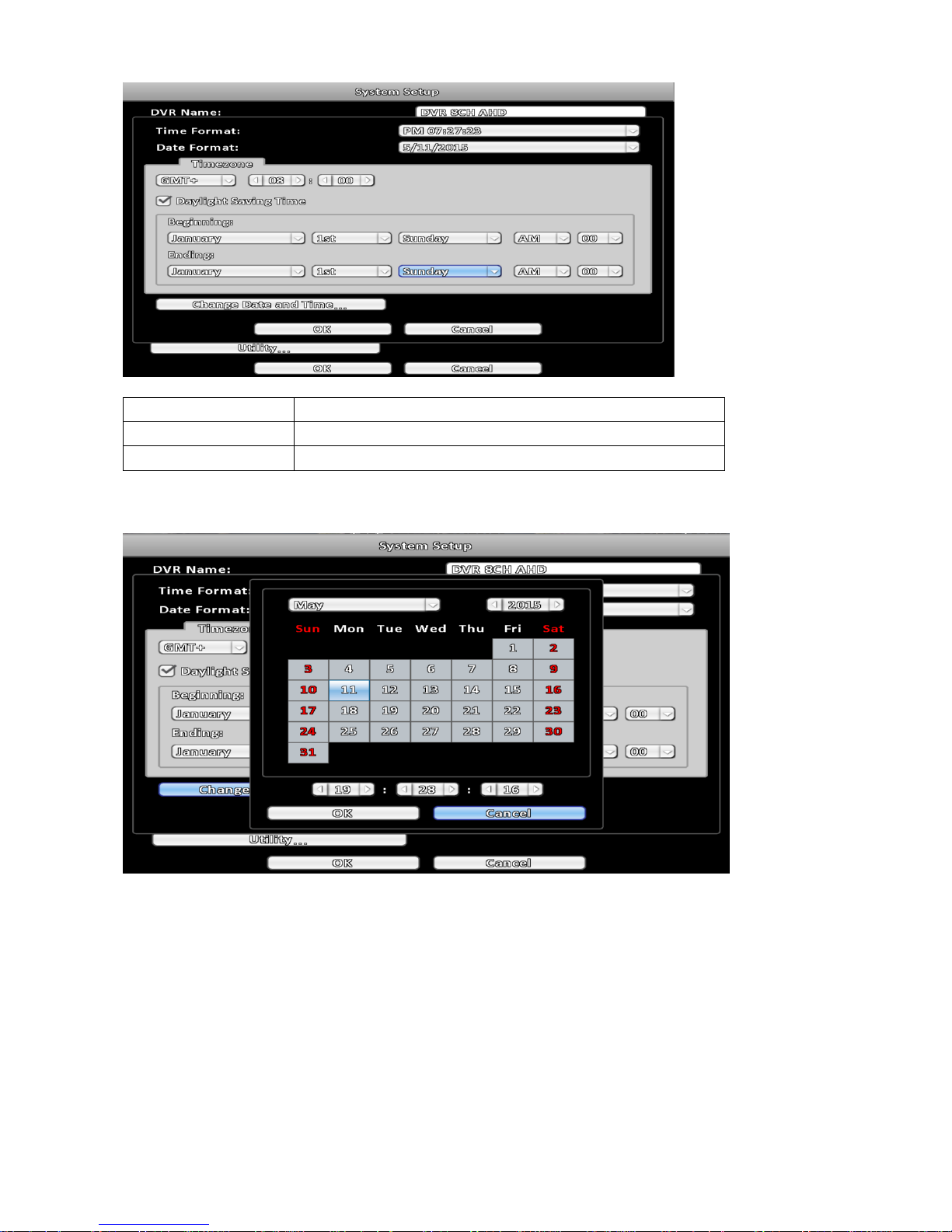

3-7.3.2 Daylight Saving Time Setup
Page 34
33
Item
Description
Beginning
Setup the beginning time of Daylight Saving Time.
Ending
Setup the ending time of Daylight Saving Time.
3-7.3.3 Change Date / Time
Setup date and time of the DVR.

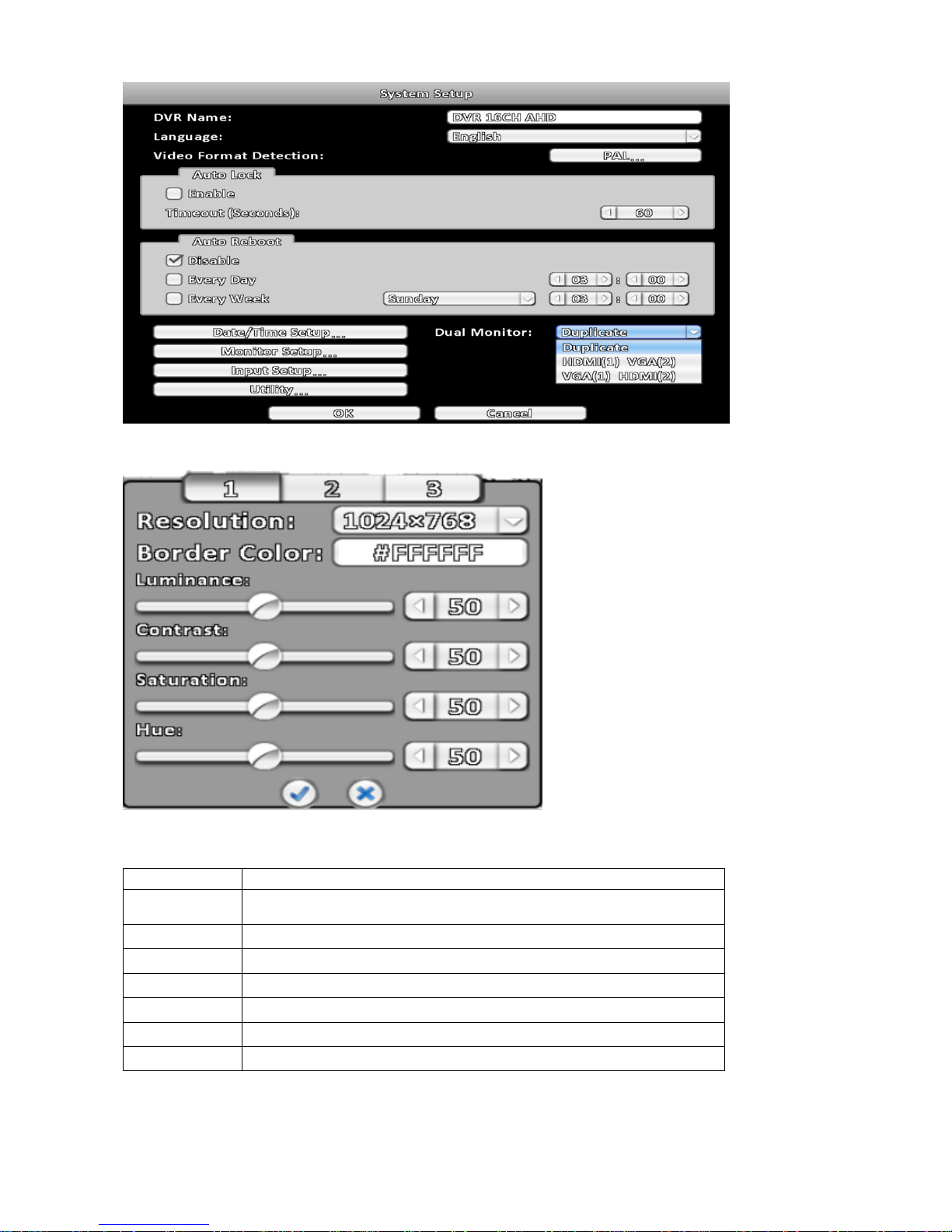

3-7.4 Monitor Setup
The setting options include three configurations.
In the duplicate mode, both monitors display the same content.
In the HDMI (1) VGA (2) mode, HDMI will be assigned to screen 1, and VGA screen 2.
In the VGA (1) HDMI (2) mode, VGA will be assigned to screen 1, HDMI screen 2.
Page 35
34
3-7.4.1 Resolution Setup
Monitor Setup
Note: If you use a 17-inch monitor, please switch to 1024×768 resolution.
Item
Description
1, 3
Setting monitor resolution/BNC output.
Resolution
selection screen resolution
Border Color
Set the color of border
Luminance
Setting brightness, from 0 to 100.
Contract
Setting screen display color contrast, from 0 to 100.
Saturation
Setting screen display color saturation from 0 to 100.
Hue
Tone color tone setting screen displayed from 0 to 100
Page 36
35
3-7.4.2 BNC output
Item
Description
Horizontal
Position
Setting BNC’s horizontal position.
Vertical
Position
Setting BNC’s vertical position.
Scaling Width
Setting BNC’s scaling width.
Scaling Height
Setting BNC’s scaling height.
3-7.5 Input Setup
The Input Setup allows users’ setup input device
Item
Description
Key Tone
Enable / Disable Key Tone.
3-7.5.1 IR Setup (Depending on DVR model)
Item
Description
Page 37
36
IR ID
Normal remote control ID is IC00.If you have one to multiple remote
controls, you can set your ID for your DVR to control different DVRs.
(DVR1→IC01,DVR2→IC02).
Test
Test your remote control.
3-7.4.1 Mouse Setup
Item
Description
Speed
Setup the mouse cursor speed. The right side of the slider means
faster mouse speed. (Only valid for local configuration)
3-7.6 Utility Setup
Item
Description
Export Configuration
Export DVR configuration to a USB flash drive or a remote PC.
Import Configuration
Import configuration from a USB flash drive or a remote PC to
DVR.
Reset Configuration
Reset system configuration.
Export Logs
Save DVR system log to a USB flash drive or a remote PC.
Page 38
37
Clear Logs
Clear all DVR system log.
Upgrade Firmware
Upgrade DVR firmware through a USB drive.
Please stop recording and backup DVR configuration before
upgrading
System will reboot automatically when the upgrade is done.
3-7.6.1 Export Configuration
There are several options for target storage of DVR configuration.
a. Export to a USB Flash Drive: The default filename is “DVR.cfg”
b. Save *.cfg to PC

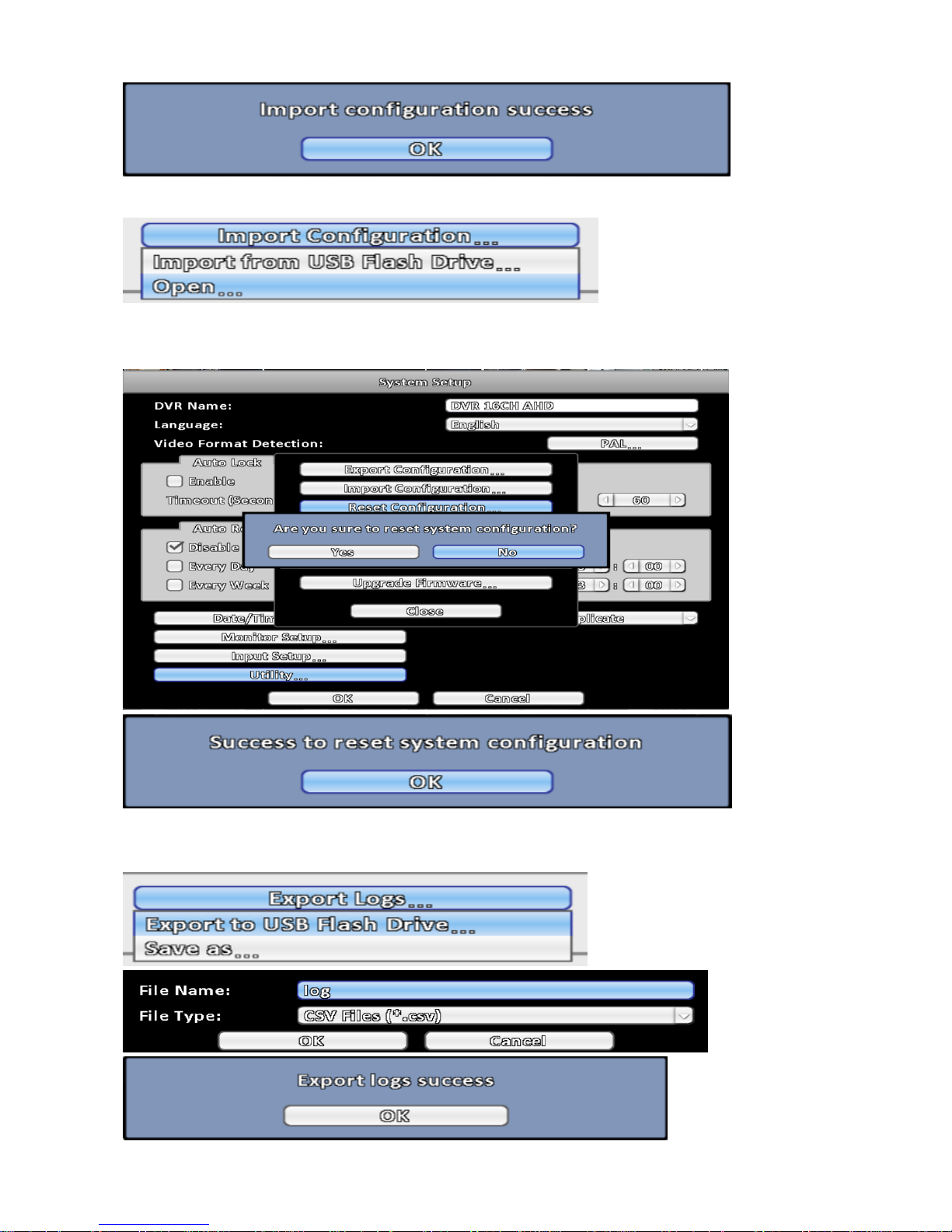

3-7.6.2 Import Configuration
Import configuration to the DVR from a USB drive or a remote computer.
a. Import from USB Flash Drive：Import the configuration from a USB flash drive.
Page 39
38
b. Open *.cfg from PC
3-7.6.3 Reset Configuration
Reset the DVR to default configuration
3-7.6.4 Export Logs
a. Export to USB Flash Drive: Export logs to a USB flash drive. The default file name is “log.csv”
Page 40
39
b. Save *.cfg to PC
3-7.6.5 Clear Logs
Clear the system logs：
Page 41
40

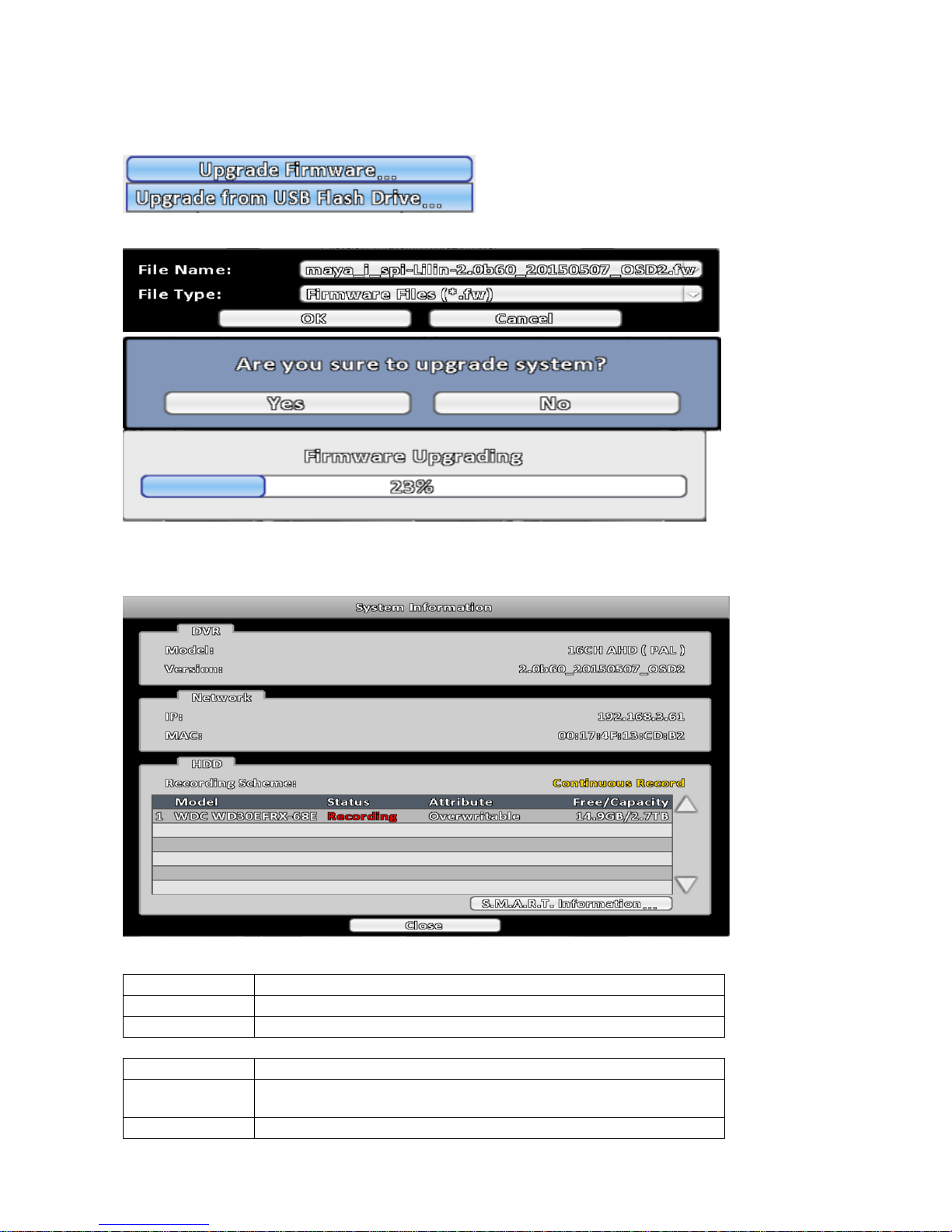

3-7.6.6 Upgrade Firmware
Note: Don’t turn off the power or unplug the USB flash drive when upgrade processing, avoid damage
DVR.
Upgrade from USB Flash Drive...: Choose the firmware from USB flash drive to upgrade
3-8 System Information
3-8.1 DVR Information
Item
Description
Model
DVR model and video format.
Version
Firmware Version.
3-8.2 Network Information
Item
Description
IP
DVR’s IP address. If there is no network connection, it will show
"Network is not connected.
MAC
The DVR MAC address
Page 42
41
3-8.3 HDD Information
Item
Description
Recording Scheme
Display installed HDD recording type
Model
Display installed HDD model
Status
Display installed HDD recording status
Attribute
Display installed HDD attribute (Overwritable/Writable/Read-Only)
Free/Capacity
Display installed HDD capacity (Free/Capacity )
3-8.4 S.M.A.R.T Information
Page 43
42
Chapter 4: Remote Software
The DVR allows users remotely access and control the DVR from a PC by “NetViewer” or IE v6.0 or above.
Note: Currently support Windows XP SP2, Windows Vista, Windows 7, and Windows 8

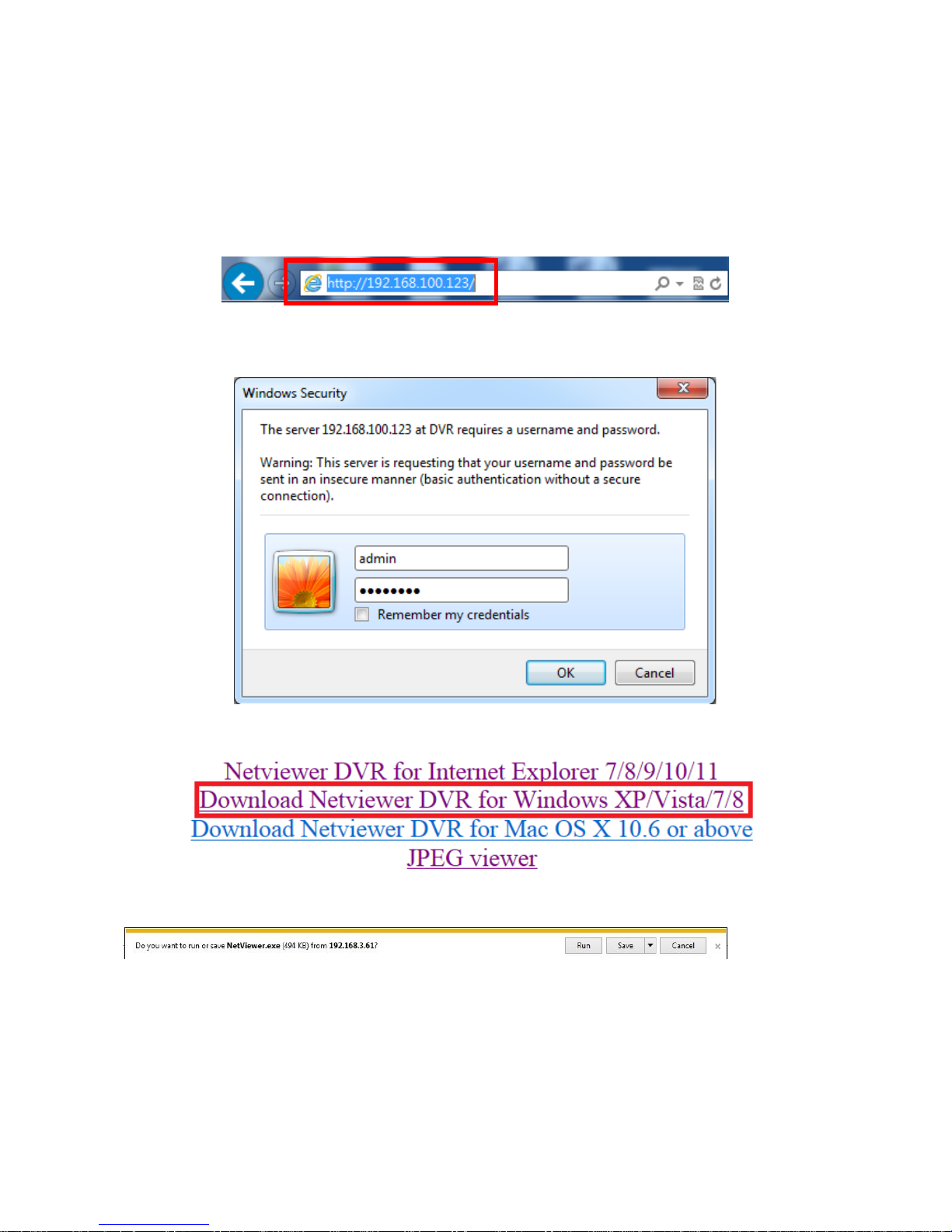

4-1 Application Software Connection
Step１：Type the IP address of DVR in IE browser.
Step2： Windows as below will show up. Please type the user name and password. Default user name and
password is admin/1111. Other related setup about user account and password, please check the
section “Account Setup. “
Step３：Click the link “NetViewer for Windows XP/Vista/7/8” to start downloading the AP software.
Step4：Run the program directly, or save the program to the PC.
Step５：Please type the information of login DVR: IP, Port, Username and Password.
Page 44
43
The drop-down menu can be used to record IP address. Press “Clear” to clear IP address.
Step６：Logged into the DVR.
Page 45
44

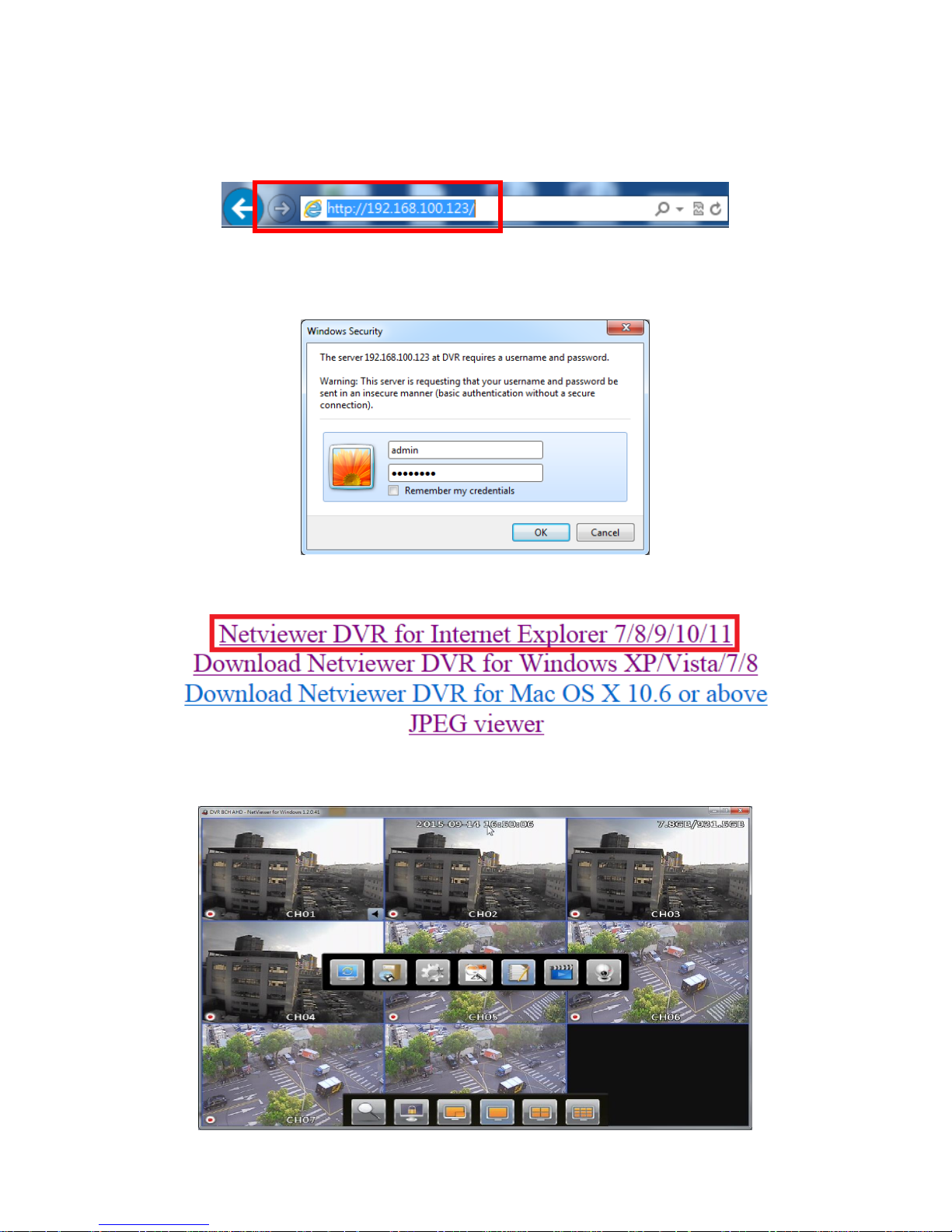

4-2 IE Connection
Step１：Type the IP address of DVR in IE browser.
Step２：Windows as below will show up. Please type the user name and password. Default user name and
password is admin/1111. Other related setup about user account and password, please check the
section “Account Setup.“
Step 3：The links as below will show up, click the link “Netviewer DVR for Internet Explorer 7/8/9/10/11”
Step 4：DVR images appear.
Loading...
