Lika LD300, LD301, LD302, LD303, LD305 User Manual

Download

User's guide

LD300 LD301 LD302 LD303 LD305

• Multifunction display for incremental encoders

• Position display, tachometer, start/stop speed display,...

• Digital, analogue, serial and relay outputs

• Multivoltage supply 24Vdc, 24/42Vac, 115/230Vac

Suitable for the following models:

• LD300 display

• LD301 display with analogue output

• LD302 display with two presets and

transistor outputs

• LD303 display with serial interface

• LD305 display with two presets, relay

outputs and serial interface

General Contents

Preliminary information 9 Safety summary 10 Mounting instructions 12 Electrical connections 13 Operating the front keys 18 Operator menu 22 Set up procedure 24 Special functions 40 Parameters list 44

Lika Electronic • Tel. +39 0445 806600 • info@lika.biz • www.lika.biz

Smart encoders & actuators

2074

This document and information contained herein are the property of Lika Electronic s.r.l. and shall not be reproduced in whole or in part without prior written approval of Lika Electronic s.r.l. Translation, reproduction and total or partial modification (photostat copies, film and microfilm included and any other means) are forbidden without written authorisation of Lika Electronic s.r.l.

The information herein is subject to change without notice and should not be construed as a commitment by Lika Electronic s.r.l. Lika Electronic s.r.l. reserves the right to make all modifications at any moments and without forewarning.

This manual is periodically reviewed and revised. As required we suggest checking if a new or updated edition of this document is available at Lika Electronic s.r.l.'s website. Lika Electronic s.r.l. assumes no responsibility for any errors or omissions in this document. Critical evaluation of this manual by the user is welcomed. Your comments assist us in preparation of future documentation, in order to make it as clear and complete as possible. Please send an e-mail to the following address info@lika.it for submitting your comments, suggestions and criticisms.

General contents

General contents................................................................................................................................................ 3

Subject index....................................................................................................................................................... 7

Typographic and iconographic conventions................................................................................................. 8

Preliminary information.................................................................................................................................... 9

1 Safety summary............................................................................................................................................ 10

1.1 Safety........................................................................................................................................................................................10

1.2 Electrical safety....................................................................................................................................................................10

1.3 Mechanical safety...............................................................................................................................................................10

2 Identification................................................................................................................................................. 11

3 Mounting instructions................................................................................................................................ 12

4 Electrical connections.................................................................................................................................. 13

4.1 Power supply.........................................................................................................................................................................14

4.2 Aux. voltage output............................................................................................................................................................14

4.3 Inputs A, B and Reset........................................................................................................................................................15

4.4 Adjustable analogue output (LD301 model only).................................................................................................15

4.5 Optocoupler / transistor outputs (LD302 model only)........................................................................................16

4.6 Serial RS-232 / RS-485 interface (LD303 and LD305 models only)..............................................................16

4.7 Relay outputs (LD305 model only)..............................................................................................................................17

5 Operating the front keys............................................................................................................................ 18

5.1 Normal display state..........................................................................................................................................................18

5.2 Selection and setting of parameters...........................................................................................................................19

5.2.1 Selecting a parameter...............................................................................................................................................19

5.2.2 Changing parameter settings................................................................................................................................19

5.2.3 Saving settings.............................................................................................................................................................19

5.2.4 Time-out function......................................................................................................................................................19

5.3 Teach operation...................................................................................................................................................................20

5.4 Setting all registers to “Default“ values.....................................................................................................................20

5.5 Code locking of the keypad............................................................................................................................................21

6 Operator menu.............................................................................................................................................. 22

6.1 Overview of basic parameters........................................................................................................................................22

6.2 Operational parameters overview................................................................................................................................23

7 Set up procedure.......................................................................................................................................... 24

7.1 Basic settings........................................................................................................................................................................24

tYPE.........................................................................................................................................................................................24

rPm......................................................................................................................................................................................24

timE....................................................................................................................................................................................24

timEr..................................................................................................................................................................................24

Count.................................................................................................................................................................................24

SPEEd.................................................................................................................................................................................24

CHAr.......................................................................................................................................................................................24

nPn......................................................................................................................................................................................24

PnP......................................................................................................................................................................................24

briGht.....................................................................................................................................................................................24

CodE........................................................................................................................................................................................25

no.........................................................................................................................................................................................25

All.........................................................................................................................................................................................25

P_frEE................................................................................................................................................................................25

LmodE....................................................................................................................................................................................25

no.........................................................................................................................................................................................25

1-qUA................................................................................................................................................................................25

4-qUA................................................................................................................................................................................25

7.2 Operational parameters....................................................................................................................................................26

7.2.1 RPM, operation as tachometer or frequency counter................................................................................26

FrEqu......................................................................................................................................................................................26

diSPL.......................................................................................................................................................................................26

dPoint.....................................................................................................................................................................................26

WAit........................................................................................................................................................................................26

FiltEr.......................................................................................................................................................................................26

OFF......................................................................................................................................................................................26

16.........................................................................................................................................................................................26

7.2.2 Time, display of baking or processing time (reciprocal speed)................................................................27

diSfor......................................................................................................................................................................................27

SEC......................................................................................................................................................................................27

min......................................................................................................................................................................................27

mi-SE.................................................................................................................................................................................27

min.00...............................................................................................................................................................................27

FrEqu......................................................................................................................................................................................27

diSPL.......................................................................................................................................................................................27

WAit........................................................................................................................................................................................27

FiLtEr......................................................................................................................................................................................27

OFF......................................................................................................................................................................................27

16.........................................................................................................................................................................................27

7.2.3 Timer, Stopwatch........................................................................................................................................................28

bASE........................................................................................................................................................................................28

SEC.000............................................................................................................................................................................28

SEC.00...............................................................................................................................................................................28

SEC.0..................................................................................................................................................................................28

SEC......................................................................................................................................................................................28

min.00...............................................................................................................................................................................28

min.0..................................................................................................................................................................................28

H-m-S...............................................................................................................................................................................28

StArt.......................................................................................................................................................................................28

Hi_Loo...............................................................................................................................................................................28

St_SP..................................................................................................................................................................................28

A_StSP...............................................................................................................................................................................28

Loo_Hi...............................................................................................................................................................................28

rESEt.......................................................................................................................................................................................28

no.........................................................................................................................................................................................28

yES.......................................................................................................................................................................................28

LAtcH......................................................................................................................................................................................28

no.........................................................................................................................................................................................28

yES.......................................................................................................................................................................................28

7.2.4 Count, Counter mode................................................................................................................................................29

modE.......................................................................................................................................................................................29

A_bdir................................................................................................................................................................................29

A u b...................................................................................................................................................................................29

A - b...................................................................................................................................................................................29

A_b .1................................................................................................................................................................................29

A_b .2................................................................................................................................................................................29

A_b .4................................................................................................................................................................................29

FActor.....................................................................................................................................................................................29

SEt............................................................................................................................................................................................29

rESEt.......................................................................................................................................................................................29

no.........................................................................................................................................................................................29

front...................................................................................................................................................................................29

E_tErn................................................................................................................................................................................29

Fr u E..................................................................................................................................................................................29

dPoint.....................................................................................................................................................................................29

7.2.5 Speed from differential time between a Start and a Stop input...........................................................30

timE.........................................................................................................................................................................................30

diSPL.......................................................................................................................................................................................30

dPoint.....................................................................................................................................................................................30

WAit........................................................................................................................................................................................30

7.2.6 Linearisation points....................................................................................................................................................30

7.3 Model LD301: additional settings for the analogue output.............................................................................31

A-ChAr..................................................................................................................................................................................31

-10_10..............................................................................................................................................................................31

0_10...................................................................................................................................................................................31

4_20...................................................................................................................................................................................31

0_20...................................................................................................................................................................................31

OFFSEt....................................................................................................................................................................................31

GAin........................................................................................................................................................................................31

AnAbEG.................................................................................................................................................................................32

AnAEnd.................................................................................................................................................................................32

7.4 Models LD302 & LD305: additional settings for preselections.......................................................................33

CHAr 1...................................................................................................................................................................................33

__r GE................................................................................................................................................................................33

__r LE.................................................................................................................................................................................33

_n_ GE...............................................................................................................................................................................33

_n_ LE................................................................................................................................................................................33

_n_ rES.............................................................................................................................................................................33

_n_ SEt.............................................................................................................................................................................33

CHAr 2...................................................................................................................................................................................33

__r GE................................................................................................................................................................................33

__r LE.................................................................................................................................................................................33

_n_ GE...............................................................................................................................................................................33

_n_ LE................................................................................................................................................................................33

__r 1-2.............................................................................................................................................................................33

_n_ 1-2............................................................................................................................................................................33

HYSt 1....................................................................................................................................................................................33

HYSt 2....................................................................................................................................................................................33

PrES_1...................................................................................................................................................................................34

PrES_2...................................................................................................................................................................................34

7.5 Models LD303 & LD305: additional settings for the serial interface............................................................35

S-Unit....................................................................................................................................................................................35

S-Form...................................................................................................................................................................................35

7 E 1..................................................................................................................................................................................35

7 E 2..................................................................................................................................................................................35

7 0 1.................................................................................................................................................................................35

7 0 2.................................................................................................................................................................................35

7 no 1................................................................................................................................................................................35

7 no 2................................................................................................................................................................................35

8 E 1..................................................................................................................................................................................35

8 0 1.................................................................................................................................................................................35

8 no 1................................................................................................................................................................................35

8 no 2................................................................................................................................................................................35

S-bAUd..................................................................................................................................................................................35

9600...................................................................................................................................................................................35

4800...................................................................................................................................................................................35

2400...................................................................................................................................................................................35

1200...................................................................................................................................................................................35

600......................................................................................................................................................................................35

19200................................................................................................................................................................................35

38400................................................................................................................................................................................35

S-tim......................................................................................................................................................................................36

S-mod....................................................................................................................................................................................36

PC.........................................................................................................................................................................................36

Print1.................................................................................................................................................................................36

Print2.................................................................................................................................................................................36

S-CodE...................................................................................................................................................................................36

7.5.1 PC-Mode.........................................................................................................................................................................37

7.5.2 Printer-Mode................................................................................................................................................................39

8 Special functions.......................................................................................................................................... 40

8.1 Linearisation..........................................................................................................................................................................40

8.2 Manual input or “teaching“ of the interpolation points....................................................................................42

9 Parameters list.............................................................................................................................................. 44

9.1 General.....................................................................................................................................................................................44

9.2 Linearisation..........................................................................................................................................................................45

9.3 Analogue output (model LD301)..................................................................................................................................46

9.4 Preselections (models LD302 & LD305).....................................................................................................................46

9.5 Serial interface (models LD303 & LD305).................................................................................................................46

Subject index

A-ChAr..................................................................................31

AnAbEG.................................................................................32

AnAEnd.................................................................................32

bASE.......................................................................................28

briGht....................................................................................24

CHAr.......................................................................................24

CHAr 1...................................................................................33

CHAr 2...................................................................................33

CodE.......................................................................................25

diSfor.....................................................................................27

diSPL...........................................................................26p., 30

dPoint.........................................................................26, 29p.

FActor....................................................................................29

FiltEr.......................................................................................26

FiLtEr......................................................................................27

FrEqu..................................................................................26p.

GAin.......................................................................................31

HYSt 1...................................................................................33

HYSt 2...................................................................................33

LAtcH.....................................................................................28

LmodE...................................................................................25

modE......................................................................................29

OFFSEt...................................................................................31

P01_X....................................................................................30

P01_Y....................................................................................30

P16_X....................................................................................30

P16_Y....................................................................................30

PrES_1...................................................................................34

PrES_2...................................................................................34

rESEt...................................................................................28p.

S-bAUd.................................................................................35

S-CodE..................................................................................36

S-Form..................................................................................35

S-mod...................................................................................36

S-tim......................................................................................36

S-Unit....................................................................................35

SEt...........................................................................................29

StArt.......................................................................................28

timE........................................................................................30

tYPE........................................................................................24

WAit............................................................................26p., 30

Typographic and iconographic conventions

In this guide, to make it easier to understand and read the text the following typographic and iconographic conventions are used:

• parameters and objects both of the device and the interface are coloured in GREEN;

• alarms are coloured in RED;

• states are coloured in FUCSIA.

When scrolling through the text some icons can be found on the side of the page: they are expressly designed to highlight the parts of the text which are of great interest and significance for the user. Sometimes they are used to warn against dangers or potential sources of danger arising from the use of the device. You are advised to follow strictly the instructions given in this guide in order to guarantee the safety of the user and ensure the performance of the device. In this guide the following symbols are used:

This icon, followed by the word WARNING, is meant to highlight the parts of the text where information of great significance for the user can be found: user must pay the greatest attention to them! Instructions must be followed strictly in order to guarantee the safety of the user and a correct use of the device. Failure to heed a warning or comply with instructions could lead to personal injury and/or damage to the unit or other equipment.

This icon, followed by the word NOTE, is meant to highlight the parts of the text where important notes needful for a correct and reliable use of the device can be found. User must pay attention to them! Failure to comply with instructions could cause the equipment to be set wrongly: hence a faulty and improper working of the device could be the consequence.

This icon is meant to highlight the parts of the text where suggestions useful for making it easier to set the device and optimize performance and reliability can be found. Sometimes this symbol is followed by the word EXAMPLE when instructions for setting parameters are accompanied by examples to clarify the explanation.

Preliminary information

This guide is designed to provide the most complete information the operator needs to correctly and safely install and operate the LD30x display series. LD30x is an incremental multi-function display with impulse inputs for connecting incremental encoders or sensors. The user's interface is a multi-function keyboard fitted with 3 keys and a 7-segment and 6digit LED display. In the series the following models are available:

• LD300 is a display only version;

• LD301 provides an additional analogue output;

• LD302 further offers two presets and two switching outputs;

• LD303 is equipped with an RS-232/RS-485 serial interface for connection with a PC;

• LD305 is equipped with two relay outputs and an RS-232/RS-485 serial interface for connection

with a PC.

For technical specifications please refer to the product datasheet.

To make it easier to read the text, this guide can be divided into two main sections.

In the first section (from chapter 1 to chapter 4) general information concerning the safety, the mechanical installation and the electrical connection.

In the second section (from chapter 5 to chapter 9) both general and specific information is given on the operator menu and the setup procedure.

LD30x

1 Safety summary

1.1 Safety

• Always adhere to the professional safety and accident prevention regulations applicable to your country during device installation and operation;

• installation and maintenance operations have to be carried out by qualified personnel only, with power supply disconnected and stationary mechanical parts;

• device must be used only for the purpose appropriate to its design: use for purposes other than those for which it has been designed could result in serious personal and/or the environment damage;

• high current, voltage and moving mechanical parts can cause serious or fatal injury;

• warning ! Do not use in explosive or flammable areas;

• failure to comply with these precautions or with specific warnings

elsewhere in this manual violates safety standards of design, manufacture, and intended use of the equipment;

• Lika Electronic assumes no liability for the customer's failure to comply with these requirements.

1.2 Electrical safety

• Turn OFF power supply before connecting the device;

• connect following to explanation in the ”4 - Electrical connections”

section on page 13;

• in compliance with 2014/30/EU norm on electromagnetic compatibility, following precautions must be taken:

- before handling and installing the equipment, discharge electrical charge from your body and tools which may come in touch with the device;

- power supply must be stabilized without noise; install EMC filters on device power supply if needed;

- always use shielded cables (twisted pair cables whenever possible);

- avoid cables runs longer than necessary;

- avoid running the signal cable near high voltage power cables;

- mount the device as far as possible from any capacitive or inductive noise source; shield the device from noise source if needed;

- minimize noise by connecting the unit to ground (GND). Make sure that ground (GND) is not affected by noise. The connection point to ground can be situated both on the device side and on user’s side. The best solution to minimize the interference must be carried out by the user.

1.3 Mechanical safety

• Install the device following strictly the information in the “3 - Mounting instructions” section;

• do not disassemble the unit;

• do not tool the unit;

MAN LD30x E 1.2.odt Safety summary 10 of 48

LD30x

• delicate electronic equipment: handle with care;

• do not subject the device and the shaft to knocks or shocks;

• respect the environmental characteristics of the device.

2 Identification

Device can be identified through the order code and the serial number printed on the label applied to its body. Information is listed in the delivery document too. Please always quote the order code and the serial number when reaching Lika Electronic for purchasing spare parts or needing assistance. For any information on the technical characteristics of the product, refer to the technical catalogue.

Warning: devices having order code ending with “/Sxxx” may have mechanical and electrical characteristics different from standard and be supplied with additional documentation for special connections (Technical info).

MAN LD30x E 1.2.odt Identification 11 of 48

LD30x

3 Mounting instructions

WARNING

Mount the unit with power supply disconnected.

Mount the display into the provided cut-out (approx. 91 x 44 mm, 3.583 x

1.732’’) without panel clips. Install panel clips on the display housing and screw until fixed.

96,0 (3.780’’)

110,0 (4.331’’)

44,0 (1.732)

10,0

(.394)

8,0

(.315)

91,0 (3.583 )

9,0 (.345)

129,0 (5.079)

140,5 (5.531)

48,0 (1.890)

Panel cut out: 91 x 44 mm (3.583 x 1.732’’)

MAN LD30x E 1.2.odt Mounting instructions 12 of 48

LD30x

4 Electrical connections

WARNING

Turn OFF the power supply before connecting the device.

LD300 Display unit only

Special versions with TTL inputs (option -M8-) provide a +5V auxiliary output on terminal 7, instead of +24V

Units with option -P4- provide 24Vac 42Vac power supply instead of 115Vac 230Vac (option -PM-)

GND

17-30VCD IN

1 2 3 4 5 6 7 8 9 10

INPUT A

INPUT B

RESET (C)

GND

+24VDC OUT

GND

230VAC

115 VAC

0 VAC

Only when you like to tie internal GND to earth pote ntial

LD301 Display unit with analogue output

Special versions with TTL inputs (option -M8-) provide a +5V auxiliary output on terminal 7, instead of +24V

Units with option -P4- provide 24Vac 42Vac power supply instead of 115Vac 230Vac (option -PM-)

LD302 Display unit with 2 presets and transistor outputs

Special versions with TTL inputs (option -M8-) provide a +5V auxiliary output on terminal 7, instead of +24V

Units with option -P4- provide 24Vac 42Vac power supply instead of 115Vac 230Vac (option -PM-)

LD303 Display unit with serial interface

Special versions with TTL inputs (option -M8-) provide a +5V auxiliary output on terminal 7, instead of +24V

Units with option -P4- provide 24Vac 42Vac power supply instead of 115Vac 230Vac (option -PM-)

MAN LD30x E 1.2.odt Electrical connections 13 of 48

LD30x

LD305 Display unit with 2 presets, 2 relay outputs and a serial RS-232/RS485 interface

Special versions with TTL inputs (option -M8-) provide a +5V auxiliary output on terminal 7, instead of +24V

LD305 has -P4- option only, it needs 17Vdc - 30Vdc power supply

* Contact positions are shown in

powerless state

4.1 Power supply

The unit accepts DC power supply from 17 V to 30 V when using terminals 1 and 2 and the consumption depends on the level of the supply voltage (typically between 80 mA and 150 mA plus current taken from auxiliary output). In specific models, for AC supply, terminals 0 Vac, 115 Vac or 230 Vac can be used. The total AC power consumption is 7.5 VA. Units with option LD30x-P4-... are designed for either 24 Vac or 42 Vac power supply and the screw terminals are marked correspondingly. LD305 has -P4- option only, i.e. 17Vdc 30Vdc power supply. The pictures in the previous page show a dotted line for grounding to PE. This connection is not necessary, neither for safety nor for EMC. However, with specific applications, it can be useful to ground the common potential of all signal lines.

NOTE

When using this earthing option, please note that:

1. all terminals and potentials marked “GND“ will be earthed;

2. you should avoid multiple earthing, e.g. when you use a DC power supply where the Minus is already connected to earth etc. Especially under poor earthing and grounding conditions, multiple earth connections may cause serious EMC problems.

4.2 Aux. voltage output

Terminal 7 provides a 24 Vdc / 120 mA max. auxiliary output for supply of sensors and encoders. Units with TTL inputs (option -M8-) provide a 5 Vdc / 120 mA auxiliary output on terminal 7 instead.

MAN LD30x E 1.2.odt Electrical connections 14 of 48

LD30x

4.3 Inputs A, B and Reset

In the basic set-up menu (see the “7.1 Basic settings” section on page 24) these inputs can be configured to PNP (switch to +) or to NPN (switch to -). This configuration is valid for all three inputs at a time. The factory setting is always PNP. With standard units the input level is always HTL (Low < 2.0 V and High > 9.0 V). Units equipped with option -M8- provide TTL / CMOS) level (Low <0.8 V and High >3.5 V).

NOTE

1. Independently of your setting, all functions of the unit are “active HIGH“ and the unit triggers to positive transitions (rising edge).

2. With NPN setting please be aware that an open or unused RESET input is HIGH. Therefore the unit will be kept in a continuous RESET state and will not work, unless you tie the Reset line to GND (terminal 1 or 6).

3. When you use 2-wire NAMUR type sensors, please select NPN, connect the negative wire of the sensor to GND and the positive wire to the corresponding input.

Typical input circuit (standard version with HTL inputs):

PNP

4,7k

GND GND

+24V int.

Input

4,7k

GND

Input

+24V int.

NPN

The counting inputs A and B are designed for input frequencies up to 100 kHz (with all counter modes) and up to 25 kHz (with all other operating modes). The minimum pulse duration on the Reset input must be 500 µsec. (maximum frequency 1 kHz) All inputs are designed to receive impulses from an electronic impulse source. Should you exceptionally need to use mechanical contacts, please connect an external capacitor between GND (-) and the corresponding input (+). With a capacity of 10 µF, the maximum input frequency will reduce to 20 Hz and miscounting due to contact bouncing will be eliminated.

4.4 Adjustable analogue output (LD301 model only)

A voltage output is available, operating in a range of 0 … +10 V or –10 V ... +10 V according to setting. Furthermore, a current output 0/4 – 20 mA is available. Both outputs refer to the GND potential and the signal polarity changes with

MAN LD30x E 1.2.odt Electrical connections 15 of 48

LD30x

the sign in the display. The outputs provide a 14-bit resolution and the response time at each change of the measuring value is approx. 7 msec. (fin > 143 Hz). The maximum current of the voltage output is 2 mA and the load on the current output can vary between 0 and max. 270 ohms.

WARNING

Voltage output and Current output cannot be used together! Please never connect mA output and V output simultaneously!

4.5 Optocoupler / transistor outputs (LD302 model only)

Outputs provide programmable switching characteristics and are potential-free. Please connect terminal 8 (COM+) to the positive potential of the voltage you want to switch (range 5V ... 30V). You must not exceed the maximum output current of 150 mA. If you switch inductive loads, please provide filtering of the coil by means of an external diode.

Opto Opto

33 R

(8)

(9)

(10)

Com+ (5 ... 35 V)

Output 1 (max. 150 mA)

Output 2 (max. 150 mA)

33 R

Preset 2

Preset 1

4.6 Serial RS-232 / RS-485 interface (LD303 and LD305 models only)

Ex factory the unit is set to RS-232 communication. This setting can be changed to RS-485 (2-wire) by means of an internal DIL switch. To access the DIL switch, please remove the screw terminal connectors and the back panel. Then pull the board to the rear to remove the PCB from its housing.

ON DIP

DIL-Switch

Removal of the back panel Location of the DIL switch

RS-232

RxD

TxD

GND

RS-485

A (+)

B (-)

GND

MAN LD30x E 1.2.odt Electrical connections 16 of 48

LD30x

WARNING

1. Never set DIL switch positions 1 and 2 or DIL switch positions 3 and 4 to ON at the same time!

2. After setting the switch, shift the print carefully back to its housing, in order to avoid damaging the front pins for connection with the front plate.

4.7 Relay outputs (LD305 model only)

Both relays provide individually programmable switching characteristics. It is strictly recommended to use additional external filtering components when switching inductive loads. The switching capability of the relays is 250 Vac / 1 A / 250 VA or 100 Vdc / 1 A / 100 W. The response delay of the relays is by 10 msec. approximately.

MAN LD30x E 1.2.odt Electrical connections 17 of 48

LD30x

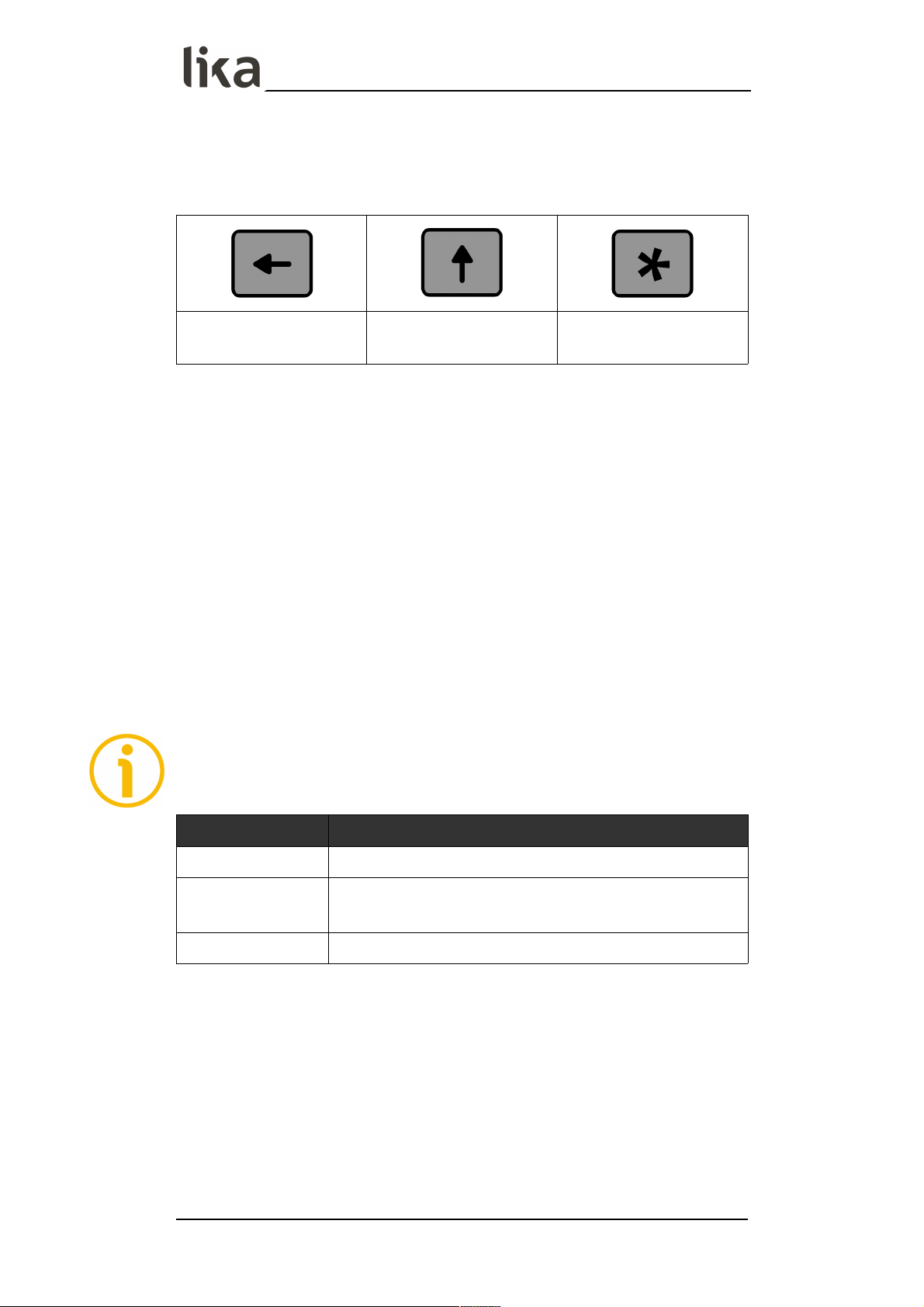

5 Operating the front keys

For set-up and other operations the unit is fitted with three front keys which will be denominated as follows in the next pages:

ENTER

(Input)

SET

(Setting)

CMD

(Command)

The functions of the keys are depending on the current operating state of the unit. The following three operating states apply:

• Normal display state (see the “5.1 Normal display state” section on page

18)

• Set-up state (see the “5.2 Selection and setting of parameters” section on page 19)

- Basic set-up (see the “7.1 Basic settings” section on page 24)

- Operational parameters set-up (see the “7.2 Operational parameters” section on page 26)

• Teach operation (see the “5.3 Teach operation” section on page 20)

5.1 Normal display state

NOTE

You can only change over to other operation states while the unit is in display state.

Change over to Key operation

Basic set-up Keep ENTER and SET down simultaneously for 3 seconds

Operational parameter set-up

Keep ENTER down for 3 seconds

Teach operation Keep CMD down for 3 seconds

The CMD key is only used to execute the Teach procedure with linearisation. For more details please refer to the “8.1 Linearisation“ and “8.2 Manual input or “teaching“ of the interpolation points” sections on page 40.

MAN LD30x E 1.2.odt Operating the front keys 18 of 48

LD30x

5.2 Selection and setting of parameters

5.2.1 Selecting a parameter

The ENTER key will scroll through the menu. The SET key allows to select the corresponding item and change the setting or the numeric value. After this, the selection can be saved by pressing the ENTER key again, which automatically changes over to the next menu item.

5.2.2 Changing parameter settings

With numerical entries, at first the lowest digit will blink. When keeping the SET key continuously down, the highlighted digit will scroll in a continuous loop from 0 to 9 and again from 0 to 9; and so on. After releasing the SET key, the current value will remain and the next digit will be highlighted (blink). This procedure allows setting all digits to the desired values. After the most significant digit has been set, the low order digit will blink again and you can make corrections if necessary. With signed parameters, the high order digit will scroll from “0” to "9" (positive) followed by “-“ and "-1" (negative).

5.2.3 Saving settings

To save the current setting, press the ENTER key, which will also automatically scroll forward the menu.

NOTE

At any time the unit changes from programming mode to normal display operation, when you keep the ENTER key down again for 3 seconds at least.

5.2.4 Time-out function

A “time-out” function will automatically terminate every menu level, when for a break period of 10 seconds no key has been pressed. In this case, all changes which have not been confirmed by ENTER yet would remain unconsidered.

MAN LD30x E 1.2.odt Operating the front keys 19 of 48

LD30x

5.3 Teach operation

NOTE

The time-out function remains disabled during all Teach operations.

Key Function

ENTER key will terminate or abort any Teach operation in

progress

SET function is fully similar to normal set-up operation

CMD key will save the display value in the register and

change over to the next interpolation point

For further details on the Teach procedure see the “8.2 Manual input or “teaching“ of the interpolation points” section on page 42.

5.4 Setting all registers to “Default“ values

At any time you can return all settings to the factory default values.

WARNING

This action will reset all parameters to factory default values and your own settings will be lost. You will have to repeat your individual set-up procedure. Factory default values are shown in the subsequent parameter tables (see the “ Parameters list” section on page 44).

To reset the unit to default values:

• switch power off;

• press the ENTER key on the front;

• keep ENTER down while you power up again.

MAN LD30x E 1.2.odt Operating the front keys 20 of 48

LD30x

5.5 Code locking of the keypad

When the code locking of the keypad has been switched on (see on page 25), any key access first results as follows:

------

To access the menu you must press the following key sequence:

within 10 seconds, otherwise the unit will automatically return to the normal display mode.

MAN LD30x E 1.2.odt Operating the front keys 21 of 48

LD30x

6 Operator menu

The menu provides one section with “Basic Parameters” (see the “7.1 Basic settings” section on page 24)and another section with “Operational Parameters” (see the “7.2 Operational parameters” section on page 26). On the display you will only find those parameters which have been enabled by the basic settings. E.g. when the Linearisation function has been disabled in the basic set-up, the associated linearisation parameters will also not appear in the parameter menu. All parameters, as good as possible, are designated by text fragments. Even though the possibilities of forming texts are very limited with a 7-segment display, this method has proved to be most suitable for simplification of the programming procedure. The subsequent table shows the general structure of the menu. Detailed descriptions of all parameters will follow in the “7 - Set up procedure“ section on page 24.

6.1 Overview of basic parameters

LD300 LD301 LD302 LD303 LD305

Type (Application mode)

Input characteristics Input characteristics Input characteristics Input characteristics Input characteristics

Brightness Brightness Brightness Brightness Brightness

Code Code Code Code Code

Linearisation mode * Linearisation mode * Linearisation mode * Linearisation mode * Linearisation mode *

Analogue output mode

Preselection mode 1 Serial unit number Preselection mode 1

Analogue offset Preselection mode 2 Serial format Preselection mode 2

Analogue gain Hysteresis 1 Serial baud rate Hysteresis 1

Hysteresis 2 Hysteresis 2

Serial unit number

Serial format

Serial baud rate

* This parameter only appears with "rPm" and "Count" modes.

MAN LD30x E 1.2.odt Operator menu 22 of 48

LD30x

6.2 Operational parameters overview

Mode "RPM" (Tachometer)

page 26

Mode "Time"

(Baking Time)

page 27

Mode "Timer"

(Stopwatch)

page 28

Mode "Count"

(Counter)

page 29

Mode "Speed"

(Transition speed)

page 30

LD300

Frequency Display Format Base (Resolution) Counter Mode Time

Display Value Frequency Start/Stop Scaling Factor Display Value

Decimal Point Display Value Auto Reset Set Value Decimal Point

Wait Time Wait Time

Latch Function

Reset/Set

Wait Time

Average Filter Average Filter Decimal Point

LD301

Frequency Display Format Base (Resolution) Counter Mode Time

Display Value Frequency Start/Stop Scaling Factor Display Value

Decimal Point Display Value Auto Reset Set Value Decimal Point

Wait Time Wait Time

Latch Function

Reset/Set

Wait Time

Average Filter Average Filter Decimal Point

Analogue Begin

Analogue End

LD302

Preselection 1 Preselection 2

Frequency Display Format Base (Resolution) Counter Mode Time

Display Value Frequency Start/Stop Scaling Factor Display Value

Decimal Point Display Value Auto Reset Set Value Decimal Point

Wait Time Wait Time

Latch Function

Reset/Set

Wait Time

Average Filter Average Filter Decimal Point

LD303

Frequency Display Format Base (Resolution) Counter Mode Time

Display Value Frequency Start/Stop Scaling Factor Display Value

Decimal Point Display Value Auto Reset Set Value Decimal Point

Wait Time Wait Time

Latch Function

Reset/Set

Wait Time

Average Filter Average Filter Decimal Point

Serial Timer Serial Mode

Serial Code

LD305

Preselection 1 Preselection 2

Frequency Display Format Base (Resolution) Counter Mode Time

Display Value Frequency Start/Stop Scaling Factor Display Value

Decimal Point Display Value Auto Reset Set Value Decimal Point

Wait Time Wait Time

Latch Function

Reset/Set Wait Time

Average Filter Average Filter Decimal Point

Serial Timer Serial Mode

Serial Code

All units

P01_H * P01_H *

P01_Y * P01_Y *

... ...

P16_H * P16_H *

P16_Y * P16_Y *

* This parameter only appears with "rPm" and "Count" modes when the linearisation function is enabled.

MAN LD30x E 1.2.odt Operator menu 23 of 48

LD30x

7 Set up procedure

For better understanding the following “7.1 Basic settings” and “7.2 Operational parameters” sections explain settings related to the display only model (LD300). Model-specific settings for analogue output model (LD301), Preselections models (LD302 and LD305) and Serial Link models (LD303 and LD305) will be explained separately under sections from “7.3 Model LD301: additional settings for the analogue output“ to “7.5 Models LD303 & LD305: additional settings for the serial interface“.

7.1 Basic settings

Customarily these settings have to be carried out one time only upon the very first use of the unit. The basic set-up selects the desired operation mode of the unit, the input characteristics PNP/NPN and the desired brightness of the LED display.

NOTE

To access the Basic Set-up press the ENTER and SET keys simultaneously for at least 3 seconds.

Menu Setting range Default

tYPE

Operation Mode

rPm

Tachometer, frequency meter (see the “7.2.1 RPM, operation as tachometer or frequency counter“ section on page 26).

rPm

Baking time / processing time indicator (see the “7.2.2 Time, display of baking or processing time (reciprocal speed)“ section on page 27).

timE

Timer, Stopwatch (see the “7.2.3 Timer, Stopwatch“ section on page 28).

timEr

Counter for position or event (see the “7.2.4 Count, Counter mode“ section on page 29).

Count

Speed calculation from differential transition time (see the “7.2.5 Speed from differential time between a Start and a Stop input“ section on page 30).

SPEEd

CHAr

Switching characteristics of the inputs

PnP

NPN, switch to “-“

nPn

PNP, switch to “+“

PnP

briGht

Brightness of the LED display

20%, 40%, 60%,

80%, 100%

100%

MAN LD30x E 1.2.odt Set up procedure 24 of 48

LD30x

Menu Setting range Default

CodE

Keypad protection code

Keypad enabled continuously.

Keypad locked for any access.

All

Keypad locked, except for access to preselections 1 and 2 (LD302 & LD305 models only, see the “7.4 Models LD302 & LD305: additional settings for preselections” section on page 33).

P_frEE

LmodE

Linearisation mode *

For details please refer to the “8.1 Linearisation“ section on page 40 and to the “8.2 Manual input or “teaching“ of the interpolation points“ section on page 42.

The linearisation is switched off.

Linearisation settings for the positive range only (negative values will appear as a mirror).

1-qUA

Linearisation over the full numeric range.

4-qUA

* This parameter is only available with “rPm” Tachometer mode and “Count” Counter mode.

MAN LD30x E 1.2.odt Set up procedure 25 of 48

LD30x

7.2 Operational parameters

7.2.1 RPM, operation as tachometer or frequency counter

(Input A = frequency input, Input B not in use)

Menu Setting Range OS* Default

FrEqu

Frequency

Set a typical operating frequency for your application.

1 Hz to

25 000 Hz

1000

diSPL

Display Value

Set the value you would like to see on your display with above frequency at the input.

1 ... 99999

1000

dPoint

Decimal Point

Select the desired position as shown in the display.

000.000

no decimal point 000000 decimal point at position 1 00000.0

----> decimal point at position 5 0.00000

WAit

Wait Time

Define a “waiting time“, this is the time expressed in seconds that the unit will wait from one input pulse to the next, before it sets the display to zero. The minimum range is limited to 0.1 sec., lower values do not make any sense as the unit should wait forever and show the last result until it receives the next input.

0.1 … 99.9 sec

1.0

The setting of this parameter automatically limits the minimum input frequency correspondingly. With “WAit” set to e.g. 0.1 sec. the unit will respond to frequencies > 10 Hz only and all lower frequencies will display 0.

FiltEr

Average Filter

Selectable average filter to suppress unstable display with unsteady input frequencies.

OFF

No filtering

OFF

2, 4, 8, 16 = number of floating average cycles.

* OS only with LD303 & LD305 models

NOTE

LD301 model also provides a signed speed display with the +/- sign changing according to the direction of rotation (see the “7.3 Model LD301: additional settings for the analogue output“ section on page 31).

MAN LD30x E 1.2.odt Set up procedure 26 of 48

LD30x

7.2.2 Time, display of baking or processing time (reciprocal speed)

(Input A = frequency input, Input B not in use)

Menu Setting Range OS* Default

diSfor

Display Format

Select between seconds, minutes, minutes and seconds or minutes with two decimal positions. This will also automatically set your decimal point to the proper place.

SEC

Seconds

SEC

Minutes

min

Minutes and seconds

mi-SE

Minutes with two decimal positions

min.00

FrEqu

Frequency

Set a typical operating frequency for your application.

1 Hz to

25 000 Hz

100

diSPL

Display Value

Set the value you would like to see on your display with above frequency at the input.

1 ... 999999

100

WAit

Wait Time

Define a “waiting time“, this is the time in seconds that the unit will wait from one input pulse to the next, before it sets the display to zero. The minimum range is limited to 0.1 sec., lower values do not make any sense as the unit should wait forever and show the last result until it receives the next input.

0.1 … 99.9 sec

5.0

FiLtEr

Average Filter

Selectable averages filter to suppress unstable display with unsteady input frequencies.

OFF

No filtering.

OFF

2, 4, 8, 16 = number of floating average cycles.

* OS only with LD303 & LD305 models

MAN LD30x E 1.2.odt Set up procedure 27 of 48

LD30x

7.2.3 Timer, Stopwatch

Please note that open NPN inputs are always “HIGH“ and open PNP inputs are always “LOW“.

Menu Setting Range OS* Default

bASE

Time base / Resolution of the timer

SEC.000

Milliseconds

SEC.000

1/100 of a second

SEC.00

1/10 of a second

SEC.0

Integer seconds

SEC

Minutes with two decimal positions

min.00

Minutes with one decimal position

min.0

Hours : minutes : seconds

H-m-S

StArt

Start / Stop of time measurement

St_SP

Time count is active while input A is HIGH.

Hi_Loo

Rising edge on input A starts the count. Rising edge on input B stops the count.

St_SP

Period time measurement. Repeating display of the time between two rising edges on input A.

A_StSP

Time count is active while input A is LOW.

Loo_Hi

rESEt

Auto Reset

Time count goes on and never restarts. No automatic Reset. Use the Reset input to set to zero.

Every start initializes a new count starting from zero.

yES

LAtcH

Latch Function

Real time display, count visible.

Frozen display of the final count result after every Stop. The timer counts in the background.

yES

* OS only with LD303 & LD305 models

MAN LD30x E 1.2.odt Set up procedure 28 of 48

LD30x

7.2.4 Count, Counter mode

Menu Setting Range OS* Default

modE

Counting Mode

A_b .1

Input A counts and input B selects the counting direction (LOW = increment, HIGH = decrement).

A_bdir

Summing counter, A + B.

A u b

Differential counter, A – B.

A - b

Quadrature up/down counter A/B with single edge count (x1).

A_b .1

Quadrature up/down counter A/B with double edge count (x2).

A_b .2

Quadrature up/down counter A/B with (x4) edge count.

A_b .4

FActor

Impulse Scaling Factor

Example: setting 1.2345 results in display of 12 345 after 10 000 input pulses.

0.0001 …

9.9999

1.0000

SEt

Set Value

Every Reset signal will set the display to the value entered here.

–199 999

...

999 999

rESEt

Reset/Set Enable

Fr u E

No setting or resetting of the counter is possible.

Set / Reset by the front SET key.

front

Set / Reset by remote signal to the Reset input.

E_tErn

Set / Reset by front SET key and by external input.

Fr u E

dPoint

Decimal Point

Select the desired position as shown in the display.

000.000

no decimal point 000000 one decimal position 00000.0

----> five decimal positions 0.00000

* OS only with LD303 & LD305 models

NOTE

• The counting range of the unit is limited from -199999 to 999999. In

case of underflow or overflow the unit will display ------.

• The counter stores all counting data also in power-down state (EEProm with data retention >10 years).

• With the summing mode (A+B) and the differential mode (A-B) please note that the impulse scaling factor will only affect input A and input B will be scaled with a fixed factor of 1.0000.

MAN LD30x E 1.2.odt Set up procedure 29 of 48

LD30x

7.2.5 Speed from differential time between a Start and a Stop input

Input A operates as a start input and input B operates as a Stop input. The differential time between start and stop will be converted into the speed of the passing object.

Menu Setting Range Default

timE

Time

Enter a typical delay time which you expect between the start and stop signals.

000.001 …

999.999 sec

1.000 sec

diSPL

Display Value

Enter the speed you would like to see in the display when an object passes within above time.

000.001 …

999.999

1.000

dPoint

Decimal Point

Select the desired position as shown in the display.

000.000

no decimal point 000000 one decimal position 00000.0

----> five decimal positions 0.00000

WAit

Wait Time

How long should the last result remain in the display before it returns to zero? Set the desired waiting time. With setting “0” the display will freeze and wait until the next measuring cycle.

0.00 ...

9.99

1.00

7.2.6 Linearisation points

The linearisation points will only appear with "rPm" or "Count" operation modes when Linearisation is enabled.

Menu Setting Range Default

P01_X Linearisation point 1

X value of the first interpolation point.

-199999

... 999999

999999

P01_Y Linearisation point 1

Y value of the first interpolation point.

-199999

... 999999

999999

… …

P16_X Linearisation point 16

X value of the 16. interpolation point.

-199999

... 999999

999999

P16_Y Linearisation point 16

Y value of the 16. interpolation point.

-199999

... 999999

999999

For more details about linearisation please refer to the “8.1 Linearisation“ section on page 40.

MAN LD30x E 1.2.odt Set up procedure 30 of 48

LD30x

7.3 Model LD301: additional settings for the analogue output

The Basic menu provides the following additional settings:

Menu Setting Range OS** Default

A-ChAr

Analogue characteristics

Select one of the following options:

0_10

+/-10 V (bipolar)

-10_10

0-10 V (positive output only)

0_10

4-20 mA current output.

4_20

0-20 mA current output

0_20

When you set the output to +/-10 Volts, your input signals A/B must be of quadrature type with phase displacement. The polarity of the output follows the sign in the display (operation as a counter – Count mode- or as a speed display –SPEEd modewith detection of direction of rotation).

OFFSEt

Analogue Offset *

Set this register to “0” when your output range should begin at zero (or 4 mA) If you desire another initial output value, set this register correspondingly. Setting 5.000 means your output will start at 5 Volts instead of zero.

-9.999 ... +9.999

0.000

GAin

Analogue Gain *

Set the analogue stroke you desire: setting 1000 means 10 Volts or 20 mA. Setting 200 reduces the stroke to 2 Volts or 4 mA.

00.00 ... 99.99

10.00

* See the next page for more details. ** OS only with LD303 & LD305 models

Response time of the analogue output:

Operation mode Response time analogue output

Tachometer, frequency meter (see the “7.2.1 RPM, operation as tachometer or frequency counter” section on page 26)

330 ms at f > 3 Hz

1/f at f < 3 Hz

Baking time / processing time indicator (see the “7.2.2 Time, display of baking or processing time (reciprocal speed)“ section on page 27)

330 ms at f > 3 Hz

1/f at f < 3 Hz

Timer, Stopwatch (see the “7.2.3 Timer, Stopwatch“ section on page 28)

7 ms

(With latch function after every measurement) Counter for position or event (see the “7.2.4 Count, Counter mode“ section on page 29)

Counter value + 7 ms

Speed calculation from differential transition time (see the “7.2.5 Speed from differential time between a Start and a Stop input“ section on page

30)

Runtime + 7 ms

The analogue output behaves as the display output.

MAN LD30x E 1.2.odt Set up procedure 31 of 48

LD30x

The following Operational Parameters provide scaling of the analogue output:

Menu Setting Range Default

AnAbEG

Analogue-Begin

Start value of the analogue output.

-199999 ... 999999

AnAEnd

Analogue-End

End value of the analogue output.

-199999 ... 999999

10000

By means of these two parameters any window of the whole display range can be mapped onto the analogue output.

The example below shows how to convert the display range from 1400 to 2200 into an analogue signal of 2 - 10 volts.

1000 2000 3000 4000 5000

Display Value

Volts

Analogue Output

A-ChAr = 0 - 10 V AnAbEG = 1400

OFFSEt = 2.000 AnAEnd = 2200

GAin = 8.00

NOTE

All settings refer to the scaled values which are shown in the display of the unit.

MAN LD30x E 1.2.odt Set up procedure 32 of 48

LD30x

7.4 Models LD302 & LD305: additional settings for preselections

The basic set-up menu provides the following additional parameters:

Menu Range OS**** Default

CHAr 1

Switching characteristics of output 1

__r GE

Greater/Equal: output to switch statically

”ON” when display value ≥ preset value.

__r LE

Lower/Equal: output to switch statically

”ON” when display value ≤ preset value.

_n_ GE

Greater/Equal: output to switch dynamically ”ON” when display value ≥

preset value. (timed pulse output *)

_n_ LE

Lower/Equal: output to switch dynamically

”ON” when display value ≤ preset value. (timed pulse output *)

_n_ rES

Reset: Timed impulse output *) and

automatic Reset to zero when the display value reaches Preset 1.

_n_ SEt

Set: Timed impulse output *) and automatic

setting to preset 1 when the display value reaches zero.

CHAr 2

Switching characteristics of output 2

__r GE

See CHAr 1.

__r LE

See CHAr 1.

_n_ GE

See CHAr 1.

_n_ LE

See CHAr 1.

__r 1-2

Output switches statically ON when display value ≥ Preset 1 – Preset 2 **.

_n_ 1-2

Output switches dynamically ON when display value ≥ Preset 1 – Preset 2 **.

HYSt 1

Hysteresis 1: adjustable hysteresis for output 1 ***. Setting range 0 ... 99999 display units.

HYSt 2

Hysteresis 2: adjustable hysteresis for output 2 ***. Setting range 0 ... 99999 display units.

* Fixed pulse duration of 500 msec (factory adjustable only). ** This feature is meant to generate an anticipation signal with a fixed

distance to the preset 1 signal. The anticipation automatically follows the

setting of preset 1 (trailing preset). *** Switching hysteresis is only active with "rPm" and "timE" operation modes. **** OS only with LD303 & LD305 models.

MAN LD30x E 1.2.odt Set up procedure 33 of 48

LD30x

The following operational parameters provide setting of the switching points:

Menu Setting Range Default

PrES_1

Preselection 1

-199999 ... 999999

10000

PrES_2

Preselection 2

-199999 ... 999999

5000

The working direction of the Hysteresis depends on the setting of the switching characteristics. With settings “GE“ or “LE“ respectively, the following switch points will result:

Preselection

Hysteresis

GE=Greater/ Equal

Display Value

Hysteresis effect with "Greater / Equal"

Preselection

LE=Lower/Equal

Hysteresis

Display Value

Hysteresis effect with "Lower / Equal"

It is possible to check up on the actual switching state of the outputs at any time. To do this, just tap on the ENTER key shortly. The display will then show for the next two seconds one of the following information:

Display Meaning

1_2oFF

Both outputs are actually off.

1_2on

Both outputs are actually on.

1 on

Output 1 is on. Output 2 is off.

2on

Output 1 is off. Output 2 is on.

MAN LD30x E 1.2.odt Set up procedure 34 of 48

LD30x

7.5 Models LD303 & LD305: additional settings for the serial interface

The basic set-up menu contains the main parameters for configuration of the serial interface.

Menu Setting Range OS* Default

S-Unit

Serial Unit Number

You can assign any address number between 11 and 99 to your unit. The address must not contain a “0“ because such numbers are reserved for collective addressing.

0 ... 99

S-Form

Serial data format

7 E 1

The first character indicates the number of Data Bits.

The second character specifies the Parity Bit (“even” or “odd” or “none”)

The third character indicates the number of Stop Bits.

7 E 1

7 E 2

7 0 1

7 0 2

7 no 1

7 no 2

8 E 1

8 0 1

8 no 1

8 no 2

S-bAUd

Baud rate

9600

The following baud rates can be selected.

9600

4800

2400

1200

600

19200

38400

* OS only with LD303 & LD305 models

MAN LD30x E 1.2.odt Set up procedure 35 of 48

LD30x

The following operational parameters provide setting of the communication profile:

Menu Setting Range OS* Default

S-tim

Serial Timer

Setting 0.000 allows manual activation of a serial data transmission at any time. All other settings specify the cycle time for automatic transmission (provided the S- mod item is set to "Printer-mode" (see the next item and on page 39).

0.000;

0.010 …

9.999 sec

0.1 sec

Between two transmission cycles the unit will allow a pause depending on the baud rate. The minimum cycle times for timer transmissions are shown in the table.

Baud

Rate

Minimum Cycle Time [msec]

600 384 1200 192 2400 96 4800 48 9600 24

19200 12 38400 6

S-mod

Serial Mode

Operation according to communication profile (see the “7.5.1 PC-Mode“ section on page 37).

Transmission of string type 1 (see the “7.5.2 PrinterMode” section on page 39).

Print1

Transmission of string type 2 (see the “7.5.2 PrinterMode“ section on page 39).

Print2

S-CodE

Serial Register-Code

It specifies the register code of the data to be transmitted. The most important register codes are the current display value and the serial Set/Reset command code.

Actual display value 101 : 1 Activate SET /RESET 60 6 0

100

...

120

101

* OS only with LD303 & LD305 models

MAN LD30x E 1.2.odt Set up procedure 36 of 48

LD30x

7.5.1 PC-Mode

Communication in PC mode allows free readout of all parameters and registers of the unit. The example below shows the details of communication for serial readout of the current display value.

This is the general format of a serial request string:

EOT AD1 AD2 C1 C2 ENQ

EOT = Control character (Hex 04) AD1 = Unit address, High Byte AD2 = Unit address, Low Byte C1 = Register code, High Byte C2 = Register code, Low Byte ENQ = Control character (Hex 05)

EXAMPLE

Request for the current display value from unit number 11.

ASCII-Code

EOT 1 1 : 1 ENQ

Hexadecimal

04 31 31 3A 31 05

Binary

0000 0100 0011 0001 0011 0001 0011 1010 0011 0001 0000 0101

Upon a correct request the unit will respond as shown on the right. Leading zeros will be suppressed. BCC represents a block check character generated from an Exclusive-OR of all characters from C1 through ETX (inclusively).

STX C1 C2 x x x x x x x ETX BCC STX = Control character (Hex 02) C1 = Register code, High Byte C2 = Register code, Low Byte x x x x x = Register data ETX = Control character (Hex 03) BCC = Block check character

With incorrect request strings, the unit only responds STX C1 C2 EOT or just NAK.

Provided the current display value of the unit is "-180" for instance, the full response of the unit will be as shown below:

ASCII

STX : 1 - 1 8 0 ETX BCC

Hex

02 3A 31 2D 31 38 30 03 1C

Binary

0000 0010

0011 1010

0011 0001

0010 1101

0011 0001

0011 1000

0011 0000

0000 0011

0001 1100

Again BCC represents the block check character formed from the Exclusive-OR of all characters from C1 through ETX.

MAN LD30x E 1.2.odt Set up procedure 37 of 48

LD30x

Units with serial link also allow setting or resetting the counter by serial command (similar to the external input or front key function). To activate the Reset command, please write “1” in register code “60”. To release the Reset command again, write “0” in the same register.

EXAMPLE

The following strings show how to set or reset a unit with unit No. 11:

Reset ON:

ASCII

EOT AD1 AD2 STX C1 C2 Data ETX BCC

Hex

04 31 31 02 36 30 31 03 34

Binary

0000 0100

0011 0001

0000 0010

0011 0110

0011 0000

0011 0001

0000 0011

0011 0100

Reset OFF:

ASCII

EOT AD1 AD2 STX C1 C2 Data ETX BCC

Hex

04 31 31 02 36 30 30 03 35

Binary

0000 0100

0011 0001

0000 0010

0011 0110

0011 0000

0000 0011

0011 0101

For more details about serial communication please refer to the additional documentation: MAN Serial Protocol IFxx_LD25x_LD30x I_E.pdf.

MAN LD30x E 1.2.odt Set up procedure 38 of 48

LD30x

7.5.2 Printer-Mode

The Printer mode allows cyclic or manual activation of transmissions of the specified register data. The corresponding register can be specified by means of parameter S-CodE. Another parameter called S-mod allows the selection between two different string types:

“S-mod“ Transmission string type

“Print1“

Space Sign Data Line

feed

Carriage return

+/- X X X X X X LF CR

“Print2“

Sign Data Carriage

return

+/- X X X X X X CR

The mode of activation of serial transmissions can be determined as follows:

Cyclic (timed) transmissions

Set the S-tim item (see on page 35) to any value ≥

0.010 sec. Select the desired string type next to the S-mod parameter.

After exiting the menu the timed transmissions will start automatically.

Manual activation of transmissions

Set the S-tim item (see on page 35) to 0.000. Select the desired string type next to the S-mod parameter.

After exiting the menu a transmission can be activated at any time by shortly pressing the ENTER key.

MAN LD30x E 1.2.odt Set up procedure 39 of 48

LD30x

8 Special functions

8.1 Linearisation

This function allows a non-linear input signal to be converted into a linear representation or vice versa. 16 interpolation points are available, they can be freely arranged over the whole measuring range at any distance. Between two points the unit will interpolate automatically straight lines. It is advisable to set several points into areas with strong bending and to use only a few points in areas with little bending. “Linearisation Mode“ has to be

set to either 1-qUA or 4-qUA (see LmodE item in the “7.1 Basic settings” section) to enable the linearisation function (see drawing below). Parameters P01_x to P16_x select 16 x- coordinates, representing the display values which the unit would normally show in the display. With parameters P01_y to P16_y you can specify which values you would like to display instead of the corresponding _x values.

This means e.g. that the unit will replace the previous P02_x value with the new P02_y value.

NOTE

• With respect to the consistency of the linearisation, the x- registers have to use continuously increasing values, e.g. the x- registers must conform to the constraint P01_x < P02_x < … < P15_x < P16_x.

• Independently of the selected linearisation mode, the possible setting range of all registers P01_x, P01_y,…, P16_x, P16_y is always

-199999 … 999999.

• With measuring values lower than P01_x the display will always show P01_y.

• With measuring values higher than P16_x, the display will always show P16_y.

P1(x)= 0 P1(y)= 0

Linearization Mode = 1_quA

Linearization Mode = 4_quA

P1(x)= -1000 P1(y)= 900

P8(x)= 0 P8(y)= 750

P16(x)= +1000 P16(y)= - 600

* )

P16(x)= 1000 P16(y)= 800

* Mirror of positive range

MAN LD30x E 1.2.odt Special functions 40 of 48

LD30x

EXAMPLE

The picture below shows a sluiceway where the gate is controlled by means of an incremental encoder. We would like to display the clearance of the gate "d", the existing encoder information is proportional to the angular information φ.

(1-cos )

Incremental Encoder

d = d

Display value

P01_x

P05_x

P16_x

P01_y

P05_y

P16_y

P03_x

P03_y

P07_y

P07_x

Encoder Position ( )φ

Display (d)

P15_y

P15_x

MAN LD30x E 1.2.odt Special functions 41 of 48

LD30x

8.2 Manual input or “teaching“ of the interpolation points

Interpolation points to form the linearisation curve can be entered one after each other, using the same procedure as for all other numeric parameters. This means you will have to enter all parameters P01_x to P16_x and P01_y to P16_y manually using the keypad.

WARNING

During manual input of interpolation points the unit will not examine the settings P01_x to P16_x. Therefore the operator is responsible for adherence to the constraint P01_x < P02_x < … < P15_x < P16_x.

In most cases it should however be much more convenient to use the Teach function. For this method we have to move the encoder, step by step, from one interpolation point to the next. After each step we enter the desired display value through the keypad.

How to use the “Teach” function

• Please select the desired range of linearisation (see the “7.1 Basic settings” section on page 24).

• Hold down the CMD key for 3 seconds, until the display shows tEACh. Now the unit has switched over to the Teach mode. To start the teach procedure please press again the CMD key within the next 10 seconds. The display will then show P01_X.

• With respect to the consistency required for linearisation, all parameters from P01_x to P16_ y will be overwritten by suitable initial values first. Initial values for P01_x and P01_y are -199999 and all other values will start with 999999.

• Press once more CMD key to display the current encoder position. Then move the encoder to the first of the desired interpolation points.

• When you read the x-value of your first interpolation point in the display, press CMD key again. This will automatically store the current display value in the P01_x register. For about 1 second you will read P01_Y on the display, followed by the same reading again that has been stored previously.

• This display value now can be edited like a regular parameter and you can change it to the desired P01_Y value.

• When you read the desired P01_Y value in your display, save it by pressing CMD key again. This will cause the display to automatically scroll to the next interpolation point P02_x.

MAN LD30x E 1.2.odt Special functions 42 of 48

LD30x

• Once we have reached and stored the last interpolation points

P16_x/y, the routine will restart with P01_x again. You are free to double-check your settings once more or to make corrections.

• To finish the Teach procedure, keep ENTER key down for about 2 seconds. In the display you will read StOP for a short time and then the unit returns to the normal operation. At the same time all linearisation

points have been finally saved.

NOTE

• The unit will examine the constraint valid for the x-values of interpolation points. Every interpolation point must be higher than its preceding point. If this constraint is breached, all 6 decimal points will blink automatically as a warning. Pressing the CMD key will not store

the illegal value, but result in an error text E.r.r.-.L.O..

• To exit the teach mode again, you have the following two possibilities:

1. Press the ENTER key for 2 seconds. On the display you will read

StOP for a short time and then the unit will switch back to the normal mode.

2. Just do nothing. After 10 seconds the unit will switch back to the

normal mode automatically. In both cases the parameters of linearisation P01_x to P16_Y will not change.

MAN LD30x E 1.2.odt Special functions 43 of 48

LD30x

9 Parameters list

9.1 General

Description Text

Min.

value

Max.

value

Default

value

Positions Characters

Serial

code

See the “7.1 Basic settings” section on page 24 Unit Type

tYPE

0 4 0 1 0 00

Characteristic

CHAr

0 1 1 1 0 01

Brightness

briGht

0 4 0 1 0 02

Code

CodE

0 2 0 1 0 03 See the “7.2.1 RPM, operation as tachometer or frequency counter” section on page 26 Frequency (Hz)

FrEqu

1 25000 1000 5 0 04 Display Value

diSPL

1 99999 1000 5 0 05 Decimal point

dPoint

0 5 3 1 0 06 Wait Time (sec)

WAit

1 999 10 3 1 07 Average Filter

FiltEr

0 4 0 1 0 08 See the “7.2.2 Time, display of baking or processing time (reciprocal speed)” section on page 27 Display Format

diSfor

0 3 0 1 0 09 Frequency (Hz)

FrEqu

1 25000 100 5 0 10 Display Value

diSPL

1 999999 100 6 0 11 Wait Time (sec)

WAit

1 999 50 3 1 12 Average Filter

FiLtEr

0 4 0 1 0 13 See the “7.2.3 Timer, Stopwatch” section on page 28 Base

bASE

0 6 0 1 0 14 Start / Stop

StArt

0 3 1 1 0 15 Auto Reset

rESEt

0 1 0 1 0 16 Latch Function

LAtcH

0 1 0 1 0 17 See the “7.2.4 Count, Counter mode” section on page 29 Count Mode

modE

0 5 3 1 0 18 Factor

FActor

1 99999 10000 5 4 19 Set Value

SEt

-199999 999999 0 86 0 20

Reset / Set

rESEt

0 3 3 1 0 21 Decimal point

dPoint

0 5 0 1 0 22 See the “7.2.5 Speed from differential time between a Start and a Stop input” section on page 30 Measuring Time

(sec)

timE

1 999999 1000 6 3 23

Display Value

diSPL

1 999999 1000 6 0 24 Decimal point

dPoint

0 5 0 1 0 25 Wait Time (s)

WAit

0 999 100 3 1 26

MAN LD30x E 1.2.odt Parameters list 44 of 48

LD30x

9.2 Linearisation

See the “7.2.6 Linearisation points” section on page 30

Description Text

Min.

value

Max.

value

Default

value

Positions Characters

Serial

code

L_Mode

LmodE

0 2 0 1 0 D2

P1(x)

P01_H

-199999 999999 999999 86 0 A0

P1(y)

P01_Y

-199999 999999 999999 86 0 A1

P2(x)

P02_H

-199999 999999 999999 86 0 A2

P2(y)

P02_Y

-199999 999999 999999 86 0 A3

P3(x)

P03_H

-199999 999999 999999 86 0 A4

P3(y)

P03_Y

-199999 999999 999999 86 0 A5

P4(x)

P04_H

-199999 999999 999999 86 0 A6

P4(y)

P04_Y

-199999 999999 999999 86 0 A7

P5(x)

P05_H

-199999 999999 999999 86 0 A8

P5(y)

P05_Y

-199999 999999 999999 86 0 A9

P6(x)

P06_H

-199999 999999 999999 86 0 B0

P6(y)

P06_Y

-199999 999999 999999 86 0 B1

P7(x)

P07_H

-199999 999999 999999 86 0 B2

P7(y)

P07_Y

-199999 999999 999999 86 0 B3

P8(x)

P08_H

-199999 999999 999999 86 0 B4

P8(y)

P08_Y

-199999 999999 999999 86 0 B5

P9(x)

P09_H

-199999 999999 999999 86 0 B6

P9(y)

P09_Y

-199999 999999 999999 86 0 B7

P10(x)

P10_H

-199999 999999 999999 86 0 B8

P10(y)

P10_Y

-199999 999999 999999 86 0 B9

P11(x)

P11_H

-199999 999999 999999 86 0 C0

P11(y)

P11_Y

-199999 999999 999999 86 0 C1

P12(x)

P12_H

-199999 999999 999999 86 0 C2

P12(y)

P12_Y

-199999 999999 999999 86 0 C3

P13(x)

P13_H

-199999 999999 999999 86 0 C4

P13(y)

P13_Y

-199999 999999 999999 86 0 C5

P14(x)

P14_H

-199999 999999 999999 86 0 C6

P14(y)

P14_Y

-199999 999999 999999 86 0 C7

P15(x)

P15_H

-199999 999999 999999 86 0 C8

P15(y)

P15_Y

-199999 999999 999999 86 0 C9

P16(x)

P16_H

-199999 999999 999999 86 0 D0

P16(y)

P16_Y

-199999 999999 999999 86 0 D1

MAN LD30x E 1.2.odt Parameters list 45 of 48

LD30x

9.3 Analogue output (model LD301)

See the “7.3 Model LD301: additional settings for the analogue output” section on page 31

Description Text

Min.

value

Max.

value

Default

value

Positions Characters

Serial

code

Analogue Start

AnAbEG

-199999 999999 0 86 0 31

Analogue End

AnAEnd

-199999 999999 10000 86 0 32

Analogue Mode

A-ChAr

0 3 1 1 0 33

Offset

OFFSEt

-9999 9999 0 84 3 34

Gain

GAin

0 9999 1000 4 2 35

9.4 Preselections (models LD302 & LD305)

See the “7.4 Models LD302 & LD305: additional settings for preselections” section on page 33

Description Text

Min.

value

Max. value

Default

value

Positions Characters

Serial

code

Preselection Value 1

PrES_1

-199999 999999 10000 86 0 27

Preselection Value 2

PrES_2

-199999 999999 5000 86 0 28

Preselection Mode 1

CHAr 1

0 5 0 1 0 29

Preselection Mode 2

CHAr 2

0 5 0 1 0 30

Hysteresis 1

HYSt 1

0 99999 0 5 0 31

Hysteresis 2

HYSt 2

0 99999 0 5 0 32

9.5 Serial interface (models LD303 & LD305)

See the “7.5 Models LD303 & LD305: additional settings for the serial interface” section on page 35

Description Text

Min.

value

Max. value

Default

value

Positions Characters

Serial

code

Serial Timer (s)

S-tim

0 9999 100 4 3 38

Serial Mode

S-mod

0 2 0 1 0 39

Serial Code

S-CodE

100 120 101 3 0 40

Serial Unit Nr

S-Unit

0 99 11 2 0 90

Serial Format

S-Form

0 9 0 1 0 92

Serial Baud rate

S-bAUd

0 6 0 1 0 91

MAN LD30x E 1.2.odt Parameters list 46 of 48

This page intentionally left blank

Document release Release date Description

1.0 31.07.2011 First issue

1.1 03.08.2015

“WAit“ & “LmodE” parameters description updated, “Loo_Hi” parameter added, “4.4 Adjustable analogue output (LD301 model only)” section updated, OS range numbers added, revised edition

1.2 08.08.2017 General review, LD305 model added

Lika Electronic

Via S. Lorenzo, 25 • 36010 Carrè (VI) • Italy

Tel. +39 0445 806600 Fax +39 0445 806699

info@lika.biz • www.lika.biz

Lika LD300, LD301, LD302, LD303, LD305 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

General contents

Subject index

Typographic and iconographic conventions

Preliminary information

1 Safety summary

1.1 Safety

1.2 Electrical safety

1.3 Mechanical safety

2 Identification

3 Mounting instructions

4 Electrical connections

4.1 Power supply

4.2 Aux. voltage output

4.3 Inputs A, B and Reset

4.4 Adjustable analogue output (LD301 model only)

4.5 Optocoupler / transistor outputs (LD302 model only)

4.6 Serial RS-232 / RS-485 interface (LD303 and LD305 models only)

4.7 Relay outputs (LD305 model only)

5 Operating the front keys

5.1 Normal display state

5.2 Selection and setting of parameters

5.2.1 Selecting a parameter

5.2.2 Changing parameter settings

5.2.3 Saving settings

5.2.4 Time-out function

5.3 Teach operation

5.4 Setting all registers to “Default“ values

5.5 Code locking of the keypad

6 Operator menu

6.1 Overview of basic parameters

6.2 Operational parameters overview

7 Set up procedure

7.1 Basic settings

tYPE

timE

timEr

Count

SPEEd

CHAr

briGht

CodE

P_frEE

LmodE

1-qUA

4-qUA

7.2 Operational parameters

7.2.1 RPM, operation as tachometer or frequency counter

FrEqu

diSPL

dPoint

WAit

FiltEr

7.2.2 Time, display of baking or processing time (reciprocal speed)

diSfor

mi-SE

min.00

FrEqu

diSPL

WAit

FiLtEr

7.2.3 Timer, Stopwatch

bASE

SEC.000

SEC.00

SEC.0

min.00

min.0

H-m-S

StArt

St_SP

Hi_Loo

A_StSP

Loo_Hi

rESEt

LAtcH

7.2.4 Count, Counter mode
