Lightwell Friso Kramer User Manual

m
2
66
3-5m
60-76
mm
IEC 598 80 20
IP..
temp
O mm
0,2225°C

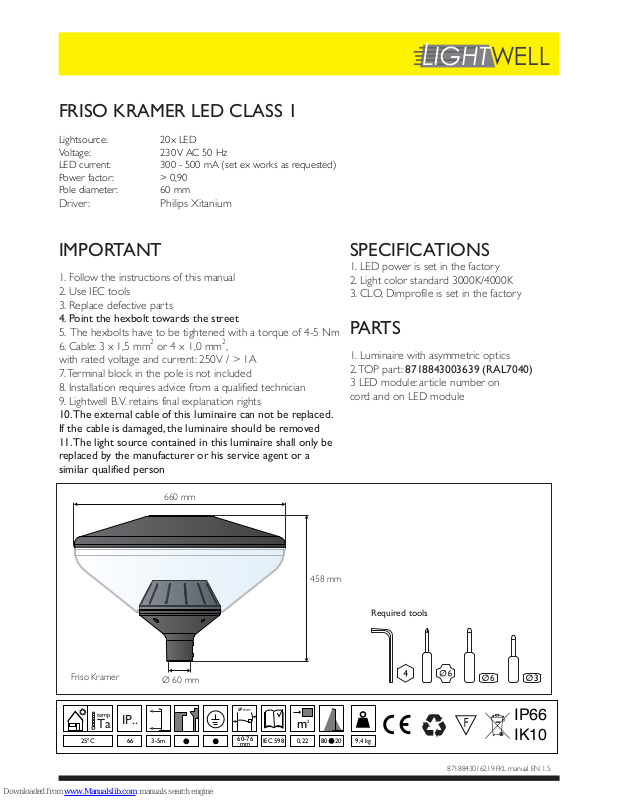

FRISO KRAMER LED CLASS 1
Lightsource: 20x LED Voltage: 230 V AC 50 Hz LED current: 300 - 500 mA (set ex works as requested) Power factor: > 0,90 Pole diameter: 60 mm
Driver: Philips Xitanium
Required tools
660 mm
458 mm
Ø 60 mm
Friso Kramer
IMPORTANT
1. Follow the instructions of this manual
2. Use IEC tools
3. Replace defective parts
4. Point the hexbolt towards the street
5. The hexbolts have to be tightened with a torque of 4-5 Nm
6. Cable: 3 x 1,5 mm2 or 4 x 1,0 mm2, with rated voltage and current: 250V / > 1A
7. Terminal block in the pole is not included
8. Installation requires advice from a qualified technician
9. Lightwell B.V. retains final explanation rights
10. The external cable of this luminaire can not be replaced. If the cable is damaged, the luminaire should be removed
11. The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person
SPECIFICATIONS
1. LED power is set in the factory
2. Light color standard 3000K/4000K
3. CLO, Dimprofile is set in the factory
PARTS
1. Luminaire with asymmetric optics
2. TOP part: 8718843003639 (RAL7040) 3 LED module: ar ticle number on cord and on LED module
IP66 IK10
9,4 kg
8718843016219 FKL manual EN 1.5

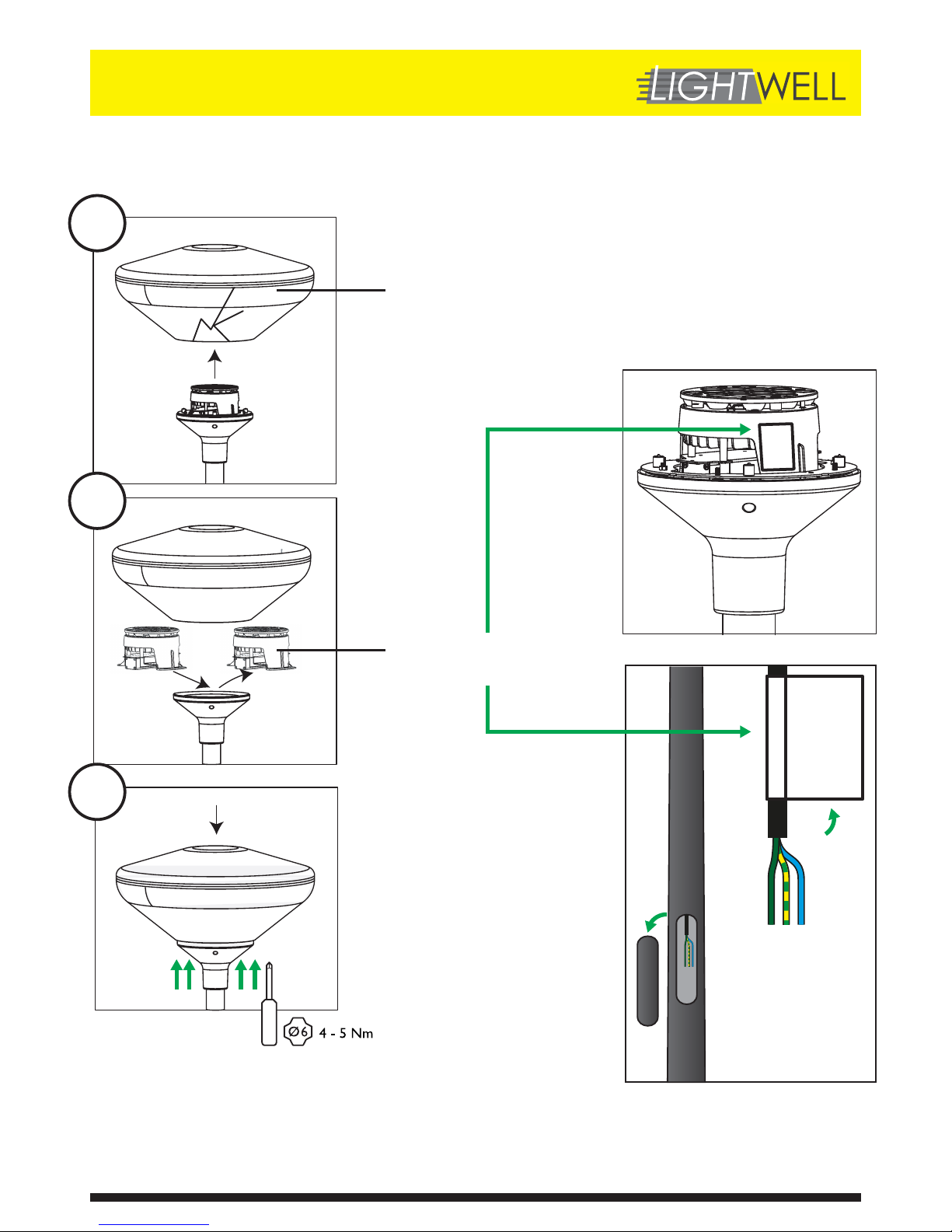

INSTALLATION
1
2
2
1
Hexbolt facing street*
1
2
BROWN - L1
BLUE - N
YELLOW-GREEN - G
ROAD
point road sticker towards street
3
INFORMATION TERMINAL BLOCK:
1. 3 or 4 pins screw terminal
2. Rated voltage and current: 250V / > 1A
3. Complying with standard EN 60998-2-1 or EN 60998-2-2
8718843016219 FKL manual EN 1.5
