Lightwave Communications 3200 User Manual
Console
S
erver
User Manual
21 June 2001
Lightwave Communications, Inc.
100 Washington Street Milford, CT 06460 USA
(800) 871-9838 • (203) 878-9838 • Fax: (203) 874-0157
Email: info@lightwavecom.com • Internet: www.lightwavecom.com
LCI Asia/Pacific
Postal address: P.O. Box 19 GlenIris VIC 3146 Australia
Delivery address: 16 Network Drive Port Melbourne VIC 3207 Australia
+61 3 9646 1144 • Fax: +61 3 9645 3377
Email: sales@lightwavecom.com.au • Internet: www.lightwavecom.com.au
LCI Europe
Zaubzerstraβe 11 Munich D-81677 Germany
49-89-306-3810 • Fax: 49-89-306-3812
Email: office@lightwave.de • Internet: www.lightwave.de
1.0 Product Description ........................................................................................................................................... 1
1.1 Features ........................................................................................................................................................ 2
2.0 System Overview............................................................................................................................................... 3
2.1 Connect Up to Thirty-two RS-232C Compatible Ports................................................................................... 3
2.2 64K FIFO Audit Trail...................................................................................................................................... 3
2.3 Connections................................................................................................................................................... 3
2.4 Security Passwords....................................................................................................................................... 3
2.5 Interface......................................................................................................................................................... 3
3.0 System Components ......................................................................................................................................... 5
3.1 Chassis.......................................................................................................................................................... 5
3.1.1 Power Supply Module............................................................................................................................ 5
3.2 Device Cards................................................................................................................................................. 5
3.3 Access Cards ................................................................................................................................................ 5
3.3.1 Terminal Cards...................................................................................................................................... 5
3.3.2 Network Cards....................................................................................................................................... 5
3.3.3 Modem Card.......................................................................................................................................... 6
4.0 Installation Instructions...................................................................................................................................... 7
4.1 Items in the Shipping Container..................................................................................................................... 7
4.1 Rack/Desktop Installation.............................................................................................................................. 7
4.3 ConsoleServer 3200 Location and Cooling ................................................................................................... 7
4.4 Power Requirements..................................................................................................................................... 7
4.5 Connecting to the Sys Admin Port................................................................................................................. 8
5.0 Connecting Equipment to the ConsoleServer 3200......................................................................................... 10
5.1 Terminal Card.............................................................................................................................................. 10
5.2 Network Card............................................................................................................................................... 11
5.3 Modem Card................................................................................................................................................ 11
5.4 Device Card................................................................................................................................................. 12
6.0 ConsoleServer 3200 Administration ................................................................................................................ 16
6.1 Power-up Sequence and Basic Use of the Administrator Functions............................................................ 16
6.1.1 Logging In, Serial Connection.............................................................................................................. 17
6.1.2 Logging In, Network Connection.......................................................................................................... 18
6.1.3 Logging Out......................................................................................................................................... 18
6.1.4 System Help ........................................................................................................................................ 18
6.1.5 Changing the Administration Password............................................................................................... 21
6.2 Creating and Managing Users ..................................................................................................................... 22
6.2.1 Adding a User ID ................................................................................................................................. 22
6.2.2 Editing a User ID.................................................................................................................................. 24
6.2.3 Listing User IDs ................................................................................................................................... 24
6.2.4 Deleting a User ID ............................................................................................................................... 25
6.3 Devices Command.................................................................................................................................... 26
6.4 Terminals Command................................................................................................................................ 27
6.5 Network Command.................................................................................................................................... 28
6.6 Modem Command ........................................................................................................................................ 31
6.7 Status Commands ....................................................................................................................................... 32
6.7.1 CONNECTIONS Command ................................................................................................................... 32
6.7.2 LISTCARDS Command........................................................................................................................34
6.7.3 VERSION Command............................................................................................................................ 34
6.7.4 INFO Command .................................................................................................................................. 35
6.7.5 POWERSTATUS Command ................................................................................................................... 36
6.7.6 LOG Command..................................................................................................................................... 36
6.8 Sys Admin Session Management Commands............................................................................................. 37
6.8.1 LINESPERPAGE Command ................................................................................................................. 38
6.8.2 TIMEOUT Command............................................................................................................................ 38
6.9 Breaking User Connections......................................................................................................................... 38
6.9.1 BREAK Command ................................................................................................................................ 38
6.9.2 FORCELOGOUT Command ................................................................................................................... 39
6.9.3 TELNETTIMEOUT Command ............................................................................................................... 39
6.9.4 MODEMTIMEOUT Command ................................................................................................................. 40
6.10 Saving and Restoring System Settings........................................................................................................ 40
6.11 Changing the System Prompt...................................................................................................................... 41
6.12 Updating the ConsoleServer 3200 Software................................................................................................ 42
7.0 User Access and Interface............................................................................................................................... 43
7.1 Terminal Card.............................................................................................................................................. 43
7.2 Network Card............................................................................................................................................... 43
7.3 Modem Card................................................................................................................................................ 44
7.3.1 The Bye Command ............................................................................................................................. 44
7.4 Overview of Commands .............................................................................................................................. 44
7.5 Logging In and Changing Passwords .......................................................................................................... 47
7.6 Logging Out................................................................................................................................................. 48
7.7 Checking Connections................................................................................................................................. 48
7.8 Selecting a Device Port ............................................................................................................................... 49
7.9 Listening to a Server Session...................................................................................................................... 50
7.10 Direct Mode ................................................................................................................................................. 52
7.10.1 Direct Mode Escape Sequence ....................................................................................................... 52
7.11 Using the Buffer........................................................................................................................................... 53
8.0 The Break Generation Sequence .................................................................................................................... 56
9.0 Displaying System Information........................................................................................................................ 57

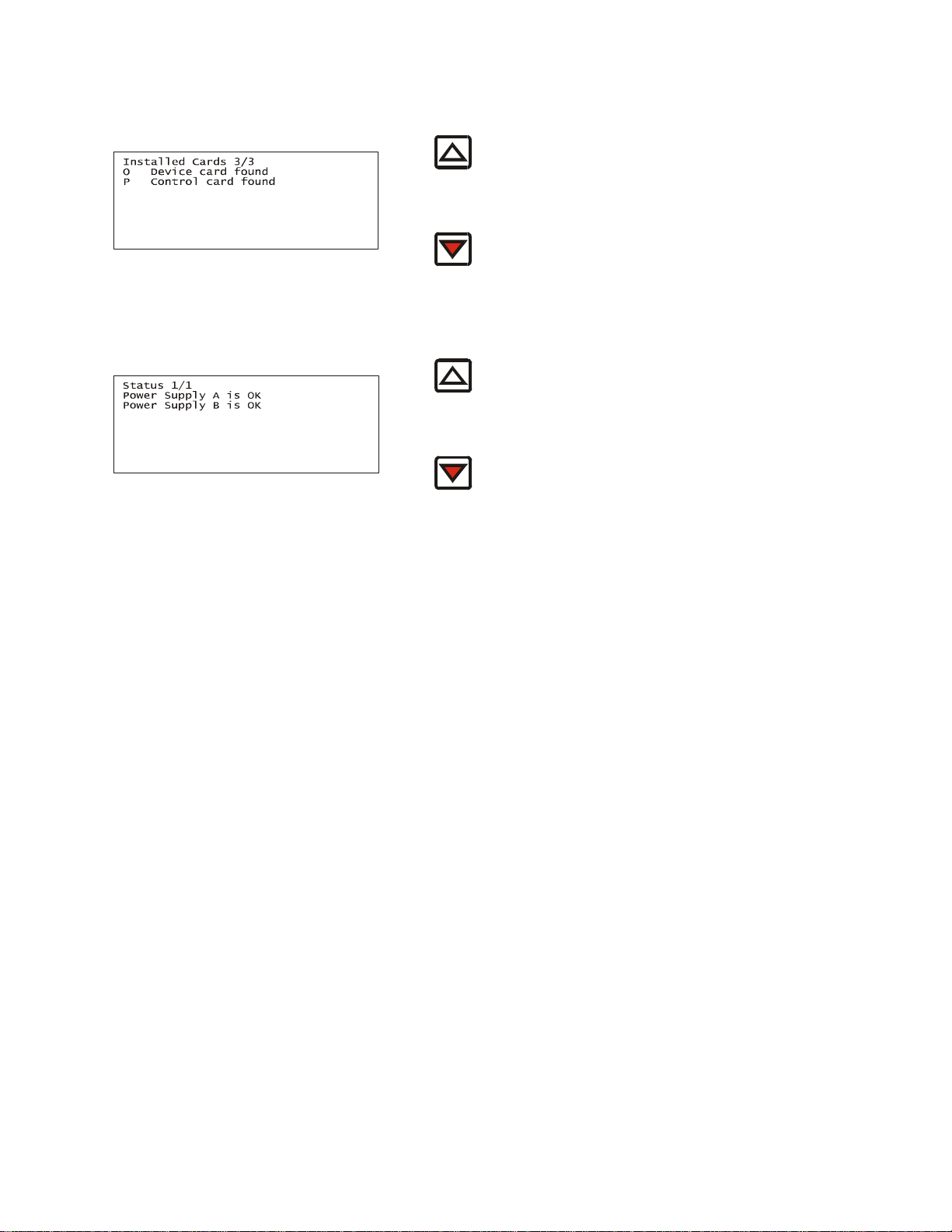

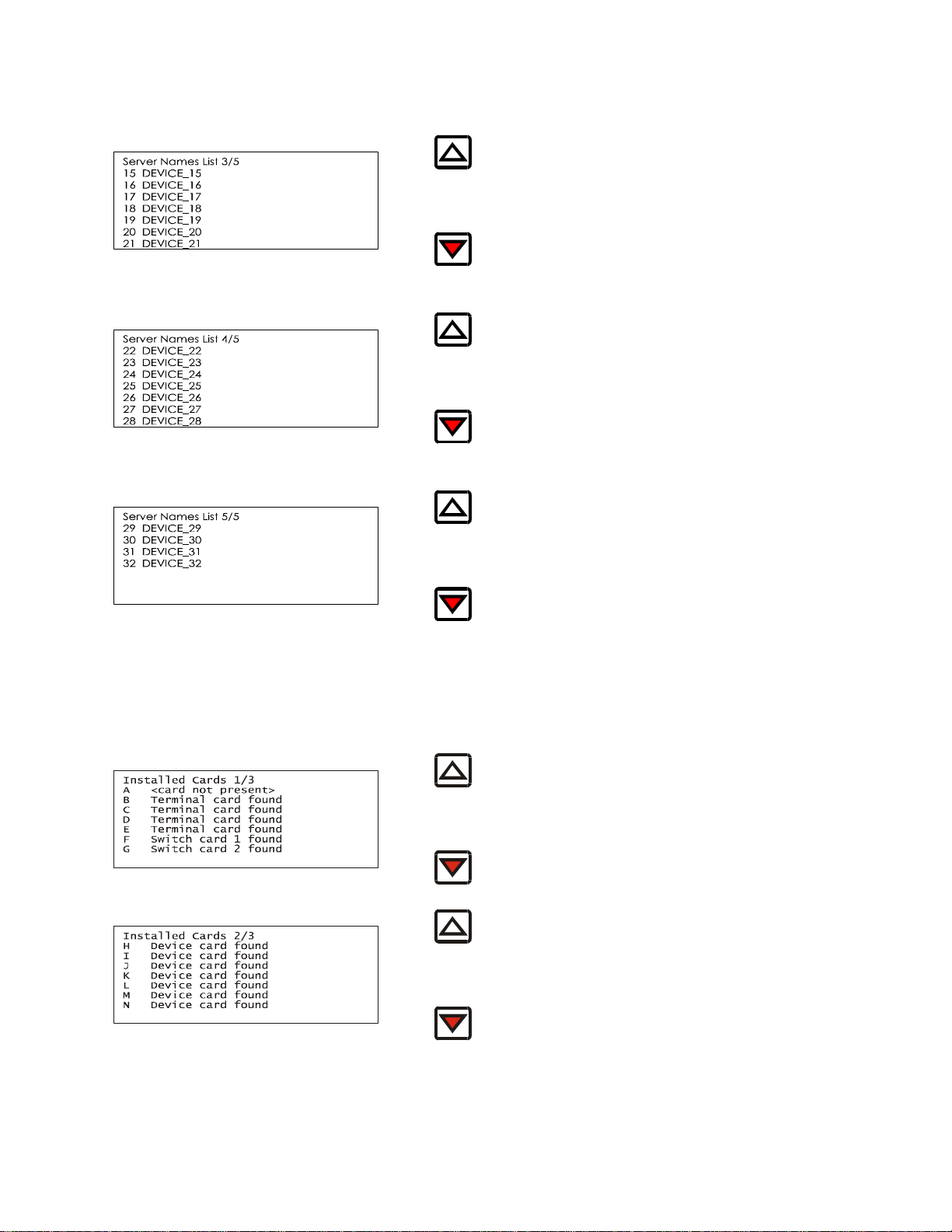

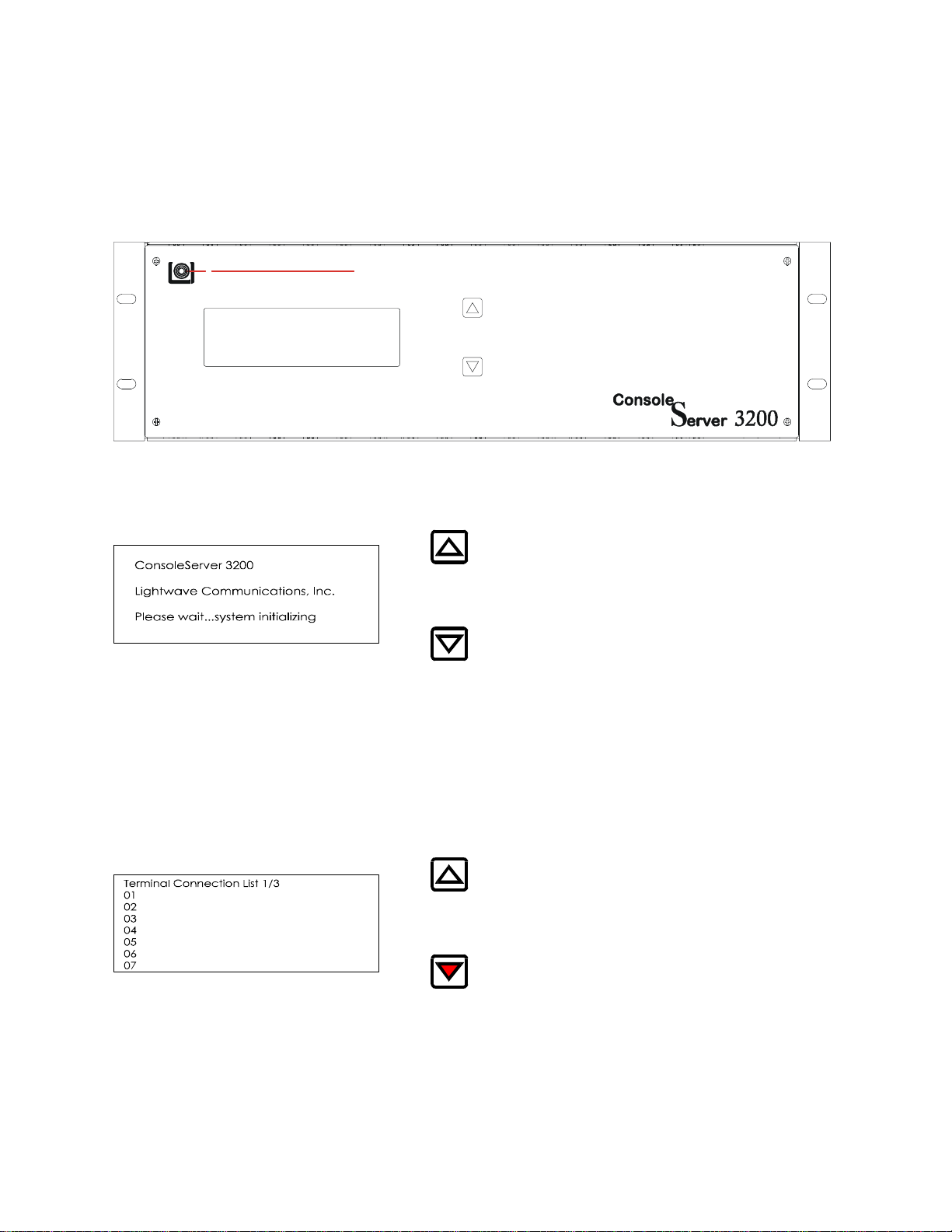

10.0 Front Panel Display Information: ................................................................................................................. 58

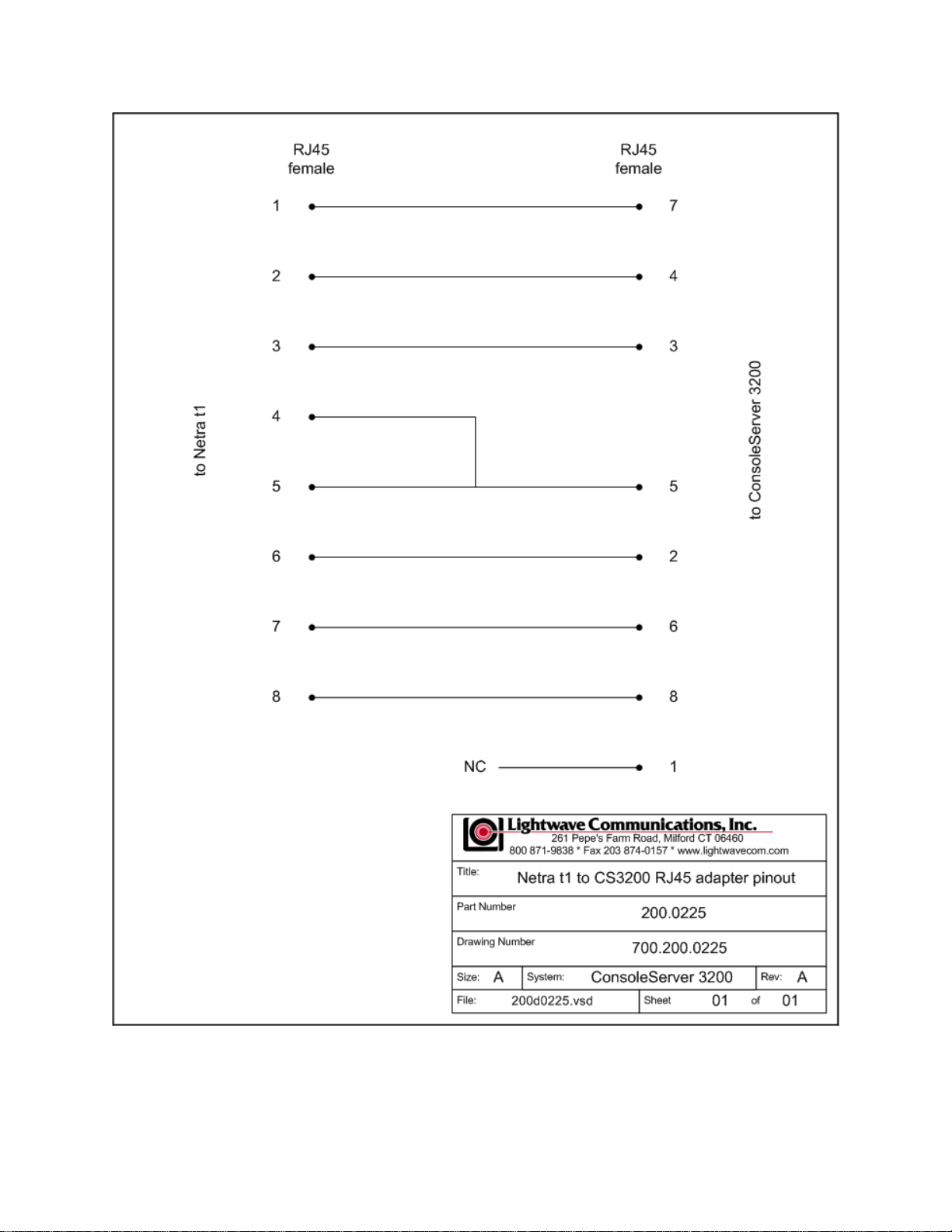

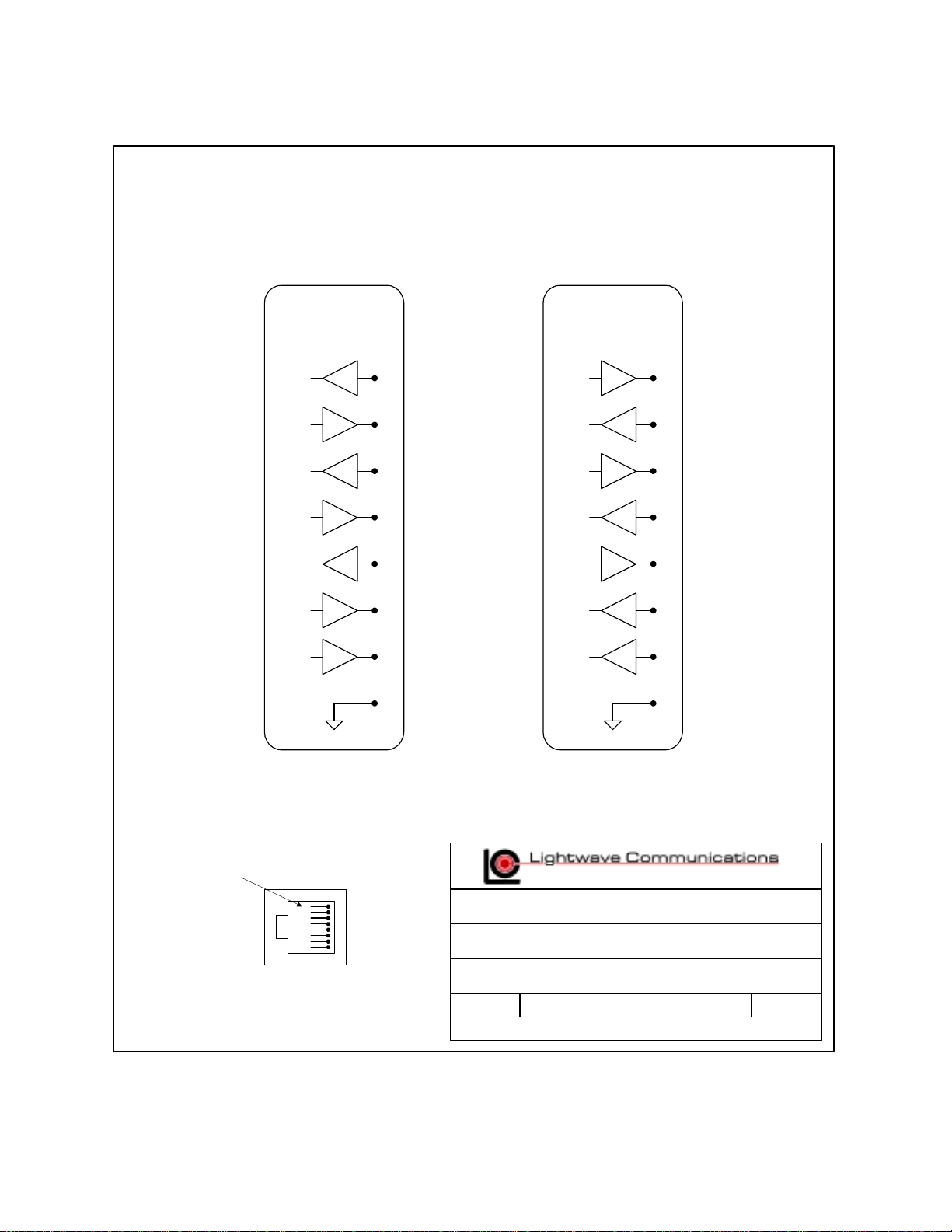

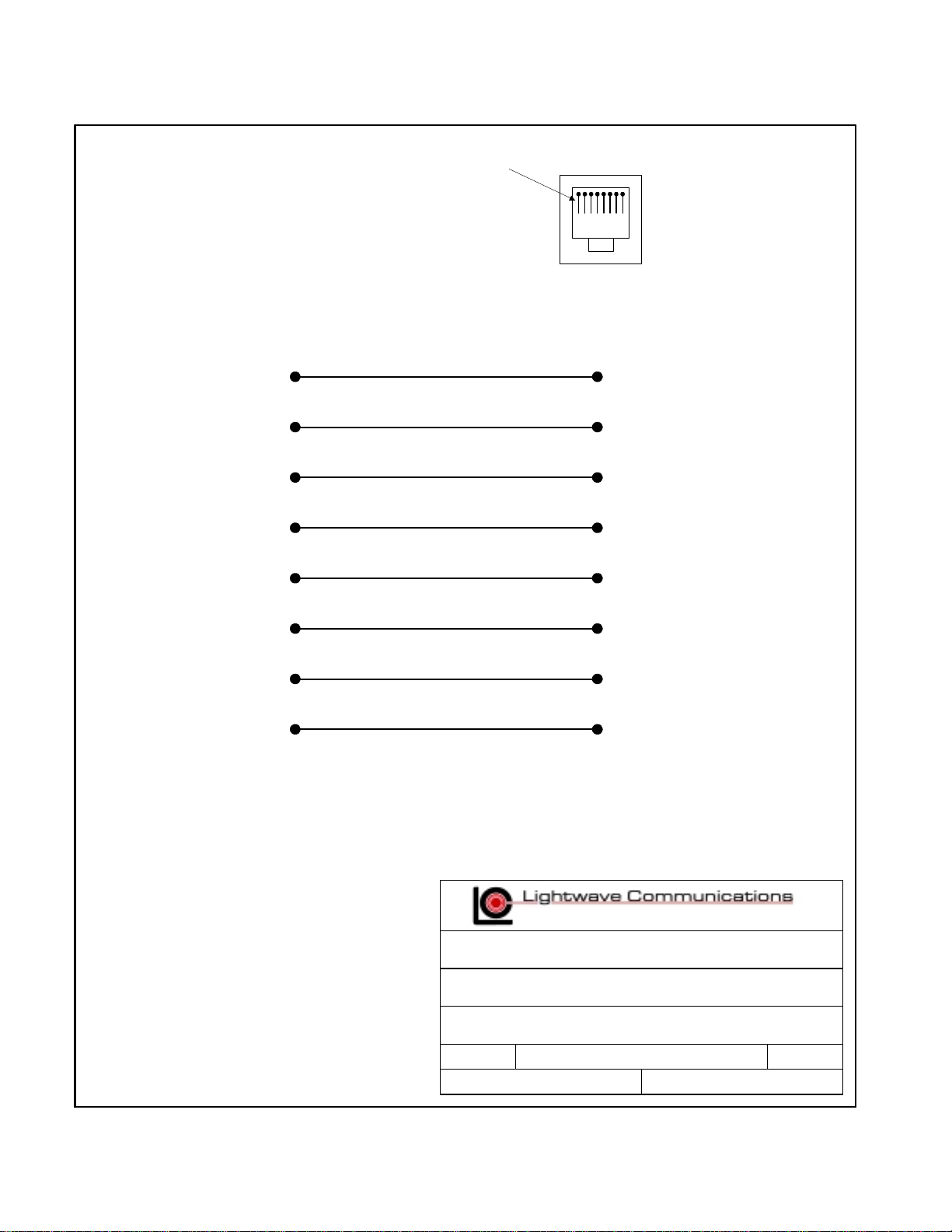

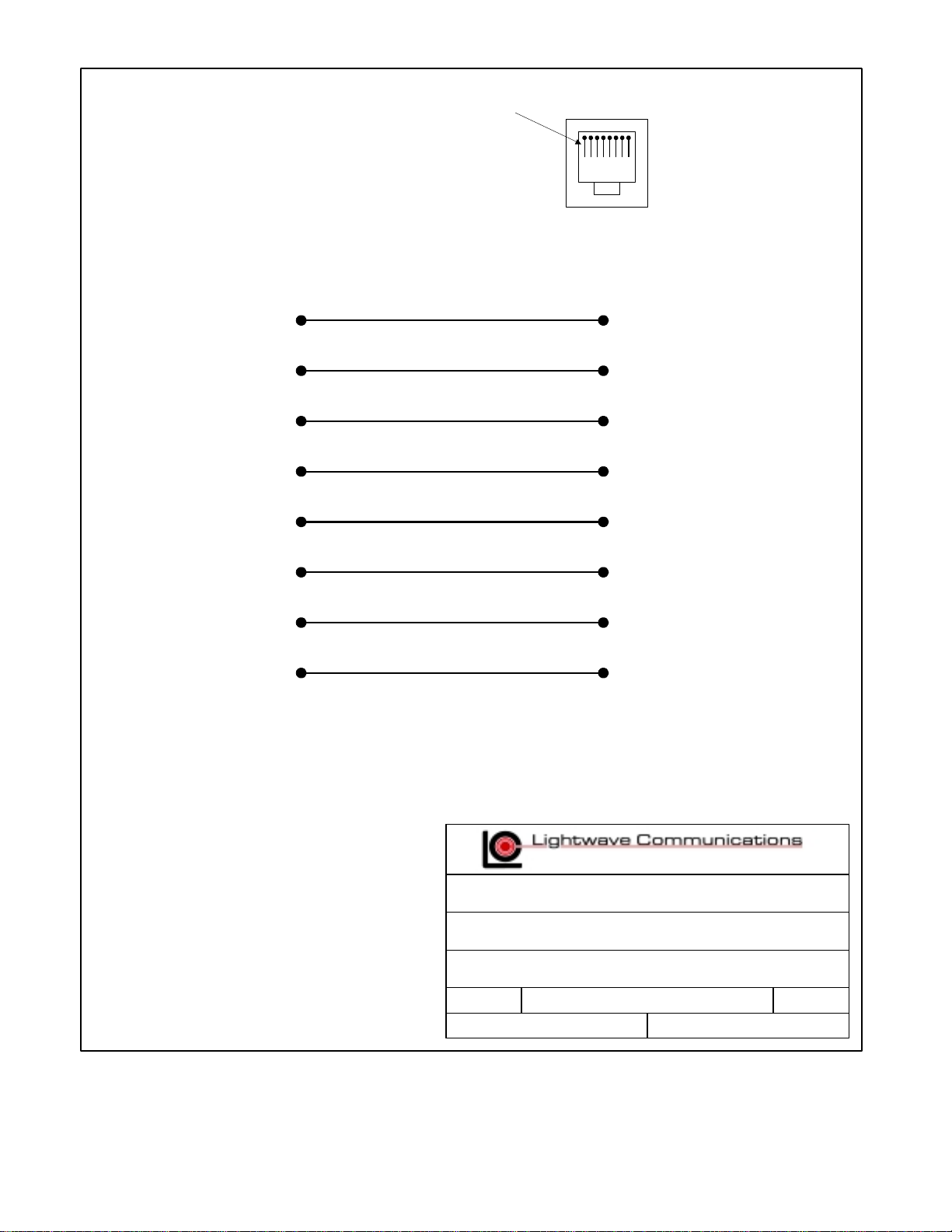

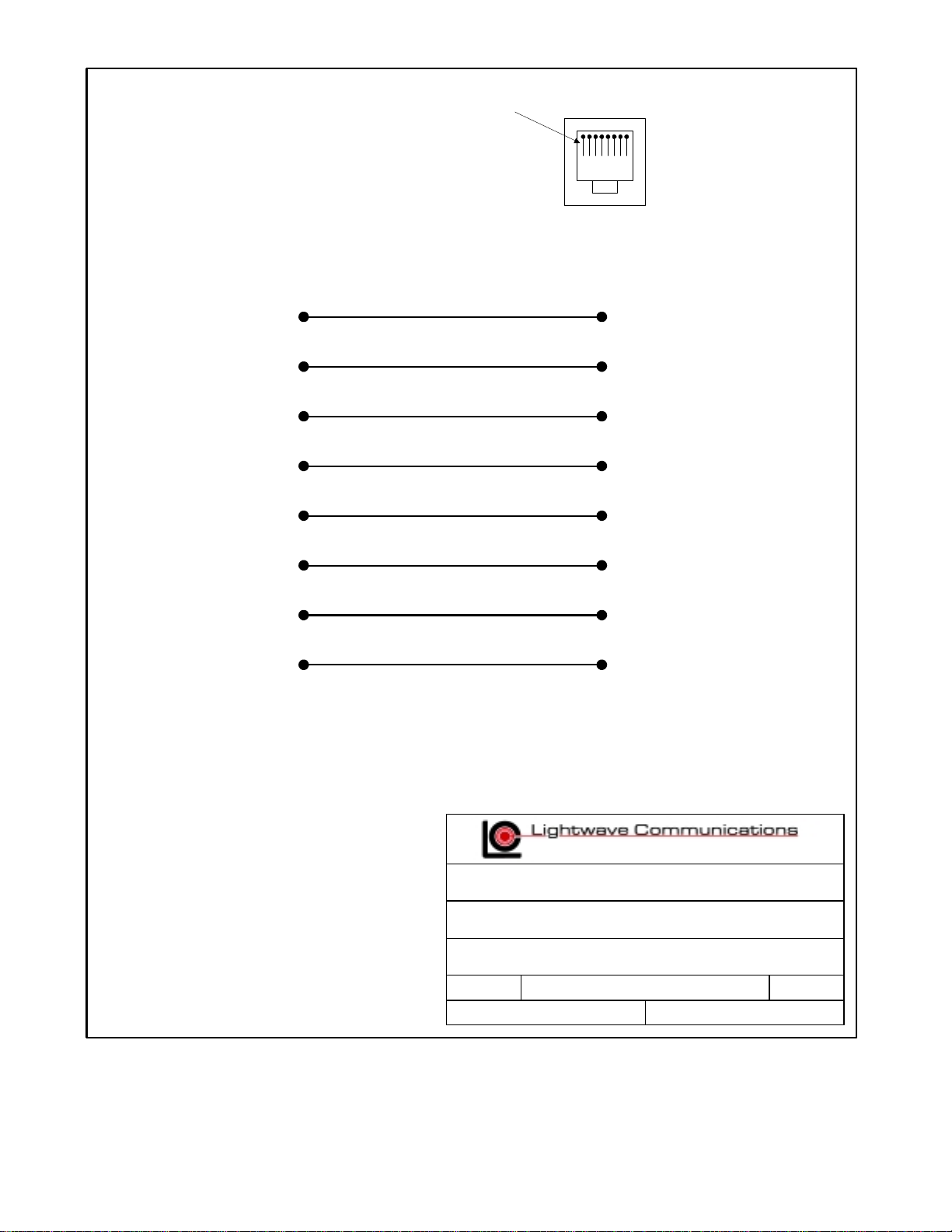

Appendix A – Adapter & Connector Pinouts................................................................................................................ 62
Appendix B – Field Update of Console Server 3200 Flash Memory............................................................................ 67
B.1 Introduction.................................................................................................................................................. 67
B.2 Requirements .............................................................................................................................................. 67
B.3 Getting Started ............................................................................................................................................ 68
B.3.1 Communications Settings................................................................................................................ 68
B.4 Update over Direct Serial Connection.......................................................................................................... 68
B.5 Update over Network................................................................................................................................... 69
B.6 Ending the Flash Update............................................................................................................................. 71
Appendix C – System Specifications........................................................................................................................... 73
C.1 Physical....................................................................................................................................................... 73
C.2 Environmental.............................................................................................................................................. 73
C.3 Electrical...................................................................................................................................................... 73
C.3.1 AC Power ........................................................................................................................................ 73
C.3.2 DC Power ........................................................................................................................................ 73
C.4 Interface....................................................................................................................................................... 74
C.4.1 Terminal and Device........................................................................................................................ 74
C.4.2 Network ........................................................................................................................................... 74
C.4.3 Modem........................................................................................................................................... 74a
C.5 Compliance and Certification....................................................................................................................... 74
Appendix D -DC Power ............................................................................................................................................... 75
D.1 DC Power Source...........................................................................................Error! Bookmark not defined.
D.2 Overcurrent Protection................................................................................................................................. 77

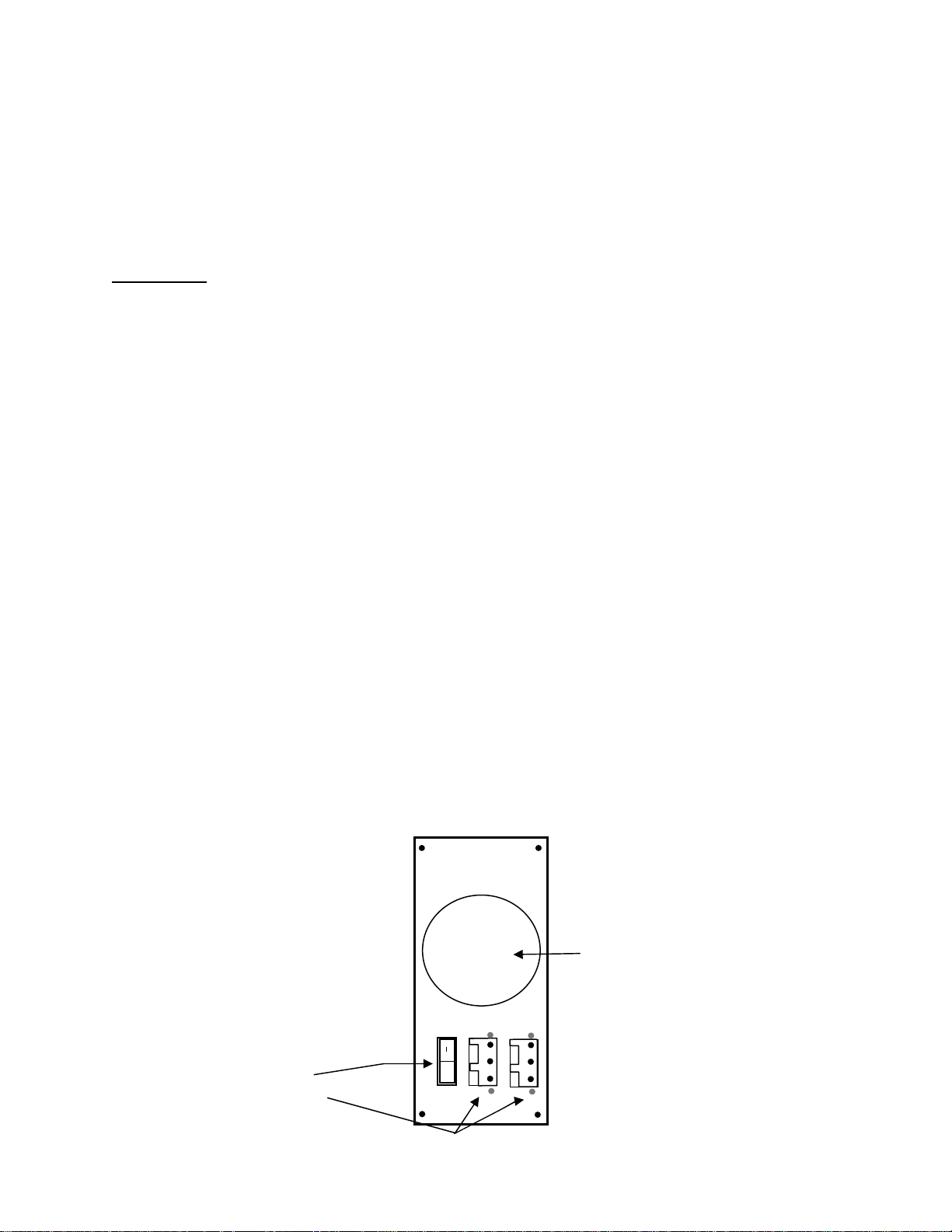

D.3 DC Supply Connector.................................................................................................................................. 77
Appendix E – Command Abbreviations....................................................................................................................... 78
Appendix F – Hexadecimal ASCII Code...................................................................................................................... 80
Index............................................................................................................................................................................ 82
ConsoleServer 3200 User Manual
Copyright 1999-2000 Lightwave Communications, Inc.
100 Washington Street, Milford, CT, 06460, USA
All rights reserved. No part of this copyrighted material may be reproduced in any form
or by any means without prior written permission from Lightwave Communications, Inc.
Edition of 21 June 2001
1.0 Product Description
The ConsoleServer 3200 (also referred to as the CS 3200) is one of the most versatile
network administration tools available today, allowing as many as 17 simultaneous
users to access up to 32 connected devices via the RS-232C serial protocol. Pull-down
menus help users navigate through all the functions of the ConsoleServer 3200,
creating an easy-to-use way to access system resources.
The ConsoleServer 3200 consists of eight device card slots, two switch card slots, four
terminal/network slots, one modem slot and one control slot. The power supply slot
contains two independent power supplies for redundant operation. The basic system
consists of the power supply module, two switch cards, and the control card. The
remaining card slots are populated according to the application requirements.
All system parameters are stored in non-volatile data flash memory. This data flash
memory is organized such that there is always a complete copy of all data. Typical
stored information includes the users’ identities, user passwords, port parameters (such
as baud rate, device name, etc.) and other system information. The data flash memory
allow for a maximum of 200 user profiles to be stored, along with the parameters for all
cards. System parameters may be backed up and restored from a local serial
connection. See 6.10.
An important feature of the ConsoleServer 3200 is the ability to re-configure the system
hardware and software without turning off the power. The system boards have circuitry
that allows them to be 'hot swapped' so the system may be expanded at any time while
in use. In addition, from time to time, new features may be added to the system
software. A direct connection to the system administrator port or a network connection
to a tftp server allows all of the system programs to be updated. See Appendix B for
details on flash updates.
I
0
I
0
TERMINAL NETWORK SWITCHTERMINAL NETWORKMODEM
AA
BB
CC
DD

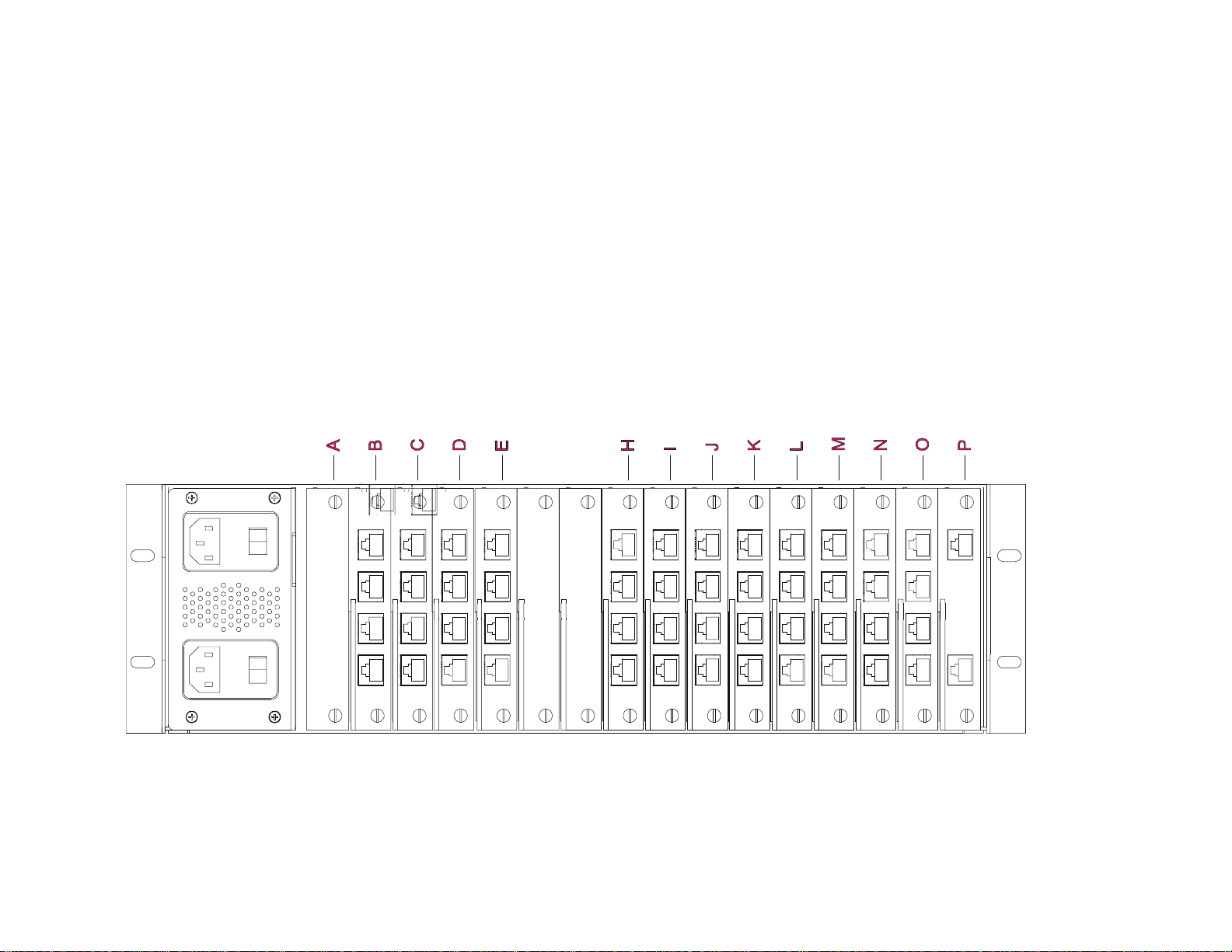

Fig. 1 Rear View of ConsoleServer 3200

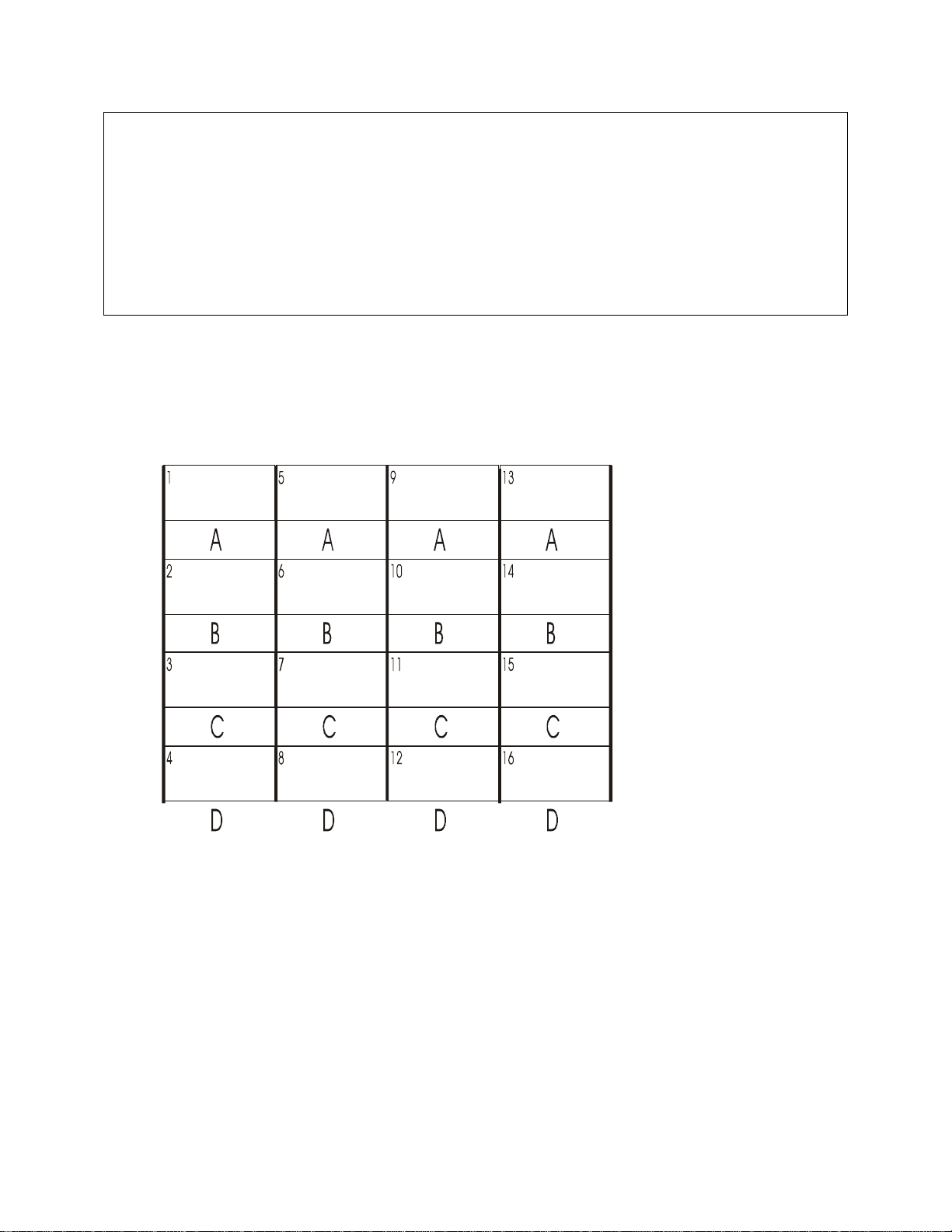

SWITCH
1
DEVICE
DEVICE DEVICE DEVICEDEVICEDEVICEDEVICE
AAAAAA
CCCCCC
DDDDDD
DEVICE CONTROL
AAA
BBBBBBBB
CC
BDD
1.1 Features
• Connect up to thirty-two RS-232C compatible console ports
• No break sent to attached servers at any time unless sent by a user
• 100 screens of buffered data storage per device
• Remote access via modem card
• Network access card
• Can be administered both locally and via network
• Can update system software via serial or network connection
2
2.0 System Overview
2.1 Connect Up to Thirty-two RS-232C Compatible Ports
The ConsoleServer 3200 is plug-compatible with any RS-232C device. These may be a
variety of network servers, routers, or any other LAN/WAN computers on the network.
Connections are made by routing the device signals through the switch cards to the
appropriate user interface port.
2.2 64K FIFO Audit Trail
The ConsoleServer 3200 stores the equivalent of approximately 100 screens worth of
data per device port in a FIFO buffer. This data is viewed 'off-line' at any time by users
accessing the device port buffer.
2.3 Connections
With the maximum number of terminal and/or network cards installed, the system is
capable of 16 simultaneous full-duplex connections to the connected devices. With the
addition of a modem card, 17 full-duplex connections may be made. The administration
functions may be accessed through a local serial connection or through a network
connection. Each network card supports four users connections and one connection to
the administration functions.
2.4 Security Passwords
Each user is assigned a unique password by the system administrator. The system
forces the user to change the password the first time the user attempts to connect to
any servers. After the users have changed their passwords, the system will not prompt
for a change. The users change their passwords at whatever interval they feel is
necessary.
2.5 Interface
Interfaces to the device and terminal cards are all RS-232C compliant. These ports are
configured through the system administration port on the control card. Port 'A' on the
control card is the system administration port. Each port has settings for baud rate, stop
bits, parity, number of data bits, flow control, and port type (i.e., DTE or DCE). The
communication settings for control card port A are configured using DIP switch settings
on the control card surface (see section 4.5).
Interfaces to the network card must be done over a network using TCP/IP on 10-base T
at 10 Mbits (no auto-negotiation). Each network card is assigned an IP address, a
subnet mask, a default gateway, and an optional secondary destination path (see
section 6.5 for more information) by the control card at start-up, and may be configured
using port ‘A’ on the control card.
3
The modem card connects directly to an ordinary phone jack (RJ11) to interface with a
telephone network. The sys admin may designate a modem initialization string, or may
use the default modem initialization string, which allows auto-answering on one ring.
4
3.0 System Components
Each ConsoleServer 3200 consists of three major components: chassis, device cards,
and access cards.
3.1 Chassis

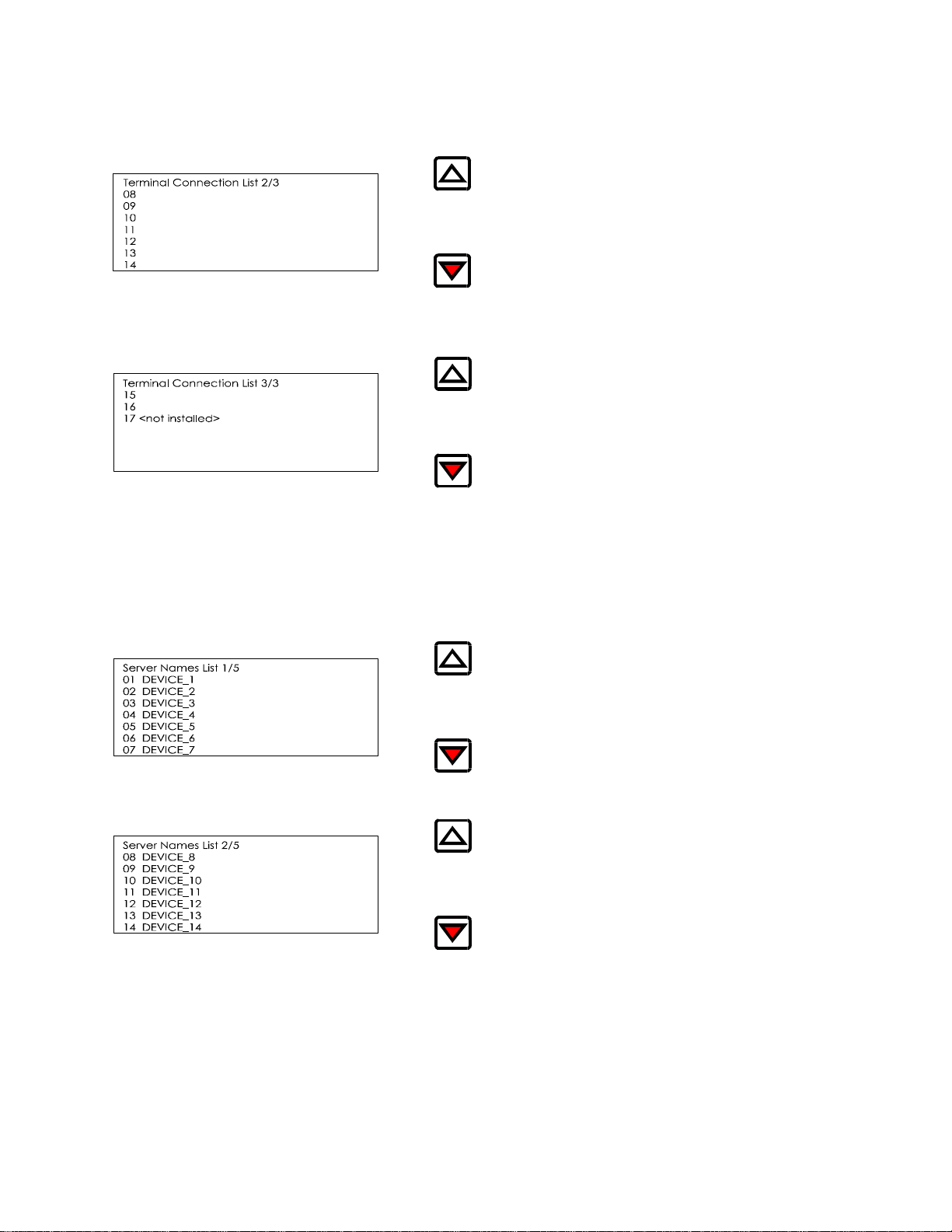

The chassis contains a front-panel LCD for quick system information that is available at
all times. Two front panel buttons allow display selection and paging through displays
(see section 10.0 for more information). The second component of the chassis is the
power supply module. This module contains two independent supplies, each capable of
sustaining the system should one supply fail. The third and last component of the
chassis is the switch and control card set. The switch cards connect the access cards
to the device cards, with a maximum of 17 simultaneous connections using all available
terminal, network, and modem ports.
3.1.1 Power Supply Module
The ConsoleServer 3200 may be equipped with either an AC power module or a DC
power module. The power module may be changed if the available power source
changes.
3.2 Device Cards
Each device card has four completely independent ports for attachment to servers or
other devices with console ports. Eight device cards may be installed per unit, for a
maximum of 32 device ports. The device ports do not send a break to the attached
servers at any time unless specified by the user. There are no adjustments directly on
the device cards. All parameters are set up through the system administrator port.
3.3 Access Cards
3.3.1 Terminal Cards
The terminal card provides a point of connection for a conventional terminal or a
computer running a terminal emulation program. Users connected through a terminal
card may connect to any of the device cards in the system, provided that their user
profile has access rights for the port. There are four ports per terminal card. Each port‘s
parameters are set up independently from the other ports. All parameters are set up
through the system administrator port. There is no access to the administration
functions through the terminal card.
3.3.2 Network Cards
The network card allows users to connect to the device cards from a telnet session over
a network, and remote access to the administration functions. Each card supports four
simultaneous user telnet connections and one administrator connection to the same IP
5
address. The network card must be connected to a network that uses TCP/IP. Devices
connected to the network card must be at 10 Mbits (no auto–negotiation) on 10-base T.
3.3.3 Modem Card
The modem card allows dial-in access to the ConsoleServer 3200 and the servers
attached to its device ports. The modem card supports baud rates up to 38.4 kbps, and
will auto-detect the actual connection speed. Only one user at a time may access
through the modem card, and only one modem card may be installed per unit. The
system administration functions may not be accessed from the modem card.
6
4.0 Installation Instructions
4.1 Items in the Shipping Container
a) ConsoleServer 3200 user manual
b) User and Sys Admin Quick Reference Cards
c) AC power cord
d) Cable kit part number 200.0135 (four rubber feet included)
e) ConsoleServer 3200 chassis with installed cards
Additional adapters and cables may also be included in the shipping container if
ordered. Large cable and adapter orders are usually shipped in separate containers.
4.1 Rack/Desktop Installation
The ConsoleServer 3200 is shipped with 19-inch rack mount 'ears' attached for
installation in an EIA standard rack. If the unit is to be used in a desktop environment,
the 'ears' may be removed and four small rubber feet may be installed on the bottom of
the unit to prevent scratching the desktop and allow airflow through the unit. Alternate
sizes of rack mount ‘ears’ are also available.
When mounting the ConsoleServer 3200 in a rack, be sure to allow sufficient space
behind the unit for cables and adapters.
4.3 ConsoleServer 3200 Location and Cooling
The ConsoleServer 3200 will operate in a normal equipment room environment without
any problems. The fan located on the power supply module provides airflow for the
power supplies, while the majority of cooling relies on convection currents. It is therefore
necessary to keep the bottom and top of the unit free from obstruction. Provisions for
adequate ventilation should be made if the ConsoleServer 3200 is mounted in an
enclosed rack.
The ConsoleServer 3200 generates 34.1 BTU/hr under normal operation. Be sure that
the cooling plant for the machine environment can accommodate the additional heat
load.
4.4 Power Requirements
The ConsoleServer 3200 may operate off AC or DC power, depending on the installed
power supply module. The power supply module may be removed and exchanged to
allow a different power source (AC or DC).
The AC power module is an auto-switching power supply, operating on 110/220 VAC at
50/60 Hz, and draws approximately 1 A at 110 VAC. An AC power cord is included with
7
the unit. Alternate power cords are available for all national connector standards. The
standard AC power module has dual inputs.
The DC power module operates on –48 VDC, with 1.5 A maximum operating current,
and 5 A maximum surge current. DC power must be externally protected against overcurrent. Each DC power module features dual power inputs.
See Appendix D for further specifications and instructions regarding DC power
requirements and installation.
4.5 Connecting to the Sys Admin Port
The cable kit P/N 200.0135 contains the necessary adapters to interface the system
administrator port on the control card to a laptop or a terminal. The control card can be
removed from the system without turning off power if it is necessary to change the
factory default settings of this port (however, the system will reboot once the control
card is re-inserted). Using the adapters in the kit, follow the steps outlined below, and
interface to the 'port A' on the control card to a laptop or terminal.
The factory default communications settings for the system administrator port are 9600
baud, one stop bit, no parity, eight data bits, and DCE (9600 8N1 DCE). The settings
can be changed using the DIP switches shown in Figure 2.
NOTE: The administration functions may also be reached via telnet. However, it is first
necessary to configure the network card through the direct serial connection.
1. Turn on power to the terminal or computer. If using a computer, start the desired
communication program. The terminal or communications program used must
be in VT100 emulation mode. Note that the VT100 functions keys are not always
mapped to the terminal or computer function keys; consult the appropriate
documentation for further information.
2. Ensure that the communications settings are correct. The factory defaults for the
control card, which may only be changed by a hardware DIP switch, are 9600
baud, 8 data bits, 1 stop bit, and no parity (9600 8N1). If in doubt as to the
current communication settings on the control card, check the DIP switches and
refer to Figure 2, Control Card Layout with DIP Switch Settings.
3. Locate the serial port on the terminal or computer and determine what type of
connector is used. The cable kit included with the ConsoleServer 3200 contains
each of the following: one RJ45 serial cable, an RJ45 to male DB9 adapter, an
RJ45 to female DB9 adapter, an RJ45 to male DB25 adapter, and an RJ45 to
female DB25 adapter. Select the appropriate adapter for the serial port on the
terminal or computer.
8
4. Firmly seat the adapter in the serial port. Screw down the adapter to secure it to
the serial port.
5. Insert one end of the serial cable into the adapter until a click is heard. Insert the
other end of the serial cable into port "A" of the control card, again until a click is
heard.
21
543 768
O
F
F
ROCKER DOWN
DEFAULT DIP SWITCH SETTINGS
FID2
2
TP3
H
7
C
1
P
C18
made in the USA
ASSEMBLY 09.300.004
LIGHTWAVE CO MMUNICATIONS, INC
2
P
TP2
1
H
X1 X3
C1
C6
U42
C17
U54
C9
C5
C4
RP6
C12
C20
C15
C16
C11
C3
U62
C21
C8
C2
C10
C14
C63
U55
C19
C13
J5
C33
U64
C34
J7
U53
C24
U51
U60
C22
C23
U58
C64
U57
C36
C35
J8
O
3
W
S
ROCKER DOWN
U56
C82
C104
C105
Y2
J6
12345678
U49
5
2
C
RP1
C26
C84
U21
U50
C27
U26
U28
C77C78
FID6
U27
C42
C41
Y1
U23
FID5
U59
C70
Q1
C30
U29
C48
C62
U30
U48
U63
RP3
C53
R1
TP1
R12
C102
C93
C97 C99
L4
U52
U45
C55C56
C103
RP4
U33
X2
R11
C95
+
L2
U37
+
L3
+
C96
C94
C57
U40
J1
C32
R10
R5
R4
U35
U38
R13
C51
R6
C58
C59C60C61
U34
U36
U39
U65
U66
X4
L1
C52
R2
A1B1C1
+
C50
R3
+
C54
U44
RP2
J3
RP5
B32
C32
A32
J4
TP4
FID1
Fig. 2 Control Card Layout with DIP Switch Settings.
6. Press <ENTER> on the keyboard. The LCI3200>> prompt should appear. If
not, check that the ConsoleServer 3200 is connected to the appropriate power
outlet, the power switch is on, the control card is firmly seated, and that all cable
connections are secure. If "garbage" characters appear on the screen, check
that the communications settings are correct.
7. The system administrator may now login (as outlined in Section 6.0, System
Administrator) into port "A" of the control card.
The system administrator may not access attached devices. To access attached
devices, a user profile must be created (see section 6.2), and the user must log in
through one of the user access cards (see section 3.3).
9
5.0 Connecting Equipment to the ConsoleServer 3200
When connecting devices to the ConsoleServer 3200, be sure to use Lightwave
Communications cables and adapters to ensure the proper transmission of data signals.
If a device has an RJ45 serial port, use the manufacturer's cable included with the
equipment to convert the RJ45 serial connector to a DB9 or DB25 connector, and then
use a Lightwave Communications adapter to convert back to RJ45 to attach to the
device port. Directly connecting the RJ45 port on the ConsoleServer 3200 to the RJ45
port on a third-party device will not allow for the proper transmission of data signals.
ConsoleServer 3200 serial port default settings
Port Type Baud Rate Data Bits Parity Stop Bits Port Configuration
Terminal 38400 8 None 1 DCE
Device 9600 8 None 1 DCE
See Appendix A for further details on connectors and pinouts.
5.1 Terminal Card
Terminal Card typical adapters and port configuration:
System Type Adapter Part Number Port Configuration
Wyse 50 / 60 200.0066 DCE
DEC VT330, PC (25pin) 200.0067 DCE
PC (9pin) 200.0070 DCE
Materials:
• ConsoleServer 3200 terminal port
• terminal or computer with RS-232 serial port
• RJ45-terminated Cat 5 cable (standard LAN cable)
• Lightwave adapter for terminal serial port
1. Attach the Lightwave adapter to the terminal or computer serial port.
2. Connect the Cat 5 cable to the adapter. Connect the other end to the
ConsoleServer 3200 terminal port.
3. Turn on the terminal or start the computer’s communication program. Make sure
that the communication parameters of the terminal or computer match those of
the terminal port.
10
5.2 Network Card
The network card runs at 10 Mbits, half-duplex, with no auto-negotiation. The device
used to connect the ConsoleServer to the network (i.e., a hub or switch) must support
this configuration. It is essential that the network device does not attempt autonegotiation; the ConsoleServer network card does not support this and will fail to
establish a functioning link if auto-negotiation is used.
Materials:
• ConsoleServer 3200 network port
• network point-of-connection (i.e., a switch or hub)
• RJ45-terminated Cat 5 cable (standard LAN cable)
1. Configure the ConsoleServer network parameters to the desired values as
outlined in section 6.5.
2. Configure the network point-of-connection. It must be manually set to 10 Mbits,
half-duplex, with no auto-negotiation.
3. Connect the ConsoleServer network port to the network using a standard LAN
cable.
4. Check the status lights at the network end of the connection. It should indicate a
good link. Try reaching the IP address assigned to the ConsoleServer by using
PING or TELNET. If there is a problem, check the network configuration on both
ends.
5.3 Modem Card
Materials:
• ConsoleServer 3200 modem port
• Analog telephone line (POTS)
• RJ11 modular telephone cable
1. Locate the modular jack for the telephone line to be used. Select a telephone
cable with sufficient length to reach between the jack and the ConsoleServer.
2. Connect one end of the telephone cable to the jack. Connect the other end to
the ConsoleServer modem port.
3. Make sure the ConsoleServer is powered. Dial the telephone number of the line
connected to the ConsoleServer. The modem should automatically answer. If
not, check the telephone line and connections.
11
5.4 Device Card
The ConsoleServer 3200 is designed so that the default device port communications
settings will match the communications settings of most Sun® server and workstation
console ports (9600 baud, 8 data bits, no parity, one stop bit). Other equipment types
(i.e., Cisco®) frequently use similar communications settings; check the manuals
included with the equipment for the correct settings. The table below lists the default
serial port communications settings for the ConsoleServer 3200. Sections 6.3 and 6.4
outline the commands for changing the terminal and device port communications
settings.
The following tables list the adapter part number and port configuration for some
common equipment types that may be connected to the ConsoleServer 3200. Note that
in some cases, an additional cable or adapter is included with the equipment to convert
a proprietary pinout to an EIA-standard pinout. Also, note that it is not possible to
connect the RJ45 serial port of the ConsoleServer directly to the RJ45 serial port
of any third-party equipment. Sun Netra servers, Cisco switches, and other similar
devices require a special adapter or cable to connect to the ConsoleServer. The
adapter or cable is usually provided by the manufacturer of the equipment (e.g., Sun),
or may need to be created by the user. The adapters and cables from the equipment
manufacturer are usually designed to interface directly to a terminal, so the
ConsoleServer device port must be configured as DTE rather than its default value of
DCE. Lightwave Communications has pre-made adapters and kits for some common
equipment types; contact Lightwave for information regarding your specific application.
The reference diagram on page 14 shows the proper cabling for some common
equipment configurations.
Device Card typical adapters and 3200 port configuration:
System Type Adapter Part Number Port Configuration
SUN 200.0066 DCE
HP, SGI, PC (9pin) 200.0070 DCE
PC (25pin) 200.0067 DCE
Sun Netra t1/Cisco 200.0225 DCE
RJ45 to RJ45 Cables:
Part Number Length
200.0062 2m
200.0063 5m
200.0064 10m
200.0065 15m
12
Standard DB9 or DB25 installation:
Materials:
• ConsoleServer 3200 device port
• device with RS-232-C serial console port
• RJ45-terminated Cat 5 cable (standard LAN cable)
• Lightwave adapter for serial console port
1. Attach the Lightwave adapter to the serial console port.
2. Connect the Cat 5 cable to the adapter. Connect the other end to the
ConsoleServer 3200 device port.
3. Check that the device port and serial console port communications parameters
match, and synchronize them if they do not match. See sections 6.3 and 6.7.4
for more information regarding the device port parameters.
Sun® Netra t1 installation:
Materials:
1. Connect a Cat 5 cable to the console port of the Netra. Connect the other end to
the end of the ConsoleServer/Netra adapter (P/N 200.0225) marked “to Netra”.
2. Connect another Cat 5 cable between the adapter end marked “ConsoleServer”
and the ConsoleServer device port.
3. Check that the device port and serial console port communications parameters
match, and synchronize them if they do not match. See sections 6.3 and 6.7.4
for more information regarding the device port parameters.
13
ConsoleS er ver 3 200 A d ap ter Quick Checklist
PORT
HP9000
SGI
(Origin,O2,
Octane, Onyx2)
Adapter
DB9-RJ45
200.0070
Terminal Cable
SGI Supplied
RJ45-RJ45 Cable
OR
Adapter
DB25-RJ45
200.0067
CONFIG
RJ45-RJ45 Cable
DCE
DTE
.
Included in cable kit 200.0135
RJ4 5- R J4 5 C ab le
Sys Admin
Terminal
14
Sun
Netra
RJ45
DEC
RS6000
Cisco
Router/Hub
Adapter
DB25-RJ45
200.0066
Terminal Cable
Sun Supplied
RJ45-RJ45 Cable
Terminal Cable
DEC Supplied
Terminal Cable
IBM Supplie d
Termi nal Cable
Cisco Supplied
RJ45-RJ45 Cable
OR
Adapter
DB25-RJ45
200.0067
200.0225
Adapter
MMJ-DB25
200.0100
Adapter
DB25-RJ45
200.0067
Adapter
DB25-RJ45
200.0067
RJ45-RJ45 Cable
RJ45-RJ45 Cable
Adapter
DB25-RJ45
200.0066
RJ45-RJ45 Cable
RJ45-RJ45 Cable
RJ45-RJ45 Cable
DCE
DTE
DCE
DTE
DTE
DTE
DTE
Rj45 Connector
ConsoleS erver 3200
Depending on Sy s Admin
Terminal I/O port, adapter
Control Card
Port “A”
will be one of following:
200.0066 RJ45-DB25 M
OR
200.0067 RJ45-DB25F
OR
200.0069 RJ45-DB9M
OR
200.0070 RJ45-DB9F
Note: Other adapters are available
from Lightwave. Call for information
and availability.
Cisco
w/RJ45
RJ45-RJ45 Cable
200.0025
RJ45-RJ45 Cable
RJ45 Connection
DCE
to Switch
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
0
I
0I0
I
17
2
3
4
8
7
12
11
16
15
12
4
3
8
7
11
10
14
10
1
6
5
9
CCCC
13
2
1
6
5
9
DDDD
D
DD
BBBB
LTERMIN
LMODEM
TERMIN
LTERMIN
LSWITCHTERMIN
SWITCH
DEVICE DEVICE DE VICEDEVICEDEVIC EDEVICE
D
CCCCCC
DD
DD
CC
BBBBBBBB
B
DEVICE
DEVICE CONTROL
1920
23
14
18
22
26
30
13
17
21
25
29
16 15
282427
32 31
A

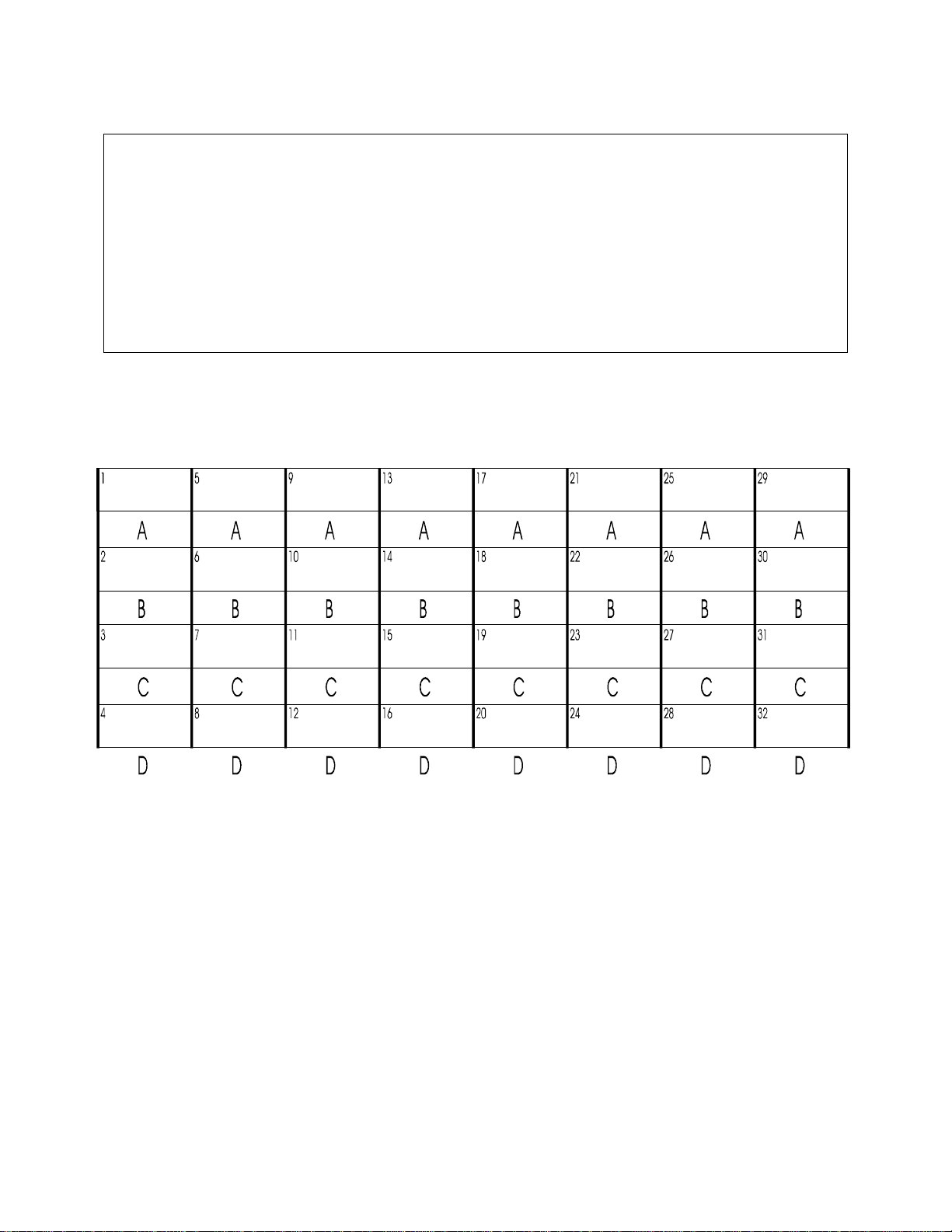

Fig. 3 General layout showing terminal port and device port numbers.
15
6.0 ConsoleServer 3200 Administration
The following section outlines the administration functions and commands. The
administration functions and commands are designed to enable the administrator to
configure the ConsoleServer 3200 to fit the needs of the system application. User IDs,
devices, terminals and access rights may be configured using the administration
commands. As new features are added to the product, the administration user will also
be used to install new flash memory software updates (see section 6.12, Updating the
ConsoleServer 3200 Software, and Appendix B). The administrator may not access
device ports; only users may access device ports (see section 7.0, User Access
and Interface).
Screen shots of interactive terminal sessions are shown in outlined boxes, while in-text
command words and system responses are in Lucida Console font to differentiate
them from normal text. All system commands require the <ENTER> key to respond, but
are not case-sensitive unless otherwise specified.
Many commands may be abbreviated to one extent or another, but some may not be
abbreviated at all. For example, the command VERSION may be abbreviated to VER,
but LCIUPDATE may not be abbreviated. See Appendix E for more information
regarding abbreviations.
NOTE: <ESC> <ESC> or <CTRL>+C will cancel an operation and return to the
administrator prompt. Pressing <CTRL>+R at the LCI3200> or sys admin> prompt
will discard the characters on the current command line, and retype the last command
used; <ENTER> must still be pressed to execute the command. Pressing <CTRL>+U at
either prompt erases the current command line back to the prompt.
6.1 Power-up Sequence and Basic Use of the Administrator Functions
When the ConsoleServer 3200 is first installed and powered up, it must be configured
through the serial terminal port. Connect the terminal port to a terminal device or
computer using a terminal emulation program (refer to section 3.4 for instructions on
connecting to the terminal port). After the network interface has been configured (see
section 4.4), the administration login may also be reached via telnet. All the functions
available from a local serial connection (with the exception of BACKUP and RESTORE)
are also available through telnet by connecting to port 5000 of a ConsoleServer’s
network IP address. Administration access via modem is not supported at this time.
16
The serial terminal will display the following text at power-up:
ConsoleServer3200 Boot V1.76
Copyright 2000 by Lightwave Communications, Inc. All rights reserved.
Identify Flash
Flash ID OK
Verifying Flash Image
Starting system
Lightwave Communications, Inc. ConsoleServer3200
Please wait...system initializing
Checking non-volatile memory...
2048
Start checking and reading stored data
Reading User Start up .........
LCI3200>>
The power-on self-test may be skipped by pressing <ESC> <ESC> or <CTRL>+C, but
the ConsoleServer 3200 should be allowed to complete the POST if possible (this check
usually takes about three minutes). This information is not available on a network
connection, as it is not possible to connect to the ConsoleServer via telnet until the
power-on self-test is complete. At the completion of the power-up sequence, the
administrator is logged out, as indicated by the LCI3200>> prompt. Some commands
may be used from this prompt, but most are available only when logged in.
NOTE: The administrator may define the system prompt using the PROMPT command
(see section 6.11), but the system default prompt (LCI3200>>) is used in this manual
for clarity.
6.1.1 Logging In, Serial Connection
LCI3200>>login
Please enter password: ****
sys admin>>
To log in on the ConsoleServer through a local serial connection, type LOGIN at the
LCI3200>> prompt. The system returns the prompt Please enter password:.
The default administrator password is PASS
PASS (see section 6.1.5 to change the
PASSPASS
administrator password). The ConsoleServer will only echo stars when the password is
entered. If the password is correct, the prompt will change to sys admin>>.
17
6.1.2 Logging In, Network Connection
UNIX_MACHINE# telnet 172.16.1.200 5000
Connecting to 172.16.1.200 port 5000...
Escape sequence is ^]
Welcome to the ConsoleServer3200 SysAdmin
LCI3200>>login
Please enter password: ****
sys admin>>
To log in on the ConsoleServer through a network connection, the network interface for
the ConsoleServer first must be configured through the serial terminal (see section 6.5).
Once the network interface is configured and functioning, telnet to port 5000 of the IP
address assigned to the ConsoleServer. The ConsoleServer will display a welcome
message and the LCI3200>> prompt. At the prompt, type LOGIN. The system will
only prompt for the password. At the Please enter password: prompt, enter the
administration password. The default administrator password is PASS
PASS (see section
PASSPASS
6.1.5 to change the administrator password). The ConsoleServer will only echo stars
when the password is entered. If the password is correct, the prompt will change to sys
admin>>.
6.1.3 Logging Out
To log out from an administration session, enter the command LOGOUT or LOGOFF. If
logging out from a network session, the ConsoleServer will disconnect the telnet
session. If logging out from a direct serial session, the ConsoleServer will return to the
LCI3200>> prompt.
6.1.4 System Help
To access the help screens, type <F1> H, ?, or HELP to display the help page. There
are two different help screens to reflect the commands available if the administrator is
logged in or logged out.
18
LOGGED OUT HELP SCREEN
LCI3200>>help
ConsoleServer 3200 Sys Admin Command List
[] - optional <> - parameter must be specified
| - OR
F1 - Display Help Screen (VT100 mode)
ABBREVIATIONS - Show list of command abbreviations
CONNECTIONS [/MONITOR] - Show list of current connections
(/monitor will auto-refresh)
INFO <slot letter> - Report miscellaneous information
LISTCARDS - Show list of installed cards
LISTDEVICES - Show list of device names
POWERSTATUS - Show status of power supplies
VERSION [/ALL|slot letter] - Report software version information
(/ALL - return version for all cards)
LCI3200>>
LOGGED IN HELP SCREEN
sys admin>>help
ConsoleServer 3200 Sys Admin Command List
[] - optional <> - parameter must be specified
| - OR
F1 - Display Help Screen (VT100 mode)
ABBREVIATIONS - Show list of command abbreviations
ADDUSER [new user id] - Add a new user
BACKUP - Backup internal database
(db will be output using ASCII)
BREAK <terminal channel> - Break connection
CHANGEPSWD - Change the sys admin password
CONNECTIONS [/MONITOR] - Show list of current connections
(/monitor will auto-refresh)
DELETEUSER [existing user id|/XX] - Delete a user by user id or number
(use LISTUSERS to get the number in the first column which
corresponds to the user you wish to delete)
DEVICES - Display device settings
DEVICES [/ALL|n|device name] (n can be 1 to 32) - change settings
EDITUSER [existing user id] - Edit a user's settings
FORCELOGOUT <terminal channel>- Force a user off the system
FORCELOGOUT sysadmin <network slot letter> - Force logout a sys admin
session on a network card.
<network slot letter> - card slots B through E only.
INFO <slot letter> - Report miscellaneous information
LCIUPDATE [/tftp][<subsystem>]- Start system update process
(requires update file(s))
/tftp - used only at console port, when system updates are
transfered using the network.
[<subsystem>]- destination of image sent over network
while facing the back of the 3200
(where cards can be inserted or removed), the letters A-P are used
to refer to the slots in the box.
Starting from the left to right, A,B,C,D,,,,P
A number after the letter tells which subsystem on the card to
program.
Currently the only card which has two subsystems is the network card.
Otherwise all other cards have only one subsystem.
see the following examples:
example: A1 for modem card
B1 for a terminal card
B1 and B2 for network card (netterminal and network files)
Card type ranges:
A1 - modem card
B1 - E1 can hold either terminal cards or network cards
if a network card is in one of the slots,
19
1 will refer to the netterm subsystem and
2 will refer to the network subsystem on the card
F1 - G1 switch cards (do not require updating)
H1 - O1 device cards
P1 - control card
LINESPERPAGE [n] - Display/set number of lines before pause
(n can be 0 to 99, 0 disables)
LISTCARDS - Show list of installed cards
LISTDEVICES - Show list of device names
LISTUSERS [user id|/ALL] - Display list of users
LOG [/ENABLE|DISABLE]
- Enable/disable system events
and set destination of event info
LOGOUT,LOGOFF - Logout
MODEM [/DEFAULT] - Display/set modem init string
/DEFAULT - set init string to default
MODEMTIMEOUT [t] - Display/set timeout for modem calls
(t can be 0 to 30 minutes, 0 disables)
NETWORK [/ALL|slot letter] - Set network parameters ('B' - 'E')
POWERSTATUS - Show status of power supplies
PROMPT [/CLEAR|/DEFAULT] - Set/clear system prompt for logged-out state.
or set prompt to factory default.
MODEM [/DEFAULT] - Display/set modem init string
/DEFAULT - set init string to default
MODEMTIMEOUT [t] - Display/set timeout for modem calls
(t can be 0 to 30 minutes, 0 disables)
NETWORK [/ALL|slot letter] - Set network parameters ('B' - 'E')
POWERSTATUS - Show status of power supplies
PROMPT [/CLEAR|/DEFAULT] - Set/clear system prompt for logged-out state.
or set prompt to factory default.
More
RESTORE - Restore internal database
(upload ASCII file)
TELNETTIMEOUT [t] - Display/set timeout for telnet sessions
(t can be 0 to 30 minutes, 0 disables)
TERMINALS - Display terminal settings
TERMINALS [/ALL|n] (n can be 1 to 17) - change settings
tftp [/B|/C|/D|/E] [get] host:file - Modified tftp command, used to
transfer new updates to this box
(/B use network card B, /C use card C, etc.)
tftpkill - kill active tftp session.
TIMEOUT [t] - Display/set timeout on sys admin login
(t can be 0 to 9 minutes, 0 disables)
VERSION [/ALL|slot letter] - Report software version information
(/ALL - return version for all cards)
sys admin>>
A listing of abbreviations for the administrator commands is also available when
connected to the administrator port. The ABBREVIATIONS command is only available
when logged in.
sys admin>ABBREVIATIONS
ConsoleServer3200 Sys Admin Command Abreviations List
ABBREVIATIONS - A
ADDUSER - ADDU
AU
BACKUP - (no abbreviation)
BREAK - (no abbreviation)
CHANGEPSWD - PASSWD
PSWD
CONNECTIONS - C
DELETEUSER - DELETEU
DEVICES - DEV
EDITUSER - EDITU
EU
FORCELOGOUT - (no abbreviation)
HELP - H, ?
20
INFO - (no abbreviation)
LCIUPDATE - (no abbreviation)
LINESPERPAGE - LINESPP
LINES
LPP
LISTDEVICES - LISTD
LD
LISTUSERS - LISTU
LU
LOGIN - LOGI
LOGOUT - LO
MODEM - (no abbreviation)
MODEMTIMEOUT - MODEMT
MT
NETWORK - NET
POWERSTATUS - PO
PS
REBOOT - (no abbreviation)
RESTORE - (no abbreviation)
TELNETTIMEOUT - TELNETT
TT
TIMEOUT - TIME
VERSION - VER
6.1.5 Changing the Administration Password
At the first login, the ConsoleServer 3200 will use the factory default password, PASS
(all upper case). This default password should be changed as soon as possible to
prevent access by anyone other than authorized personnel.
sys admin>>passwd
Please enter current root password >****
Please enter new root password >**********
Please re-enter new root password >**********
sys admin>>
To change the sys admin factory default password, type CHANGEPSWD or PASSWD at the
sys admin>> prompt. The new password may be up to ten alphanumeric characters
long and is case-sensitive. Be sure to record the password in a safe place.
21
6.2 Creating and Managing Users
6.2.1 Adding a User ID
The ADDUSER command creates user IDs and assigns initial privileges. The following
screen will be displayed when the command is used:
sys admin>>ADDUSER
Number of available user records: 200
Number of users defined: 0
Enter user id | USER ID >
Press <ENTER> after typing the user ID. The user name is not case-sensitive. The next
prompt asks for a password for the user ID. When the user logs in for the first time he
will be asked for this password. This password is case-sensitive and is pre-expired.
The user must change the password before accessing any of the ConsoleServer 3200
device ports. The user password may be up to 10 alphanumeric characters long, and
may not contain the “*” character. The ConsoleServer 3200 will echo only stars when
the sys admin enters the password and confirmation
Enter case sensitive password | PASSWORD > ****
Re-enter case sensitive password | PASSWORD > ****
0-17 | MAX CONCURRENT LOGINS: 1>17
This parameter limits the number of simultaneous logins a user may have. The sys
admin may select between 0 and 17 concurrent logins. A user with 0 logins will have
connect and listen permissions defined, but cannot login to access anything until a
number of logins greater than 0 is defined.
Allowed devices example: 1-5,10 | DEVICES 0 > 1,5,7,8,30
Allowed listen devices example: 1-5,10 | DEVICES 0 > 1-32
The sys admin is now prompted to define the device ports that the user will be allowed
to access for direct connections and listening connections. If more than one port is to
be allowed, then the individual ports must be separated by a comma. A range of ports
may be specified using the dash (“-“).
Allowed devices determines which devices a user may select for direct access.
Allowed listen devices determines which devices a user may use listen access.
“Listening” is defined as being able to read from an existing device port connection
without write ability. This feature is useful for sharing information among multiple users
or for monitoring a user’s session with an attached device.
22
DEVICE
DEVICE
DEVICE
DEVICE
DEVICE
DEVICE
DEVICE
DEVICE
1
A
2
B
3
C
4
D
Fig. 4 Device Port Numbering
HELPFUL HINT: Make a diagram or spreadsheet of connections indicating connections
between devices and the ConsoleServer 3200 device ports as numbered above.
The Allow user to clear device buffer (Y/N) | YES > option determines
whether a user may use the CLEAR command to delete all the data stored in a device
port FIFO buffer. The sys admin may want to inhibit this ability to preserve user
accountability when accessing attached devices. Users are allowed to clear buffers by
default. Pressing <ENTER> will allow the user to clear the buffer; typing NO and then
pressing <ENTER> at the prompt when defining a user ID will disallow the user from
clearing all device buffers.
The Clear screen after a command (Y/N) | YES > option determines if the
screen clears when most commands are executed. Disallowing this screen behavior
keeps the last few commands and responses on the terminal screen. The default value
for this option is YES. Pressing <ENTER> will accept the default value; typing NO and
then pressing <ENTER> disallows this screen behavior.
5
A
6
B
7
C
8
D
9
A
10
B
11
C
12
D
13
A
14
B
15
C
16
D
17
A
18
B
19
C
20
D
21
A
22
B
23
C
24
D
25
A
26
B
27
C
28
D
29
A
30
B
31
C
32
D
23
Loading...
