Connect Series
www.lightwaverf.house
Instruction Manual
Version 2.1
Plug-in Dimmer Socket Kit
Model No. LW301
EC DECLARATION OF CONFORMITY
Responsible Authority:
LightwaveRF PLC,
Innovation Campus Birmingham
Faraday Wharf
Holt Street
Birmingham
B7 4BB
Tel: +44 (0)121 250 3625
Email: enquiries@lightwaverf.com
Model Number(s): JSJSLW301
Description: Plug-in Dimmer Kit
Directives this equipment
Complies with: 2006/95/EC The Low Voltage Directive N/A
2004/108/EEC The Electromagnetic Compatibility Directive
1999/5/EC R&TTE Directive
93/68/EEC CE Marking Directive
Standards Applied in order to verify compliance
Safety: BS EN 60730-1: 2011
Health:
R&TTE: EN 301 489-1 V1.9.2: (2011-09), EN 301 489-3 V1.4.1: (2002-08)
EN 300 220-1 V2.1.1: 2006, EN 300 220-2 V2.1.2: 2007
EMC: EN 301 489-1 V1.9.2: (2011-09), EN 301 489-3 V1.4.1: (2002-08),
EN 55022: 2010, EN 61000-3-2: 2006 +A1: 2009 +A2: 2009 Class A,
EN 61000-3-3: 2008, EN61000-4-2: 2009,
EN 61000-4-3: 2006 +A1: 2008 +A2: 2010, EN 61000-4-4: 2012,
EN 61000-4-5: 2006, EN 61000-4-6: 2009, EN 61000-4-11: 2004
For and on behalf of LightwaveRF PLC
---------------------------------------Name J Shermer
Position Managing Director
How does it work?
How do I get started?
Refer to the setup guide on the following pages
to get going. No specialist knowledge or tools
are required as these sockets are ‘plug and play’;
however, always remember to take care when
dealing with mains electricity.
The Plug-in Dimmer is designed to plug into any
standard 13A socket. It allows any connected
lamp (up to 300W) to be turned on and o and
dimmed using the remote control included in this
pack, or by using a smartphone / tablet
(requires the Lightwave Link).
Help video & further guidance
For additional guidance, and to watch a video
that will help guide you through the installation
process, please visit the support section on
www.lightwaverf.com
Get Started
IMPORTANT: Please retain these instructions for guidance on how to link
Remote Handsets and other LightwaveRF controllers. For additional
guidance please visit the support section on www.lightwaverf.com.
Bank Selector
Manual Button
(on side of
Plug-in).
Press to toggle
Plug-in on/o
LED. Blue
when power is
on / amber
when o
Overview
On/O Buttons
Transmission LED
All O Button
Mood Buttons
Device setup
Lamp Compatibility
Before you begin setting up and using the Plug-in Dimmer, you must ensure
that you have compatible lamps (bulbs). Ensuring the compatibility of your
lamps with LightwaveRF Plug-in
Dimmers will ensure that you get the best
experience from your lighting setup.
LightwaveRF Plug-in Dimmers are compatible with
• Standard mains voltage incandescent & low energy incandescent lighting
(min 40W, max 300W)
• GU10 and equivalent HI spot mains halogen lamps
LightwaveRF Plug-in Dimmers are NOT compatible with
• Wirewound transformers (generally older style)
• Electric motors
• LEDs
• CFLs
• CFL tube arrays
Device setup
Linking the plug-in to LightwaveRF controllers
LightwaveRF plug-ins each have 6 unique memory slots which means they
can link with up to 6 seperate LightwaveRF controllers in total.
NOTE: If you are using a smartphone/tablet/PC to control the Plug-in via the
Lightwave Link, this will always count as ONE controller and take up one
memory slot even if you are using multiple smartphones/tablets.
1. On the Plug-in, press and hold
down the manual button until the
LED flashes blue/amber alternately.
The Plug-in is now in linking mode.
2. Using a LightwaveRF controller
(such as the Mood Remote provided),
Smartphone or Web App, press the
button intended to be linked (the ‘on’
button on the Mood Remote); the
LED will flash blue to confirm that the
remote is now linked. If you are using
a LightwaveRF App, please refer to
in-App help for guidance.
Device setup
NOTE: Linking mode lasts for 12 seconds; if no signal is received from a
remote handset during this time then the Plug-in will automatically exit
linking mode without linking the device.
If, when expecting a quick flashing blue LED to confirm pairing, a slow
amber flash is received instead, then the Plug-in memory is FULL and no
further remotes may be linked with it unless one of the existing remotes is
unpaired first (see below).
1. On the Plug-in, press and hold the
Manual button until the LED flashes blue
and amber alternately, and then release it.
The Plug-in is now in linking mode.
2. On the
controller press the button that
you intend to link.
If using the Smartphone
or Web App, press the ‘connect’ button
(the App instructions
will guide you
through this).
The LED will flash blue to
confirm that the remote is now linked.
Unlinking remotes and clearing the Plug-in memory
Removing a single Device:
Device setup
NOTE: Reliable range of operation is around 15 metres indoors and up to
100m outdoors using the Lightwave Link. This figure may vary depending
upon the environment; very thick walls, bodies of water or large metal
objects may interfere with radio range.
If the distance between the transmitter and receiver is too great to achieve
reliable operation, the LightwaveRF Signal Booster may be used in
conjunction with this product to increase the range.
Clearing memory (will remove all linked remotes):
1. Press and hold down the manual
button until the LED flashes blue and
amber alternately, and then release it.
The Plug-in is now in linking mode.
2. On the Plug-in, press and hold down
the manual button again until the LED
flashes purple, then tap (don’t hold) the
Manual button a further time; the LED
will flash amber quickly to confirm that
the memory has been cleared.
Device setup
• Press and release the manual button to
toggle the Plug-in between the o and
on state (amber LED indicator will turn
blue and vice-versa).
NOTE: When turned on, The Plug-in will
dim to the level it was at when turned o.
Manual operation
IMPORTANT: The Plug-in Dimmer Socket will NOT function and the amber
LED will not illuminate unless there is a suitable, working lamp plugged in
to provide a load and form a connected circuit. The lamp must be turned on.

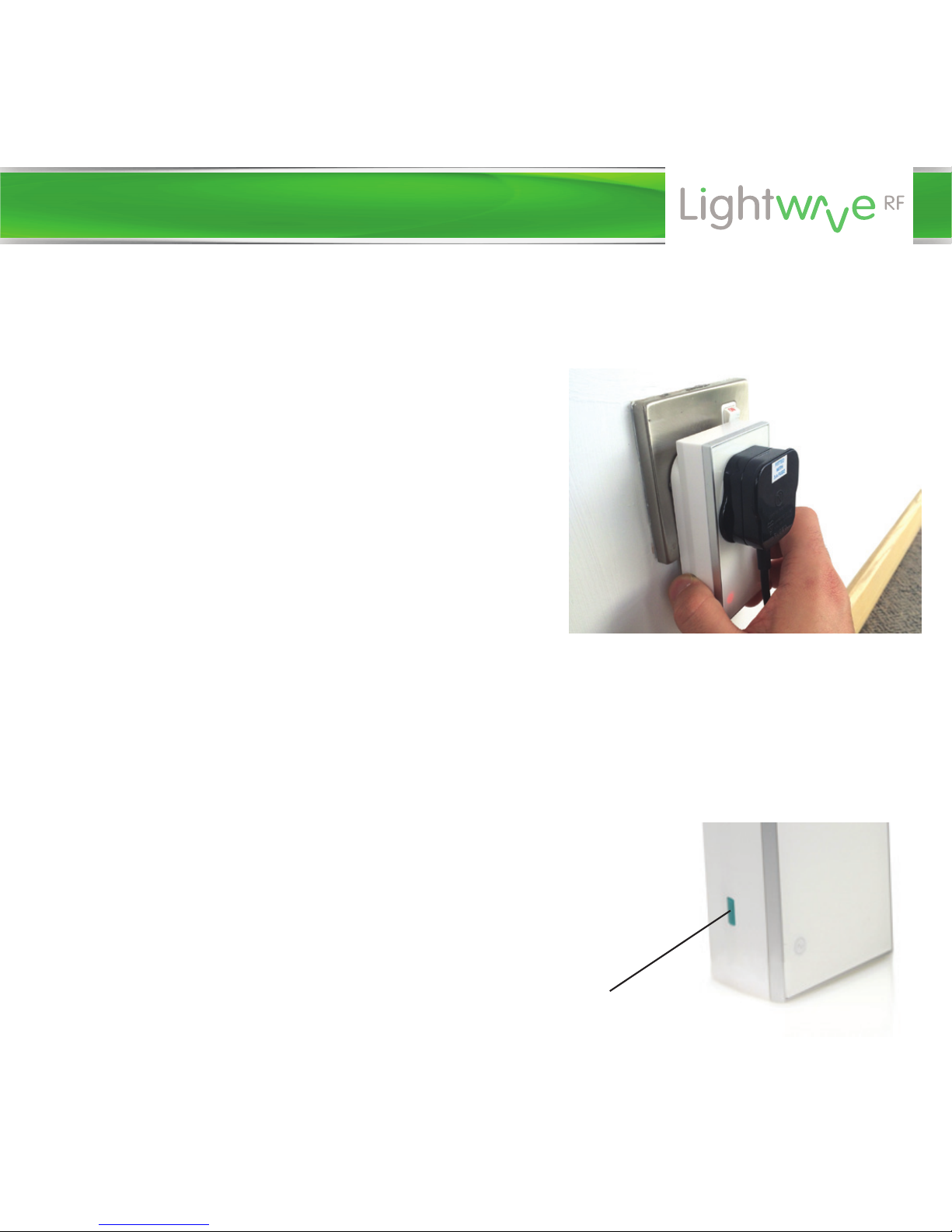

• Plug the LightwaveRF Plug-in Dimmer
Socket into a standard 13A wall socket and
ensure that the wall socket is turned on.
• Plug a working portable lamp into the
Plug-in Dimmer and ensure that it is
turned on. The LED on the Plug-in will
illuminate amber to illustrate that it has
detected a ‘load’ (working lamp).
Manual button
Manual operation
Control with a LightwaveRF
controller or smartphone
• Press the ‘on’ button on the
controller, Smartphone or Web App
once to switch the Plug-in Dimmer on
(LED indicator will illuminate blue).
Hold the button to increase light level.
• Press the ‘o’ button on the
Controller, Smartphone or Web App to
switch the Plug-in Dimmer o (LED
indicator will illuminate amber). Hold
the button to decrease the light level.
Using the Mood Remote
This kit comes with a Mood Remote Control. The Mood Remote can be
linked to one or more plug-in sockets using the method previously
described.
The Mood Remote has 4 independent channels that can be accessed
using the ‘bank selector’ switch. This means that a device/s can be linked
and controlled independently using the on/o buttons on each bank.
Remote operation
The mood buttons allow the Plug-in Dimmers (and/or other LightwaveRF
devices) that are linked to the Mood Remote to be grouped together on
one button command.
When saving a mood on the Mood Remote, the status of any linked
devices (i.e. on or o and the dim level) is also saved. This means that,
when one of the mood buttons is pressed, the saved status is recalled.
This is useful for saving and recalling a favourite lighting scene, or for
turning o all Plug-ins at once using the ‘all o’ button.
Setting and recalling a mood
1. Ensure that all plug-ins and/or other devices that need to be included
in the mood are already linked to the remote (on any bank).
2. Using the remote, or by manual operation, set the linked devices to the
status that you want to be saved (i.e. on or o and dim level).
3. Choose any of the 3 mood buttons (not the ‘all o’ button), press and
hold it until the LED indicators on the linked devices flash in recognition.
The mood is now saved. To make changes simply repeat the process.
4. Press and release the mood button to recall the saved mood. Press the
‘all o’ button to turn o all linked devices.
Remote operation
1. (Easy): Family Safety
Products Required: Plug-in dimmer, PIR motion sensor
Here we have a LightwaveRF plug-in dimmer paired to a PIR Motion Sensor.
When somebody is detected by the sensor, it triggers the plug-in
automatically and turns a lamp on. So, when one of the kids needs to use the
bathroom in the middle of the night, the path is safely lit for them. The light
is then set to turn o once no movement has been detected for a period of
time. So, when the little one is safely back in bed, the sensor will turn o that
light that is always normally left on!
Creative ideas
2. (Intermediate): Scene lighting
Required: Dimmer(s), Mood Controller, plug-ins
Dimmer switches & dimmable plug-ins enable you to control all of your lounge
ceiling lights and socket powered lamps individually or together as a group.
The Mood Controller allows you to set and recall your own favourite lighting
scenes at the touch of a button. You can dim all the lights for watching a movie
or create a relaxed mood for entertaining guests. At the end of the evening,
press the ‘all o’ button to turn o all lights and lamps. Adding the Lightwave
Link allows scene lighting to be controlled via a smartphone.
Creative ideas
3. (Advanced): Simulated occupancy
Required: Plug-in Dimmer(s), sockets or plug-ins, lightwave link
This setup gives you control over your devices from anywhere in the world.
Here we have ceiling lights controlled by dimmers and lamps plugged into
LightwaveRF power sockets or plug-in dimmers. Via the Lightwave Link,
every light can be controlled using a smartphone wherever you are. So, when
you’re away on holiday, you can turn on lights to make it look like someone’s
home. You can even set them to come on automatically at dierent times
each evening - enough to fool even the most watchful of intruders!
Creative ideas
Problem: The Plug-in will not consistently operate remotely.
Solution: The controller/Lightwave Link may be encountering interference
or may be at the edge of its reliable range of operation. First, ensure that
there are no large pieces of metal or bodies of water in the path of the
transmission. If the problem persists, try moving the Controller/Link closer
to the Plug-in, or consider using a LightwaveRF Signal Booster to extend
the range by relaying the signal between controller and Plug-in.
Positioning 2 or more Plug-ins directly next to each other (e.g. in a
multiblock) may also cause some radio conflict between the units. Try to
place the units 30cm or more apart if possible.
Problem: The Plug-in wont turn on/o and displays a flashing amber
light.
Solution: The Plug-in is locked. This may have been done using a Socket
Locker or from the LightwaveRF app. If it is locked on, then the Plug-in will
not turn o manually. If it is locked o, the Plug-in will not turn on manually.
To unlock the Plug-in, press the unlock button on the Socket Locker or
Smartphone App. If this is not possible, the Plug-ins can be reset by
unplugging them for a period of 30 seconds.
Problem: The LED/CFL lamps I am using flash and don't work properly
.
Solution: The Plug-in is not compatible with LEDs or low energy CFLs and
may not perform properly.
Troubleshooting
Problem: The Plug-in won’t turn on/o and the LED does not light up.
Solution: First, check that there is a load (suitable connected light turned
on). If so, check that there is a fully functioning connected lamp (bulb); if
there is no load (possibly because the lamp has failed) the LED will not
illuminate and the Plug-in will not function. If these measures fail contact
technical support via www.lightwaverf.com.
Problem: The Plug-in is powered (LEDs is on), but it will not link to a
LightwaveRF Handset or controller.
Solution: Check the controller battery strength: if the battery strength is
low, it will not produce enough power to drive the RF radio signal. Tap any
‘on’ button on the controller to transmit a signal. A strong battery signal is
indicated by the LED light on the controller remaining lit for 1-2 seconds after
releasing the button. A low battery is indicated if the LED light turns o
immediately. If this happens, please replace the battery.
Problem: The Plug-in is stuck on/o and will not operate manually.
Solution: It is possible for the Plug-in to be overloaded if the maximum
rating of 300W is exceeded
. This can cause the unit to fail or the software to
behave erratically. If this happens please contact technical support via
www.lightwaverf.com.
Troubleshooting
Q. Can I incorporate a Plug-in into a mood?
A. Yes: Plug-ins can be incorporated into a mood.
Q. Can I turn o the LED indicator light?
A. No it is not possible to turn o the LEDs as they are necessary to signify
the Plug-in’s status.
Q. Can I lock the Plug-in?
A. Yes the Plug-ins can be locked on or o.
Q. Can I use the Plug-in with LED lamps?
A. No. The Plug-in Dimmer does not currently work with LED lamps. If you
wish to control LED lamps, you can use a LightwaveRF Plug-in On/O Socket
instead.
Q. Can I use the Plug-in to control electrical devices other than lamps?
A. It may be possible to control other devices using the Plug-in Dimmer,
however, we do not recommend this as long term damage could be caused
to the unit by some electrical appliances.
FAQs
Q. Does the Plug-in work manually as a standalone unit?
A. Yes the Plug-in will operate manually.
Q. Does the Plug-in have a ‘standby’ power consumption
A. The Plug-in has a standby power consumption of approx. 0.5W. This is
because the in-built radio receiver requires power in order to receive
commands. This rate is low & well within government energy guidelines.
Q. Can I use the Plug-in in a multiblock?
A. Yes. However, make sure that Plug-ins are not positioned directly next to
each other as this could cause radio conflict. Try to ensure that the Plug-ins
are positioned 30cm apart for optimum performance.
Q. Is it possible to overload the Plug-in?
A. Yes. There is a limit of 300W; exceeding this could damage the unit.
Q. How many devices can I have on the Lightwave system?
A. Each device has 6 memory slots for up 6 controllers. Note: The Lightwave
Link allows a number of dierent smartphones to control the Plug-in
independently, however it only uses one memory slot.
FAQs
Specification
RF frequency: 433.92 MHz
Input rating: 220-240V~ 50Hz.
Output rating: 40W Min. 300W Max.
Standby Energy Use: Less than 1W
Warranty: 2 year standard warranty
Technical Specification
Version 2.1
2 Quadrant Park
Mundells
Welwyn Garden City
Herts
AL7 1FS
01707 386035
www.lightwaverf.house
Loading...
