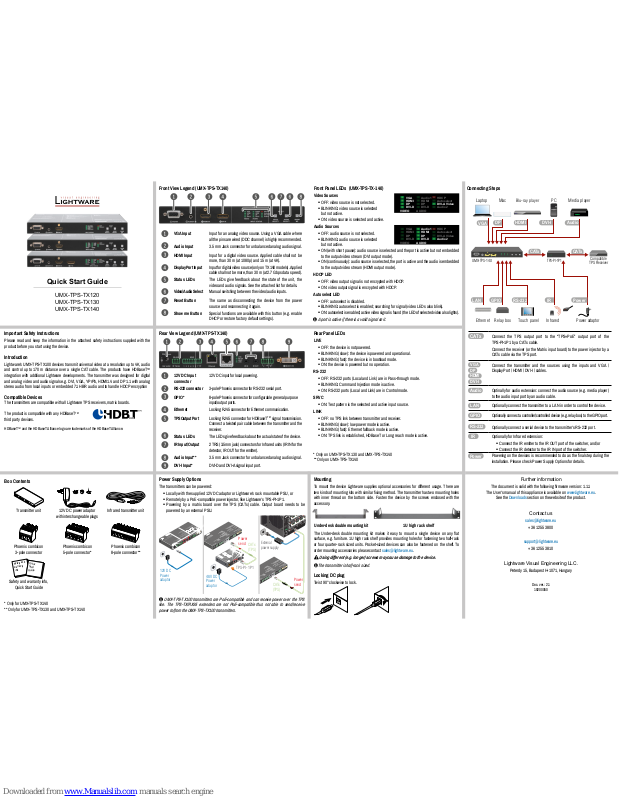

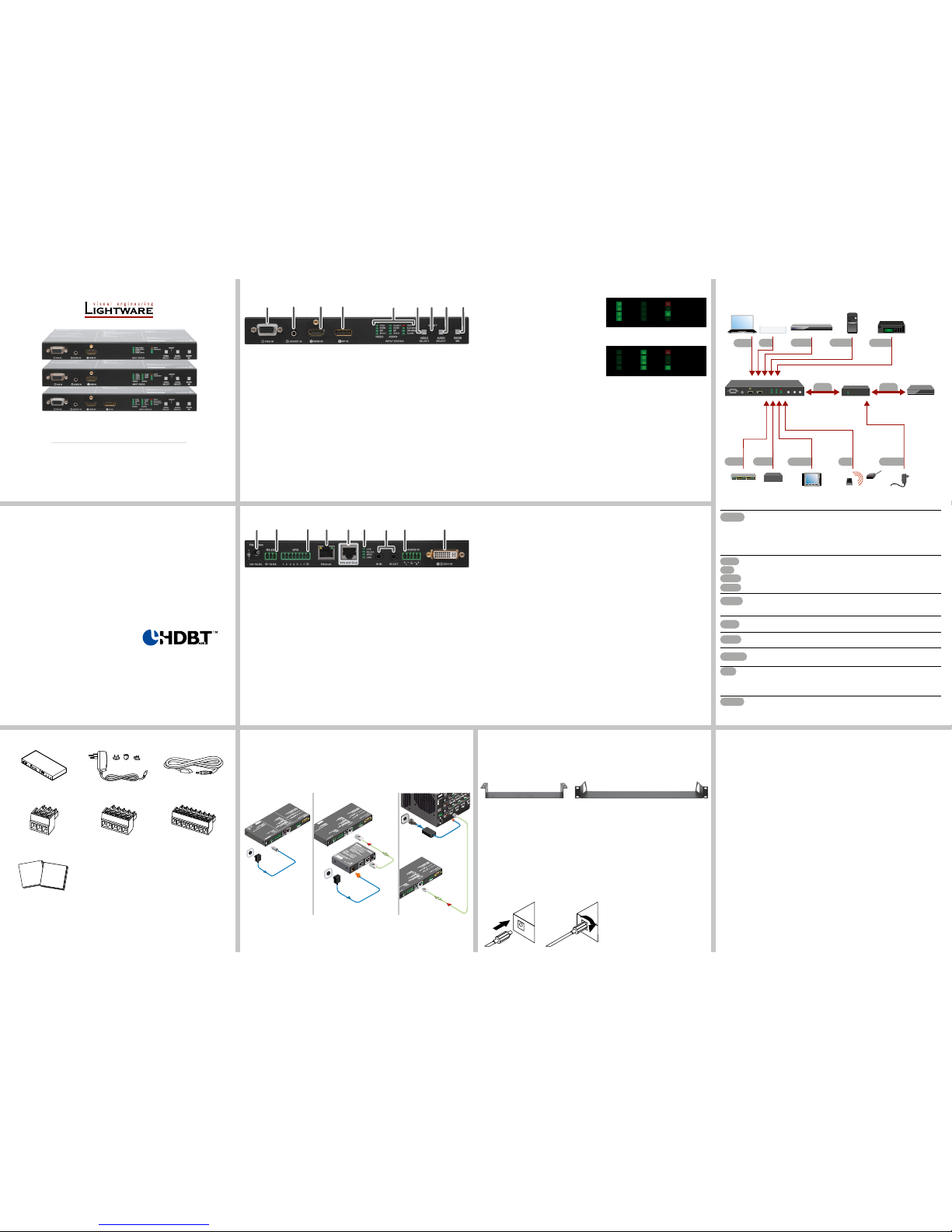

Page 1
Quick Start Guide
UMX-TPS-TX120
UMX-TPS-TX130
UMX-TPS-TX140
Further information
The document is valid with the following rmware version: 1.1.1
The User’s manual of this appliance is available on www.lightware.eu.
See the Downloads section on the website of the product.
Contact us
+36 1 255 3800
+36 1 255 3810
Lightware Visual Engineering LLC.
Peterdy 15, Budapest H-1071, Hungary
Doc. ver.: 2.1
19200050
Rear Panel LEDs
LIVE
OFF: the device is not powered.
BLINKING (slow): the device is powered and operational.
BLINKING (fast): the device is in bootload mode.
ON: the device is powered but no operation.
RS-232
OFF: RS-232 ports (Local and Link) are in Pass-through mode.
BLINKING: Command Injection mode is active.
ON: RS-232 ports (Local and Link) are in Control mode.
SRVC
ON: Test pattern is the selected and active input source.
LINK
OFF: no TPS link between transmitter and receiver.
BLINKING (slow): low power mode is active.
BLINKING (fast): Ethernet fallback mode is active.
ON: TPS link is established, HDBaseT or Long reach mode is active.
* Only on UMX-TPS-TX130 and UMX-TPS-TX140
** Only on UMX-TPS-TX140
Front Panel LEDs (UMX-TPS-TX-140)
Video Sources
OFF: video source is not selected.
BLINKING: video source is selected
but not active.
ON: video source is selected and active.
Audio Sources
OFF: audio source is not selected.
BLINKING: audio source is selected
but not active.
ON (with short pause): audio source is selected and the port is active but not embedded
to the output video stream (DVI output mode).
ON (continuously): audio source is selected, the port is active and the audio is embedded
to the output video stream (HDMI output mode).
HDCP LED
OFF: video output signal is not encrypted with HDCP.
ON: video output signal is encrypted with HDCP.
Autoselect LED
OFF: autoselect is disabled.
BLINKING: autoselect is enabled; searching for signal (video LEDs also blink).
ON: autoselect is enabled; active video signal is found (the LED of selected video also lights).
A port is active if there is a valid signal on it.
Important Safety Instructions
Please read and keep the information in the attached safety instructions supplied with the
product before you start using the device.
Introduction
Lightware’s UMX-TPS-TX100 devices transmit universal video at a resolution up to 4K, audio
and control up to 170 m distance over a single CAT cable. The products have HDBaseTTM
integration with additional Lightware developments. The transmitter was designed for digital
and analog video and audio signals e.g. DVI, VGA, YPrPb, HDMI1.4 and DP 1.1 with analog
stereo audio from local inputs or embedded 7.1 HBR audio and to handle HDCP encryption
Compatible Devices
The transmitters are compatible with all Lightware TPS receivers, matrix boards.
Box Contents
Transmitter unit 12V DC power adaptor
with interchangeable plugs
Infrared transmitter unit
Phoenix combicon
3-pole connector
Phoenix combicon
8-pole connector**
Phoenix combicon
5-pole connector*
Safety and warranty info,
Quick Start Guide
* Only for UMX-TPS-TX140
** Only for UMX-TPS-TX130 and UMX-TPS-TX140
Front View Legend (UMX-TPS-TX140)
1 2 3
4
76
65 8
1
VGA Input Input for an analog video source. Using a VGA cable where
all the pins are wired (DDC channel) is highly recommended.
2
Audio Input 3.5 mm Jack connector for unbalanced analog audio signal.
3
HDMI Input Input for a digital video source. Applied cable shall not be
more, than 30 m (at 1080p) and 15 m (at 4K).
4
DisplayPort Input Input for digital video source (only on TX140 models). Applied
cable shall not be more, than 30 m (at 2.7 Gbps data speed).
5
Status LEDs The LEDs give feedback about the state of the unit, the
video and audio signals. See the attached list for details.
6
Video/Audio Select Manual switching between the video/audio inputs.
7
Reset Button The same as disconnecting the device from the power
source and reconnecting it again.
8
Show me Button Special functions are available with this button (e.g. enable
DHCP or restore factory default settings).
Rear View Legend (UMX-TPS-TX140)
1
2 3
4
6 7 8 95
1
12V DC Input
connector
12V DC input for local powering.
2
RS-232 connector 3-pole Phoenix connector for RS-232 serial port.
3
GPIO* 8-pole Phoenix connector for congurable general purpose
input/output ports.
4
Ethernet Locking RJ45 connector for Ethernet communication.
5
TPS Output Port Locking RJ45 connector for HDBaseTTM signal transmission.
Connect a twisted pair cable between the transmitter and the
receiver.
6
Status LEDs The LEDs give feedback about the actual state of the device.
7
IR Input/Output 2 TRS (3.5mm jack) connectors for Infrared units (IR IN for the
detector, IR OUT for the emitter).
8
Audio Input** 3.5 mm Jack connector for unbalanced analog audio signal.
9
DVI-I Input* DVI-D and DVI-A signal input port.
Power Supply Options
The transmitters can be powered:
Locally with the supplied 12V DC adaptor or Lightware’s rack mountable PSU, or
Remotely by a PoE-compatible power injector, like Lightware’s TPS-PI-1P1.
Powering by a matrix board over the TPS (CATx) cable. Output board needs to be
powered by an external PSU.
UMX-TPS-TX100 transmitters are PoE-compatible and can receive power over the TPS
line. The TPS-TX/RX95 extenders are not PoE-compatible thus not able to send/receive
power to/from the UMX-TPS-TX100 transmitters.
Connecting Steps
The product is compatible with any HDBaseTTM
third party devices.
HDBaseTTM and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
Locking DC plug
Twist 90° clockwise to lock.
Mounting
To mount the device Lightware supplies optional accessories for different usage. There are
two kinds of mounting kits with similar xing method. The transmitter has two mounting holes
with inner thread on the bottom side. Fasten the device by the screws enclosed with the
accessory.
The Under-desk double mounting kit makes it easy to mount a single device on any at
surface, e.g. furniture. 1U high rack shelf provides mounting holes for fastening two half-rack
or four quarter-rack sized units. Pocket-sized devices can also be fastened on the shelf. To
order mounting accessories please contact [email protected].
Using different (e.g. longer) screws may cause damage to the device.
The transmitter is half-rack sized.
Under-desk double mounting kit 1U high rack shelf
CATx
DVI
Connect the TPS output port to the “TPS+PoE” output port of the
TPS-PI-1P1 by a CATx cable.
Connect the receiver (or the Matrix input board) to the power injector by a
CATx cable via the TPS port.
HDMI
VGA
DP
DVI-I
Connect the transmitter and the sources using the inputs and VGA /
DisplayPort / HDMI / DVI-I / cables.
Audio
Optinally for audio extension: connect the audio source (e.g. media player)
to the audio input port by an audio cable.
LAN
Optionally connect the transmitter to a LAN in order to control the device.
GPIO
Optionally connect a controller/controlled device (e.g. relay box) to the GPIO port.
RS-232
Optionally connect a serial device to the transmitter’s RS-232 port.
IR
Optionally for Infrared extension:
Connect the IR emitter to the IR OUT port of the switcher, and/or
Connect the IR detector to the IR IN port of the switcher.
Power
Powering on the devices is recommended to do as the nal step during the
installation. Please check Power Supply Options for details.
RS-232
Audio
DVI-I
GPIO
Laptop
VGA
Blu-ray player
HDMI
DP
Mac
Media player
IR
Ethernet
Infrared
Relay box
LAN
TPS-PI-1P1
Compatible
TPS Receiver
Touch panel
PC
UMX-TPS-140
Power adaptor
CATx CATx
Power
VGA
HDMI
DP
DVI-D
Audio1
HDMI
DP
DVI-D
HDCP
Autoselect
DVI-A Video
Audio2
VIDEO AUDIO
VGA
HDMI
DP
DVI-D
Audio1
HDMI
DP
DVI-D
HDCP
Autoselect
DVI-A Video
Audio2
VIDEO AUDIO
PIN: 2.1mm
GPIO
RS-232
TX RX
AUDIO2 IN
DVI-I IN
IR IN IR OUT
LIVE
RS-232
SRVC
LINK
12V 1A DC
PIN: 2.1mm
GPIO
RS-232
TX RX
AUDIO2 IN
DVI-I IN
IR IN IR OUT
LIVE
RS-232
SRVC
LINK
12V 1A DC
TPS-PI-1P1
48 DC IN
Typical: 0.7A
Max: 1.5A
- +
Max:2.5A
PIN: 2mm
CATx
(TPS)
Power
send
48V DC
Power
adaptor
PIN: 2.1mm
GPIO
RS-232
TX RX
AUDIO2 IN
DVI-I IN
IR IN IR OUT
LIVE
RS-232
SRVC
LINK
12V 1A DC
12V DC
Power
adaptor
MX-TPS2-IB-P
DC IN
8 CH TPS INPUT BOARD WITH POE
48V 5A
- +
Ethernet
TPS IN 1 TPS IN 2 TPS IN 3 TPS IN 4
8CH INPUT BOARD FOR HDMI WITH 3D AND ANALOG AUDIO
MX-HDMI-3D-IB-A
IN 1
IN 2
IN 3
IN 4
MX-TPS2-OB-S
48V 5A
DC IN
8 CH TPS OUTPUT BOARD WITH DIGITAL AUDIO
12V power on TPS connector. Only use with compatible devices!
12V power on TPS connector. Only use with compatible devices!
TPS OUT 1 TPS OUT 2 TPS OUT 3 TPS OUT 4
8CH OUTPUT BOARD FOR HDMI WITH 3D AND ANALOG AUDIO
MX-HDMI-3D-OB-A
OUT 1
OUT 2
CATx
(TPS)
External
power supply
Power
send
Safety and
warranty
info
Quick
Start
Guide

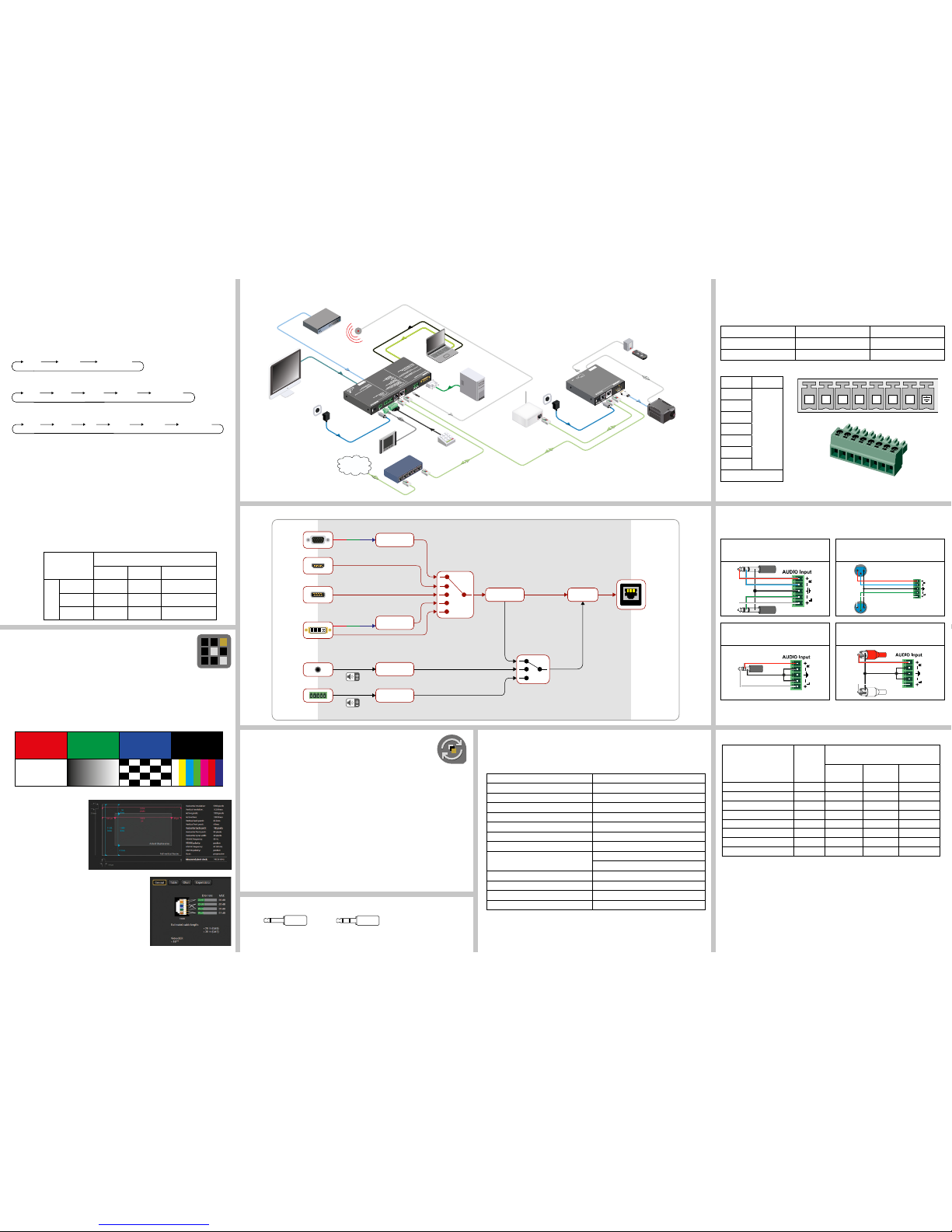

Page 2
Port Diagram (of TX140 models)
Typical Application
Software Control – Using Lightware Device Controller (LDC)
The device can be controlled from a computer through the Ethernet port
using Lightware Device Controller. Please download the application from
www.lightware.eu, install on a Windows PC or a Mac OS X and connect to the
device via the Ethernet port. LDC software contains many useful built-in tools
which can be used for signal analysis like the followings:
Test Pattern Generator
The output ports can send a special image towards the sink devices for testing purposes.
The settings of the test pattern are available via LDC, see the available patterns below:
Frame Detector
Lightware’s Frame Detector
function works like an input
signal analyzer and makes
possible to determine the exact
video format that is sent by the
source, thus helps to identify
many problems (e.g. timing
parameter difference).
TPS Cable Diagnostics
The estimated cable length and the quality of the link are
measured periodically and the diagnostic window shows
the values in real-time. If the green bars hit the rst line
in the middle they turn into red. It means the number of
the errors – during the extension – is higher than the
recommended one. The link might be alive but recovering
of the received data is not guaranteed.
Restore Factory Default Settings
1. Keep the Show me button pressed for 10 seconds; after 5 seconds front panel LEDs
start to blink but keep the buttons pressed; the LEDs start to blink faster 5 seconds later.
2. Release the button, then press it 3 times quickly; factory default settings are restored:
Maximum Twisted Pair Distances
Resolution
Pixel
clock rate
Cable lengths
(Auto / Long reach TPS mode)
CAT5e
AWG24
CAT7
AWG26
CAT7
AWG23
1024x768@60Hz 65 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
1280x720p@60Hz 73.8 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
1920x1080p@60Hz (24bpp) 148.5 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
1920x1200@60Hz 152.9 MHz 100 m / NA 90 m / NA 120 m / NA
1600x1200@60Hz 162 MHz 100 m / NA 90 m / NA 120 m / NA
1920x1080@60Hz (36bpp) 223 MHz 70 m / NA 70 m / NA 100 m / NA
3840x2160@30Hz UHD ** 297 MHz 70 m / NA 70 m / NA 100 m / NA
4096x2160@30Hz 4K ** 297 MHz 70 m / NA 70 m / NA 100 m / NA
* Long reach TPS mode supports pixel clock frequencies up to 148.5 MHz.
** If 4K video is selected to the output, analog audio cannot be embedded to the video stream
due to the capabilities of the video IC, thus the original audio stream is transmitted.
Above values are valid when the transmitter is powered by a local adaptor; distances may
decrease depending on the powering mode (local or remote) and cable quality.
CAT7 SFTP AWG23 cable is always recommended.
Setting a Dynamic IP Address
1. Keep the Show me button pressed for 5 seconds; all front panel LEDs start to blink.
2. Release the button, then press it 3 times quickly. DHCP is now enabled.
IP address (fix) 192.168.0.100
Subnet mask 255.255.255.0
Static gateway 192.168.0.1
DHCP disabled
TCP/IP port nr. LW2 / LW3 10001 / 6107
Crosspoint setting (Audio / Video) Audio 1 (Audio) / VGA input
Autoselect disabled
Output TPS mode Auto
Emulated EDID Analog ports: F89
Digital ports: dynamic
RS-232 mode Pass-through
RS-232 control protocol LW2
RS-232 port setting 57600 BAUD, 8, N, 1
Command injection port (local / link) 8001 / 8002
1 2 3 4 5 6 7
GPIO - General Purpose Input/Output Ports
UMX-TPS-TX140 transmitter has seven GPIO pins which operate at TTL digital signal levels
and can be set to high or low level (Push-Pull). The direction of the pins can be input or output
(adjustable). The signal levels are the following:
Voltage (V) Max. current (mA)
Low level 0 - 0,8 30
High level 2 -5 18
GPIO connector and plug pin assignment:
Pin nr. Signal
1
Congurable
2
3
4
5
6
7
Ground
The total available current of the controller is 180 mA.
Front Panel Button Functions
Lock/Unlock Buttons
Press the AUDIO SELECT and the SHOW ME together.
Video Input Selection
The desired video input can be selected by the VIDEO SELECT button on the front panel. The
selection order of the inputs depend on the model as follows:
TX120 models:
TX130 models:
TX140 models:
The input can be also selected by using LDC (Lightware Device Controller), sending a protocol
command, or using Autoselect.
Audio Input Selection
The desired audio input can be selected by the Audio select button on the front panel. The
selection order of the inputs depend on the model. The input can be also selected by using
LDC (Lightware Device Controller), sending a protocol command, or using Autoselect.
Autoselect
VGA
HDMI
Autoselect
VGA
HDMI DVI-D DVI-A
Autoselect
VGA
HDMI DP DVI-A DVI-D
If 4K video is selected to the output, analog audio cannot be embedded to the video stream
due to the capabilities of the video IC, thus the original audio stream will be transmitted.
Cross Audio-embedding
The video and audio inputs can be combined with limitations. Below table contains the allowed
connections:
Audio source
HDMI DP Analog Audio Input
Video source
HDMI
-
DP -
VGA - -
Firmware Upgrade
Lightware Device Updater (LDU) is an easy and comfortable way to keep
your device up-to-date. Steps of rmware upgrade are the following:
1. Download and install LDU software from the www.lightware.eu and get
the latest rmware package from Lightware Support ([email protected]).
2. Establish the connection between the extender and the computer over LAN.
3. Start LDU software and select the Extender mode.
4. Load the new rmware le.
5. Select your upgradeable device.
6. Review the list of selected devices. Please set “Factory reset” option as disabled to avoid
settings loss. If you want to set all settings to default values, enable this option.
7. Start rmware upgrade.
8. Please wait until it is completed and device is rebooted.
9. Ready.
In certain cases new rmware version requires a factory reset to apply all new
features in the device. In this case “Factory reset” option is enabled by default and not
changeable by the user.
Types of IR connectors (1/8” TRS / TS)
2 pole, 1 ring: IR transmitter 3 pole, 2 rings: IR receiver
PIN: 2.1mm
GPIO
RS-232
TX RX
AUDIO2 IN
DVI-I IN
IR IN IR OUT
LIVE
RS-232
SRVC
LINK
12V 1A DC
Touch panel
Button panel
PC
DVI
VGA
analog
audio
IR
Ethernet
switch
UMX-TPS-TX140
Blu-ray player
MAC
RS-232
Laptop
12V DC power
adaptor
12V DC
power
adaptor
IR emitter
WiFi
access
IR
RS-232
HDMI
TPS connection
CATx up to 170m
HDMI-TPS-RX97
IR detector
HD Projector
HDMI
DP
Internet
LAN
LAN
LAN
Sn
:
Made in EU, Hungary
RoHS
Ethernet 10/100
Bidirectional IR
Bidirectional RS-232
TTPPSS LL
oonngg
DDiissttaa
nncc
ee
TTrraa
nn
ssmm
iitttteerr
HDMI, 3D, 4K supported
For best performance use
AWG23
CAT6 or CAT7 SFTP
cable
PIN: 2mm
12V 1A
DC
H
D
M
I
--T
P
S
-T
X
9
7
Device can be remote powered over TPS link with PoE
(IEEE 802.3af)
TP
S
O
UT
PoE
( )
HDMI in
VGA in
DP in
DVI in
Analog
audio in 1
Analog
audio in 2
Analog audio
Analog video
Digital video + Digital audio
Analog video
Analog audio
Digital audio
A/D converter
Digital audio
5:1 digital
A/V switch
Digital video + Digital audio
Digital video + Digital audio
Digital
audio
Digital video
A/D converter
Embedder
A/D converter
A/D converter
3:1 digital
audio switch
De-embedder
Digital
audio
TPS OUT (PoE)
TPS out
Audio Cable Wiring Guide
UMX-TPS-TX140 transmitter is built with 5-pole Phoenix input connector. See below a few
example of the most common assembling cases.
From balanced output to balanced input
2x6.3 (1/4”) TRS - Phoenix
From balanced output to balanced input
2xXLR - Phoenix
2
3
12
3
AUDIO Inpu
t
From unbalanced output to balanced input
3.5 (1/8”) TRS - Phoenix
From unbalanced output to balanced input
2xRCA - Phoenix
For more information about audio cable wiring see the user’s manual of the device or the Audio
Cable Wiring Guide on our website www.lightware.eu.
Loading...
