Page 1
Front View (UCX-4x2-HC30D)
HDMI IN 1
HDMI IN 2
USB-C IN 1
USB-C IN 2
HDMI IN 3
HDMI IN 4
USB-C IN 1
HDMI IN 2
USB Status
Video Input Status
Front Panel LEDs

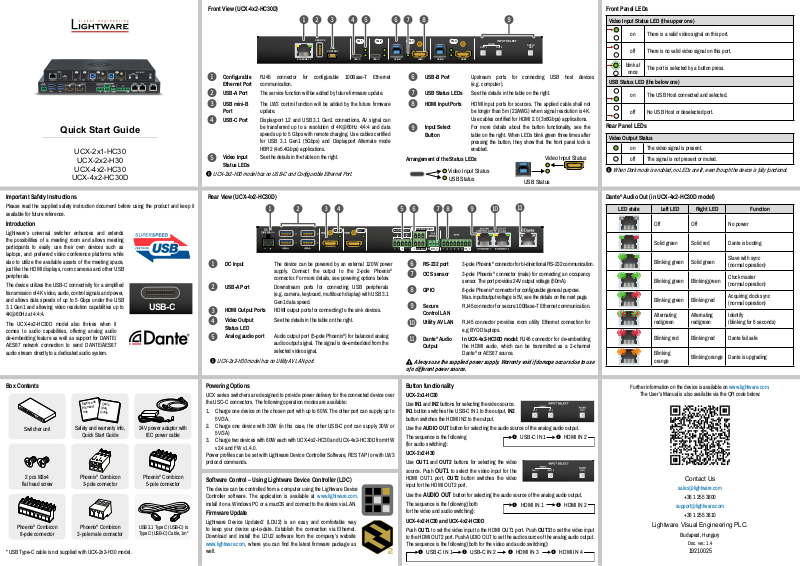

Quick Start Guide
UCX-2x1-HC30
UCX-2x2-H30
UCX-4x2-HC30
UCX-4x2-HC30D
Important Safety Instructions
Please read the supplied safety instruction document before using the product and keep it
available for future reference.
Introduction
Lightware’s universal switcher enhances and extends
the possibilities of a meeting room and allows meeting
participants to easily use their own devices such as
laptops, and preferred video conference platforms while
also to utilize the available assets of the meeting space,
just like the HDMI displays, room cameras and other USB
peripherals.
The device utilizes the USB-C connectivity for a simplied
transmission of 4K video, audio, control signals and power,
and allows data speeds of up to 5 Gbps under the USB
3.1 Gen1 and allowing video resolution capabilities up to
4K@60Hz at 4:4:4.
The UCX-4x2-HC30D model also thrives when it
comes to audio capabilities, offering analog audio
de-embedding feature as well as support for DANTE/
AES67 network connection to send DANTE/AES67
audio stream directly to a dedicated audio system.
USB-C
1 2 3 6 8 94 5
SERVICE
USB
CONTROL
ETHERNET 3
Congurable
1
Ethernet Port
USB-A Port The service function will be added by future rmware update.
2
USB mini-B
3
Port
USB-C Port Displayport 1.2 and USB 3.1 Gen1 connections, AV signal can
4
Video Input
5
Status LEDs
UCX-2x2-H30 model has no USB-C and Congurable Ethernet Port.
RJ45 connector for congurable 100Base-T Ethernet
communication.
The LW3 control function will be added by the future rmware
update.
be transferred up to a resolution of 4K@60Hz 4:4:4 and data
speeds up to 5 Gbps with remote charging. Use cables certied
for USB 3.1 Gen1 (5Gbps) and Displayport Alternate mode
HBR2 (4x5.4Gbps) applications.
See the details in the table on the right.
USB-C HDMI
Rear View (UCX-4x2-HC30D)
1 2 3 4 5 6 78 9 q
DC Input The device can be powered by an external 120W power
1
USB-A Port Downstream ports for connecting USB peripherals
2
HDMI Output Ports HDMI output ports for connecting to the sink devices.
3
Video Output
4
Status LED
Analog audio port Audio output port (5-pole Phoenix®) for balanced analog
5
UCX-2x2-H30 model has no Utility AV LAN port.
supply. Connect the output to the 2-pole Phoenix®
connector. For more details, see powering options below.
(e.g. camera, keyboard, multitouch display) with USB 3.1
Gen1 data speed.
See the details in the table on the right.
audio output signal. The signal is de-embedded from the
selected video signal.
7
IN 1 IN 2 IN 3 IN 4
USB-B
USB-B Port Upstream ports for connecting USB host devices
6
USB Status LEDs See the details in the table on the right.
7
HDMI Input Ports HDMI input ports for sources. The applied cable shall not
8
Input Select
9
Button
Arrangement of the Status LEDs
Video Input Status
USB Status
RS-232 port 3-pole Phoenix® connector for bi-directional RS-232 communication.
6
OCS sensor 3-pole Phoenix® connector (male) for connecting an occupancy
7
GPIO 8-pole Phoenix® connector for congurable general purpose.
8
Secure
9
Control LAN
Utility AV LAN RJ45 connector provides room utility Ethernet connection for
q
Dante® Audio
w
Output
¢
Always use the supplied power supply. Warranty void if damage occurs due to use
of a different power source.
INPUT SELECT
VIDEO
OUT 2OUT 1
HDMIUSB-BUSB-C
(e.g. computer).
be longer than 5m (22AWG) when signal resolution is 4K.
Use cables certied for HDMI 2.0 (3x6Gbps) applications.
For more details about the button functionality, see the
table on the right. When LEDs blink green three times after
pressing the button, they show that the front panel lock is
enabled.
AUDIO
OUT
w
sensor. The port provides 24V output voltage (50mA).
Max. input/output voltage is 5V, see the details on the next page.
RJ45 connector for secure 100Base-T Ethernet communication.
e.g BYOD laptops.
In UCX-4x2-HC30D model: RJ45 connector for de-embedding
the HDMI audio, which can be transmitted as a 2-channel
Dante® or AES67 source.
Video Input Status LED (the upper one)
on There is a valid video signal on this port.
off There is no valid video signal on this port.
blink at
USB Status LED (the below one)
The port is selected by a button press.
once
on The USB Host connected and selected.
off No USB Host or deselected port.
Rear Panel LEDs
Video Output Status
on The video signal is present.
off The signal is not present or muted.
When Dark mode is enabled, no LEDs are lit, even though the device is fully functional.
Dante® Audio Out (in UCX-4x2-HC30D model)
LED state Left LED Right LED Function
Off Off No power
Solid green Solid red Dante is booting
Blinking green Solid green
Blinking green Blinking green
Blinking green Blinking red
Alternating
red/green
Blinking red Blinking red Dante fail safe
Blinking
orange
Alternating
red/green
Blinking orange Dante is upgrading
Slave with sync
(normal operation)
Clock master
(normal operation)
Acquiring clock sync
(normal operation)
Identify
(blinking for 6 seconds)
Box Contents
Quick
Safety and
Start
Warranty
Guide
Info
Switcher unit
2 pcs M3x4
at head screw
®
Combicon
Phoenix
8-pole connector
* USB Type-C cable is not supplied with UCX-2x2-H30 model .
Safety and warranty info,
Quick Start Guide
Phoenix
3-pole connector
Phoenix® Combicon
3-pole male connector
®
Combicon
24V power adaptor with
IEC power cable
®
Phoenix
Combicon
5-pole connector
USB 3.1 Type C (USB-C) to
Type C (USB-C) Cable, 1m*
Powering Options
UCX series switchers are designed to provide power delivery for the connected device over
the USC-C connectors. The following operation modes are available:
1. Charge one device on the chosen port with up to 60W. The other port can supply up to
5V/3A.
2. Charge one device with 30W (in this case, the other USB-C port can supply 30W or
5V/3A)
3. Charge two devices with 60W each with UCX-4x2-HC30 and UCX-4x2-HC30D from HW
v2.4 and FW v1.4.0.
Power proles can be set with Lightware Device Controller Software, REST API or with LW3
protocol commands.
Software Control – Using Lightware Device Controller (LDC)
The device can be controlled from a computer using the Lightware Device
Controller software. The application is available at www.lightware.com,
install it on a Windows PC or a macOS and connect to the device via LAN.
Firmware Update
Lightware Device Updater2 (LDU2) is an easy and comfortable way
to keep your device up-to-date. Establish the connection via Ethernet.
Download and install the LDU2 software from the company’s website
www.lightware.com, where you can nd the latest rmware package as
well.
Button functionality
UCX-2x1-HC30
Use IN1 and IN2 buttons for selecting the video source.
IN1 button switches the USB-C IN1 to the output, IN2
button switches the HDMI IN2 to the output.
Use the AUDIO OUT button for selecting the audio source of the analog audio output.
2
3
1
1
2
2
4
The sequence is the following
(for audio switching):
UCX-2x2-H30
Use OUT1 and OUT2 buttons for selecting the video
source. Push
HDMI OUT1 port, OUT2 button switches the video
input for the HDMI OUT2 port.
Use the
The sequence is the following (both
for the video and audio switching):
UCX-4x2-HC30 and UCX-4x2-HC30D
Push OUT1 to set the video input to the HDMI OUT1 port. Push OUT2 to set the video input
to the HDMI OUT2 port. Push AUDIO OUT to set the audio source of the analog audio output.
The sequence is the following (both for the video and audio switching):
OUT1 to select the video input for the
AUDIO OUT button for selecting the audio source of the analog audio output.
1
Further information on the device is available on www.lightware.com.
The User’s Manual is also available via the QR code below:
Contact Us
+36 1 255 3800
+36 1 255 3810
Lightware Visual Engineering PLC.
Budapest, Hungary
Doc. ver.: 1.4
19210025
Page 2
USB-C
HDMI
CATx
USB
HDMI
RS-232
CATx
Audio
GPIO
OCS
Power
Mounting the Device (with optionally available accessories)
AUDIO Output
OUT 2
HDMI
INPUT SELECT
OUT1
VIDEO
OUT 2
OUT 1
VIDEO
INPUT SELECT
RESET
OUT 2
HDMI
INPUT SELECT
OUT1
VIDEO
OUT 2
OUT 1
VIDEO
INPUT SELECT
OUT 2
HDMI
INPUT SELECT
OUT1
VIDEO
OUT 2
VIDEO
INPUT SELECT
The examples demonstrate the applications of UD Kit accessories:
Insert the power supply into
1
UD Mounting PSU F100.
power supply
UD Mounting PSU F100
Fix the UD-Kits under the desk by fastening the screws.
3
Fix the UD Mounting plate F100 to the switcher
by fastening the screws (these 2pcs screws are
2
supplied with the switcher).
UD Mounting plate F100
switcher
Connecting Steps
BYOD
Laptop 1.
USB-C*
ETHERNET 3
Laptop 2.
HDMI
SERVICE
USB
CONTROL
BYOD
Room PC
Speaker
HDMI
CATx
IN 1 IN 2 IN 3 IN 4
USB-C HDMI
USB
USB-B
phone
USB
HDMIUSB-BUSB-C
Projector
RS-232
VIDEO
OUT 2OUT 1
INPUT SELECT
HDMI
AUDIO
OUT
UCX-4x2-HC30D
CATx
CATx
Ethernet
AUDIO
Relay box
Active Speakers
Connecting USB-B and HDMI ports to the same PC or laptop is recommended in case of
OCS
GPIO
Occupancy
sensor
Power
Power
outlet
I3 and I4 inputs.
Connect a USB-C source (e.g. BYOD laptop) to the USB-C input port.
The applied cable shall be certied for USB 3.1 Gen1 (5Gbps) and Displayport
Alternate mode HBR2 (4x5.4Gbps) applications.
Connect an HDMI source (e.g. BYOD laptop or room PC) to the HDMI input port.
Connect a device (e.g. BYOD laptop) to the Utility Ethernet port to access the
Internet or local network.
USB Type-A: Optionally connect the USB device (e.g. Speaker phone).
USB Type-B: Optionally connect the USB host (e.g. PC).
Connect an HDMI sink (e.g projector) to the HDMI output port.
Optionally for RS-232 extension: connect a controller/controlled device (e.g.
Projector to the RS-232 port).
Optionally connect the Secure Control Ethernet port to a Local Network Switch to
provide Ethernet connection for device configuration and BYOD internet access.
Optionally connect an audio device (e.g. active speakers) to the analog audio
output port by an audio cable.
Optionally connect a device (e.g. Relay box ) to the GPIO port.
Optionally connect an occupancy sensor to the OCS port.
Connect the external power supply to the AC power socket and the switcher unit.
Powering the device is recommended as the nal step.
Setting a Dynamic IP Address (DHCP)
1. Keep the Audio out button pressed for
AUDIO
AUDIO
OUT
OUT
5 seconds; all front panel LEDs start to blink.
AUDIO
AUDIO
2. Release the button, then press it 3 times
OUT
OUT
quickly. DHCP is now enabled.
Lock / Unlock Buttons
Press the VIDEO OUT1 (VIDEO IN1 in
UCX-2x1-HC30 model) and AUDIO OUT buttons
OUT 1
AUDIO
AUDIO
OUT
OUT
together (within 100 ms) to disable/enable front
panel buttons; front panel LEDs blink 4 times
when locking / unlocking.
OCS (Occupancy) Sensor
The switcher is supplied with a 3-pole Phoenix® connector (male), which is
for connecting an OCS sensor.
Plug pin assignment: 1: Congurable; 2: 24V (max. 50 mA); 3: Ground
The signal levels for the Pin 1 Input voltage (V) Max. current (mA)
Logic low level 0 - 0.8 30
Logic high level 2 -5 18
The occupancy sensor connector and the GPIO port are not compatible with each
¢
other because of the voltage level difference, please do not connect them directly.
1 2 3
5
sec
3x
¢
UD-Mounting plate F100 and UD Mounting PSU F100 do not contain the xing
screws, they can be purchased from the local hardware store. 2x4pcs M3-M5 metric or
wood screws needed, M3 size is recommended.
¢
To ensure the correct ventilation and avoid overheating, insert the switcher face
down to the UD KIT to keep the ventilation holes free.
Mounting the Device with UD Kit Rack Shelf (with optionally available accessories)
The example on the right demonstrates
the applications of UD Kit Rack Shelf
accessories.
For xing the device to a Rack
¢
shelf, use the screw supplied with the
switcher. Longer screws may touch
internal parts and harm the device.
Factory Default Settings
To restore factory default values, do the following steps: Make sure the switcher is powered
off. Press and keep pressing the VIDEO OUT2 (VIDEO IN2 button in UCX-2x1-HC30 model)
button. Power on the switcher while the VIDEO OUT2* button is being pressed for 10 seconds.
The device restores the factory default settings and reboots.
IP address Dynamic (DHCP is enabled)
Hostname lightware-<serialno>
Video Crosspoint setting I1 on O1, I3 on O2
HDCP mode (in) - UCX-4x2-HC30(D) I1, I2: HDCP 1.4; I3,I4: HDCP 2.2
HDCP mode (in) UCX-2x1-HC30, UCX-2x2-H30 I1, I2: HDCP 2.2
HDCP mode (out) Auto
Signal type Auto
Emulated EDID F47 - (Universal HDMI with PCM audio)
Audio Crosspoint setting I1 on O3 (UCX-2x1-HC30: I1 on O2)
Analog audio output levels Volume (dB): 0.00; Balance: 0 (center)
Video Autoselect Follow video O1
USB-C Power Limit (UCX-2x1-HC30) 60W output power
USB-C Power Limit (other models) Equal output power
DP Alternate Mode Policy Auto
Port Power Role Dual Role
USB Autoselect Follow video O1
D1-D4 Power 5V Mode Auto
RS-232 port setting 9600 BAUD, 8, N, 1
RS-232 serial over IP Enabled
HTTP, HTTPS Enabled
HTTP, HTTPS authentication Disabled
AV Port Diagram (UCX-4x2-HC30D)
Welcome
screen I5
USB-C to
USB-C in I1
USB-C in I2
HDMI
converter
USB-C to
HDMI
converter
HDMI in I3
HDMI in I4
USB Port Diagram (UCX-4x2-HC30D)
USB 2.0
mini
USB-B
USB 2.0
USB
Service
500 mA
USB Host 1.
up to 60W*
USB Host 2.
up to 60W*
USB Host 3.
USB Host 4.
*For more details about the power delivery of the USB-C port, see the Powering Options section.
USB 2.0
USB 2.0
CPU
USB-C (5 Gbps)
USB 2.0 hub+
Ethernet bridge
USB-C (5 Gbps)
USB 2.0 hub+
Ethernet bridge
USB 3.1 Gen1(5 Gbps)
USB 2.0
USB 3.1 Gen1(5 Gbps)
USB 2.0
4x3 audio/video crosspoint
USB 3.1 Gen1
MUX
USB 2.0
MUX
USB 2.0
(5 Gbps)
USB 3.1 Gen1
(5 Gbps)
SuperSpeed
SuperSpeed
de-embedder
USB 3.1 Gen1
(5 Gbps)
USB 2.0
Audio
USB 3.1 Gen1
De-
embedded
audio
Hub
Dante® audio
USB 3.1 Gen1
(5 Gbps)
USB 2.0
USB 3.1 Gen1
(5 Gbps)
USB 2.0
USB 3.1 Gen1
(5 Gbps)
USB 2.0
USB 3.1 Gen1
(5 Gbps)
USB 2.0
converter
D/A
converter
USB
Device 1
USB
Device 2.
USB
Device 3.
USB
Device 4.
Digital
audio
Analog
audio
1000 mA
1000 mA
1000 mA
1000 mA
HDMI out O1
HDMI out O2
Dante®
audio out*
Analog
audio out
Audio Cable Wiring Guide
The Taurus UCX series is built with a 5-pole Phoenix® output connector. See a few examples
below of the most common assembling cases.
Balanced output to balanced input
Phoenix - 2x6.3 (1/4”) TRS
Balanced output to unbalanced input
Phoenix - 2x RCA
Balanced output to balanced input
Phoenix cable - 2x XLR plugs
2
3
2
3
Balanced output to unbalanced input
Phoenix - 2x 6.3 (1/4”) TS
GPIO (General Purpose Input/Output Ports)
The device has seven GPIO pins that operate at TTL
digital signal levels and can be set to high or low level
(Push-Pull). The direction of the pins can be input or output (adjustable). The signal levels are
the following:
Input voltage (V) Output voltage (V) Max. current (mA)
Logic low level 0 - 0.8 0 - 0.5 30
Logic high level 2 -5 4.5 - 5 18
Plug pin assignment 1-6: Congurable, 7: 5V (max. 500 mA); 8: Ground
The recommended cable for the connectors is the AWG24 (0.2 mm
used ‘alarm cable’ with 4x0.22 mm2 wires.
The maximum total current for the six GPIO pins is 180 mA, the max. supported input/
output voltage is 5V.
1 2 3 4 5 6 7 8
2
diameter) or the generally
RS-232
The switcher provides a 3-pole Phoenix® connector for bi-directional serial communication.
The signal levels are the following:
Output voltage (V)
Logic low level 3 - 15
Logic high level -15 - 3
Plug pin assignment: 1: Ground, 2: TX data, 3: RX data
1 2 3
Loading...
