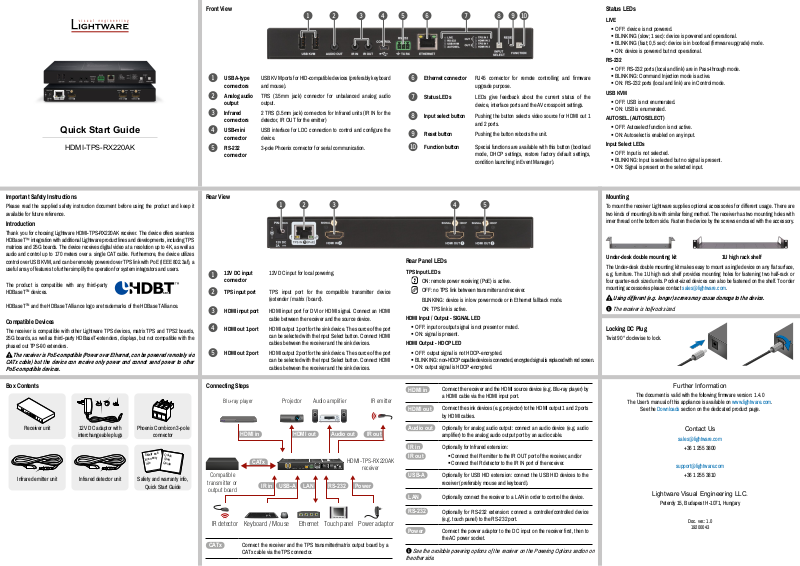

Page 1
Quick Start Guide
2 4 5 6 8
9q
1 3 7
1 2 3 4 5
CATx
HDMI in
HDMI out
Audio out
IR in
IR out
USB-A
LAN
RS-232
Power
Projector Audio amplifier IR emitter
Blu-ray player
HDMI-TPS-RX220AK
Touch panel Power adaptor
EthernetKeyboard / MouseIR detector
HDMI-TPS-RX220AK

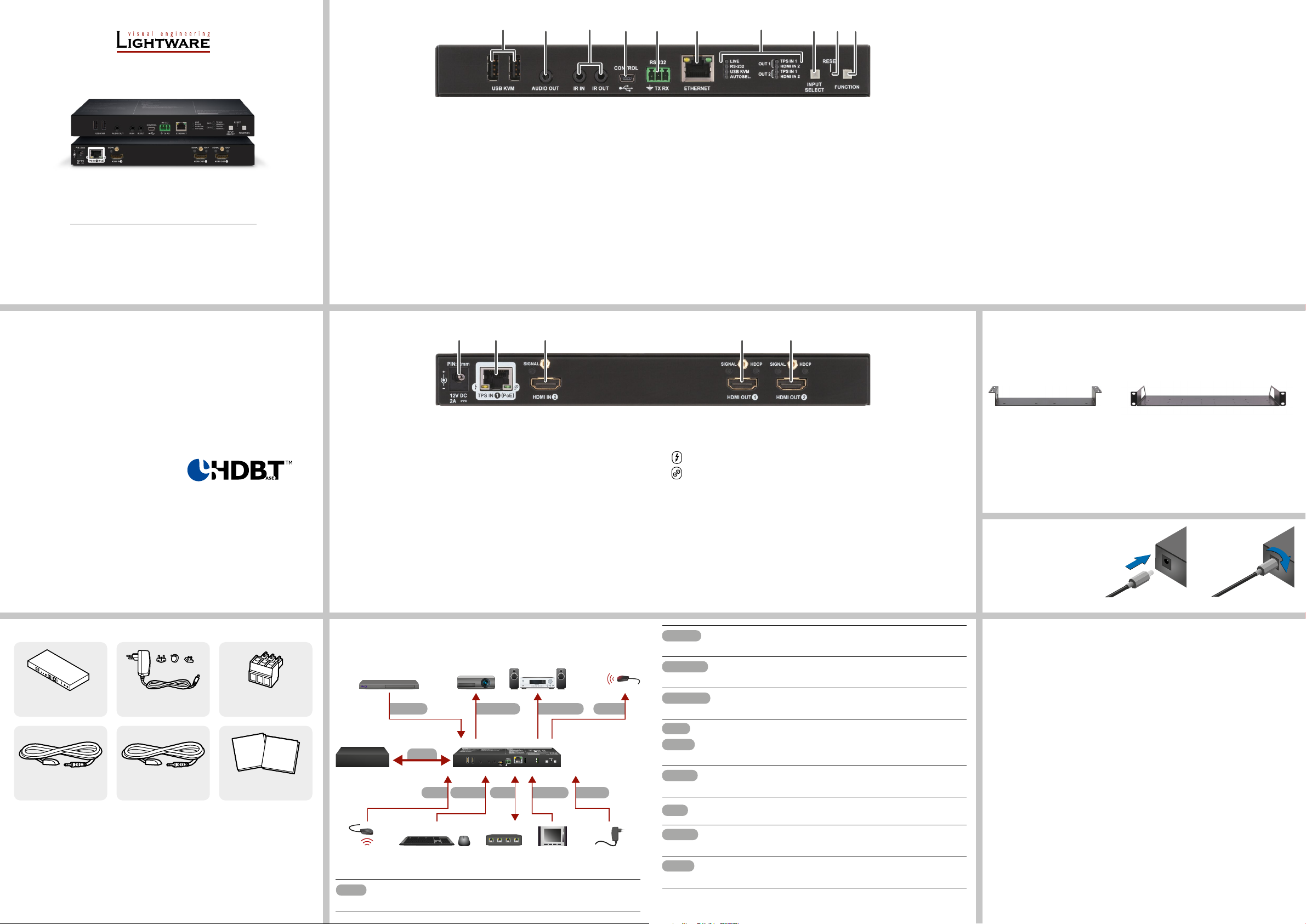

Front View
USB A-type
1
connectors
Analog audio
2
output
Infrared
3
connectors
USB-mini
4
connector
RS-232
5
connector
USB KVM ports for HID-compatible devices (preferably keyboard
and mouse).
TRS (3.5mm jack) connector for unbalanced analog audio
output.
2 TRS (3.5mm jack) connectors for Infrared units (IR IN for the
detector, IR OUT for the emitter)
USB interface for LDC connection to control and configure the
device.
3-pole Phoenix connector for serial communication.
Ethernet connector RJ45 connector for remote controlling and rmware
6
upgrade purpose.
Status LEDs LEDs give feedback about the current status of the
7
device, interface ports and the AV crosspoint settings.
Input select button Pushing the button selects video source for HDMI out 1
8
and 2 ports.
Reset button Pushing the button reboots the unit.
9
Function button Special functions are available with this button (bootload
q
mode, DHCP settings, restore factory default settings,
condition launching in Event Manager).
Status LEDs
LIVE
OFF: device is not powered.
BLINKING (slow; 1 sec): device is powered and operational.
BLINKING (fast; 0,5 sec): device is in bootload (rmware upgrade) mode.
ON: device is powered but not operational.
RS-232
OFF: RS-232 ports (local and link) are in Pass-through mode.
BLINKING: Command Injection mode is active.
ON: RS-232 ports (local and link) are in Control mode.
USB KVM
OFF: USB is not enumerated.
ON: USB is enumerated.
AUTOSEL. (AUTOSELECT)
OFF: Autoselect function is not active.
ON: Autoselect is enabled on any input.
Input Select LEDs
OFF: Input is not selected.
BLINKING: Input is selected but no signal is present.
ON: Signal is present on the selected input.
Important Safety Instructions
Please read the supplied safety instruction document before using the product and keep it
available for future reference.
Introduction
Thank you for choosing Lightware HDMI-TPS-RX220AK receiver. The device offers seamless
HDBaseT™ integration with additional Lightware product lines and developments, including TPS
matrices and 25G boards. The device receives digital video at a resolution up to 4K, as well as
audio and control up to 170 meters over a single CAT cable. Furthermore, the device utilizes
control over USB KVM, and can be remotely powered over TPS link with PoE (IEEE 802.3af), a
useful array of features to further simplify the operation for system integrators and users.
The product is compatible with any third-party
HDBaseTTM devices.
HDBaseTTM and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
Compatible Devices
The receiver is compatible with other Lightware TPS devices, matrix TPS and TPS2 boards,
25G boards, as well as third-party HDBaseT-extenders, displays, but not compatible with the
phased out TPS-90 extenders.
The receiver is PoE-compatible (Power over Ethernet, can be powered remotely via
¢
CATx cable) but the device can receive only power and cannot send power to other
PoE-compatible devices.
Box Contents
Rear View
12V DC input
1
connector
TPS input port TPS input port for the compatible transmitter device
2
HDMI input port HDMI input port for DVI or HDMI signal. Connect an HDMI
3
HDMI out 1 port HDMI output 1 port for the sink device. The source of the port
4
HDMI out 2 port HDMI output 2 port for the sink device. The source of the port
5
12V DC input for local powering.
(extender / matrix / board).
cable between the receiver and the source device.
can be selected with the Input Select button. Connect HDMI
cables between the receiver and the sink devices.
can be selected with the Input Select button. Connect HDMI
cables between the receiver and the sink devices.
Connecting Steps
Rear Panel LEDs
TPS Input LEDs
ON: remote power receiving (PoE) is active.
OFF: no TPS link between transmitter and receiver.
BLINKING: device is in low power mode or in Ethernet fallback mode.
ON: TPS link is active.
HDMI Input / Output - SIGNAL LED
OFF: input or output signal is not present or muted.
ON: signal is present.
HDMI Output - HDCP LED
OFF: output signal is not HDCP-encrypted.
BLINKING: non-HDCP capable device is connected, encrypted signal is replaced with red screen.
ON: output signal is HDCP-encrypted.
Connect the receiver and the HDMI source device (e.g. Blu-ray player) by
a HDMI cable via the HDMI input port.
Connect the sink devices (e.g. projector) to the HDMI output 1 and 2 ports
by HDMI cables.
Mounting
To mount the receiver Lightware supplies optional accessories for different usage. There are
two kinds of mounting kits with similar xing method. The receiver has two mounting holes with
inner thread on the bottom side. Fasten the device by the screws enclosed with the accessory.
Under-desk double mounting kit 1U high rack shelf
The Under-desk double mounting kit makes easy to mount a single device on any at surface,
e.g. furniture. The 1U high rack shelf provides mounting holes for fastening two half-rack or
four quarter-rack sized units. Pocket-sized devices can also be fastened on the shelf. To order
mounting accessories please contact [email protected].
Using different (e.g. longer) screws may cause damage to the device.
¢
The receiver is half-rack sized.
Locking DC Plug
Twist 90° clockwise to lock.
Further Information
The document is valid with the following rmware version: 1.4.0
The User’s manual of this appliance is available on www.lightware.com.
See the Downloads section on the dedicated product page.
Receiver unit 12V DC adaptor with
Infrared emitter unit Safety and warranty info,
interchangeable plugs
Infrared detector unit
Phoenix Combicon 3-pole
connector
Quick
Safety and
Start
Warranty
Guide
Info
Quick Start Guide
Compatible
transmitter or
output board
CATx
HDMI outHDMI in
USB KVM IR OUT
AUDIO OUT
Audio out
OSELECT
TPS IN 1
LIVE
RS-232
CONTROL
TX RX
IR IN
ETHERNET
RESET
OUT 1
RS-232
HDMI IN 2
TPS IN 1
USB KVM
OUT 2
HDMI IN 2
AUTOSEL.
INPUT
FUNCTION
SELECT
RS-232IR in LANUSB-A
IR out
receiver
Power
Connect the receiver and the TPS transmitter/matrix output board by a
CATx cable via the TPS connector.
Optionally for analog audio output: connect an audio device (e.g. audio
amplier) to the analog audio output port by an audio cable.
Optionally for Infrared extension:
Connect the IR emitter to the IR OUT port of the receiver, and/or
Connect the IR detector to the IR IN port of the receiver.
Optionally for USB HID extension: connect the USB HID devices to the
receiver (preferably mouse and keyboard).
Optionally connect the receiver to a LAN in order to control the device.
Optionally for RS-232 extension: connect a controller/controlled device
(e.g. touch panel) to the RS-232 port.
Connect the power adaptor to the DC input on the receiver rst, then to
the AC power socket.
See the available powering options of the receiver on the Powering Options section on
the other side.
Contact Us
+36 1 255 3800
+36 1 255 3810
Lightware Visual Engineering LLC.
Peterdy 15, Budapest H-1071, Hungary
Doc. ver.: 1.0
19200043

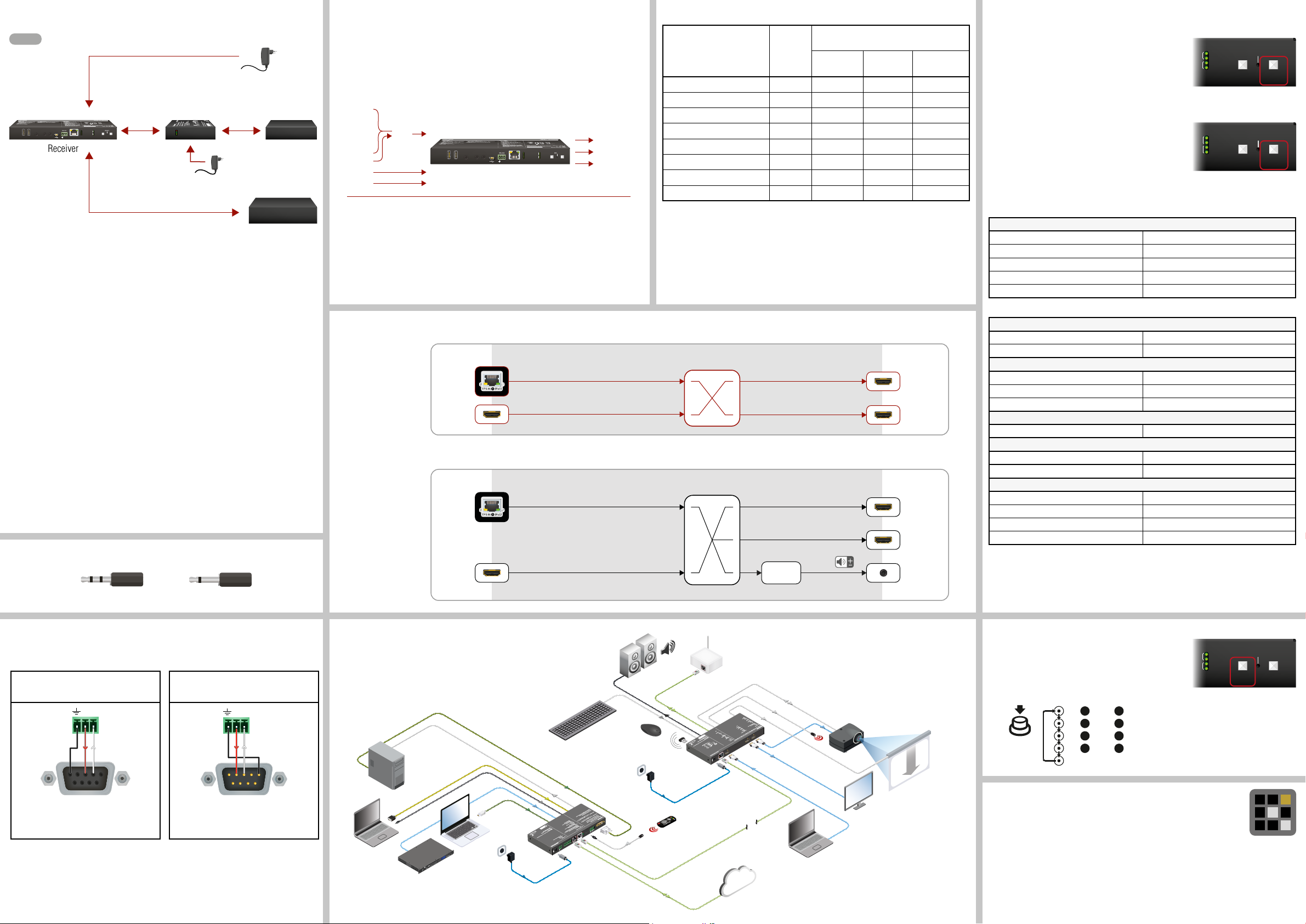

Page 2
INPUT
SELECT
AUTOSELECT
Powering Options
10s long press + 3x short press
5s long press + 3x short press
TX RX
TX RX
projector
HDMI
Analog audio
USB KVM
(over TPS)
+ Local USB
+ Ethernet
+ RS-232
+ Infrared
INPUT
TPS
HDMI
Ethernet
RS-232
Infrared
Power
HDMI
USB KVM
OUTPUT
OSELECT
RESET
RS-232
USB KVM IR OUT
IR IN
CONTROL
ETHERNET
RS-232
LIVE
USB KVM
AUTOSEL.
TX RX
AUDIO OUT
HDMI IN 2
TPS IN 1
TPS IN 1
HDMI IN 2
INPUT
SELECT
FUNCTION
OUT 1
OUT 2
Powering options
or output board
Power
1x short press
1
2
CATx
OSELECT
cable
RESET
INPUT
FUNCTION
SELECT
USB KVM IR OUT
AUDIO OUT
LIVE
RS-232
CONTROL
IR IN
TPS IN 1
OUT 1
RS-232
HDMI IN 2
USB KVM
TPS IN 1
OUT 2
AUTOSEL.
HDMI IN 2
TX RX
ETHERNET
Receiver
3
Using local PSU Connect the power adaptor to the DC input on the receiver
1
rst, then to the AC power socket.
TPS-PI-1P1
power injector
REQUIRED POWER OVER 20W
12V DC OUT ACTIVE
REMOTE POWER OUT ACTIVE
48V DC IN PRESENT
CATx cable
CATx
cable
Power
Adaptor
Power
Adaptor
Compatible
transmitter
Compatible matrix
TPS Receiver Concept
HDMI-TPS-RX220AK is a multifunctional TPS receiver with audio de-embedding function and
USB KVM feature. The device receives audio/video, Ethernet, RS-232 and Infrared signals via
the TPS input port and can be powered by another extender due to the PoE-capability. The
receiver can be controlled via USB, Ethernet, RS-232 or Infrared and is able to control thirdparty devices via the RS-232, Ethernet, Infrared and USB KVM.
Maximum Extension Distances
Cable lengths
Resolution
Pixel
clock rate
(Auto / Long reach TPS mode)
CAT5e
AWG24
CAT7
AWG26
1024x768@60Hz 65 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
1280x720p@60Hz 73.8 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
1920x1080p@60Hz (24bpp) 148.5 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
1920x1200@60Hz 152.9 MHz 100 m / NA 90 m / NA 120 m / NA
1600x1200@60Hz 162 MHz 100 m / NA 90 m / NA 120 m / NA
1920x1080@60Hz (36bpp) 223 MHz 70 m / NA 70 m / NA 100 m / NA
3840x2160@30Hz UHD 297 MHz 70 m / NA 70 m / NA 100 m / NA
4096x2160@30Hz 4K 297 MHz 70 m / NA 70 m / NA 100 m / NA
* Long reach TPS mode supports pixel clock frequencies up to 148.5 MHz.
Above values are valid when the transmitter is powered by a local adaptor; distances may decrease
depending on the powering mode (local or remote) and cable quality. To specify the accurate
extension distances, please also check the documentation of the connected TPS device.
CAT7 SFTP AWG23 cable is always recommended.
CAT7
AWG23
Front Panel Control
Set dynamic IP address
1. Keep the Function button pressed for 5
seconds; all front panel LEDs start to blink.
2. Release the button, then press it 3 times
quickly. DHCP is now enabled.
Restore Factory Default Settings
3. Keep the Function button pressed for
10 seconds; after 5 seconds front panel LEDs
start to blink but keep the button pressed; the
LEDs start to blink faster 5 seconds later.
4. Release the button, then press it 3 times
quickly; the following factory default settings
are restored:
Network settings
IP address (static) 192.168.0.100
Subnet mask 255.255.255.0
Static gateway 192.168.0.1
DHCP Disabled
TCP/IP port nr. LW2 / LW3 10001 / 6107
OUT 1
OUT 2
OUT 1
OUT 2
TPS IN 1
HDMI IN 2
TPS IN 1
HDMI IN 2
TPS IN 1
HDMI IN 2
TPS IN 1
HDMI IN 2
INPUT
SELECT
INPUT
SELECT
RESET
FUNCTION
RESET
FUNCTION
2
Using PoE with
connecting a
transmitter
Connect the TPS IN (PoE) port of the receiver to the
TPS+PoE output port of the TPS-PI-1P1 power injector by
a CATx cable as well as connect the TPS output port of the
transmitter to the TPS port of the TPS-PI-1P1 by a CATx
cable.
3
Using PoE with
connecting a
matrix switcher
Connect the TPS IN (PoE) port of the receiver to the PoEcompatible TPS output port of the matrix or output board by
a CATx cable.
or an output
board
In case of connecting the receiver to an output board of the matrix always connect an
external PSU to the board. For the detailed information please read the user’s manual of the
matrix.
The Ethernet port does not support PoE. Only the TPS port support PoE function.
If both remote and local power sources are connected, the remote power will be used.
Types of IR Connectors (1/8” TRS / TS)
3 pole, 2 rings: IR receiver
2 pole, 1 ring: IR transmitter
Wiring Guide for RS-232 Data Transmission
The receiver is built with 3-pole Phoenix connector. See the examples below of connecting to
a DCE (Data Circuit-terminating Equipment) or a DTE (Data Terminal Equipment) type device:
Lightware device and a DCE
D-SUB 9 – Phoenix
5
9
For more information about the cable wiring see the user’s manual of the device or the Cable
Wiring Guide on our website www.lightware.com/support/guides-and-white-papers.
2: TX data
3: RX data
5: Ground
1
6
Lightware device and a DTE
D-SUB 9 – Phoenix
1
6
2: RX data
3: TX data
5: Ground
5
9
Port Diagrams
Video Port Diagram
HDMI in 2
Audio Port Diagram
HDMI in 2
Typical Application Diagram
USB
PC
VGA Laptop
Media player
EJECT
PUSH TO EJECT
TEXT
LOCK
SD
ALL/
FOLDER
RANDOM
REPEAT
CD/USB/SD
AUX/ BT
USB
AUX IN
POWER
TPS in 1
TPS in 1
VGA
1 2 3 4 5 6 7 8
PLAY
STOP
BT AAC
2 00:03:16
CD / USB / SD / AUX / BT / FM / AM
HDMI
MacBook
12V DC
Power
adaptor
DP
UMX-TPS-TX140K
Digital video
Digital video
Embedded digital audio
Embedded digital audio
Active speakers
Keyboard
DVI
DVI-I IN
AUDIO2 IN
LIVE
RS-232
SRVC
LINK
IR IN IR OUT
TPS OUT (PoE)
GPIO
RS-232
PIN: 2.1mm
TX RX
12V 1A DC
USB
Mouse
Volume
control
Analog
audio
USB
dongle
IR detector
LAN
2x2 digital
video crosspoint
2x3 digital
audio crosspoint
LAN
Sn
A
_
12V DC
---
1.5A
12V DC
Power
adaptor
HDMI-TPS-RX220AK
Remote
control
Wi-Fi access point
TPS link good
No TPS link
Low power mode
USB enumerated
for audio de-emebedding
Embedded audio present and de-embedded
Embedded audio not present or muted
Embedded audio format not supported
Autoselect enabled
Signal present on selected input
encrypted
Input not selected
Input selected, signal not present
signal replaced with red screen
Output signal HDCP
device connected, encrypted
encrypted
Non HDCP capable
Output signal not HDCP
or muted
Signal present
Output signal not present
Input signal present
Input signal not present
TPS Link
Remote power (PoE)
SIGNAL HDCP
HDMI OUT 1
H
D
M
I
T
SIGNAL
P
S
-
R
2
X
2
2
0
A
K
HDMI IN
(PoE)
1
PIN: 2mm
TPS IN
_
12V DC
---
1.5A
TPS
(up to 170 m)
ETHERNET
Digital video
Digital video
Embedded digital audio
Embedded digital audio
D/A
converter
IR
Control mode
Pass-through mode
Command Injection mode
upgrade mode
Powered but no operation
No power
Normal operation
Firmware
SIGNAL HDCP
HDMI
HDMI OUT 2
HDMI
HDMI
RS-232
IR
emitter
Laptop
Analog
audio
RELAY
Projector
HDMI out 1
HDMI out 2
HDMI out 1
HDMI out 2
Audio out
Electric
screen
Video crosspoint settings
O1 (HDMI out 1) I1 (TPS in 1)
O2 (HDMI out 2) I2 (HDMI in 2)
Video port properties
Autoselect Disabled
Input TPS mode Auto
Emulated EDID on the inputs Factory #47: Universal HDMI PCM
Audio switcher setting
O3 (Analog audio out) I1 (de-embedded audio stream of TPS in 1)
Analog audio output port properties
Volume 0.00 dB (100%)
Balance 0 (center)
RS-232 settings
RS-232 mode Passthrough
Control protocol LW2
Port setting 57600 BAUD, 8, N, 1
Command injection port (local/link) 8001 / 8002
Input Selection for the HDMI Output Ports
The source signal for the HDMI output ports can be
selected by pushing the Input Select button. Five preprogrammed crosspoint states can be applied:
OUT 1
OUT 2
1
IN
1
IN
2
IN
2
IN
1
IN
2
IN
1
IN
2
IN
OUT 1
OUT 2
TPS IN 1
HDMI IN 2
TPS IN 1
HDMI IN 2
INPUT
SELECT
RESET
FUNCTION
Software Control – Using Lightware Device Controller (LDC)
The device can be controlled from a computer through the Ethernet, USB
or RS-232 ports using Lightware Device Controller. Please download the
application from www.lightware.com, install on a Windows PC or a macOS
and connect to the device via the Ethernet port.
The IP address of the unit is static (default): 192.168.0.100., DHCP is disabled.
Loading...
