DVI-TP-TX200
DVI-TP-TX300
DVI-TP-RX100
User's Manual
Page 2
Page 2 / 29
Page 3
DVI-TP-TX200/TX300/RX100
User’s Manual Rev. 1.0
Page 3 / 29
SAFETY INSTRUCTIONS
Class II apparatus construction.
This equipment should be operated only from the power source indicated on the product.
To disconnect the equipment safely from power, remove the power cord from the rear of the
equipment, or from the power source. The MAINS plug is used as the disconnect device, the
disconnect device shall remain readily operable.
There are no user-serviceable parts inside of the unit. Removal of the top cover will expose
dangerous voltages. To avoid personal injury, do not remove the top cover. Do not operate
the unit without the cover installed.
The apparatus shall not be exposed to dripping or splashing and that no objects filled with
liquids, such as vases, shall be placed on the apparatus.
The apparatus must be safely connected to multimedia systems. Follow instructions
described in this manual.
WEEE
( Waste Electrical & Electronic Equipment)
Correct Disposal of This Product
This marking shown on the product or its literature, indicates that it should not be
disposed with other household wastes at the end of its working life. To prevent
possible harm to the enviroment or human health from uncontrolled waste disposal,
please separate this from other types of wastes and recycle it responsibily to promote
the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product,
or their local government office, for details of where and how they can take this item
for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase
contract. This product should not be mixed with other commercial wastes for disposal.
Page 4
Page 4 / 29
DECLARATION OF CONFORMITY
We,
Lightware Kft. 1071 Budapest Peterdy str. 15 HUNGARY
as manufacturer declare, that the products
DVI-TP-TX200
DVI-TP-TX300
DVI-TP-RX100
( Computer Monitor Extender )
in accordance with the EMC Directive 2004/108/EC and the Low Voltage Directive
2006/95/EEC is in conformity with the following standards:
EMI/EMC ..................................... EN 55022 Class B
Safety ........... UL, CUL, GS, CR, RCM, PSE, Class II
Date: 01 December 2009
Name: Gergely Vida ( Managing Director )
Signed:
Page 5
DVI-TP-TX200/TX300/RX100
User’s Manual Rev. 1.0
Page 5 / 29
Table of contents
1. INTRODUCTION ............................................................................................................................ 6
2. GENERAL DESCRIPTION............................................................................................................. 6
2.1. B
OX CONTENTS
........................................................................................................................ 6
2.2. T
RANSMITTER FEATURES
(DVI-TP-TX200
AND
TX300) ............................................................. 6
2.3. R
ECEIVER FEATURES
(DVI-TP-RX100) .................................................................................... 7
2.4. U
NDERSTANDING
EDID ............................................................................................................ 8
2.4.1.
Basics ............................................................................................................................ 8
2.4.2.
Common problems related to EDID .............................................................................. 8
2.5. A
DVANCED
EDID M
ANAGEMENT
(DVI-TP-TX200/TX300) ........................................................ 9
2.6. TMDS R
ECLOCKING
(DVI-TP-RX100) ..................................................................................... 9
2.7. F
IBER CABLE POWERING
......................................................................................................... 10
2.8. A
PPLICATIONS
........................................................................................................................ 11
2.9. F
RONT AND REAR VIEW
........................................................................................................... 13
2.9.1.
Front view of DVI-TP-TX200/TX300 ........................................................................... 13
2.9.2.
Rear view of DVI-TP-TX200/TX300 ............................................................................ 14
2.9.3.
Front view of DVI-TP-RX100 ....................................................................................... 15
2.9.4.
Rear view of DVI-TP-RX100 ....................................................................................... 16
2.10. E
LECTRICAL CONNECTIONS
..................................................................................................... 17
2.10.1. DVI inputs and outputs ................................................................................................ 17
2.10.2. CATx inputs and outputs ............................................................................................. 17
3. OPERATION OF DVI-TP-TX200/TX300 ...................................................................................... 18
3.1. P
OWER
.................................................................................................................................. 18
3.2. L
EARNING THE
EDID .............................................................................................................. 18
3.3. S
WITCHING THE
EDID ............................................................................................................ 19
3.4. F
ACTORY PRESET
EDID
LIST
.................................................................................................. 19
4. OPERATION OF DVI-TP-RX100 ................................................................................................. 20
4.1. P
OWER
.................................................................................................................................. 20
4.2. A
DJUSTING THE INPUT EQUALIZATION
...................................................................................... 20
4.3. M
AXIMUM TWISTED PAIR DISTANCES
........................................................................................ 21
5. TROUBLESHOOTING ................................................................................................................. 21
5.1. T
HERE IS NO PICTURE
............................................................................................................. 21
6. MECHANICAL DRAWINGS......................................................................................................... 23
6.1. DVI-TP-TX200/TX300 .......................................................................................................... 23
6.1.1.
Top view ...................................................................................................................... 23
6.1.2.
Front view (controls and input) .................................................................................... 23
6.1.3.
Rear view (outputs and power) ................................................................................... 24
6.1.4.
Bottom view ................................................................................................................. 24
6.2. DVI-TP-RX100 ..................................................................................................................... 25
6.2.1.
Top view ...................................................................................................................... 25
6.2.2.
Front view (controls) .................................................................................................... 25
6.2.3.
Rear view (inputs, output and power) ......................................................................... 26
6.2.1.
Bottom view ................................................................................................................. 26
7. WARRANTY ................................................................................................................................. 27
8. SPECIFICATIONS ........................................................................................................................ 28
Page 6
Page 6 / 29
1. Introduction
Dear Customer,
Thank you for choosing Lightware DVI-TP series transmitters and receivers. DVITP-TX200/TX300 and DVI-TP-RX100 are Single Link DVI over Twisted Pair
extenders which allow video signals of up to 1920x1200@60Hz or
2048x1080@60Hz resolution to be transmitted through 50 meters of high quality
CAT7 cables.
2. General description
2.1. Box contents
− DVI-TP-TX200 or DVI-TP-TX300 or DVI-TP-RX100
− User's manual
− Quick Start Guide
− +5V wall plug power adaptor
2.2. Transmitter features (DVI-TP-TX200 and TX300)
Advanced EDID Management – The user can emulate any EDID on the DVI-TP-
TX200/TX300’s input, read out and store any monitor's EDID
(attached to Monitor Output) in 49 internal memory locations.
Green and red EDID status LEDs show whether a valid address
is selected.
Supports all HDTV resolutions – 720p, 1080i and 1080p etc without HDCP
enoding. Unencrypted signals with up to 165 MHz pixel clock
frequency - regardless of the resolution - are passed through.
Source and Monitor Connected LEDs – Two LEDs indicate when a DVI source
and display device is connected to the DVI-TP-TX200/TX300:
the source is sending +5V signal and the display is sending Hot
Plug signal.
Local Monitor Output – The user can attach a local monitor to observe the video
signal sent through the CATx cables. The resolution and clock
frequency are the same on DVI and RJ45 connector(s), no
internal scaling or conversion is applied to the signal.
Dual CATx outputs (TX300 only) – A built-in distribution amplifier provides the
signal for two identical CATx outputs.
Front panel control – EDID Address selection with two decimal rotary switches
and Learn EDID button are available for Advanced EDID
Management.
Fiber cable support – Self powered DVI fiber cables using +5V from DVI sources
(VGA cards, etc.) usually consume more than 55 mA, which
load is the maximum allowed by DVI 1.0 standard. DVI-TPTX200/TX300 supports +5V/500 mA constant current output on
MONITOR OUTPUT to power fiber optical transmitters.
Universal power adaptor – DVI-TP-TX200/TX300 is equipped with a universal
+5V power adaptor, which accepts AC voltages from 100 to 240
Volts with 50 or 60 Hz line frequency.
Page 7
DVI-TP-TX200/TX300/RX100
User’s Manual Rev. 1.0
Page 7 / 29
2.3. Receiver features (DVI-TP-RX100)
Input Equalization – The CATx input is compensated for up to 40 dB high
frequency cable loss. Automatic and user adjustable modes are
available to allow for precise setting of equalization.
TMDS reclocking – (removes jitter caused by long cables) the DVI OUTPUT has a
clean, jitter free signal, eliminating signal instability and
distortion caused by long cable or connector reflections.
Signal Present and Monitor Connected LEDs – Two LEDs indicate when a valid
DVI signal is detected and when a display device is connected
and it is sending a Hot Plug signal.
Supports all HDTV resolutions – 720p, 1080i and 1080p etc without HDCP
enoding. Unencrypted signals with up to 165 MHz pixel clock
frequency - regardless of the resolution - are passed through.
Front panel control – EQ mode selection button and 25-turn potenciometer are
available for precise equalization setting. Red and green LEDs
on the front panel indicate the currently selected EQ mode.
Fiber cable support – Self powered DVI fiber cables using +5V from DVI sources
(VGA cards, etc.) usually consume more than 55 mA, which
load is the maximum allowed by DVI 1.0 standard. DVI-TPRX100 supports +5V 500 mA constant current output on DVI
OUTPUT to power long distance fiber optical transmitters.
Universal power adaptor – DVI-TP-RX100 is equipped with a universal +5V
power adaptor, which accepts AC voltages from 100 to 240
Volts with 50 or 60 Hz line frequency.
Page 8
Page 8 / 29
2.4. Understanding EDID
2.4.1. Basics
EDID stands for Extended Display Identification Data. Simply put, EDID is the
passport of display devices (monitors, TV sets, projectors). It contains information
about the display’s capabilities, such as supported resolutions, refresh rates (these
are called Detailed Timings), the type and manufacturer of the display device, etc.

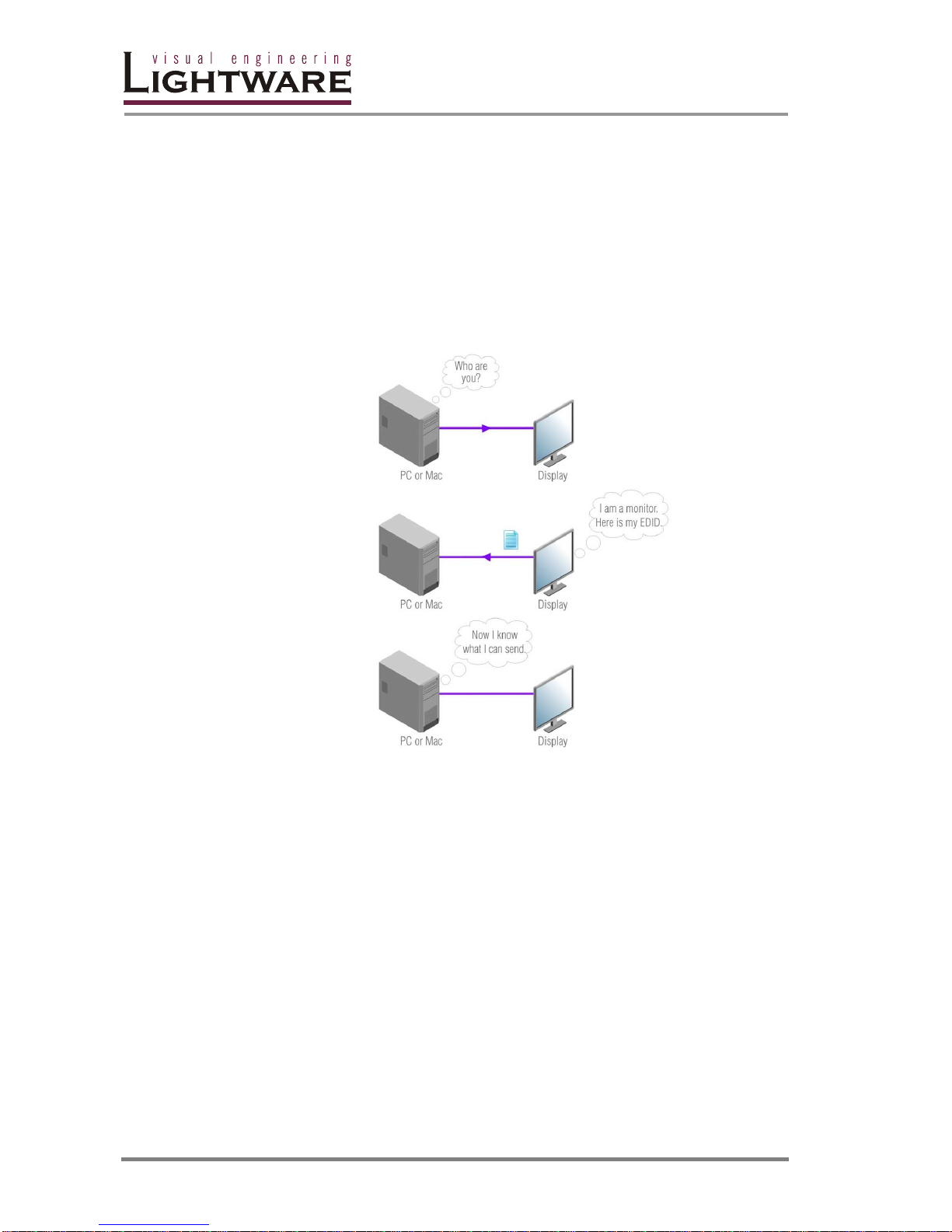

After connecting a DVI source to a DVI display, the source reads out the EDID to
determine the resolution and refresh rate of the image to be transmitted.
Most DVI computer displays have 128-byte long EDID structure. However, Digital
Televisions and HDMI capable displays may have another 128 bytes, which is
called E-EDID and defined by CEA (Consumer Electronics Association). This
extension contains information about additional Detailed Timings, audio
capabilities, speaker allocation and HDMI capabilities. It is important to know, that
all HDMI capable devices must have CEA extension, but not all devices are HDMI
capable which have the extension.
2.4.2. Common problems related to EDID
Problem: „My system consists of the following: a PC, then a Lightware DVI-TP-
TX200, a WUXGA (1920x1200) LCD as local monitor, then a DVI-TPRX100 connected to a SXGA (1280x1024) projector. I would like to see
the same image on the monitor and the projector. What EDID should I

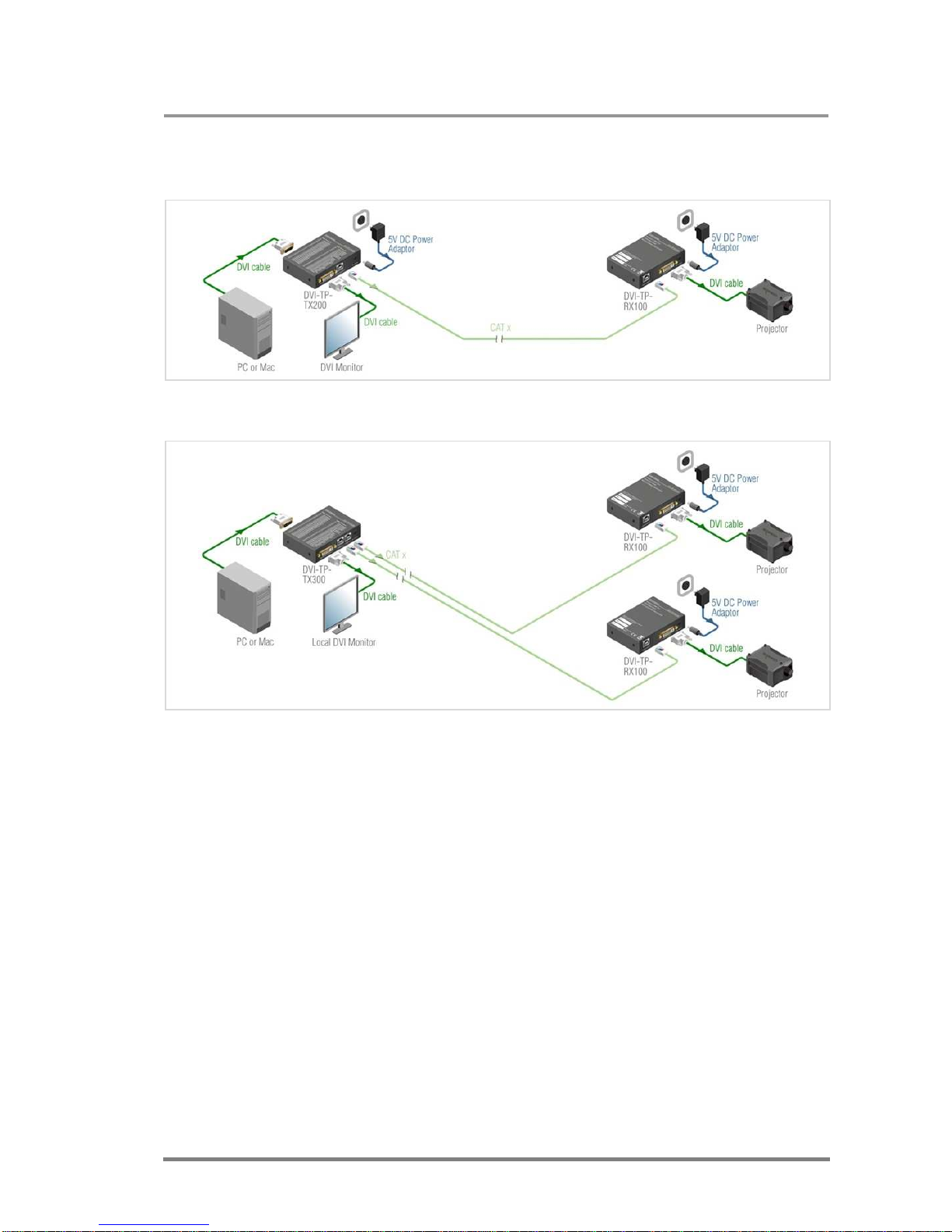

chose on the DVI-TP-TX200?” (see typical application in section 2.8)
Solution: If you want to see the image on both displays, you need to select the
resolution of the smaller display (in this case SXGA), otherwise the
smaller display may not show the higher resolution image.
Page 9
DVI-TP-TX200/TX300/RX100
User’s Manual Rev. 1.0
Page 9 / 29
Problem: „I turned the rotary switches on the DVI-TP-TX200/TX300 to have a
different resolution but nothing happens.”
Solution: Some graphics cards and video sources read out the EDID only after
power-up and later they don’t sense that EDID has been changed. You
need to restart your source to make it read out the EDID again.
Problem: „I have a DVI-TP-TX200/TX300 and I’m using a Lightware factory
preset EDID. I would like to be able to choose from different resolutions,
but my source allows only one resolution.”
Solution: Most Lightware factory preset EDIDs allow only one resolution, forcing
the sources to output only that particular signal. You need to select the
Universal EDID (address 49). It supports all common VESA resolutions.
Additionally it also features audio support.
2.5. Advanced EDID Management (DVI-TP-TX200/TX300)
Each DVI sink (e.g. monitors, projectors, plasma displays, and switcher inputs)
must support the EDID data structure. Source BIOS and operating systems are
likely to query the sink using DDC2B protocol to determine what pixel formats and
interface are supported. DVI standard makes use of EDID data structure for the
identification of the monitor type and capabilities. Most DVI sources (VGA cards,
set top boxes, etc.) will output DVI signal after accepting the connected sink’s EDID
information. In case of EDID readout failure or missing EDID the source will not
output DVI video signal.
DVI-TP-TX200/TX300 provides Lightware’s Advanced EDID Management function
that helps system integration. It stores and emulates 99 EDIDs plus the EDID of
the display device which is connected to MONITOR OUTPUT. Memory addresses
from 01 to 50 are factory presets, while memories from 51 to 99 are user
programmable. DVI-TP-TX200/TX300 stores the EDID of the monitor or projector
connected to Monitor Output in a non-volatile memory.
The EDID emulated on the input can be copied from the DVI-TP-TX200/TX300's
memory (static EDID emulation) or from the attached monitor (dynamic EDID
emulation). For example, the DVI-TP-TX200/TX300 can be set up to emulate the
device, which is connected to MONITOR OUTPUT, and the EDID automatically
changes, if the monitor is replaced with another display device (as long as it has a
valid EDID).
Info The user is not required to disconnect the DVI cable to change an EDID as
opposed to other manufacturer’s products. EDID can be changed even if a source
is connected to the input and it is powered ON.
2.6. TMDS Reclocking (DVI-TP-RX100)
DVI-TP-RX100 reclocks the signal on its output using Lightware’s sophisticated
TMDS Reclocking technology. Signal reclocking is an essentially important
procedure in digital signal transmission. After passing the reclocking circuit, the
signal becomes stable and jitter-free, and can be transmitted over more equipment
like processors and event controllers. When transmitting the signal through long
cables without reclocking on the receiver side, sparkles, noise and jaggies can be
seen on the image.
Info TMDS stands for Transition Minimized Differential Signaling. It is the electrical and
encoding specification used by the DVI standard to transmit the video signal.
Page 10
Page 10 / 29

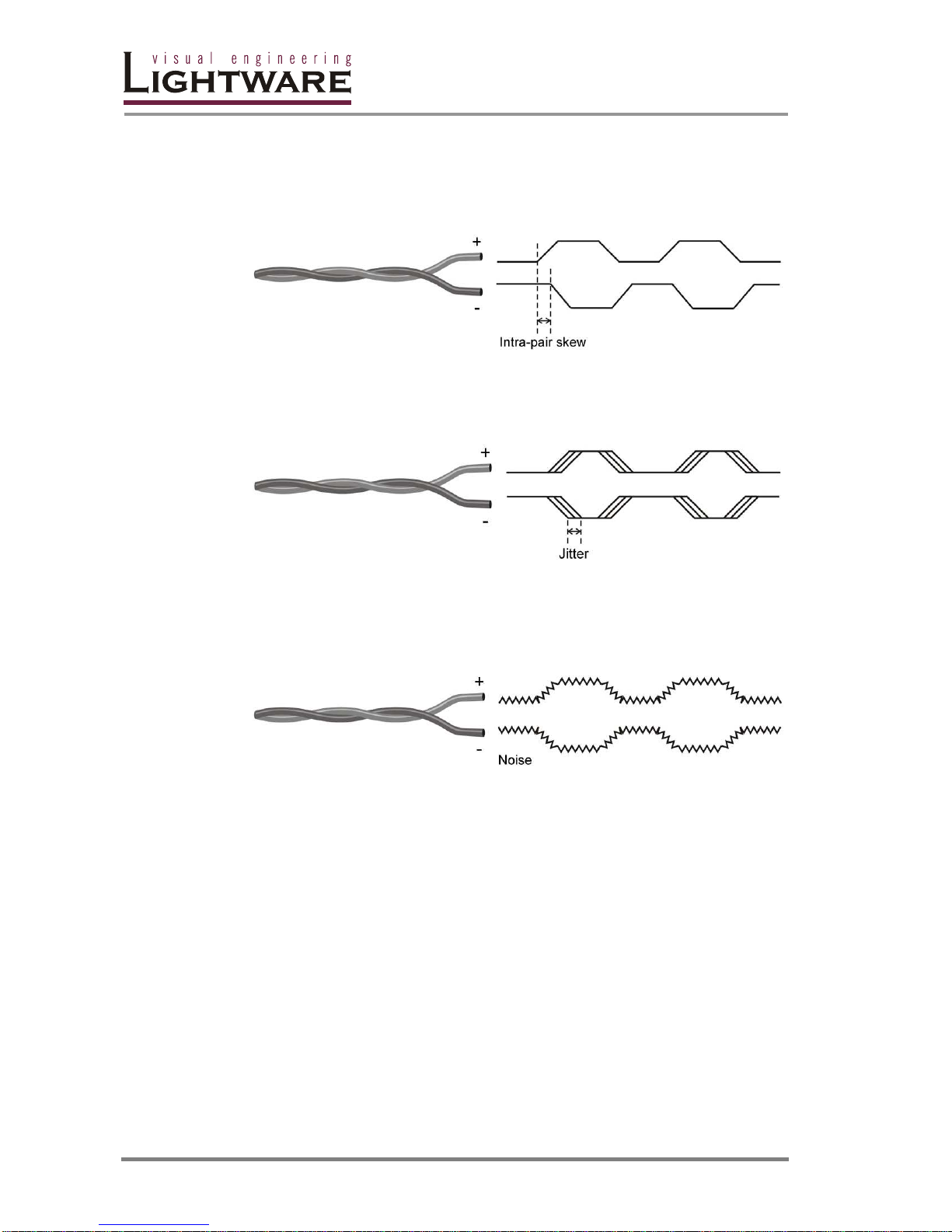

The TMDS Reclocking circuit eliminates the following errors:
Intra-pair skew: skew between the + and - wires within a differential wire pair (e.g.
Data2- and Data2+). It’s caused by different wire lengths or
slightly different wire construction (impedance mismatch) in DVI
cable. It results in jitter.
Jitter: signal instability in the time domain. The time difference between
two signal transitions should be a fix value, but noise and other
effects cause variations.
Noise: electromagnetic interference between other electronic devices
such as mobile phones, motors, etc. and the DVI cable are
coupled onto the signal. Too much noise results in increased
jitter.
Info TMDS Recklocking technology does not eliminate more than on bit of Inter-pair
skew.
2.7. Fiber Cable powering
As a special feature, DVI-TP-TX200/TX300 (MONITOR OUTPUT) and DVI-TPRX100 (DVI OUTPUT) are able to supply 500 mA current to power fiber optical
transmitters like Lightware DVI-OPT-TX100 (Pin 14 on DVI OUT connector).
Standard DVI outputs or VGA cards supply only 55 mA current on +5V output, thus
unable to directly power a fiber optical transmitter.
Info DVI-TP-TX200/TX300 and DVI-TP-RX100 do not check if the connected sink
(monitor, projector or other equipment) supports Hotplug or EDID signals but
output the input signal immediately after it has been applied to the input.
Page 11
DVI-TP-TX200/TX300/RX100
User’s Manual Rev. 1.0
Page 11 / 29
2.8. Applications
Typical stand-alone application (TX200)
Typical stand-alone application (TX300)
Page 12
Page 12 / 29

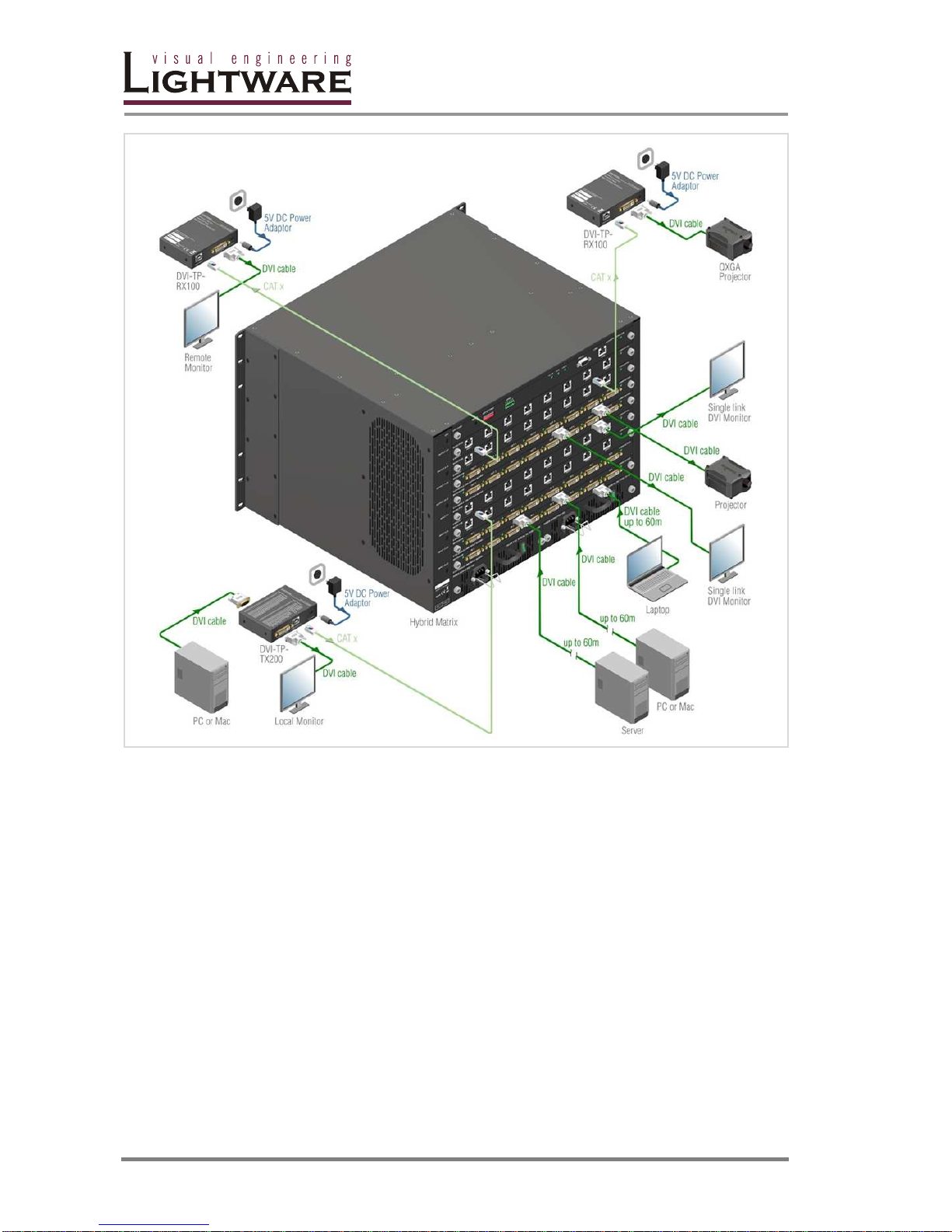

Using with Lightware MX-DVI-FR32R frame
(the frame is equipped with single link DVI-D cards and single link DVI-TP cards)
Page 13
DVI-TP-TX200/TX300/RX100
User’s Manual Rev. 1.0
Page 13 / 29
2.9. Front and rear view

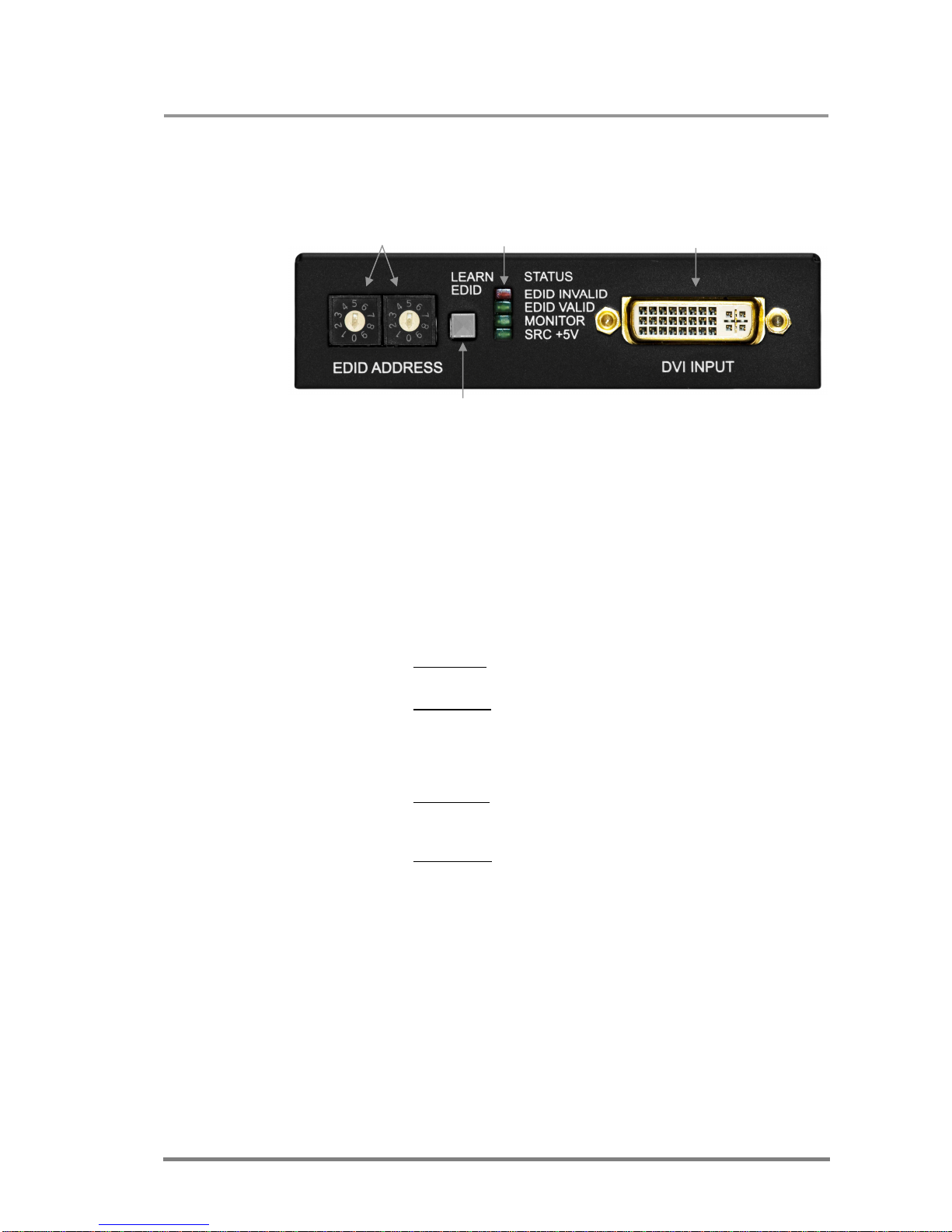

2.9.1. Front view of DVI-TP-TX200/TX300
Address selection Status LEDs DVI Input connector
Learn EDID button
EDID Address The rotary switches select one of 100 addresses. Addresses
1…50 are factory preset and 51…99 are user programmable.
Address 00 enables transparent mode. For more information,
see chapter 3.3. Use a flat head screwdriver that fits into the
actuator. Avoid the use of keys, coins, knives and other sharp
objects because they might cause permanent damage to the
rotary switches.
Learn EDID button Stores the EDID of the display device attached to MONITOR
OUTPUT in the selected memory address between 51…99. To
learn the EDID, select an appropriate address with the rotary
switches and press and hold the Learn button for two seconds.
EDID status LEDs Function 1: display the firmware version of the device. For more
information, see chapter 3.1.
Function 2: after applying a Hot Plug signal to MONITOR
OUTPUT, these LEDs indicate that the unit is reading the EDID
from the connected display device. If the green LED is blinking
then the EDID is valid, if the red LED is blinking, then the EDID
is invalid or missing.
Function 3: (main function) these LEDs indicate whether the
selected EDID is valid (solid green = valid, solid red = invalid or
empty memory selected).
Function 4: after pressing the LEARN button, these LEDs
indicate whether the learn process was successful (green
blinking = successful, red blinking = unsuccessful). For more
information, see chapter 3.2.
Monitor LED Indicates if a display device (or matrix switcher, repeater, etc.)
is connected to the MONITOR OUTPUT connector and sends a
valid Hot Plug Signal on Pin 16 through the DVI cable.
SRC +5V LED Indicates if a DVI source is connected to the DVI-TP-
TX200/TX300, it is powered on and sends +5V signal to Pin 14
of the input DVI connector.
DVI Input Connect one DVI-D or DVI-I cable (only digital pins are
connected internally) between the DVI source and DVI-TPTX200/TX300.
Page 14
Page 14 / 29

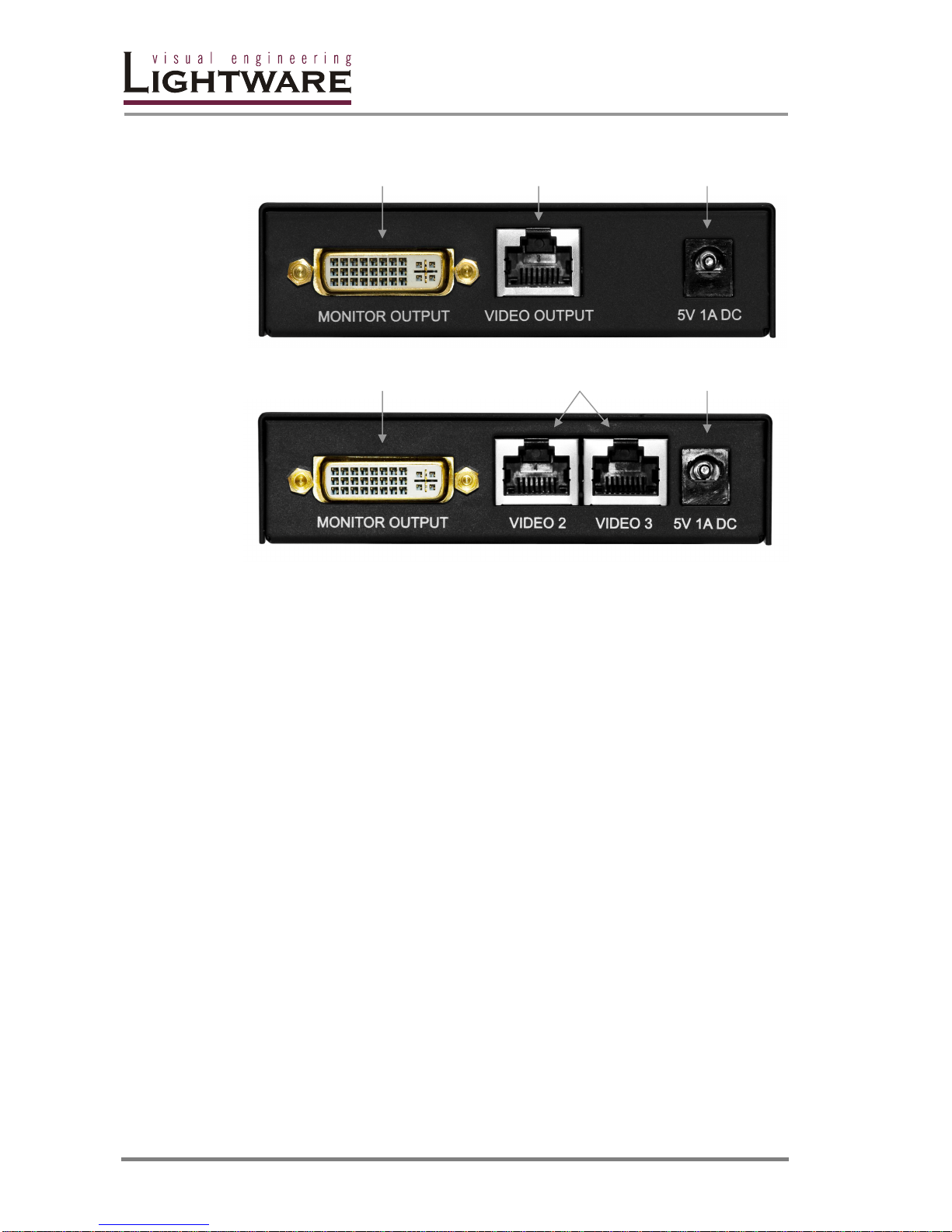

2.9.2. Rear view of DVI-TP-TX200/TX300
TX200: Local Monitor Output CATx output +5V DC
TX300: Local Monitor Output CATx outputs +5V DC
Monitor Output Connect one dual link DVI-D or DVI-I cable (only digital pins are
connected internally) between DVI-TP-TX200 and local display
device.
The output connector is able to supply 500 mA current on
pin 14 to power fiber optical DVI extenders like DVI-OPTTX100.
If a long DVI cable is connected then equalization and
reclocking may be necessary at the receiver end of the cable.
CATx Output(s) Connect one or two CAT5, CAT5e, CAT6a or CAT7
(recommended) cables between DVI-TP-TX200/TX300 and the
receiver (DVI-TP-RX100 or Lightware Hybrid Matrix equipped
with twisted pair input cards).
The DVI-TP-TX200/TX300 does not have networking
capabilities. Do not connect the RJ45 output(s) of the DVI-TPTX200/TX300 to a Local Area Network device or a PC. Doing
so may damage the unit!
+5V DC connector Connect the output of the supplied +5V power adaptor.
CAUTION! Warranty void if damage occurs due to use of a
different power source.
Page 15
DVI-TP-TX200/TX300/RX100
User’s Manual Rev. 1.0
Page 15 / 29

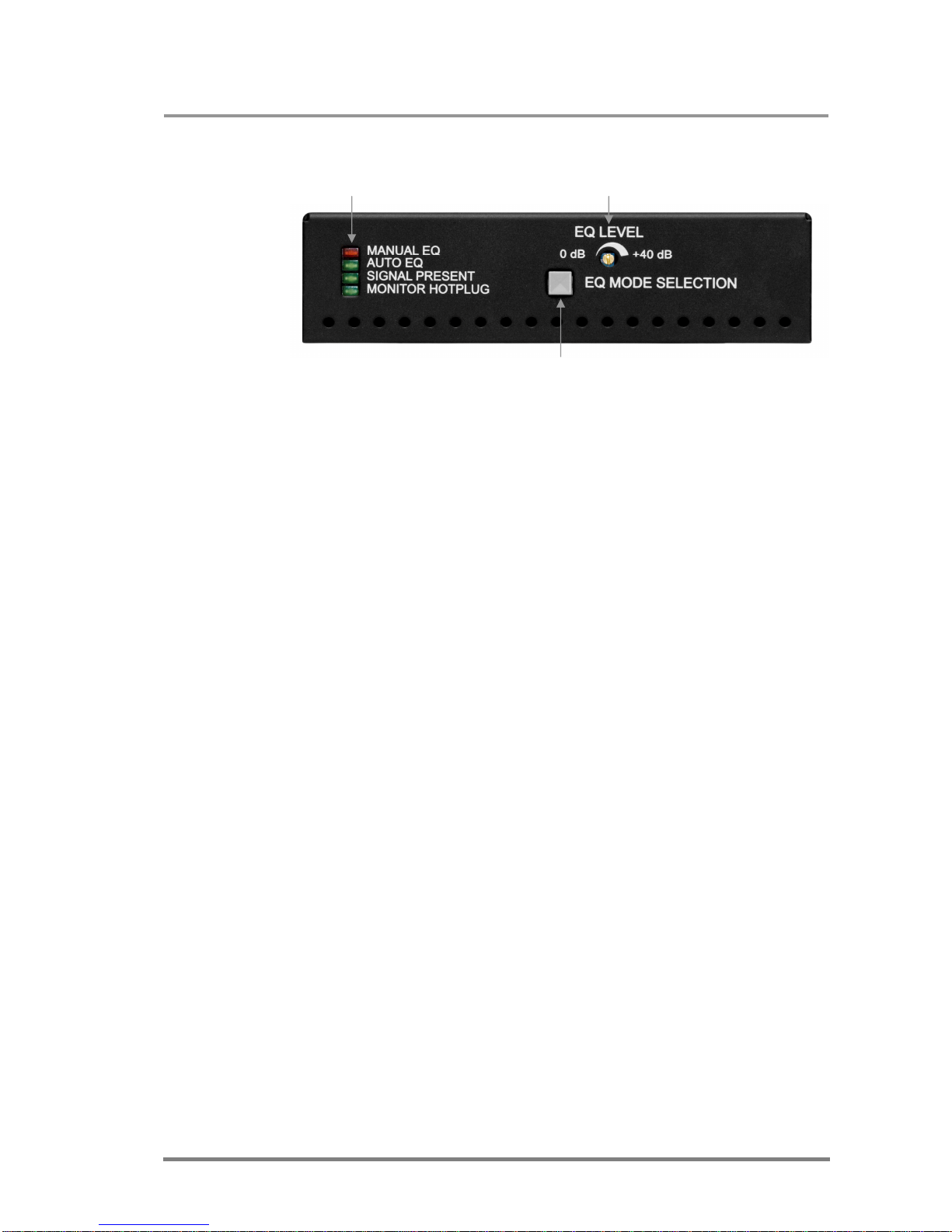

2.9.3. Front view of DVI-TP-RX100
Status LEDs EQ level adjust knob
EQ mode selector button
EQ mode status LEDs Two LEDs indicate whether the DVI-TP-RX100 is in auto or
manual equalization mode. Automatic mode usually gives a
good result, but at long distances, manual equalization may be
necessary. For more information, see chapter 4.2.
Signal Present LED Indicates if a valid DVI clock signal is present on Video Input
RJ45 connector.
Monitor Hotplug LED Indicates if a display device (or matrix switcher, repeater, etc.)
is connected to the DVI OUTPUT connector and sends a valid
Hot Plug Signal on Pin 16 through the DVI cable.
EQ Mode button Toggles between automatic and manual EQ mode. The EQ
mode status LEDs indicate which mode is currently active.
EQ level adjust The 25-turn potenciometer can be used to precisely set the
right amount of equalization in manual EQ mode. The
potenciometer does not stop at the end positions, but rotates
indefinitely. After reaching the end position, a clicking sound
can be heard at every full turn of the knob.
Page 16
Page 16 / 29
2.9.4. Rear view of DVI-TP-RX100

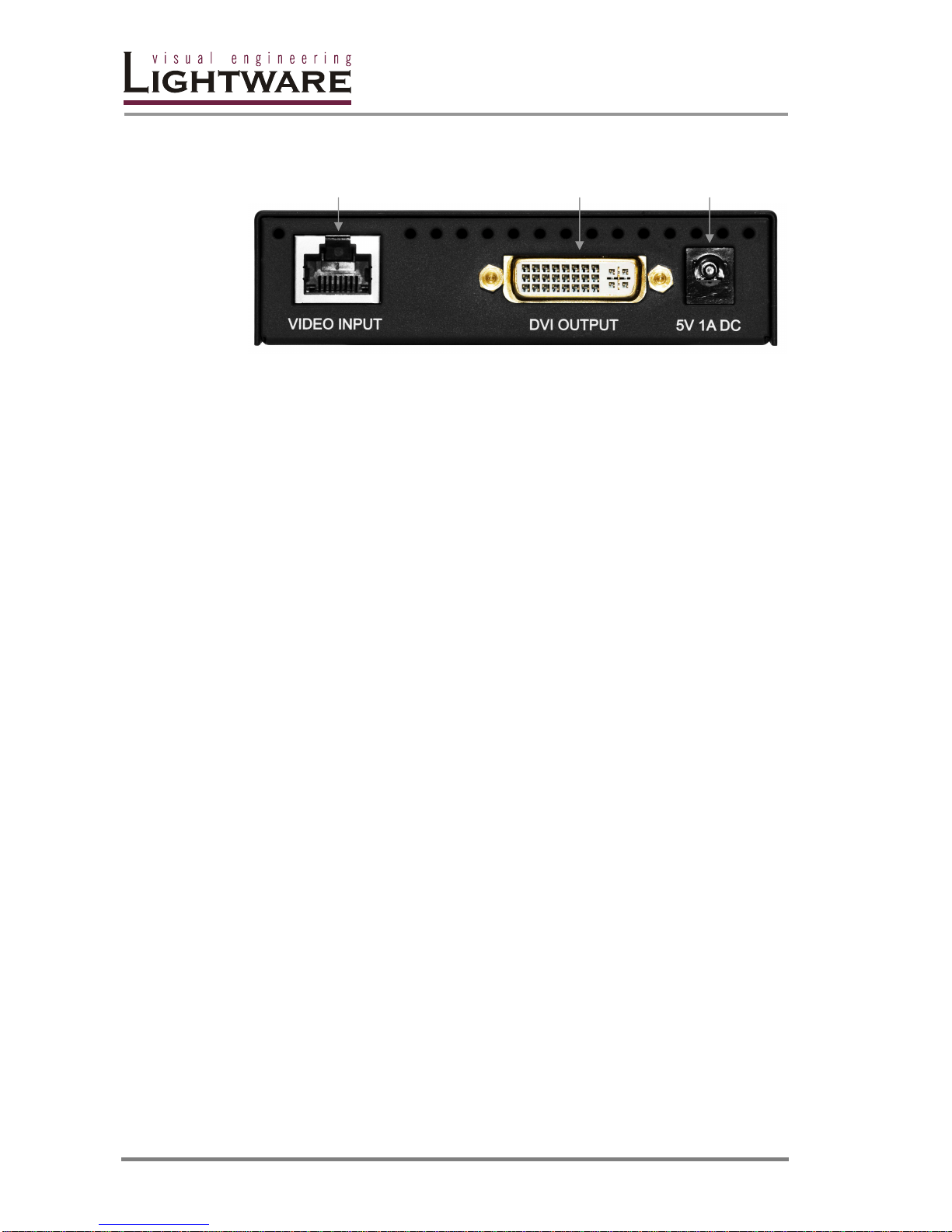

CATx input DVI output +5V DC
CATx input Connect one CAT5, CAT5e, CAT6a or CAT7 (recommended)
cables between DVI-TP-RX100 and the transmitter (DVI-TPTX200/TX300 or Lightware Hybrid Matrix equipped with twisted
pair output cards).
The DVI-TP-RX100 does not have networking capabilities. Do
not connect the RJ45 input of the DVI-TP-RX100 to a Local
Area Network device or a PC. Doing so may damage the unit!
DVI output Connect one DVI-D or DVI-I cable (only digital pins are
connected internally) between DVI-TP-RX100 and the display
device.
The output connector is able to supply 500 mA current on pin
14 to power fiber optical DVI extenders like DVI-OPT-TX100.
+5V DC connector Connect the output of the supplied +5V power adaptor.
CAUTION! Warranty void if damage occurs due to use of a
different power source.
Page 17
DVI-TP-TX200/TX300/RX100
User’s Manual Rev. 1.0
Page 17 / 29
2.10. Electrical connections
2.10.1. DVI inputs and outputs
DVI-TP-TX200/TX300 and DVI-TP-RX100 provide 29 pole „digital only” DVI-I
connectors for input and output connections. Always use high quality DVI cable for
connecting sources and displays.
Pin Signal Pin Signal Pin Signal
1
TMDS Data2-
11
TMDS D1/3 Shield
21
TMDS Data5+ (nc)
2
TMDS Data2+
12
TMDS Data3- (nc)
22
TMDS Clk Shield
3
TMDS D2/4 Shield
13
TMDS Data3+ (nc)
23
TMDS Clock+
4
TMDS Data4- (nc)
14
+5V Power
24
TMDS Clock-
5
TMDS Data4+ (nc)
15
GND (for +5V)
25
R (not connected)
6
DDC Clock
16
Hot Plug Detect
26
G (not connected)
7
DDC Data
17
TMDS Data0-
27
B (not connected)
8
VSYNC (nc)
18
TMDS Data0+
28
HSYNC (nc)
9
TMDS Data1-
19
TMDS D0/5 Shield
29
Analog GND
10
TMDS Data1+
20
TMDS Data5- (nc)
Table 1. Single link DVI-I “digital only” connector pin assignment

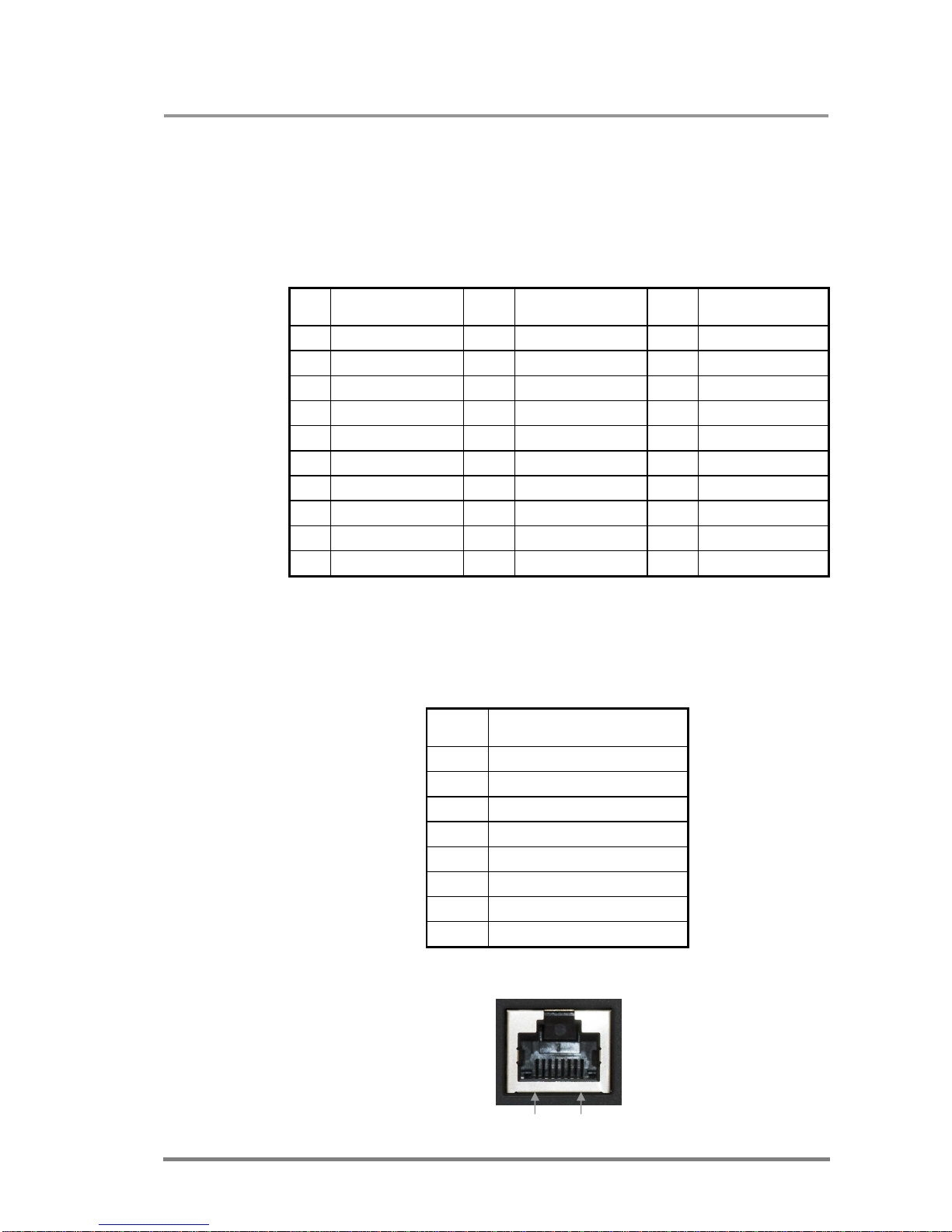

2.10.2. CATx inputs and outputs
DVI-TP-TX200/TX300 and DVI-TP-RX100 are equipped with shielded CAT6 RJ45
connectors.
Pin Signal CATx
1
TMDS Data0+
2
TMDS Data0-
3
TMDS Clock+
4
TMDS Data1+
5
TMDS Data1-
6
TMDS Clock-
7
TMDS Data2+
8
TMDS Data2-
Table 2. RJ45 connector pin assignment
Pin 8 Pin 1
Page 18
Page 18 / 29
3. Operation of DVI-TP-TX200/TX300
3.1. Power
When building an electronic system, make sure that all of the devices are powered
down before connecting them. Powered on devices may have dangerous voltage
levels that can damage sensitive electronic circuits.
1. After the system is complete, connect the output of the +5V Power Adaptor
to the DVI-TP-TX200/TX300 (further on TX200/TX300) The unit is
immediately powered ON.
2. After being powered on, the TX200/TX300 displays its firmware version
using the EDID Status LEDs.
The following example shows this process for a firmware version of 1.3.7
RED blinks once → Short pause → GREEN blinks three times → Short
pause → GREEN blinks seven times → Short pause → The normal function
of the LED is in effect.
3. After indicating the firmware version, the red EDID status LED lights up for 23 seconds, then turns green if the selected EDID is valid, or remains red, if
the selected EDID is invalid (or the selected memory is empty).
After the TX200/TX300 is initialized, the attached DVI source and monitor
can be powered on.
4. If a display device is connected to MONITOR OUT, the TX200/TX300 reads
the EDID from the attached monitor’s EDID memory.
If the read process is successful, the GREEN LED blinks several times then
the EDID Status LEDs show whether the selected EDID is valid (green) or
not (red) on the DVI INPUT connector.
If the read process is unsuccessful, the RED LED blinks several times then
the EDID Status LEDs show whether the selected EDID is valid (green) or
not (red) on the DVI INPUT connector.
Info If none of the LEDs light up upon power-up, the unit is most likely damaged and
further use is not advised. Please contact [email protected]
3.2. Learning the EDID
The factory preset EDIDs cannot be changed by the user. Only addresses from 51
to 99 are user programmable.
1. After connecting the sink device to MONITOR OUT, use a screwdriver to
select an empty memory address. EDIDs are stored in a multiple
programmable non-volatile memory.
If the red EDID status LED is illuminated, then the memory slot is empty and
ready to be programmed. If the green EDID status LED is illuminated, the
memory was already used before, but still available for programming.
2. Push the LEARN button on the front side of the TX200/TX300 and hold it
down for approximately 3 seconds.
Once the button is pushed the EDID status LEDs go dark. If the EDID storing
was successful, the green EDID status LED blinks five times and stays
illuminated. Now the stored EDID is automatically emulated.
If the storing was unsuccessful, the red EDID status LED blinks five times
and either the red or green EDID status LED becomes illuminated,
depending on the previous status of the selected EDID address.
Page 19
DVI-TP-TX200/TX300/RX100
User’s Manual Rev. 1.0
Page 19 / 29
3.3. Switching the EDID
1. Use a screwdriver to change the memory address on the front side of the
TX200/TX300.
After either one of the rotary switches has been rotated, the unit waits
approximately 2 seconds before the selected EDID becomes active. If the
EDID status is unchanged the EDID status LEDs do not blink, but stay
continuously lit.
2. The address 00 (zero zero) has a special function. If a monitor is connected
to MONITOR OUT, then its EDID is copied to the DVI INPUT connector. If
no monitor is connected to the output then the EDID transmitted to the DVI
INPUT connector is the EDID of the last connected monitor.
Info If an invalid EDID is selected, the TX200/TX300 does NOT give a HOT PLUG
signal to the source connected to DVI INPUT.
Info After every EDID change, TX200/TX300 toggles the HOT PLUG signal for approx.
1 second. Some graphic cards or DVD players do not sense the HOT PLUG signal,
and even if EDID has been changed, the set resolution is not affected. In this case
the source device must be restarted, or powered OFF and ON again.
3.4. Factory preset EDID list
Lightware factory pre-loaded EDIDs are specially provided to force graphic cards to
output only the exact pixel resolution and refresh rate.
Universal EDID (address 49) allows multiple resolutions including all common
VESA defined resolutions. In addition, it also features audio support. The use of
universal EDID is recommended for fast and easy system setup.
MEMORY Resolution MEMORY Resolution
01 640x480@60 Hz 26 1600x1200@50 Hz
02 640x480@75 Hz 27 1600x1200@60 Hz
03 848x480@60 Hz 16:9 28 1920x1200@60 Hz
04 800x600@50 Hz 29 1920x1200@50 Hz
05 800x600@60 Hz 30 [email protected] Hz
06 800x600@75 Hz 31 [email protected] Hz
07 1024x768@50 Hz 32 720x480p@60 Hz
08 1024x768@60 Hz 33 576i@50 Hz
09 1024x768@75 Hz 34 720x576p@50 Hz
10 1152x864@75 Hz 35 1280x720p@50 Hz
11 1280x768@50 Hz 36 1280x720p@60 Hz
12 1280x768@60 Hz 37 1920x1080i1 @50 Hz
13 1280x768@75 Hz 38 1920x1080i2 @50 Hz
14 1360x768@60 Hz 39 1920x1080i@60 Hz
15 1364x768@50 Hz 40 1920x1080p@24 Hz
16 1364x768@60 Hz 41 1920x1080p@25 Hz
17 1364x768@75 Hz 42 1920x1080p@30 Hz
18 1280x1024@50 Hz 43 1920x1080p1 @50 Hz
19 1280x1024@60 Hz 44 1920x1080p2 @50 Hz
20 1280x1024@75 Hz 45 1920x1080p@60 Hz
21 1366x1024@60 Hz 46 2048x1080p1 @50 Hz
22 1400x1050@50 Hz 47 2048x1080p2 @50 Hz
23 1400x1050@60 Hz 48 2048x1080p@60 Hz
24 1400x1050@75 Hz 49 UNIVERSAL EDID
25 1680x1050@50 Hz 50 2560x1600@60 Hz
Table 3. Factory Preset EDID list
Page 20
Page 20 / 29
4. Operation of DVI-TP-RX100
4.1. Power
When building an electronic system, make sure that all of the devices are powered
down before connecting them. Powered on devices may have dangerous voltage
levels that can damage sensitive electronic circuits.
1. After the system is complete, connect the output of the +5V Power Adaptor
to the DVI-TP-RX100 (further on RX100). The unit is immediately powered
ON.
2. After being powered on, the RX100 displays its firmware version using the
EQ mode status LEDs.
The following example shows this process for a firmware version of 1.3.7
RED blinks once → Short pause → GREEN blinks three times → Short
pause → GREEN blinks seven times → Short pause → The normal function
of the LED is in effect.
3. After indicating the firmware version, either the red or green EQ mode status
LED stays continuously lit, depending on the last selected mode.
After the RX100 is initialized, the attached monitor can be powered on.
Info If none of the LEDs light up upon power-up, the unit is most likely damaged and
further use is not advised. Please contact [email protected]
4.2. Adjusting the input equalization
The amplitude of high frequency signals decreases after they pass through long
distances in copper cables. To counter-act this phenomenon, RX100 amplifies the
signal while maximizing the amplitude at a certain level, which is defined by the
DVI 1.0 standard. This process is called equalization.
The RX100 offers two equalization modes: automatic and manual. Automatic mode
usually provides perfect transmission but at longer distances and higher
resolutions, manual equalization may be necessary.
1. Select the equalization mode by pressing and releasing the EQ mode
selection button once. The two EQ mode status LEDs show which mode is
currently active.
2. Use a 2-3 mm flat head screwdriver to manually adjust the equalization level.
Turning the knob clockwise increases the EQ level, turning it
counterclockwise decreases the EQ level. The knob of the potenciometer
does not stop at the end positions, but rotates indefinitely. After reaching the
end position, a clicking sound can be heard at every full turn of the knob.
IMPORTANT! When installing the RX100 in a system, always check which
equalization mode is selected, because a previously set manual equalization level
may not be suitable for a different system. It is always advised to use the automatic
mode and only adjust the equalization manually if the auto mode does not give a
good result.
Page 21
DVI-TP-TX200/TX300/RX100
User’s Manual Rev. 1.0
Page 21 / 29
4.3. Maximum twisted pair distances
The following table shows the maximum twisted pair distances. The actual
achievable distances may differ, depending on the topology of the whole system.
Unshielded Twisted Pair (UTP) cables are susceptible to EMI coming from
surrounding devices (cables, mobile phones, motors, etc.). Noisy environments
substantially decrease the usable length of unshielded cables. Hence the use of
shielded Category 6 cables or Category 7 cables is always recommended.
Category 7 cables are screened and foiled by standard.
Resolution
Vfreq
(Hz)
Pixel clk
freq.
(MHz)
Cat5e
UTP
Cat5e
FTP
Cat6
UTP
Cat6
FTP
Cat6
S/FTP
Cat7
S/FTP
640x480 60 25,2 60 m 60 m 65 m 70 m 70 m 80 m
800x600 60 40,0 60 m 60 m 65 m 65 m 65 m 75 m
1024x768 60 65,0 55 m 55 m 60 m 60 m 60 m 75 m
1280x720p 60 74,2 55 m 55 m 60 m 60 m 60 m 70 m
1280x1024 60 108,0 50 m 50 m 55 m 60 m 60 m 65 m
1400x1050 60 121,8 45 m 45 m 45 m 55 m 55 m 60 m
1600x1200 60 162,0 30 m 35 m 35 m 45 m 45 m 50 m
1920x1080p 60 148,5 30 m 35 m 35 m 45 m 45 m 50 m
1920x1200p 60 153,0 30 m 35 m 35 m 45 m 45 m 50 m
Table 4. Maximum twisted pair distances
5. Troubleshooting
5.1. There is no picture
Check the cables
Due to the high data rates, the cables must fit very well. DVI connectors have to be
locked with screws, no tensions or breaches are allowed. If your source or display
has more connectors then make sure that the proper interface is selected.
Check if the CATx cables are connected properly between the transmitter and
receiver.
Check the source equipment
Check the Source Connected LED on the front side of the DVI-TP-TX200/TX300.
This LED indicates the presence of the +5V signal coming from the DVI source. If it
is not illuminated, then your DVI source is not working properly. Please refer to the
user’s manual of your DVI source.
If the source is a computer, then verify that the DVI output is selected and active.
Try restarting your computer; if you get a picture during the booting process, you
have to review the driver settings.
Check the incoming signal
Check the Signal Present LED on the front side of the DVI-TP-RX100. This LED
indicates the presence of an active incoming DVI clock signal. If it is not
illuminated, then no DVI clock signal is present at the VIDEO INPUT connector.
Make sure that the proper equalization mode is selected and if manual mode is
active, the right amount of equalization is set.
Check if there’s an outgoing signal on the Monitor Output connector of the DVI-TPTX200/TX300 (also check the Monitor LED on the front panel). The input signal is
always routed to the DVI and RJ45 output connector(s). If there is a signal on the
Page 22
Page 22 / 29
Monitor Output connector, then the problem is not EDID related. Check if the CATx
cables are connected properly.
Check the display status
Check the Monitor Hotplug LED on the front side of the DVI-TP-RX100. This LED
indicates the presence of the Hotplug signal coming from the attached display
device. If it is not illuminated, then your display is not powered or not configured
properly.
Check EDID related problems
Check the EDID Status LEDs on the front side of the DVI-TP-TX200/TX300. These
LEDs indicate whether a valid EDID is selected. If the red LED is illuminated, then
an invalid EDID or an empty memory address is selected. Please select a valid
EDID.
If the green EDID Status LED is illuminated, then maybe your display device is not
capable of receiving the sent video format. Try emulating your display device’s
EDID to the source. You will find help to this process in section 3.3. If you get a
picture now, you have an EDID related issue, please read chapter 2.4 for more
details.
Check the EDID
Maybe the data rate is too high for that type of cable. Try switching another EDID
to the inputs with lower resolution. If the source is a computer and you are an
expert user, you can try modifying the refresh rate, so you would be able to get it to
work at higher resolutions over a noisy connection.
Page 23
DVI-TP-TX200/TX300/RX100
User’s Manual Rev. 1.0
Page 23 / 29

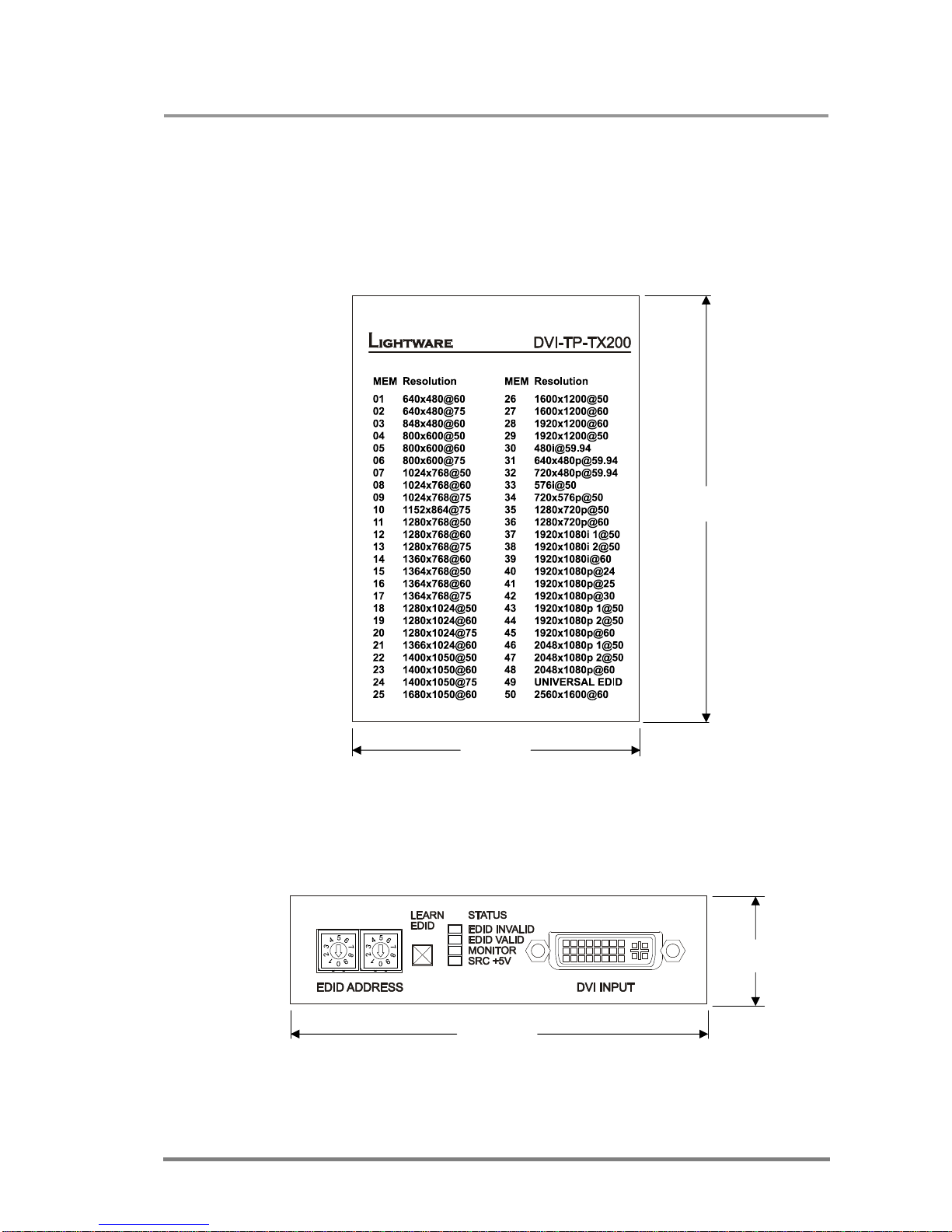

6. Mechanical Drawings
6.1. DVI-TP-TX200/TX300
6.1.1. Top view
100,4 mm
67,6 mm
6.1.2. Front view (controls and input)
26 mm
100,4 mm
Page 24
Page 24 / 29

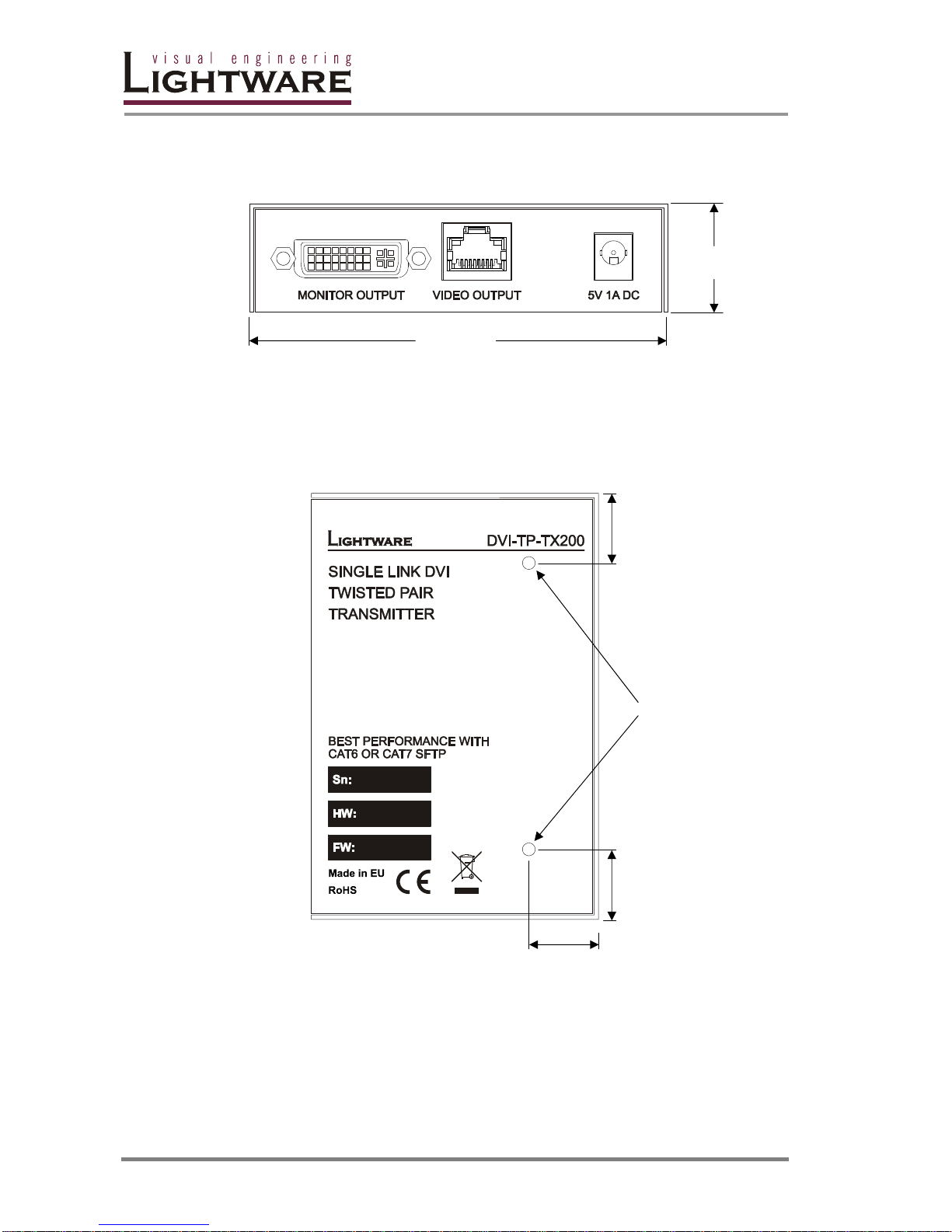

6.1.3. Rear view (outputs and power)
26 mm
100,4 mm
6.1.4. Bottom view
16.4 mm
2x M3 thread
16.5 mm
16,4 mm
For rack mounting, cross recessed M3 (max. 10 mm long) screws must be used.
Page 25
DVI-TP-TX200/TX300/RX100
User’s Manual Rev. 1.0
Page 25 / 29
6.2. DVI-TP-RX100

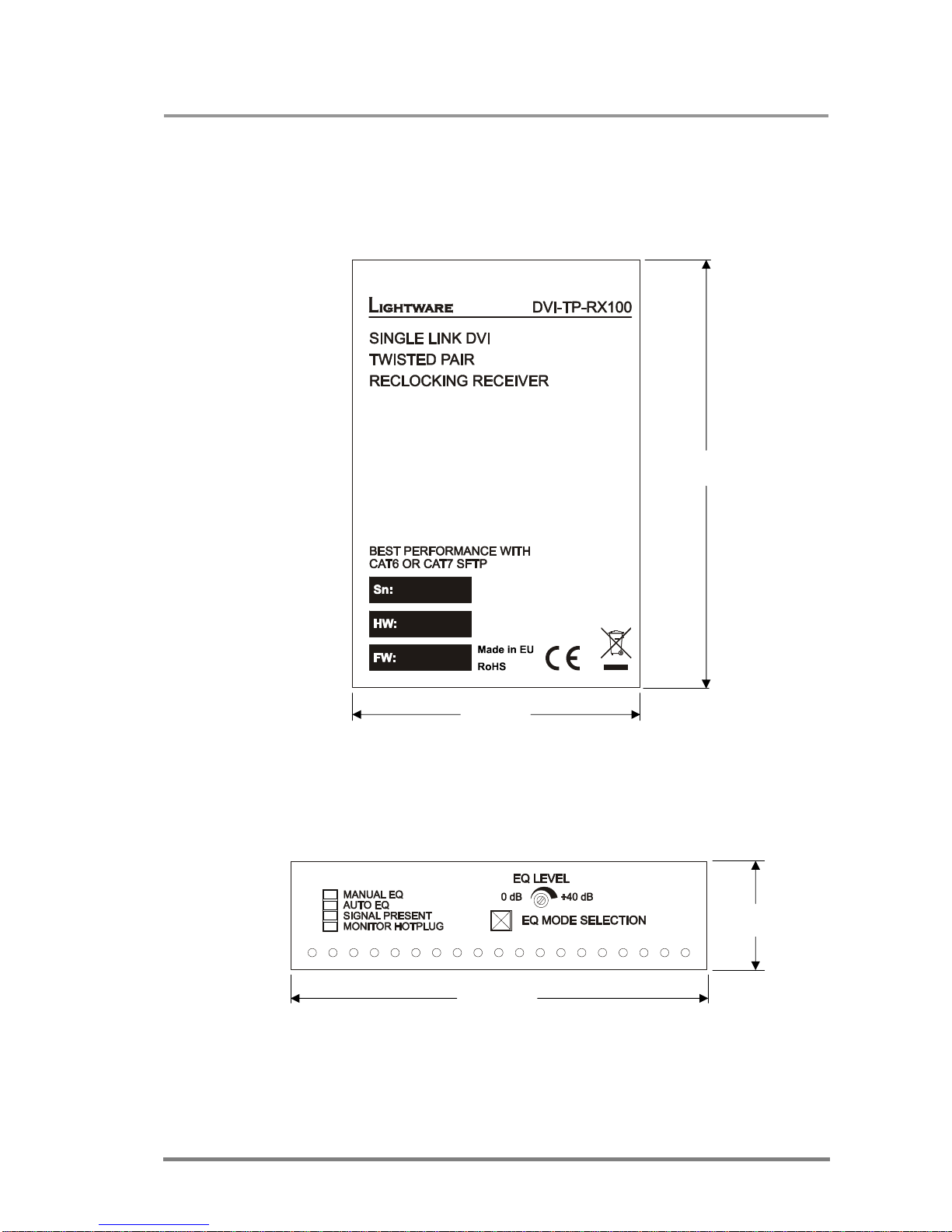

6.2.1. Top view
100,4 mm
67,6 mm
6.2.2. Front view (controls)
26 mm
100,4 mm
Page 26
Page 26 / 29

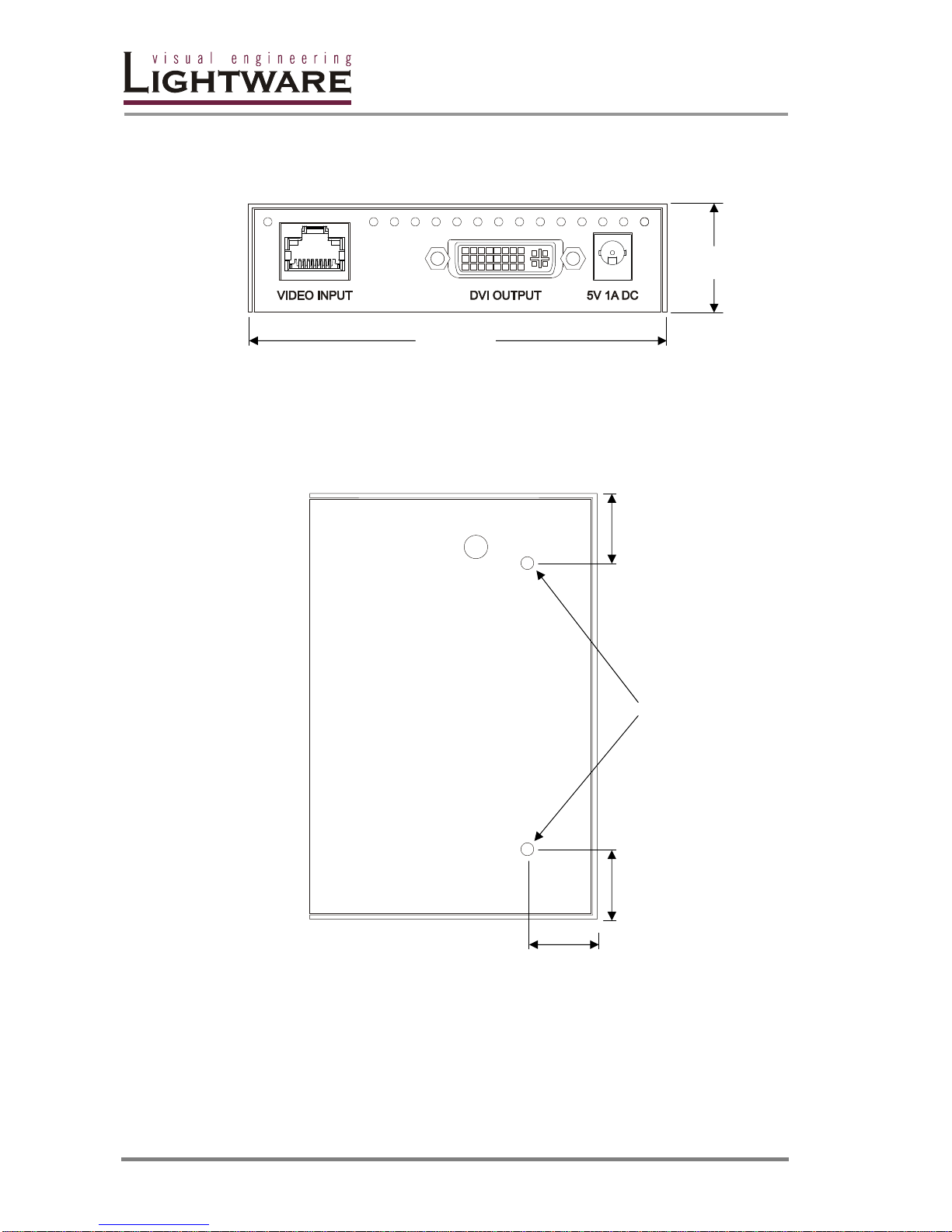

6.2.3. Rear view (inputs, output and power)
26 mm
100,4 mm
6.2.1. Bottom view
16.4 mm
2x M3 thread
16.5 mm
16,4 mm
For rack mounting, cross recessed M3 (max. 10 mm long) screws must be used.
Page 27
DVI-TP-TX200/TX300/RX100
User’s Manual Rev. 1.0
Page 27 / 29
7. Warranty
Lightware Visual Engineering warrants this product against defects in materials and
workmanship for a period of three years from the date of purchase.
The customer shall pay shipping charges when unit is returned for repair. Lightware will
cover shipping charges for return shipments to customers.
In case of defect please call your local representative, or Lightware at
Lightware Visual Engineering
1071. Budapest Peterdy str. 15, HUNGARY
Page 28
Page 28 / 29
8. Specifications
Video
Standard .................................................................................................... DVI 1.0
Color depth ................................................................................ 24 bits, 8 bit/color
Format ..................................................................................................... RGB only
Data rate ........................... all between 25 Mbps and 1.65 Gbps /TMDS channel
Resolutions ..................................... all between 640x480 and 1920x1200@60Hz
HDTV resolutions .................................................................... 720p, 1080i, 1080p
HDCP compliant ................................................................................................ No
Input equalization (RX100) ......................................... +40 dB, automatic, manual
Reclocking (RX100) .................................................................. TMDS Reclocking
EDID Emulation (TX200/TX300) ... Yes, 50 factory preset, 50 user programmable
EDID Support (TX200/TX300) ....................................... 256 Byte Extended EDID
General
Connectors ................................................. 29-pole DVI-I digital only, CAT6 RJ45
Number of DVI inputs (TX200/TX300) ................................................ 1 single link
Number of DVI outputs (RX100) ......................................................... 1 single link
Number of CATx inputs (RX100) ........................................................ 1 single link
Number of CATx outputs (TX200) ...................................................... 1 single link
Number of CATx outputs (TX300) ...................................................... 2 single link
+5V output current (DVI) .............. 500 mA continuous with overcurrent protection
Power adaptor ............................... 100-240 V AC 50/60 Hz 0.6A to +5V DC 2.6A
Power consumption (TX200/TX300) ..................................................... 4 W typical
...................................... 6 W max when powering a fiber extender on DVI output
Power consumption (RX100) ................................................................ 3 W typical
...................................... 6 W max when powering a fiber extender on DVI output
Compliance ....................................................................................................... CE
EMI/EMC ................................................................................... EN 55022 Class B
Safety ....................................................... UL, CUL, GS, CR, RCM, PSE, Class II
Warranty ................................................................................................... 3 years
Enclosure
Rack mountable ............................................................................................... Yes
Material ............................................................................................... 1 mm Metal
Dimensions ................................................ 100,4 mm W x 67,6 mm D x 26 mm H
Net Weight (TX200) ...................................................................................... 230 g
Net Weight (TX300) ...................................................................................... 240 g
Net Weight (RX100) ...................................................................................... 230 g
Page 29
DVI-TP-TX200/TX300/RX100
User’s Manual Rev. 1.0
Page 29 / 29
NOTES:
Loading...
