1. General description
1.1. Box contents
− DA2DVI-Pro Distribution Amplifier
− User's manual
− Quick Start Guide
− +5V wall plug power adaptor
− CD-ROM with control software
− USB Type A/B cable
1.2. Features
60 meter input cable compensation – Using 22AWG high quality DVI cable, the
input is automatically compensated for up to 60 meter cable length, which extends installation possibilities even on highest HDTV or computer resolutions. In case of lower pixel resolutions, this length can be even higher.
Advanced EDID Management – The user can emulate any EDID on the DA2DVI-
Pro’s input, read out and store any monitor's EDID (attached to Output 1) in 49 internal memory locations, upload and download EDID files using Matrix Control Software.
Supports all HDTV resolutions – 720p, 1080i and 1080p etc. without HDCP
encoding - Unencrypted HDTV signals up to 165 MHz pixel clock frequency regardless of the resolution passed through.
Pixel Accurate Reclocking – (removes jitter and skew caused by long cables)
each output has a clean, jitter free signal, eliminating signal instability and distortion caused by long cables or connector reflections.
Signal Present LED – Valid DVI signal is detected, when signal is applied to DVI
INPUT.
Source and Monitor Connected LEDs – Three LEDs indicate when a DVI source
and display diveces are connected to the DA2DVI-Pro.
Front and rear panel control – EDID Address selection with two decimal rotary
switches and Learn EDID button are available on the front panel. Advanced hardware settings can be made with DIP switch on the rear side of the DA2DVI-Pro.
Software control – Input status, output settings, EDID Management, Terminal
Window and hardware information can be accessed in Lightware Matrix Controller software using a USB connection.
Fiber cable support – Self powered DVI fiber cables using +5V from DVI sources
(VGA cards, etc.) usually consume more than 50 mA, which load is maximum allowed by DVI 1.0 standard. DA2DVI-Pro supports +5V 500 mA constant current output on each DVI OUTPUT to power long distance fiber optical cables.
Universal power adaptor – DA2DVI-Pro is equipped with a universal +5V power
adaptor, which accepts AC voltages from 100 to 240 Volts with 50 or 60 Hz line frequency.
Page 8
Page 8 / 43
1.3. Advanced EDID Management
Each DVI sink (e.g. monitors, projectors, plasma displays, and switcher inputs) must support the EDID data structure. Source BIOS and operating systems are likely to query the sink using DDC2B protocol to determine what pixel formats and interface are supported. DVI standard makes use of EDID data structure for the identification of the monitor type and capabilities. Most DVI sources (VGA cards, set top boxes, etc) will output DVI signal after accepting the connected sink’s EDID information. In case of EDID readout failure or missing EDID the source will not output DVI video signal.
DA2DVI-Pro provides Lightware’s Advanced EDID Management function which helps system integration. The built-in EDID Manager stores and emulates 100 EDID plus the EDID of the display device which is connected to DVI OUTPUT 1. Memory addresses from 01 to 50 are factory presets, while memories from 51 to 99 are user programmable. The DA2DVI-Pro stores the EDID of the monitor or projector connected to DVI OUTPUT 1 in a non-volatile memory.
The EDID emulated on the input can be copied from the DA2DVI-Pro's memory (static EDID emulation) or from the attached monitor (dynamic EDID emulation). For example, the DA2DVI-Pro can be set up to emulate the device, which is connected to DVI OUTPUT 1, and the EDID automatically changes, if the monitor is replaced with another display device (as long as it has a valid EDID).
Info The user is not required to disconnect the DVI cable to change an EDID as
opposed to other manufacturer’s products. EDID can be changed even if source is connected to the input and powered ON.
1.4. Pixel Accurate Reclocking
DA2DVI-Pro reclocks the signal on all outputs using Lightware’s sophisticated Pixel Accurate Reclocking technology. Signal reclocking is an essential important procedure in digital signal transmission. After passing the reclocking circuit, the signal becomes stable and jitter-free, and can be transmitted over more equipment like processors, or event controllers. Without reclocking, sparkles, noise and jaggies can be seen on the image.
The Pixel Accurate Reclocking circuit eliminates the following errors:

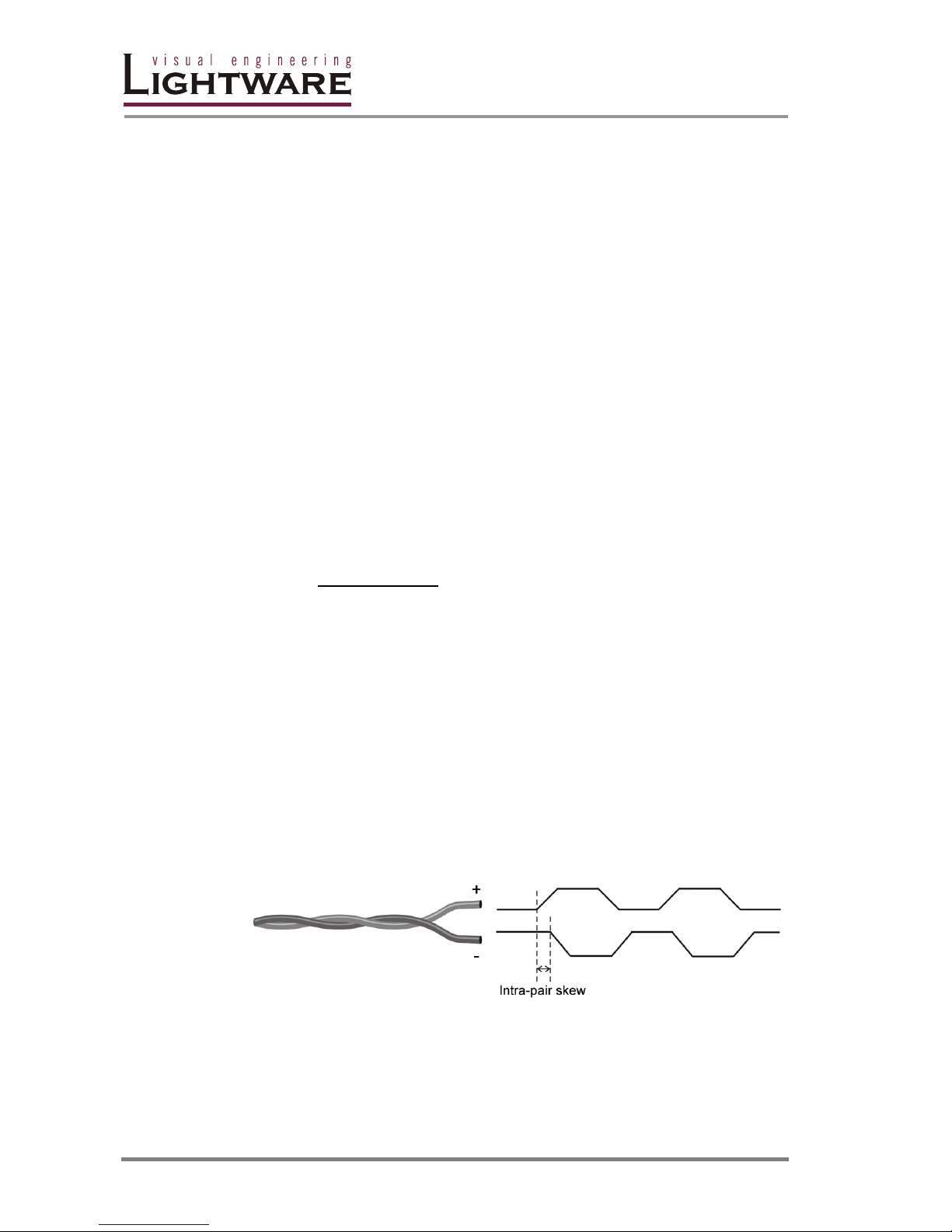

Intra-pair skew: skew between the + and - wires within a differential wire pair (e.g.
Data2- and Data2+). It’s caused by different wire lengths or slightly different wire construction (impedance mismatch) in DVI cable. It results in jitter.
Page 9
User’s Manual Rev. 1.3
Page 9 / 43

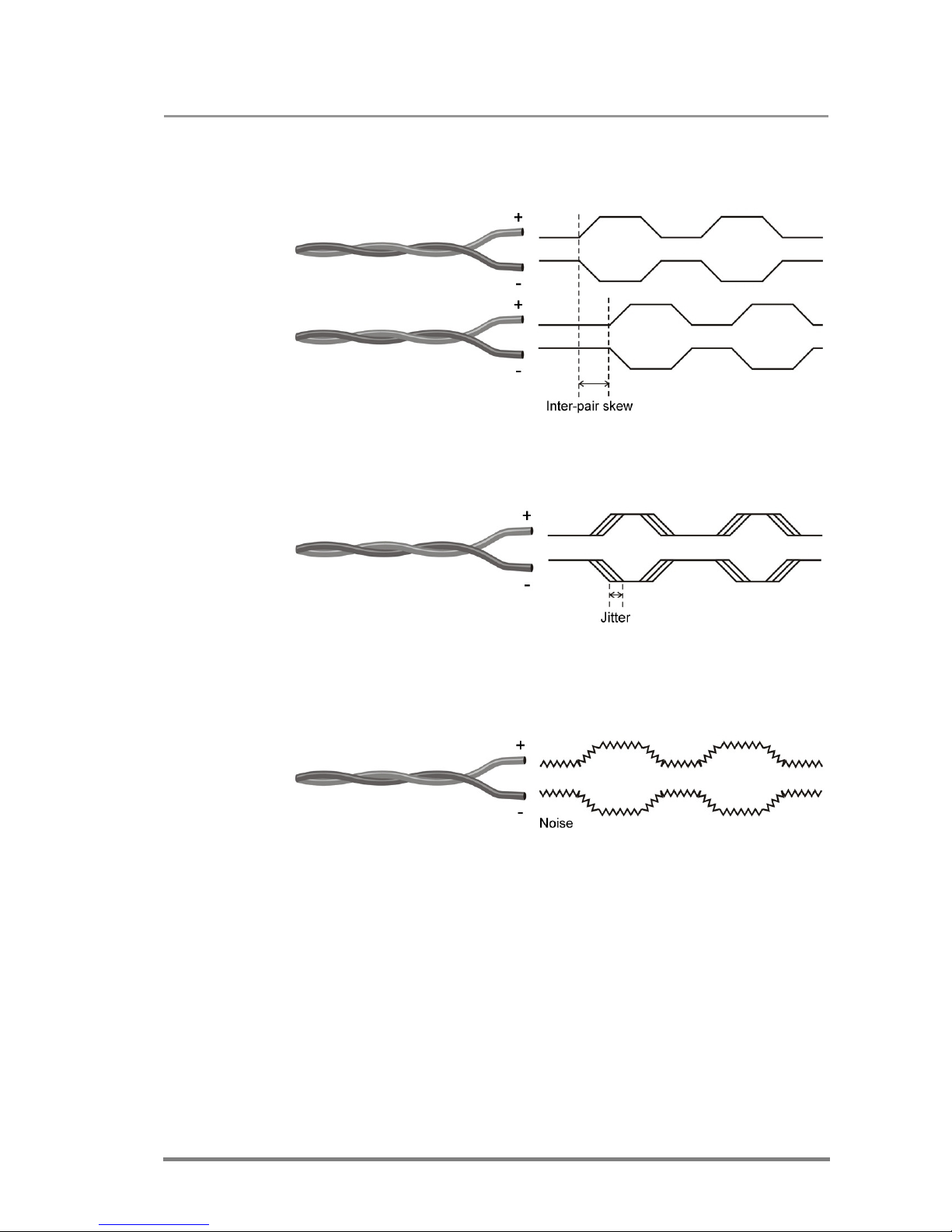

Inter-pair skew: skew between two differential wire pairs in a cable. It’s caused by
different wire pair lengths or different number of twists in the DVI cable. Too much inter-pair skew results in color shift in the picture or sync loss.
Jitter: signal instability in the time domain. The time difference between
two signal transitions should be a fix value, but noise and other effects cause variations.
Noise: electromagnetic interference between other electronic devices
such as mobile phones, motors, etc. and the DVI cable are coupled onto the signal. Too much noise results in increased jitter.
The Pixel Accurate Reclocking circuit completely regenerates the original video signal and outputs a strong, high-quality digital signal that conforms to the DVI specification.
Page 10
Page 10 / 43
1.5. Fiber Cable powering
As special feature DA2DVI-Pro is able to supply 500 mA current to power fiber optical transmitters like DVI-OPT-TX100 (Pin 14 on both DVI output connectors). Standard DVI outputs or VGA cards supply only 55 mA current on +5V output, thus unable to directly power a fiber optical cable.
Info DA2DVI-Pro does not check if the connected sink (monitor, projector or other
equipment) supports Hotplug or EDID signals but outputs the signal immediately after it has been applied to the input.
1.6. Cascading multiple DA2DVI-Pros

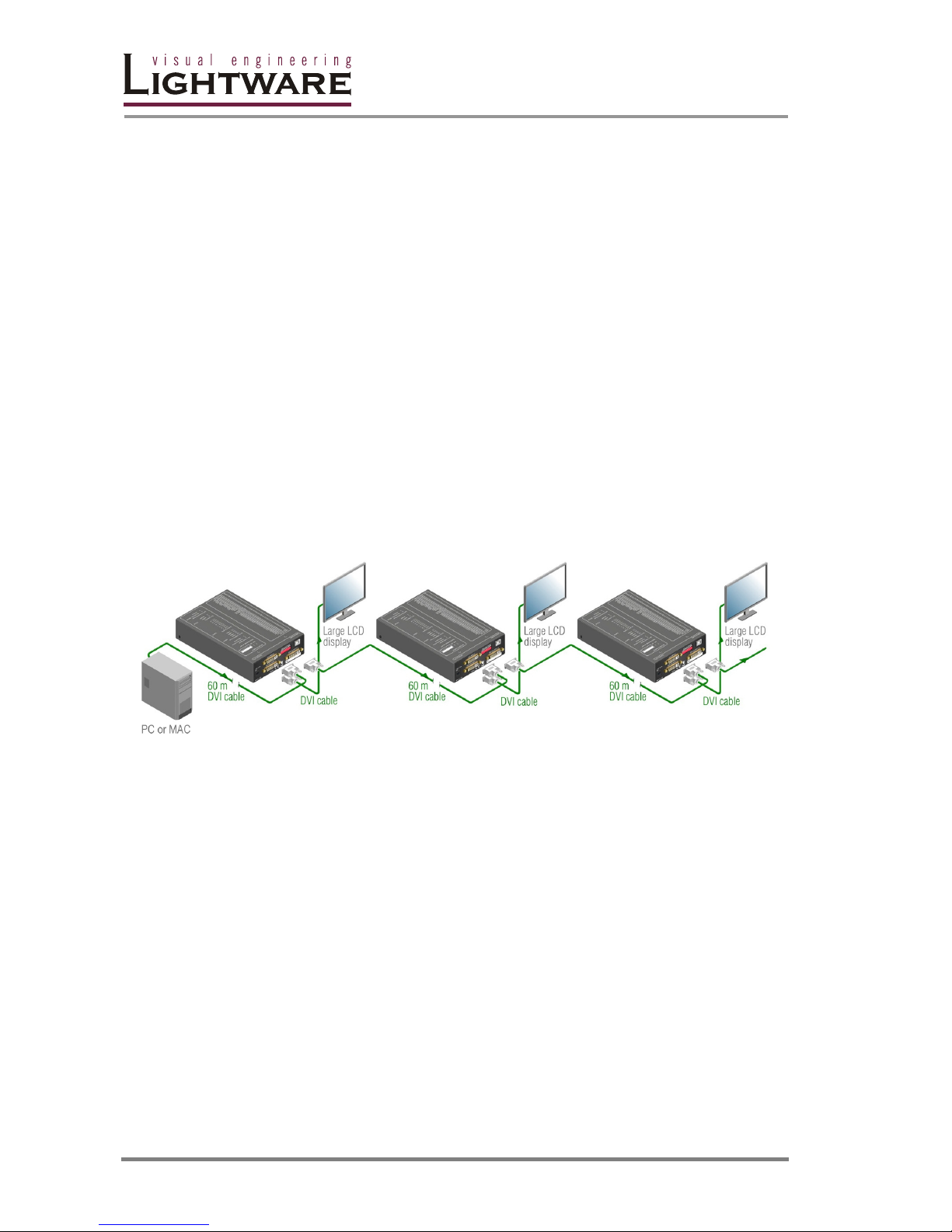

Thanks to the built-in cable equalizer and the Pixel Accurate Reclocking circuit, up to 8 DA2DVI-Pros can be cascaded. This feature is especially useful for digital signage applications. The distance between the display blocks may be up to 60 meters in case of HD 1080p resolution, or even higher for lower pixel numbers or interlaced scan 1080i.
If the display devices have different resolutions, please emulate the EDID of the display that has the lowest resolution, otherwise the displays with higher resolutions may not show the whole image, rescale the image or won’t display an image at all.
Digital signage application
Page 11
User’s Manual Rev. 1.3
Page 11 / 43
1.7. Front and rear view

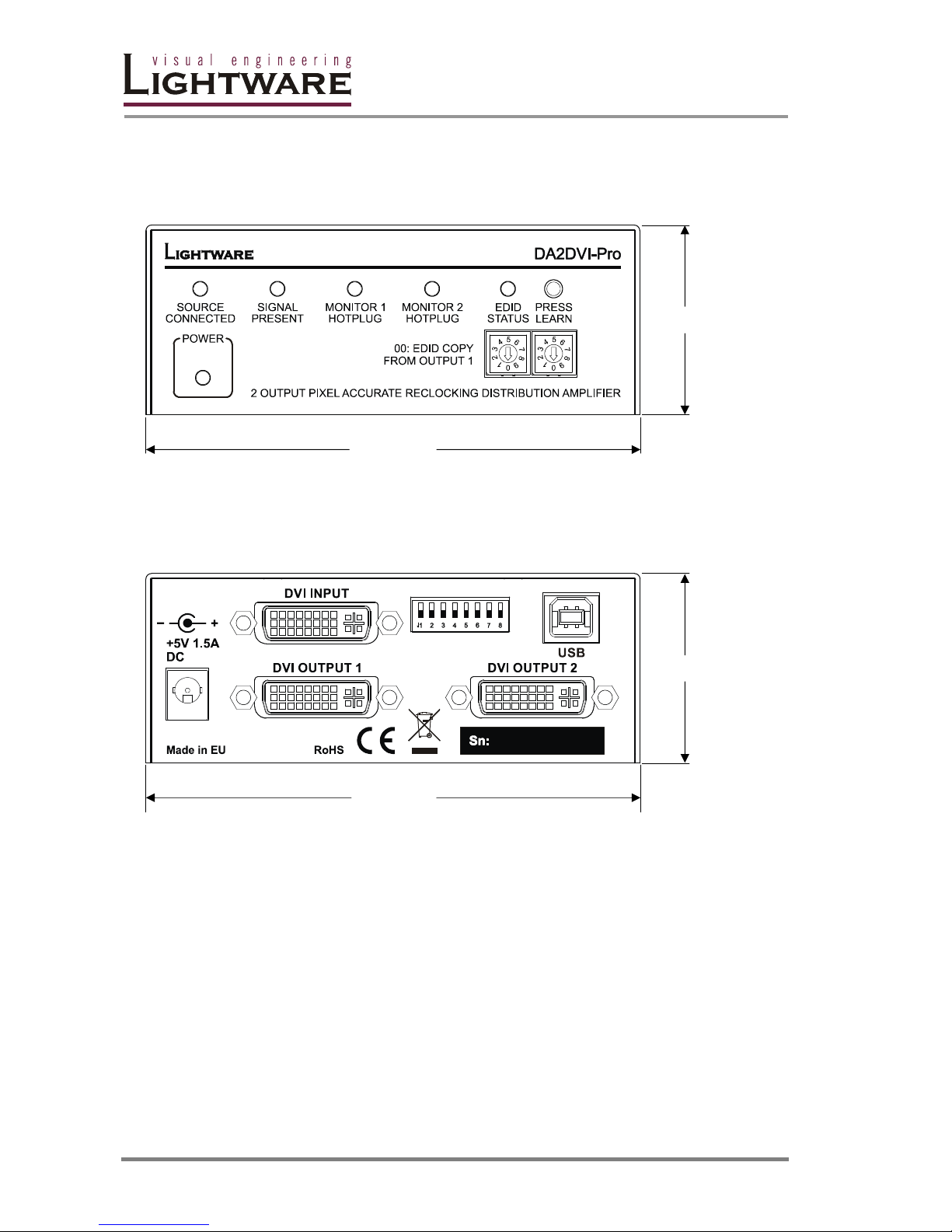

1.7.1. Front panel view
Status LEDs Learn EDID button
Power LED Address selection
Source connected LED Indicates if a DVI source is connected to the DA2DVI-Pro, it is
powered on and sends +5V signal to Pin 14 of the input DVI connector.
Signal present LED Indicates if a valid DVI clock signal is present on the input DVI
connector.
Monitor 1 hotplug LED Indicates if a display device (or matrix switcher, repeater, etc.)
is connected to the DVI OUTPUT 1 connector and sends a valid Hot Plug Signal on Pin 16 through the DVI cable.
Monitor 2 hotplug LED Indicates if a display device (or matrix switcher, repeater, etc.)
is connected to the DVI OUTPUT 2 connector and sends a valid Hot Plug Signal on Pin 16 through the DVI cable.
EDID status LED Function 1: displays the firmware version of the device. For
more information, see chapter 2.1.
Function 2: after applying a Hot Plug signal to DVI OUTPUT 1,
this LED indicates that the unit is reading the EDID from the connected display device. If the LED is blinking green then the EDID is valid, if blinking red, then the EDID is invalid or missing.
Function 3: this LED indicates whether the selected EDID is
valid (continuous green = valid, continuous red = invalid or empty memory selected). EDID address selection can be done by front panel rotary switches or Matrix Controller software.
Learn EDID button Stores the EDID of the display device attached to DVI OUTPUT
1 in the selected memory address (51…99). To learn the EDID, select an appropriate address with the rotary switches and press and hold the Learn button for two seconds.
Power LED Indicates if the device is powered on. It does not indicate
whether the device is operating properly.
Address selection The rotary switches select one of 100 addresses. Addresses
1…50 are factory preset and 51…99 are user programmable. Use a flat head screwdriver that fits into the actuator. Avoid use of keys, coins, knives and other sharp objects because they might cause permanent damage to the rotary switches.
Page 12
Page 12 / 43

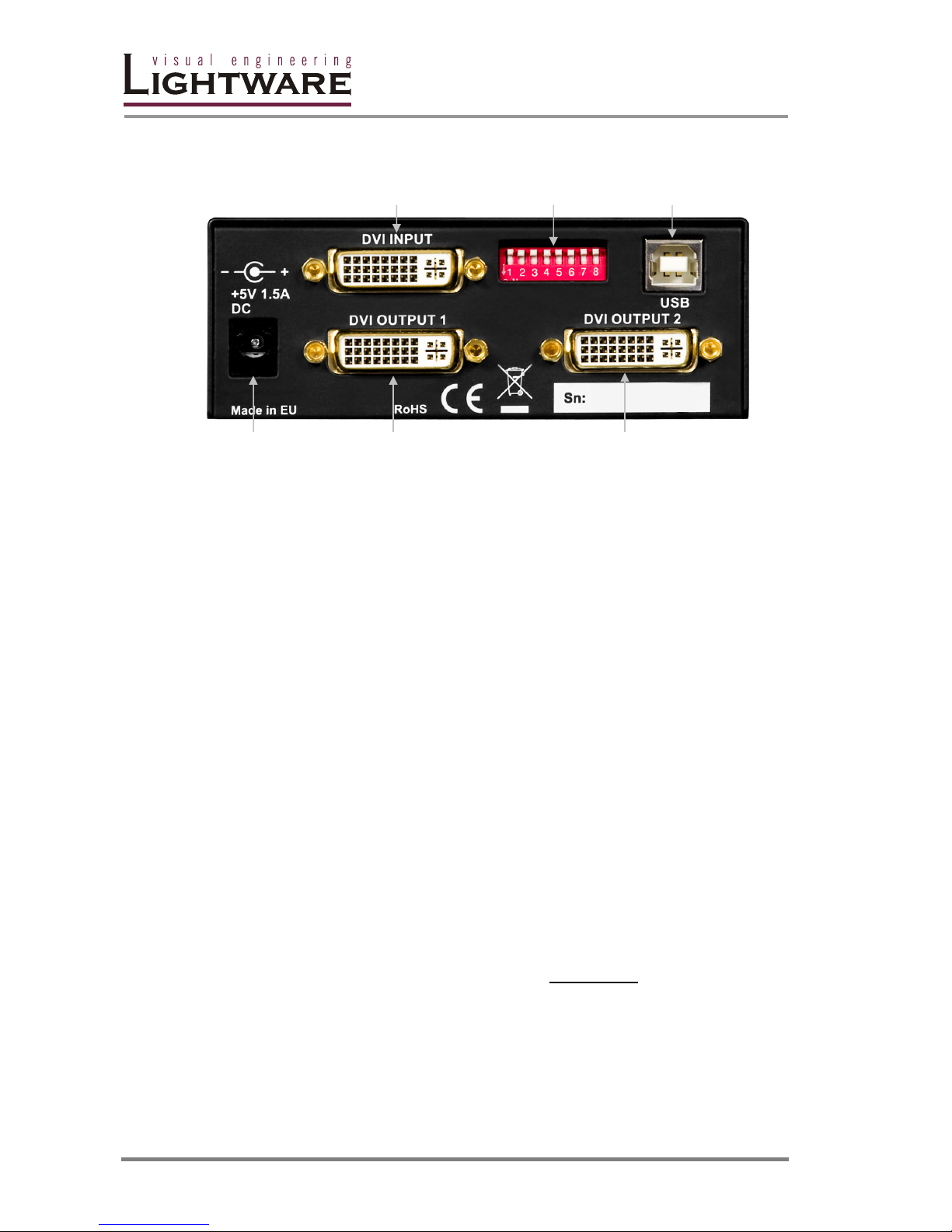

1.7.2. Rear panel view
DVI INPUT DIP switch USB connector
+5V DC DVI OUTPUT 1 DVI OUTPUT 2
DVI INPUT Connect one single link DVI-D or DVI-I cable (only digital pins
are connected internally) between the DVI source and DA2DVI­Pro. The built-in automatic cable equalization circuit compensates for up to 60 meters at 1920x1080p 60 Hz resolution. For lower resolutions, even longer cables can be used.
DIP switch 8 circuit DIP switch, which selects the Control Mode, TMDS PLL
Frequency, Deskew value, Pixel PLL enable and Pixel Phase clock. For more information, please see section 3.
USB connector USB Type B female connector for remote control using
Lightware Matrix Controller software. Connect a USB Type A/B cable between the DA2DVI-Pro and the controlling PC or laptop.
+5V DC connector Connect the output of the supplied +5V power adaptor.
CAUTION! Warranty void if damage occurs due to use of a different power source.
DVI OUTPUT 1 Connect one single link DVI-D or DVI-I cable (only digital pins
are connected internally) between DA2DVI-Pro and display device. EDID functions are enabled only on this output.
The output connector is able to supply 500 mA current on pin 14
to power fiber optical DVI extenders like DVI-OPT-TX100.
If a long DVI cable is connected then equalization may be
necessary at the other end of the cable.
DVI OUTPUT 2 Connect one single link DVI-D or DVI-I cable (only digital pins
are connected internally) between DA2DVI-Pro and display device. EDID functions are not available on this output.
The output connector is able to supply 500 mA current on pin 14
to power fiber optical DVI extenders like DVI-OPT-TX100.
If a long DVI cable is connected then equalization may be
necessary at the other end of the cable.
Page 13
User’s Manual Rev. 1.3
Page 13 / 43
1.8. Electrical connections
1.8.1. DVI inputs and outputs
DA2DVI-Pro provides 29 pole „digital only” DVI-I connectors for input and output connections. Always use high quality DVI cable for connecting sources and displays.
The input has a built-in signal detection circuit with a LED indicator located on the front panel. The LED lights green, if the input connector senses a valid DVI signal.
Pin Signal Pin Signal Pin Signal
1
TMDS Data2-
11
TMDS D1/3 Shield
21
TMDS Data5+ (nc)
2
TMDS Data2+
12
TMDS Data3- (nc)
22
TMDS Clk Shield
3
TMDS D2/4 Shield
13
TMDS Data3+ (nc)
23
TMDS Clock+
4
TMDS Data4- (nc)
14
+5V Power
24
TMDS Clock-
5
TMDS Data4+ (nc)
15
GND (for +5V)
25
R (not connected)
6
DDC Clock
16
Hot Plug Detect
26
G (not connected)
7
DDC Data
17
TMDS Data0-
27
B (not connected)
8
VSYNC (nc)
18
TMDS Data0+
28
HSYNC (nc)
9
TMDS Data1-
19
TMDS D0/5 Shield
29
Analog GND
10
TMDS Data1+
20
TMDS Data5- (nc)
Table 1. DVI-I “digital only” connector pin assignments
Cable length at inputs
DA2DVI-Pro has an advanced built-in cable equalization circuit, which automatically provides cable length compensation. This circuit extends the maximum usable cable length to 60 meters using high quality 22AWG copper cable at WUXGA 1920x1200 graphics resolution.
Cable type
Signal
22 AWG
Reference type
DVI GEAR: SHR DVI
24 AWG
Reference type
TASKER: TSK 1060
Resolution Max length (meter) Max length (meter)
1920x1200; 1600x1200;
2048x1080p; 1080p
60 m 50 m
1680x1050; 1400x1050;
1280x1024
75 m 62 m
1024x768; 1365x768;
720p; 1080i;
92 m 77 m
800x600
100 m (calculated) 84 m (calculated)
640x480; 480p; 576p
120 m (calculated) 100 m (calculated)
Table 2. Maximum DVI cable lengths at inputs
Page 14
Page 14 / 43

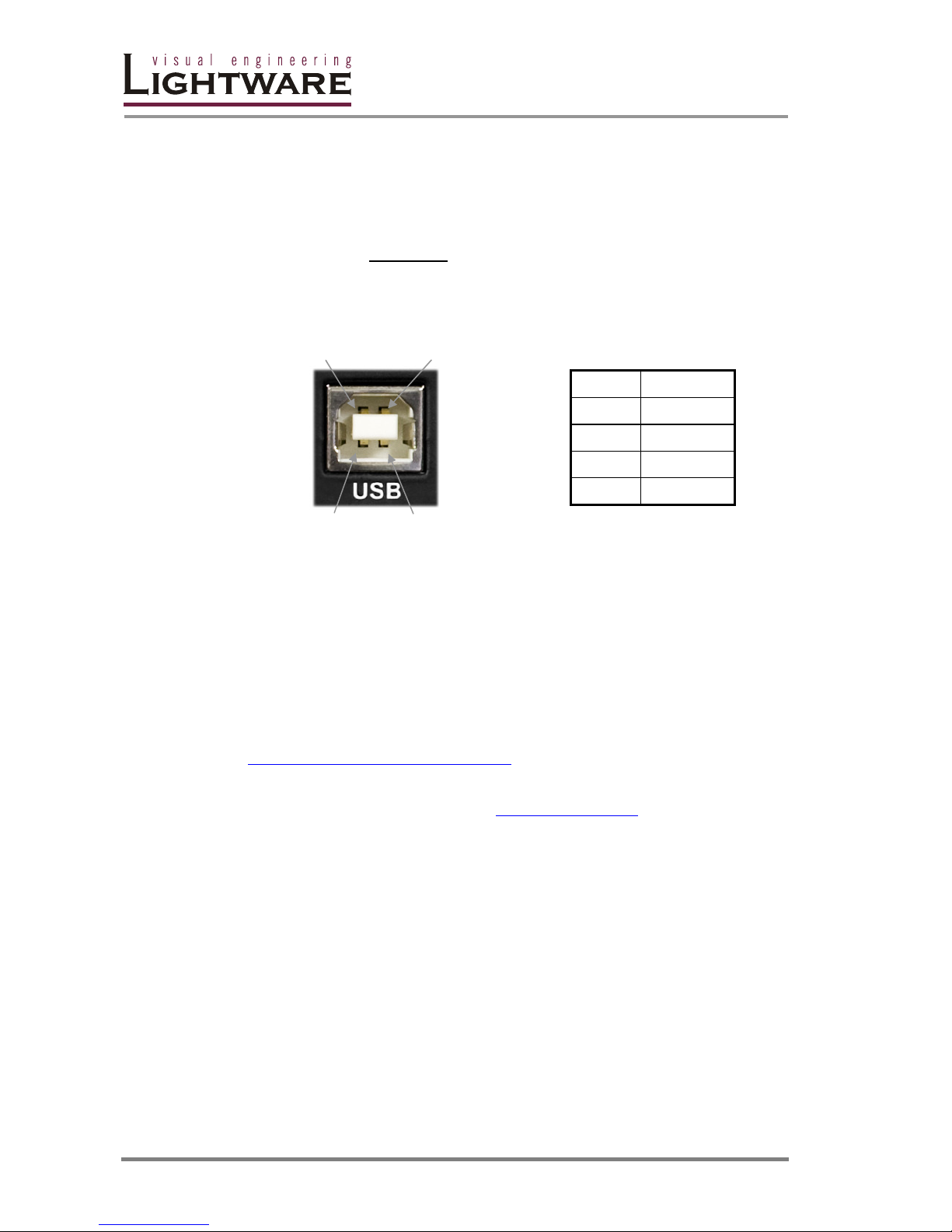

1.8.2. USB control port
DA2DVI-Pro can be remote controlled via a commonly used USB connector located on the rear panel of the unit. Connect a USB Type A/B cable between the DA2DVI-Pro and the controlling PC or laptop.
Please make sure not to send any commands to the DA2DVI-Pro via the USB port until it has finished the booting process (EDID Status LED continuously illuminated green or red). Doing so may result in faulty behavior, in which case please restart the DA2DVI-Pro.
Pin 2 Pin 1
Pin 3 Pin 4
Pin nr. Signal
1
+5V
2 Data-
3 Data+
4
GND
USB Type B port pin locations Table3. – USB Type B pin connections
After connecting the DA2DVI-Pro to the control PC or laptop, the driver of the device starts installing itself. Normally this is an automatic process. The driver creates a virtual COM port in the operating system. When running the Lightware Matrix Controller software, this COM port will be seen in the Available Serial Ports list.
If the DA2DVI-Pro does not install its driver automatically, please visit the following website and download the VCP (Virtual COM Port) driver for your operating system and install it.
http://www.ftdichip.com/Drivers/VCP.htm
For further assistance, please contact [email protected]
Page 15
User’s Manual Rev. 1.3
Page 15 / 43
2. Operation
2.1. Power
When building an electronic system, make sure that all of the devices are powered down before connecting them. Powered on devices may have dangerous voltage levels that can damage sensitive electronic circuits.
1. After the system is complete, connect the the +5V Power Adaptor to the DA2DVI-Pro. The unit is immediately powered ON.
After the DA2DVI-Pro is initialized, the attached DVI source and monitor(s) can be powered on.
2. After being powered on, the DA2DVI-Pro displays its firmware version using the EDID Status LED.
The following example shows this process for a firmware version of 1.3.7
RED blinks once → Short pause → GREEN blinks three times → Short pause → GREEN blinks seven times → Short pause → The normal function of the LED is in effect.
3. After indicating the firmware version, the EDID STATUS LED turns green if the selected EDID is valid, or turns red, if the selected EDID is invalid.
4. If a display device is connected to DVI OUTPUT 1, the DA2DVI-Pro reads the EDID from the attached monitor’s EDID memory.
If the read process is successful, the GREEN LED blinks a few times then the EDID Status LED shows whether the selected EDID is valid (green) or not (red).
If the read process is unsuccessful, the RED LED blinks a few times then the EDID Status LED shows whether the selected EDID is valid (green) or not (red).
Info If none of the LEDs light up upon power-up, the unit is most likely damaged and
further use is not advised. Please contact [email protected]
2.2. Learning an EDID
The factory preset EDIDs cannot be changed by the user. Only addresses from 51 to 99 are user programmable.
1. After connecting the sink device to DVI OUT 1, use a screwdriver to select the desired memory address. EDID are stored in multiple programmable non-volatile memories.
If the EDID status LED is illuminated RED, then the memory slot is empty and ready to be programmed. If GREEN, the memory was already used before, but still available for programming.
2. Push the LEARN button on the front side of the DA2DVI-Pro and hold it down for approximately 3 seconds.
Once the button is pushed the EDID status LED goes dark. If the storing was successful, the GREEN EDID status LED blinks five times and stays illuminated. If the store process was unsuccessful, the RED EDID status LED blinks five times and stays illuminated either red or green, depending on the status of the selected EDID.
Page 16
Page 16 / 43
2.3. Switching the EDID
1. Use a screwdriver to change the memory address on the front side of the DA2DVI-Pro.
After either one of the rotary switches has been rotated the unit waits approximately 2 seconds before the selected EDID becomes active. If the EDID status is unchanged the EDID STATUS LED does not blink.
2. The address 00 (zero zero) has a special function. If a monitor is connected to DVI OUTPUT 1, then its EDID is copied to the DVI INPUT. If no monitor is connected to the Monitor output then the EDID provided on the DVI INPUT connector is the EDID of the last connected monitor.
Info If an invalid EDID is selected, the DA2DVI-Pro does NOT transmit a HOT PLUG
signal to the source connected to the DVI INPUT.
Info After every EDID change, DA2DVI-Pro toggles the HOT PLUG signal for
approximatley 1 second. Some graphic cards or DVD players do not sense the HOT PLUG signal, and even if EDID has been changed, the set resolution is not affected. In this case the source device must be restarted, or powered OFF and ON again.
2.4. Factory preset EDID list
Lightware factory preloaded EDID are specially provided to force graphic cards to output only the exact pixel resolution and refresh rate.
Universal EDID (address 49) allows multiple resolutions including all common VESA defined resolutions. In addition, it also features audio support. The use of universal EDID is advised for fast and easy system setup.
MEMORY Resolution MEMORY Resolution
01 640x480@60 Hz 26 1600x1200@50 Hz
02 640x480@75 Hz 27 1600x1200@60 Hz
03 848x480@60 Hz 16:9 28 1920x1200@60 Hz
04 800x600@50 Hz 29 1920x1200@50 Hz
05 800x600@60 Hz 30 [email protected] Hz
06 800x600@75 Hz 31 [email protected] Hz
07 1024x768@50 Hz 32 720x480p@60 Hz
08 1024x768@60 Hz 33 576i@50 Hz
09 1024x768@75 Hz 34 720x576p@50 Hz
10 1152x864@75 Hz 35 1280x720p@50 Hz
11 1280x768@50 Hz 36 1280x720p@60 Hz
12 1280x768@60 Hz 37 1920x1080i1 @50 Hz
13 1280x768@75 Hz 38 1920x1080i2 @50 Hz
14 1360x768@60 Hz 39 1920x1080i@60 Hz
15 1364x768@50 Hz 40 1920x1080p@24 Hz
16 1364x768@60 Hz 41 1920x1080p@25 Hz
17 1364x768@75 Hz 42 1920x1080p@30 Hz
18 1280x1024@50 Hz 43 1920x1080p1 @50 Hz
19 1280x1024@60 Hz 44 1920x1080p2 @50 Hz
20 1280x1024@75 Hz 45 1920x1080p@60 Hz
21 1366x1024@60 Hz 46 2048x1080p1 @50 Hz
22 1400x1050@50 Hz 47 2048x1080p2 @50 Hz
23 1400x1050@60 Hz 48 2048x1080p@60 Hz
24 1400x1050@75 Hz 49 UNIVERSAL EDID
25 1680x1050@50 Hz 50 2560x1600@60 Hz
Table 3. Factory Preset EDID list
Page 17
User’s Manual Rev. 1.3
Page 17 / 43

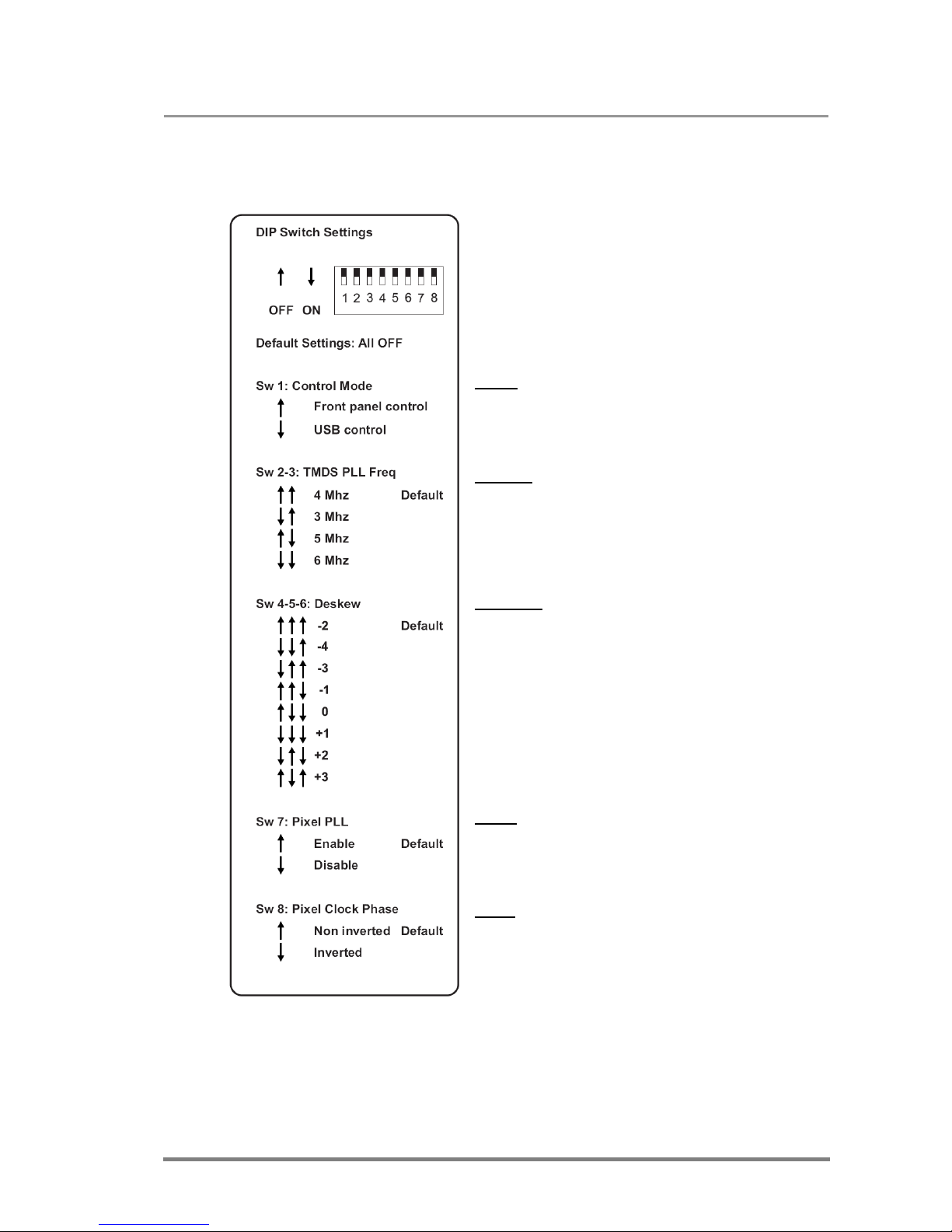

3. Front panel control - DIP switch settings
Advanced users can make adjustments using an 8 circuit DIP switch located on the rear panel of the DA2DVI-Pro (see chapter 1.7.2).
SW 1: defines whether the DA2DVI-Pro is controlled by the rotary switches and the DIP switch or the Lightware Matrix Controller software via USB connection.
SW 2-3: if the incoming signal has too much jitter resulting from a low quality source, then a higher TMDS PLL filter frequency may be necessary. The default value of 4 MHz should provide the best results in most cases. CAUTION! Setting a higher frequency slightly decreases the quality of the output signal.
SW 4-5-6: if the clock and pixel data are not perfectly aligned in the internal pixel signal, then there’s a possibility to add some skew between them in both directions. There is no widely accepted value, because it depends on the resolution and pixel clock. A default setting of -2 should provide the best results in most cases.
SW 7: it is recommended to enable the Pixel PLL at all times. If the quality of the incoming signal is too low and the other settings could not improve the quality, then disabling the Pixel PLL may be necessary.
SW 8: this is a coarse way to adjust the deskew value. This setting shifts the phase of the clock signal by 180 degrees.
Page 18
Page 18 / 43
4. Software Control – Using Lightware Matrix Controller
4.1. Establishing the connection

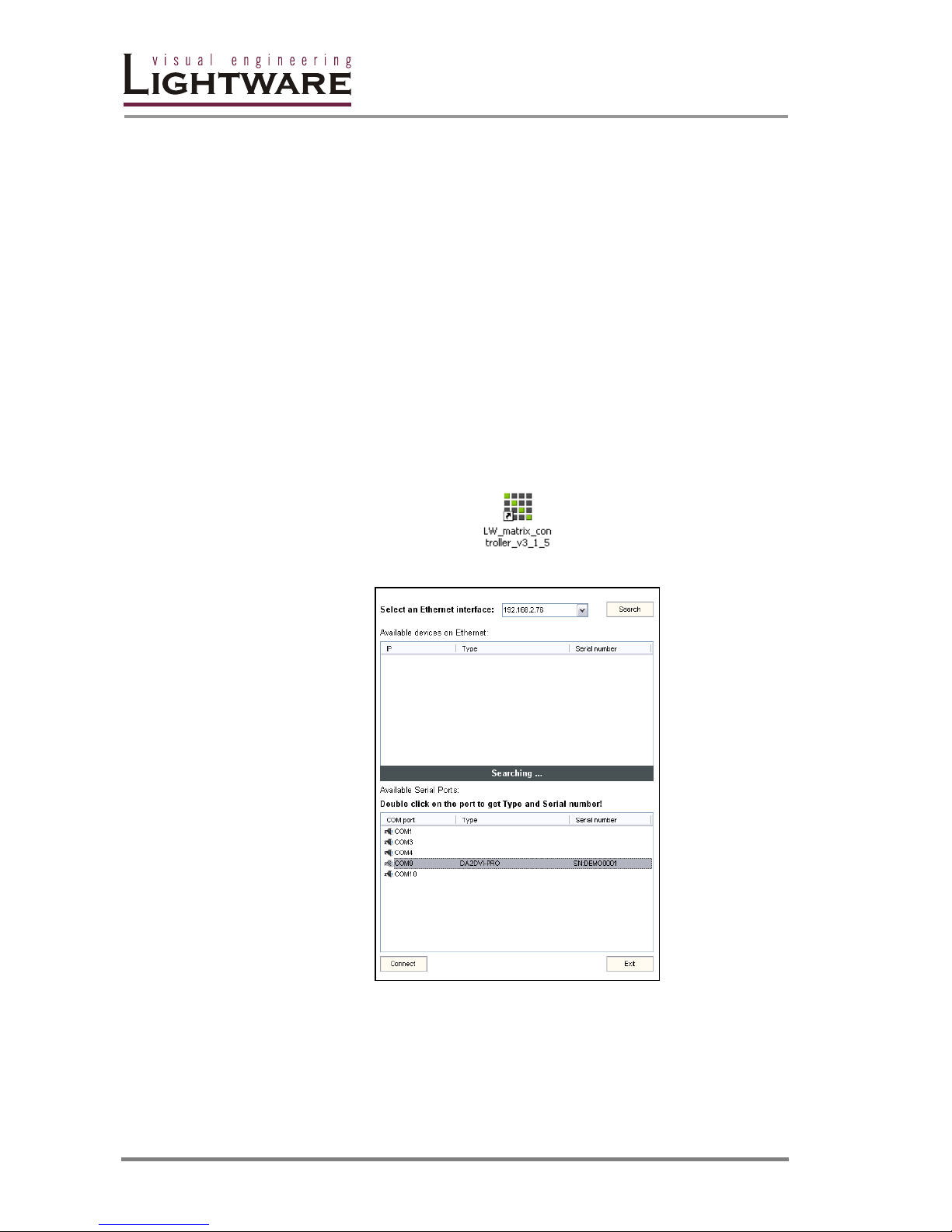

The unit can be controlled using Lightware Matrix Controller software from a PC or Laptop via USB port.
1. Turn DIP Switch 1 in ON position to enable USB control function.
Info USB Connection to the DA2DVI-Pro can be done even if it’s in front panel control
mode, but only the status of the settings can be checked, and no software changes can be applied.
2. Connect a USB Type A/B cable between the PC and the DA2DVI-Pro. The unit installs its driver automatically. If the installation process fails, see chapter 1.8.2.
3. To run the CONTROL SOFTWARE, double click on the icon of the software on the desktop or select the proper shortcut from Start Menu/ Programs/ Lightware folder.
4. Select the appropriate virtual COM port and click on Connect.
Info The device Type and Serial number are not listed automatically for COM ports. To
query the Type and Serial number, double click on the desired COM port.
Info After connecting the DA2DVI-Pro to the controlling PC or laptop, the driver of the
DA2DVI-Pro starts installing itself. The driver creates a virtual COM port in the operating system. When running the Lightware Matrix Controller software, this COM port will be seen in the Available Serial Ports list.
Page 19
User’s Manual Rev. 1.3
Page 19 / 43

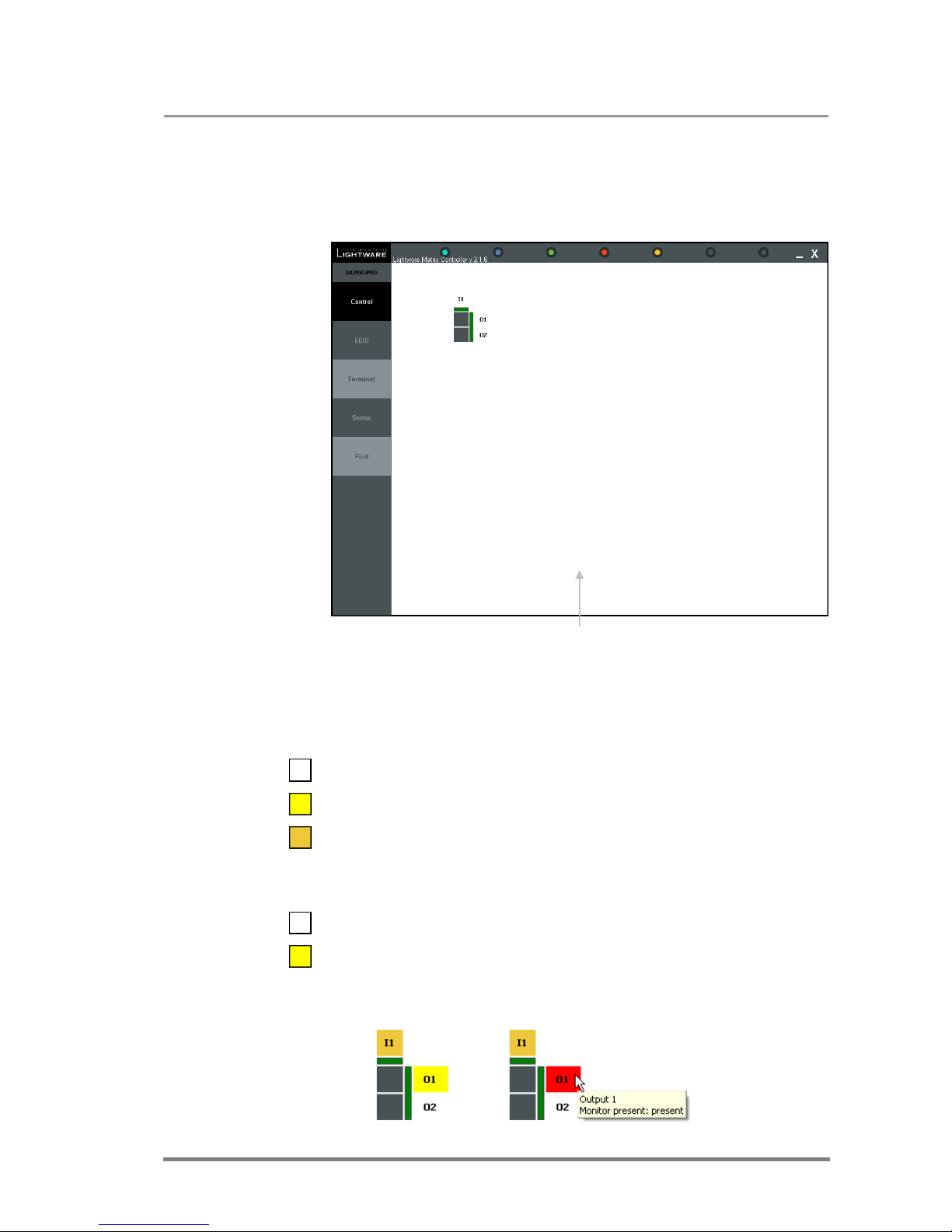

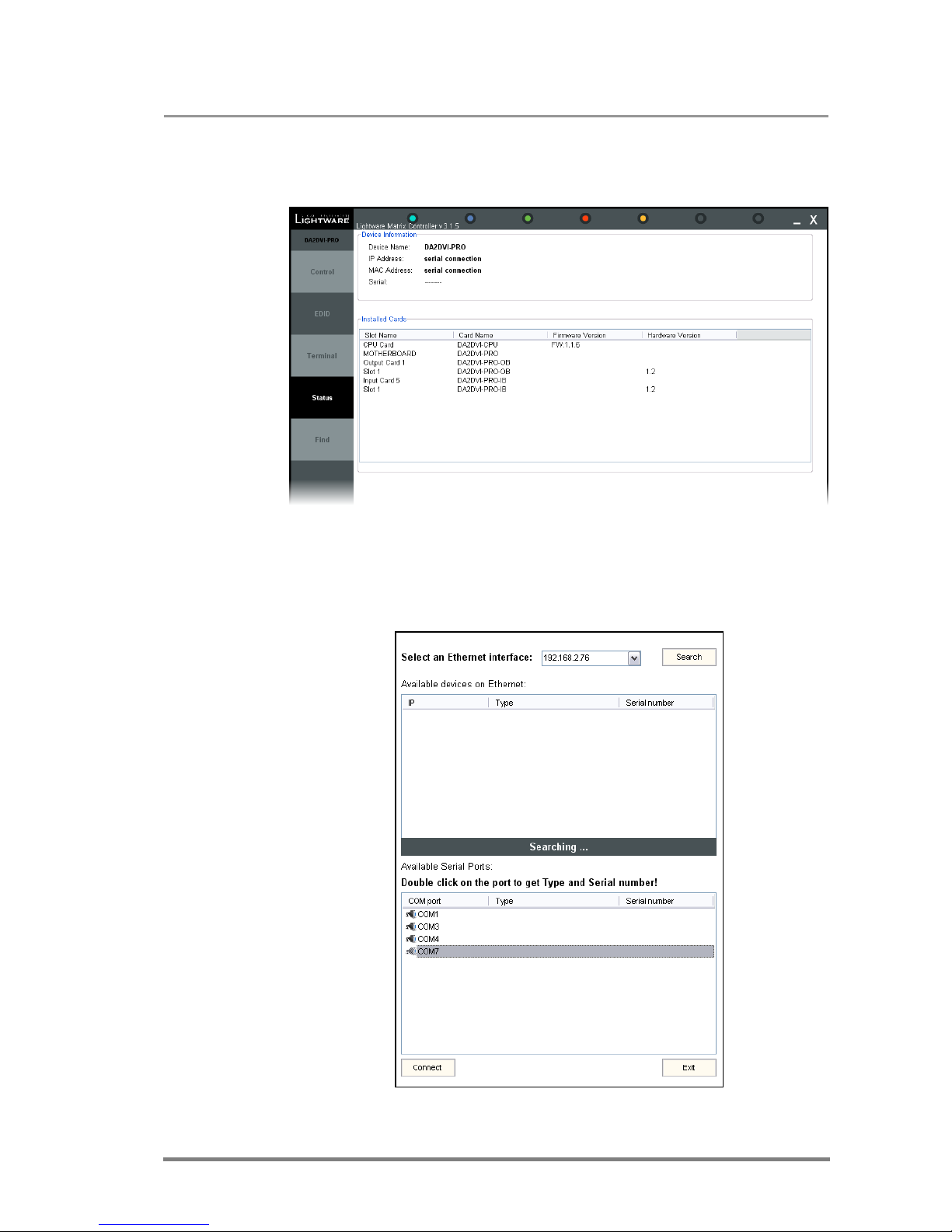

5. After clicking on the Connect button, the Lightware Matrix Controller finds
the hardware, recognizes the product type, and a button matrix area (crosspoint area) appears according to the input and output numbers of the device. For DA2DVI-Pro, I1 column represents the input, O1 and O2 rows represent the outputs. Regardless of the fact that a crosspoint switching area appears, the input signal is always routed to both outputs by default.
Crosspoint area
4.2. Control menu – Input and output states
Each input and output label has a colored background according to its state, so the user can see the main information with a quick look at them.
Legend for input labels:
No source is connected. The power +5V is not present.
Source is connected (+5V present), but there is no active DVI signal.
DVI signal is present on the link.
Legend for output labels:
There is no device connected or the connected device is turned off.
Hotplug is present, a sink is connected.
Info: Staying with the cursor above a label shows a hint about these states.
Page 20
Page 20 / 43

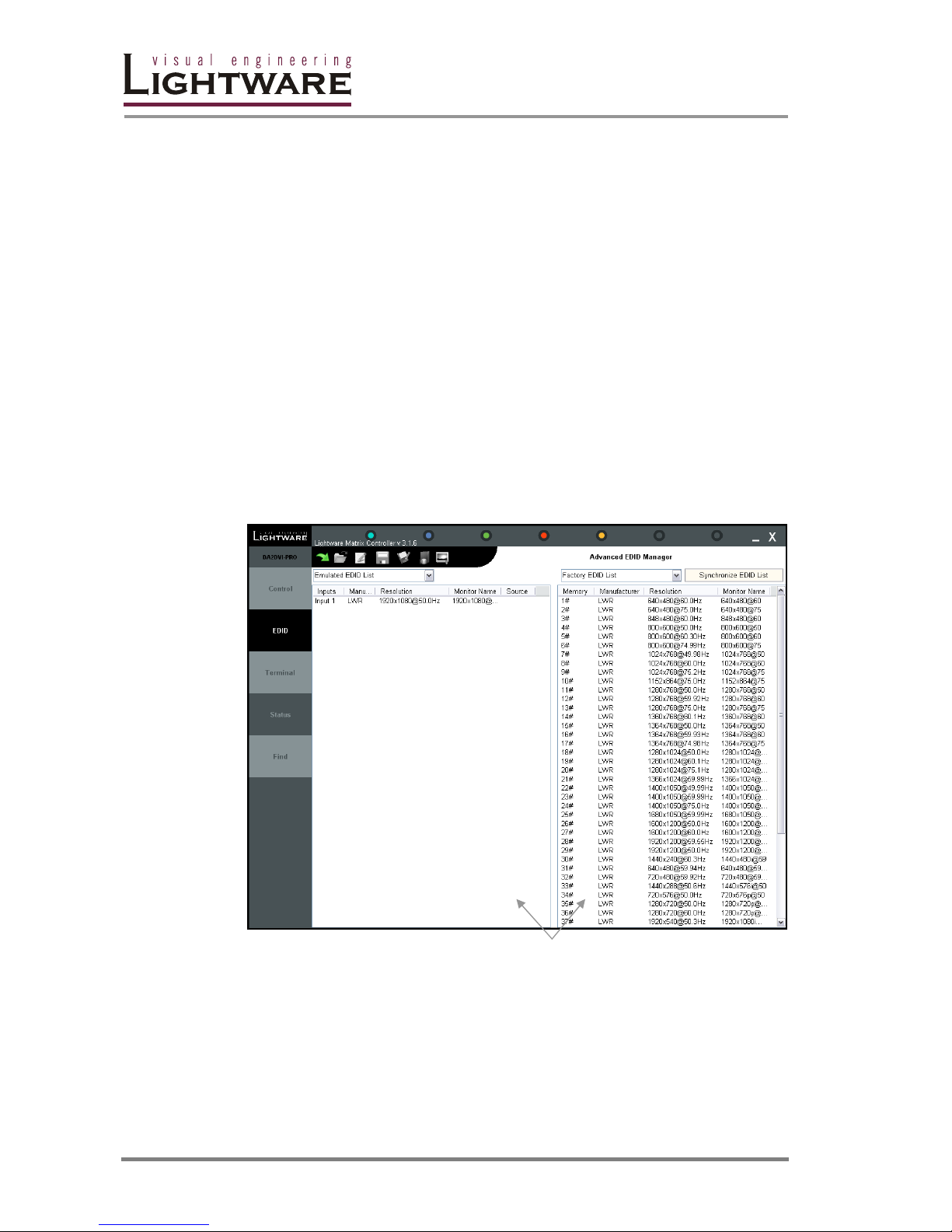

4.3. EDID menu
4.3.1. EDID Router operation
By clicking on the EDID menu, the EDID router window appears.
When the user enters the menu for the first time, the software starts to download the whole EDID content from the DA2DVI-Pro. It may take about 10-20 seconds.
After the list is downloaded, the current status of the EDID list is shown in two windows (list window areas). In the drop-down menus above the two windows you can select which part of the EDID memory you want to see.
The Emulated EDID List window contains the resolution, manufacturer and vendor name of the EDID emulated or reported to the source. The source column displays the memory location that the current EDID was routed from.
The Last attached Monitor's EDID List window contains the resolution, manufacturer and vendor name of the display device connected to DVI OUTPUT 1.
The Factory EDID List window shows the fifty factory preprogrammed EDID.
The User EDID List shows the memory locations which can be used by the user to save EDID.
List window areas
Change emulated EDID at the input – Drag and Drop
The two main types of the emulation are the static and the dynamic:
Static EDID emulation: when an EDID from memories 1…100 is selected and
emulated at the input(s)
Dynamic EDID emulation: when an attached monitor’s EDID is emulated at
input(s), simply copying the data from the monitor. This EDID changes immediately and automatically, if a new monitor is attached to the output.
Page 21
User’s Manual Rev. 1.3
Page 21 / 43
The process of emulating an EDID is the following:
1. Select the Emulated EDID List in one of the list window areas in the drop-
down menu.
2. Select the desired EDID from one of the list windows.
3. Drag and drop the EDID to the desired location in the Emulated EDID list.
Info: If the monitor’s EDID was selected to be emulated (DVI OUTPUT 1) the currently
emulated EDID will be changed on the input every time a new monitor is connected. If the monitor is disconnected from the output, the last EDID remains active, it will not be deleted from the input. This feature helps especially rental technicians or system integrators to keep the source continuously transmitting the signal, and adopt the system for new incoming display devices.
Info: Power ON/OFF cycle will not affect the emulated EDID or other settings.
Info: EDID switch procedure causes a status change and hence it is reported back to
the CONTROL SOFTWARE within 2-3 seconds.
Learn EDID from attached display device
The system is able to learn the EDID from the connected display device and store it in one of the user programmable memory locations.
1. Select User Memory in one of the list window areas in the drop-down menu.
2. Select the EDID to be saved from the other list window.
3. Drag and drop the selected EDID to the desired User Memory location.
Load EDID from file to memory
The DA2DVI-Pro is able to learn and store EDID from a file located on the computer. EDID are stored in *.dat files.
1. Select the User Memory list window from one of the drop-down menus, and
right click on the desired memory location. Then select “Load from file” from the pop-up menu.
2. Browse your hard drive to find the EDID file in the pop-up window. The
software checks whether the selected file is a valid EDID file.
3. Click Open in the browser window. After the process finished, ”EDID Upload
completed” message appears.
Save EDID from memory to file
The control software is able to download EDID from the DA2DVI-Pro and to save it as an EDID file.
1. Right click on the EDID to be saved.
2. Click on Save to file in the pop-up window.
3. The Matrix Controller Software downloads the desired EDID and a save
dialog appears. It may take a few seconds to download the EDID. If the save dialog is shown, type in the file name, and press Save button. After the process was completed, an ”EDID saved!” message confirms the command.
Page 22
Page 22 / 43

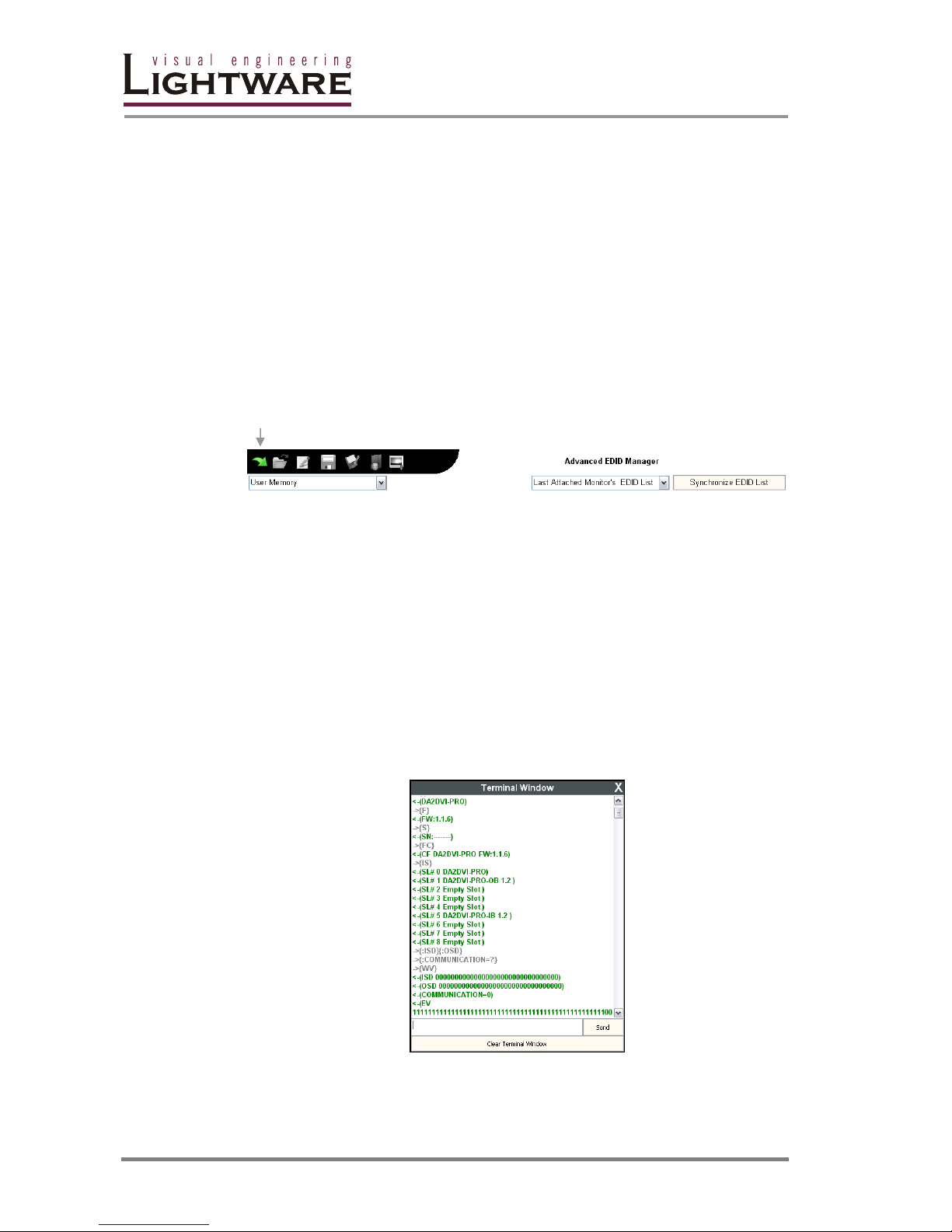

Synchronize EDID
By clicking on Synchronize EDID List button the Lightware Matrix Controller software rereads all EDID information from the connected DA2DVI-Pro. During normal operation it is not necessary to use this menu function because the DA2DVI-Pro always reports every status change automatically. No status change is reported, if you emulate the same EDID on the input or connect the same display device to DVI OUTPUT 1.
Info: There is always a small delay in responses. So if a new monitor is connected to
DVI OUTPUT 1, its new EDID is not shown immediately but in 2-3 seconds!
4.3.2. Advanced EDID Editor
The Lightware Advanced EDID Editor is integrated into the Lightware Matrix Controller software. By clicking on the green arrow, the editor area rolls down.
When the user enters the menu for the first time, an empty EDID is loaded into the editor’s memory.
All EDID in the DA2DVI-Pro’s memory can be edited in the following way:
1. Right click on the desired EDID to be loaded to the EDID Editor.
2. In the pop-up menu, click on Edit EDID. The editor area automatically rolls down, and the EDID is loaded into the editor area.
For further information, see the user’s manual of Advanced EDID Editor.
4.4. Terminal menu
This general-purpose serial terminal is intended mainly for test and debug purposes. After a successful connection to the DA2DVI-Pro this terminal can be opened and used via the USB connection. All commands can be used here that are discussed in section 1.1 and can be typed directly.
Terminal window
Commands are surrounded by framing brackets by default. Every sent command and every received response gets an arrow (-> or <-) prefix, and has different font colors in order to help distinguishing.
Page 23
User’s Manual Rev. 1.3
Page 23 / 43
4.5. STATUS menu
Basic device information, such as device name, firmware version, the input and output cards’ hardware revisions are displayed in this window.
4.6. Find menu
By selecting this menu option, the available devices can be rescanned on the COM ports and on the Ethernet. If the Matrix Controller Software has a live connection to a device on a port, a question window appears, asking if you really want to disconnect from the currently controlled device.
Page 24
Page 24 / 43

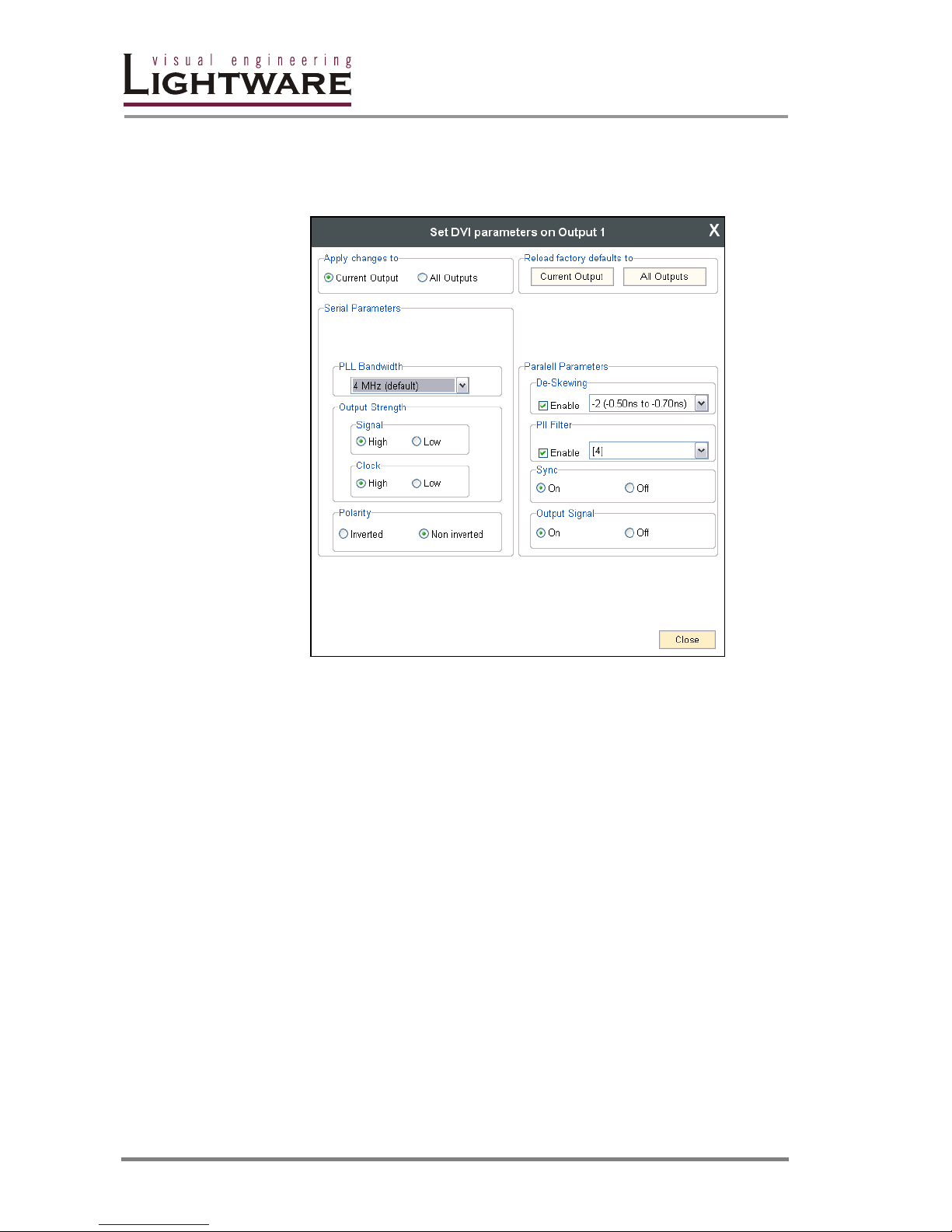

4.7. Output Settings
A right click on the output port label (O1 or O2) near the crosspoint field will open the Set DVI parameters window.
Apply changes to
Current output: this option means the modified parameters are applied only to the
currently selected port displayed in the header.
All outputs: this option means that the modified parameters are applied to all
output ports.
Info: After closing this window, the Current Output option will be selected regardless of
which was active at the time of closing. It is to avoid setting All Outputs by mistake.
Reload factory defaults
Current output: Reloads the default values to the currently selected output.
All outputs: Loads the factory default values to all outputs.
Page 25
User’s Manual Rev. 1.3
Page 25 / 43
Serial Parameters

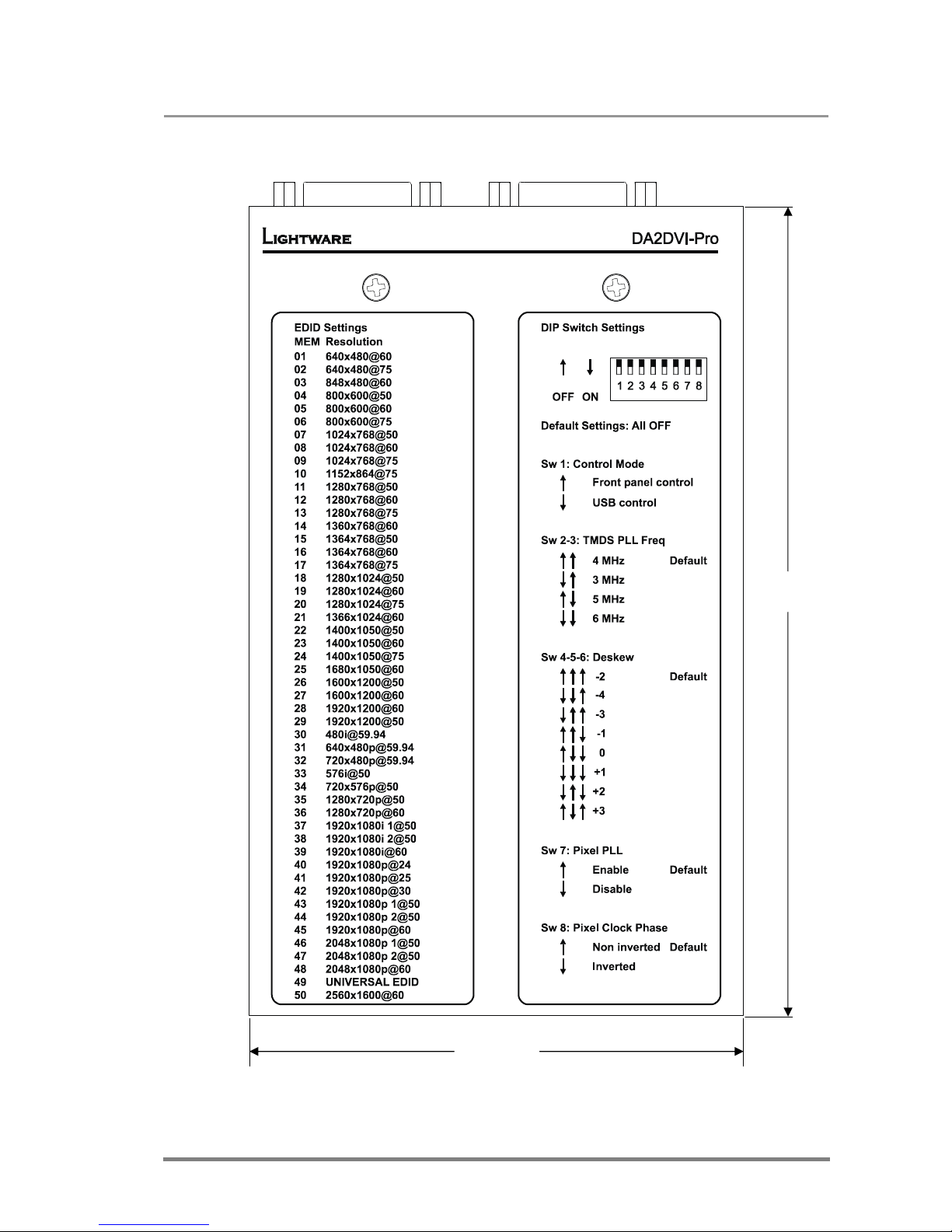

PLL Bandwidth Adjusts the TMDS PLL filter bandwith. SW 2 and 3 of the
DIP switch also adjust this value on the rear panel of the DA2DVI-Pro. If the incoming signal has too much jitter resulting from a low quality source, then a higher PLL fileter bandwidth may be necessary. The default value of 4 MHz should provide the best results in most cases. CAUTION! Setting a higher frequency slightly decreases the quality of the output signal
Output strength Adjusts the internal clock or data drive strength. The
default setting of High should always be applied.
Polarity SW 8 of the DIP switch adjusts this setting on the rear
panel of the DA2DVI-Pro. This is a coarse adjustment of the deskew value. This setting shifts the phase of the internal clock signal by 180 degrees.
Parallel Parameters
De-skewing SW 4, 5 and 6 of the DIP switch adjust this value on the
rear panel of the DA2DVI-Pro. If the clock and pixel data are not perfectly aligned in the internal parallel signal, then there’s a possibility to add some skew between them in both directions. There right value may depend on the resolution and pixel clock. A default setting of -2 should provide the best result in most cases.
PLL Filter SW 7 of the DIP switch enables this setting on the rear
panel of the DA2DVI-Pro. It is recommended to turn on the Pixel PLL at all times. If the quality of the incoming signal is too low and the other settings could not improve the quality, then disabling the Pixel PLL may be necessary. Different values adjust the pixel PLL filter frequency. Using value 4 is strongly recommended.
Sync Always use the ON setting.
Output Signal This setting is used to mute the output signal.
Page 26
Page 26 / 43
4.8. Control commands
An arrow prefix pointing from left to right (→) indicates a command given to the DA2DVI-Pro, and an arrow prefix pointing from right to left (←) indicates a response given by the DA2DVI-Pro.
4.8.1. View product type
Description: The DA2DVI-Pro responds its name.
Format: → {I}
← (PRODUCT_TYPE)CrLf
Example: → {I}
← (DA2DVI-PRO)CrLf
4.8.2. View serial number
Description: The DA2DVI-Pro responds its 8-digit serial number.
Format: → {S}
← (SN:<SERIAL_NUMBER>)CrLf
Example: The serial number of the connected DA2DVI-Pro is: 09090180.
→ {S}
← (SN:09090180)CrLf
Info: Only the last 4 numbers are written onto the back of the DA2DVI-Pro
4.8.3. View firmware version
Description: View the firmware revision of the DA2DVI-Pro.
Format: → {F}
← (FIRMWARE_VERSION)CrLf
Example: The connected DA2DVI-Pro’s firmware version of 1.1.0.
→ {F}
← (FW:1.1.0)CrLf
4.8.4. Route EDID to the input (static)
Description: Copies EDID from location <loc> to input <in>.
In case of DA2DVI-Pro: <in> must be 1
, <loc> must be 1..100
Page 27
User’s Manual Rev. 1.3
Page 27 / 43
Format: → {<in>:<loc>}
← (E_SW_OK)CrLf
← (E_S_C) CrLf
Example: → {1:10}
← (E_SW_OK)CrLf
← (E_S_C) CrLf
Note: (E_S_C) arrives only if the new and the old EDID don’t match.
4.8.5. Route EDID to the input (dynamic)
Description: It copies EDID from location <loc> to input <in>.
In case of DA2DVI-Pro: <in> must be 1, <loc> must be 101
Format: → {<in>:<loc>}
← (E_SW_OK)CrLf
← (E_S_C) CrLf
Example: → {1:101}
← (E_SW_OK)CrLf
← (E_S_C) CrLf
Info: DVI OUTPUT 1 is mapped to logical address 101.
After choosing dynamic EDID routing for the input, the DA2DVI-Pro will follow the EDID changes that occur on DVI OUTPUT 1.
4.8.6. Save EDID from output to memory location (Learn EDID)
Description: Learn EDID from <out> to the specified location <loc>.
In case of DA2DVI-Pro: <out> must be 1
Format: → {<out>><loc>}
← (E_SW_OK)CrLf
← (E_S_C) CrLf
Example: Save the EDID from DVI OUTPUT 1 to user memory address 51.
→ {1>51}
← (E_SW_OK)CrLf
← (E_S_C) CrLf
Page 28
Page 28 / 43
4.8.7. View EDID validity table
Description: Shows EDID validity table, which contains information about the
EDID states.
If a changed EDID is queried by the wh command (see the next section), its value returns to ‘1’.
Format: → {wv}
← (EV●VALIDITY_TABLE)CrLf
Example: → {WV}
← (EV11111111111111111111111111111111111111111111111111
00033011000000000000000000000000000000000000000000133111 11111111111111111111111111111111111111331111111111111111
11)CrLf
Legend: 0 invalid EDID
1 valid EDID
3 changed EDID
4.8.8. View EDID header
Description: EDID_HEADER consist of 3 fields:
PNPID code The three letter abbreviation of the manufacturer
Preferred resolution The resolution and refresh rate stored in the preferred
detailed timing block.
Name The name of display device stored in product descriptor.
Format: → {wh<loc>}
← (EH#<loc>●EDID_HEADER)CrLf
Info: The EDID of DVI INPUT is mapped to logical address 133
Example: Show the emulated EDID on DVI INPUT.
→ {WH133}
← (EH#133 NEC 1600X1200@60 LCD2170NX)CrLf
Legend: EDID Manufacturer: NEC
Preferred resolution: 1600x1200@60
Display device’s name: 60 LCD2170NX
4.8.9. Upload EDID content from the DA2DVI-Pro
Description: EDID hex bytes can be read directly. The DA2DVI-Pro will issue the
whole content of the EDID present on memory location <loc> (256 bytes).
Format: →
{we<loc>}
←
(EB#<loc>●B1●B2●..B256)CrLf
Page 29
User’s Manual Rev. 1.3
Page 29 / 43
Legend: B1..B256 are space separated hex characters represented in ASCII
format.
Example: → {we1}
← (EB#1 00 FF FF FF FF FF FF 00 32 F2 00 00 00 .. .. .. 00 92)
4.8.10. Download EDID content to the DA2DVI-Pro
Description: EDID hex bytes can be written directly to the user programmable
memory locations (locations #51...#100).
Sequence:
1. Prepares the DA2DVI-Pro to accept EDID bytes to the specified location
<loc> {WL#<loc>}
2. DA2DVI-Pro responds that it is ready to accept EDID bytes (E_L_S)CrLf
3. Send 1 block of EDID (1 block consist of 8 bytes of hex data represented in
ASCII format) {WB#1●B1●B2●B3●B4●B5●B6●B7●B8}
4. The DA2DVI-Pro acknowledges (EL#●)
5. Send another 31 blocks of EDID (32 altogether)
6. After the last acknowledge, the DA2DVI-Pro signals that the EDID status has
changed (E_S_C) CrLf
Format: → {WL#<loc>}
← (E_L_S)CrLf
→ {WB#1●B1● B2 ●B3●B4●B5●B6●B7●B8}
← (EL#●)CrLf
→ {WB#2●B9● B10 ●B11●B12●B13●B14●B15●B16}
← (EL#●) CrLf
…
→ {WB#248●B249● B250 ●B251●B252●B253●B254●B255●B256}
← (EL#●) CrLf
→ (E_S_C) CrLf
Page 30
Page 30 / 43
4.9. DA2DVI-Pro initiated commands
4.9.1. EDID status changed
Description: This is sent after all commands that change the EDID (EDID copy,
EDID switch), or after a new EDID source ie. a new display device has been connected to the DA2DVI-Pro.
Format: ← (E_S_C) CrLf
Example: After routing EDID to the input.
→ {1:101}
← (E_SW_OK)CrLf
← (E_S_C) CrLf
Info: DA2DVI-Pro stores the last attached display device’s EDID connected to DVI
OUTPUT 1. After disconnecting this device, its EDID will still be present in the DA2DVI-Pro’s memory, therefore no status change message is issued by the DA2DVI-Pro if a display device having the same EDID is connected to that output. (The same display device is connected again, or another display device (same brand) from the the same manufacturer)
Info: To keep your application in sync with the DA2DVI-Pro, it is recommended to issue
a show validity ( {wv} ) → after receiveing EDID status changed response, and read all locations indicating ’3’ in the table, as the EDID changes triggered the ‘EDID status changed’ response.
4.9.2. Port status changed
Description: If I/O port STATUS_TABLE has changed, the DA2DVI-Pro will send
this sequence to notify the controller software. This event is useful to trigger the new {:ISD} and {:OSD} commands.
Format: ← (PSC)CrLf
4.9.3. Error responses
Invalid input number
Description: Given input number exceeds the maximum number of inputs or
equals zero.
Format: ← (ERR01)CrLf
Invalid output number
Description: Given output number exceeds the installed number of outputs or
equals zero.
Format: ← (ERR02)CrLf
Invalid value
Description: Given value exceeds the maximum allowed value that can be sent.
Format: ← (ERR03)CrLf
Page 31
User’s Manual Rev. 1.3
Page 31 / 43
Front panel control
Description: The DA2DVI-Pro is set to be controlled via the USB port by SW1 of
the DIP switch.
Format: ← (NOK)CrLf
4.10. Input and output port status
4.10.1. Check the status of the inputs
Description: Use this command to determine the actual status of the input port.
Format: → {:ISD}
← (ISD●STATUS_TABLE)CrLf
Example: → {:ISD}
← (ISD 00112333233300033330022000000000)CrLf
Legend: 0 PWR5V signal is not present on this input.
1 PWR5V signal is present on this input.
2 Active DVI signal is present at this input (data enable signal is
successfully recovered from the TMDS stream) but there is no PWR5V.
3 Active DVI signal is present at this input (Data enable signal is
successfully recovered from the TMDS stream) with PWR5V.
4.10.2. Check the status of the outputs
Description: Use this command to determine the actual status of the output ports.
Format: → {:OSD}
← (OSD●STATUS_TABLE)CrLf
Example: → {:OSD}
← (OSD 00110111001100011100011000000000)CrLf
Legend: 0 There is no attached monitor
1 There is an attached monitor
Page 32
Page 32 / 43
5. Firmware upgrade
The DA2DVI-Pro’s firmware can be upgraded via USB.
Step 1. Connect a USB Type A/B cable between the PC and the DA2DVI-Pro.
Run the bootloader software on the controlling computer.
Page 33
User’s Manual Rev. 1.3
Page 33 / 43

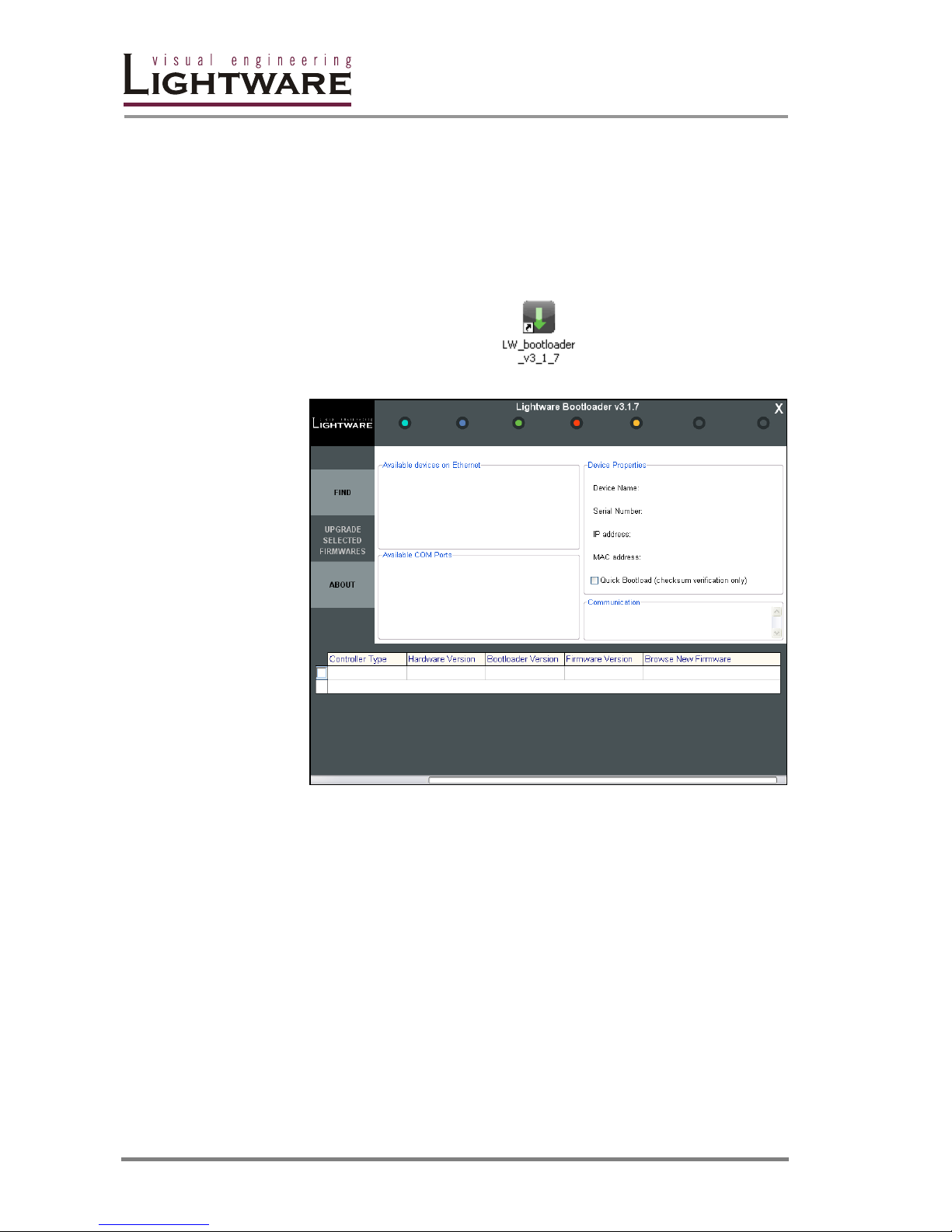

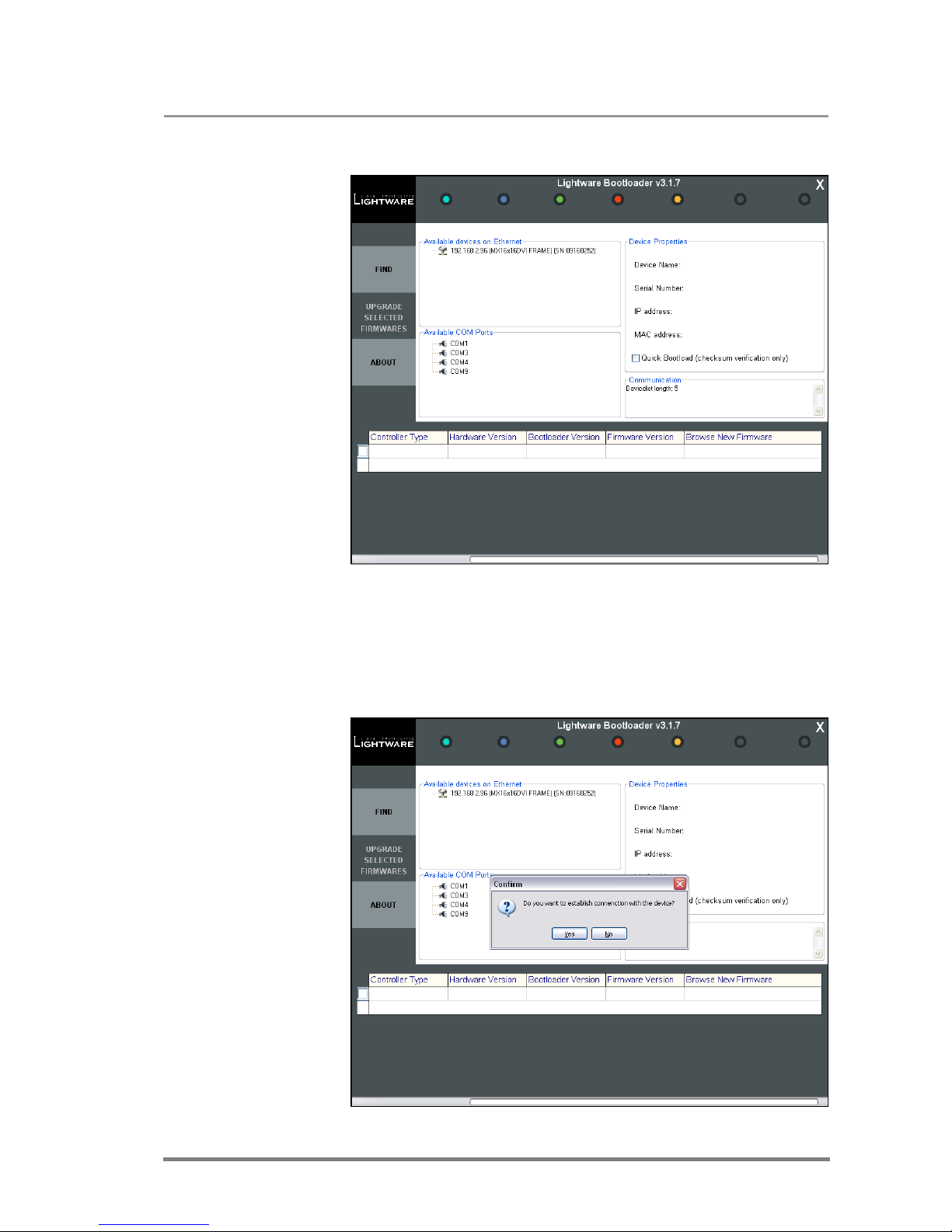

Step 2. Click on FIND button. The bootloader lists every Lightware device on the
Ethernet and available COM ports of the computer.
Info: You must wait until every device boots up completely before pressing FIND button.
Step 3. Double click on the COM port that the DA2DVI-Pro is connected to. The
bootloader cannot identify the devices on the COM ports so if you are unsure about which virtual COM port the DA2DVI-Pro is connected to, run the Matrix Controller software and check.
Page 34
Page 34 / 43

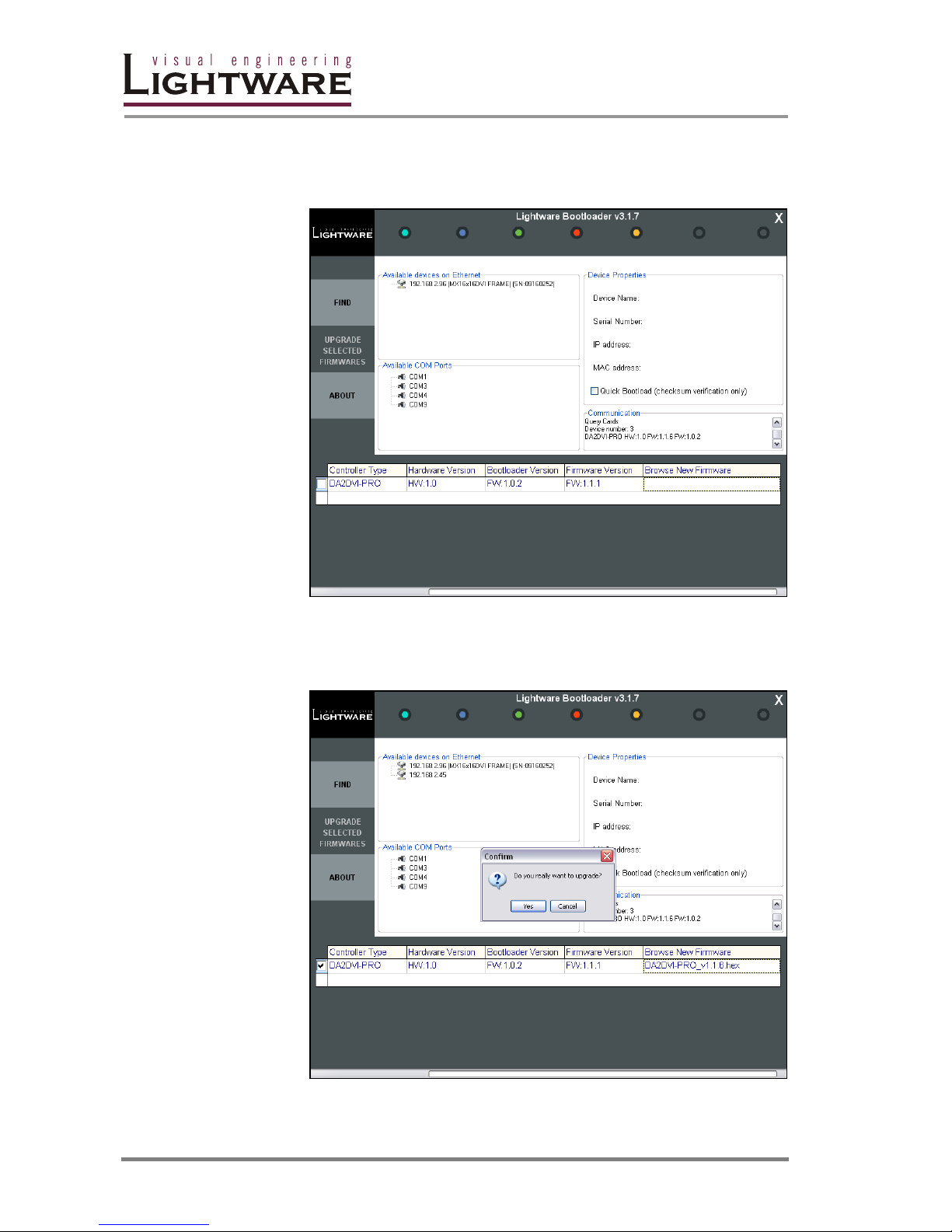

Step 4. After establishing the connection, the bootloader identifies the controller
types, hardware versions, bootloader versions and the firmware versions of the selected device. Click on the Browse New Firmware area in the appropriate row. Now you can browse for the new firmware file to upload.
Step 5. To enable the upgrade, you need to check the checkbox next to the
DA2DVI-Pro’s name. Now click on the UPGRADE SELECTED FIRMWARES button and select YES in the pop-up window.
Page 35
User’s Manual Rev. 1.3
Page 35 / 43

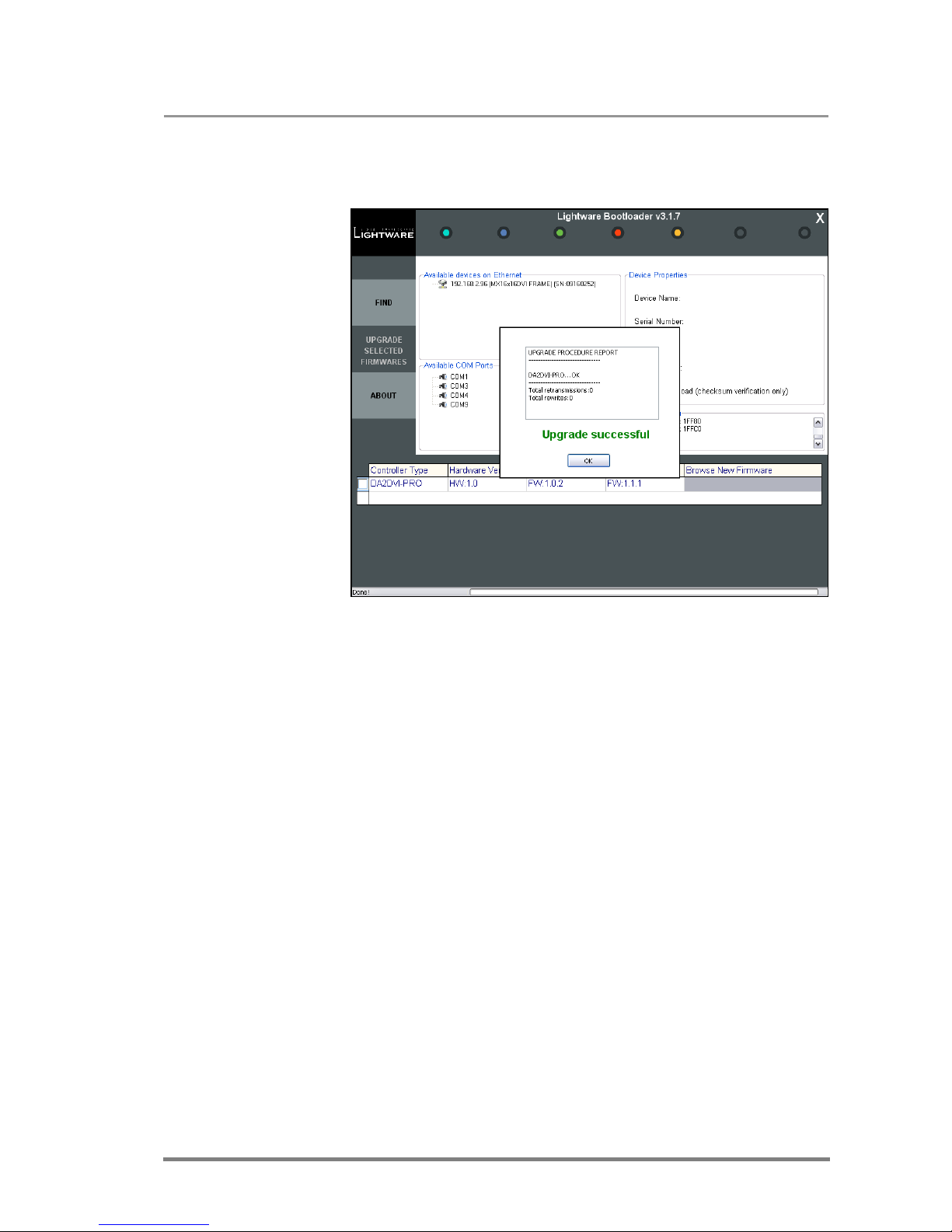

Step 6. If the upgrade was completed without errors, the bootloader displays an
Upgrade Successful message. After clicking on OK button, you can close the connection by exiting the bootloader or select another device to upgrade.
Step 7. After the firmware upgrade, please switch the device off and on again.
Page 36
Page 36 / 43
6. Troubleshooting
6.1. USB connection problems
Check the cable and software settings
Check whether your USB cable is properly connected. In most cases there are more COM ports present in the operating system. Please verify the connection settings of your software. The DA2DVI-Pro’s virtual COM port communicates with
9600 Baud, 8 data bit, No parity, 1 stop bit.
6.2. There is no picture
Check the cables
Due to the high data rates, the cables must fit very well. DVI connectors have to be locked with screws, no tensions or breaches are allowed. If your source or display has more connectors then make sure that the proper interface is selected.
Check the incoming signal
Check the Source Connected LED on the front panel of the DA2DVI-Pro. This LED indicates the presence of the +5V signal coming from the DVI source. If it is not illuminated, then your DVI source is not working properly. Please refer to the user’s manual of your DVI source.
Check the Signal Present LED on the front panel of the DA2DVI-Pro. This LED indicates the presence of an active incoming DVI clock signal. If it is not illuminated, then no DVI clock signal is present at the input connector of the DA2DVI-Pro. Please check whether your source is configured to output a video signal.
Run the control software and check whether a video signal is present at the input or not. If there is a video signal, then the input port number I1 has an orange background. If I1 has a white background, then there is no video signal, please continue at chapter 6.3.
Check the outgoing signal
Check the Monitor Hotplug 1/2 LED on the front panel of the DA2DVI-Pro. This LED indicates the presence of the Hotplug signal coming from the attached display device. If it is not illuminated, then your display is not powered or not configured properly.
Right click on the output number in the crosspoint area (O1 or O2) to open the DVI output settings window in the control software. Try reloading factory default settings to the output. If it doesn’t help, then try adjusting the different settings. You will find help for this in section 1.1.
Check EDID related problems
Check the EDID Status LED on the front panel of the DA2DVI-Pro. This LED indicates whether a valid EDID is selected. If it is illuminated RED, then an invalid EDID or an empty memory address is selected. Please select a valid EDID.
If the EDID Status LED is illuminated GREEN, then maybe your display device is not capable of receiving the sent video format. Try emulating your display device’s EDID to the source. You will find help to this process in section 1.1. If you get a picture now, you have an EDID related issue, please read chapter 1.3 for more details.
Page 37
User’s Manual Rev. 1.3
Page 37 / 43
6.3. There is no input signal
Check the source
Check whether your source is powered on and configured properly. If the source is a computer, then verify that the DVI output is selected and active. Try restarting your computer; if you get a picture during the booting process, you have to review the graphics card’s driver settings in the operating system.
Check the EDID
Maybe the data rate is too high for that type of cable. Try switching another EDID to the inputs with lower resolution. If the source is a computer and you are an expert user, you can try modifying the refresh rate, so you would be able to get it to work at higher resolutions over a noisy connection.
Page 38
Page 38 / 43
7. Mechanical Drawings
7.1. Front view
42 mm
110 mm
7.2. Rear view
42 mm
110 mm
Page 39
User’s Manual Rev. 1.3
Page 39 / 43
7.3. Top view
180 mm
110 mm
Page 40
Page 40 / 43

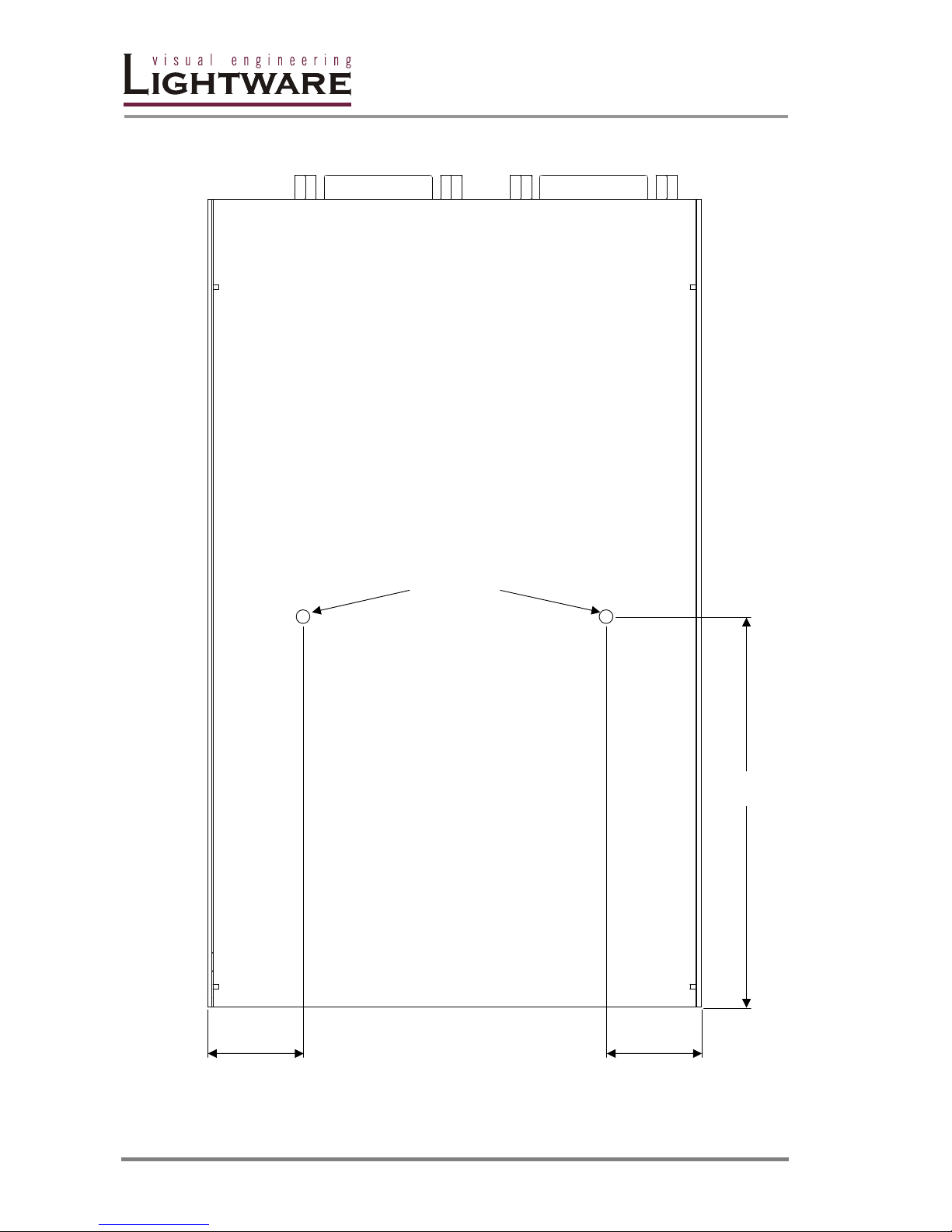

7.4. Bottom view
2x M3 thread
87 mm
21,25 mm 21,25 mm
For rack mounting, cross recessed M3 (max 10 mm long) screws must be used.
Page 41
User’s Manual Rev. 1.3
Page 41 / 43
8. Warranty
Lightware Visual Engineering warrants this product against defects in materials and workmanship for a period of three years from the date of purchase.
The customer shall pay shipping charges when unit is returned for repair. Lightware will cover shipping charges for return shipments to customers.
In case of defect please call your local representative, or Lightware at
Lightware Visual Engineering
1071. Budapest Peterdy str. 15, HUNGARY
Tel.: +36 1 889 6177
Fax.: +36 1 342 9903
E-mail: [email protected]
Page 42
Page 42 / 43
9. Specifications
Video
Standard .................................................................................................... DVI 1.0
Color depth ................................................................................ 24 bits, 8 bit/color
Format ..................................................................................................... RGB only
Data rate ........................................... all between 25 Mbps and 1.65 Gbps /color
Resolutions (single link) .................. all between 640x480 and 1920x1200@60Hz
HDTV resolutions .................................................................... 720p, 1080i, 1080p
HDCP compliant ................................................................................................ No
Input equalization ...................................................................... +40 dB, automatic
Reclocking ....................................................................................................... Yes
+5V output current (DVI) ..............500 mA continuous with overcurrent protection
EDID Emulation ............................ Yes, 50 factory preset, 50 user programmable
EDID Support ................................................................. 256 Byte Extended EDID
General
Connectors ............................. 29-pole DVI-I digital only and USB Type B Female
Number of DVI inputs........................................................................................... 1
Number of DVI outputs ........................................................................................ 2
Power adaptor ............................... 100-240 V AC 50/60 Hz 0.6A to +5V DC 2.6A
Power consumption ............................................................................... 4W typical
....................................... 9W max when powering fiber extenders on DVI outputs
Compliance ....................................................................................................... CE
EMI/EMC ................................................................................... EN 55022 Class B
Safety ....................................................... UL, CUL, GS, CR, RCM, PSE, Class II
Warranty ................................................................................................... 3 years
Enclosure
Rack mountable .................................................................................Yes, 1U high
Material ............................................................................................... 1 mm Metal
Dimensions .................................................... 120 mm W x 180 mm D x 42 mm H
Net Weight .................................................................................................... 700 g
Page 43
User’s Manual Rev. 1.3
Page 43 / 43
NOTES:
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
