Page 1

Classroom Audio System

User Manual

Page 2

Page 3

TABLE OF CONTENTS

SECTION 1: 4 Important Safety Instructions Overview 5 System Components and Unpacking

7 Optional Components 8 Front Panel Controls

9 Rear Panel Controls 11 ISR Controls and Connections 12 REDMIKE Controls and Connections 13 Cradle Charger Controls and Connections

SECTION 2: 14 Set-up & Use 15 Step 2. ISR Sensor Installation

SECTION 3: 29 REDMIKE VC: Controls and Connections Optional Accessories 30 Charging

Step 1. Location of the Ampliﬁer

18 Step 3. Speaker Installation 18 Step 4A. Connect the Power Supply 19 Step 4B. ISR Connection 20 Step 4C. Speaker Connection(s) 21 Step 4D. Audio Input Connections 22 Step 5. Audio Integration 23 Step 6. Charging the REDMIKE 24 Step 7. Operating the REDMIKE 25 Step 8. Initial Set-up Speaker Audio 26 Step 9. Setting Mic Priorities 27 Output to Assistive Listening Device

28 Using the REDMIKE to Amplify External

Audio Equipment

30 Initial Set-Up 32 LT-71: Controls and Connections 33 Charging 34 Initial Set-Up 35 REDMIKE Share: Controls and Connections 36 Charging 37 Initial Set-Up 38 iR Media Connector: Initial Setup 39 Audio Integration 39 Other Optional Accessories

SECTION 4: 40 Troubleshooting Guide Troubleshooting 41 Tips to Obtain Optimal Audio Performance

SECTION 5: 42 Warranty Statement

Warranty & Speciﬁcations

43 Safety Warnings and Certiﬁcations 44 System Speciﬁcations

Page 4

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use the apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A groundingtype plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/ accessories specified by the manufacturer.

12. Use only with a cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lighting storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. When the mains plug or appliance coupler used as the disconnect device, it shall remain readily operable.

16. Please keep the unit in a good ventilation environment.

17. The speaker on/off switches will not disconnect the main power when in the off position.

Page 5

SECTION 1:

OVERVIEW

SYSTEM COMPONENTS AND UNPACKING

The standard conﬁguration of the CAT 885 will contain:

CAT 885 Ampliﬁer

Ampliﬁer Power Supply

ISR Infrared Sensor/Receiver and Cable

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

3. Optional

Accessories

Charging Cradle and Power Supply

REDMIKE® Classroom Microphone

1. Overview 2. Setup & Use

Page 6

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

3. Optional

Accessories

Speakers and Speaker Wire

Systems can be conﬁgured with a variety of different speaker types, including the following:

WMQ (x 4)

DRQ (x 4)

NXQ (x 1)

MCQ (x 1)

1. Overview 2. Setup & Use

Standard Components

AMP-885 Audio ampliﬁer/mixer PS-24V-2.5 24V/2.5A power supply for CAT 885 RX-ISR Infrared sensor/receiver with mounting bracket CA-P5E50 50’ plenum-rated Cat 5e cable RMT REDMIKE classroom microphone with battery BA-NH2A27 AA NiMH rechargeable sensing battery for REDMIKE AC-RMLC2 REDMIKE lavaliere cord BC-RMCC REDMIKE cradle charger PS-5V-1.0 5V/1.0A power supply for cradle charger SPEAKERS Contact Lightspeed at 800.732.8999 for speaker info

Page 7

OPTIONAL COMPONENTS

Optional equipment which may be part of your CAT 885 system:

REDMIKE® VC Volume Control Microphone

REDMIKE Share Handheld Microphone and Charger Cable

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

3. Optional

Accessories

LT-71

LT-71 LightMic and Charger Cable

Optional Components

RMV REDMIKE VC microphone with battery RMS REDMIKE Share handheld microphone with battery pack LT71 LightMic microphone with batteries BA-NH2A27 AA NiMH rechargeable sensing battery for REDMIKE BA-NH2APK NiMH rechargeable battery pack for REDMIKE Share BA-NH1 AA NiMH rechargeable battery for LT71 (2 per microphone)

1. Overview 2. Setup & Use

Page 8

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

3. Optional

Accessories

FRONT PANEL CONTROLS

1. Overview 2. Setup & Use

1. POWER SWITCH/INDICATOR: Press this button to turn the CAT 885 ON (pushed in) or OFF. When the POWER is switched on, the blue LED indicator will light.

2. AUDIO INDICATORS: These lights ﬂash red when audio (voice) from the microphone is detected.

3. A VOLUME: Controls the volume of the teacher microphone (set to channel A).

4. B VOLUME: Controls the volume of the student or second teacher microphone (set to channel B).

5. AUDIO INPUT VOLUMES:

Control the volume of the audio coming from the media source (computer, TV/VCR, CD/DVD, etc.) connected to the corresponding input the rear panel.

6. SPEAKER ZONING: These switches turn the corresponding speakers (connected to speaker outputs in the corresponding zones on the back panel) ON or OFF.

7. ALD OUTPUT AND VOLUME:

This jack sends audio to external equipment such as an assistive listening device (Personal FM System) or recording device. Use the volume control to set the optimum signal level for the device.

Page 9

REAR PANEL CONTROLS

1. SPEAKER VOLUME (1-6):

Controls the output volume of the corresponding speaker. Fully clockwise represents maximum audio level supplied to the speaker.

2. SPEAKER OUTPUTS (1-6): This euro-block connector is used to connect the CAT 885 to the loudspeaker(s). Up to two 8-ohm speakers can be connected to each output (maximum of 12 8-ohm speakers).

3 MONO/STEREO SWITCH: This

switch toggles between mono and stereo speaker output for channels 5 (left) and 6 (right). This

switch impacts only the multimedia sources (voice is always is mono) and only outputs 5 and 6.

4. DC POWER: Plug the power supply (24V/2.5A) into this jack.

5. PAGING INPUT AND ADJ:

Connect the input from optional PageFirst sensor here when interface with a buildings paging system. Use the ADJ control to adjust the sensitivity if needed.

6. TEACHER VOICE PRIORITY: This 3-position switch activates the Teacher Voice Priority function

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

3. Optional

Accessories

1. Overview 2. Setup & Use

Page 10

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

3. Optional

Accessories

1. Overview 2. Setup & Use

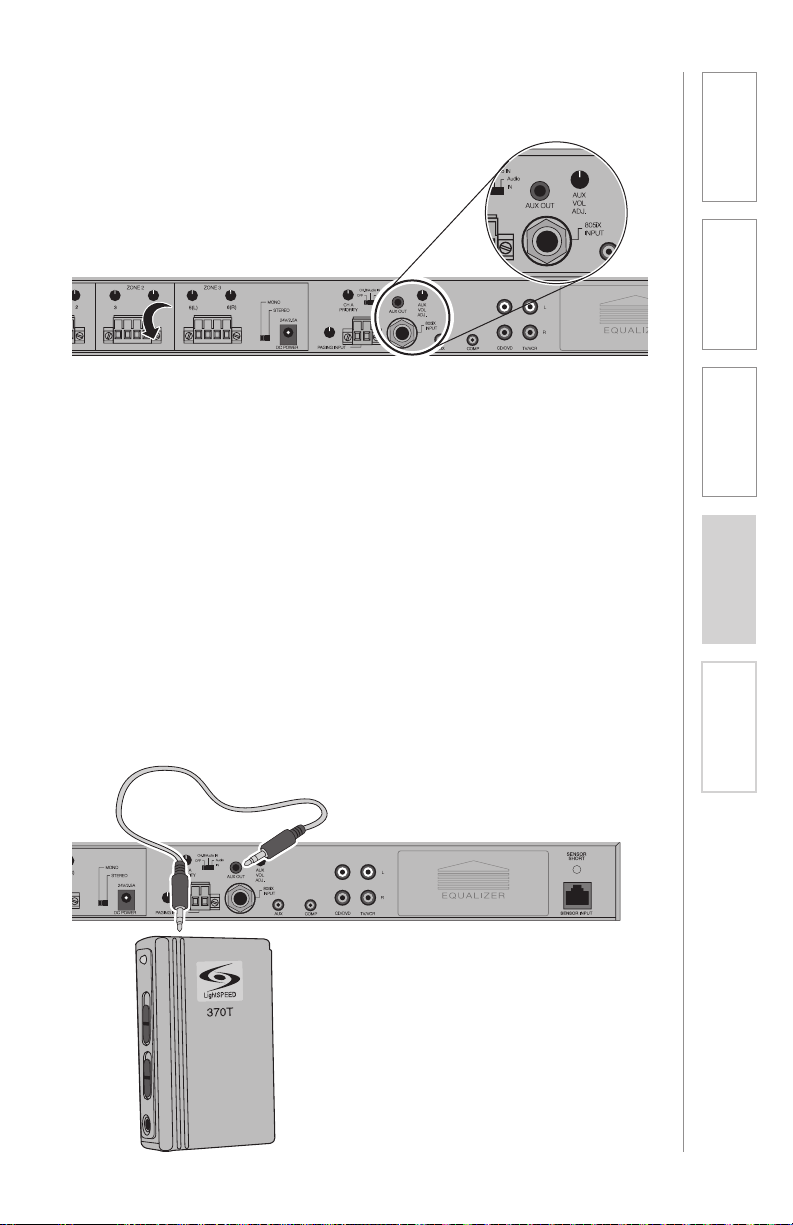

7. AUX OUT AND VOL: This jack

sends audio to external equipment such as an assistive listening device (Personal FM System) or recording device. Use the volume control to set the optimum signal level for the device.

8. 805iX INPUT: This input jack allows for interface with the Lightspeed 805iX wireless microphone system, which adds two additional microphone channels.

9. AUDIO INPUTS: These connections accept an audio signal from other technology so all multimedia can be distributed evenly throughout the classroom.

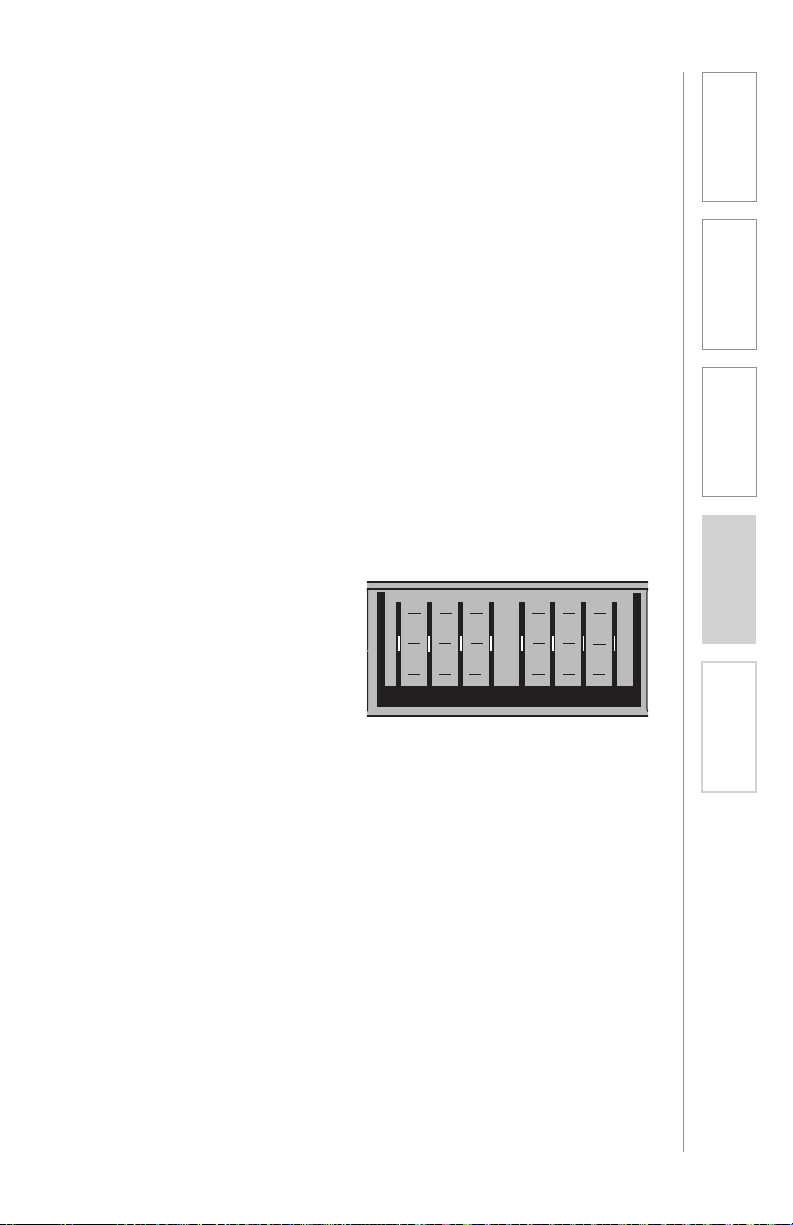

10. 8-BAND GRAPHIC EQUALIZER: These sliding controls allow the installer to properly equalize the

system to produce optimum audio quality.

11. SENSOR INPUT: The infrared microphone audio from the ISR is connected to this input via Cat 5 cable.

12. SENSOR SHORT: This LED glows red when there is a short in the ISR or cable. The system will not operate, but is protected from damage when the LED is lighted.

Page 11

INFRARED SENSOR/RECEIVER (ISR) CONNECTIONS

& Speciﬁcations

5. Warranty, Safety

1. POWER INDICATOR: This light

will glow blue when the ISR is receiving power from the CAT 885.

2. A/B IR INDICATORS: These lights glow when the corresponding microphone (set to channel A or B) is turned on and transmitting. A steady light indicates a strong signal.

3. SENSOR OUT: Connect the Cat 5 sensor cable to this connection to send audio from the microphones

to the CAT 885 ampliﬁer.

4. IR EXPANSION: Connect up to three passive IR sensors (IR-SR70F) to this connection for larger classrooms. For more than one additional sensor a 3-way coax splitter is required (HS3).

4. Troubleshooting

3. Optional

Accessories

1. Overview 2. Setup & Use

Page 12

& Speciﬁcations

5. Warranty, Safety

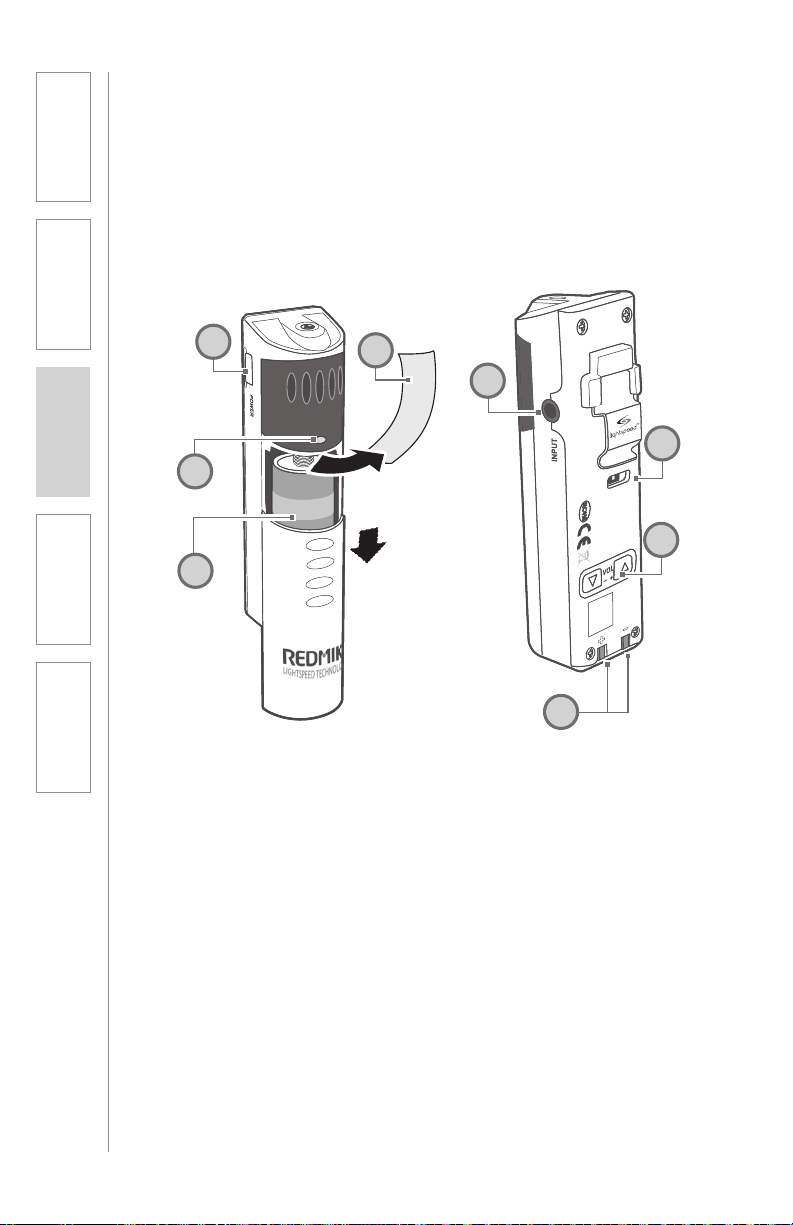

REDMIKE CONTROLS AND CONNECTIONS

4. Troubleshooting

3. Optional

Accessories

1. Overview 2. Setup & Use

1. POWER BUTTON: Press this

button to turn the REDMIKE ON, press again to turn it OFF (mute).

2. POWER/LOW BATTERY INDICATOR: A BLUE light

indicates the REDMIKE is on and fully charged. A RED light indicates a charge is needed.

3. BATTERY COMPARTMENT: To access the battery compartment, slide the door downward. The battery should only be replaced by a Lightspeed AA rechargeable sensing battery (part # BANH2A27).

4. YELLOW PROTECTIVE TAB: Slide the battery compartment door open to remove this disposable protective tab before use. NOTE: do not attempt to remove the tab without ﬁrst

f o

opening the compartment door, as it may tear, leaving fragments.

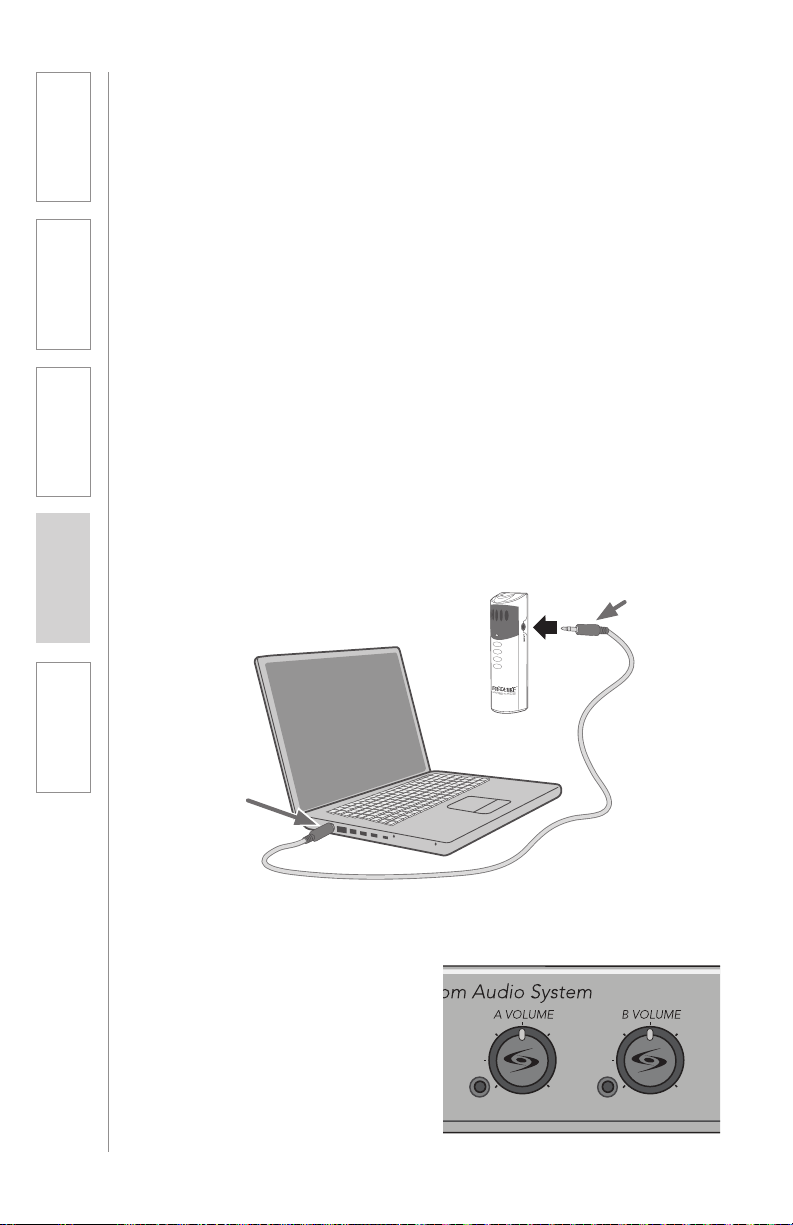

5. AUDIO/MICROPHONE INPUT:

Use this input to plug in a laptop, MP3 player or other audio source to wirelessly transmit audio to be played through the system. Alternatively, an external microphone can be connected.

6. CHANNEL SELECT SWITCH (CH A/B): This switch allows

for selection between Channel A or B. If you are using a single microphone, we recommend using Channel A.

7. CHARGER CONTACTS (+ -):

These contacts interface with the charging tabs in the BC-RMCC cradle charger for daily charging. Simply place the REDMIKE in the charger.

Page 13

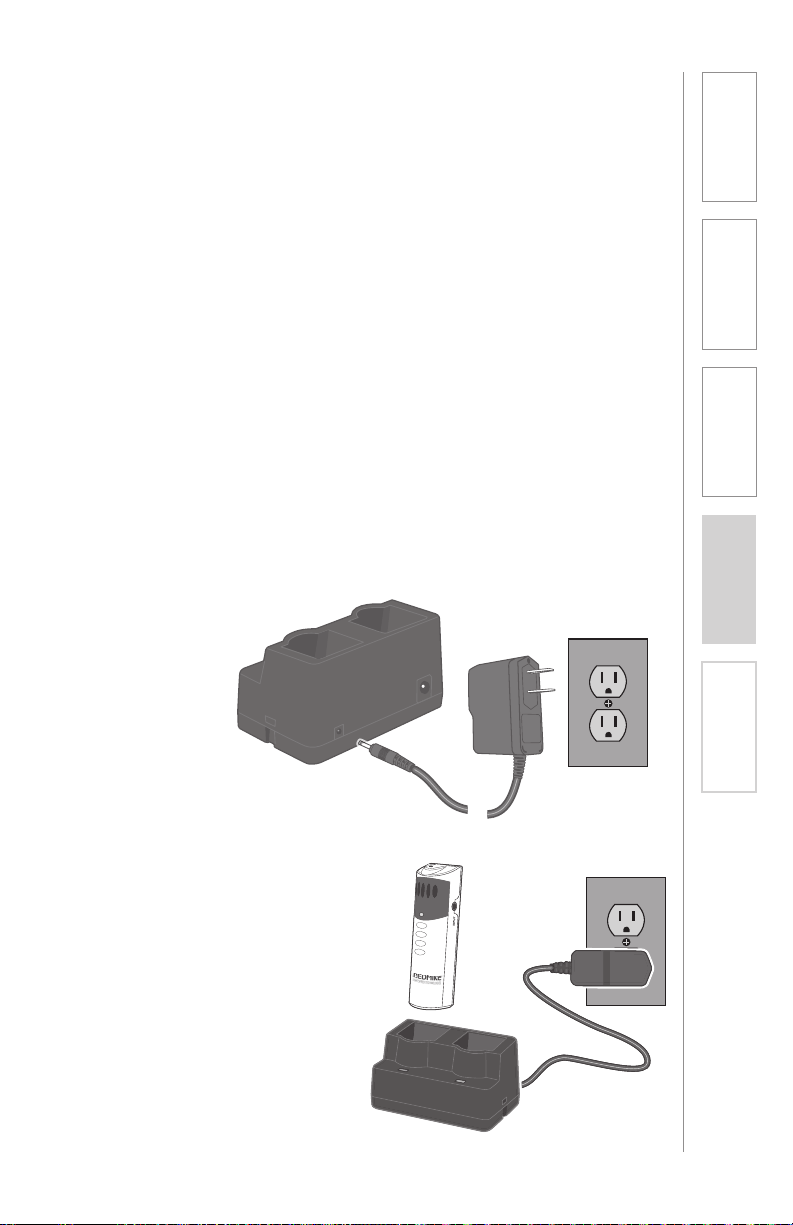

CRADLE CHARGER CONTROLS AND CONNECTIONS

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

1. CHARGE INDICATORS: The light

glows RED while the REDMIKE is charging. When fully charged, the light will glow GREEN. A blinking RED light indicates that no battery is sensed, (REDMIKE Yellow Protective Tab may not have been completely removed—see page 5, item 4.) A blinking Green LED means a non- Lightspeed battery has been installed (possibly an alkaline battery).

2. DC POWER PORT: Connect the

5V/1.0A DC power cord here.

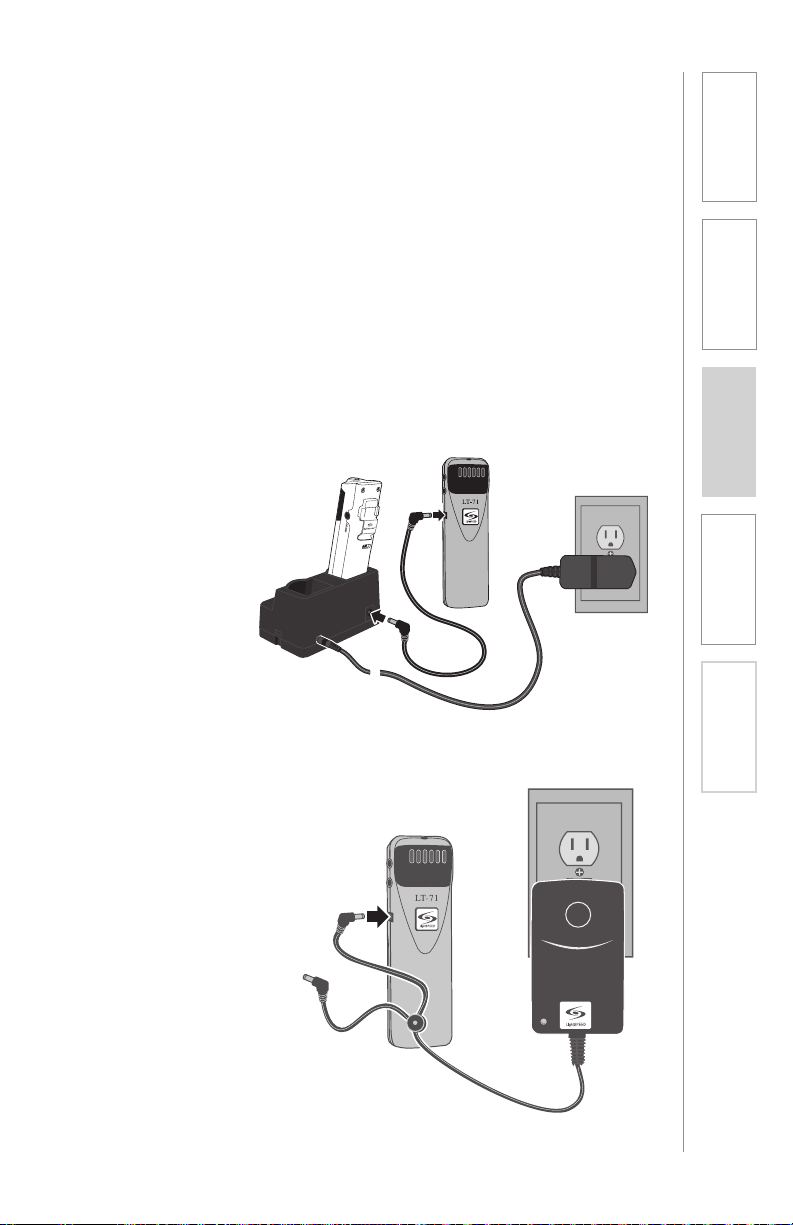

3. OPTIONAL CHARGING PORT:

Plug the charging cord for the optional LT-71 or the REDMIKE Share microphones here.

3. Optional

Accessories

1. Overview 2. Setup & Use

Page 14

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

SECTION 2:

SET-UP & USE

1. LOCATION OF THE AMPLIFIER

First, ﬁnd a suitable location to set-up the ampliﬁer. It is best to put the ampliﬁer in a stable location near the other equipment to be used. If this is not possible, an optional Lightspeed wall shelf can be installed.

3. Optional

Accessories

1. Overview 2. Setup & Use

Media Cabinet Set-up

Avoid Separated Set-ups

Components should be located together. Wires should be routed directly back to the ampliﬁer.

Wall-mount Set-up

The optional Lightspeed wall shelf (part #AC-800WB) is speciﬁcally designed to support the CAT 885.

Page 15

2. IR SENSOR/RECEIVER (ISR) INSTALLATION

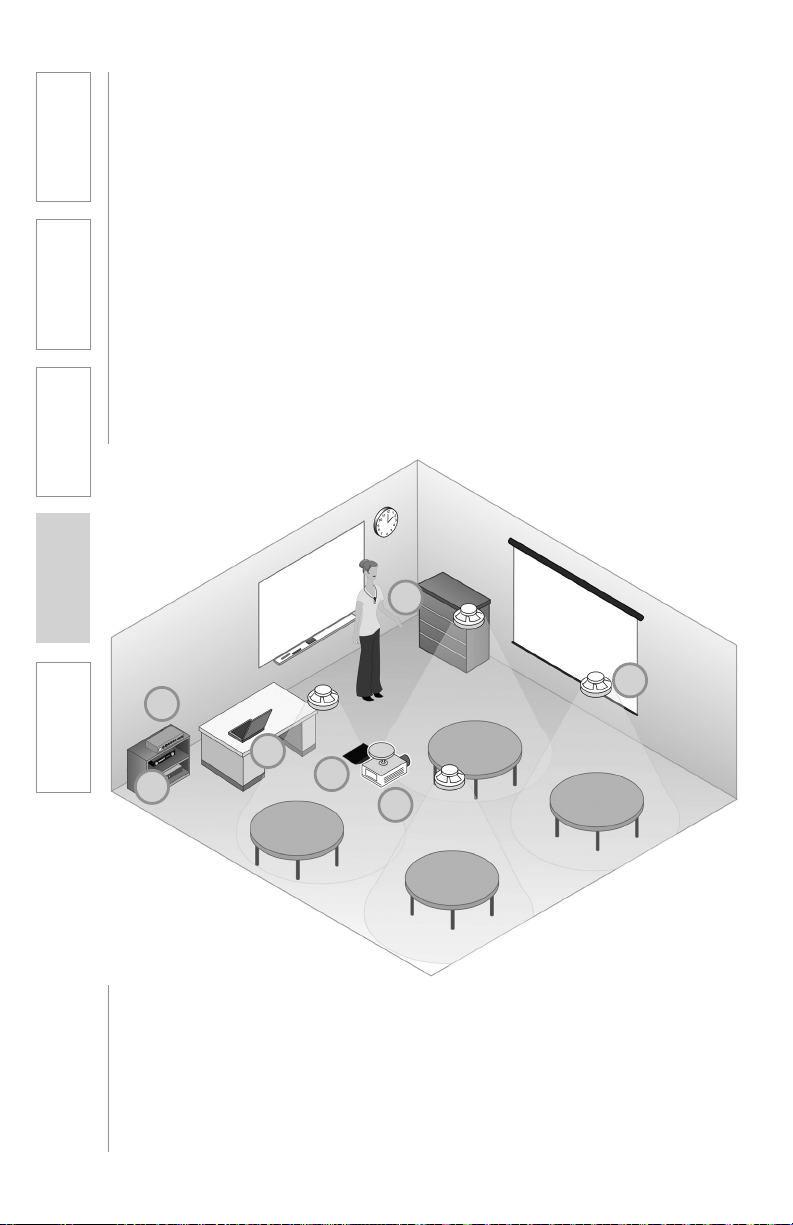

Next, ﬁnd a suitable location for the ISR. Poor location will cause substandard performance of the CAT 885 Classroom Audio System. The ISR should be as high as possible in the room – the ceiling is the best location, centered along the longest wall in the room. When possible, use a conduit to protect the wires (not included). Poor choices for placement are corners, on walls at heights lower than 7 feet (2 meters), or in places where the line of sight from the ISR to the receiver is or could be obstructed.

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

Good placement

Conduit is Recommended

Best placement

Avoid!

3. Optional

Accessories

1. Overview 2. Setup & Use

Page 16

2. IR SENSOR/RECEIVER (ISR) INSTALLATION

CONT’D

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

3. Optional

Accessories

1. Overview 2. Setup & Use

Once you ﬁnd a suitable location for the ISR, follow these instructions to mount it. There are different instructions for mounting depending on if the ISR will be mounted to a suspended ceiling grid or secured to a wall / solid vertical surface.

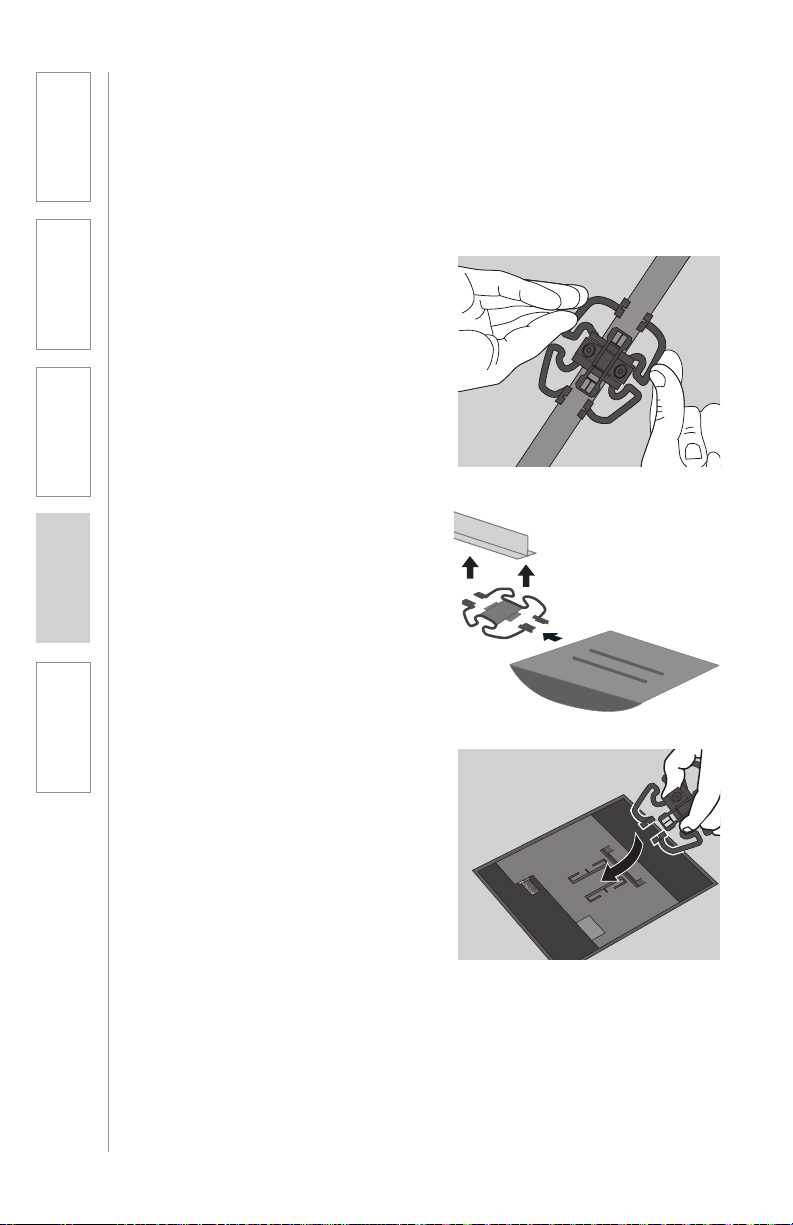

Suspended Ceiling Mount

1. Attach the bracket to the ceiling tile grid (t-bar).

a. Slide the tabs onto the outsides

of the t-bar, starting with one corner.

b. Attach the second tab around the other side of the t-bar.

c. Repeat with the other side of the bracket so it is connected at all four points.

2. Slide the ISR onto the bracket until it “clicks” into place.

a. Guide the mounting rails onto the bracket, oriented as pictured.

b. Once secure, the ISR locks into place.

c. To remove the ISR, press the release bar down and slide the ISR off the bracket. (We need to label the “release bar” on the ISR Image that shows “clip guide”)

clip connects to t-bar on ceiling

3. Uncoil the Cat 5 sensor cable. Connect one end of the cable to the ISR. Secure wire overhead and route it back to the system.

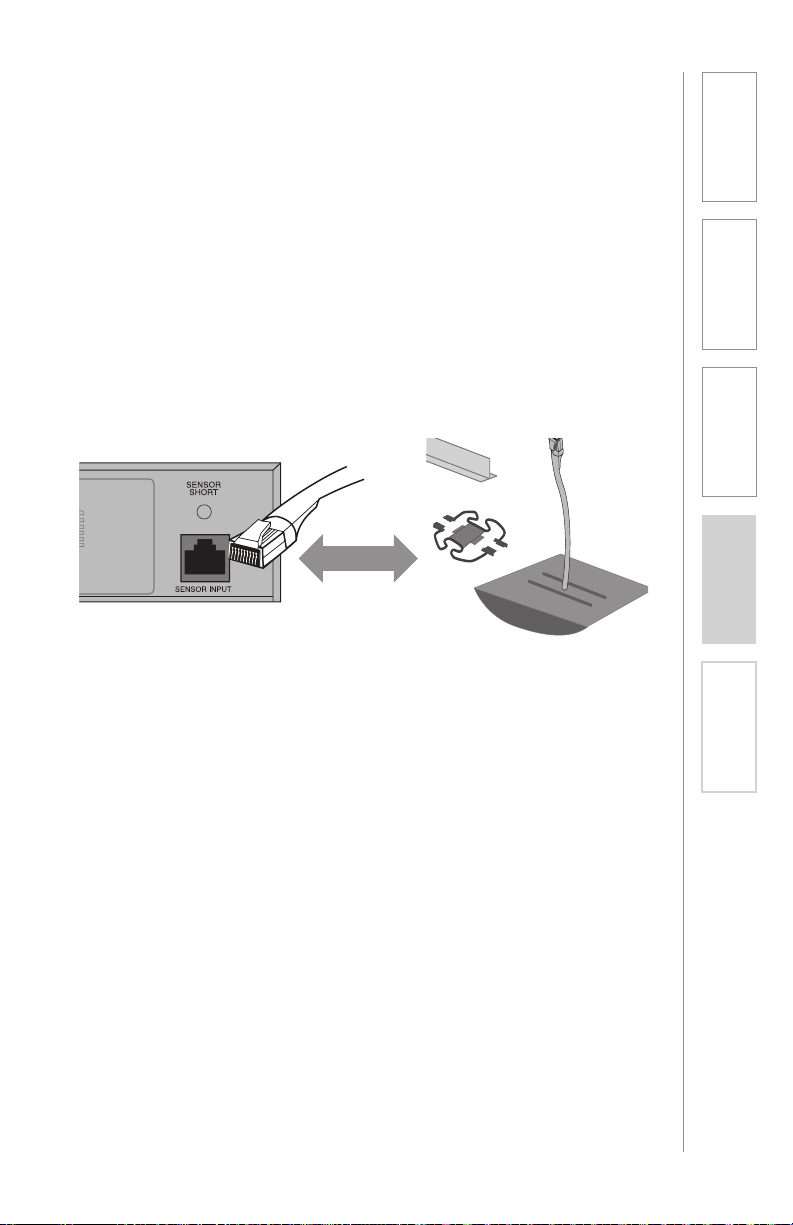

4. Connect the other end of the Cat 5 sensor cable into the SENSOR INPUT jack on the CAT 885 ampliﬁer.

Page 17

2. IR SENSOR/RECEIVER (ISR) INSTALLATION

CONT’D

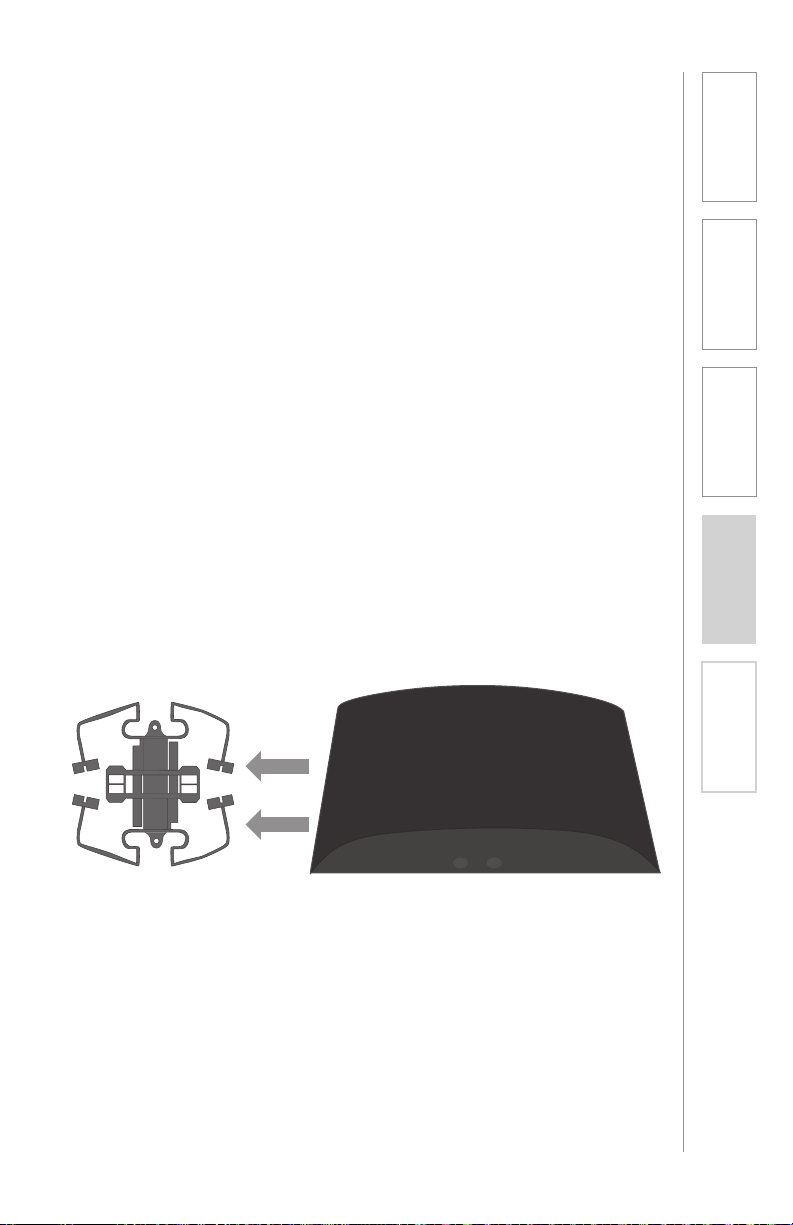

Wall/Solid Ceiling Mount

1. Screw the bracket to a place high on the wall or in the middle of the solid ceiling. Mount the bracket horizontally as shown above.

2. Uncoil the Cat 5 sensor cable. Connect one end of the cable to the ISR. Route the wire back to the CAT 885 ampliﬁer, securing it along with way using surface raceway where possible.

3. Slide the ISR onto the bracket until it “clicks” into place.

a. Guide the mounting rails onto the bracket, oriented as pictured.

b.Once secure, the ISR locks into place.

c. To remove the ISR, slide a ruler or screwdriver behind the ISR to press the release bar down and slide the ISR off the bracket

4. Connect the other end of the Cat 5 sensor cable into the SENSOR INPUT jack on the CAT 885 ampliﬁer.

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

3. Optional

Accessories

1. Overview 2. Setup & Use

Page 18

3. SPEAKER INSTALLATION

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

3. Optional

Accessories

1. Locate the speaker installation instructions packed with your speaker(s).

2. Follow instructions and mount speaker(s).

3. Return to this manual to complete the set up of your system.

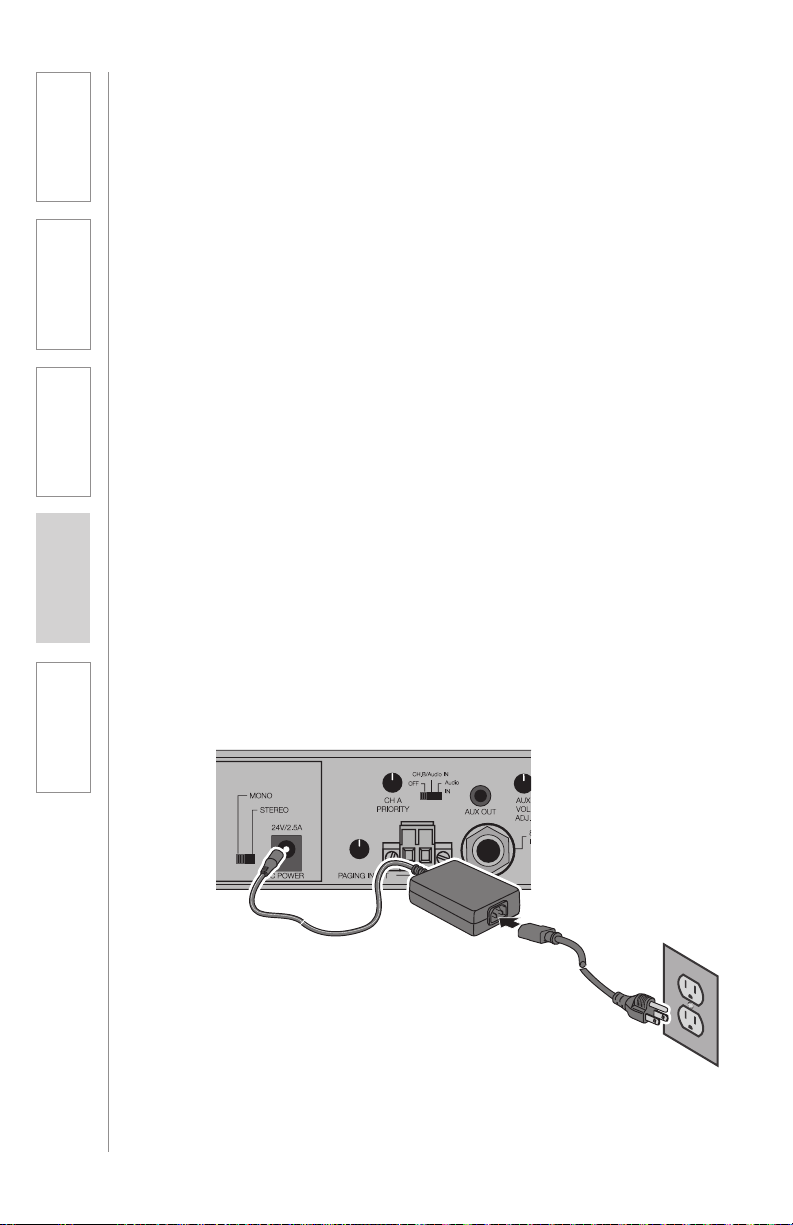

4A. CONNECT THE POWER SUPPLY

1. Ensure the power button is depressed in the OFF position.

2. Connect the DC end of the power supply to the black power jack labeled DC POWER.

3. Connect the black AC power cable from the power supply to a wall outlet.

1. Overview 2. Setup & Use

CAT 885 Ampliﬁer

DC Power Source Cable

Page 19

4B. ISR CONNECTION

Check the connections from the ISR Sensor to the CAT 885. Ensure the CAT 885 is plugged into an electrical outlet.

1. Ensure the power is still switched off.

2. Check the connection from the ISR to the CAT 885. Ensure the sensor cable is securely attached and locked into place.

ISR Sensor/Receiver

CAT 885 Ampliﬁer

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

3. Optional

Accessories

1. Overview 2. Setup & Use

Page 20

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

3. Optional

Accessories

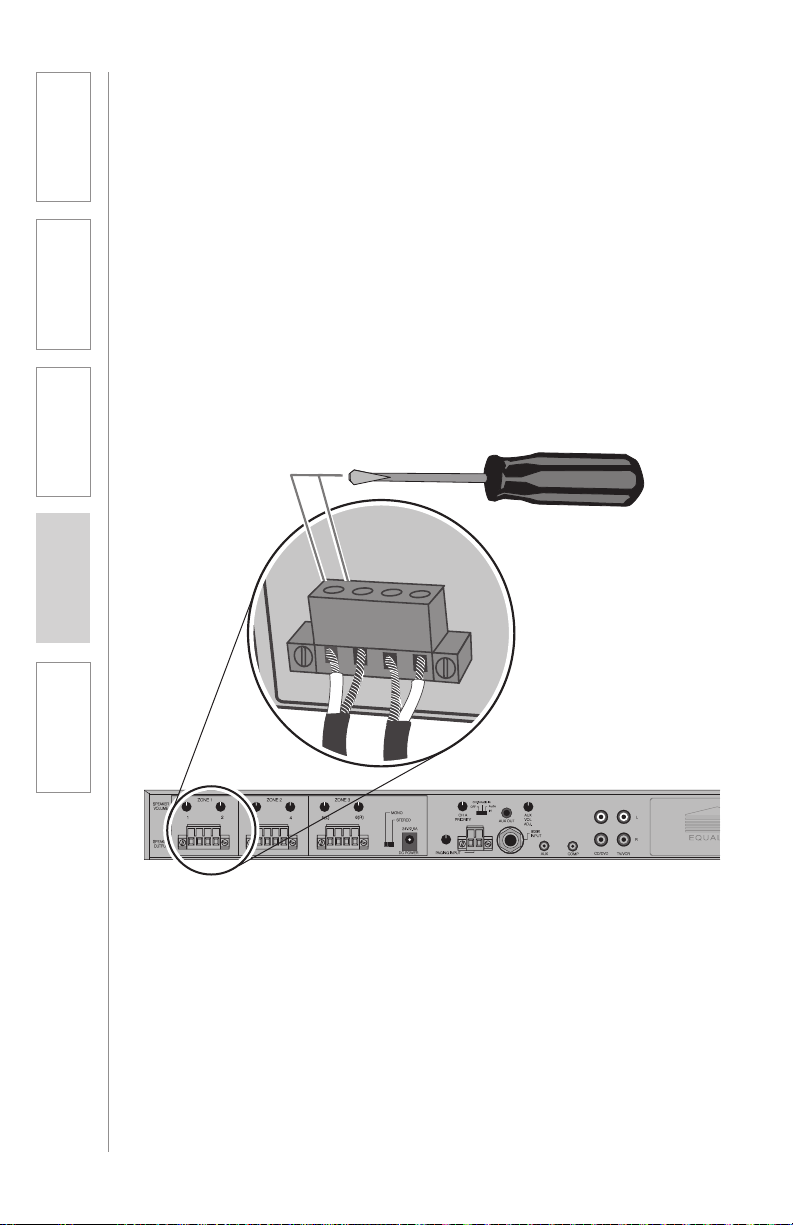

4C. SPEAKER CONNECTIONS

1. Ensure the power switch is in the off position

2. Ensure speaker wire connections are secure and not frayed. Under normal conditions, each speaker volume control should remain at maximum level (fully clockwise).

1. Overview 2. Setup & Use

Page 21

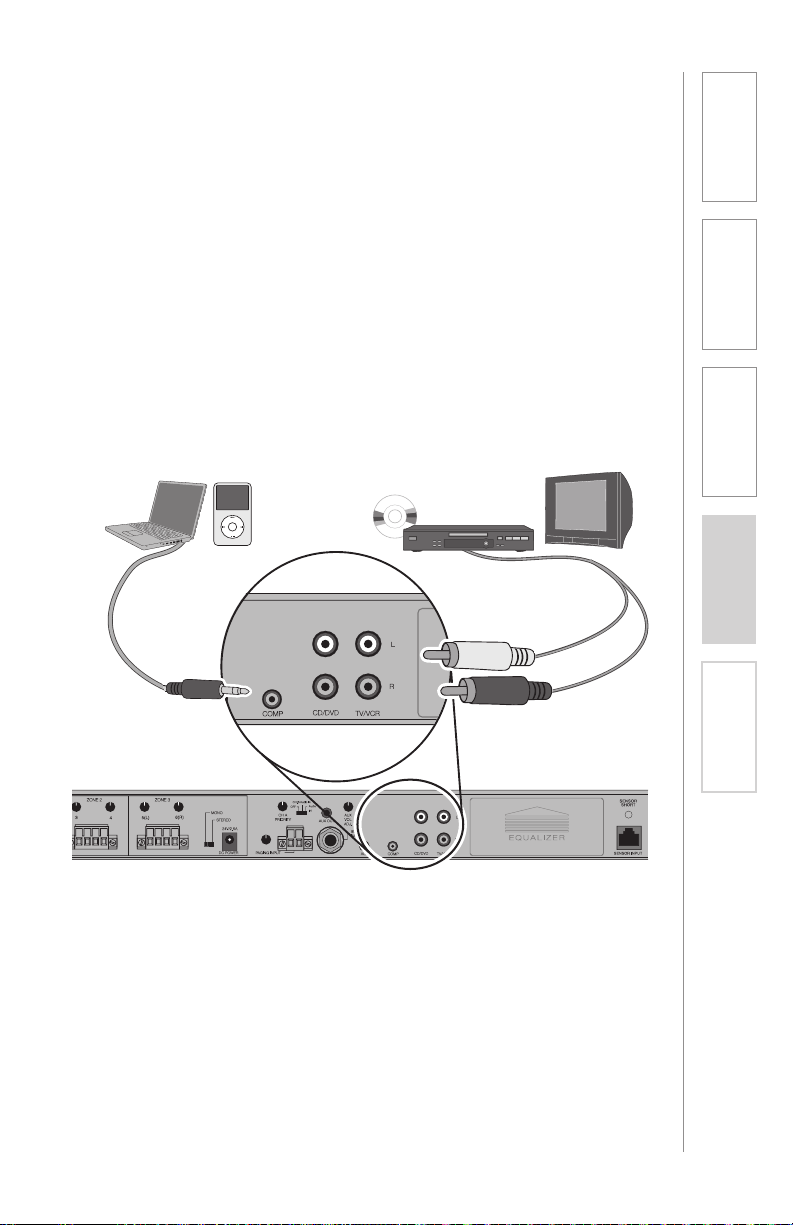

4D. AUDIO INPUT CONNECTIONS

1. Connect any auxiliary audio sources to the corresponding labeled input. (See following page for more information about integration with other classroom audio sources).

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

3. Optional

Accessories

1. Overview 2. Setup & Use

Page 22

& Speciﬁcations

5. Warranty, Safety

5. AUDIO INTEGRATION

The next step in setting up your CAT 885 system is to connect it to the other multimedia devices in your classroom. You may have a computer, television, DVD/VCR player, a visual projection system or other devices. Below are instructions on how to integrate TV/VCR, CD/DVD or computer directly into the CAT 885.

4. Troubleshooting

3. Optional

Accessories

1. Overview 2. Setup & Use

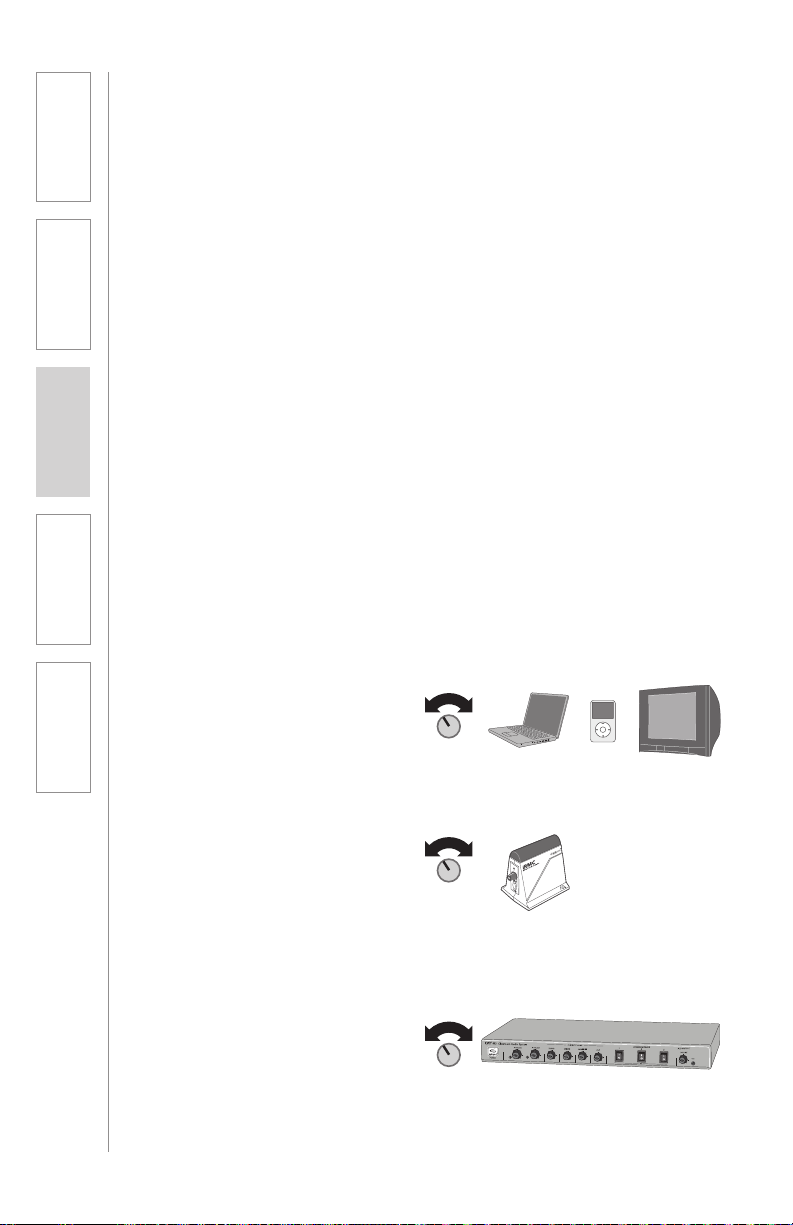

1. Ensure the power is switched off and the audio input volume controls are turned all the way down.

2. Connect the appropriate RCA or

3.5mm audio cable (not included) from the audio source into the corresponding input jack on the rear panel of the CAT 885.

One Possible Set-up

3. With both the CAT 885 and the audio source power on, adjust the corresponding volume control on the CAT 885 until the desired level is achieved.

1. PROJECTOR

2. LAPTOP

3. CAT 885

4. DVD

5. ISR SENSOR

6. TEACHER’S MICROPHONE

7. SPEAKERS

Page 23

6. CHARGING THE REDMIKE

Before use, the REDMIKE should be charged. It will take 8-9 hours for the REDMIKE to obtain a full charge. A fully charged REDMIKE will last for over 7 hours of use. If microphones are used daily, they should be kept in the cradle – microphones can be left in a charging cradle constantly for up to 2 weeks without causing degradation to battery life.

A red light on the charging cradle indicates the REDMIKE is charging. A green light indicates that charging is complete and a full charge has been reached. A blinking light indicates a charging or sensing error. See Troubleshooting section for more information.

REDMIKE incorporates alkaline protection into the microphone design. Always use a Lightspeed rechargeable sensing battery. Replacement AA NiMH batteries may only be purchased through Lightspeed Technologies (part # BA-NH2A27). Do not attempt to charge alkaline batteries. They can overheat and expand creating a signiﬁcant hazard and damaging the microphone (this is not covered by warranty).

1. Plug power cord into the cradle charger and then plug the AC end into an electrical outlet.

2. Ensure that the REDMIKE is turned OFF.

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

3. Optional

Accessories

3. Place the REDMIKE into the cradle. The LED on the cradle will glow RED indicating charging has started. When the REDMIKE is fully charged the LED on the cradle charger will change to GREEN.

1. Overview 2. Setup & Use

Page 24

& Speciﬁcations

SENSOR INPUTS

SENSOR

SHORT

5. Warranty, Safety

4. Troubleshooting

3. Optional

Accessories

1. Overview 2. Setup & Use

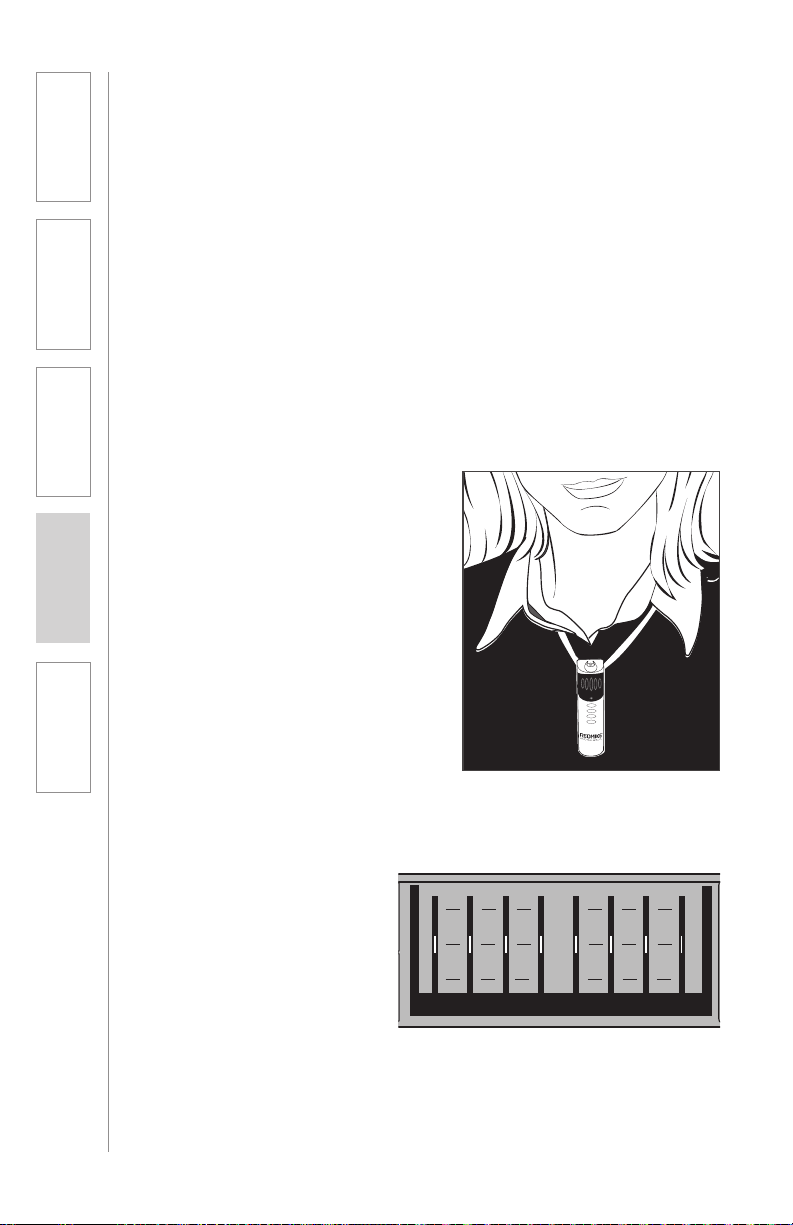

7. OPERATING THE REDMIKE

Once the REDMIKE is charged, follow these steps to set it up for use.

1. Turn the CAT 885 power on. The blue LED will glow.

2. Remove the REDMIKE from the charging cradle and turn it on.

3. Slip the REDMIKE with lanyard around the neck and position the top of the microphone just below the collarbone. NOTE: Positioning of the REDMIKE is critical for proper volume adjustment.

4. While speaking in a normal voice slowly increase the volume of the corresponding channel on the CAT 885 until your voice is barely audible. Each REDMIKE has its channel pre-set to either A or B, as indicated on the back of the Mic.

REMEMBER: This equipment supplements the user’s voice so they are able to speak in a conversational tone. Having the volume set too high will result in feedback and listener fatigue.

5. Once initial volume level is set, walk around the room and listen for audio dropout and overall audio quality. Fine-tuning the audio is accomplished by making minor adjustments to the 8-Band Equalizer on the back panel of the CAT 885.

6. If a second REDMIKE was purchased, repeat steps 2-4.

250 400

700

1K 1K4

+10

2K5

-10

Page 25

8. INITIAL SET-UP OF SPEAKER AUDIO

SENSOR INPUTS

SENSOR

SHORT

Audio Equalization of the CAT 885

The CAT 885 uses an 8-band audio equalizer designed to optimize and ﬁne-tune the microphone sound quality for the classroom. Below are some tips on proper system equalization:

• Thevoiceshouldbenatural,

very clear and without any audio feedback (ringing)

• Walktheroomlisteningforthe

overall quality and any feedback that is present

• Ifthereisalotofaudiofeedback,

it is likely the volume is too high. Ensure the volume is at the appropriate level, a second person is helpful to determine this.

• Iffeedbackisstillpresentwiththe

audio set at the right level, make the following EQ adjustments:

– High pitched ring: lower the

2K5 and/or 4K adjustment about halfway

– Lower pitched ring: lower the

400 and/or 1K adjustment about halfway

• Ifyounoticethesoundis“muddy”

or has too much bass:

– Lower the 400 adjustment by

about halfway and/or

– Raise the 2K5 or 4K adjustment

above the centerline by about 1/4

– Note: the EQ adjustments

should be preset at “0” or halfway from the top. This is the nominal level and any adjust ments (up or down) should be made from this level.

250 400

700

1K 1K4

+10

-10

2K5

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

3. Optional

Accessories

1. Overview 2. Setup & Use

Speaker Control

SPEAKER ZONING: By “zoning”

or separating the classroom into different areas where audio may or may not be desired, the teacher has greater ﬂexibility controlling the dispersion of sound throughout the room. Zoning is especially useful in large classrooms and media centers.

SPEAKER VOLUME CONTROL: An area of the classroom might contain a noise emitter such as an HVAC system. In this case, it may be necessary to turn up the volume of the affected speaker to overcome the noise in that area. When this situation arises, the CAT 885 allows the user to ﬁne tune the output level.

Page 26

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

3. Optional

Accessories

9. SETTING MIC PRIORITIES

Teacher Voice Priority

This feature allows the teacher’s voice to be heard over the other audio being played through the CAT 885. The three-position switch has the following functionality:

• OFF:Normaloperation—turns

Teacher Priority off.

• CH.B/AudioIN:Teacher’svoice

(the microphone set to Channel A) has priority over the student microphone (Channel B) and audio inputs. When the teacher speaks into the microphone, the audio of the other sources will mute. When the teacher stops talking or the REDMIKE is turned off, the audio returns.

Page First: Priority Mute

• AudioIn:Teacher’svoicehas

priority over any audio sources that are plugged into the Audio Inputs only (Computer, TV/VCR, CD/DVD, etc.). When the teacher speaks into the microphone, the audio of the input sources will mute. When the teacher stops talking or the REDMIKE is turned off, the audio returns.

1. Overview 2. Setup & Use

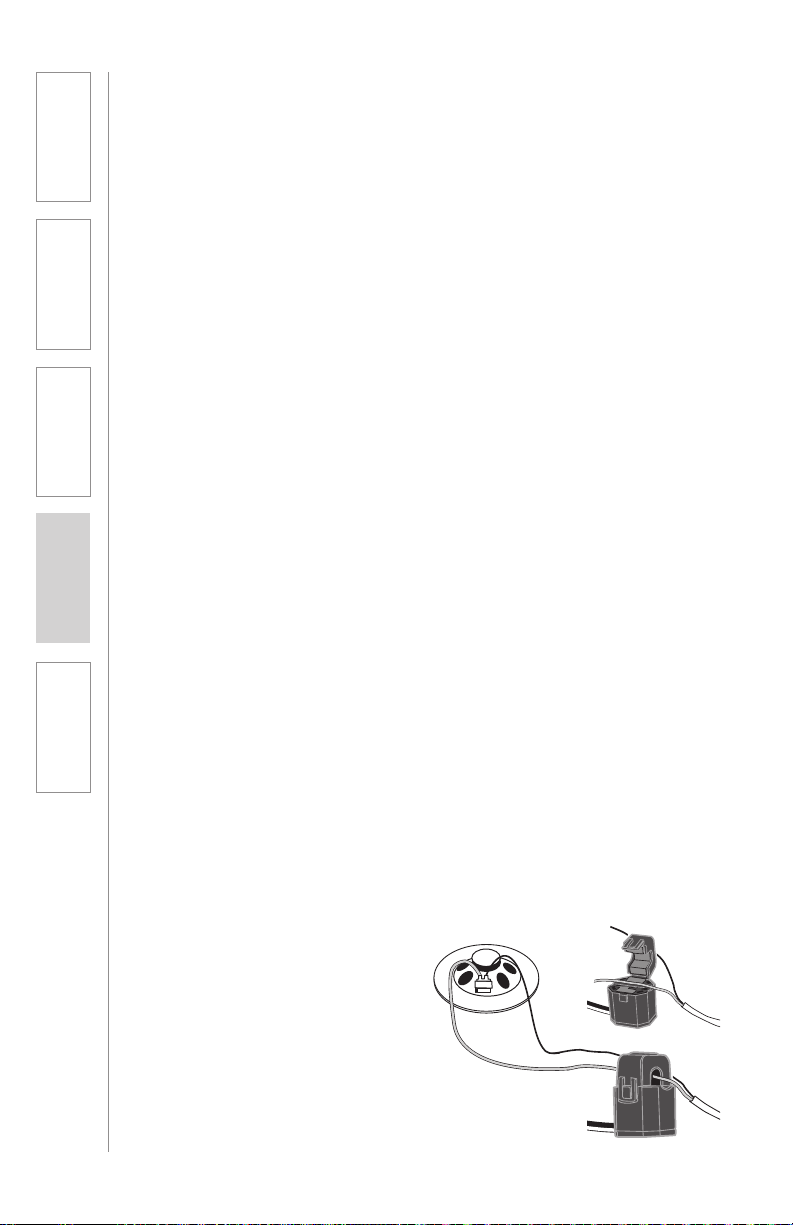

This optional feature interfaces with an independent classroom paging system. When the page is broadcast, all audio from the system is muted, ensuring important school-wide messages are never missed.

How it works:

1. PageFirst sensor clip is hung around the lead wires attached to the classroom paging speaker.

2. The clip is hard-wired to the CAT

885.

3. As a page is broadcast, the

sensor clip detects the audio signal through induction and immediately mutes the CAT 885.

4. When the page is over, the audio from the CAT 885 returns to normal volume level.

(For full installation details refer to the install sheet included with the optional PageFirst sensor clip)

Page 27

OUTPUT TO ASSISTIVE LISTENING DEVICE

1. Turn the ALD (Assistive Listening Device) volume control on the back panel all the way down (fully counterclockwise).

2. Determine the size and type of audio input jack on the device as many manufacturers’ products differ in connector size and shape. The Lightspeed LES-370 Personal System requires a 3.5 mm to

3.5 mm patch cable (part# CAMMC3535, not included).

3. Connect a patch cable from the ALD’s microphone jack or AUX input to one of the following

3.5mm audio jack on the CAT 885:

• “ALDOUT”onthefrontpanel

• “AUXOUT”onthebackpanel

4. Adjust the volume control on the ALD’s receiver to maximum output. NOTE! This is to set the maximum allowable signal from the CAT 885.

5. With the CAT 885 and ALD turned on, speak into the REDMIKE and slowly adjust the corresponding volume control on the CAT 885 until the appropriate audio level is obtained in the ALD.

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

3. Optional

Accessories

1. Overview 2. Setup & Use

Page 28

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

3. Optional

Accessories

USING THE REDMIKE TO AMPLIFY EXTERNAL AUDIO EQUIPMENT

The REDMIKE includes a 3.5mm audio input jack to connect to an audio source like a laptop or MP3 player. The REDMIKE will transmit the audio signal to be played through the system.

If your system includes two REDMIKEs, we recommend using Channel B (student mike) to amplify the external audio equipment so the teacher’s volume on the Channel A (teacher mike) does not have to be adjusted.

To determine which REDMIKE is set to Channel B, you can look at the switch on the back of the mike or speak into one of the mics and watch which set of LED’s glow on the front panel of the CAT 885 (A Volume or B Volume correspond to Channels A or B).

1. Plug your external audio equipment (for example, laptop), into the input on the REDMIKE labeled “INPUT” using a 3.5mm patch cable.

AUDIO

INPUT

1. Overview 2. Setup & Use

AUDIO

OUTPUT

2. Adjust the volume on the CAT 885 receiver which corresponds to selected mic channel A or B.

Page 29

& Speciﬁcations

5. Warranty, Safety

3. Optional

Accessories

2. Setup & Use

1. Overview 4. Troubleshooting

Page 30

& Speciﬁcations

5. Warranty, Safety

SECTION 3:

OPTIONAL ACCESSORIES

OPTIONAL REDMIKE VC (Volume Control) Controls and Connections

4. Troubleshooting

3. Optional

Accessories

1. Overview 2. Setup & Use

1. POWER /MUTE BUTTON

2. POWER/LOW BATTERY

INDICATOR: A BLUE light

indicates the REDMIKE VC is on and fully charged. A RED light indicates a charge is needed.

3. BATTERY COMPARTMENT: To

open, slide the door downward. The battery should only be replaced by a Lightspeed AA rechargeable sensing battery (part # BA-NH2A27).

4. YELLOW PROTECTIVE TAB:

Slide the battery compartment door and remove this disposable protective tab before use.

5. AUDIO/MICROPHONE INPUT:

Use this input to plug in a laptop, MP3 player or other audio

f o

source to wirelessly transmit audio to be played through the system. Alternatively, an external microphone can be connected.

6. CHANNEL SELECT SWITCH (CH A/B): Use this to choose Channel

A or B. If you are using a single microphone, we recommend using Channel A.

7. VOLUME CONTROLS (UP DOWN)

8. CHARGER CONTACTS (+ -):

These contacts interface with the charging tabs when the REDMIKE VC is placed in the BC-RMCC cradle charger.

Page 31

REDMIKE VC : Charging

Before use, the REDMIKE VC should be charged. See page 23 and follow the same instructions for the REDMIKE.

REDMIKE VC : Initial Set-up

See page 24 and follow the same instructions for the REDMIKE to setup the REDMIKE VC.

NOTE: A nominal volume level must be set on the CAT 885 before adjusting controls on the REDMIKE VC.

The teacher can now use the controls on the REDMIKE VC to adjust the volume level from anywhere in the room. The microphone volume control has 4 steps up and 4 steps down from the mid point (9 levels total).

& Speciﬁcations

5. Warranty, Safety

3. Optional

Accessories

2. Setup & Use

1. Overview 4. Troubleshooting

Page 32

& Speciﬁcations

5. Warranty, Safety

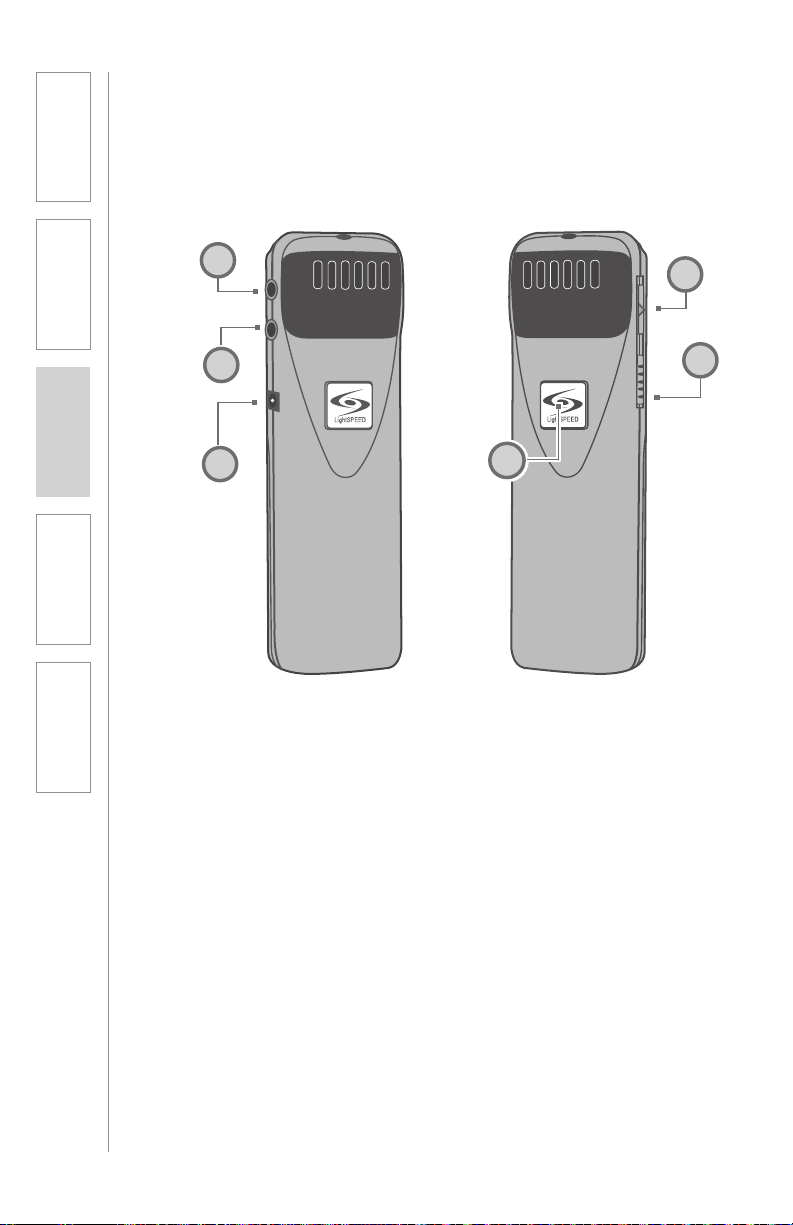

OPTIONAL LT-71: Controls and Connections

4. Troubleshooting

3. Optional

Accessories

1. Overview 2. Setup & Use

LT- 71

1. ON/OFF/MUTE Switch

2. CHANNEL SELECT SWITCH (CH A/B): Use this to choose Channel

A or B. If you are using a single microphone, we recommend using Channel A.

3. POWER/CHARGE INDICATOR: A BLUE light indicates the REDMIKE VC is on and fully charged. A RED light indicates a charge is needed.

4. EXTERNAL MICROPHONE INPUT (MIC): Use the 3.5mm

MIC jack for the optional TK-250 headset microphone (part# MCTK250LTM).

LT- 71

5. AUXILIARY (AUX): Plug a laptop,

MP3 player or other audio source into this jack to wirelessly transmit the audio signal to be played through the system.

6. CHARGER INPUT (CHARGER): Plug the charging cable from the charger into this jack for daily charging. The LED on the front will glow RED to indicate charging.

Page 33

LT-71: Charging

1. Ensure that the LT-71 is turned OFF.

2. Make sure the cradle charger is plugged into a wall outlet. Connect one end of the charging cable into the jack labeled CHARGER on the side of the LT-71 and plug the other end into the charging jack on the rear of the REDMIKE cradle charger. The LT-71’s rechargeable batteries are factory installed. The LED on the front of the LT-71 will glow RED when charging.

3. Leave the LT-71 plugged in overnight (8–10 hrs.) to obtain a full charge.

& Speciﬁcations

5. Warranty, Safety

3. Optional

Accessories

2. Setup & Use

NOTE: If the system was purchased without a REDMIKE or REDMIKE VC, the LT-71 will utilize a charging cable. Simply connect the charging cables to the jacks labeled CHARGER on the back of the ampliﬁer and connect the opposite ends to the jacks on the back of the cradle charger.

1. Overview 4. Troubleshooting

Page 34

& Speciﬁcations

LT-71

5. Warranty, Safety

4. Troubleshooting

3. Optional

Accessories

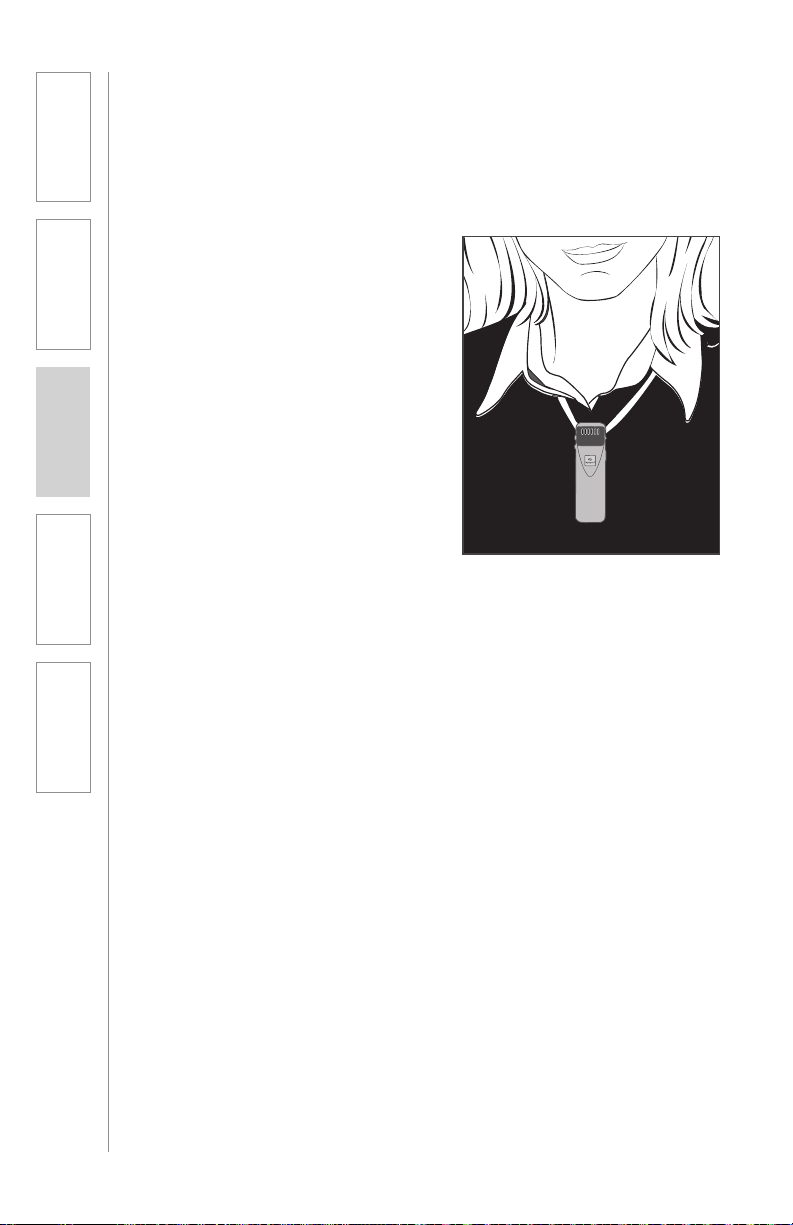

LT-71: Initial Set-up

Once the LT-71 is charged, follow these steps to set it up for use.

1. Turn the CAT 885 power switch to the ON position. The RED LED on the switch will glow.

2. Turn on the LT-71 and set the operating channel to “B”.

3. Slip the LT-71 with lanyard around the neck and position the top of the microphone just below the collarbone. NOTE: Positioning of the LT-71 is critical for proper volume adjustment.

4. While speaking in a normal voice slowly increase the volume for Channel B on the CAT 885 until your voice is barely audible.

REMEMBER: This equipment supplements the user’s voice so they are able to speak in a conversational tone. Having the volume set too high will result in feedback and listener fatigue.

1. Overview 2. Setup & Use

Page 35

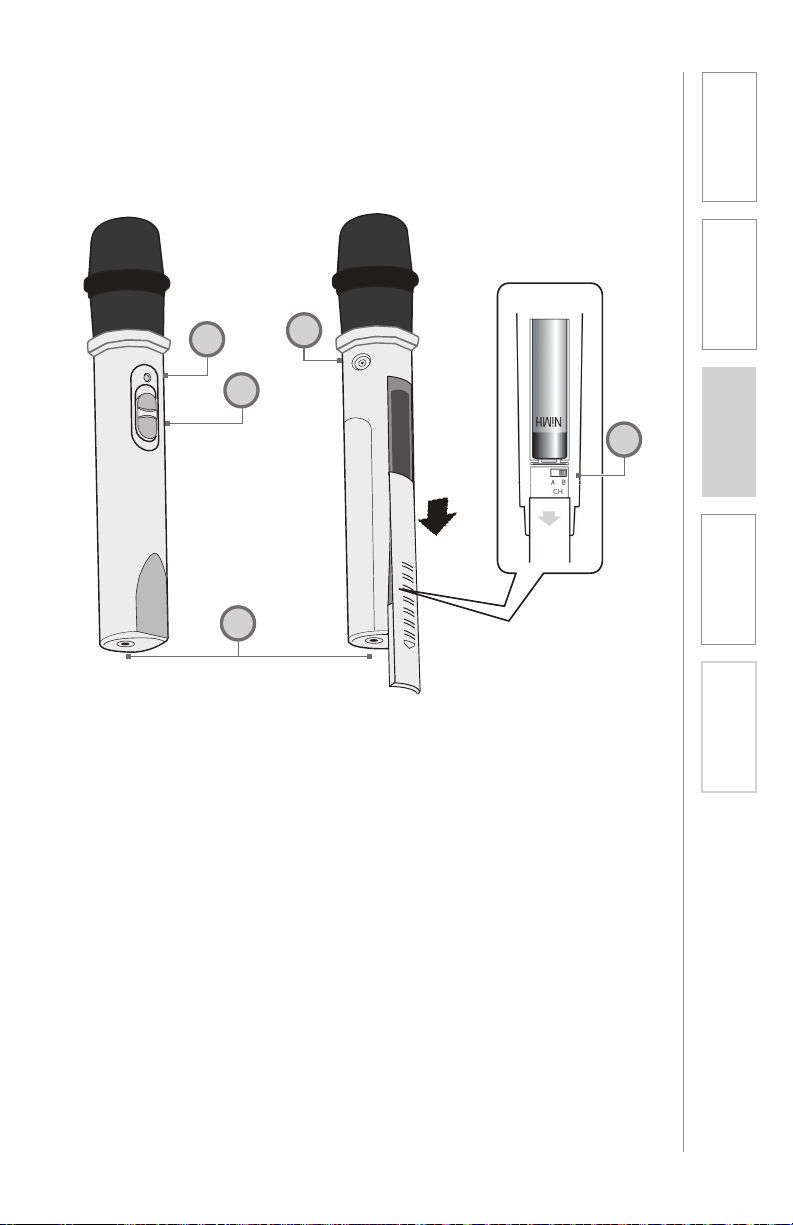

REDMIKE Share: Controls and Connections

& Speciﬁcations

5. Warranty, Safety

1. POWER SWITCH:

2. POWER/CHARGE INDICATOR:

this light glows blue when turned on and turns off to indicate low battery level. When charging, the light glows red.

3. AUDIO INPUT: plug a laptop, MP3 player or other audio device into this jack to wirelessly transmit the audio signal to be played through the system.

4. CHANNEL SELECT SWITCH (CH A/B): Located in the battery

compartment, this switch is set to Channel B at the factory.

5. CHARGER INPUT: Plug the charging cable from the REDMIKE cradle charger or into this jack.

3. Optional

Accessories

2. Setup & Use

1. Overview 4. Troubleshooting

Page 36

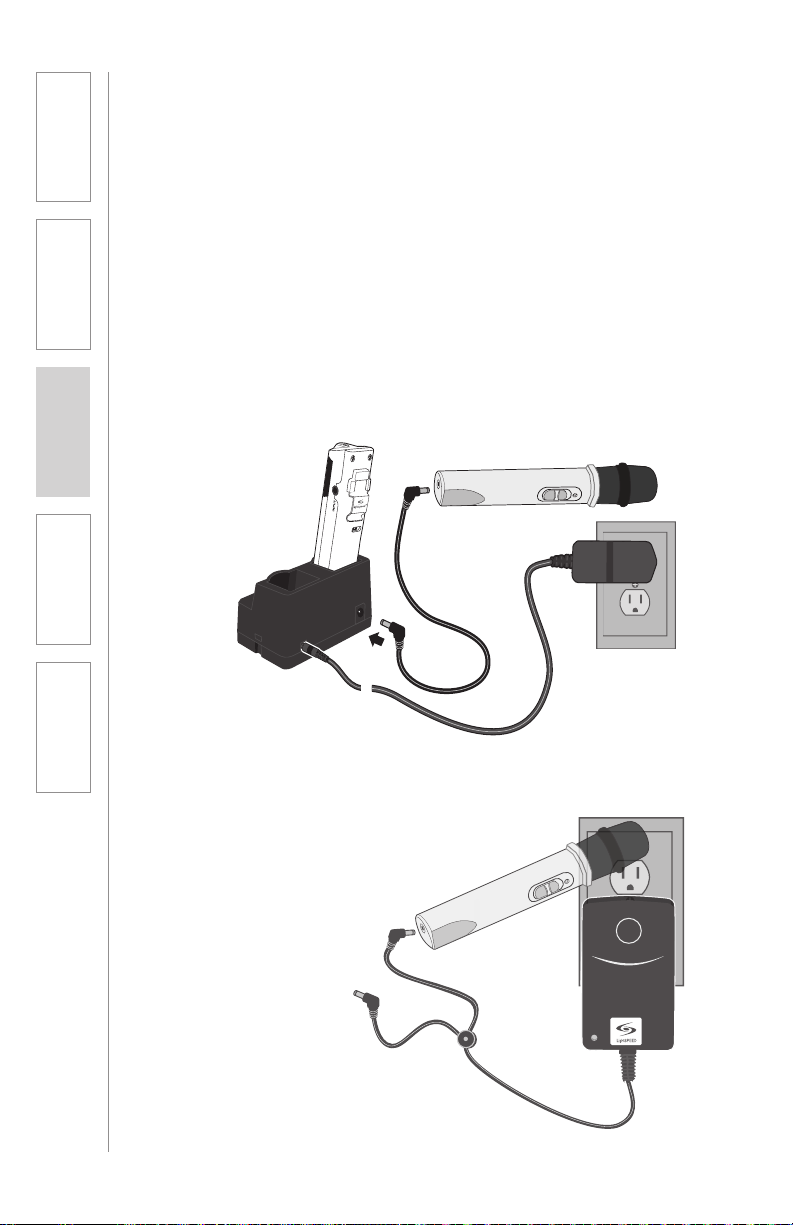

REDMIKE Share: Charging

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

3. Optional

Accessories

1. Ensure that the REDMIKE Share is turned OFF.

2. Make sure the cradle charger is plugged into a wall outlet. Connect one end of the charging cable into the jack labeled CHARGER on the bottom of the REDMIKE Share.

3. Plug the other end into the charging jack on the rear of the cradle charger.

4. The LED on the microphone will glow RED to indicate charging.

5. Leave the REDMIKE Share plugged in overnight (8-10 hours) to obtain a full charge.

1. Overview 2. Setup & Use

NOTE: If the system was purchased without a REDMIKE or REDMIKE VC, the REDMIKE Share will utilize the BC-TXLT wall charger. Plug the wall charger into an AC outlet and plug the other end(s) into the CHARGER jack on the REDMIKE Share.

Page 37

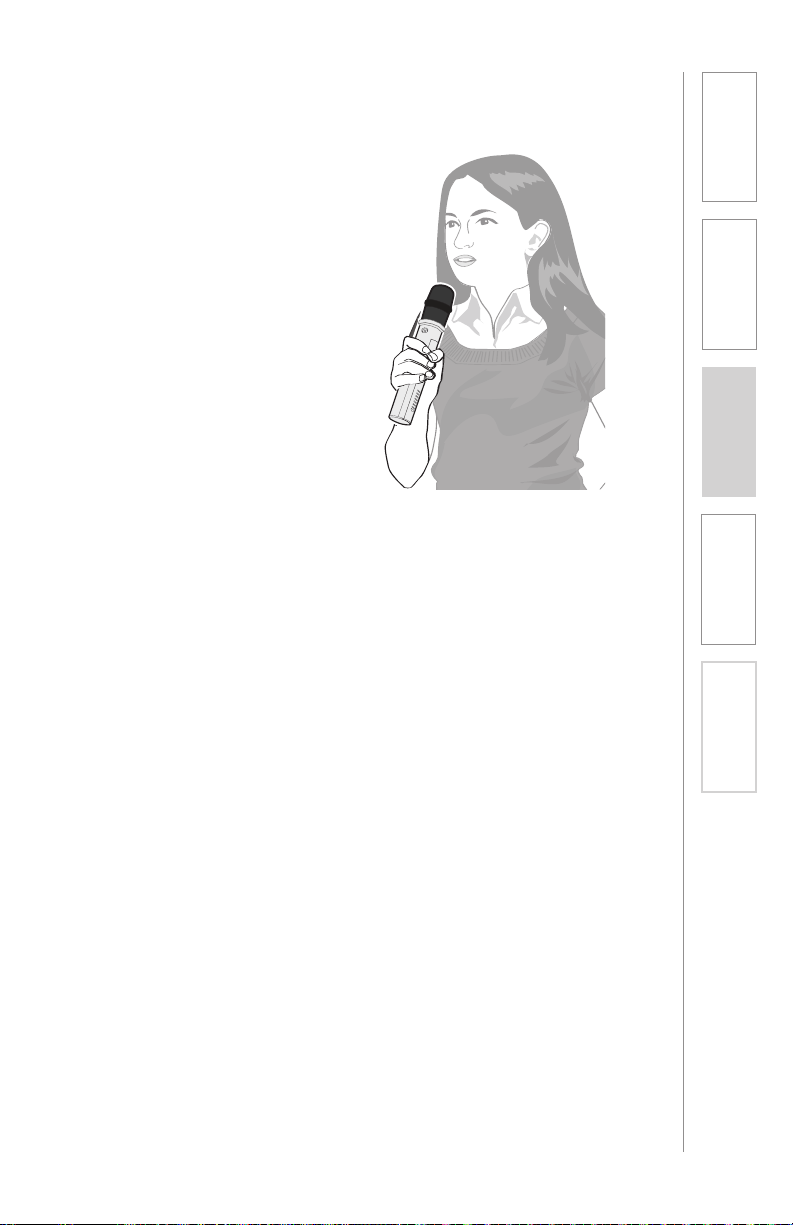

REDMIKE Share: Initial Set-up

1. Ensure the CAT 885 is ON. The blue LED on the power button will glow.

2. Turn on the REDMIKE Share by sliding the switch to the top position.

3. Grip the barrel in the center section. Avoid covering the infrared emitters just below the microphone grille. This could interrupt signal transmission.

4. While speaking in a normal voice, increase the B VOLUME on the CAT 885 level until your voice is barely audible.

REMEMBER: This equipment is designed to supplement and distribute the user’s voice so they are able to speak in a conversational tone. Having the volume set too high will result in feedback and listener fatigue.

& Speciﬁcations

5. Warranty, Safety

3. Optional

Accessories

2. Setup & Use

1. Overview 4. Troubleshooting

Page 38

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

3. Optional

Accessories

1. Overview 2. Setup & Use

INITIAL SET-UP: OPTIONAL IR MEDIA CONNECTOR

1. Turn off the second microphone. The iR Media Connector uses the same channel (channel B) as the optional second microphone (REDMIKE, LT-71, or REDMIKE Share). As a result, they cannot be used simultaneously. If you have a second microphone, turn it off before transmitting audio from the iRMC.

NOTE: If you adjust the CH B volume on the classroom audio system, you will also be changing the volume for your second microphone. Return the CH B volume knob to the original position before turning the second microphone back on.

2. The iR Media Connector volume is preset for most standard audio signals. If you need to turn the volume up or down, follow this procedure:

A. Adjust the volume at the

computer, television, or other audio source if possible.

B. If the audio source does not have a volume control (such as many DVD players) adjust the volume at the iRMC.

C. If the ﬁrst two options do not give optimum volume level, the last place to adjust the volume is the CH. B Volume on the CAT 885.

Page 39

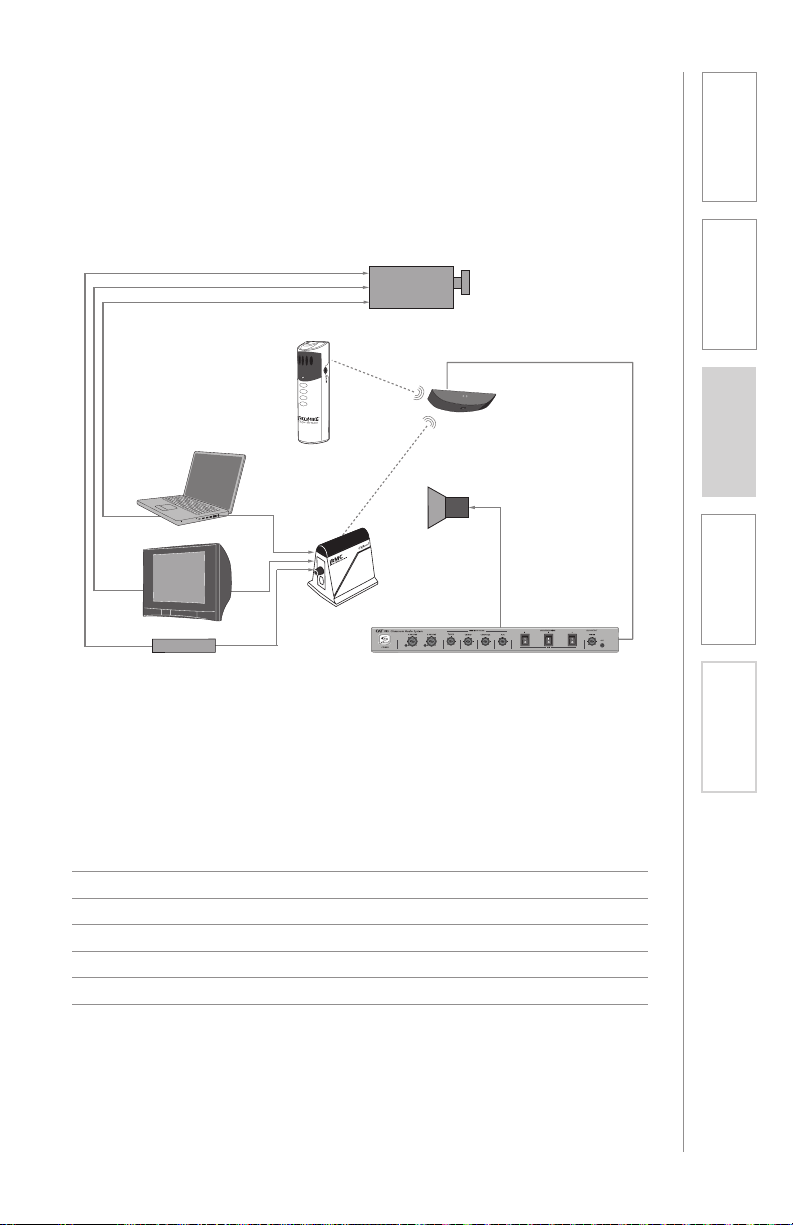

OPTIONAL IR MEDIA CONNECTOR AUDIO INTEGRATION

The iRMC is designed to integrate with the CAT 885 and multiple audio sources, allowing other instructional technologies to be clearly heard throughout the classroom.

& Speciﬁcations

5. Warranty, Safety

VGA Out

Video Out

DVD/VCR

Audio Out

Audio In

Teacher’s Microphone

iR Media Connector

Video In

Projector

IR Transmission

Projector

Speaker(s)

ISR Sensor

IR Sensor

Cat 885

OTHER OPTIONAL ACCESSORIES

ISR Sensor

3. Optional

Accessories

2. Setup & Use

1. Overview 4. Troubleshooting

Other Optional Accessories

IRMC Infrared Media Connector

MC-TK250M Noise-canceling headset microphone

AC-TCC7 Charging cable for REDMIKE Share and LT71

CA-RCA6 6’ dual RCA audio cable

CA-MSC3535 3.5mm to 3.5mm stereo audio cable

Page 40

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

SECTION 4:

TROUBLESHOOTING

COMMON PROBLEMS AND SOLUTIONS

Note: Most problems are directly related to low battery power. Please run through the “Battery Check” items ﬁrst. For remaining troubleshooting, use known good, fully-charged batteries.

3. Optional

Accessories

1. Overview 2. Setup & Use

ALL PROBLEMS: Most Problems are

related to low battery power.

SOLUTION: Battery Check

• Conrmbatteriesarecharged each night.

• Conrmproperbatteriesare

used. The REDMIKE requires the Lightspeed BA-NH2A27 rechargeable sensing battery for proper charging. The REDMIKE Share uses the BA-NH2APK rechargeable battery pack. The LT-71 requires two BA-NH1 AA rechargeable batteries.

• Makesurethemicrophonesare

turned off while charging so a full charge is attained. Full charge will last eight hours.

• Inspectthebatterycontacts.Clean

and adjust if necessary.

PROBLEM: Hearing Static

SOLUTION: Follow these steps to

eliminate static.

• Ensuresensorisinoptimum

location (refer to sensor placement in manual). A single sensor will cover a 1600 sq. ft. enclosed classroom.

• EnsurethatnootherREDMIKE/LT-

71/REDMIKE Share is operating on the same channel.

• IftheoptionaliRmediaconnection is in use, set the microphone to Channel A.

PROBLEM: Low Volume or Feedback

SOLUTION: Follow these steps to

eliminate low volume or feedback.

• Ensuremicrophoneispositioned

appropriately, just below the collar bone.

• Checkvolumelevelonthe

ampliﬁer. If the volume is too high, feedback will occur. Adjust accordingly.

• Adjustthevolumelevelonthe

back of the optional REDMIKE VC.

PROBLEM: No Sound From Speaker

SOLUTION: Follow these steps to

produce sound from speakers.

• TurntheCAT885on.Conrmthat

the POWER light located on the front panel switch is on.

• Conrmsignalisbeingreceivedat

the CAT 885. The IR signal light will be RED indicating a signal is being received.

• ConrmthatREDMIKEisturned

on. There will be a BLUE LED on the microphone to indicate it is powered on.

If you review these instructions and still have questions, write down the serial number and model number of your system and call Lightspeed Technical Services at 800.732.8999, 5 a.m. – 5 p.m., PST.

Page 41

TIPS TO OBTAIN OPTIMUM AUDIO PERFORMANCE

• Speakinanaturalvoice.Anormal

conversational speech level will provide an adequate signal. It is not necessary to increase the intensity of your voice—the audio system provides adequate ampliﬁcation (approximately 5 – 10 dB) above ambient room noises.

• Avoidwearingjewelrythatmayrub

or bump against the microphone.

• TurntheREDMIKEoffduring

private conversations with a student, parent, or other classroom visitor. You can also cover the LED lens on top of the REDMIKE to block the signal.

• Rechargebatterieseachnight.

When recharged nightly, operating time (actual usage) for the transmitters will last through a typical school day.

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

3. Optional

Accessories

1. Overview 2. Setup & Use

Page 42

& Speciﬁcations

5. Warranty, Safety

SECTION 5:

WARRANTY, SAFETY & SPECIFICATIONS

FIVE-YEAR LIMITED WARRANTY

4. Troubleshooting

3. Optional

Accessories

1. Overview 2. Setup & Use

Lightspeed Classroom Audio Systems are guaranteed against malfunction due

to defects in materials and workmanship for a period of FIVE (5) YEARS, beginning at the date of the purchase invoice. If such malfunction occurs, the product will be repaired or replaced (at Lightspeed’s option) without charge during the warranty period.

Lightspeed’s Warranty Exchange Program applies to all infrared systems within

the ﬁve (5) year warranty period. If an infrared product or component has an issue that requires service, a refurbished replacement will immediately be sent to the customer to minimize downtime. Customers will receive the exchange product(s) or component(s) within 2-3 days. A prepaid return label will be included with exchanged products so original malfunctioned equipment can be returned to Lightspeed. Any exchanged equipment will remain covered under the original ﬁve (5) year warranty.

1. Warranty on infrared microphones is FIVE (5) YEARS.

2. Warranty on Lightspeed NiMH rechargeable batteries is one (1) year.

3. Prepaid shipping label provided by Lightspeed for warranty repairs within the U.S. Customers outside the U.S. should refer to the Lightspeed website (www.lightspeed-tek.com) for warranty repair instructions.

4. Warranty does not extend to ﬁnish, appearance items, or malfunctions due to abuse or operation other than speciﬁed conditions, nor does it extend to incidental or consequential damages. Repair by other than Lightspeed or its authorized service agencies will void this guarantee. Information on authorized service agencies is available from Lightspeed Technologies, Inc.

Our Service Department (800.732.8999, 5 a.m. – 5 p.m., PST) will handle all your repair/replacement needs.

Page 43

SAFETY WARNINGS AND CERTIFICATIONS

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED PERSONNEL

This product conforms with the essential requirements of the following European Union Directives: 89/336/EEC, 92/31/EEC, 93/68/ EED, and 2004/108/EC Electromagnetic Compatibility Directives.

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

3. Optional

Accessories

Lightspeed Technologies launched a formal product recycle program in Europe that complies with the European Union Directive 2002/96/EC on Waste Electrical and Electronic Equipment (“WEEE Directive”). Please visit our website at www.Lightspeed-tek.com for more information.

This product is manufactured using lead-free processes and is free of other materials harmful to the environment. It conforms to the most stringent new European guidelines for consumer products (RoHS).

1. Overview 2. Setup & Use

Page 44

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

OVERALL SPECIFICATIONS

Power Output 12 W per channel (72 W total)

Amplier Frequency Response Carrier Frequencies (IR)

60 Hz to 20 kHz ±3 dB

2.06/2.54; 3.2/3.7 MHz Signal-to-Noise Ratio > 73 dB Dynamic Range > 73 dB

Maximum Deviation

> 70 dB

AMPLIFIER SPECIFICATIONS

Receiver Type Superheterodyne Receiver Sensitivity 6 µV for 60 dB S/N Image and Spurious Rejection > 70 dB Dimensions (W x D x H) 8.6” x 6.8” x 2.2” Weight 2.75 lbs.

3. Optional

Accessories

1. Overview 2. Setup & Use

TRANSMITTER SPECIFICATIONS

REDMIKE and REDMIKE VC

Audio Distortion < 1 % Built-in Microphone Unidirectional Electret Battery Power (1-year warranty) 1 AA NiMH Rechargeable

Sensing Battery

Audio Input 3.5 mm Dimensions (W x D x H) 0.9” x 1.0” x 3.5” Weight 2.1 oz.

LT-71 LightMic

Audio Distortion < 1 % Built-in Microphone Unidirectional Electret Battery Power (1-year warranty) 2 AA NiMH Rechargeable Audio Inputs Mic Level 3.5 mm, Line Level 3.5 mm Dimensions (W x D x H) 1.375” x .75” x 4.625” Weight 3.7 oz.

REDMIKE Share Handheld Microphone

Audio distortion <1% Built-in Microphone Unidirectional Electret Battery Power (1-year warranty) 2 AA NiMH Rechargeable Battery

Pack Audio Input 3.5 mm Dimensions (W x D x H) 8.25” x 1.3” x 1.3” Weight 7.9 oz

ISR SENSOR SPECIFICATIONS

Operating Range Up to 1600 square feet Cable 50 ft., Plenum-rated Cat 5e Mounting Ceiling clip/Wall bracket Dimensions (W x D x H) 9.4” x 1.4” x 5.2” Weight 14.3 oz.

Page 45

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

3. Optional

Accessories

1. Overview 2. Setup & Use

Page 46

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

3. Optional

Accessories

1. Overview 2. Setup & Use

Page 47

& Speciﬁcations

5. Warranty, Safety

4. Troubleshooting

3. Optional

Accessories

1. Overview 2. Setup & Use

Page 48

LIGHTSPEED TECHNOLOGIES

11509 SW HERMAN ROAD / TUALATIN, OR 97062

TOLL FREE: 800.732.8999 / PHONE: 503.684.5538 / FAX: 503.684.3197

LIGHTSPEED-TEK.COM

MN0236US01-5
