Topcat Access

Page 2

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use the apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or groundingtype plug. A polarized plug has two blades with one wider than the other. A grounding- type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/ accessories specified by the manufacturer.

12. Use only with a cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. When the mains plug or appliance coupler is used as the disconnect device, it shall remain readily accessible.

16. Please keep the unit in a good ventilation environment.

17. Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

18. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

19. Warning - battery pack shall not be exposed to excessive heat such as sunshine, fire or the like.

Page 3

IMPORTANT SAFETY INSTRUCTIONS CONT’D

To avoid potential equipment damage and/or serious injury, READ AND FOLLOW all safety precautions when installing the TOPCAT. WARNINGS are included throughout the procedural steps in this guide, and are repeated below for emphasis.

• USE A LICENSED ELECTRICIAN FOR POWER CONNECTIONS. The TOPCAT system

uses standard 100 – 240VAC power. Obtain the services of a licensed electrician when supplying and connecting power to the ceiling enclosure. BE SURE electrical installation complies with local building codes. Improperly installing and/or connecting power to the system may result in EQUIPMENT DAMAGE, serious INJURY and/or DEATH.

• DO NOT INSTALL ALONE. The ceiling enclosure weighs approximately 20 lbs (9 kg),

and requires at least two people to install. DO NOT install alone.

• USE SUITABLE LADDERS. use proper ladders or support platforms when installing

the TOPCAT enclosure. DO NOT stand on chairs, tables, or other unsuitable surfaces.

• SUPPORT THE CEILING ENCLOSURE PROPERLY. DO NOT allow the full weight of

the ceiling enclosure to rest on the tile grid of the ceiling. The ceiling enclosure is designed to be suspended at TWO POINTS by suspension wires (secured to raers or other suitable building structure) and to rest LIGHTLY on the tile grid.

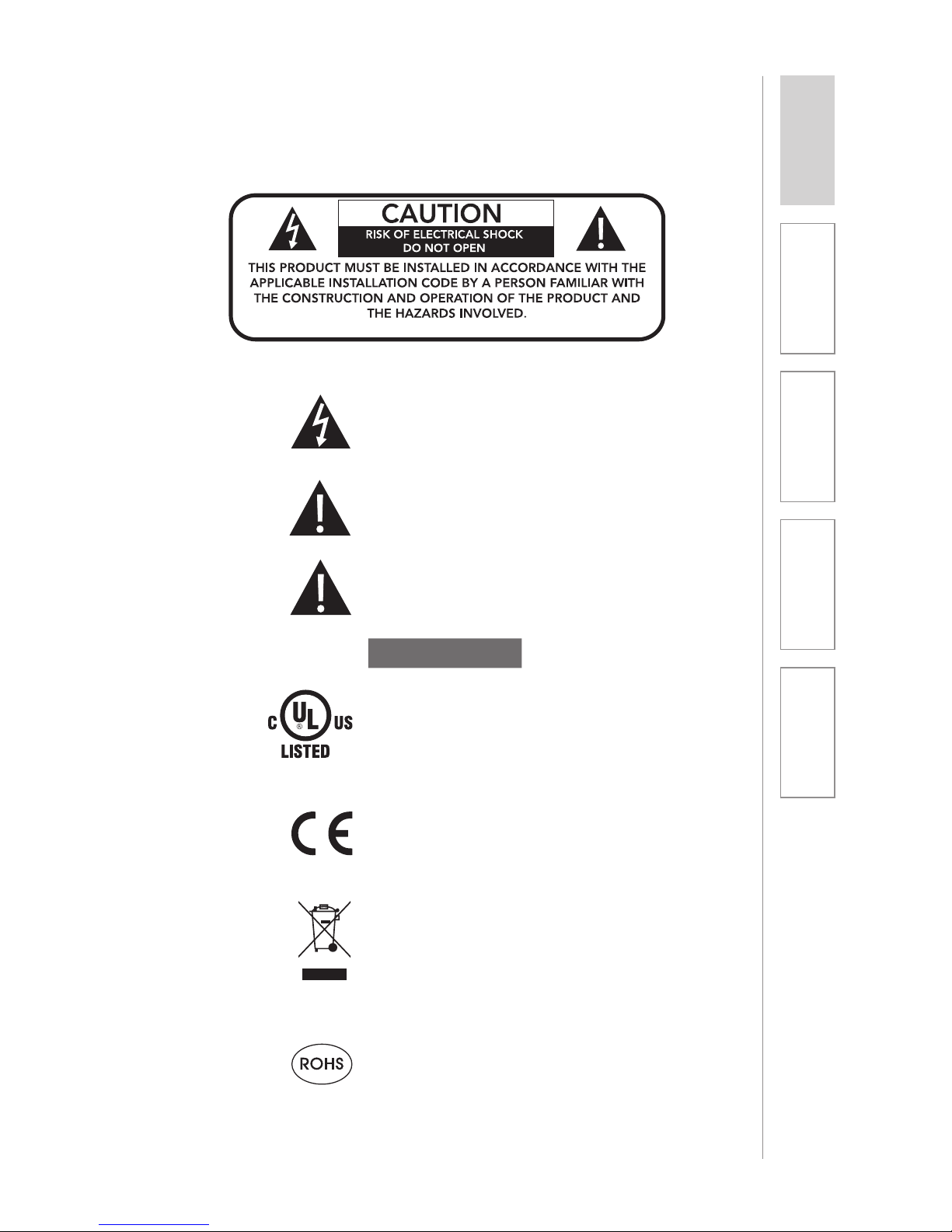

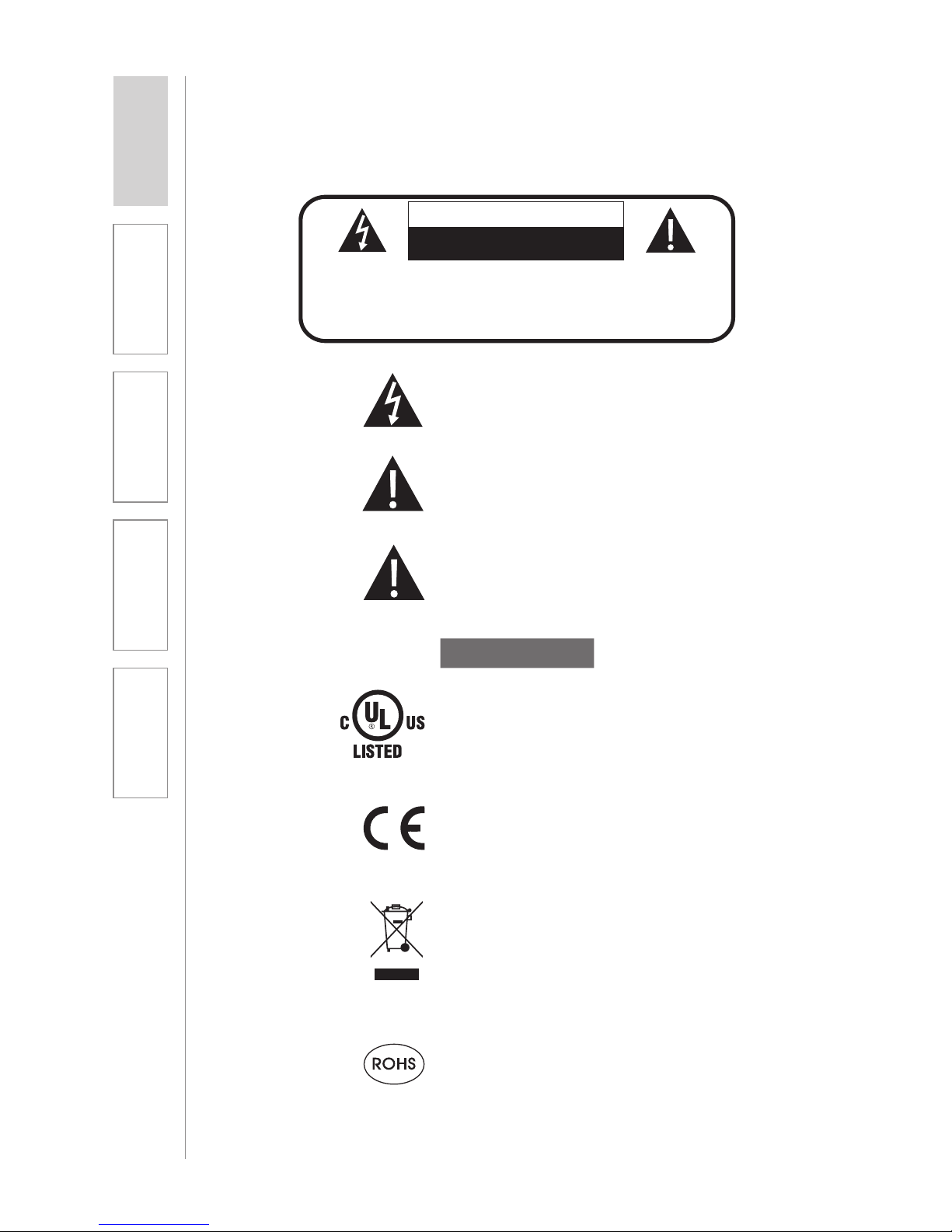

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure, that may be suicient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Page 4

TABLE OF CONTENTS

SECTION 1:

Important Safety Instructions

Overview

System Components and Unpacking

Optional Components

9 Topcat Access: Side Panel Connections

Flexmike: Controls & Connections

Cradle Charger

Set-up and Charging the Flexmike

SECTION 2:

Ensure the System On

Daily Operation

Operating the Flexmike Private Conversations End of Day

Using Flexmike as Wireless Audio Link

Tips to Obtain Optimum Audio Performance

SECTION 3:

Sharemike: Controls & Connections

Optional Accessories

Charging the Sharemike

Initial Set-up

PageFirst Interface

Activate Station: Controls & Connections

Initial Set-up

Charging Flexmikes

Download Mobile App

Pairing Your Mobile Device

Output to Assistive Listening Device

Activate Station: Record and Capture

Video + Audio Recording

Audio Only Recording

Photo Capture

Recording Library and Playback

Additional Capabilities with Activate App

Activate Station: Optional Audio Integration

Activate with Pods

Media Connector: Controls and Connections

Initial Set-up

Using the Media Connector

Audio Integration with Media Connector

Page 5

SECTION 4:

Battery Replacement for Flexmike

Maintenance &

Battery Replacement for Sharemike

Troubleshooting

SECTION 5:

Five-Year Limited Warranty

Warranty, Safety

Safety Warnings & Certifications

& Specifications 50 System Specifications

TABLE OF CONTENTS cont’d

Page 6

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

SYSTEM COMPONENTS AND UNPACKING

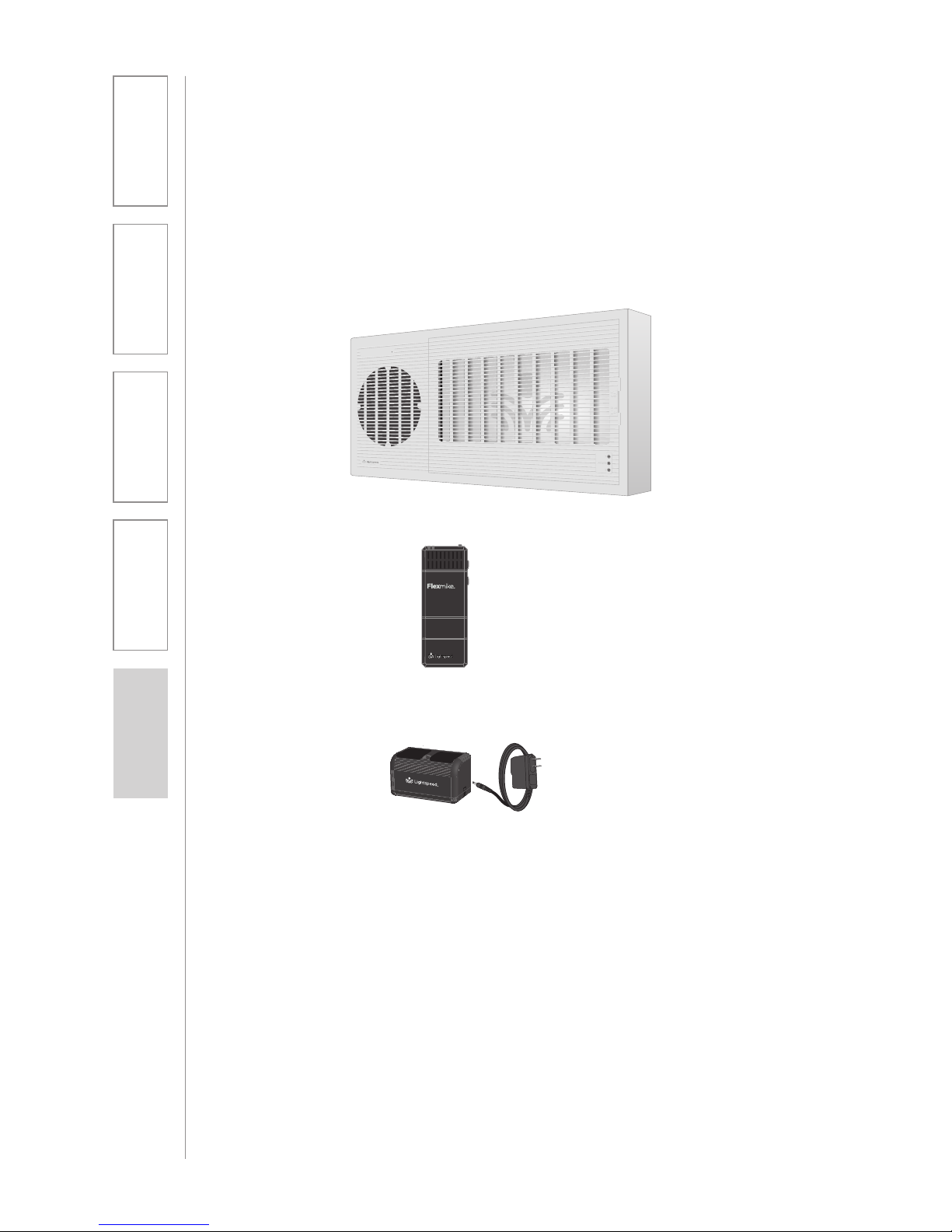

The standard configuration of the Topcat® system will contain:

Cradle Charger for Flexmike

Flexmike Volume Control Microphone

Topcat Access

SECTION 1:

OVERVIEW

1 2

NOTE ON REGISTRATION: The Topcat and any wireless components (microphones, Activate Station, Media Connector) are pre-registered (paired) together at the Lightspeed factory as required for proper operation. If paired components are separated and swapped during the installation process, they must be re-registered. If necessary, please refer to the registration instructions at www.lightspeed-tek.com/accessregistration.

Lightspeed recommends that the microphone(s), Activate, Media Connector and/or the accessory box be labeled with the room number of the Topcat that the components are registered with for proper disbursement.

To assist in this process, Lightspeed has labeled each registered component with a system number. If components become separated, simply match them up by this number for proper operation. Additional system labels are attached to the Quick Start Guide should you add components, or if one of your original components should need to be replaced.

Page 7

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

Media Connector and Power Adaptor

AUDIO INMICROPHONE AUDIO OUT

POWER

MIN

LINK

MAX MIN MAX MIN MAX

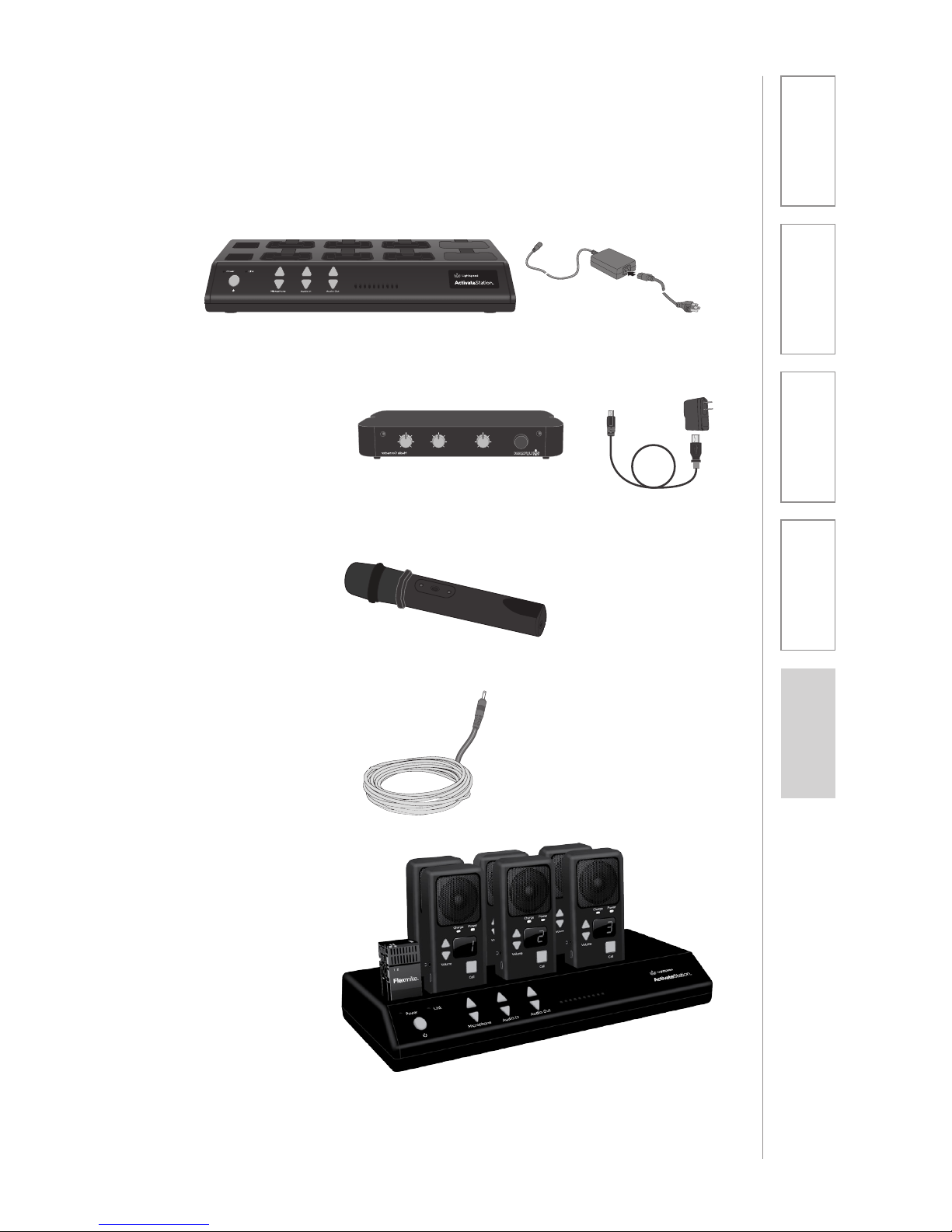

OPTIONAL COMPONENTS

Optional equipment which may be part of your Topcat system:

Sharemike Handheld Microphone

DC Extension Cable

*For further information on Activate for small group instruction, please visit www.lightspeed-tek.com

Activate Station with Power Supply

ACT-6P add-on Activate System

Page 8

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

SYSTEM COMPONENTS

Equipment which may be part of your Topcat:

Standard Components U.S. and Canada

TCA Topcat all-in-one ceiling-mount wireless audio base

station 24V-2.5A-NA 24V/2.5A power supply for TCA FMCC Transceiver cradle charger, power supply 5V-1.0 5V power supply for FMCC FM Flexmike classroom transceiver with battery pack and

lanyard NH2.4V AA NiMH rechargeable battery pack for Flexmike FL Flexmike lavaliere cord

Standard Components, outside U.S. and Canada

TCA-1881 Topcat all-in-one ceiling-mount wireless audio base

station 24V-2.5A-__ 24V/2.5A power supply, specify country FMCC-INT Transceiver cradle charger, power supply 5V-1.0-INT International 5V power supply for FMCC FM-1881 Flexmike classroom transceiver with battery pack and

lanyard NH2.4V AA NiMH rechargeable battery pack for Flexmike FL Flexmike lavaliere cord

Optional Accessories (U.S. and Canada)

ACT-6P Activate for small group instruction

ACT Activate charging station with Bluetooth

24V-1.75A-NA 24V/1.75A power supply for ACT

SM Sharemike handheld transceiver with battery pack

NH2APK AA NiMH rechargeable battery pack for Sharemike USBDC Charging cable for Sharemike MCA Wireless audio transceiver USB1-NA MCA power supply USB-MCB USB Type A-Micro B power cable for MCA DCPEX-NA 50’ plenum rated DC power cable kit EMA Earset microphone with TRRS connector for Flexmike LMA Lapel microphone with TRRS connector for Flexmike

Optional Accessories (outside U.S. and Canada)

SM-1881 Sharemike handheld transceiver with battery pack

NH2APK AA NiMH rechargeable battery pack for Sharemike, one per

Sharemike USBDC Charging cable for Sharemike MCA-1881 Wireless audio transceiver

USB3DC MCA-1881 power supply USB-MCB USB Type A-Micro B power cable for MCA-1881 5V-1.0-INT 5V charging power supply for USB3DC DCPEX-___ 15.2m plenum rated DC power cable kit (specify country) EMA Earset microphone with TRRS connector for Flexmike LMA Lapel microphone with TRRS connector for Flexmike

Page 9

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

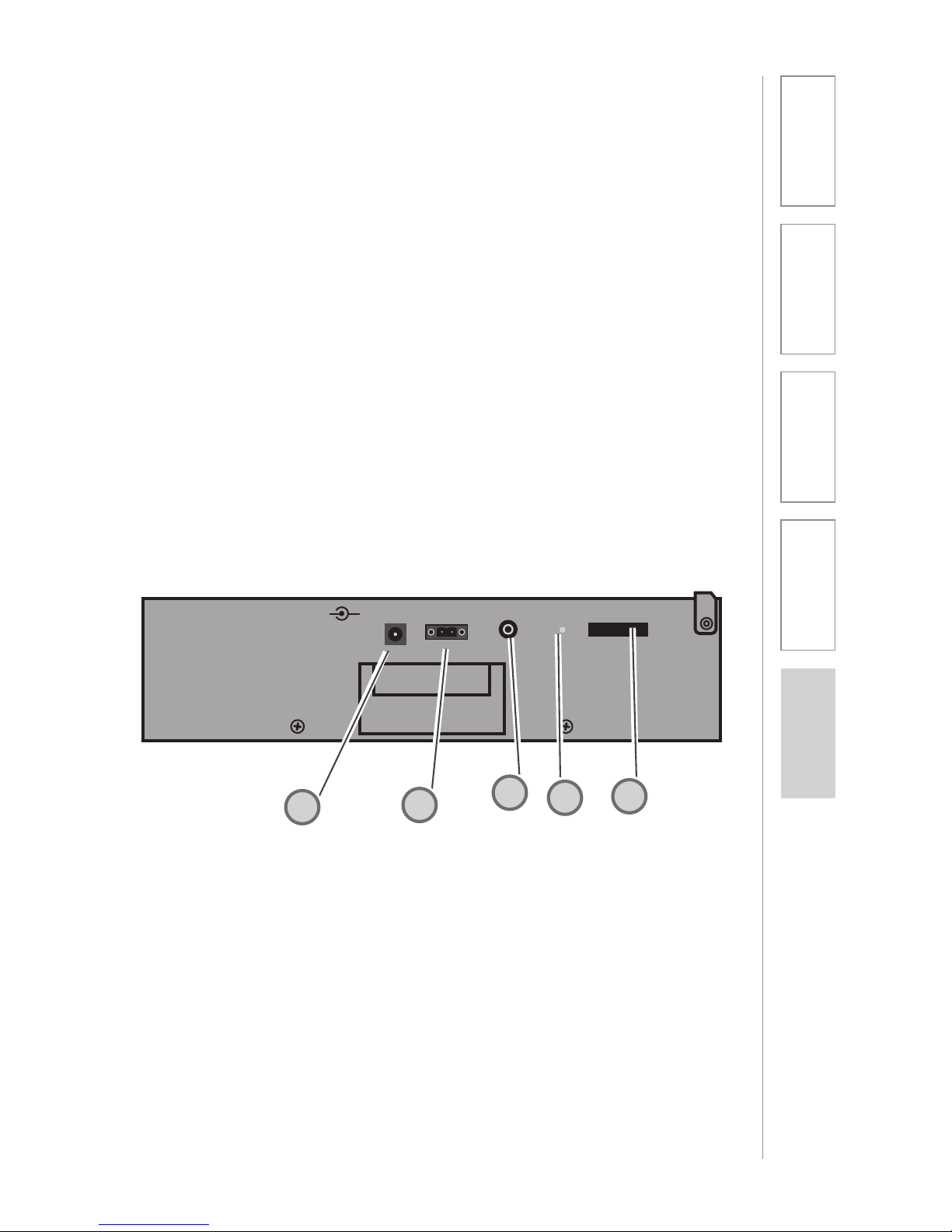

TOPCAT ACCESS SIDE PANEL CONNECTIONS

1. AUX POWER INPUT CONNECTOR (OPTIONAL):

For use during installations where AC power is not available in the ceiling. Accepts 24VDC, 2.5A connector from an external power supply.

2. PAGEFIRST INPUT: Connect the input from optional PageFirst sensor when

interfacing with the building’s paging system. Use the ADJ control inside the speaker cavity to adjust the sensitivity if needed.

3. AUDIO INPUT: This connection accepts an audio signal from other technology

so all multimedia can be distributed evenly throughout the classroom

4. REGISTRATION BUTTON: This button is used to register the Topcat with the

microphones, Activate or Media Connector.

5. PROGRAMING CONNECTION: For factory use only.

DC INPUT

24V/2.5A

PAGING

INPUT

AUDIO IN REGISTER PROGRAM

SIDE VIEW

Page 10

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

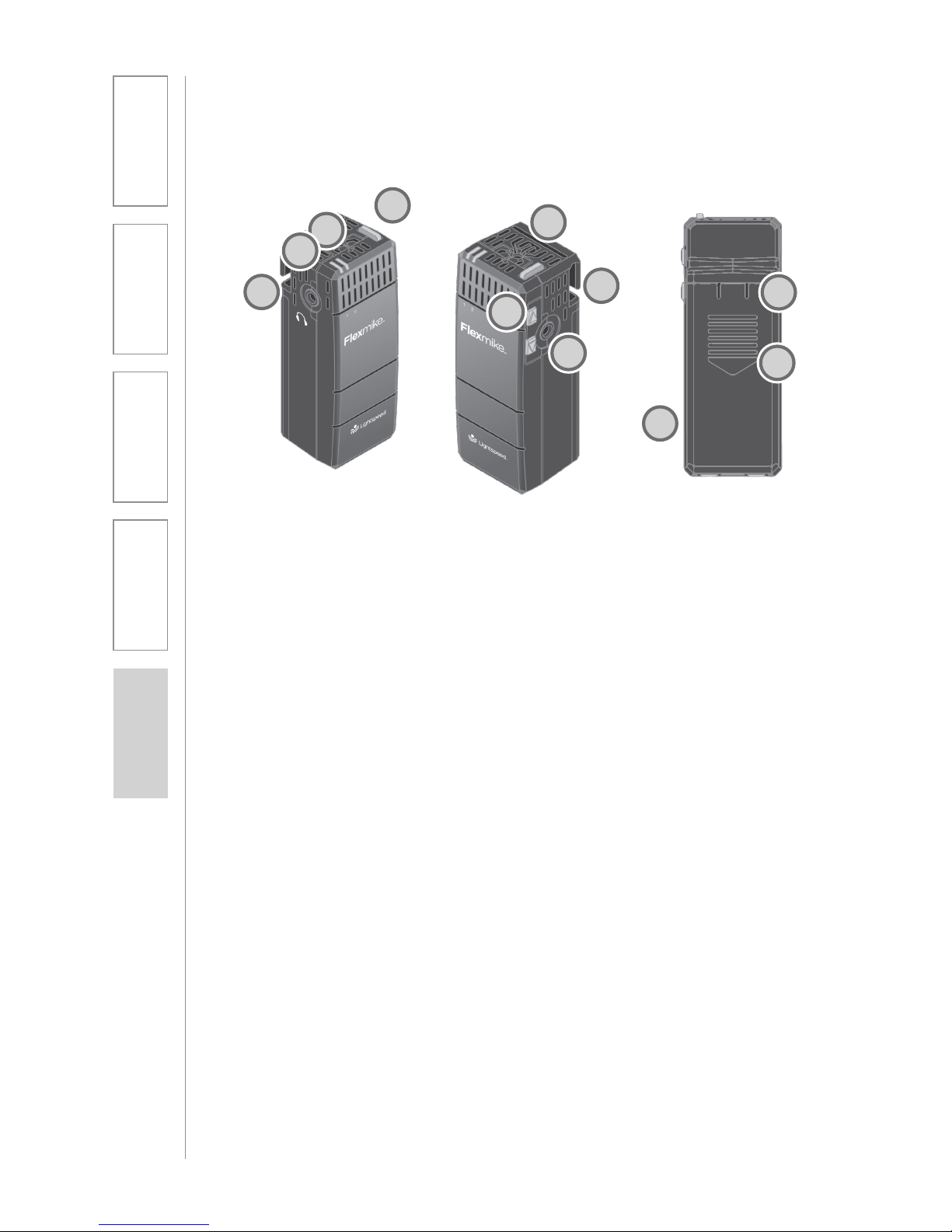

FLEXMIKE CONTROLS AND CONNECTIONS

1. POWER/MUTE SWITCH: press and hold to power on, press to mute, press

and hold to power o.

2. MIC 1 STATUS: lighted to indicate microphone is registered as MIC 1

• Blue: solid = normal operation; Blue: flashing = linking in progress

• Red: solid = muted; Red: flashing = muted while linking in progress

3. MIC 2 STATUS: when using a second microphone, this LED is lighted to

indicate microphone is registered as MIC 2 (same behavior as MIC 1 status light above)

4. EARBUD/MIC CONNECTION: connect the earbud for monitoring *for use

with Activate Pods only, also may be used with the optional EMA (earset) or LMA (lapel) microphones

5. CHARGING/LOW BATTERY INDICATOR: lights red when charging, green

when fully charged. When in operation, turns red to indicate low battery.

6. MICROPHONE VOLUME UP/DOWN

7. AUDIO INPUT: connect audio source to send to Topcat Access

8. LANYARD INTERFACE: insert the lanyard into this hook to wear the

Flexmike.

9. BATTERY DOOR: remove the battery door to replace the rechargeable

battery pack

10. REGISTRATION: (inside battery compartment - not shown) only used

when adding or replacing Flexmike.

11. SYSTEM ID LABEL

Page 11

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

FLEXMIKE CRADLE CHARGER

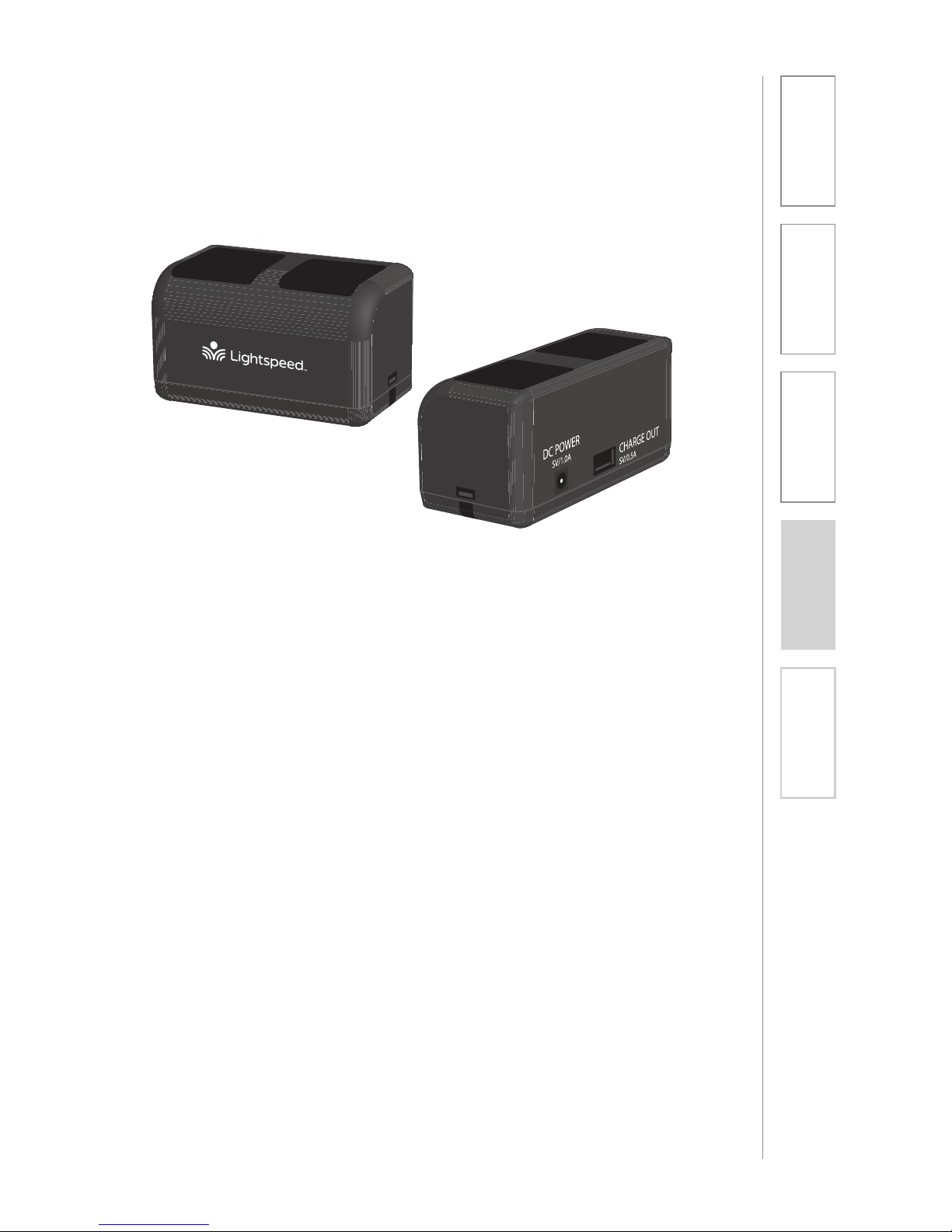

1. DC POWER PORT: Connect the 5V/1.0A DC power cord here.

2. OPTIONAL USB CHARGING PORT: Plug the charging cord for the optional

Sharemike microphone here.

Page 12

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

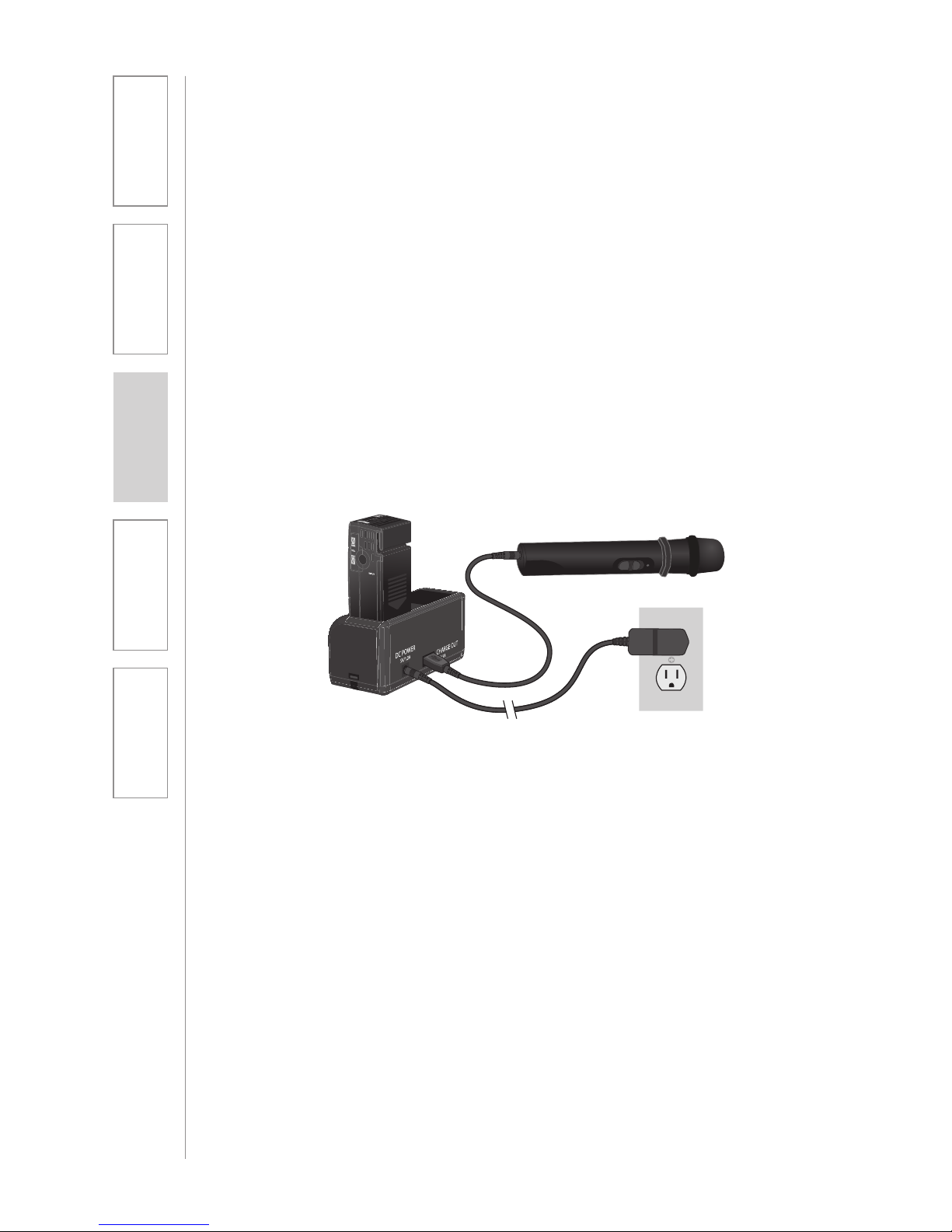

SET-UP & CHARGING THE FLEXMIKE

Before use, the Flexmike should be charged. It will take 8-9 hours for the Flexmike to obtain a full charge. A fully charged Flexmike will last for up to 8 hours of use. If microphones are used daily, they should be charged each night.

When properly inserted into a cradle charger, the Mic 1 or Mic 2 light will glow blue and the red light on the Flexmike power button indicates the battery pack is charging. The power button light will glow green to indicate that charging is complete and a full charge has been reached.

Replacement NiMH battery packs may only be purchased through Lightspeed Technologies (part # NH2.4V). Do not attempt to charge with other battery packs. They can overheat and expand creating a significant hazard and damaging the microphone (this is not covered by warranty).

1. Hang the Flexmike on the lanyard opposite the magnetic clasp.

2. Plug power cord into the cradle

charger and then plug the AC end into an electrical outlet.

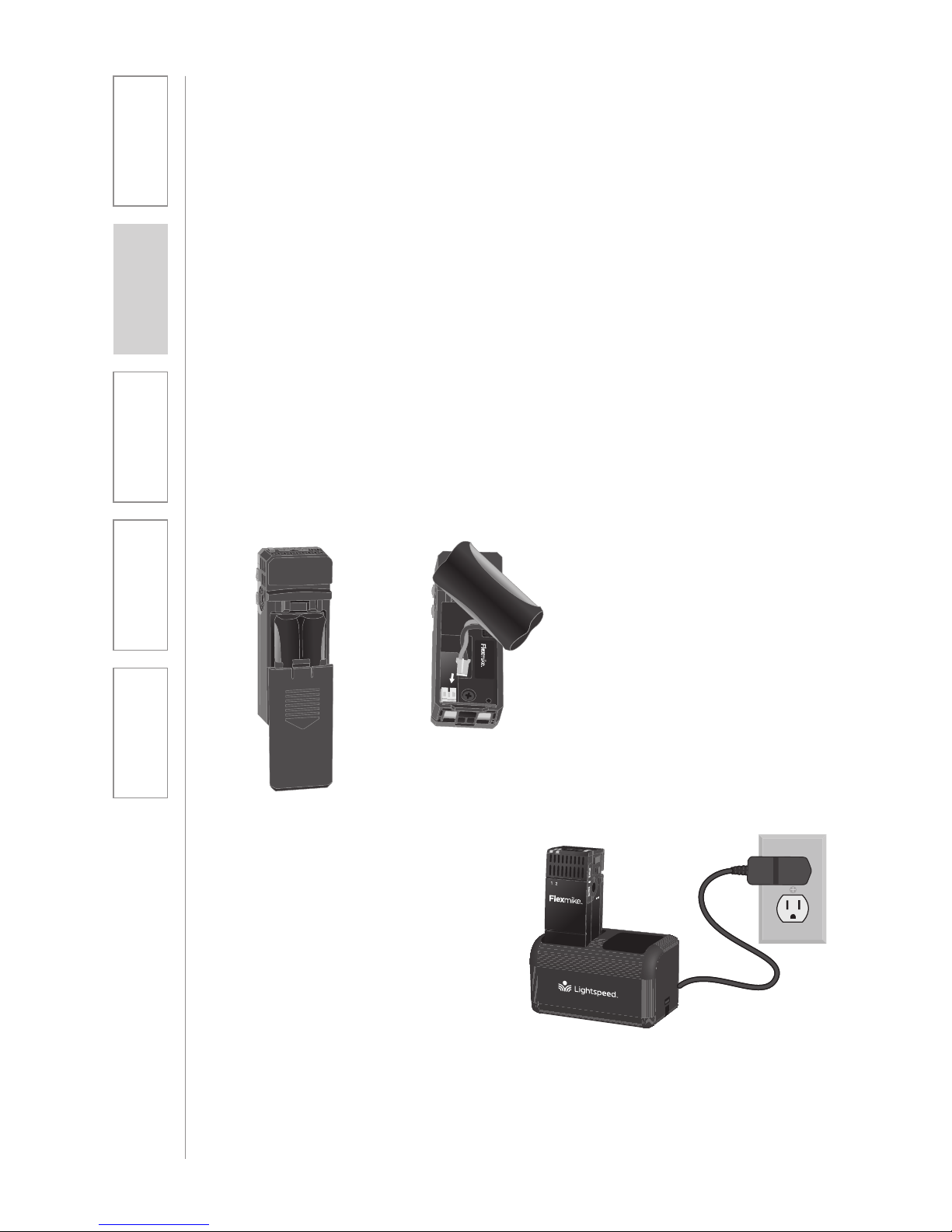

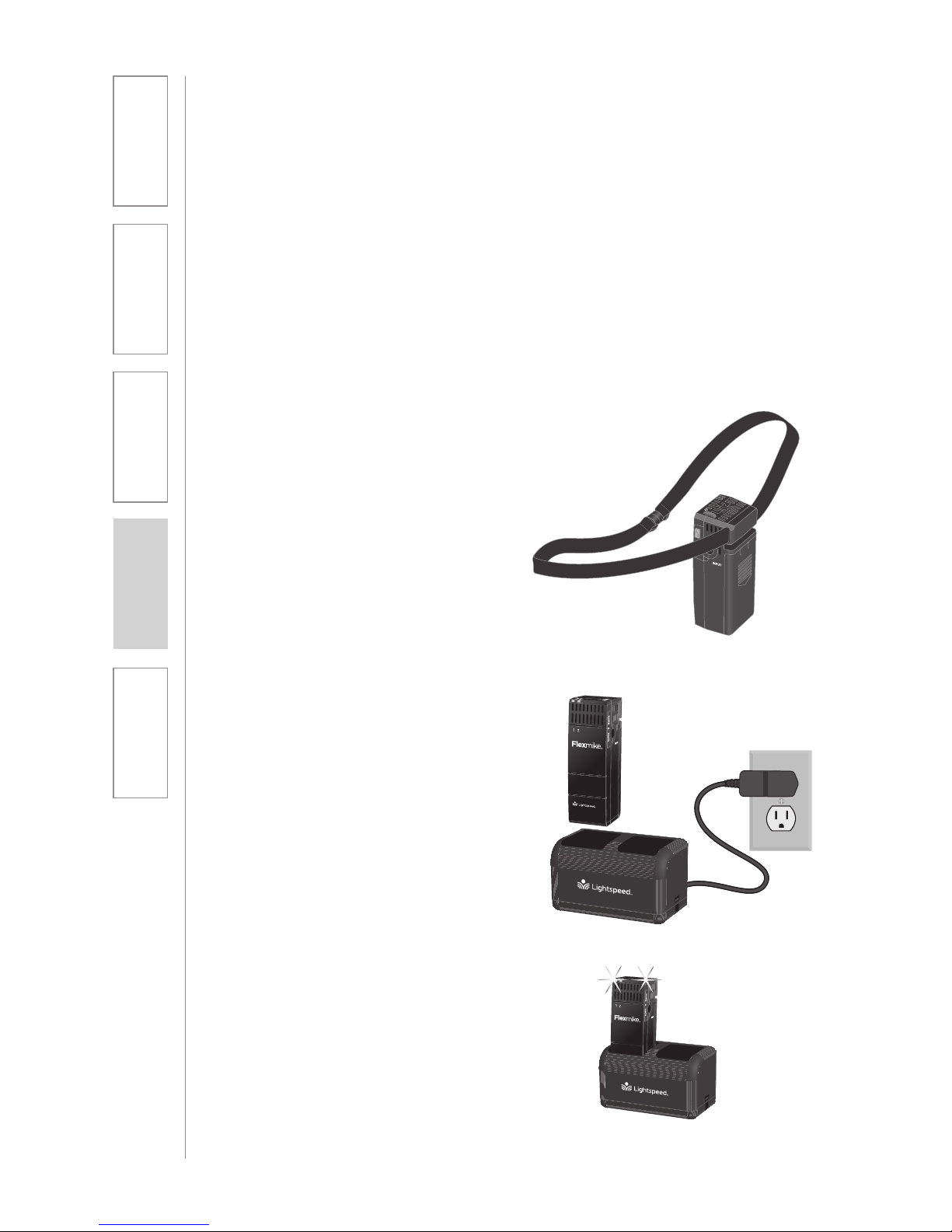

3. Place the Flexmike into the cradle. (Figure 1) The LED on the Flexmike power button will glow red indicating charging has started. The Mic 1 or Mic 2 light will glow blue. (Figure 2)

4. When charging is complete, the power button will glow green.

(Figure 1)

(Figure 2)

NOTE: If Activate Station was purchased with your system, please refer to page 24 for charging instructions.

Page 13

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

SECTION 2:

DAILY OPERATION

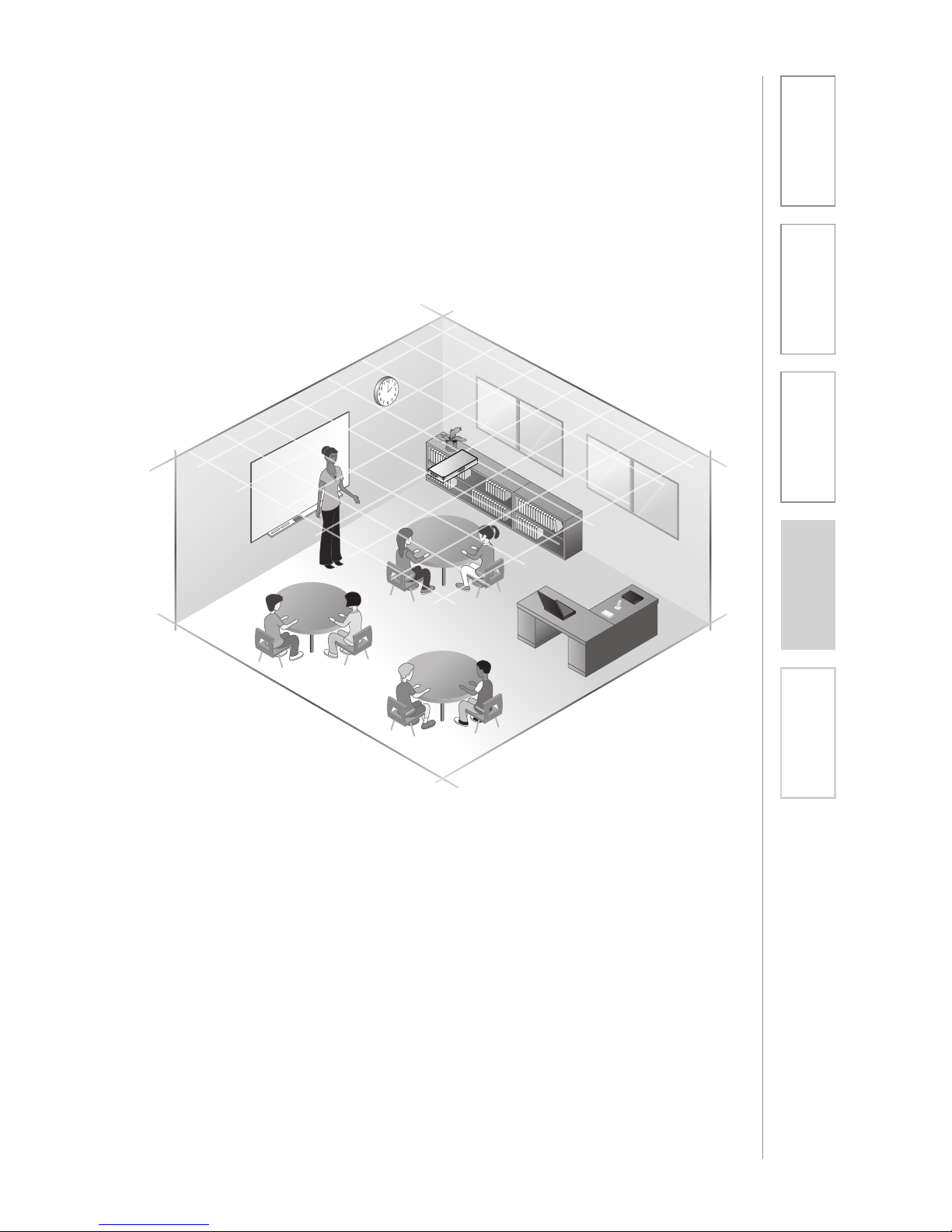

1. ENSURE THE SYSTEM IS POWERED ON

When powered on, the blue LED on the Topcat speaker panel will glow.

Page 14

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

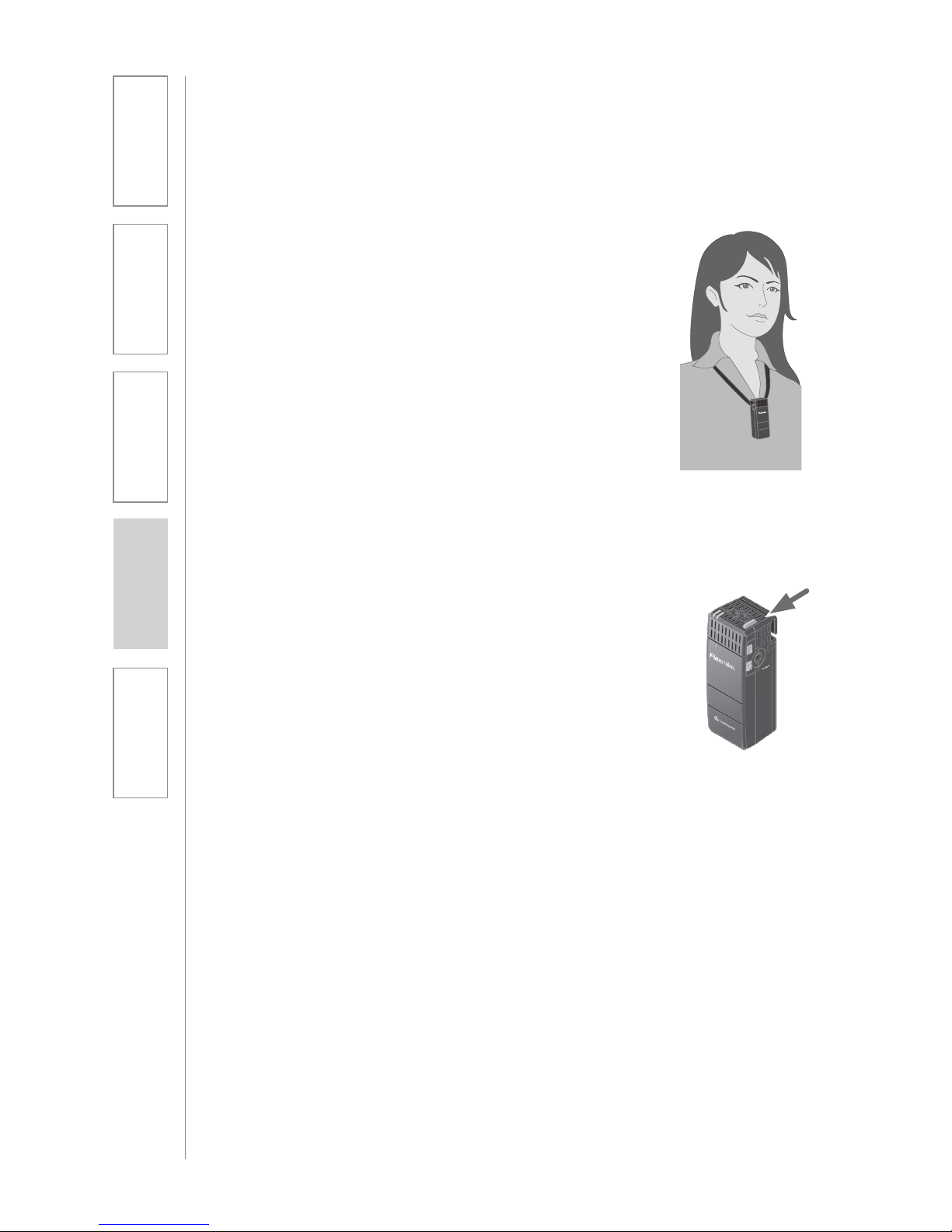

OPERATING THE FLEXMIKE

REMEMBER: This equipment supplements the user’s voice so they are able to speak in a

conversational tone. Having the volume set too high will result in feedback and listener fatigue.

1. At start of day, remove the microphone from the charger and put on.

• The microphone will default to the Mute position, the status

will turn to red.

• Place the microphone around your neck.

• Press the power/mute button, the light will turn blue,

indicating the microphone is active and ready to use.

• Adjust volume with the UP/DOWN buttons if necessary.

• If Flexmike needs to be powered down for some time, press

and hold the power button. To power Flexmike again, press and hold the power button until the blue light begins to blink.

2. Private conversations.

• Mute the Flexmike during private conversations by

momentarily pressing the power button. When muted, the blue light turns red.

• When conversation is over, momentarily press the power

button again to unmute the Flexmike.

3. End of day.

• Remove the Flexmike from around your neck.

• Place the Flexmike into the cradle charger and ensure the it

is plugged in to an outlet.

• The Flexmike will stay powered on during charging, but will

automatically be muted.

• It is not necessary to turn o the Topcat at end of day, but

you may do so by pressing the power button on the front panel of the Activate or the Media Connector.

• If you do want to power it down, when Flexmike is removed

from charging the next day, it will automatically power the Topcat on.

Power / Mute

Page 15

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

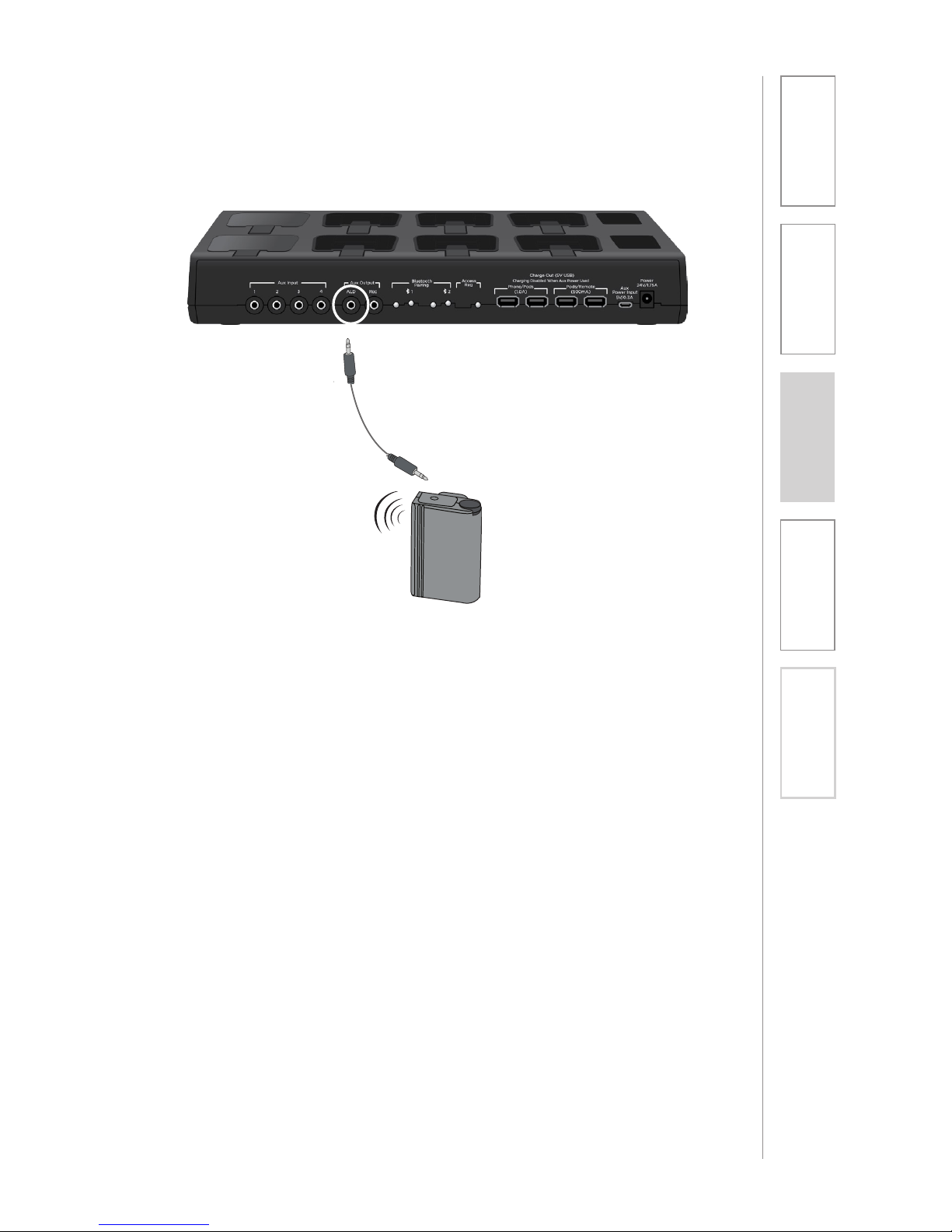

USING FLEXMIKE AS WIRELESS AUDIO LINK

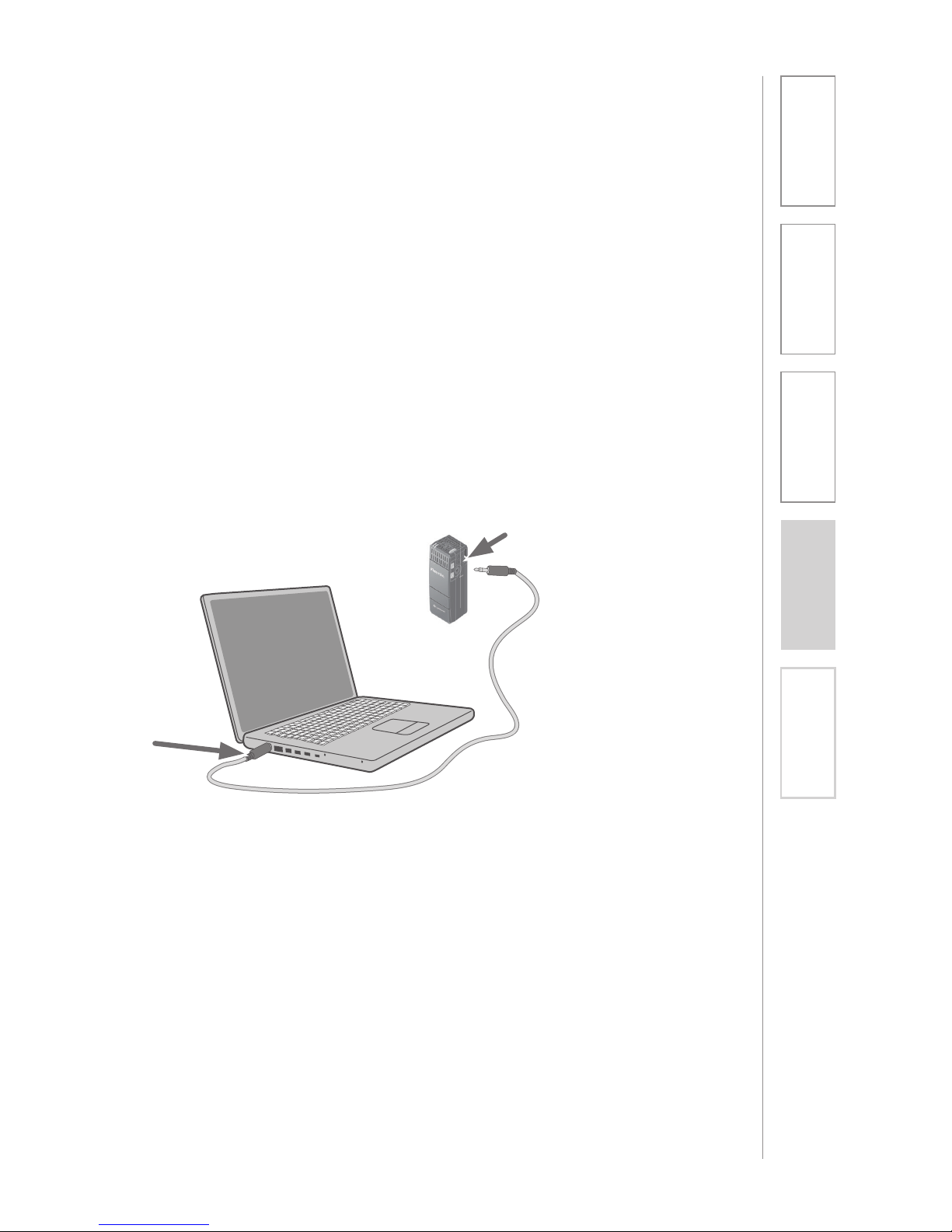

The Flexmike includes a 3.5mm audio input jack to connect to an audio source like a laptop or MP3 player. The Flexmike will transmit the audio signal to be played through the system.

If your system includes two Flexmikes, you can use one mic for instruction and the second mic to transmit audio through the system.

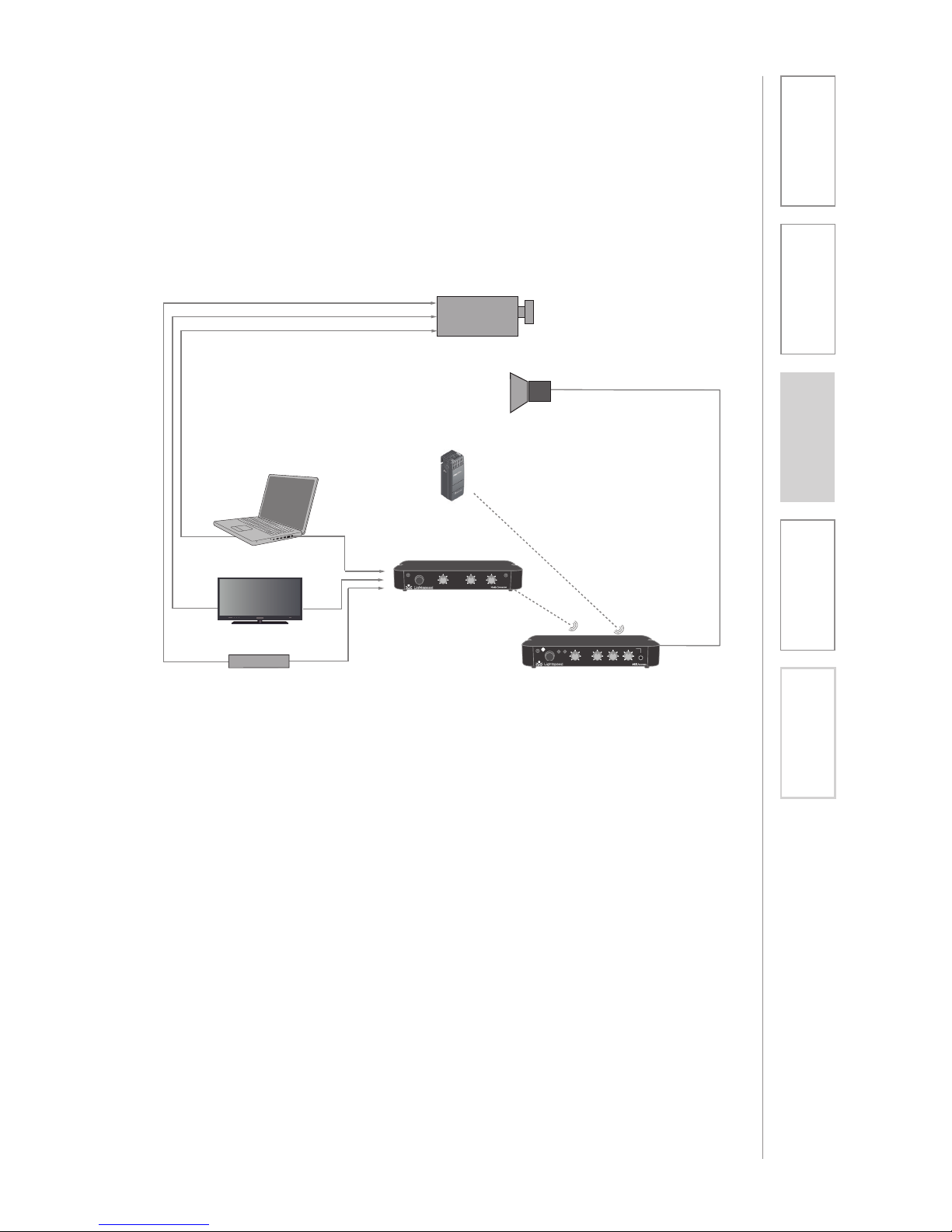

1. Plug your external audio equipment (for example, laptop), into the input on the Flexmike labeled “INPUT” using a 3.5mm patch cable (not included).

AUDIO INPUT

AUDIO OUTPUT

Page 16

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

• Speak in a natural voice. A normal conversational speech level will provide an adequate signal. It is not necessary to increase the intensity of your voice—the audio system provides adequate amplification (approximately 5 – 10 dB) above ambient room noises.

• Avoid wearing jewelry that may rub or bump against the microphone.

• Mute the Flexmike, with a momentary press of the power button, during private conversations with a student, parent, or other classroom visitor. An additional momentary press of the power button will unmute the Flexmike.

• Recharge microphone(s) each night. When recharged nightly, the microphone will last through a typical school day.

TIPS TO OBTAIN OPTIMUM AUDIO PERFORMANCE

Page 17

2. Daily Operation

3. Optional

Accessories

1. Overview

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

SECTION 3:

OPTIONAL ACCESSORIES

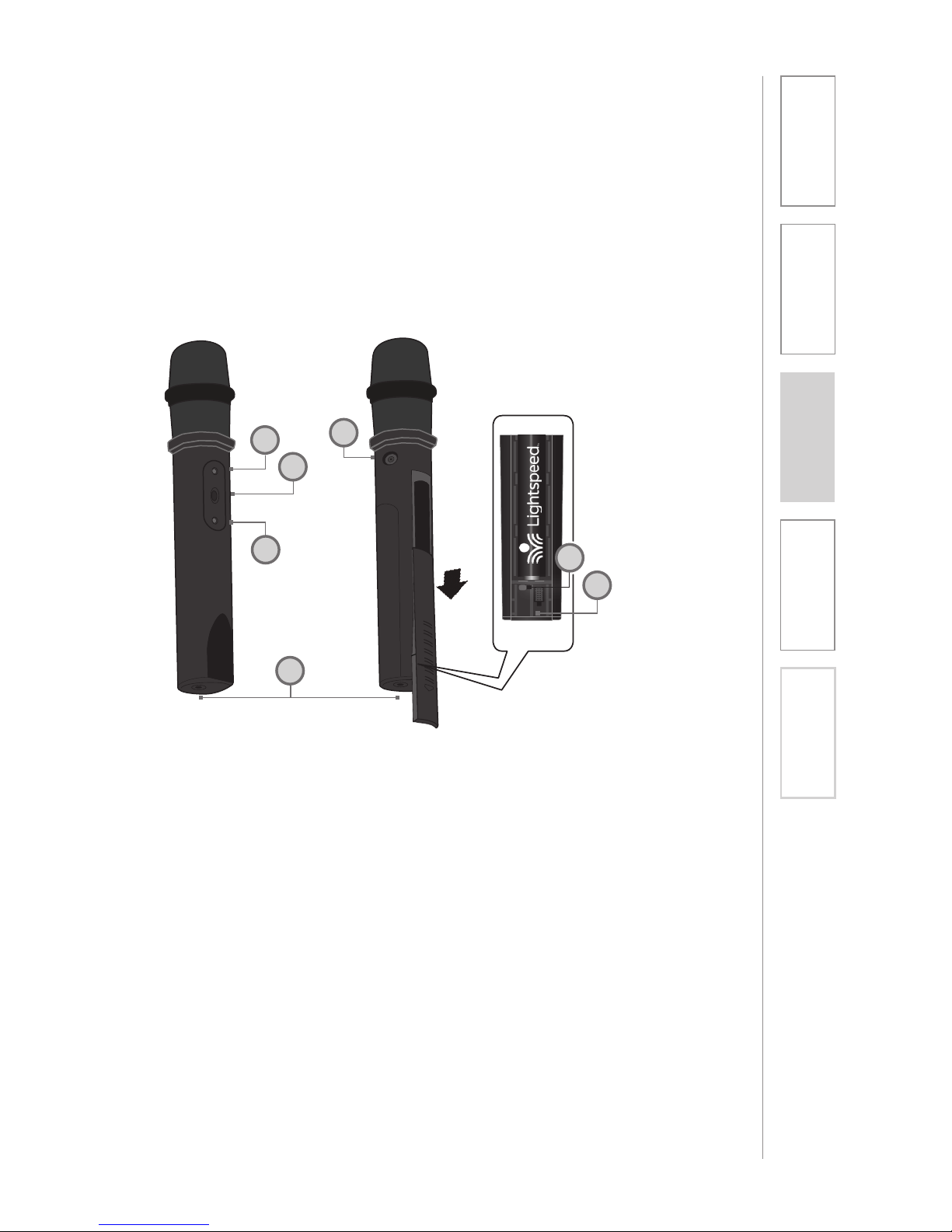

1. POWER BUTTON

2. MIC 2 LIGHT: This light indicates operation status when Sharemike is registered as

MIC 2 (Standard)

• Blue: solid = normal operation; blinking - link in process

• Red: solid = muted

3. MIC 1 LIGHT: This light indicates battery/charging status when Sharemike is registered

as MIC 2

• Red: flashing = low battery

• Red: solid = charging

• Green: solid = charging complete

NOTE: The functions of these lights are reversed when a Sharemike is registered as MIC 1.

4. AUDIO INPUT: plug a laptop, MP3 player or other audio device into this jack to

wirelessly transmit the audio signal to be played through the system.

5. REGISTRATION BUTTON: Located in the battery compartment, only used when

adding or replacing Sharemike.

6. CHARGER INPUT: Plug the charging cable from the Sharemike charger into this jack.

7. SYSTEM ID LABEL

SHAREMIKE CONTROLS & CONNECTIONS

Page 18

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

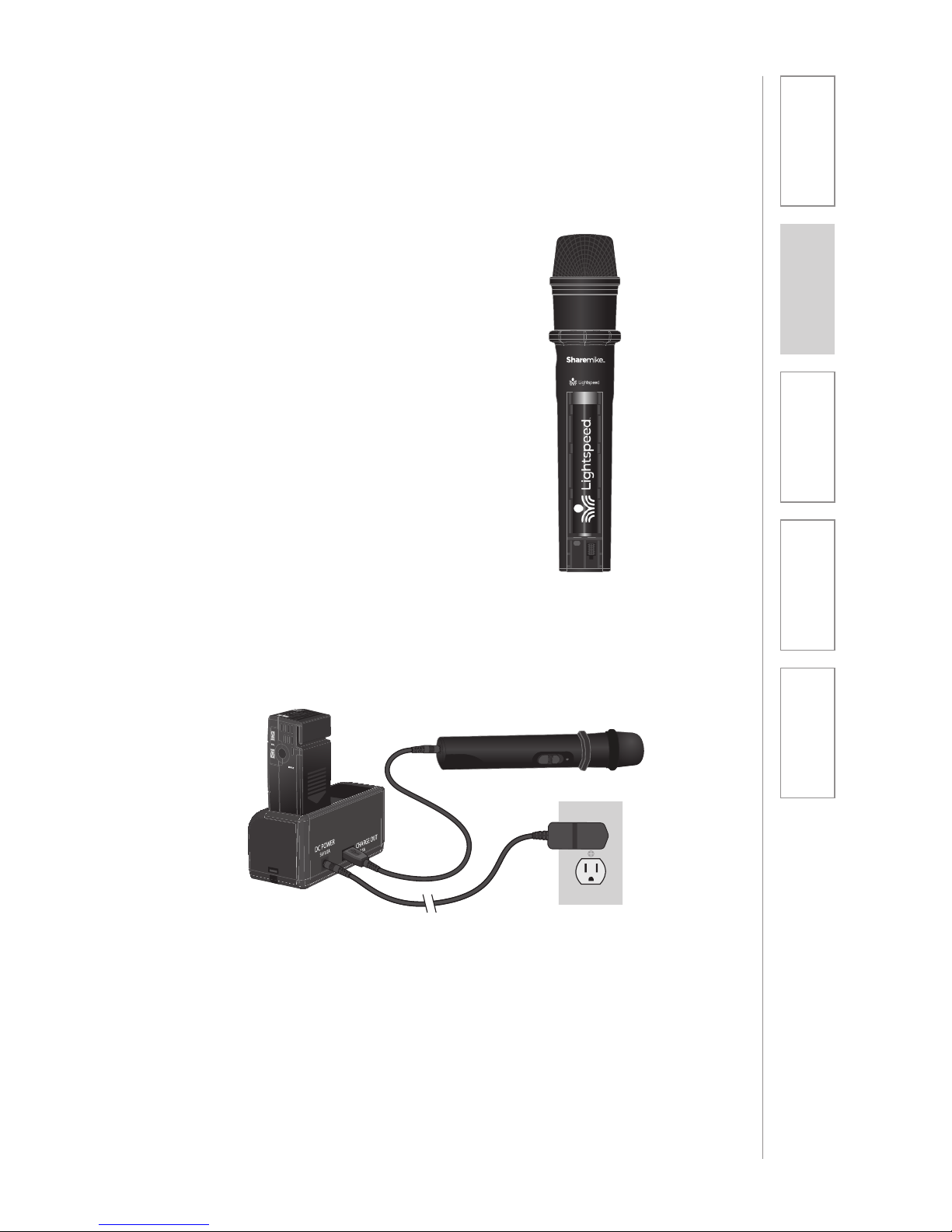

SHAREMIKE: CHARGING

PLEASE NOTE: The Topcat Access and microphone(s) are registered, or paired, together

at the factory and all components should be kept together as a system. Moving them from one system, or room, to another will result in the need to re-register.

1. Make sure the charger is plugged into a wall outlet. Connect one end of the charging cable into the jack labeled CHARGE on the bottom of the Sharemike.

2. Plug the other end into the USB jack on the back of the cradle charger.

3. If the Sharemike is registered as MIC 2, the MIC 1 light on the microphone will glow red to indicate charging.

4. Leave the Sharemike plugged in overnight (8-10 hours) to obtain a full charge. The light will turn green when charging is complete.

5. If Sharemike is registered as MIC 1, low battery and charging indicator will be the MIC 2 light.

6. During charging the blue light will stay on.

NOTE: If Activate Station was purchased with your system, please refer to page 24 for charging instructions.

Page 19

2. Daily Operation

3. Optional

Accessories

1. Overview

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

(For full installation details, refer to the Topcat Installation Guide.)

DC INPUT 24V/2.5A

PAGING

INPUT

AUDIO IN REGISTER PROGRAM

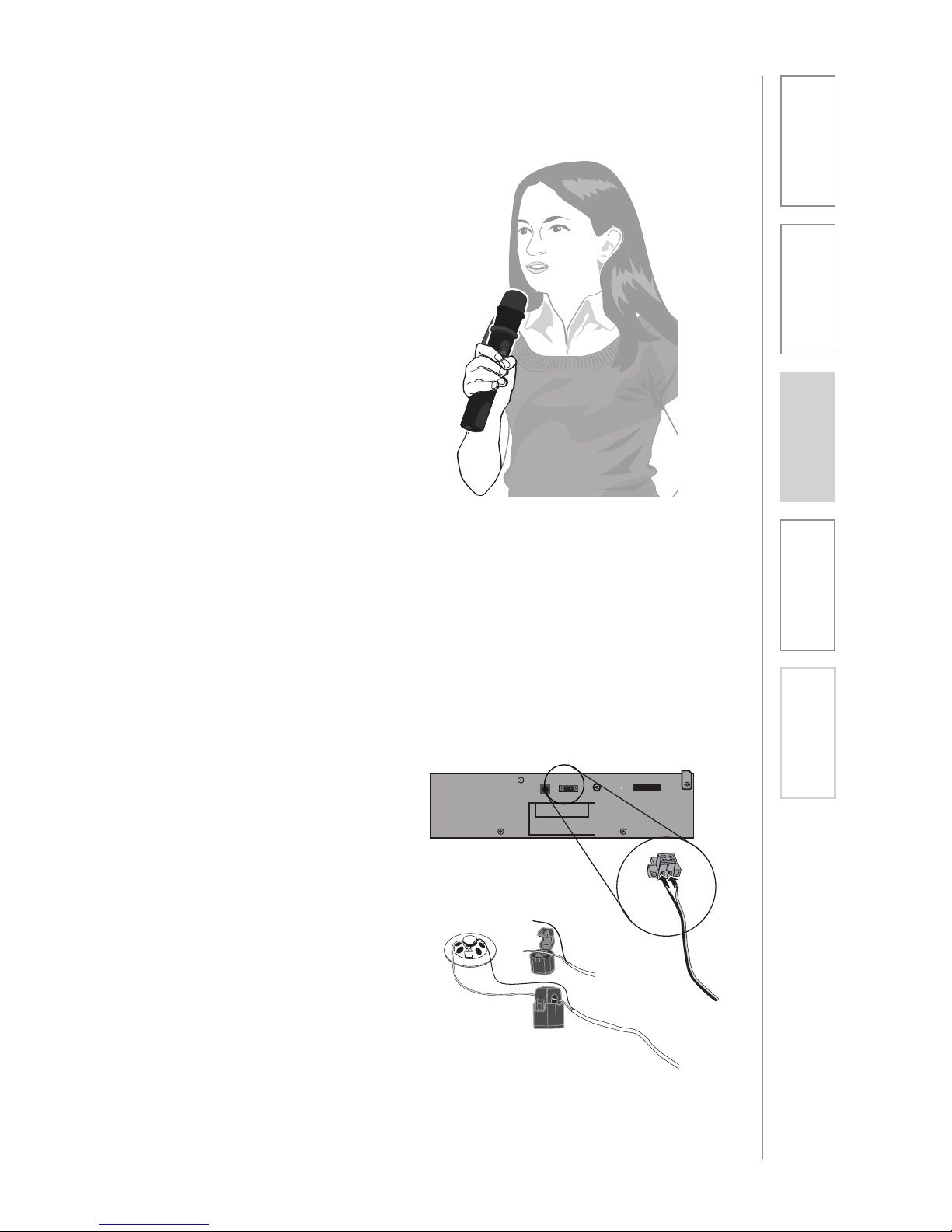

SHAREMIKE: INITIAL SET-UP

1. Ensure the Topcat is on. The blue light on the speaker panel of the Topcat will glow.

2. Turn on the Sharemike by pressing and holding the power button until the LED lights.

3. Grip the barrel in the center section.

4. While speaking in a normal voice, increase the volume using the Activate Volume button or the Media Connector Microphone Volume knob until your voice is barely audible.

REMEMBER: This equipment is designed to supplement and distribute the user’s voice so they are able to speak in a conversational tone. Having the volume set too high will result in feedback and listener fatigue.

This optional feature for the Topcat Access interfaces with an independent classroom paging system. When the page is broadcast, all audio from the system is muted, ensuring important school-wide messages are never missed. Please note that PageFirst is not compatible with telephone or IP-based paging systems.

How it works:

1. PageFirst sensor clip is hung around a lead wire attached to the classroom paging speaker.

2. The clip is hard-wired to the amplifier.

3. As a page is broadcast, the sensor clip detects the audio signal through induction and immediately mutes the amplifier.

4. When the page is over, the audio from the amplifier returns to normal volume level.

OPTIONAL PAGEFIRST KIT

Page 20

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

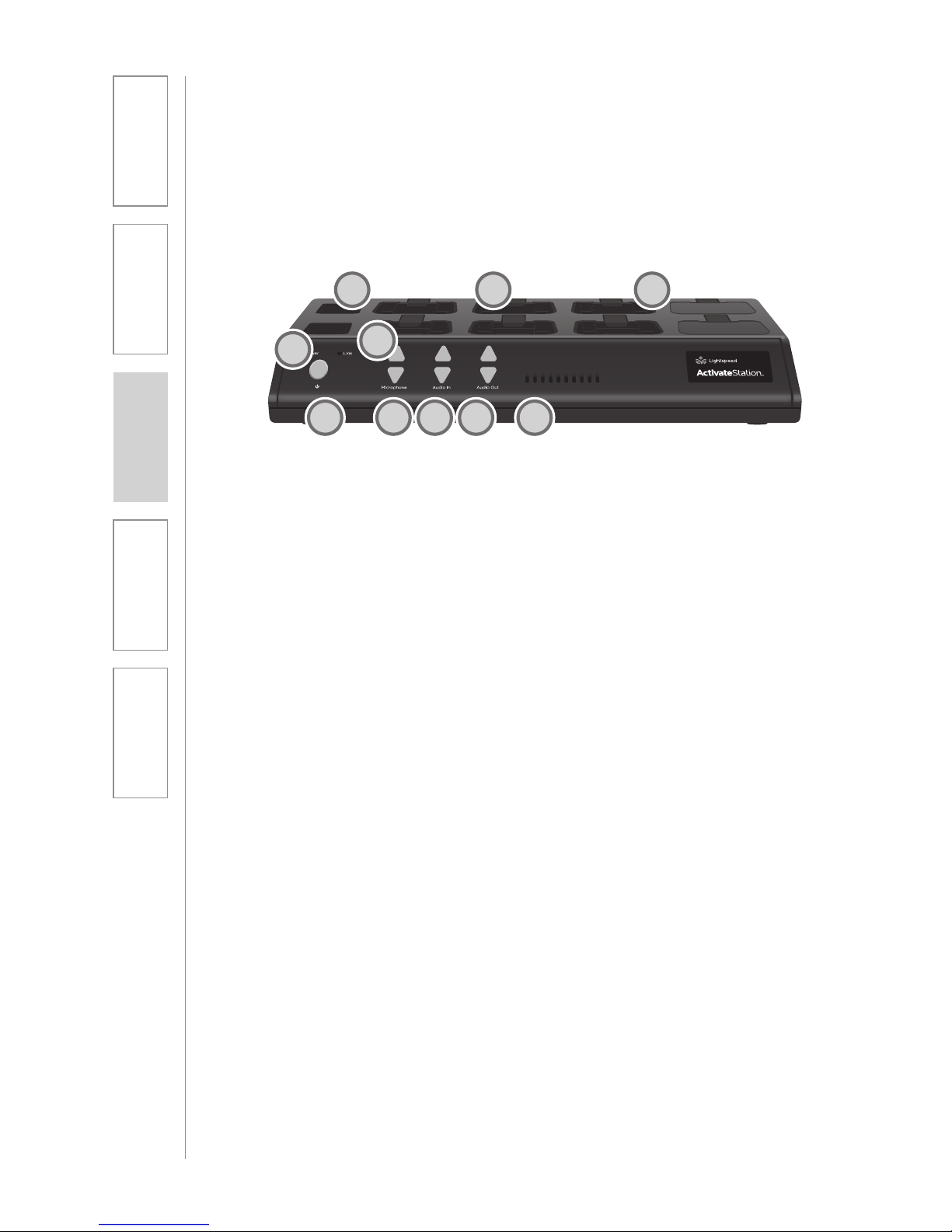

ACTIVATE STATION: CONTROLS, CONNECTIONS AND INDICATORS

1. POWER/SLEEP: press and hold

to place the Activate Station and classroom audio system into sleep mode. The Activate Station will continue to charge devices when in sleep mode.

2. POWER INDICATOR: the light will

turn blue when powered on, amber when placed in sleep mode.

3. LINK INDICATOR: this light is

solid green to indicate Activate is connected to the audio system and ready for operation. It will blink green for several seconds when initially plugged into power.

4. MICROPHONE VOLUME: adjusts

the volume level of the classroom speaker for all connected microphones. The indicator lights to the right change to show volume level.

5. AUDIO INPUT VOLUME: adjusts the

level of multimedia devices plugged into the 3.5mm audio input ports.

6. AUDIO OUTPUT VOLUME: adjusts

the level of ALD or recording devices plugged into the 3.5mm audio output ports.

7. VOLUME LEVEL INDICATORS: shows

the volume level of the source that is being adjusted (Microphone, Input, Output). The source level will be updated once a new volume button is pressed.

8. FLEXMIKE CHARGING SLOTS (2):

place your Flexmike(s) in these slots for nightly charging.

9. OPTIONAL POD CHARGING SLOTS (8): place your pods in these slots for

nightly charging.

10. CHARGING COVERS: covers are included to protect unused pod charging slots from dust and debris.

8 9 10

Page 21

2. Daily Operation

3. Optional

Accessories

1. Overview

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

ACTIVATE STATION: CONTROLS, CONNECTIONS AND INDICATORS, CONT’D

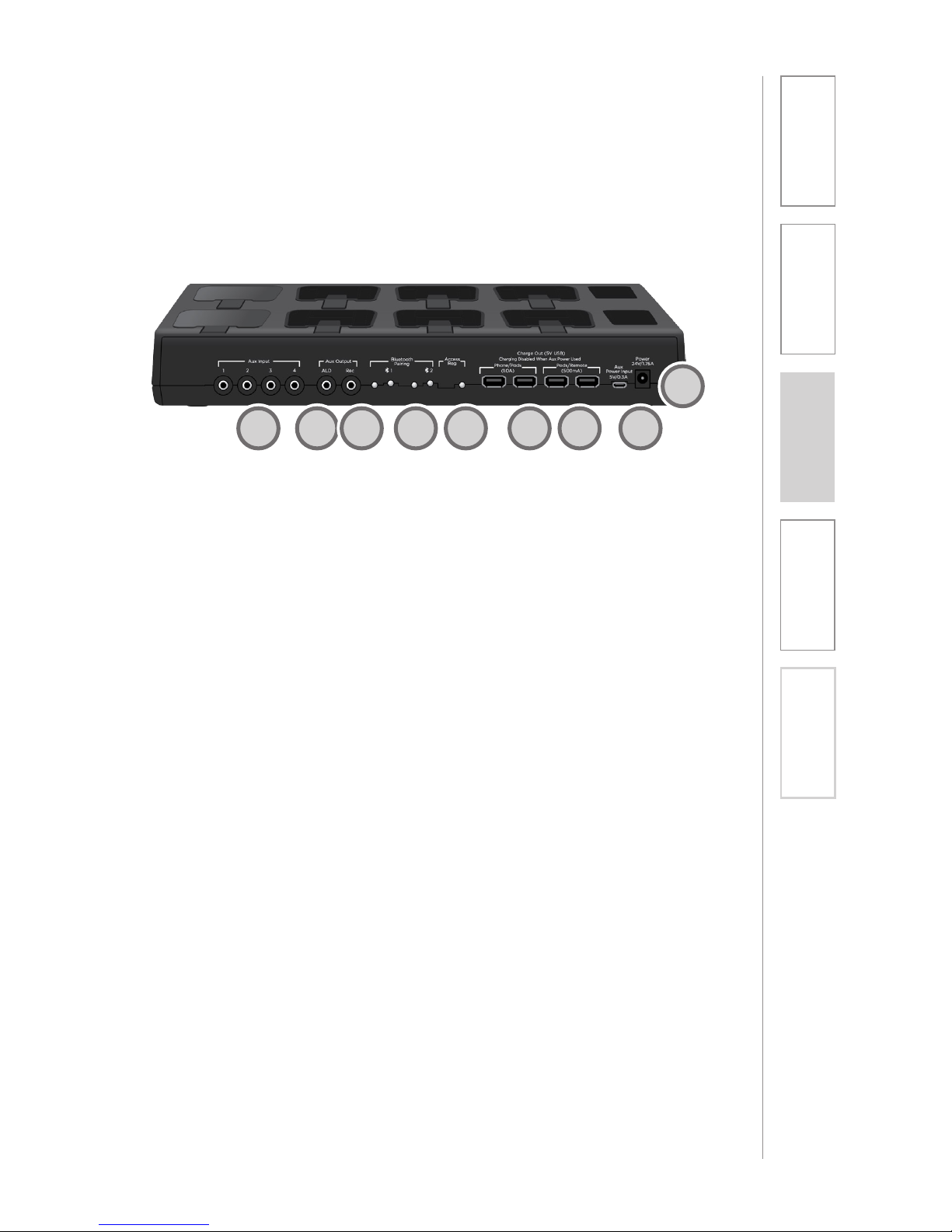

11. AUDIO INPUTS (1-4): connect

a multimedia audio source to wirelessly send the audio to be played through the whole classroom speaker(s).

12. AUDIO OUTPUT (ALD): connect

Assistive Listening Device to send the whole classroom audio to an individual student’s device.

13. AUDIO OUTPUT (REC): connect

recording device to send the teacher’s selected audio source, the whole classroom speaker, to a recording device or installed camera.

14. BLUETOOTH PAIRING (1-2):

press this button to pair Activate to a mobile device. Download the Lightspeed Activate app from the iOS App Store or Google Play Store for complete instructions.

15. ACCESS REGISTRATION: this button

is used to pair the Activate Station with the classroom audio system. If purchased together this is done by default at the factory.

16. USB CHARGE OUTPUTS (PHONE/ PODS): use the first two USB ports to

charge a mobile phone or optional additional pods.

17. USB CHARGE OUTPUTS (PODS/ SHAREMIKE): use these two USB

ports to charge optional additional pods or optional Sharemike.

18. AUX POWER INPUT: 5V USB power from a laptop or USB power pack can be used in a portable application to power the Activate Station wireless audio functions (in place of the standard 24V power supply). Note: Charging is disabled when auxiliary power is used.

19. DC POWER INPUT: plug the primary 24V/1.75A power supply into this jack.

Page 22

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

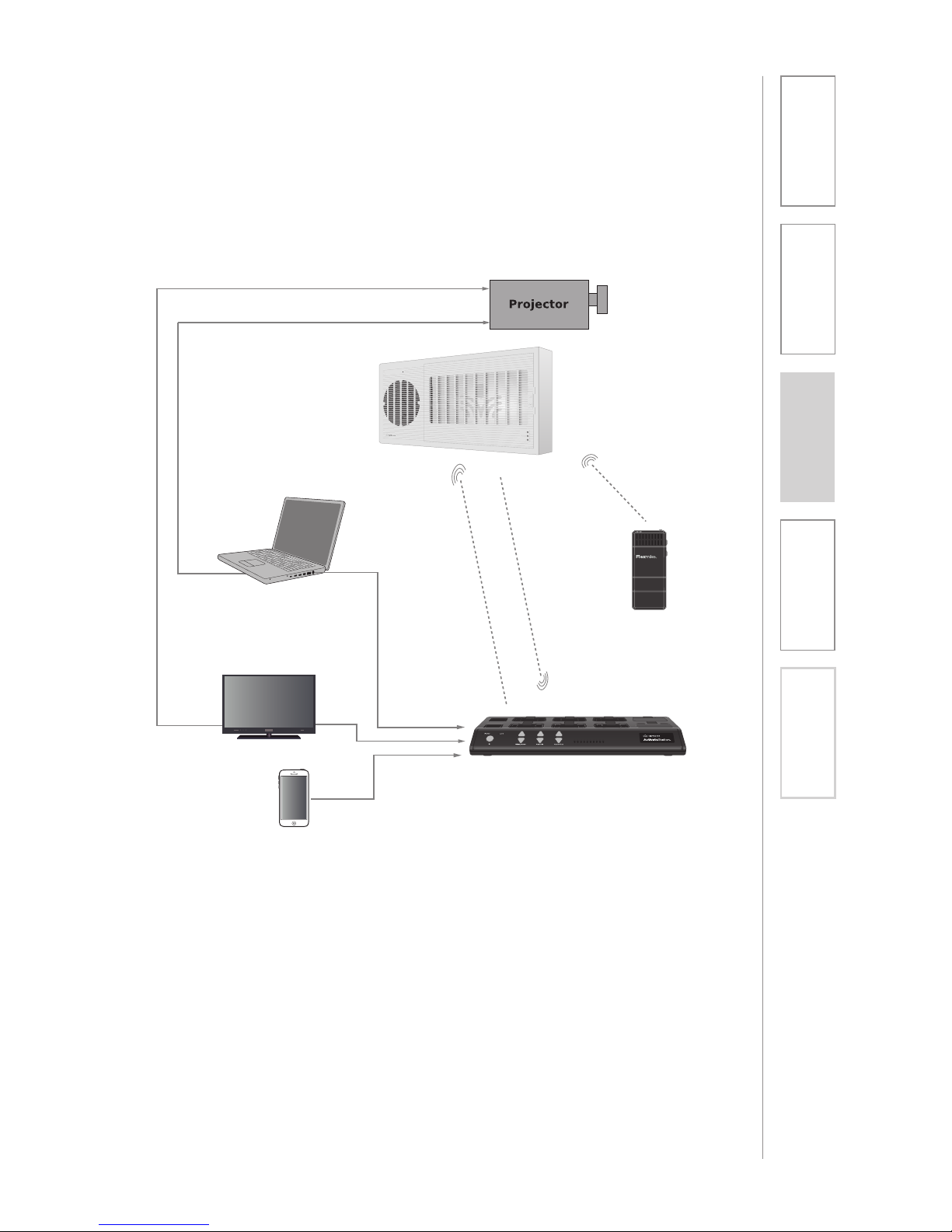

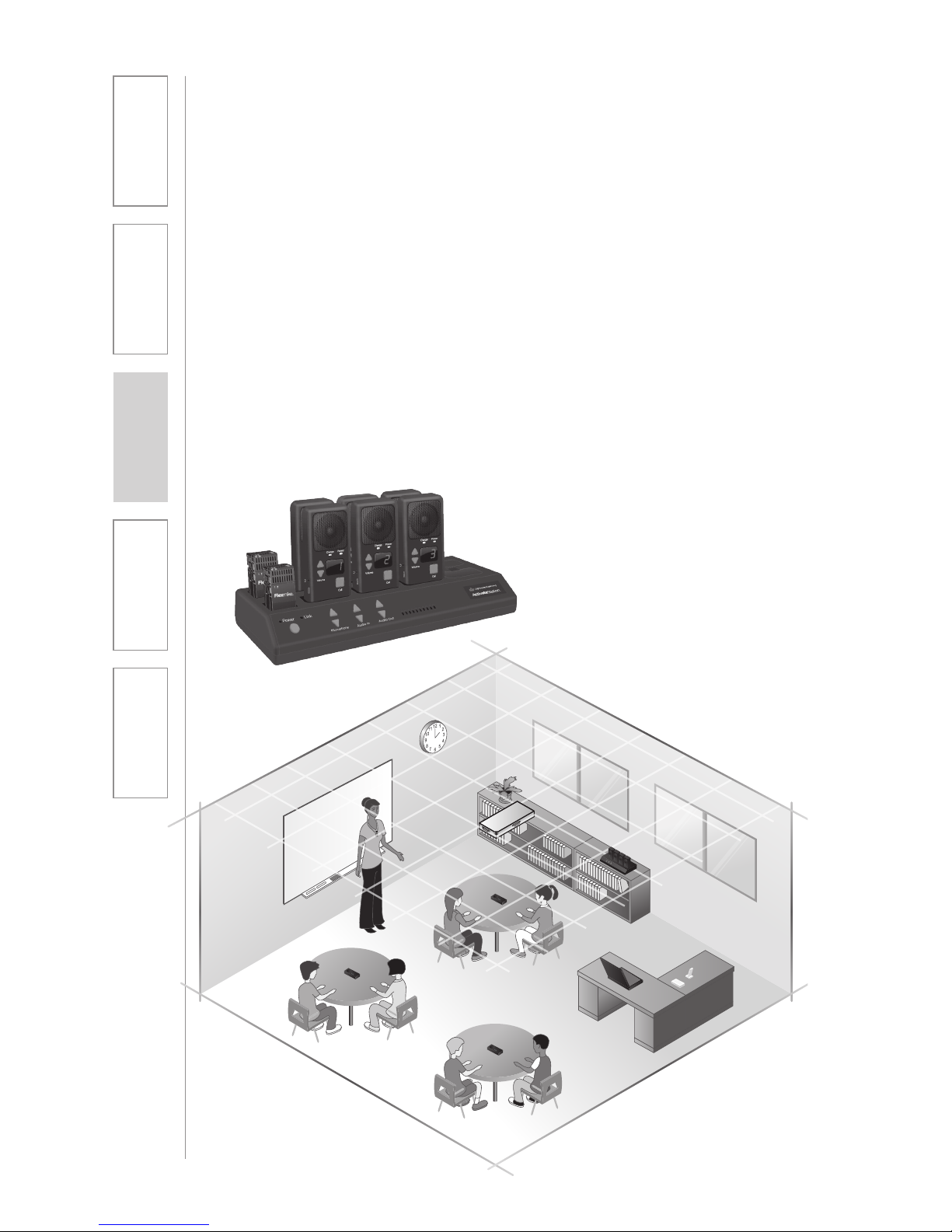

The Activate Station organizes and charges the pods and microphone(s) and also wirelessly connects audio to the classroom audio system and your mobile device. Set it up in a convenient place near a power source, and that is highly accessible for both teachers and students. If plugging in multimedia audio sources, it should be located in close proximity to minimize cable runs.

Key considerations:

• Close proximity to AC power outlet

• Accessible for daily charging of all components

• Near multimedia audio sources if desired

• Do not place in a fully enclosed metal cabinet

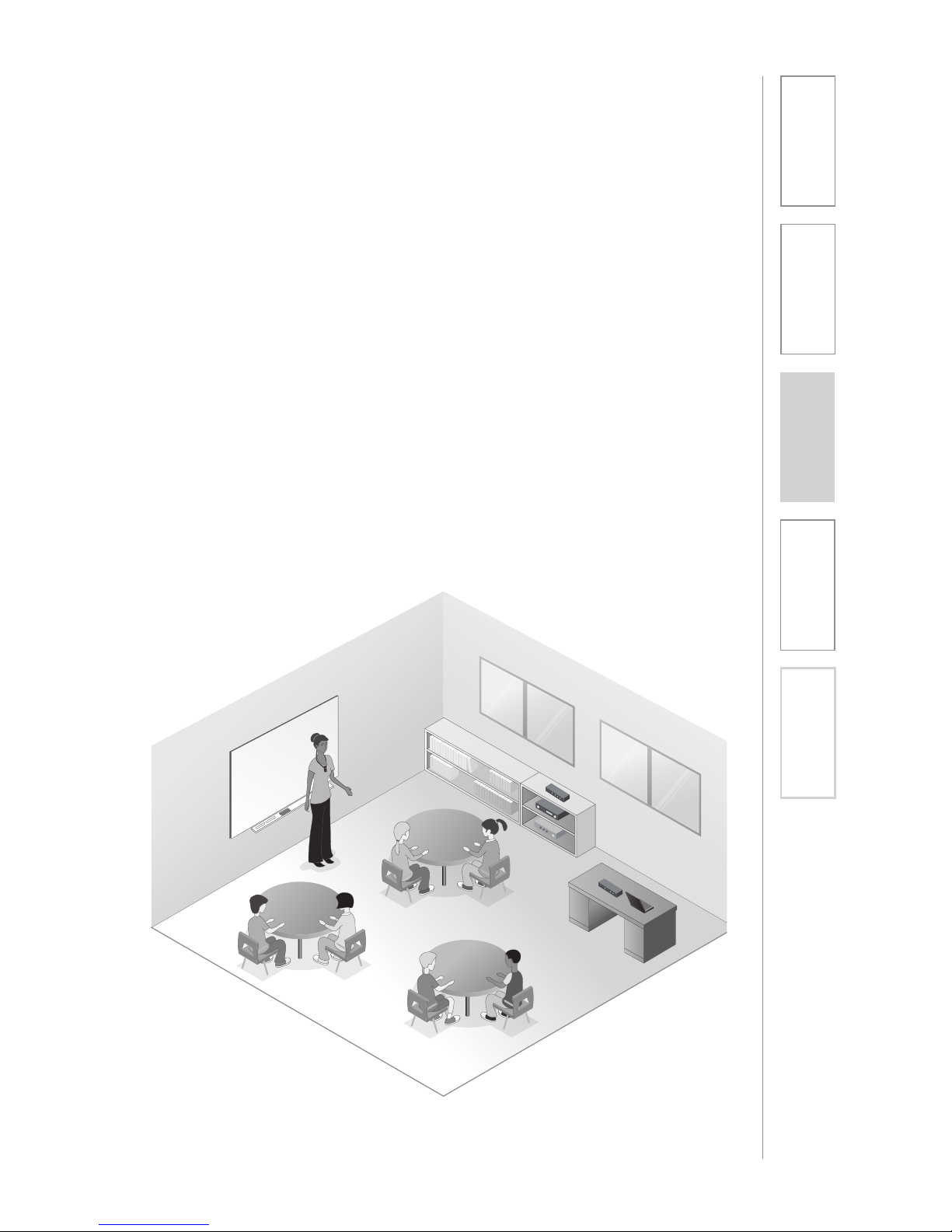

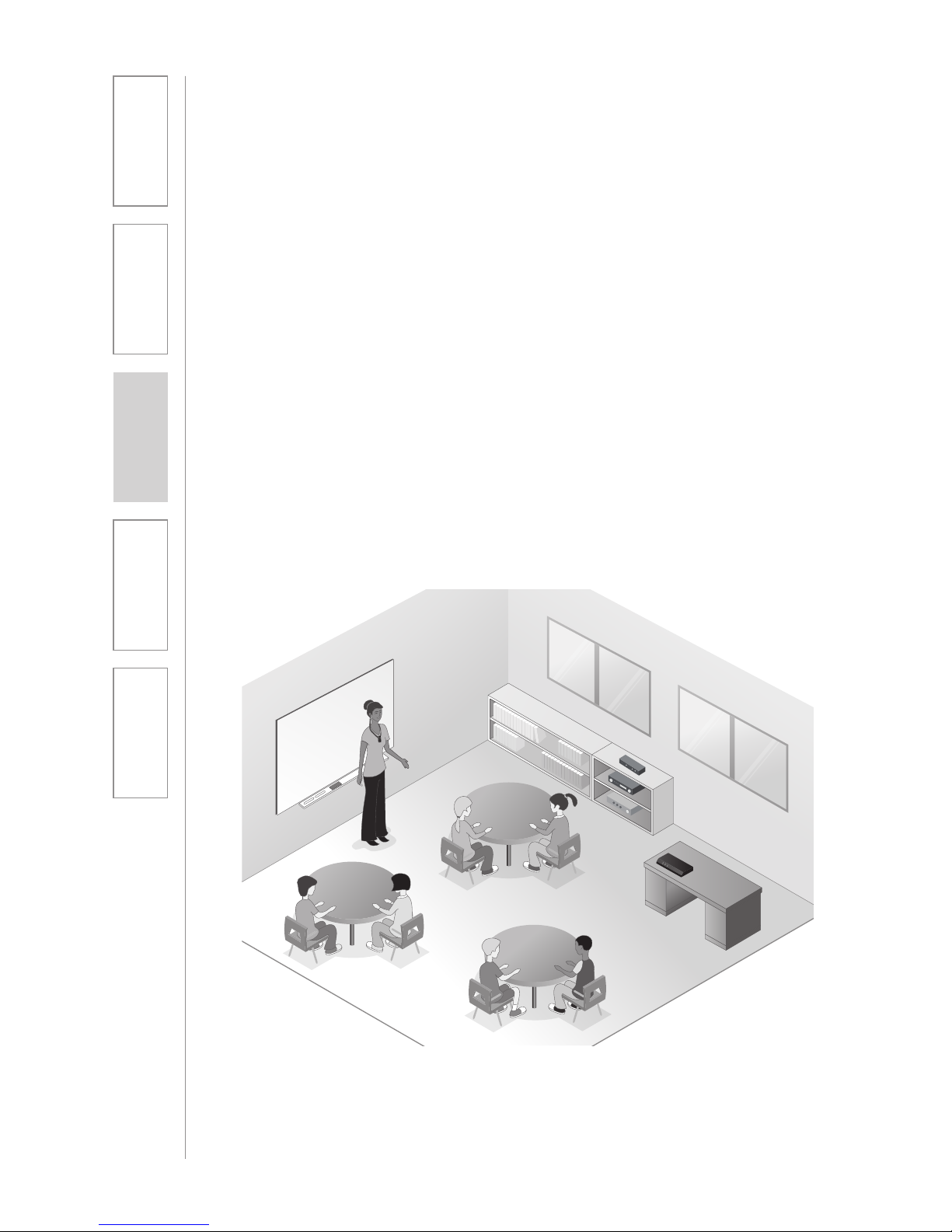

DETERMINE SET-UP LOCATION

ACTIVATE STATION: INITIAL SET-UP

Page 23

2. Daily Operation

3. Optional

Accessories

1. Overview

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

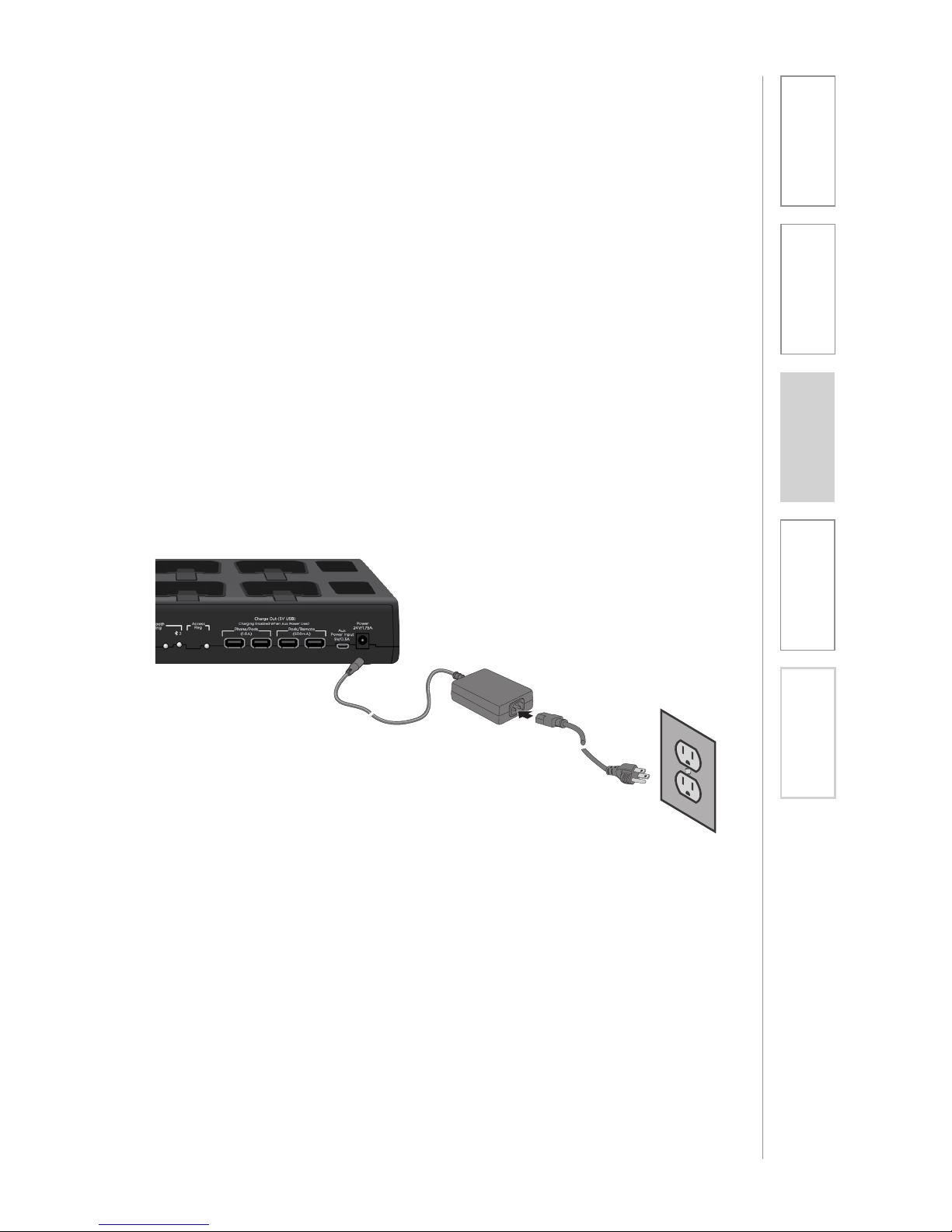

PLUG IN THE ACTIVATE STATION

1. Locate the 24V power supply and power cable.

2. Connect the AC power cord into the DC power supply.

3. Insert the DC connector into the DC Power jack on the back.

4. Plug the AC power cord into an electrical outlet.

5. The blue power light on the front of Activate Station will glow.

6. The green link light will begin blinking as it searches for the Topcat.

Note: If Activate System is being added to an existing Lightspeed audio system, please refer to the Registration Procedure at www.lightspeed-tek.com/accessregistration for proper pairing instructions.

Page 24

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

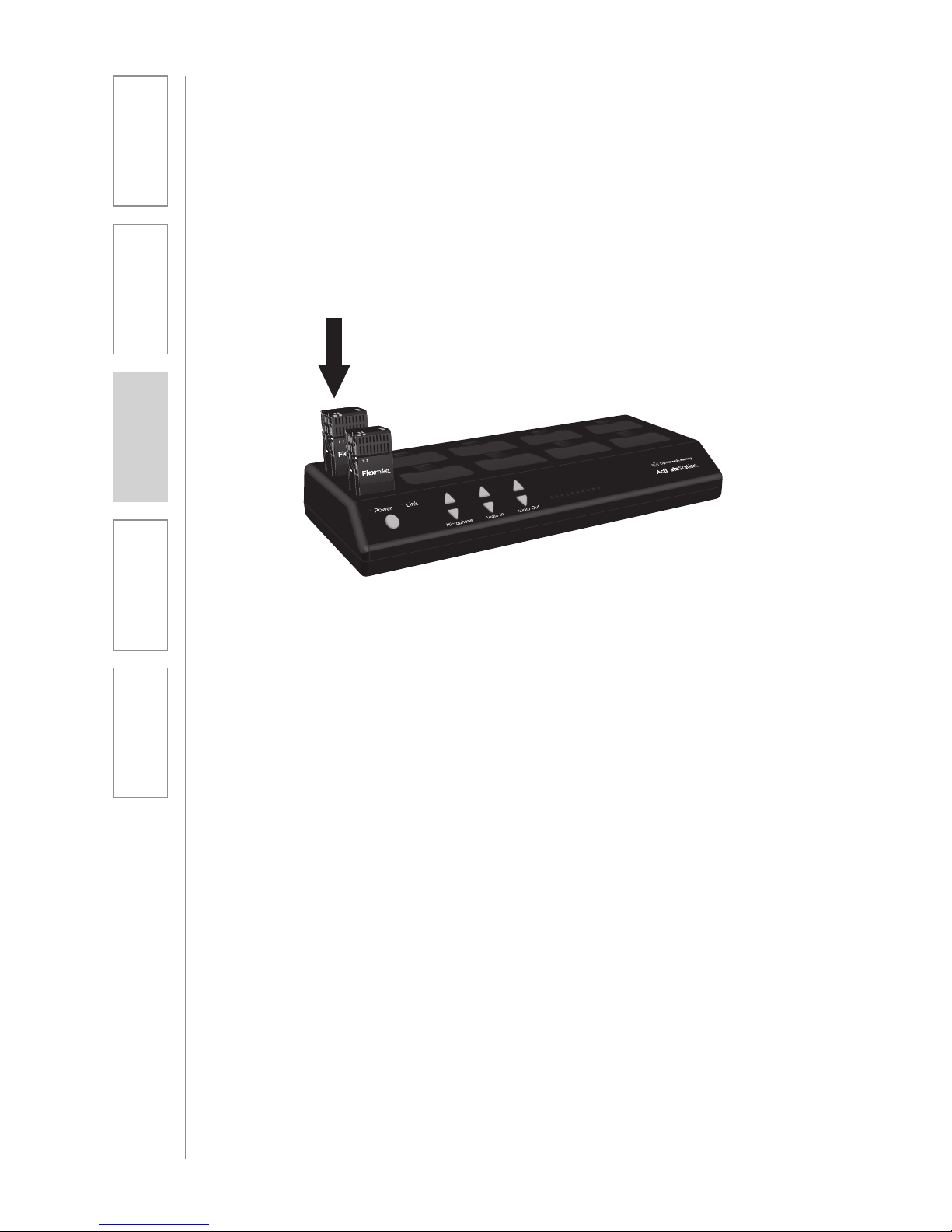

1. Insert the Flexmike(s) into the Activate Station.

2. The Flexmike(s) will power on and the charging light will turn red to indicate normal charging. When fully charged, the charging light will turn green. The blue microphone 1 or 2 light will blink for several seconds as it establishes a link, then turn solid.

3. For systems purchased with optional Sharemikes or handheld remotes, they can be charged by using the USB charging ports on the back of Activate Charging Station.. The charging light will turn red to indicate normal charging. When fully charged, it will turn green.

If your Activate System was purchased together with the Topcat Access, all components were registered (paired) together at the factory.

The components are registered and ready for operation when:

• Microphone(s) has a solid blue #1 or #2 light

• Activate Station has a solid green link light

NOTE: When Activate Station is powered on and registered to Topcat, it locks out Master

Volume and Tone controls on the Topcat.

PLACE THE FLEXMIKES IN THE ACTIVATE

STATION

Prior to full operation, the microphones should be fully charged (at least 8 hours) to ensure optimum performance. In most cases, there should be enough battery life for initial setup and testing.

NOTE: If Activate Station was purchased with your Topcat, the Activate will be the charger for microphones rather than the FMCC.

Page 25

2. Daily Operation

3. Optional

Accessories

1. Overview

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

COMPONENTS

If the Activate Station was purchased separately from the Topcat system, the Activate will need to be registered (paired) with the Topcat for operation.

Please visit the Lightspeed website at www.lightspeed-tek-com/accessregistration to obtain registration instructions.

DOWNLOAD THE MOBILE APP

With your iOS or Android device, visit the App Store or Google Play to download the “Lightspeed Activate” mobile app.

Page 26

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

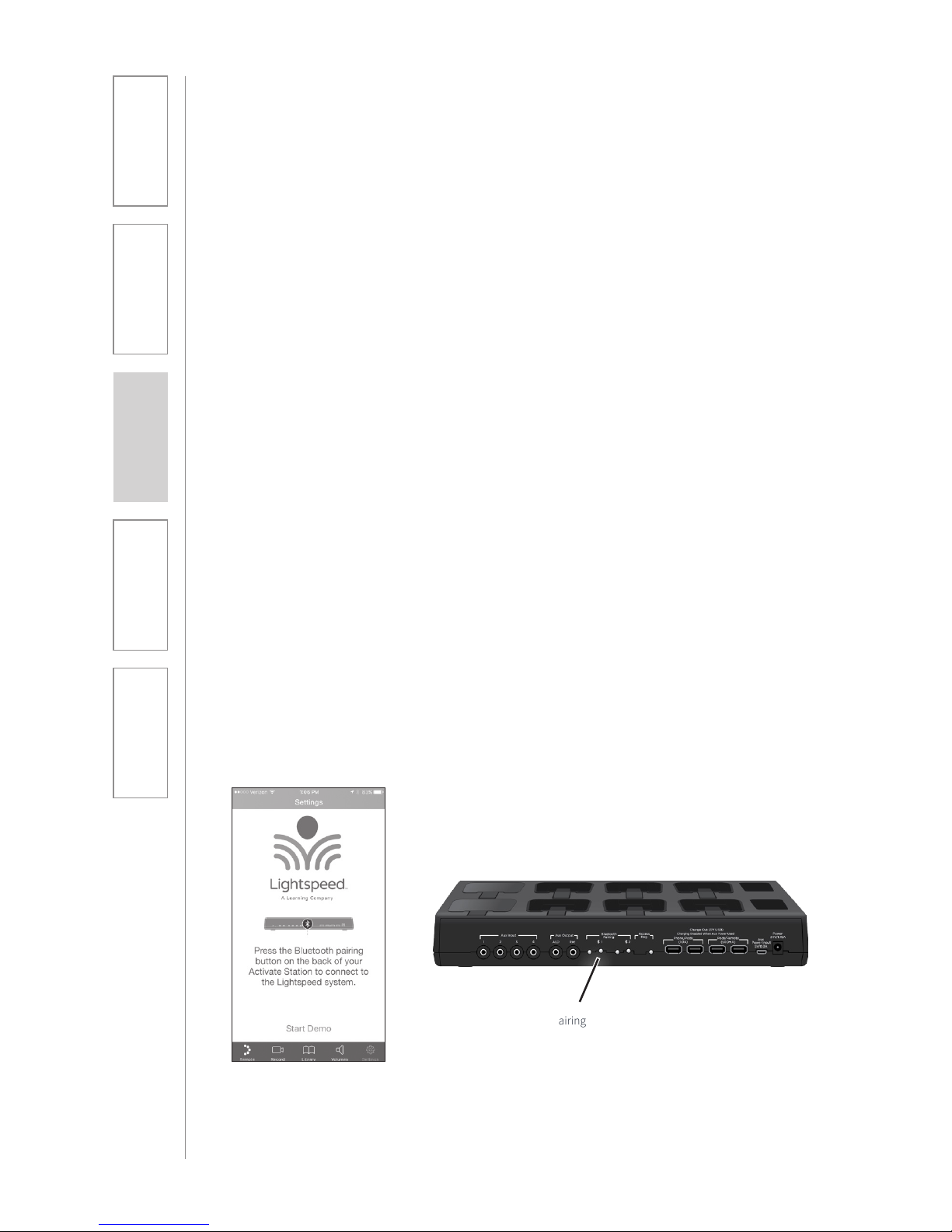

PAIR YOUR MOBILE DEVICE TO ACTIVATE

STATION

1. Turn on Bluetooth in your mobile device. Find and open the Activate App.

2. Follow the pairing instructions on the App to take you through the two pairing processes.

3. Begin the first process by pressing the Bluetooth 1 pairing button on the back of your Activate Station to connect to the Topcat for remote control functionality. Once paired, any registered pods, if purchased, will appear on the mobile app. - please

note the device name of the connected Activate Station.

4. You can now pair to Bluetooth audio. The app will take you through a pairing guide and will instruct you to go to your mobile device Settings>Bluetooth. Choose your Activate Station number (ACT_XXXX_BT1) from the list of unpaired devices.

5. Next enter the pin #0000 to complete the pairing process.

6. Press the pair button within the app when prompted. The device should now show as connected.

7. Return to the Activate mobile app. It will take you through a tutorial on how to use the various functions, including some additional functions available only through the app.

8. If there is a second Flexmike for team teaching, repeat the above process with a second mobile device and press the Bluetooth 2 button on the back of the Activate Station.

Bluetooth Pairing

You will need to pair your mobile device with Activate Station in order to use your device as a remote control. Additionally, you will also need to pair it with Bluetooth in order to play audio from your device through the classroom speaker, as well as be able to record using the App.

Page 27

2. Daily Operation

3. Optional

Accessories

1. Overview

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

ACTIVATE STATION: OUTPUT TO ASSISTIVE LISTENING DEVICE (ALD)

1. Turn the Audio Out volume control on the Activate front panel all the way down.

2. Determine the size and type of audio input jack on the device as many manufacturers’ products dier in connector size and shape. Most personal FM transmitters require a 3.5mm to 3.5mm patch cable (part# MSC3535).

3. Connect a patch cable from the ALD’s microphone jack or AUX input to the

3.5mm audio jack labeled “ALD” on the back of the Activate.

4. With the Topcat and ALD turned on, speak into the Flexmike and slowly adjust the AUDIO OUT volume control on the Activate until the appropriate audio level is attained in the ALD receiver’s headphones.

5. It may be necessary to adjust the volume on the Personal FM receiver to achieve appropriate volume level.

ALD Transmitter

Page 28

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

ACTIVATE STATION: RECORD AND CAPTURE

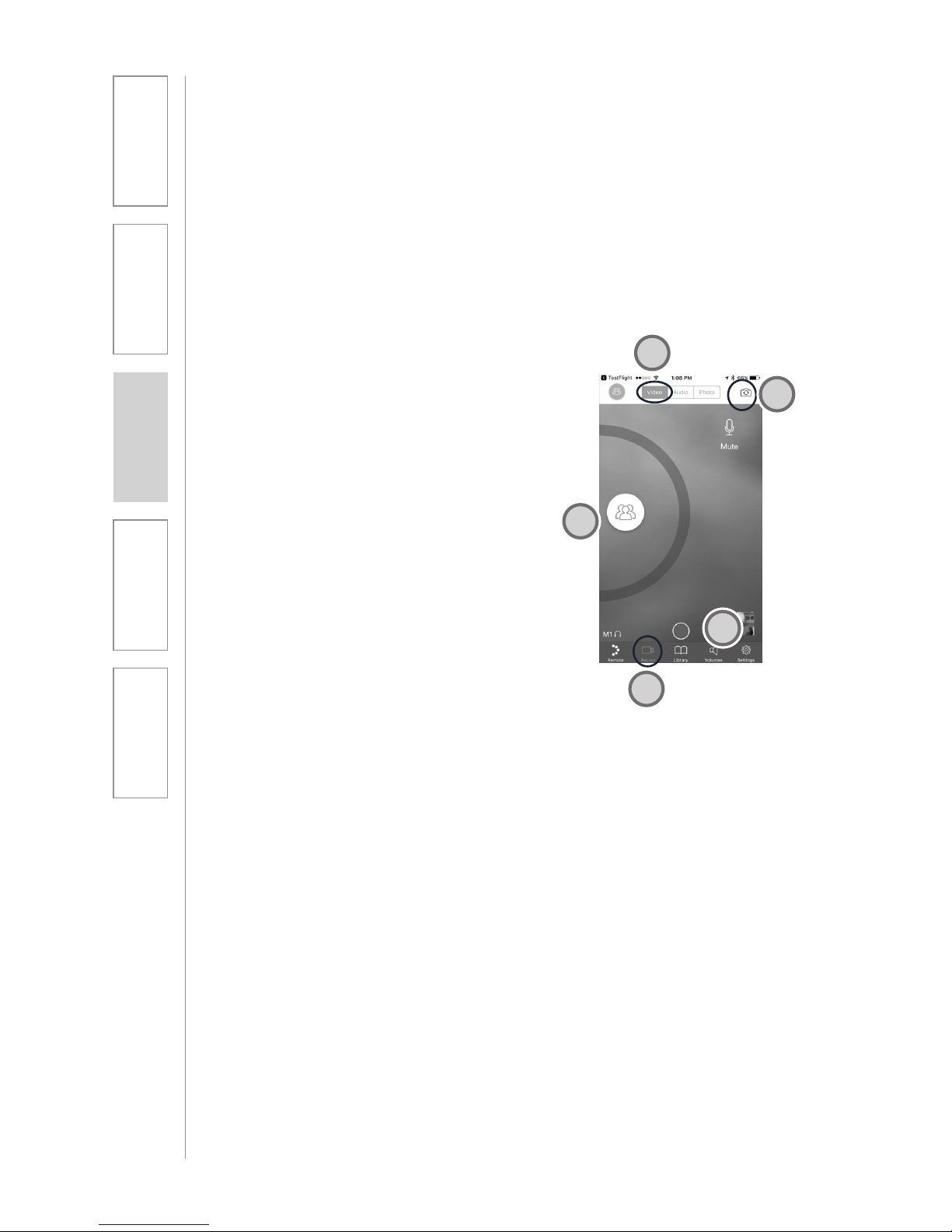

The Activate mobile app allows teachers to utilize their device video camera synced together with the Activate system audio for Lesson Capture and to capture key moments in the classroom. Through the Bluetooth audio link, the App will seamlessly sync up the selected audio source (teacher microphone or Pod) with the video you have recorded.

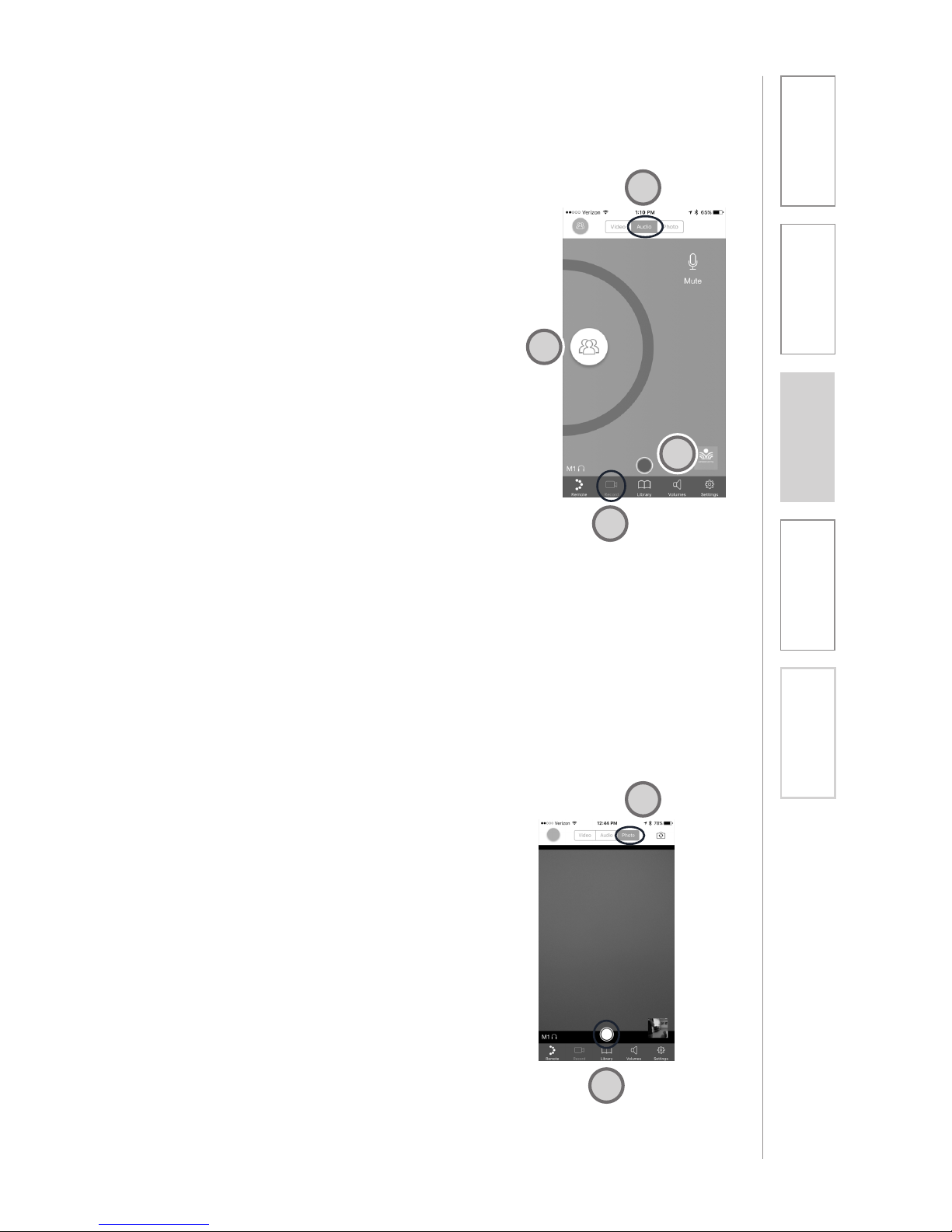

VIDEO + AUDIO RECORDING

1. Tap the record tab

• Verify the Bluetooth audio connection is present as indicated by a “headphone” icon in the lower le hand corner of the screen.

• Select Video capture at the top of the screen.

2. Ensure the class icon is selected as desired audio source

• Note the selected source indicated in the

upper le hand corner of the screen.

• Make sure your microphone is unmuted.

3. Select front or rear camera

4. Begin recording

• Tap the red record button to begin the

video recording.

• Tap the button again when you are ready

to stop.

• You will see the last recorded video appear

as a thumbnail for quick review.

Page 29

2. Daily Operation

3. Optional

Accessories

1. Overview

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

In addition to video recording, teachers can record just the audio of a lesson.

AUDIO ONLY RECORDING

1. Tap the record tab

• Verify the Bluetooth audio connection is present as indicated by a “headphone” icon in the lower le hand corner.

• Select Audio at the top of the screen.

2. Select desired audio source

• Note the selected source indicated in the upper le hand corner of the screen.

• To record microphone audio only, select the class button. Make sure your microphone is unmuted.

3. Begin recording

• Tap the red record button to begin the audio recording.

• Tap again when you are ready to stop.

• You will see the last recorded audio file appear as a thumbnail for quick review.

Teachers can also snap still photos of their students to capture student interaction and classroom activities.

PHOTO CAPTURE

1. Tap the record tab

• Select Photo capture at the top of the screen.

2. Capture Photos

• Tap the white photo button to capture an image

• You will see the last photo file appear as a thumbnail for quick review.

Page 30

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

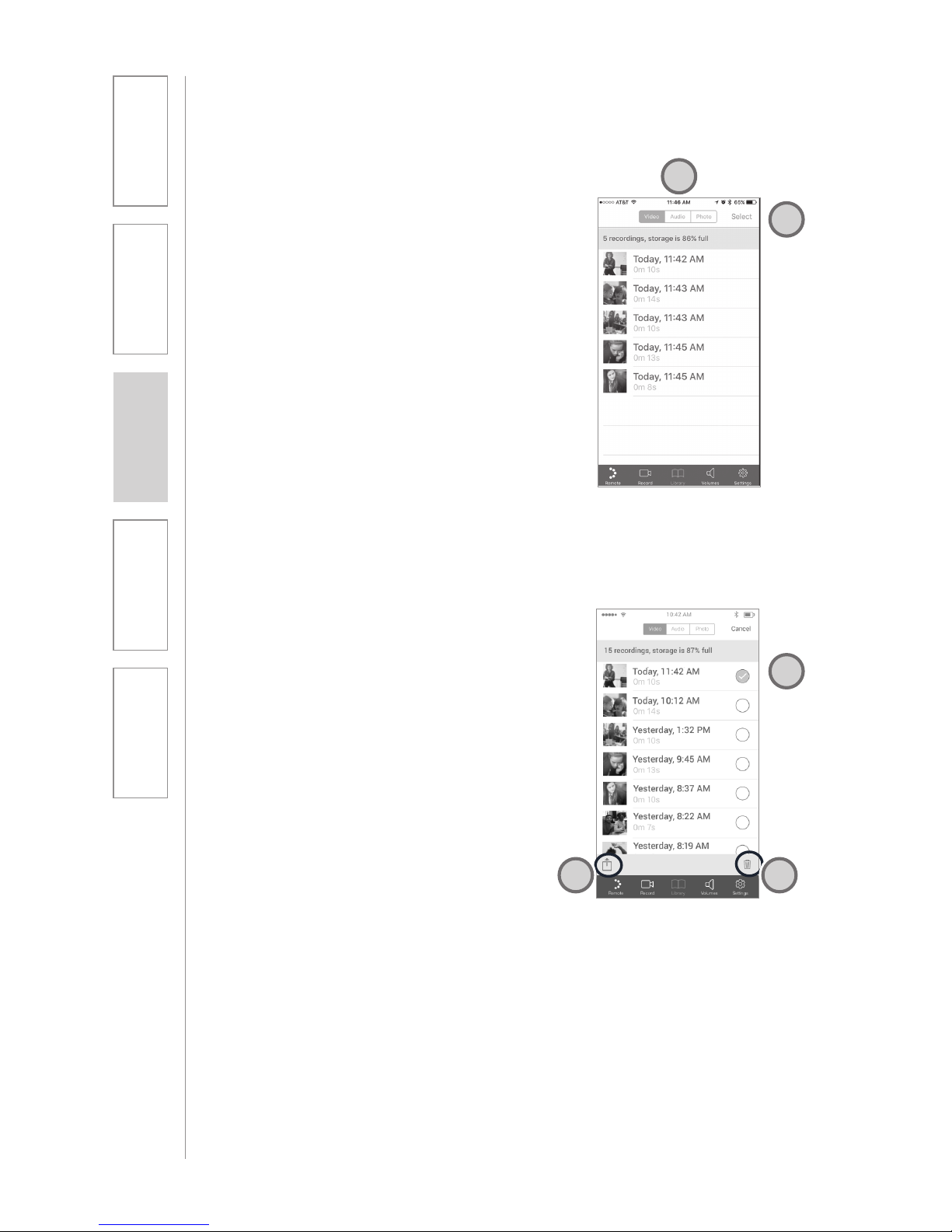

RECORDING LIBRARY AND PLAYBACK

All of your captured video, audio and photo files are organized and stored in the library tab for easy review.

1. Tap the Library tab

• Select from video, audio or photo library at the top of the screen

2. Tap the desired file to begin playback

• Press the play button at the bottom of the screen and adjust volume on your mobile device as desired.

• Play back audio will default to the teacher earbud.

• To direct the audio to the class speaker, swipe right on the screen to reveal the control arc.

• Select the class speaker, and unmute the microphone.

3. Deleting files

• Tap the select button and select the desired files to delete.

• Press the trash icon to delete.

4. To send files to another destination

• Tap the select button and select the desired files to send

• Tap the upload icon on the bottom le of the screen

• Select from the menu on your mobile device where you want to send the file(s)

- send via SMS or email, share on social media, send to cloud storage server, etc.

5. Automatic file upload to Google Drive

Page 31

2. Daily Operation

3. Optional

Accessories

1. Overview

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

• It is possible to automatically upload video files to Google Drive by choosing ‘Upload to Google Drive’ in the App settings.

• When connected to Google Drive, files will automatically upload.

• Files marked with a check-mark indicate successful upload to Google Drive and are available for viewing, sharing, and collaborating.

6. Integrate with Google Drive account

• Toggle Upload to Google Drive on.

• You will be directed to link to your google account.

• All files will be automatically uploaded to a new folder into your Google Drive account.

• By default, the last recorded file will be locally stored on your device. All others will be overwritten to preserve storage space.

• To keep the last 10 recordings, select Keep Last 10.

Page 32

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

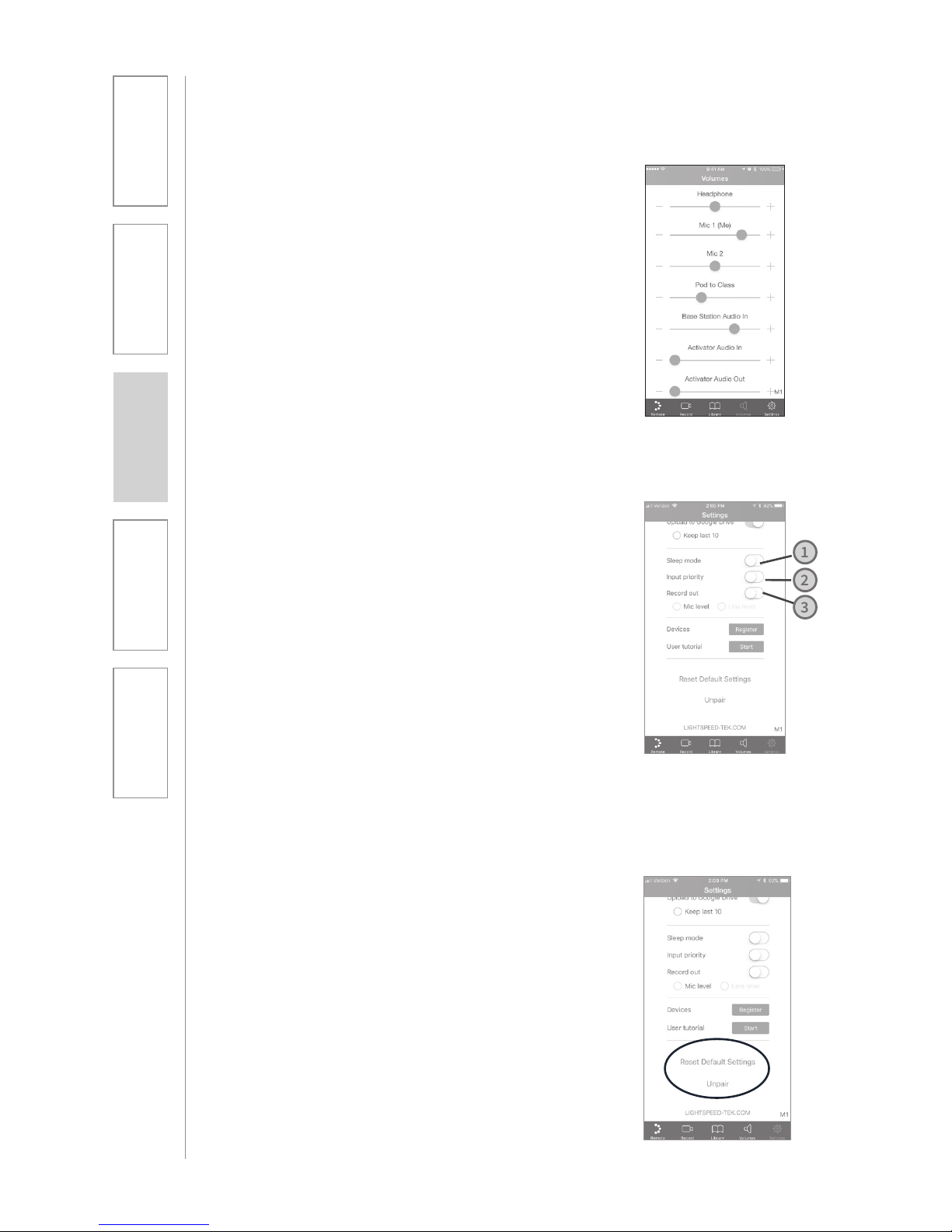

ADDITIONAL CAPABILITIES AVAILABLE WITH ACTIVATE APP

Additional volume adjustments:

On the Volume tab, the teacher can adjust headphone volume, Microphone #1 and #2 volume, volume level on the Topcat audio input, and Activate Audio In and Out.

Enable Sleep mode (1):

Your Topcat comes with sleep mode disabled by default, keeping it powered on and operable at all times. To engage sleep mode, toggle it to the ON position in the settings tab. The Topcat will go into sleep (low power) mode aer 2 hours of no activity. Wake the system back up by un-muting a microphone.

Input priority (2):

Turning this feature on gives all priority to an audio source connected to the amplifier audio input. When an audio signal is detected, all other audio coming through the amplifier (including both microphones) will be muted until the audio input signal ends. Microphone audio will then automatically come back.

Record out (3):

This allows users to set up Audio Output 2 as a true recording output to connect to an external video camera.

• When toggled o, this output will provide audio from the class speaker only. Keep this toggled o when interfacing with an ALD so the student receives just the audio from the teacher in whole class mode.

• When toggled on, this output will provide audio from any selected audio source - class speaker or Pod.

• Select Mic or Line level signal depending on the recording device.

Reset Default Settings:

Pressing this will return the Activate App to its original settings, including volume levels.

Unpair:

Press this button to unpair your mobile device from the Activate system. This is useful if you wish to take your device to pair up with a system next door.

Page 33

2. Daily Operation

3. Optional

Accessories

1. Overview

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

ACTIVATE STATION: OPTIONAL AUDIO INTEGRATION

The Activate Station is designed to integrate with the Topcat and multiple audio sources, allowing other instructional technologies to be clearly heard throughout the classroom.

Access Transmission

Teacher’s Flexmike

Topcat

Topcat Access

Audio Out

1 2

Activate Station

Audio In

VGA Out

Video Out

Video In

Page 34

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

ACTIVATE WITH PODS FOR SMALL GROUP INSTRUCTION

Activate with Pods is a two-way communication system that can be seamlessly added to the Topcat Access classroom audio system to foster and facilitate small group instruction. With the small group audio pods and Activate app, Activate opens up communication and interaction between the teacher and student groups, including:

• Teacher monitoring of individual small groups

• Direct instruction to each independent group

• Student group sharing with the whole class

• Reinforce and redirect group activities

• Capture audio and video of student groups or of individual speaker

If your Topcat system was configured with Activate pods, please refer to the Activate user guide for operation and setup instructions.

Page 35

2. Daily Operation

3. Optional

Accessories

1. Overview

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

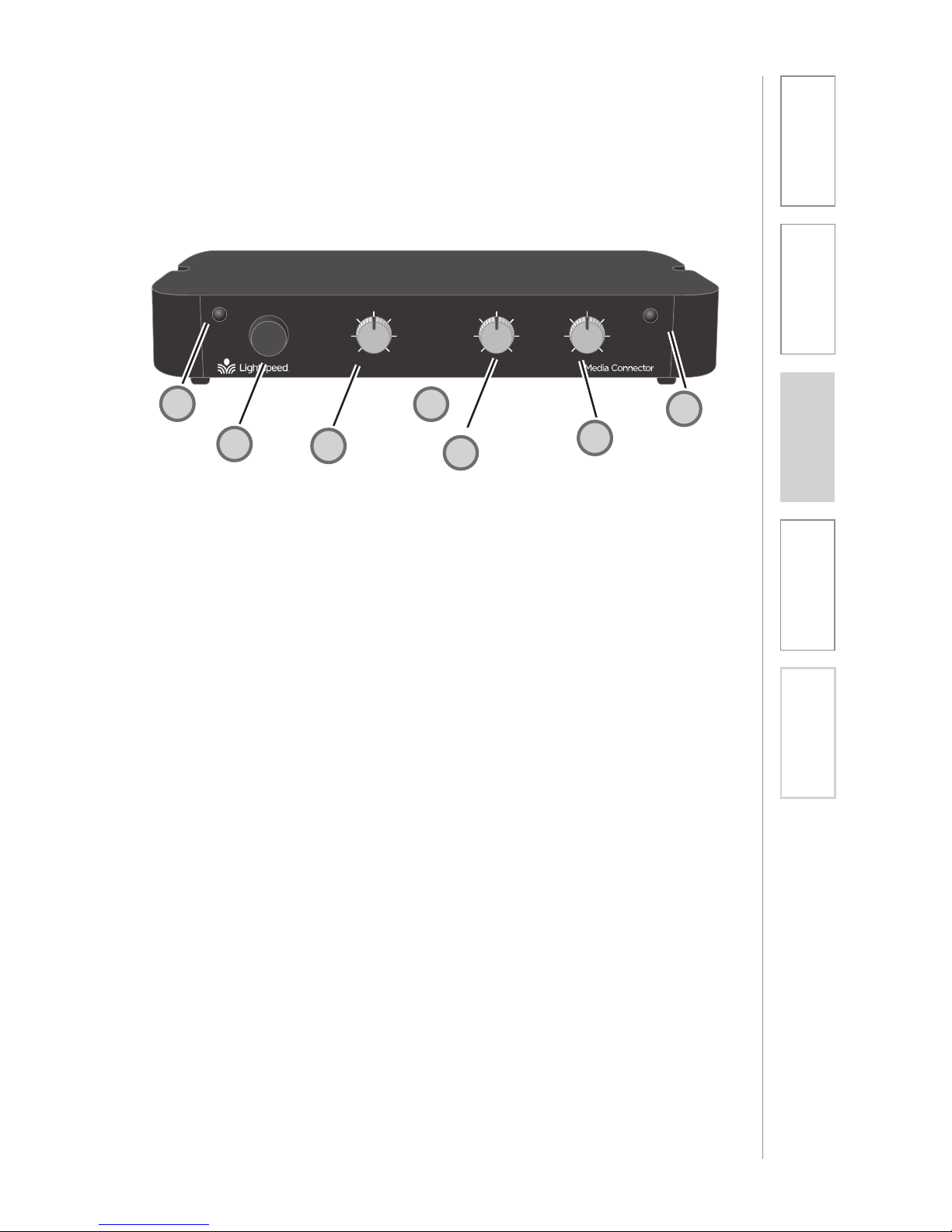

AUDIO INMICROPHONE AUDIO OUT

POWER

MIN

LINK

MAX MIN MAX MIN MAX

1. POWER LIGHT: This light will turn blue

when power is on.

2. POWER BUTTON: Press and hold this

pushbutton to turn the system power on or o.

3. MICROPHONE VOLUME CONTROL:

Controls the volume level of the microphones.

4. AUDIO IN VOLUME CONTROL: Controls

the volume level of the connected audio sources.

5. AUDIO OUT VOLUME CONTROL: Adjusts

the audio signal level output through the ALD audio output connector.

6. AUDIO LINK LIGHT: The green light blinks

when a link is being established. The light is solid green when the link is established.

7. SYSTEM ID LABEL: On bottom of unit

MEDIA CONNECTOR CONTROLS AND CONNECTIONS

Page 36

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

1 4

322

AUDIO INAUDIO OUT

USB POWER

5V/1.5A

TONE

TREBLE BASS

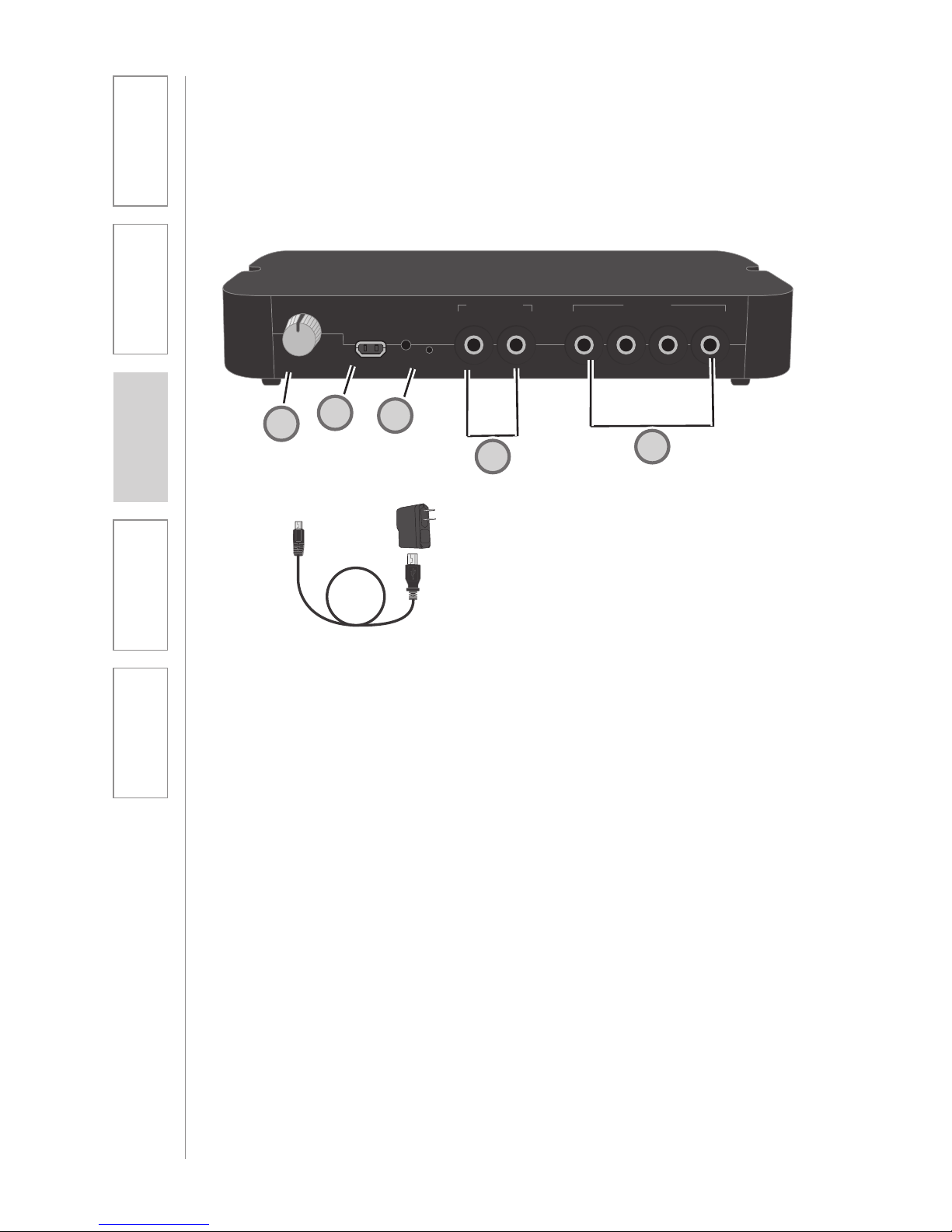

MEDIA CONNECTOR CONTROLS AND CONNECTIONS CONT’D

1. TONE CONTROL: Adjusts the audio

tone, adding more bass or treble for a more rich or crisp sound.

2. USB POWER INPUT: Plug the micro

USB end of the power cable into this USB port.

3. REGISTRATION PUSHBUTTON & LIGHT: Pushing the registration

button in conjunction with the registration button on the Topcat Access will cause the two units to synchronize as an operating system. The registration light stops blinking and the link light is solid when a link is established. This is only used when adding or replacing a Media Connector.

4. TWO AUDIO OUTPUTS: 3.5mm

stereo jacks send audio signal to external equipment such as a recorder or an assistive listening device.

5. FOUR AUDIO INPUTS: Connect

standard audio devices to any of the

3.5mm stereo inputs.

USB1 power adaptor and cable

Page 37

2. Daily Operation

3. Optional

Accessories

1. Overview

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

Choose a location for the Media Connector that is convenient to the classroom audio sources and power supply.

The Media Connector can be placed on a counter or wall mounted. Determine the best location for your room. Use the guidelines below when selecting the site.

NOTE: The Media Connector does not require a direct line of sight to the Topcat. However it functions best when no obstructions are between the two devices. Do not place in an enclosed metal cabinet.

INITIAL SET-UP: MEDIA CONNECTOR

A. Counter or desktop

3-6 feet o of the floor to allow for good

transmission.

• Not enclosed in a metal cabinet or otherwise obstructed.

Step 1: Determine set-up location.

Page 38

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

The Media Connector can be used as the primary volume control for the audio sources you’ve connected.

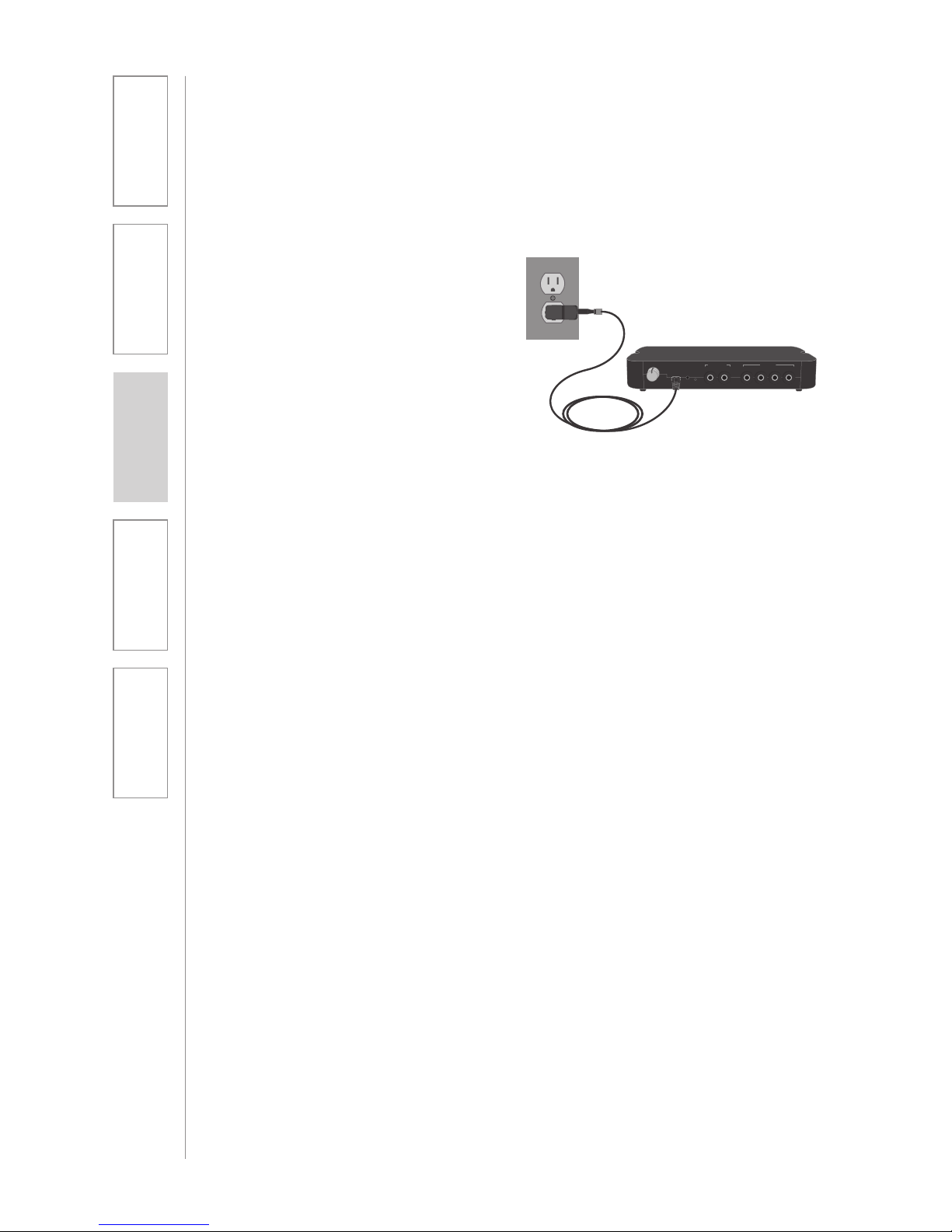

1. Plug the micro USB end of the power cable into the USB port on the back of the Media Connector. Plug the other end of the cable into the USB power adaptor. Also, the USB cable could be plugged into a computer for power.

2. Connect the audio source(s) to the Media Connector using the 3.5mm cables provided.

3. Set the audio source volume to provide sound through the Topcat Access.

USING THE MEDIA CONNECTOR

1 4

322

AUDIO INAUDIO OUT

USB POWER

5V/1.5A

TONE

TREBLE BASS

4. Use the AUDIO IN volume control on the front of the Media Connector to increase or decrease the audio source sound level.

NOTE: When Media Connector is powered on and registered to Topcat, it locks out Master

Volume and Tone controls on the Topcat.

NORMALIZING AUDIO SOURCE VOLUME LEVELS

Use the Media Connector as the master audio volume control for the classroom. When two or more audio sources are connected, you will need to normalize volume settings by setting all connected audio sources to the same sound level while leaving the Media Connector AUDIO IN volume control set to its center setting. The Media Connector is an audio mixer using a master volume control to adjust the volume of all audio sources at once. Use the following procedure to set audio source volumes:

1. Connect the multimedia audio sources to the Media Connector using the 3.5mm cables provided.

2. Set the AUDIO IN volume control on the Media Connector to its center position.

3. Turn on an audio source that does not have an accessible audio level control. (DVD, VCR player)

4. Adjust the Media Connector AUDIO IN volume control so the audio level playing through the speaker is appropriate for the classroom.

5. Turn o the first audio source.

6. Turn on the second audio source. Use its volume control to balance the audio output to the same audio level played through the speaker as the first source.

7. Repeat steps 5 and 6 for the remaining audio sources.

8. Now, the Media Connector’s AUDIO IN volume can be used to increase or decrease the volume level for all audio sources as desired.

Page 39

2. Daily Operation

3. Optional

Accessories

1. Overview

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

MEDIA CONNECTOR: OPTIONAL AUDIO INTEGRATION

The Media Connector is designed to integrate with the Topcat and multiple audio sources, allowing other instructional technologies to be clearly heard throughout the classroom.

Projector

DVD/VCR

Speaker(s)

Media Connector

Projector

Audio In

Audio Out

Access Transmission

Video In

Audio Out

Video Out

VGA Out

Teacher’s Microphone

955 Access

AUDIO INMICROPHONE TONE

POWER

MIN1MAXMIN MAXTREBLEBASS

AUDIO OUT

MINMAX

AUDIO INMICROPHONE AUDIO OUT

POWER

MIN

LINK

MAXMIN MAXMIN MAX

Page 40

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

BATTERY REPLACEMENT

Replacement of battery pack in Flexmike.

1. Slide the battery door open.

2. Carefully pull the battery pack away from the Flexmike and disconnect the cable.

3. Connect the cable of the new battery pack as shown and insert the battery pack into the compartment.

4. Slide the cover back on and snap into place.

5. Place the Flexmike into the cradle charger to charge the battery pack.

SECTION 4:

MAINTENANCE & TROUBLESHOOTING

Page 41

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

BATTERY REPLACEMENT, CONT’D

Replacement of battery pack in Sharemike.

1. Slide the battery door open.

2. Carefully remove the battery pack from the Sharemike.

3. Insert the new battery pack into the compartment. Ensure proper polarity is observed.

4. Slide the cover back on and snap into place.

5. Connect the Sharemike to a charging cable and plug into the USB jack on the back of the cradle charger to charge the battery pack.

Page 42

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

PROBLEM: Most Problems are related to low battery power.

SOLUTION: Battery Check

• Confirm batteries are charged each night. A blinking red light on the power button indicates a low battery.

• Confirm proper batteries are used. The Flexmike requires the Lightspeed NH2.4V rechargeable battery pack. The Sharemike requires the Lightspeed BA-NH2APK rechargeable battery pack.

• Make sure the microphones obtain a full charge. A full charge takes 8-9 hours.

• When charging the transmitter, ensure the blue status light and the red charging light turn on. The green light will turn on when a full charge is reached.

PROBLEM: Microphone doesn’t indicate a “Ready” signal (solid blue or red light)

SOLUTION: Follow these steps to ensure the system is ready to use.

• Ensure the power button on the microphone is turned on. Once turned on, the blue light should begin blinking.

• Power the microphone o, then on again aer a few seconds. Wait for up to 30 seconds for the blue light to turn solid, indicating READY for operation.

PROBLEM: Low Volume or Feedback

SOLUTION: Follow these steps to eliminate low volume or feedback.

• Check microphone volume level on the optional Activate or the Media Connector. If the volume is too high, feedback will occur. Adjust accordingly.

• Check input volume level on the optional Activate or the Media Connector. If the volume is too high, feedback will occur. Adjust accordingly.

• Adjust the volume level on the Flexmike.

PROBLEM: No Sound From speaker and wireless components.

SOLUTION: Follow these steps to produce sound from Topcat.

• Confirm that the blue POWER light located on the speaker panel of the Topcat is on.

• Confirm the microphone is powered on and linked to the Topcat. The mic 1 status light will be green on the Topcat speaker panel indicating the microphone is linked.

• Confirm that the microphone is turned on. There will be a solid blue light on the top of microphone to indicate it is powered on and ready.

• Confirm that microphone is not muted. A solid red light on MIC 1 or MIC 2 light at the top of microphone will indicate it is muted.

Note: Most problems are directly related to low battery power. Please run through the “Battery Check” items first. For remaining troubleshooting, use known good, fully-charged batteries.

TROUBLESHOOTING

Page 43

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

• Check volume level of the system. Make sure that the microphone volume level on the Flexmike is not turned down all the way. Slowly turn up the volume level while talking into the microphone.

• If an Activate Station or Media Connector is registered (paired) with the Topcat, make sure that the volume level of the Activate or the Media Connector is not turned down all the way. Slowly turn up the volume level while talking into the microphone.

PROBLEM: Activate app shows message “Activate Station is out of range or has no

power”:

SOLUTION:

• This indicates the Bluetooth signal between your device and the Activate Station are having trouble communicating, usually due to range between the mobile device and the Activate Station.

• Make sure your mobile device is within 50-100 feet of the Activate Station. Walk up to the Activate and wait several seconds for the app to reconnect.

• If it does not automatically reconnect, try force quitting the app: for IOS, double tap the Home button on your iOS device, then swipe up the Activate app to close it. For Android, launch the Recent Applications menu, scroll to find the Activate app, then swipe the app to the right to quit. Re-open the app and it should connect automatically.

PROBLEM: Activate app shows “No Response from the Classroom Audio System”

SOLUTION:

• This indicates the app is not communicating with the Access amplifier, usually due to loss of communication between the Activate and the amplifier.

• Make sure the Access amplifier is plugged into power and is powered on.

• If it does not automatically reconnect when the amplifier is powered on, try force quitting the app: for IOS, double tap the Home button on your iOS device, then swipe up the Activate app to close it. For Android, launch the Recent Applications menu, scroll to find the Activate app, then swipe the app to the right to quit. Re-open the app and it should connect automatically.

TROUBLESHOOTING CONT’D

If you review these instructions and still have questions, call Lightspeed Technical Services at 800.732.8999, 5 a.m. – 5 p.m., PST. Customers outside the U.S. should

contact their local reseller.

Page 44

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

FIVE-YEAR LIMITED WARRANTY

Our Service Department (800.732.8999, 5 a.m. – 5 p.m., PST) will handle all your repair/ replacement needs. Customers outside the U.S. should contact their local reseller.

SECTION 5:

WARRANTY, SAFETY & SPECIFICATIONS

Lightspeed Classroom Audio Access Systems are guaranteed against malfunction due to

defects in materials and workmanship for a period of FIVE (5) YEARS, beginning at the date of the purchase invoice. If such malfunction occurs, the product will be repaired or replaced (at Lightspeed’s option) without charge during the warranty period.

Lightspeed’s Warranty Exchange Program applies to all classroom audio systems within

the five (5) year warranty period. If a classroom audio product or component has an issue that requires service, a refurbished replacement will immediately be sent to the customer to minimize downtime. Customers will receive the exchange product(s) or component(s) within 2-3 days. A prepaid return label will be included with exchanged products so original malfunctioned equipment can be returned to Lightspeed. Any exchanged equipment will remain covered under the original five (5) year warranty.

1. Warranty on Access transceivers is FIVE (5) YEARS.

2. Warranty on Lightspeed NiMH rechargeable batteries is one (1) year.

3. A prepaid shipping label will be provided by Lightspeed for warranty repairs within the United States. Customers outside the U.S. should refer to the Lightspeed website (www.lightspeed-tek.com) for warranty repair instructions.

4. Warranty does not extend to ﬁnish, appearance items, or malfunctions due to abuse or operation other than speciﬁed conditions, nor does it extend to incidental or consequential damages. Repair by other than Lightspeed or its authorized service agencies will void this warranty. Information on authorized service agencies is available from Lightspeed Technologies, Inc.

Page 45

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

SAFETY WARNINGS AND CERTIFICATIONS

CERTIFICATIONS

This product conforms with the essential requirements of the following European Union Directives: 2004/108/EC Electromagnetic Compatibility (EMC) and 2006/95/EC Low Voltage Directive (LVD).

The exclamation mark inside an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instruction in the literature accompanying this product.

This product is manufactured using lead-free processes and is free of other materials harmful to the environment. It conforms to the most stringent new European guidelines for consumer products (RoHS).

Lightspeed Technologies launched a formal product recycle program in Europe that complies with the European Union Directive 2002/96/EC on Waste Electrical and Electronic Equipment (“WEEE Directive”). Please visit our website at www.Lightspeed-tek.com for more information.

This product is listed to UL standards and requirements for electrical safety by Underwriters Laboratories Inc.

The lightning flash with arrowhead symbol inside an equilateral triangle is intended to alert the user to the presence of non insulated “hazardous voltage” within the product’s enclosure, which may be of suicient magnitude to induce a risk of electric shock to persons.

USE A LIGHTSPEED SUPPLIED BATTERY ONLY

Page 46

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

PRÉCAUTIONS DE SÉCURITÉ ET CERTIFICATIONS

Le point d’exclamation contenu dans un triangle équilatéral avertit l’utilisateur de la présence d’importantes instructions d’exploitation et de maintenance dans la documentation qui accompagne ce produit.

ATTENTION

RISQUE D’ÉLECTROCUTION

NE PAS OUVRIR

CONFORMÉMENT AUX NORMES D’INSTALLATION APPLICABLES, CE PRODUIT DOIT ÊTRE INSTALLÉ PAR UNE PERSONNE FAMILIARISÉE AVEC LA CONCEPTION ET LE FONCTIONNEMENT DU PRODUIT

ET CONSCIENTE DES RISQUE ENCOURUS.

L’éclair flèche dans un triangle équilatéral avertit l’utilisateur de la présence d’une “tension dangereuse” non isolée a l’interieur de l’appareil, qui peut être d’une ampleur suisante pour constituir un risque d’électrocution.

Ce produit est certifié conforme aux normes et aux exigences UL en matière de sécurité électrique par Underwriters Laboratories Inc.

Ce produit est conforme aux principales exigences des directives de l’Union Européenne suivantes : 2004/108/EC Electromagnetic Compatibility (EMC) and 2006/95/EC Low Voltage Directive (LVD).

Lightspeed Technologies a lancé un programme de recyclage de produits en Europe conformément à la directive de l’Union Européenne 2002/96/CE relative aux déchets d’équipements électriques et électroniques (directive « DEEE »). Veuillez visiter notre page Web www.Lightspeed-tek.com pour plus de renseignements.

Ce produit est fabriqué en utilisant des processus sans plomb ni aucune autre matière nuisible à l’environnement. Il est conforme aux nouvelles règles européennes les plus strictes en matière de biens de consommation (RoHS).

UTILISEZ UNIQUEMENT LA BATTERIE LIGHTSPEED FOURNIE

CERTIFICATIONS

Page 47

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

FCC Notice to user

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference; and

(2) This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is receiving” the interference).

•Reorient or relocate and increase the separation between the telecommunications equipment and receiving antenna.

•Connect the telecommunications equipment into an outlet on a circuit dierent from that to which the receiving antenna is connected.

•Consult the dealer or an experienced radio/TV technician for help.

English:

IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, the antenna(s) used for this

transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. No change to the antenna

or the device is permitted. Any change to the antenna or the device could result in the device exceeding the

RF exposure requirements and void user’s authority to operate the device.

French:

NOTE IMPORTANTE: Pour se conformer au règles d’exposition des ondes RF par la FCC, la (ou les) antenne(s)

utilisée(s) par ce transmetteur doivent être installées de façon à être séparée d’une distance d’au moins 20 cm de toute personne et ne doit pas être utilisée près ou en conjonction avec aucune autre antenne ou transmetteur. Aucune modification à l’antenne ou à l’appareil n’est permise. Toute modification à l’antenne ou à l’appareil peut résulter que l’appareil excèdera l’exposition aux ondes RF règlementaires et ainsi annuler le droit à l’usager d’utiliser l’appareil.

FCC RF Radiation Exposure Statement

This device (Access Link) complies with the FCC RF radiation exposure limits set forth for an uncontrolled

environment. This device should be installed and operated with a minimum distance of 20cm between the radiator (Access Link) and any part of your body.

For body worn operation, the portable part (Flexmike) has been tested and meets FCC RF exposure guidelines.

This device must not be co-located or operating in conjunction with any other antenna or transmitter. The

changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Notice to Canada User

English

This device complies with Industry Canada licence exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the

device.

French

Le present appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.

L’exploitation est autorisee aux deux conditions suivantes :

(1) l’appareil ne doit pas produire de brouillage, et

(2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est

susceptible d’en compromettre le fonctionnement

Page 48

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

RF Radiation Exposure Statement

English

Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio

waves (radio frequency electromagnetic fields) recommended by international guidelines. The guidelines were developed by Health Canada and include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.

French

Votre appareil mobile est un émetteur-récepteur radio. Il est conçu pour ne pas dépasser les limites d’exposition

aux ondes radio (champs électromagnétiques de fréquence radio) recommandées par les directives internationales. Les lignes directrices ont été élaborées par Santé Canada et comprennent une marge de sécurité importante destinée à assurer la sécurité de toutes les personnes, indépendamment de l’âge et de la santé.

NOTICE FOR USB

NOTE: Lightspeed is not responsible for any changes or modifications not expressly approved by the party

responsible for compliance. Such modifications could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

Page 49

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

LIGHTSPEED TECHNOLOGIES / WWW.LIGHTSPEED-TEK.COM / TOLL FREE: 800.732.8999 / PHONE: 503.684.5538

EU Declaration of Conformity

According to EU Directives

EMC 2014/30/EU, LVD 2014/35/EU, RED 2014/53/EU

Manufacturer: Lightspeed Technologies, Inc.

Address: 11509 SW Herman Rd,

Tualatin, Oregon 97062

We herewith declare that the following systems comply with the appropriate basic safety and health requirements of the Directive based on its design and type, as brought into circulation by us. In case of alteration of the system, not agreed upon by us, this declaration will lose its validity.

Products: Redcat Access, Flexmike, Flexcat Pod, Flexcat Charging Station, Flexcat Handheld Remote

Control, Media Connector Access, Sharemike, Topcat, Access Link, 955 Access, TCQ2, DRQ

Model Numbers: LSRCA 1881, LSFM 1881, FCP 1881, FCCS, FCHRC, FCHRCB, LSMCA 1881, LSSM

1881, LSTCA 1881, LSAL 1881, LS955 1881, TCQ2, DRQ

As applicable, products conform to the following EU/AS/NZ test standards listed below:

Safety Standards: IEC/EN 60065 and amendments

EMC/RF Standards: EN301 406 V2.1.1 (2009-07)

EN 301489-1/-6 EN 301489-1/-17 EN 50371 (2002) EN 50385 (2002) EN 300 328 EN 55022 EN 55024 AS/NZ CISPER 22 AS/NZ 4268

The Technical Construction File is available to proper authorities and the product is CE marked.

Lightspeed Representative:

Date: 09/05/2017

Michael Frost, Compliance Engineer

P/N: 085-0013-05

Page 50

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

SYSTEM SPECIFICATIONS

TOPCAT ACCESS

Description: All-in-one ceiling-mount wireless base

station

Panel size 16.25” x 8.25”

Frequency response: 60 Hz - 18 kHz (-10dB)

Wireless communication: Access Technology (1.9 GHz + RF4CE)

Tone control: 1 bass/treble control, inside cabinet

Audio input: One (1) 3.5mm stereo w/ volume control

inside cabinet

Power Output: 20W RMS x 2

Power Input: AC: 100-240V ~ 50 / 60Hz 1.5A

DC:24V / 2.5A

PageFirst input: 2-pin euro-blick w / sensitivity adjust

Audio Link indicators: 2 indicators for Flexmike 1 and 2

Device Registration: Push button for pod(s), Flexmike(s), Share-

mike, Activate, and Media Connector

Dimensions (W x H x D): 24” x 12” x 3.7” (595 x 295 x 94mm)

Weight: 13.6 oz. (6.2 kg)

FLEXMIKE (1-2):

Description: Pendant-style transceiver

Earbud lanyard: Magnetic clasp with integrated earbud

Wireless communication: Access Technology (1.9 GHz)

Audio distortion: <1%

Integrated microphone: Uni-directional electret

Earbud output: 3.5mm

Audio input: 3.5mm

Volume control: +/- 6 dB

Battery power: 2.5V NiMH battery pack

Battery life: 8 hours (fully charged)

Charging: 2 contacts for cradle charging

USB connection: Type Micro-B for charging and audio

Power: On/o switch

Registration: Push button for registration with Topcat Dimensions (L x W x H): 2.9” x 1.1” x 1.0” (74 x 28 x 25mm)

Weight: 1.8 oz (51g)

Page 51

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

SHAREMIKE

Description: Handheld transceiver

Wireless communication: Access Technology (1.9 GHz)

Audio distortion: <1%

Integrated microphone: Uni-directional dynamic

Audio input: 3.5mm

Battery power: 2 AA NiMH battery pack

Battery life: 8 hours (fully charged)

Charging: 5V charging jack

Power: On/o button

Registration: Push button for registration with Topcat Dimensions (L x W x H): 2.25” x 2.25” x 8.75” (57.2 x 57.2 x 222.3mm)

Weight: 7.36 oz (209g)

ACTIVATE CHARGING STATION

Description: Charging station with Bluetooth

DC power input: 24V / 1.75A

DC charging ports: 4 USB ports for charging pods, remote

control or Sharemike

Cradle charging: 8 pods; 2 Flexmikes

USB port: 5V USB charging input for optional power

source

Wireless communication: Bluetooth, Access Technology (1.9 GHz +

RF4CE)

Wireless range (from Topcat): up to 200  (60 m); up to 100  (30 m) with

walls

Audio input: 3.5mm stereo (x4) w/ master volume

Audio output: 3.5mm stereo (X2) mixed w/ volume

control

Audio Link indicator: 1 LED on front panel

Registration indicator: LED (x3) on back panel

Device Registration: Push button (x2) for Bluetooth pairing,

Push button (x1) for Access pairing

Dimensions (W x H x D): 13.3” x 5.9” x 1.9” (340 x 150.3 x 50mm)

Weight: 1.85 lbs (0.84kg)

Page 52

1. Overview 2. Daily Operation

3. Optional

Accessories

4. Maintenance &

Troubleshooting

5. Warranty, Safety

& Specifications

MEDIA CONNECTOR

Description: Wireless audio transceiver

USB Power: 5V micro-B USB connector

Wireless communication: Access Technology (1.9 GHz + RF4CE)

Tone control: 1 bass/treble control

Audio input: 3.5mm stereo (x4) w/ master volume

Audio output: 3.5mm stereo (X2) mixed w/ volume

control

Audio Link indicator: 1 LED on front panel

Registration indicator 1 LED on back panel

Device Registration: Push button for Topcat

Dimensions (W x H x D): 7.6” x 5” x 1.13” (193 x 127 x 29mm)

Weight: 9.6 oz. (272g)

Page 53

MN0488US01-4

Dedicated to Access for all

We strive to make a remarkable dierence for teachers and students by creating Access to powerful in-the-moment insights to the learning process. Our audio and video solutions improve student engagement, enable teachers to activate small groups, and encourage collaboration.

11509 SW HERMAN ROAD

TUALATIN, OREGON 97062

TOLL FREE: 800.732.8999

PHONE: 503.684.5538

FAX: 503.684.3197

LIGHTSPEED-TEK.COM
