CONGRATULATIONS!

Congratulations on your purchase of the Delta X6, the easy-to-use public

address system designed for gymnasiums, auditoriums, cafeterias and other large

meeting areas.

The Delta X6 contains inputs for up to two UHF wireless microphone receivers, one

input for a wired microphone and one input for a line level audio source coming

from a CD/DVD player, TV/VCR, Computer, etc. There is an adjustable-level audio

output to connect into an external source such as an assistive listening system or

recorder. Users can also connect to a passive speaker, in order to cover a larger area.

The system operates on AC power. The entire system and accessories ﬁt nicely in the

rugged carrying case, which makes it highly transportable and lightweight.

The wireless receivers contain 100 user-selectable frequencies ranging from 620 MHz

to 694.79 MHz. Each receiver contains a clear-channel scanner (a touch of a button

automatically selects a clear frequency), low battery indicator (for the transmitter), and

adjustable squelch control. The system is available with a variety of handheld, lapel,

and headset microphones.

Page 3

Delta X6 User Manual

ii | Delta X6 User Manual

Delta X6 User Manual

1. Read Instructions—All the safety and

operation instructions should be read before this Lightspeed product is operated.

2. Retain Instructions—The safety and

operating instructions should be kept for future reference.

3. Heed Warning—All warnings on this

Lightspeed product and in these instructions should be followed.

4. Follow Instructions—All operating and

other instructions should be followed.

5. Water and Moisture—This

Lightspeed product should not be used near water.

6. Heat—This Lightspeed product should be

situated away from heat sources such as radiators, etc.

7. Power Sources—This Lightspeed product

should be connected to a power supply only of the type described in the operation instructions or as marked on this Lightspeed product.

8. Power Cord Protection—Power supply

cords should be routed so that they are not likely to be walked upon or pinched by items placed upon or against them.

9. Object and Liquid Entry—Care should be

taken so that objects do not fall onto and liquids are not spilled into the Lightspeed product.

10. Damage Requiring Service—This

Lightspeed product should be serviced only by qualiﬁed service personnel. The user should not attempt to service this Lightspeed product.

11. Prevent Electric Shock—Do not use this

polarized plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure.

SAFETY INSTRUCTIONS AND CERTIFICATIONS

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED PERSONNEL

RISK OF ELECTRIC SHOCK DO NOT OPEN

The lightning ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure, that may be sufcient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION

Page 4

Delta X6 User Manual

Delta X6 User Manual | iii

Delta X6 User Manual

TABLE OF CONTENTS

Delta X6 CLASSROOM AUDIO SYSTEM

Safety Instructions and Certiﬁcations ..................................................................................................ii

SECTION 1: System Overview ............................................................................................................1

System Components ........................................................................................................................2

Top Panel: Wireless Receiver Controls ...........................................................................................3

Top Panel Controls and Connections .............................................................................................4

Rear Panel Controls and Connections ............................................................................................5

Connecting the Power Supply ........................................................................................................6

Handheld Microphone Controls and Connections .......................................................................7

Optional Belt-pack Controls and Connections..............................................................................8

SECTION 2: System Operation and Optional Features ....................................................................9

Operating Instructions: Wireless Receivers .................................................................................10

Operating Instructions: Handheld Microphone ..........................................................................11

Channel Selection ...................................................................................................................11

Transmitter Mute .....................................................................................................................12

Sensitivity Level .......................................................................................................................12

Battery Life Indicator ...............................................................................................................13

Battery Type .............................................................................................................................13

Replacing the Batteries ..........................................................................................................14

Recharging the Batteries ........................................................................................................14

Operating Instructions: Belt-pack Transmitter .............................................................................15

Connecting the Microphone ..................................................................................................15

Microphone Options ..............................................................................................................15

Lapel Microphone Placement ................................................................................................15

Headset Microphone Placement ...........................................................................................15

Channel Selection ...................................................................................................................16

Transmitter Mute .....................................................................................................................17

Gain Adjust ..............................................................................................................................17

Battery Life Indicator ...............................................................................................................18

Battery Type .............................................................................................................................18

Replacing the Batteries ..........................................................................................................19

Recharging the Batteries ........................................................................................................19

SECTION 3: Troubleshooting, Daily Use and Warranty .................................................................. 20

Troubleshooting Guide ..................................................................................................................21

Daily Use Instructions .....................................................................................................................22

Tips on Classroom Audio ..............................................................................................................23

Warranty Statement .......................................................................................................................23

System Speciﬁcations ....................................................................................................................24

Individual Components and Optional Accessories .....................................................................26

User Notes ......................................................................................................................................27

Page 5

Delta X6 User Manual

1 | Delta X6 User Manual

SECTION 1

System Overview

Page 6

Delta X6 User Manual

Delta X6 User Manual | 2

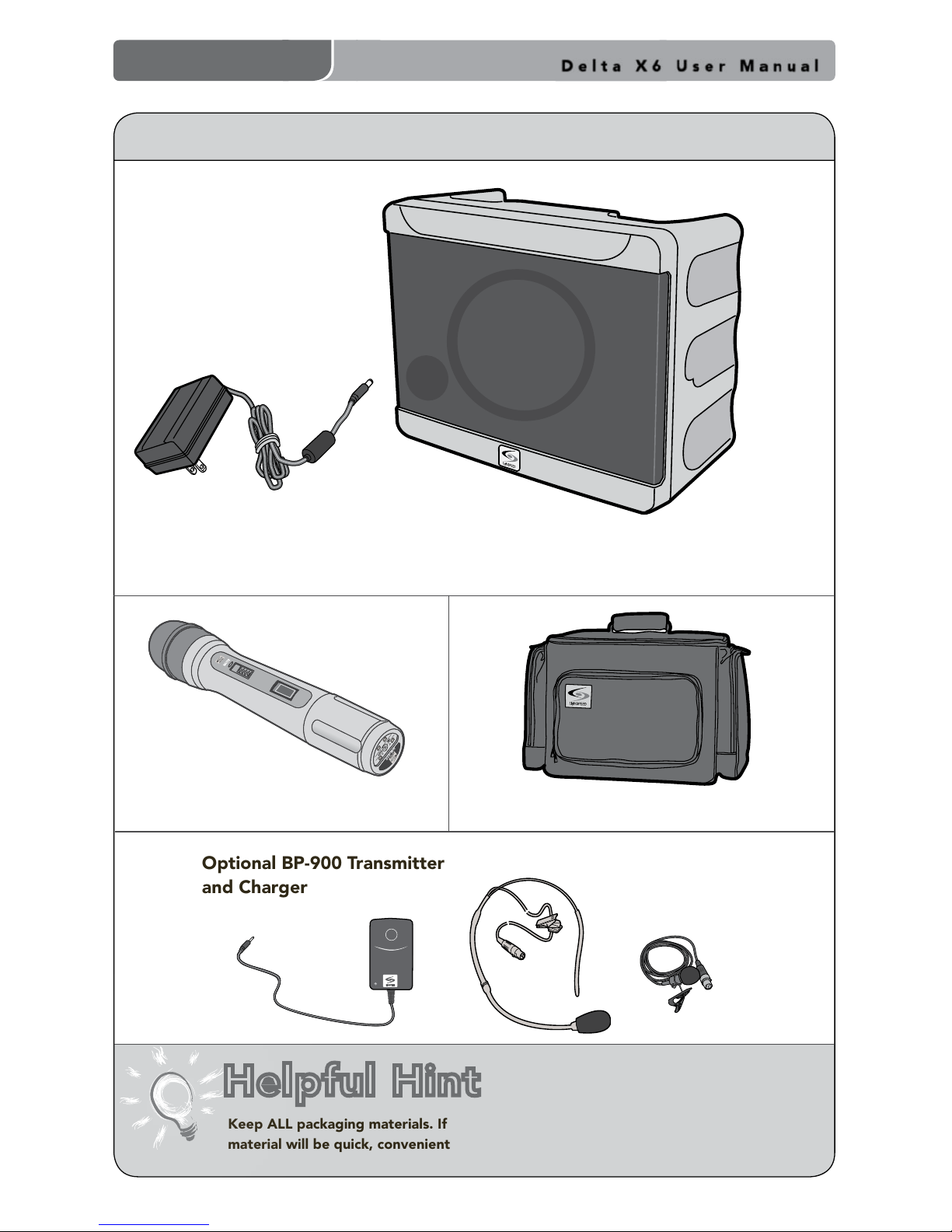

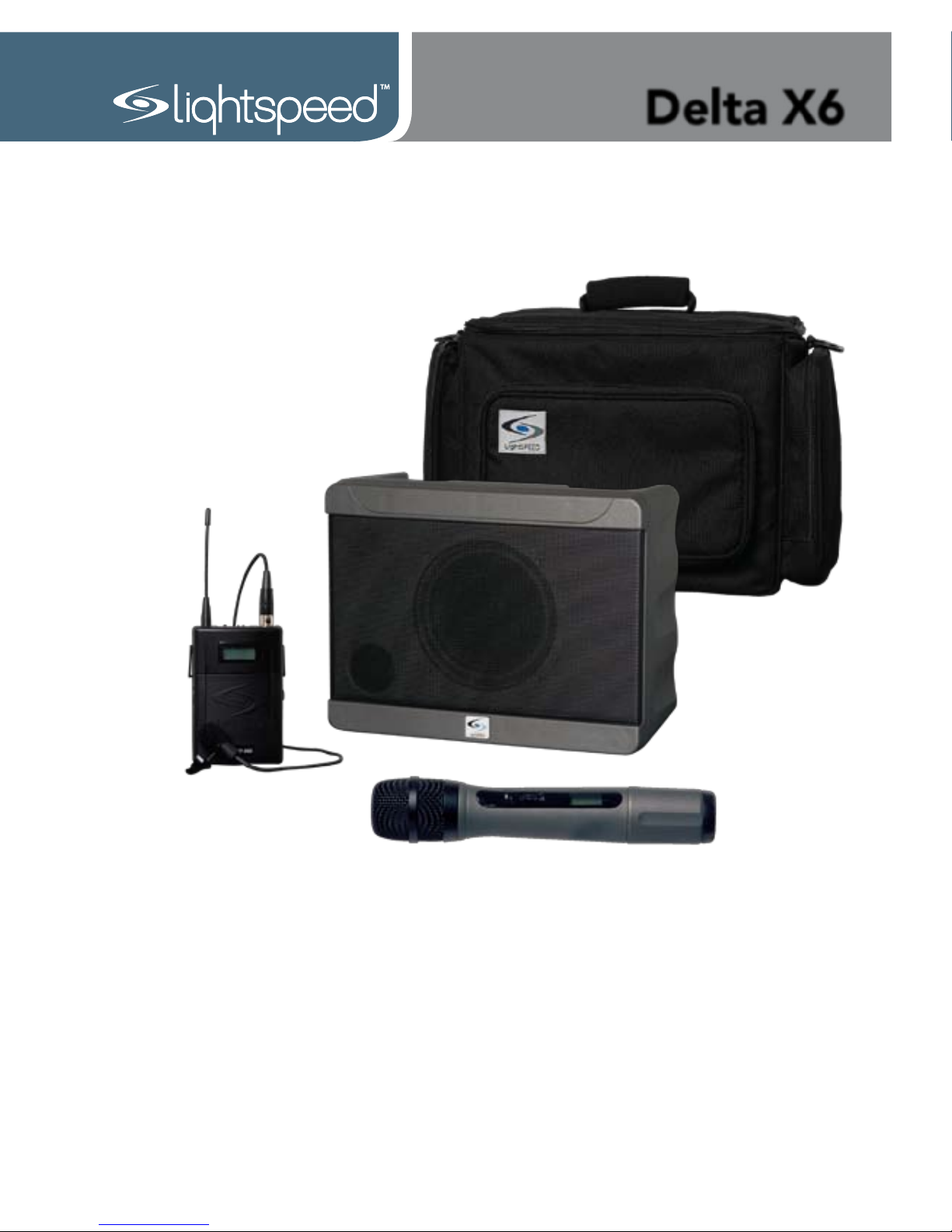

SYSTEM COMPONENTS

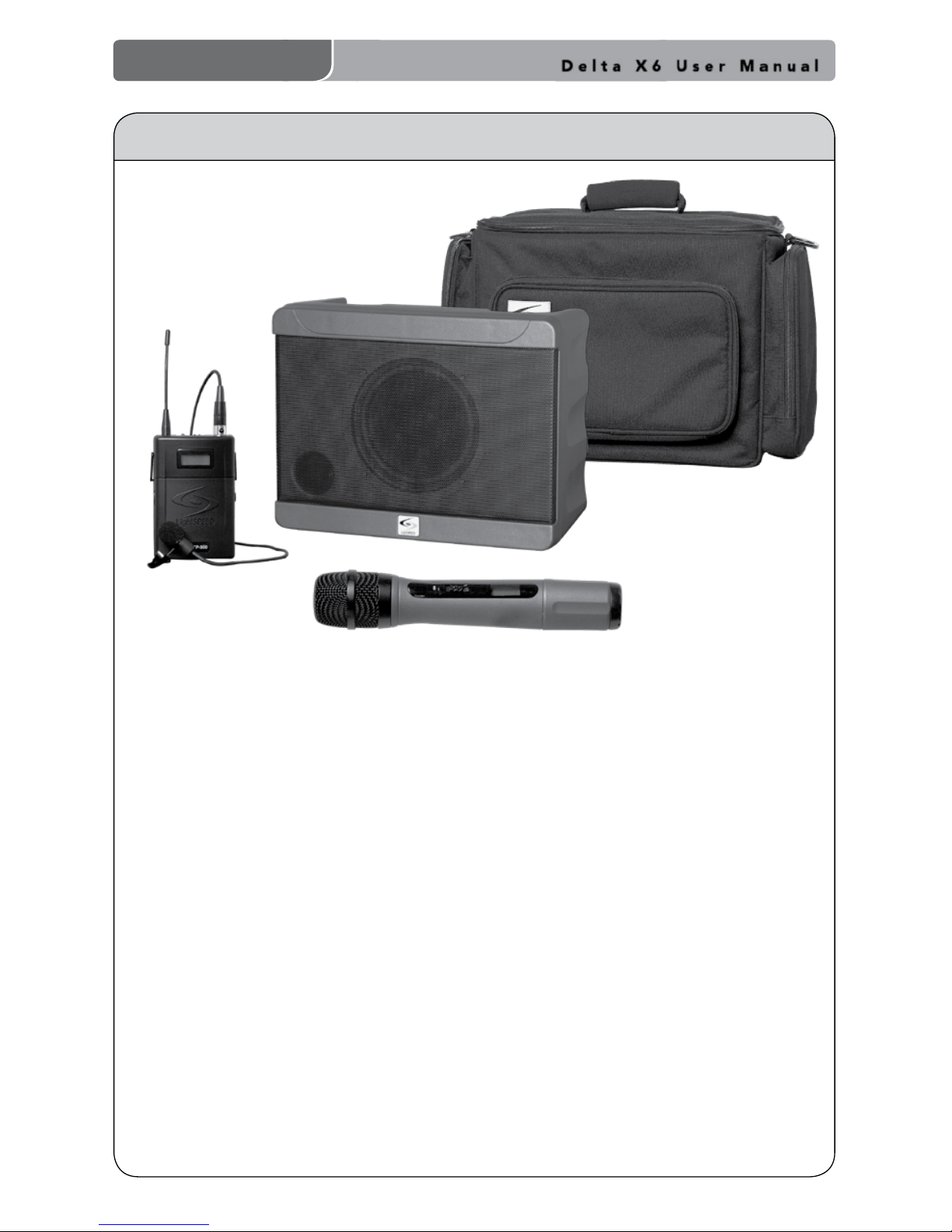

Keep ALL packaging materials. If the system must be returned, using the original packing material will be quick, convenient and prevent damage.

HM-900 Transmitter

Optional MK-TK270S

Noise-Cancelling Headset

Microphone

Optional MC-831S Audio

-Technica 831 Lapel Mic

Optional BP-900 Transmitter and Charger

Helpful Hint

Delta X6 Public Address System and Power Supply

Delta X6 Carry Case

Page 7

Delta X6 User Manual

3 | Delta X6 User Manual

LOW

BAT

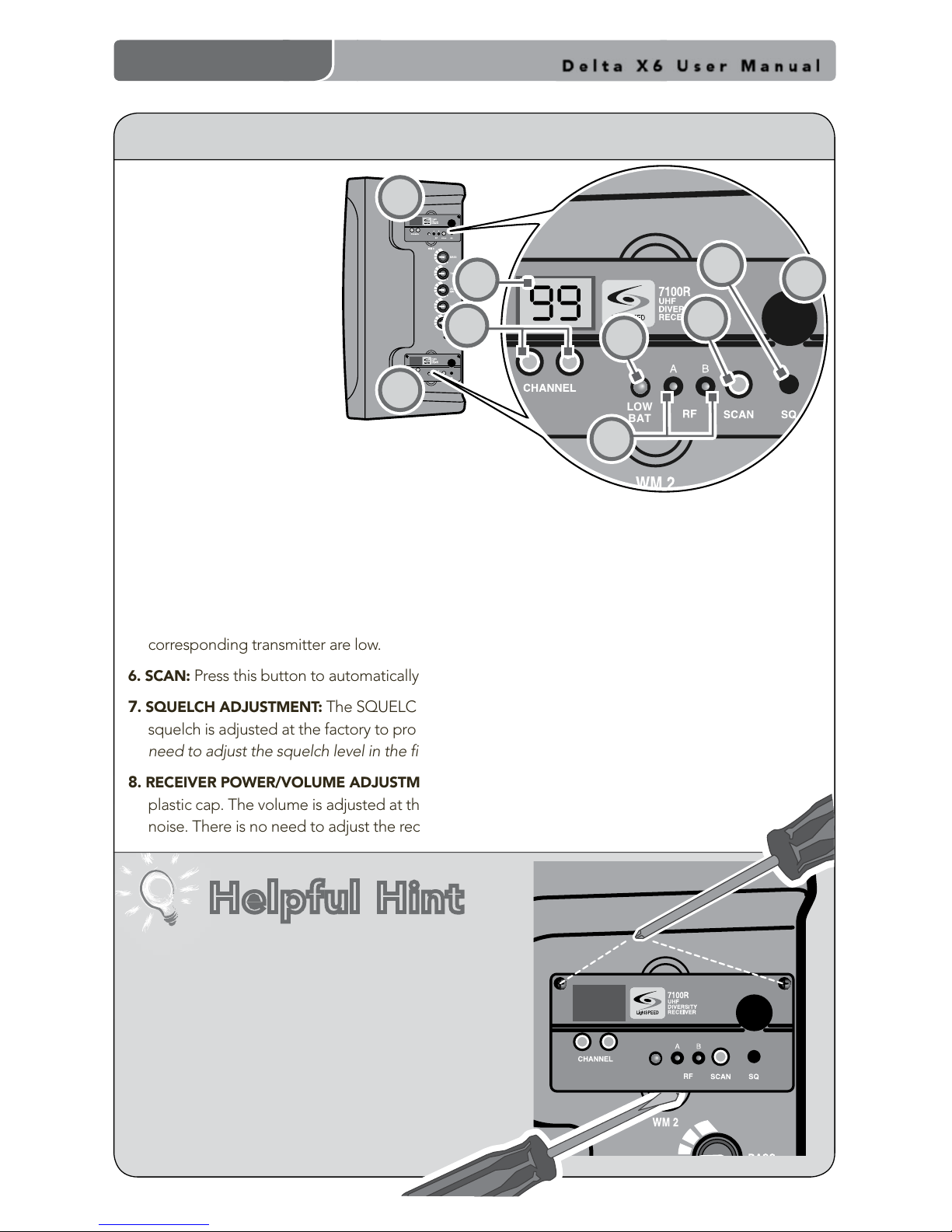

1. WIRELESS RECEIVER:

One or two wireless receiver modules are located at the top panel.

2. CHANNEL DISPLAY:

An LED readout of the receiver module indicates which channel you are on.

3. CHANNEL CONTROL (0-99):

The left button controls the number on the left (0-9). Each touch of the button moves the number up one until it gets to nine, and then it cycles back to zero. The right button has the same function for the number on the right.

4. RF CHANNEL A/B INDICATOR: The A lights up indicating the A channel tuner is receiving the

strongest RF signal. The B lights up indicating the B channel tuner is receiving the strongest RF signal.

5. TRANSMITTER LOW BATTERY INDICATOR: This LED will light to indicate the batteries in the

corresponding transmitter are low.

6. SCAN: Press this button to automatically select a channel that is free from interference.

. SQUELCH ADJUSTMENT: The SQUELCH LEVEL ADJUSTMENT is covered with a plastic cap. The

squelch is adjusted at the factory to provide the best signal level and minimum noise. There is no need to adjust the squelch level in the ﬁeld.

. RECEIVER POWER/VOLUME ADJUSTMENT: The receiver volume adjustment is covered with a

plastic cap. The volume is adjusted at the factory to provide the best signal level and minimum noise. There is no need to adjust the receiver volume in the ﬁeld.

TOP PANEL: WIRELESS RECEIVER CONTROLS

Helpful Hint

Installing or replacing a receiver module:

NOTE: Make sure the Delta X6 is turned off.

1. Remove

the two screws securing the module panel using a

small phillips head screwdriver.

2. Remove the module from the enclosure by carefully inserting

the blade of a small, ﬂat-blade screwdriver under the face plate edge and nudging it upward.

3. Grasp the edges of the module with both hands and slide

it out.

4. Install the new module by aligning it with the guide rails and

sliding all the way in to engage the connector at the rear of the module.

5. Replace the two screws.

LOW

BAT

Page 8

Delta X6 User Manual

Delta X6 User Manual | 4

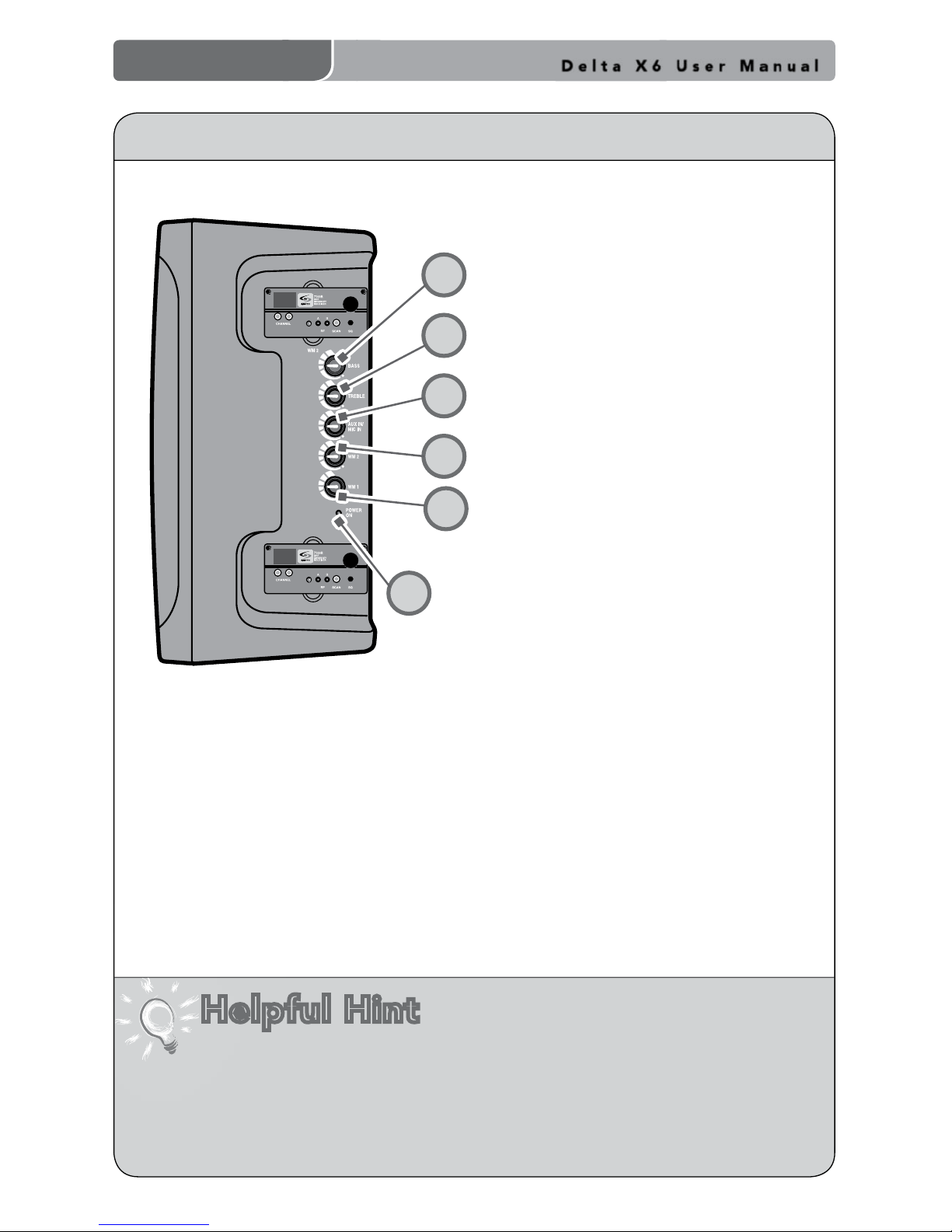

1. BASS: Controls the level of low frequency

sound output for the system.

2. TREBLE: Controls the level of high

frequency sound output for the system.

3. AUX IN/MIC IN: Controls the volume

of a wired microphone plugged into MIC IN on the back of the system and the volume of an auxiliary piece of equipment plugged into the AUX IN on the back of the system.

4. WIRELESS MIC 2: Controls the volume of

Wireless Microphone 2 (WM2) if a second wireless receiver is installed.

5. POWER/WIRELESS MIC 1: Turn this

knob clockwise to power up the system. Rotate to adjust the volume of Wireless Microphone 1 (WM1).

6. POWER LED: Glows GREEN when the

system is powered on..

TOP PANEL CONTROLS AND CONNECTIONS

LOW BAT

Helpful Hint

Reducing Feedback:

The BASS and TREBLE controls can be used to reduce feedback

(“squealing” or “howling”). If you hear high-pitched squealing, lower the treble setting. If you hear low-pitched howling, lower the bass setting.

Page 9

Delta X6 User Manual

5 | Delta X6 User Manual

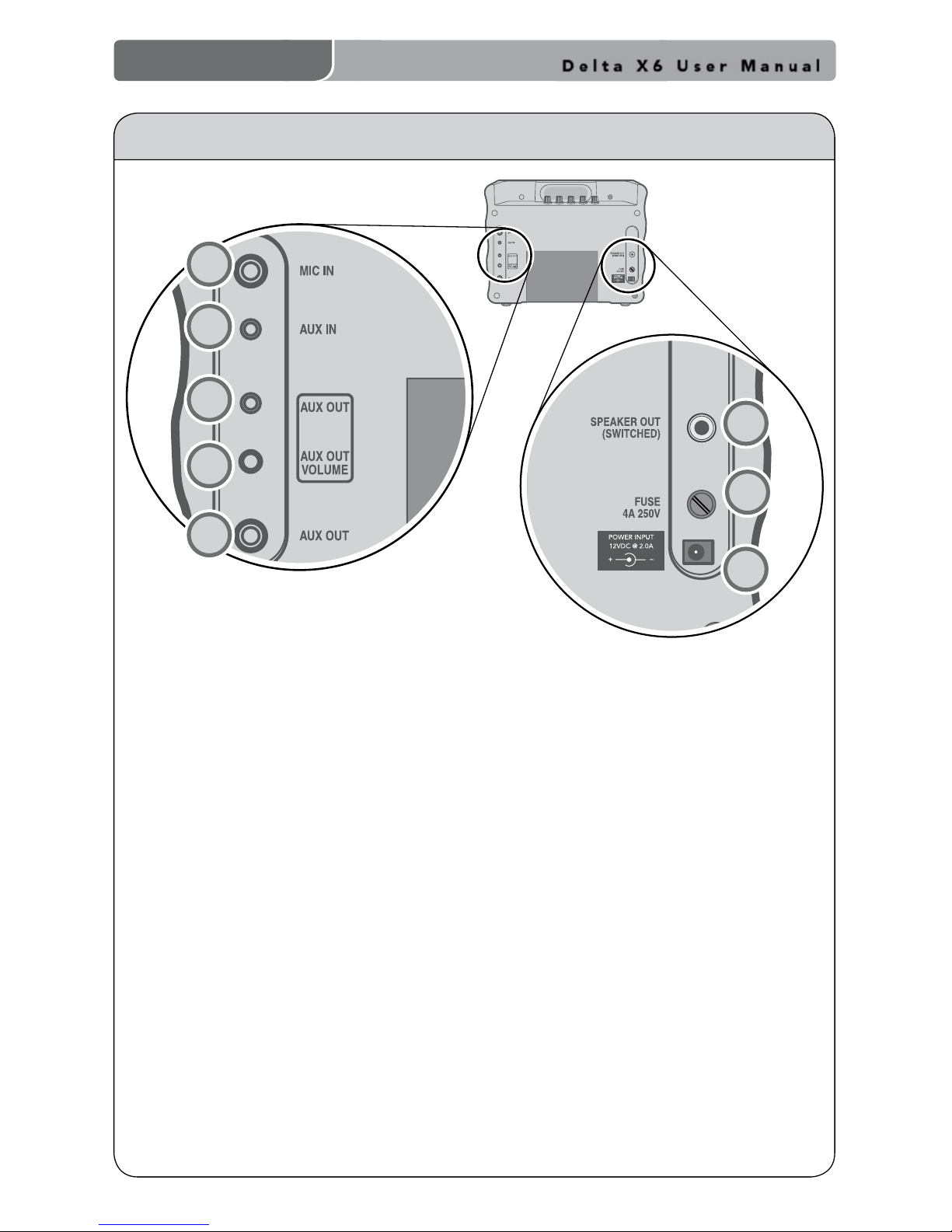

1. MIC IN: This ¼” jack provides an input for a wired handheld microphone.

2. AUX IN: This 3.5 mm jack provides an input for audio from an external device, such as a

CD player, MP3 player, TV/VCR, computer, etc. [NOTE: the Delta X6 does not output in stereo; only one channel of the input mix will be heard.]

3. AUX OUT: This 3.5 mm jack provides an adjustable-level audio output that can be

connected to a recorder or assistive listening device.

4. AUX OUT VOLUME: This knob controls the level of the 3.5 mm AUX OUT jack.

Counterclockwise represents a microphone level signal, while fully clockwise represents a line level signal.

5. AUX OUT: This ¼” jack provides a line level output signal that can be connected to a

recorder, assistive listening device, etc.

6. SPEAKER OUT (SWITCHED): This ¼” jack can be used to connect to an external passive

speaker. [NOTE: connection to this jack will mute the internal speaker of the Delta X6.]

7. FUSE: The fuse holder is accessible using a ﬂat-blade screwdriver. Push in and rotate ¼

turn counterclockwise to remove. [NOTE: replacement is a 4A 250V fuse.]

8. DC POWER: This jack provides a connection for the Delta X6 power supply.

REAR PANEL CONTROLS AND CONNECTIONS

Page 10

Delta X6 User Manual

Delta X6 User Manual | 6

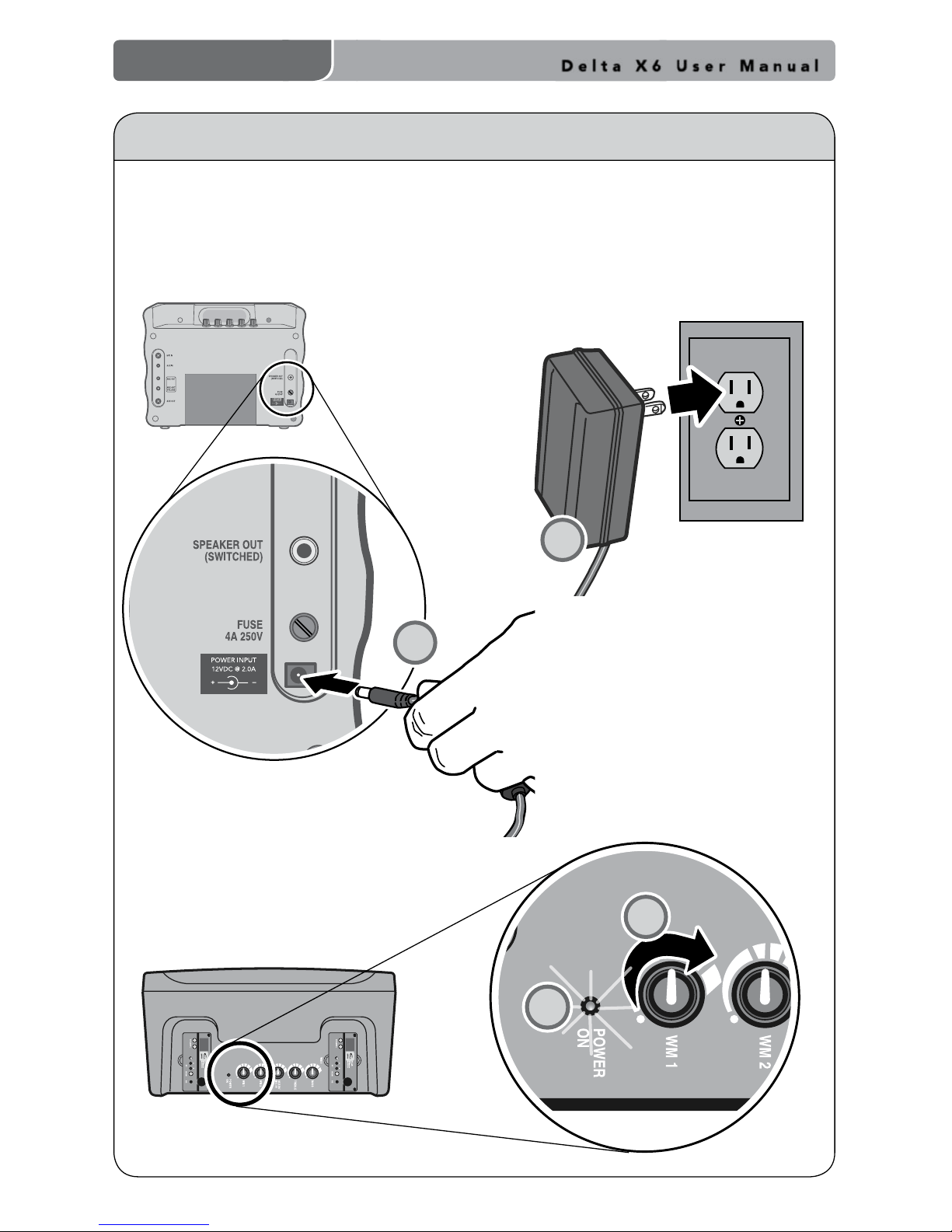

CONNECTING THE POWER SUPPLY

1. Locate the power supply.

2. Insert the DC connector into the “POWER INPUT” connector on the bottom of the Delta

X6 and plug the other end to an electrical outlet.

3. Turn the POWER/WIRELESS MIC1 knob

clockwise to turn the system on.

4. The GREEN LED will light to conﬁrm the

system is powered up..

LOW

BAT

Page 11

Delta X6 User Manual

7 | Delta X6 User Manual

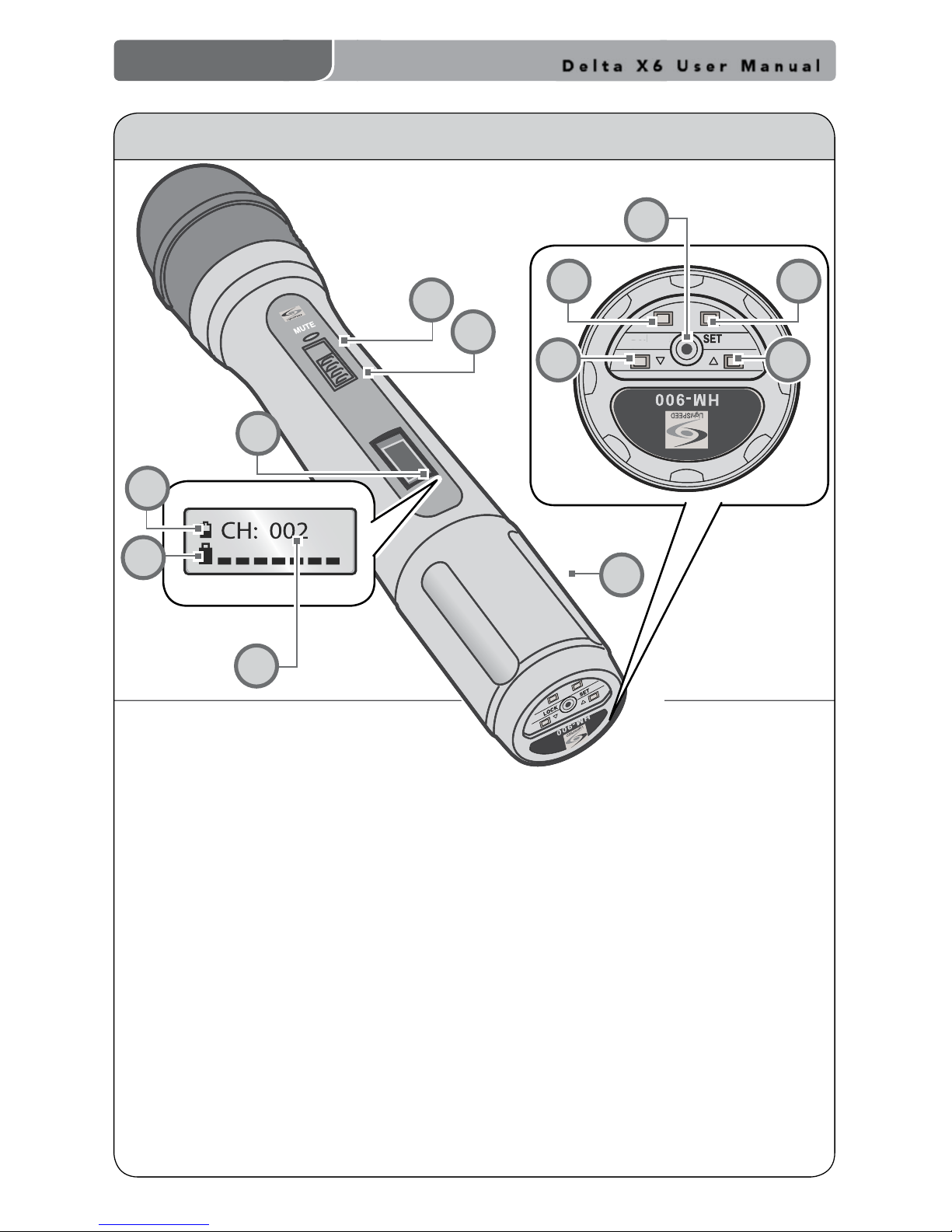

1. RED LED: Lights up brieﬂy when power is

switched on, ﬂashes continuously when audio signal is muted.

MUTE Switch: Turns the audio ON and

OFF. The RED LED will ﬂash when mute is engaged. If muted for 30 minutes the unit will power down.

LCD Display: Information screen appears

when the power is switched on.

Battery Life Indicator: Roughly indicates

amount of charge on microphone batteries.

7 Step Fuel Gauge: Acts as a detailed

guide to show the actual life of the battery.

Channel Indicator: Indicates which

channel the microphone is set to.

Power Button: Turns the transmitter ON

and OFF. (Hold for 2 seconds.)

HANDHELD MICROPHONE CONTROLS AND CONNECTIONS

PWR

7 8

9 10

8. Set Button: This button is used to enter

and save changes to the transmitter settings.

DN Button: This button scrolls DOWN

between setup screens on the LCD display. Also used to enter changes in each setup screen.

10. UP Button

: This button scrolls UP

between setup screens on the LCD display. Also used to enter changes in each setup screen.

11.

Battery Charge Jack: Optional battery

charger plugs in here. (For NiMH batteries only)

12. Battery Compartment

: Bottom section

of microphone barrel unscrews to reveal battery compartment.

Page 12

Delta X6 User Manual

Delta X6 User Manual | 8

OPTIONAL BELT-PACK CONTROLS AND CONNECTIONS

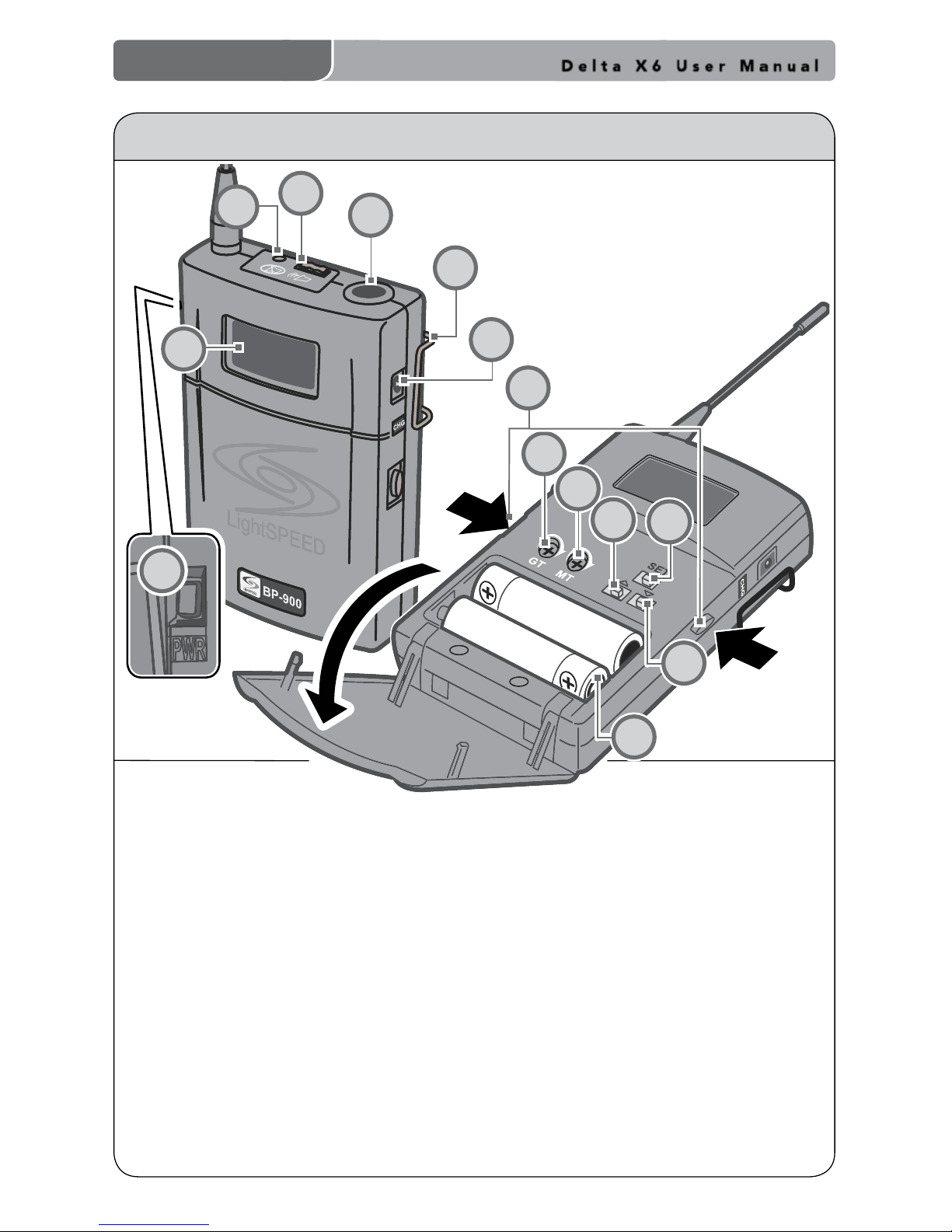

1. ON/OFF Button: Turns the transmitter ON.

LCD Display: Information screen appears

when the power is switched on.

RED LED: Lights up brieﬂy when power is

switched ON, ﬂashes continuously when audio signal is muted.

Mute Switch: Turns the audio signal ON

and OFF. The RED LED will ﬂash when MUTE is engaged. If muted for 30 minutes, the unit will power down.

Microphone Jack: Microphone connects to

transmitter here.

Belt Clip

7. Battery Charger Jack: Optional battery

charger plugs in here (for NiMH batteries only.)

Door Latches: A door latch is located on

each side. Press both to open the battery compartment door.

GT (Transmitter Gain): Provides

adjustment for differing voice levels and microphone sensitivities.

10.

MT (Microphone Gain): Provides

adjustment for differing voice levels and microphone sensitivities.

11.

SET Button: This button is used to enter

and save changes in each setup screen.

12.

UP Button: This button scrolls UP

between setup screens on the LCD display. It is also used to enter changes in each setup screen.

13.

DOWN Button: This button scrolls

DOWN between setup screens on the LCD display. It is also used to enter changes in each setup screen.

14.

Battery Compartment

Page 13

Delta X6 User Manual

9 | Delta X6 User Manual

SECTION 2

System Operation and Optional Features

Page 14

Delta X6 User Manual

Delta X6 User Manual | 10

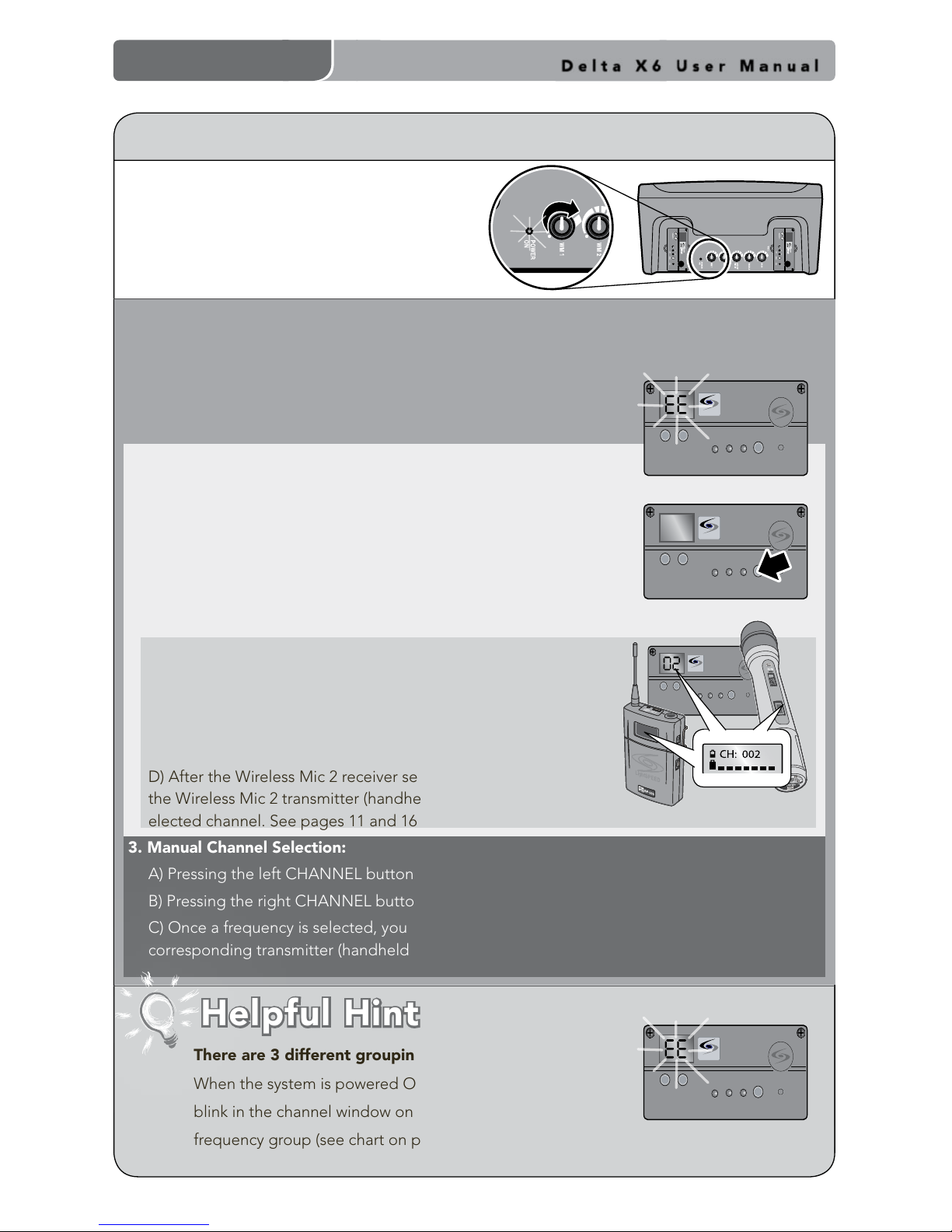

OPERATING INSTRUCTIONS: WIRELESS RECEIVERS

1. Turn the Delta X6 ON by rotating the WM1 knob clockwise. The GREEN LED will light.

LOW

BAT

Helpful Hint

There are 3 different groupings of 100 channels available.

When the system is powered ON, the two letters that initially

blink in the channel window on the receiver indicate the

frequency group (see chart on page 25 for further details).

LightSPEED

7100R

UHF TRUE DIVERSITY RECEIVER

A B

LOW BAT

SCAN SQ

CHANNEL

LightSPEED

7100R

UHF TRUE DIVERSITY RECEIVER

LOW BAT

SCAN SQ

CHANNEL

LightSPEED

7100R

UHF TRUE DIVERSITY RECEIVER

A B

LOW BAT

SCAN SQ

CHANNEL

LightSPEED

7100R

UHF TRUE DIVERSITY RECEIVER

LOW BAT

SCAN SQ

CHANNEL

Channel Selection: Receiver Each Receiver has 100 user-selectable channels to choose from. You can either select a channel

manually or by pressing the SCAN button, which will automatically select a clear channel.

2. When the system is switched on, the receiver will have two letters

ﬂashing on the screen to indicate the corresponding frequency group. (See Helpful Hint below)

3. Clear Channel SCAN (recommended):

A) Make sure the transmitter(s) is OFF before pressing this button.

When this button is pressed, the receiver will cycle through all 100 channels and select a clear frequency. (This process takes about 20 seconds.)

B) Once the receiver selects the clear channel, you will need to

select the same channel on the corresponding transmitter (handheld or belt-pack). See pages 11 and 16 for instructions.

If you have a second receiver:

A) Verify that Wireless Mic 1 transmitter and receiver are ON

and set to the same clear channel.

B) Make sure the transmitter for Wireless Mic 2 is turned OFF.

C) Press the SCAN button on the Wireless Mic 2 receiver.

D) After the Wireless Mic 2 receiver selects a clear channel, set

the Wireless Mic 2 transmitter (handheld or belt-pack) to the elected channel. See pages 11 and 16 for instructions.

3. Manual Channel Selection:

A) Pressing the left CHANNEL button changes the ﬁrst number (0-9).

B) Pressing the right CHANNEL button changes the second number (0-9).

C) Once a frequency is selected, you will need to select the same channel on the

corresponding transmitter (handheld or belt-pack). See pages 11 and 16 for instructions.

Page 15

Delta X6 User Manual

11 | Delta X6 User Manual

Helpful Hint

Transmitters and receivers are available in 3 different frequency groups. Verify that the letter code that blinks on the receiver (when powered ON) matches the letter code on the silver sticker in the battery compartment of the transmitter.

1. Turn on the microphone by holding the power button on

the bottom of the barrel for approximately two seconds

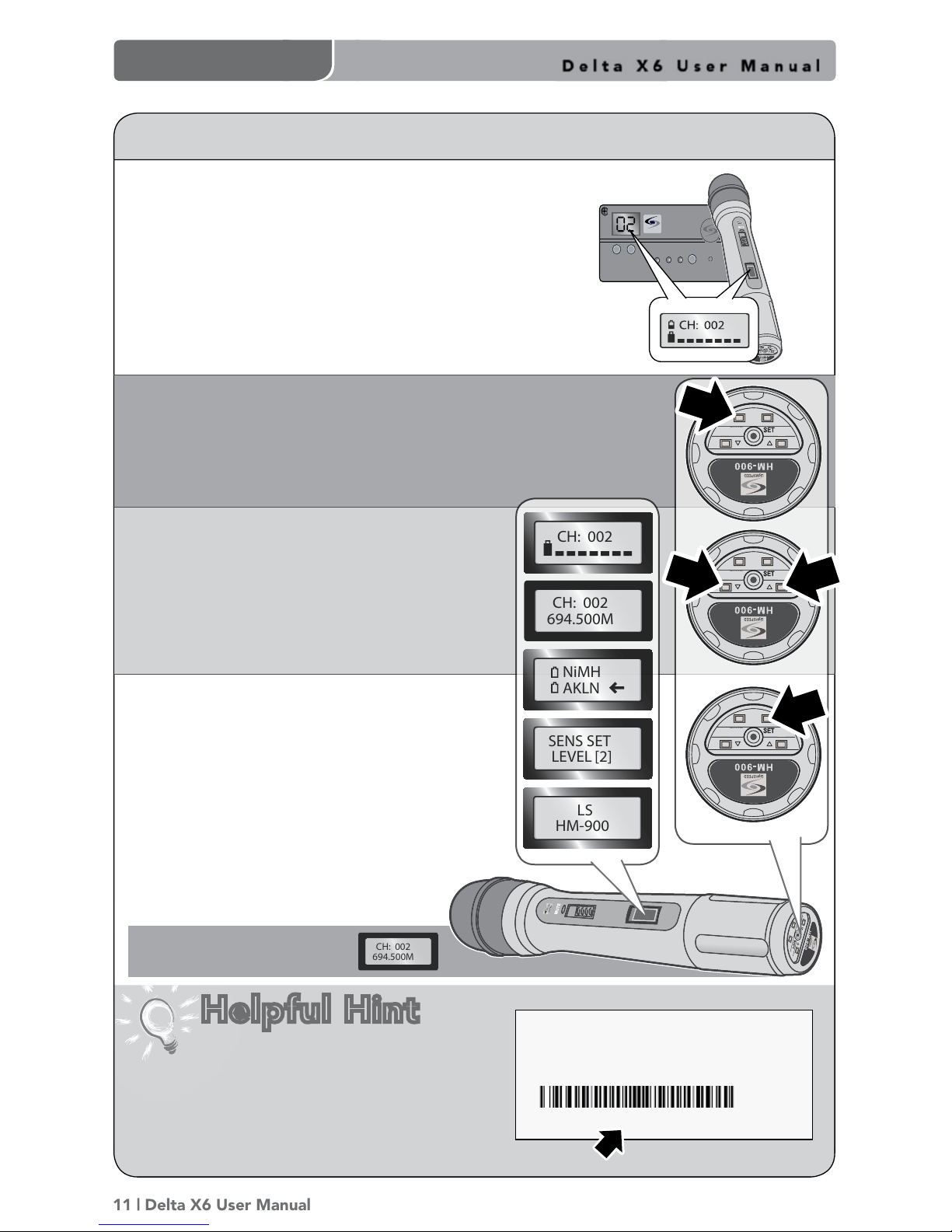

OPERATING INSTRUCTIONS: HANDHELD MICROPHONE

2. Use the UP and DN buttons to

select a screen that shows the

current channel.

3. To change the channel, press and hold the

SET button for about 3 seconds until there is a

blinking cursor on the LCD display window.

4. Use the UP and DN buttons to set the channel

to match the receiver.

5. Press and hold the SET button for about

3 seconds again until the blinking cursor

disappears and the RED LED ﬂashes.

Channel Selection: Handheld Transmitter

Once a channel has been selected on the receiver, you now need to select that same channel on the handheld transmitter. If you have a belt-pack transmitter, go to page 16 for

channel selection instructions.

To set the channel for the Handheld Transmitter:

LightSPEED

7100R

UHF TRUE DIVERSITY RECEIVER

LOW BAT

SCAN SQ

CHANNEL

Model Number: HM900

Serial Number

HM90014324024

FREQUENCY L-670 MADE IN TAIWAN

PWR

CH: 002

694.500M

HM-900

SENS SET

LEVEL [2]

NiMH AKLN

NOTE: To read the frequency in MHz, press UP once .

CH: 002

694.500M

Page 16

Delta X6 User Manual

Delta X6 User Manual | 12

OPERATING INSTRUCTIONS: HANDHELD MICROPHONE

1. Press the UP button 3 times to get to the

Sensitivity Level screen.

2. Press and hold the SET button until a

blinking cursor appears.

3. Use the UP and DN buttons to make a

selection (1-4).

4. Press and hold SET until the blinking cursor

disappears.

Transmitter Mute

The mute switch turns the transmitter’s audio signal ON and OFF. The audio is muted when the RED LED is ﬂashing.

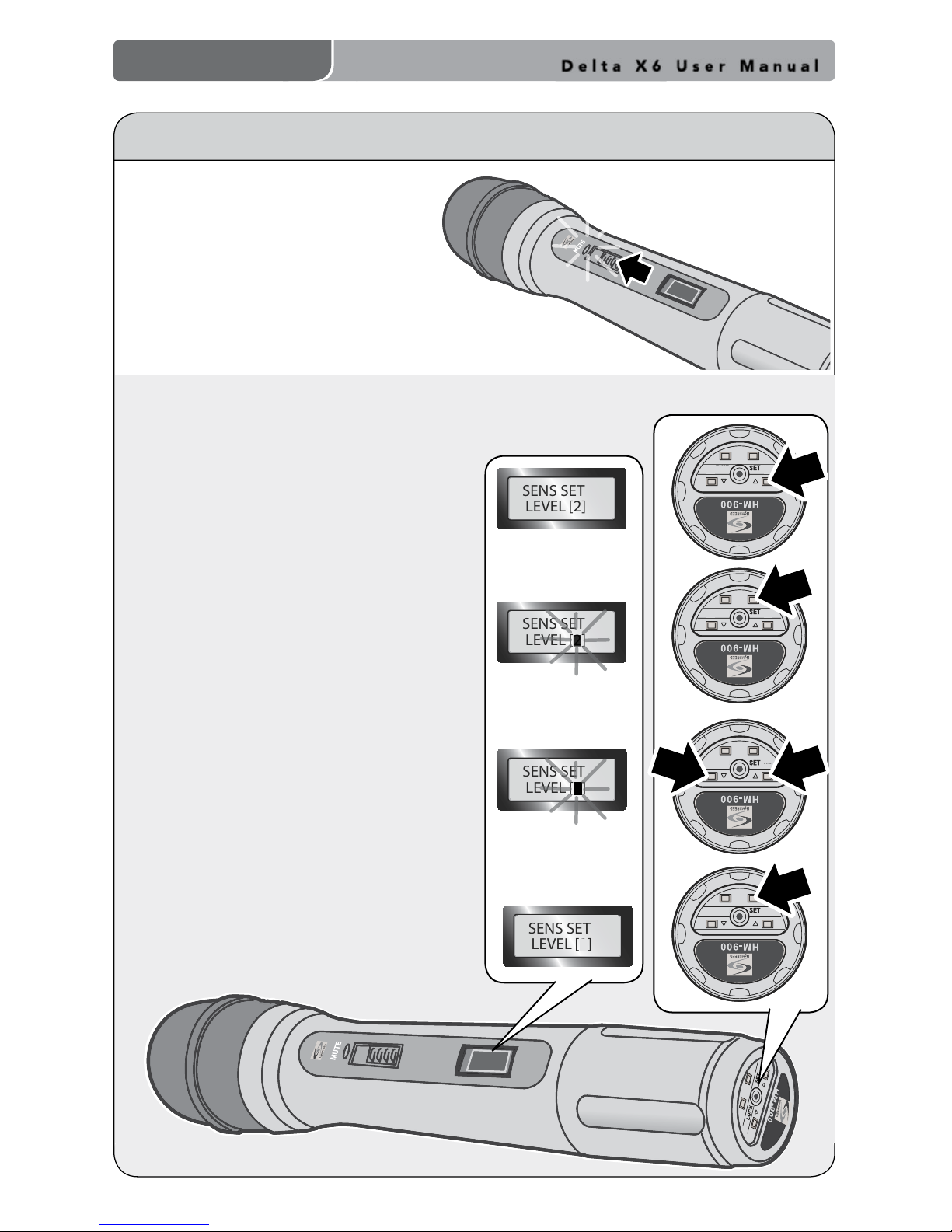

Sensitivity Level

This function allows the user to set the gain structure of the microphone to best ﬁt the voice level of the person speaking into it. A person with a very loud, booming voice may want the microphone set to sensitivity level of 1 or 2. A person with a very soft voice will be better off with the microphone set to a sensitivity 3 or 4.

To change the sensitivity setting:

PWR

CH: 002

694.500M

SENS SET

LEVEL [2]

NiMH AKLN

CH: 002

694.500M

SENS SET

LEVEL [2]

NiMH AKLN

CH: 002

694.500M

SENS SET

LEVEL [2]

NiMH AKLN

CH: 002

694.500M

SENS SET

LEVEL [2]

NiMH AKLN

Page 17

Delta X6 User Manual

13 | Delta X6 User Manual

NOTE: Do not mix battery types.

OPERATING INSTRUCTIONS: HANDHELD MICROPHONE

Battery Life Indicator

The battery life is shown on the primary screen of the LCD. The 7-step fuel gauge acts as a detailed guide to show the actual life of the battery.

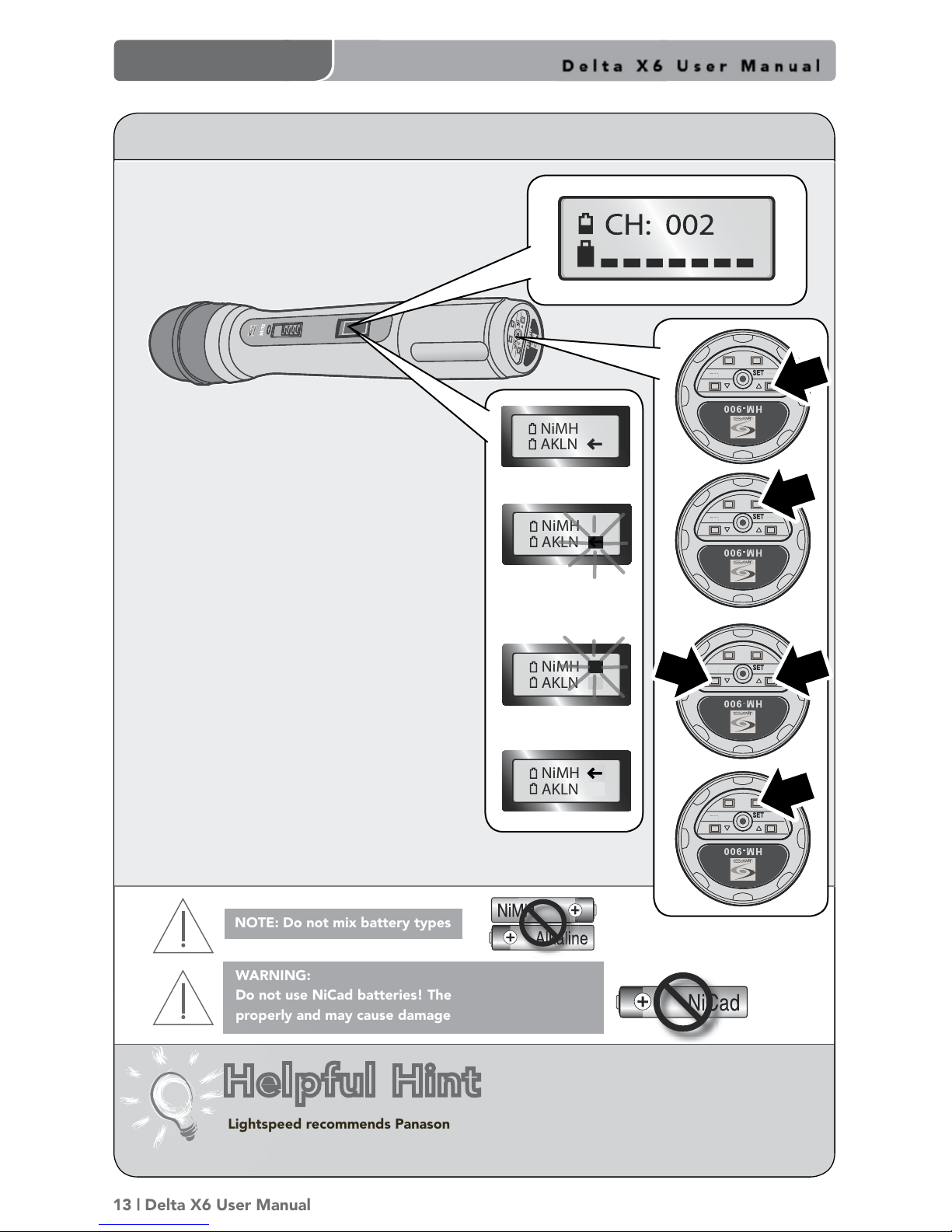

Battery Type

The transmitter will operate with either standard AA alkaline batteries or nickel metal hydride (NiMH) rechargeable batteries. Since these types of batteries have different characteristics, it is important to set the transmitter to the appropriate type of battery being used so that the Battery Life Indicator will operate properly.

To change the Battery Type setting:

WARNING: Do not use NiCad batteries! They will not charge properly and may cause damage to the transmitter.

Lightspeed recommends Panasonic or Energizer batteries. Duracell may not work.

Helpful Hint

1. Press the UP button 2 times to get to the

Battery Type screen.

2. Press and hold the SET button until a blinking cursor appears.

3. Use the UP and DN buttons to make a selection.

4. Press and hold SET until the blinking cursor disappears.

PWR

CH: 002

694.500M

NiMH AKLN

CH: 002

694.500M

NiMH AKLN

CH: 002

694.500M

NiMH AKLN

CH: 002

694.500M

NiMH AKLN

Page 18

Delta X6 User Manual

Delta X6 User Manual | 14

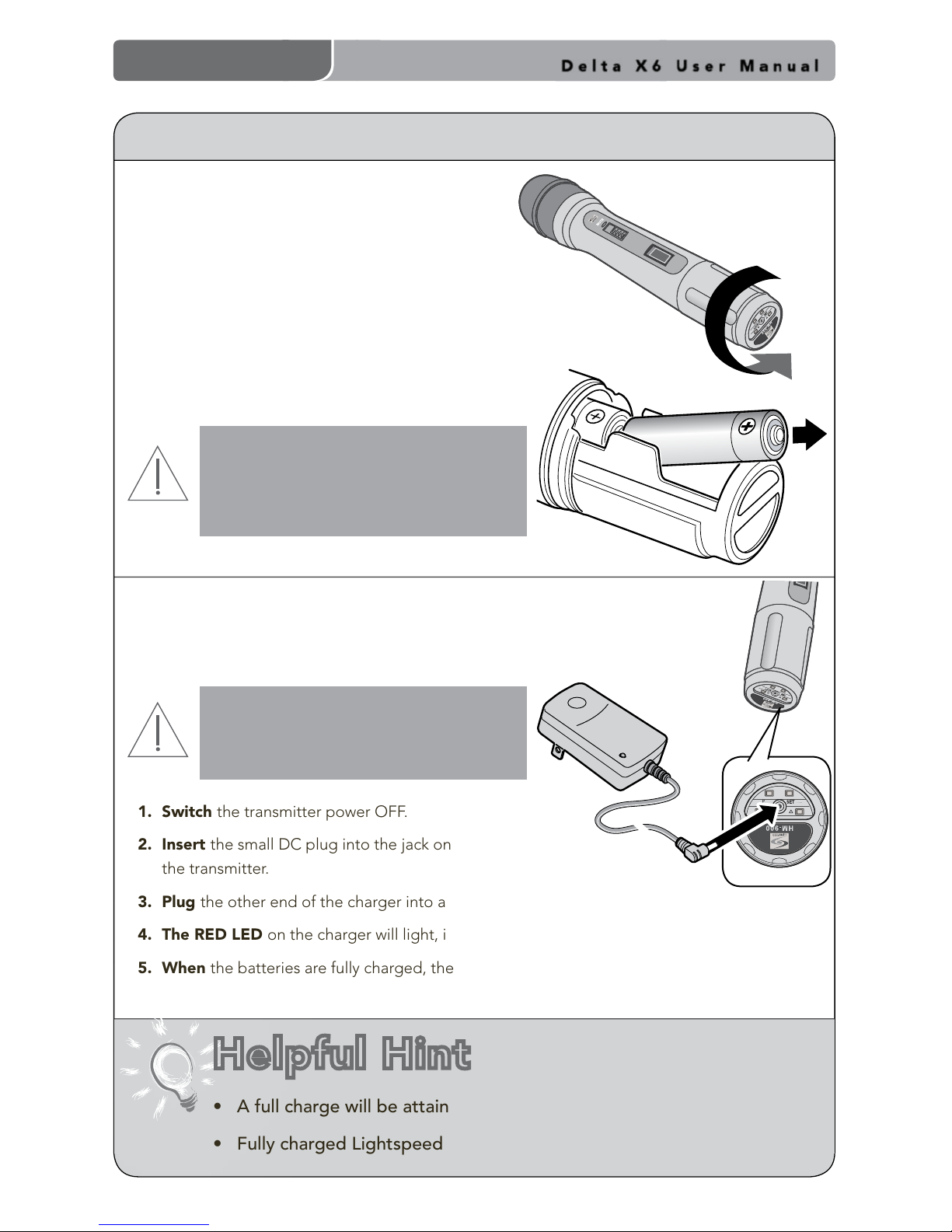

1. Switch the transmitter power OFF.

2. Insert the small DC plug into the jack on the bottom of

the transmitter.

3. Plug the other end of the charger into any standard 110 VAC outlet.

4. The RED LED on the charger will light, indicating that charging is in progress.

5. When the batteries are fully charged, the LED on the charger will glow GREEN.

PWR

• Afullchargewillbeattainedin8-10hours

• FullychargedLightspeedmicrophoneswilllastover7hours

Helpful Hint

OPERATING INSTRUCTIONS: HANDHELD MICROPHONE

Replacing the Batteries:

1. Unscrew the end cap to reveal the battery

compartment.

2. Remove or replace the batteries as shown. The microphone requires two AA sized batteries stacked end to end.

3. Note the polarity in the battery compartment.

Recharging the Batteries (NiMH Rechargeable Batteries ONLY):

Make sure there are NiMH rechargeable batteries in the transmitter before plugging in the charger.

IMPORTANT: Replace batteries with the same type, (alkaline or NiMH), that were installed in your Handheld Microphone. Lightspeed recommends Panasonic or Energizer batteries. Duracell may not work properly.

WARNING: Do not attempt to charge alkaline batteries. They can overheat and expand, creating a signiﬁcant hazard and damaging the transmitter. (This is not covered by warranty.)

Page 19

Delta X6 User Manual

15 | Delta X6 User Manual

OPERATING INSTRUCTIONS: BELT-PACK TRANSMITTER

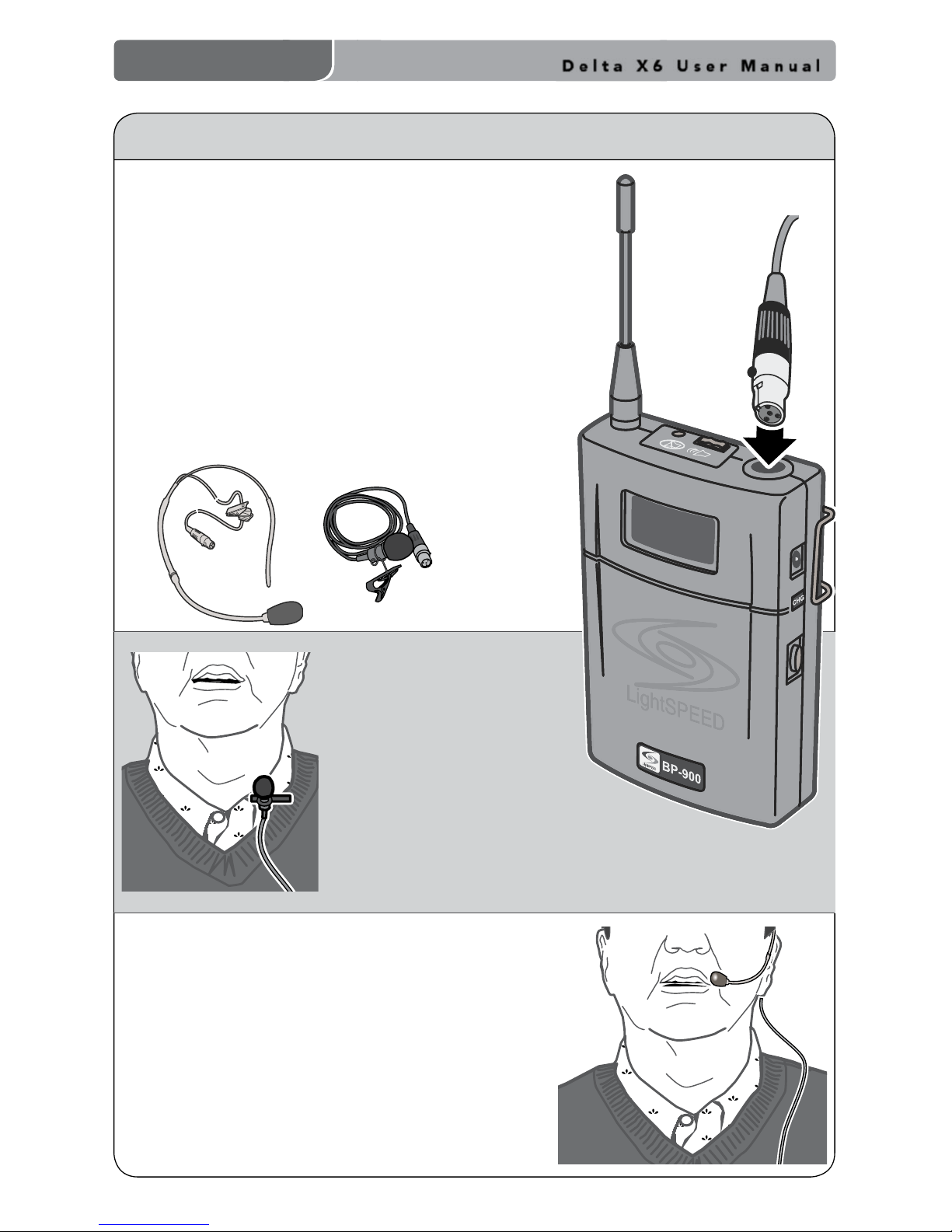

Connecting the Microphone:

Lightspeed offers various types of microphones that can be used with this system. To connect the microphone, simply insert the microphone connector into the TA4F connector on top of the transmitter. To remove, press the black button on the microphone connector and pull out.

Microphone Options:

The BP-900 Transmitter can be used with either a lapel style microphone or a headset microphone. Both plug into the top of the transmitter as shown.

Lapel Microphone Placement:

Several varieties of lapel microphones are available. Simply connect the microphone cord directly into the jack on top of the transmitter and clip the microphone to lapel or collar. For optimal sound, position the microphone as close to the mouth as possible.

Headset Microphone Placement:

Several varieties of headset microphones are available. Simply connect the microphone cord directly into the jack on top of the transmitter and place the headset around the back of the head. For optimal sound, position the microphone at the corner of the mouth.

Page 20

Delta X6 User Manual

Delta X6 User Manual | 16

NOTE: To read the frequency in MHz, press UP once .

CH: 002

694.500M

OPERATING INSTRUCTIONS: BELT-PACK TRANSMITTER

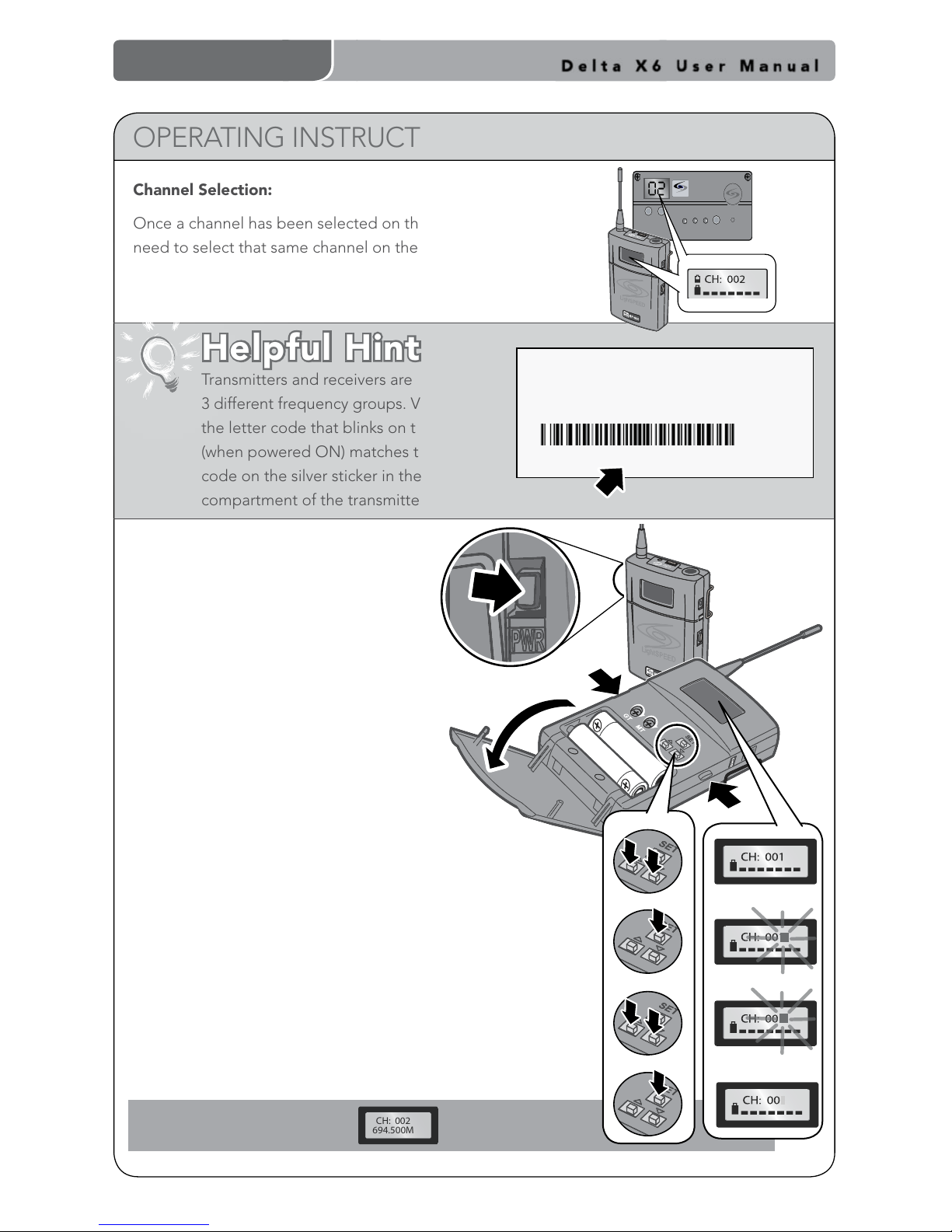

Channel Selection:

Once a channel has been selected on the receiver, you now need to select that same channel on the Belt-pack transmitter.

Helpful Hint

Model Number: BP900

Serial Number

BP90014324024

FREQUENCY L-670 MADE IN TAIWAN

1. Turn the transmitter power ON by pressing the and holding the PWR button on the side for about two seconds. The LCD display will appear.

2. Open the battery compartment door by depressing the latches on each side of the transmitter.

3. Use the UP and DN buttons to select a screen that shows the current channel.

4. To change the channel, press and hold the SET button for about 3 seconds until there is a blinking cursor on the LCD display window.

5. Use the UP and DN buttons to set the channel to match the receiver.

6. Press and hold the SET button again for about 3 seconds until the blinking cursor disappears.

LightSPEED

7100R

UHF TRUE DIVERSITY RECEIVER

LOW BAT

SCAN SQ

CHANNEL

Page 21

Delta X6 User Manual

17 | Delta X6 User Manual

OPERATING INSTRUCTIONS: BELT-PACK TRANSMITTER

Transmitter Mute:

The MUTE switch turns the transmitter’s audio signal on or off. The audio is OFF when the RED LED is ﬂashing.

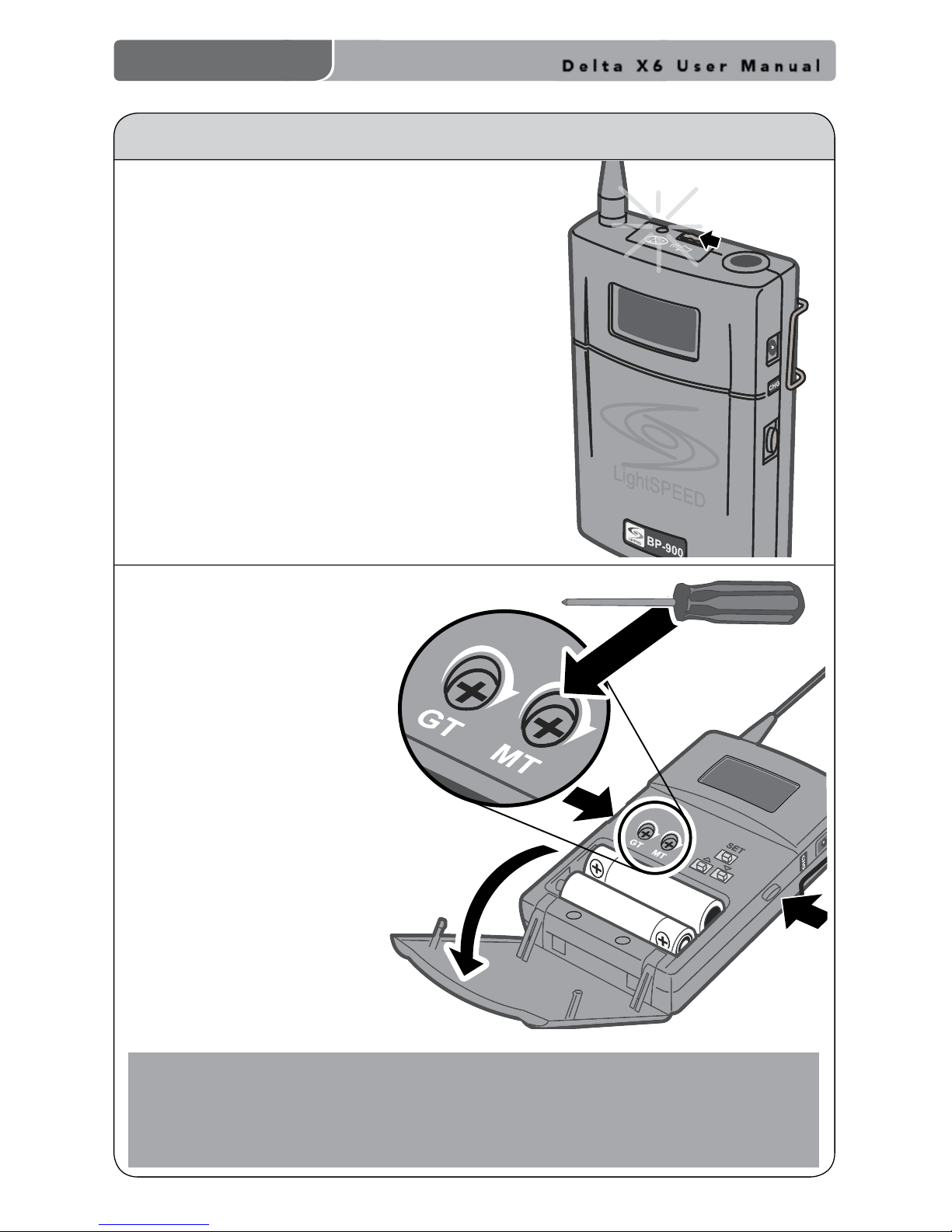

Gain Adjust:

When changing microphones or users, it may be necessary to adjust the transmitter gain based on differing microphones sensitivities and voice levels.

To adjust the gain:

1. Open the battery compartment

door by depressing the latches on each side of the transmitter.

2. Turn the MT dial clockwise to increase the gain and counterclockwise to decrease the gain.

NOTE: If you are using a high impedance source, such as a guitar, it will be necessary to adjust the GT dial. Using a high impedance source requires a special cable. Contact Lightspeed Customer Service at 800-732-8999 for more information.

Page 22

Delta X6 User Manual

Delta X6 User Manual | 18

NOTE: Do not mix battery types.

Battery Life Indicator

The battery life is shown on the primary screen of the LCD. The 7-step fuel gauge acts as a detailed guide to show the actual life of the battery.

Battery Type

To change the Battery Type setting:

WARNING: Do not use NiCad batteries! They will not charge properly and may cause damage to the transmitter.

Lightspeed recommends Panasonic or Energizer batteries. Duracell may not work.

Helpful Hint

1. Press the UP button 2 times to get to the

Battery Type screen.

2. Press and hold the SET button until a blinking cursor appears.

3. Use the UP and DN buttons to make a selection.

4. Press and hold SET until the blinking cursor disappears.

OPERATING INSTRUCTIONS: BELT-PACK TRANSMITTER

CH: 002

694.500M

NiMH AKLN

CH: 002

694.500M

NiMH AKLN

CH: 002

694.500M

NiMH AKLN

CH: 002

694.500M

NiMH AKLN

Page 23

Delta X6 User Manual

19 | Delta X6 User Manual

• Typicalbatterylifeisabout8hours.

• Afullchargewillbeattainedin8-10hours

• FullychargedLightspeedtransmitterswilllastover7hours

Helpful Hint

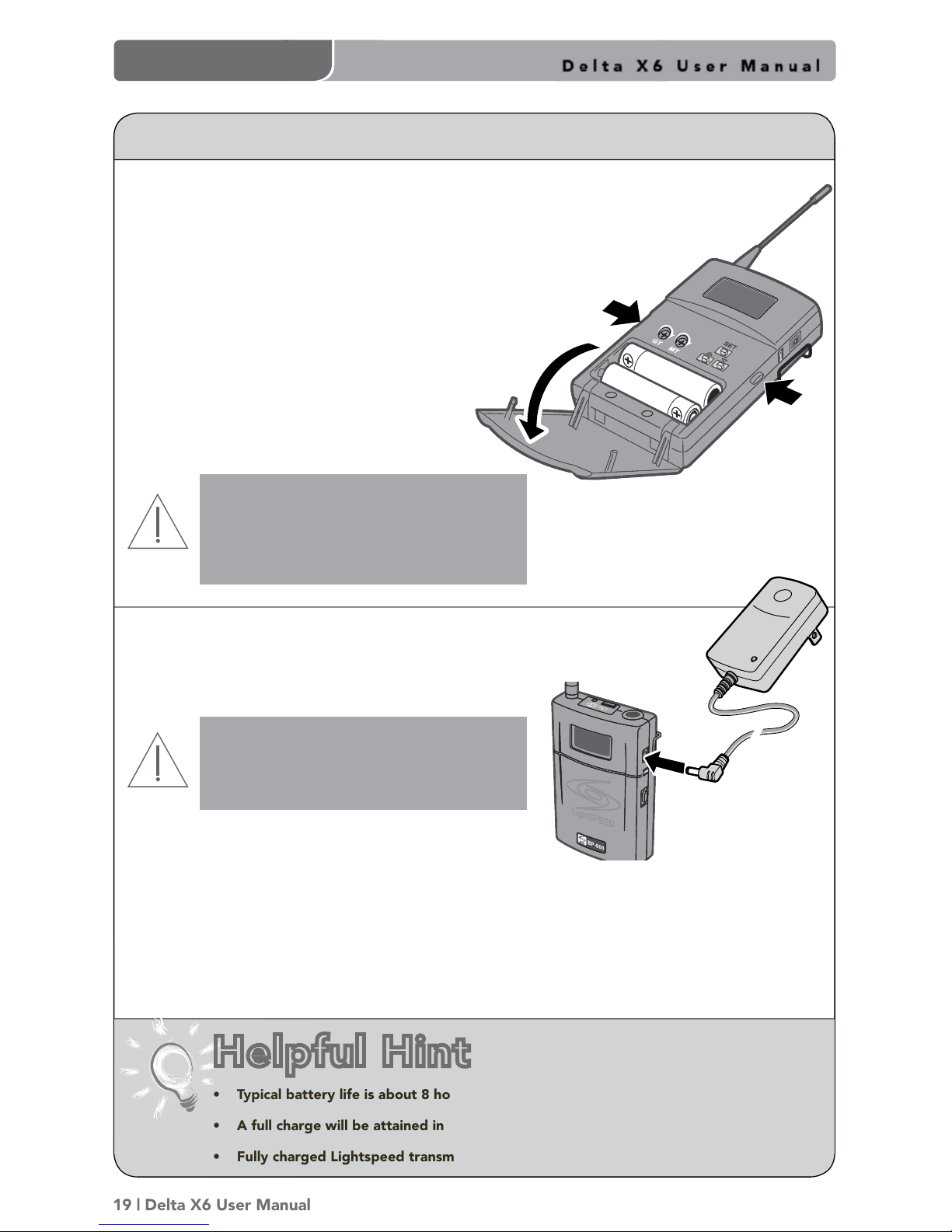

Replacing the Batteries:

1. Open the battery compartment door by

depressing the latches on each side of the transmitter.

2. Remove or replace the batteries and snap the door shut. The belt-pack requires two AA sized batteries.

3. Note the polarity in the battery compartment.

Recharging the Batteries (NiMH Rechargeable Batteries ONLY):

Make sure there are NiMH rechargeable batteries in the transmitter before plugging in the charger.

WARNING: Do not attempt to charge alkaline batteries. They can overheat and expand, creating a signiﬁcant hazard and damaging the transmitter. (This is not covered by warranty.)

OPERATING INSTRUCTIONS: BELT-PACK TRANSMITTER

1. Switch the transmitter power OFF.

2. Insert the small DC plug into the jack on the side of the transmitter.

3. Plug the other end of the charger into any standard 110 VAC outlet.

4. The RED LED on the charger will light, indicating that charging is in progress.

5. When the batteries are fully charged, the LED on the charger will glow GREEN.

Page 24

Delta X6 User Manual

Delta X6 User Manual | 20

SECTION 3

Troubleshooting, Daily Use and Warranty

Page 25

Delta X6 User Manual

21 | Delta X6 User Manual

TROUBLESHOOTING GUIDE

If you review these instructions and still have questions, write down the serial number and model number of your system and call Lightspeed Technical Services at 800.732.8999, 5 a.m. – 5 p.m. PST.

NOTE: Most problems are directly related to low battery power. Please run through the “Battery Check” items ﬁrst. For remaining troubleshooting, use known good, fully-charged batteries.

No sound when someone speaks into the wireless microphone:

1. Delta X6 power should be ON. The

GREEN LED should be lit. If it does not light when the system is switched on, make sure the AC power supply is plugged in.

2. Microphone/transmitter power should be ON.

If the LCD display does not show, the batteries are most likely too weak. If the batteries are rechargeable, plug the microphone/transmitter into the charger. If the batteries are alkaline, replace them with new alkaline batteries

WARNING: Do not attempt to charge

alkaline batteries. They can overheat and expand, creating a signiﬁcant hazard and damaging the warranty. (This is not covered by warranty.).

3. The transmitter and receiver should be set to the same channel.

The BLUE RF LED (A

or B) should be lit.

4. Make sure the MUTE light is not ﬂashing.

Switch the transmitter/microphone off of MUTE.

5. Verify that receiver and transmitter are in the same frequency group.

Turn the Delta X6 OFF and then ON again. The letter code from the frequency group will blink on the receiver module. Open the battery compartment on the transmitter and be sure that frequency group printed on the sticker matches the frequency group letter code that blinked when the Delta X6 powered ON. If the letters are different, ﬁnd a microphone or belt-pack with the same frequency group as the receiver indicates when the Delta X6 is turned ON.

The wireless microphone is experiencing drop-out or interference:

1. The wireless frequency being used may not be a clear channel.

Turn the transmitter OFF and press the SCAN button on the receiver to ﬁnd a clear frequency. Then select the same channel on the transmitter.

2. Transmitter is out of range of receiver.

The transmitters have a maximum range of about 300-350 feet in an open ﬁeld environment. This range can be dramatically reduced indoors and outdoors when large objects (such as a wall) may be obstructing the path directly between transmitter and receiver. If so, position the two closer together.

3. Batteries are very weak. Right before

the batteries are about to die, the overall performance of the system can be drastically lessened. Check the battery status of the transmitter.

Low Volume or Feedback:

1. Ensure microphone is positioned appropriately.

2. Check volume level on the ampliﬁer. If the

volume is too high, feedback will occur. Adjust accordingly.

Page 26

Delta X6 User Manual

Delta X6 User Manual | 22

1. WIRELESS MICROPHONE OPERATION

RF Indicator Lights: When both the system

and the transmitter are ON and operating on

the same channel you will see a BLUE glow-

ing RF Indicator Light (either A or B) on the

receiver.

This LED will light to indicate the batteries in

the corresponding transmitter are low and

need to be replaced or recharged.

Adjusting the squelch level may be necessary

to block out potential interference in areas

that have that have very high radio trafﬁc.

• Maximumsquelch(fullclockwise)reduces

reception range but also reduces the potential

for system interference.

•Minimumsquelch(fullcounterclockwise)

increases reception range, but also increases

the potential for system interference.

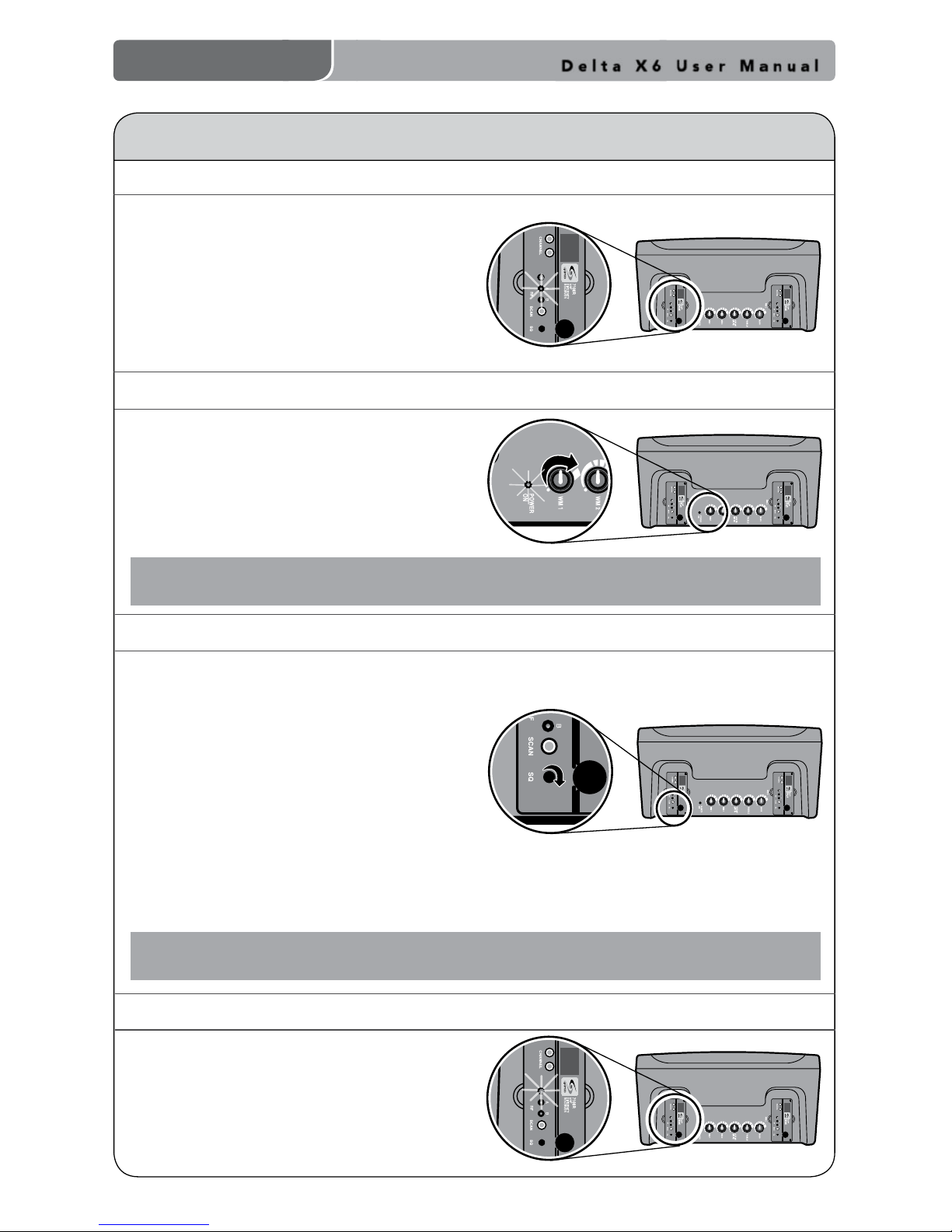

DAILY USE INSTRUCTIONS

2. VOLUME ADJUSTMENT

3. SQUELCH ADJUSTMENT

4. TRANSMITTER LOW BATTERY INDICATOR

While speaking into the microphone, slowly

turn the WM1 volume knob (or WM2,

depending on which microphone you are

operating) clockwise until you reach the

desired level.

LOW

BAT

LOW

BAT

LOW

BAT

LOW

BAT

LOW

BAT

NOTE: Do not stand directly in front of the Delta X6 speaker with the microphone on. This will result in feedback or ‘squealing.’ It is best to stand behind or to the side of the unit when setting volume level.

NOTE: In most cases it will not be necessary to adjust the squelch level. The system already has a clear channel scanner to take care of most interference problems.

LOW

BAT

LOW

BAT

Page 27

Delta X6 User Manual

23 | Delta X6 User Manual

Six-year Limited Warranty

Lightspeed Classroom Audio Systems are guaranteed against malfunction due to defects in materials and workmanship for a period of SIX (6) YEARS, beginning at the date of the purchase invoice. If such malfunction occurs, the product will be repaired or replaced (at Lightspeed’s option) without charge during the warranty period, subject to the following conditions:

1. The product must have been purchased from an authorized Lightspeed Technologies Dealer or representative.

2. Lightspeed Technologies must perform all warranty service. Any service performed without the authorization of Lightspeed Technologies will void the entire warranty.

3. This warranty does not cover any product that has been subjected to negligent use, connection to improper power source, misuse, or operated beyond its manufactured speciﬁcations and limits, or has not been reasonably maintained.

4. Warranty shall not apply to alkaline or NiMH batteries, exterior ﬁnish, AC power cords, bulbs, or any other failings due to normal wear.

5. Warranty is void when equipment is subjected to adverse temperature, humidity, moisture, or other conditions that are not considered normal environmental conditions.

6. This warranty excludes all damages or defects caused by shipping, transporting, or inadequate packaging for shipping.

7. Customers are responsible for freight charges to Lightspeed Technologies for service. Lightspeed Technologies will pay for return freight to the end user by most reasonable method.

The warranty period for each system and component type is listed below:

Delta X6: Six (6) years from the date of original purchase.

RF Wireless Transmitters and Receivers: Three (3) years from the date of purchase.

CD Players and Lead-Acid Batteries: Two (2) years from the date of purchase.

Microphones and Cases: One (1) year from date of purchase.

Products will be replaced or repaired at Lightspeed Technologies’ option during the warranty period.

For warranty service, please contact Lightspeed Customer Service Department to obtain return authorization approval and an RA number.

Our Service Department (800.732.8999, 5 a.m. – 5 p.m., PST) will handle all your repair/replacement needs.

Page 28

Delta X6 User Manual

Delta X6 User Manual | 24

SYSTEM SPECIFICATIONS

OVERALL SPECIFICATIONS

RECEIVER SPECIFICATIONS

TRANSMITTER SPECIFICATIONS

Nominal SPL [1W/1M] ............................................................... 89 dB

Maximum SPL ............................................................................102 dB

System Power [RMS] .................................................................30 W at 2 Ω

Music Power [RMS] .................................................................... 40 W at 2 Ω

Ampliﬁer Type ............................................................................ Analog Class AB

Frequency Response of ampliﬁer ............................................ 90 Hz - 18 kHz

Speaker System .........................................................................Full-Range 6.5”/4 Ω

Microphone Input ...................................................................... ¼ inch phone jack

Wireless Microphones ..............................................................Up to two 100-Channel UHF True Diversity

Line Input .................................................................................... 3.5 mm

Line Output ................................................................................ 3.5mm and ¼ inch

Tone Controls ............................................................................. Bass and Treble

Speaker Output ......................................................................... 1 switched 2 Ω

Dimensions [H x W x D inches] ................................................ 9.75 x 12.5 x 6.25

Weight ....................................................................................... 7.2 lbs./20.4 kg

Carrier System ............................................................................ Microprocessor Controlled

PLL Synthesized

Macro Frequency Range .......................................................... 620 ti 694.75 MHz [3 Macro-Groups]

Micro Frequency Range ........................................................... 25 MHz each Macro-Group

Selectable Frequencies ............................................................100

Deviation ..................................................................................... ± 40 KHz Nominal

Sensitivity .................................................................................... -100 dBm at S/N ratio of >80 dB

Tone-code Frequency ............................................................... 32.768 KHz

Image Rejection ......................................................................... >85 dB

S/N Ration [Max] ........................................................................ >105 dB

BP-900 Belt-pack

RF Power Output ....................................................................... 50 mW Maximum

Spurious Emission .....................................................................>60 dB below the carrier

Macro Frequency Range .......................................................... 620 MHz to 694.75 MHz [3 Macro-Groups]

Selectable Frequencies ............................................................100

Tone-Code Frequency .............................................................. 32.768 KHz

Pre-Emphasis.............................................................................. 50 µsec

Limiter Range ............................................................................. >30 dB or audio overload

Battery Type................................................................................ 2 AA

Battery Life [Alkaline] ................................................................. Approx. 8 Hours

Microphone Connector ............................................................TA4F

Weight w/o Batteries ................................................................ 3 oz/85 g

HM-900 Handheld Microphone
