Page 1

User Manual

Classroom Audio System

860

CAT 860

Page 2

Page 3

TABLE OF CONTENTS

SECTION 1: 6 Important Safety Instructions Overview 8 System Components and Unpacking

10 Optional Components 11 CAT 860 Front Panel Controls 12

CAT 860 Rear Panel Controls 13 Infrared Sensor / Receiver (ISR) Connections 14 REDMIKE Controls and Connections 15 Cradle Charger Controls and Connections

SECTION 2: 16 Step 1. Location of the Ampliﬁer Set-up & Use 17 Step 2. IR Sensor / Receiver (ISR) Installation

20 Step 3. Installation of Ampliﬁer Wall-Mount Bracket 20 Step 4. Speaker Installation 21 Step 5A. Connect the Power Supply 21 Step 5B. ISR Connection 22 Step 5C. Speaker Connection(s) 22 Step 5D. Audio Input Connections 23 Step 6. Audio Integration 24 Step 7. Charging the REDMIKE 25 Step 8. Set-up and Operation of REDMIKE 26 9. Audio Equalization of the CAT 860 27 10. Output to Personal Assistive Listening Device 28 11. Using the REDMIKE to Amplify External Audio

Equipment 29 12. PageFirst: Priority Mute

30 13. RS-232 Serial Interface Programming 30 Serial Interface Protocol 30 RS-232 Data Signals 31 Connector Signal Wiring 31 Command Structure 32 Summary of Command & Response

Transactions

34 Control Character Hex Value and Deﬁnition 34 General Format for Action Command Exchange

for Basic and Advanced Command Set:

35 General Format for Query Command

Exchange:

35 General Format for Aborted Command

Exchange (Both Basic and Advanced Command Sets:

Page 4

36 14. RS-232 Serial Interface Command Deﬁnition

Basic Command Set for Audio Switcher Operations

Audio Input Functions for the A/V Source Group

36 1. Enable Audio/Video Source Command 37 2. Increment Audio/Video Sources

Command

38 3. Decrement Audio/Video Sources

Command

39 4. Increment Microphone Audio Inputs

Command

40 5. Mute Audio/Video Sources Command

41 6. Un-mute Enabled Audio/Video Source

Command

7. Mute Microphone Audio Inputs Command

8. Un-mute Microphone Audio Inputs Command

9. Toggle Mute for Enabled Audio/Video Source Command

10. Toggle Mute for Microphone Audio Inputs Command

11. Query Enabled Audio/Video Source Command

12. Query Absolute Volume Audio/Video Source Command

13. Query Absolute Volume Microphone Audio Input Command

14. Query Mute for Audio/Video Source Command

15. Query Mute for Microphone Audio Inputs Command

Advanced Command Set for Audio Mixer Operations

Audio Input Functions for the A/V Source Group

1. Select Audio Input Command

2. Query Selected Audio Input Command

Audio Input Functions for the A/V Source Group

1. Differentially Increase Volume for Selected Audio Input Command

2. Differentially Decrease Volume for Selected Audio Input Command

3. Set Absolute Volume for Selected Audio Input Command

4. Query Absolute Volume for Selected Audio Input Command

5. Select Audio Output Command

6. Differentially Increase Volume for Selected Audio Output Command

TABLE OF CONTENTS CONT’D

Page 5

Audio Input Functions for the Infrared Source Group

1. Select Infrared Input Command

2. Differentially Increase Volume for Selected Infrared Input Command

3. Differentially decrease volume for selected infrared input Command

4. Set Absolute Volume for Selected Infrared Input Command

5. Query Absolute Volume for Selected Infrared Input Command

Input Muting Functions Group

1. Mute Selected Audio Input Command

2. Un-Mute Selected Audio Input Command

System Management Functions Group

1. Query Model and Software Version Command

2. Un-Mute Selected Audio Input Command

System Management Functions Group

1. Query Model and Software Version Command

SECTION 3: 71 REDMIKE VC: Controls and Connections Optional Accessories 72 Charging

72 Initial Set-Up 73 LT-71: Controls and Connections 74 Charging 75 Initial Set-Up 76 REDMIKE Share: Controls and Connections 77 Charging 78 Initial Set-Up 79 iR Media Connector: Initial Setup 80 Audio Integration 80 Other Optional Accessories

SECTION 4: 81 Troubleshooting Guide Troubleshooting 82 Tips to Obtain Optimal Audio Performance

SECTION 5: 83 Warranty Statement

Warranty & Speciﬁcations

85 Safety Warnings and Certiﬁcations 86 System Speciﬁcations

TABLE OF CONTENTS CONT’D

7. Differentially Decrease Volume for Selected Audio Output Command

8. Set Absolute Volume for Selected Audio Output Command

9. Query Absolute Volume for Selected Audio Output Command

Page 6

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use the apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding- type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/ accessories speciﬁed by the manufacturer.

12. Use only with a cart, stand, tripod, bracket or table speciﬁed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lighting storms or when unused for long periods of time.

14. Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. When the mains plug or appliance coupler used as the disconnect device, it shall remain readily operable.

16. Please keep the unit in a good ventilation environment.

IMPORTANT SAFETY INSTRUCTIONS

Page 7

Page 8

1. Overview

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

2. Setup & Use

Ampliﬁer Power Supply

SECTION 1:

OVERVIEW

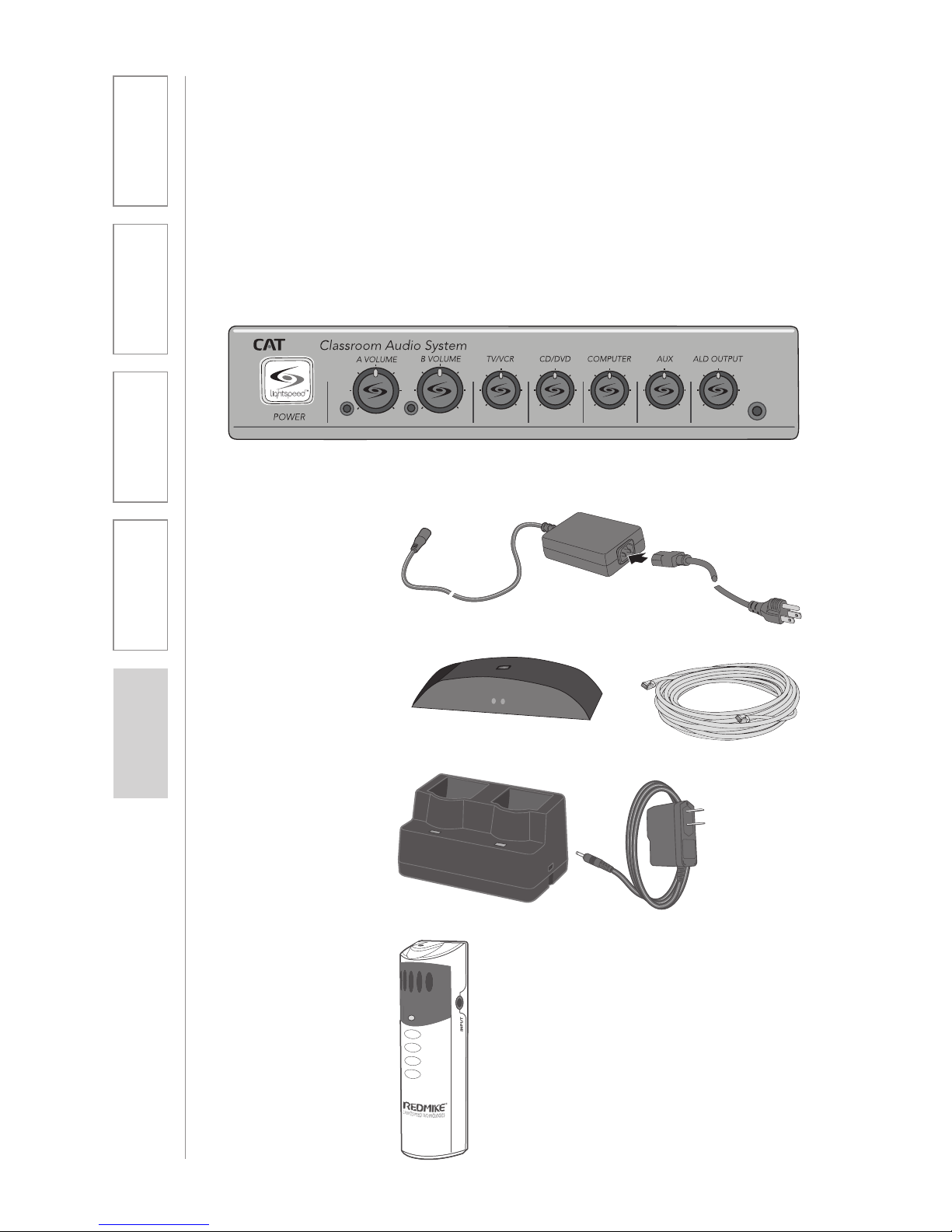

SYSTEM COMPONENTS AND UNPACKING

The standard conﬁguration of the CAT 860 will contain:

ISR Infrared Sensor/ Receiver and Cable

Charging Cradle and Power Supply

REDMIKE® Classroom Microphone

CAT 860 Ampliﬁer

860

Page 9

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

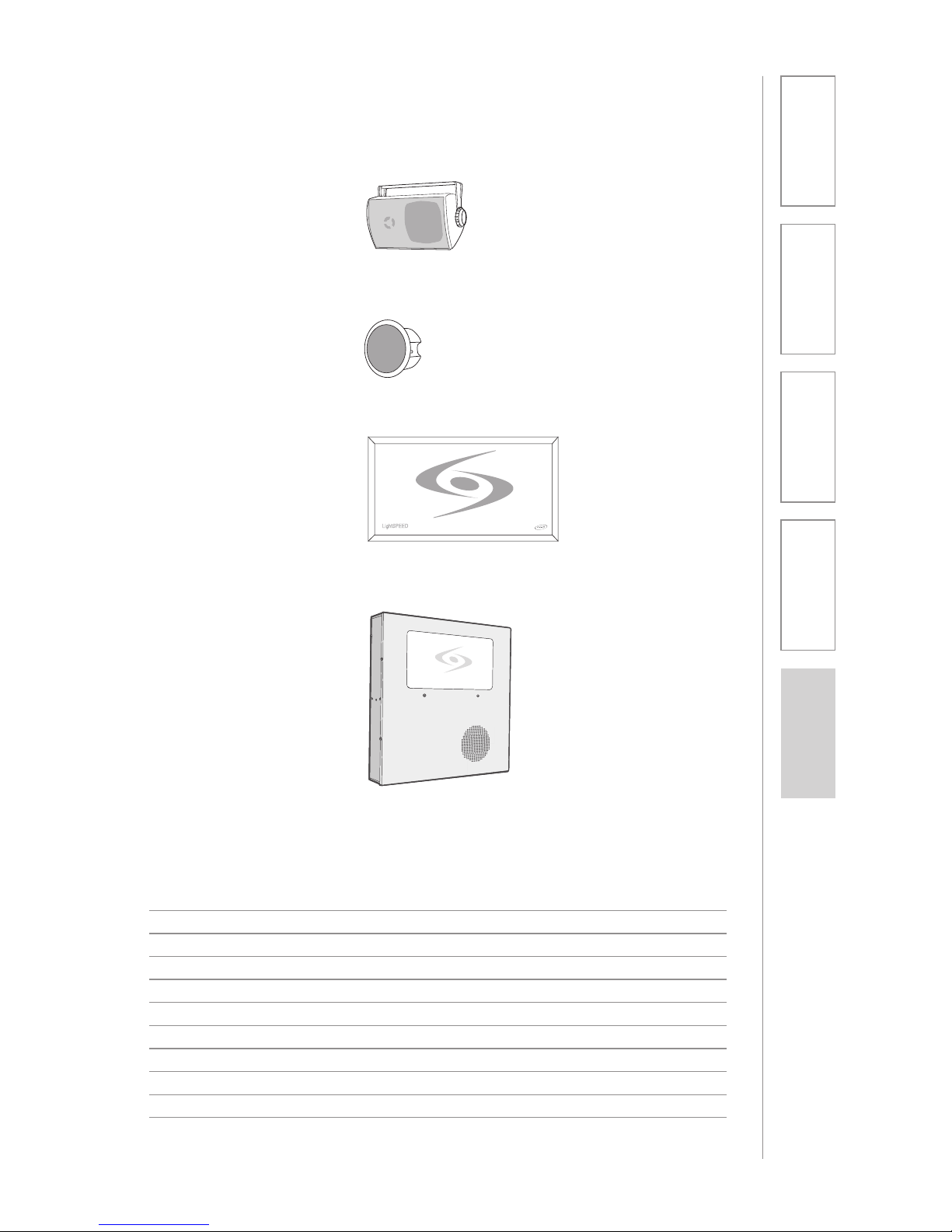

Speakers and Speaker Wire

Systems can be conﬁgured with a variety of different speaker types, including the following:

Standard Components

AMP-860 Audio ampliﬁer/mixer PS-24V-2.5 24V/2.5A power supply for CAT 860 RX-ISR Infrared sensor/receiver with mounting bracket CA-PSE50 50’ plenum-rated Cat 5e cable RMT REDMIKE classroom microphone with battery BA-NH2A27 AA NiMH rechargeable sensing battery for REDMIKE AC-RMLC2 REDMIKE lavaliere cord BC-RMCC REDMIKE cradle charger PS-5V-1.0 5V/1.0A power supply for cradle charger SPEAKERS Contact Lightspeed at 800.732.8999 for speaker info

NXQ (x 1)

WMQ (x 4)

DRQ (x 4)

MCQ (x 1)

Page 10

1. Overview

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

2. Setup & Use

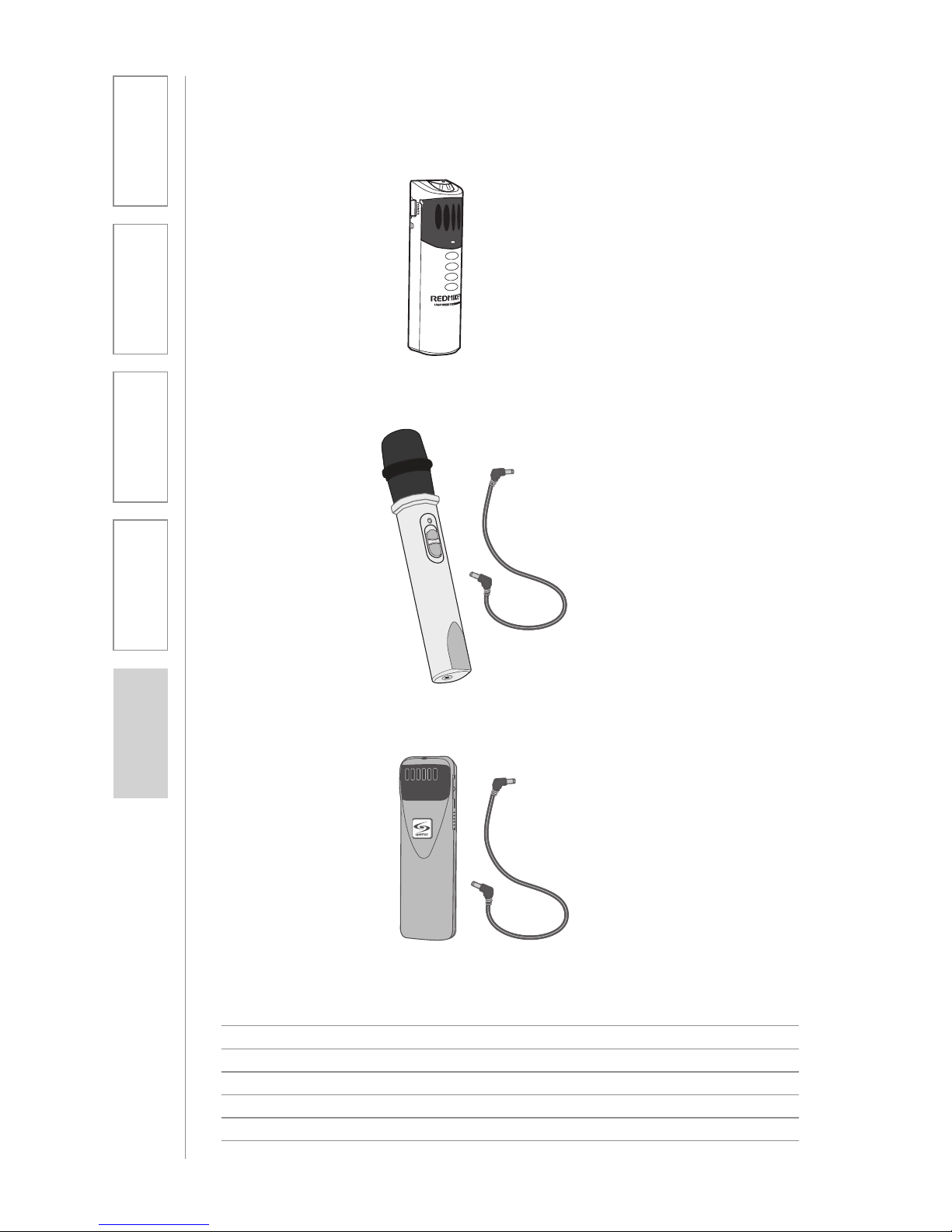

OPTIONAL COMPONENTS

Optional equipment which may be part of your CAT 860 system:

REDMIKE® VC Volume Control Microphone

REDMIKE Share Handheld Mic & Charger Cable

LT-71

LT-71 LightMic and Charger Cable

Optional Components

RMV REDMIKE VC microphone with battery RMS REDMIKE Share handheld microphone with battery pack LT71 LightMic microphone with batteries BA-NH2A27 AA NiMH rechargeable sensing battery for REDMIKE BA-NH2APK NiMH rechargeable battery pack for REDMIKE Share BA-NH1 AA NiMH rechargeable battery for LT71 (2 per microphone)

Page 11

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

860

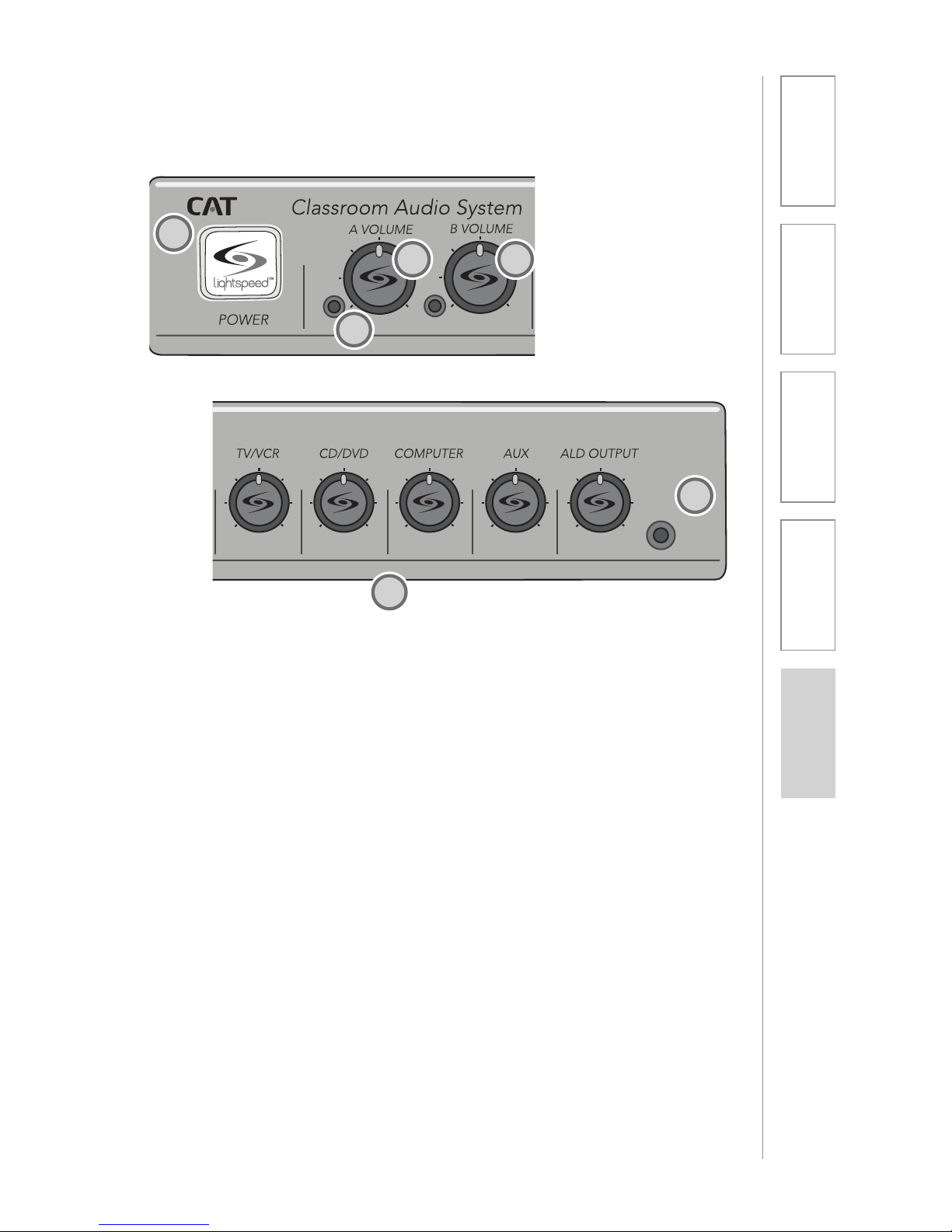

FRONT PANEL CONTROLS

1. POWER SWITCH/INDICATOR:

Press this button to turn the CAT 860 ON (pushed in) or OFF. When the POWER is switched on, the blue LED indicator will light.

2. AUDIO INDICATORS: These lights ﬂash red when audio (voice) from the microphone is detected.

3. A VOLUME: Controls the volume of the teacher microphone (set to channel A).

4. B VOLUME: Controls the volume of the student or second teacher microphone (set to channel B).

5. AUDIO INPUT VOLUMES:

Control the volume of the audio coming from the media source (computer, TV/VCR, CD/DVD, etc.) connected to the corresponding input on the rear panel.

6. ALD OUTPUT AND VOLUME:

This jack sends mixed audio to external equipment such as an assistive listening device (Personal FM System) or recording device. Use the volume control to set the optimum signal level for the device.

Page 12

1. Overview

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

2. Setup & Use

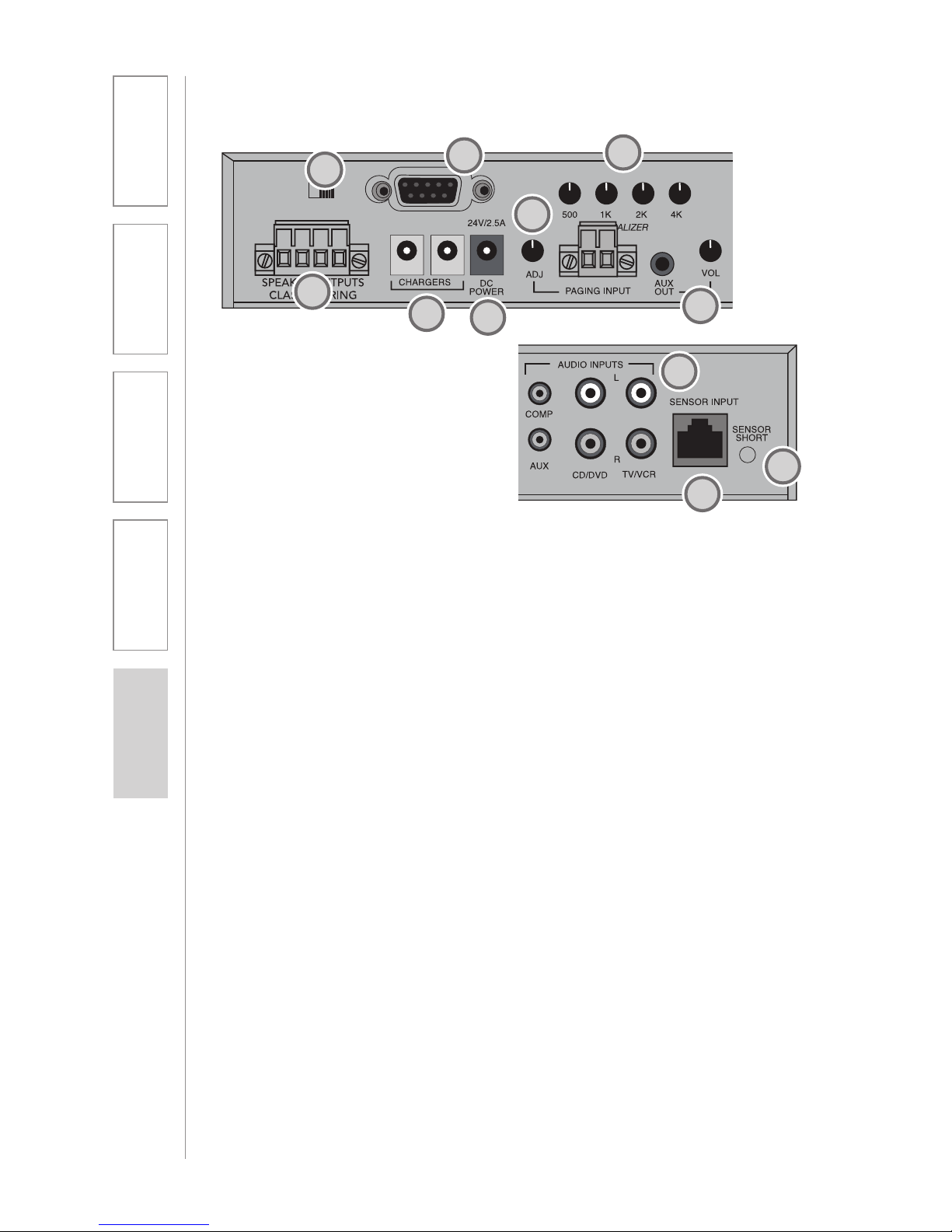

RS-232 IN

Front Panel RS-232

Control Select

++--

1. CONTROL SELECT: Both microphone and aux input volume can be adjusted from the front panel controls or remotely from a controller via the RS-232 Serial Interface. This switch selects either front panel control or RS-232 control. Front panel controls are ignored during RS-232 operation.

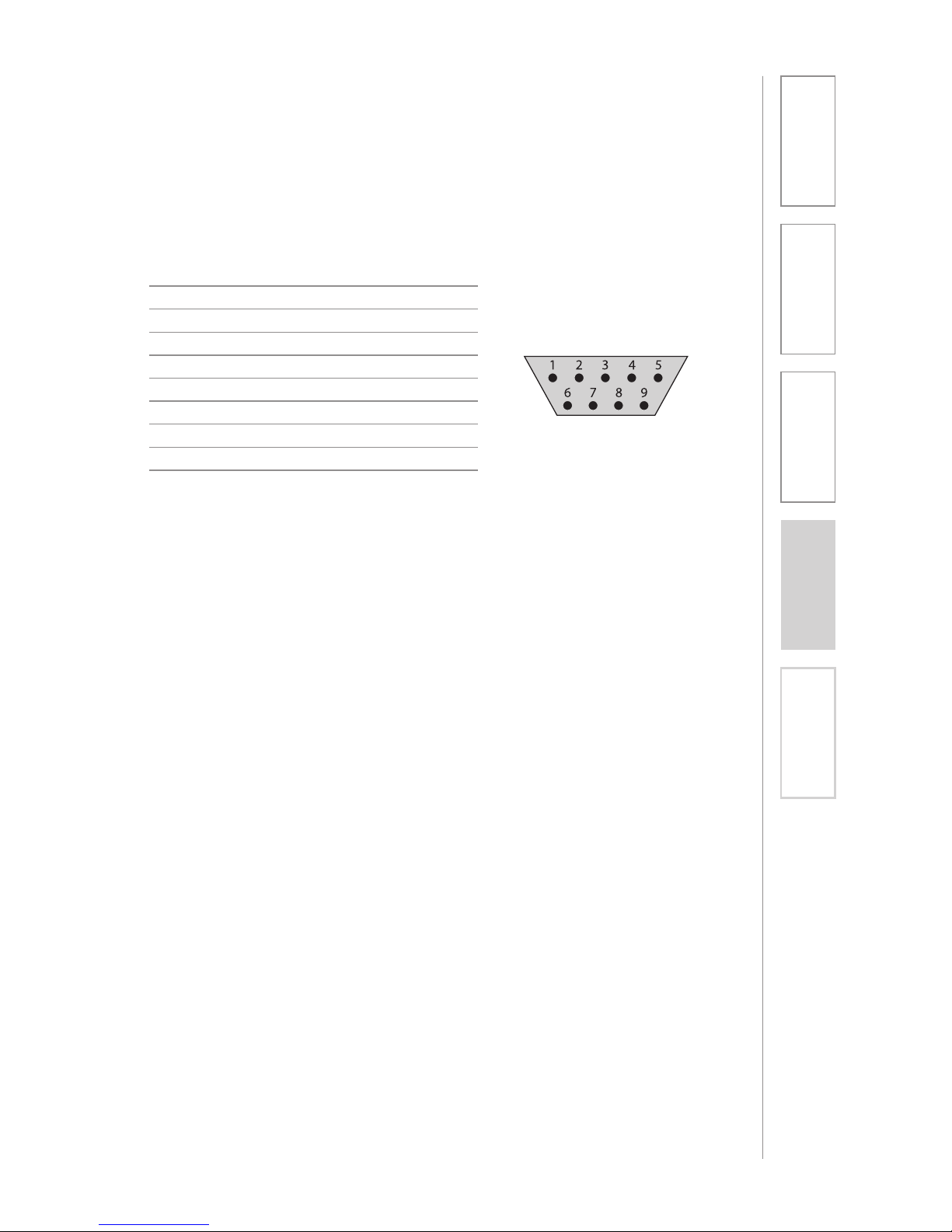

2. RS-232 IN: A 9 pin connector to connect the CAT 860 to an external controller.

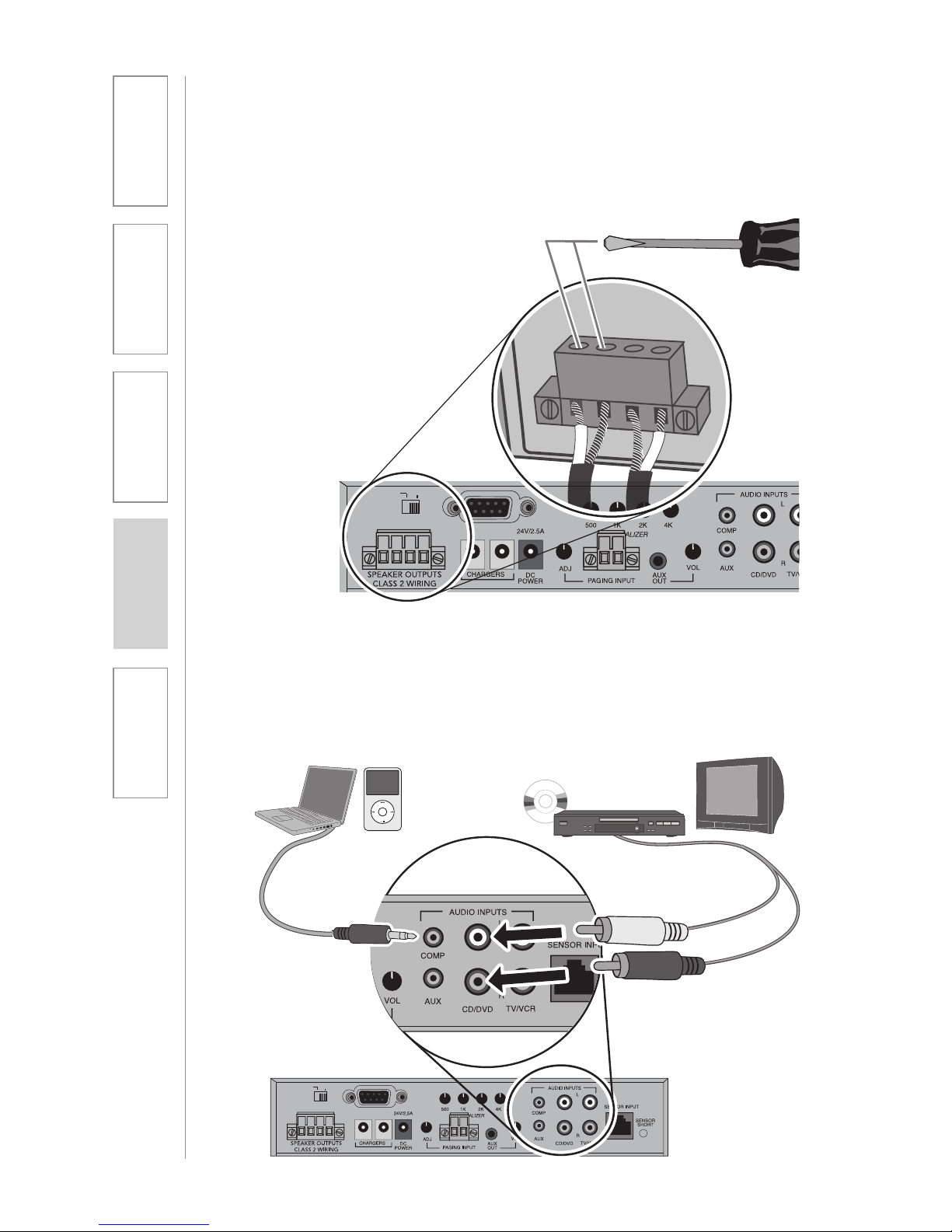

3. SPEAKER OUTPUTS (1–4): These binding post connectors are used to connect the CAT 860 to the speakers. Depending on speaker, all outputs may not be used.

*Note: Wiring to these terminals

should follow the Class 2 wiring methods as outlined in the National Electric Code.

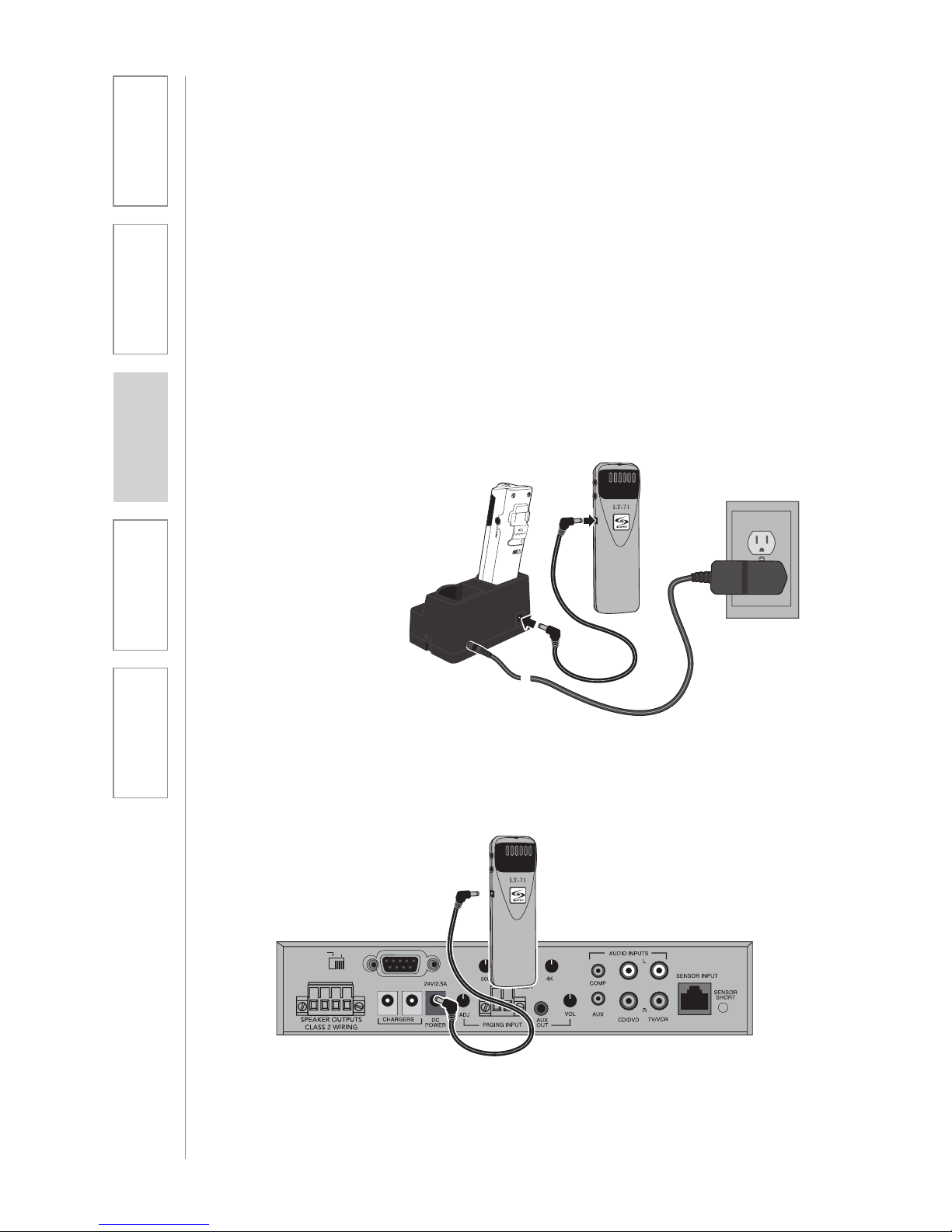

4. CHARGERS: These jacks can be used to charge the optional LightMic or handheld mic as an alternative to connecting them to the REDMIKE cradle charger.

5. DC POWER: Plug the 24 V power supply into this jack.

6. PAGING INPUT AND ADJ:

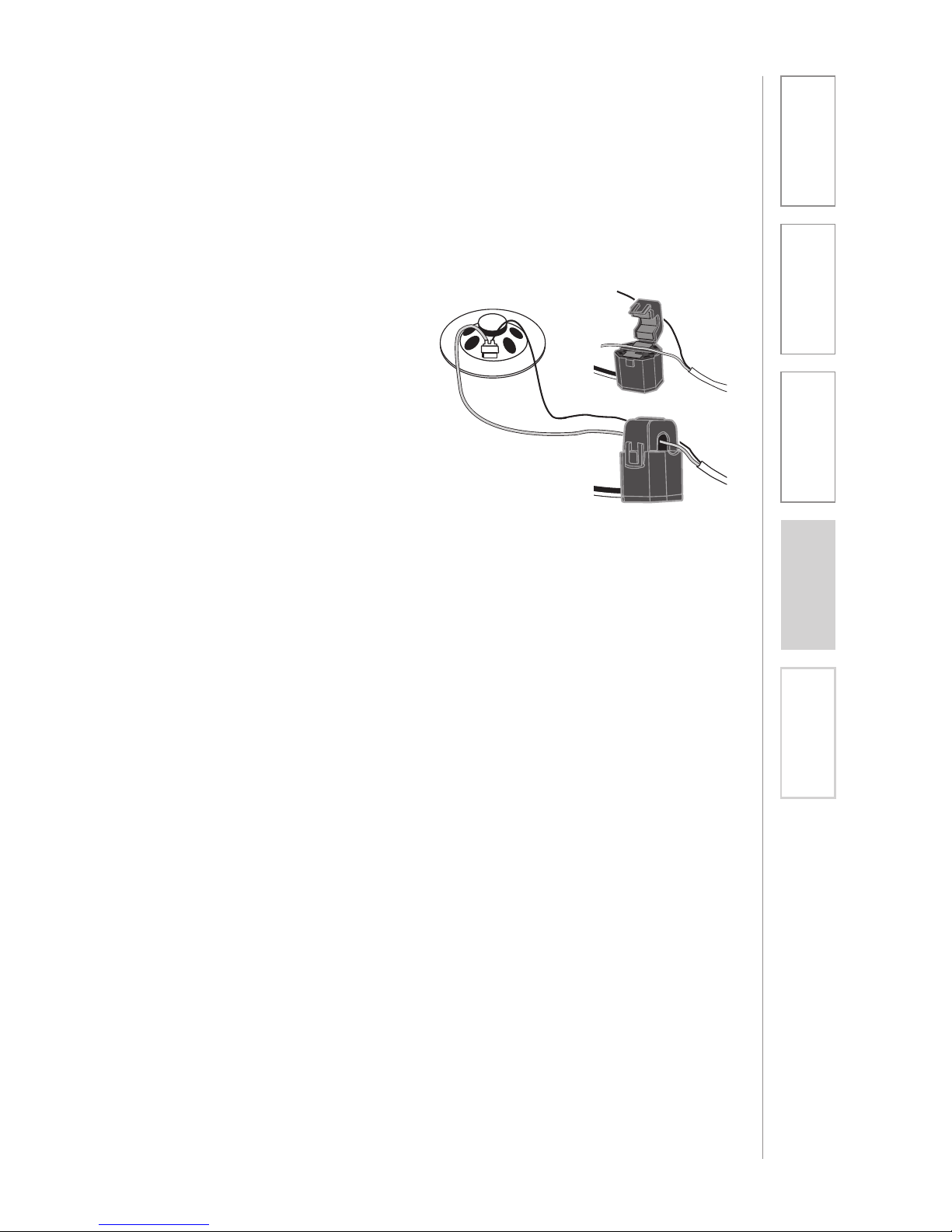

Connect the input from optional PageFirst sensor here when interface with a buildings paging system. Use the ADJ control to

adjust the sensitivity if needed.

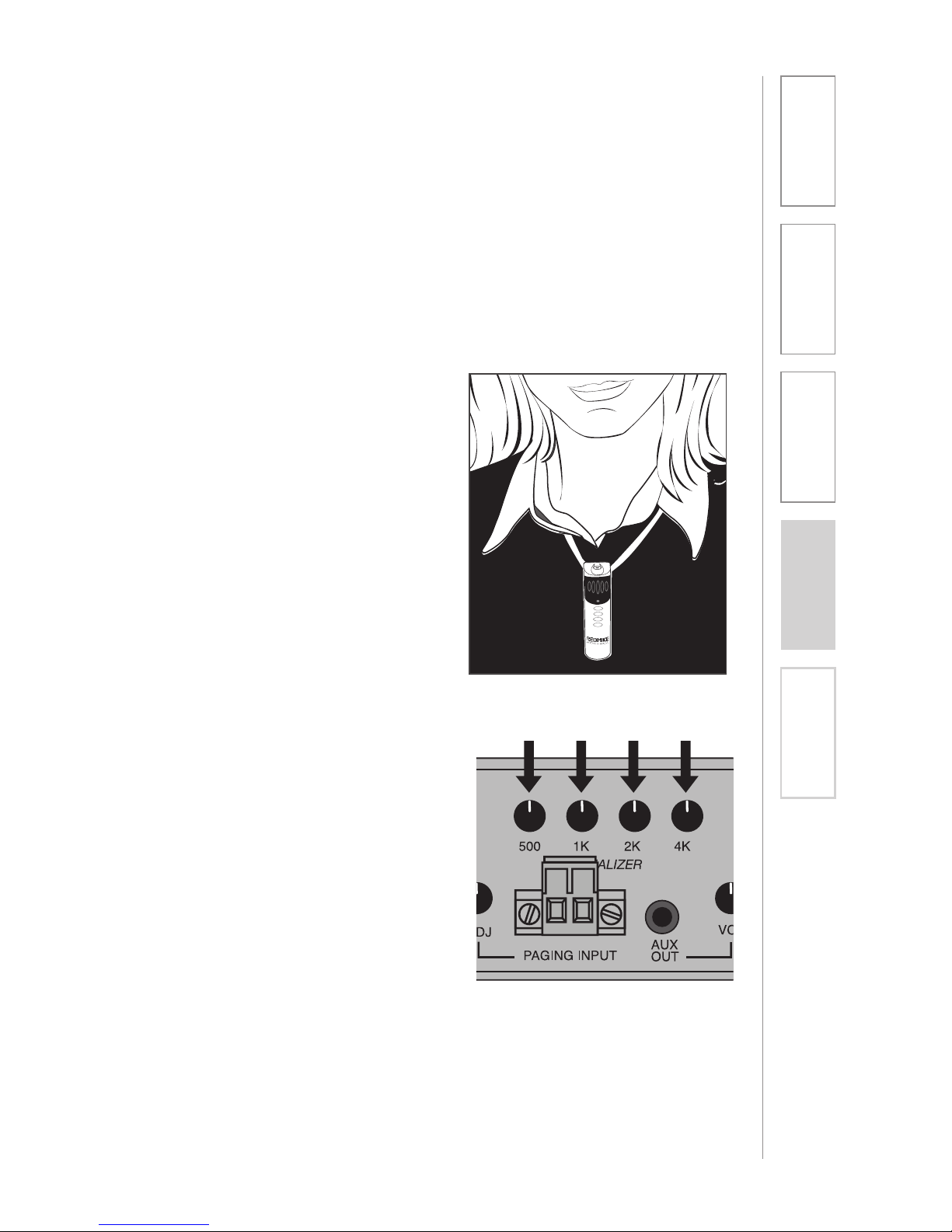

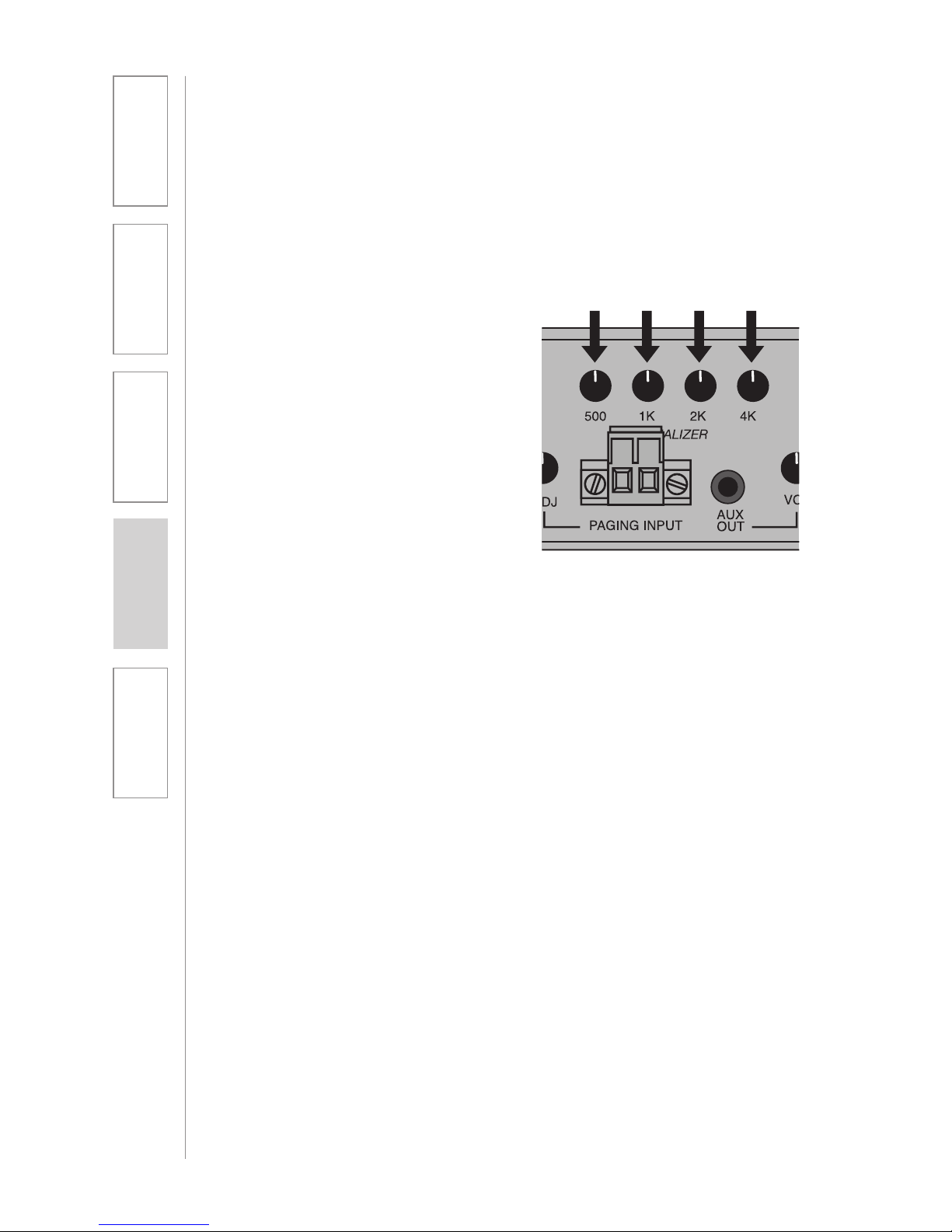

7. EQUALIZER (4-BAND): Adjust these controls upon installation to properly equalize the system to produce optimium audio quality from the microphone(s).

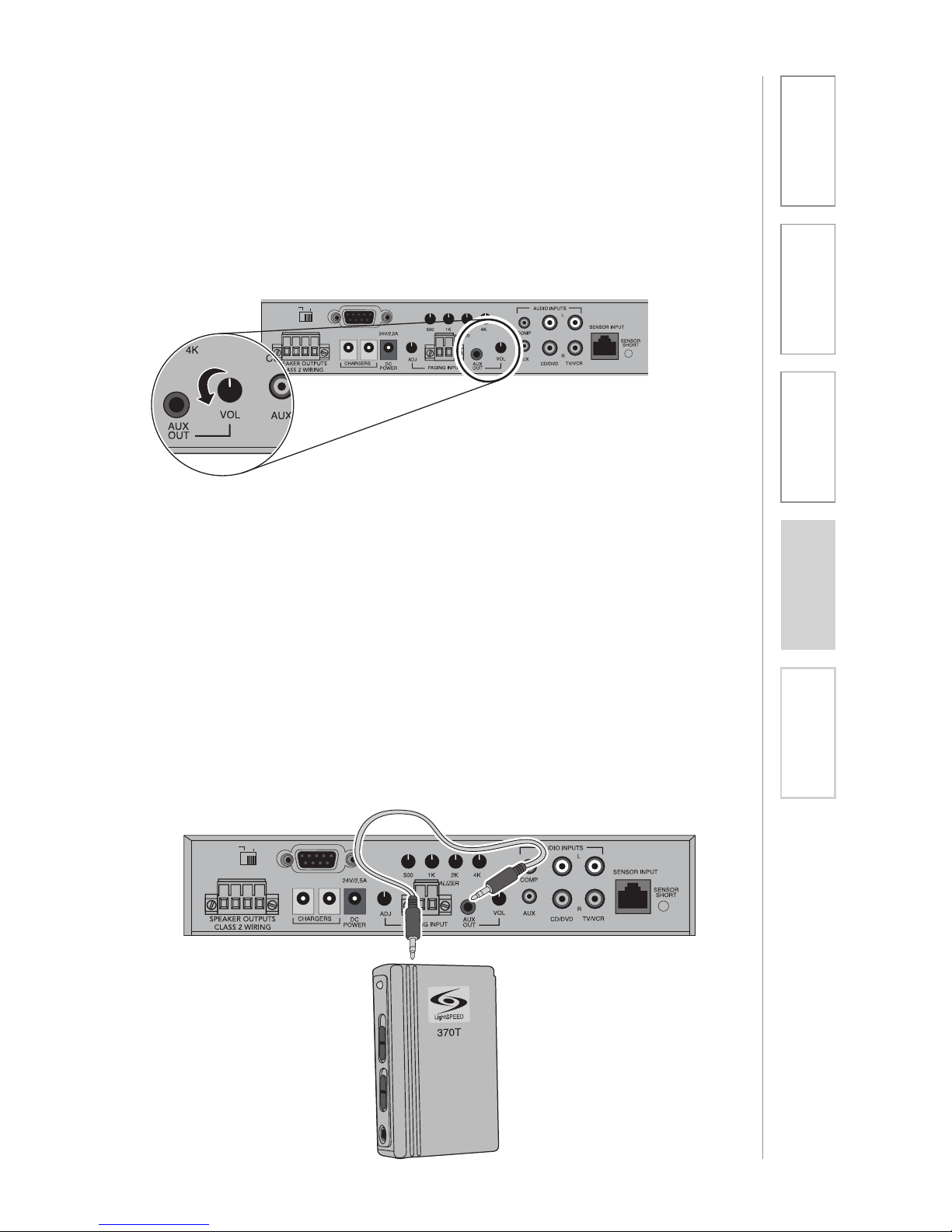

8. AUX OUT AND VOL: This jack sends audio to external equipment such as an assistive listening device (Personal FM System) or recording device. Use the volume control to set the optimum signal level for the device.

9. AUDIO INPUTS: These connections accept an audio signal from other technology so all multimedia can be distributed evenly throughout the classroom.

10. SENSOR INPUT: The infrared microphone audio from the ISR is connected to this input via CAT 5 cable. Connect additional sensors to the CAT 860 to cover large or odd-shaped classrooms.

11. SENSOR SHORT: This LED glows red when there is a short in the ISR or cable. The system will not operate, but is protected from damage when the LED is lighted.

REAR PANEL CONTROLS

Page 13

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

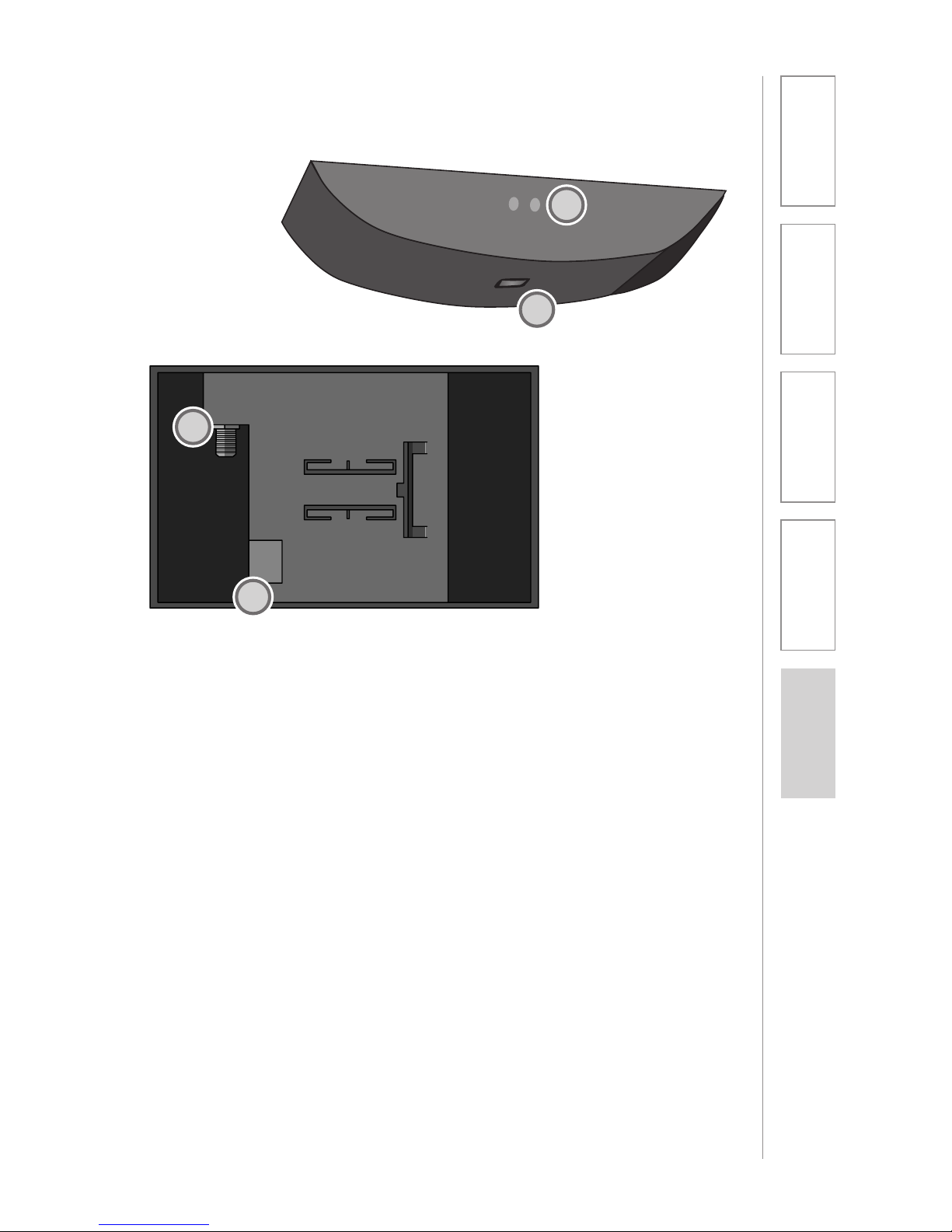

INFRARED SENSOR/RECEIVER (ISR) CONNECTIONS

1. POWER INDICATOR: This light will glow blue when the ISR is receiving power from the CAT 860.

2. A/B IR INDICATORS: These lights glow when the corresponding microphone (set to channel A or B) is turned on and transmitting. A steady light indicates a strong signal.

3. SENSOR OUT: Connect the CAT 5 sensor cable to this connection to send audio from the microphones to the CAT 860 ampliﬁer.

4. IR EXPANSION: Connect up to three passive IR sensors (IR-SR70F) to this connection for larger classrooms. For more than one additional sensor a 3-way coax splitter is required (HS3).

Page 14

1. Overview

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

2. Setup & Use

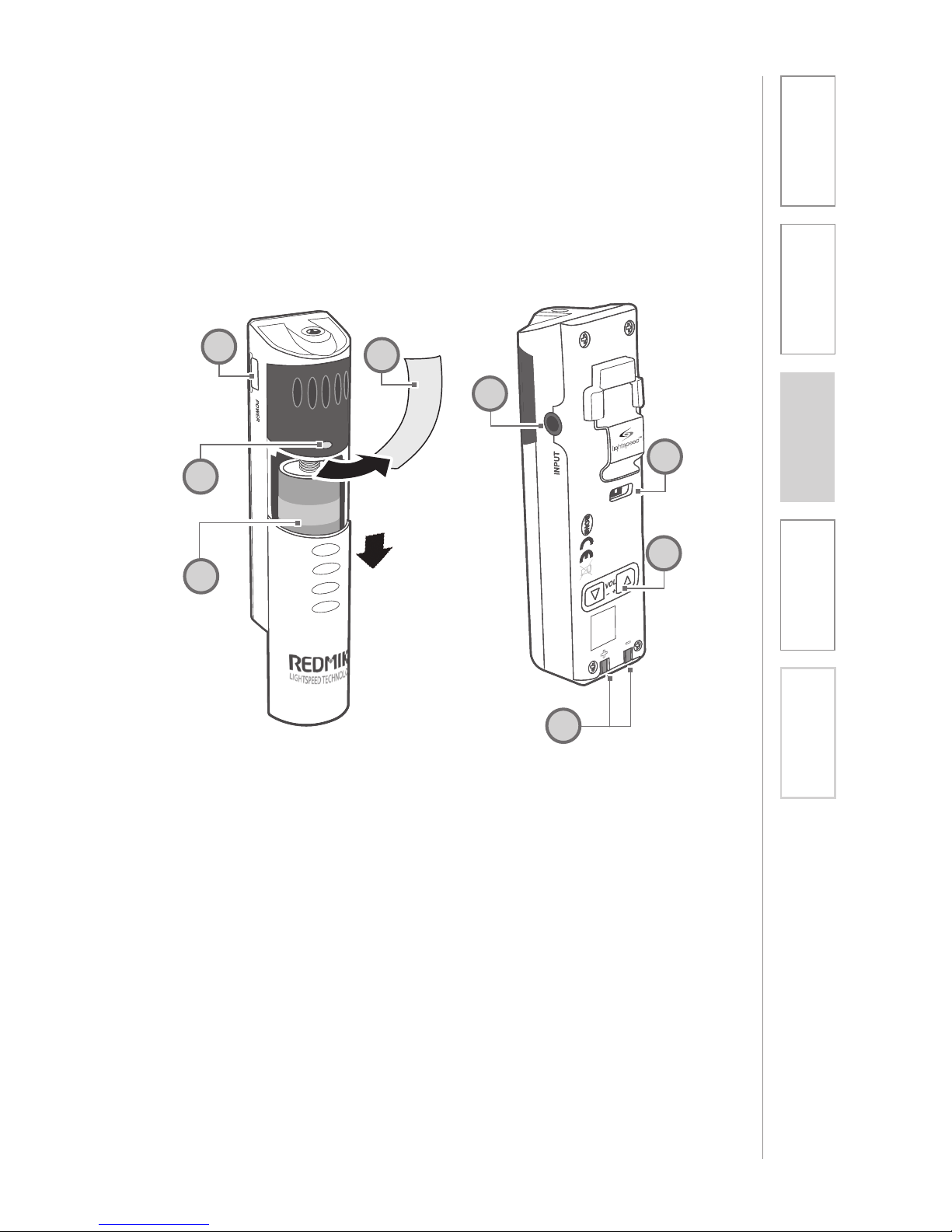

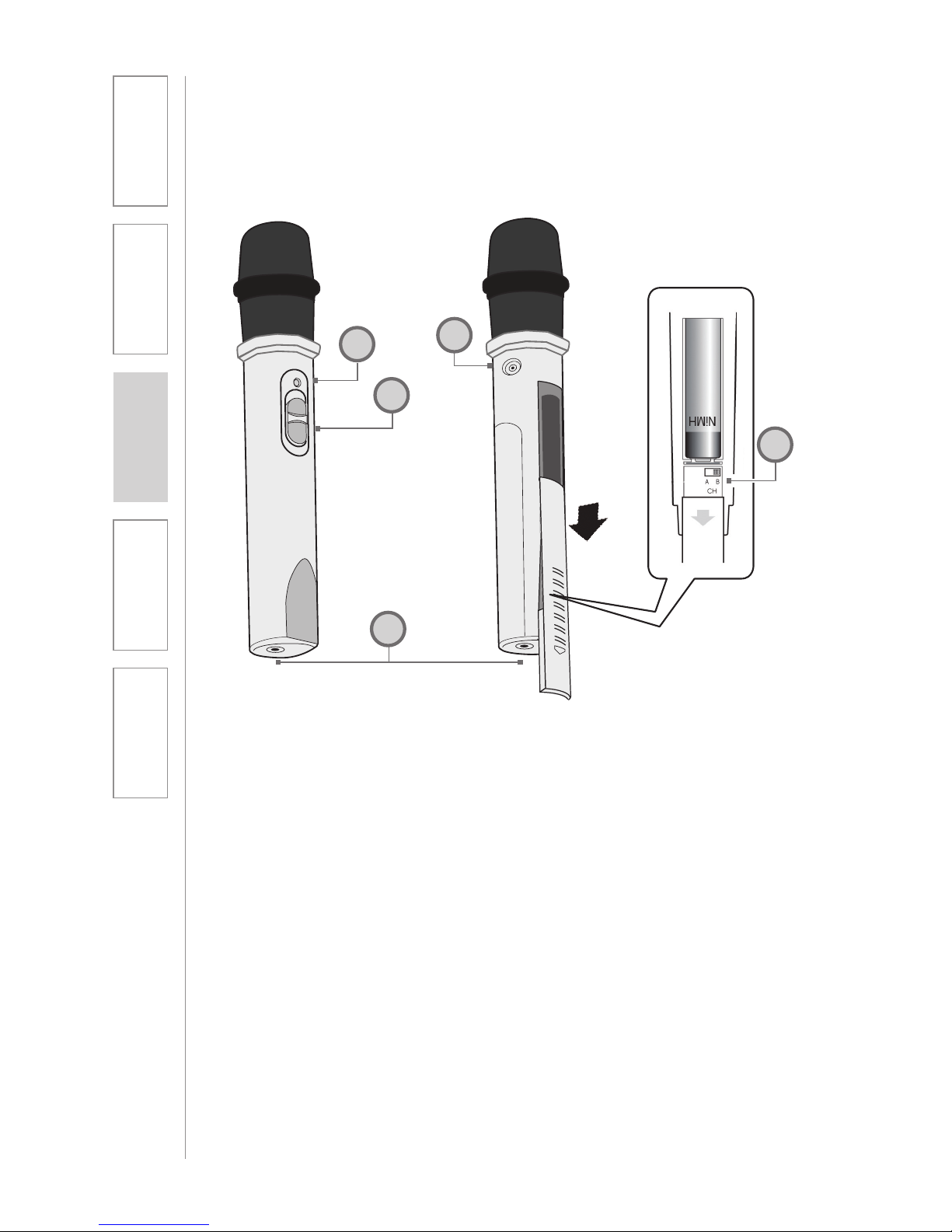

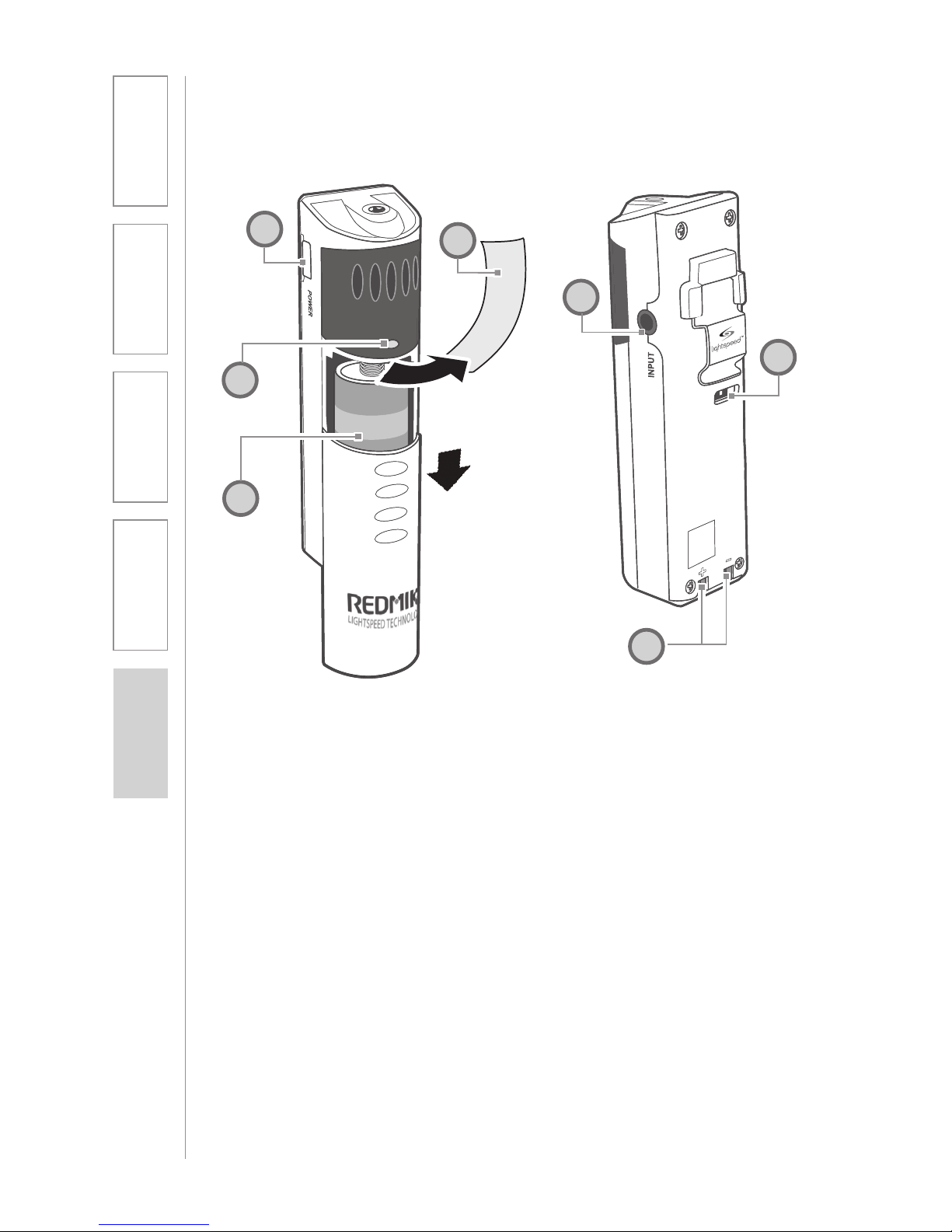

1. POWER BUTTON: Press this button to turn the REDMIKE ON, press again to turn it OFF (mute).

2. POWER/LOW BATTERY INDICATOR: A BLUE light

indicates the REDMIKE is on and fully charged. A RED light indicates a charge is needed.

3. BATTERY COMPARTMENT: To access the battery compartment, slide the door downward. The battery should only be replaced by a Lightspeed AA rechargeable sensing battery (part # BANH2A27).

4. YELLOW PROTECTIVE TAB: Slide the battery compartment door open to remove this disposable protective tab before use. NOTE: do not attempt to remove the tab without ﬁrst

opening the compartment door, as it may tear, leaving fragments.

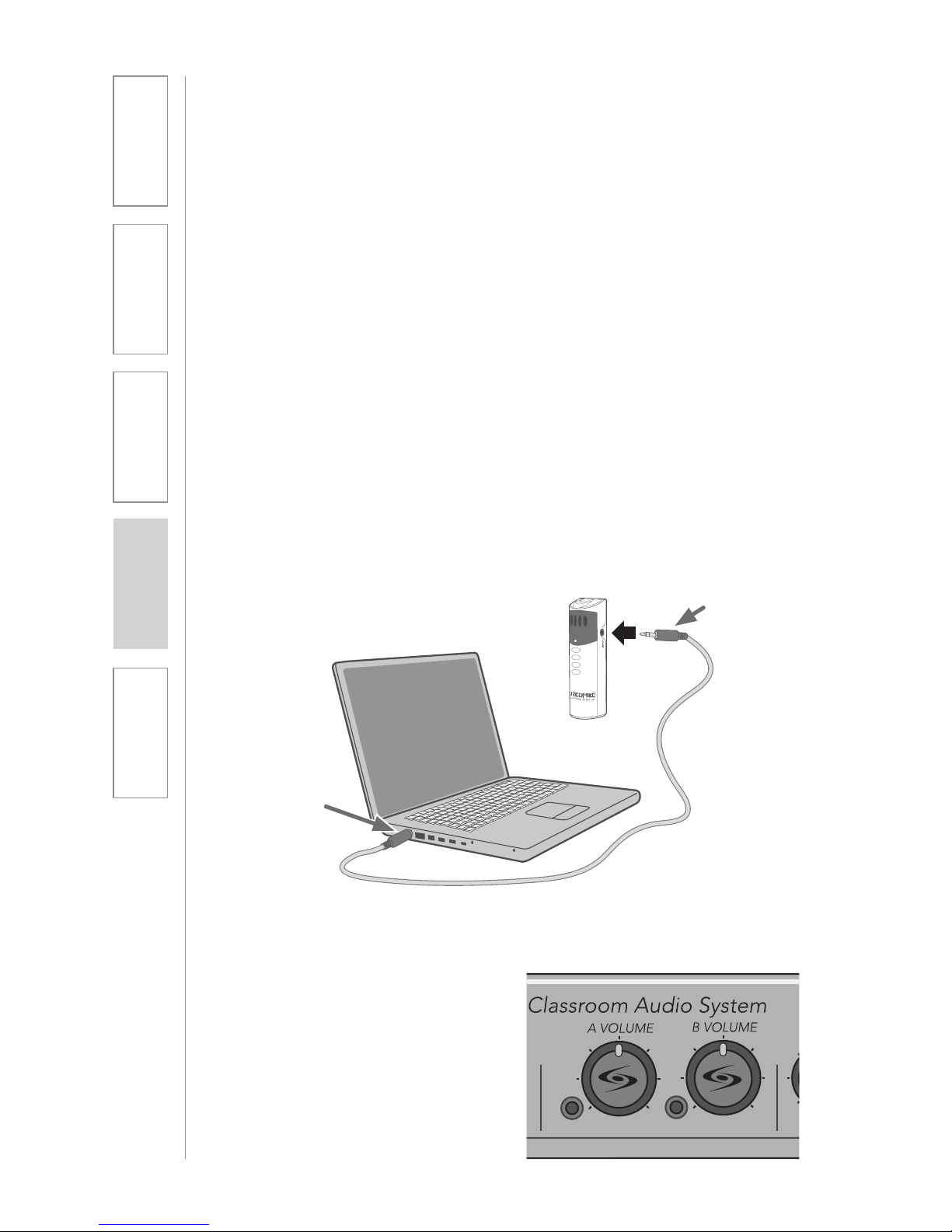

5. AUDIO/MICROPHONE INPUT:

Use this input to plug in a laptop, MP3 player or other audio source to wirelessly transmit audio to be played through the system. Alternatively, an external microphone can be connected.

6. CHANNEL SELECT SWITCH (CH A/B): This switch allows

for selection between Channel A or B. If you are using a single microphone, we recommend using Channel A.

7. CHARGER CONTACTS (+ -):

These contacts interface with the charging tabs in the BC-RMCC cradle charger for daily charging. Simply place the REDMIKE in the charger.

REDMIKE CONTROLS AND CONNECTIONS

a t

r y

Page 15

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

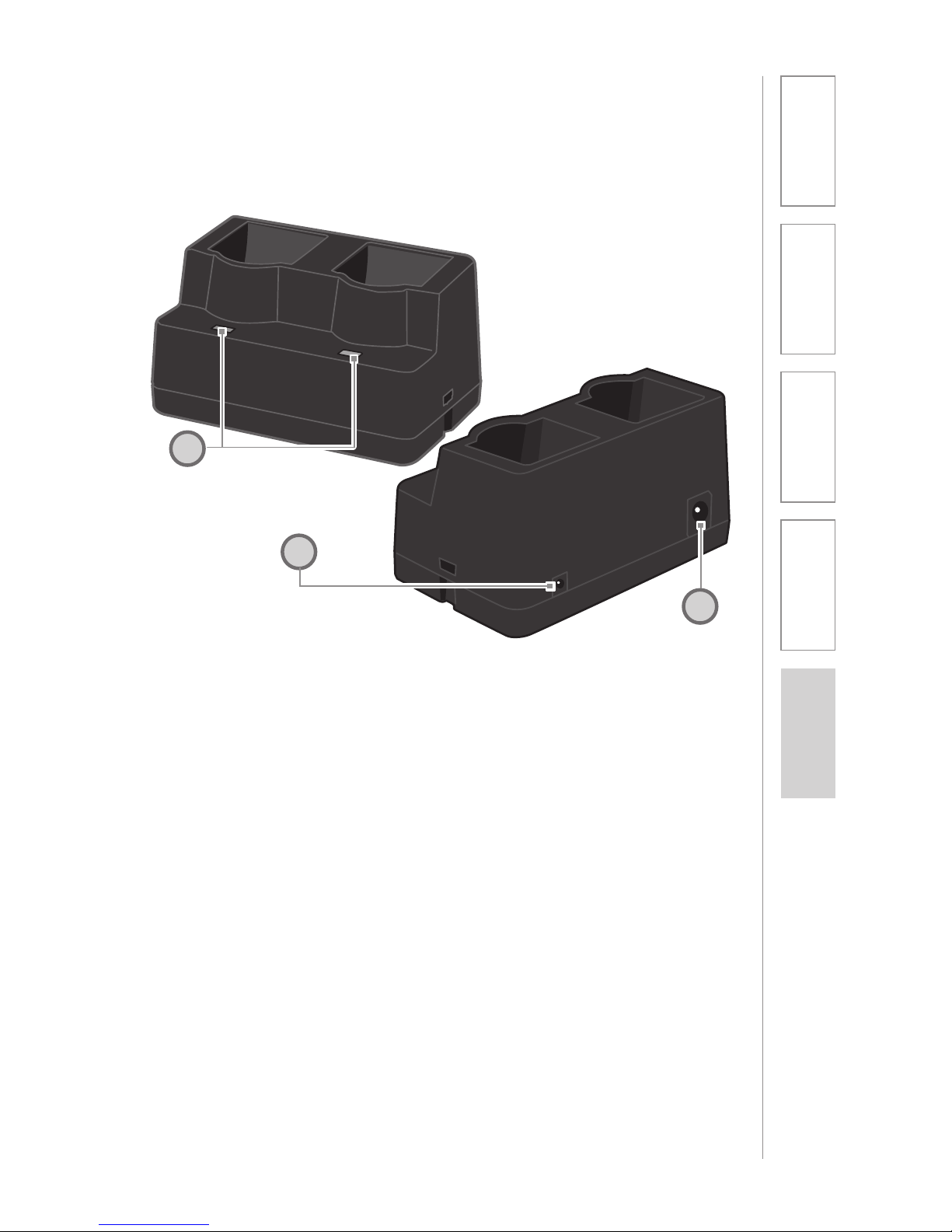

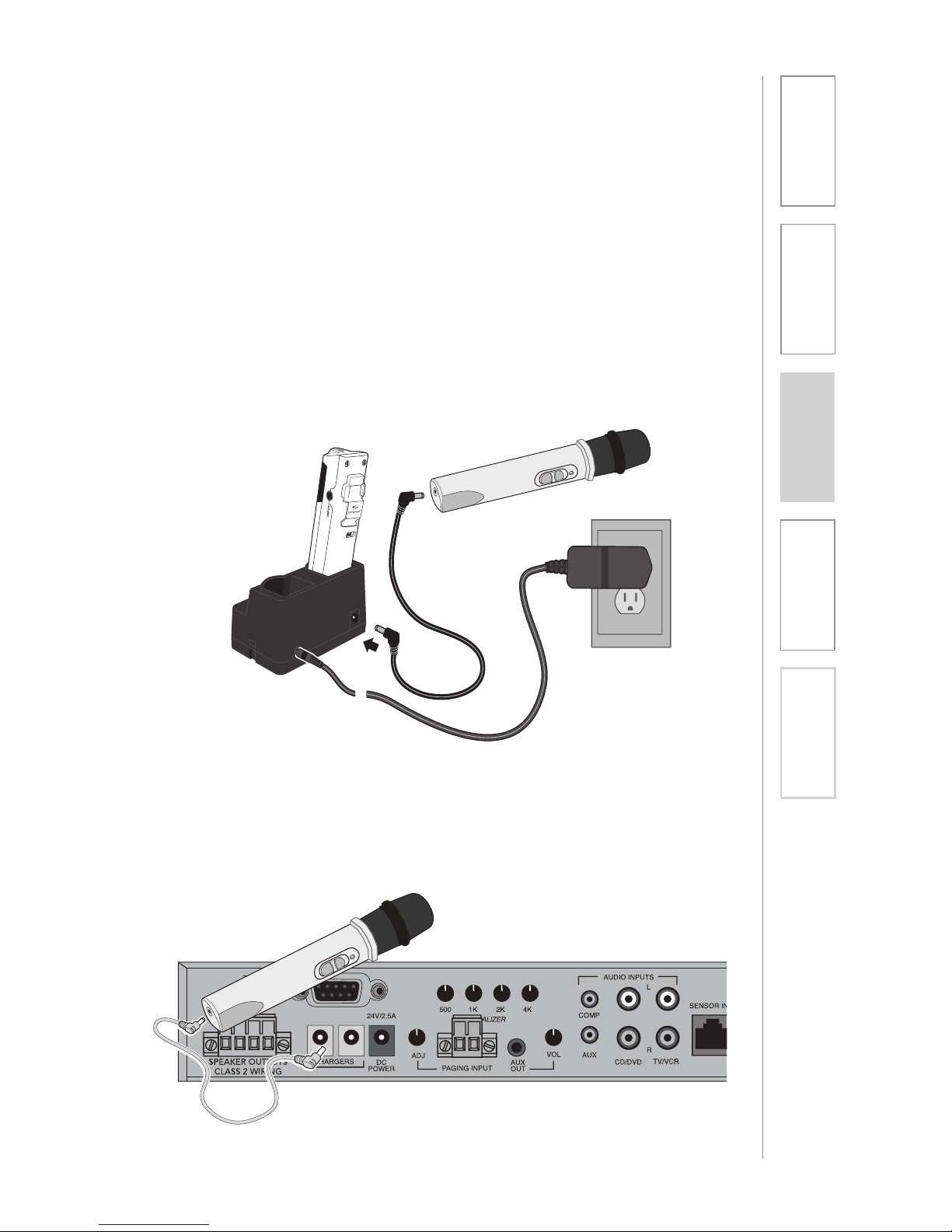

1. CHARGE INDICATORS: The light glows RED while the REDMIKE is charging. When fully charged, the light will glow GREEN. A blinking RED light indicates that no battery is sensed, (REDMIKE Yellow Protective Tab may not have been completely removed—see page 10, item 4.) A blinking Green LED means a non- Lightspeed battery has been installed (possibly an alkaline battery).

2. DC POWER PORT: Connect the DC power cord here.

3. OPTIONAL CHARGING PORT:

Plug the charging cord for the optional LT-71 or the REDMIKE Share microphones here.

CRADLE CHARGER CONTROLS AND CONNECTIONS

Page 16

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

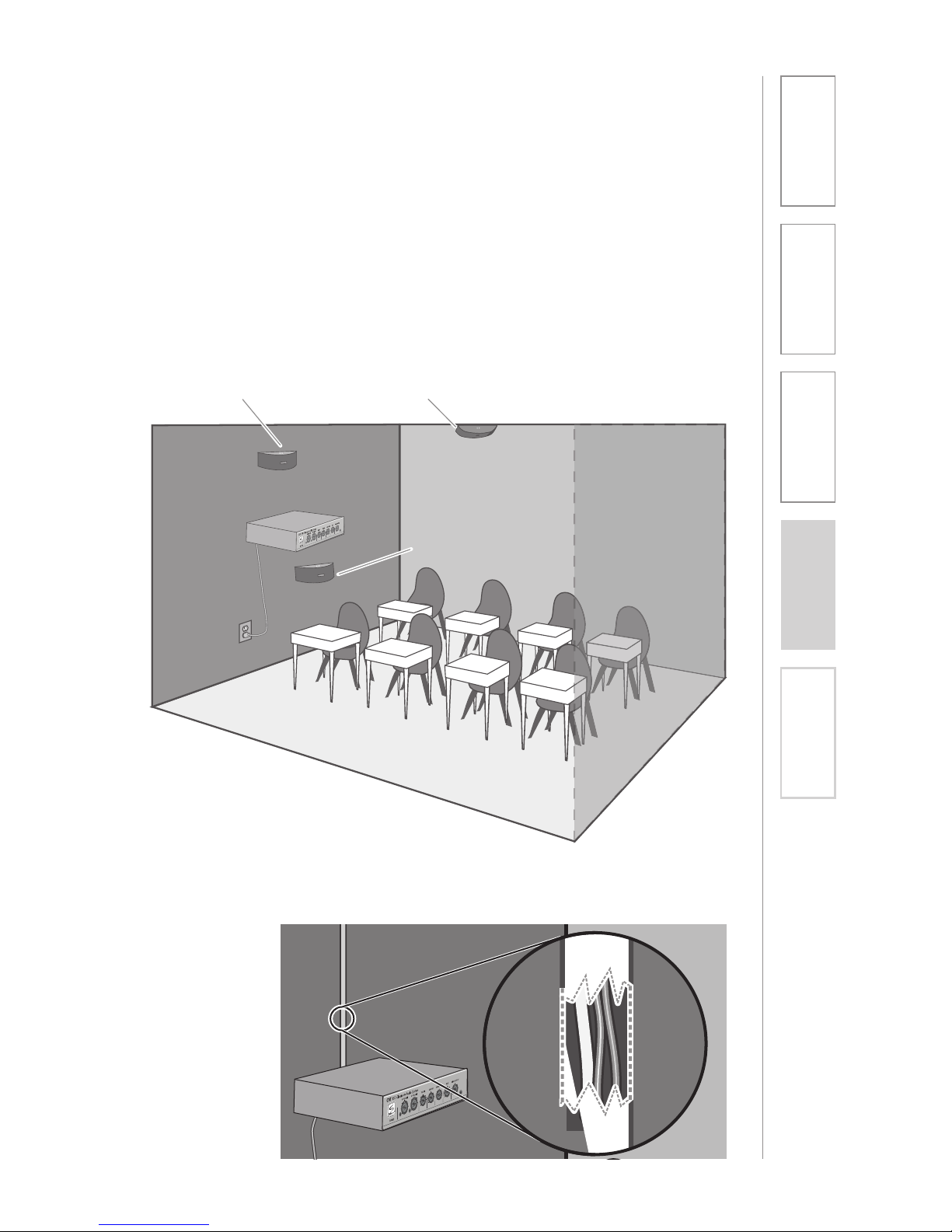

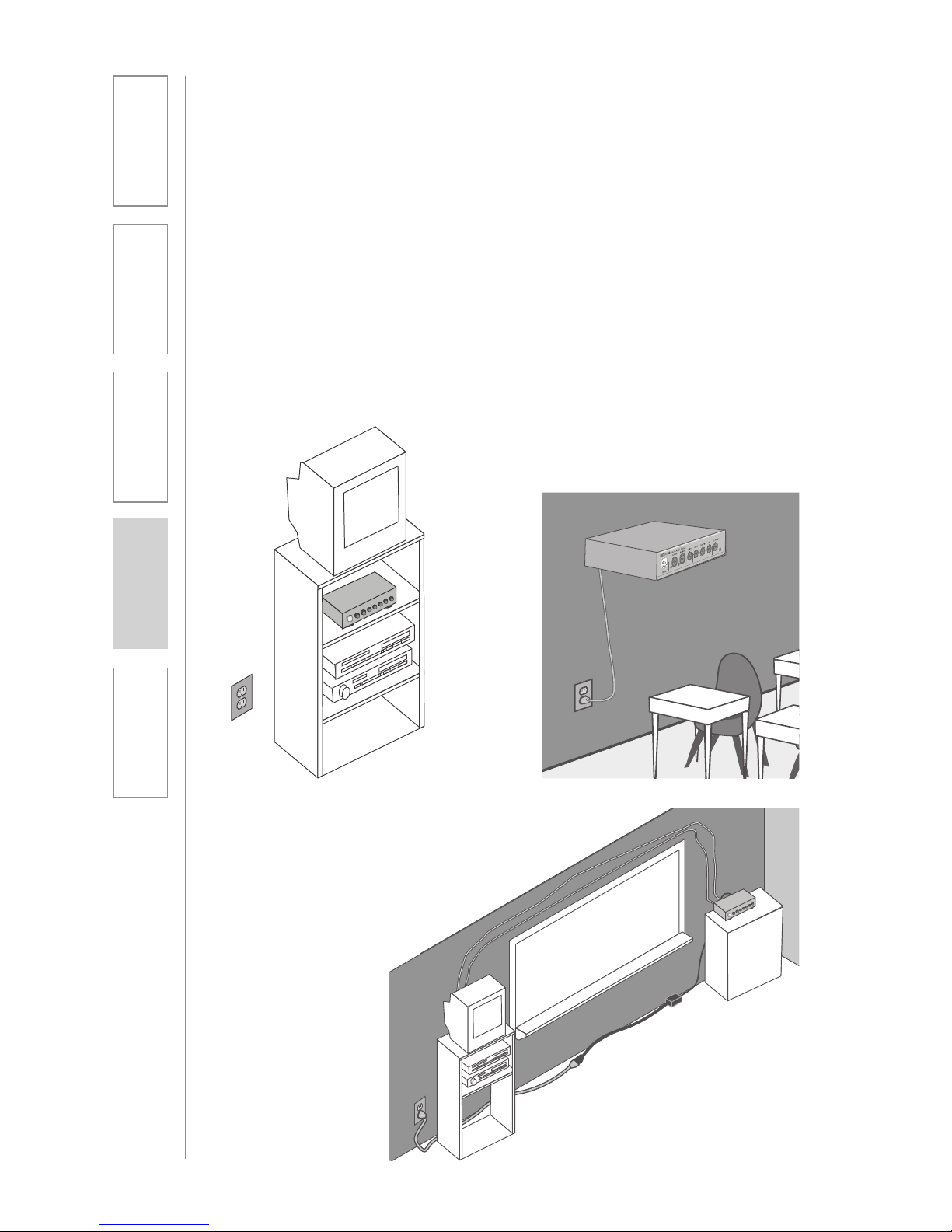

First, ﬁnd a suitable location to set-up the ampliﬁer. It is best to put the ampliﬁer in a stable location near the other equipment to be used. It can be set in a cabinet, on a tabletop, or mounted on the wall with the included bracket.

Media Cabinet Set-up

The included wall bracket is speciﬁcally designed to support the CAT 860.

Wall-mount Set-up

SECTION 2:

SET-UP & USE

1. LOCATION OF THE AMPLIFIER

Avoid Separated Set-ups

Components should be housed together. Wires should be routed back directly to the ampliﬁer.

Page 17

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

2. IR SENSOR/RECEIVER (ISR) INSTALLATION

Next, ﬁnd a suitable location for the ISR. Poor location will cause substandard performance of the CAT 860 Classroom Audio System. The ISR should be as high as possible in the room – the ceiling is the best location, centered along the longest wall in the room. When possible, use a conduit to protect the wires (not included). Poor choices for placement are corners, on walls at heights lower than 7 feet (2 meters), or in places where the line of sight from the ISR to the receiver is or could be obstructed.

Good placement

Conduit is Recommended

Best placement

Avoid!

Page 18

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

2. IR SENSOR/RECEIVER (ISR) INSTALLATION

CONT’D

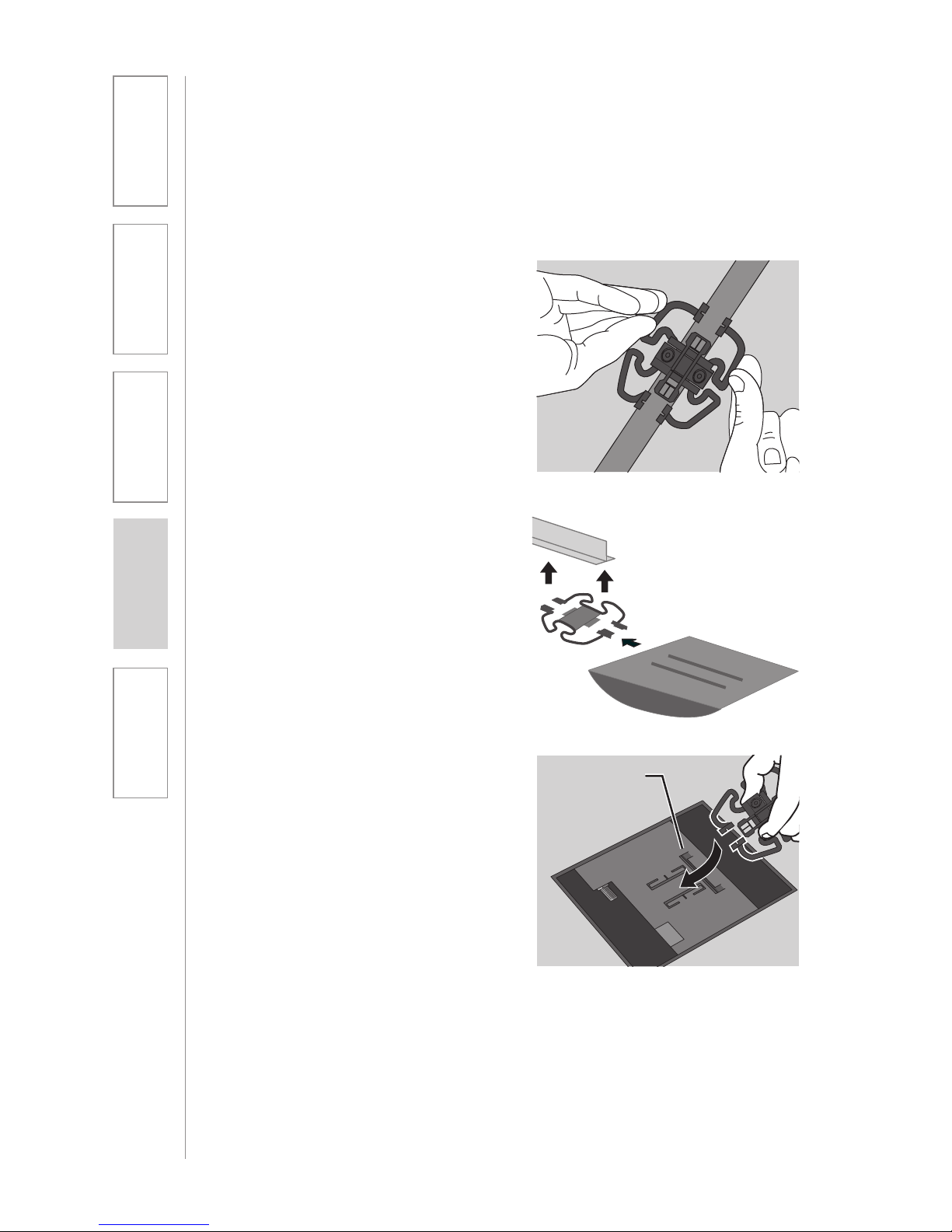

Once you ﬁnd a suitable location for the ISR, follow these instructions to mount it. There are different instructions for mounting depending on if the ISR will be mounted to a suspended ceiling grid or secured to a wall / solid vertical surface.

1. Attach the bracket to the ceiling tile grid (t-bar).

a. Slide the tabs onto the outsides of the t-bar, starting with one corner.

b. Attach the second tab around the other side of the t-bar.

c. Repeat with the other side of the bracket so it is connected at all four points.

2. Slide the ISR onto the bracket until it “clicks” into place.

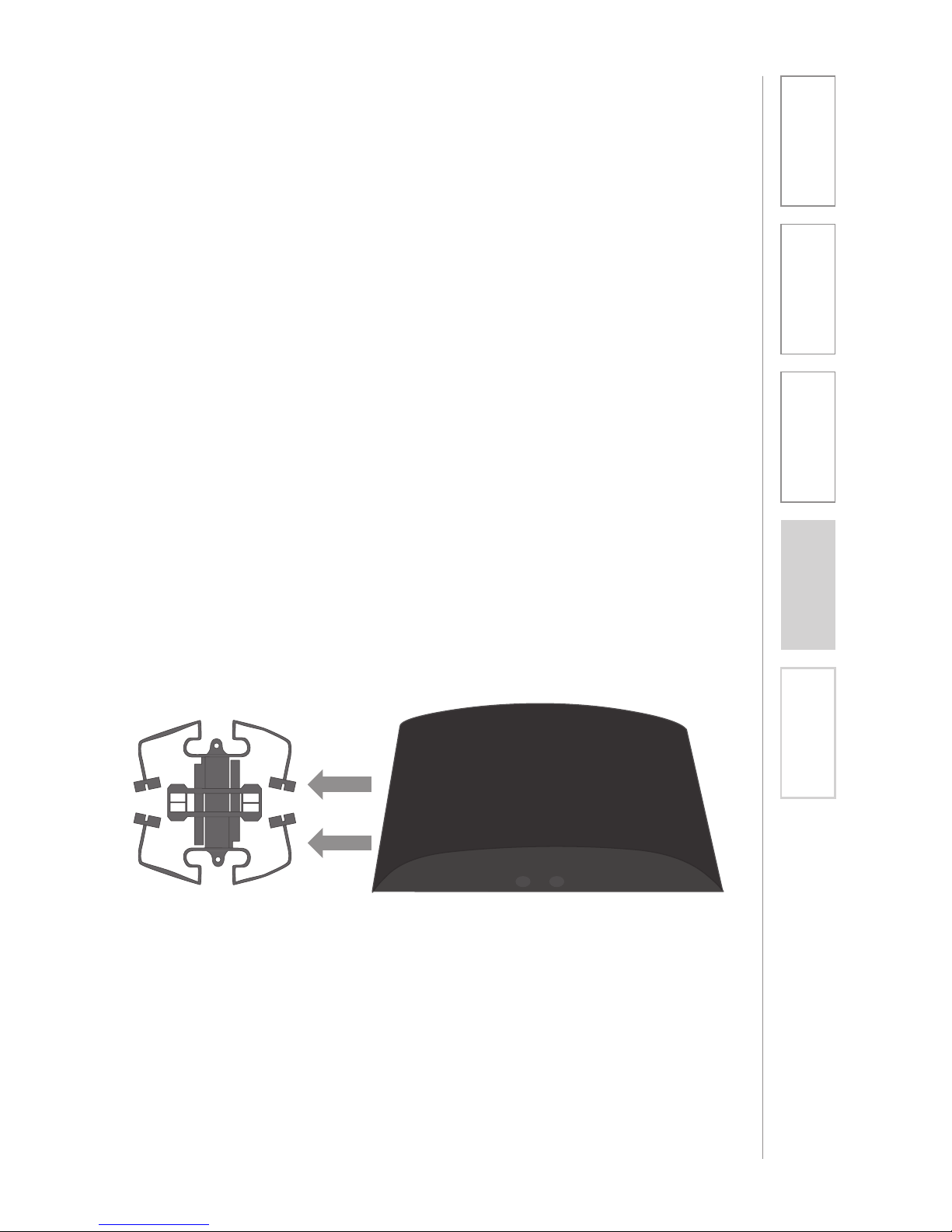

a. Guide the mounting rails onto the bracket, oriented as pictured.

b. Once secure, the ISR locks into place.

c. To remove the ISR, press the release bar down and slide the ISR off the bracket.

3. Uncoil the Cat 5 sensor cable. Connect one end of the cable to the ISR. Secure wire overhead and route it back to the system.

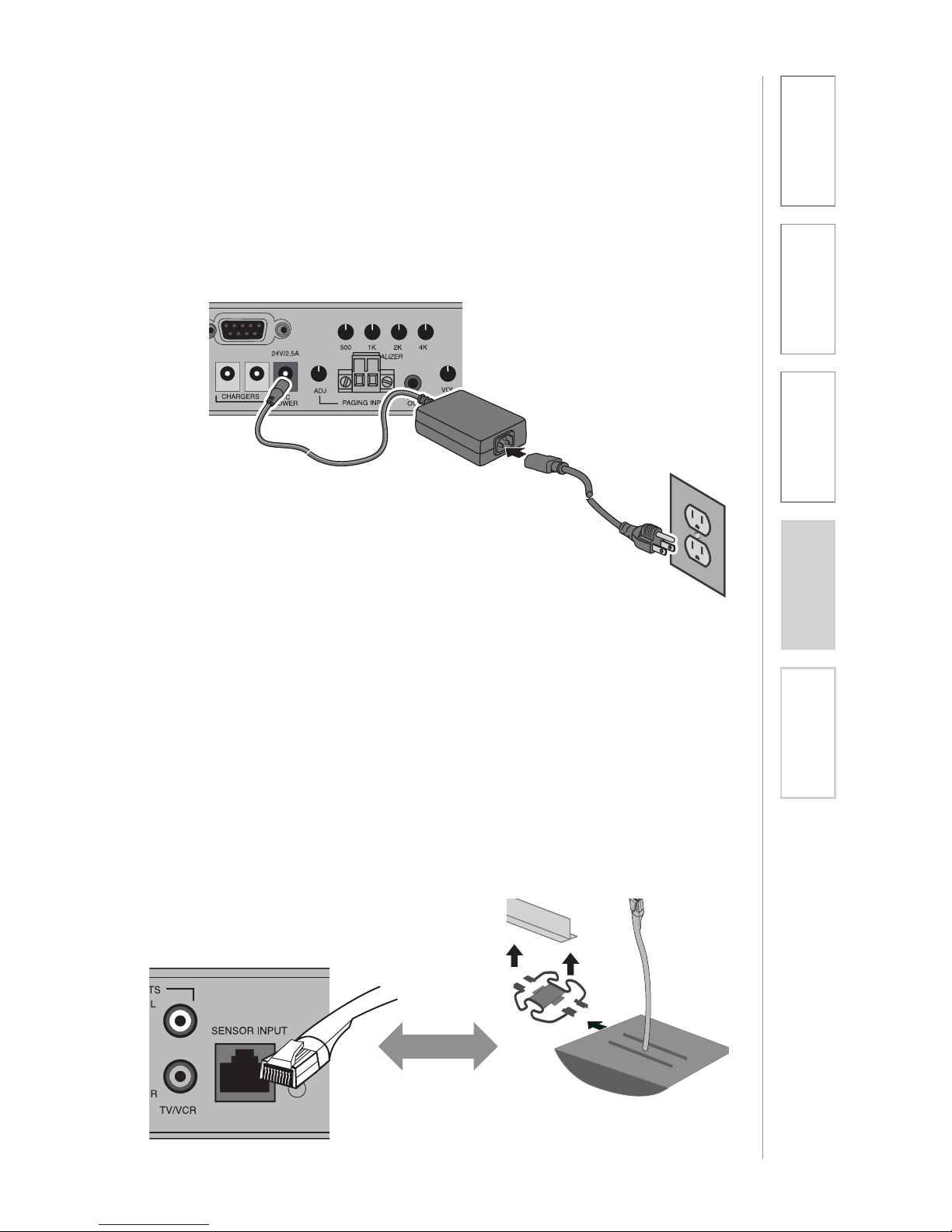

4. Connect the other end of the Cat 5 sensor cable into the SENSOR INPUT jack on the CAT 860 ampliﬁer.

Suspended Ceiling Mount

clip connects to t-bar on ceiling

Release Bar

Page 19

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

1. Screw the bracket to a place high on the wall or in the middle of the solid ceiling. Mount the bracket horizontally as shown above.

2. Uncoil the Cat 5 sensor cable. Connect one end of the cable to the ISR. Route the wire back to the CAT 860 ampliﬁer, securing it along with way using surface raceway where possible.

3. Slide the ISR onto the bracket until it “clicks” into place.

2. IR SENSOR/RECEIVER (ISR) INSTALLATION

CONT’D

Wall/Solid Ceiling Mount

a. Guide the mounting rails onto the bracket, oriented as pictured.

b. Once secure, the ISR locks into place.

c. To remove the ISR, slide a ruler or screwdriver behind the ISR to press the release bar down and slide the ISR off the bracket

4. Connect the other end of the Cat 5 sensor cable into the SENSOR INPUT jack on the CAT 860 ampliﬁer.

Page 20

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

The CAT 860 systems include a bracket for optional wall-mounting.

4. SPEAKER INSTALLATION

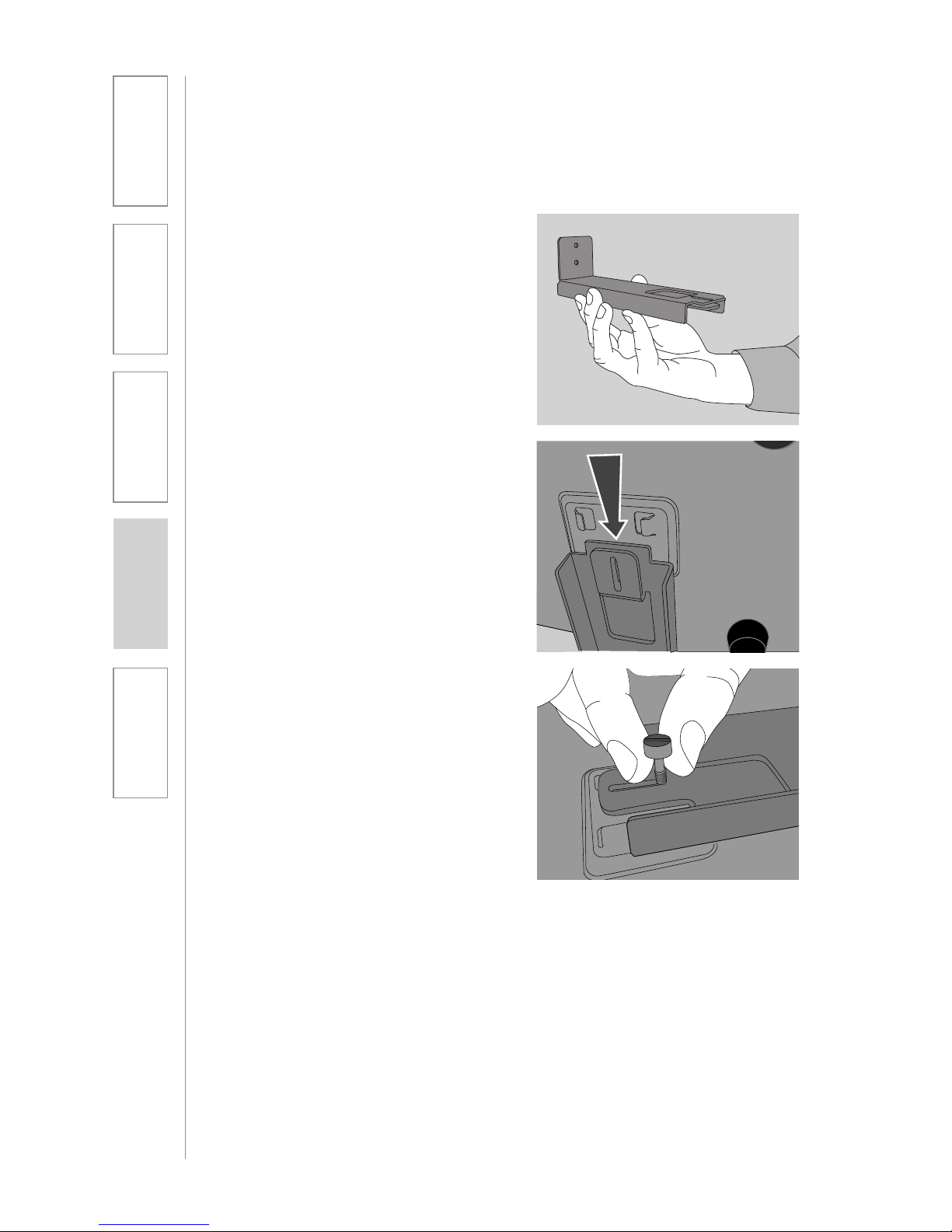

3. INSTALLATION OF AMPLIFIER WALLMOUNT BRACKET

1. Locate the speaker installation instructions packed with your speaker(s).

2. Follow instructions and mount speaker(s).

3. Return to this manual to complete the set up of your system.

A. Determine the location:

a. It should be located near a

power outlet.

b. Height should allow for access to

front control panel, but also be in compliance with building and ADA regulations.

B. Screw the bracket to the wall at

the two screw hole points with the included hardware. Attach to a stud when possible; use the drywall mollies when studs are not available.

C. Slide the CAT 860 onto the bracket

using the channel on the bottom of the ampliﬁer.

D. Secure the CAT 860 to the bracket

by tightening the screw on the bottom.

E. Now that the CAT 860 is secure,

it can be slowly pulled out and pivoted for better access to the back panel. Push the CAT 860 back in, to lock into place.

F. The power supply can be set

on the back of the bracket and secured with ties if desired.

Page 21

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

5B. ISR CONNECTION

5A. CONNECT THE POWER SUPPLY

1. Ensure the power is still switched off.

2. Check the connection from the ISR to the CAT 860. Ensure the sensor cable is securely attached and locked into place.

1. Ensure the power button is depressed in the OFF position.

2. Connect the CD end of the power supply to the black power jack labeled DC POWER.

3. Connect the black AC power cable from the power supply to a wall outlet.

RS-232 IN

CAT 860 Ampliﬁer

DC Power Source Cable

ISR Sensor/Receiver

CAT 860 Ampliﬁer

Page 22

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

RS-232 IN

Front Panel RS-232

Control Select

++--

RS-232 IN

Front Panel RS-232

Control Select

++--

5C. SPEAKER CONNECTION(S)

5D. AUDIO INPUT CONNECTIONS

Next, connect the CAT 860 to the speakers. Then, be sure any auxiliary audio sources are connected to the corresponding labeled input on the CAT 860.

1. Ensure speaker wire connections are secure and not frayed.

*Note: Wiring to these terminals

should follow the Class 2 wiring methods as outlined in the National Electric Code.

Page 23

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

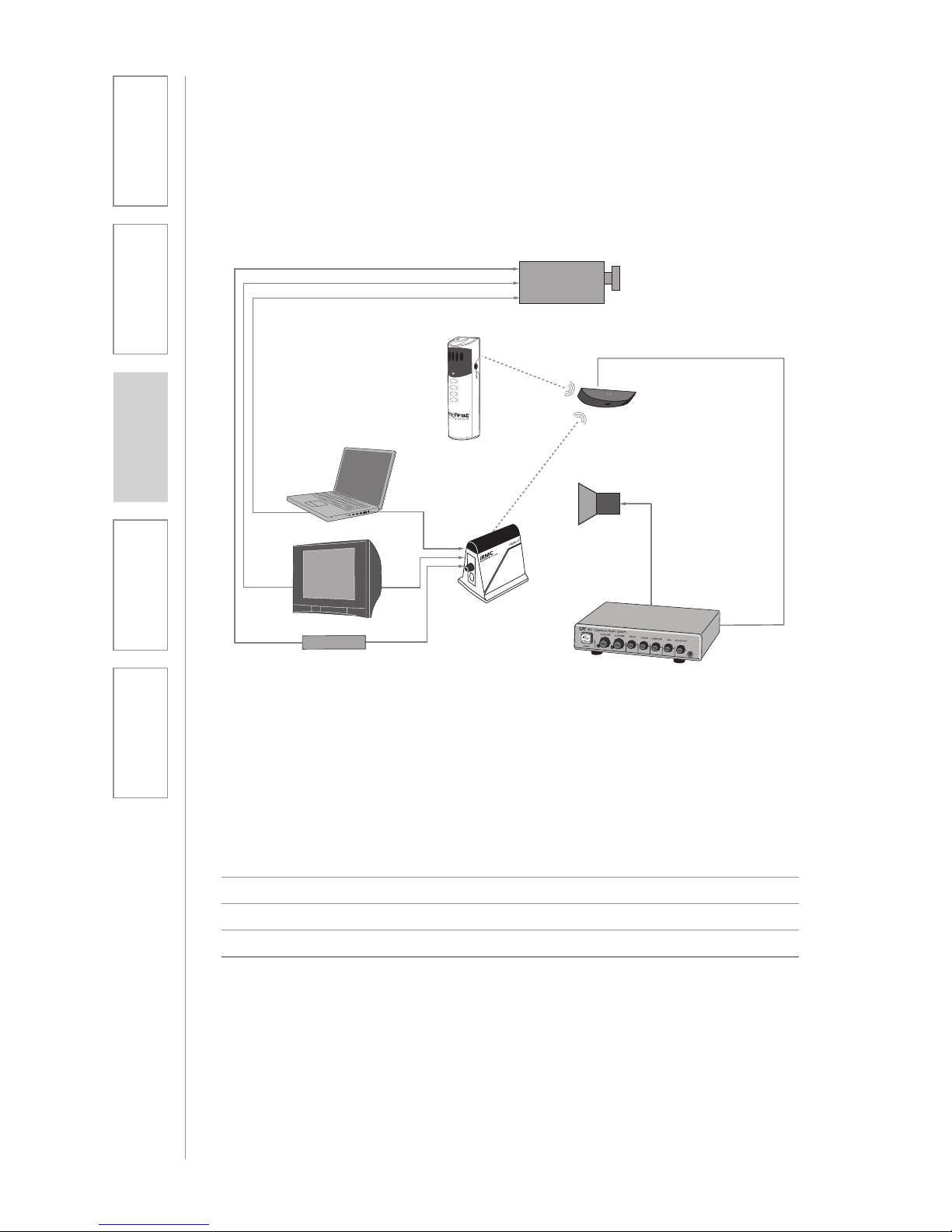

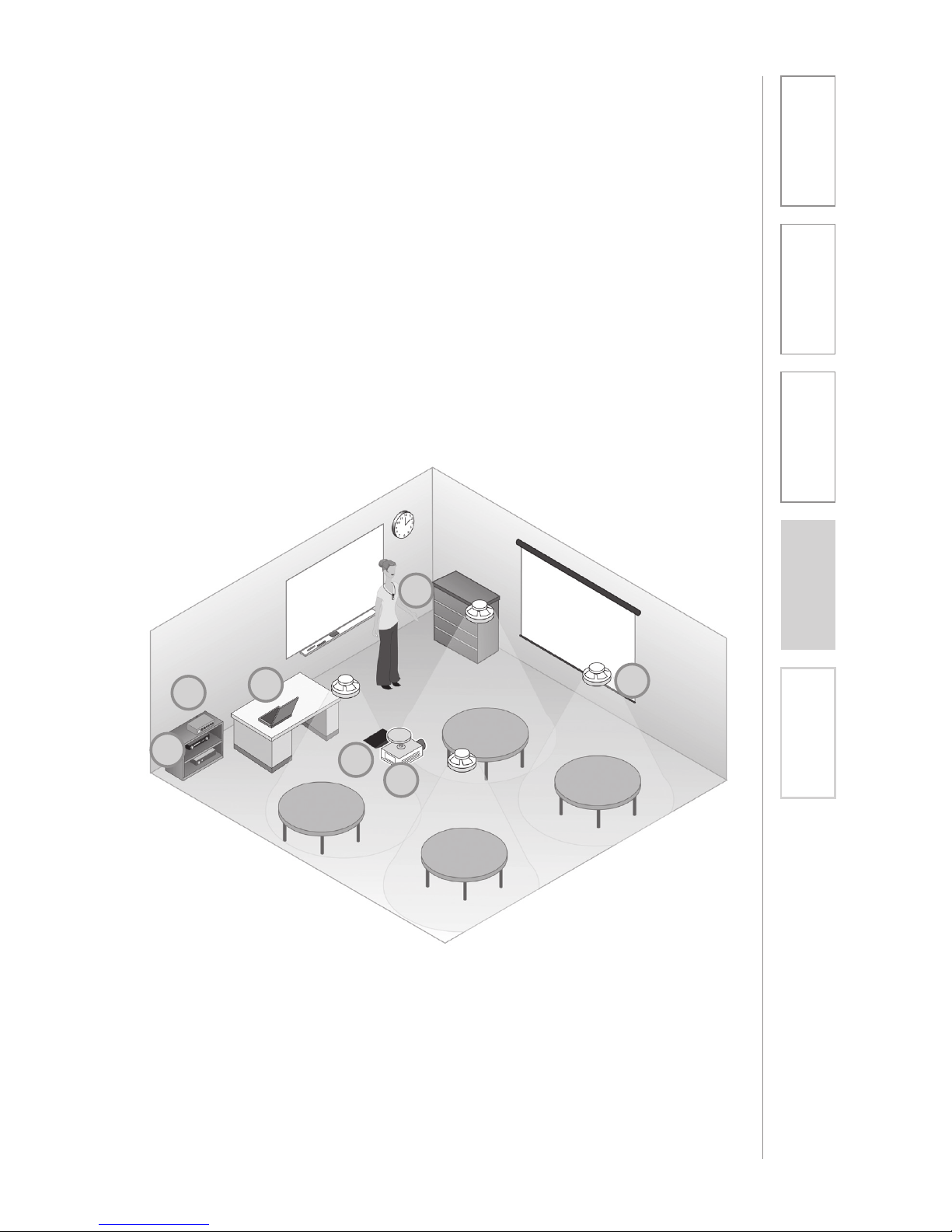

6. AUDIO INTEGRATION

The next step in setting up your CAT 860 system is to connect it to the other multimedia devices in your classroom. You may have a computer, television, DVD/VCR player, a visual projection system or other devices. Below are instructions on how to integrate TV/VCR, CD/DVD or computer directly into the CAT 860.

1. PROJECTOR

2. LAPTOP

3. CAT 860

4. DVD

5. ISR SENSOR

6. TEACHER’S MICROPHONE

7. SPEAKERS

1. Ensure the power is switched off and the audio input volume controls are turned all the way down.

2. Connect the appropriate RCA or

3.5mm audio cable (not included) from the audio source into the corresponding input jack on the rear panel of the CAT 860.

3. With both the CAT 860 and the audio source power on, adjust the corresponding volume control on the CAT 860 until the desired level is achieved.

One Possible Set-up

Page 24

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

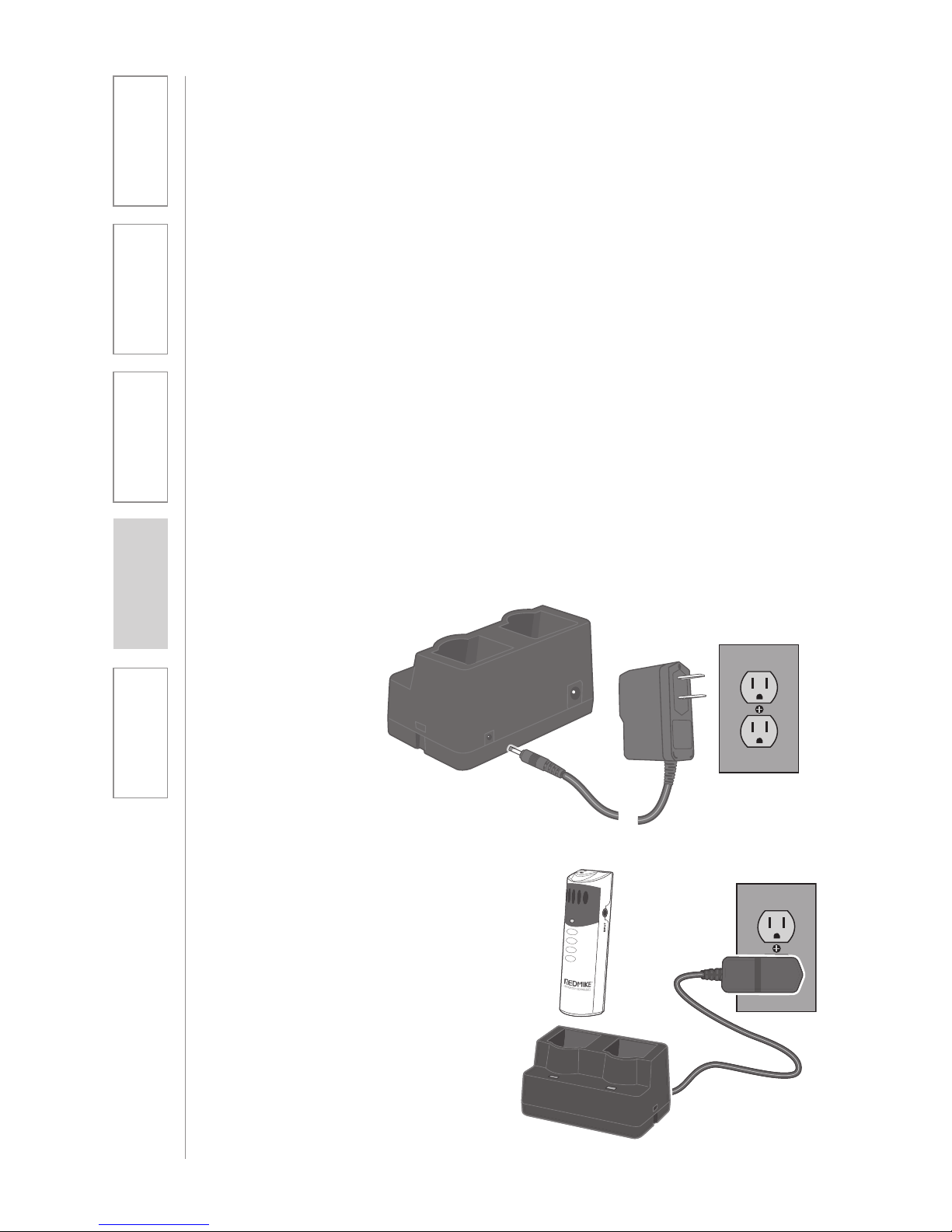

7. CHARGING THE REDMIKE

Before use, the REDMIKE should be charged. It will take 8-9 hours for the REDMIKE to obtain a full charge. A fully charged REDMIKE will last for over 7 hours of use. If microphones are used daily, they should be kept in the cradle – microphones can be left in a charging cradle constantly for up to 2 weeks without causing degradation to battery life.

A red light on the charging cradle indicates the REDMIKE is charging. A green light indicates that charging is complete and a full charge has been reached. A blinking light indicates a charging or sensing error. See Troubleshooting section for more information.

REDMIKE incorporates alkaline protection into the microphone design. Always use a Lightspeed rechargeable sensing battery. Replacement AA NiMH batteries may only be purchased through Lightspeed Technologies (part # BA-NH2A27). Do not attempt to charge alkaline batteries. They can overheat and expand creating a signiﬁcant hazard and damaging the microphone (this is not covered by warranty).

1. Plug power cord into the cradle charger and then plug the AC end into an electrical outlet.

2. Ensure that the REDMIKE is turned OFF.

3. Place the REDMIKE into the cradle. The LED on the cradle will glow RED indicating charging has started. When the REDMIKE is fully charged the LED on the cradle charger will change to GREEN.

Page 25

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

8. SETUP AND OPERATION OF REDMIKE

Once the REDMIKE is charged, follow these steps to set it up for use.

1. Turn the CAT 860 power on. The blue LED will glow.

2. Remove the REDMIKE from the charging cradle and turn it on.

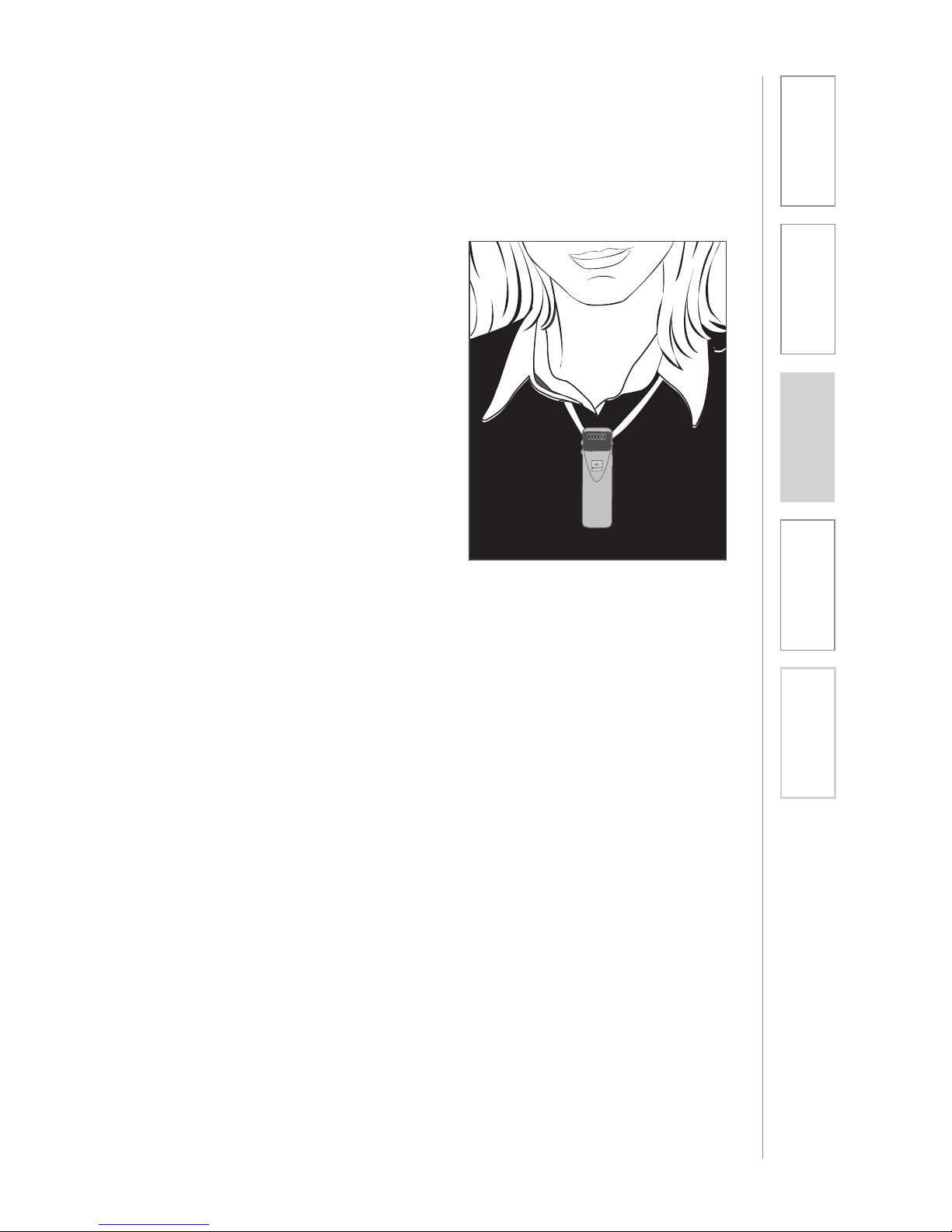

3. Slip the REDMIKE with lanyard around the neck and position the top of the microphone just below the collarbone. NOTE: Positioning of the REDMIKE is critical for proper volume adjustment.

4. While speaking in a normal voice slowly increase the volume of the corresponding channel on the CAT 860 until your voice is barely audible. Each REDMIKE has its channel pre-set to either A or B, as indicated on the back of the Mic.

REMEMBER: This equipment

supplements the user’s voice so they are able to speak in a conversational tone. Having the volume set too high will result in feedback and listener fatigue.

5. Once initial volume level is set, walk around the room and listen for audio dropout and overall audio quality. Fine-tuning the audio is accomplished by making minor adjustments to the 4-Band Equalizer on the back panel of the CAT 860.

6. If a second REDMIKE was purchased, repeat steps 2-4.

Page 26

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

9. AUDIO EQUALIZATION OF THE CAT 860

• Thevoiceshouldbenatural,

very clear and without any audio feedback (ringing)

• Walktheroomlisteningforthe

overall quality and any feedback that is present

• Ifthereisalotofaudiofeedback,

it is likely the volume is too high. Ensure the volume is at the appropriate level, a second person is helpful to determine this.

• Iffeedbackisstillpresentwiththe

audio set at the right level, make the following EQ adjustments:

– High pitched ring: lower the 2K

and/or 4K adjustment by _ turn

– Lower pitched ring: lower the

500 and/or 1K adjustment by _ turn

• Ifyounoticethesoundis“muddy”

or has too much bass:

– Lower the 500 adjustment by _

turn and/or

– Raise the 2K or 4K adjustment by

1/8 turn

• Note:theEQadjustmentsshould

be preset at “12:00.” This is the nominal level and any adjustments (up or down) should be made from this level.

The CAT 860 uses a 4-band audio equalizer designed to optimize and ﬁne-tune the microphone sound quality for the classroom. Below are some tips on proper system equalization:

Page 27

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

10. OUTPUT TO PERSONAL ASSISTIVE

LISTENING DEVICE (ALD)

1. Turn the ALD (Assistive Listening Device) volume control on the back panel all the way down (fully counterclockwise).

2. Determine the size and type of audio input jack on the device as many manufacturers’ products differ in connector size and shape. The Lightspeed LES-370 Personal FM System requires a 3.5 mm to

3.5 mm patch cable (part# CAMMC3535, not included).

3. Connect a patch cable from the ALD’s microphone jack or AUX input to one of the following

3.5mm audio jack on the CAT 860:

• “ALDOUT”onthefrontpanel

• “AUXOUT”onthebackpanel

4. Adjust the volume control on the ALD’s receiver to maximum output. NOTE! This is to set the maximum allowable signal from the CAT 860.

5. With the CAT 860 and ALD turned on, speak into the REDMIKE and slowly adjust the corresponding volume control on the CAT 860 until the appropriate audio level is obtained in the ALD.

RS-232 IN

Front Panel RS-232

Control Select

++--

RS-232 IN

Front Panel RS-232

Control Select

++--

Page 28

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

11. USING THE REDMIKE TO AMPLIFY EXTERNAL AUDIO EQUIPMENT

The REDMIKE includes a 3.5mm audio input jack to connect to an audio source like a laptop or MP3 player. The REDMIKE will transmit the audio signal to be played through the system.

If your system includes two REDMIKEs, we recommend using Channel B (student mike) to amplify the external audio equipment so the teacher’s volume on the Channel A (teacher mike) does not have to be adjusted.

To determine which REDMIKE is set to Channel B, you can look at the switch on the back of the mike or speak into one of the mics and watch which set of LED’s glow on the front panel of the CAT 860 (A Volume or B Volume correspond to Channels A or B).

1. Plug your external audio equipment (for example, laptop), into the input on the REDMIKE labeled “INPUT” using a 3.5mm patch cable.

2. Adjust the volume on the CAT 860 receiver which corresponds to selected mic channel A or B.

AUDIO

OUTPUT

AUDIO

INPUT

Page 29

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

12. PAGEFIRST: PRIORITY MUTE

This optional feature interfaces with an independent classroom paging system. When the page is broadcast, all audio from the system is muted, ensuring important school-wide messages are never missed.

How it works:

1. PageFirst sensor clip is hung around the lead wires attached to the classroom paging speaker.

2. The clip is hard-wired to the CAT

860.

3. As a page is broadcast, the sensor clip detects the audio signal through induction and immediately mutes the CAT 860.

4. When the page is over, the audio from the CAT 860 returns to normal volume level.

(For full installation details refer to the install sheet included with the optional PageFirst sensor clip)

Page 30

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

13. RS-232 SERIAL INTERFACE PROGRAMMING

The CAT 860 uses standard RS-232 protocols as a serial link to an external control module such as an intelligent wall panel, or a personal computer. When the Control Select switch in the “RS-232” position, the serial link offers remote access to operational control circuitry within the CAT 860 for the purpose of controlling the volume of the audio input and output ports. Additionally, the serial links allows remote queries of internal CAT 860 system status.

Command and parameter characters travel serially along the RS-232 signal link between the external controller and the CAT 860. The command and parameter information is in the form of two hexadecimal values contained in the 8-data bits of each RS-232 character. The above graphic illustrates a typical RS-232 logic waveform representing a character (Data format: 1 Start bit, 8 Data bits, No Parity, 1 Stop bit). The data transmission starts with a Start bit, followed by the data bits (LSB sent ﬁrst and MSB sent last), and ends with a “Stop” bit.

The voltage of Logic “1” (Mark) is between -3VDC to -15VDC, while the Logic “0” (Space) is between +3VDC to +15VDC.

RS-232 Data Signals

RS-232 LOGIC WAVEFORM (8N1)

Serial Interface Protocol

CAT 860 RS-232 SETTINGS

Sync. Method: Asynchronous Stop Bits: Accepts 1 or 2 stop bits Baud Rate: 9600 baud Parity: None Data Size: 8-bits Connector: 9-Pin, Female D-Sub

Page 31

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

13. RS-232 SERIAL INTERFACE

PROGRAMMING CONT’D

An external controller, in the form of an intelligent wall panel or a personal computer, can use the RS-232 serial link to remotely send commands to initiate actions or queries for the CAT 860. In response, the CAT 860 uses the RS-232 serial link to send acknowledgements or status data back to external controller.

There are two operational command sets; the Basic Command Set for audio switching and the Advanced Command Set for audio mixing. It is not recommended to intermix commands from the two command sets.

The Basic Command Set treats the CAT 860 as a simple audio switcher where only one of four audio/video sources is enabled at one time. The two microphone channels are controlled as a pair independently from the audio/ video sources. The low-cost serial controllers with their limited functionality will typically will be restricted to a subset of the Basic Command Set. These controllers usually cannot utilize the query commands, or the response packets. More capable high-end serial controllers can take advantage of the complete features of the Basic Command Set.

The Advanced Command Set treats the CAT 860 as an audio mixer which is aligned with the traditional usage for Lightspeed CAT 800 series products. The Advanced Command Set requires the more capable high-end serial controllers to utilize the CAT 860 to its greatest potential.

It is expected that each button press from the serial controller would use only a single action/query command packet. If a single button press must issue a string of multiple action/query command packets then each packet must be separated by at least a 10ms delay, or alternately, a new command packet must wait until the CAT 860 issues a response packet/character before it can be sent.

Connector Signal Wiring

Command Structure

* Only 3-Pin Connection

DTE PIN ASSIGNMENTS (DB-9)

1 DCD Data Carrier Detect 2* RxD Received Data 3* TxD Transmitted Data

4 DTR Data Terminal Ready 5* GND Ground (Signal)

6 DSR Data Set Ready

7 RTS Request to Send

8 CTS Clear to Send

9 RI Ring Indicator

Page 32

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

1. Action Command Functions for the Basic Command Set (Audio Switcher Operations):

a. Enable One of Four Audio/Video Sources

b. Increment and Decrement All Audio/Video Sources by 2dB

c. Increment and Decrement Both Microphone Channels by 2dB

d. Mute and Un-mute All Audio/Video Sources

e. Mute and Un-mute Both Microphone Channels

2. Query Command Functions for the Basic Command Set (Audio Switcher Operations):

a. Return Absolute Microphone Source Volume Setting

b. Return Audio/Video Source Selection Status (TV/VCR, CD/DVD, COMP, or

AUX)

c. Return Absolute Audio/Video Source Volume Setting

d. Return Mute/Un-mute Status for Microphone Source Inputs

e. Return Mute/Un-mute Status for Audio/Video Source Inputs

3. Action Command Functions for the Advanced Command Set (Audio Mixer Operations):

a. Select Control of Microphone Input Channel (A or B)

b. Set Differential Microphone Input Channel Volume

c. Set Absolute Microphone Input Channel Volume

d. Select Control of Audio/Video Source (TV/VCR, CD/DVD, COMP, or AUX)

e. Set Differential Audio/Video Source Volume

f. Set Absolute Audio/Video Source Volume

g. Select Control of Audio Output Channel (AUX)

h. Set Absolute Audio Output Channel Volume

i. Set Mute/Un-mute of Any or All Audio Inputs

4. Query Command Functions for the Advanced Command Set (Audio Mixer Operations):

a. Return Microphone Input Channel Selection Status (A or B)

b. Return Absolute Infrared Input Channel Volume Setting

c. Return Audio/Video Source Selection Status (TV/VCR, CD/DVD, COMP, or

AUX)

d. Return Absolute Audio/Video Source Volume Setting

e. Return Audio Output Channel Selection Status (AUX)

Summary of command and response transactions:

13. RS-232 SERIAL INTERFACE

PROGRAMMING CONT’D

Page 33

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

f. Return Absolute Audio Output Channel Volume Setting

g. Return Mute/Un-mute Status for Audio Inputs

5. Action/Query Response Functions:

a. Not Acknowledge (NACK) is the response for any aborted commands.

b. Action Command response is to repeat back the command packet sent

by the serial controller. Some action command packets do not have a <Param> character, but all response packets will have one or two <Param> characters.

Example: CMD><Param><Param><EOT>

Example: <STX><CMD><Param><EOT>

c. The Query Command response is for the most part the query command

repeated back to the serial controller. However, the response packet also includes one or two imbedded <Param> characters which contain the values of the pertinent CAT 860 registers.

Example: CMD><Param><Param><EOT>

Example:

Example: <STX><CMD><Param><EOT>

Summary of command and response transactions Cont’d:

13. RS-232 SERIAL INTERFACE PROGRAMMING CONT’D

Page 34

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

Control Character Hex Value and Deﬁnition

STX (0x02) Start character of an action command packet. EOT (0x04) End character of any command packet. ACK (0x06) Only response character from the CAT 860

if action command (PING command only) is properly received and accepted.

NACK (0x15) Only response character from the CAT 860 if

any command is corrupted or unsupported. The CAT 860 should send a NACK if:

1. The CAT 860 can not recognize the start or command characters.

2. The CAT 860 does not receive an end character after receiving a total of twenty characters after receiving valid start and command characters.

3. The CAT 860 does not receive an end character after waiting 50ms after receiving valid start and command characters.

CMD (ﬁnd hex value

from Table 1)

This is the general symbol for the command character derived from Table 1.

Param (ﬁnd hex value

from Table 1)

This is the general symbol for the parameter character(s) associated with the command character. They are derived form Table 1.

13. RS-232 SERIAL INTERFACE PROGRAMMING CONT’D

General Format for Action Command Exchange for Basic and Advanced Command Set:

In this example, the serial controller sends an action command packet to the CAT 860 and in response the CAT 860 repeats back the action command packet the serial controller. The <Param> characters can be absent from the action command packet, but all response packets will have one or two added <Param> characters containing the values of the pertinent internal CAT 860 register.

Controller: <STX><CMD><Param><EOT> CAT 860: <STX><CMD><Param><EOT>

Page 35

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

13. RS-232 SERIAL INTERFACE PROGRAMMING CONT’D

General Format for Query Command Exchange:

In this example the external controller sends query command packet to CAT

860. CAT 860 repeats back the action command packet in response which also includes one or two imbedded <Param> characters. The <Param> characters which are added to the query command packets contain the values of the pertinent internal CAT 860 registers.

Controller: <STX><CMD><EOT> CAT 860: <STX><CMD><Param><Param><EOT>

General Format for Aborted Command Exchange (Both Basic and Advanced Command Sets:

In this example the external controller sends either an action or query command to CAT 860 and the command is either corrupted or unsupported. The <Param> characters can be absent.

Controller: <STX><CMD><Param><EOT> CAT 860: <NACK>

Note: It is expected that each button press from the serial controller would use only a single command/query packet. If a single button press must issue a string of multiple command/query packets then each packet must be separated by at least a 10ms delay, or alternately, a new packet must wait until the CAT 860 issues a response packet/character before it can be sent.

Page 36

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

AVS p 0xE0 Command Packet:

The controller sends only one <Param> character in the command packet. The possible values are shown below:

0x80 = Enable TV/VCR

0x81 = Enable CD/DVD

0x82 = Enable COMPUTER

0x83 = Enable AUX IN

0x84 = Enable All Inputs **

** Power up default used to facilitate initial system installation.

Select (enable) one of four Audio/Video input sources to receive audio. The remaining three unselected Audio/Video input ports will be muted by sending the -79dB setting their corresponding volume control hardware registers. Note that muting inputs does not change the values in any of the volume-level EEPROM variables.

Response Packet:

If the command is properly received, the CAT 860 responds by repeating back the command packet to the serial controller.

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

Power up default initially has all six audio inputs enabled. The power up default settings for all six input volume-level EEPROM variables is the setting for

-40dB.

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION

BASIC COMMAND SET FOR AUDIO SWITCHER OPERATIONS

Audio Input Functions for the A/V Source Group

1. ENABLE AUDIO/VIDEO SOURCE COMMAND

Page 37

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

IAVS 0xE1 Command Packet:

The controller sends no <Param> character in the command packet.

Increment the volume of the selected audio input by 2 dB. This overrides any previous mute commands.

The remaining three unselected audio/video source inputs remain muted.

Response Packet:

If the command is properly received, the CAT 860 responds by repeating back the command packet to the serial controller with an added imbedded <Param> character containing the value loaded.

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

BASIC COMMAND SET FOR AUDIO SWITCHER OPERATIONS CONT’D

Audio Input Functions for the A/V Source Group Cont’d

2. INCREMENT AUDIO/VIDEO SOURCES COMMAND

Page 38

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

DAVS 0xE2 Command Packet:

The controller sends no <Param> character in the command packet.

Decrement the volume of the selected audio input by 2 dB. This overrides any previous mute commands.

The remaining three unselected audio/video source inputs remain muted.

Response Packet:

If the command is properly received, the CAT 860 responds by repeating back the command packet with an added imbedded <Param> character containing the value loaded.

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

BASIC COMMAND SET FOR AUDIO SWITCHER OPERATIONS CONT’D

Audio Input Functions for the A/V Source Group Cont’d

3. DECREMENT AUDIO/VIDEO SOURCES COMMAND

Page 39

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

IMAI 0xE3 Command Packet:

The controller sends no <Param> character in the command packet.

Increment the volume for microphone channel A and B audio by 2 dB. This overrides any previous mute commands.

Response Packet:

If the command is properly received, the CAT 860 responds by repeating back the command packet with an added imbedded <Param> character containing the value loaded.

If the command is not received properly, the CAT 860 responds by sending a <NACK> character

DMAI 0xE4 Command Packet:

The controller sends no <Param> character in the command packet.

Decrement the volume of the microphone channel A and B audio by 2 dB. This overrides any previous mute commands.

Response Packet:

If the command is properly received, the CAT 860 responds by repeating back the command packet with an added imbedded <Param> character containing the value loaded.

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

BASIC COMMAND SET FOR AUDIO SWITCHER OPERATIONS CONT’D

Audio Input Functions for the A/V Source Group Cont’d

4. INCREMENT MICROPHONE AUDIO INPUTS COMMAND

DECREMENT MICROPHONE AUDIO INPUTS COMMAND

Page 40

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

MAVS 0xE5 Command Packet:

The controller sends no <Param> character in the command packet.

Mute all audio input volume by sending -79dB for each input (TV/VCR, CD/DVD, COMPUTER, and AUX).

Response Packet:

If the command is properly received, the CAT 860 responds by repeating back the command packet with an added imbedded <Param> character containing the value 0x81 indicating that the A/V audio sources are in the muted state.

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

BASIC COMMAND SET FOR AUDIO SWITCHER OPERATIONS CONT’D

Audio Input Functions for the A/V Source Group Cont’d

5. MUTE AUDIO/VIDEO SOURCES COMMAND

Page 41

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

UAVS 0xE6 Command Packet:

The controller sends no <Param> character in the command packet.

Un-mute audio volume for the audio input selected by the most recent EAVS (<0xE0>) command stored in EEPROM.

The remaining three unselected audio/video sources will remain muted. None of the input volumelevel EEPROM variables are modiﬁed.

Response Packet:

If the command is properly received, the CAT 860 responds by repeating back the command packet with an added imbedded <Param> character containing the value 0x80 indicating that the A/V audio sources are no longer in the muted state

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

BASIC COMMAND SET FOR AUDIO SWITCHER OPERATIONS CONT’D

Audio Input Functions for the A/V Source Group Cont’d

6. UN-MUTE ENABLED AUDIO/VIDEO SOURCE COMMAND

Page 42

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

MMAI 0xE7 Command Packet:

The controller sends no <Param> character in the command packet.

The Mute microphone volume command sets both microphone channels (A & B) to -79dB.

Response Packet:

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

8. UN-MUTE MICROPHONE AUDIO INPUTS COMMAND

UMAI 0xE8 Command Packet:

The controller sends no <Param> character in the command packet.

Deﬁnition:

The un-mute microphone volume command reloads the previously set microphone volume levels.

Response Packet:

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

BASIC COMMAND SET FOR AUDIO SWITCHER OPERATIONS CONT’D

Audio Input Functions for the A/V Source Group Cont’d

7. MUTE MICROPHONE AUDIO INPUTS COMMAND

Page 43

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

BASIC COMMAND SET FOR AUDIO SWITCHER OPERATIONS CONT’D

Audio Input Functions for the A/V Source Group Cont’d

9. TOGGLE MUTE FOR ENABLED AUDIO/VIDEO SOURCE COMMAND

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

TMAV 0xE9 Command Packet:

The controller sends no <Param> character in the command packet.

The Toggle Mute command toggles between mute and un-mute for the audio/video source inputs.

When set to mute, the 860 Aux Audio Inputs are set to

-79dB.

When set to unmute, the 860 resets the previously selected input to it’s previous volume setting and the remaining three Aux Audio Inputs remain set at

-79dB.

Response Packet:

If the command is properly received, the CAT 860 responds by repeating back the command packet with an added imbedded <Param> character containing the value 0x80 if the resultant state is “un-muted” and 0x81 if the resultant state is “muted”.

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

Page 44

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

BASIC COMMAND SET FOR AUDIO SWITCHER OPERATIONS CONT’D

Audio Input Functions for the A/V Source Group Cont’d

10. TOGGLE MUTE FOR MICROPHONE AUDIO INPUTS COMMAND

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

TMMI 0xEA Command Packet:

The controller sends no <Param> character in the command packet.

This command toggles between mute and un-mute for the microphone audio inputs.

When set to mute, the 860 microphone Channel A & B volumes are set to -79dB.

When set to unmute, the 860 resets the microphone volumes to their previous volume setting.

Response Packet:

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

Page 45

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

13. RS-232 SERIAL INTERFACE PROGRAMMING CONT’D

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

QEAV? 0xEB Command Packet:

The controller sends no <Param> character in the command packet.

This command causes the CAT 860 to return a query response packet where the added <Param> character contains the “enable” status set by EAVS (<0xE0>).

Response Packet:

If the command is properly received, the CAT 860 responds by repeating back the command packet to the serial controller with the added <Param> character containing the value indicating the “enable” status set by EAVS (<0xE0>).

The possible values are shown below:

0x80 = TV/VCR Enabled

0x81 = CD/DVD Enabled

0x82 = COMPUTER Enabled

0x83 = AUX IN Enabled

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

BASIC COMMAND SET FOR AUDIO SWITCHER OPERATIONS CONT’D

Audio Input Functions for the A/V Source Group Cont’d

11. QUERY ENABLED AUDIO/VIDEO SOURCE COMMAND

Page 46

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

13. RS-232 SERIAL INTERFACE PROGRAMMING CONT’D

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

QVAV? 0xEC Command Packet:

The controller sends no <Param> character in the command packet.

This command causes the CAT 860 to return a query response packet where the added imbedded <Param> character contains the absolute volume-level for the audio/video sources inputs.

Response Packet:

If the command is properly received, the CAT 860 responds by repeating back the command packet to the serial controller with the added <Param> character containing the absolute volume level for the audio/ video sources.

The possible values are shown below:

0xCF = 0 dB

0xCE = -1dB

0xCD = -2dB

0xCC = -3dB

0xA7 = -40dB

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

BASIC COMMAND SET FOR AUDIO SWITCHER OPERATIONS CONT’D

Audio Input Functions for the A/V Source Group Cont’d

12. QUERY ABSOLUTE VOLUME AUDIO/VIDEO SOURCE COMMAND

Page 47

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

QVMI? 0xED Command Packet:

The controller sends no <Param> character in the command packet.

This command causes the CAT 860 to return a query response packet where the added <Param> character contains the absolute volume-level for the microphone audio inputs.

Response Packet:

The possible values are shown below:

0xCF = 0 dB

0xCE = -1dB

0xCD = -2dB

0xCC = -3dB

0xA7 = -40dB

0x83 = -76dB

0x82 = -77dB

0x81 = -78B

0x80 = -79dB

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

BASIC COMMAND SET FOR AUDIO SWITCHER OPERATIONS CONT’D

Audio Input Functions for the A/V Source Group Cont’d

13. QUERY ABSOLUTE VOLUME MICROPHONE AUDIO INPUT COMMAND

Page 48

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

QMAV? 0xEE Command Packet:

The controller sends no <Param> character in the command packet.

This command causes the CAT 860 to return a query response packet where the added imbedded <Param> character contains the mute state for the audio/video sources.

Response Packet:

If the command is properly received, the CAT 860 responds by repeating back the command packet with an added imbedded <Param> character containing the value 0x80 if the state is “un-muted” and 0x81 if the state is “muted”.

The possible values are shown below:

0x80 = Un-muted

0x81 = Muted

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

BASIC COMMAND SET FOR AUDIO SWITCHER OPERATIONS CONT’D

Audio Input Functions for the A/V Source Group Cont’d

14. QUERY MUTE FOR AUDIO/VIDEO SOURCE COMMAND

Page 49

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

QMMI? 0xEF Command Packet:

The controller sends no <Param> character in the command packet.

This command causes the CAT 860 to return a query response packet where the added imbedded <Param> character contains the mute state for the microphone audio inputs.

Response Packet:

The possible values are shown below:

0x80 = Un-muted

0x81 = Muted

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

BASIC COMMAND SET FOR AUDIO SWITCHER OPERATIONS CONT’D

Audio Input Functions for the A/V Source Group Cont’d

15. QUERY MUTE FOR MICROPHONE AUDIO INPUTS COMMAND

Page 50

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

Deﬁnition

This command determines which volume-level will be affected by the AIDI (<0x92>), AIDD (<0x93>), and AIAV (<0x94>) commands.

If the command is properly received, the CAT 860 responds by repeating back the command packet where the <Param> character contains the selection status.

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

Power up default is TV/VCR selected.

These items are included for controllers limited to only a single volume control, the three parameters on the left allow the AIDI (<92>), AIDD (<93>), AIAV, (<94>) and AIAV? (<95>) commands to have the same capabilities as the AODI (<A2>), AODD (<A3>), AOAV (<A4>), AOAV? (<A5>), IIDI (<B2>), IIDD (<B3>), IIAV (<B4>), and IIAV? (<B5>) commands.

That is, multiple commands will be able to independently affect the values of the same volume-level EEPROM variables which correspond to the IR CH-A, the IR CH-B, and the AUX OUT. This is true even if the two commands have been directed to the same volume-level EEPROM variable. In this case the EEPROM variable retains the value from the last command issued from the serial controller.

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

AICH p 0x90 Command Packet:

The controller sends only one <Param> character in the command packet. The possible values are shown below:

0x80 = TV/VCR**

0x81 = CD/DVD

0x82 = COMPUTER

0x83 = AUX IN

0x84 = IR Channel A

0x85 = IR Channel B

0x86 = AUX OUT

** Power up default

Response Packet:

The CAT 860 sends only one <Param> character in the response packet. The possible values are shown below:

0x80 = TV/VCR

0x81 = CD/DVD

0x82 = COMPUTER

0x83 = AUX IN

0x84 = IR Channel A

0x85 = IR Channel B

0x86 = AUX OUT

ADVANCED COMMAND SET FOR AUDIO MIXER OPERATIONS

Audio Input Functions for the A/V Source Group

1. SELECT AUDIO INPUT COMMAND

Page 51

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

AICH? 0x91 Command Packet:

The controller sends no <Param> character in the command packet.

This command causes the CAT 860 to return a query response packet where the <Param> contains the selection status set by AICH (<0x90>).

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

Response Packet:

The CAT 860 sends only one <Param> character in the response packet. The possible values are shown below:

0x80 = TV/VCR

0x81 = CD/DVD

0x82 = COMPUTER

0x83 = AUX IN

0x84 = IR Channel A

0x85 = IR Channel B

0x86 = AUX OUT

ADVANCED COMMAND SET FOR AUDIO MIXER OPERATIONS CONT’D

Audio Input Functions for the A/V Source Group Cont’d

2. QUERY SELECTED AUDIO INPUT COMMAND

Page 52

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

Deﬁnition: This command modiﬁes the volume-level EEPROM variable which was selected by the AICH (<0x90>) command. The EEPROM variable is incremented by the amount indicated in the <param> character.

Afterwards, the value in the EEPROM variable is unconditionally loaded into the corresponding volume control hardware register. This overrides any prior mute operation.

If the command is properly received, the CAT 860 responds by repeating back the command packet where the ﬁrst of two replacement <Param> characters contains the selection status set by AICH (<0x90>) and the second contains the resultant value stored in the volume-level EEPROM variable which was modiﬁed by this command.

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

For the audio inputs, the power up default values for all six input volume-level EEPROM variables is set for -40dB.

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

AIDI p 0x92 Command Packet:

The controller sends only one <Param> character in the command packet. The possible values are shown below:

0x81 = one 1dB step

0x82 = two 1dB steps

0x83 = three 1dB steps

0x84 = four 1dB steps

0x85 = ﬁve 1dB steps

0x86 = six 1dB step

0x87 = seven 1dB steps

0x88 = eight 1dB steps

0x89 = nine 1dB steps

0x8A = ten 1dB steps

Response Packet:

The CAT 860 sends two <Param> characters in the response packet. Possible values are shown below:

<Param> #1:

0x80 = TV/VCR 0x81 = CD/DVD 0x82 = COMPUTER 0x83 = AUX IN 0x84 = IR Channel A 0x85 = IR Channel B 0x86 = AUX OUT

<Param> #2:

0xCF = 0 dB 0xCE = -1dB 0xCD = -2dB 0xCC = -3dB 0xA7 = -40dB 0x83 = -76dB 0x82 = -77dB 0x81 = -78B 0x80 = -79dB

ADVANCED COMMAND SET FOR AUDIO MIXER OPERATIONS CONT’D

Audio Input Functions for the A/V Source Group

1. DIFFERENTIALLY INCREASE VOLUME FOR SELECTED AUDIO INPUT COMMAND

Page 53

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

Deﬁnition: This command modiﬁes the volume-level EEPROM variable which was selected by the AICH (<0x90>) command. The EEPROM variable is decremented by the amount indicated in the <param> character.

Afterwards, the value in the EEPROM variable is unconditionally loaded into the corresponding volume control hardware register. This overrides any prior mute operation.

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

For the audio inputs, the power up default values for all six input volume-level EEPROM variables is set for -40dB.

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

AIDD p 0x93 Command Packet:

The controller sends only one <Param> character in the command packet. The possible values are shown below:

0x81 = one 1dB step

0x82 = two 1dB steps

0x83 = three 1dB steps

0x84 = four 1dB steps

0x85 = ﬁve 1dB steps

0x86 = six 1dB step

0x87 = seven 1dB steps

0x88 = eight 1dB steps

0x89 = nine 1dB steps

0x8A = ten 1dB steps

Response Packet:

The CAT 860 sends two <Param> characters in the response packet. The possible values are shown below:

<Param> #1:

0x80 = TV/VCR 0x81 = CD/DVD 0x82 = COMPUTER 0x83 = AUX IN 0x84 = IR Channel A 0x85 = IR Channel B 0x86 = AUX OUT

<Param> #2:

0xCF = 0 dB 0xCE = -1dB 0xCD = -2dB 0xCC = -3dB 0xA7 = -40dB 0x83 = -76dB 0x82 = -77dB 0x81 = -78B 0x80 = -79dB

ADVANCED COMMAND SET FOR AUDIO MIXER OPERATIONS CONT’D

Audio Input Functions for the A/V Source Group Cont’d

2. DIFFERENTIALLY DECREASE VOLUME FOR SELECTED AUDIO INPUT COMMAND

Page 54

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

Deﬁnition: This command modiﬁes the volume-level EEPROM variable which was selected by the AICH (<0x90>) command. The EEPROM variable is set the value indicated in the <param> character.

Afterwards, the value in the EEPROM variable is unconditionally loaded into the corresponding volume control hardware register regardless of any prior mute operation.

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

For the audio inputs, the power up default values for all six input volume-level EEPROM variables is set for -40dB.

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

AIAV p 0x94 Command Packet:

The controller sends only one <Param> character in the command packet. The possible values are shown below:

0xCF = 0 dB

0xCE = -1dB

0xCD = -2dB

0xCC = -3dB

0xA7 = -40dB**

0x83 = -76dB

0x82 = -77dB

0x81 = -78B

0x80 = -79dB

** Power up default

Response Packet:

The CAT 860 sends two <Param> characters in the response packet. Possible values are shown below:

<Param> #1:

0x80 = TV/VCR 0x81 = CD/DVD 0x82 = COMPUTER 0x83 = AUX IN 0x84 = IR Channel A 0x85 = IR Channel B 0x86 = AUX OUT

<Param> #2:

0xCF = 0 dB 0xCE = -1dB 0xCD = -2dB 0xCC = -3dB 0xA7 = -40dB 0x83 = -76dB 0x82 = -77dB 0x81 = -78B 0x80 = -79dB

ADVANCED COMMAND SET FOR AUDIO MIXER OPERATIONS CONT’D

Audio Input Functions for the A/V Source Group Cont’d

3. SET ABSOLUTE VOLUME FOR SELECTED AUDIO INPUT COMMAND

Page 55

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

Deﬁnition: This command causes the CAT 860 to return a query response packet where the ﬁrst of two <Param> characters contains the selection status set by AICH (<0x90>) and the second contains the value stored in the volume-level EEPROM variable selected by the AICH (<0x90>) command.

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

AIAV? 0x95 Command Packet:

The controller sends no <Param> character in the command packet.

Response Packet:

The CAT 860 sends two <Param> characters in the response packet. The possible values are shown below:

<Param> #1:

0x80 = TV/VCR

0x81 = CD/DVD

0x82 = COMPUTER

0x83 = AUX IN

0x84 = IR Channel A

0x85 = IR Channel B

0x86 = AUX OUT

<Param> #2:

0xCF = 0 dB

0xCE = -1dB

0xCD = -2dB

0xCC = -3dB

0xA7 = -40dB

0x83 = -76dB

0x82 = -77dB

0x81 = -78B

0x80 = -79dB

ADVANCED COMMAND SET FOR AUDIO MIXER OPERATIONS CONT’D

Audio Input Functions for the A/V Source Group Cont’d

4. QUERY ABSOLUTE VOLUME FOR SELECTED AUDIO INPUT COMMAND

Page 56

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

AOCH p 0xA0 Command Packet:

The controller sends only one <Param> character in the command packet. The possible values are shown below:

0x80 = Reserved

0x81 = AUX OUT**

** Power up default

Response Packet:

The CAT 860 sends only one <Param> character in the response packet. The possible values are shown below:

0x81 = AUX OUTt

This command determines which volume-level EEPROM variable will be affected by the AODI (<0xA2>), AODD (<0xA3>), and AOAV (<0xA4>) commands.

If the command is properly received, the CAT 860 responds by repeating back the command packet where the <Param> character contains the selection status.

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

Power up default is AUX selected.

QUERY SELECTED AUDIO OUTPUT COMMAND

AOCH? 0xA1 Command Packet:

The controller sends no <Param> character in the command packet.

Response Packet:

The CAT 860 sends only one <Param> character in the response packet. The possible values are shown below:

0x81 = AUX OUT

This command causes the CAT 860 to return a query response packet where the <Param> contains the selection status set by AOCH (<0xA0>).

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

ADVANCED COMMAND SET FOR AUDIO MIXER OPERATIONS CONT’D

Audio Input Functions for the A/V Source Group Cont’d

5. SELECT AUDIO OUTPUT COMMAND

Page 57

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

AODI p 0xA2 Command Packet:

The controller sends only one <Param> character in the command packet. The possible values are shown below:

0x81 = one 1dB step

0x82 = two 1dB steps

0x83 = three 1dB steps

0x84 = four 1dB steps

0x85 = ﬁve 1dB steps

0x86 = six 1dB step

0x87 = seven 1dB steps

0x88 = eight 1dB steps

0x89 = nine 1dB steps

0x8A = ten 1dB steps

Response Packet:

The CAT 860 sends two <Param> characters in the response packet. The possible values are shown below:

<Param> #1:

0x81 = AUX OUT

<Param> #2:

0xCF = 0 dB

0xCE = -1dB

0xCD = -2dB

0xCC = -3dB

0xA7 = -40dB

0x83 = -76dB

0x82 = -77dB

0x81 = -78B

0x80 = -79dB

Deﬁnition: This command modiﬁes the volume-level EEPROM variable which was selected by the AOCH (<0xA0>) command. The EEPROM variable is incremented by the amount indicated in the <param> character.

Afterwards, the value in the EEPROM variable is unconditionally loaded into the corresponding volume control hardware register. This overrides any prior mute operation.

If the command is properly received, the CAT 860 responds by repeating back the command packet where the ﬁrst of two replacement <Param> characters contains the selection status set by AOCH (<0xA0>) and the second contains the resultant value stored in the volume-level EEPROM variable which was modiﬁed by this command.

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

For the audio outputs, the power up default values for all volume-level EEPROM variables is set for 0dB.

ADVANCED COMMAND SET FOR AUDIO MIXER OPERATIONS CONT’D

Audio Input Functions for the A/V Source Group Cont’d

6. DIFFERENTIALLY INCREASE VOLUME FOR SELECTED AUDIO OUTPUT COMMAND

Page 58

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

AODD p 0xA3 Command Packet:

The controller sends only one <Param> character in the command packet. The possible values are shown below:

0x81 = one 1dB step

0x82 = two 1dB steps

0x83 = three 1dB steps

0x84 = four 1dB steps

0x85 = ﬁve 1dB steps

0x86 = six 1dB step

0x87 = seven 1dB steps

0x88 = eight 1dB steps

0x89 = nine 1dB steps

0x8A = ten 1dB steps

Response Packet:

The CAT 860 sends two <Param> characters in the response packet. The possible values are shown below:

<Param> #1:

0x81 = AUX OUT

<Param> #2:

0xCF = 0 dB

0xCE = -1dB

0xCD = -2dB

0xCC = -3dB

0xA7 = -40dB

0x83 = -76dB

0x82 = -77dB

0x81 = -78B

0x80 = -79dB

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

Deﬁnition: This command modiﬁes the volume-level EEPROM variable which was selected by the AOCH (<0xA0>) command. The EEPROM variable is decremented by the amount indicated in the <param> character.

Afterwards, the value in the EEPROM variable is unconditionally loaded into the corresponding volume control hardware register. This overrides any prior mute operation.

If the command is properly received, the CAT 860 responds by repeating back the command packet where the ﬁrst of two replacement <Param> characters contains the selection status set by AOCH (<0xA0>) and the second contains the resultant value stored in the volume-level EEPROM variable which was modiﬁed by this command.

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

For the audio outputs, the power up default values for all output volume-level EEPROM variables is set for 0dB (i.e. maximum output).

ADVANCED COMMAND SET FOR AUDIO MIXER OPERATIONS CONT’D

Audio Input Functions for the A/V Source Group Cont’d

7. DIFFERENTIALLY DECREASE VOLUME FOR SELECTED AUDIO OUTPUT COMMAND

Page 59

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

AOAV p 0xA4 Command Packet:

The controller sends only one <Param> character in the command packet. The possible values are shown below:

0xCF = 0 dB

0xCE = -1dB

0xCD = -2dB

0xCC = -3dB

0xA7 = -40dB**

0x83 = -76dB

0x82 = -77dB

0x81 = -78B

0x80 = -79dB

** Power up default

Response Packet:

The CAT 860 sends two <Param> characters in the response packet. The possible values are shown below:

<Param> #1:

0x81 = AUX OUT

<Param> #2:

0xCF = 0 dB

0xCE = -1dB

0xCD = -2dB

0xCC = -3dB

0xA7 = -40dB

0x83 = -76dB

0x82 = -77dB

0x81 = -78B

0x80 = -79dB

Deﬁnition: This command modiﬁes the volume-level EEPROM variable which was selected by the AOCH (<0xA0>) command. The EEPROM variable is set the value indicated in the <param> character.

Afterwards, the value in the EEPROM variable is unconditionally loaded into the corresponding volume control hardware register. This overrides any prior mute operation.

If the command is properly received, the CAT 860 responds by repeating back the command packet where the ﬁrst of two replacement <Param> characters contains the selection status set by AOCH (<0xA0>) and the second contains the resultant value stored in the volume-level EEPROM variable which was modiﬁed by this command.

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

For the audio inputs, the power up default values for all output volume-level EEPROM variables is set for 0dB (i.e. maximum output).

ADVANCED COMMAND SET FOR AUDIO MIXER OPERATIONS CONT’D

Audio Input Functions for the A/V Source Group Cont’d

8. SET ABSOLUTE VOLUME FOR SELECTED AUDIO OUTPUT COMMAND

Page 60

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

AOAV? 0xA5 Command Packet:

The controller sends no <Param> character in the command packet.

Response Packet:

The CAT 860 sends two <Param> characters in the response packet. The possible values are shown below:

<Param> #1:

0x81 = AUX OUT

<Param> #2:

0xCF = 0 dB

0xCE = -1dB

0xCD = -2dB

0xCC = -3dB

0xA7 = -40dB

0x83 = -76dB

0x82 = -77dB

0x81 = -78B

0x80 = -79dB

This command causes the CAT 860 to return a query response packet where the ﬁrst of two <Param> characters contains the selection status set by AOCH (<0xA0>) and the second contains the value stored in the volume-level EEPROM variable selected by the AOCH (<0xA0>) command.

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

ADVANCED COMMAND SET FOR AUDIO MIXER OPERATIONS CONT’D

Audio Input Functions for the A/V Source Group Cont’d

9. QUERY ABSOLUTE VOLUME FOR SELECTED AUDIO OUTPUT COMMAND

Page 61

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

IICH p 0xB0 Command Packet:

The controller sends only one <Param> character in the command packet. The possible values are shown below:

0x80 = IR Channel A**

0x81 = IR Channel B

** Power up default

Response Packet:

The CAT 860 sends only one <Param> character in the response packet. The possible values are shown below:

0x80 = IR Channel A

0x81 = IR Channel B

This command determines which volume-level EEPROM variable will be affected by the IIDI (<0xB2>), IIDD (<0xB3>), and IIAV (<0xB4>) commands.

If the command is properly received, the CAT 860 responds by repeating back the command packet where the <Param> contains the selection status

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

Power up default is IR Channel A selected.

QUERY SELECTED INFRARED INPUT COMMAND

IICH? 0xB1 Command Packet:

The controller sends no <Param> character in the command packet.

Response Packet:

The CAT 860 sends only one <Param> character in the response packet. The possible values are shown below:

0x80 = IR Channel A

0x81 = IR Channel B

This command causes the CAT 860 to return a query response packet where the <Param> contains the selection status set by IICH (<0xB0>).

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

ADVANCED COMMAND SET FOR AUDIO MIXER OPERATIONS CONT’D

Audio Input Functions for the Infrared Source Group

1. SELECT INFRARED INPUT COMMAND

Page 62

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

IIDI p 0xB2 Command Packet:

The controller sends only one <Param> character in the command packet. The possible values are shown below:

0x81 = one 1dB step

0x82 = two 1dB steps

0x83 = three 1dB steps

0x84 = four 1dB steps

0x85 = ﬁve 1dB steps

0x86 = six 1dB step

0x87 = seven 1dB steps

0x88 = eight 1dB steps

0x89 = nine 1dB steps

0x8A = ten 1dB steps

Response Packet:

The CAT 860 sends two <Param> characters in the response packet. The possible values are shown below:

<Param> #1:

0x80 = IR Channel A

0x81 = IR Channel B

<Param> #2:

0xCF = 0 dB

0xCE = -1dB

0xCD = -2dB

0xCC = -3dB

0xA7 = -40dB

0x83 = -76dB

0x82 = -77dB

0x81 = -78B

0x80 = -79dB

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

Deﬁnition: This command modiﬁes the volume-level EEPROM variable which was selected by the IICH (<0xB0>) command. The EEPROM variable is incremented by the amount indicated in the <Param> character.

Afterwards, the value in the EEPROM variable is unconditionally loaded into the corresponding volume control hardware register. This overrides any prior mute operation.

If the command is properly received, the CAT 860 responds by repeating back the command packet where the ﬁrst of two replacement <Param> characters contains the selection status set by IICH (<0xB0>) and the second contains the resultant value stored in the volume-level EEPROM variable which was modiﬁed by this command.

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

For the audio inputs, the power up default values for all six input volume-level EEPROM variables is set for -40dB.

ADVANCED COMMAND SET FOR AUDIO MIXER OPERATIONS CONT’D

Audio Input Functions for the Infrared Source Group Cont’d

2. DIFFERENTIALLY INCREASE VOLUME FOR SELECTED INFRARED INPUT COMMAND

Page 63

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

IIDD p 0xB3 Command Packet:

The controller sends only one <Param> character in the command packet. The possible values are shown below:

0x81 = one 1dB step

0x82 = two 1dB steps

0x83 = three 1dB steps

0x84 = four 1dB steps

0x85 = ﬁve 1dB steps

0x86 = six 1dB step

0x87 = seven 1dB steps

0x88 = eight 1dB steps

0x89 = nine 1dB steps

0x8A = ten 1dB steps

Response Packet:

The CAT 860 sends two <Param> characters in the response packet. The possible values are shown below:

<Param> #1:

0x80 = IR Channel A

0x81 = IR Channel B

<Param> #2:

0xCF = 0 dB

0xCE = -1dB

0xCD = -2dB

0xCC = -3dB

0xA7 = -40dB

0x83 = -76dB

0x82 = -77dB

0x81 = -78B

0x80 = -79dB

Deﬁnition: This command modiﬁes the volume-level EEPROM variable which was selected by the IICH (<0xB0>) command. The EEPROM variable is decremented by the amount indicated in the <param> character.

Afterwards, the value in the EEPROM variable is unconditionally loaded into the corresponding volume control hardware register. This overrides any prior mute operation.

If the command is properly received, the CAT 860 responds by repeating back the command packet where the ﬁrst of two replacement <Param> characters contains the selection status set by IICH (<0xB0>) and the second contains the resultant value stored in the volume-level EEPROM variable which was modiﬁed by this command.

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

For the audio inputs, the power up default values for all six input volume-level EEPROM variables is set for -40dB.

ADVANCED COMMAND SET FOR AUDIO MIXER OPERATIONS CONT’D

Audio Input Functions for the Infrared Source Group Cont’d

3. DIFFERENTIALLY DECREASE VOLUME FOR SELECTED INFRARED INPUT COMMAND

Page 64

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

IIAV p 0xB4 Command Packet:

The controller sends only one <Param> character in the command packet. The possible values are shown below:

0xCF = 0 dB

0xCE = -1dB

0xCD = -2dB

0xCC = -3dB

0xA7 = -40dB**

0x83 = -76dB

0x82 = -77dB

0x81 = -78B

0x80 = -79dB

** Power up default

Response Packet:

The CAT 860 sends two <Param> characters in the response packet. The possible values are shown below:

<Param> #1:

0x80 = IR Channel A

0x81 = IR Channel B

<Param> #2:

0xCF = 0 dB

0xCE = -1dB

0xCD = -2dB

0xCC = -3dB

0xA7 = -40dB

0x83 = -76dB

0x82 = -77dB

0x81 = -78B

0x80 = -79dB

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

Deﬁnition: This command modiﬁes the volume-level EEPROM variable which was selected by the IICH (<0xB0>) command. The EEPROM variable is set the value indicated in the <param> character.

Afterwards, the value in the EEPROM variable is unconditionally loaded into the corresponding volume control hardware register. This overrides any prior mute operation.

If the command is properly received, the CAT 860 responds by repeating back the command packet where the ﬁrst of two replacement <Param> characters contains the selection status set by IICH (<0xB0>) and the second contains the resultant value stored in the volume-level EEPROM variable which was modiﬁed by this command. If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

For the audio inputs, the power up default values for all six input volume-level EEPROM variables is set for -40dB.

ADVANCED COMMAND SET FOR AUDIO MIXER OPERATIONS CONT’D

Audio Input Functions for the Infrared Source Group Cont’d

4. SET ABSOLUTE VOLUME FOR SELECTED INFRARED INPUT COMMAND

Page 65

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

IIAV? 0xB5 Command Packet:

The controller sends no <Param> character in the command packet.

Response Packet:

The CAT 860 sends two <Param> characters in the response packet. The possible values are shown below:

<Param> #1:

0x80 = IR Channel A

0x81 = IR Channel B

<Param> #2:

0xCF = 0 dB

0xCE = -1dB

0xCD = -2dB

0xCC = -3dB

0xA7 = -40dB

0x83 = -76dB

0x82 = -77dB

0x81 = -78B

0x80 = -79dB

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

Deﬁnition: This command causes the CAT 860 to return a query response packet where the ﬁrst of two <Param> characters contains the selection status set by IICH (<0xB0>) and the second contains the value stored in the volume-level EEPROM variable selected by the IICH (<0xB0>) command.

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

ADVANCED COMMAND SET FOR AUDIO MIXER OPERATIONS CONT’D

Audio Input Functions for the Infrared Source Group Cont’d

5. QUERY ABSOLUTE VOLUME FOR SELECTED INFRARED INPUT COMMAND

Page 66

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

MSAI p 0xD0 Command Packet:

The controller sends only one <Param> character in the command packet. The possible values are shown below:

0x80 = TV/VCR

0x81 = CD/DVD

0x82 = COMPUTER

0x83 = AUX IN

0x84 = IR Channel A

0x85 = IR Channel B

0x86 = TV/VCR, CD/DVD, COMPUTER, & AUX IN

0x87 = IR Channel A & IR Channel B

0x88 = All Inputs

Response Packet:

The CAT 860 sends only one <Param> character in the response packet. The possible values are shown below:

0x80 = TV/VCR

0x81 = CD/DVD

0x82 = COMPUTER

0x83 = AUX IN

0x84 = IR Channel A

0x85 = IR Channel B

0x86 = TV/VCR, CD/DVD, COMPUTER, & AUX IN

0x87 = IR Channel A & IR Channel B

0x88 = All Inputs

Deﬁnition: This command sends the -79dB setting into the volume control hardware register(s) corresponding to the value in the <param> character. None of the corresponding volume-level EEPROM variables are modiﬁed.

If the command is properly received, the CAT 860 responds by repeating back the command packet where the <Param> character contains the mute selection status.

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

ADVANCED COMMAND SET FOR AUDIO MIXER OPERATIONS CONT’D

Input Muting Functions Group

1. MUTE SELECTED AUDIO INPUT COMMAND

Page 67

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

UMSI p 0xD1 Command Packet:

The controller sends only one <Param> character in the command packet. The possible values are shown below:

0x80 = TV/VCR

0x81 = CD/DVD

0x82 = COMPUTER

0x83 = AUX IN

0x84 = IR Channel A

0x85 = IR Channel B

0x86 = TV/VCR, CD/DVD, COMPUTER, & AUX IN

0x87 = IR Channel A & IR Channel B

0x88 = All Inputs

Response Packet:

The CAT 860 sends only one <Param> character in the response packet. The possible values are shown below:

0x80 = TV/VCR

0x81 = CD/DVD

0x82 = COMPUTER

0x83 = AUX IN

0x84 = IR Channel A

0x85 = IR Channel B

0x86 = TV/VCR, CD/DVD, COMPUTER, & AUX IN

0x87 = IR Channel A & IR Channel B

0x88 = All Inputs**

**Power up default, and may be needed after using the Basic Command Set.

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

Deﬁnition: Based on the value in the <param> character, this command unconditionally sends the appropriate EEPROM variable content(s) into the corresponding volume control hardware register(s). None of the volume-level EEPROM variables are modiﬁed.

If the command is properly received, the CAT 860 responds by repeating back the command packet where the <Param> character contains the un-mute selection status.

If the command is not received properly the CAT 860 responds by sending a <NACK> character.

Note: The un-mute operations will override any mute operations performed as part of any command from the Basic Command Set.

ADVANCED COMMAND SET FOR AUDIO MIXER OPERATIONS CONT’D

Input Muting Functions Group Cont’d

2. UN-MUTE SELECTED AUDIO INPUT COMMAND

Page 68

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

14. RS-232 SERIAL INTERFACE COMMAND DEFINITION CONT’D

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

MREV? 0xC0 Command Packet:

(Controller sends no param value.)

Response Packet:

This command causes the CAT 860 to return a query response packet containing up to sixteen <param> characters. Each <param> value represents one ASCII character of a string indicating the product model and software version.

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

PING CAT 860 COMMAND

PING 0xC1 (Controller sends no param

value.)

This command causes the CAT 860 to respond with <ACK> only.

If the command is not received properly, the CAT 860 responds by sending a <NACK> character.

ADVANCED COMMAND SET FOR AUDIO MIXER OPERATIONS CONT’D

System Management Functions Group

1. QUERY MODEL AND SOFTWARE VERSION COMMAND

Page 69

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

Audio Input Functions

AIDD p 0x93 (Controller sends only one

param per CMD.)

0x81 = one 1dB step 0x82 = two 1dB steps 0x83 = three 1dB steps 0x84 = four 1dB steps 0x85 = ﬁve 1dB steps 0x86 = six 1dB steps 0x87 = seven 1dB steps 0x88 = eight 1dB steps 0x89 = nine 1dB steps 0x8A = ten 1dB steps

Differentially decrease volume for selected audio input channel.

CAT 860 responds with <ACK> only.

AIAV p 0x94 (Controller sends only one

param per CMD.)

0xCF = 0 dB 0xCE = -1dB 0xCD = -2dB 0xCC = -3dB

0x83 = -76dB 0x82 = -77dB 0x81 = -78B 0x80 = -79dB

(These are the values returned in the <Param> character of a query response from the 860iR.)

Set absolute volume for selected audio input channel.

CAT 860 responds with <ACK> only.

AIAV? 0x95 Controller sends no param

value.

Query absolute volume for selected audio input channel.

CAT 860 returns one param in the response packet

13. RS-232 SERIAL INTERFACE PROGRAMMING CONT’D

Page 70

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

<CMD> Symbol

Hex Value

<Param> Value Deﬁnition

Audio Input Functions

MREV? 0xC0 Controller sends no param

value.

Query model and software version.

(Param string in response packet will be composed of up to sixteen ACSII alphanumeric characters.)

PING 0XC1 Controller sends no param

value.

Ping CAT 860iR.

CAT 860 responds with <ACK> only.

13. RS-232 SERIAL INTERFACE PROGRAMMING CONT’D

Page 71

2. Setup & Use

3. Optional

Accessories

1. Overview 4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

SECTION 3:

OPTIONAL ACCESSORIES

OPTIONAL REDMIKE VC (Volume Control) Controls and Connections

a t

1. POWER /MUTE BUTTON

2. POWER/LOW BATTERY INDICATOR: A BLUE light

indicates the REDMIKE VC is on and fully charged. A RED light indicates a charge is needed.

3. BATTERY COMPARTMENT: To open, slide the door downward. The battery should only be replaced by a Lightspeed AA rechargeable sensing battery (part # BA-NH2A27).

4. YELLOW PROTECTIVE TAB: Slide the battery compartment door and remove this disposable protective tab before use.

5. AUDIO/MICROPHONE INPUT:

Use this input to plug in a laptop, MP3 player or other audio

source to wirelessly transmit audio to be played through the system. Alternatively, an external microphone can be connected.

6. CHANNEL SELECT SWITCH (CH A/B): Use this to choose Channel

A or B. If you are using a single microphone, we recommend using Channel A.

7. VOLUME CONTROLS (UP DOWN)

8. CHARGER CONTACTS (+ -):

These contacts interface with the charging tabs when the REDMIKE VC is placed in the BC-RMCC cradle charger.

Page 72

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

REDMIKE VC : Charging

REDMIKE VC : Initial Set-up

Before use, the REDMIKE VC should be charged. See page 20 and follow the same instructions for the REDMIKE.

See page 17 and follow the same instructions for the REDMIKE to setup the REDMIKE VC.

NOTE: A nominal volume level must be set on the CAT 805iX before adjusting controls on the REDMIKE VC.

The teacher can now use the controls on the REDMIKE VC to adjust the volume level from anywhere in the room. The microphone volume control has 4 steps up and 4 steps down from the mid point (9 levels total).

Page 73

2. Setup & Use

3. Optional

Accessories

1. Overview 4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

1. ON/OFF/MUTE Switch

2. CHANNEL SELECT SWITCH (CH A/B): Use this to choose Channel

A or B. If you are using a single microphone, we recommend using Channel A.

3. POWER/CHARGE INDICATOR: A BLUE light indicates the REDMIKE VC is on and fully charged. A RED light indicates a charge is needed.

4. EXTERNAL MICROPHONE INPUT (MIC): Use the 3.5mm

MIC jack for the optional TK-250 headset microphone (part# MCTK250LTM).

5. AUXILIARY (AUX): Plug a laptop, MP3 player or other audio source into this jack to wirelessly transmit the audio signal to be played through the system.

6. CHARGER INPUT (CHARGER): Plug the charging cable from the charger into this jack for daily charging. The LED on the front will glow RED to indicate charging.

OPTIONAL LT-71: Controls and Connections

LT- 71

Page 74

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

RS-232 IN

Front Panel RS-232

Control Select

++--

LT-71: Charging

1. Ensure that the LT-71 is turned OFF.

2. Make sure the cradle charger is plugged into a wall outlet. Connect one end of the charging cable into the jack labeled CHARGER on the side of the LT-71 and plug the other end into the charging jack on the rear of the REDMIKE cradle charger. The LT-71’s rechargeable batteries are factory installed. The LED on the front of the LT-71 will glow RED when charging.

3. Leave the LT-71 plugged in overnight (8–10 hrs.) to obtain a full charge.

NOTE: If the system was purchased without a REDMIKE or REDMIKE VC, the LT-71 will utilize a charging cable. Simply connect the charging cables to the jacks labeled CHARGER on the back of the ampliﬁer and connect the opposite ends to the jacks on the back of the cradle charger.

Page 75

2. Setup & Use

3. Optional

Accessories

1. Overview 4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

LT-71: Initial Set-up

Once the LT-71 is charged, follow these steps to set it up for use.

1. Turn the CAT 860 power switch to the ON position. The RED LED on the switch will glow.

2. Turn on the LT-71 and set the operating channel to “B”.

3. Slip the LT-71 with lanyard around the neck and position the top of the microphone just below the collarbone. NOTE: Positioning of the LT-71 is critical for proper volume adjustment.

4. While speaking in a normal voice slowly increase the volume for Channel B on the CAT 860 until your voice is barely audible.

REMEMBER: This equipment supplements the user’s voice so they are able to speak in a conversational tone. Having the volume set too high will result in feedback and listener fatigue.

LT-71

Page 76

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

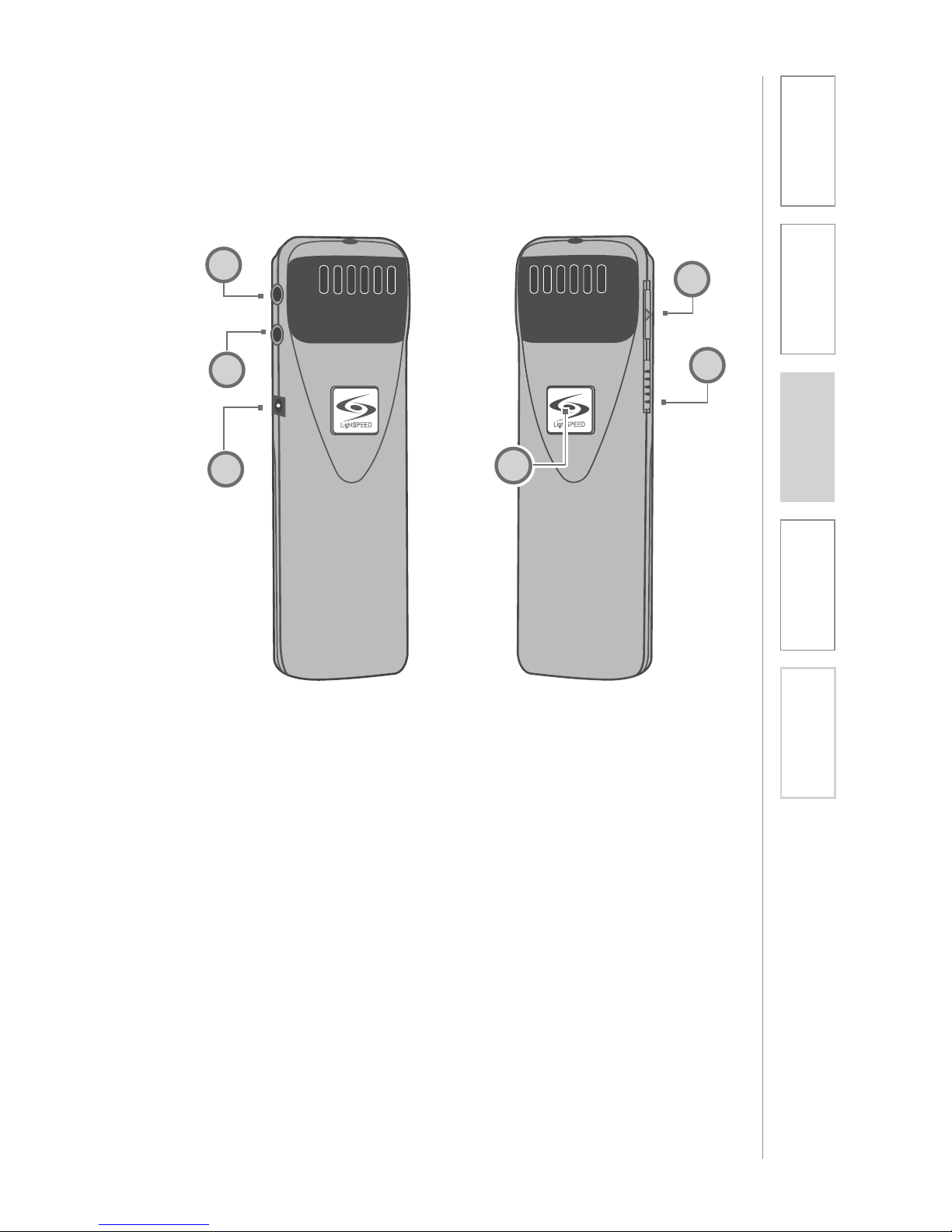

1. POWER SWITCH

2. POWER/CHARGE INDICATOR:

this light glows blue when turned on and turns off to indicate low battery level. When charging, the light glows red.

3. AUDIO INPUT: plug a laptop, MP3 player or other audio device into this jack to wirelessly transmit the audio signal to be played through the system.

4. CHANNEL SELECT SWITCH (CH A/B): Located in the battery

compartment, this switch is set to Channel B at the factory.

5. CHARGER INPUT: Plug the charging cable from the REDMIKE cradle charger or into this jack.

REDMIKE Share: Controls and Connections

Page 77

2. Setup & Use

3. Optional

Accessories

1. Overview 4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

NOTE: If the system was purchased without a REDMIKE or REDMIKE VC, the REDMIKE Share will utilize the charger jacks on the back of the CAT

860.

1. Ensure that the REDMIKE Share is turned OFF.

2. Make sure the cradle charger is plugged into a wall outlet. Connect one end of the charging cable into the jack labeled CHARGER on the bottom of the REDMIKE Share.

3. Plug the other end into the charging jack on the rear of the cradle charger.

4. The LED on the microphone will glow RED to indicate charging.

5. Leave the REDMIKE Share plugged in overnight (8-10 hours) to obtain a full charge.

REDMIKE Share: Charging

RS-232 IN

Front Panel RS-232

Control Select

++--

Page 78

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

REDMIKE Share: Initial Set-up

1. Ensure the CAT 860 is ON. The RED LED on the power switch will glow.

2. Turn on the REDMIKE Share by sliding the switch to the top position.

3. Grip the barrel in the center section.

4. While speaking in a normal voice, increase the B VOLUME level until your voice is barely audible.

REMEMBER: This equipment is designed to supplement and distribute the user’s voice so they are able to speak in a conversational tone. Having the volume set too high will result in feedback and listener fatigue.

Page 79

2. Setup & Use

3. Optional

Accessories

1. Overview 4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

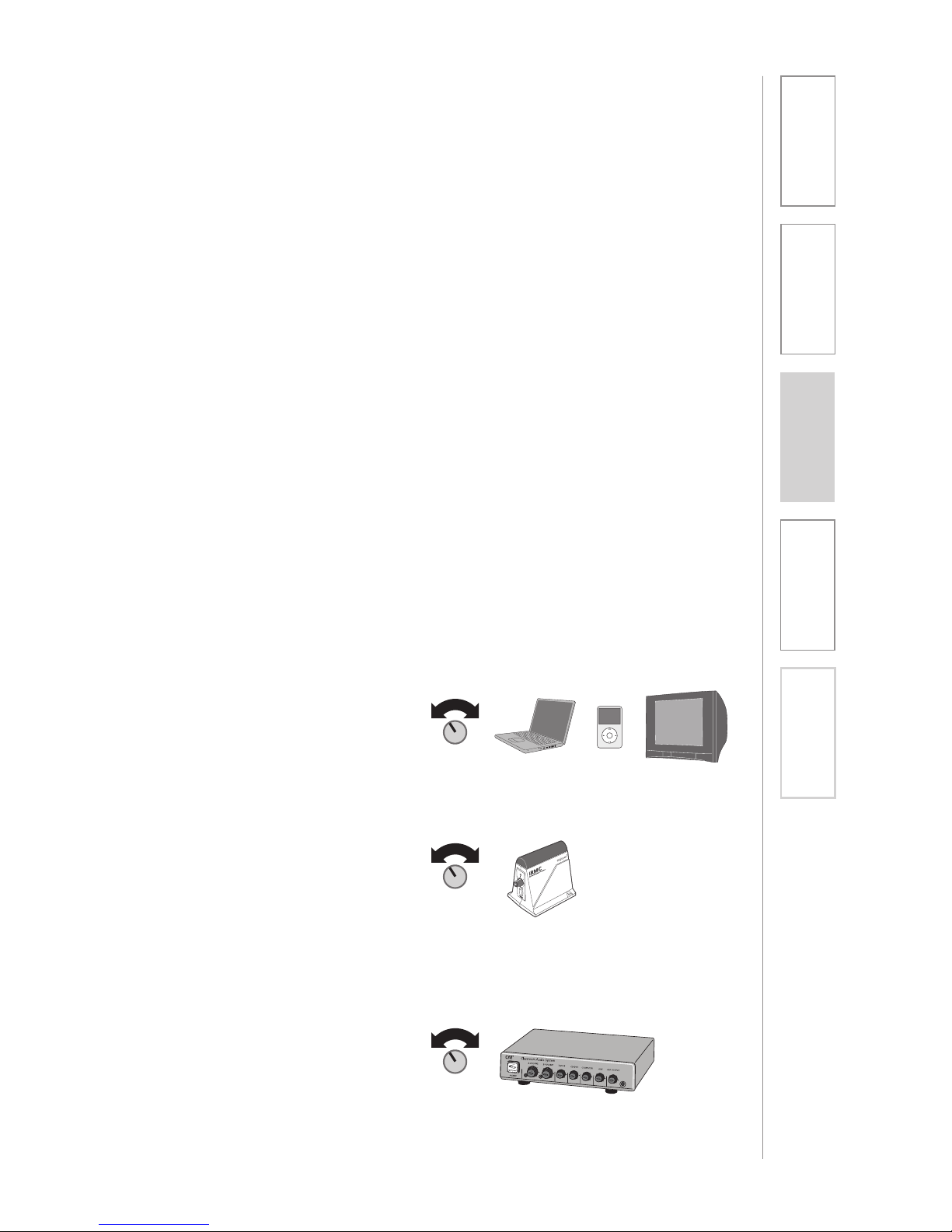

INITIAL SET-UP: OPTIONAL IR MEDIA CONNECTOR

1. Turn off the second microphone. The iR Media Connector uses the same channel (channel B) as the optional second microphone (REDMIKE, LT-71, or REDMIKE Share). As a result, they cannot be used simultaneously. If you have a second microphone, turn it off before transmitting audio from the iRMC.

NOTE: If you adjust the CH B volume on the classroom audio system, you will also be changing the volume for your second microphone. Return the CH B volume knob to the original position before turning the second microphone back on.

2. The iR Media Connector volume is preset for most standard audio signals. If you need to turn the volume up or down, follow this procedure:

A. Adjust the volume at the

computer, television, or other audio source if possible.

B. If the audio source does not have a volume control (such as many DVD players) adjust the volume at the iRMC.

C. If the ﬁrst two options do not give optimum volume level, the last place to adjust the volume is the CH. B Volume on the CAT 860.

860

Page 80

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

IRMC Infrared Media Connector

MC-TK250M Noise-canceling headset microphone

AC-TCC7 Charging cable for REDMIKE Share and LT71

CA-RCA6 6’ dual RCA audio cable

CA-MSC3535 3.5mm to 3.5mm stereo audio cable

OPTIONAL IR MEDIA CONNECTOR AUDIO INTEGRATION

OTHER OPTIONAL ACCESSORIES

The iRMC is designed to integrate with the CAT 860 and multiple audio sources, allowing other instructional technologies to be clearly heard throughout the classroom.

Projector

DVD/VCR

Speaker(s)

IR Sensor

iR Media Connector

Projector

Audio In

Audio Out

IR Transmission

Video In

Audio Out

Video Out

VGA Out

Teacher’s Microphone

Cat855

Page 81

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

ALL PROBLEMS: Most Problems are

related to low battery power.

SOLUTION: Battery Check

• Conrmbatteriesarecharged each night.

• Conrmproperbatteriesare

used. The REDMIKE requires the Lightspeed BA-NH2A27 rechargeable sensing battery for proper charging. The REDMIKE Share uses the BA-NH2APK rechargeable battery pack. The LT-71 requires two BA-NH1 AA rechargeable batteries.

• Makesurethemicrophonesare

turned off while charging so a full charge is attained. Full charge will last eight hours.

• Inspectthebatterycontacts.Clean

and adjust if necessary.

PROBLEM: Hearing Static

SOLUTION: Follow these steps to

eliminate static.

• Ensuresensorisinoptimum

location (refer to sensor placement in manual). A single sensor will cover a 1600 sq. ft. enclosed classroom.

• EnsurethatnootherREDMIKE/LT-

71/REDMIKE Share is operating on the same channel.

• IftheoptionaliRmediaconnection is in use, set the microphone to Channel A.

PROBLEM: Low Volume or Feedback

SOLUTION: Follow these steps to

eliminate low volume or feedback.

• Ensuremicrophoneispositioned

appropriately, just below the collar bone.

• Checkvolumelevelonthe

ampliﬁer. If the volume is too high, feedback will occur. Adjust accordingly.

• Adjustthevolumelevelonthe

back of the optional REDMIKE VC.

PROBLEM: No Sound From Speaker

SOLUTION: Follow these steps to

produce sound from speakers.

• TurntheCAT860on.Conrmthat

the POWER light located on the front panel switch is on.

• Conrmsignalisbeingreceivedat

the CAT 860. The IR signal light will be RED indicating a signal is being received.

• ConrmthatREDMIKEisturned

on. There will be a BLUE LED on the microphone to indicate it is powered on.

Note: Most problems are directly related to low battery power. Please run through the “Battery Check” items ﬁrst. For remaining troubleshooting, use known good, fully-charged batteries.

If you review these instructions and still have questions, write down the serial number and model number of your system and call Lightspeed Technical Services at 800.732.8999, 5 a.m. – 5 p.m., PST.

SECTION 4:

TROUBLESHOOTING

COMMON PROBLEMS AND SOLUTIONS

Page 82

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

• Speakinanaturalvoice.Anormal

conversational speech level will provide an adequate signal. It is not necessary to increase the intensity of your voice—the audio system provides adequate ampliﬁcation (approximately 5 – 10 dB) above ambient room noises.

• Avoidwearingjewelrythatmayrub

or bump against the microphone.

• TurntheREDMIKEoffduring

private conversations with a student, parent, or other classroom visitor. You can also cover the LED lens on top of the REDMIKE to block the signal.

• Rechargebatterieseachnight.

When recharged nightly, operating time (actual usage) for the transmitters will last through a typical school day.

TIPS TO OBTAIN OPTIMUM AUDIO PERFORMANCE

Page 83

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

FIVE-YEAR LIMITED WARRANTY

Our Service Department (800.732.8999, 5 a.m. – 5 p.m., PST) will handle all your repair/replacement needs.

SECTION 5:

WARRANTY, SAFETY & SPECIFICATIONS

Lightspeed Classroom Audio Systems are guaranteed against malfunction due to

defects in materials and workmanship for a period of FIVE (5) YEARS, beginning at the date of the purchase invoice. If such malfunction occurs, the product will be repaired or replaced (at Lightspeed’s option) without charge during the warranty period.

Lightspeed’s Warranty Exchange Program applies to all infrared systems within the

ﬁve (5) year warranty period. If an infrared product or component has an issue that requires service, a refurbished replacement will immediately be sent to the customer to minimize downtime. Customers will receive the exchange product(s) or component(s) within 2-3 days. A prepaid return label will be included with exchanged products so original malfunctioned equipment can be returned to Lightspeed. Any exchanged equipment will remain covered under the original ﬁve (5) year warranty.

1. Warranty on infrared microphones is FIVE (5) YEARS.

2. Warranty on Lightspeed NiMH rechargeable batteries is one (1) year.

3. Prepaid shipping label provided by Lightspeed for warranty repairs within the U.S. Customers outside the U.S. should refer to the Lightspeed website (www. lightspeed-tek.com) for warranty repair instructions.

4. Warranty does not extend to ﬁnish, appearance items, or malfunctions due to abuse or operation other than speciﬁed conditions, nor does it extend to incidental or consequential damages. Repair by other than Lightspeed or its authorized service agencies will void this guarantee. Information on authorized service agencies is available from Lightspeed Technologies, Inc.

Page 84

Page 85

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

SAFETY WARNINGS AND CERTIFICATIONS

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED PERSONNEL

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION

CERTIFICATIONS

This product conforms with the essential requirements of the following European Union Directives: 89/336/EEC, 92/31/EEC, 93/68/ EED, and 2004/108/EC Electromagnetic Compatibility Directives.

Lightspeed Technologies launched a formal product recycle program in Europe that complies with the European Union Directive 2002/96/EC on Waste Electrical and Electronic Equipment (“WEEE Directive”). Please visit our website at www.Lightspeed-tek.com for more information.

This product is manufactured using lead-free processes and is free of other materials harmful to the environment. It conforms to the most stringent new European guidelines for consumer products (RoHS).

This product is listed to UL standards and requirements for electrical safety by Underwriters Laboratories Inc.

Audio/Video Apparatus 44VE

Page 86

1. Overview 2. Setup & Use

3. Optional

Accessories

4. Troubleshooting

5. Warranty, Safety

& Speciﬁcations

OVERALL SPECIFICATIONS

Power Output 12 W per channel (24 W total) Ampliﬁer Frequency Response 60 Hz to 20 kHz ±3 dB Carrier Frequencies (IR) 2.06/2.54; 3.2/3.7 MHz Signal-to-Noise Ratio > 73 dB Image and Spurious Rejection > 70 dB

AMPLIFIER SPECIFICATIONS

Receiver Type Superheterodyne Receiver Sensitivity 6 µV for 60 dB S/N Image and Spurious Rejection > 70 dB Dimensions (W x D x H) 8.6” x 6.8” x 2.2” Weight 2.75 lbs.

TRANSMITTER SPECIFICATIONS

REDMIKE and REDMIKE VC

Audio Distortion < 1 % Built-in Microphone Unidirectional Electret Battery Power (1-year warranty) 1 AA NiMH Rechargeable Sensing

Audio Input 3.5 mm Dimensions (W x D x H) 0.9” x 1.0” x 3.5” Weight 2.1 oz.

LT-71 LightMic

Audio Distortion < 1 % Built-in Microphone Unidirectional Electret Battery Power (1-year warranty) 2 AA NiMH Rechargeable Audio Inputs Mic Level 3.5 mm, Line Level 3.5 mm

Dimensions (W x D x H) 1.375” x .75” x 4.625” Weight 3.7 oz.

REDMIKE Share Handheld Microphone

Audio distortion <1% Built-in Microphone Uni-directional electret Battery Power (1-year warranty) 2 AA NiMH Rechargeable

Battery Pack Audio Input 3.5 mm Dimensions (W x D x H) 8.25” x 1.3” x 1.3” Weight (with batteries) 7.9 oz

ISR SENSOR SPECIFICATIONS

Operating Range Up to 1600 square feet Cable 50 ft., Plenum-rated Cat 5e Mounting Ceiling clip/Wall bracket Dimensions (W x D x H) 9.4” x 1.4” x 5.2” Weight 14.3 oz.

SYSTEM SPECIFICATIONS

Page 87

Page 88

LIGHTSPEED TECHNOLOGIES

11509 SW HERMAN ROAD / TUALATIN, OR 97062

TOLL FREE: 800.732.8999 / PHONE: 503.684.5538 / FAX: 503.684.3197

LIGHTSPEED-TEK.COM

MN0258US01-3
