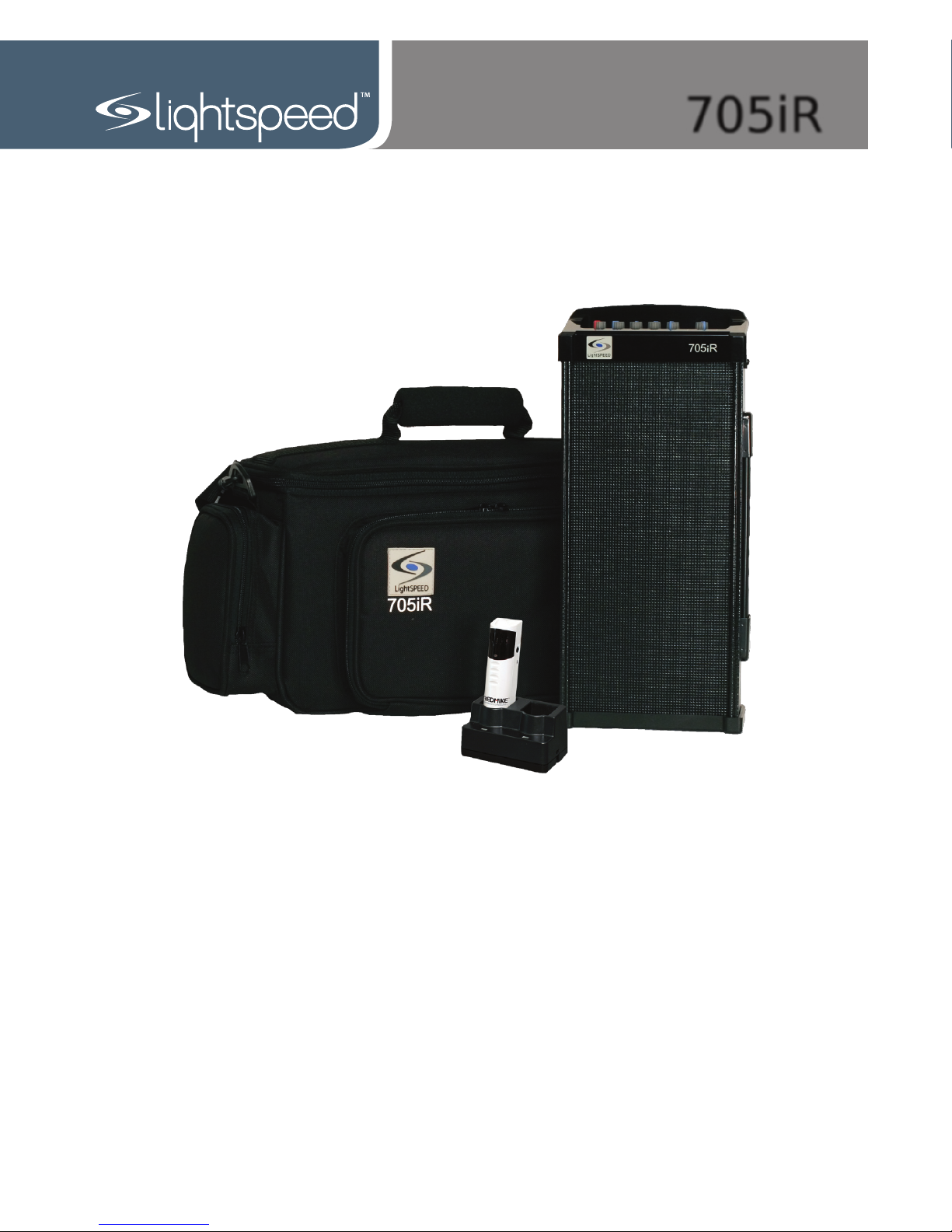

Page 1
705iR
Portable Audio System
User Manual
Page 2
705iR User Manual
705iR User Manual | i
705iR User Manual
CONGRATULATIONS!
Congratulations on your purchase of the 705iR Portable Infrared
Audio System! Please take a moment to review this manual, as it will help
you operate this easy-to-use system, and maximize your investment by
caring for and maintaining each component.
The 705iR is a lightweight, multi-purpose, portable audio system powered
by rechargeable batteries or AC power. It is designed to allow teachers to
speak in normal conversational tones and yet be heard clearly by every
student in the classroom.
The 705iR comes standard with the REDMIKE™ pendant-style
classroom microphone. The system may be used with two microphones
accommodating team teaching or student interaction. The second
microphone can be an additional REDMIKE, LT-71 or the HM-70 handheld
microphone.
Page 3
705iR User Manual
ii | 705iR User Manual
705iR User Manual
1. Read Instructions—All safety and
operation instructions should be read
before this Lightspeed product is
operated.
2. Retain Instructions—The safety and
operating instructions should be kept
for future reference.
3. Heed Warnings—All warnings on
this Lightspeed product and in these
instructions should be followed.
4. Follow Instructions—All operating
and other instructions should
be followed.
5. Water and Moisture—This
Lightspeed product should not be
used near water.
6. Heat—This Lightspeed product should
be situated away from heat sources
such as radiators, etc.
7. Power Sources—This Lightspeed
product should be connected
to a power supply only of the
type described in the operation
instructions or as marked on this
Lightspeed product.
8. Power Cord Protection—Power
supply cords should be routed so that
they are not likely to be walked upon
or pinched by items placed upon or
against them.
9. Object and Liquid Entry—Care should
be taken so that objects do not fall
onto and liquids are not spilled into
the Lightspeed product.
10. Damage Requiring Service—This
Lightspeed product should be serviced
only by qualied service personnel.
The user should not attempt to service
this Lightspeed product.
11. Prevent Electric Shock—Do not use
this polarized plug with an extension
cord, receptacle or other outlet unless
the blades can be fully inserted to
prevent blade exposure.
SAFETY INSTRUCTIONS AND CERTIFICATIONS
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED PERSONNEL
RISK OF ELECTRIC SHOCK DO NOT OPEN
The lightning ash with arrowhead symbol
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure, that may be sufcient magnitude to
constitute a risk of electric shock.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION
Page 4
705iR User Manual
705iR User Manual | iii
705iR User Manual
TABLE OF CONTENTS
705iR PORTABLE CLASSROOM AUDIO SYSTEM
Safety Instructions and Certications ........................................................................ii
SECTION 1: System Overview ................................................................................. 1
System Components ............................................................................................. 2
705iR Controls and Connections ............................................................................ 3
REDMIKE Controls and Connections ...................................................................... 5
Cradle Charger Connections .................................................................................. 6
Optional LT-71 Controls and Connections .............................................................. 7
Optional HM-70 Controls and Connections ............................................................ 8
SECTION 2: Set-up ................................................................................................... 9
Unpacking Your System .................................................................................................... 10
Positioning the 705iR ........................................................................................................11
SECTION 3: Initial Set-up, Charging and Optional Features ................................12

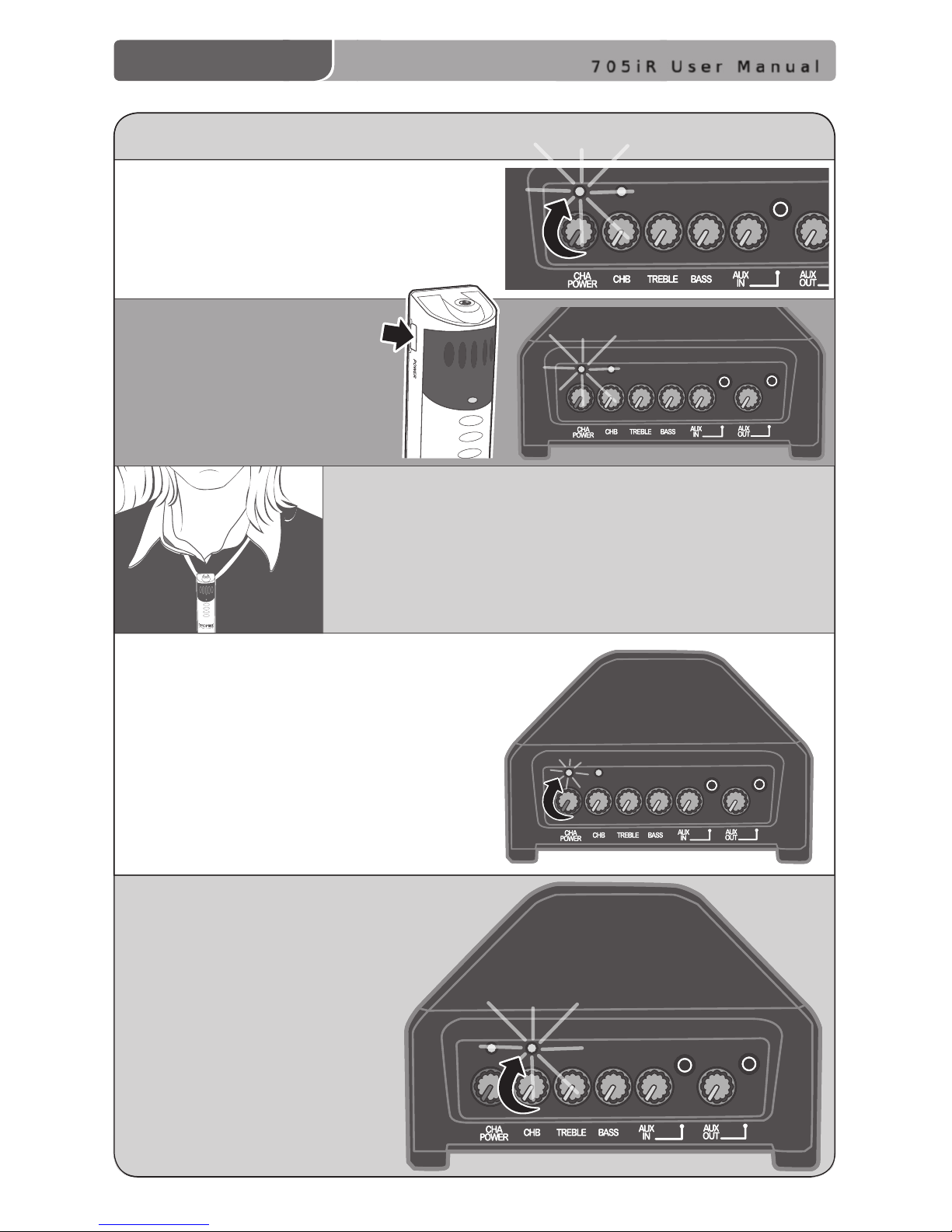

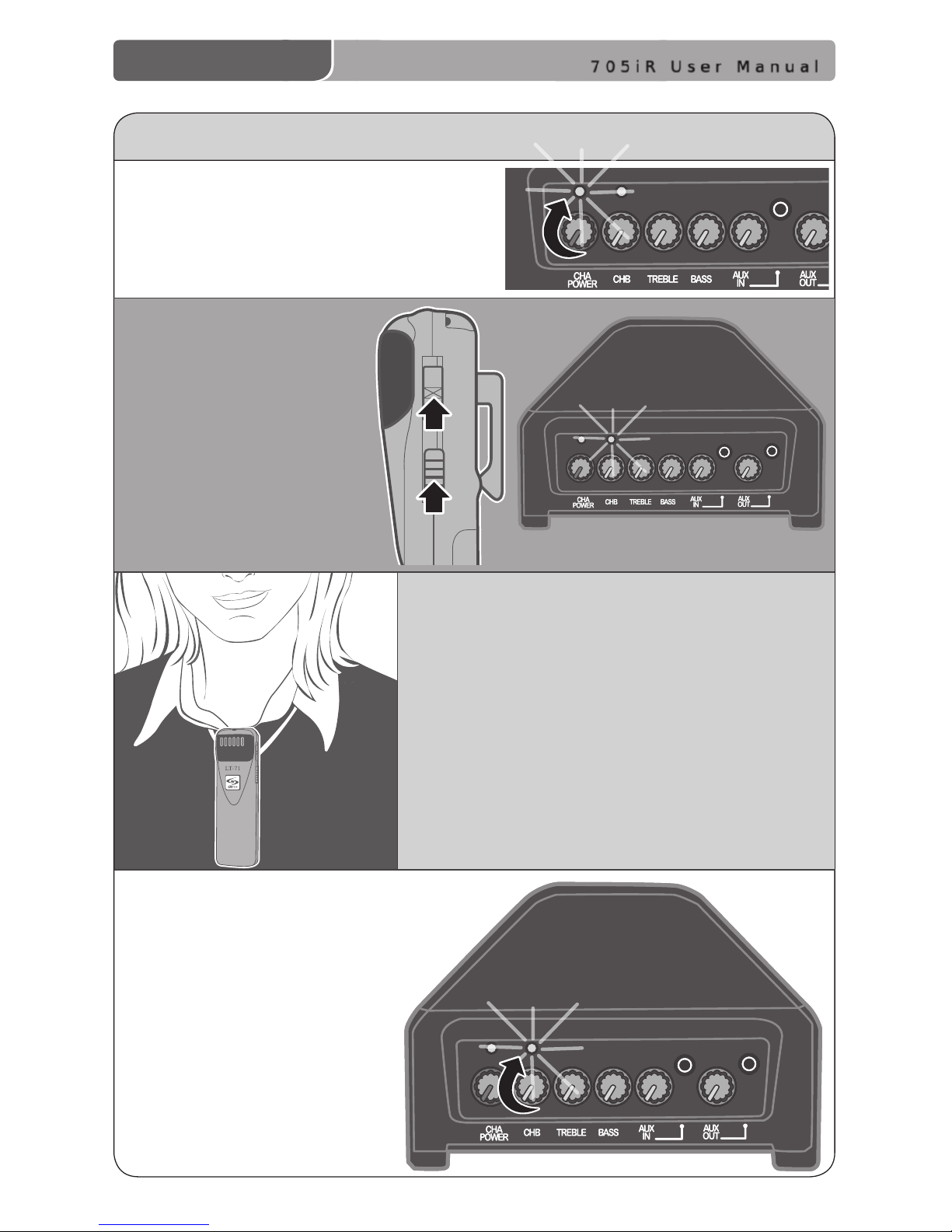

Initial Set-Up: REDMIKE ........................................................................................13
Initial Set-Up: Optional LT-71 ................................................................................14
Initial Set-Up: Optional HM-70 ..............................................................................15

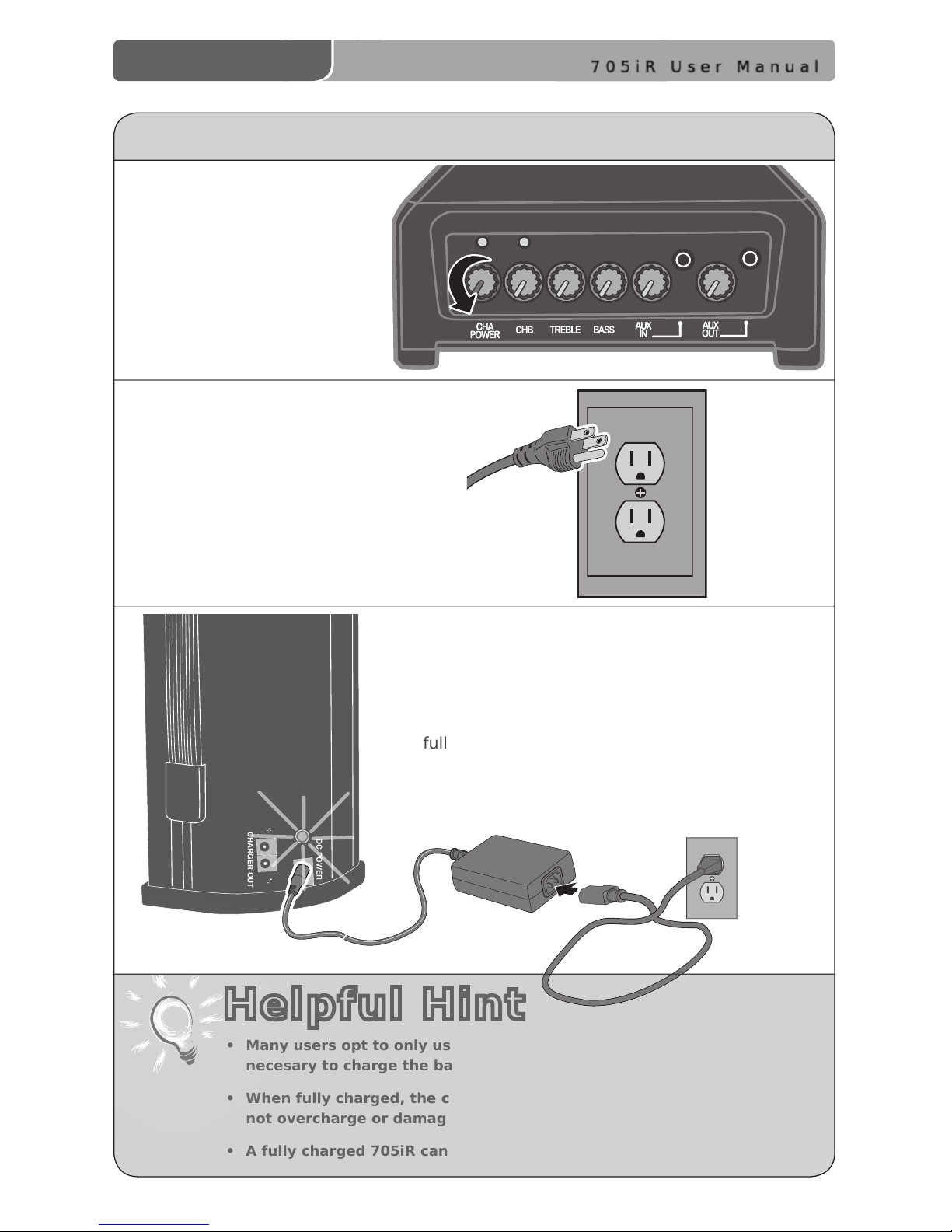

Charging the 705iR ...............................................................................................16

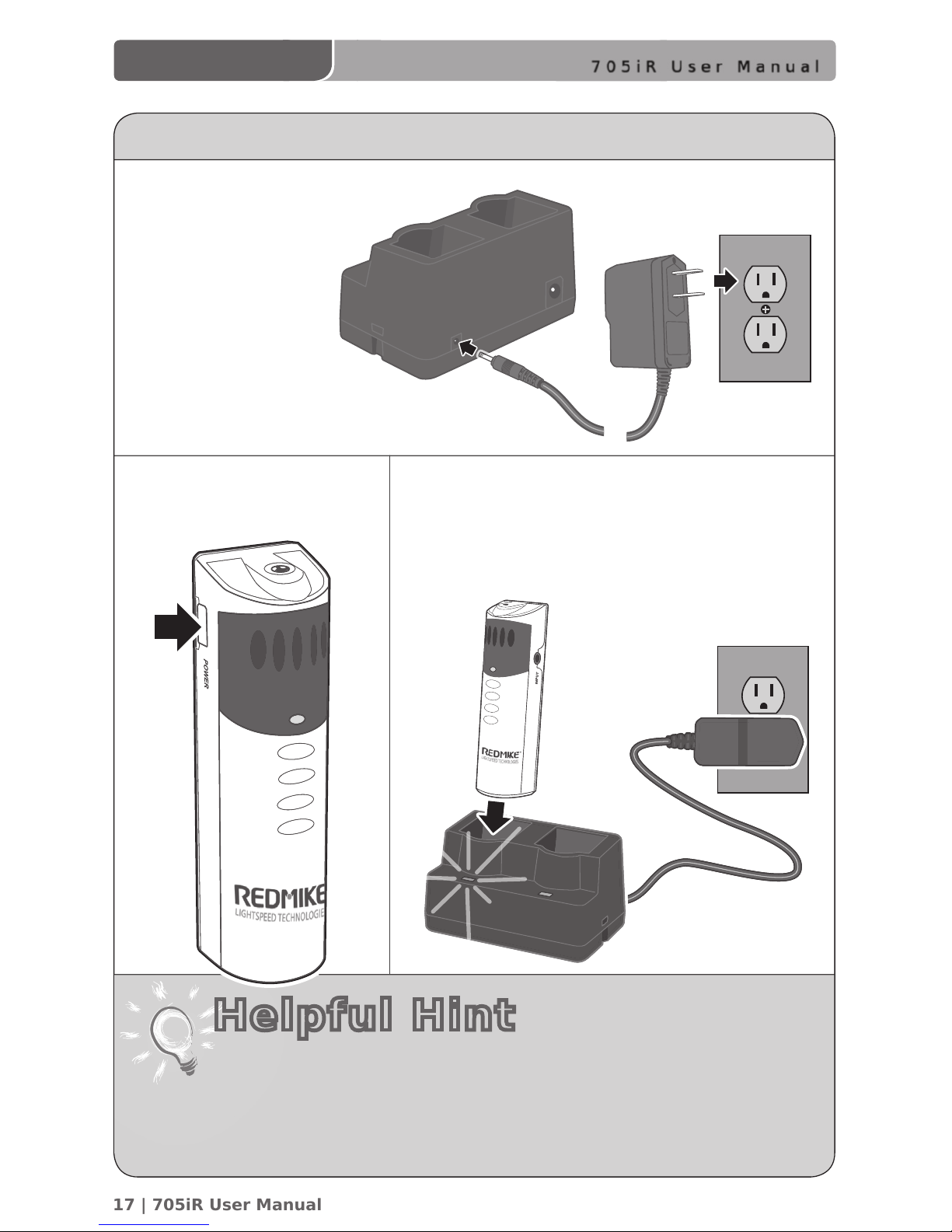

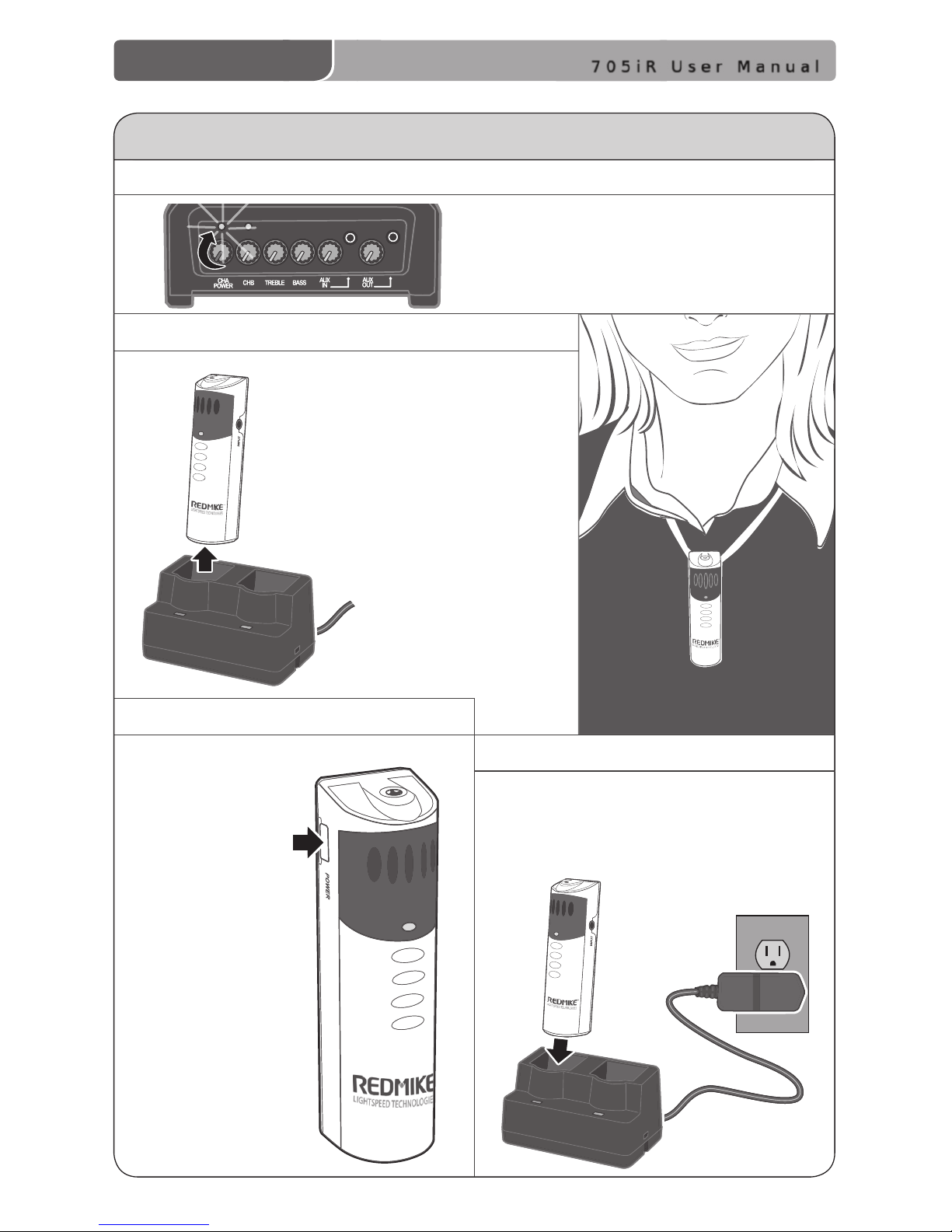

Charging the REDMIKE .........................................................................................17
Charging the Optional LT-71 .................................................................................18
Charging the Optional HM-70 ...............................................................................19

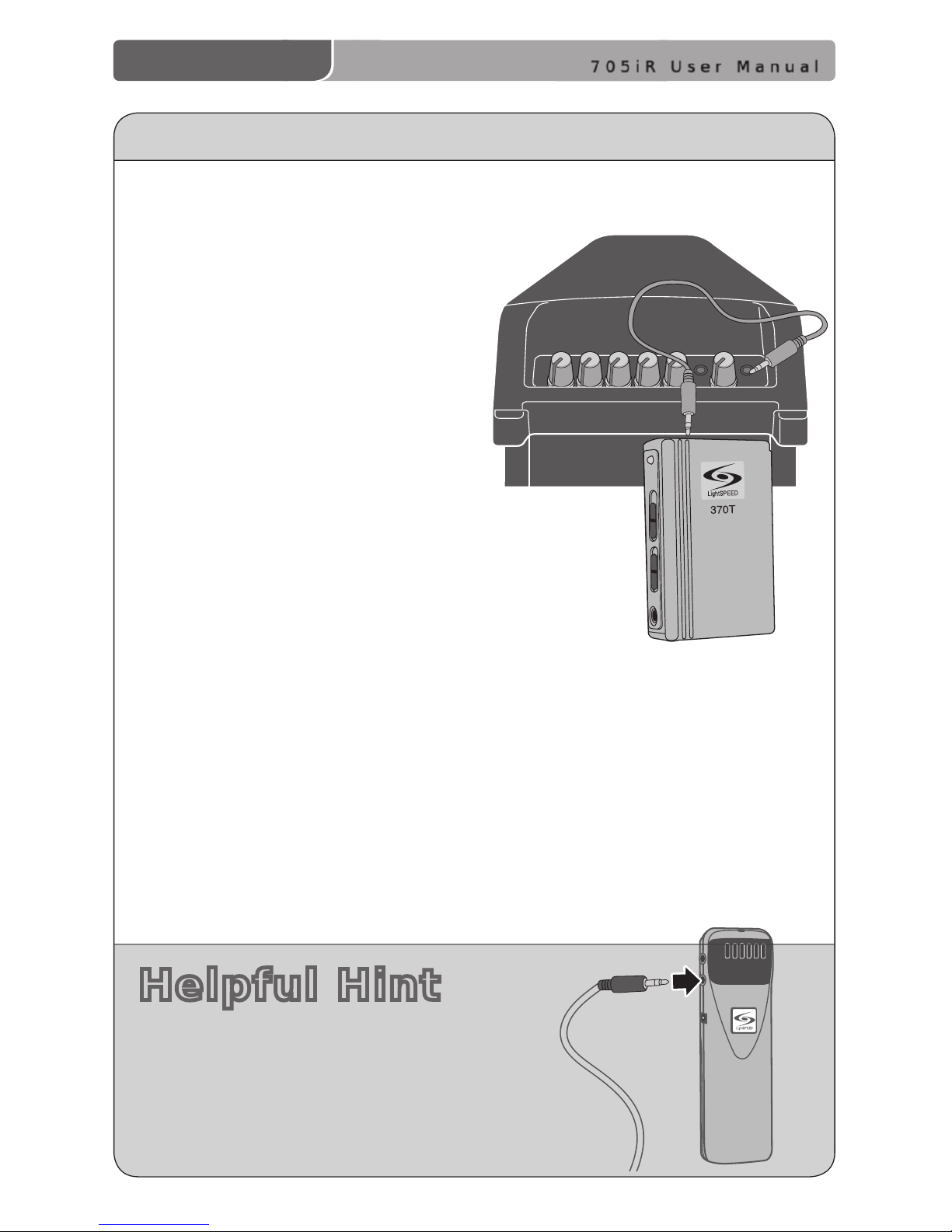

Output to Personal FM Transmitter .......................................................................20
SECTION 4: Troubleshooting, Daily Use and Warranty.........................................21
Troubleshooting Guide ..........................................................................................22
Daily Use Instructions ...........................................................................................23
Tips on Classroom Audio ......................................................................................24
Warranty Statement .............................................................................................24
System Specications ..........................................................................................25
Individual Components and Optional Accessories ................................................26
User Notes ............................................................................................................27
Page 5
705iR User Manual
1 | 705iR User Manual
SECTION 1
System Overview
Page 6
705iR User Manual
705iR User Manual | 2

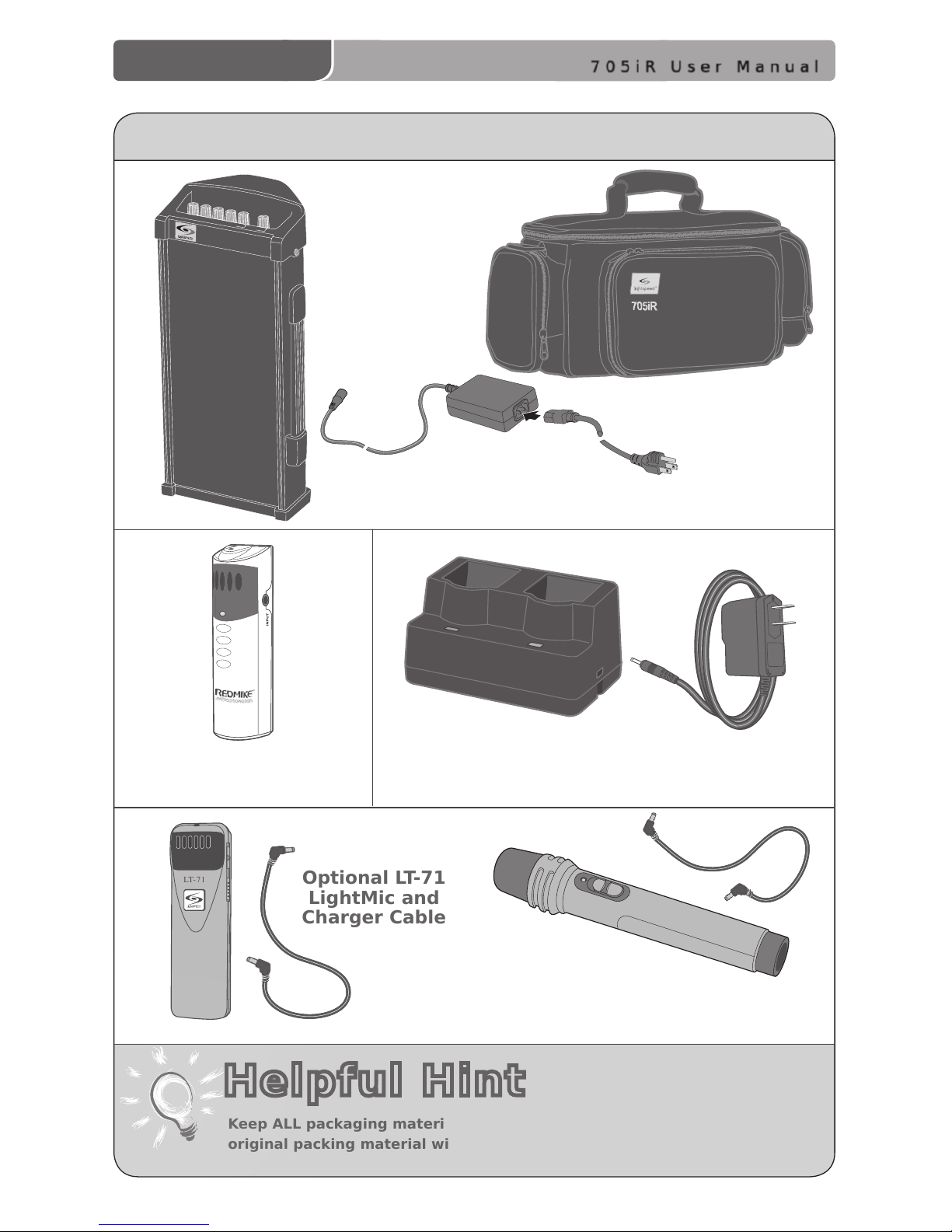

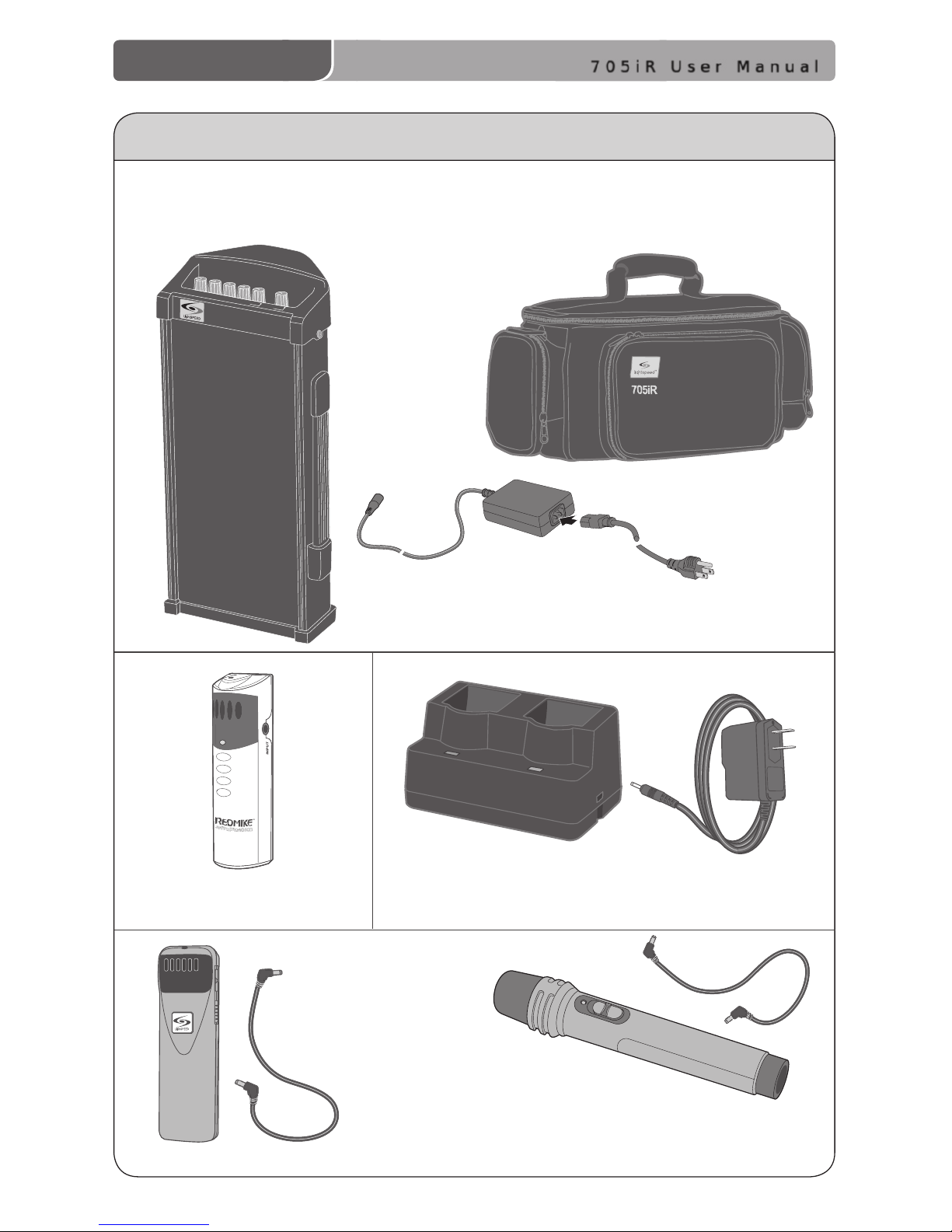

SYSTEM COMPONENTS
Keep ALL packaging materials. If the system must be returned, using the
original packing material will be quick, convenient and prevent damage.
705iR Receiver/Amplier,
Power Supply, and Carry Bag
REDMIKE Classroom
Microphone
Optional LT-71
LightMic and
Charger Cable
Optional HM-70 Handheld
Microphone and Charger Cable
Charging Cradle and Power Supply
LT - 71
Helpful Hint
705iR
CHA
CHB
TREBLE
BASS
AUX
AUX
POWER
IN
OUT
Page 7
705iR User Manual
3 | 705iR User Manual

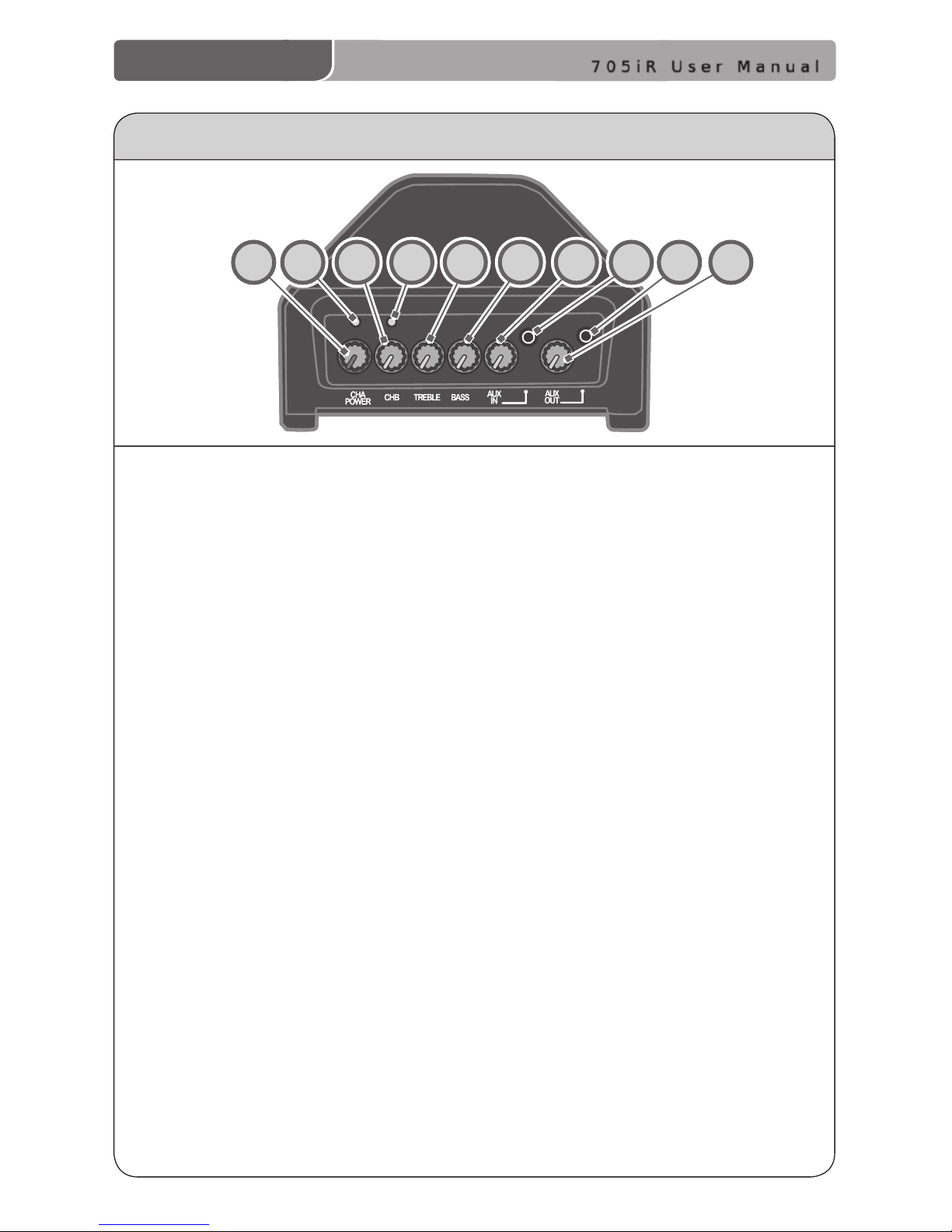

705iR CONTROLS AND CONNECTIONS
Top Panel
1. CH A POWER: This knob turns on
the power for the 705iR and
controls the Channel A volume.
We recommend using Channel A if
you are using a single microphone
for your system. Turn the knob
clockwise to increase volume.
2. The LED light located above the
CH A POWER knob turns red
momentarily when the system
power is turned ON.
When a transmitter/microphone
set to Channel A is turned on, the
Channel A LED glows green to
indicate your transmitter’s signal is
being received by the amplier.
3. CH B VOLUME: This knob controls
the volume for Channel B. You must
rst turn the 705iR ON with the
CH A POWER knob, then turn the
CH B VOLUME knob clock-wise to
increase volume. Use Channel B
when using a second microphone.
4. The LED above CH B VOLUME
turns green to indicate a signal is
being received from a microphone/
transmitter set to Channel B.
5. TREBLE: This knob controls the
high-frequency sound of the 705iR.
Classroom Audio System.
6. BASS: This knob controls the low-
frequency sound of the 705iR.
7. AUX IN VOLUME: This knob
controls the volume level of an
external audio source that is
plugged into the AUX IN jack. An
example would be a computer, iPod,
or CD player.
8. AUX INPUT JACK: This 3.5 mm jack
is used to connect to an external
audio source.
9. AUX OUTPUT JACK: This 3.5 mm
jack provides a line-level audio
output that can be connected
to a personal FM system or tape
recorder.
10. AUX OUT VOLUME: This knob
controls the audio level going to
external equipment when plugged
into the AUX OUT jack. For example,
a personal FM transmitter or tape
recorder.
1 2 3 4 5 6 7 8 9
10
Page 8
705iR User Manual
705iR User Manual | 4
705iR CONTROLS AND CONNECTIONS (cont’d)

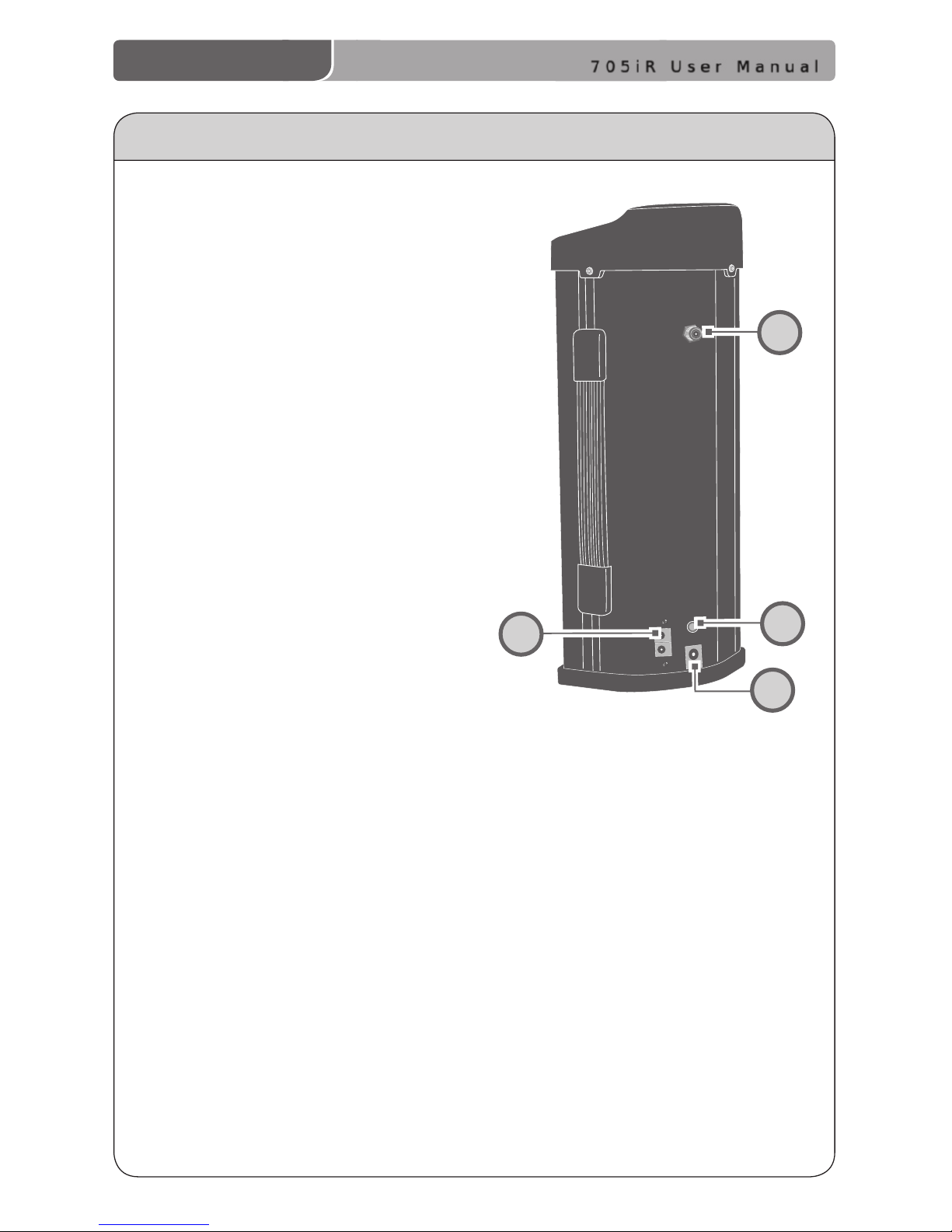

Rear Panel
11. TRANSMITTER CHARGING
JACKS: This connector is used to
connect the charging cable to the
optional LightMic transmitter or
the optional HM-70 handheld
microphone for daily battery
recharging.
12. EXTERNAL IR SENSOR JACK:
This jack is provided for
connection of an additional
sensor (for larger or
odd-shaped rooms).
13. CHARGING LED: This LED glows
red when the 705iR battery is
charging and glows green when
fully charged.
14. DC POWER INPUT JACK:
This input connects to the 16 V
AC/DC adaptor that comes with
the 705iR. The adaptor is used to
either charge the internal battery
pack or power the 705iR with
AC power.
EXT SENSOR
www.Lightspeed-tek.com
800-732-8999
DC POWER
CHARGER OUT
11
14
13
12
Page 9
705iR User Manual
5 | 705iR User Manual

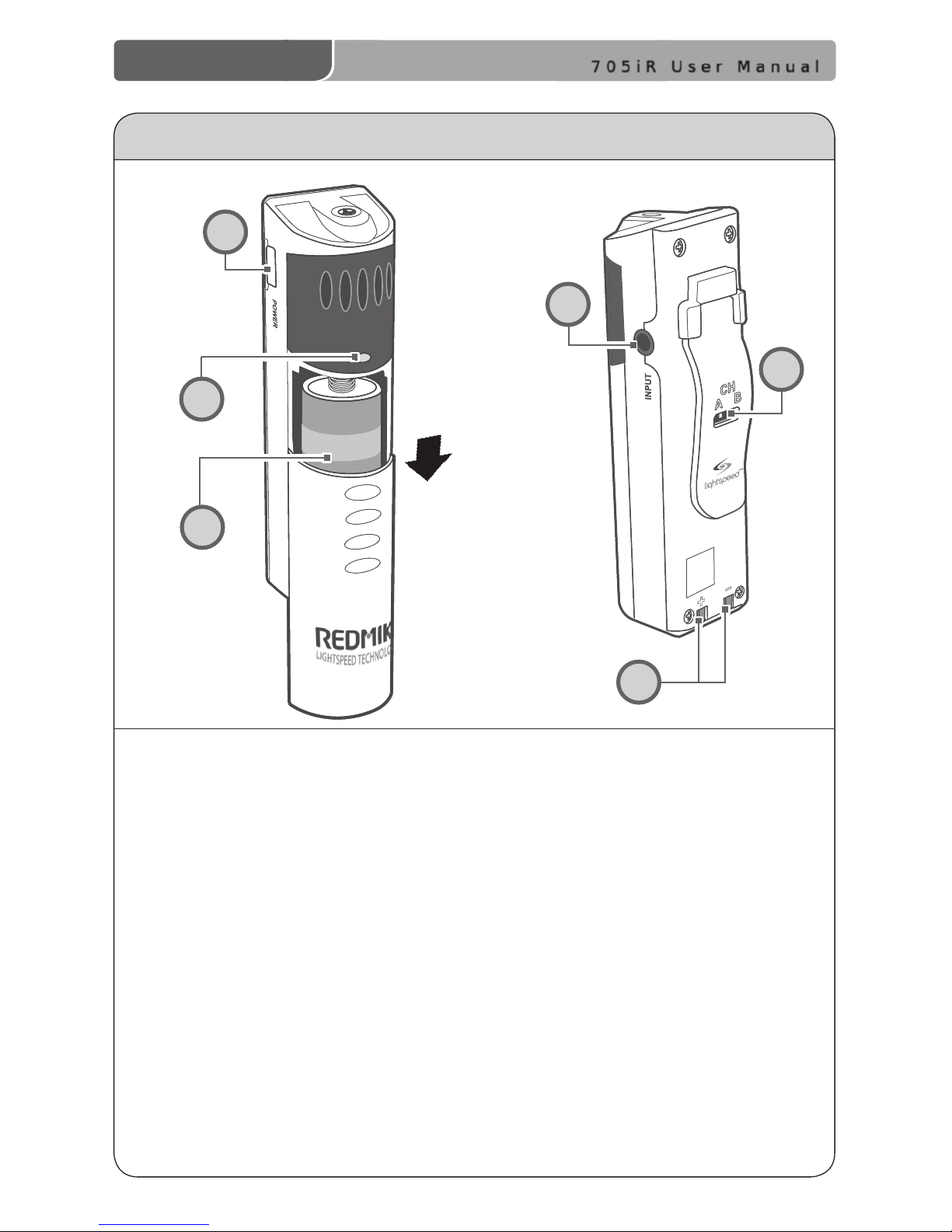

1. POWER BUTTON: Press this button
to turn the REDMIKE ON, press
again to turn it OFF (mute).
2. POWER/LOW BATTERY INDICATOR:
A BLUE light indicates the REDMIKE
is on and fully charged. A RED light
indicates a charge is needed.
3. BATTERY COMPARTMENT: To
access the battery compartment,
slide the door downward.
The battery should only be
replaced by a Lightspeed AA
rechargeable sensing battery
(part # BA-NH2A27).
4. AUDIO/MICROPHONE INPUT: Use this
input to plug in a laptop, MP3 player
or other audio source to wirelessly
transmit audio to be played through
the system. Alternatively, an external
microphone can be connected.
5. CHANNEL SELECT SWITCH (CH A/B):
This switch allows for selection between
Channel A or B. If you are using a single
microphone, we recommend using
Channel A.
6. CHARGER CONTACTS (+ -): These
contacts interface with the charging
tabs in the BC-RMCC cradle charger
for daily charging. Simply place the
REDMIKE in the charger.
REDMIKE CONTROLS AND CONNECTIONS
1
2
3
4
5
6
Page 10
705iR User Manual
705iR User Manual | 6

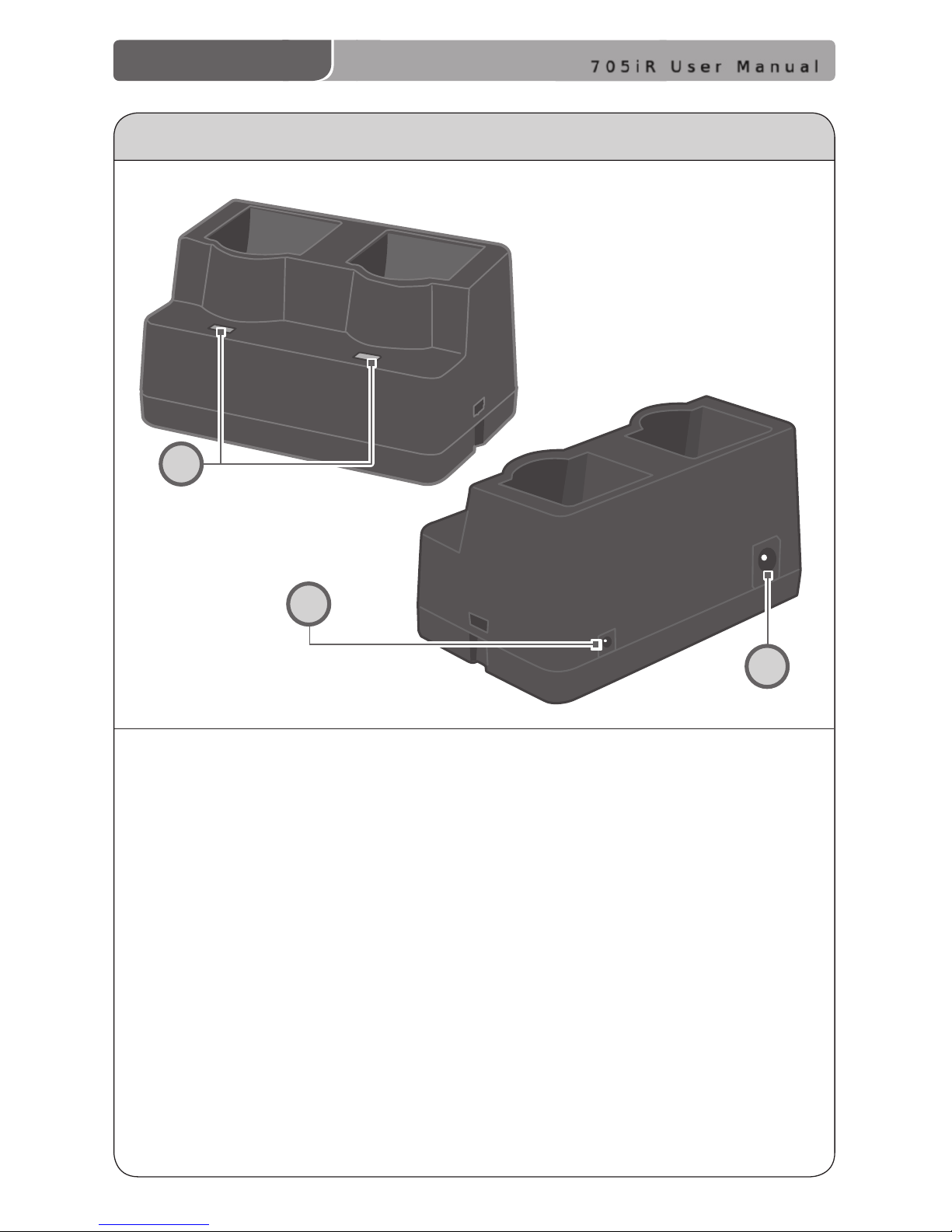

1. CHARGE INDICATORS: The light
glows RED while the REDMIKE is
charging. When fully charged, the
light will glow GREEN.
2. DC POWER PORT: Connect the DC
power cord here.
3. OPTIONAL CHARGING PORT: Plug the
charging cord for the optional LT-71 or
the HM-70 microphones here.
CRADLE CHARGER CONTROLS AND CONNECTIONS
1
2
3
Page 11
705iR User Manual
7 | 705iR User Manual

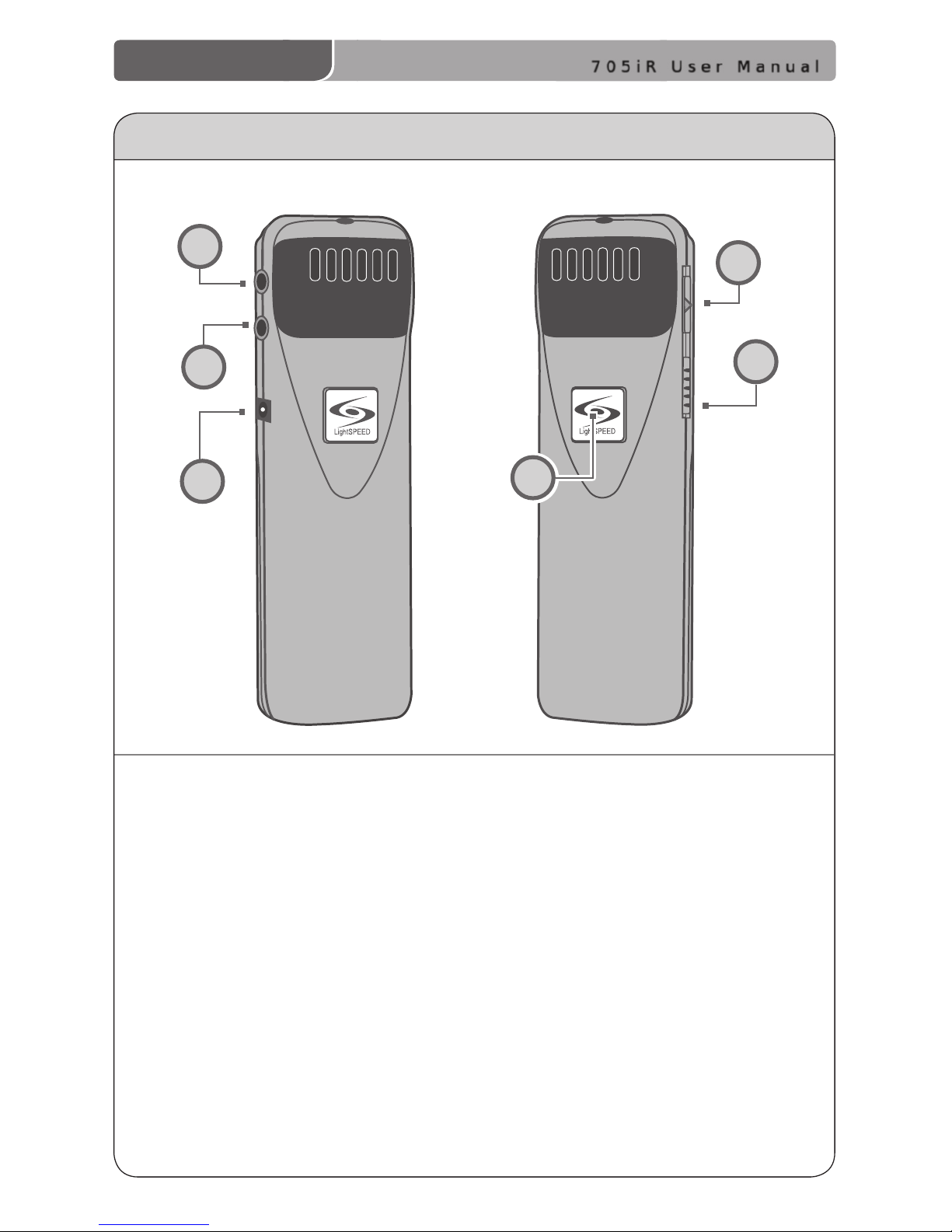

1. ON/OFF/MUTE Switch: This switch
turns LT-71 ON or OFF (mute).
2. Channel Select Switch (CH A/B):
This switch allows for selection
of Channel A or B. If you are
using a single microphone, we
recommend using Channel A.
3. Power/Charge Indicator: The
light glows BLUE when the LT-71
is powered ON, RED when being
charged.
4. External Microphone Input (MIC):
Use the 3.5mm MIC jack for the
optional TK-250 headset microphone
(part# MC-TK250LTM).
5. Auxiliary (AUX): Plug a laptop, MP3
player or other audio source into
this jack to wirelessly transmit the
audio signal to be played through
the system.
6. Charger Input (CHARGER): Plug
the charging cable from the
charger into this jack for daily
charging. The LED on the front will
glow RED to indicate charging.
OPTIONAL LT-71 CONTROLS AND CONNECTIONS
LT- 71
LT- 71
1
2
4
5
6
3
Page 12
705iR User Manual
705iR User Manual | 8

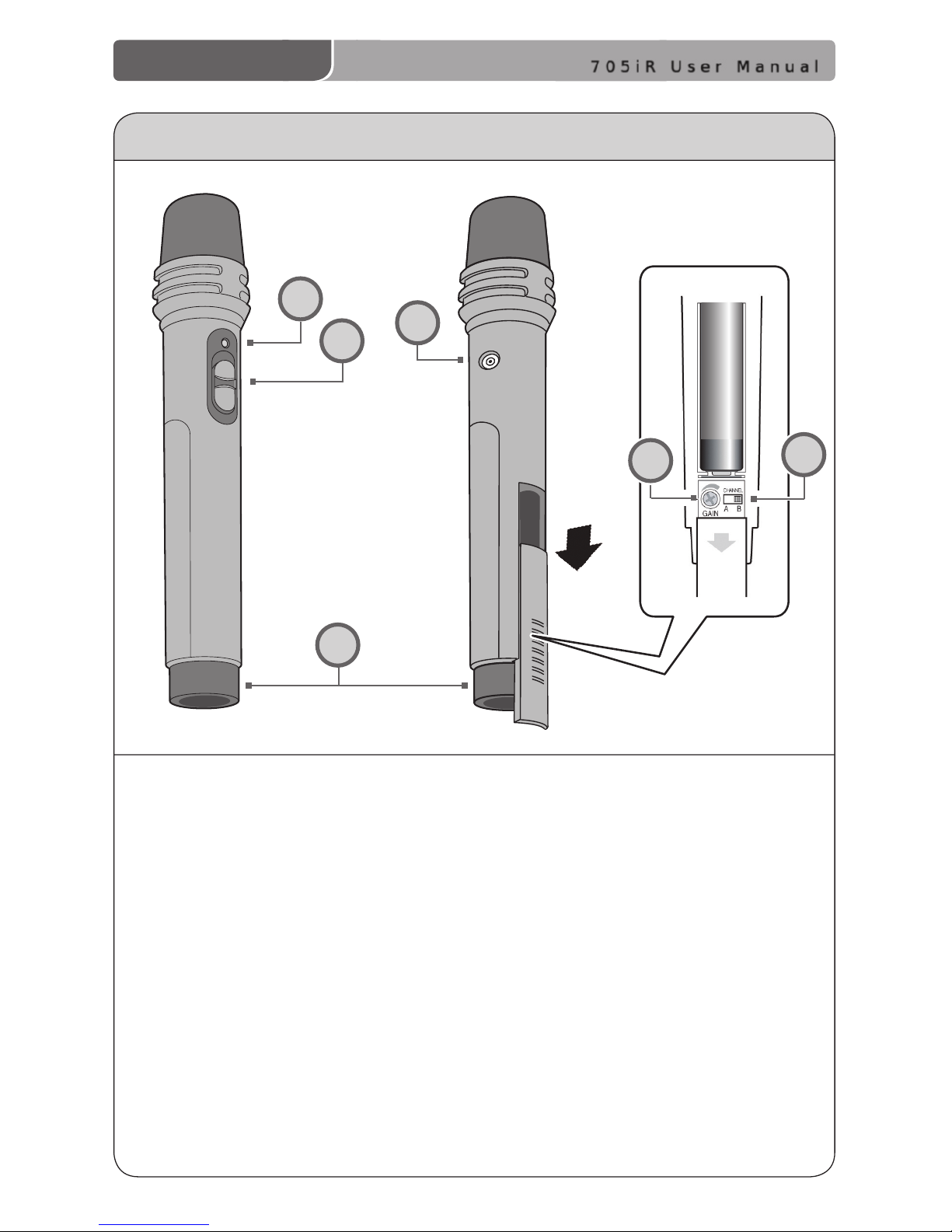

OPTIONAL HM-70 CONTROLS AND CONNECTIONS
1
5
3
4
1. ON/OFF/MUTE Switch: This switch
turns the unit ON, OFF or MUTE.
2. Channel Select Switch (CH A/B):
Located in the battery compartment,
the switch is set to Channel B at
the factory.
3. Power/Charge Indicator: The
light glows RED when the HM-70
is powered ON, GREEN when
charging.
4. Charger Input (CHARGER): Plug
the charging cable from the charger
into this jack for daily charging.
5. Infrared Emitters: Avoid covering
the emitters as you grip the HM-70
as this could interrupt signal
transmission from the microphone.
6. Volume Gain Adjustment:
Optimum volume level is
pre-set at the factory and no
adjustment should be necessary.
6
2
NiMH
Page 13
705iR User Manual
9 | 705iR User Manual
SECTION 2
Set-up
Page 14
705iR User Manual
705iR User Manual | 10
Ensure that you have received all of the components of your system.
REDMIKE Classroom
Microphone
Optional LT-71
LightMic and
Charger Cable
Optional HM-70 Handheld
Microphone and Charger Cable
LT - 71
705iR
CHA
CHB
TREBLE
BASS
AUX
AUX
POWER
IN
OUT
1. UNPACKING YOUR SYSTEM
705iR Receiver/Amplier,
Power Supply, and Carry Bag
Charging Cradle and Power Supply
Page 15
705iR User Manual
11 | 705iR User Manual

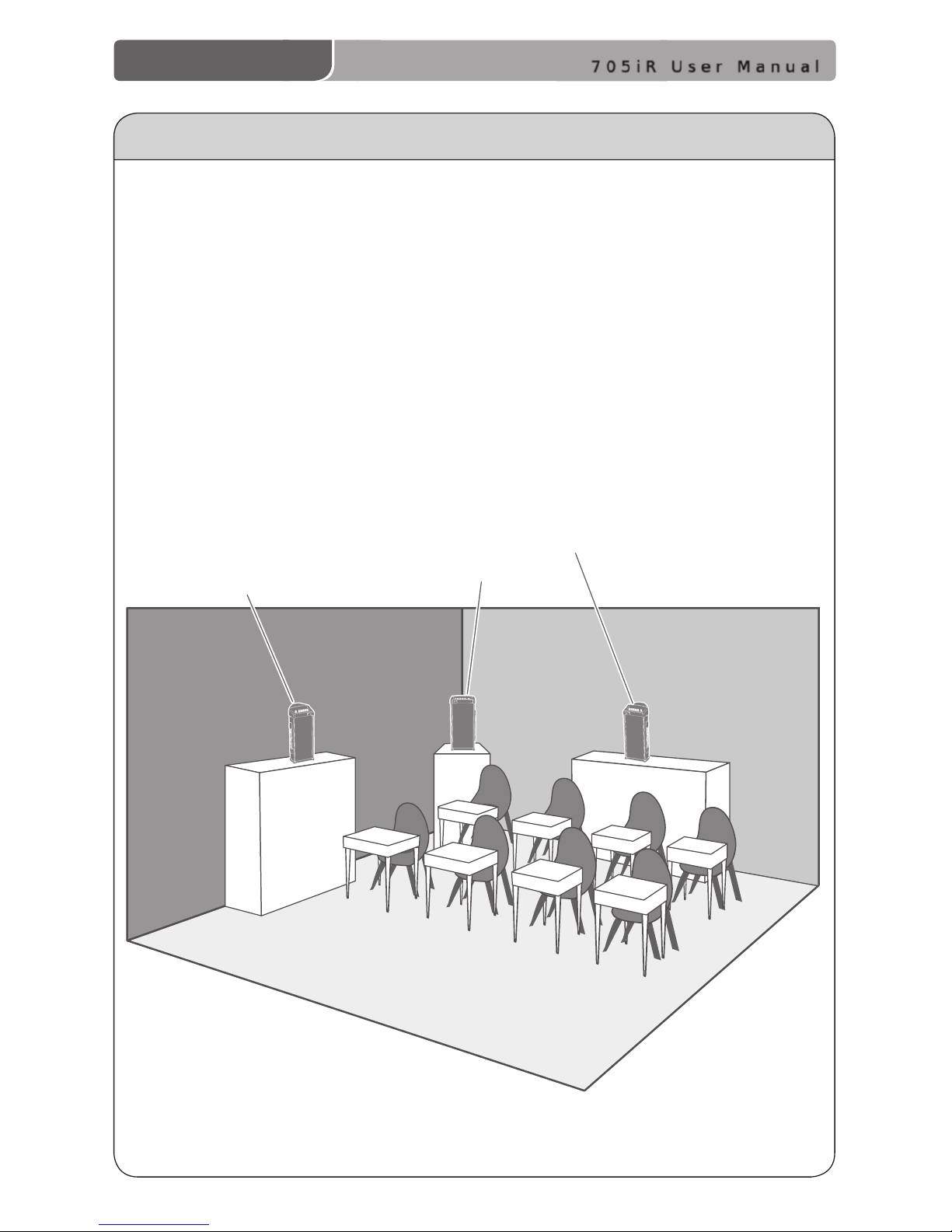

2. POSITIONING THE 705iR
The 705iR has a built-in speaker, which should be directed toward the area of the
classroom where the students are sitting. The unit can be placed on a table top or
bookshelf at a height of 36 to 60 inches.
The ideal position in the classroom is centered along the longest wall. However, due
to different classroom setups, this is not always possible. Here is a quick guide to
choosing a location:
• BEST: Centered on the longest wall.
• GOOD: Centered on the short wall.
• OKAY: In a corner.
• AVOID: Placing the unit directly in front of a window.
Best placement
Okay placement
Good placement
Longest wall Short wall
Page 16
705iR User Manual
705iR User Manual | 12
SECTION 3
Initial Set-up, Charging and
Optional Features
Page 17
705iR User Manual
13 | 705iR User Manual
3. Slip the REDMIKE with lanyard around the neck
and position the top of the microphone just below
the collarbone. NOTE: Positioning of the REDMIKE is
critical for proper volume adjustment.
4. While speaking in a normal voice slowly increase
the volume of the corresponding channel
on the 705iR until your voice is barely
audible. REMEMBER: This equipment
supplements the user’s voice so they
are able to speak in a conversational
tone. Having the volume set too high will
result in feedback and listener fatigue.
INITIAL SET-UP: REDMIKE
5. If a second REDMIKE was
purchased, repeat steps 2-4.
NOTE: Each REDMIKE has its
Channel pre-set to either A or
B. No further adjustment is
necessary.
1. Turn the 705iR power knob clockwise.
The LED above the CH A POWER
switch will ash RED one time to
indicate the power is on.
2. Turn on the REDMIKE.
On the 705iR, the GREEN IR
LED above the CH A POWER
knob will light to indicate a
signal is being received.
Page 18
705iR User Manual
705iR User Manual | 14
INITIAL SET-UP: OPTIONAL LT-71
A CH B
OFF
ON
A CH B
OFF
ON
3. Slip the LT-71 with lanyard around the
neck and position the top of the micro-
phone just below the collarbone.
NOTE: Positioning of the LT-71 is critical
for proper volume adjustment.
1. Turn the 705iR power knob clockwise.
The LED above the CH A POWER
switch will ash RED one time to
indicate the power is on.
2. Turn on the LT-71 and
set the channel to
B. On the 705iR, the
GREEN IR LED above
the CH B knob will light
to indicate a signal is
being received.
4. While speaking in a normal voice,
increase the CH B volume level
until your voice is barely audible.
REMEMBER: This equipment is
designed to supplement and
distribute the user’s voice
so they are able to speak
in a conversational tone.
Having the volume set too
high will result in feedback
and listener fatigue.
Page 19
705iR User Manual
15 | 705iR User Manual

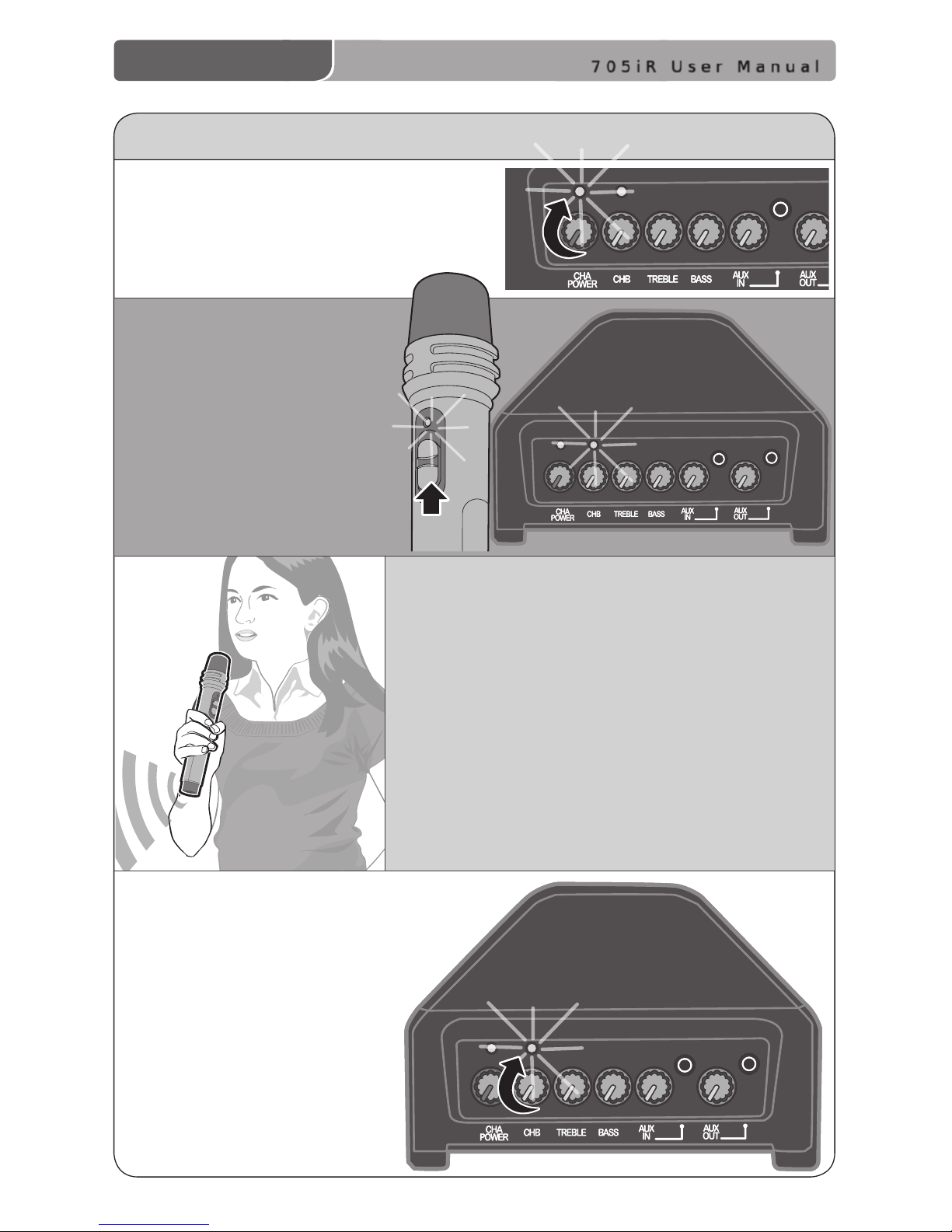

INITIAL SET-UP: OPTIONAL HM-70
3. Grip the barrel in the center section.
Avoid covering the infrared emitters
circling the base. This could interrupt
signal transmission.
1. Turn the 705iR power knob clockwise.
The LED above the CH A POWER
switch will ash RED one time to
indicate the power is on.
4. While speaking in a normal voice,
increase the CH B volume level
until your voice is barely audible.
REMEMBER: This equipment is
designed to supplement and
distribute the user’s voice
so they are able to speak
in a conversational tone.
Having the volume set too
high will result in feedback
and listener fatigue.
2. Turn on the HM-70 by
sliding the switch to the
top position. On the 705iR,
the GREEN IR LED above
the CH B knob will light to
indicate a signal is being
received. The HM-70 is set
to Channel B at the factory.
Page 20
705iR User Manual
705iR User Manual | 16
EXT SENSOR
www.Lightspeed-tek.com
800-732-8999
DC POWER
CHARGER OUT
CHARGING THE 705iR
1. Ensure the power knob
(CH A POWER) on top of
the 705iR is turned off.
2. Plug the power supply/charger cable
into a standard AC outlet.
3. Plug the other end of the power supply/
charger into the DC power jack on the back of
705iR. The LED above the DC will glow RED. A
solid GREEN LED indicates the 705iR is
fully charged.
• Many users opt to only use the AC power. If this is the case it’s not
necesary to charge the battery.
• When fully charged, the circuit switches to a trickle charge, which will
not overcharge or damage the batteries.
• A fully charged 705iR can operate under battery power for up to 6 hours.
Helpful Hint
Page 21
705iR User Manual
17 | 705iR User Manual
CHARGING THE REDMIKE
1. Plug power cord
into the cradle
charger and
then plug the
AC end into an
electrical outlet.
• REDMIKE incorporates alkaline protection into the microphone design.
Replacement AA NiMH batteries may only be purchased through
Lightspeed Technologies (part # BA-NH2A27).
• A blinking LED indicates a charging error. Be sure to use a Lightspeed
rechargeable sensing battery.
2. Ensure that the REDMIKE
is turned OFF.
3. Place the REDMIKE into the cradle. The LED on
the cradle will glow RED indicating charging has
started. When the REDMIKE is fully charged
the LED on the cradle charger will change
to GREEN.
Helpful Hint
Page 22
705iR User Manual
705iR User Manual | 18
• Microphones can be left in the charger for up to two weeks without
degradation to battery life.
• A full charge will be attained in 8-10 hours.
• Fully charged Lightspeed microphones will last over 7 hours.

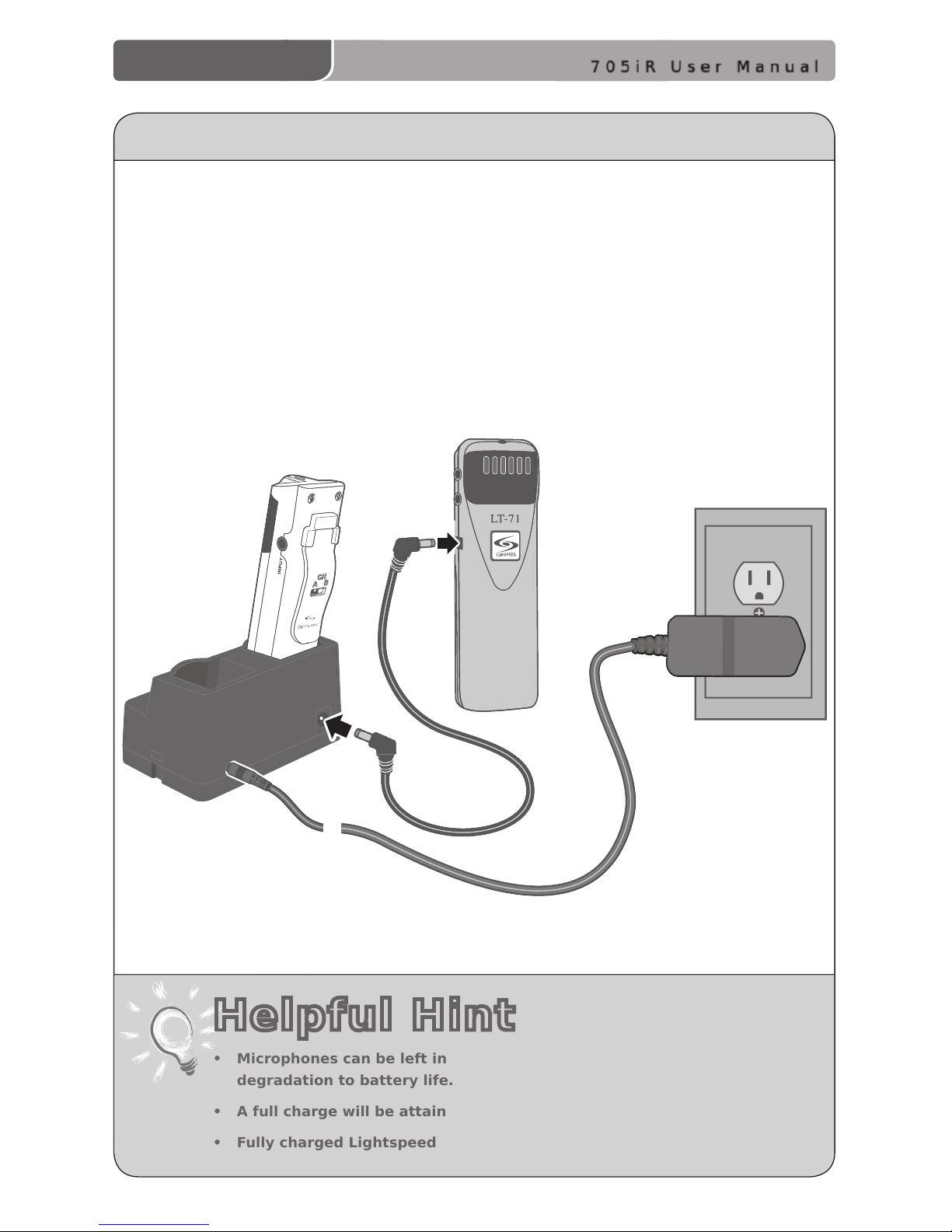

1. Ensure that the LT-71 is turned OFF.
2. Make sure the cradle charger is plugged into a wall outlet. Connect one end of
the charging cable into the jack labeled CHARGER on the side of the LT-71 and
plug the other end into the charging jack on the rear of the REDMIKE cradle
charger. The LT-71’s rechargeable batteries are factory installed. The LED on the
front of the LT-71 will glow RED when charging.
3. Leave the LT-71 plugged in overnight (8–10 hrs.) to obtain a full charge.
CHARGING THE OPTIONAL LT-71
Helpful Hint
Page 23
705iR User Manual
19 | 705iR User Manual
Do not attempt to charge alkaline batteries. They can overheat
and expand, creating a signicant hazard and damaging the
LT-71 and HM-70. (This is not covered by the warranty.)

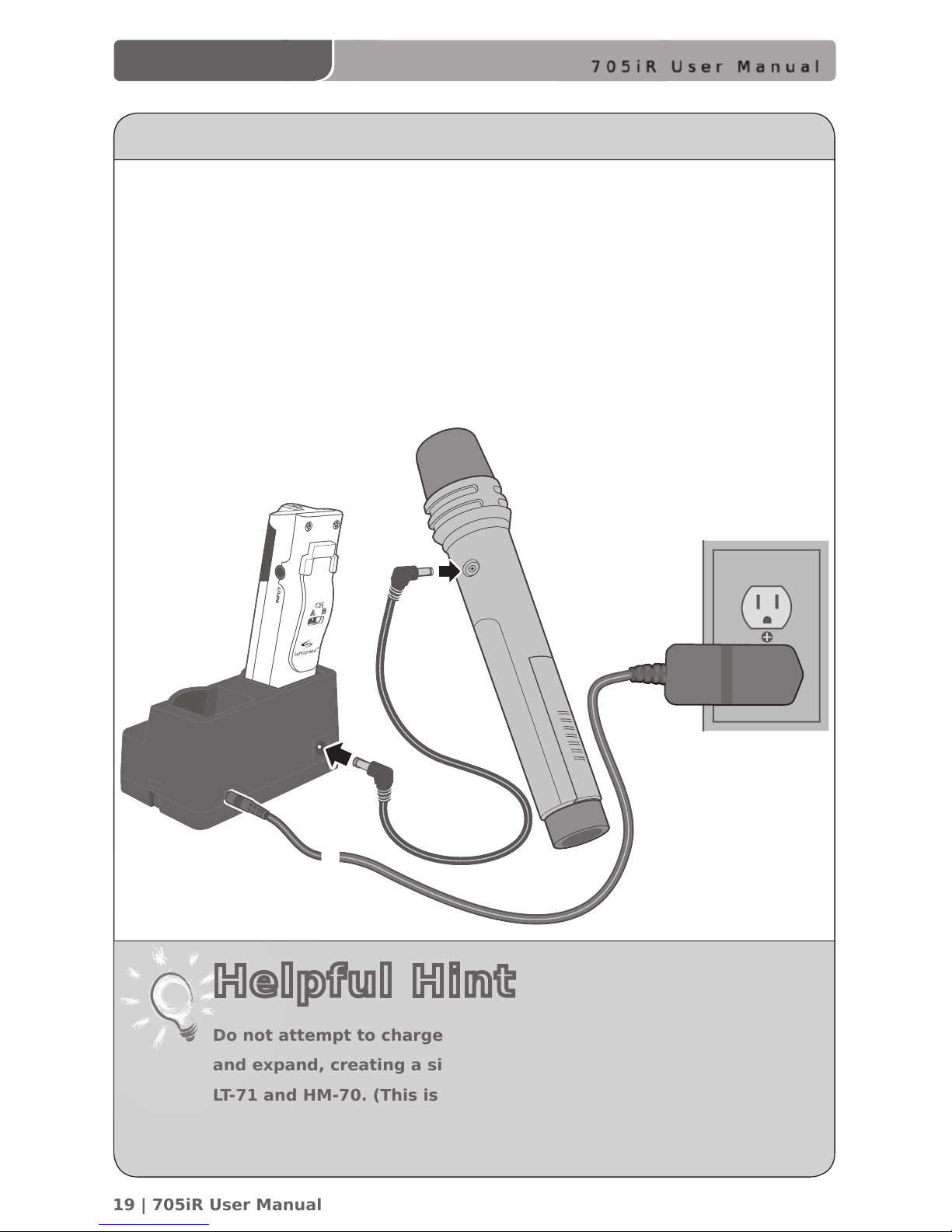

1. Ensure that the HM-70 is turned OFF.
2. Make sure the cradle charger is plugged into a wall outlet. Connect one end of
the charging cable into the jack labeled CHARGER on the side of the HM-70 and
plug the other end into the charging jack on the rear of the cradle charger. The
HM-70’s rechargeable batteries are factory installed. The LED on the front of the
Handheld Mic will glow GREEN when charging.
3. Leave the HM-70 plugged in overnight (8–10 hrs.) to obtain a full charge. The
GREEN light will turn off when fully charged.
CHARGING THE OPTIONAL HM-70
Helpful Hint
Page 24
705iR User Manual
705iR User Manual | 20
LT-71
The optional LT-71 can also amplify external audio.
Simply plug the 3.5mm patch cable from the audio
source into the input labeled “AUX IN” and adjust
the volume of the source to the desired sound level.
Helpful Hint
OUTPUT TO PERSONAL FM TRANSMITTER
1. Using a cable with a 3.5 mm connector at one end, connect
the AUX OUT of the 705iR to the input jack of the
FM transmitter. Different manufacturers use
different size audio input jacks on the
transmitter. The Lightspeed LES-370
requires the CA-MMC 3535 cable.
2. Connect a patch cable from the AUX
OUT jack on the top of the 705iR to
the FM transmitter’s microphone or
AUX input jack.
3. Adjust the volume control on the
Personal FM receiver to maximum
output. NOTE! This is to set the
maximum allowable signal from
the 705iR.
4. With the 705iR and FM transmitter
turned on, speak into the microphone
and slowly adjust the AUX OUT volume
control until the appropriate audio level is
achieved through the personal FM system.
CH A
MASTER
CH B
VOLUME
AUX
IN
AUX
OUT
TREBLE BASS
Page 25
705iR User Manual
21 | 705iR User Manual
SECTION 4
Troubleshooting, Daily Use
and Warranty
Page 26
705iR User Manual
705iR User Manual | 22
TROUBLESHOOTING GUIDE
If you review these instructions and still have questions, write down the serial
number and model number of your system and call Lightspeed Technical Services at
800.732.8999, 5 a.m. – 5 p.m., PST.
Note: Most problems are directly related to low battery power. Please run through the “Battery
Check” items rst. For remaining troubleshooting, use known good, fully-charged batteries.
Battery Check
• Conrm batteries are charged
each night.
• Conrm proper batteries are used.
The REDMIKE requires the Lightspeed
BA-NH2A27 rechargeable sensing
battery for proper charging. The LT-71
& HM-70 require NiMH AA rechargeable
batteries.
• Make sure the microphones are turned
off while charging so a full charge
is attained. Full charge will last
eight hours.
• Inspect the battery contacts. Clean and
adjust if necessary.
Hearing Static
• Ensure that no other REDMIKE/LT71/
HM70 is operating on the same channel.
Low Volume or Feedback
• Ensure the pendant style microphone is
positioned appropriately, just below the
collar bone.
• Check volume level on the amplier. If
the volume is too high, feedback will
occur. Adjust accordingly.
No Sound From Speaker
• Turn the 705iR on. Conrm that the
POWER light ashes RED one time
when turned on.
• Conrm signal is being received at the
705iR. The IR signal light will be GREEN
indicating a signal is being received
from the microphone.
• Conrm that REDMIKE is turned on.
There will be a BLUE LED on
the microphone to indicate it is
powered on.
Page 27
705iR User Manual
23 | 705iR User Manual
1. TURN ON THE 705iR
Ensure the power is switched on. The
RED LED will momentarily ash when
turned on.
4. CHARGE BATTERIES
Turn the
microphone ON
using the ON/
OFF switch on
the side of the
REDMIKE and
speak normally.
DAILY USE INSTRUCTIONS
2. POSITION THE REDMIKE
3. TURN ON THE REDMIKE
Remove the REDMIKE from the
charging cradle and place it
around your neck. Adjust the
neck strap so the top of the
microphone rests just below
your collarbone.
Place the REDMIKE back into the
charging cradle to recharge at the
end of the day.
Page 28
705iR User Manual
705iR User Manual | 24
1
TIPS ON CLASSROOM AUDIO
Avoid wearing jewelry that may rub or bump against
the microphone.
Turn the REDMIKE off during private conversations with a student,
parent, or other classroom visitor. You can also cover the LED
lens on top of the REDMIKE to block the signal.
Recharge batteries each night. When recharged nightly, operating
time (actual usage) for the transmitters will last through a typical
school day.
Five-year Limited Warranty
Lightspeed Classroom Audio Systems are guaranteed against malfunction due to defects
in materials and workmanship for a period of FIVE (5) YEARS, beginning at the date of
the purchase invoice. If such malfunction occurs, the product will be repaired or replaced
(at Lightspeed’s option) without charge during the warranty period.
1. Warranty on infrared microphones is FIVE (5) YEARS.
2. Warranty on Lightspeed rechargeable batteries, all external cables and wires provided
by Lightspeed is one (1) year.
3. Prepaid shipping labels are provided by Lightspeed factory or an authorized warranty
service center for warranty repairs.
4. Warranty does not extend to nish, appearance items, or malfunctions due to abuse
or operation other than specied conditions, nor does it extend to incidental or
consequential damages. Repair by other than Lightspeed or its authorized service
agencies will void this guarantee. Information on authorized service agencies is
available from Lightspeed Technologies, Inc.
2
3
4
Speak in a natural voice. A normal conversational speech level
will provide an adequate signal. It is not necessary to increase
the intensity of your voice—the audio system provides
adequate amplication (approximately 5 – 10 dB) above
ambient room noises.
Our Service Department (800.732.8999, 5 a.m. – 5 p.m., PST)
will handle all your repair/replacement needs.
Page 29
705iR User Manual
25 | 705iR User Manual
SYSTEM SPECIFICATIONS
OVERALL SPECIFICATIONS
RECEIVER/AMPLIFIER SPECIFICATIONS
TRANSMITTER SPECIFICATIONS
Standard Carrier Frequencies (IR) ........................ 2.06/2.54 MHz
Alternative Carrier Frequencies (IR) ..................... 3.2/3.7 MHz
Frequency Stability ..............................................± 3%
Signal-to-Noise Ratio ............................................ > 73 dB
Dynamic Range .................................................... > 73 dB
Frequency Response ........................................... 100 Hz - 10 KHz
Receiver Type ....................................................... Superheterodyne
Receiver Sensitivity ..............................................6 µV for 60 dB S/N
Image and Spurious Rejection .............................. > 70 dB
Dimensions (W x D x H) ....................................... 13.25” x 5.75” x 4”
Weight ..................................................................5 lbs. with battery pack
Total Harmonic Distortion ..................................... < 1% (Output = 1W)
Power Output ....................................................... 12W RMS
Speaker Type........................................................ Standard Cone 4”
Speaker Load Impedance ..................................... 4 Ohms
Adjustable Tone Controls ...................................... ± 8 dB (100 Hz - 10 KHz)
Power Supply (UL Listed) ..................................... 16V/2.0 A
Battery Power (1-year warranty) .......................... 12V NiMH Battery Pack
LT-71 LightMic
Audio Distortion ................................................... < 1 %
Built-in Microphone .............................................. Unidirectional Electret
Battery Power (1-year warranty) .......................... 2 AA NiMH Rechargeable
Audio Inputs ......................................................... Mic Level 3.5 mm
Line Level 3.5 mm
Dimensions (W x D x H) ....................................... 1.375” x .75” x 4.625”
Weight ..................................................................3.7 oz.
REDMIKE
Audio Distortion ................................................... < 1 %
Built-in Microphone .............................................. Unidirectional Electret
Battery Power (1-year warranty) .......................... 1 AA NiMH Rechargeable
Sensing Battery
Audio Input ..........................................................3.5 mm
Dimensions (W x D x H) ....................................... 0.9” x 1.0” x 3.5”
Weight ..................................................................2.1 oz.
HM-70 Handheld Microphone
Audio Distortion ................................................... < 1 %
Built-in Microphone .............................................. Unidirectional Electret
Battery Power (1-year warranty) .......................... 2 AA NiMH Rechargeable
Dimensions (W x D x H) ....................................... 2.25” x 2.25” x 8.75”
Weight ..................................................................7.36 oz.
Page 30
705iR User Manual
705iR User Manual | 26
Part Number
Description
INDIVIDUAL COMPONENTS & OPTIONAL ACCESSORIES
RX-705
Infrared receiver/amplier/mixer with built-in charger
PS-16V-2.0
Power supply/battery charger for 705iR
RMT
REDMIKE classroom microphone
with lavaliere cord and rechargeable AA battery
BA-NH2A27
Lightspeed AA rechargeable sensing battery
(for REDMIKE)
AC-LTCB
Lavaliere cord for REDMIKE, LT-71
BC-RMCC
REDMIKE cradle charger
PS-5V-1.0
Cradle charger power supply
AC-SP705
705iR Carry Bag
Optional Accessories
LT71
LightMic microphone with lavaliere cord, rechargeable
batteries and charging cable
HM70
Handheld microphone with rechargeable batteries and
charging cable
MC-TK250LTM
Noise-canceling headset microphone
AC-TCC7
Charging cable for LT-71 and HM-70 microphones
AC-TWBRK
Speaker Stand/Wall Mount Bracket
CA-MSC3535
3.5mm to 3.5mm stereo audio cable
CA-MMC2535
Audio patch cable (2.5 mm mono to 3.5 mm mono)
Page 31
705iR User Manual
27 | 705iR User Manual
USER NOTES
Record your system serial numbers and
purchase information. This is helpful
when ordering additional components,
accessories, and/or warranty service.
Components
705iR
Serial Number
Microphones
Terms and Conditions
Purchase Information
Your School/Organization
District
Purchase Date
Invoice
Charging Cradle
Page 32
705iR User Manual
705iR User Manual | 28

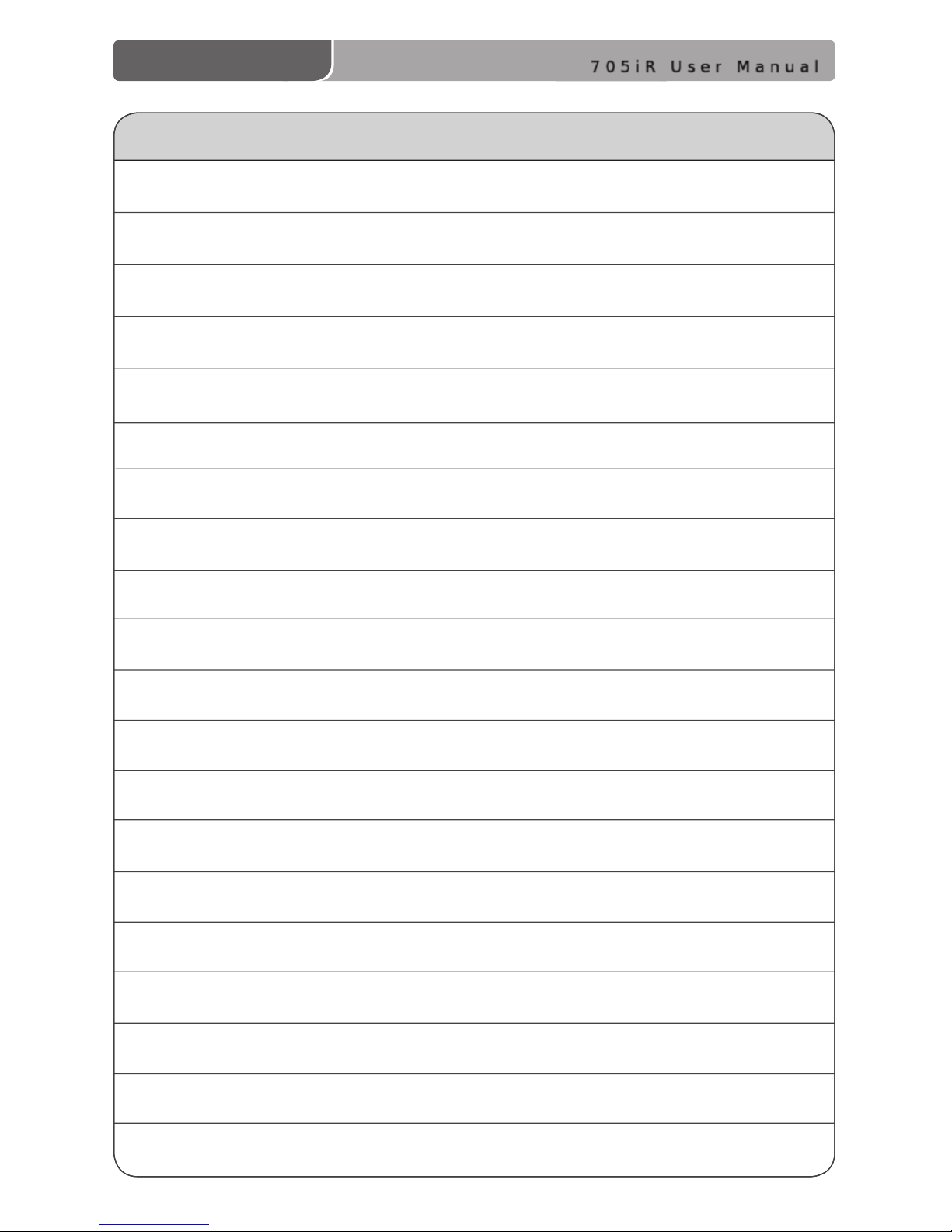

USER NOTES
Page 33
705iR User Manual
29 | 705iR User Manual
USER NOTES
Page 34
Lightspeed Technologies, Inc.
11509 SW Herman Rd
Tualatin, OR 97062
800.732.8999
www.lightspeed-tek.com
AC-MN705
MK-MN0020908-1
Loading...
