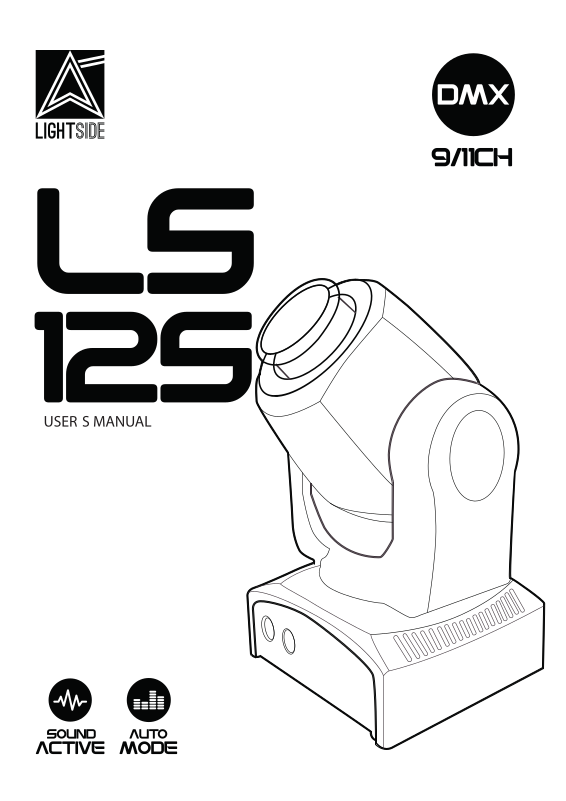

LIGHTSIDE LS 125 User Manual

9/11CH
1. Specifications
Power Supply:
AC100-240V, 50-60Hz
Power Consumption:
LED Source:
1pcs*12W LUMINUS LED white
Beam Angle:
13°
Gobo wheel:
7 fixed gobos + spot, Gobo Shake effect, Gobo scroll mode
Color Wheel:
7 colors+white
Control mode:
DMX 512,Master-slave,Auto run,Sound-activated
DMX Channel:
7/12CH
Rotation Angle:
540° pan / 230° tilt (16-bit), Pan /Tilt Inversion mode
Focus:
Manual focus
Shutter:
Pulse effect; random strobe slow to fast
Connector:
DMX via 3-pin XLR cable
Highest temperature:
40
Date In and out:
3-pin XLR cathode and anode plug
N.W/G.W:
3kg/3.5kg
Dimension:
159*147*265mm
Dimming:
0%-100% linear dimming
2. SAFETY INTRODUCTION
• If the device has been exposed to temperature changes due to environmental changes, do not switch it on immediately. The arising condensation could damage the device. Leave the d evice switched off until it has reached room temperature.
• It is essential that the device is earthed. A qualified person must carry out the electric connection.
• Make sure that the available voltage is not higher than stated at the end of this manual.
• Make sure the power cord is never crimped or damaged. If it is dama ged, ask your dealer or authorized agent to replace the power cord.
• Always disconnect from the mains, when the device is not in use or before cleanin g it. Only handle the power cord by plug. Never pull out the plug by tugging the power cord.
• DISCONNECT DEVICE: Where the MAINS plug or an appliance coupler is used as the
disconnect device, the disconnect device shall remain readily operable.
• Due to the magnifying type lens, please keep the lens out of contact with direct us. Direct we can cause heat to build up inside of the unit, which will seriously damage unit. CAUTION:
1. Be very careful during installation. Since you will be working with a dangerous volt age you can suffer a life-threatening electric shock when touching live wired.
2. Never look directly into the light source, as sensitive persons may suffer an epileptic shock.
3. Please be aware that damages caused by manual modifications to the device are not subject to warranty. Keep away from children and non-professionals.
4. The light doesn’t include any spare parts for repair, please check if all the parts are well installed and screws are fitted tightly before operating. Do not use the light when the cover is open. GENERAL GUIDE LI N ES
• This device is only allowed to be operated with an alternating current of max. 220-240V AC/50-60Hz and was designed for indoor use only.
• Do not shake the device. Avoid brute force when installing or operating it.
• Operate the device only after having familiarized yourself with its functions. Do not permit operation by person not qualified for operating the device. Most damages are the result of unprofessional operation.
• Please use the original packaging if the device is to be transported.
• For safety reasons, please be aware that all modifications on the device are forbidden. Furthermore, any other operation may lead to short-circuit, burns, electric shock, lamp explosion, crash, etc. If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void.
3. Operation
1.Illustration Part:
A.Menu
A B C D B.Up
C.Down
D.Enter
Operating Instructions: Press button A “Menu” to choose different functions Press button “B” or “C” to amend parameter values, Press button “D” toEnter
LCD display different functions:Press button“Enter” to enter
A001-A512 address settings
2 CHND
CH, 12CH channel selection
MAST, SL1, SL2, main and Select SOUD, AUTO control
ON,OFF sound control switch Sensitivity of sound control(0 closed, 100 is most sensitive)
YES, NO; the switch of
YES, NO; the switch of Back
9 DISP
YES, NO; reverse display
YES, NO; level motor reverse
YES,NO; vertical motor
PAN, TIL T, COLOR,
Automatic testing
0 ---- 9999 time of use
V101 software version YES, NO reset factory settings
NO. Display Function
1 ADDR
3 SLND
4 SHND
5 SOUD
6 SENS
7 BLND
8 LED
auxiliary machinery selection
standby
light
10 PAN
11 TILT
12 MANU
13 TEST
14 HOUR
15 VER
16 RSET
reverse
GOBO,DIMM, STROB,Manual testing
machine
number
1
0-255
X motor operation
2
0-255
Y motor operation
3
Dimming
0-255 1-100%
4
Strobe
0-7 off light, 8-15 opening,
131 from slow to fast
139 open light,
slow off quick opening,
255 open random strobe
light,
5
Color wheel
0-31 Open,
63 Color 1,
or2,
127 Color3,
159 Color4, 191 Color5, 223 Color6,
224-255 Color7.
6
Gobo wheel
0-15 Open,
47 Color2, 63 Color3, 79 Color4, 95 Color5, 111 Color6,
127 Color7. 146 Color7 jitter,
238 --- 255 Colorl jitter
7
Marco
0-69 no functional, 70-89 Close light effective whe n the
4. DMX512 Channels: Mode 1:7 Channels
No Functions Illustration
16­strobe, 132­fast off slowly open 140-181, 182-189 opening, 190-231
232-239 opening, 240-247 248-
32­64-95 Col 96­128­160­192-
16-3 Color 1, 32­48­64­80­96­112­128­147 --- 164 Color6 jitter, 165 --- 182 Color5 jitter, 183 --- 201 Color4 jitter, 202 --- 219 Color3 jitter, 220 --- 237 Color2 jitter
horizontal or vertical motor
moves, 90-
109 close light
invalid when X or Y axis
129 close light
effectively when the color
to close light when the color
169 close
light effectively when Gobo
invalidly when Gobo move,
199 no functional, 209 overall reset, 249 no functional,
249 free
255 random
sound control effect
1
0-255
The level of motor travel
2
0-255
The level of motor tuning
3
0-255
Vertical stroke motor
4
0-255
Vertical motor tuning
5
0-255
Horizontal / vertical motor speed, from fast to slow
6
level / vertical motor effect
No effect 0-15, 16-35 2,56-75
55 3,
115 effect
175 results 8,
176-195 effect 9, 196-215
moving, 110-
wheel move , 130-149 invalid
wheel move , 150-
move. 170-189 close light
190­200­210­250-255 sound control effect nonfunctional, 200-209 overall reset, 210­function, 250-
Mode 2:12 Channels
No Data Illustration
effect effect effect 1,36­76-95 effect 4, 96­5, 116-135 effect 6, 136-155 effect 7, 156-
effect 10, 216-235 effect 11,
236-255 effect 12
7
0-255
0-255 horizontal / vertical
8
Color wheel
0-31 Open, 32-63 Colorl,
223 Color6,
224-255 Color7
9
GOBO wheel
0-15 Open,
3 Color 1, 47 Color2, 63 Color3, 79 Color4, 95 Color5, 111 Color6,
127 Color7. 146 Color7 jitter,
238 --- 255 Colorl jitter
10
Marco
0-69 non-functional, 70-89
function, 250-255 random
speed motor effect, from fast to slow
64-95 Color2, 96-127 Color3, 128-159 Color4, 160-191 Color5, 192-
16­32­48­64­80­96­112­128­147 --- 164 Color6 jitter, 165 --- 182 Color5 jitter, 183 --- 201 Color4 jitter, 202 --- 219 Color3 jitter, 220 --- 237 Color2 jitter
when the horizontal or vertical motor motor moves off the light and effective, 90-109 when moving off light invalid X or Y axis, 110-129 when the color wheel to move off the light effectively, 130-149 when the color wheel to move off the light invalid, 150-169 Gobo move off when the light effectively, 170-189 Gobo move off when the light is invalid, 190-199 nonfunctional, 200-209 overall reset, 210-249 free
sound control effect
11
0-255
dimming
12
Strobe
0-7 close light, 8-15
opening,16-131 strobe from
248-255 opening
slow to fast , 132-139 open light, fast off slowly open 140-181, 182-189 opening, 190-231 slow off quick opening, 232-239 opening, 240-247 random strobe,
