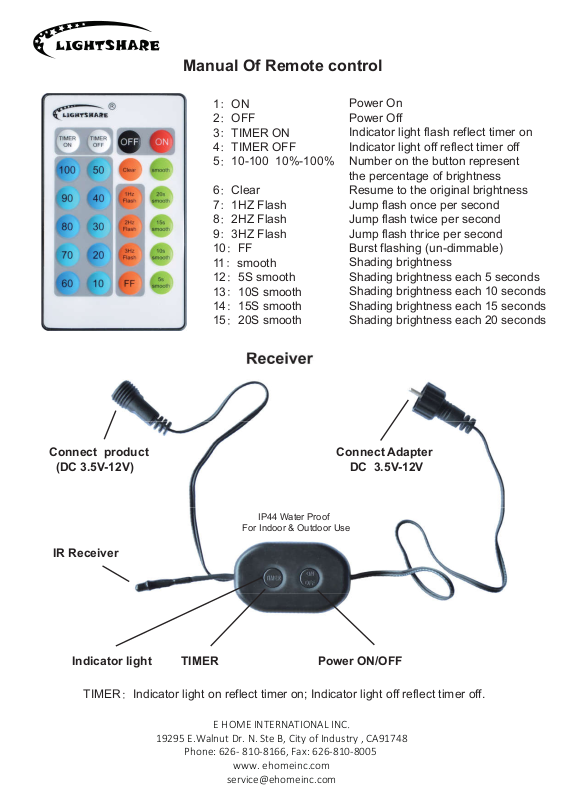

Manual Of Remote control
1 ON
2 OFF
3 TIMER ON
4 TIMER OFF
5 10-100 10%-100%
6 Clear
7 1HZ Flash
8 2HZ Flash
9 3HZ Flash
10 FF
11 smooth
12 5S smooth
13 10S smooth
14 15S smooth
15 20S smooth
Receiver
Power On
Power Off
Indicator light flash reflect timer on
Indicator light off reflect timer off
Number on the button represent
the percentage of brightness
Resume to the original brightness
Jump flash once per second
Jump flash twice per second
Jump flash thrice per second
Burst flashing (un-dimmable)
Shading brightness
Shading brightness each 5 seconds
Shading brightness each 10 seconds
Shading brightness each 15 seconds
Shading brightness each 20 seconds
Connect product
(DC 3.5V-12V)
IR Receiver
TIMER Indicator light on reflect timer on; Indicator light off reflect timer off.
Connect Adapter
DC 3.5V-12V
IP44 Water Proof
For Indoor & Outdoor Use
Power ON/OFF TIMER Indicator light
E HOME INTERNATIONAL INC
19295 E.Walnut Dr. N. Ste B, City of Industry , CA91748
Phone: 626- 810-8166, Fax: 626-810-8005
www. ehomeinc.com
