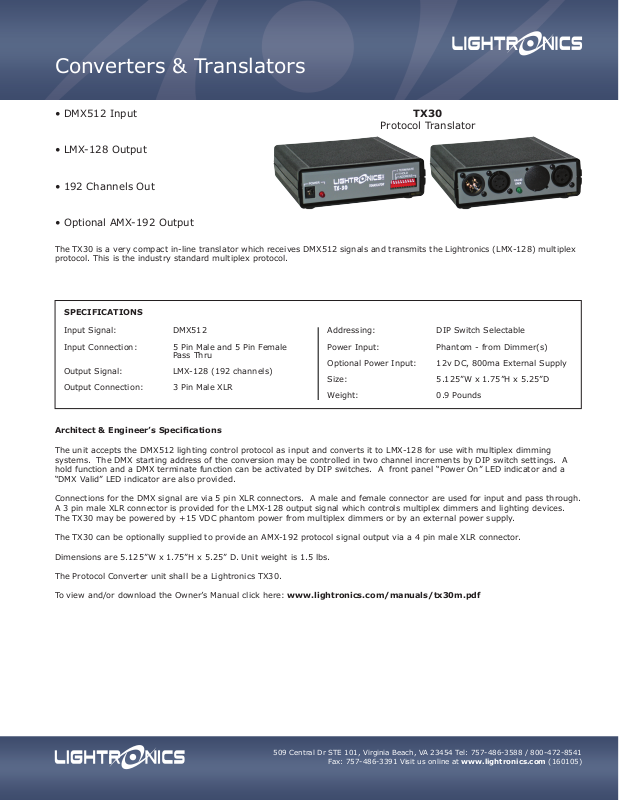

Lightronics TX30 Datasheet

Converters & Translators

• DMX512 Input

TX30

Protocol Translator

• LMX-128 Output

• 192 Channels Out

• Optional AMX-192 Output

The TX30 is a very compact in-line translator which receives DMX512 signals and transmits the Lightronics (LMX-128) multiplex
protocol. This is the industry standard multiplex protocol.

SPECIFICATIONS

Input Signal: DMX512

Input Connection: 5 Pin Male and 5 Pin Female
Pass Thru

Output Signal: LMX-128 (192 channels)

Output Connection: 3 Pin Male XLR

Addressing: DIP Switch Selectable

Power Input: Phantom - from Dimmer(s)

Optional Power Input: 12v DC, 800ma External Supply

Size: 5.125”W x 1.75”H x 5.25”D

Weight: 0.9 Pounds

Architect & Engineer’s Specications

The unit accepts the DMX512 lighting control protocol as input and converts it to LMX-128 for use with multiplex dimming
systems. The DMX starting address of the conversion may be controlled in two channel increments by DIP switch settings. A
hold function and a DMX terminate function can be activated by DIP switches. A front panel “Power On” LED indicator and a
“DMX Valid” LED indicator are also provided.

Connections for the DMX signal are via 5 pin XLR connectors. A male and female connector are used for input and pass through.
A 3 pin male XLR connector is provided for the LMX-128 output signal which controls multiplex dimmers and lighting devices.
The TX30 may be powered by +15 VDC phantom power from multiplex dimmers or by an external power supply.

The TX30 can be optionally supplied to provide an AMX-192 protocol signal output via a 4 pin male XLR connector.

Dimensions are 5.125”W x 1.75”H x 5.25” D. Unit weight is 1.5 lbs.

The Protocol Converter unit shall be a Lightronics TX30.

To view and/or download the Owner’s Manual click here: www.lightronics.com/manuals/tx30m.pdf
