PIN #
SIGNAL NAME
1
DMX COMMON
2
DMX DATA -
3
DMX DATA +
CAUTION
RISK OF ELECTRIC SHOCK
Page 1 of 4
FXLD157FR6I LED FIXTURE
Version 1.1 OWNER’S MANUAL 05/11/2022
FEATURES AND SPECIFICATIONS
LEDS: 7, 15W each (RGBWA+UV, 6in1)
White LED Color Temperature: 6500K
Beam angle: 25 º (15° Optional)
Control system: DMX-512 + Stand Alone Modes
DMX channels: 6/10
DMX connector: 3 pin XLR I/O
Refresh Rate: >3000 Hz
Voltage: 120 - 240 VAC 50/60Hz
Max power consumption: 105 Watts + Auto Switching
Power Supply
Ingress Protection: IP20 - Indoor Use Only
Cooling: Intelligent Fan
Body material: Die Cast Aluminum
Body color: Black
Size: 9.25"L x 4.65"W x 11.42"H (With Yoke)
Weight: 8.82 lbs. (4.0 kg)
DESCRIPTION
The FXLD157FR6I is a RGBWA+UV LED lighting
fixture. It is suitable for stage, houses of worship,
entertainment venues, and other artistic applications.
It has several stand-alone control modes and can
operate via a DMX-512 external signal.
A double yoke enables the fixture to be operated in
several positions.
INSTALLATION
LOCATION
Locate the unit indoors in a wel l ventilated area away
from moisture and heat. Keep the vent holes clear.
Holes are provided on the y okes to install a lighting bar
pipe clamp. Use a safety cable when hanging the
fixture.
POWER CONNECTIONS
The FXLD157FR6I has a blue turn and lock connector
mating white connector is also provided.
THE LINE CORD IS RATED FOR 7 AMPS MAXIMUM.
THE SAFETY GROUND TERMINAL ON THE PO WER
CABLE MUST BE USED.
DMX CONNECTIONS
A system using D MX contr ol sh ould be co nnect ed as a
chain of devices. In other words, the control signal
cable should proceed from the controller to the first
receiving device and then to others in one continuous
chain.
The fixture has a DMX IN and a D MX OUT connector
to be used to connect the chain. The control cable
should NOT be split into a multiple run star
arrangement with a cable running from the controller
directly to each receiving device.
DMX CONNECTOR PIN ASSIGNMENTS
The FXLD157FR6I uses 3 pin XLR connectors. DMX i s
received on the MALE connector on the back of the
unit. The FEMALE co nnec tor is used to connec t to th e
next DMX device on the control chain.
The table below shows the pin assignments for the 3
pin DMX cable.
for power input. A comp atible power cable is provided
for connection to a 120 V AC, 15 Amp, 60Hz, ground ed
service. Push the blue co nnector on the c able straigh t
into the blue connector on the unit and twist approx.
1/8 turn clockwise to latch it.
The white turn and lock connector on the unit is used
to pass power on to another FXLD157FR6I unit. A
DMX TERMINATION
A DMX chain shoul d be t erminated at the las t rec e iv ing
device on the chain. This is done by installing a
www.lightronics.com
Lightronics Inc. 509 Central Drive, Virginia Beach, VA 23454 757 486 3588
CAUTION DO NOT OPEN UN IT
RISK OF ELECTRIC SHOCK
RISK OF FIRE
Page 2 of 4
FXLD157FR6I LED FIXTURE
Version 1.1 OWNER’S MANUAL 05/11/2022
commonly available 1/ 4 Watt, 1 20 Ohm res istor acros s
the DATA - and DAT A + wi r es at t he las t dev ice. I f you
have only a few fixtures ver y close toge ther and a v ery
short run to the controller, then you may be able to
operate without the terminator.
OPERATION

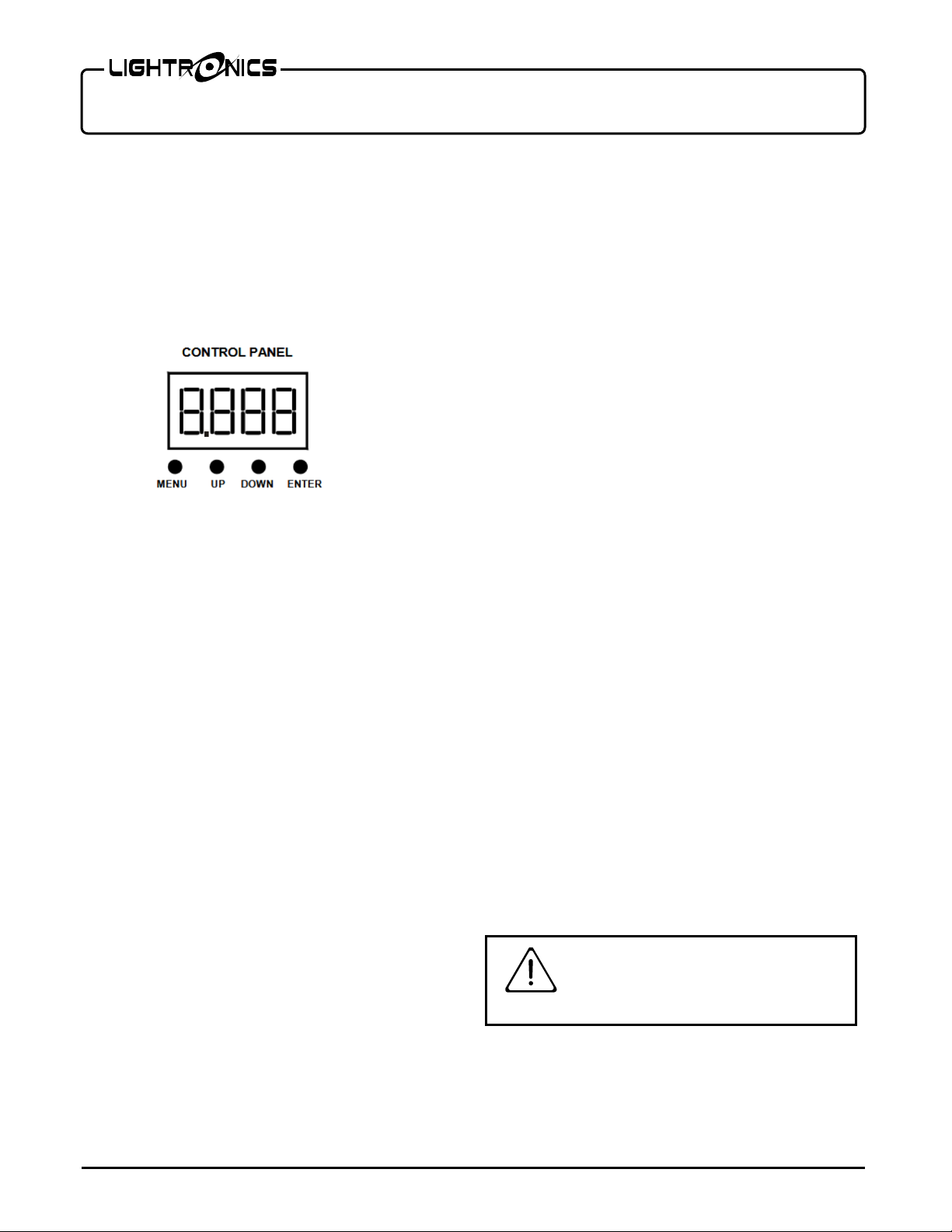

A control panel on the back of the unit is used to set
the operating options. It consists of an LED display
and four buttons (MENU, UP, DOWN, and ENTER).
Push MENU to access the operating options. When
you reach the option you want to set or change, press
ENTER and use UP or DOWN to set a value. Push
ENTER again to save your changes and activate the
option. See the "MENU NAVIGATION" diagram for
additional details.
The fan on the unit will tur n on when temperature is at
or above 45° C and will turn back off at or below 34° C.
There are 8 operation modes: DMX 6 channel, DMX 10
channel, Color Fade, Color Change, Color Select,
Manual Level (6 selections), Demo and Sound.
DMX OPERATION
For DMX operation, the FXLD157FR6I fixture can be
configured as a 6 channe l, or 10 channel unit. Use the
dXXX (6 ch) or AXXX (10 ch) menu to set the starti ng
address of the unit. You can select the starting
address of the unit with the UP and DOWN buttons.
Detailed information on DMX channel operation is
given in the tables DMX VALUES AND FUNCTIO NS.
The unit has an LED on the menu display (decimal
point). If the LED is flashing, the un it is NOT receivi ng
signal either from a DMX controller or from a master
fixture. The LED will disappear once a valid signal is
present.
MANUAL OPERATION
Color Fade (CFXX)
The Color Fade mode cycles smoothly through a
sequence of colors. Use the CFXX menu to set the
www.lightronics.com
Lightronics Inc. 509 Central Drive, Virginia Beach, VA 23454 757 486 3588
speed and activate the opti on. The range is from 00 to
99 with 99 as the fastest.
Color Change (CCXX)
The Color Change mode switches continuously
through a sequence of c olors . Use the CCXX menu to
set the sequence spee d. The range is from 00 to 99
with 99 as the fastest.
Color Select (CSXX)
The Color Select mode provides a multitude of
preprogrammed color macros at various intensities.
Use the CSXX to s elec t the desired c olor an d intens ity.
The range is from 00 to 99.
R, G, B, W, A + UV Manual Level Control
You can operate the individual color levels manually
using the r000, G000, b000, E000, u000 and Y000
menus. Use the UP and DOWN buttons to chang e the
level, push ENTER when done. The range is 000 255 with 255 as the maximum.
Demo Mode (dENo)
The unit cycles through a fixed series of color and
fades. There are no ot her adjustments or settings in
this mode.
Sound Mode (Soun)
The unit reacts to sounds by changing colors
randomly. There are no other settings within this mode.
Sound mode can als o b e a c tiv ated in 10 channel mode
with DMX channel 10 set to 240-255. Brightness can
be controlled with DMX channel 1 (0-255).
Dimmer Delay (dEL0)
The operation of this function has been discontinued.
MAINTENANCE AND REPAIR
TROUBLESHOOTING
Check that you have power applied to the unit.
Check the DMX control cable.
Check the address settings of the unit and the
controller.
1
0 - 255 Red Level
4
0 - 255 White Level
6
0 - 255 Amber Level
CH
FUNCTION
VALUE
DESCRIPTION
1
Master Dimming
0-255
Master Dimmer
2
Strobe Control
0-255
Strobe (Speed from slow to fast)
3
Red
0-255
Red Level
4
Green
0-255
Green Level
5
Blue
0-255
Blue Level
6
White
0-255
White Level
7
UV
0-255
UV Level
8
Amber
0-255
Amber Level
0-9
Channels CH2-CH8 Function
10-34
Red Fade In
35-64
Red 100%, Green Fade In
65-96
Green 100%, Red Fade Out
97-127
Green 100%, Blue Fade In
128-159
Blue 100%, Green Fade Out
160-190
Blue 100%, Red Fade In
191-225
Red/Blue 100%, Green Fade In
226-255
RGB 100%, White/Amber Fade In
0-09
CH2-CH8 Functions
10-63
Red & Blue (speed slow to fast)
64-127
Red & Blue (speed slow to fast)
128-191
Red & Green (speed slow to fast)
192-239
Blue & Green (speed slow to fast)
239-192
Blue & Green (speed fast to slow)
191-128
Cool/Warm White (speed fast to
127-064
Blue & Green (speed fast to slow)
63-10
Red & Green (speed fast to slow)
09-00
CH2-CH8 Functions
Sound Control
240-255
Sound Control Activation
DMX VALUES AND FUNCTIONS
Page 3 of 4
FXLD157FR6I LED FIXTURE
Version 1.1 OWNER’S MANUAL 05/11/2022
CLEANING
Do not use harsh chemica ls or solvents when cleaning
the fixture. A mild de tergent can be used sparingly if
needed. Ensure the unit is completely dry before reuse.
REPAIR
The FXLD157FR6I does not contain any user
serviceable parts. Internal service on the unit by oth er
than Lightronics authorized agents will void the
If service is required, contact the dealer from whom
you purchased the item, or contact the Lightronics
Service Department, 509 Central Drive, Virginia Beach,
VA 23454. Tel: 757 486 3588.
WARRANTY INFORMATION AND
REGISTRATION – CLICK LINK BELOW
www.lightronics.com/warranty.html
warranty.
6 CHANNEL MODE (dXXX) 10 CHANNEL MODE (AXXX)
CH FUNCTION
2 0 - 255 Green Level
3 0 - 255 Blue Level
5 0 - 255 UV Level
*Additional Channel 10 Notes:
If DMX is only raised to 64-127, then
back down, 10-63 colors become Red
& Green.
If DMX is only raised to 128-191, then
back down, 64-127 colors become Blue
& Green.
If DMX is only raised to 192-239, then
back down, 128-191 colors become
Cool White/Warm White.
If DMX is only raised to 240-254, then
back down, 192-239 colors become
Cool White/Warm White.
9 Color Macro
Color Fade Effect
(Raising DMX)
10*
Color Fade Effect
(Lowering DMX)
www.lightronics.com
Lightronics Inc. 509 Central Drive, Virginia Beach, VA 23454 757 486 3588
MENU NAVIGAT ION
Page 4 of 4
FXLD157FR6I LED FIXTURE
Version 1.1 OWNER’S MANUAL 05/11/2022
www.lightronics.com
Lightronics Inc. 509 Central Drive, Virginia Beach, VA 23454 757 486 3588
