Light O Rama mDM-MP3 User Manual

mDM-MP3
miniDirector with MP3 Player
User Manual
September 24, 2007
V1.01
Table of Contents
Introduction.............................................................. 4
What’s in the Box..................................................... 4
Hardware Utility Version .......................................... 5
Important Considerations ........................................6
Hardware Description .............................................. 7
Front Panel .......................................................... 7
SD Card Slot ....................................................7
Status LED ....................................................... 7
Audio Output ....................................................8
Rear Panel........................................................... 8
RJ45 Network Connection................................ 8
Terminal Block Pins.......................................... 9
Shows 1, 2 and 3 Trigger Inputs....................... 9
Power Input Reasons....................................... 9
Attaching an External Power Supply .............. 10
Power Jumper.................................................... 11
Show Programming Overview ............................... 13
Show Programming (SimpleShowBuilder) ......... 13
Show Programming (Hardware Utility <1.6.4).... 14
Show Programming (Hardware Utility >1.6.4).... 20
Interactive Trigger Connections............................. 27
Updating the mDM-MP3 Firmware ........................ 28
Specifications ........................................................ 31
mDM-MP3
Page 4
Introduction
The Light-O-Rama mDM-MP3 miniDirector with MP3 player is a compact, powerful show director designed to take the place of your PC. It directs a network of LOR controllers while simultaneously playing MP3 audio files. Three trigger inputs allow shows to be started by external events like switch closures or motion detectors.
The Windows Showtime software is used to design
and build Sequences (light controller commands that
may be choreographed to audio/music.) These user created sequences and/or pre-programmed musical sequences available from LOR are then arranged
into Shows. These Shows are transferred to an SD
card. The SD card is inserted into the miniDirector, which then directs the LOR controllers in your display and plays any associated audio. Interactive Christmas and Halloween displays are possible using the trigger inputs.
What’s in the Box
Your mDM-MP3 includes a 128 MB (or larger) SD
card and a user’s manual. This manual is also available at www.lightorama.com Support mDM-MP3 User’s Manual.
mDM-MP3
Page 5

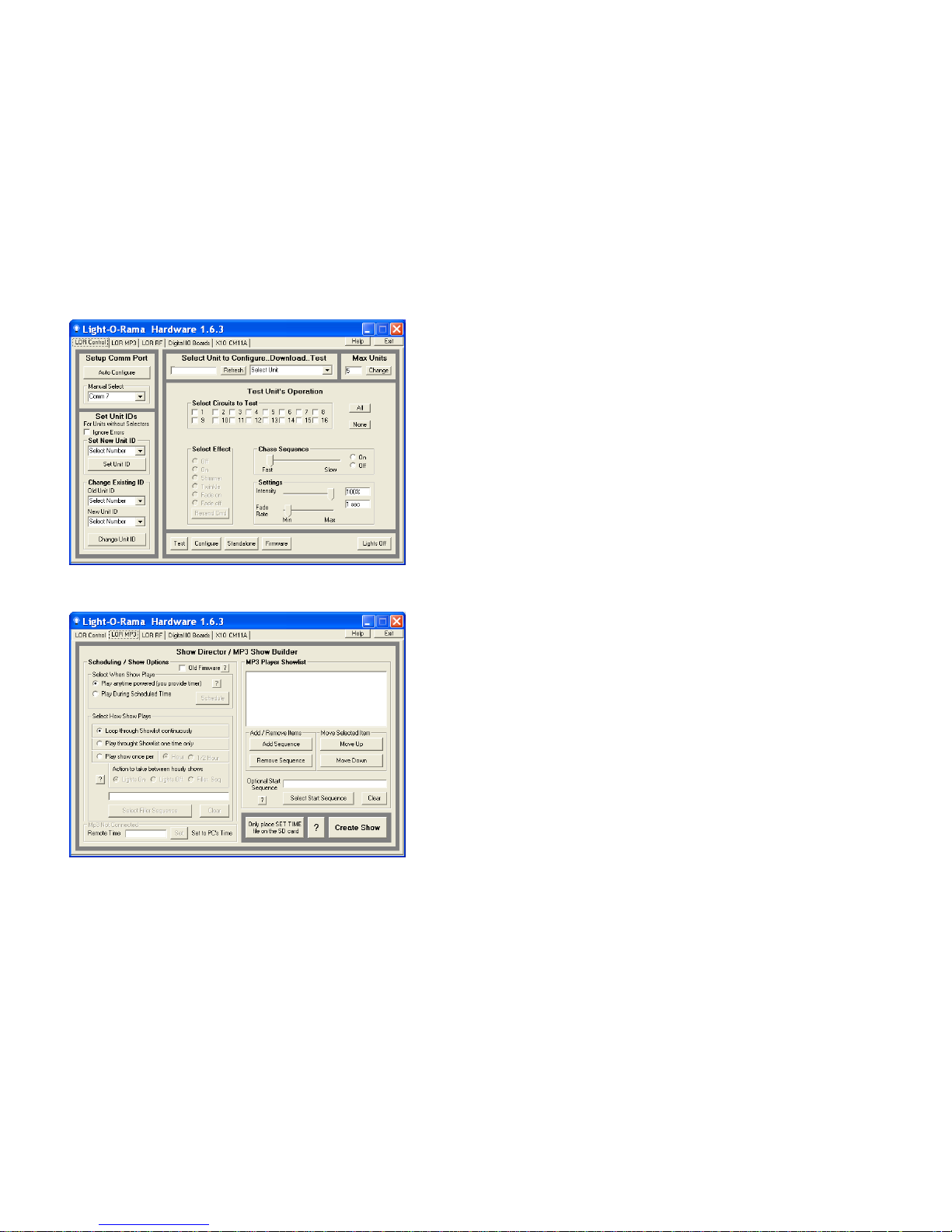

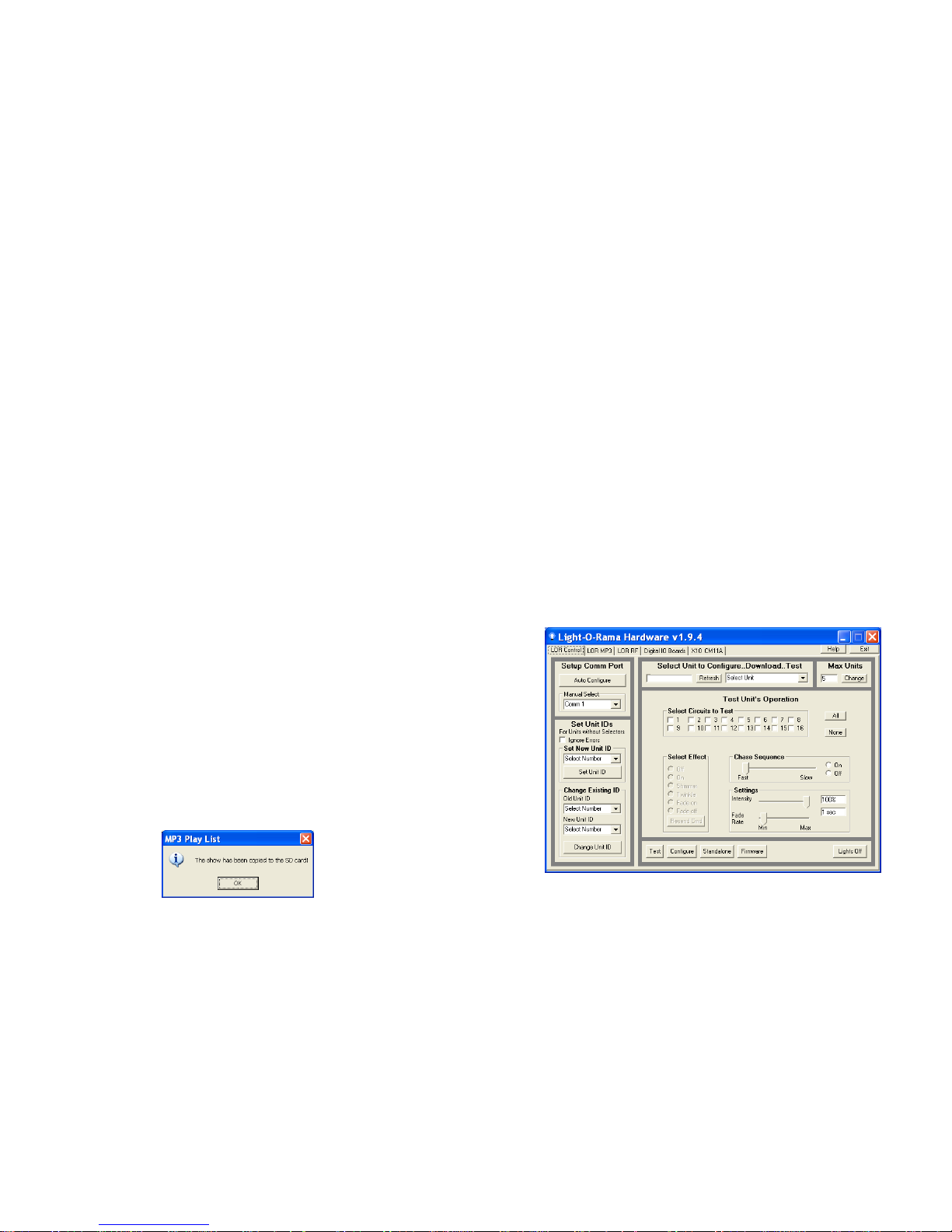

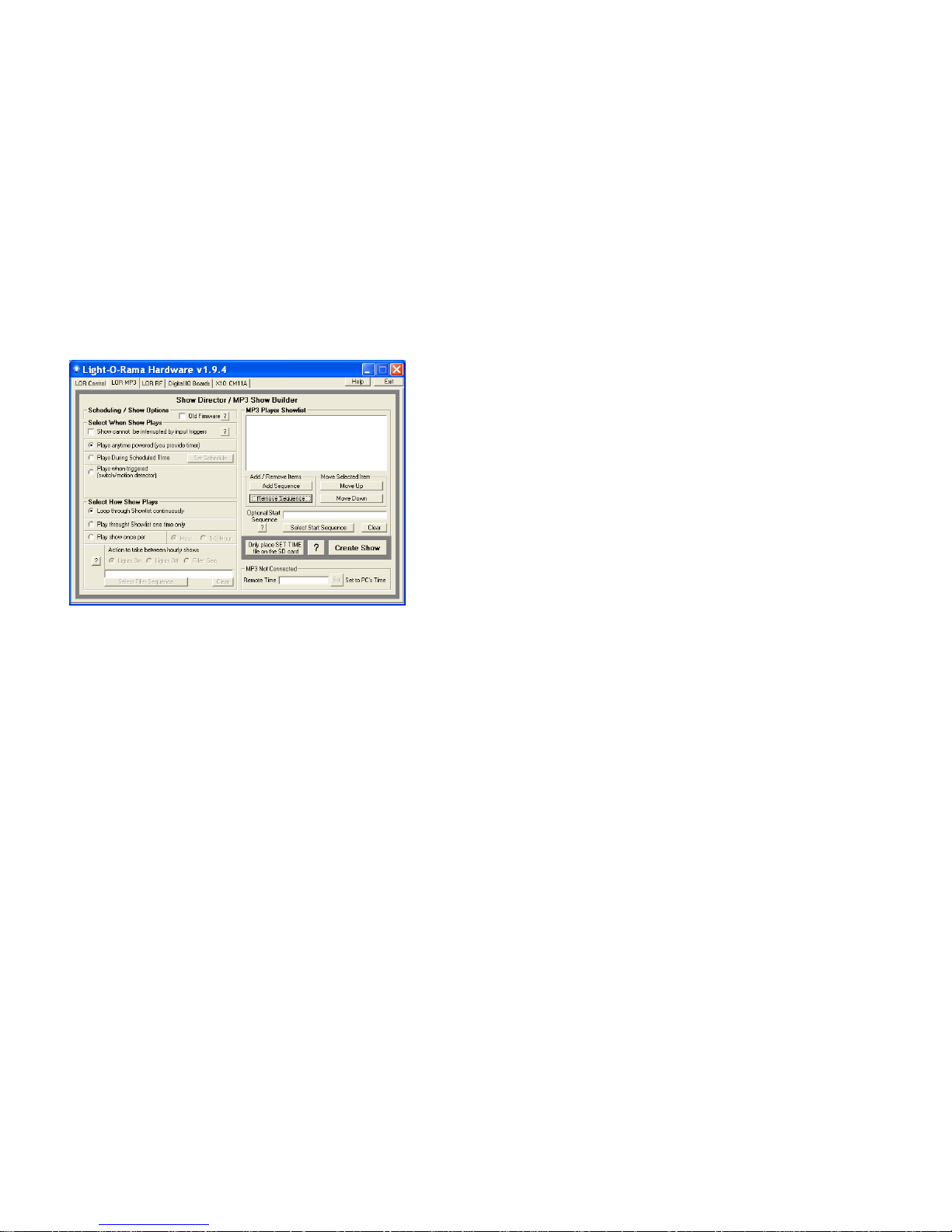

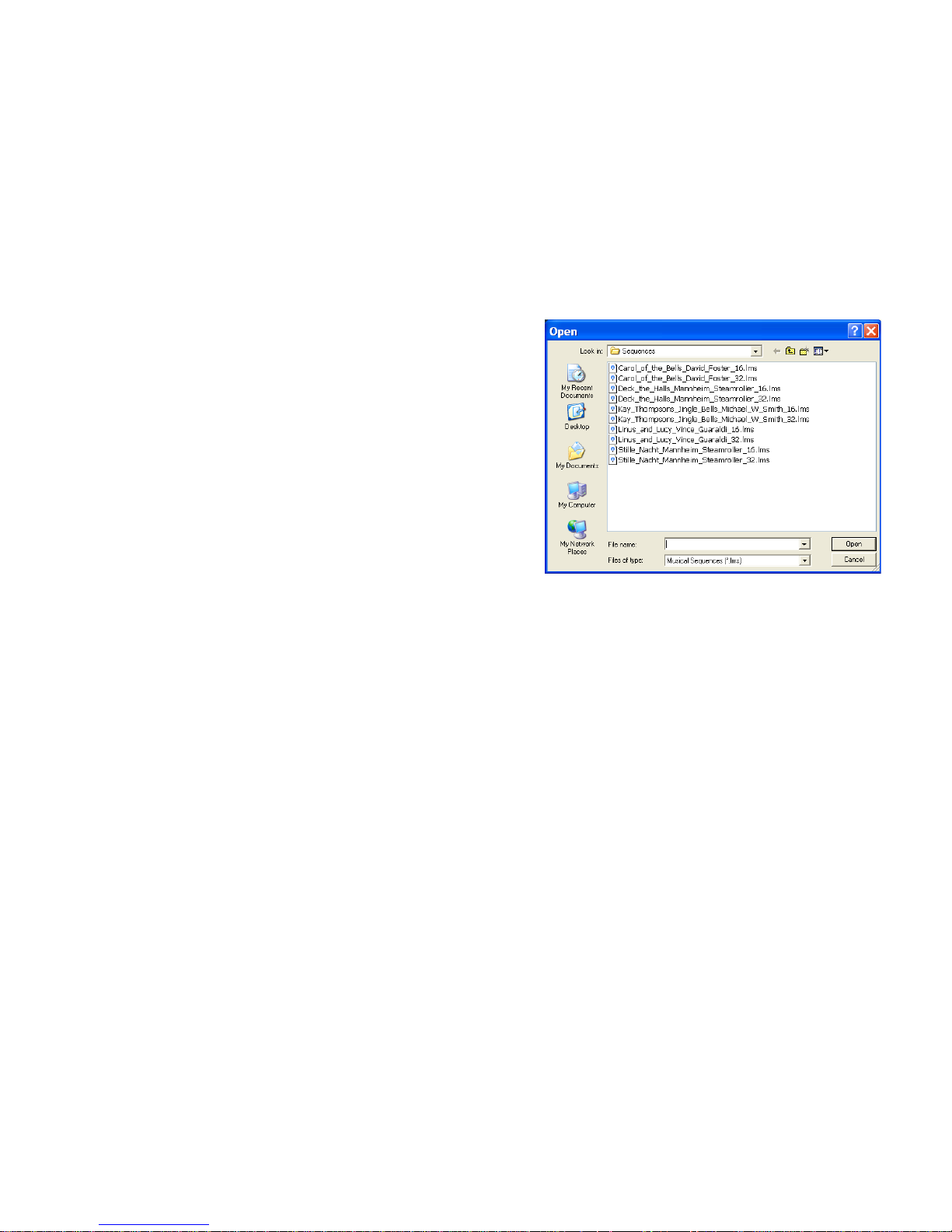

Hardware Utility Version
If your Hardware Utility has a LOR MP3 tab on the upper left, you will be able to put a show on the SD card of your miniDirector. If you want to put more than one show on the SD card, you must have Hardware Utility version 1.5.8 or later. If you want to use the trigger inputs, you must have Hardware Utility version 1.6.4 or later.
The version of the Hardware Utility appears in the title bar to the right of “Light-O-Rama Hardware.” If the version number is less than what you require or there is no version number at all, then you need a new Hardware Utility. The latest version is available for download at www.lightorama.com Support
Software Downloads. Click the Download button to
the left of the Hardware Utility and run the installer.
mDM-MP3
Page 6
Important Considerations
The miniDirector is normally powered by the nearest Light O Rama controller or a USB485B PC adapter. Use a 50’ or less CAT5e LAN cable to connect the miniDirector to either of these devices. Longer cables may have an unacceptable voltage drop that may cause erratic operation of the miniDirector.
SD cards must be formatted FAT16 (or just FAT.)
SD cards supplied by LOR will already be formatted FAT16 and ready for use.
Not all brands of SD cards will work with the miniDirector. Lexar Media and SimpleTech are known to work.
Individual MP3 audio files are limited to 10 minutes. After 10 minutes the audio file will continue to play, but control of the lights will not continue. This does not mean that the miniDirector can only control a 10 minute show, only that no audio file in your show can be longer than 10 minutes.
A 128 MB SD card can hold approximately one hour of MP3 audio and controller commands.
Songs (audio files) for use with the mDM-MP3 must be encoded as MP3 files. Constant Bit Rate (CBR) at 128K bits/second is best. See www.lightorama.com Support “How to and considerations: Ripping CDs to MP3s”
mDM-MP3
Page 7
Hardware Description
Front Panel
The picture below shows the front panel of the miniDirector. An SD card is inserted into the slot.
SD Card Slot
The SD card is inserted into the SD card slot with the gold connectors facing down. Press the card into the slot until it “clicks” into place. To remove the card, press the card into the slot and it will spring eject.
Status LED
Blinks once per second if the miniDirector is powered but no SD card is inserted.
Steady on during an active show. Blinks off during the show if the network speed is too slow to handle the complexity of the show.
Steady on if the miniDirector is connected to the Hardware Utility – no SD card should be inserted when connected to the Hardware Utility.
Blinks two short on pulses and then one off pulse repeatedly if the miniDirector is waiting for a trigger input to start a show.
mDM-MP3
Page 8
Blinks rapidly if the SD card is invalid or defective.
Blinks one long on and a short off repeatedly if in the bootloader. This means that the
firmware is not loaded. See the Updating the mDM-MP3 Firmware section to load firmware.
Audio Output
This is a standard 1/8” stereo mini-jack. It supplies line-level output. You can directly plug headphones or FM transmitter into this jack. Use amplified (powered) speakers or an amplifier with regular speakers.
Rear Panel
The picture below shows the back panel of the miniDirector. The RJ45 jack connects to the Light O Rama network of controllers. The six pin screw terminal block allows you to connect show triggers for interactive displays and/or to power the miniDirector from an external power supply.
RJ45 Network Connection
Use this connector to connect to your controllers, a wireless unit and/or a Windows PC through an RS485 adapter.
mDM-MP3
Page 9
Terminal Block Pins
Pin Description
1 Start show 1 2 Start show 2 3 Start show 3 4 Ground 5 +5 volts DC output 6 +9 volts DC output –or–
+9 volts DC input (Read Attaching Power Warning Below )
Shows 1, 2 and 3 Trigger Inputs
The trigger inputs (pins 1, 2 and 3) are internally pulled up to +5 volts DC by a resistor and must be connected to ground (pin 4) by a switch.
A trigger signal must be at least 11 milliseconds long to guarantee that the miniDirector will detect it.
When the show is copied to the SD card using the Hardware Utility, you can select whether the trigger switch input for that show is to be normally open (default) or normally closed. A normally open switch closes the circuit when you activate it, a normally closed switch opens the circuit when you activate it. Most motion detectors have normally closed switches and open the circuit when motion is detected.
Power Input Reasons
Normally, power is supplied by the attached controller through the RJ45 jack. There are a number of reasons why you may want to use an external power supply with the miniDirector:
mDM-MP3
Page 10
the miniDirector is more than 50’ from the nearest controller or the controller is an older model that cannot supply enough power
the miniDirector is to be connected to a PC without using a USB485B powered adapter or an attached controller (I.e. using a USB485 or SC485 adapter)
the miniDirector is to be put on a timer or switch to start and stop the show (See the
Power Jumper section below in this case)
the miniDirector is to be used with an RF-V4 wireless unit, so it is not connected to a controller which would power it.
Attaching an External Power Supply
[WARNING: Read carefully]
If you attach an external power supply to the miniDirector with incorrect polarity and the miniDirector is connected to one or more controllers and/or a USB485B by a cable, you will most likely burn up the power supplies in the attached devices.
Always disconnect the miniDirector’s RJ45 connection when first connecting an external power supply in case you make a mistake in polarity.
Connect the positive lead from the 9 volt DC power supply to pin 6 of the rear terminal block. Connect the negative lead to pin 4 of the terminal block. Plug in the power supply and be sure the Status LED on the miniDirector blinks, if it does not, the positive and negative are probably swapped. Try swapping the power supply leads. If the Status LED blinks, the
