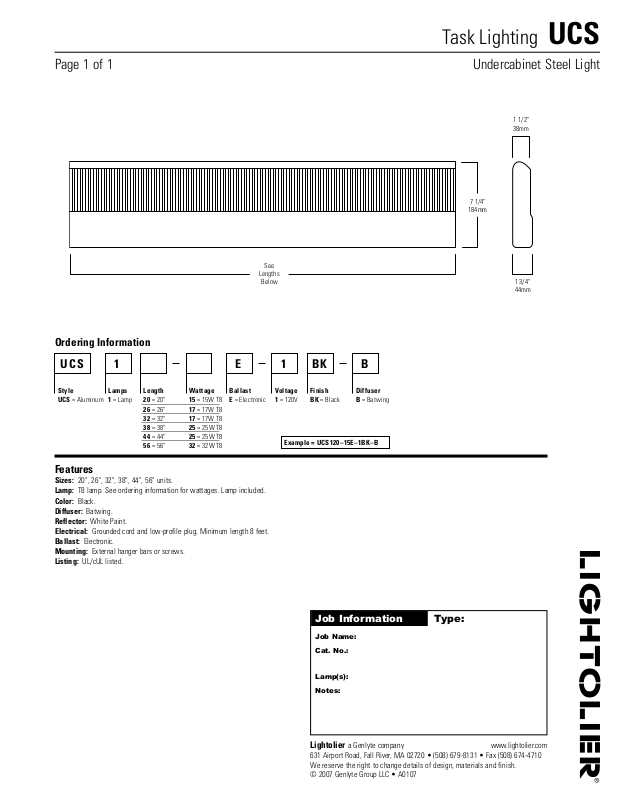

Task Lighting UCS
See
Lengths
Below
7 1/4"
184mm
1 3/4"
44mm
1 1/2"
38mm
Page 1 of 1 Undercabinet Steel Light
Ordering Information
UC S 1 E BK
Style Lamps Leng th Wattage Ballast Voltage Finish Diffuser
UCS = Aluminum 1 = Lamp 20 = 20" 15 = 15W T8 E = Electronic 1 = 120V BK = Black B = Batwing
26 = 26" 17 = 17W T8
32 = 32" 17 = 17W T8
38 = 38" 25 = 25 W T8
44 = 44" 25 = 25W T8
56 = 56" 32 = 32W T8
1 B
Example = UCS120 –15E–1BK–B
Features
Sizes: 20", 26", 32", 38", 44", 56" units.
Lamp: T8 lamp. See ordering information for wattages. Lamp included.
Color: Black.
Diffuser: Batwing.
Reflector: White Paint.
Electrical: Grounded cord and low-profile plug. Minimum length 8 feet.
Ballast: Electronic.
Mounting: External hanger bars or screws.
Listing: UL/cUL listed.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • A0107
