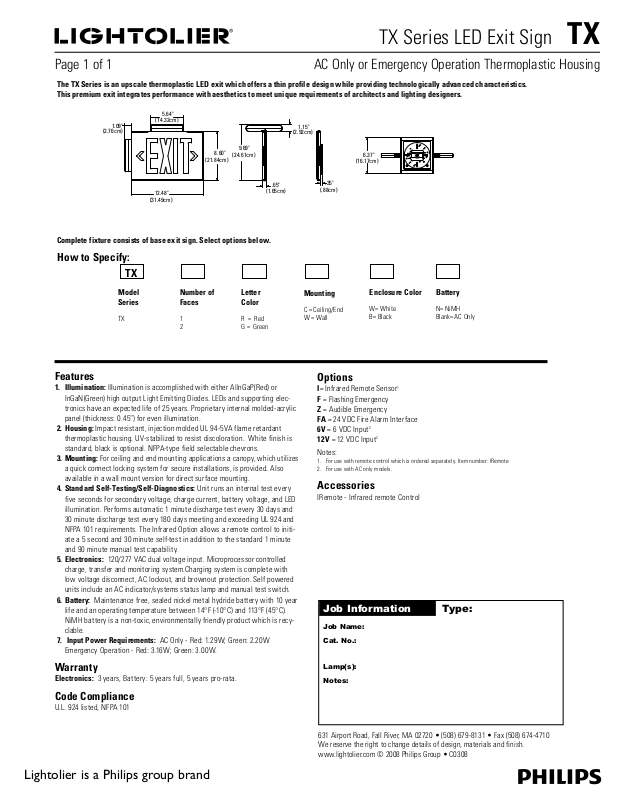

Lightolier TX User Manual

TX Series LED Exit Sign TX

(2.92cm)

(24.61cm)

(21.84cm)

(14.32cm)

(31.49cm)

(1.65cm)

(16.17cm)

(.88cm)

(2.76cm)

5.64"

1.09"

8.60"

9.69"

12.48"

.65"

1.15"

.35"

6.37"

(16.17cm)

6.37"

Page 1 of 1 AC Only or Emergency Operation Thermoplastic Housing

The TX Series is an upscale thermoplastic LED exit which offers a thin profile design while providing technologically advanced characteristics.
This premium exit integrates performance with aesthetics to meet unique requirements of architects and lighting designers.

Complete fixture consists of base exit sign. Select options below.

How to Specify:

TX

Model
Series

TX

Features

1. Illumination: Illumination is accomplished with either AllnGaP(Red) or

InGaN(Green) high output Light Emitting Diodes. LEDs and suppor ting elec­tronics have an expected life of 25 years. Proprietar y internal molded-acrylic
panel (thickness: 0.45”) for even illumination.

2. Housing: Impact resistant, injection molded UL 94-5VA flame retardant
thermoplastic housing. UV-stabilized to resist discoloration. White finish is
standard, black is optional. NFPA-type field selectable chevrons.

3. Mounting: For ceiling and end mounting applications a canopy, which utilizes
a quick connect locking system for secure installations, is provided. Also
available in a wall mount version for direct surface mounting.

4. Standard Self-Testing/Self-Diagnostics: Unit runs an internal test every
five seconds for secondary voltage, charge current, battery voltage, and LED
illumination. Performs automatic 1 minute discharge test every 30 days and
30 minute discharge test every 180 days meeting and exceeding UL 924 and
NFPA 101 requirements. The Infrared Option allows a remote control to initi­ate a 5 second and 30 minute self-test in addition to the standard 1 minute
and 90 minute manual test capabilit y.

5. Electronics: 120/277 VAC dual voltage input. Microprocessor controlled
charge, transfer and monitoring system.Charging system is complete with
low voltage disconnect, AC lockout, and brownout protection. Self powered
units include an AC indicator/systems status lamp and manual test switch.

6. Battery: Maintenance free, sealed nickel metal hydride batter y with 10 year
life and an operating temperature bet ween 14°F (-10°C) and 113°F (45°C).
NiMH battery is a non-toxic, environmentally friendly product which is recy­clable.

7. Input Power Requirements: AC Only - Red: 1.29W; Green: 2.20W
Emergency Operation - Red: 3.16W; Green: 3.00W.

Warranty

Electronics: 3 years, Battery: 5 years full, 5 years pro-rata.

Code Compliance

U.L. 924 listed, NFPA 101

Lightolier is a Philips group brand

Number of
Faces

1
2

Letter
Color

R = Red

G = Green

Mounting

C = Ceiling/End

W = Wall

Options

I= Infrared Remote Sensor

Enclosure Color

W= White
B= Black

1

Battery

N= NiMH
Blank= AC Only

F = Flashing Emergency
Z = Audible Emergency
FA = 24 VDC Fire Alarm Interface
6V = 6 VDC Input
12V = 12 VDC Input

2

2

Notes:

1. For us e with rem ote contr ol which is o rdered se parately. I tem number : IRemote

2. Fo r use with A C only model s.

Accessories

IRemote - Infrared remote Control

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]

We reserve the right to change details of design, materials and finish.

www.lightolier.com © 2008 Philips Group • C0308
