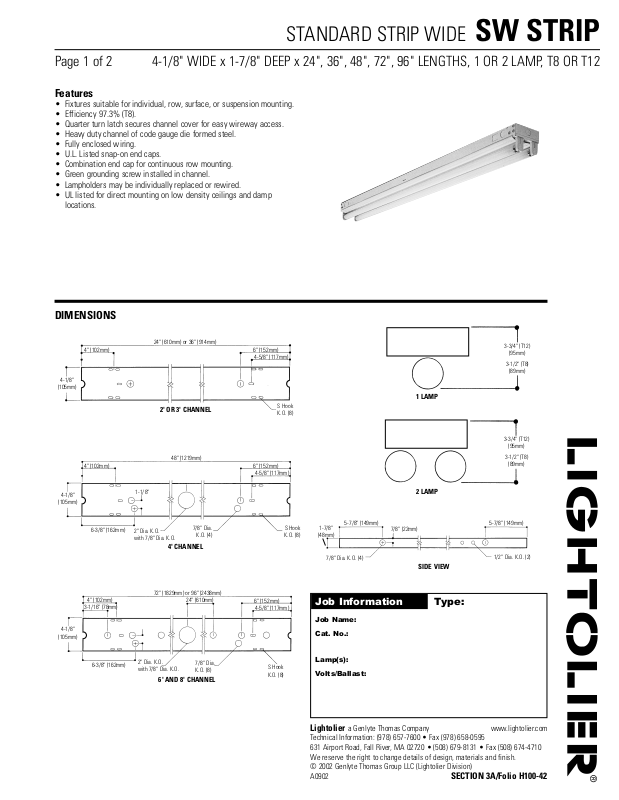

STANDARD STRIP WIDE SW STRIP

Page 1 of 2 4-1/8" WIDE x 1-7/8" DEEP x 24", 36", 48", 72", 96" LENGTHS, 1 OR 2 LAMP, T8 OR T12

DIMENSIONS

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: [phone] • Fax [phone]
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division)
A0902 SECTION 3A/Folio H100-42

Features

• Fixtures suitable for individual, row, surface, or suspension mounting.

• Efficiency 97.3% (T8).

• Quarter turn latch secures channel cover for easy wireway access.

• Heavy duty channel of code gauge die formed steel.

• Fully enclosed wiring.

• U.L. Listed snap-on end caps.

• Combination end cap for continuous row mounting.

• Green grounding screw installed in channel.

• Lampholders may be individually replaced or rewired.

• UL listed for direct mounting on low density ceilings and damp
locations.

6' AND 8' CHANNEL

4" (102mm)

3-1/16" (78mm)

2" Dia. K.O.
with 7/8" Dia. K.O.

S Hook
K.O. (8)

6-3/8" (162mm)

7/8" Dia.
K.O. (8)

24" (610mm)

6" (152mm)

4-5/8" (117mm)

72" (1829mm) or 96" (2438mm)

2' OR 3' CHANNEL

4' CHANNEL

SIDE VIEW

24" (610mm) or 36" (914mm)

4" (102mm)

6" (152mm)

4-5/8" (117mm)

4-1/8"

(105mm)

S Hook
K.O. (8)

S Hook
K.O. (8)

4-5/8" (117mm)

6" (152mm)

4" (102mm)

48" (1219mm)

4-1/8"

(105mm)

7/8" Dia.

K.O. (4)

2" Dia. K.O.
with 7/8" Dia. K.O.

5-7/8" (149mm)5-7/8" (149mm)

7/8" (22mm)

7/8" Dia. K.O. (4)

1-7/8"

(48mm)

1/2" Dia. K.O. (2)

1-1/8"

6-3/8" (162mm)

4-1/8"

(105mm)

3-3/4" (T12)

(95mm)

3-1/2" (T8)

(89mm)

1 LAMP

2 LAMP

3-3/4" (T12)

(95mm)

3-1/2" (T8)

(89mm)

STANDARD STRIP WIDE SW STRIP

Page 2 of 2 4-1/8" WIDE x 1-7/8" DEEP x 24", 36", 48", 72", 96" LENGTHS, 1 OR 2 LAMP, T8 OR T12

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: [phone] • Fax [phone]
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division)
A0902 SECTION 3A/Folio H100-42

Job Information Type:

SPECIFICATIONS

MATERIALS: Chassis parts are die-formed heavy gauge cold rolled steel, 4-1/8"

channel width.

BALLAST COVER: Code gauge steel secured with quarter turn latch.
FINISH: Chassis exterior-phosphate undercoating, baked white polyester enamel.
ELECTRICAL: Thermally protected class “P” ballast C.B.M. approved, non PCB. If

K.O. is within 3" of ballast, use wire suitable for at least 90°.

LABELS: I.B.E.W./UL and ULc Listed.

OPTIONS & ACCESSORIES

FUSING: Internal fast-blow fusing.

SUFFIX: GLR.
Internal slow-blow fusing.
SUFFIX: GMF.

FLUORESCENT EMERGENCY
LIGHTING SYSTEM: Factory-installed emer-

gency power battery pack with charger and
inverter.
SUFFIX: EM.

STEM AND CANOPY SETS: Suspends fixture 6",
12", 18" or 24" from surface. (Four per fixture is recom­mended.) Catalog Number: ASC6 CSP (6"), ASC12

CSP (12"), ASC18 CSP (18"), ASC24 CSP (24").
CANOPY SPACER: Suspends fixture 1-1/2" from sur­face. Order Catalog Number: AC1 CSP.
GROUNDED CONVENIENCE OUTLET: 120 volt only.
SUFFIX: CO.

4' WIRE GUARD (WHITE): Specify two for 96" fix-
tures. Catalog Number: AWG3W CSP.

CHAIN HANGING KIT: Includes two 5' heavy duty

link chains with sturdy “V” hooks for fixture suspen­sion. Catalog Number: AH5 CSP.

TWIST TEE: For exposed T-bar mounting,
1-7/8" deep channel. Catalog Number: NAH3 CSP.

HEAVY DUTY COUPLER:
Catalog Number: NHDC-W CSP.
SLIDING HANGER: Catalog Number: NAHW CSP.

STEM AND

CANOPY SET

ASC6 CSP (6")

CANOPY

SPACER

AC1 CSP

CHAIN

HANGING

KIT

AH5 CSP

SLIDING
HANGER

NAHW CSP

TWIST TEE

NAH3 CSP

HEAVY DUTY

COUPLING

NHDC-W CSP

PHOTOMETRY

ORDERING INFORMATION

Other dimming options. Consult factory.

FIXTURE
LENGTH:

2=24"
3=36"
4=48"
6=72"
8=96"

NUMBER OF

LAMPS IN

WIDTH:

(By Others)

1=1 Lamp
2=2 Lamp

LAMP WATTS:

17=T8, 2' Length2
20=T12, 2' Length
25=T8, 3' Length2
30=T12, 3' Length
32=T8, 4' Length2
34=T12, 4' Length

BALLAST TYPE:

LPF=Low Power

Factor. For
T12 Only

HPF=High Power

Factor

VOLTAGE:

120 or 277

BALLAST TYPE:

1-1 & 1-2 Lamp Mag. T12 LE
Standard Electro­Magnetic (24") P

<20THD <10THD

1-1 & 1-2 Lamp Elec. T8 SO* H

I*

1-4 Lamp Elec. T8 O4* H4*
*Instant Start Standard

OPTIONS:

Add appropriate
suffix to catalog

no., ie: (GLR)

SW

REPORT NO: G17009
CATALOG NO:

SW4S232HPF120SO
LAMP TYPE: F32 / T8
LUMENS PER LAMP: 2900
TOTAL EFFICIENCY: 97.3%
CIE TYPE: SEMI-DIRECT
SPACING CRITERIA: 1.58
SHIELDING ANGLE: 180

LER = FS - 80.5 Watts - 60.3 BF - 0.88
Comparative yearly lighting energy cost per 1000 lumens = $2.98

LAMP

CONFIGURATION:
S=Standard
T=3' or 4' Lamps

in Tandem
(For 6' or 8' units)

STANDARD STRIP

WIDE:

4-1/8" Wide Channel

coefficients of utilization — zonal cavity method (effective floor cavity reflectance 0.20)

RF 20 50 30
RC 80 80 30

RW 70 50 30 50 30 10 50 30 10

1999388 817774 747168
2887972 696358 635854
3806860 595347 544944
4726051 524539 474237
5665344 463933 423631
6614738 413429 383227
7564334 373025 342824
8523930 342722 312521
9493527 312420 292319

10 45 32 24 29 22 18 27 21 17
