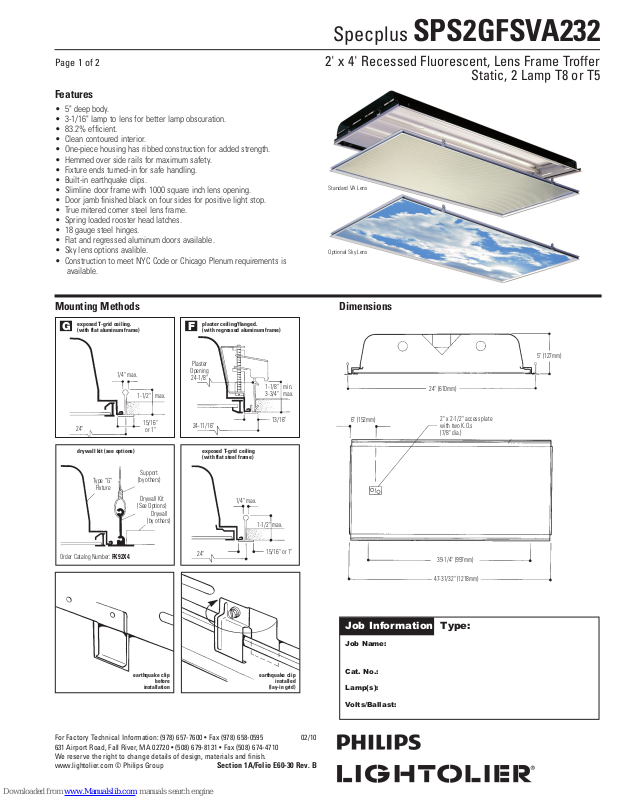

Lightolier SPECPLUS SPS2GFSVA232 Specification

Specplus SPS2GFSVA232

Page 1 of 2 2' x 4' Recessed Fluorescent, Lens Frame Troffer

Static, 2 Lamp T8 or T5

Features

• 5" deep body.

• 3-1/16" lamp to lens for better lamp obscuration.

• 83.2% efficient.

• Clean contoured interior.

• One-piece housing has ribbed construction for added strength.

• Hemmed over side rails for maximum safety.

• Fixture ends turned-in for safe handling.

• Built-in earthquake clips.

• Slimline door frame with 1000 square inch lens opening.

• Door jamb finished black on four sides for positive light stop.

• True mitered corner steel lens frame.

• Spring loaded rooster head latches.

• 18 gauge steel hinges.

• Flat and regressed aluminum doors available.

• Sky lens options avalible.

• Construction to meet NYC Code or Chicago Plenum requirements is
available.

Mounting Methods Dimensions

exposed T-grid ceiling.

G

(with flat aluminum frame)

plaster ceiling/flanged.

F

(with regressed aluminum frame)

Standard VA Lens

Optional Sky Lens

1/4" max.

24"

drywall kit (see options)

Type “G”

FIxture

Order Catalog Number: FK92X4.

1-1/2" max.

15/16"

or 1"

Support

(by others)

Drywall Kit

(See Options)

Drywall

(by others)

Plaster

Opening

24-1/8"

24-11/16"

exposed T-grid ceiling
(with flat steel frame)

24"

1/4" max.

1-1/8" min.
3-3/4" max.

13/16"

1-1/2" max.

15/16" or 1"

24" (610mm)

6" (152mm)

2" x 2-1/2" access plate
with two K.O.s
(7/8" dia.)

39-1/4" (997mm)

47-31/32" (1218mm)

Job Information Type:

Job Name:

5" (127mm)

earthquake clip

before

installation

For Factory Technical Information: [phone] • Fax [phone]
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © Philips Group

earthquake clip

installed

(lay-in grid)

Section 1A/Folio E60-30 Rev. B

Cat. No.:

Lamp(s):

Volts/Ballast:

Specplus SPS2GFSVA232

Page 2 of 2 2' x 4' Recessed Fluorescent, Lens Frame Troffer

Static, 2 Lamp T8 or T5

Photometry Sky Lens Options

Model No. SPS2GFSVA232120SO

LER = FP - 67.4 IW - 61.2 BF - 0.87
Comparative yearly lighting energy cost per

1000 lumens = $3.56

Report Number: ITL49784
Catalog Number: SPS2GFSVA232120SO
Lamps: (2) F32T8
Luminaire: 2' x 4' SpecPlus with regressed

aluminum door frame and extruded
virgin acrylic shielding .095" nominal

thickness (similar to pattern 12).
Ballast: M2-RN-T8-1LL-D-120
Report is based on 2850 Lumens per lamp.

Efficiency: 83.2%
CIE Type-Direct-Indirect

Plane: 0-Deg 90-Deg
Spacing Criteria: 1.2 1.4
Shielding Angles: 90 90
Plane: 0-Deg 90-Deg
Luminous Length: 46.000 21.875

COEFFICIENTS OF UTILIZATION –

ZONAL CAVITY METHOD. EFFECTIVE
FLOOR CAVITY REFLECTANCE 0.20

RC 80 50 30

RW 70 50 30 50 30 10 50 30 10

01 91 88 84 82 80 77 79 77 75
02 84 77 72 73 69 65 70 67 64
03 77 68 62 65 60 55 62 58 54
04 70 61 54 58 52 48 56 51 47
05 65 55 48 52 46 42 50 45 41
06 60 49 42 47 41 37 46 40 36
07 56 45 38 43 37 33 42 36 32
08 52 41 34 39 33 29 38 33 29
09 49 38 31 36 30 26 35 30 26

10 46 35 28 34 28 24 33 28 24

0

CANDELA DISTRIBUTION

0.0 45.0 90.0 FLUX

0 1817 1817 1817

5 1811 1812 1815 173

15 1751 1773 1798 502

25 1613 1680 1748 775

35 1388 1512 1622 943

45 1083 1220 1325 932

55 699 803 859 707

65 388 406 450 414

75 218 181 202 214

85 86 76 68 83

90 000

LUMINANCE DATA IN CANDELA/SQ. METER

AVERAGE AVERAGE AVERAGE AVERAGE

IN DEG. 0-DEG. 45-DEG. 90-DEG.

45 2358. 2657. 2885.
55 1877. 2156. 2306.
65 1414. 1479. 1640.
75 1297. 1077. 1202.
85 1519. 1343. 1201.

ZONAL LUMEN SUMMARY

ZONE LUMENS % LAMP % FIXT

00-030 1149 25.4 30.6
00-040 2392 42.0 50.4
00-060 4032 70.7 85.0
00-090 4743 83.2 100.0

90-180 0000 0.0 000.0

00-180 4743 83.2 100.0

S1

S2

Ordering Information

Explanation of Catalog Number. Example: SPS2GFSVA232UNVHI

S

Specplus:

Recessed

fluorescent

troffer

SP

SX

Options/Accessories

Special Lenses: Substitute VY for VA (standard) = .125" nominal pattern 12 with 7.8 oz. average weight

per square foot. Substitute VI for VA (standard) = .125" nominal pattern 12 with 6.8 oz. average weight per
square foot. Substitute S1 or S2 for VA (standard) =
further details).

Plaster Frame: Catalog Number: PF24.
Continuous Row Installation: For F type fixtures, half width flanges are required between
fixtures. Order Catalog Number: 2FC TRIM CSP (each joint).
Radio Interference Filter:

Fusing: Internal fast-blow fusing. SUFFIX A.

Internal slow-blow fusing. SUFFIX C.
Electrical Wiring Options: Consult factory.
Drywall Kit: Order Catalog Number: FK92X4. (Request Folio OA30-10 Rev. A).
Chicago Plenum: SUFFIX: C.

Specifications

Performance: In an installation of 2 lamp 32W luminaires in a room cavity ratio of 1, reflectance

80% ceiling, 50% wall, 20% floor, the C.U. shall not be less than .88. To prevent glare the VCP shall
be not less than 59 either lengthwise or crosswise (at 100fc level) and the average brightness at 65°
shall not exceed 1640 candelas per square meter. To control veiling reflections, luminaire output in
the 30°-90° zone shall not be less than 69.4%.

Static

Standard Specplus Plus

For NYC Code – Local 3 Manufactured

To order one RIF per fixture; SUFFIX: R.
To order one RIF per ballast; SUFFIX: B.

2

Fixture

Width

Ceiling Type:

G= Grid (lay-in T bar)
F= Flanged (over

lap) Z spline and
plaster frame

FS = Flat steel frame.
RA= Regressed

FA = Flat aluminum

Sky Acrylic Lens (see Sky Lenssell sheet for

Lens Frame:

aluminum frame.

frame.

Lens Shielding

VA=Virgin acrylic

S1=Sky lens 1
S2=Sky lens 2

See options and

consult factory

2

Lamp

Type:

(standard)

Quantity

Specifications (continued)

Materials: Chassis parts are die-formed code gauge cold rolled steel. Housing

over and housing ends turned-in for safe handling.
Finish: Chassis exterior–black baked polyester enamel. Cavity–white baked polyester enamel
minimum 86% reflectance. Phosphate undercoating.
Lenses: VA (standard) extruded virgin acrylic, 3/16" square based female cones, running 45° to the
panel edge, .095" nominal thickness (similar to pattern 12). VY (optional) .125" nominal pattern 12
with 7.8 oz. average weight per square foot. VI (optional) .125" nominal pattern 12 with 6.8 oz. aver­age weight per square foot. S Series (optional) search Healthcare Sky at lightolier.com for details.
Electrical: Thermally protected class “P” ballast C.B.M. approved, non PCB. If K.O. is within 3" of
ballast, use wire suitable for at least 90°.
Labels: I.B.E.W. UL and ULc Listed.
This product may have a mercury containing lamp.
Manage in accord with Disposal Laws. See: www.lamprecycle.org

Lamp Type/

Fixture Length:

32=32W T8
28=28W T5
54=54W T5

(Nominal 48")

Job Information Type:

Voltage:

120, 277 or

UNV=120-277

1-2 Lamp Elec. T8 SO * H
1-2 Lamp 28W Elec. T5 – P
1-2 Lamp 28W Elec. T5 – †PG ††
1-2 Lamp 54W Elec. T5 – †PG ††

LOL T8 Dimming PS –
Other dimming options. Consult factory.

†*Instant Start Standard
††Instant Start (120, 277 or UNV)

††Program Rapid Start (UNV only)
NOTE: For T8 UNV, you must use HIBallast Code.

Ballast Type:

<20THD <10THD

with side rails hemmed

Options:

Add appropriate suffix

to catalog no., ie: (A)

I *
I †

For Factory Technical Information: [phone] • Fax [phone]
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © Philips Group

Section 1A/Folio E60-30 Rev. B
