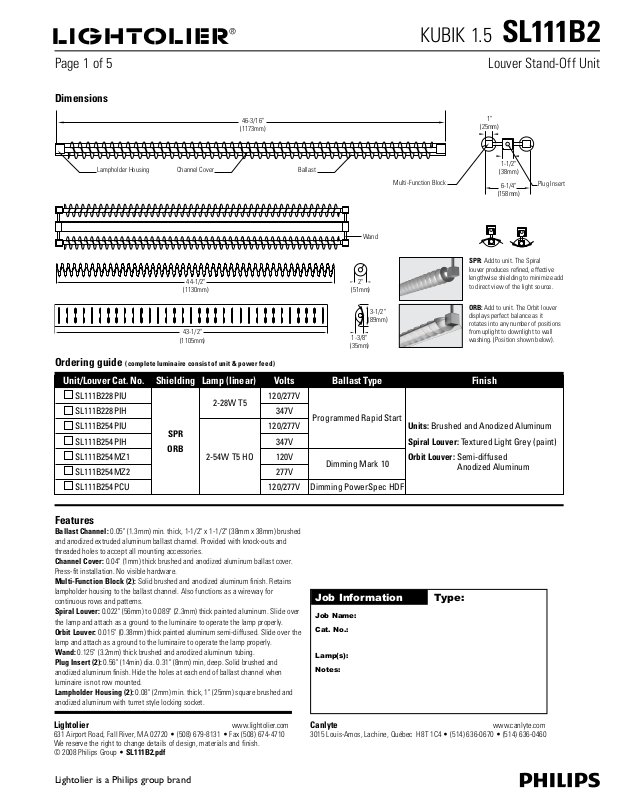

Lightolier SL111B2 User Manual

KUBIK 1.5 SL111B2

46-3/16"

(1173mm)

6-1/4"

(158mm)

1"

(25mm)

1-1/2"

(38mm)

Lampholder Housing

Channel Cover

Ballast

Wand

Multi-Function Block

Plug Insert

44-1/2"

(1130mm)

2"

(51mm)

43-1/2"

(1105mm)

1-3/8"

(35mm)

3-1/2"

(89mm)

Page 1 of 5 Louver Stand-Off Unit

Dimensions

SPR: Add to unit. The Spiral

louver produces refined, effective
lengthwise shielding to minimize add
to direct view of the light source.

ORB: Add to unit. The Orbit louver
displays perfect balance as it
rotates into any number of positions
from uplight to downlight to wall
washing. (Position shown below).

Ordering guide (complete luminaire consist of unit & power feed )

Unit/Louver Cat. No. Shielding Lamp (linear) Volts Ballast Type Finish

SL111B228PIU 120/277V

SL111B228PIH

SL111B254PIU

SL111B254PIH

SL111B254MZ1 2-54W T5 HO 120V Orbit Louver: Semi-diffused

SL111B254MZ2 277V

SL111B254PCU 120/277V Dimming PowerSpec HDF

SPR

ORB

2-28W T5

347V

120/277V Units: Brushed and Anodized Aluminum

Programmed Rapid Start

347V Spiral Louver: Textured Light Grey (paint)

Dimming Mark 10

Anodized Aluminum

Features

Ballast Channel: 0.05" (1.3rnm) min. thick, 1-1/2" x 1-1/2" (38mm x 38mm) brushed

and anodized extruded aluminum ballast channel. Provided with knock-outs and
threaded holes to accept all mounting accessories.
Channel Cover: 0.04" (1mm) thick brushed and anodized aluminum ballast cover.
Press-fit installation. No visible hardware.

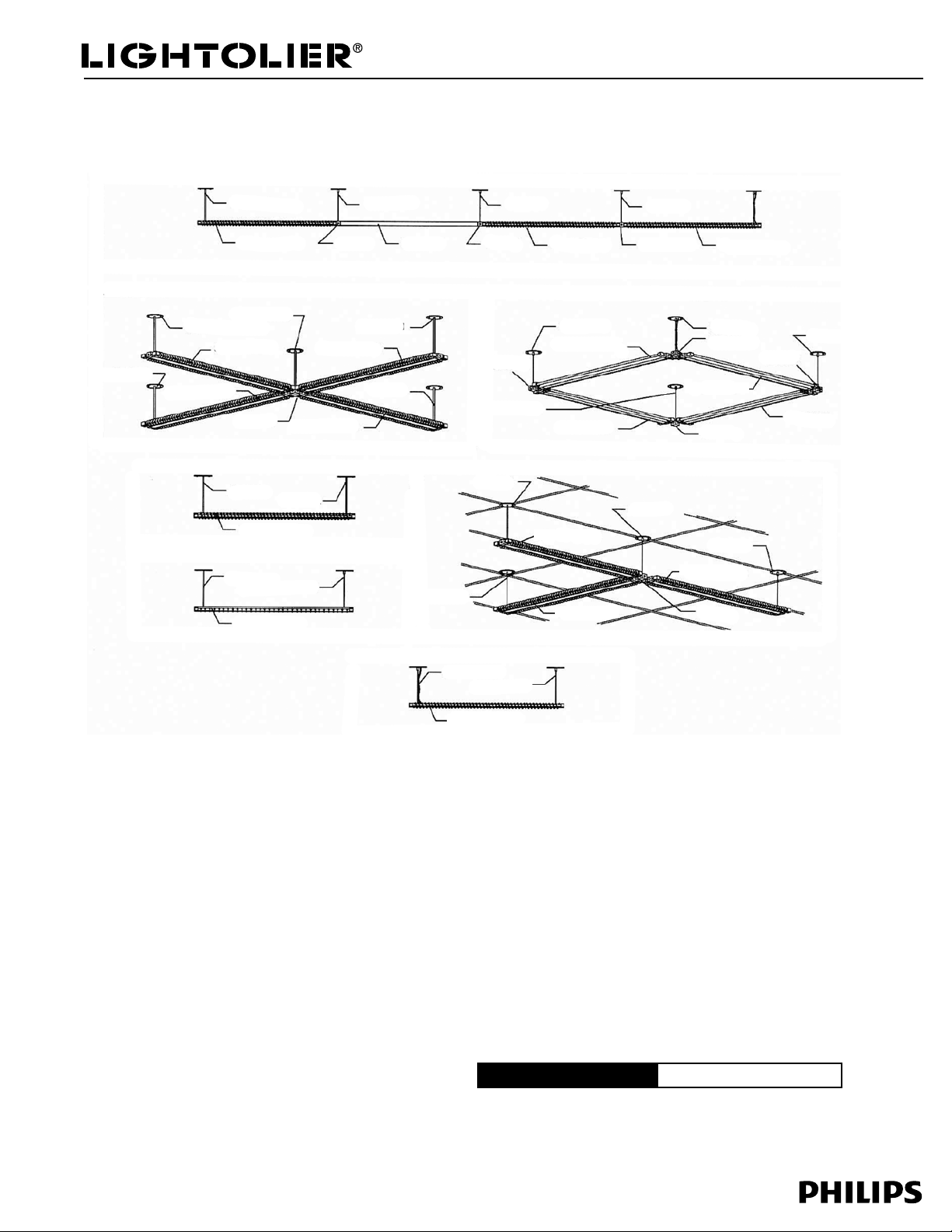

Multi-Function Block (2): Solid brushed and anodized aluminum finish. Retains
lampholder housing to the ballast channel. Also functions as a wireway for
continuous rows and patterns.
Spiral Louver: 0.022" (56mm) to 0.089" (2.3mm) thick painted aluminum. Slide over
the lamp and attach as a ground to the luminaire to operate the lamp properly.
Orbit Louver: 0.015" (0.38mm) thick painted aluminum semi-diffused. Slide over the
lamp and attach as a ground to the luminaire to operate the lamp properly.

Wand: 0.125" (3.2mm) thick brushed and anodized aluminum tubing.
Plug Insert (2): 0.56" (14min) dia. 0.31" (8mm) min, deep. Solid brushed and

anodized aluminum finish. Hide the holes at each end of ballast channel when
luminaire is not row mounted.
Lampholder Housing (2): 0.08" (2mrn) min. thick, 1" (25mm) square brushed and
anodized aluminum with turret style locking socket.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]

We reserve the right to change details of design, materials and finish.

© 2008 Philips Group • SL111B2.pdf

Lightolier is a Philips group brand

Canlyte www.canlyte.com

3015 Louis-Amos, Lachine, Québec H8T 1C4 • [phone] • [phone]

4-1/2"

(114 mm)

Square

KUBIK 1.5 SL111B2

Page 2 of 5 Louver Stand-Off Unit

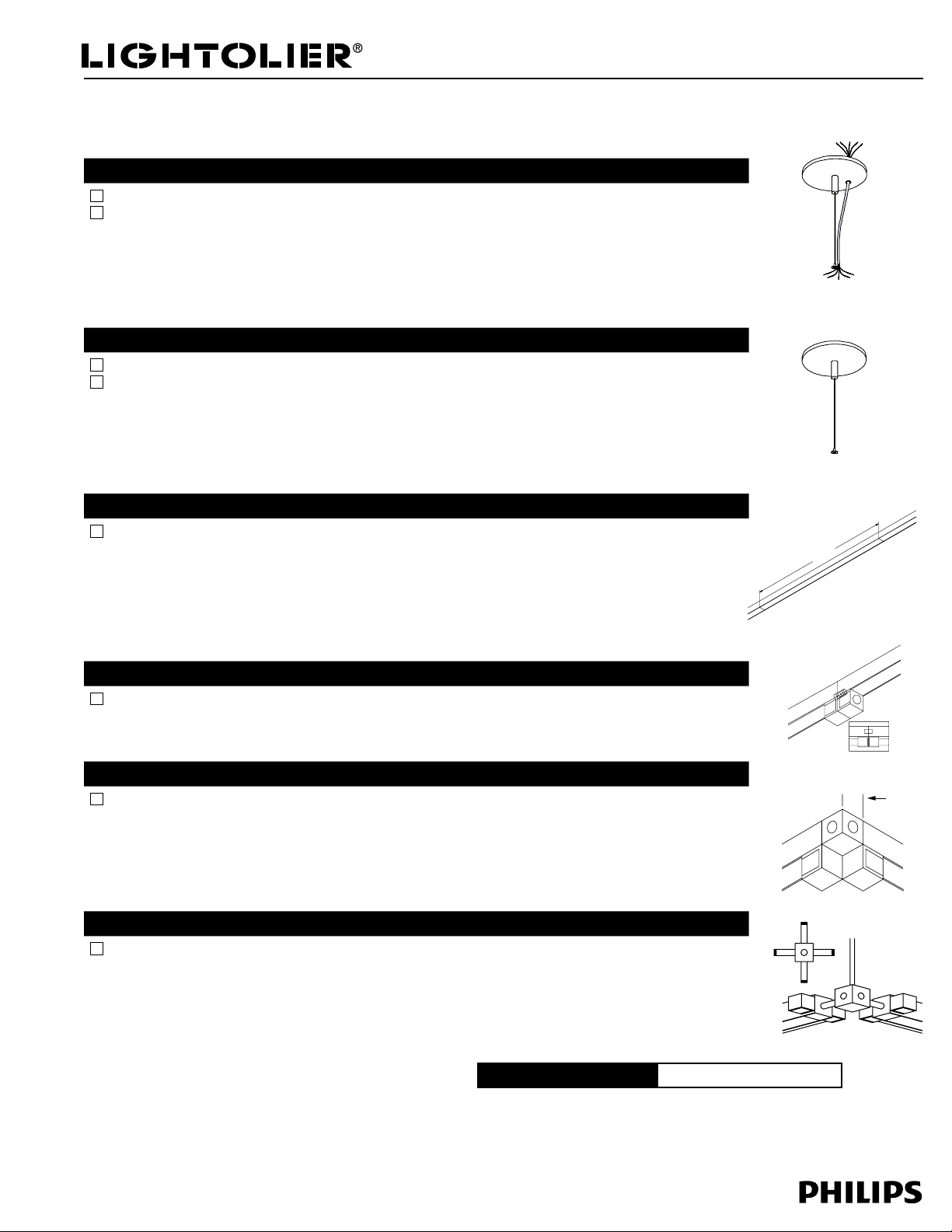

Accessories/Options

Cat. No. Finish Feed Canopy Kit

SL003JLG
SL003JWH

Cat. No. Finish Invisible Feed Kit

SL003K Corrosion Protected Accepts conduit or cable with 3/8" (10mm) or 1/2" (13mm)

Cat. No. Finish Grid Ceiling Feed Kit

SL003LLG
SL003LWH

Textured Light Grey
White

Textured Light Grey
White

Mounts to end or middle of the channel for power feed from
3" (76mm) or 4" (102mm) octagonal outlet box. Kit includes
one 0.05" (1.3mm) thick, 4-1/2" (114mm) grounded square steel
plate. Comes with 4 wires 18 AWG, 10 Amps max.

electrical connector (by others). Kit includes one 0.06" (1.5mm)
thick wall by 1/2" (13mm) dia. seamless steel stem and,
one 0.09" (2.3mm) thick by 5/8" (16mm) by 15/16" (24mm) dia.
aluminum connector. (20 Amps max.)

Mounts along runner or at the intersection of runners. Kit
Includes one 2-1/8” (54mm) deep by 4” (102mm) grounded
octagonal outlet box, one 0.05” (1.3mm) thick universal
crossbar, one 4-1/2” (114mm) white plastic square, and two
t-bar clips 5/32” (4mm) thick spacer, one 0.04” (1 mm) thick
aluminum canopy and two t-bar wrap around clips. Comes
with 4 wires 18 AWG, 10 Amps max.

Cat. No. Finish Power Feed Stem Kit

SLO03M18LG
SLO03M36LG
SLO03M48LG
SLO03M72LG
SLO03M18WH
SLO03M36WH
SL003M48WH
SLO03M72WH

18" Textured Light Grey
36" Textured Light Grey
48" Textured Light Grey
72" Textured Light Grey
18" White
36" White
48" White
72" White

Mounts to a 3" (76mm) or 4" (102mm) octagonal outlet box
Kit includes one 0.024" (0 6mm) thick, 5" (127mm) round steel
canopy, and one 0.06" (1.5mm) thick, 1/2" (13mm) dia. seamless
steel stem, available in 4 different lengths and two decorative
cylinder head screws. Complete installation of Power Feed
Stem Kit. Field cuttable, re-thread stem 1/4-18 NPS. Comes
with 5 pre-assembled wires. 10 Amps max.

Cat. No. Finish Stem Mounting Kit (non-electrical)

SLO04M18LG
SLO04M36LG
SLO04M48LG
SLO04M72LG
SLO04M18WH
SLO04M36WH
SLO04M48WH
SLO04M72WH

18" Textured Light Grey
36" Textured Light Grey
48" Textured Light Grey
72" Textured Light Grey
18" White
36" White
48" White
72" White

Mounts to a 3" (76mm) or 4" (102mm) octagonal outlet box
Kit includes one 0.024" (0 6mm) thick, 5" (127mm) round steel
canopy, and one 0.06" (1.5mm) thick, 1/2" (13mm) dia. seamless
steel stem, available in 4 different lengths and two decorative
cylinder head screws. Complete installation of Power Feed
Stem Kit. Field cuttable, re-thread stem 1/4-18 NPS.
