Lightolier QVS2GSDOS2FT User Manual
Mounting Methods / Features Dimensions
Also available with
microperforated mesh lamp shields
Ceiling compatibility
Swing down optical system for
easy relamping and maintenance
Suited to standard exposed
T-grid ceilings
Suited to standard exposed
Slot T-grid ceilings

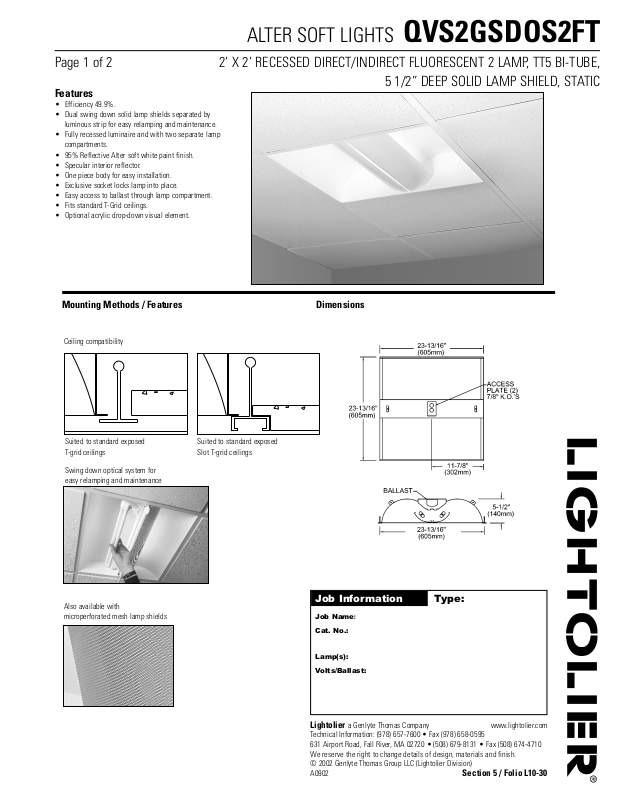

ALTER SOFT LIGHTS QVS2GSDOS2FT
Page 1 of 2 2’ X 2’ RECESSED DIRECT/INDIRECT FLUORESCENT 2 LAMP, TT5 BI-TUBE,
5 1/2” DEEP SOLID LAMP SHIELD, STATIC
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
Lightolier a Genlyte Thomas Company www.lightolier.com
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division)
A0902 Section 5 / Folio L10-30
Features
• Efficiency 49.9%.
• Dual swing down solid lamp shields separated by
luminous strip for easy relamping and maintenance.
• Fully recessed luminaire and with two separate lamp
compartments.
• 95% Reflective Alter soft white paint finish.
• Specular interior reflector.
• One piece body for easy installation.
• Exclusive socket locks lamp into place.
• Easy access to ballast through lamp compartment.
• Fits standard T-Grid ceilings.
• Optional acrylic drop-down visual element.
Ordering Information Explanation of Catalog Number Example: QVS2GSDOS2FT120SB
QUALITY
VISUAL
STATIC
Recessed direct
indirect soft
light
optical system
FIXTURE
WIDTH:
2’
CEILING TYPE:
Standard
exposed
T-grid ceilings
LAMP SHIELD:
PF = Microperforated
SD = Solid
LAMP
QUANTITY
LAMP/FIXTURE
LENGTH:
(NOMINAL 24”)
FT = TT5
Bi-Tube
VOLTAGE:
120V
277V
347V
Specifications
MATERIALS: One piece chassis constructed from die formed 20 gauge cold rolled
steel. Reflectors - 95% reflectance baked white acrylic matte paint finish. Specular
interior reflector.
FINISH: Chassis exterior - phosphate undercoating, baked white acrylic matte high
reflectance paint finish.
ELECTRICAL: Rapid start HPF, thermally protected class “P” ballast (Bi-tube type). If
K.Os are within 3” of ballast use wire suitable for at least 90C.
LABELS: Listed by
Photometry
QVS
2 G 2 FT
BALLAST:
BE = 50W Electronic TT5 RS
BR =40W Electronic TT5 RS
BX = 40W Magnetic TT5 RS
PB = 40W TT5 PowerSpec Dimming*
PC = 50/55W TT5 PowerSpec Dimming*
SB = 40W Generic Electronic TT5
*Not available in 347V.
OPTIONS:
R = Radio Interference Filter
O =Emergency Lighting System
(for Canada)
N =Emergency Lighting System
(for U.S.)
CLEAR POLISHED
ACRYLIC DROP
DOWN VISUAL
ELEMENT:
OS = Open slot (no acrylic)
OP = One Piece (no center slot)
GC = Clear acrylic
GG = Clear acrylic / Green projected color face
GB = Clear acrylic / Blue projected color face
GR = Clear acrylic / Red projected color face
ALTER SOFT LIGHTS QVS2GSDOS2FT
Page 2 of 2 2’ X 2’ RECESSED DIRECT/INDIRECT FLUORESCENT 2 LAMP, TT5 BI-TUBE,
5 1/2” DEEP SOLID LAMP SHIELD, STATIC
Lightolier a Genlyte Thomas Company www.lightolier.com
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division)
A0902 Section 5 / Folio L10-30
Job Information Type:
