Lightolier QVS2GSDOS232 User Manual
Mounting Methods / Features Dimensions
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
Lightolier a Genlyte Thomas Company www.lightolier.com
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division)
A0902 Section 5 / Folio L30-15
Features
• Efficiency 52.4%.
• Swing down solid lamp shield for easy relamping and maintenance.
• Fully recessed luminaire and lamp compartment.
• 95% Reflective Alter soft white paint finish.
• Specular interior reflector.
• One piece body for easy installation.
• Easy access to ballast through lamp compartment.
• Fits standard T-Grid ceilings.
• Optional acrylic drop-down visual element.

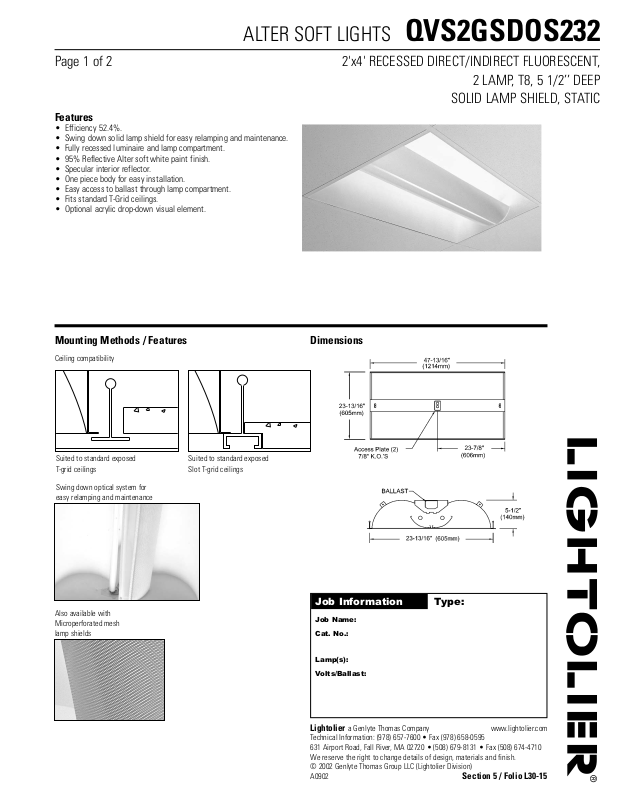

ALTER SOFT LIGHTS QVS2GSDOS232
Page 1 of 2 2'x4' RECESSED DIRECT/INDIRECT FLUORESCENT,
2 LAMP, T8, 5 1/2’’ DEEP
SOLID LAMP SHIELD, STATIC
Also available with
Microperforated mesh
lamp shields
Ceiling compatibility
Swing down optical system for
easy relamping and maintenance
Suited to standard exposed
T-grid ceilings
Suited to standard exposed
Slot T-grid ceilings
Photometry
Lightolier a Genlyte Thomas Company www.lightolier.com
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division)
A0902 Section 5 / Folio L30-15
Job Information Type:
Specifications
MATERIALS: One piece chassis constructed from die formed 20 gauge cold rolled
steel. Reflectors - 95% reflectance baked white acrylic matte paint finish.
Specular interior reflector.
FINISH: Chassis exterior - phosphate undercoating, baked white acrylic matte
high reflectance paint finish.
ELECTRICAL: Rapid start HPF, thermally protected class “P” ballast. If K.Os are
within 3” of ballast use wire suitable for at least 90C.
LABELS: Listed by
Ordering Information
Explanation of Catalog Number. Example: QVS2GSDOS232120SO
ALTER SOFT LIGHTS QVS2GSDOS232
Page 2 of 2 2'x4' RECESSED DIRECT/INDIRECT FLUORESCENT,
2 LAMP, T8, 5 1/2’’ DEEP
SOLID LAMP SHIELD, STATIC
QUALITY
VISUAL
STATIC
Recessed direct
indirect soft light
optical system
FIXTURE
WIDTH:
2’
CEILING TYPE:
Standard exposed
T-grid ceilings
LAMP SHIELD:
PF = Microperforated
SD = Solid
LAMP
QUANTITY
LAMP/FIXTURE
LENGTH:
(NOMINAL 48”)
32 = 32W T8
VOLTAGE:
120V
277V
347V
QVS 2 G 2 32
BALLAST:
OC = Magnetic T8
SO = Electronic T8 instant start
SR = Electronic T8 rapid start
PS = PowerSpec
HDF Dimming T8 (Not available in 347V.)
OPTIONS:
R = Radio Interference Filter
O = Emergency Lighting System
(for Canada)
N = Emergency Lighting System
(for U.S.)
CLEAR POLISHED
ACRYLIC DROP
DOWN VISUAL
ELEMENT:
OS = Open slot (no acrylic)
OP = One Piece (no center slot)
GC = Clear acrylic
GG = Clear acrylic / Green projected color face
GB = Clear acrylic / Blue projected color face
GR = Clear acrylic / Red projected color face
