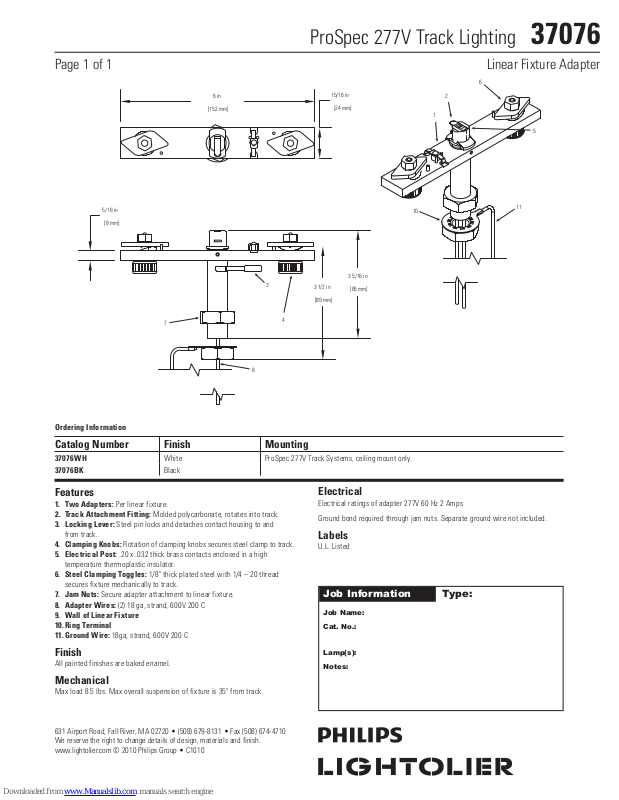

ProSpec 277V Track Lighting 37076
Page 1 of 1 Linear Fixture Adapter
6
6 in
[152 mm]
15/16 in
[24 mm]
2
1
5
5/16 in
[8 mm]
3
7
4
8
Orde ring Information
Catalog Number Finish Mounting
370 76WH
370 76BK
White ProSpec 277V Track Systems, ceiling mount only.
Black
Features
1. Two Adapters: Per linear fixture.
2. Track At tachment Fitting: Molded polycarbonate, rotates into track.
3. Locking Lever: Steel pin locks and detaches contact housing to and
from track.
4. Clamp ing Knobs: Rotation of clamping knobs secures steel clamp to track.
5. Electrical Post: .20 x .032 thick brass contacts enclosed in a high
temperature thermoplastic insulator.
6. Steel Clamping Toggles: 1/8" thick plated steel with 1/4 – 20 thread
secures fix ture mechanically to track.
7. Jam Nuts: Secure adapter attachment to linear fixture.
8. Adapter Wires: (2) 18 ga, strand, 600V 200 C
9. Wall of Linear Fixture
10. Ring Terminal
11. Ground Wire: 18ga, strand, 60 0V 200 C
Finish
All painted finishes are baked enamel.
Mechanical
Max load 8.5 lbs. Max overall suspension of fixture is 35" from track.
11
3 1/2 in
[89 mm]
10
3 5/16 in
[85 mm]
Electrical
Electrical ratings of adapter 277V 60 Hz 2 Amps
Ground bond required through jam nuts. Separate ground wire not included.
Labels
U.L. Listed
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • C1010
